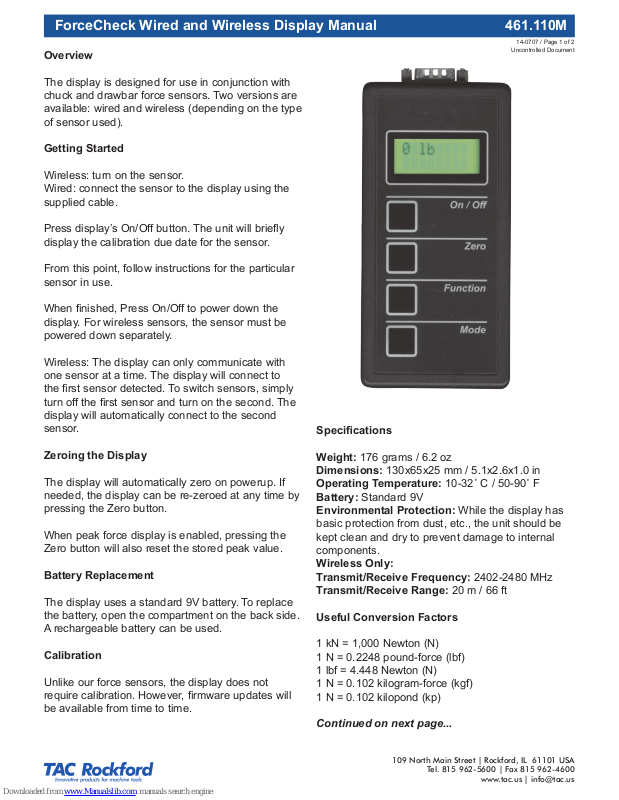

ForceCheck Wired and Wireless Display Manual 461.110M
Tel. 815 962-5600 | Fax 815 962-4600
www.tac.us | info@tac.us
14-0707 / Page 1 of 2
Overview
The display is designed for use in conjunction with
chuck and drawbar force sensors. Two versions are
available: wired and wireless (depending on the type
of sensor used).
Getting Started
Wireless: turn on the sensor.
Wired: connect the sensor to the display using the
supplied cable.
Press display’s On/Off button. The unit will briey
display the calibration due date for the sensor.
From this point, follow instructions for the particular
sensor in use.
When nished, Press On/Off to power down the
display. For wireless sensors, the sensor must be
powered down separately.
Uncontrolled Document
Wireless: The display can only communicate with
one sensor at a time. The display will connect to
the rst sensor detected. To switch sensors, simply
turn off the rst sensor and turn on the second. The
display will automatically connect to the second
sensor.
Zeroing the Display
The display will automatically zero on powerup. If
needed, the display can be re-zeroed at any time by
pressing the Zero button.
When peak force display is enabled, pressing the
Zero button will also reset the stored peak value.
Battery Replacement
The display uses a standard 9V battery. To replace
the battery, open the compartment on the back side.
A rechargeable battery can be used.
Calibration
Unlike our force sensors, the display does not
require calibration. However, rmware updates will
be available from time to time.
Specications
Weight: 176 grams / 6.2 oz
Dimensions: 130x65x25 mm / 5.1x2.6x1.0 in
Operating Temperature: 10-32˚ C / 50-90˚ F
Battery: Standard 9V
Environmental Protection: While the display has
basic protection from dust, etc., the unit should be
kept clean and dry to prevent damage to internal
components.
Wireless Only:
Transmit/Receive Frequency: 2402-2480 MHz
Transmit/Receive Range: 20 m / 66 ft
Useful Conversion Factors
1 kN = 1,000 Newton (N)
1 N = 0.2248 pound-force (lbf)
1 lbf = 4.448 Newton (N)
1 N = 0.102 kilogram-force (kgf)
1 N = 0.102 kilopond (kp)
Continued on next page...
109 North Main Street | Rockford, IL 61101 USA
ForceCheck Wireless Display Manual 461.110M
Tel. 815 962-5600 | Fax 815 962-4600
www.tac.us | info@tac.us
ForceCheck Wired and Wireless Display Manual 461.110M
14-0707 / Page 2 of 2
Uncontrolled Document
The display has several options that can be selected using the Function and Mode buttons. The chart below
outlines the display’s menu structure.
0 N Display:
Function Function Function Function
Force
Units:
Newton
AutoOff:
Off
Lang.:
English
Mode Mode Mode Mode Mode
SN 12345 Display:
F/Peak
Units:
kg-force
AutoOff:
On
Lang.:
Deutsch
Mode Mode Mode Mode
Last Cal
01-2009
Display:
F/RPM
Units:
lb-force
Lang.:
Español
Mode
Cal Due
01-2010
Display Key
Force: Display measured force only
F/Peak: Display current measured force over peak
force.
F/RPM: Display current measured force over
RPM (only active for wireless sensors with RPM
measurement capability).
Units:
Newton: Newtons (1 kN = 1,000 N)
kg-force: kilogram-force (equivalent to kilopond)
lb-force: pound-force
Language: English, Deutsch, Español.
AutoOff: With AutoOff “On”, the display will
automatically turn itself off after approximately 1
minute of inactivity.
During normal operation, information on the
connected sensor can be obtained by pressing the
Mode button. The following are shown sequentially:
SN: Sensor serial number.
Last Cal: Date sensor was last calibrated.
Cal Due: Date sensor is due for calibration.
109 North Main Street | Rockford, IL 61101 USA
