101-1

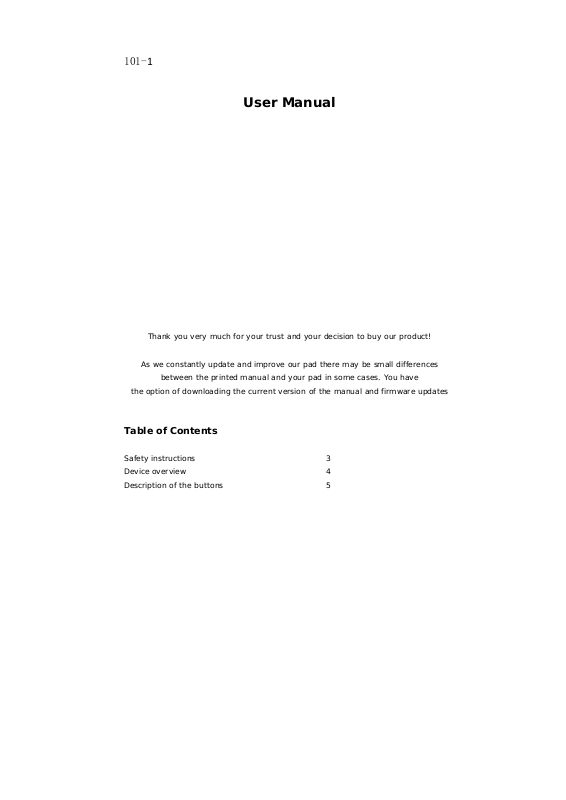

User Manual
Thank you very much for your trust and your decision to buy our product!
As we constantly update and improve our pad there may be small differences
between the printed manual and your pad in some cases. You have
the option of downloading the current version of the manual and firmware updates
Table of Contents
Safety instructions 3
Device overview 4
Description of the buttons 5
101-2
Language settings 6
Power monitoring
and charging the batteries 7
Screen lock 7
Connecting with computer and data transfer 7
Functions of the buttons on the
user interface 8
Programme menu 10
System settings 13
1. Wireless & Networks 13
2. Sound settings 15
2. Sound settings 16
3. Display settings 16
4. Location & safety 16
5. Application 16
6. Accounts & synchr. 16
7. Data protection 16
8. Memory 17
9. Language & keyboard 17
10. Date & time 17
11. Telephone info 17
Internet 18
Open Source Code & GNU General Public License 19
Technical Data 20
FCC Statement 21
101-3
This user manual contains important safety instructions and
information for proper use of the device. Please follow the
instructions in this manual carefully.
A Please keep the device away from places with high temperatures,
high humidity or dust.
B In particular please avoid leaving the device in the car during
summer if the doors are closed.
C Avoid shocks and do not let the device fall, as otherwise it may
cause damage to the device.
D The Standby Time of the batteries may vary due to different
environmental influences.
E We are not responsible for data losses that are caused by damage
to the product, repairs or any other reasons.
F Do not open the housing of the device. Doing th is will void your
warranty claims.
G Do not use alcohol, thinners or petrol to clean the display
– use only a dry cloth.
101-4
Device overview
1. Power button 9. Volume- Button
2. Earphone 10. Menu Button USB Port
3. MIC Volume+ Button 11. Rear Camera
4. Micro SD/SDHC Card Slot 12. Speakers
5. DC-in 13. Front Camera
6. USB/ OTG
7. HDMI PORT
8. Volume+ Button
101-5
Description of the buttons
Volume Buttons:
Here you can increase or reduce the volume.
Power Button:
Press the button for two seconds to switch on or switch off
the device. Press the button briefly to activate or end the StandbyMode. Reset: Press the button for seven seconds to restart
the device.
ESC Button:
To go back to the previous menu
Menu Button:
To open the context menu
101-6
Language setting
English as a default language.
To change the language setting, please do the following:
- Press on the programme menu symbol
on the right side of the screen.
- Select ‘Settings’
- Scroll to the end of the list.
- Select ‘Language & keyboard’.
- Select ‘Select language’.
- Type your preferred language.
- Press the ‘Home’ button to return to the home screen.
.
101-7
Power monitoring and charging the batteries
The battery charge symbol in on the status bar indicates
the charging status of the batteries.
If the power goes down, the device shuts itself off automatically.
If less power is shown, use the power adapter or a computer
via USB to charge the device.
The charging time for the battery is approximately six hours.
Screen lock
If the device is not used for specified time or the ‘Power’ button
is pressed briefly, the screen is switched off and display lock
is activated.
By pressing the ‘Power’ button briefly the screen will be reactivated.
For locking the screen press the ‘Lock’ button in the specified
direction.
Connecting to the computer and data transfer
101 is equipped with a High-Speed USB2.0 Interface.
After you connect the device to a computer, it appears in
the status display
Pull the status bar down and press ‘USB Connection’ to activate
the USB Memory. When using the device for data transfer,
you cannot access the Micro SD/TF Card from 97D!
.
101-8
Functions of the buttons on the user interface:
To go back to the start screen.
To open the context menu.
To go back to the previous menu / previous page.
To display the programs and applications.
Change Window Button:
The device has five desktops. You can press this button
or push your finger on the touchscreen to the side to navigate
between different desktops.
Home Button:
Menu Button:
Back Button:
Program Menu Button:
WIFI / WLAN Signal Icon
101-9
System instructions:
Pull the status bar down to view messages about new e-mails,
downloaded documents, USB Connection Status or other information.
Program menu
101-10
ApkInstaller:
Program for installing and uninstalling Apps that were not
downloaded from the Android Market.
Market:
Load Apps (programs) from the Android Market. You can download
and install apps, games and other applications. Many are free.
Explorer:
Open the Explorer to access Micro SD TF Cards, USB sticks and
other storage media. The Explorer is a practical manager for
documents and all types of data.
Internet browser
Camera
E-mail:
Program for retrieving, processing and sending e-mails.
G-mail:
Program for retrieving, processing and sending e-mails through
Google account.
Google Maps:
Program for the display of maps or satellite images – Route planner.
101-11
Skype:
Program to chat with other Skype users or to make telephone calls
via Internet.
Twitter:
Application for Microblogging – Facilitates the display of public
diaries or create a public diary of your own.
Facebook:
Program for using the social network site Facebook.
Calendar:
Managing schedules – can be synchronised automatically with a
Google account.
Pocket Calculator
Time:
Time display and setting alarm functions.
Settings:
Changing the basic settings of EasyPad.
Sound Recorder:
Dictation Device Function.
101-12
Video Player
Gallery:
Manage and display images and videos – also enables
synchronisation with Picasa web albums.
Shelves:
A program for reading and managing e-books.
Angry Birds Rio: Game of skill
Fruit Ninja: Game of skill
System settings
101-13
Touch the icon for the settings to open the system settings
menu:
1. Wireless & Networks
Touch ‘Wireless & Networks’.
WLAN: Touch
function.
The device automatically searches for available WLAN networks.
WLAN Settings: Select your network here.

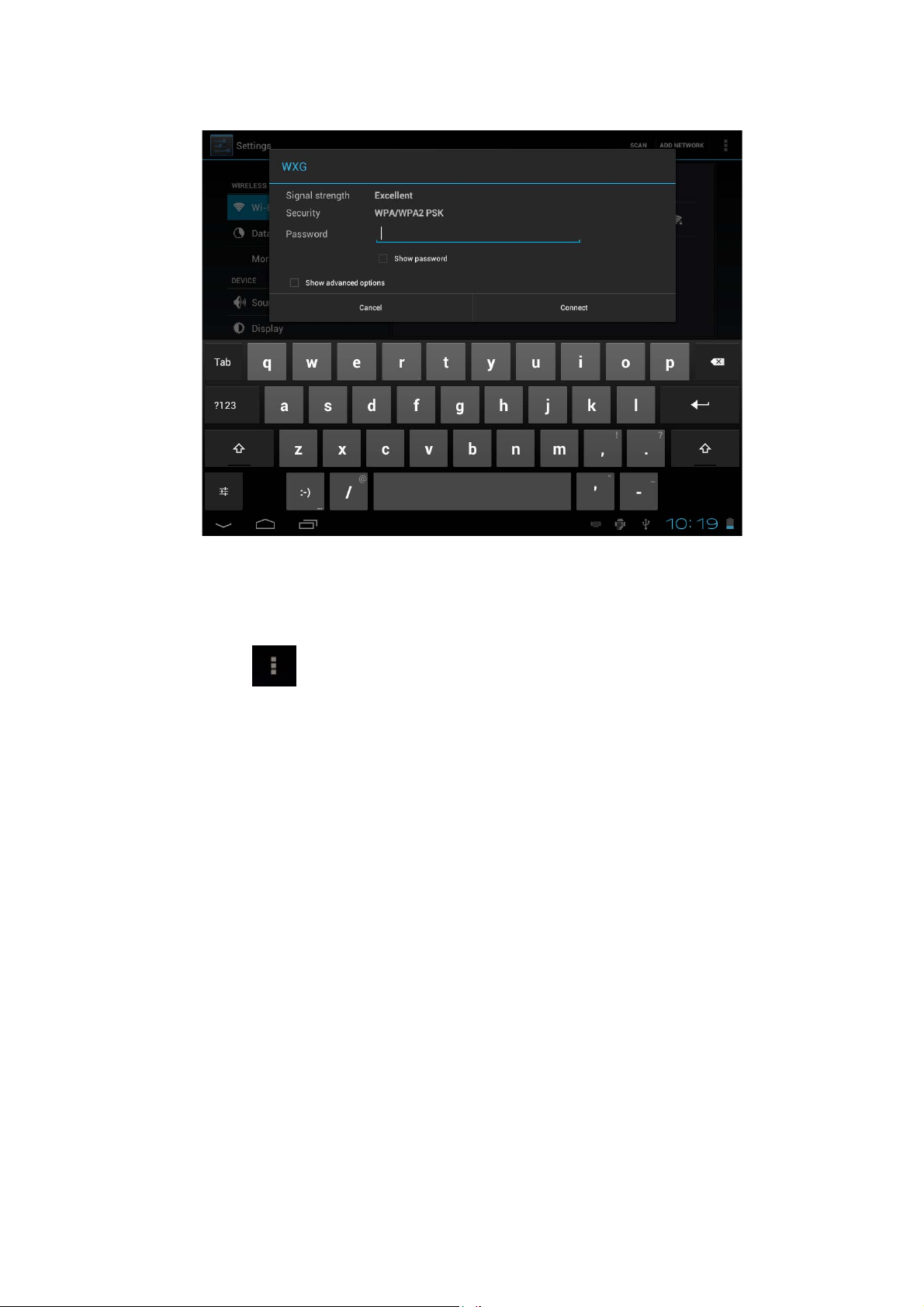

If needed you will be requested to enter your WLAN password:
=> to switch on the WLAN
101-14
Advanced WLAN / Wi-Fi settings:
Touch
advanced settings will open up automatically. In the menu for the
advanced settings you can view the current status, the IP address
and other device information.
in the menu for WLAN / Wi-Fi Settings, the menu for
101-15
2,Bluetooth setting
Touch ‘Bluetooth’.
Bluetooth: Touch
Bluetooth function.
The device automatically searches for available bluetooth device.
Bluetooth match Settings: Select your Bluetooth device.
If needed you will be requested to enter your pair password:
=> to switch on the
101-16
3. Sound settings
The ‘Sound’ settings contain the volume control, and selection of
notification sounds, system sounds, signal tones for Micro SD/TF
Cards and USB signal tone.
4. Display settings
Includes brightness, automatic screen rotation (G-sensor),
animations and display timeout time, Switch off display after：
15 seconds, 30 seconds, 1 minute, 2 minutes, 10 minutes or
30 minutes are available. For example, if you select 30 seconds,
the display will be switched after 30 seconds of inactivity and screen
lock is activated. Press the ‘Power’ button to reactivate the Display.
Push the ‘Lock’ button up to lift the screen lock.
5. Location & safety
Here you can activate the automatic recognition of the location.
You can also set security passwords which will prevent unauthorised
access to your EasyPad.
6. Application
Here you can manage your apps and define if apps from sources
other than the Android Market are allowed to be installed.
7. Accounts & synchr.
General synchronisation settings:
1. Background data
2. Automatic synchronisation
Account management: Management of user accounts
101-17
8. Data protection
Secure my data: Here you can define if different settings
should be stored on Google servers.
Touch ‘Reset to default’ to reset the device to factory settings.
All settings, self-installed apps and data stored on internal memory
can be deleted.
9. Memory
Here the current memory use is displayed.
Touch ‘Remove SD Card’ to remove the Micro SD/TF Card
during use.
10. Language and keyboard
Set the system language and input method.
11. Date and time
If your network does not support automatic setting of time,
you can set the time, time zone and date manually after
deactivating automatic settings.
12. Telephone info
Here you can view device internal values such as operating system
version, battery status, signal strength of the mobile network etc.
Main functions
101-18
Internet
Touch
Google is the default start page.
Touch the input field to display the keyboard:
Touch
website.
Note: The Android keyboard has few options for settings such as:
keyboard language, numbers and icons etc.
The Internet browser can open four websites simultaneously;
Icon to surf the net.
after entering a website address to open the
Touch
and the menu will be displayed as follows:
101-19
Touch ‘Refresh’ to refresh the current web page
Touch ‘New tab’ and a new website will be displayed.
Touch ‘N ew incognito tab’ and a new blank website will be displayed
Touch ‘Share page’ to Share this page to others
Touch ‘Find on page’ to enter new web address
Touch ‘Request desktop site’ to make it default web
Touch ‘Save for offline reading’ to read it when offline
Touch ‘Page info’ to check th e web information
Touch ‘Settings’ to enter in browser settings
101-20
Technical Data
Screen size 10.1 inch Tablet-PC
CPU Rockchip rk3066 dual-core 1.5 GHz
Operating System Android 4.0 – Ice Cream Sandwich
RAM 1GB DDR3
Internal Memory 16GB NAND FlashS
Memory Expansion Micro SD/SDHC up to 32GB
Display 16:9 Capacitive 10-point Multi-Touch-Display
Resolution 1280 x 800 Pixel
Camera Front 2.0MP,Back 2.0MP
Battery 8000MAH, 5V, 2A rechargeable Li-ion Battery
MIC Yes
Internet & Skype Phone-Function
WIFI 802.11b/g/n (high sensitivity)
Bluetooth Build in
I/O ports 1x DC In, 1x headphone, 1x TF Card-Slot,
1x USB 2.0, host/ OTG,1 HDMI
Video-Formats H.264, VP8, RV, WMV, AVS, H.263, MPEG4 etc 1080P,
YouTube, 720P, HTML5, Flash 11
Office Word / Excel / PDF / PPT, Microsoft Wordpad,
Microsoft SpreadExcel
The software is not on the device and
must be downloaded by the user.
Images JPG, BMP, PNG etc.
101-21
FCC Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation . This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turnin g the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
expressly approved by the party Responsible for compliance could
void the user’s authority to operate this equipment.
any changes or modifications not
RF warning statement:
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure condition
without restriction.
101-22
Loading...
