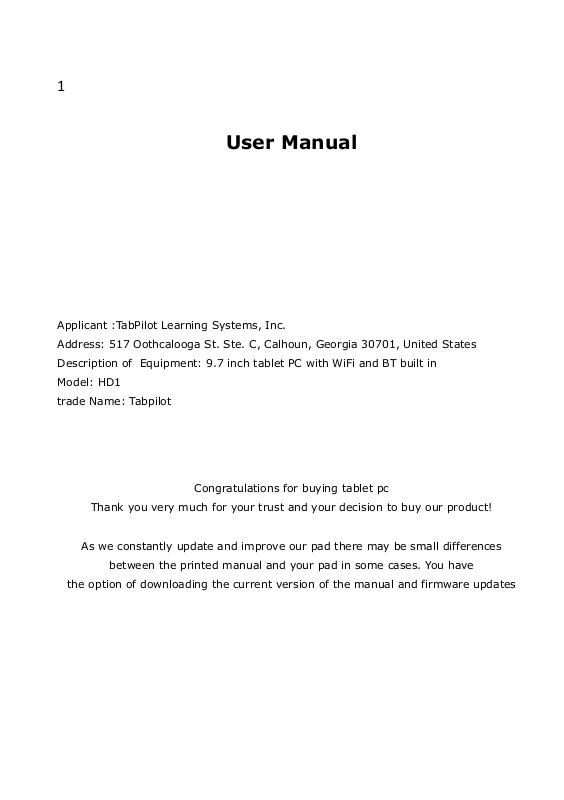

User Manual
Applicant :TabPilot Learning Systems, Inc.
Address: 517 Oothcalooga St. Ste. C, Calhoun, Georgia 30701, United States
Description of Equipment: 9.7 inch tablet PC with WiFi and BT built in
Model: HD1
trade Name: Tabpilot
Congratulations for buying tablet pc
Thank you very much for your trust and your decision to buy our product!
As we constantly update and improve our pad there may be small differences
between the printed manual and your pad in some cases. You have
the option of downloading the current version of the manual and firmware updates
2
Table of Contents
Safety instructions 3
Description of the buttons 4
Language settings 5
Power monitoring
and charging the batteries 5
Screen lock 6
Connecting with computer and data transfer 6
Functions of the buttons on the
user interface 7
Programme menu 8
System settings 11
1. Wireless & Networks 11
2. Sound settings 13
3. Display settings 13
4. Location & safety 13
5. Application 13
6. Accounts & synchr. 13
7. Data protection 14
8. Memory 14
9. Language & keyboard 14
10. Date & time 14
11. Bluetooth 14
12. Telephone info 14
Internet 15
Open Source Code & GNU General Public License 16
Technical Data 17
3
Description of the buttons
1. POWER button 9. ESC button
2. Card Slot 10. Front camera
3. USB/ OTG Port 11. Rear camera
4. DC-in
5. MIC
6. Earphone
7. SPEAKERS
8. Volume Button
4
Language setting
PC is delivered with English as a default language.
To change the language setting, please do the following:
- Press on the programme menu symbol
on the right side of the screen.
- Select ‘Settings’ .
- Scroll to the end of the list.
- Select ‘Language & keyboard’.
- Select ‘Select language’.
- Type your preferred language.
- Press the ‘Home’ button to return to the home screen.
Power monitoring and charging the batteries
The battery charge symbol in on the status bar indicates
the charging status of the batteries.
If the power goes down, the device shuts itself off automatically.
If less power is shown, use the power adapter or a computer
via USB to charge the device.
The charging time for the battery is approximately six hours.
5
Screen lock
If the device is not used for specified time or the ‘Power’ button
is pressed briefly, the screen is switched off and display lock
is activated.
By pressing the ‘Power’ button briefly the screen will be reactivated.
For locking the screen press the ‘Lock’ button in the specified
direction.
Connecting to the computer and data transfer
PC is equipped with a High-Speed USB2.0 Interface.
After you connect the device to a computer, it appears in
the status display .
Pull the status bar down and press ‘USB Connection’ to activate
the USB Memory. When using the device for data transfer,
you cannot access the Micro SD/TF Card from PC!
6
Functions of the buttons on the user interface:
Home Button:
To go back to the start screen.
Menu Button:
To open the context menu.
Back Button:
To go back to the previous menu / previous page.
Program Menu Button:
To display the programs and applications.
Change Window Button:
The device has five desktops. You can press this button
or push your finger on the touch screen to the side to navigate
between different desktops.
WIFI / WLAN Signal Icon
System instructions:
Pull the status bar down to view messages about new e-mails,
7
downloaded documents, USB Connection Status or other information.
Program menu
ApkInstaller:
Program for installing and uninstalling Apps that were not
downloaded from the Android Market.
Market(Google play store):
Load Apps (programs) from the Android Market. You can download
and install apps, games and other applications. Many are free.
Explorer:
Open the Explorer to access Micro SD TF Cards, USB sticks and
other storage media. The Explorer is a practical manager for
documents and all types of data.
Internet browser
Front& back 2.0MP camera
E-mail:
Program for retrieving, processing and sending e-mails.
G-mail:
Program for retrieving, processing and sending e-mails through
Google account.
8
Google Maps:
Program for the display of maps or satellite images – Route planner.
Calendar:
Managing schedules – can be synchronised automatically with a
Google account.
Pocket Calculator
Time:
Time display and setting alarm functions.
Settings:
Changing the basic settings of EasyPad.
Sound Recorder:
Dictation Device Function.
Video Player
Gallery:
Manage and display images and videos – also enables
synchronisation with Picasa web albums.
9
System settings
Touch the icon for the settings to open the system settings
menu:
1. Wireless & Networks
Touch ‘Wireless & Networks’.
10
WIFI: Touch => to switch on the WLAN
function.
The device automatically searches for available WLAN networks.
WLAN Settings: Select your network here.
If needed you will be requested to enter your WLAN password:
11
Advanced WLAN / Wi-Fi settings:
Touch in the menu for WLAN / Wi-Fi Settings, the menu for
advanced settings will open up automatically. In the menu for the
advanced settings you can view the current status, the IP address
and other device information.
12
2. Sound settings
The ‘Sound’ settings contain the volume control, and selection of
notification sounds, system sounds, signal tones for Micro SD/TF
Cards and USB signal tone.
3. Display settings
Includes brightness, automatic screen rotation (G-sensor),
animations and display timeout time, Switch off display after：
15 seconds, 30 seconds, 1 minute, 2 minutes, 10 minutes or
30 minutes are available. For example, if you select 30 seconds,
the display will be switched after 30 seconds of inactivity and screen
lock is activated. Press the ‘Power’ button to reactivate the Display.
Push the ‘Lock’ button up to lift the screen lock.
4. Location & safety
Here you can activate the automatic recognition of the location.
You can also set security passwords which will prevent unauthorised
access to your EasyPad.
5. Application
Here you can manage your apps and define if apps from sources
other than the Android Market are allowed to be installed.
6. Accounts & synchr.
General synchronisation settings:
1. Background data
2. Automatic synchronisation
13
Account management: Management of user accounts
7. Data protection
Secure my data: Here you can define if different settings
should be stored on Google servers.
Touch ‘Reset to default’ to reset the device to factory settings.
All settings, self-installed apps and data stored on internal memory
can be deleted.
8. Memory
Here the current memory use is displayed.
Touch ‘Remove SD Card’ to remove the Micro SD/TF Card
during use.
9. Language and keyboard
Set the system language and input method.
10. Date and time
If your network does not support automatic setting of time,
you can set the time, time zone and date manually after
deactivating automatic settings.
11. Bluetooth Setting
In Wireless & Networks settings，After it scans and detects the
Bluetooth phone devices, users should pair the phone, when it is
paired, it will work.
12. Telephone info
Here you can view device internal values such as operating system
version, battery status, signal strength of the mobile network etc.
14
Main functions
Internet
Touch Icon to surf the net.
Google is the default start page.
Touch the input field to display the keyboard:
Touch after entering a website address to open the
website.
Note: The Android keyboard has few options for settings such as:
keyboard language, numbers and icons etc.
The Internet browser can open four websites simultaneously;
15
Touch and the menu will be displayed as follows:
Touch ‘Refresh’ to refresh the current web page
Touch ‘New tab’ and a new website will be displayed.
Touch ‘New incognito tab’ and a new blank website will be displayed
Touch ‘Share page’ to Share this page to others
Touch ‘Find on page’ to enter new web address
Touch ‘Request desktop site’ to make it default web
Touch ‘Save for offline reading’ to read it when offline
Touch ‘Page info’ to check the web information
Touch ‘Settings’ to enter in browser settings
16
Technical Data
CPU Rockchip 3188 1.5GHz
GPU 4 cores Mali 400MP
OS Android 4.1,1– Jelly bean
RAM 2GB DDR3
Internal Memory 8/16/32GB NAND Flash
Memory Expansion Micro SD/SDHC up to 32GB
Camera Front 2.0MP, Back 2.0MP
MIC Yes
WIFI 802.11b/g/n (high sensitivity)
I/O ports 1x DC In, 1x headphone, 1x TF Card-Slot,
1x USB 2.0/OTG
Video-Formats H.264, VP8, RV, WMV, AVS, H.263, MPEG4 etc 1080P,
YouTube, 720P, HTML5, Flash 11
Office Word / Excel / PDF / PPT, Microsoft Word pad,
Microsoft Spread Excel
The software is not on the device and
must be downloaded by the user.
Images JPG, BMP, PNG etc.
A.Please select the headphone output mode to listen music in public place, so as not
to disturb others.
C Please keep the device away from places with high temperatures,
high humidity or dust.
D In particular please avoid leaving the device in the car during summer if the doors
are closed.
E Avoid shocks and do not let the device fall, as otherwise it may cause damage to
17
the device.
F The Standby Time of the batteries may vary due to different environmental
influences.
G We are not responsible for data losses that are caused by damage to the product,
repairs or any other reasons.
H Do not open the housing of the device. Doing this will void your warranty claims.
I Do not use alcohol, thinners or petrol to clean the display
– use only a dry cloth.
FCC Warning Statement:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
18
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be located or
operating in conjunction with any other antenna or transmitter.
Loading...
