Volume Power
Back
Home
Settings
Touch and slide to unlock

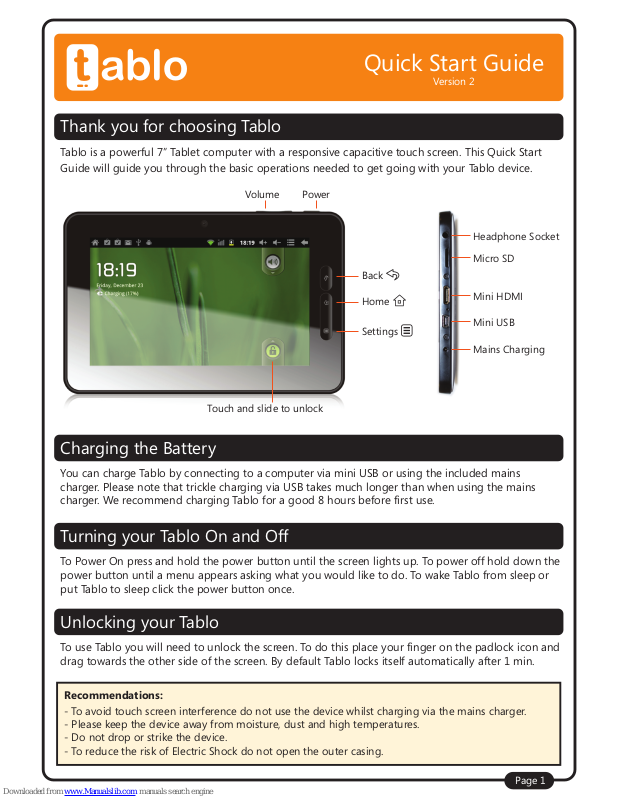

Quick Start Guide
Micro SD
Mini HDMI
Headphone Socket
Mini USB
Mains Charging
Charging the Battery
You can charge Tablo by connecting to a computer via mini USB or using the included mains
charger. Please note that trickle charging via USB takes much longer than when using the mains
charger. We recommend charging Tablo for a good 8 hours before first use.
Version 2
Recommendations:
- To avoid touch screen interference do not use the device whilst charging via the mains charger.
- Please keep the device away from moisture, dust and high temperatures.
- Do not drop or strike the device.
- To reduce the risk of Electric Shock do not open the outer casing.
Thank you for choosing Tablo
Tablo is a powerful 7” Tablet computer with a responsive capacitive touch screen. This Quick Start
Guide will guide you through the basic operations needed to get going with your Tablo device.
Turning your Tablo On and Off
To Power On press and hold the power button until the screen lights up. To power off hold down the
power button until a menu appears asking what you would like to do. To wake Tablo from sleep or
put Tablo to sleep click the power button once.
Unlocking your Tablo
To use Tablo you will need to unlock the screen. To do this place your finger on the padlock icon and
drag towards the other side of the screen. By default Tablo locks itself automatically after 1 min.
Page 1
Installing new Apps via Android Market
To download apps you need a Google account. You can login or setup a new account after you have
started the Market application. A simple wizard guides you through this process.
Access installed applications using this on screen button:
Connecting to the Internet via WiFi
Tablo can connect to any router that supports the 802.11b/g standard.
To connect to your wireless network:
1. Touch Settings, Wireless &
Networks then Wi-Fi Settings.
2. Touch the Wi-Fi tick box.
3. Touch your network name
from the list.
4. Input your password.
Transferring files to and from your PC
To copy files to and from your Tablo from your PC:
1. Connect the device to the computer using the supplied USB cable.
You will see a notification in the status bar that USB is connected.
2. Touch and hold on the USB icon and drag down.
3. Touch the “USB Connected” option.
4. Touch “Turn on USB storage”
5. You should see a pop up on your
computer asking you if you want to
browse the device. You can also see
the device under “My Computer”.
6. To copy files you can now drag and
drop files to and from your Tablo
device.
To disconnect from your computer
repeat step 2 above then touch
“Turn off USB storage”.
Page 2
