User’s Guide

eo™ a7330

7¨ UMPC

Preface

Preface

This manual will help you get the most out of your new

Ultra-Mobile PC. If you are a new computer user, or just new

eo

™

to Tablet PCs, read through this manual carefully before first
using your eo Ultra-Mobile PC. If after reading this manual you
still have questions, visit us online at www.tabletkiosk.com for
additional resources and information on using your eo a7330
Ultra-Mobile PC.

Copyright

©2009 Sand Dune Ventures, Inc. All Rights Reserved. All product
information is subject to change without notice. eo, the eo logo,
TabletKiosk and the TabletKiosk logo are registered trademarks
or trademarks of Sand Dune Ventures, Inc. in the United States
and/or other countries. Microsoft Windows, Windows XP,
Windows Vista, and the Windows logo are either registered
trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries. Intel, the Intel logo, Intel Atom,
and Atom inside are trademarks of Intel Corporation in the U.S.
and other countries. The Bluetooth® word mark and logos are
owned by the Bluetooth SIG, Inc. and any use of such marks by
TabletKiosk is under license. openSUSE and SUSE are trademarks
of Novell, Inc. in the United States and other countries. Linux is a
registered trademark of Linus Torvalds.

Preface i

Disclaimer

The specifications and information in this manual are subject
to change without prior notice in order to improve reliability,
design and/or function. In no way does this represent a com­mitment on the part of the manufacturer. The manufacturer
assumes no responsibility for errors or omissions in this document.

In no event will the manufacturer be liable for direct, indirect,
special, incidental, or consequential damages arising from the
use, or inability to use, the Ultra-Mobile PC or this documenta­tion, even if advised of the possibility of such damages.

This document contains proprietary information protected
by copyright laws. All rights are reserved. No part of this
manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of
Tab le tK io sk .

If you have any questions regarding the eo Ultra-Mobile PC, or
the information contained within this manual, please contact
TabletKiosk at [e-mail].

Important Safety Instructions

For your own safety and the safety of your equipment, please
follow these rules for the handling and care of your eo Ultra­Mobile PC. Keep this User’s Manual for future reference by you
and other users.

Never use sprays, liquids or cleaning detergents to clean the
eo Ultra-Mobile PC. Use a micro fiber cloth to clean the touch

screen. Avoid the use of tissue paper since tissue fibers can easily
lodge between the touch screen and the top cover of the tablet.

Never pour liquids into any opening or directly on the eo Ultra­Mobile PC. This could result in fire or electrical shock.

Check that the voltage range of the power outlet is between
100V and 240V before connecting the eo Ultra-Mobile PC.

ii Preface

Exceeding the maximum rated voltage may cause damage to
the AC adapter or to the eo Ultra-Mobile PC. This could result in
fire or electrical shock.

When the AC adapter is plugged into an electrical outlet, place
the power cord so it will not be stepped on or walked on. Do not
place objects over or on the power cord.

Use the eo Ultra-Mobile PC in a clean, dry, temperature con­trolled environment. Do not use the eo Ultra-Mobile PC in areas
of high humidity, around water (for example: near a bathtub,
washbowl, kitchen sink or laundry tub, in a wet basement or near
a swimming pool) or outdoors while it is raining.

Never open or disassemble the eo Ultra-Mobile PC. For safety
reasons, and to prevent permanent damage, the equipment
should only be repaired by qualified service personnel.

Contact a qualified service center if any of the following issues
should arise:

1. AC adapter, power cord or plug is damaged;

2. Liquid has been spilled into the eo Ultra-Mobile PC;

3. The eo Ultra-Mobile PC has been exposed to excessive

moisture;

4. The eo Ultra-Mobile PC exhibits errors and/or does not
function according to specifications;

5. The eo Ultra-Mobile PC has been dropped or otherwise
physically damaged.

Caution

Lithium-Ion batteries can be dangerous. There is a danger of
explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to state or local hazardous
waste requirements.

Preface iii

Under no circumstances should the user attempt to disassemble
the power supply. The power supply has no user-replaceable
parts and its insides contain components that are electrically­charged with hazardous voltage levels that can cause serious
personal injury. A defective power supply must be returned to
your dealer.

Safety Notices for the Power Cord

This equipment has a 2 or 3-wire power cord. Replace the power
cord if it becomes damaged. Contact your dealer for an exact
replacement.

In the U.S.A. and Canada, the power cord must be a UL-listed
detachable power cord (in Canada, CSA-certified).

2-wire cord SPT-2 18AWG

3-wire cord SVT or SJT, 18 AWG, 3-conductor

The cord should be provided with a molded-on cord connec­tor body at the other end. The cord length must not exceed 3
meters (9.8 feet).

Outside the U.S.A. and Canada, the plug must be rated for
250 VAC, 2.5 amp minimum, and must display an international
agency approval marking. The cord must be suitable for use in
the end-user’s country. Consult your dealer or the local electrical
authorities if you are unsure of the type of power cord to use in
your country. Voltage changes occur automatically in the power
supply.

Notice of FCC Compliance

a. Federal Communications Commission (FCC) Requirements,

Part 15:

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

iv Preface

1. this device may not cause harmful interference,and

2. this device must accept any interference

received,including interference that may cause undesired
operation.

This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal­lation. This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in accordance
with the instruction manual may cause harmful interference
to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the

receiver.

 Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

 Consult the dealer or an experienced technician for help.

 Use only shielded I/O cables to connect I/O devices to this

equipment.

You are cautioned that any changes or modifications not
expressly approved by TabletKiosk could void your authority
to use the equipment.

b. Regulatory information / Disclaimers

This device must be installed and used in strict accordance
with the instructions included in the user documentation
provided with the product. Any changes or modifications
(including the antennas) made to this device that are not

Preface v

expressly approved by the manufacturer may void the user’s
authority to operate the equipment. The manufacturer is not
responsible for any radio or television interference caused by
unauthorized modification of this device, or the substitution
of the connecting cables and equipment other than the ones
specified by manufacturer. It is the responsibility of the user to
correct any interference caused by such unauthorized modifi­cation, substitution or attachment. The manufacturer and its
authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising
from the failure to comply with these guidelines.

c. For portable devices without a co-location condition (eg.

notebook pc)

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure
limits set forth for an uncontrolled environment. This
device was tested for typical lap-held operations with the
device contacted directly to the human body to the back
side of the Tablet PC. To maintain compliance with FCC RF
exposure compliance requirements, please follow opera­tion instruction as documented in this manual.

The availability of some specific channels and/or operational
frequency bands are country dependent and are firmware
programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.

d. SAR Exposure

This device has been tested for compliance with FCC RF
Exposure (SAR) limits in typical flat configurations.

In order to comply with SAR limits established in the ANSI
C95.1 standards, it is recommended that the integrated
antenna is positioned more than 1.5cm from your body or

vi Preface

from nearby persons during extended periods of operation. If
the antenna is positioned less than 1.5 cm (0.6 inches) from the
user, it is recommended that the user limit the exposure time.

FCC Statement to Users for the Fax/Modem

Notice of FCC Compliance for the Fax/Modem

This equipment complies with Part 68 of the FCC rules. The FCC
Registration Number and Ringer Equivalence Number for this
equipment are located on a label at the bottom of this equip­ment. IF REQUESTED, THIS INFORMATION MUST BE GIVEN TO
THE TELEPHONE COMPANY.

The REN helps to determine the number of devices you may con­nect to your telephone line while allowing all of those devices to
ring when your telephone number is called. In most, but not all
areas, the amount of devices connected to one line should not
exceed five (5).

To know precisely how many devices you may connect to your
line, as determined by the REN, you should contact your local
telephone company to determine the maximum REN for your
calling area.

If your telephone equipment causes harm to the telephone
network, the telephone company may disconnect your service
temporarily. They may notify you in advance, but if advance
notice is not practical, you will be informed of your right to file a
complaint with the FCC.

Your telephone company may make changes in its facilities,
equipment, operations or procedures that could affect the
proper functioning of your equipment. If they do, you will be
notified in advance and given the opportunity to maintain
uninterrupted telephone service.

The telephone company may ask you to disconnect this equip­ment from the network until the problem has been corrected
or until you are sure that the equipment is not malfunctioning.

Preface vii

This equipment may not be used on coin service provided by the
telephone company.

The Telephone Consumer Protection Act of 1991 makes it unlaw­ful for any person to use a computer or an electronic device to
send any message via a telephone facsimile machine unless such
message clearly contains in a margin at the top or bottom of
each transmitted page or on the first page of the transmission
the following information:

 The date and time of transmission

 Identification of either business, business entity or individual

sending the message;

 Telephone number of either the sending machine, business

entity or individual.

In order to program this information into your fax/modem,
please refer to the appropriate instructions in your fax/modem
manual.

Note-TNV Safety Caution:

To reduce the risk of fire, use only No. 26 AWG or larger UL
Listed or CSA Certified Telecommunication line cord. Avoid
using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock
from lightning. Do not use the telephone to report a gas leak
in the vicinity of the leak.

Canadian EMI Compliance Statement

This Class B digital apparatus meets all requirements of the
Canadian Interference - Causing Equipment Regulations.

IC Warning statement:

a. WLAN

“To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from

viii Preface

windows to provide maximum shielding. Equipment (or
its transmit antenna) that is installed outdoors is subject to
licensing.”

b. For LPD

“Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.”

This Class B digital apparatus complies with Canada RSS-210.

The abbreviation, IC, before the registration number signifies
that registration was performed based on a Declaration of
Conformity (DoC) indicating that Industry Canada technical
specifications were met. It does not imply that Industry Canada
approved the equipment.

European Union CE Marking Declaration

This product has been tested and found to comply with the EMC
requirement subject to the EU directive for CE marking.

Preface ix

Table of Contents

Preface i

Copyright i
Disclaimer ii
Important Safety Instructions ii
Notices of Regulatory Compliance iv

Getting Started 1

What’s in the Box 1
Setting Up Your eo Ultra-Mobile PC 2

Step 1: Inserting the Battery Pack(s) 2

Inserting the Main Lithium-Ion Battery Pack 2
To Remove the Main Lithium-Ion Battery Pack 3
Inserting the Secondary Lithium-Polymer Battery Pack 3

To Remove the Secondary Lithium-Polymer Battery Pack 4
Step 2: Connecting the Ultra-Mobile PC to an External Power Source 4
Step 3: Connecting Applicable Peripherals and Networking Cables 5
Step 4: Powering on the eo Ultra-Mobile PC 5
Step 5: Completing the Operating System Installation 6

Interacting with the Active Digitizer and/or Touch Screen 6

Touch Screen mode
Active Digitizer mode (a7330D only) 7

Touring Your eo Ultra-Mobile PC 9

Front View 10
Top View 12
Left Side View 14
Right Side View 15
Back View 16
Bottom View 17

Battery Usage and Care 19

Using the Battery for the First Time 19
Charging the Battery Under Typical Conditions 20
Problems Charging the Battery 21
Battery Status 21
Low Battery Warnings 21
About Battery Pack Usage 22
Real Time Clock Battery 22
Storing a Battery 23

6

Table of Contents xi

Using Your eo a7330 with Windows 25

Navigating with the Stylus Pen 25

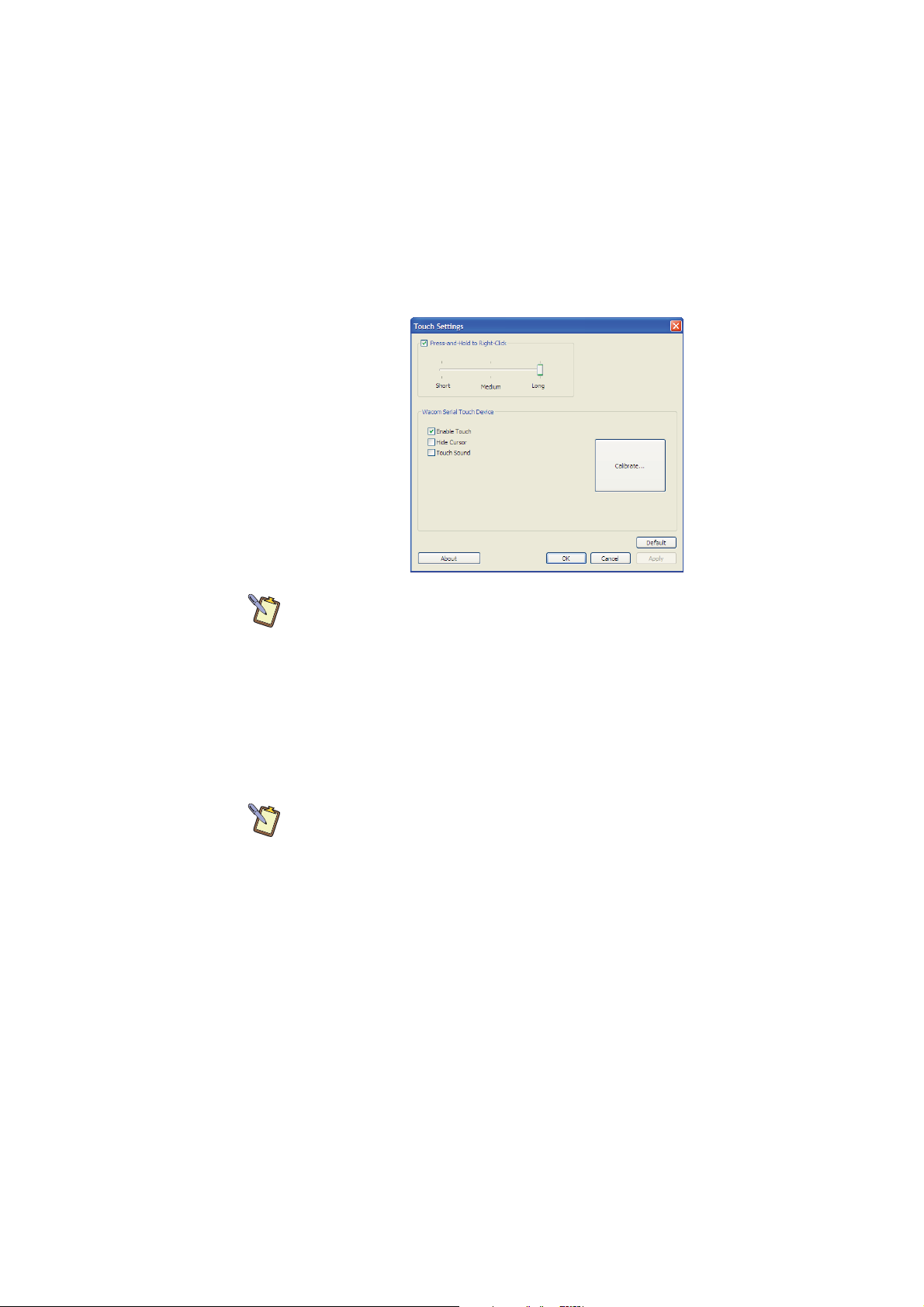

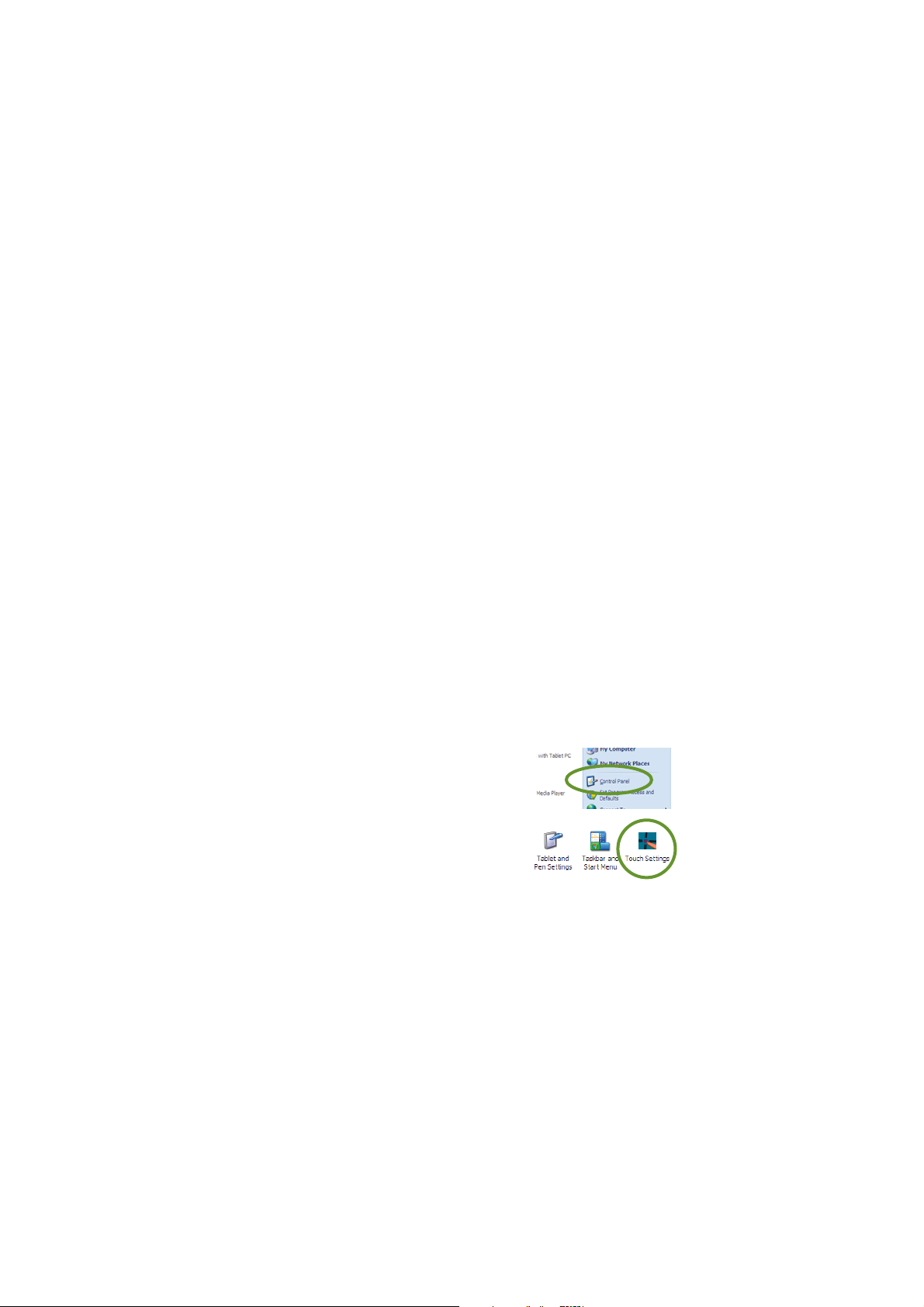

Touch Screen Settings and Calibration 26

Right-Click Emulation 26
Touch Screen Behavior 27

Enable Touch 27

Hide Cursor 27

Touch Sound 27
Calibrating the Touch Screen 28

Digitizer Settings and Calibration (a7330D only) 28

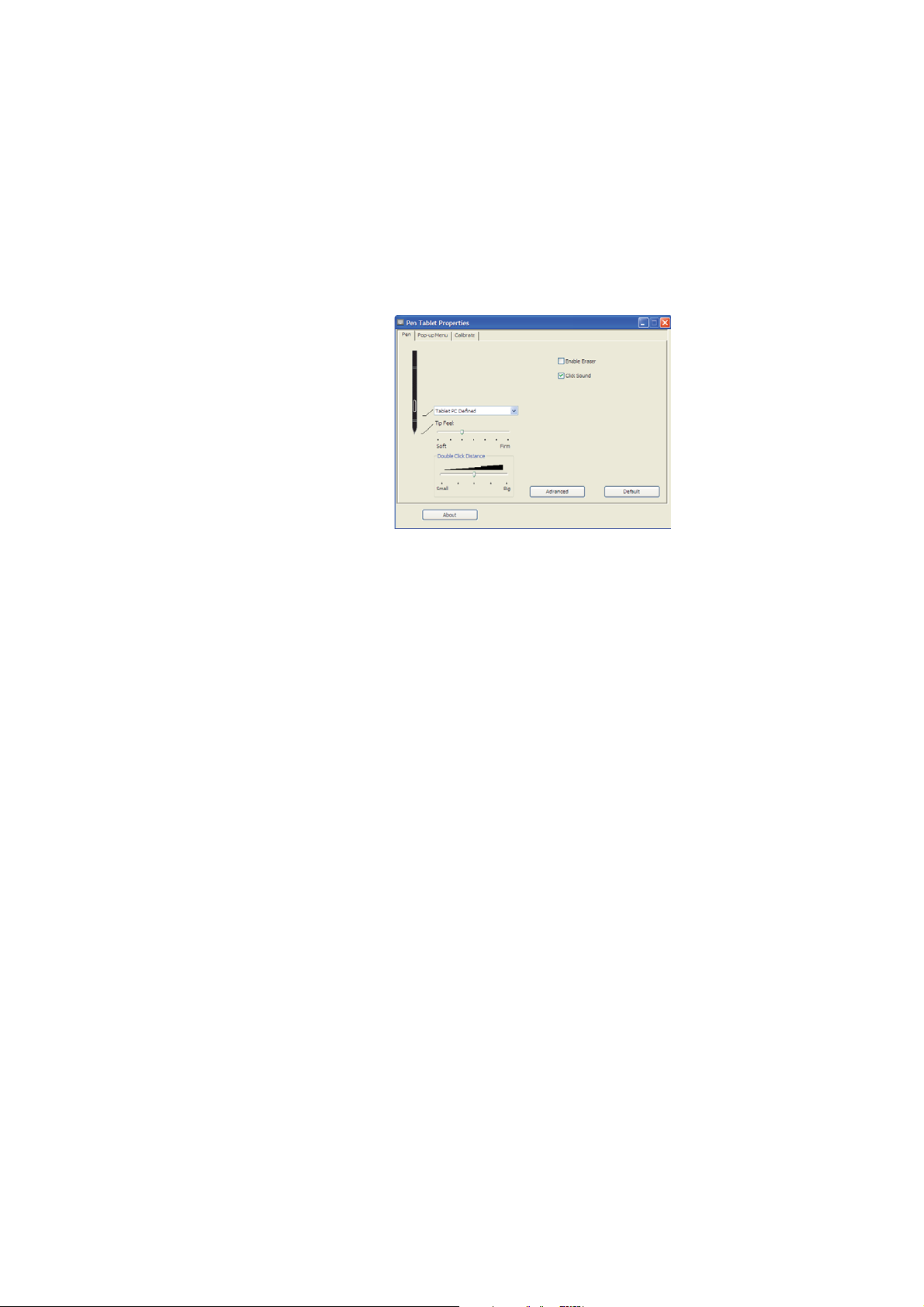

Pen Tab 29

Pen Button Action 29

Pen Tip Options 29

Enable Eraser 29

Click Sound 30

Advanced Settings 30

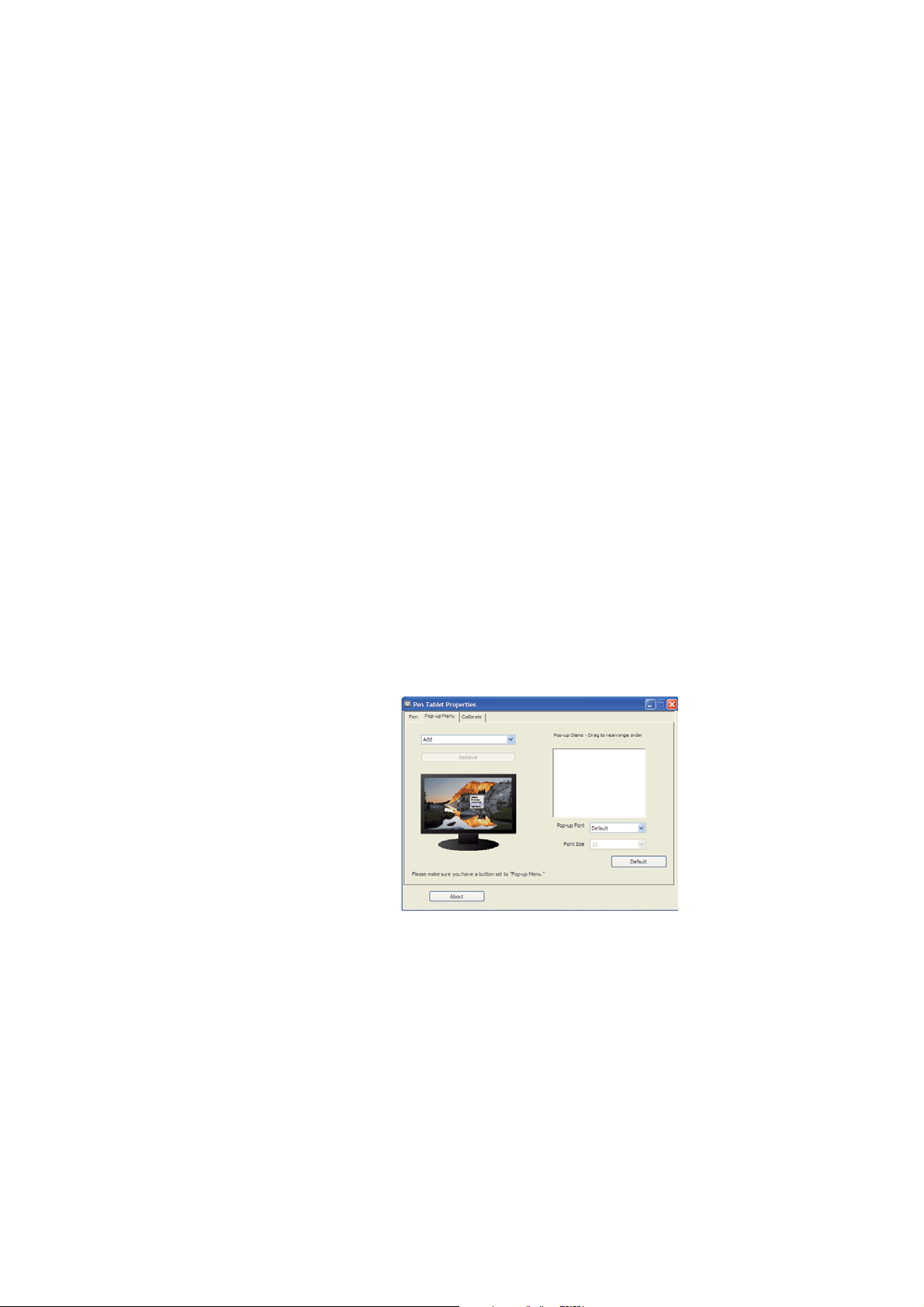

Pop-Up Menu Tab 30

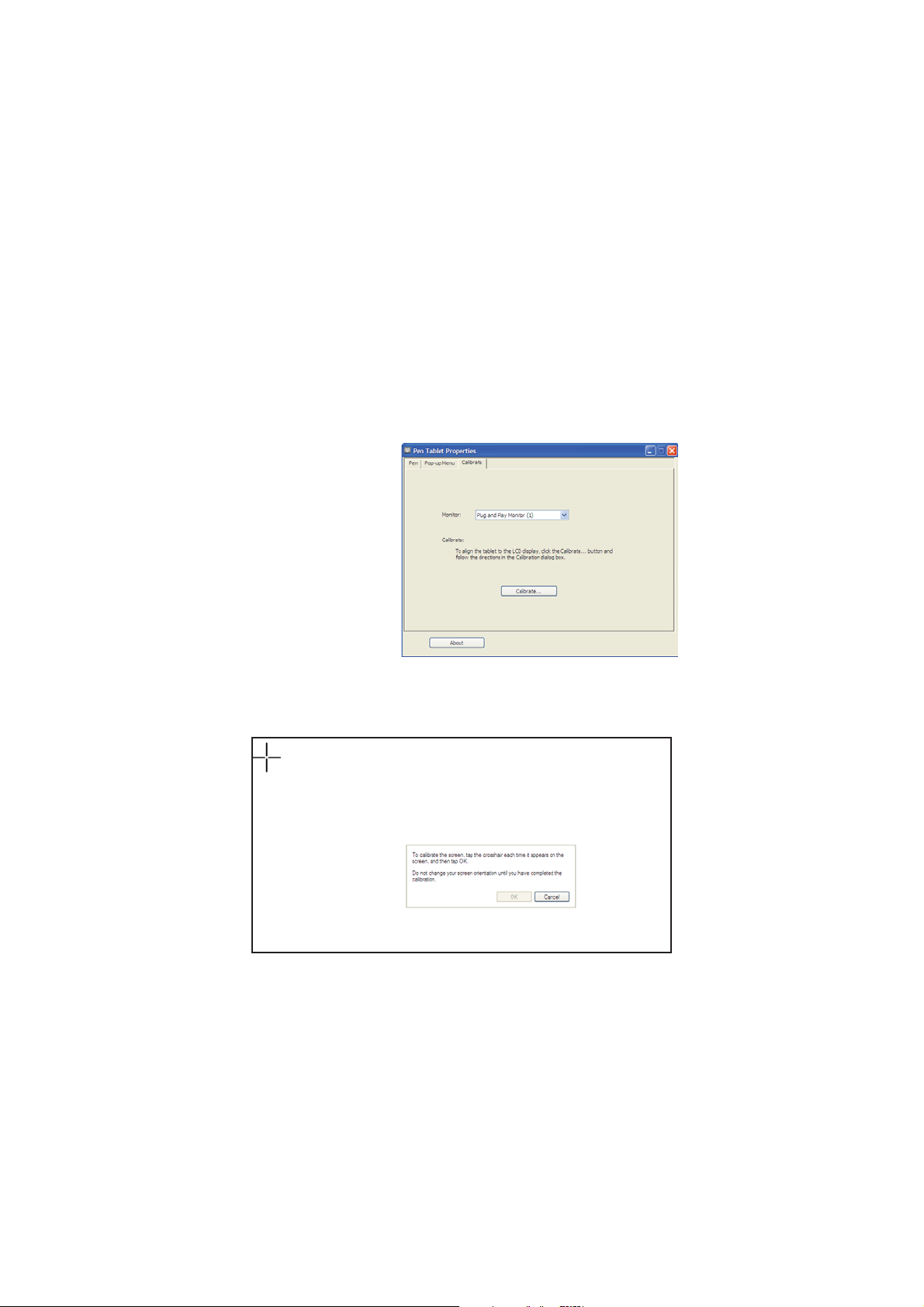

Calibrate Tab 31

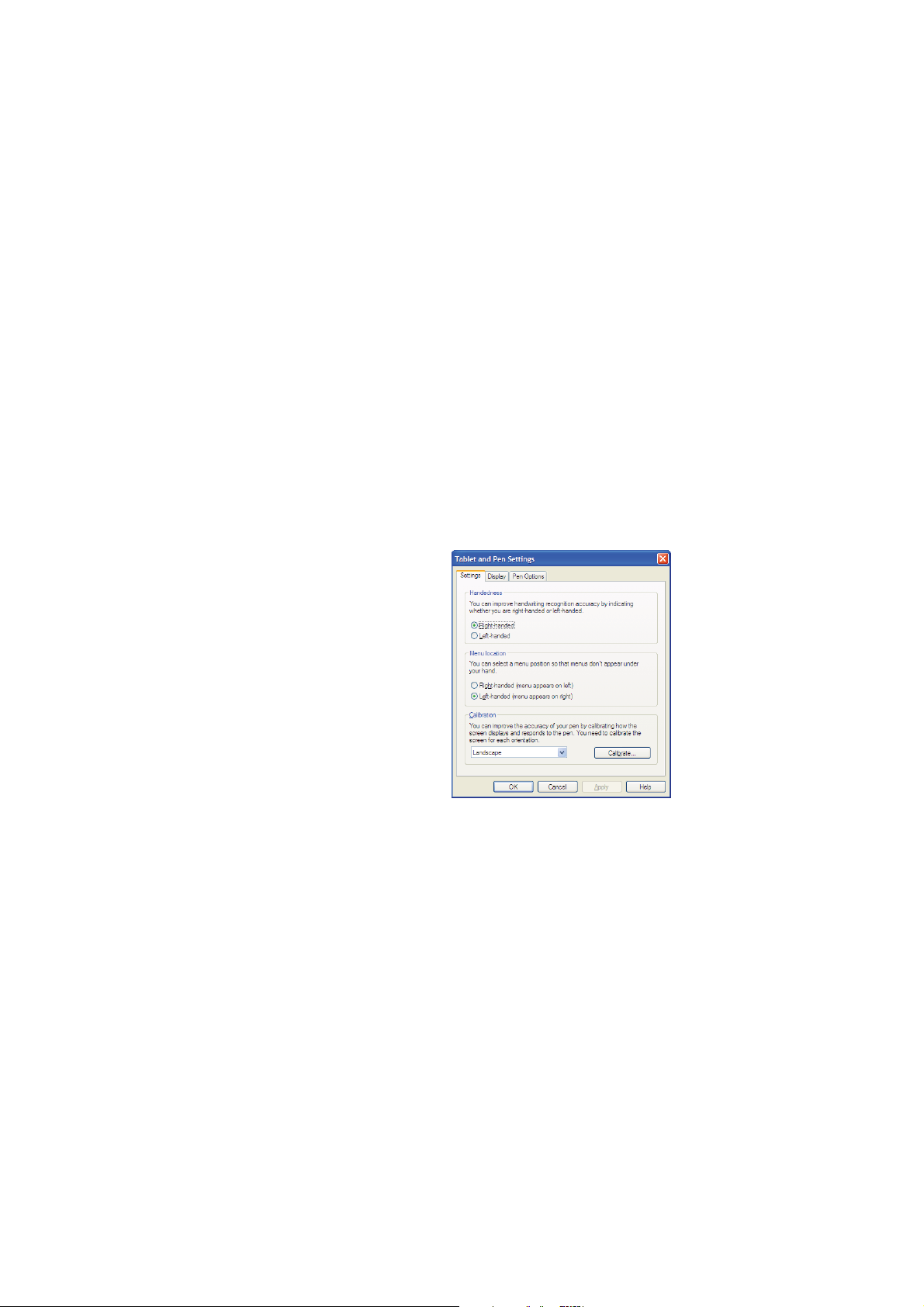

Windows Tablet and Pen Settings Control Panel 32

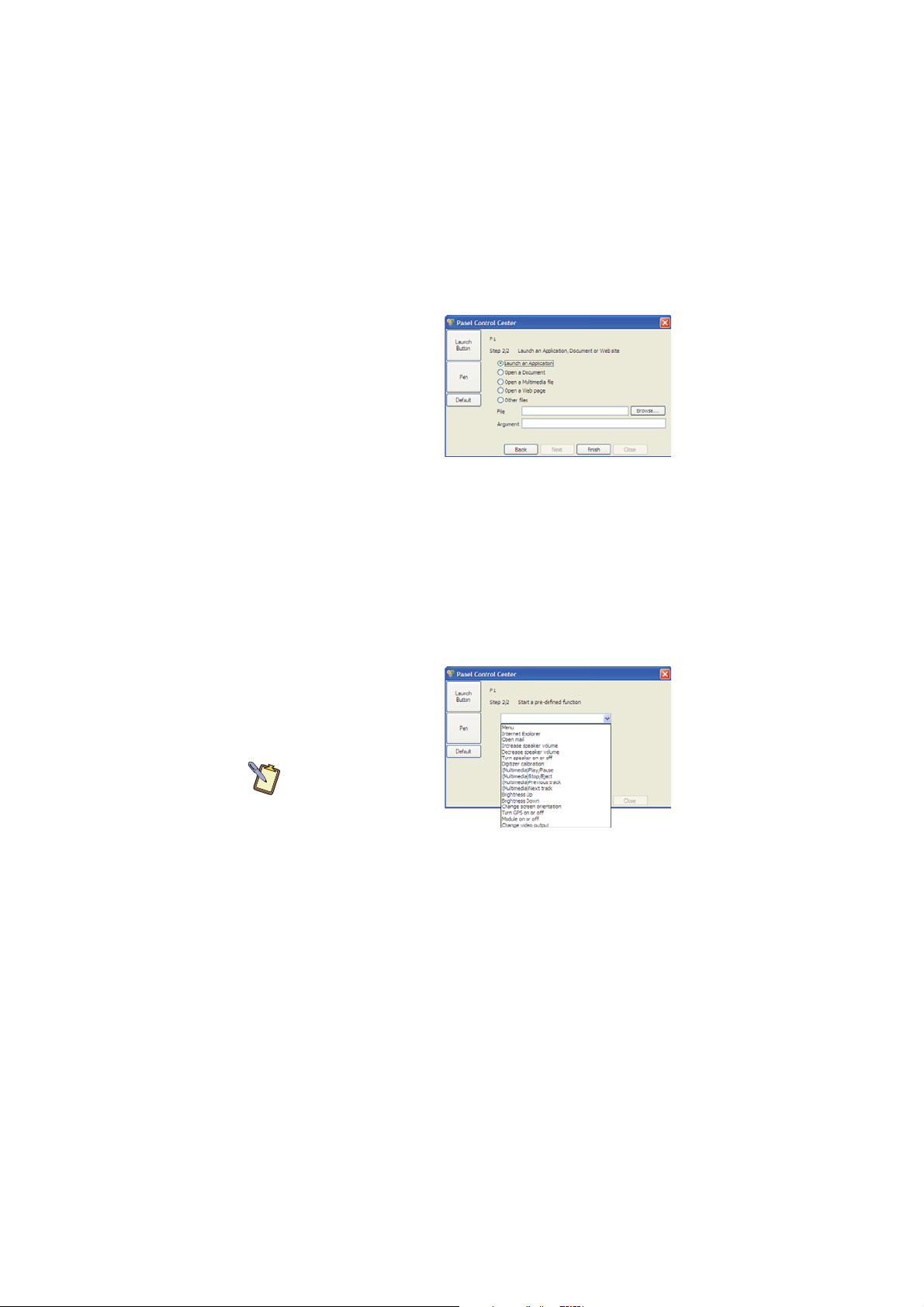

Programming the Function Buttons

33
Opening an Application, Document or Web Page 34
Assigning a Pre-Defined Function 34

Setting the Screen Brightness 35

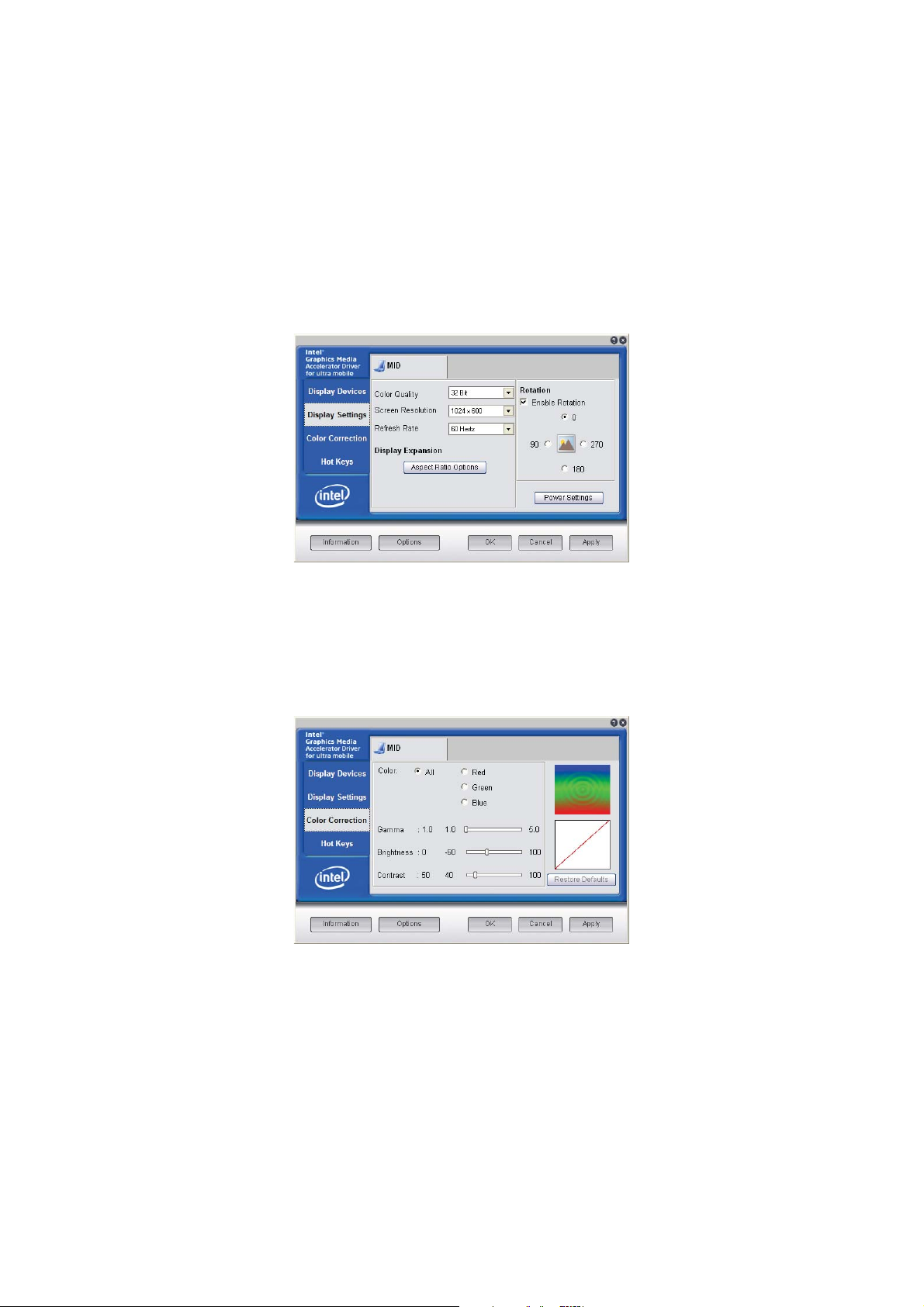

Changing Screen Resolution, Color and Rotation 35

Display Settings 35

Display Expansion 35

Color Correction 36

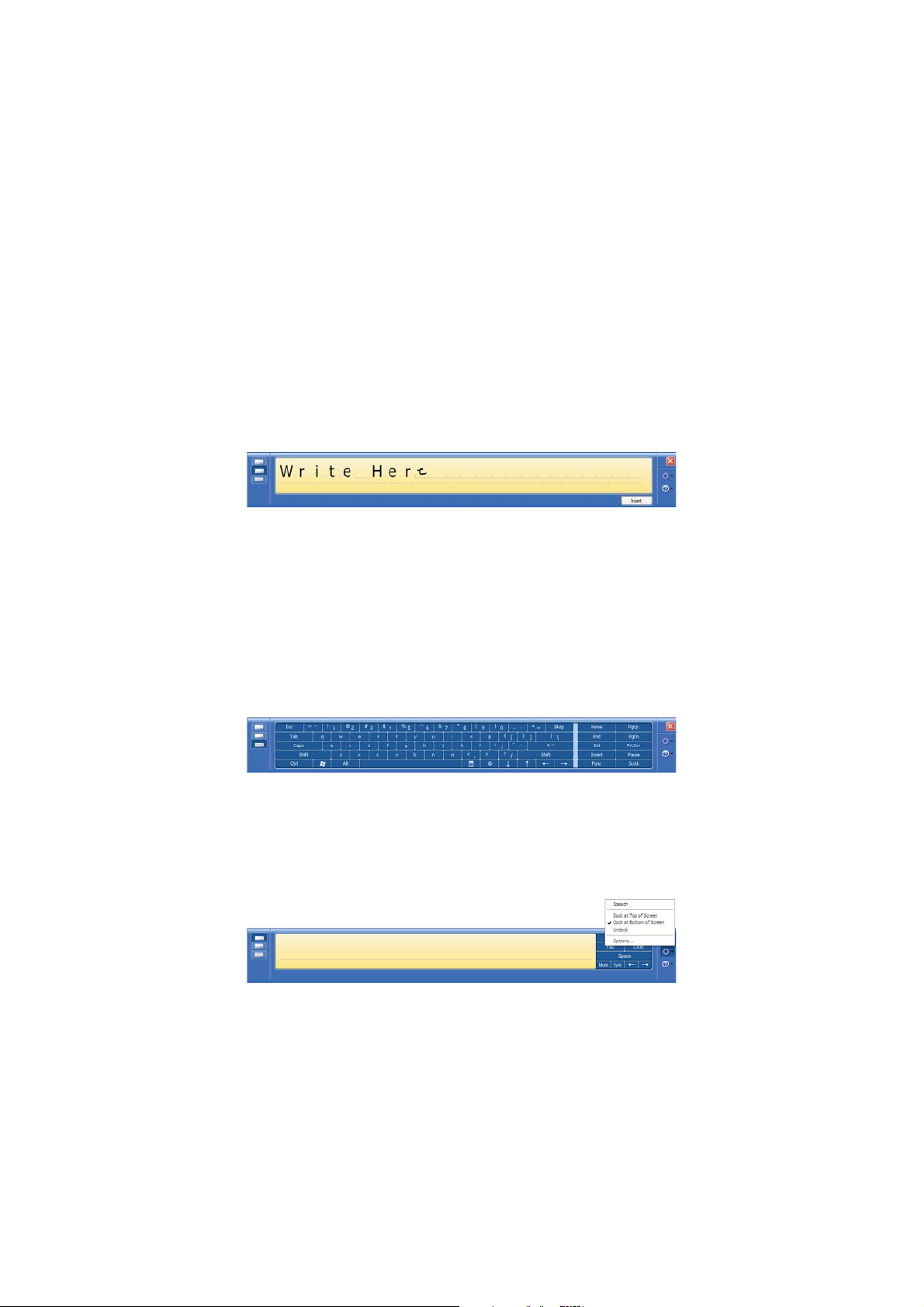

Entering Text with the Input Panels 37

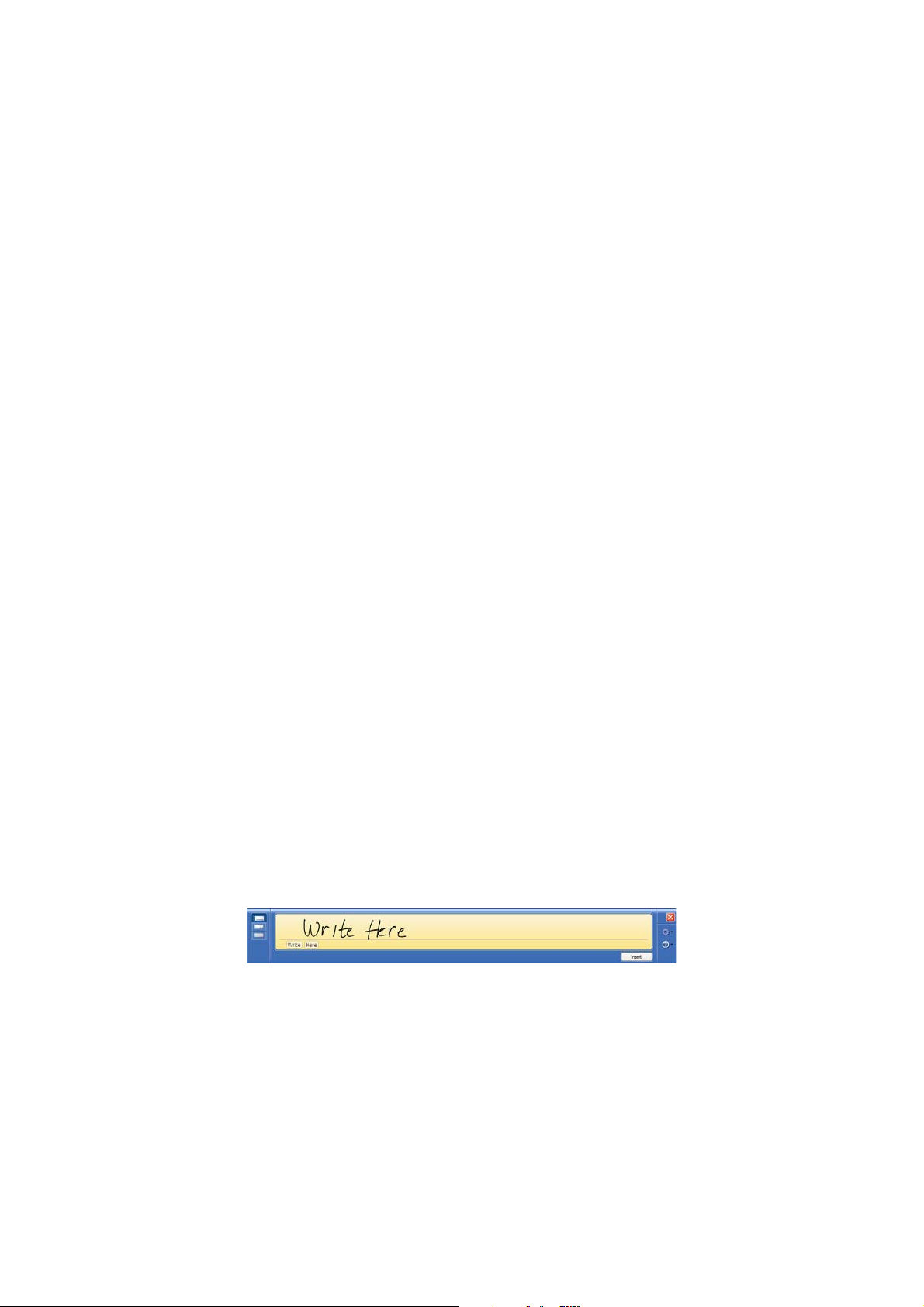

Writing Pad 37
Character Pad 38
On-Screen Keyboard 38

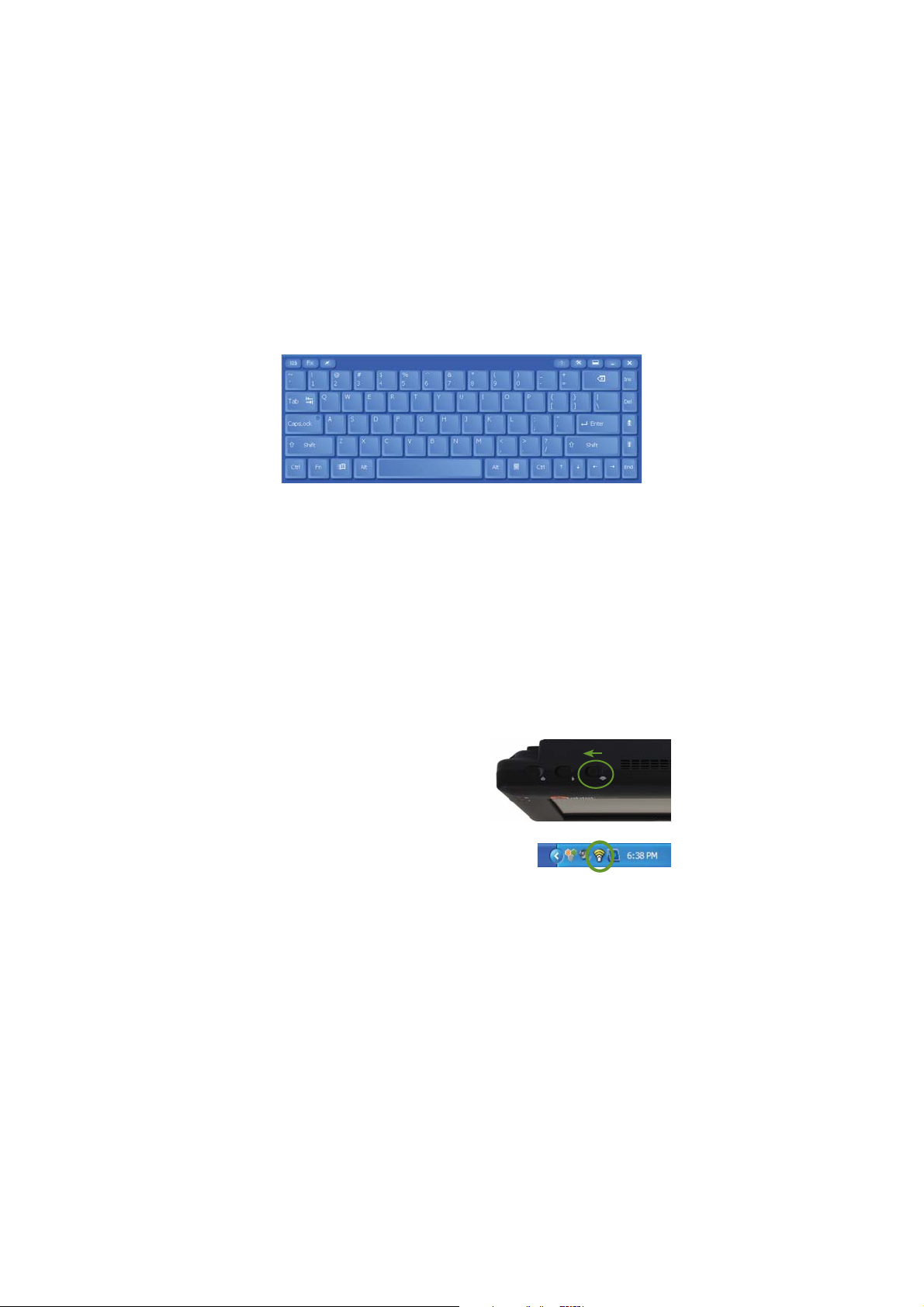

Entering Text with the Eyesboard™ Virtual Keyboard 39

Installing the Eyesboard Keyboard (Tablet PC Edition only) 39
Accessing the Eyesboard Keyboard 39

Connecting to the Internet 40

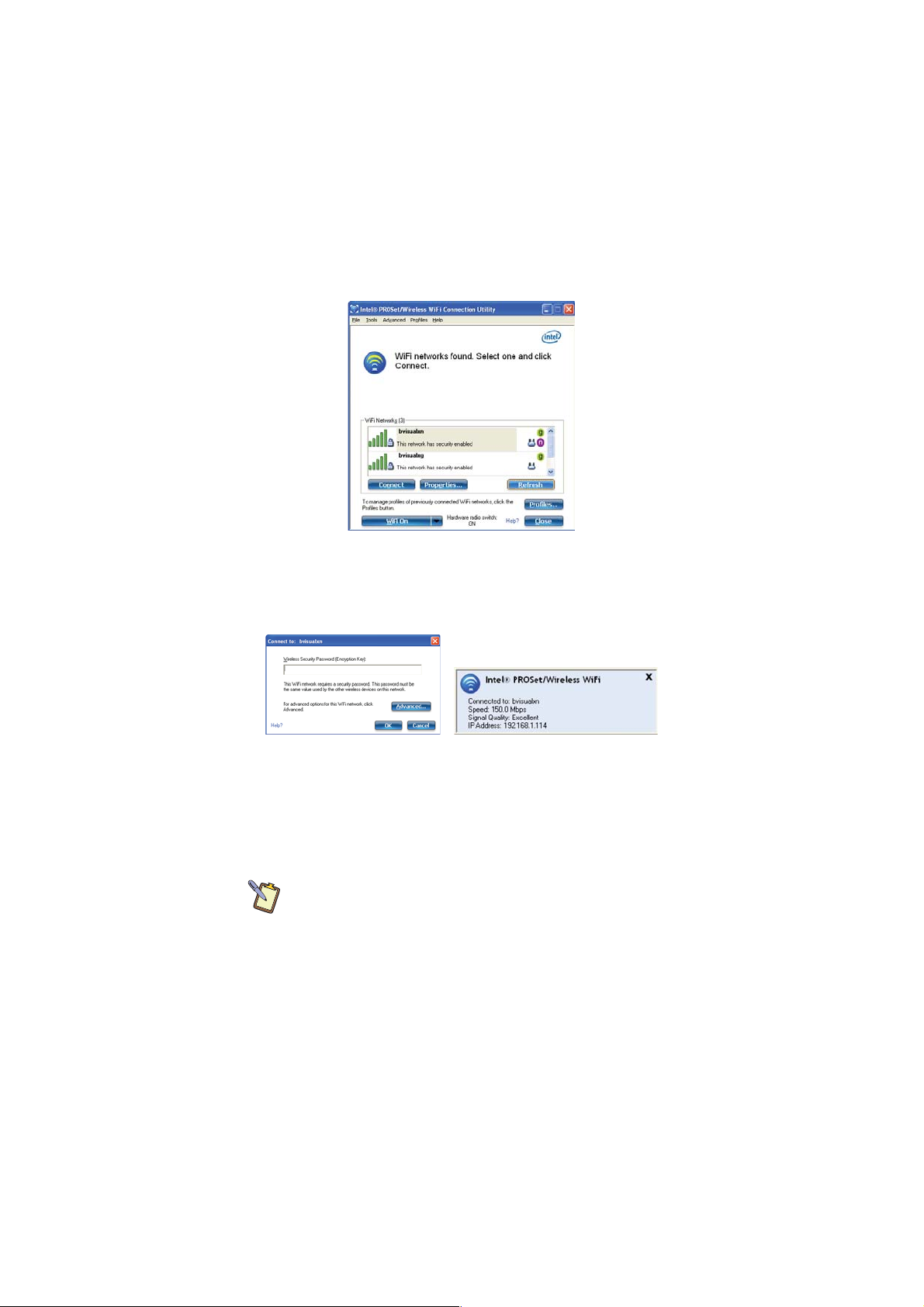

Using a Wireless LAN 40

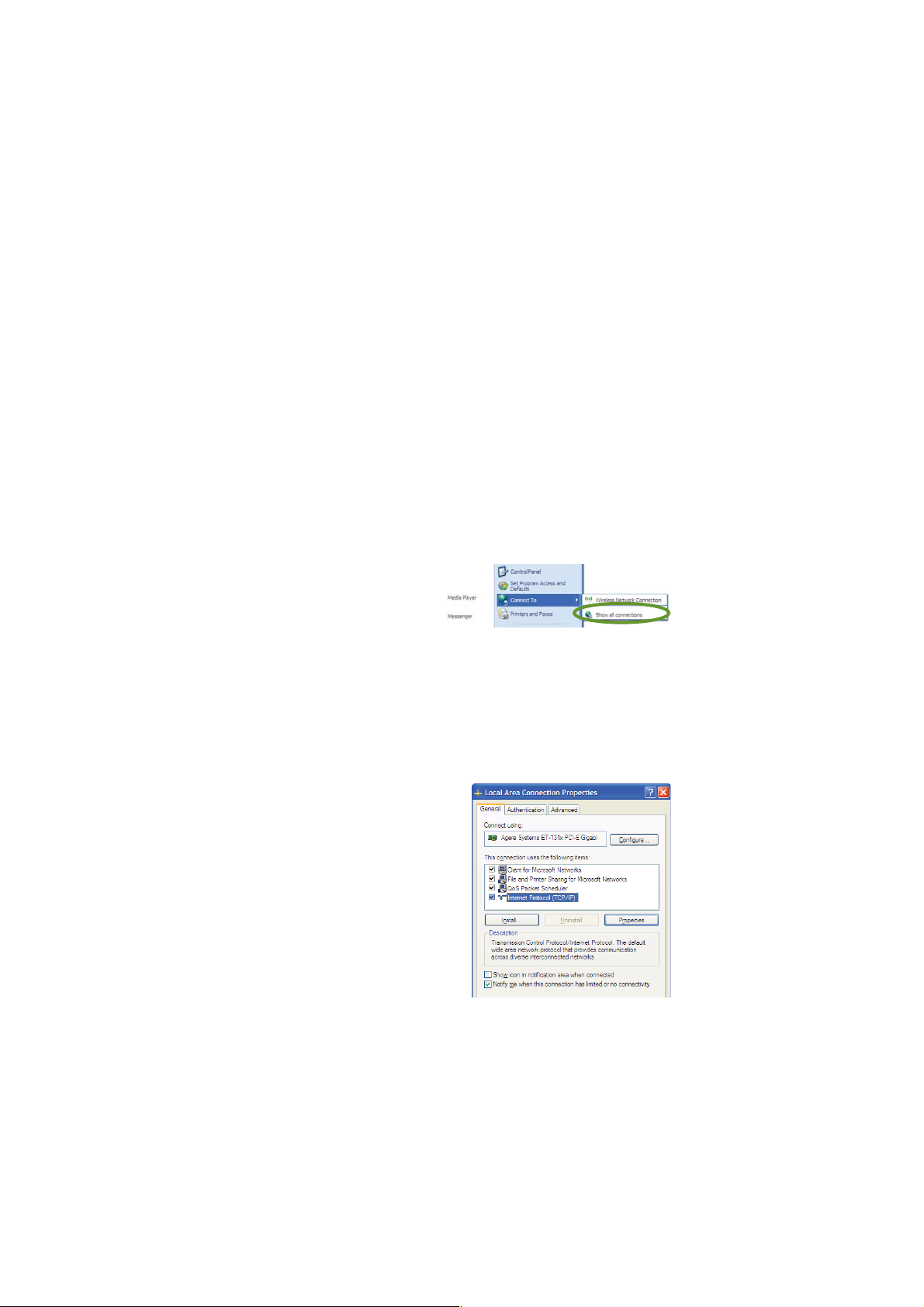

Using a Wired LAN 42

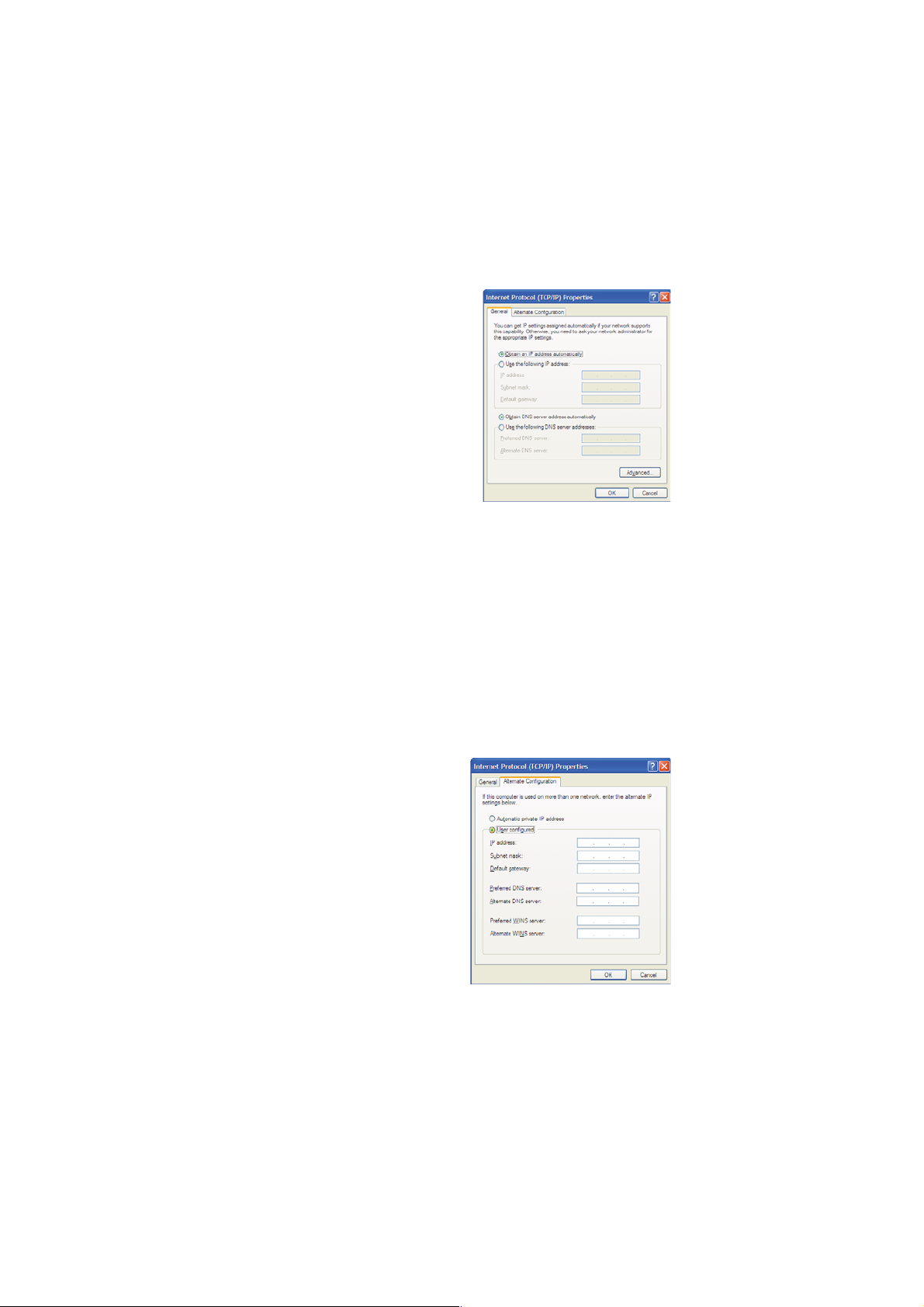

Using Both DHCP and a Static IP Address 43

Bluetooth® Wireless Connectivity 44

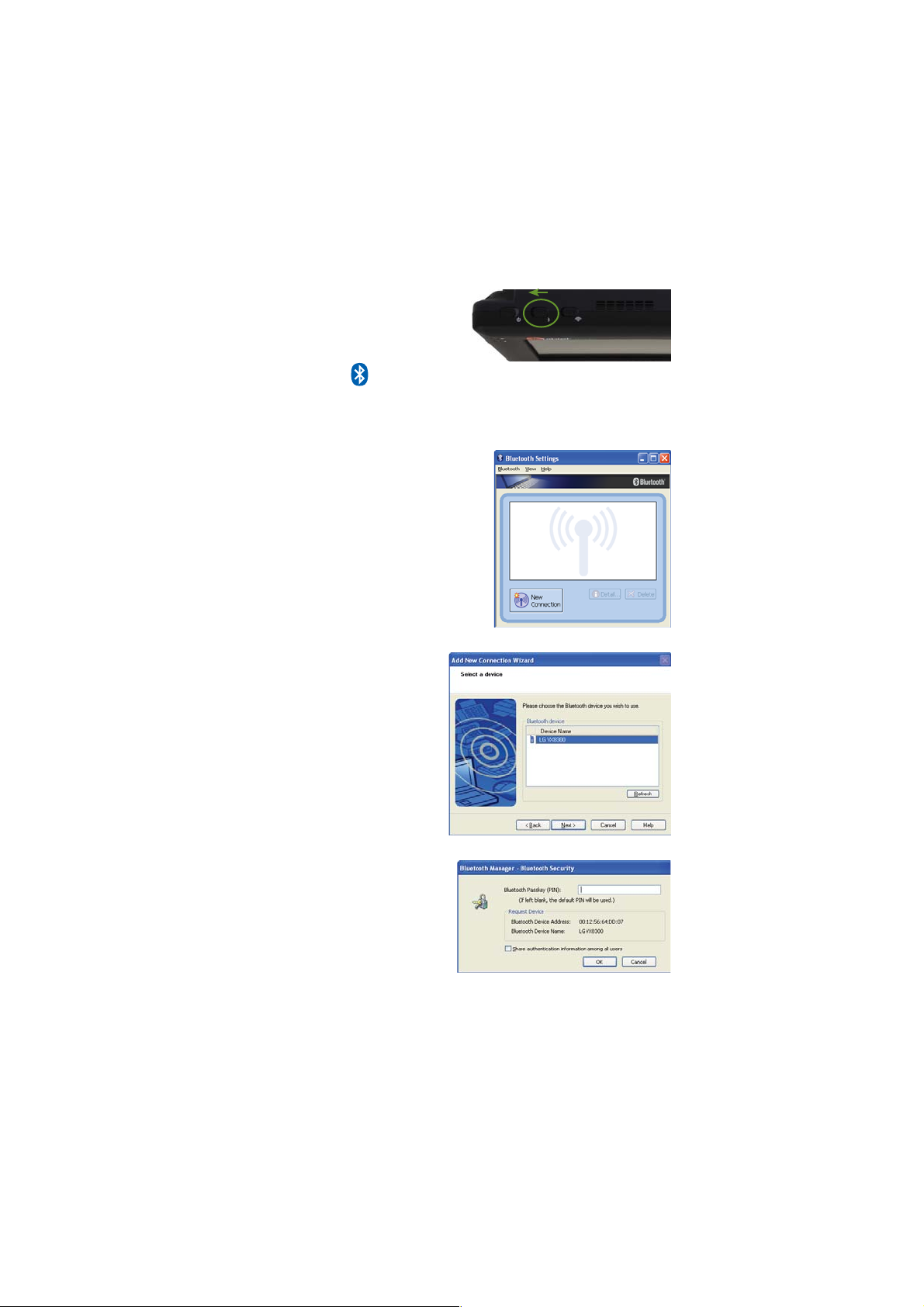

Bluetooth Device Registration and Pairing 44

xii Table of Contents

Securing Your eo a7330 49

BIOS Settings 49

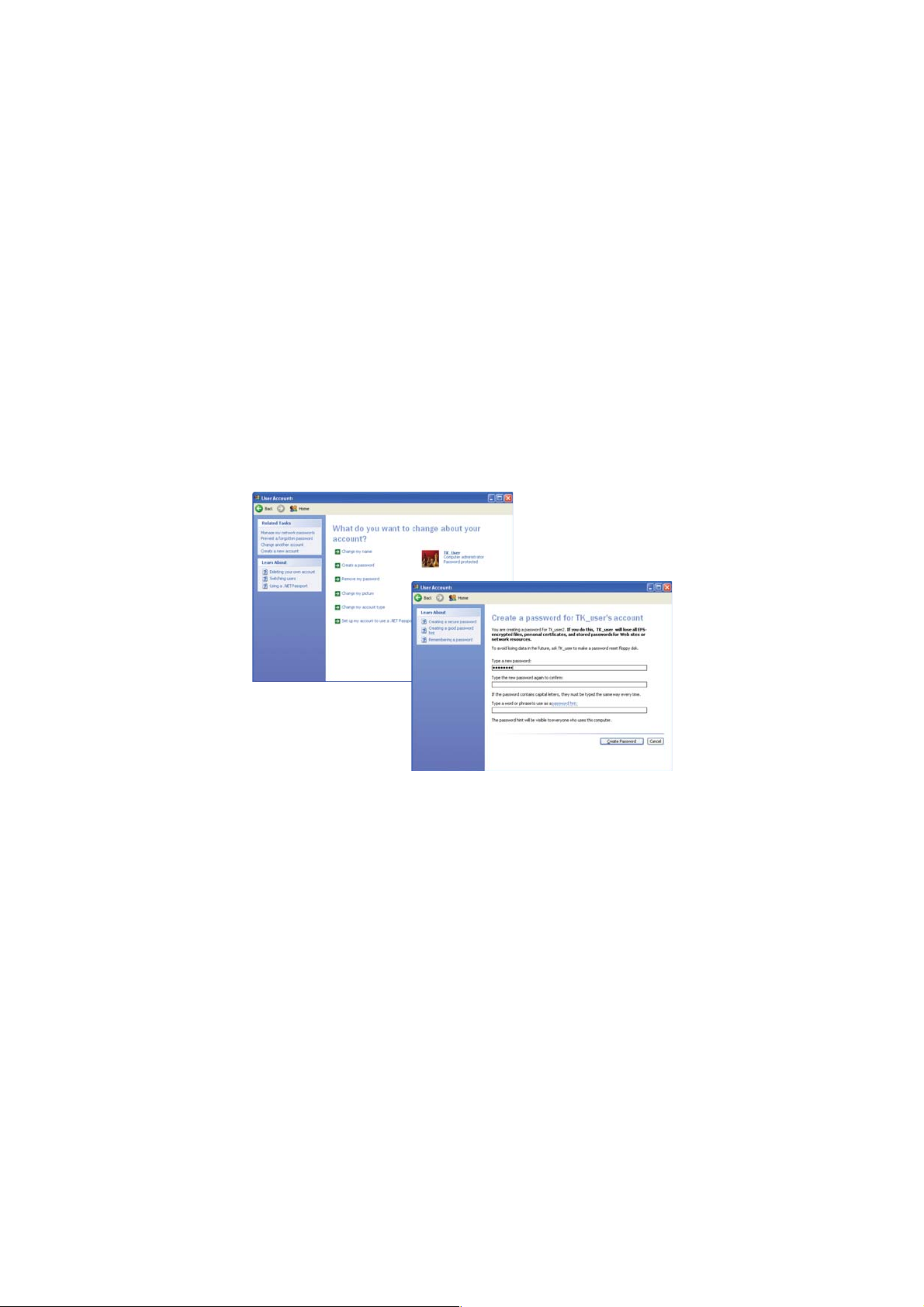

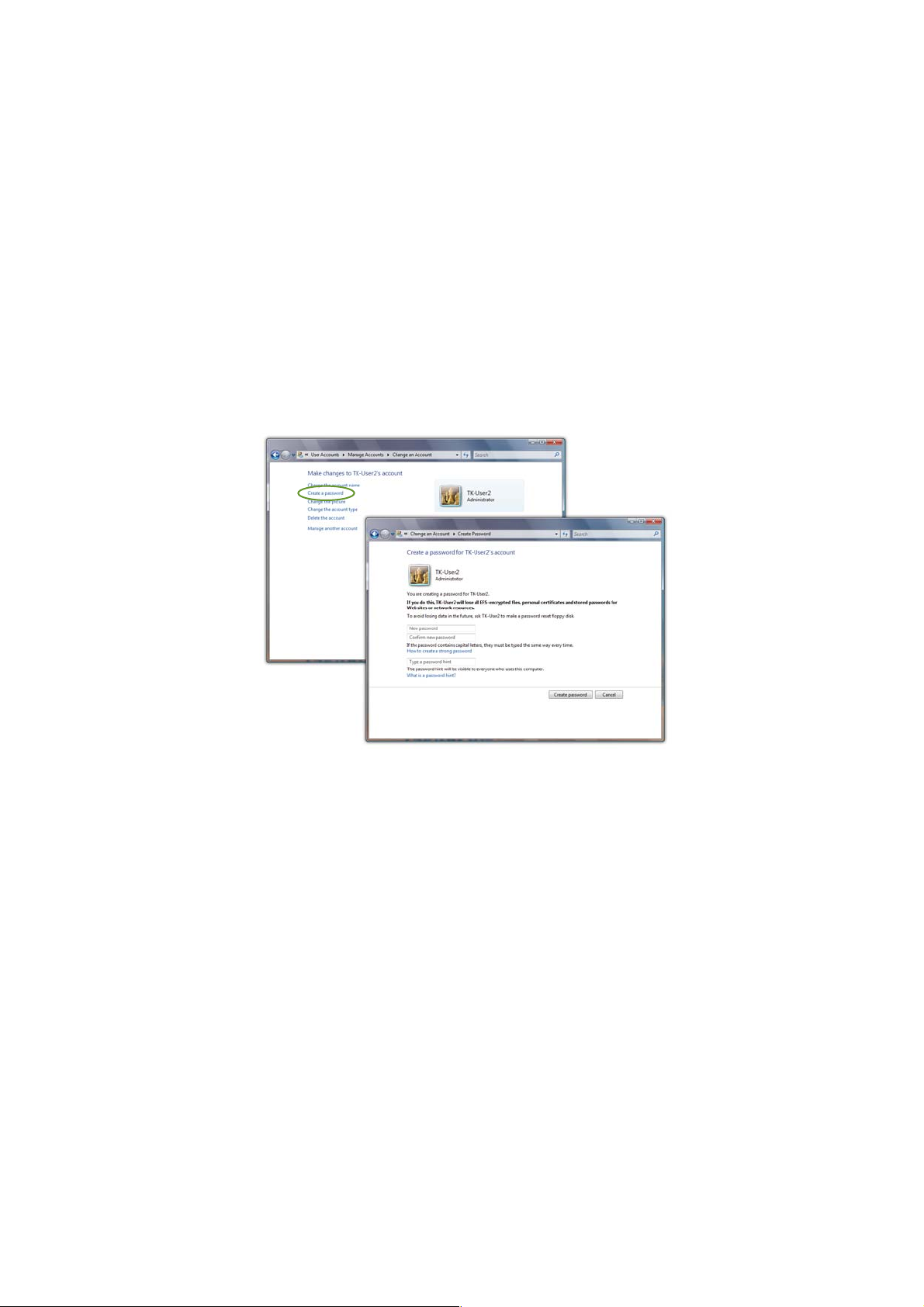

Creating a Windows Login Password 50

Creating the Password In Windows XP 51
Creating the Password In Windows Vista 51

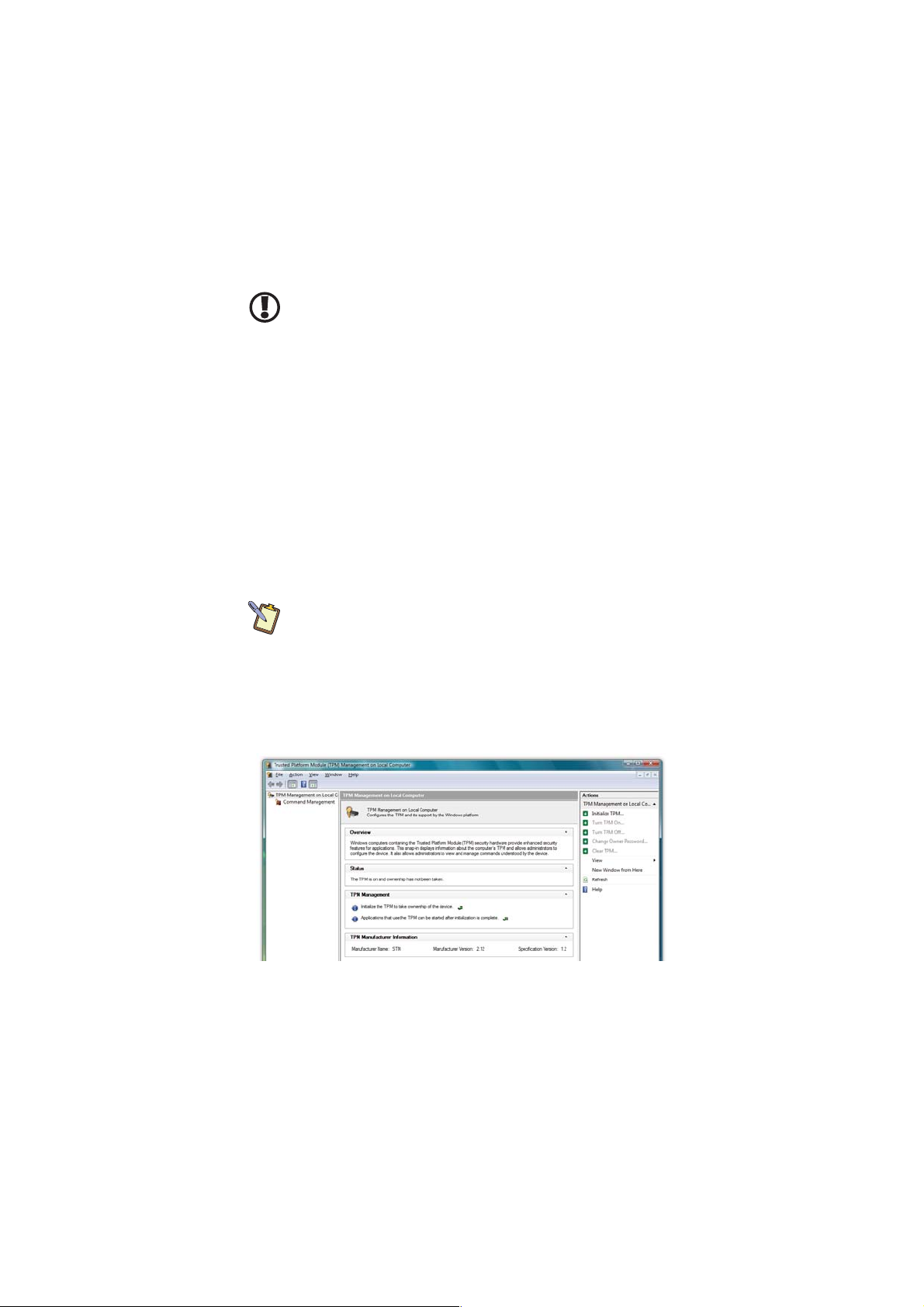

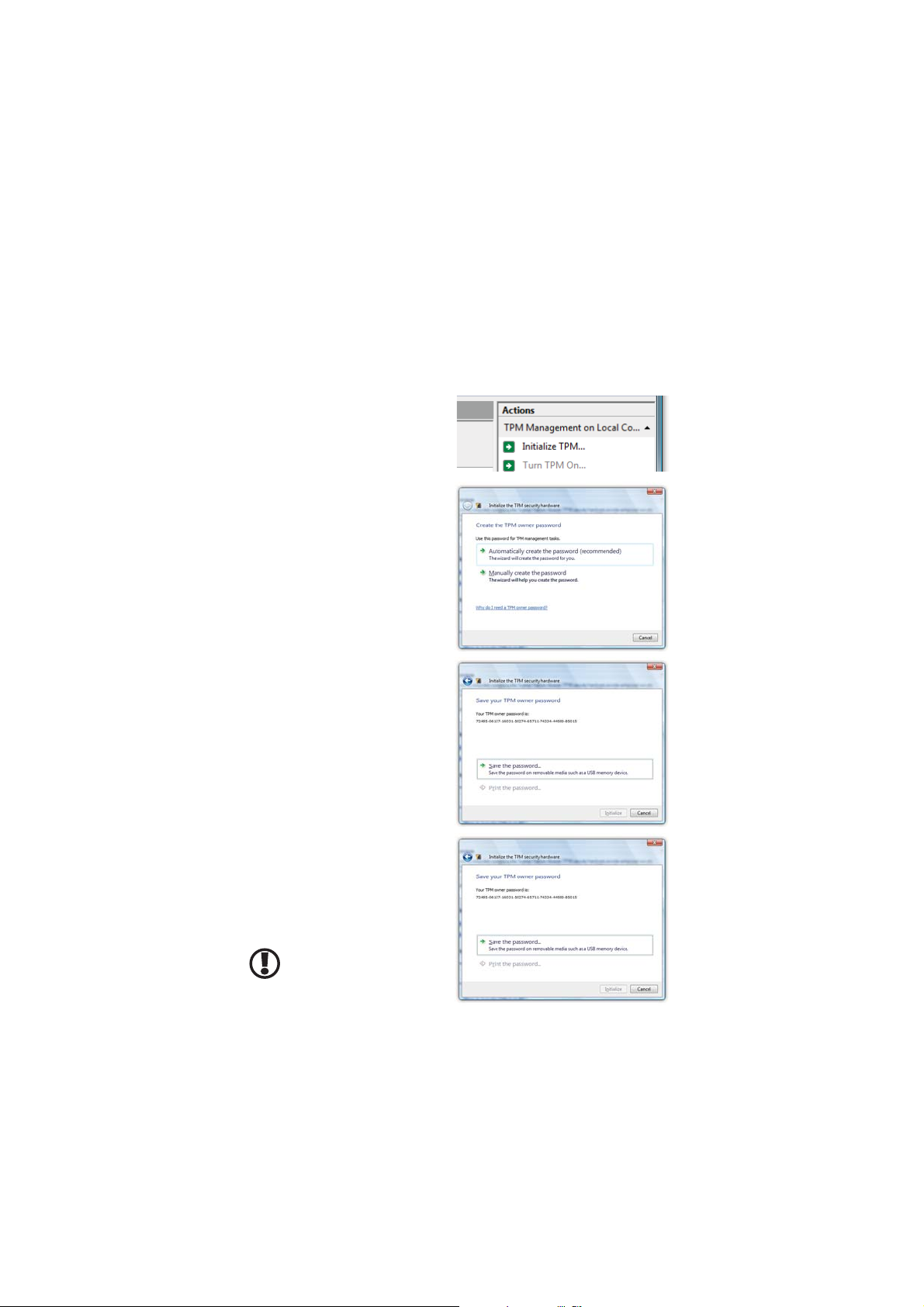

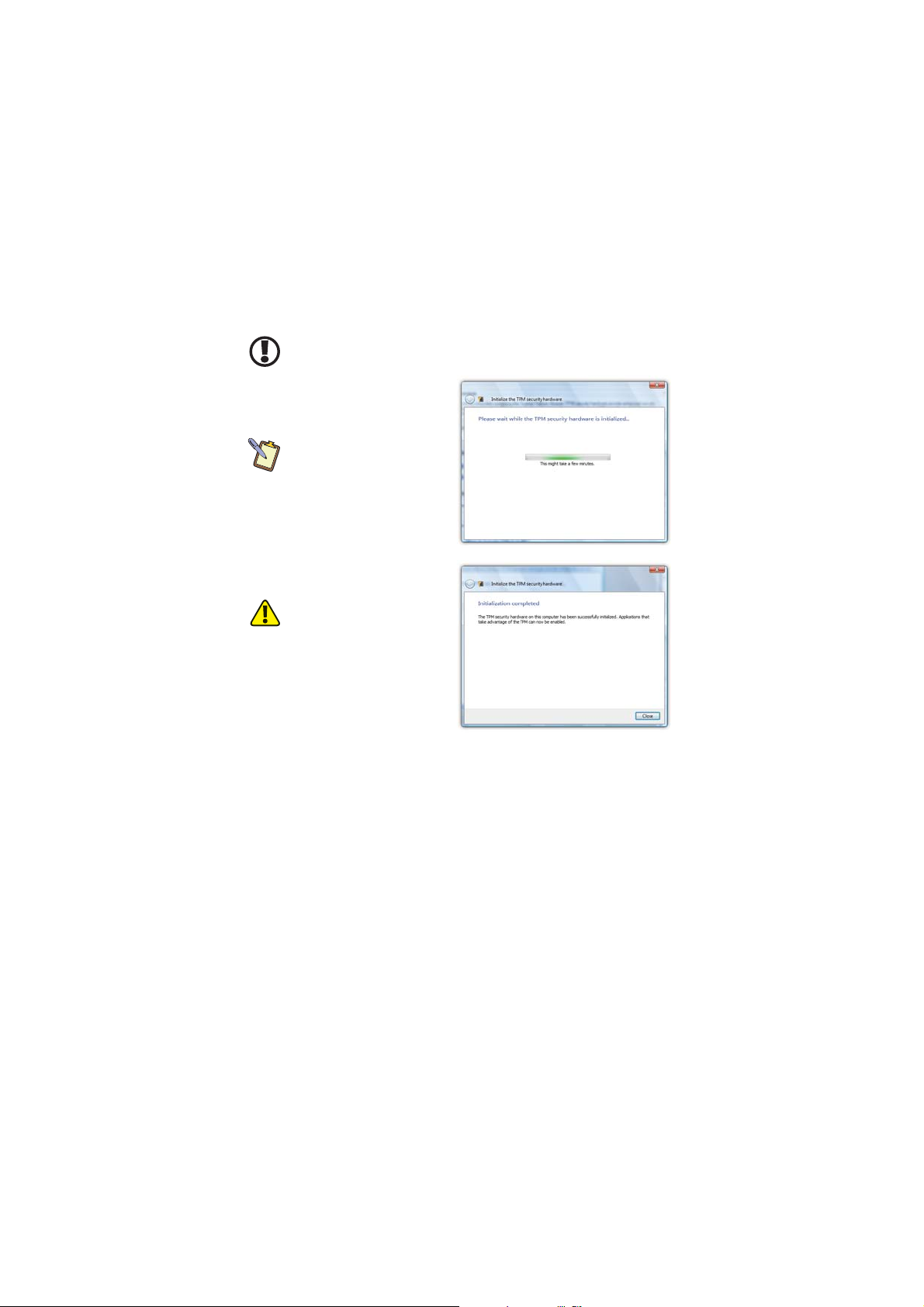

Setting Ownership of the TPM 52

Windows XP Professional 53
Windows Vista 53

Troubleshooting 57

Recovering Your System Using the System Restore DVD 63

What you will need before you begin 63
Recovering with the Windows Vista® Business System Restore Disc 63
Recovering with the Windows® XP System Restore Disc 65

What to do After You Have Restored Your System 66

Specifications 69

Processor 69
Chipset 69
Power Management 70

70

Memory
Battery 70
Hard Drive 70
Video 71
Display 71
Audio 71
WiFi Wireless 72
Bluetooth® Wireless 73
GPS Module 73
Gigabit Ethernet Embedded LAN Controller 74
TPM Security 74
I/O Ports 74
Weight 75
Measurements 75
Case Color 75
LED Indicators 75
Function Buttons (Right Side) 75
Control Switches (Top) 76
AC Adapter 76
Operating Environment 76
Storage Environment 76

Table of Contents xiii

Chapter 01

Getting Started

You r eo a7330 Ultra-Mobile PC was designed to allow you to
be up and running as quickly as possible. Because the eo a7330
ships to various countries around the world, set-up may vary
slightly depending on where you are located.

If you have any questions after reading this manual, please visit
our website at www.tabletkiosk.com for more information or to
submit a support request.

What’s in the Box

1

You r eo a7330
carton along with the items listed below2. Please contact your
dealer immediately if anything is missing or damaged.

1. Power Cord and AC Adapter

2. Microfiber Cleaning Cloth

3. Neoprene Slip Case

4. Quick Start Guide

5. Operating System Getting Started Guide

should come securely packaged in its shipping

3

1

There are two models of the eo a7330 Ultra-Mobile PC: the a7330D and a7330T.

Please check to make sure that you have received the correct model.

2

Contents of the packaging may change without prior notice. Please check our

website at www.tabletkiosk.com,or check with your dealer or sales associate
for the most up-to-date list if your package contents vary.

3

Please be sure to check that the Getting Started Guide matches the Operating
System (OS) preloaded on your eo a7330. There will not be a Getting Started
Guide included if you ordered your Tablet PC with openSUSE Linux.

Chapter 01: Getting Started 1

6. System Restore Disc

7. Standard a7330 Battery Pack(s)

1

2

Setting Up Your eo Ultra-Mobile PC

Please read the following steps to begin using your new Ultra­Mobile PC as quickly and easily as possible.

1. Inserting the Battery Pack(s) if your Ultra-Mobile PC shipped
from the dealer without pre-inserted batteries.

2. Connecting the eo Ultra-Mobile PC to an external power
source.

3. Connecting applicable peripherals and networking cables.

4. Powering on the eo Ultra-Mobile PC

5. Completing the Operating System Installation

Step 1: Inserting the Battery Pack(s)

Turn the eo Ultra-Mobile PC over and place it, screen down on a
solid, clean, flat surface.

CAUTION: When turning over the eo Ultra-Mobile PC, be careful not to
place it on a surface that could scratch or damage the screen. You can
place the included slip case on the surface before carefully setting the
computer down to protect the screen.

Inserting the Main Lithium-Ion Battery Pack

Align the battery so that the power output port on the bottom
of the battery matches up with the power input pins on the back
of the a7330. Angle the battery slightly down and place it in the
battery slot so that the battery’s small retaining tabs fit into the

1

Please be sure to check that the System Restore Disc matches the Operating
System (OS) installed on your eo a7330. There will not be a System Restore
Disc included if you ordered your Ultra-Mobile PC without an OS option. Some
units may include a restore image on the internal hard drive in addition to, or
in lieu of, a restore disc.

2

The eo a7330D comes standard with a Lithium-Ion main battery pack and
Lithium-Polymer secondary battery pack. The eo a7330T comes standard with
only the Lithium-Ion main batter y pack.

2 Chapter 01: Getting Started

matching grooves on the eo just beside the power input
pins. Then lay down the
opposite side of the battery
into the slot until it “clicks”
into place.

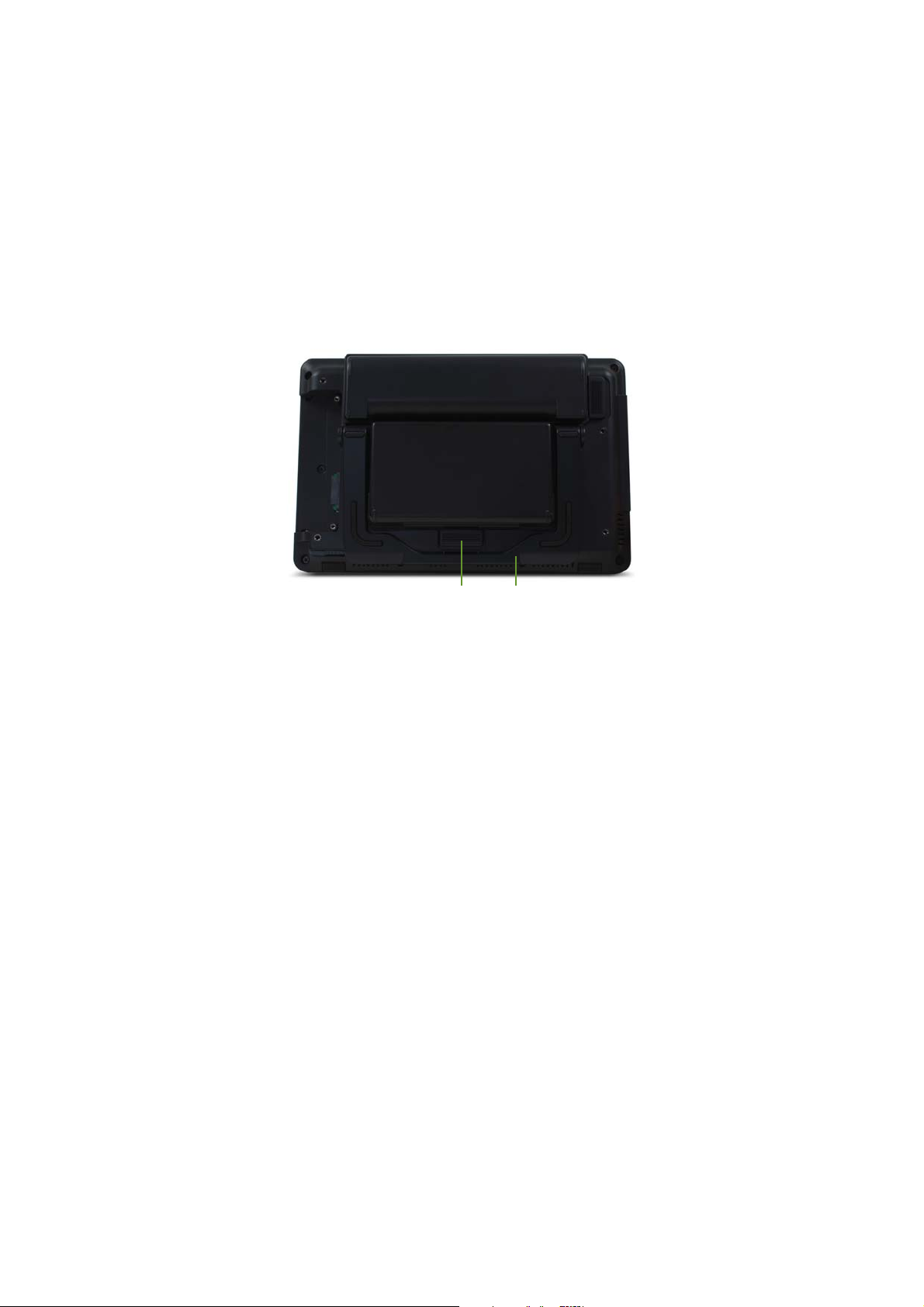

To Remove the Main Lithium-Ion
Battery Pack

Turn over the tablet and place
it on a solid, clean flat surface.
Slide the battery release latch
away from the battery and hold it there. Use your other hand
to carefully lift up the side of the battery near the latch. Once
clear of the latch, you can release it and use both hands to lift
the battery up and away from the opposite side that holds the
retaining tabs into place.

!

@

Inserting the Secondary Lithium-Polymer Battery Pack

Align the battery so that the power output port on the bottom
of the battery matches up with the power input pins on the back
of the a7330. Angle the battery slightly down and place it in the
battery slot so that the battery’s small retaining tabs fit into the
matching grooves on the eo just above the power input pins.
Then lay down the opposite side of the battery into the slot until
it “clicks” into place.

Chapter 01: Getting Started 3

!

@

To Remove the Secondary Lithium-Polymer Battery Pack

Turn over the tablet and place it on a solid, clean flat surface.
Slide the battery release latch away from the battery and hold
it there. Use your other hand to carefully lift up the side of the
battery near the latch. Once clear of the latch, you can release
it and use both hands to lift the battery up and away from the
opposite side that holds the retaining tabs into place.

Step 2: Connecting the Ultra-Mobile PC to an External Power
Source

Locate the AC adapter and the power cord. Plug the power cord
securely into the AC adapter. Plug the AC adapter’s connection
cable into the “DC Power In” port on the top of the tablet. Once

4 Chapter 01: Getting Started

the adapter plug is securely in place, plug the power cord into an
external power socket.

NOTE: When you first connect the tablet into an external power
source, the battery charge indicator will begin to glow amber. When
the battery is fully charged the indicator will turn green. See the
section entitled Battery Care for tips on maximizing battery life and
performance.

Step 3: Connecting Applicable Peripherals and Networking Cables

If you would like to use any external peripheral with the tablet
(i.e. USB mouse, USB keyboard, etc.) or are planning to connect
to the Internet and/or a corporate LAN using a wired connection
(RJ45) as opposed to wirelessly, connect the external peripheral
now. See the chapter entitled Touring Your eo Ultra-Mobile PC, to
identify which ports to use.

IMPORTANT: When you power on the a7330T for the first time, you
will need to have an external USB keyboard connected in order to
complete the Windows XP Professional installation routine. The
a7330D can use the on-screen keyboard in Active Digitizer mode.

Step 4: Powering on the eo Ultra-Mobile PC

Locate the three power switches on the top on the tablet. The

switch is the computer’s main power toggle. Slide it to the
right and hold it there until it emits a blue glow (about 1-2
seconds) and then release it. The eo Ultra-Mobile PC will now
boot up.

Chapter 01: Getting Started 5

Step 5: Completing the Operating System Installation

When your system powers on for the first time, Windows will
have a few questions for you to answer in order to localize your
installation.

NOTE: You’ll need a USB keyboard connected to your a7330T in order
to answer some of the questions that require text input. You can use
the on-screen keyboard with your a7330D in Active Digitizer mode.

Refer to your operating system’s manual for information on any
of the questions you are unsure how to answer.

Interacting with the Active Digitizer and/or Touch Screen

Unlike a standard laptop or desktop PC, standard navigational
activities on an Ultra-Mobile PC are completed using the stylus
pen, or even your fingers if using the touch screen. The screen
will react to the pen differently depending on whether you are
using the Touch Screen mode or the Active Digitizer mode.

Touch Screen mode

Navigating with a touch screen is different from navigating with
a mouse. The pen will interact with the computer whenever you
touch it to the screen.

Hold the stylus pen as if you were writing with a standard pen.
Instead of sliding the pen around the screen, just tap on what
you want to interact with. Sliding the pen while lightly touching
the tip to the screen will move the on-screen pointer around as
if you were using a mouse and holding down the left mouse
button. In other words, you would be performing what is known
as a drag operation.

Also, remember that since the screen is sensitive to the touch,
resting your hand on the screen while using the pen might make
the pointer react unpredictably.

TIP: When trying to select or activate something on the screen with
the stylus pen, pay attention to the position of the pointer icon instead
of the tip of the pen.

6 Chapter 01: Getting Started

Tapping lightly on the screen will perform a standard left mouse
button click. Holding the tip of the pen against the screen with­out moving it for about a second or so will perform a standard
right mouse button click.

Active Digitizer mode (a7330D only)

The eo a7330D dual mode screen is auto-sensing. The screen will
default to touch screen mode until is senses that the stylus pen
is near the screen. Once the pen is close enough to the screen to
be detected, the eo a7330 will automatically switch to digitizer
mode.

Hold the stylus pen as if you were writing with a standard pen.
Place the tip of the stylus just above the screen and move it
around. The pointer should follow the tip of the pen. In this
mode your hand may rest on the screen, since this will not affect
the behavior of the pointer.

TIP: When trying to select or activate something on the screen with
the stylus pen, pay attention to the position of the pointer icon instead
of the tip of the pen.

Tapping lightly on the screen with the tip of the stylus will
perform a standard left mouse click. If you want to perform a
right mouse click, press and hold down the tip of the stylus
lightly on the screen. In a moment, an animated icon will draw
around the pointer. Lift the stylus from the screen to complete
the button press.

NOTE: Animated
cues, or floating
tablet tips, will
only appear in the
Active Digitizer
mode if your Sahara
Slate PC is running
Windows XP
Tablet PC Edition or
Windows Vista.

Chapter 01: Getting Started 7

Chapter 02

Touring Your eo Ultra-Mobile PC

The eo a7330 Ultra-Mobile PC features a number of physical
characteristics designed to help you work as efficiently as
possible. Take a moment to familiarize yourself with the controls
and Input/ Output (I/O) ports on the faces and sides of the
computer. Understanding the layout of the system will help you
use your eo a7330 more efficiently while in the field or on-the-go.

The eo a7330T features a resistive touch screen,
while the eo a7330 D features an all new auto-switching,
dual mode digitizer/touch screen by Wacom that is also
sunlight viewable.

Chapter 02: Touring Your eo Ultra-Mobile PC 9

Front View

!
@

#

1. Battery Charge Indicator

Glows amber when the battery is charging and changes
to green when the battery is fully charged. Glows Orange
when charge drops below 10% and blinks when below 2%.
Doesn’t light up when running on battery unless in a low
state as mentioned.

2. Hard Disk Drive Activity Light

Blinks blue when the hard drive is being accessed.

3. Dual Digital Microphone Array

Microphone array records audio with higher fidelity for more
accurate voice recognition. Recording input source can be
toggled between the internal array and an external audio
source plugged into the Audio In port (see $ in the Left
Side View section later in this chapter) via the Realtek Audio
Control Applet.

$

10 Chapter 02: Touring Your eo Ultra-Mobile PC

4. Auto-Switching Dual Mode Screen (a7330D only)

Screen mode is set to Touch Screen by default. When the
stylus pen’s writing tip is within sensing distance—approxi­mately 12-15mm—the screen will automatically switch to
Active Digitizer mode. When the pen’s writing tip is moved
away from the screen, it will switch back to Touch Screen
mode. When in Digitizer mode, the screen is not sensitive
to touch (except by the stylus pen’s writing tip), and thus
resting your hand on the screen while writing or navigating
will have no influence on the pointer’s position.

4. Passive Resistive Touch Screen (a7330T only)

Touch Screen is responsive to touch by any object, as the
screen’s sensors react purely to pressure, as opposed to a
magnetic tip or electrical conduction. Resting your hand
on the screen while writing or navigating may affect the
pointer’s position.

Chapter 02: Touring Your eo Ultra-Mobile PC 11

Top View

!@ # $%^

1. DC Power In Jack

Plug the AC adapter’s connection cable into this port to
provide power to the computer.

2. Built-in Speaker

To listen to music, movies, games and more.

3. Ventilation Port

Fan exhaust port for expelling hot air from the interior of the
eo Ultra-Mobile PC. Do not block to prevent over heating.

4. Wireless Networking Power Toggle

Slide the toggle switch to activate the wireless networking
adapter’s transmitter and/or the optional 3G data module’s
transmitter (if installed). The switch will glow blue when the
WiFi adapter is powered on, amber when the 3G module is
powered on, and both (purple) when both are active. Slide
switch back to turn off all wireless networking. Use the
wireless mode toggle button to change wireless modes (see

(

in the Front View section earlier in this chapter).

NOTE: When not connected to a wireless network, turn off the wireless
transmitter to conserve battery power.

12 Chapter 02: Touring Your eo Ultra-Mobile PC

5. Bluetooth Power Toggle

Slide the toggle switch to activate the Bluetooth wireless
transmitter. The switch will glow blue when powered on.
Slide switch back to turn off Bluetooth.

NOTE: When not actively using a Bluetooth peripheral, turn the
Bluetooth transmitter off to conserve battery power.

6. System Power/Resume Toggle

Slide this switch and hold for 1-2 seconds to power on the
computer or to resume normal operation if the computer
is in Suspend Mode. Slide and holding for 4-6 seconds to
immediately turn off the computer.

NOTE: Using this switch to power off the computer is not recom­mended unless the computer has stopped responding to user input as
there is no time for the OS to shut down normally, and as a result, data
loss may occur.

Chapter 02: Touring Your eo Ultra-Mobile PC 13

Left Side View

!@#$% ^

1. Anti-Theft Kensington Lock

Use with the locking device (sold separately) to attach the
eo Ultra-Mobile PC to a desk, table, kiosk, or other stationary
apparatus to help prevent the computer from being stolen.

2. Ethernet LAN Port

Use this RJ45 jack to access a local area network or high­speed Internet connection with a standard, twisted-pair
Ethernet cable. Supports 10/100/1000 Mbps protocols.

3. Headphone / Audio Out

Stereo audio port for connecting headphones, external
speakers or other audio devices.

4. Audio In

Used to input stereo audio from external devices such as a
microphone, radio or tape player.

5.

USB 2.0 Port

High speed (480 Mbps) Universal Serial Bus 2.0 ports for
connecting peripherals such as a mouse, keyboard, wedge
reader, CD/DVD drive, printer, digital camera and more.
Backward compatible with USB 1.1 devices.

6. Ventilation Port

Cooling fan intake port. Do not block to help prevent
overheating.

14 Chapter 02: Touring Your eo Ultra-Mobile PC
