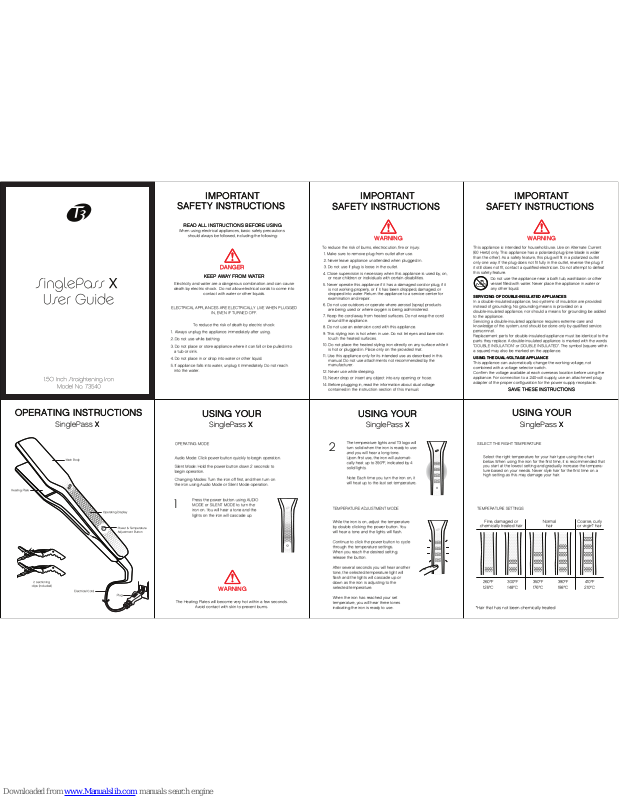

SinglePass X
User Guide
1.50 Inch Straightening Iron
Model No. 73540
WARNING
DANGER
WARNINGWARNING
IMPORTANT
SAFETY INSTRUCTIONS
IMPORTANT
SAFETY INSTRUCTIONS
OPERATING INSTRUCTIONS
Electrical Cord
Heating Plate
2 sectioning
clips (included)
Main Body
Power & Temperature
Adjustment Button
Operating Display
Plug
The Heating Plates will become very hot within a few seconds.
Avoid contact with skin to prevent burns.
Audio Mode: Click power button quickly to begin operation.
Silent Mode: Hold the power button down 2 seconds to
begin operation.
Changing Modes: Turn the iron off first, and then turn on
the iron using Audio Mode or Silent Mode operation.
While the iron is on, adjust the temperature
by double clicking the power button. You
will hear a tone and the lights will flash.
Continue to click the power button to cycle
through the temperature settings.
When you reach the desired setting,
release the button.
After several seconds you will hear another
tone, the selected temperature light will
flash and the lights will cascade up or
down as the iron is adjusting to the
selected temperature.
When the iron has reached your set
temperature, you will hear three tones
indicating the iron is ready to use.
Press the power button using AUDIO
MODE or SILENT MODE to turn the
iron on. You will hear a tone and the
lights on the iron will cascade up.
The temperature lights and T3 logo will
turn solid when the iron is ready to use
and you will hear a long tone.
Upon first use, the iron will automatically heat up to 390ºF, indicated by 4
solid lights.
Note: Each time you turn the iron on, it
will heat up to the last set temperature.
2
SinglePass X
KEEP AWAY FROM WATER
Electricity and water are a dangerous combination and can cause
death by electric shock. Do not allow electrical cords to come into
contact with water or other liquids.
ELECTRICAL APPLIANCES ARE ELECTRICALLY LIVE WHEN PLUGGED
IN, EVEN IF TURNED OFF.
To reduce the risk of death by electric shock:
1. Always unplug the appliance immediately after using.
2. Do not use while bathing.
3. Do not place or store appliance where it can fall or be pulled into
a tub or sink.
4. Do not place in or drop into water or other liquid.
5. If appliance falls into water, unplug it immediately. Do not reach
into the water.
Do not use the appliance near a bath tub, washbasin or other
vessel filled with water. Never place the appliance in water or
any other liquid.
SERVICING OF DOUBLE-INSULATED APPLIANCES
In a double-insulated appliance, two systems of insulation are provided
instead of grounding. No grounding means is provided on a
double-insulated appliance, nor should a means for grounding be added
to the appliance.
Servicing a double-insulated appliance requires extreme care and
knowledge of the system, and should be done only by qualified service
personnnel.
Replacement parts for double-insulated appliance must be identical to the
parts they replace. A double-insulated appliance is marked with the words
“DOUBLE INSULATION” or DOUBLE INSULATED”. The symbol (square within
a square) may also be marked on the appliance.
USING THE DUAL-VOLTAGE APPLIANCE
This appliance can automatically change the working voltage, not
combined with a voltage selector switch.
Confirm the voltage available at each overseas location before using the
appliance. For connection to a 240-volt supply, use an attachment plug
adapter of the proper configuration for the power supply receptacle.
This appliance is intended for household use. Use on Alternate Current
(60 Hertz) only. This appliance has a polarized plug (one blade is wider
than the other). As a safety feature, this plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician. Do not attempt to defeat
this safety feature.
To reduce the risk of burns, electrocution, fire or injury:
1. Make sure to remove plug from outlet after use.
2. Never leave appliance unattended when plugged in.
3. Do not use if plug is loose in the outlet.
4. Close supervision is necessary when this appliance is used by, on,
or near children or individuals with certain disabilities.
5. Never operate this appliance if it has a damaged cord or plug, if it
is not working properly, or if it has been dropped, damaged, or
dropped into water. Return the appliance to a service center for
examination and repair.
6. Do not use outdoors or operate where aerosol (spray) products
are being used or where oxygen is being administered.
7. Keep the cord away from heated surfaces. Do not wrap the cord
around the appliance.
8. Do not use an extension cord with this appliance.
9. This styling iron is hot when in use. Do not let eyes and bare skin
touch the heated surfaces.
10. Do not place the heated styling iron directly on any surface while it
is hot or plugged in. Place only on the provided mat.
11. Use this appliance only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
12. Never use while sleeping.
13, Never drop or insert any object into any opening or hose.
14. Before plugging in, read the information about dual voltage
contained in the instruction section of this manual.
USING YOUR
SinglePass X
USING YOUR
SinglePass X
READ ALL INSTRUCTIONS BEFORE USING
When using electrical appliances, basic safety precautions
should always be followed, including the following:
TEMPERATURE ADJUSTMENT MODE
OPERATING MODE
SAVE THESE INSTRUCTIONS
IMPORTANT
SAFETY INSTRUCTIONS
USING YOUR
SinglePass X
SELECT THE RIGHT TEMPERATURE
TEMPERATURE SETTINGS
Coarse, curly
or virgin* hair
Normal
hair
410°F
210°C
390°F
198°C
350°F
176°C
300°F
148°C
260°F
126°C
Fine, damaged or
chemically treated hair
Select the right temperature for your hair type using the chart
below. When using the iron for the first time, it is recommended that
you start at the lowest setting and gradually increase the temperature based on your needs. Never style hair for the first time on a
high setting as this may damage your hair.
1
*Hair that has not been chemically treated
Hair should be completely dried
before using the iron. Then use a
brush or comb to detangle hair.
Twist the top part of your hair out
of the way and secure it with one
of the included sectioning clips.
Gather the rest of your hair into the
other clip, leaving a thin section out
to begin styling.
To avoid kinks, style your hair using thin, horizontal
sections* so the iron can be positioned close to
the roots.
1
2
STYLING WITH YOUR
MODEL NO.
73540
SPECIFICATIONS
Operating Voltage: 120V/240V
Power Consumption: 48W
T3 Micro
Gardena, CA USA
Made in China
WWW.T3MICRO.COM
UG-73540
WARNING
Visit www.T3micro.com/register to complete
your warranty registration.
T3 Micro will repair or replace (at our option) T3 products for twenty-four
(24) months from the date of purchase if they are defective in workmanship or materials. This limited warranty does not cover (1) damage due to
misuse or abuse, such as incorrect voltage supply, dropping, or failure
to follow enclosed instructions or (2) tampering, such as repair or
attempted repair. To obtain service under this warranty, please call
1.888.340.8880 or email us at info@T3micro.com to obtain a Return
Authorization Number as well as explicit instructions on how to return the
defective product. You will be required to return the defective product
with a proof of purchase, payment in the amount of $9.95 (irons) or $14.95
(dryers and showerheads) to cover shipping and handling, and a brief
description of the product's deficiencies. Please clearly mark the Return
Authorization Number on the outer packaging when sending us the
defective item.
THIS LIMITED WARRANTY IS ONLY VALID IF THE PRODUCT IS
PURCHASED FROM AN AUTHORIZED SELLER OF T3 GOODS AND IF
THE ORIGINAL SERIAL NUMBER ON THE PRODUCT HAS NOT BEEN
REMOVED OR OTHERWISE TAMPERED WITH.
Any implied warranties, obligations, or liabilities, including but not limited
to the implied warranty of merchantability and fitness for a particular
purpose, shall be limited in duration to the 24 month duration of this
written limited warranty. Some states do not allow a limitation on how
long an implied warranty lasts, so the above limitation may not apply
to you.
IN NO EVENT SHALL T3 BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED.
T3 LIMITED WARRANTY
TERMS & CONDITIONS
Become a fan and discover
The Science of Fabulous
Receive information on new product releases,
stylist tips and tricks, and other news from
the behind the scenes world of T3.
FACEBOOK.COM/T3MICRO
YOUTUBE.COM/T3MICRO
WWW.T3MICRO.COM
USING YOUR
MAINTAINING YOUR
Take the hair section and
pull it taut starting at the
root. Clamp the iron close
to the roots and glide the
iron through slowly*.
To avoid burns, do
not allow the iron to
touch scalp.
3
Slow down for perfect results in a single glide:
Fine hair: Glide iron at 2-3 inches per second
Medium Hair: Glide iron at 2 inches per second
Coarse Hair: Glide 1 inch per second
To turn off the iron, hold the power button
down for 2 seconds. You will
hear a tone and the lights on the iron will
cascade down.
Note: You cannot turn the iron off
when you are in the TEMPERATURE
ADJUSTMENT MODE.
4
SinglePass X
SinglePass X
SinglePass X
1. Your appliance is virtually maintenance free. It contains no user
serviceable parts, and no lubrication is needed.
2. Keep heated surfaces clean and free of dust, dirt & hairspray.
3. If cleaning becomes necessary, disconnect the appliance
from the power source and let it cool. Wipe the exterior with a
damp cloth.
4. If any malfunction occurs, unplug the appliance, allow it to cool
and return it to service center to repair.
5. Never wrap the cord around the appliance since this will cause
the cord to wear prematurely and break. If the cord becomes
twisted, untwist it prior to use.
6. Handle cord carefully for longer life and do not put any stress on
the cord where it enters the handle. Avoid jerking, twisting or
straining especially at the plug connections. It could cause the
cord to fray and possibly break.
7. When not in use, your styling iron should be disconnected and
stored in a safe, dry location, out of reach of children. Do not wrap
the cord around the styling iron. Allow the cord to hang or lie loose
and straight at the point of entry into the styling iron.
8. Do not attempt to repair the appliance yourself.
Hair section should be as wide as the plate.
Hair section should be
as thick as the plate.
*Expert Tip:
STYLING WITH YOUR
SinglePass X
SECTION YOUR HAIRPREP YOUR HAIR GLIDE SLOWLY
STYLING WITH YOUR
SinglePass X
*Expert Tip:
Do not use the appliance near a bath tub,
washbasin or other vessel filled with water. Never
place the appliance in water or any other liquid.
