T2 MS-34 Owner's Manual

Features::

The MS-34 is a three input, four output multiswitch. It
is built to accept a signal from a dual LNB satellite dish,
plus a signal from either an off-air antenna or cable TV.
The MS-34 then routes their combined signal to four
independent receivers.

• Rugged, all-aluminum construction and sealed case
means operability in any installation environment.

• Structured enclosure modularity ensures fast,
custom, professional installations.

• Flat, low loss RF circuitry ensures clean, crisp
pictures on all television sets.

• Ergonomically positioned F-connectors ensure
the easiest possible installation.

2

Other Mounting Options::

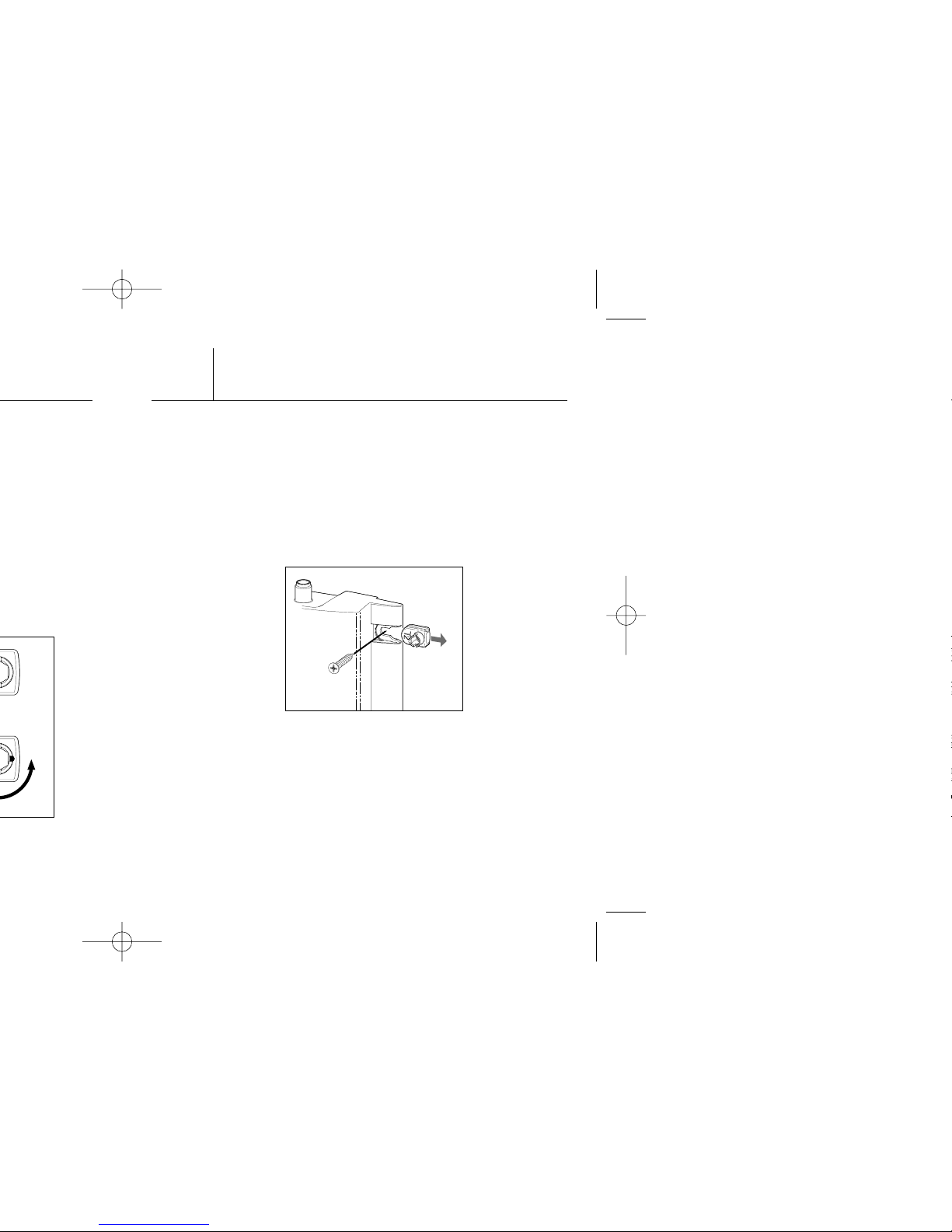

To mount your multiswitch on a flat wall or surface, simply
remove the hook and lock pieces by pulling outward. Your
multiswitch can then be mounted using screws. See fig. 4.

4

Fig. 4

180˚

Connecting and Using::

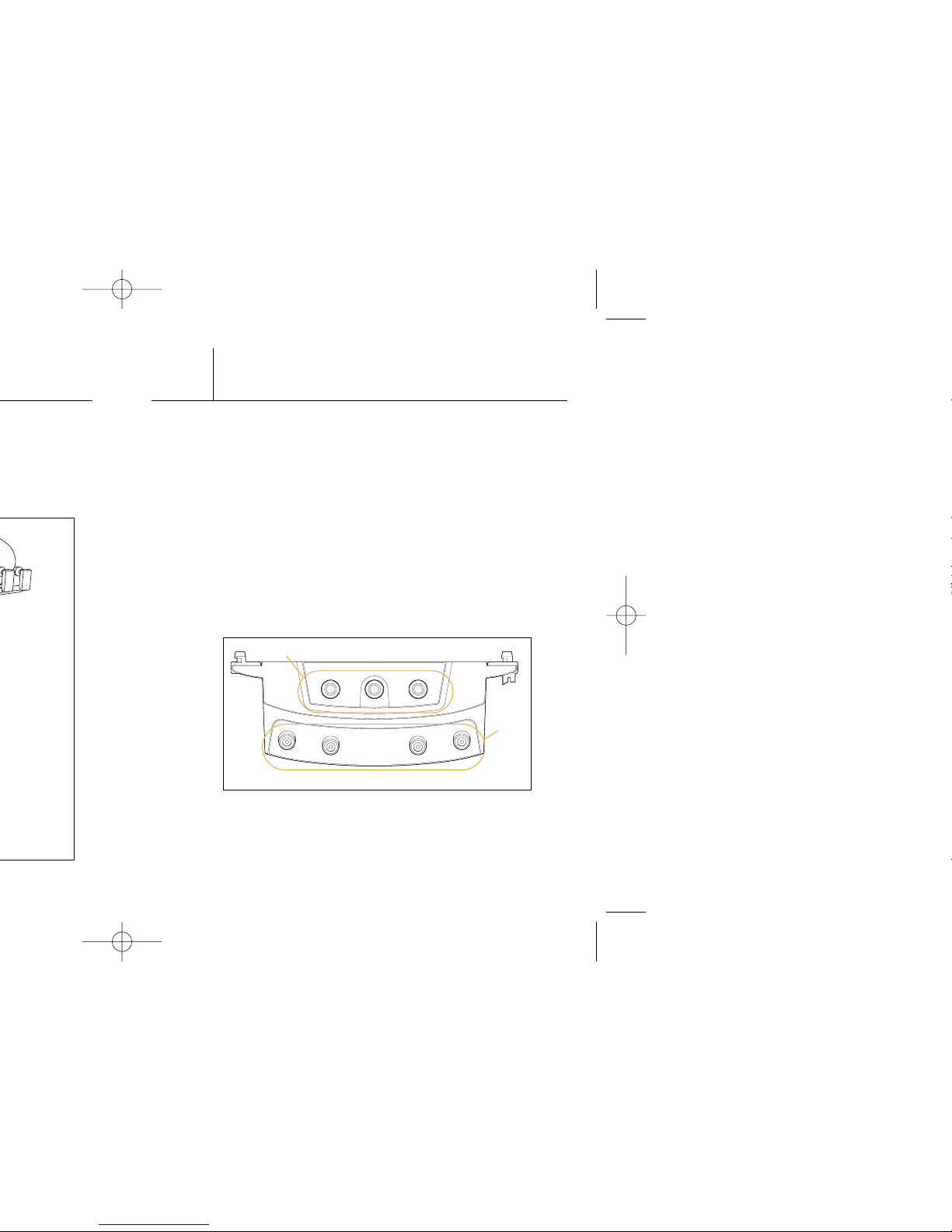

Hooking up your MS-34 is easy. There are two levels of
F-connectors. The three connectors on the upper level are
the inputs, and the four connectors on the lower level are
the outputs. See fig. 6.

The inputs are clearly labeled on the top level, and
indicate which connectors should be used for satellite
feeds (13V and 18V) and which should be used for the
antenna/CATV feed. See fig. 6a.

The outputs are clearly marked “receiver 1” through
“receiver 4,” with each output transmitting exactly the
same signal. See fig. 6b.

6

receiver 1

receiver 2

sat. 13V

antenna/CATV

sat. 18V

receiver 3

receiver 4

Fig. 6

a

b

SATELLITE
