Mavic 2 Zoom Quick Start Guide

V1.0 2018.07

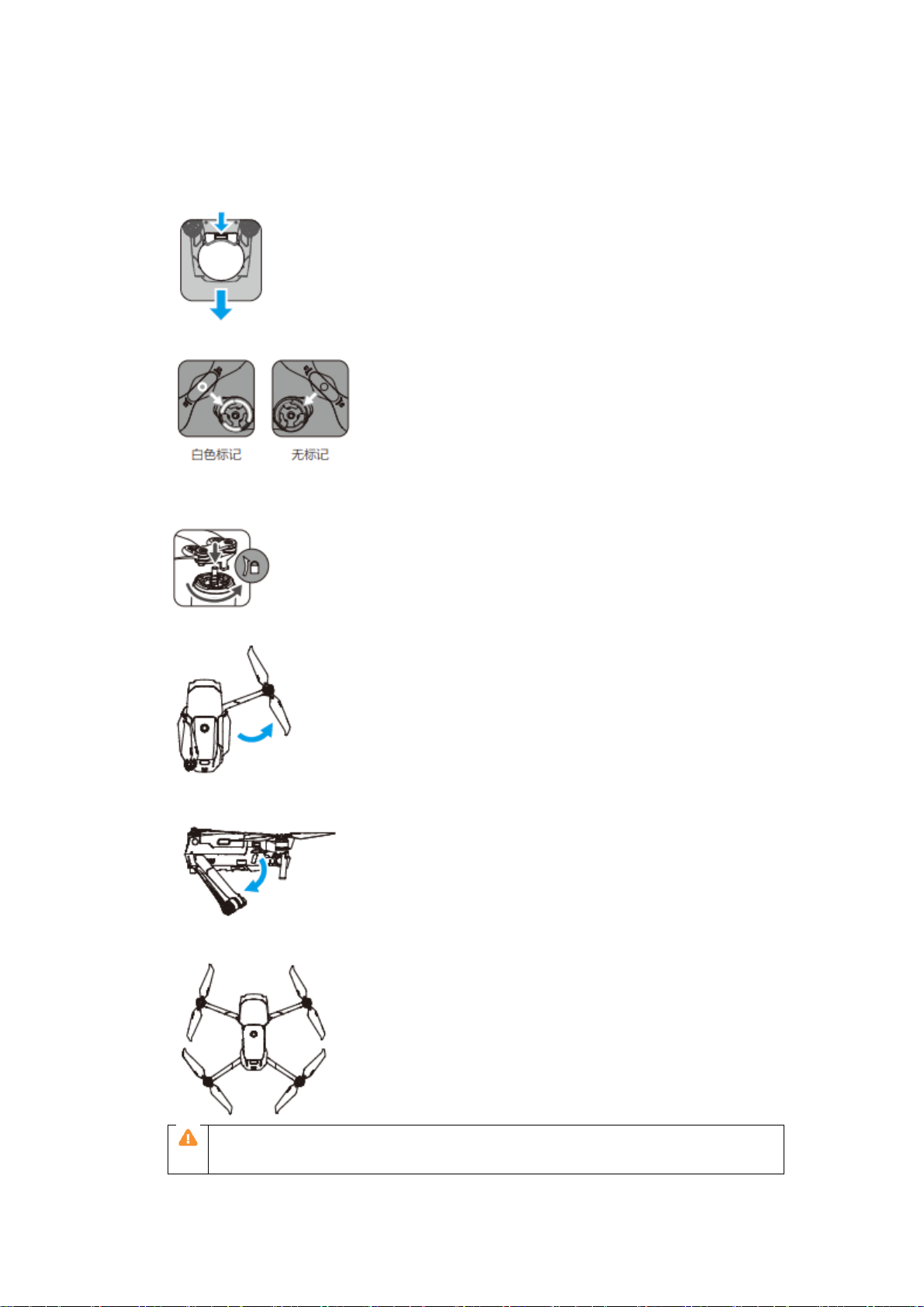

Aircraft (L1Z)

The DJITM MAVICTM 2 Pro features Omnidirectional Obstacle Sensing, an Infrared Sensing System*,

and a fully stabilized 3-axis gimbal with a 1” CMOS sensor camera that shoots 4K video and 20-

megapixel photos. DJI signature technologies such as Obstacle Avoidance and Intelligent Flight

Modes like HyperLapse, ActiveTrack

TM

2.0, QuickShot, Panorama, and Advanced Pilot Assistance

Systems, help you capture complex shots effortlessly. The Mavic 2 Zoom boasts a maximum flight

speed of 44.7 mph (72 kph) and a maximum flight time** of 31 minutes.

1. Gimbal and Camera

2. Forward Vision System

3. Downward Vision System

4. Lateral Vision System

5. Downward Infrared Sensing System

6. Fill Light

7. microSD Card Slot

8. Front LEDs

9. Motors

10. Propellers

11. Antennas

12. Aircraft Status Indicator

13. Upward Infrared Sensing System

14. Backward Vision System

15. Intelligent Flight Battery

16. Battery Level LEDs

17. Power Button

18. Battery Buckles

19. USB-C Port

20. Link Button/Linking Status Indicator

* The Vision Systems and Infrared Sensing Systems are affected by surrounding conditions. Read

the Disclaimer and Safety Guidelines and watch the tutorial in the DJI GOTM 4 app or on the official

DJI website to learn more. http://www.dji.com/mavic-2

** Maximum flight time was tested in an environment with no wind while flying at a consistent

15.5 mph (25 kph). This value is for reference only.

Remote Controller （RC1A）

Built into the remote controller is the DJI’s long-range transmission technology OCUSYNCTM 2.0,

offering a maximum transmission range of 5 mi (8 km) and displaying video from the aircraft to the

DJI GO 4 app on your mobile device at up to 1080p. An on-board LCD screen gives real-time aircraft

data information and the detachable control sticks make the remote controller easier to store.

Maximum run time: 2 hours and 15 minutes*

1. LCD Screen

2. Flight Pause Button

3. 5D Button

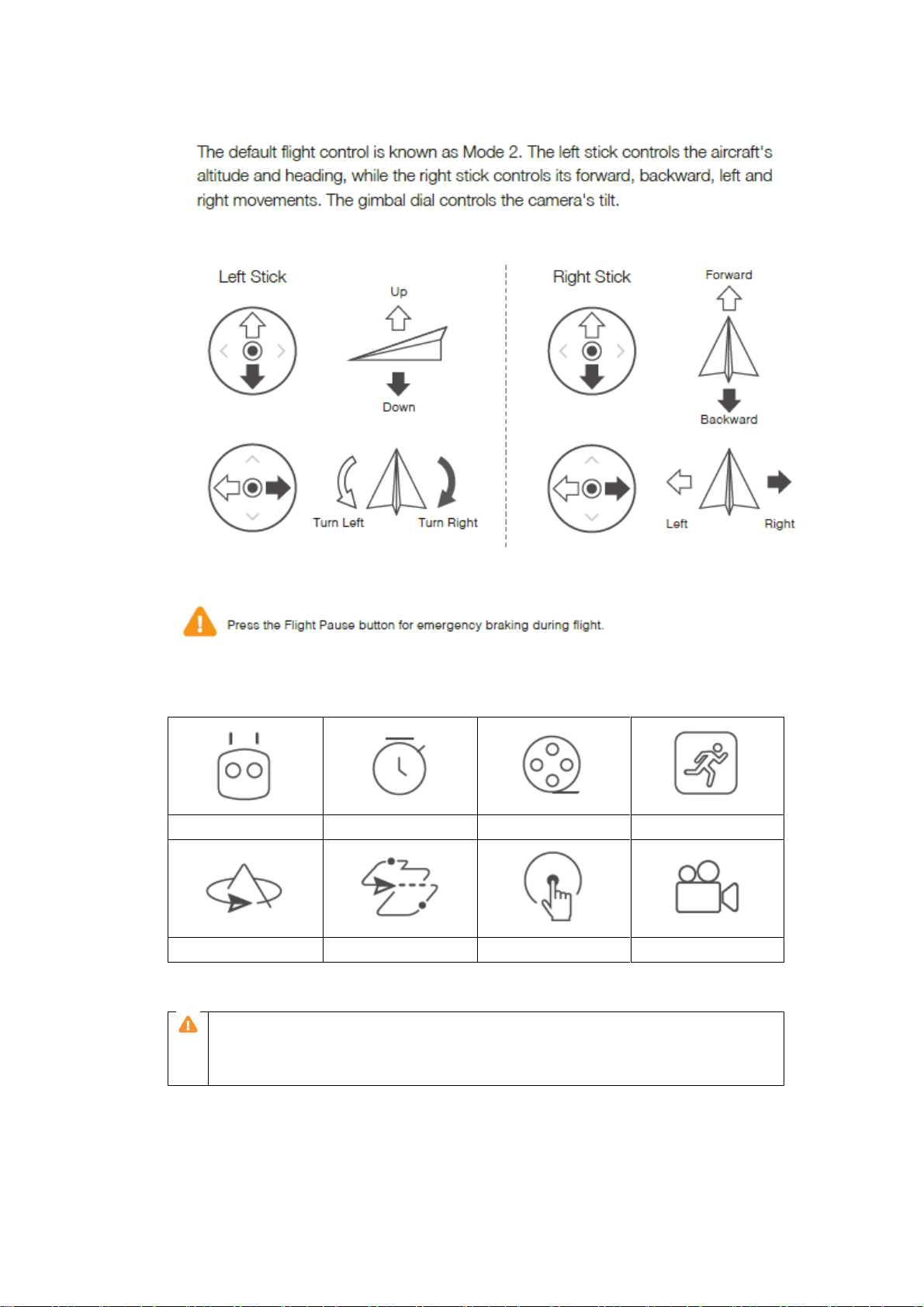

4. Control Sticks

5. Removable Power Button

6. Antennas

7. RTH Button

8. Control Sticks Storage Slot

9. Reserve Video-Downlink Port (USB)

10. Mobile Device Clamp

11. Flight Mode Switch

12. Gimbal Dial

13. Aperture/Shutter Adjustment Dial

14. Record Button

15. Focus/Shutter Button

16. Video-Downlink/Power Port (microUSB)

17. C1 Button (Customizable)

18. C2 Button (Customizable)

* The remote controller is able to reach its maximum transmission distance (FCC) in a wide-open

area with no electromagnetic Interference at an altitude of about 400 ft (120 m).

The maximum runtime is tested in a laboratory environment. This value is for reference only.

Specifications

Aircraft

Weight

905 g

Max Speed

44.7 mph (72 kph) in Sport mode without wind

Max Service Ceiling Above

Sea Level

19685 ft (6000 m)

Max Flight Time

31 minutes (0 wind while flying at a consistent 15.5 mph (25 kph))

Operating Temperature

14° to 104°F (-10° to 40°C)

GNSS

GPS + GLONASS

Operating Frequency

2.4-2.4835 GHz; 5.725-5.850 GHz

Gimbal

Controllable Range

Pitch: -90° to +30°

Yaw: -90° to +90°

Sensor

1/2.3’’ CMOS; Effective pixels: 12M

Lens

FOV: approx. 83°(24mm), approx. 48°(48mm)

35mm format equivalent: 24-48 mm

Aperture: f/2.8 (24mm)-f/3.8 (48mm)

Focus: 0.5 m to ∞

ISO Range

Video: 100-3200

Photo: 100-1600 (auto); 100-3200 (manual)

Electronic Shutter Speed

8-1/8000 s

Max Image Size

4000×3000

Still Photography Modes

Single shot

Burst shooting: 3/5/7 frames

Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV

Bias

Interval

Video Recording Modes

4K: 3840×2160 24/25/30p

2.7K: 2688×1512 24/25/30/48/50/60p

FHD: 1920×1080 24/25/30/48/50/60/120p

Video Storage Bitrate

100 Mbps


JPEG, DNG (RAW)

Video

MP4, MOV (MPEG-4 AVC/H.264, HEVC)

Supported SD Cards

microSD™

Max Capacity: 128 GB (UHS-I Speed Grade 3 rating required)

Operating Frequency

2.4-2.4835 GHz; 5.725-5.850 GHz

Max Transmission Distance

(Unobstructed and free of

interference)

FCC: 8 km; CE: 5 km; SRRC: 5 km

Operating Temperature

32° to 104° F (0° to 40° C)

Battery

3950 mAh@ 3.83V

Camera

Remote Controller

Operating Voltage

1800mA @ 3.83 V (when charging the mobile device)

Supported Mobile Device

Size

Thickness supported: 6.5 - 8.5 mm, Max length: 160 mm

Supported USB port types: Lightning, Micro USB (Type-B)

USB-C

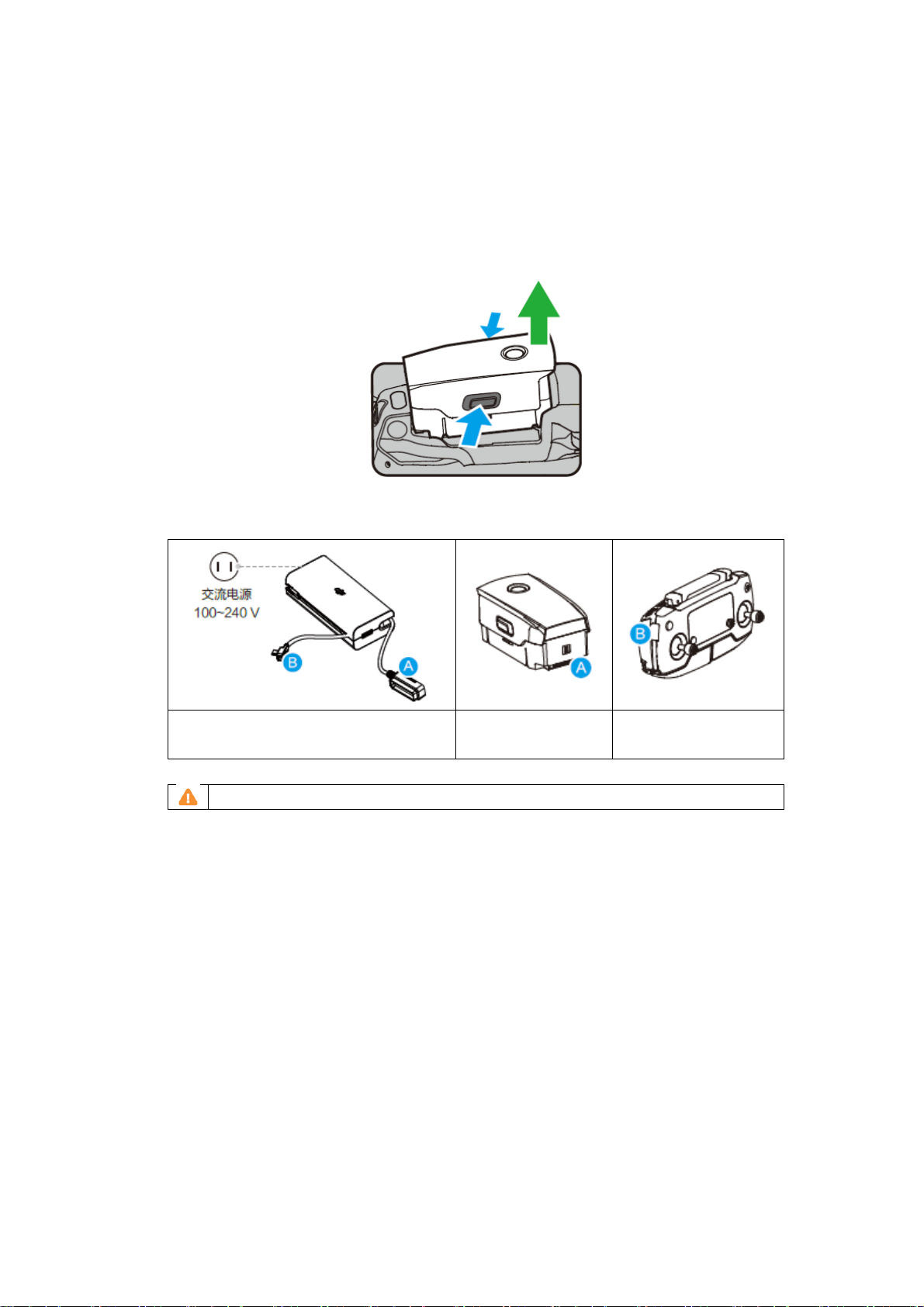

Charger

Voltage

17.6±0.1 V

Rated Power

60 W

Capacity

3850 mAh

Voltage

17.6 V (max)

15.4 V (typical)

Battery Type

LiPo

Energy

59.29 Wh

Net Weight

Approx. 297 g

Charging Temperature

Range

41° to 104°F (5° to 40°C)

Max Charging Power

80 W

DJI GO 4 is compatible with iOS 9.0 (or later) or Android 4.4 (or later).

Intelligent Flight Battery

For more information, read the User Manual:

http://www.dji.com/mavic-2

※ This content is subject to change without prior notice.

Download the DJI GO 4 App and Watching Tutorial Videos

Search “DJI GO 4” in the App Store or Google Play or scan the QR code below to download the app

on your mobile device.

Watch the tutorial videos at www.dji.com/mavic-2 or in DJI GO 4 by tapping the icon in the top

right corner of your screen.
