Welcome
Welcome to Sytech! Thank you for purchasing the Power Pack SY-PWC52. Please read this manual
carefully before operating your product and pay close attention to the precautions which are
mentioned below. Store this user manual in a safe place for future reference.

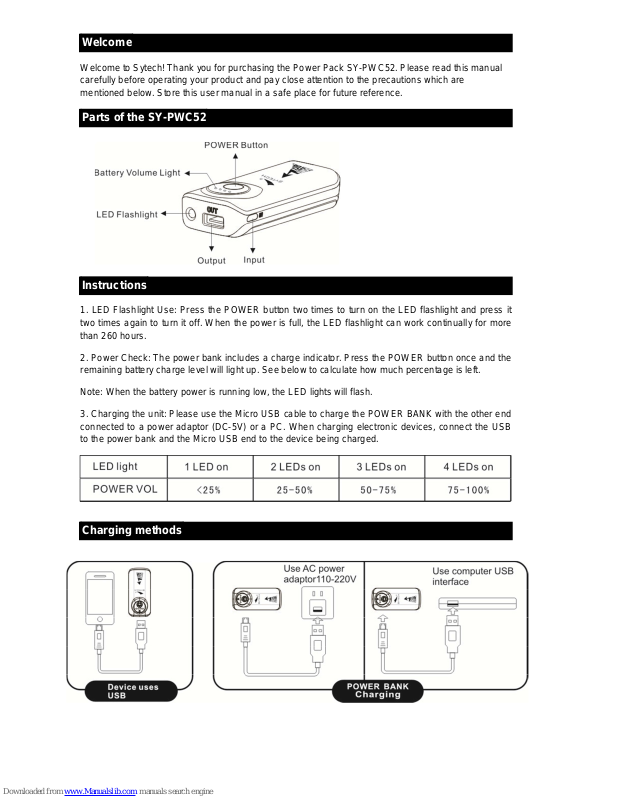

Parts of the SY-PWC52
Instructions
1. LED Flashlight Use: Press the POWER button two times to turn on the LED flashlight and press it
two times again to turn it off. When the power is full, the LED flashlight can work continually for more
than 260 hours.
2. Power Check: The power bank includes a charge indicator. Press the POWER button once and the
remaining battery charge level will light up. See below to calculate how much percentage is left.
Note: When the battery power is running low, the LED lights will flash.
3. Charging the unit: Please use the Micro USB cable to charge the POWER BANK with the other end
connected to a power adaptor (DC-5V) or a PC. When charging electronic devices, connect the USB
to the power bank and the Micro USB end to the device being charged.
Charging methods
1. Please use the Micro USB cable to charge the POWER BANK.
2. It is recommended to use a power adaptor of less than or equal to 1000mAh to charge the
POWER BANK
3. Use a computer USB interface to charge the POWER BANK.
Specifications
External, portable and rechargeable battery pack
Elegant design with rubber touch easy to use.
Capacity: 5200 mAh
2 USB ports to connect charging cables
Micro USB port to charge the power pack (cable included)
LED charge level indicator
Charging LED indicator
Flashlight included
Compatible with Smartphones, iPod, Cameras. Bluetooth devices, portable consoles, MP3/MP4
Input: DC 5V – 1.0A
Output: DC 5V – 1.0A
Declaration of Conformity
Manufacturer Name: Satyatrade S. L.
Address: Pol.Ind.La Raya. C/ Guadalquivir, 2.
Camarma de Esteruelas, 28816 Madrid
Tel: 902 430 967
Fax: 91 8864285
NIF: B83254763
Manufacturing country: China
Description: Power Bank
Sytech® SY-PWC52 complies with the following directives:
CE Standard: Directive 2004/108/CE
ROHS Standard: 2011/65/EC Restriction of Hazardous Substances
Signed: Ajeet Nebhwani Utamchandani
Sole Administrator
