Welcome
Welcome to Sytech! Thank you for purchasing the new MP3 Player SY-7310. Please read this manual carefully
before operating your product and pay close attention to the precautions which are mentioned below. Store this
user manual in a safe place for future reference.
Key features
Flash memory:4GB
Support MP3/WMA/ format audio
Mobile data storage function
USB 2.0 High speed connection
Integrated rechargeable battery
Clip located at the rear side for better comfort

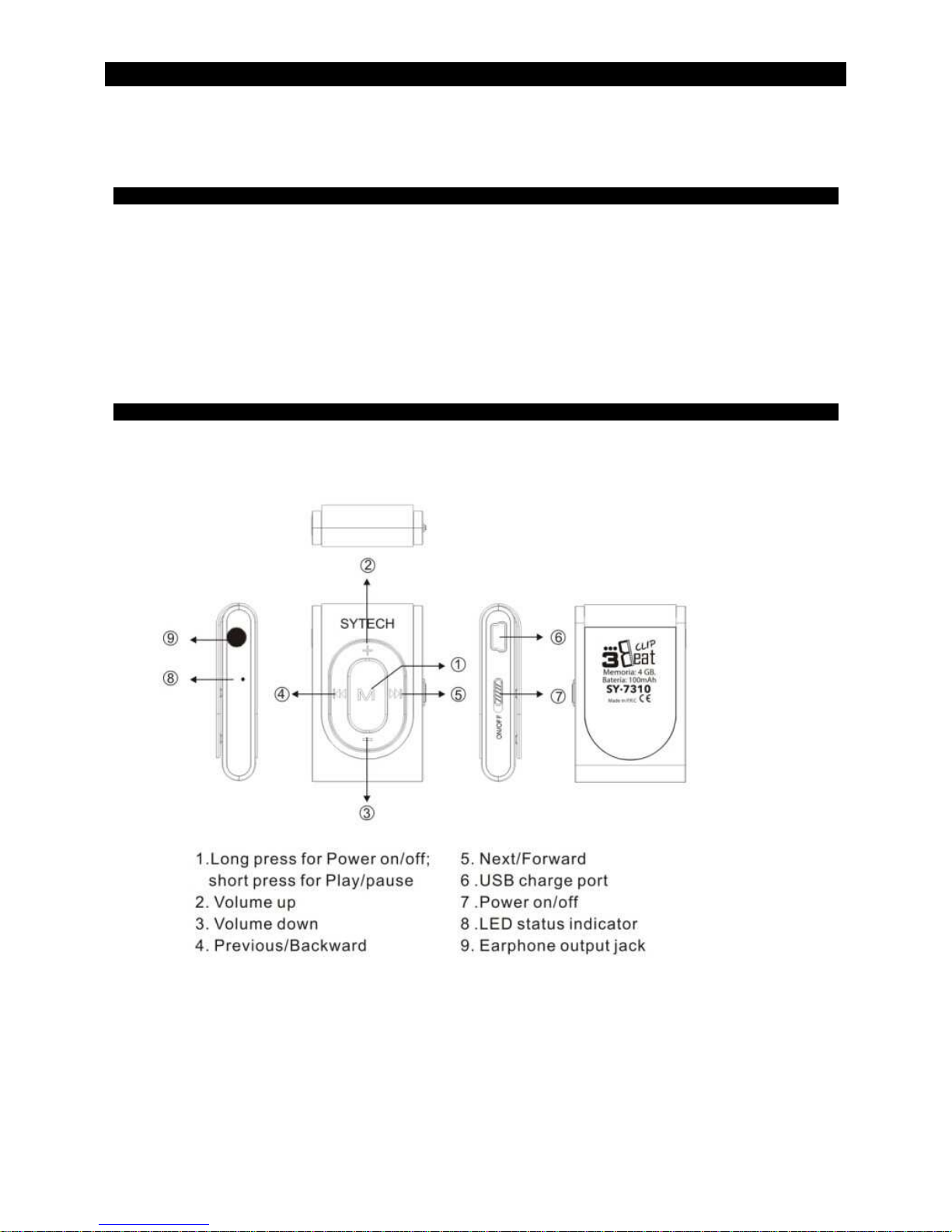

Parts of the SY-7310
Page 3
Operating Instructions
● Power On / Off
Turning ON the MP3 player: Simply push up the side button until the LED indicator turns on.
Turning OFF the MP3 player: Simply push down the side button until the LED indicator turns off.

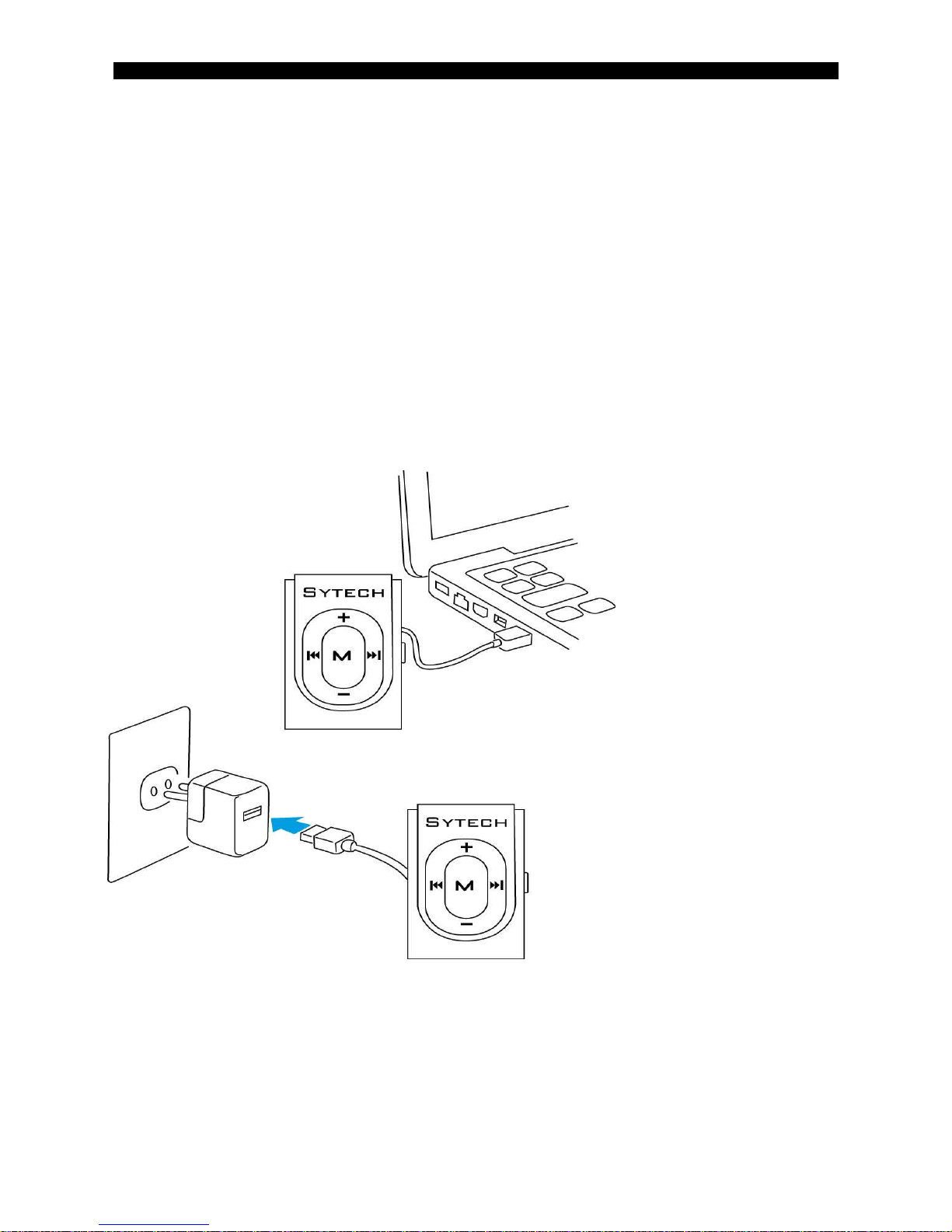

• Charging your MP3 player
To charge your MP3 player, connect the USB cable supplied, to your MP3 USB port and the other end of the
cable, to a PC or to an AC adaptor which has a USB port to plug in.
Note: In case of using an external independent AC adaptor, please make sure it is totally certified and
has the following power: 5V. 360mAh.
The charging time to ensure an optimal performance of the battery is 4 hours approximate.
The playing time of the MP3 player will vary according to the volume level of the music.
Example: 80% Volume: 2 Hours
40 % Volume: 4 Hours
● Connecting to a PC
To disconnect your MP3 player from your PC, it is important you remove it safely, following the below instructions.
This will prevent any data loss or firmware corruption.

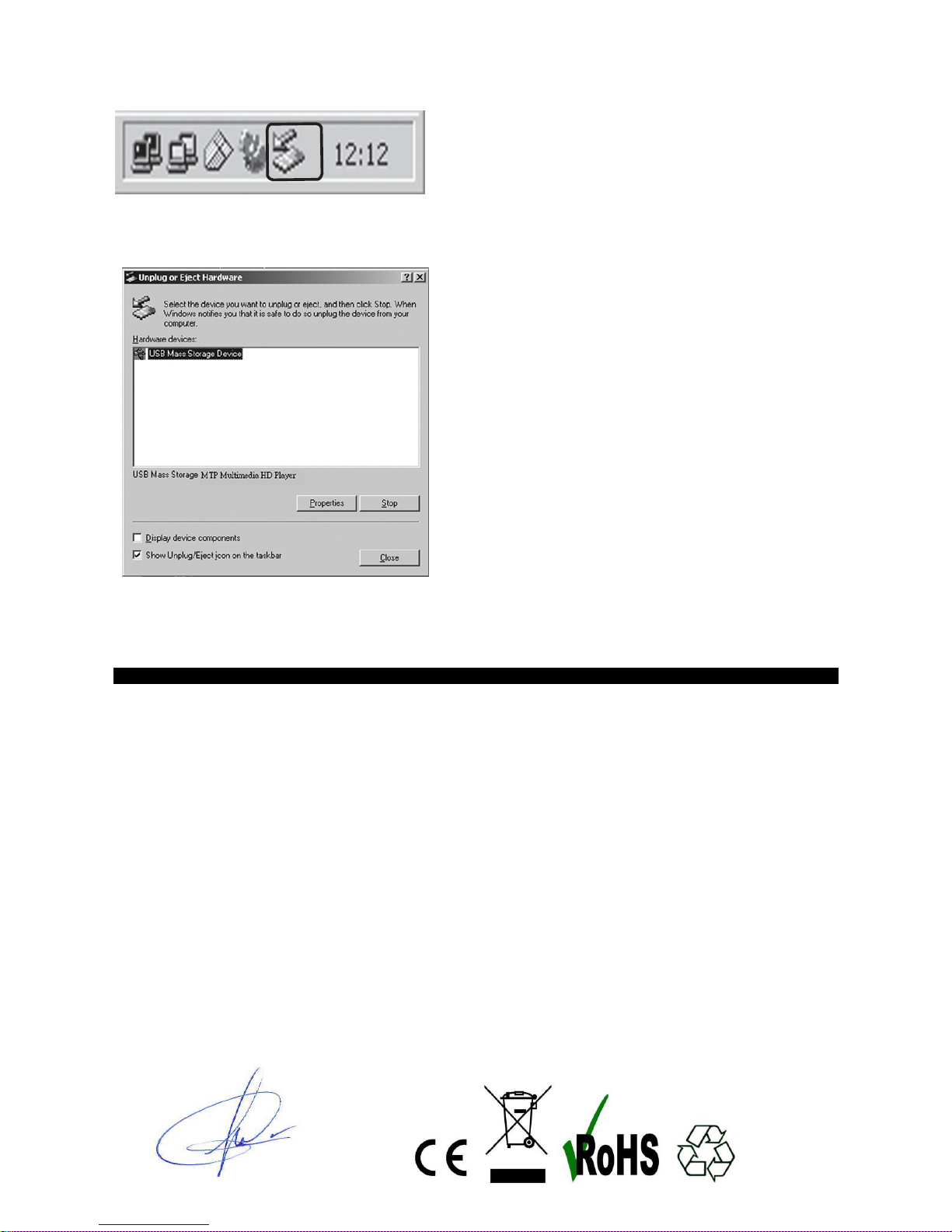

1. Double click on the green arrow located on the taskbar on the lower right side of your PC monitor.
Page 4
(safely remove hardware)
2. Select “USB Mass Storage Device” from the list that appears and then click on “Stop”
3. A message should appear informing that it is safe to remove your hardware. At this time it is safe to
remove the MP3 player.
Declaration of Conformity
Manufacturer Name: Satyatrade S. L.
Address: Pol.Ind.La Raya. C/ Guadalquivir, 2.
Camarma de Esteruelas, 28816 Madrid
Tel: 902 430 967
Fax: 91 8864285
NIF: B83254763
Manufacturing country: China
Description: MP3 Player
Sytech® SY-7310 complies with the following directives:
EMC Standard: Directive 2004/108/EC
Rohs Standard: 2011/65/EU
Signed: Ajeet Nebhwani Utamchandani
Sole Administrator
