Warning: Never stare directly into the laser beam.
Warning: when the unit using by child, parents must make sure
to let th e child understand all contents in Instruction book how
batte ry using to g uarantee using battery correctly all the time.
Warning: when find battery overheat, swell or dour, please
stop using battery and contact service centre for gettin g
replacement.
Warning: do not charging battery on the place of insufficient
ventilation such as: mattress, sofa, cushion , soft mat. .....
Warning: we will not take any responsibility if user incorrectly
use battery, no t following our warning instruction label on the
batte ry case.
It is for bidden by law to copy, broadcast, show,broadcast via
cable,play in public, or rent copyrighted material without permission.
This product features the copy protection function developed by
Macrovision.Copy protection signals are recorded on some
discs.When recording and playing the pictures of these discs picture
noise will appear.This product incorporates copyright protection
technology that is protected by method claims of certain U.S.Patents
and other intellectual property rights owned by Macrovision
Corporation and other rights owners.Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless
otherwise authorized by macrovision Corporation. Reverse
engineering or disassembly is prohibited.
SERIAL NUMBER:
You can find the serial number on the back of the unit.This number
is unique to this unit and not available to others.You should record
requested information here and retain this guide as a permanent
record of your purchase.
Model No. _____________________________ _
Serial No. ____________________________ __
Date of Purchase_________________________
Safety Precautions
N
N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
Notes on Copyrights:
charge
over
heat
40 C
strong
impact
1

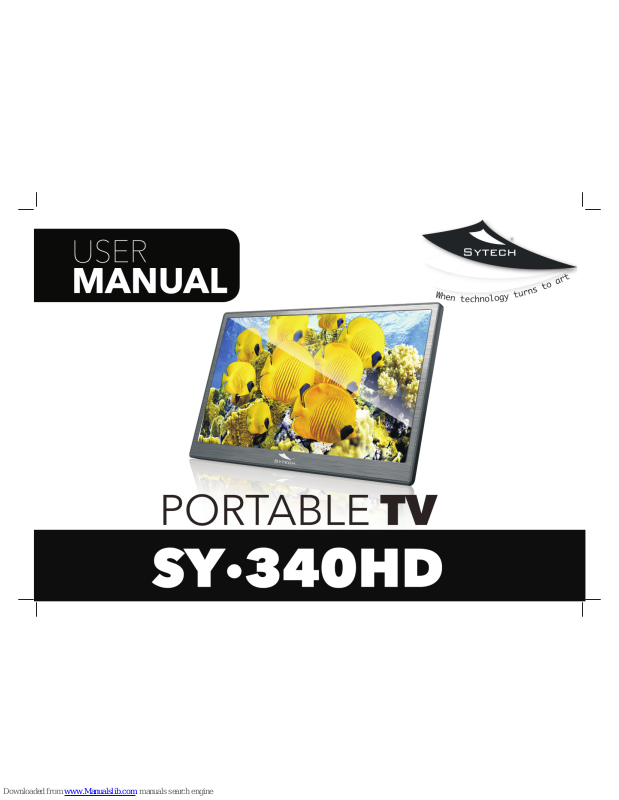

Welcome to Syt ech! Than k you for pur chasing t he 10”
Portable TV SY-34 0HD. Plea se read thi s manual ca refully
befor e operati ng your pro duct and pa y close att ention to
the pre caution s which are m entione d below Store this user
manua l in a safe pla ce for futu re refere nce.
AV OUT COAXIAL OFF ON
DC IN
9-12V
HDMI ANT.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1. SETUP
2. ENTER
3. EXIT
4. UP
5. DOWN
6. LEFT/VOL-
7. RIGH T/VOL+
8. AV OUT
9. COAXIAL
10.Earphone Socket
11.ON/OFF
12.DC IN 9-12V
13. ANT.
14. HDMI INPUT
15.USB
Identification of Controls
Main Unit
2
Identification of Controls
Remote control unit
1.POW ER
On/off the pow er supply
2.VOL -
Adjust VOLUME.
3.0-9 NUMBER BUTTON
Selects numbered items in a menu.
4.SUBTITLE
Press SUBTITLE r epeated ly during playback to viwe a different
subtitle languages , if avilable.
5.ZOO M
JPEG: Use ZOOM to en large or sh rink the pi cture.
Each press of the ZOOM button c hange the TV scree n
6.REC
Record digital service.
7.ENTER
Confirm and Enter
8.SETUP
Main Menu/Return
9.FAV
Open Fa vorite Programs List Menu
10.TV /RADIAO
Switch between TV and Radio source
11.EXIT
12.DISPLAY
Display the information of the current signal
13.MODE
Mode menu setting
14.VOL +
Adjust VOLUME.
15.MU TE
Mute th e sound
3
1 2
3
4
5
6
7
8
9 0
ENTER
MODE
MUTE
REPEAT
FAV
TV/RADIO
EXIT
VOL- VOL+
POWER
REC
TTX EPG
ZOOM
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
18
17
19
20
21
23
24
22
25
26
27
5
Identification of Controls
Remote control unit
16.REPEAT
Repeat Play mp3 and video
17.AUDIO
Press AUDIO repeatedly during playback to hear a different audio
language or audio track, if avilable.
18.STOP
19.PLAY/PAUSE
20.RETURN
21.TT X
22.EPG
Show EPG information
23. BUTTON
Previous option.
24. BUT TON
Next option.
25. BUT TON
Fast fo rward
26. BUT TON
Fast ba ckward
27. RED/GREEN
Some specific function
4
OPTION
5
HPOSITION 50
VPOSITION 50
STANDBY 4H
STANDBY
This function makes it possible to automatically put the device into
standby mode 3 or 4 hours.
3 H (3 hours): The device will automatically go into standby mode after
3 hours have passed from the time that any button was pressed.
4 H (4 hours): The device will automatically go into standby mode after
4 hours have passed from the time that any button was pressed.
OFF (Off): The automatic standby function will be deactivated.
10
10
10
BRIGHT
CONTRAST
COLOR
ENGLISH
RESET
Brightness
Set the brightness of the screen.
Contrast
Set the Contrast of the screen.
Color
Set the colours of the screen.
ENGLISH
Set the OSD Language
RESET
Reset to default setting.
MODE MENU SETTING
HPOSITION
VPOSITION :Adj ust scree n hpositi on and vposition
PHVT-1008THD
15050524-CPT 151024-V1.0
Machine model and soft version
Basic Operation
Program Manage Settings
6
OSD Language English
Country Germany
Channel Search
Installation Guide
ConfirmExit
OK
Exit
First Time Installation
After all connections have been made properly, switch on TV and
make sure the receiver is connected to the Main Power. Press Power
button to switch receiver on. If you are using the receiver for the first
time or restored to Factory Default, the Main Menu will appear on
your TV screen.
(1) Select [OSD Language] and press RIGHT/LEFT key to select an
language.
(2) Select [Country] and press RIGHT/LEFT key to select your
country of residence.
(3) Select [Channel Search] and press RIGHT or OK key to begin
Automatic channel search.
(4) Once channel tuning is complete, you are now ready to watch TV.
To access the Menu, press the MENU button and select [Program].
The Menu provides options to adjust theProgram Manage Settings.
Select an option and press OK or RIGHT to adjust that setting.
Press the EXIT button to exit the Menu.
Program Edit
Sort By LCN
LCN On
Program
ConfirmReturn
OK
Exit
To edit your program preferences (lock, skip, favourite, move or
delete), you will need to enter the Program Edit Menu. This Menu
requires a password to access. Enter the default password '000000'.
Program Edit
7
004 Channel 4
013 More 4
037 Quiz Call
Program Edit
Lock
ALL TV
21:00-22:30 Secret Smile
22:30-22:50 ITV News
DeleteSkip RenameFAV
GOTO
FAV
003 ITV1
006 ITV2
010 ITV3
014 E4
030 ITV4
Move
Set Favourite Pr ogram/s
You can create a shortlist of favourite programs that you can easily
access.Set Favourite TV or Radio program:
1.Select the preferred program then press the PAVOURITE button.
A heart-shaped symbol will appear and the program is marked as a
favourite.
2.Repeat the previous step to select more Favourite programs.
3.To confirm and exit the Menu,press the EXIT key.
Disable Favourite TV or Radio Program:
Press the FAV buton on the Remote Control with the heart-shaped
symbol.
View Favourite Programs:
1.Press the Fav bu tton and th e Favouri te Menu wil l appear.
2.Press UP/DOWN to selest y our Favou rite Programs.
3.Press OK to sele ct your fav ourite program.
Delete a TV or Radio P rogram/ s
1.Select the Program and then press the BLUE button A message
will appear.Press OK to delete the program.
2.Repeat the previous step to select more programs to delete.
Skip TV o r Radio Pro gram/s
1.Select the program you would like to skip and press the GREEN
butto n A skip symbol is displayed. The program is marked as a
skip.
2.Repeat the previous step to select more programs.
3.To confirm and exit themenu,press EXIT key.
Disable a skip TV or Radio Program:
Press the GREEN button on the skip program with the s kip symbol.
Move a TV o r Radio Pro gram/s
1. Select the preferred program then press the RED button. A
move symbolwill appear.
2. Press UP/DOWN t o move the pr ogram.
3. Press OK to confi rm.
4. Repeat the above steps to move more channels .
Lock Pr ogram/s
You can lock selected programs for restricted view.
Lock a TV or Radio Program:
1.Select the preferred program then press the YELLOW button. A
lock-shaped symbol is displayed. The program is now mark ed as
locked.
2. Repeat the previous step to select more programs .
3. To confirm and exit the menu, press the EXIT button.
4. Press the YELLOW butto n to disable the locked program.
5. To view the locked program, you will be require to enter either
the default.
First Time Installation
Sort
Video Setting
Channel Search
LCN (Logical channel number)
8
Sort your channels from the following options:
[LCN] - Sort the cha nnels in ascending order.
[Name] - Sort the channels in alphabetical order.
[Service ID] - Sort the channels according to the station.
To access the Menu, press MENU then select [Picture]. The Menu
provides options to adjust the video settings. Press UP/DOWN to
select an option and press RIGHT/LEFT to adjust that setting. Press
EXIT to exit the menu.
To access the menu, press MENU and select [Search Channel].
The Men u provides options to adjust the Search Channel settings.
Select an option and press RIGHT/LEFT to adjust the settings.
Press EXIT to exit the Menu.
Set LCN on or off.
HDMI Aspect Ratio 16:9 Wide Screen
ConfirmReturn
OK
EXIT
Aspect Ratio
You must set the display format to either 4:3 PanScan, 4:3
Lette r Box,16: 9 Wide Scre en or Auto to ge t the maxim um
display when watching TV.
Resolution
If the vi deo does not appear correctly, change the setting. This
setti ng is to matc h the most co mmon sett ing for HDM I.
[576i] for PAL syste m TV.
[576P]: for PAL syst em TV.
[720P]: for NTSC o r PAL system TV.
[1080I]: for NTS C or PAL system TV.
TV form at
If the vi deo does not appear correctly, you need to change the
setti ngs. This should match the most common setting fo r TVs in yo ur
country.
[NTSC ]: for NTSC s ystem TV.
[PAL ]: for PAL syst em TV.
Auto Search
Manual Search
Country Germany
Channel Search
ConfirmReturn
OK
EXIT
Auto Search
Search and install all channels automatically. This option
overwrites all preset channels.
1. Select [Auto Search] and press OK or RIGHT to start channel
search.
2. To cancel channel search, press EXIT.
2. Press the RIGHT/LEFT key to select the channel frequency.
3. Press OK to start searching channels.
If a channel is found, it is saved and added to the channels list. If
channels cant be found, then exit the menu.
Country
Select your country of residence.
Manual Search
Install new channels manually. This option adds new channels
without changing the current channels list.
1. Select [Manual Search] then press OK or RIGHT. The channel
search screen will appear.
Time Offset Auto
Country Region Berlin
Time Zore GMT +1
Time
ConfirmReturn
OK
EXIT
To access the Menu,press MENU then select [Time]. The Menu
provides options to adjust the time settings.
elect an option and press RIGHT/LEFT to adjust the
settings.Press EXIT to exit the menu.
Time Setting
Press UP/DOWN to
s
Time offset
Country Region
Country Region is set automatically when you set the country at channel
Select auto or manual for GMT offset adjustments.
Time Zone
Select the Time Zone Offset when [Time Offset] is set to Manual.
001 ITV1
002 ITV2
003 ITV3
004 ITV News
005 Channel 4
006 Quiz Call
007 E4
008 More 4
009 ITV4
Channel Search
Progress
506.0MHz/8MHZ
DTV:009 Radio: 000
SkipExit
MENU
EXIT
Quality
Manual Search
Frequency channel 5
Frequency(MHZ) 177.5
Bandwidth: 7M
Confirm
EXIT
OK
EXIT
search menu.
9
Option
To access the Menu,press MENU and select [Option]. The menu
provides options to adjust the OSD Language, Subtitle Language
and Audio Language. Select an option and press RIGHT/LEFT to
adjust the setting.Press EXIT to exit The Menu.
System Setting
To access the Menu,press MENU and select [System].The menu.
Provides options to adjust the system settings. Press the
UP/DOWN key to select an option and press RIGHT/LEFT to adjust
the setting.Press EXIT to exit the Menu.
OSD Language
Audio Language
Select the preferred audio language for watching TV channels.If
the language is not available, the default program language will be
used.
Subtitle Language
Select an OSD language.
Select the preferred subtitle language.
Set Password
Restore Factory Default
Information
View model, hardware and software information.
Set or change the password for Locked programs. Enter your old
Password or the default password '000000'. You will then be asked
to enter your new password. To confirm re-enter your new
password. Once it is confirmed, press EXIT to exit the Menu.
Reset your Set Top Box to the Default Factory Settings.In Main
Menu select [Restore Factory Default] and press OK or RIGHT to
select. Enter your password or the default password '000000' and
press OK to confirm. This option will delete all preset channels and
settings.
OSD Language English
Subtitle Language Off
Audio Language English
Digital Audio PCM
Option
ConfirmReturn
OK
EXIT
Set Password
Parental Guidance
Restore Factory Default
Information
System
ConfirmReturn
OK
EXIT
Software update
Software update
Software update
10
Parental Guidance
11
USB
TIMESHIFT
SCHEDULE RECORDING
To access the Menu, press the Menu button and select USB.
1 Press [pause] key on remote control to enter time shift, osd
as below:
“Ente r Time shift , waiting ...”
2. press[pause] key angin to start Time shift
3. you can press [ fast bace ]/[fast forward] to move the bar to
the point where slide is
4. Press [stop] to exit time shift
MANUAL RECORDING
1. Press [REC] key on remote to s tart reco rding.
2. Press [stop] key fist time to stop the re cording.
3. Press(enter)or exit to stop or cancel recording.
.
1 Press[ EGP] to enter progarm list..
2 Press [enter]to enter menu of add appointment progarm . .
Multi-Media
Switch to USB mode and plug in USB to view files.
Multimedia
Photo Configure
USB
ConfirmReturn
OK
EXIT
Movie Configure
Program Guide
Page Down
DeleteEdit
Page Up
Add
Page: 1/1
Book Book list
EXIT
OK
INFO
EXIT
003 TMF
Schedule
Fri. 19 Nov 2004 16:59
19 Nov 16:00-17:00 Skools Out!
19 Nov 17:00-18:00 TMF Top 10
19 Nov 18:00-19:00 Matchmaker
19 Nov 19:00-20:00 Then & Now
19 Nov 20:00-01:00 No Repeat Zone
20 Nov 01:00-03:00 Matchmaker X-Ra..
20 Nov 03:00-07:00 Lateshift
20 Nov 07:00-11:00 No Repeats Wee..
20 Nov 11:00-11:30 Rich Girls
20 Nov 11:30-12:00 Dismissed
20 Nov 12:00-18:00 No Repeats Wee..
Event Program Date Time Repeat Status
TMF Top 10
Entertainment
loin TMF for a daily Top 10
countdown of the latest videos.
12
3 Press “red” to enter menu of add appointment progarm, select view
or record to setting recording appointment program by manul opreation.
.
4. Press [ enter] to exit.
EXITConfirm
EXITOK
Schedule
Event Program Date Time Repeat Status
Event Add
Channel Type TV
Channel No. 0003
Channel Name TMF
Start Date(M/D/Y) 11/19/2004
Start Time 17:00
End Time 18:00
Repeat Once
Mode Record
Troubleshooting
The image stopped
suddenly or mosaic
Problem Potential Reasons What to do
No picture
Power isn't connected
Connect the power
The power switch
is not on
Switch on the power
Screen shows
No Signal
DVB-T cable not
Plug in the DVB-T cable
Incorrect setting
Reset setting
No sound from
speaker
No or incorrect
connection
with audio cable
Connect the audio
correctly
Sound on mute
Turn off mute function
Incorrect sound track Try another sound track
Only sound, no
image on the
screen
No or incorrect connection
with AV cable
Make sure cables
connected correctly
The program is a radio
program
Press <TV/RADIO> key
shift into TV mode
Remote Control
is not responding
The battery is exhausted
Change battery
Remote Control is not
facing or close enough
to the Set Top Box
Adjust the position
Remote Control and
closer to the unit
The signal is too weak
Strengthen the signal
cable
are
to
of the
move
connected
Technical Specifications
Video
Decoder Format
MPEG4 AVC/H.264 HP@L4
MPEG2 MP@ML.HL
Output Port
CVBS
Audio
Decoder Format
MPEG-1 (layer1&2 )&3
Audio output
Stereo
Power
Voltage
DC 9V (1.5 A)
Working Power
10W
Item Sub Item Parameter
Tuner
Input Frequency
170~230MHz
470~860MHz
RF Input level
-25~-82dBm
IF Bandwidth
7MHz and 8MHz
Modulation
QPSK,16QAM,64QAM
You can help protect the environment!
Please remember to respect the local regulations:
hand-in the non-working electrical equipment to an
appropriate waste disposal centre
If you wa nt to dispo se of this eq uipment, please do not use
the ord inary dus t bin!
-The presence of dangerous substances in the electrical and
electronic equipments can have potential consequences on the
environment and human health in the cycle of reprocessing this
product.
-Therefore, at the end of its l ifetime , this prod uct shall n ot be
disposed with other non-recycled waste. Used electrical and
electronic equipment must be treated separately and in
accordance with legislation that requires proper treatment,
recovery and recycling of used electrical and electronic
equipment.
-Local authorities and resellers have set special procedures for
the purpose of collecting and recycling this product (please
contact your local authority for further deta ils). You have the
obligation to use the selective waste collection systems put in
place by your local authority.
-If you r used electrical or electronic equipment has batteries or
accumulators, please dispose of these separately beforehand
according to local requirements.
By disposing of this product correctly you will help ensure that
the waste undergoes the necessary treatment, recovery and
recycling and thus prevent potential negative effects on the
environment and human health which could otherwise arise due
to inappropriate waste handling.
Environmental disposal
Declaration of Conformity
Manufacturer Name: Satyatrade S. L.
Address: Pol.Ind.La Raya. C/ Guadalquivir, 2.
Camarma de Esteruelas, 28816 Madrid
Tel: 902 430 967
Fax: 91 8 864285
NIF: B8 3254763
Manufacturing country: China
Description: Portable TV
Sytech® SY-340HD complies with the following directives:
CE Stan dard: Directive 2004/108/EC
ROHS St andard: Directive 2011/65/EU Restriction of Hazardous
Substances
Signed: Ajeet Nebhwani Utamchandani
Sole Administrator
Loading...
