Page 1

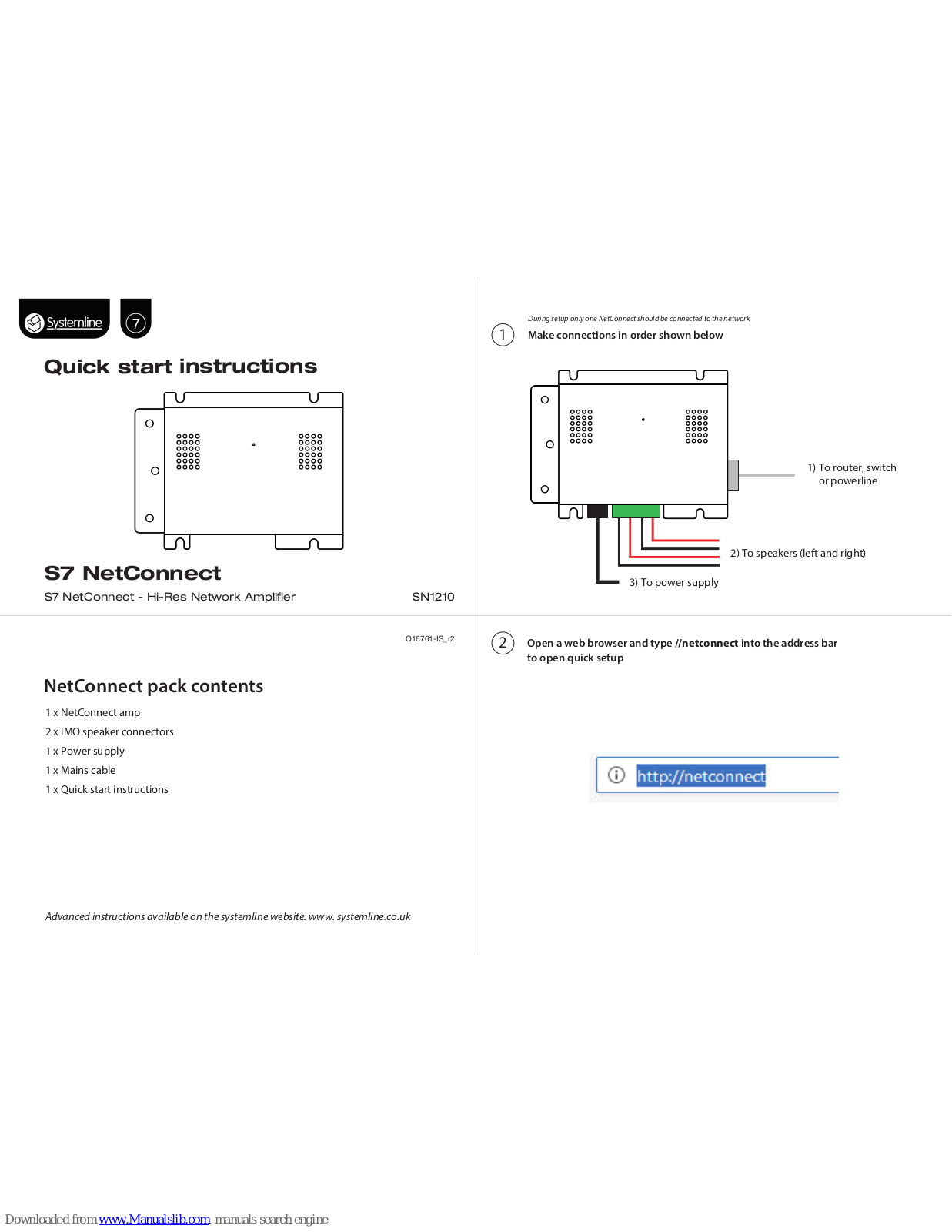

Quick start instructions
S7 NetConnect
NetConnect pack contents
S7 NetConnect - Hi-Res Network Amplifier SN1210
1 x NetConnect amp
2 x IMO speaker connectors
1 x Power supply
1 x Mains cable
1 x Quick start instructions
Advanced instructions available on the systemline website: www. systemline.co.uk
Make connections in order shown below
During setup only one NetConnect should be connected to the network
Open a web browser and type //netconnect into the address bar
to open quick setup
1) To router, switch
or powerline
2) To speakers (left and right)
3) To power supply
Q16761-IS_r2
1
2
Page 2

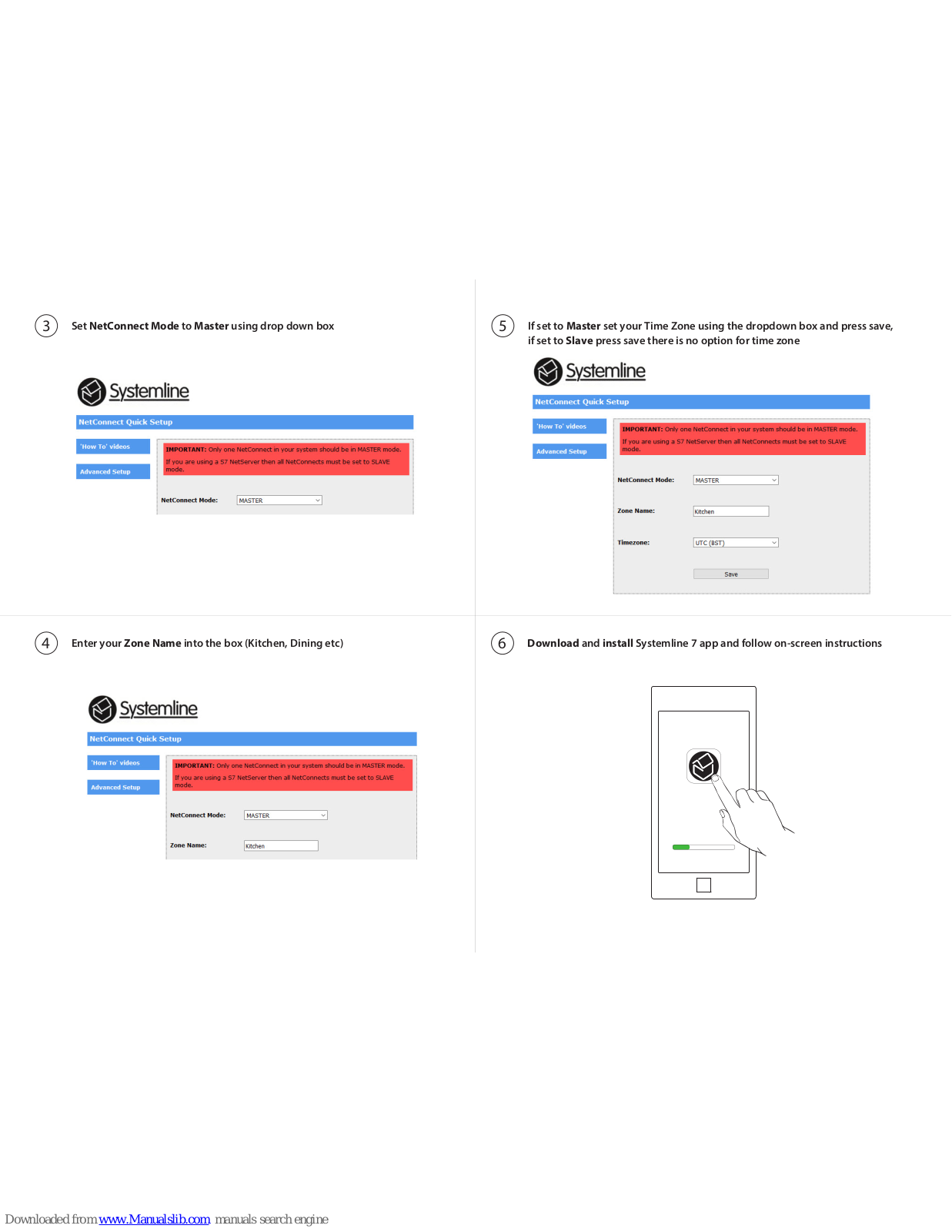

If set to Master set your Time Zone using the dropdown box and press save,
if set to Slave press save there is no option for time zone
Download and install Systemline 7 app and follow on-screen instructions
Set NetConnect Mode to Master using drop down box
3
Enter your Zone Name into the box (Kitchen, Dining etc)
4
5
6
