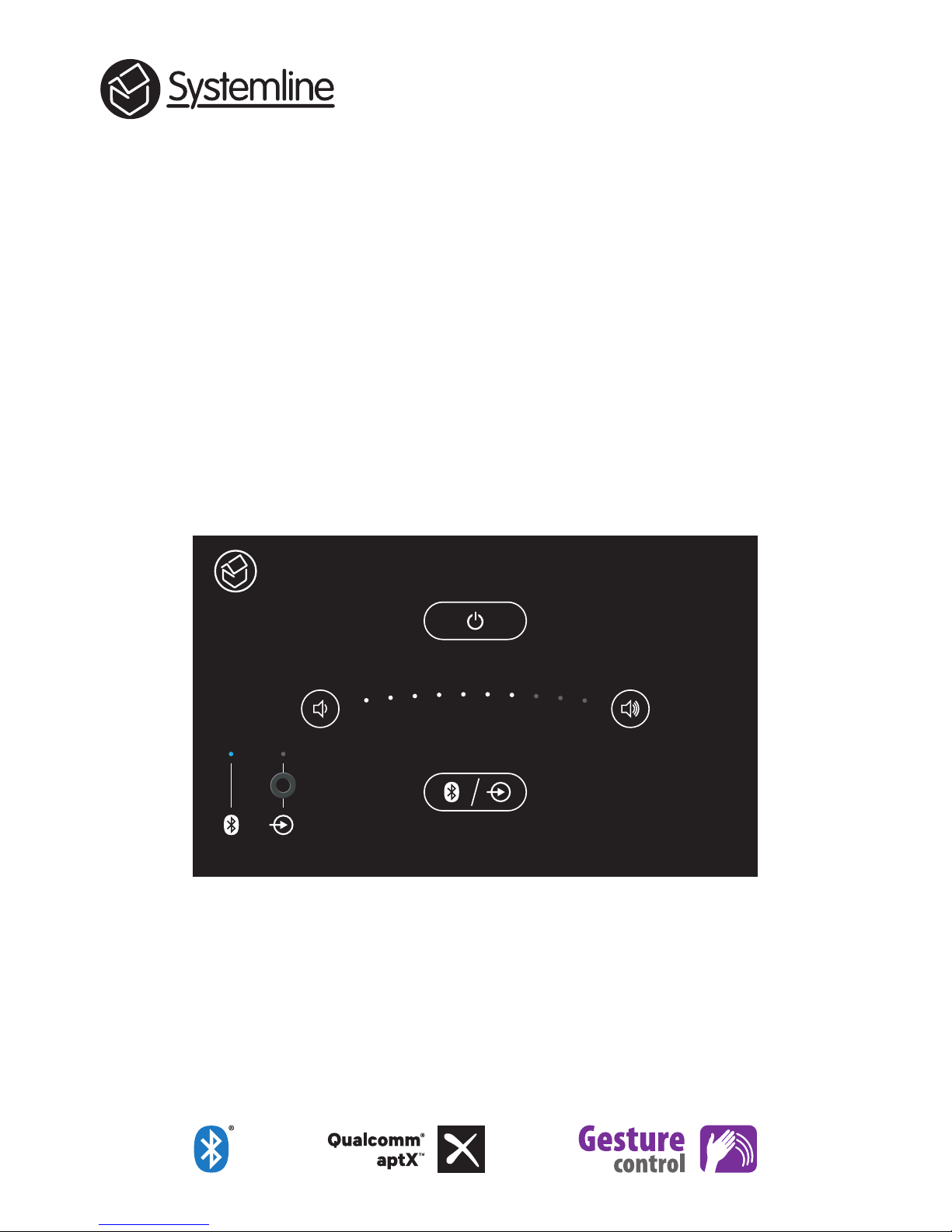

Systemline E50 Installation Manual

E50 Installation Guide

Built-in Bluetooth® Hi-Fi amplifier / touch panel

SE0510

2

Important Safety Instructions

CAUTION: To reduce the risk of electric shock, do not remove the cover. No user-serviceable parts
inside. Refer to qualified personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Read Instructions: All the safety and operating

instructions should be read before the unit is operated.

Retain Instructions: The safety and operating instructions
should be retained for future reference.

Heed Warnings: All warnings on the unit and in the
operating instructions should be followed.

Follow Instructions: All operating instructions should be
followed.

Cleaning: Unplug the unit from the wall outlet before
cleaning. The unit should be cleaned only with a lint free
dry cloth.

Attachments: Only use attachments recommended by
the manufacturer as non-recommended attachments may
cause hazards.

Water and Moisture: Do not use the unit near water–for
example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool.

Accessories: Do not place the unit on an unstable surface,
stand, tripod, bracket, or table. The unit may fall, causing
serious injury to yourself or others, and serious damage
to the unit.

Ventilation: Do not place in a location or position that will
interfere with the unit’s ventilation. Do not operate on a
bed, sofa, rug, or other similar surface.

Power Sources: The unit should be operated only from
the type of power source indicated on the marking label.
If you are not sure of the type of power supplied to your
home, consult your local power company.

Power-Cord Protection: Power-supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords where they enter a plug, or
exit from the unit.

Lightning: For added protection for the unit during a
lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect from other devices. This will prevent damage
to the unit due to lightning and power-line surges.

Overloading: Do not overload wall outlets, extension
cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.

Object and Liquid Entry: Never push objects of any
kind into the unit through openings as they may touch
dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any
kind on the unit.

Servicing: Do not attempt to service the unit yourself
as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.

Damage Requiring Service: Unplug the unit from the wall
outlet and refer servicing to qualified personnel under the
following conditions:

• When the power-supply cord or plug is damaged,

• If liquid has been spilled, or objects have fallen into
the unit,

• If the unit has been exposed to rain or water,

• If the unit does not operate normally by following the
operating instructions,

• If the unit has been dropped or damaged in any way.

• When the unit exhibits a distinct change in
performance– this indicates a need for service.

Replacement Parts: When replacement parts are
required, be sure the service technician uses replacement
parts specified by the manufacturer or which have the
same characteristics as the original parts. Unauthorized
substitutions may result in fire, electric shock, or other
hazards.

Heat: The unit should be situated away from heat sources
such as radiators, heat registers, stoves, or other units
(including amplifiers) that produce heat.

This product complies with the
European Low Voltage (2014/35/EU) and
Electromagnetic compatibility (89/336/
EEC) Directives when used and installed
according to the instruction manual.

The lightning flash with arrowhead within an equilateral triangle is intended to alert the user to the presence
of an uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to
constitute a risk of electrical shock to persons.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important
operating maintenance (servicing) instructions in the guide accompanying this device.

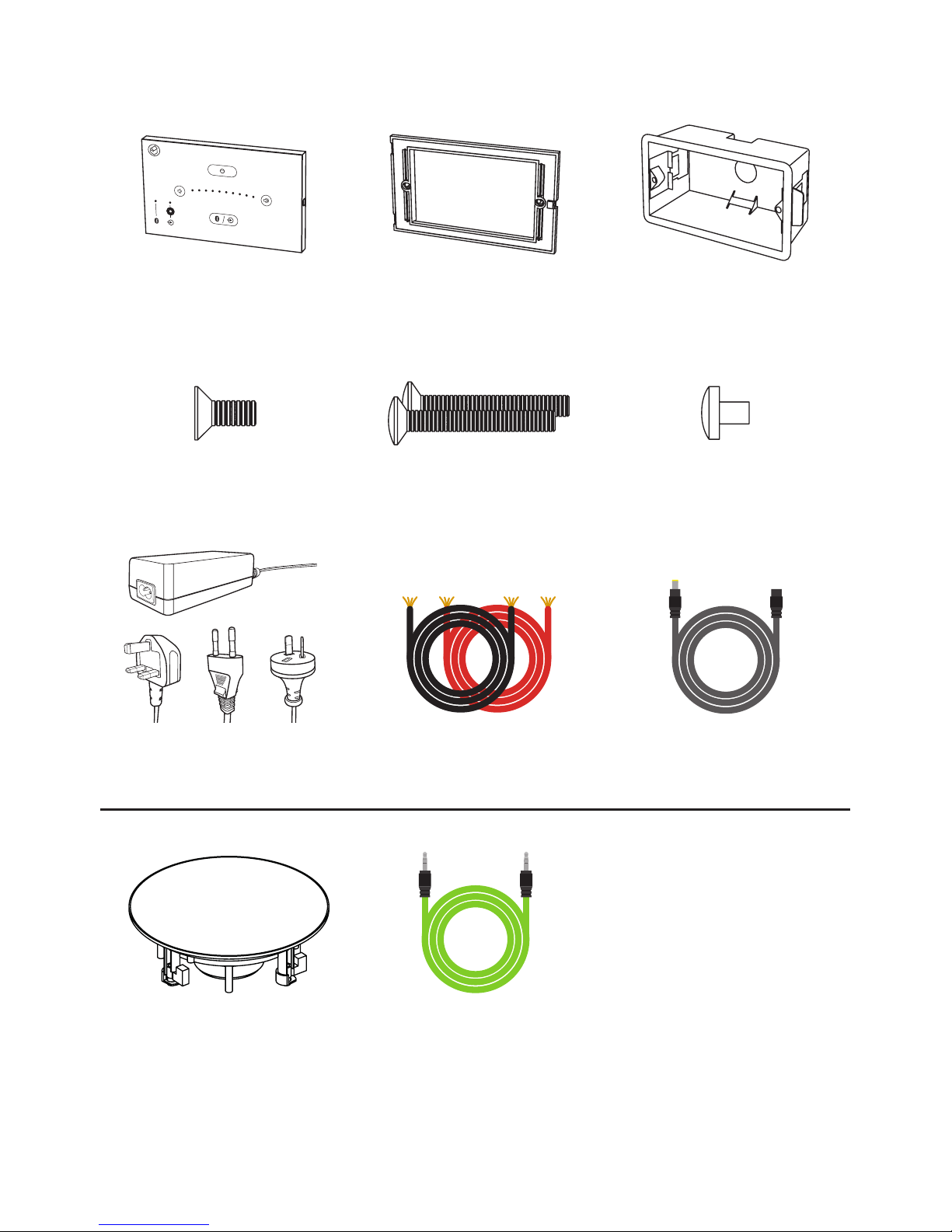

E50 touch panel x 1

Pre-fitted with IMO plugs

for speaker cables

M3.5 x 30mm screws x 2

*Q Acoustics Qi 65CB

in-ceiling speakers x 2

Included with E50 Stereo

Speaker Pack SE0520 only

*Alternative speakers may be used if desired. Check against E50 amplifer specification to ensure compatibility.

3.5mm jack cable x 1

Not supplied

Mounting frame x 1

M3 x 7mm screw x 1 Dust cap x 1

Fits into front jack socket

Speaker cables x 2

7m length

Dry lining back box x 1

47mm deep double gang

Power supply x 1

UK / EU / AUS / NZ

Power extension cable x 1

5m length

3

Pack Contents

4

Introduction

Systemline E50 is an installed Bluetooth Hi-Fi system that is easy to fit into your room.
It is particularly suited to kitchens or bedrooms but could equally be used in any other
room in the house except for bathrooms or wetrooms.

The following instructions assume that you are competent in general electrical
installation skills. You will need to mount a touch panel into a double gang back box
and route cables from this box to the speakers and mains. If you are not confident in
doing this you should seek professional assistance from a qualified electrician.

It is possible to connect TV sound or another device into the rear or front line input.
This is shown on the system schematic.

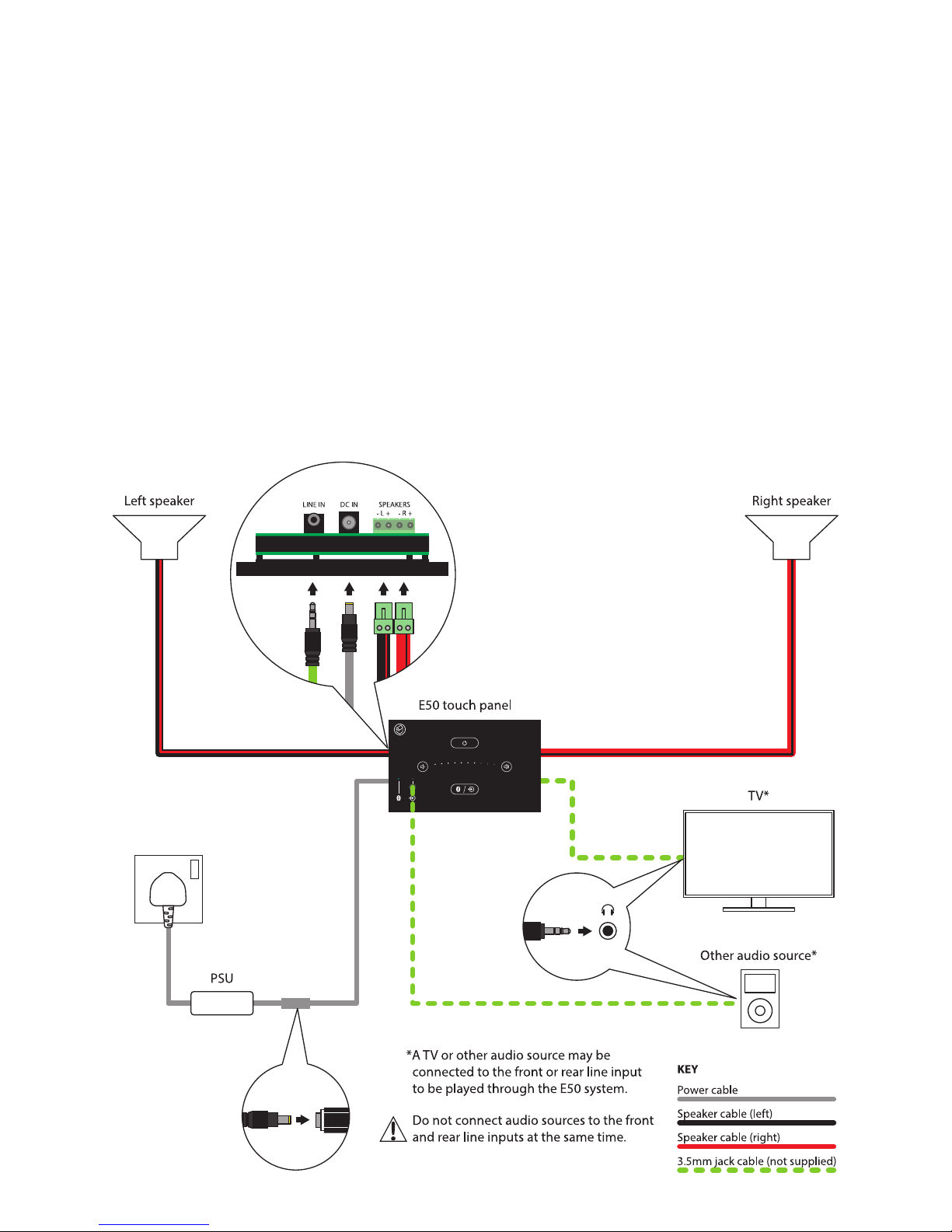

E50 System Schematic

The system is designed to be connected together as shown below:

5

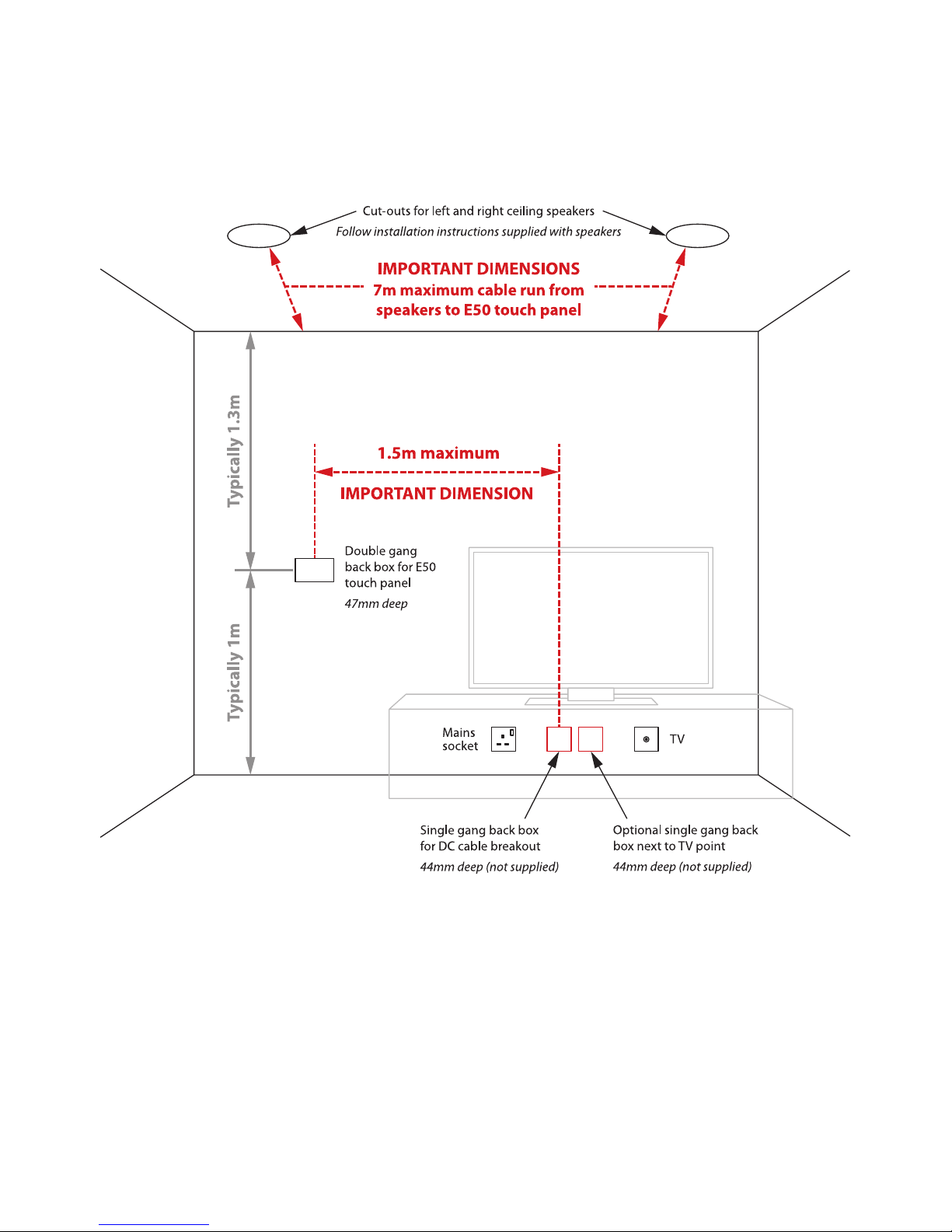

Planning E50 Positioning and Back Box Locations

Use the guidelines below to plan the positioning of the back boxes, speakers and
cabling. Dimensions should be checked prior to installation to ensure the layout works
correctly with the supplied lengths of cable.

6

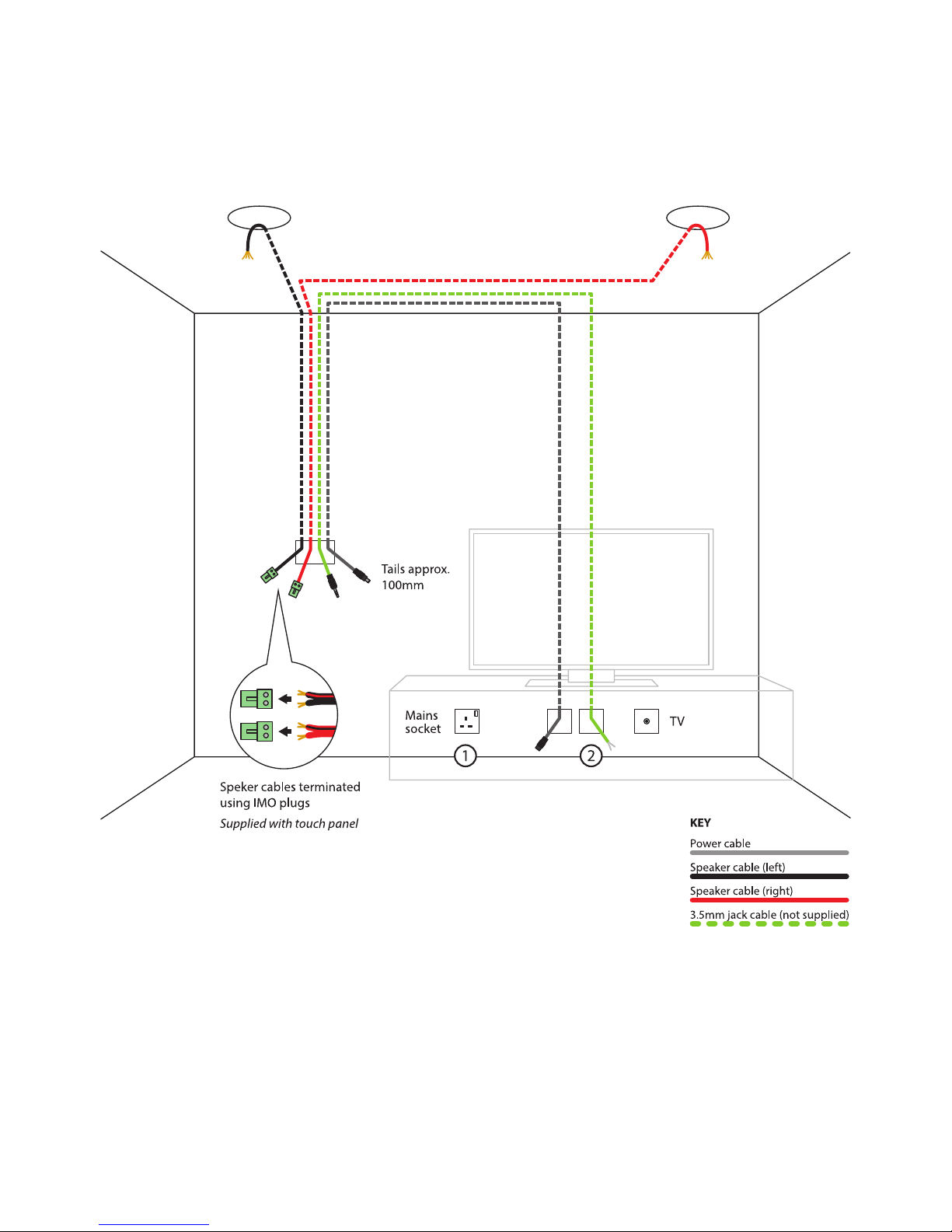

First Fix Wiring

Cut holes for required back boxes and speakers. Run speaker cables and power cable as
shown, leaving the tails accessible for second fix. Optional line-in cable may be run at
this point.

Notes

1. Switched mains socket required next to cable break-out box.

2. Single gang back-box required next to TV aerial point for optional TV sound / AUX
input.

7

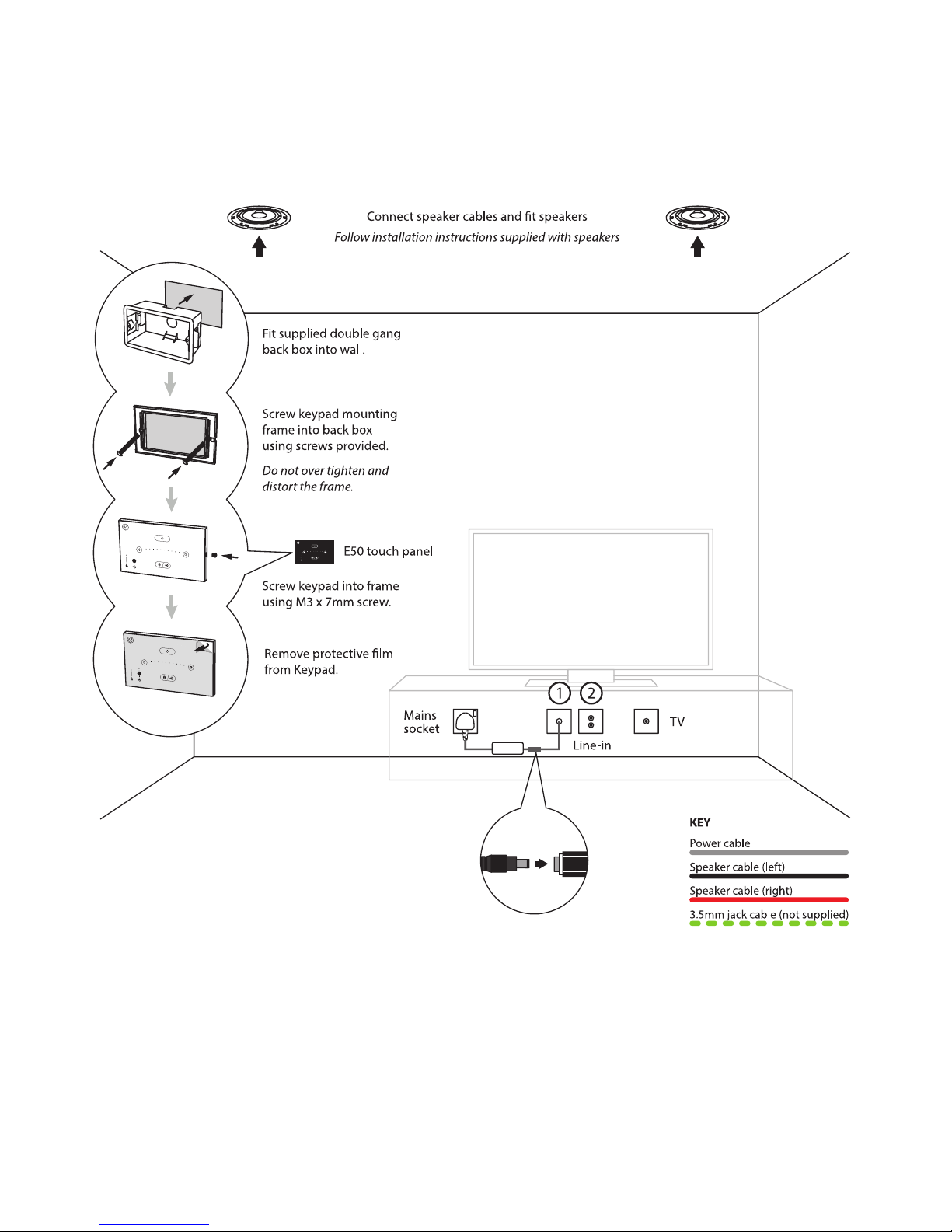

Second Fix

Connect cable tails to touch panel, speakers and PSU. Fix items in place, using the
instructions supplied with the speakers to ensure correct speaker installation.

Notes

1. Blanking plate required to cover break-out box - requires a single hole to exit DC
cable.

2. Optional TV sound / Aux input requires a 25 x 50mm twin phono Euro module e.g.
Philex EMSPK2W or similar.

Stortford Hall Industrial Park

Dunmow Road

Bishops Stortford

Hertfordshire

CM23 5GZ

United Kingdom

www.armourhome.co.uk

©2016 Armour Home Electronics, all rights reserved.

Our policy is one of continuous improvement and we reserve the

right to change the designs and specifications without notice.
All information is given in good faith. The manufacturer accepts
no responsibility for errors, omissions or incorrect assumptions.

Designed and engineered in the United Kingdom. Made in China. Q160 07- IS_r3
