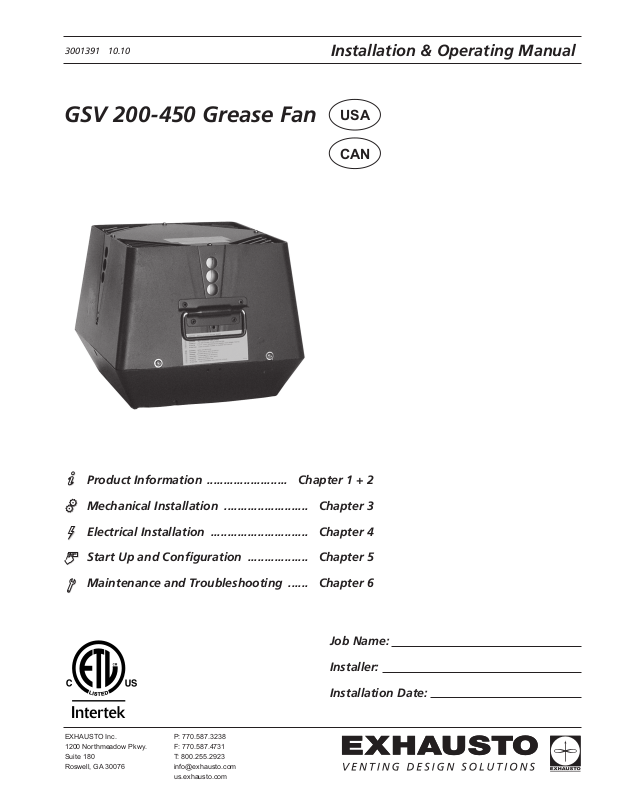

3001391 10.10
Installation & Operating Manual
GSV 200-450 Grease Fan
USA
CAN
Product Information
Mechanical Installation
Electrical Installation
........................ Chapter 1 + 2
......................... Chapter 3
............................. Chapter 4
Start Up and Conguration
Maintenance and Troubleshooting
EXHAUSTO Inc.
1200 Northmeadow Pkwy.
Suite 180
Roswell, GA 30076
P: 770.587.3238
F: 770.587.4731
T: 800.255.2923
info@exhausto.com
us.exhausto.com
.................. Chapter 5
...... Chapter 6
Job Name:
Installer:
Installation Date:
3001391 10.10
!
!
!
1. Product Information
1.1 Function .....................................................................................................3
1.2 Components ...............................................................................................3
1.3 Shipping .....................................................................................................4
1.4 Warranty .....................................................................................................4
2. Specications
2.1 Dimensions & Capacities ...........................................................................4
3. Mechanical Installation
3.1 Positioning ..................................................................................................5
3.2 Installation on Steel Duct ...........................................................................5
3.3 Installation on Roof Curb ............................................................................5
4. Electrical Installation
4.1 Electrical Requirements .............................................................................6
4.2 Wiring Diagram for GSV 250-315 ..............................................................6
4.3 Wiring Diagram for GSV 400-450 ..............................................................7
4.4 Start-up ......................................................................................................8
5. Start-up & Conguration
5.1 Start-up ......................................................................................................8
6. Maintenance & Troubleshooting
6.1 Maintenance Intervals ............................................................................... 9
6.2 Cleaning ..................................................................................................... 9
6.3 Spare Parts Ordering .................................................................................9
Symbol Legend:
The following terms are used throughout this manual to
bring attention to the presence of potential hazards or to
important information concerning the product.
Danger: Indicates an imminent hazardous
situation which, if not avoided, will result in death,
serious injury or substantial property damage.
Caution: Indicates an imminent hazardous
situation which, if not avoided, may result in
personal injury or property damage.
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed
on the front of the manual.
2. Before servicing or cleaning the unit, switch off at service
panel and lock service panel to prevent power from being
switched on accidentally.
3. Installation work and electrical wiring must be done by a
qualied person(s) in accordance with applicable codes
and standards.
4. Follow the appliance manufacturer’s guidelines and
safety standards such as those published by the
National Fire Protection Associations (NFPA), and the
American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code
authorities.
5. This unit must be grounded.
How to use this manual
This installation manual does not contain any system
design documentation. System design documentation is
available from any authorized EXHAUSTO representative.
Accessories, like roof curbs and variable frequency drives,
are not covered by this manual. Please refer to these
component’s individual manuals.
2
3001391 10.10
1. Product Information
1.1 Function
Use EXHAUSTO Model GSV Grease Fan is designed to provide a large exhaust volume at a high discharge
velocity. It is intended for use as a part of a restaurant kitchen exhaust system and grease applications
according to NFPA 96.The use of the EXHAUSTO Grease Fan is not restricted to any type of chimney or
grease duct. However, always follow the exhaust-hood manufacturer’s instructions regarding the venting.
Construction
The fan housing is made of heavy cast aluminum and can be opened for easy cleaning. The impeller
is of the backward inclined type. It is made of cast aluminum and has permanently attached balancing
weights.
The motor is a direct-drive, variable speed, class H insulated, high temperature motor. It has permanently
lubricated and sealed ball bearings and is maintenance free.
Listings Installations must conform to the requirements of the authority having jurisdiction. Where required by the
authority having jurisdiction, the installation must also conform to the NFPA 96. All electrical wiring must
be in accordance with the requirements of authority having jurisdiction or, in absence of such
requirements, with the National Electrical Code, NFPA 70.
EXHAUSTO Model GSV is tested and listed to UL Standard 705 for Power Ventilators and UL Standard
762 for Power Ventilators for Restaurant Exhaust Ventilators.
The model is also tested and listed to ULC-S645-93, Standard for Power Roof Ventilators for Commercial
and Institutional Kitchen Exhaust Systems.
1.2 Components
The GSV Grease Fan consists of the following components:
a. Top section f. Locking hinge
b. Bottom section g. Bird screen
c. Motor h. Carrying handle
d. Centrifugal impeller i. Wiring conduit
e. Inlet for impeller
Fig. 1
Max. 575°F (300°C)
3
3/12
3001391 10.10
!
1.3 Shipping
Protection The fan is shipped in a corrugated cardboard box. If a transport securing device is attached (GSV 400 and
GSV 450 only) to the bottom of the fan to hold the motor and impeller in place, do not remove it when
unpacking the fan.
Do not remove the transport securing device until the fan is being installed on the duct or
the roof curb. The motor shaft could be damaged.
NOTE:
All single phase fans are shipped with a capacitor and junction box connected via conduit. The capacitor is
located INSIDE the junction box. Please do not discard.
1.4 Warranty
EXHAUSTO products are warranted for a period of two (2) years following the date of invoice.
Replacement or repair will be at EXHAUSTO’s discretion, provided factory inspection shows a defect
in material or workmanship.
Complete warranty conditions are available from EXHAUSTO.
2. Specications
2.1 Dimensions & Capacities
Model
Discharge Vertical
Fan Type Centrifugal Impeller
Max. Discharge Velocity FPM 1,729 2,222 2,771 2,752 4,134
Actual Discharge Velocity FPM 2.9xCFM 1.9xCFM 1.2xCFM 1.03xCFM 1.03xCFM
Voltage VAC 1 x 120 3x208-240 / 3x380-420
RPM 1600 1680 1720
Amps A 1.4 2.9 5.8 3.5 6.5
Power Ratings kW 0.10 0.16 0.35 0.75 1.5
Weight lbs 47 60
Dimensions A in 11.03 13.20
B x B in 15.37 19.11
C x C in 12.22 15.17
D Ø in 7.88 9.85
E in 3.15 3.94
Soft Start Required No No No Yes
Variable Speed Motor Yes Yes Yes Yes Yes
FA Sones 3.9 6.3 7.8 8.3
GSV 200 GSV 250 GSV 315 GSV 400 GSV 450
0.15 0.2 0.5 1.0 2.0
kg 18 26
mm 280 335
mm 390 485
mm 310 385
mm 200 250
mm 80 100
92
42
16.94
430
25.61
650
20.69
525
15.76
400
5.12
130
127 155
58 70
16.94 23.23
430 590
25.61 25.61
650 650
20.69 20.69
525 525
15.76 15.76
400 400
5.12 8.54
130 217
1)
Yes
1)
1) Not required if using a VFD
4
3001391 10.10
!
!
3. Mechanical Installation
3.1 Positioning
In accordance with NFPA 96, roof mounted fans shall have their discharge outlet at least 40 inches
above the roof surface.
3.2 Installation on Steel Duct
• Insert the adapter (FR) into the grease duct, where the long collar engagement ensures safe
anchoring (See Fig. 2). If necessary, the adapter can be secured by means of long self-tapping
stainless steel screws into the side of the collar through the chimney wall. Do not obstruct
the grease ow.
• Place the neoprene gasket (not shown) on top of the adapter.
• Remove the transport securing device (if present) holding the motor shaft and impeller in place.
• Place the fan on the neoprene gasket centered over the cutout.
• Open the fan and secure the fan onto the adapter, through the pre-drilled holes in the bottom, with
lag bolts or self-tapping sheet metal screws, one at each corner.
• Check the gasket to insure that it forms a complete seal.
Caution: Never place hands or ngers on top of
fan base when closing
Fig. 2
FR
3.3 Installation on Roof Curb
• If the fan is supplied with a curb cap, secure the cap to the roof curb with self-tapping sheet metal
screws (see Fig. 3).
• Place the neoprene gasket on the top of the curb cap with the hole centered over the curb cap
opening (not shown).
• Remove the transport securing device (if present) holding the motor shaft and impeller in place.
• Place the fan on the neoprene gasket centered over the cutout.
• Open the fan and secure the fan onto the roof curb, through the pre-drilled holes in the bottom, with
lag bolts or self-tapping sheet metal screws, one at each corner.
• Check the gasket to insure that it forms a complete seal.
Fig. 3
Caution: Never place hands or ngers on top of
fan base when closing
5
3001391 10.10
!
!
Variable Speed
Fan Motor
1 x 120 VAC, 60 Hz
Red
Black
White
LEGEND:
Factory Wired
Field Wiring (14AWG)
Connection (wire nut)
Neutral
Hot
Capacitor
Fan Motor
2-pole doublethrow switch
Fan speed
control
Fan *)
Junction box *)
Fan speed control *)
Repair switch
*) supplied by EXHAUSTO
To fan
To power
Blac
k
Blac
k
White
White
Red
Green
4. Electrical Installation
4.1 Electrical Requirements
Power requirements depend on the fan size. They can be found on page 4.
Danger: Turn off electrical power before servicing. Contact with live electric
components can cause shock or death.
Notice: If any of the original wire supplied with the system must be replaced, use
similar wire of the same temperature rating. Otherwise, insulation may melt or
degrade, exposing bare wire.
4.2 Wiring Diagram for GSV 250-315
The connection diagram below shows how the fan is connected to the fan speed control and the power
source (see Fig. 6).
Use a 2-conductor wire of min. 14 AWG with ground. Wiring must be run outside the duct, but can be
run between the duct and the roof curb.
Fig. 5 shows the wiring of the capacitor in the junction box.
Fig. 4 Fig. 5
Fig. 6
6
3001391 10.10
Termination of 4 & 5
wires not required
4
1
2
3
5
4.3 Wiring Diagram for GSV 400-450
The connection diagram below shows how the fan is connected to the power source (see Fig. 7).
Use a 3-conductor wire of min. 14 AWG with ground. Wiring must be run outside the duct, but can
run between the duct and the roof curb.
If variable speed is required, a variable frequency drive (VFD) can be used. This will eliminate the
need for a magnetic starter as shown. For installation and wiring, please refer to the instructions shipped
with the VFD.
Fig. 7
7
3001391 10.10
4.4 Dual Voltage Motor Wiring
GSV 400-450 can operate at either 3x208-230 VAC (default) or 3x440-480 VAC.
The motor wiring terminals in Fig. 8 show default
jumper positions for 3x208-230 VAC operation.
If the application requires 3x440-480 VAC
operation, the jumper positions must be changed
according to Fig. 9.
After wiring, make sure the motor is rotating in the proper direction. This is marked on the motor end cover. If the
rotation is incorrect, swap the two wires going to the motor terminals, U1 and W1.
Fig. 8
Fig. 9
8
3001391 10.10
5. Start-up and Conguration
5.1 System Testing
• Check the voltage with the motor nameplate rating.
• Check that the transport securing device holding the motor shaft and impeller in place has been
removed.
• Determine if the impeller is free and has not been subject to misalignment in shipping or installation.
• Apply power and check that the impeller is rotating in the direction of the arrow on the side of the top motor
cover. All EXHAUSTO fans run in a counterclockwise direction when viewed from the top. Double check
if three phase motor is tested on temporary wiring. Switching any two leads will reverse the rotation.
5.2 Adjusting the Fan Speed
Start all heating appliances connected to the chimney with the fan installed. Set the fan speed control
to the speed where no spillage is experienced anywhere in the system.
9
3001391 10.10
!
!
6. Maintenance and Troubleshooting
6.1 Maintenance Intervals
The EXHAUSTO Grease Fan is designed for prolonged use. For dirty or grease-laden exhaust, inspect the
impeller after (3) months and set up a periodic inspection based on these ndings. Clean as required.
The fan motors are equipped with permanently lubricated sealed ball bearings. They require no lubrication.
6.2 Cleaning
Warning: Do not open the motor housing unless power to the grease fan has been disconnected
• Loosen the two Phillips screws in the front of the unit.
• Tilt the top of the fan by lifting on the handle. Make
sure the locking arm holds the top of the fan
before letting go.
• If necessary, use grease remover and a high-pressure
cleaner to clean the impeller and the inside fan
base.
• A scraper may also be used.
Caution: Never place hands or ngers
on top of fan base when closing.
6.3 Troubleshooting
Problem Possible Cause What to do
The fan is not operating. No power to the fan. Check the power supply wires in the junction box by the fan.
Check the circuit breaker.
Check that the fan is actually turned ON.
The fan is not running
at full speed and/or is
humming.
The fan is rotating
backwards (RSV 400/450
only).
The fan is vibrating
vigorously.
The fan is noisy. A transportation device has not
The fan stops in the
middle of a ring cycle.
The capacitor is improperly
connected or not connected at all
(single-phase fans only).
Phase sequence in the power to
the fan is reversed.
The motor shaft is damaged. Turn the power off immediately. Open the fan and check if the
been removed.
Foreign matter is stuck in the fan.
A ball bearing is damaged.
The motor is overheating. Check the ue gas temperature below the fan. The temperature
Check the connections inside the junction box. The capacitor
must be installed according to wiring diagram.
Swap two phases in the junction box.
shaft is straight. If not, contact EXHAUSTO.
Remove the transportation device.
Turn off the power and remove the foreign article.
Turn off the power. Wait for the motor to stop revolving. Spin
the wheel and listen for any grinding noise from the motor. If
necessary, replace bearing.
should not exceed 400°F during continuous operation. Call
EXHAUSTO.
10
3001391 10.10
White
Red
6.3 Spare Parts Ordering
When ordering spare parts, please have the model number and part position number available
01 Motor
02 Motor mounting plate
03 Screw - SS (2)
04 Washer - SS (2)
05 Housing (top)
06 Housing (base)
07 Impeller seat
08 Bird screen
09 Top plate
10 Aluminum Impeller
12 Locking hinge
13 Cooling vane
14 Screw - SS (4)
17 Screw - SS (4)
21 Motor housing insulation
22 Screw - SS (2)
23 Washer - SS (2)
24 Screw - SS
29 Screw - SS (4)
31 Rivet (2)
41 Neoprene Gasket
42 Rivet (12)
60 3/8” Conduit
61 3/8” Connector
62 Junction box with blank cover
63 Wire nuts (4)
64 Capacitor (1x120V fans only)
65 Wiring diagram (mounted on inside cover)
11
3001391 10.10
EXHAUSTO Inc.
1200 Northmeadow Pkwy.
Suite 180
Roswell, GA 30076
P: 770.587.3238
F: 770.587.4731
T: 800.255.2923
info@exhausto.com
us.exhausto.com
Loading...
