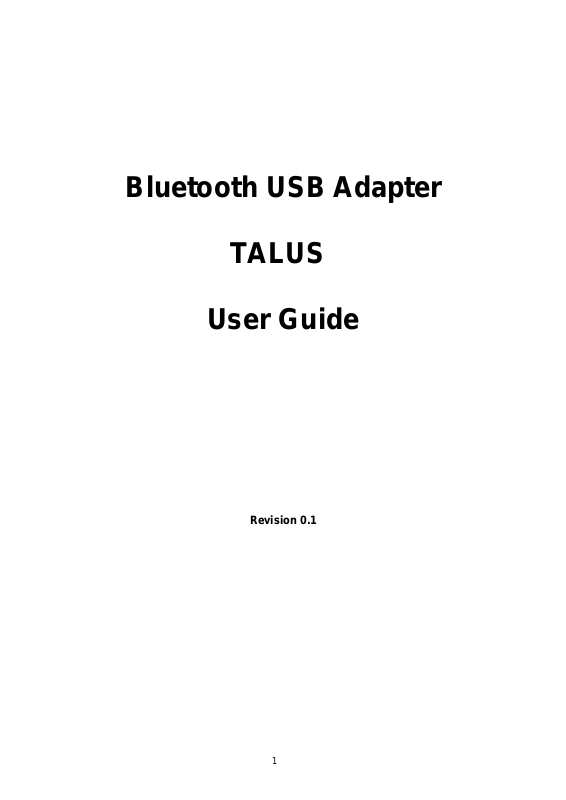

Bluetooth USB Adapter
TALUS
User Guide
Revision 0.1
1
User Guide for the TALUS
Revision 1.0.1
Firmware version 1.0.X
Printed in Korea
Copyright
Copyright 2008, SystemBase Co., Ltd. All rights reserved.
SystemBase Co., Ltd. reserves the right to make changes and improvements to its product without
providing notice.
Trademark
SystemBase is a trademark of Systembase Co., Ltd.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such
consequences with a backup system or safety device is essential. The user agrees that protection
against consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the
user's authority to operate this device.
Precautions and Safety
Do not drop or subject the device to impact. Damage to your products may result from improper use.
Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your
products may result from improper use.
Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your
products may result from improper use.
Do not place heavy objects on the product. Damage to your products may result from improper use.
Revision History
Revision Date Name Description
V0.1 2008-11-25 Marc Woo Initial Writing
2
Contents
1. Introduction 4
1.1. Overview ....................................................................................................................................4
1.2. Package Check List....................................................................................................................4
1.3. Product Specification..................................................................................................................4
2. Installing the Bluetooth Software 5
Appendix A. Mechanical Drawing 9
Appendix B. Warranty 10
D.1. GENERAL WA RRAN TY POLICY............................................................................................10
D.2. LIMITATION OF LIABILITY......................................................................................................10
D.3. HARDWARE PRODUCT WARRANTY DETAILS....................................................................10
D.4. SOFTWARE PRODUCT WARRANTY DET AILS....................................................................11
D.5. THIRD-P AR TY SOFTW ARE PRODUCT WARRANTY DETAILS ...........................................11
Appendix C. Contact Information 12
3
1. Introduction
1.1. Overview
Thank you for purchasing TALUS. TALUS is a Bluetooth-USB adapter with replaceable
external antenna. TALUS supports Bluetooth 2.0+EDR class 1 with working distance up to 100
meters. In addition, working distance can be further extended using optional dipole or patch antennas.
TALUS supports USB 2.0 for the computer interface and can be used with Windows using
Bluetooth stack driver included in the CD or MAC OS X using MAC OS X Bluetooth stack driver.
1.2. Package Check List
- TALUS
- Stub Antenna
- Quick Start Guide
- CD-ROM including Windows Bluetooth driver and User Guide
1.3. Product Specification
Standards Bluetooth 2.0+EDR Class 1
USB 2.0
Frequency Range 2.4 ~ 2.4835GHz
Transmit Output Power +19dBm (+6dBm EDR) E.I.R.P
Receive Sensitivity Basic 1Mbps: -88 dBm
EDR 2Mbps: -87dBm
EDR 3Mbps: -82dBm
Antenna Connector RP-SMA
Antenna Gain Default Stub Antenna 1 dBi
Optional Dipole Antenna 3 dBi
Optional Dipole Antenna 5 dBi
Working Distance Up to 100M
* working distance can vary depending on install environment
Size 72(L) x 22(W) x 10(H) mm
Operating Temperature
Storage Temperatu re
Regulatory Approvals FCC, CE, TELEC, KCC, Bluetooth SIG
Warranty 1 year limited warranty
-20 ~ +70℃
-40 ~ +85℃
