SystemAir TFC 225 P, TFC 355 P, TFC 280 P, TFC 450 P, TFC 500 P Operation And Maintenance
...
Roof fans
TFC 225-560 S/P
Operation and Maintenance Instructions
Document in original language | 206434 · A006
GB
© Copyright Systemair AB
All rights reserved
E&OE
Systemair AB reserves the rights to alter their products without notice.
This also applies to products already ordered, as long as it does not affect the previously agreed specifications.
206434 | A006
1 EU Declaration of conformity....... . . . . . ............. . . . . . 1
2 Warnings. . . . . . .............. . . . . . . ............. . . . . . ...........2
3 Product information ....... . . . . . . . ............. . . . . . . ........3
3.1 General....... . . . . . . . ............. . . . . . . ............. . . 3
3.2 Technical data ............ . . . . . . ............. . . . . . . . .4
3.2.1 Dimensions and weight ............. . . 4
3.2.2 Performance ...... . . . . . ............. . . . . . 5

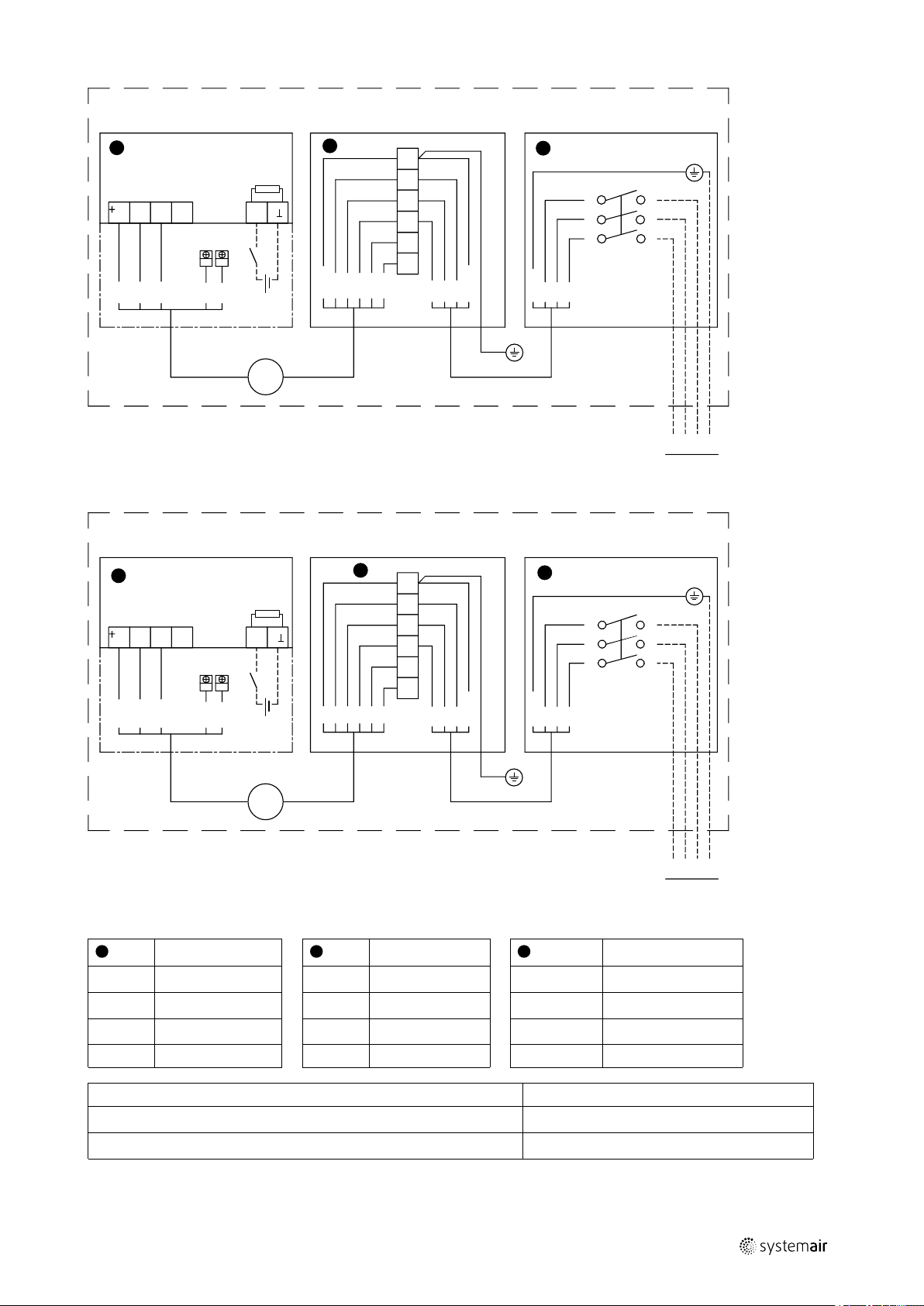

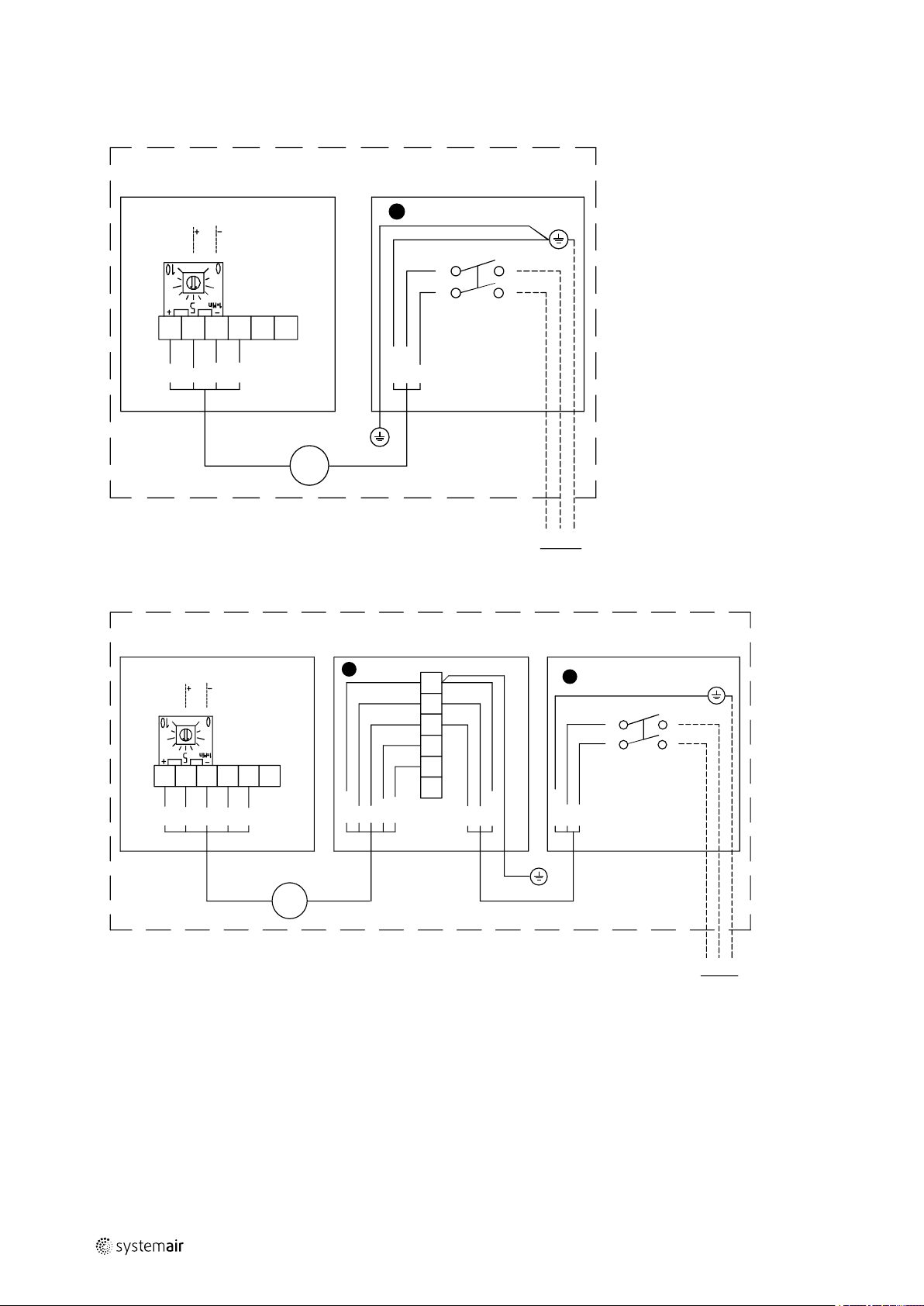

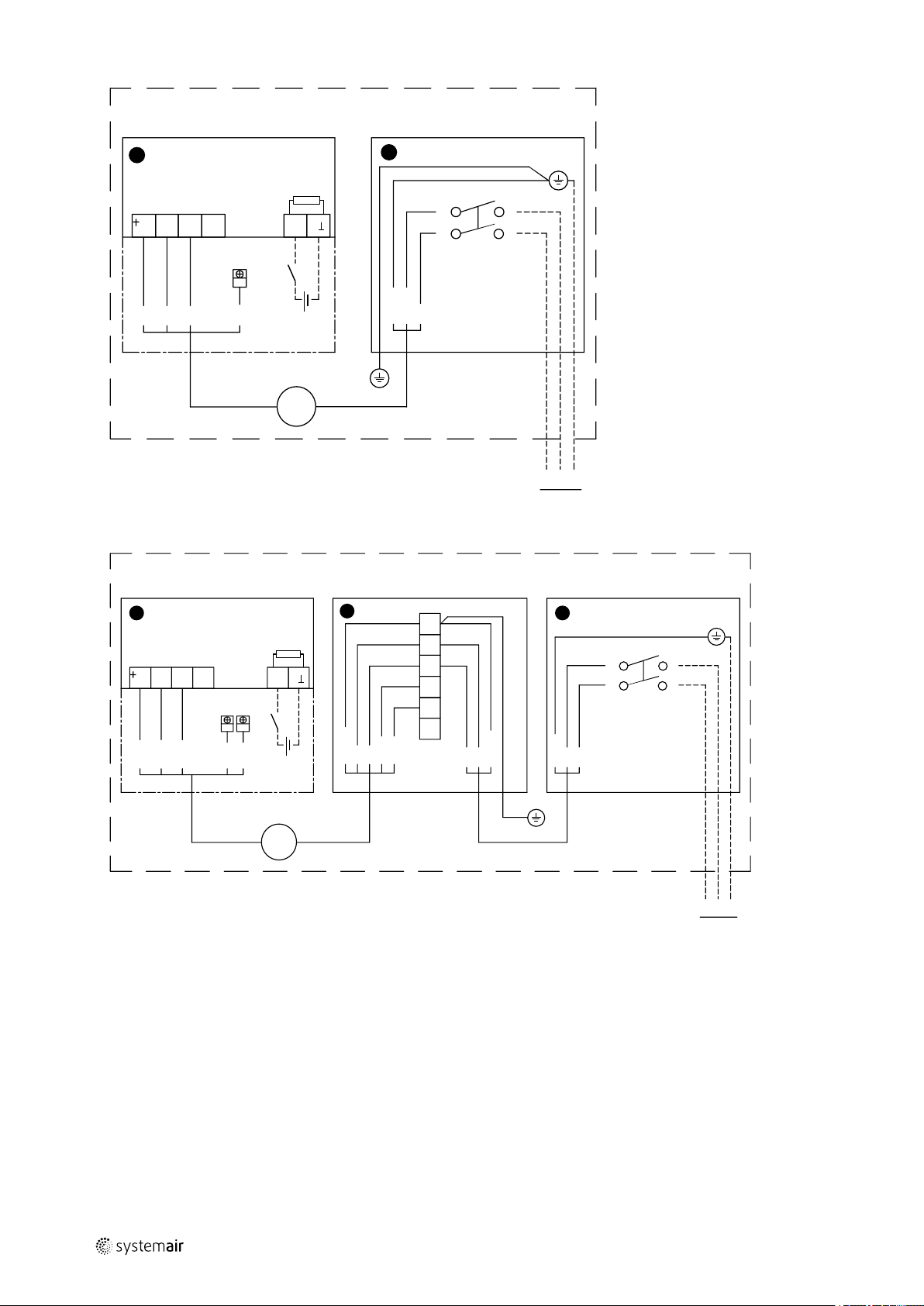

3.2.3 Wiring diagram . . . . . . . . ............ . . . . . .6
3.2.4 Residual current devices . . . ......... 10
3.3 Transportation and storage. . . . ............. . . . . 10
4 Installation.... . . . . . . ............ . . . . . . . .............. . . . . . . .. 10
4.1 Installing the fans ... . . . . . . ............. . . . . . ...... 11
4.2 Change from VAV to CAV ..... . . . . . ............. 13
4.3 K-factor ......... . . . . . . .............. . . . . . . .......... 13
4.4 Commissioning .......... . . . . . . ............. . . . . . . . 14
4.5 Alarm output . . . . . . ............. . . . . . . . ............. 14
5 Control panel......... . . . . . . ............. . . . . . . . ............. 15
5.1 Operating the control panel ............. . . . . . .. 15
6 Maintenance .............. . . . . . . .............. . . . . . ......... 18
6.1 Important ....... . . . . . . .............. . . . . . . .......... 18
6.2 Maintenance intervals ..... . . . . . . ............ . . . . 18
6.3 Cleaning the fan........ . . . . . . . ............. . . . . . .. 18
7 Troubleshooting..... . . . . . . . ............. . . . . . . ............. 19
Contents
206434 | A006
EU Declaration of conformity |
1 EU Declaration of conformity
Manufacturer
Systemair Sverige AB
Industrivägen 3
SE-739 30 Skinnskatteberg SWEDEN
Office: +46 222 440 00 Fax: +46 222 440 99
www.systemair.com
hereby confirms that the following products:
Roof fans TFC 225-560 S/P
(The declaration applies only to product in the condition it was delivered in and installed in the facility in accordance with the included
installation instructions. The insurance does not cover components that are added or actions carried out subsequently on the
product)
Comply with all applicable requirements in the following directives and regulations
1
Machinery Directive 2006/42/EC Ecodesign Directive 2009/125/EC
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
The following harmonized standards are applied in applicable parts:
EN ISO 12100:2010
EN 13857
Safety of machinery – General principles for design – Risk assessment and risk reduction.
Safety of machinery – Safety distances to prevent hazard zones being reached by upper
327/2011 Requirements for fans
1253/2014 Requirements for ventilation units
or lower limbs.
EN 60 335-1
EN 60 335-2-80
Household and similar electrical appliances – Safety Part 1: General requirements.
Household and similar electrical appliances – Safety – Part 2-80: Particular requirements
for fans.
EN 62233
Measurement methods for electromagnetic fields of household appliances and similar
apparatus with regard to human exposure.
EN 50 106:2007
Safety of household and similar appliances – Particular rules for routine tests referring to
appliances under the scope of EN 60 335-1 and EN 60967.
EN 60529
EN 60 204-1
EN 61000-6-2
Degrees of protection provided by enclosures (IP Code).
Safety of machinery – Electrical equipment of machines – Part 1: General requirements
Electromagnetic compatibility (EMC) – Part 6-2: Generic standards – Immunity for
industrial environments.
EN 61000-6-3
Electromagnetic compatibility (EMC) – Part 6-3: Generic standards – Emission standards
for residential, commercial and light-industrial environments.
The complete technical documentation is available.
Skinnskatteberg, 09-05-2016
Mats Sándor
Technical Director
206434 | A006
Warnings
|
2
2 Warnings
The following admonitions will be presented in the different sections of the document:
Danger
Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or
serious injury.
Warning
Indicates a potentially hazardous situation that may result in minor or moderate injuries.
Caution
Indicates a risk of damaging the product or prevent optimal operation.
Important
• This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
206434 | A006
Product information |
3 Product information
3.1 General
This installation manual concerns Roof fans TFC 225, TFC 280, TFC 355, TFC 450, TFC 500 and TFC 560 manufactured
by Systemair Sverige AB.
The S-fans are delivered with potentiometer, 0-10 V. The integrated potentiometer is factory preset to 10 V. This value
can be changed manually to obtain a different motor rpm/fan performance. Fan performance charts for this purpose
are shown in the table by voltage steps (chapter 3.2.2). An external potentiometer can be connected if necessary. If so
the internal potentiometer needs to be disconnected from the connection terminals. It is also possible to use an external pressure meter to set the desired airflow using the K-factor table (chapter 4.3).
The P-fans are regulated with a built in differential pressure and airflow controller. The fans are delivered with VAV control – Variable Air Volume but can be converted to CAV – Constant Air Volume (see chapter 4.2).
This manual consists of basic information and recommendations concerning the design, installation, start-up and operation, to ensure a proper fail-free operation of the unit. The key to proper and safe operating of the unit is to read this
manual thoroughly, use the unit according to given guidelines and follow all safety requirements.
The TFC 225-560 S/P are intended for transportation of air in air handling systems. The fans are meant for use in ducted
systems and should always be duct connected on the inlet side. No moving parts shall be accessible after installation.
TFC 225-560 S/P roof fans are adapted to continuous operation.
Roof fans are exclusively intended for extract air applications.
3
Danger
• The fans are not to be used in hazardous environments or connected to flue ducts.
• The appliance must be connected to a mains circuit breaker in the fixed installation.
• Switch power off (all-pole circuit breaker) before servicing or maintenance, and make sure the impeller
has come to standstill.
• Make sure protection grid has been installed (EN ISO 13857), no moving parts shall be accessible after
installation.
• Do not remove, short-circuit or disconnect safety accessories (i.e. motor protection, safety grille).
Warning
• The fans can have sharp edges and corners which may cause injuries. Be careful when opening the fans,
the motor assembled on the motor bracket is relatively heavy.
Caution
• Take precautions to prevent the back flow of exhaust gases from flues from other appliances installed in
the same room, which are fired by gas or other fuels.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
206434 | A006
| Product information
G
F
22
55
A
B
C
D
E
185
øH
4
3.2 Technical data
3.2.1 Dimensions and weight
Model
TFC 225 413 422 281 330 435 266 49 195 12,4
TFC 280 514 523 333 450 535 368 86 245 17,1
TFC 355 618 627 376 535 637 491 150 300 27,5
TFC 450 728 737 417 655 747 602 176 375 35,4
TFC 500 924 934 531 840 946 695 200 400 60,8
TFC 560 924 934 531 840 946 744 279 470 74
□A □B
C
□D
E F G øH
Weight, kg
206434 | A006
