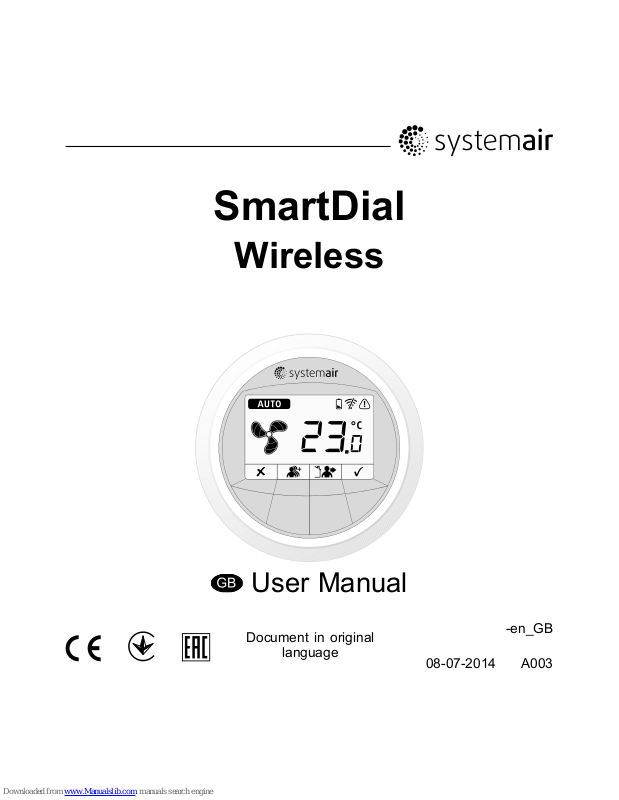

SystemAir SmartDial User Manual

SmartDial

Wireless

UserManual

-en_GB

Documentinoriginal

language

08-07-2014A003

Contents

1DeclarationofConformity...............................1

2Productdescription......................................3

3Guidelinesforinstallation...............................3

4Operation..................................................4

5InterfaceDescription.....................................5

5.1Displaysymbols..................................7

5.2Power-upscreen..................................13

5.3Bindingscreen....................................15

5.4Defaultscreen.....................................17

5.5SettingTemperatureandFanspeed...........19

6Changebatteries.........................................22

7Troubleshooting..........................................23

1DeclarationofConformity

Manufacturer

SystemairAB
Industrivägen3
SE-73930SkinnskattebergSWEDEN
Ofce:[phone]Fax:[phone]
www.systemair.com

herebyconrmsthatSmartDial,CO2sensor,Humidity
sensor,InputmoduleandRS485Gatewaycomplywithall
applicablerequirementsintheDirective1999/5/EC.

EN61000-6-32007:
Emissionstandard,residential,commercialandlightindustry.
EN61000-6-12007:
Immunitystandard,residential,commercialandlightindustry.
ETSIEN300220-1:
ElectromagneticcompatibilityandRadiospectrumMatters

(ERM);ShortRangeDevices(SRD);Radioequipmenttobe
usedinthe25MHzto1000MHzfrequencyrangewithpower
levelsrangingupto500mW;Part1:T echnicalcharacteristics
andtestmethods1.1SafetyRequirementsandCodes

SmartDialUserManual

1

SystemairAB

EN60730-1:2007:
Safetyrequirementsforautomaticcontrolsinhouseholdand

similaruse.

TheunitswillmeettherequirementsoftheWEEEandROHS
directives.

Thecompletetechnicaldocumentationisavailable.
Skinnskatteberg,02-07-2014

MatsSándor
TechnicalDirector

SmartDialUserManual

2

SystemairAB

2Productdescription

SmartDialmakesitpossibletowirelesslysetthetemperature
andfanspeedontheSystemairairhandlingunit.Itisalso
possibletoseealarmsreportedbytheairhandlingunit.

SmartDial,togetherwithuptonineotherwirelessmodulesare
wirelesslyconnectedtoagateway.Thegatewayisphysically
connectedtotheairhandlingunitwithacable.

Note:

Astandardcontrolpanelcanbesimultaneouslyconnected,
seetheRS485GatewayUserManualchapterConnections
formoreinformation.

SmartDialisintendedforwallmountingeitheronthewallor
onawall-box.

SmartDialispoweredby2AlkalineAA-Batteries,included.
Expectedbatterylifetimeis2years.

3Guidelinesforinstallation

SeetheRS485GatewayUserManualformoreinformation.

SmartDialUserManual

3

SystemairAB

4Operation

TheSystemairairhandlingunitcanoperateinoneofthe
following5modes:

ModeFunction

OFFThefansintheairhandlingunitarestopped.

AwayLowenergysupportcontrolisactivated.

Auto

Thefansareworkingaccordingtovaluespresetintheair
handlingunit.

Party

Thefansarerunningataspeciedspeedandtimepresetin
themenu"Ext/Forcerun"intheairhandlingunit.

Manual

Thefanspeediscontrolledmanuallyandiseitheroff,low,
normalorhigh

SmartDialUserManual

4

SystemairAB

5InterfaceDescription

1

3 4 5

6

2

Fig.1Interfacedescription

SmartDialUserManual

5

SystemairAB

PositionDescriptionExplanation

1Display

Showssymbols,menusandsettings.

2Dial

Movethroughandchangefanspeed
settingsandtemperaturesettings
byturningthedialclockwiseor
counterclockwise.

3

CancelbuttonCancelmenuchoicesorsettingsby

pressingthebutton.

Stepbackinthemenulevelsouttothe
startingpoint.

4Partymode

button

ActivatesDI5inthemaincontrollerin
theairhandlingunit(Extended/Forced
running).Thecorrespondingiconat
thetopofthedisplayisvisiblewhen
active.

Toadjustthefanspeed,seetheunit’s
panelandfollowit’sinstructions.

SmartDialUserManual

6

SystemairAB

PositionDescriptionExplanation

5

Home/away
button

ActivatesDI7inthemaincontroller
intheairhandlingunit.The
correspondingiconatthetopofthe
displayisvisiblewhenactive.

6

ConrmbuttonConrmmenuchoicesorsettingsby

pressingthebutton.

5.1Displaysymbols

Symbol

DescriptionExplanation

Temp

Showsthecurrentlysettemperature.

Conrmthesettingwiththe“conrm
button”.

Alarm

Visibleiftheairhandlingunitreports
analarm,ifthereisanerrorinthe
applianceorifthebindprocedureis
notsuccessful.

SmartDialUserManual

7

SystemairAB

Symbol

DescriptionExplanation

Battery

Thebatterysymbolisvisibleifbattery
levelislow,notvisibleotherwise.

Brokensensor
orshortcircuit.

Invalidtemperaturevaluetransmitted.

SmartDialUserManual

8

SystemairAB

Symbol

DescriptionExplanation

A B

C D

Fanspeed

Showsthecurrentfanspeed.Thefan
speedcanbesetmanuallyin4steps:
Off,Low,NormandHighbyturning
thedialandconrmwiththeconrm
buttonaftercompletedsetting.

A.Fanstopped.Thefancanbeset

toOFFbyactivatingMANfanstop.
Seetheairhandlingunitservice
menudescriptionunderfunctions.

B.Lowfanspeed:Canbeusedwhen

leavingthebuildingforalonger
period.

C.Normalfanspeed:Willgive

requiredairchangeundernormal
conditions.

D.Highfanspeed:Toincreasethe

airowifnecessary.

SmartDialUserManual

9

SystemairAB

Symbol

DescriptionExplanation

Automode

Theiconisshownwhenthe
systemisinautomode.

Automodemustbemanuallychosen
ifawirelessHumidityorCO

2

sensoris

connected

AUTOandtheactualfanspeedis
shownwhenawirelessHumidityor
CO

2

sensorisactivated.

Whensettingfanspeed,autoappears
whenturningthedialonemorestep
clockwisewhenthefansymbolis
alreadylled.FanspeedsymbolD.

WirelessCom­munication
Fault

TheWirelessCommunicationFault
symbolisvisibleifthecommunication
withthegatewayislost,notvisible
otherwise(Communicationlostfor
morethan60minutes).

SmartDialUserManual

10

SystemairAB

Symbol

DescriptionExplanation

Home/away
function

Whenthissymbolappears,low
energysupportcontrolisactive.Heat
exchangeroperatingbytheadjusted
setpointvalueandaactivere-heater
hassupportcontrolforlowestsetpoint.
(12C°).

Whentheawaymodeisnotactive
andtheawaybuttonispressed,this
newmoderequestissenttothemain
controllerintheairhandlingunit.The
buttondoesnothandlenewrequests
untilthe(new)modeisreceivedfrom
themaincontrollerintheairhandling
unit.

Theiconisashingwhenthemodeis
changedandthenewmodeisnotyet
conrmedbythemaincontrollerinthe
airhandlingunit.

SmartDialUserManual

11

SystemairAB

Symbol

DescriptionExplanation

Partymode
function

Whenthissymbolappears,
extended/forcedrunningfunction
isactive.

Whenthepartymodeisnotactive
andthepartybuttonispressed,this
newmoderequestissenttothemain
controllerintheairhandlingunit.The
buttondoesnothandlenewrequests
untilthe(new)modeisreceivedfrom
themaincontrollerintheairhandling
unit.

Theiconisashingwhenthemodeis
changedandthenewmodeisnotyet
conrmedbythemaincontrollerinthe
airhandlingunit.

CancelCancelsymbol

ConrmConrmsymbol

SmartDialUserManual

12

SystemairAB

Warning

ItisnotrecommendedtoactivateMANfanstop(setfanto
OFF)instandardhouseholds.

IfMANfanstopisactivated,theunitshouldbeprovided
withdampersinoutdoorandexhaustairductstoavoidcold
draughtandriskofcondensationwhentheunithasbeen
stopped.

5.2Power-upscreen

Afterpower-up,alliconswillbelitfortwoseconds.

Fig.2Power-upscreen

SmartDialUserManual

13

SystemairAB

Aftertwosecondsthesoftwareversionwillbeshown.
IfSmartDialisnotboundtothegatewayafter4seconds,the

bindingscreen(gure3)willbeshown.
IfSmartDialisboundtothegatewayafter4seconds,the

defaultscreen(gure4)willbeshown.

SmartDialUserManual

14

SystemairAB

5.3Bindingscreen

Fig.3Bindingscreen

IfSmartDialisnotboundtothegatewayafter4seconds,the
bindingscreen(gure3)willbeshown.

Inbindingmode,SmartDialcontactsthegatewayand
requestsconnection.

Note:

Bindingmodemustrstbeactivatedonthegateway.See
RS485GatewayUserManualformoreinformation.

Thetextbndisshown,theOKiconisvisible.

SmartDialUserManual

15

SystemairAB

The“Cancel”iconisvisiblewhenSmartDialisalready
bound.

Toinitiatethebindprocedure,presstheconrmbutton(6).
Whenthebindissuccessfulthedefaultscreen(gure4)is
shown.

TheCancelbutton(3)isonlyactivewhenSmartDialisalready
bound.Whenactiveandpressedthedefaultscreen(gure

4)isshown.

Note:

Therearenospecialactionstakenwhenthecancelbutton(3)
ispressed,existingbindingisnotdeleted.

WhenSmartDialisboundandafter30secondswithoutuser
interaction,thedefaultscreen(gure4)isshown.

SmartDialUserManual

16

SystemairAB

5.4Defaultscreen

Fig.4Defaultscreen

The2middlebuttoniconsandarevisible.
Theactualroomtemperatureisshownwitharesolutionof

0.5°C.
Intherarecasethatthetemperaturecannotbemeasured

(productfailure),twodashes

areshown.
Theactualfanspeedisalwaysshown.
The4iconsabovethebuttonsarevisible.
Theiconisshownifthesystemisinautomode.

SmartDialUserManual

17

SystemairAB

Whenthedialisturned,eitherthesquarearoundthesupply
airtemperatureorfanspeedisashingtoindicatethata
changeofthesetpointcanbeperformedbypressingthe
conrm(6)button.

Whenthecancel(3)andconrm(6)buttonarepressedatthe
sametimefor10seconds,thebindingscreenisshown.

Note:

Normallythebindingscreenisautomaticallyshownafterinitial
power-up.Sothisisonlyneededinrarecaseswhereyou
wanttoconnectthedevicetoanothersystem.

SmartDialUserManual

18

SystemairAB

5.5SettingTemperatureandFanspeed

SmartDialUserManual

19

SystemairAB

PositionDescrip-

tion

Explanation

1Dial

Movethroughandchangefan
speedsettingsandtemperature
settingsbyturningthedial
clockwiseorcounterclockwise.

2

Square

Thesquareismovinginthe
settingsbyturningthedial
clockwiseorcounterclockwise.

Whenturningthedial,thesquareappearsandyoucan
chooseeitherfanspeedsettingsortemperaturesettings.

SmartDialUserManual

20

SystemairAB

1

3 4 5

6

2

Presstheconformbutton(6)tochangefanortemperature
settings,thenthesettingcanbechangedbyturningthedial.
Whenthedesiredvalueisshown,presstheconrmbutton(6)
toacceptthevalue.Pressthecancelbutton(3)tobackout
tothestartingpoint(nosquareactive)atanytime.Ifthere
isnoactivityfor30secondsitwillautomaticallybackoutto
thestartingpoint.

SmartDialUserManual

21

SystemairAB

6Changebatteries

1.Putascrewdriverorsimilar
betweenthewallandthedial(1)
andipoutthedial.

1

2.Useascrewdriverorsimilarto
pushdownthelock(2)andip
outtheunit(3).

32

3.Changethebatteries.

4.Remountinoppositeorder.

SmartDialUserManual

22

SystemairAB

7Troubleshooting

IndicationProbablecauseandaction

SmartDialisnotworkingCheckifbatteriesaredepleted

orinsertedincorrectly

RFbindingand/or
communicationproblems

Checkifremotemodulestoo
close(<1m)ortoofaraway(>
30m)fromthegateway

SmartDialUserManual

23

SystemairAB

lastpage

SystemairABreservestherighttomakechangesandimprovements

tothecontentsofthismanualwithoutpriornotice.
