SystemAir RS485 User Manual

Download

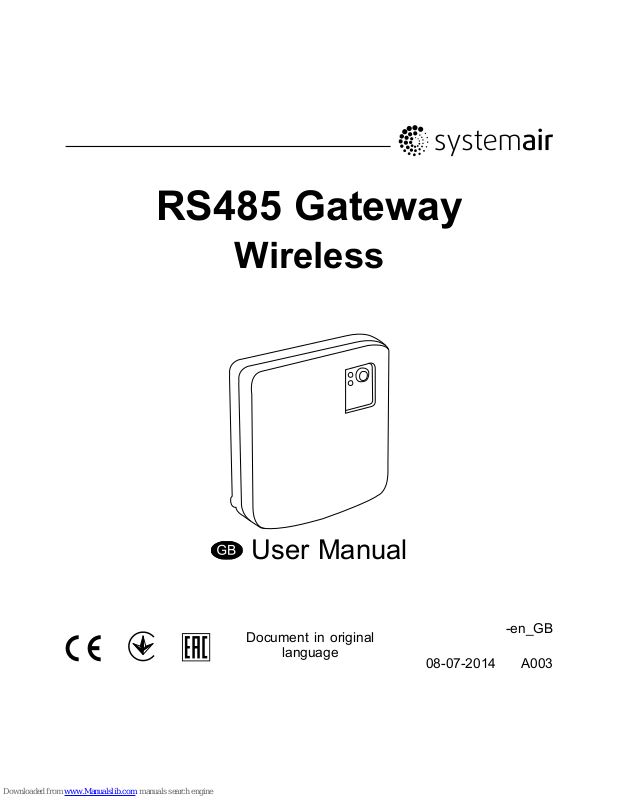

Page 1
RS485Gateway
Wireless
UserManual
-en_GB
Documentinoriginal
language
08-07-2014A003
Page 2
Contents
1DeclarationofConformity...............................1
2Productdescription......................................3
3Guidelinesforinstallation...............................4
4Interfacedescription.....................................6
4.1Connections.......................................6
4.2Power-up..........................................8
4.3Active/User/Faultmode..........................9
4.4Bindingmode.....................................10
5CommunicationInterfaceFunctions...................11
5.1Power-UpandResetOperation.................11
6Troubleshooting..........................................12
Page 3
1DeclarationofConformity
Manufacturer
SystemairAB Industrivägen3 SE-73930SkinnskattebergSWEDEN Ofce:+4622244000Fax:+4622244099 www.systemair.com
herebyconrmsthatSmartDial,CO2sensor,Humidity sensor,InputmoduleandRS485Gatewaycomplywithall applicablerequirementsintheDirective1999/5/EC.
EN61000-6-32007: Emissionstandard,residential,commercialandlightindustry. EN61000-6-12007: Immunitystandard,residential,commercialandlightindustry. ETSIEN300220-1: ElectromagneticcompatibilityandRadiospectrumMatters
(ERM);ShortRangeDevices(SRD);Radioequipmenttobe usedinthe25MHzto1000MHzfrequencyrangewithpower levelsrangingupto500mW;Part1:T echnicalcharacteristics andtestmethods1.1SafetyRequirementsandCodes
RS485Gateway
UserManual
1
SystemairAB
Page 4
EN60730-1:2007: Safetyrequirementsforautomaticcontrolsinhouseholdand
similaruse.
TheunitswillmeettherequirementsoftheWEEEandROHS directives.
Thecompletetechnicaldocumentationisavailable. Skinnskatteberg,02-07-2014
MatsSándor TechnicalDirector
RS485Gateway
UserManual
2
SystemairAB
Page 5
2Productdescription
TheRS485gatewayisawirelessgatewaybetweenthe Systemairairhandlingunitandwirelessremotemodules.The communicationfrequencyis868.3MHz
Thewirelessremotemodulessuchas:SmartDial,Input Module,HumiditysensorandtheCO
2
sensorareall wirelesslyconnectedtotheRS485gateway.Noneofthe remotemodulesworkswithoutthegatewayinstalled.Up to10wirelessremotemodulescanconnecttothegateway simultaneously.
TheRS485gatewayisintendedforwallmountingeitheron thewalloronawall-box.
Note:
Nointernalparametersorsettingscanbechangedbythe user.
RS485Gateway
UserManual
3
SystemairAB
Page 6
3Guidelinesforinstallation
Thesignalstrengthissufcientformostapplications,however, wirelesssignalsareweakenedonthewayfromthegateway tothedifferentwirelessmodules.Eachbuildinghasdifferent obstaclestobetakenintoconsideration.
DonotmounttheRS485gatewaydirectlyontheairhandling unitsincethesheetmetalchassiscaninterferewiththeradio communication.
Ensurethebestperformancebykeepingthefollowinginmind forplanningandinstallation:
•Min.1mandmax.30mbetweendevicesinfreespace.
•Allmetallicpartsinthebuildingconstructioncanweaken wirelesssignals.
•Reinforcedconcretewallsandoorsweakenthesignal strengthsignicantly,butalmostalltypesofconstruction materialsreducethesignaltosomedegree.
RS485Gateway
UserManual
4
SystemairAB
Page 7
Note:
Togetagoodoverviewofthedevicesineachrooms,and theirplacement,Systemairrecommendsthataninstallation planismadebeforebeginningtheactualinstallation.
RS485Gateway
UserManual
5
SystemairAB
Page 8
4Interfacedescription
Thegatewayissendingandreceivingdatawirelesslytothe remotemodulesandiswiredviaanRS485bustotheair handlingunit.
TheManMachineInterface(MMI)forthisproductconsistsof abuttonandtwoLEDindicators.Onered(thelower)andone green(top)LEDthatindicatesthestatusofthegateway.
21
1.GreenandRedstatusLED’s.
2.Functionbutton
4.1Connections
TheSystemairairhandlingunitandtheRS485Gatewayare interconnectedbyacable:
•Maximumcablelength:50m.
RS485Gateway
UserManual
6
SystemairAB
Page 9
•Cabletype:Flat4–conductorCECPhonecable,or equivalent.
Thegatewayispoweredbytheairhandlingunit.
Screw/Terminal
Function
1(A)RS485A
2(G)GND(shielding)
3(B)RS485B
4(P)Powersupply(5VDC/24VAC)
RS485Gateway
UserManual
7
SystemairAB
Page 10
Externalconnectionsontheairhandlingunit.
1
32
1.Cableglands
2.ConnectiontoDI3 throughanon/offswitch
3.Connectiontocontrol paneland/orRS485 Gateway
Connectthecableto(3)ontheairhandlingunit.Ifacontrol panelisalreadyconnectedto(3),adivertingplugcanbeused toenableconnectionofbothagatewayandthestandard controlpanel.
4.2Power-up
Afterthegatewayhasbeenturnedon,thegreenLEDlights up.
After2seconds,thegatewaywillgotoidlemode. Inidlemode,thestatusLED’sareturnedoff.
RS485Gateway
UserManual
8
SystemairAB
Page 11
WhenthebuttonispushedtheActive/User/Faultmodeis entered.
4.3Active/User/Faultmode
IntheActive/User/Faultmode,theLED’scanshowthe followingstatus:
Indication
Status/Function
GreenLED continuouslylit
SystemOK.
GreenLEDashing for3seconds
Remotemodulecanstartsending bindrequests.
RedLEDashing
Nowirelesscommunication betweenremotemoduleand gatewayorremotemodulenot connected.
•Flashingred(fault).Thisstatusisrepeatedeveryfew seconds.
RS485Gateway
UserManual
9
SystemairAB
Page 12
•Whenthebuttonispressedandheldfor10seconds,the greenLEDstartsashingfor3seconds.
•Ifthebuttonisreleasedwithinthese3seconds,the
bindingmodeisentered.
•Ifthebuttonisnotreleasedwithinthese3seconds,the
LEDgoesoffandthegatewaywillgotoidlemode.
•Ifthebuttonisnotpressedforatleast10seconds,the gatewaywillgotoidlemode.
4.4Bindingmode
Inthebindingmode,theremotemodulescontactsthe gatewayandrequestsconnection.
Inthebindingmode,theredandgreenLED’sarealternately litandabindrequestmessagefromaremotemodulecanbe received.Ifamessagefromaremotemoduleisreceivedand accepted,thegatewaystaysinbindingmodeforanadditional 5minutes.Thegatewaywillacceptadditionalrequestsfrom remotemoduleswithoutpressingthebuttonagain.
Ifnobindrequestmessageisreceivedfor5minutes,theidle modeisentered.
RS485Gateway
UserManual
10
SystemairAB
Page 13
Whenthebuttonispressedagain,theActive/User/Faultmode isentered.
5CommunicationInterfaceFunctions
5.1Power-UpandResetOperation
Allremotemodulesanddigitalinputsaremarkedasinvalid afterPower-Up.Ifanewvalueisreceived,thisvalueisstored inthegateway.
Toresetthegatewaytofactorysettingsandhenceclearthe bindingwithallremotemodules:
•PushtheFunctionbuttonandholditfor30seconds.The greenLEDstartsashingrapidlyfor5seconds.
•Ifthebuttonisreleasedwithinthese5secondsthereset operationisentered.
•Ifthebuttonisnotreleased,theLEDgoesoffandthe gatewaywillgotoidlemode.
RS485Gateway
UserManual
11
SystemairAB
Page 14
6Troubleshooting
IndicationProbablecauseandaction
Gatewaydoesnot start. LED’sdoesnotlight up.
Wiringproblems.Checkwiring.
LED’slightup.Red LEDashing.
Communicationproblems.
1.Remotemodulenotconnected. —CheckACpowerorbatteriesinremote module(dependingonmoduletype)
2.RemotemoduleconnectedbutredLED stillashing. —Othermodulesnotpowered.Check batteriesinothermodules. —Distancebetweengatewayandremote modulestoofar.Max30m. Reviseplacementoftheequipment. —Metallicpartsorotherreecting materialsinthebuildingconstruction. Reviseplacementoftheequipment.
RS485Gateway
UserManual
12
SystemairAB
Page 15
RS485Gateway
UserManual
13
SystemairAB
Page 16
lastpage
SystemairABreservestherighttomakechangesandimprovements
tothecontentsofthismanualwithoutpriornotice.
SystemairAB
Industrivägen3
SE-73930Skinnskatteberg,Sweden
Phone+4622244000
Fax+4622244099
www.systemair.com
