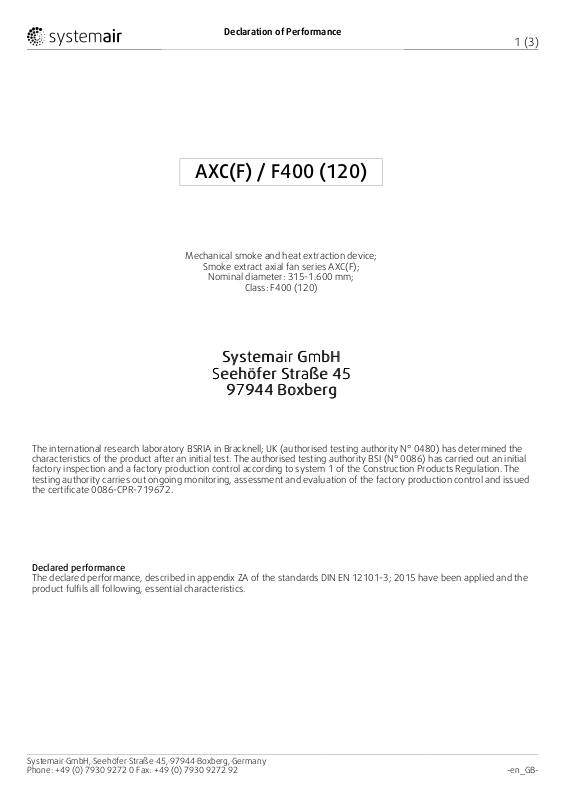

Declaration of Performance
AXC(F) / F400 (120)
Mechanical smoke and heat extraction device;
Smoke extract axial fan series AXC(F);
Nominal diameter: 315-1.600 mm;
Class: F400 (120)
1 (3)
GB
SSyysstteemmaaiirr GGmmbbHH
SSeeeehhööffeerr SSttrraaßßee 4455
9977994444 BBooxxbbeerrgg
The international research laboratory BSRIA in Bracknell; UK (authorised testing authority N° 0480) has determined the
characteristics of the product after an initial test. The authorised testing authority BSI (N° 0086) has carried out an initial
factory inspection and a factory production control according to system 1 of the Construction Products Regulation. The
testing authority carries out ongoing monitoring, assessment and evaluation of the factory production control and issued
the certificate 0086-CPR-719672.
Declared performance
The declared performance, described in appendix ZA of the standards DIN EN 12101-3; 2015 have been applied and the
product fulfils all following, essential characteristics.
Systemair·GmbH,·Seehöfer·Straße·45,·97944·Boxberg,·Germany
Phone: +49 (0) 7930 9272 0 Fax: +49 (0) 7930 9272 92 -en_GB-
Declaration of Performance
2 (3)
Performance
Features
Mechanical smoke and heat extraction devices (fans) and flexible connections
Classification
[X]
[X]
[X]
[X]
[ ]
[ ]
a)
The result of the product testing was a minimum duration of 120 min.
1. Temperature load direction
FEI
FEI
FEI
FEI
FEI
FEI
200
250
300
400
600
842
1)
120
120
120
120
60
30
a)
[X] I -> OAoutside buildings without insulation
[X] I -> O
[X] I -> O
[X] I -> O
outside buildings with insulation
AI
inside buildings, outside fire room without insulation
G
inside buildings, outside fire room with insulation
GI
[X] I <- -> O inside the fire room
2. Installation position*
1)
Harmonised Technical
Specification
[X] h horizontal axis, floor installation
[X] h
[X] h
[X] v
[X] v
3. Flexible connection
horizontal axis, wall installation Exception: Fans with B3
W
horizontal axis, ceiling installation Exception: Fans with B3
D
vertical axis, pressure Exception: Fans with motors
dpup
vertical axis, suction Exception: Fans with motors
dpdo
1)
[X] eSflexible connection suction side
[X] e
[X]
flexible connection pressure side
D
e
flexible connection suction /
S,D
pressure side
[ ] e
4. Cooling air
1)
[ ] c
flexible connection cooling air
Sair
Volumetric flow cooling air Air = min. volumetric flow q = max.
Air,q
cooling air temperature
5. Starting type
[X]
6. Snow load
1)
AA or MA (automatic or manual)
1)
motors from IEC 160
motors from IEC 160
from IEC 160
from IEC 160
DIN EN 12101-3; 2015
[ ] SL0 without deflector
[ ]
[ ]
[ ]
Systemair·GmbH,·Seehöfer·Straße·45,·97944·Boxberg,·Germany
Phone: +49 (0) 7930 9272 0 Fax: +49 (0) 7930 9272 92 -en_GB-
SL121
SL250
SL500
[ ] SL1000 with deflector FSL
Declaration of Performance
3 (3)
[ ]
7. Wind load
[ ]
[ ]
[ ]
SLA
1)
WL 1500
WL 3000
WLA
8. Approved accessories
[X] Flexible connection
[X]
Spring damper (FSD)
[X] Silencer
[X] Mounting feet, brackets
[X]
Damper
[X] Diffuser
[X] Protective grille
[ ]
Base
[ ] Noise damping base
[X] Inlet cone
[X] Terminal box
[X] Service switch
[X] Deflector
[X] Outlet cowl
[X]
[X] Motorized roof hatch for smoke and
Frequency converter
Test report 60458/1
Test report P 0155/17–530–1
heat extraction (MRH)
1)
Manufacturer`s specification
*Details of permissible installation positions, see the manual of the fan
The performance of the product AXC(F) / F400 (120) corresponds to the declared performance. This declaration of
performance is issued under the sole responsibility of the manufacturer. Signed on behalf and in the name of the
manufacturer by
Boxberg, 06.11.2019
ppa. Harald Rudelgass, technical director
