Sysgration WVTX1AP User Manual

s

em

t

ys

onS

ati

serv

Ob

WVTX1AP

Digital wireless Transmitter Featuring

IN STAL LATI ON

technology with Auto-Pair

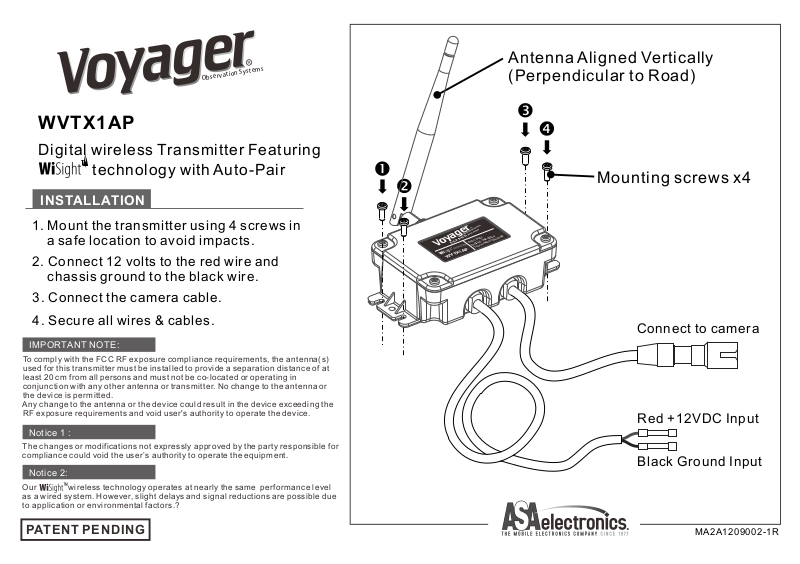

Antenna Aligned Vertically
(Perpendicular to Road)

Mounting screws x4

1. Mount the transmitt er using 4 screws i n
a safe location to avoid i mpacts.

2. Connect 12 volts to the r ed wire and
chassis ground to the bl ack wire.

3. Connect the camera cable.

4. Secure all wires & cables.

IMPORTAN T NOTE:

To comp ly w ith the F CC R F ex pos ur e co mpl ia nc e requi re me nts , th e an ten na (s )
use d fo r th is tran sm it ter m us t be i nst al le d to prov id e a se par at io n dis ta nc e of at
lea st 2 0 cm f rom all p er so ns an d mu st n ot be c o- lo cated o r op er ati ng i n
con ju nc tion wi th a ny o the r an te nna or tr an smitt er. N o ch ang e to t he a ntenn a or
the d ev ic e is perm it te d.
Any ch an ge t o the ant en na o r the d ev ic e could r es ul t in th e de vi ce ex ce ed ing the
RF ex po su re requ ir em ent s an d vo id user 's a uthor it y to o per at e th e devic e.

Notice 1 :

The c ha ng es or mod if ic ati on s no t expre ss ly appr ov ed b y the p ar ty r espon si bl e for
compl ia nce cou ld v oi d the u se r’ s au thori ty t o op era te t he e qui pm en t.

Notice 2:

Our w ir el ess tec hn ol ogy o pe ra tes a t ne ar ly the sa me p er for ma nc e lev el
as a wire d sy stem. H ow ev er, sl ig ht d elays a nd s ig nal r ed uc tio ns a re p ossib le d ue
to ap pl ic ation o r en vi ron me nt al fact or s.?

PATENT P END ING

WVTX1AP

R

Auto Pair

Digital Wireless

Transmitter Module

Connect to camera

Red +12VDC Input

Black Ground Input

MA2A120900 2- 1R
