Sysgration WVOM43 Users Manual

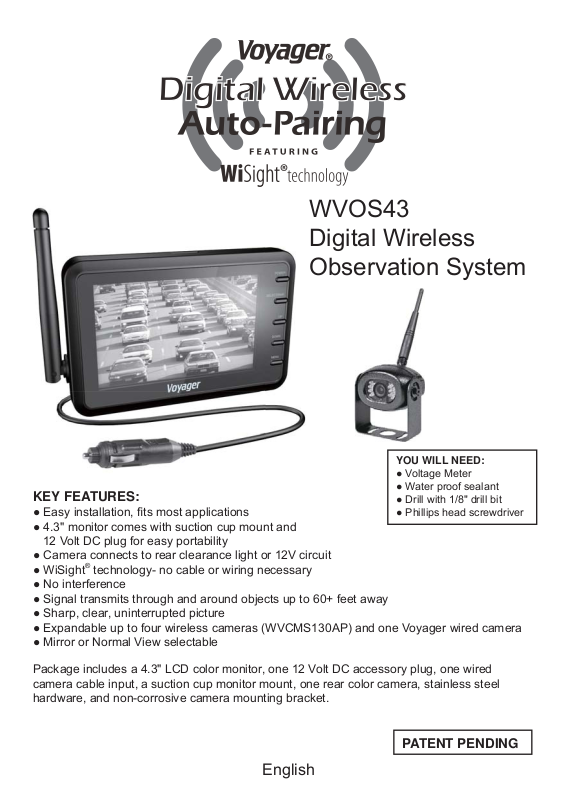

WVOS43
Digital Wireless
Observation System

YOU WILL NEED:

● Voltage Meter

KEY FEATURES:

● Easy installation, fi ts most applications

● 4.3" monitor comes with suction cup mount and

12 Volt DC plug for easy portability

● Camera connects to rear clearance light or 12V circuit

● WiSight

● No interference

● Signal transmits through and around objects up to 60+ feet away

● Sharp, clear, uninterrupted picture

● Expandable up to four wireless cameras (WVCMS130AP) and one Voyager wired camera

● Mirror or Normal View selectable

®

technology- no cable or wiring necessary

● Water proof sealant

● Drill with 1/8" drill bit

● Phillips head screwdriver

Package includes a 4.3" LCD color monitor, one 12 Volt DC accessory plug, one wired
camera cable input, a suction cup monitor mount, one rear color camera, stainless steel
hardware, and non-corrosive camera mounting bracket.

PATENT PENDING

English

INSTALLING THE CAMERA

1. Choose a location close to the rear clearance lights so you

can easily splice the power and ground connections.

2. Using a voltage meter, measure the clearance light wiring

to determine positive/negative polarity.

3. Connect the red wire from the camera to the positive

wire in the rear clearance lights.

4. Connect the black wire from the camera to the

negative wire in the rear clearance lights.

5. Pre-drill the screw holes for the mounting

bracket with an 1/8" drill bit.

6. Apply a weather proof sealant to the pre-drilled holes.

7. Align the bracket to the holes.

8. Install the bracket with the supplied Tapping P/H screws with washers.

9. Apply additional sealant to the screw heads and bracket to ensure a

weather proof seal.

10. Align the camera in the bracket

Installation

(Figure 1).

11. Install with the supplied Hex

Socket Head stainless screws

and larger washers in the

corresponding holes(Figure 2).

Screw For Use

● Hex socket Head M4xM6L
stainless screw

● Flat washers 4.5x9.5x1mm

● Stainless Allen wrench

12. Camera should be adjusted for

optimum view before these

screws are fully tightened.

LED Assisted
Illumination

Figure 2

Figure 1

Microphone

Standard Cable

12V DC

Red

Black

Ground/Shield Grommet To Seal Through

Connector

Waterproof Camera
Connector

Vehicle Exterior

EN-01

INSTALLING THE MONITOR

1. Plug power cable into the back of the monitor.

2. Attach the suction cup mount to the rear of the monitor with the supplied bracket.

3. Locate fl at section of glass on your windshield (that does not block your vision)

and apply suction cup. Snap the lever into the locked position (Figure 5).

4. Connect the power cord to a 12 Volt DC outlet.

5. Align the antenna to its upright position, parallel to the monitor.

Figure 5

OPERATION

1. Press the power button on the monitor and turn on your vehicle's parking lights.

2. In the top left corner of the monitor, you will see the signal strength meter.

3. Adjust the suction cup bracket to provide the best viewing angle.

PAIRING PROCESS

This system has Auto-Pairing function. If your monitor is not receiving a signal from

the camera; the two may not be paired correctly.

1. Monitor must be connected to 12 Volt DC power supply.

2. Press the SELECT/PAIR button on the front of the monitor expected mode & select the

appropriate AV source (AV1-AV4)

3. Press and hold the "SELECT/PAIR" button on the front of the monitor for 5 seconds and

release. (Monitor will display "PAIRING START")

4. Apply 12 Volt DC power to the camera.(Camera 1 - Camera 4 corresponding to

Monitor's AV1 - AV4)

If done correctly, monitor will display "SAVE DATA". If pairing is not successful, the

monitor will display "PAIRING FAIL". If you receive this message, repeat steps 3-4.
