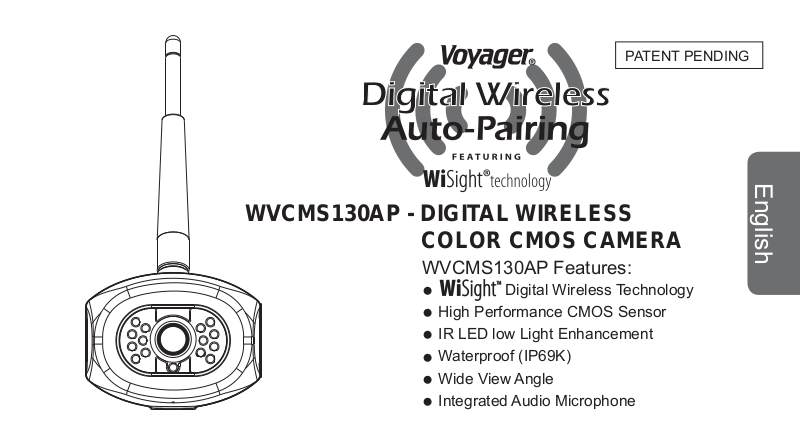

Sysgration WVCMS130AP User Manual

PATENT PENDING

WVCMS130AP - DIGITAL WIRELESS
COLOR CMOS CAMERA

WVCMS130AP Features:

●

High Performance CMOS Sensor

●

IR LED low Light Enhancement

●

Waterproof (IP69K)

●

Wide View Angle

●

Integrated Audio Microphone

●

Digital Wireless Technology

English

Contents:

Camera
Bracket
Hardware Kit

No connection

Arrow Locking Location

No connection

12V DC

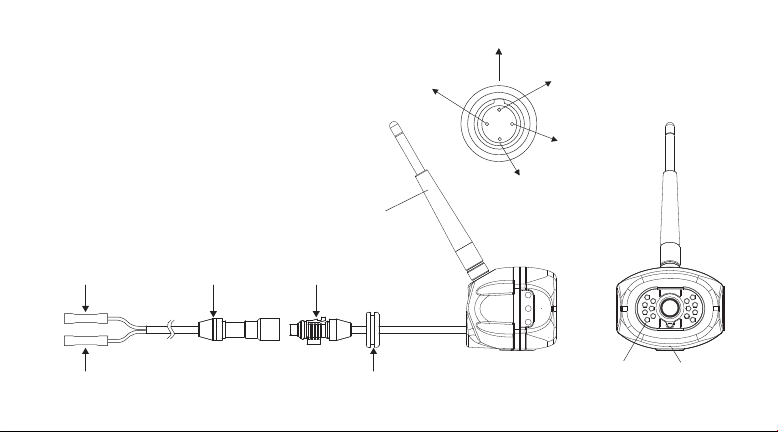

Installation and Pin out:

12V DC

Ground/Shield

1

Red

Black

Standard Cable
Connector

Antenna Vertical

Waterproof Camera
Connector

Vehicle Exterior

Ground/Shield

Cable Connector
End View

LED Assisted
Illumination

MicrophoneGrommet To Seal Through

Installation

Screw For Use

Hex Socket Head M4 X 6 mm Stainless screws

With Plain washer

Stainless Allen wrench

Antenna Vertical

2

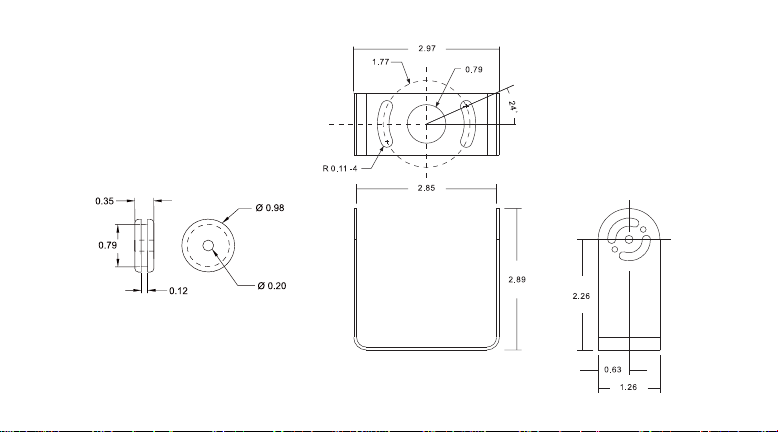

Bracket Mtg.
Hole Dimensions

Unit : Inch

3

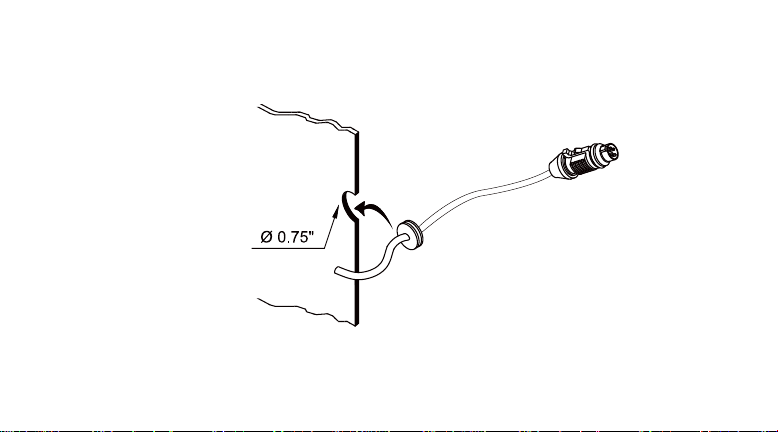

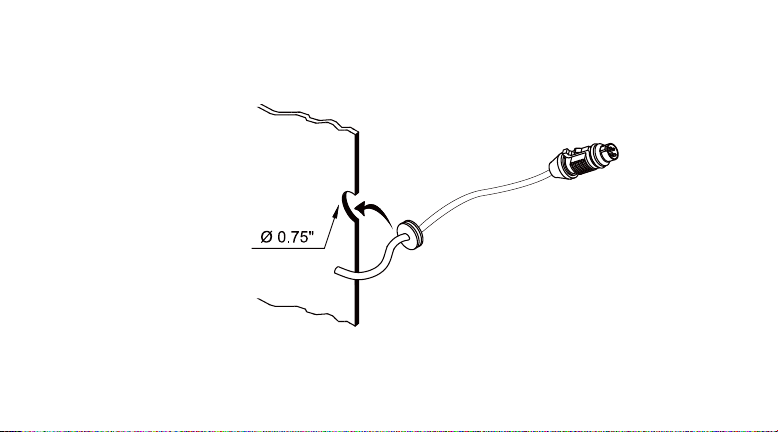

Recommended grommet Hole

Unit : Inch

4

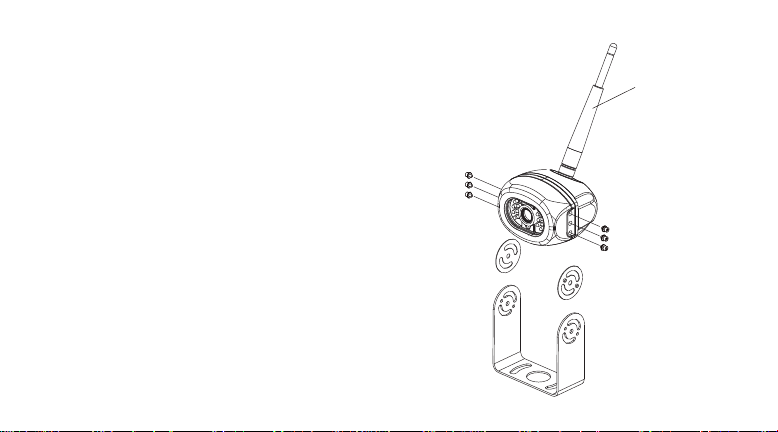

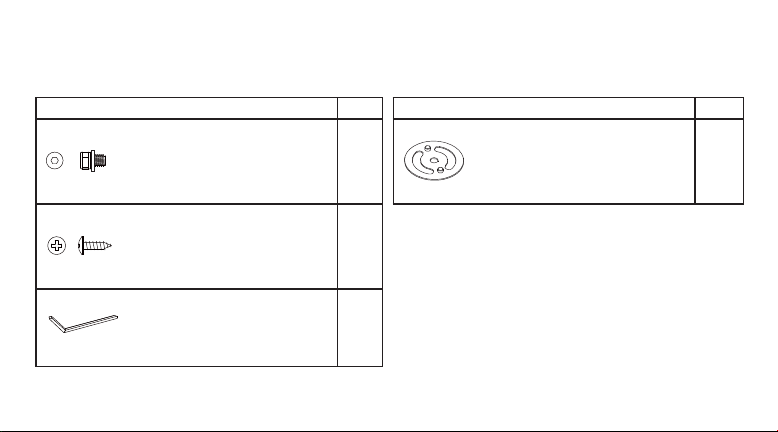

Camera to bracket hardware

Specifi cations Q'ty

Hex Socket Head M4 X6 mm
Stainless screws with plain washer

Tapping P/H w/washer M5 X 16mm
Stainless

Allen wrench 1

5

Specifi cations Q'ty

Washer 30 x2 x0.5 mm

6

PP

4

2

Specifi cations

Mounting Type External type

Image sensor 1/3” CMOS camera

Resolution 520 TV lines

Min illumination 0 Lux with IR on

Water resistance IP69K

View angle 100°(H), 74°(V), 137°(D)

Dimension

Working temperature -20°C ~ +70°C

Weight Approx. 0.35kg / 0.77lbs

85.5(W) X 85.1(H) X 59.8(D)mm

3.36(W) X 3.35(H) X 2.35(D)Inch

Model: WVCMS130AP
FCC ID : HQXWVCMS130AP

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.

Notice:

The changes or modifi cations not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.

Important Note:

To comply with the FCC RF exposure compliance
requirements, the antenna(s) used for this
transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction
with any other antenna or transmitter. No change to
the antenna or the device is permitted. Any change
to the antenna or the device could result in the
device exceeding the RF exposure requirements
and void user’s authority to operate the device.

6

7

PATENTE PENDIENTE

Español

WVCMS130AP – CAMARA DIGITAL COLOR
INALAMBRICA CMOS

Características de WVCMS130AP

● Tecnología Digital Inalámbrica

Sensor CMOS Alto Rendimiento

●

Mejora Luz LED IR baja

●

Impermeable (IP69K)

●

Angulo de Visión Ancho

●

Audio Micrófono Integrado

●

Contenidos:

Cámara
Soporte
Juego de Equipo

Ubicación Flecha de Bloqueo

Sin conexión

Sin conexión

12 DC

Installation and Pin Out:

12V CC

Tierra/Escudo

1

Rojo

Negro

Conector Cable
Estándar

Antena Vertical

Conector Cámara
Impermeable

Arandela para Sellar con
Vehículo Exterior

Tierra/Escudo

Vista del Extremo
Cable Conector

Iluminación
Asistida por LED

Microfono
