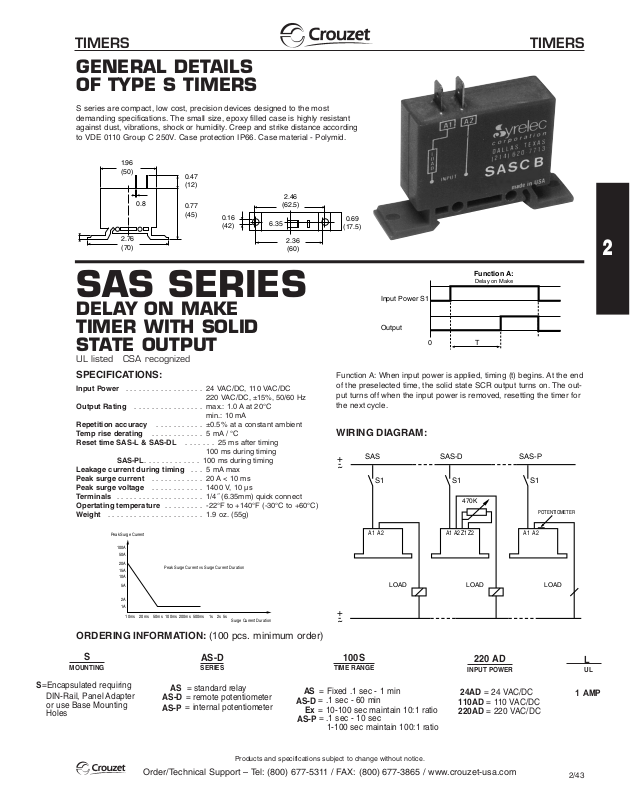

GENERAL DETAILS
OF TYPE S TIMERS

S series are compact, low cost, precision devices designed to the most
demanding specifications. The small size, epoxy filled case is highly resistant
against dust, vibrations, shock or humidity. Creep and strike distance according
to VDE 0110 Group C 250V. Case protection IP66. Case material - Polymid.

SAS SERIES

DELAY ON MAKE
TIMER WITH SOLID
STATE OUTPUT

UL listed CSA recognized

TIME RANGE

1.9 6
(50)

0.8

2.76
(70)

0.47
(12)

0.77
(45)

0.16
(42)

6.35

2.46

(62.5)

2.36
(60)

0.69

(17.5)

Input Power S1

Function A:

Delay on Make

SAS

Output

S1

0

SAS-D SAS-P

T

S1

470K

S1

POTENTIOMETER

SPECIFICATIONS:

Input Power . . . . . . . . . . . . . . . . . . 24 VAC/DC, 110 VAC/DC

220 VAC/DC, ±15%, 50/60 Hz

Output Rating . . . . . . . . . . . . . . . . max.: 1.0 A at 20°C

. . . . . . . . . . . . . . . . . . . . . . . . . . . . min.: 10 mA

Repetition accuracy . . . . . . . . . . . ±0.5% at a constant ambient

Temp rise derating . . . . . . . . . . . . 5 mA / °C

Reset time SAS-L & SAS-DL . . . . . . . 25 ms after timing

100 ms during timing

SAS-PL. . . . . . . . . . . . . 100 ms during timing

Leakage current during timing . . . 5 mA max

Peak surge current . . . . . . . . . . . . 20 A < 10 ms

Peak surge voltage . . . . . . . . . . . . 1400 V, 10 µs

Terminals . . . . . . . . . . . . . . . . . . . . 1/4˝ (6.35mm) quick connect

Opertating temperature . . . . . . . . . -22°F to +140°F (-30°C to +60°C)

Weight . . . . . . . . . . . . . . . . . . . . . . 1.9 oz. (55g)

Function A: When input power is applied, timing (t) begins. At the end
of the preselected time, the solid state SCR output turns on. The out­put turns off when the input power is removed, resetting the timer for
the next cycle.

WIRING DIAGRAM:

+

-

˜

Peak Surge Current

100A

50A

20A
15A
10A

5A

2A

1A

10ms 20ms 50ms 100ms 200ms 500ms 1s 2s 5s

ORDERING INFORMATION:

S

MOUNTING

S=Encapsulated requiring

DIN-Rail, Panel Adapter
or use Base Mounting
Holes

Peak Surge Current vs Surge Current Duration

Surge Current Duration

A1 A2

LOAD

+

-

A1 A2

Z1 Z2

LOAD LOAD

˜

(100 pcs. minimum order)

AS-D

SERIES

AS = standard relay

AS-D = remote potentiometer
AS-P

= internal potentiometer

AS

AS-D

Ex

AS-P

100S

= Fixed .1 sec - 1 min

= .1 sec - 60 min
= 10-100 sec maintain 10:1 ratio

= .1 sec - 10 sec

1-100 sec maintain 100:1 ratio

220 AD

L

INPUT POWER

UL

24AD = 24 VAC/DC
110AD = 110 VAC/DC
220AD = 220 VAC/DC

A1 A2

1 AMP
