Synway SMG Series Wireless Gateway
SMG4004
SMG4008
SMG4016
SMG4032
Wireless Gateway
Version 1.4.0
Synway Information Engineering Co., Ltd
www.synway.net
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page i
Content
Content ................................................................................................i
Copyright Declaration...........................................................................iii
Revision History....................................................................................iv
Chapter 1 Product Introduction............................................................1
1.1 Typical Application......................................................................................... 2
1.2 Feature List....................................................................................................2
1.3 Hardware Description.................................................................................... 3
1.4 Indicator Info.................................................................................................. 6
Chapter 2 Quick Guide..........................................................................7
Chapter 3 WEB Configuration............................................................10
3.1 System Login............................................................................................... 10
3.2 Operation Info...............................................................................................11
3.2.1 System Info............................................................................................................. 11
3.2.2 Port State................................................................................................................12
3.2.3 Call Count ...............................................................................................................13
3.2.4 SIP Message Count................................................................................................14
3.3 Quick Config................................................................................................ 14
3.4 VoIP Settings............................................................................................... 16
3.4.1 SIP..........................................................................................................................17
3.4.2 SIP Compatibility.....................................................................................................18
3.4.3 SIP Station ..............................................................................................................20
3.4.4 SIP Server ..............................................................................................................22
3.4.5 NAT Setting.............................................................................................................24
3.4.6 Media......................................................................................................................26
3.5 Advanced Settings....................................................................................... 28
3.5.1 Network ..................................................................................................................29
3.5.2 System Param ........................................................................................................30
3.5.3 Service Config ........................................................................................................32

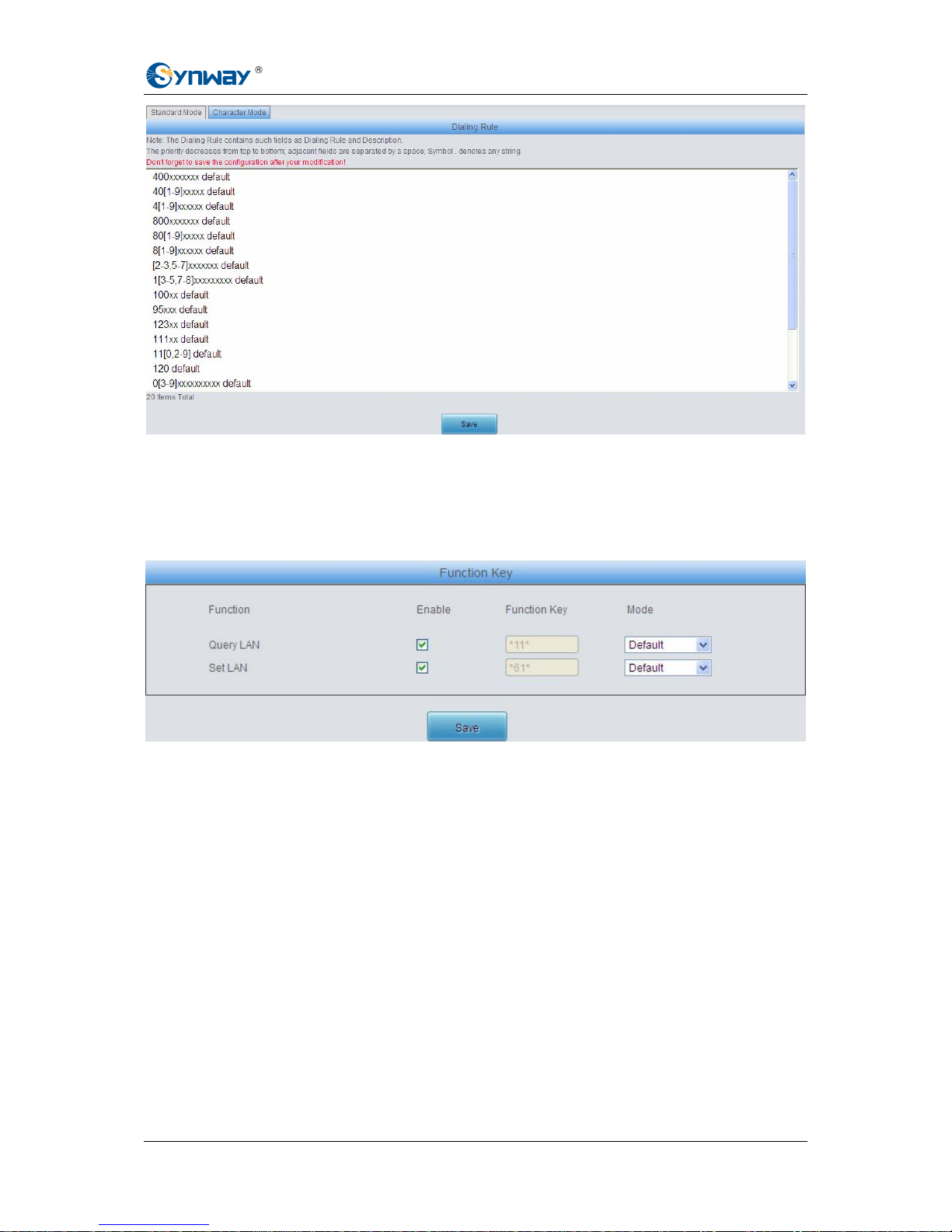

3.5.4 Dialing Rule ............................................................................................................33
3.5.5 Function Key...........................................................................................................37

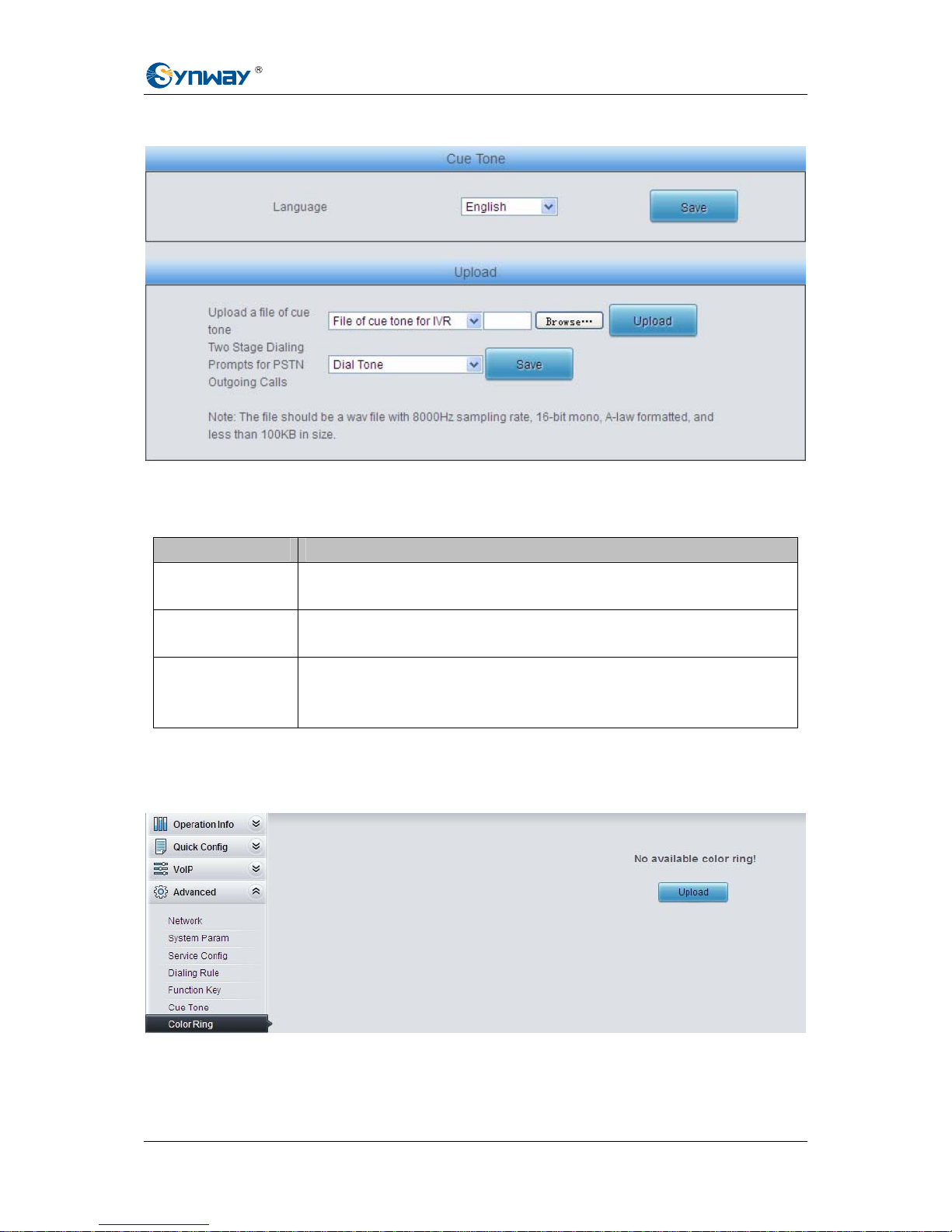

3.5.6 Cue Tone ................................................................................................................38
3.5.7 Color Ring...............................................................................................................38
3.5.8 QoS ........................................................................................................................40
3.5.9 Tone Generator.......................................................................................................41
3.5.10 CDR Query .............................................................................................................42
3.5.11 VPN ........................................................................................................................42
3.6 Wireless Settings......................................................................................... 43
3.6.1 Basic Parameters ...................................................................................................44
3.6.2 Wireless Param ......................................................................................................46
3.6.3 Call Forwarding.......................................................................................................48
3.6.4 Short Message........................................................................................................49
3.6.5 IMEI ........................................................................................................................52
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page ii
3.6.6 USSD......................................................................................................................53
3.6.7 Email.......................................................................................................................54
3.6.8 Balance...................................................................................................................55
3.6.9 SIM Card.................................................................................................................56
3.6.10 PIN Manage............................................................................................................57
3.7 Port Settings................................................................................................ 59
3.7.1 Port .........................................................................................................................60
3.7.2 Port Group ..............................................................................................................63
3.8 Route Settings............................................................................................. 66
3.8.1 Routing Parameters................................................................................................66
3.8.2 IP to Tel/IP ..............................................................................................................67
3.8.3 Tel to IP...................................................................................................................69
3.9 Number Manipulation................................................................................... 71

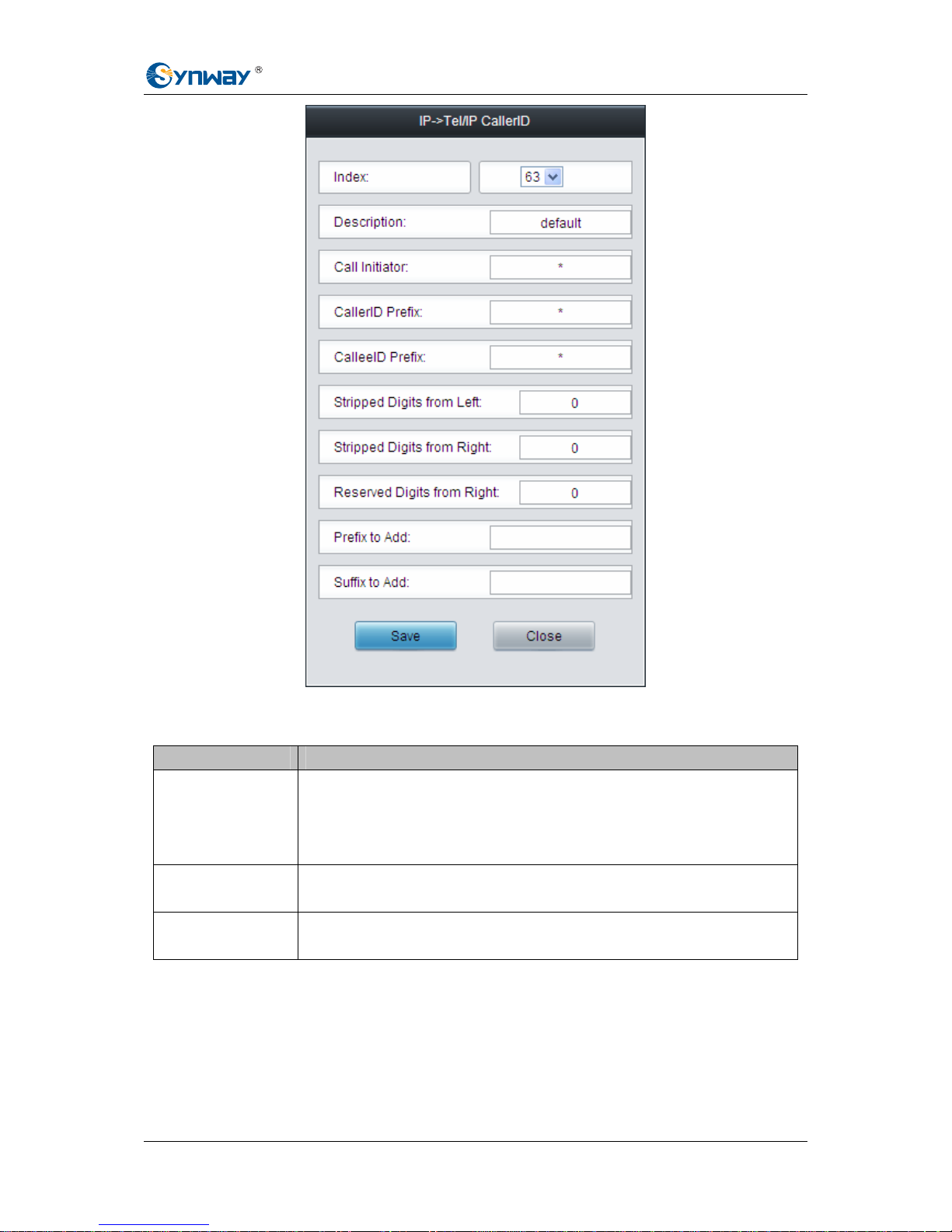

3.9.1 IP to Tel CallerID .....................................................................................................72
3.9.2 IP to Tel CalleeID ....................................................................................................76
3.9.3 Tel to IP CallerID.....................................................................................................77
3.9.4 Tel to IP CalleeID....................................................................................................80
3.10 System Tools ............................................................................................... 81
3.10.1 Upgrade..................................................................................................................81
3.10.2 Signaling Capture ...................................................................................................83
3.10.3 Data Recording.......................................................................................................84
3.10.4 Call Log ..................................................................................................................84
3.10.5 Change Password ..................................................................................................85
3.10.6 Backup & Upload ....................................................................................................86
3.10.7 Factory Reset .........................................................................................................87
3.10.8 Restart ....................................................................................................................87
3.10.9 System Monitor.......................................................................................................88
3.10.10 SNMP Config ..........................................................................................................88
3.10.11 PING Test ...............................................................................................................89
3.10.12 TRACERT Test .......................................................................................................90
3.10.13 Wireless Network Test ............................................................................................91
Appendix A Technical Specifications.................................................92
Appendix B Troubleshooting..............................................................93
Appendix C VPN Certificate................................................................94
Appendix D Technical/sales Support.................................................95
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page iii
Copyright Declaration
All rights reserved; no part of this document may be reproduced or transmitted in any form or by
any means, electronic or mechanical, without prior written permission from Synway Information
Engineering Co., Ltd (hereinafter referred to as ‘Synway’).
Synway reserves all rights to modify this document without prior notice. Please contact Synway
for the latest version of this document before placing an order.
Synway has made every effort to ensure the accuracy of this document but does not guarantee
the absence of errors. Moreover, Synway assumes no responsibility in obtaining permission and
authorization of any third party patent, copyright or product involved in relation to the use of this
document.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page iv
Revision History
Version Date Comments
Version 1.0.0 2015-08 Initial publication
Version 1.1.0 2015-11 New Revision
Version 1.2.0 2016-1 New Revision
Version 1.3.0 2016-4 New Revision
Version 1.4.0 2016-6 New Revision
Note: Please visit our website http://www.synway.net to obtain the latest version of this document.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 1
Chapter 1 Product Introduction
Thank you for choosing Synway SMG Series Wireless Gateway!
The Synway SMG series wireless gateway products (hereinafter referred to as ‘wireless
gateway’), as a part of the Synway gateway products, works mainly for connecting the wireless
network with the VoIP network. It adopts an updated VoIP processor and the wireless module,
uses the push-pull SIM card socket for easy replacement of the SIM card, quite advanced in
technology. So far, only SMG4008 is available.
See below table for the modules of SMG series wireless gateway:
Module
Amount of
GSM Port
Amount of
WCDMA Port
Amount of
CDMA Port
Supported Frequency
band
4016-16G 16
4008-8G 8
4004-4G 4
GSM:
850/900/1800/1900MHz
4008-8W 8
4004-4W 4
GSM: 900/1800MHz
UMTS: 900/2100MHz
4008-8C
8
4004-4C
4
CDMA:
CDMA 2000 800MHz
Table 1-1 Model List
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 2
1.1 Typical Application
Figure 1-1 Typical Application
1.2 Feature List
Basic Features Description
TDM Call
Call initiated from TDM to IP, via routing and number manipulation to obtain the
called IP address.
IP Call
Call initiated from IP to TDM, via routing and number manipulation to obtain the call
destination.
Number Manipulation
Peels off some digits of a phone number from left/right, or adds a prefix/suffix to a
phone number.
Call Forward Three options available: Unconditional, Busy, No Reply and Unreachable.
CID Displays the CallerID.
Echo Cancellation
Provides the echo cancellation feature for a call conversation over the wireless
port.
Headquarter
Subscriber
Terminal
IP Phone
IP Phone
LAN
LAN
Router
FXO
Branch 1
GSM Gateway
Subscriber
Terminal
IP Phone
LAN
Router
IP Phone
FXO
Branch 2
Subscriber
Terminal
IP Phone
LAN
Router
IP Phone
Internet
GSM Gateway
GSM Gateway
GSM Gateway
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 3
TDM/VoIP Routing Sets a routing path: from IP to TDM or from TDM to IP.
Simultaneous Register to
Multiple Servers
Registers the gateway to a master registrar server and a spare registrar server
simultaneously.
IMS Network Registers the gateway to a server under IMS network.
Custom IVR Recording Provides the interface to customize the IVR Recording.
White/Black List Allows the setting of the white/black list for WEB access.
Voice Gain Adjust Supports the gain adjustment for the received or sent voice.
Receive or Send
SMS/USSD
Supports the SMS sending and receiving, as well as the USSD request and
response.
Auto Select Network Supports the auto identification and selection of the network operator.
SMS CODEC Two options available: ASCII and UCS2.
Signaling & Protocol Description
SIP Signaling Supported protocol: SIP V1.0/2.0, RFC3261.
Voice
CODEC G.711A, G.711U, G.729A/B, G.723, G.722, AMR, iLBC
DTMF Mode RFC2833, SIP INFO, INBAND
Network Description
Network Protocol
Supported protocol: TCP/UDP, HTTP, ARP/RARP, DNS, NTP, TFTP, TELNET,
STUN.
Static IP IP address modification support.
DHCP IP address dynamic allocation support.
DNS Domain Name Service support.
Security Description
Admin Authentication Supports admin authentication to guarantee the resource and data security.
System Monitor Monitors the running status of the system and the server.
Maintain & Upgrade Description
WEB Configuration Support of configurations through the WEB user interface.
Language Chinese, English.
Software Upgrade
Support of user interface, gateway service, kernel and firmware upgrades based
on WEB.
Tracking Test Support of Ping and Tracert tests based on WEB.
SysLog Type Three options available: ERROR, WARNING, INFO.
1.3 Hardware Description
The wireless gateway supports two LANs and adopts an external 12V power supply. See below
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 4
for product appearance.
Figure 1-2 SMG4008 Front View
Figure 1-3 SMG4008 Rear View
Figure 1-4 SMG4016 Front View
Alarm Indicator
SIM Card Slot
Indicator
Run Indicator
SIM Card Slot
Network Port
Power
Alarm Indicator
Power Indicator
Channel Indicator
Console
LAN2 Indicator
LAN1 Indicator
SIM Card Slot
Reset Button
Run Indicator
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 5
Figure 1-5 SMG4016 Rear View
The table below gives a detailed introduction to the interfaces, buttons and LEDs illustrated
above:
Interface Description
Amount: 2
Type: RJ-45
Bandwidth: 10/100 Mbps
Self-Adaptive Bandwidth Supported
Auto MDI/MDIX Supported
LAN
Built-in Link indicator and ACTIVE indicator. For more details, refer to
1.4 Indicator Info
Amount: 4, 8, 16*4
SIM Card Slot
Network Supported: GSM, WCDMA, CDMA
Amount: 1
Type: RS-232
Baud Rate: 115200bps
Connector: RJ45 to DB-9 Connector (4004, 4008 series), Mini-USB connecting line (4016
series)
Data Bits: 8 bits
Stop Bit: 1 bit
Parity Unsupported
Console Port
Flow Control Unsupported
External Power
Supply Interface
Provide the 12V voltage with positive inside and negative outside, and the current is larger
than 3A
Button Description
Reset Button Restore the gateway to factory settings by pressing this button persistently for 3 seconds
LED Description
Power Indicator
Indicates the power state. It lights up when the gateway starts up with the power cord well
connected
Run Indicator Indicates the running status. For more details, refer to 1.4 Indicator Info.
Alarm Indicator Alarms the device malfunction. For more details, refer to 1.4 Indicator Info.
Link Indicator The green LED on the right of LAN, indicating the network connection status.
ACT Indicator The orange LED on the left of LAN, whose flashing tells the data are being transmitted.
Port Indicator 1. When the port is idle, the LED Lights up in green and keeps on;
Network Port
Power
Console
Reset Button
Grouding
Stud
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 6
2. When the port is unavailable, the LED Lights up in red and keeps on;
3. When the port is in use, the LED flashes in green
4. When the port module is disabled, the LED flashes in red
5. For SMG4016 series, only the indicator of the card slot in which the SIM card is in using
lights up and other indicators will go out in the case that there are more than one SIM
cards inserted in the same channel.
For other hardware parameters, refer to Appendix A T echnical Specifications.
1.4 Indicator Info
The wireless gateway is equipped with two indicators denoting the system’s running status: Run
Indicator (green LED) and Alarm Indicator (red LED). The table below explains the states and
meanings of the two indicators.
LED State Description
Go out System is not yet started.
Light up and flash fast System is starting.
Run Indicator
Flash slowly Device is normal.
Go out Device is normal.
Light up
Upon startup: Device is normal.
In runtime: Device is abnormal.
Alarm Indicator
Flash Device is abnormal.
Note:
z The startup process consists of two stages: System Booting and Gateway Service
Startup. The system booting costs about 1 minute and once it succeeds, both the run
indicator and the alarm indicator light up. Then after the gateway service is successfully
started and the device begins to work normally, the run indicator flashes and the alarm
indicator goes out.
z During runtime, if the alarm indicator lights up or flashes, it indicates that the device goes
abnormal. If you cannot figure out and solve the problem by yourself, please contact our
technicians for help. Go to
Appendix D Technical/sales Support to find the contact way.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 7
Chapter 2 Quick Guide
This chapter is intended to help you grasp the basic operations of the wireless gateway in the
shortest time.
Step 1: Confirm that your packing box contains all the following things.
z Wireless Gateway *1
z External 12V Power Adapter *1
z GSM/WCDMA/CDMA Rubber Antenna *4/8/16
z Standard RJ45 to DB-9 Switcher (4004/4008 series) *1, Mini-USB connecting line (4016
series) *1
z 8mm Antenna Wrench *1
z Rubber Foot Pad *4
z Network Cable *1
z Warranty Card *1
z Installation Manual *1
Step 2: Connect the network cable.
This product provides RJ-45 interfaces.
Step 3: Insert the SIM card (standard size) and install the antenna.
The wireless gateway provides a SIM card slot. You are required to insert the SIM card before
using it. Take out the rubber antennae from the packing box, install them onto the wireless
gateway, screw them up and evenly arrange them.
Step 4: Power on and start the gateway.
To use the wireless gateway, you need an external power supply. Insert it to the power interface of
the wireless gateway and power it on with 100~240V AC. See the figure below:
Figure 2-1 Wireless Gateway Power Connection
External Power Supply
offers 12V voltage
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 8
Step 5: Log in the gateway.
Enter the original IP address (192.168.1.101) of the wireless gateway in the browser to go to the
WEB interface of the gateway. The original username and password of the gateway are both
‘admin’. For detailed instructions about login, refer to
3.1 System Login. We suggest you change
the initial username and password via ‘System Tools Æ Change Password’ on the WEB interface
as soon as possible after your first login. For detailed instructions about changing the password,
refer to
3.10.5 Change Password. After changing the password, you are required to log in again.
Step 6: Modify IP address of the gateway.
You can modify the IP address of the gateway via ‘Advanced Settings Æ Network’ on the WEB
interface to put it within your company’s LAN. Refer to
3.5.1 Network for detailed instructions
about IP modification. After changing the IP address, you shall log in the gateway again using
your new IP address.
Step 7: Make phone calls.
Note: For your easy understanding and manipulation, all examples given in this step do not
involve registration, that is, SIP initiates calls in a point-to-point mode.
Situation 1: Call from a station to an IP phone (TelÆIP)
1. Go to ‘Advanced Settings Æ Dialing Rule’ on the WEB interface and click the ‘Add New’
button to add a new dialing rule. Refer to
3.5.4 Dialing Rule for detailed instructions. Enter
either a particular number or a string of ‘x’s to represent several random numbers. For
example, ‘xxx’ denotes 3 random numbers. You may use the default value of ‘Index’ and are
required not to leave ‘Description’ empty.
Example: Set Index to 99, fill in Description with test and configure Dial Rule to 123.
2. Go to ‘Port Settings Æ Port Group’ on the WEB interface and click the ‘Add New’ button to
create a new port group and add the corresponding ports to it. Refer to
3.7.2 Port Group for
detailed instructions. You may use the default values of other configuration items and are
required not to leave ‘Description’ empty.
Example: Provided the added port is Port1, check the checkbox before Port1, set Index to 1,
fill in Description with test, and keep the default values of other configuration items.
3. Go to ‘Route Settings Æ TelÆIP’ on the WEB interface and click the ‘Add New’ button to add
a new routing rule. Refer to
3.8.3 TelÆIP for detailed instructions. Select the port group
created in Step2 as ‘Source Port Group’ and fill in ‘Destination IP’ and ‘Destination Port’ with
the IP address and the Port number you plan to call. You may use the default values of other
configuration items and are required not to leave ‘Description’ empty.
Example: Provided the remote IP address intended to call is 192.168.0.111 and the port is
5060. Set Index to 63, Source Port Group to 1, fill in Description with test, configure
Destination IP to 192.168.0.111, Destination Port to 5060, and keep the default values of
other configuration items.
4. Use an external phone to call the number of this SIM card, and then follow the cue tone to
dial the number set in Step1 to ring the remote IP phone If you have set a particular number in
Step 1, only this number you can dial; if you have set a string of ‘x’s, how many ‘x’s there are,
how many random numbers you can dial.
Example: The external phone dials the number of this SIM card, and then follows the cue
tone to dial 123. Then the IP phone with the IP address 192.168.0.111 and the port 5060 will
ring.
Situation 2: Call from an IP phone to a station (IP ÆTel)
1. Go to ‘Port Settings Æ Port Group’ on the WEB interface and click the ‘Add New’ button to
create a new port group and add the corresponding ports which are connected with stations
to it. Refer to
3.7.2 Port Group for detailed instructions. You may use the default values of
other configuration items and are required not to leave ‘Description’ empty.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 9
Example: Provided the added port is Port1, check the checkbox before Port1, set Index to 1,
fill in Description with test, and keep the default values of other configuration items.
2. Go to ‘Route Settings Æ IPÆTel/IP’ on the WEB interface and click the ‘Add New’ button to
add a new routing rule. Refer to
3.8.2 IPÆTel/IP for detailed instructions. Fill in ‘Source IP’
with the IP address which initiates the call and select the port group created in Step1 as
‘Destination Port Group’. You may use the default values of other configuration items and
required not to leave ‘Description’ empty.
Example: Provided the IP address of the IP phone which initiates the call is 192.168.0.111.
Set Index to 63, Destination Port Group to 1, fill in Description with test, configure Source
IP to 192.168.0.111, and keep the default values of other configuration items.
3. Pick up the IP phone and call the IP address and port of the wireless gateway to make
outgoing calls from the wireless channel.
Example: Provided the IP address of the wireless gateway is 192.168.0.101, the port is 5060,
use the IP phone to call the IP address 13529101232@192.168.0.101 and then the first idle
wireless port in the port group of step 2 will make an outgoing call to 13529101232.
Special Instructions:
z As the device will gradually heat up while being used, please maintain good ventilation to
prevent sudden failure, ensuring that the ventilation holes are never jammed.
z During runtime, if the alarm indicator lights up or flashes, it indicates that the device goes
abnormal. If you cannot figure out and solve the problem by yourself, please contact our
technicians for help. Otherwise it may lead to a drop in performance or unexpected
errors.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 10
Chapter 3 WEB Configuration
3.1 System Login
Type the IP address into the browser and enter the login interface. See Figure 3-1.
Figure 3-1 Login Interface
The gateway only serves one user, whose original username and password are both ‘admin’. You
can change the username and the password via ‘System Tools Æ Change Password’ on the WEB
interface. For detailed instructions, refer to
3.10.5 Change Password.
After login, you can see the main interface as below.
Figure 3-2 Main Interface
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 11
3.2 Operation Info
Operation Info includes four parts: System Info, Port State, Call Count and SIP Message Count,
showing the current running status of the gateway. See
Figure 3-3.
Figure 3-3 Operation Info
3.2.1 System Info
Figure 3-4 System Info Interface
See Figure 3-4 for the system info interface. You can click Refresh to obtain the latest system
information. The table below explains the items shown in
Figure 3-4.
Item Description
MAC Address MAC address of LAN.
IP Address
The three parameters from left to right are IP address, subnet mask and default
gateway of LAN.
DNS Server DNS server address of LAN.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 12
Receive Packets
The amount of receive packets after the gateway’s startup, including three options:
All, Error and Drop.
Transmit Packets
The amount of transmit packets after the gateway’s startup, including three options:
All, Error and Drop.
Current Speed Show the current speed of data receiving and transmitting.
Work Mode
Show the work mode of the network, including four modes: 10 Mbps Half Duplex, 10
Mbps Full Duplex, 100 Mbps Half Duplex, 100 Mbps Full Duplex.
Runtime
Time of the gateway keeping running normally after startup, which will be
automatically updated.
WEB Current version of the WEB interface.
Gateway Current version of the gateway service.
Serial Num Unique serial number of a wireless gateway.
Authorization Code The authorization codes vary from different wireless modules.
FPGA Current version of FPGA.
U-boot Current version of Uboot.
Kernel Current version of the system kernel on the gateway.
Device Type Type of the wireless gateway.
3.2.2 Port State
Figure 3-5 Channel State Interface
See Figure 3-5 for the channel state interface where shows the channel type, the channel state for
each channel on the gateway. The table below explains the items shown in
Figure 3-5.
Item Description
Port Port number on the device.
Type
Port type on the device. So far, only GSM, WCDMA and CDMA types are
supported.
State
Displays the port state in real time. You can move the mouse onto the port state
icon for detailed state information.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 13
State Icon Description
Idle The port is available.
Off-hook The port picks up the call.
Wait Answer
The port receives the ringback tone and is waiting for
the called party to pick up the phone.
Ringing T he port is in the ringing state.
Talking The port is in a conversation.
Dialing The port is dialing.
Pending The port is in the pending state.
Internal State Internal state of the port.
Unusable The port is unavailable.
Voice Type Displays the voice type of the current call.
Direction Displays the direction of the call on port.
CallerID Displays the CallerID of the call on port.
CalleeID Displays the CalleeID of the call on port.
SIM Card
Displays the real-time state of the SIM card. Move the mouse onto the
corresponding icon and you can find the exact state of the SIM card.
means
card inserted， means no card inserted, means card in use.
Note: This item is unavailable for SMG4004 and SMG4008 series.
Cell Phone No.
Displays the number of the SIM card inserted in current port. For SMG4016 series,
the number is that of the SIM card which is in using.
Connection Displays the connection status between the SIM card and the base station.
Signal Displays the signal intensity of the wireless module.
SIP Reg Status Displays the registration status of the port.
3.2.3 Call Count
Figure 3-6 Call Count Interface
See Figure 3-6 for the call count Interface. The above list shows the detailed information about all
the calls counted from the startup of the gateway service to the latest open or refresh of this
interface. You can click Refresh to obtain the current call count information. The table below
explains the items shown in
Figure 3-6.
Item Description
Call Direction A condition for call count, two options available: IPÆTel and TelÆIP.
Total Calls Total number of calls in a specified call direction.
Successful Calls Total number of successful calls in conversation.
Busy
Total number of calls which fail as the called party has been occupied and replies a
busy message.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 14
No Answer
Total number of calls which fail as the called party does not pick up the call in a long
time or the calling party hangs up the call before the called party picks it up.
Routing Failure Total number of calls which fail because no routing rules are matched.
Dialing Failure
Total number of calls which fail as the called party number does not conform to the
dialing rule or due to dialing timeout.
Unknown Failure Total number of calls which fail due to unknown reasons.
3.2.4 SIP Message Count
Figure 3-7 SIP Message Count Interface
See Figure 3-7 for the SIP Message Count interface. This is used to record the amount of the
normal SIP messages that are sent/received or repeatedly sent/received during the period from
the startup of the gateway service to the latest open or refresh of the interface. Click Refresh to
refresh the count of SIP messages, or click Clear to clear the current count of SIP messages.
3.3 Quick Config
Figure 3-8 Quick Config Interface
See Figure 3-8 for the Quick Config interface. Follow the gateway Quick Configuration wizard and
you can easily complete the settings on network, SIP and Port. The gateway can work normally
after configuration.
See
Figure 3-9 for the Quick Config-Network Settings interface. Refer to 3.5.1 Network for
detailed settings. After configuration, click Next to enter the SIP Settings interface.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 15
Figure 3-9 Quick Config-Network Settings Interface
See Figure 3-10 for the Quick Config-SIP Settings interface. The configuration items on this
interface are the same as those on
the SIP interface. Refer to 3.4.1 SIP for detailed settings. You
are required to fill with the information about the registrar if the gateway must be registered. After
configuration, click Back to go back to the Network Settings interface; click Next to enter the Port
Settings interface.
Figure 3-10 Quick Config-SIP Settings Interface
See Figure 3-11 for the Port Settings interface. The configuration items on this interface are th e
same as those on
the Port interface. Refer to9 3.7.1 Port for detailed settings. After configuration,
click Back to go back to the SIP Settings interface; click Next to enter the Quick
Config-Completion interface.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 16
Figure 3-11 Port Settings Interface
Figure 3-12 Quick Config-Completion Interface
Click Back to go back to the Port Settings interface; click Finish to finish the Quick Config wizard
and now the gateway can work normally with basic configuration.
3.4 VoIP Settings
VoIP Settings includes six parts: SIP, SIP Compatibility, SIP Station, SIP Server, NAT Setting
and Media. See
Figure 3-13. SIP Settings is used to configure the general SIP parameters, SIP
Compatibility is used to set which SIP servers and SIP messages will the ga teway be comp atible
with, SIP Station is to set the basic information of the SIP station, SIP Server is to set the basic
information of the SIP server, NAT Setting is used to configure the parameters for NAT, and
Media Settings is to set the RTP port and the payload type.
Figure 3-13 VoIP Settings
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 17
3.4.1 SIP
Figure 3-14 SIP Settings Interface
See Figure 3-14 for the SIP settings interface where you can configure the general SIP
parameters. After configuration, click Save to save your settings into the gateway or click Reset to
restore the configurations. If a dialog box pops up after you save your settings asking you to
restart the system, do it immediately to apply the changes. Refer to
3.10.8 Restart for detailed
instructions. The table below explains the items shown in
Figure 3-14.
Item Description
SIP Port
Monitoring port of SIP signaling. The value range of it must be grater than 1024 and
less than 65535, with the default value of 5060.
Register Status
Registration status of the gateway. When Register Gateway is set to No, the value
of this item is Unregistered; when Register Gateway is set to Yes, the value of this
item is either Failed or Registered.
Register Gateway
Sets whether to register the gateway as a whole. The default value is No. Only
when this configuration is set to Yes can you see the configuration items SIP
Account and Password.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 18
SIP Account
When the gateway initiates a call to SIP, this item corresponds to the username of
SIP.
Password
Registration password of the gateway. To register the gateway to SIP, both
configuration items SIP Account and Password should be filled in.
Authentication
Username
Authentication username for registration.
Registrar IP Address Address of the registry server for the gateway to register.
Registrar Port Signaling port of the registry server.
Spare Registrar
Server
Check the enable checkbox to enable the spare registrar server. By default, it is
disabled.
Spare Registrar IP
Address
Address of the spare registry server for the gateway to register. The gateway will
enable the spare registrar server if the master registrar server has no reply, or the
master server is detected with no response in case the item Detection Server
Cycle is enabled.
Spare Registrar Port Signaling port of the spare registry server.
Registry Validity
Period
Validity period of the SIP registry. Once the registry is overdue, the gateway should
be registered again. This configuration item is valid only when Register Gateway is
set to Yes. Range of value: 10~3600, calculated by s, with the default value of 600.
Multi-Registrar
Server Mode
Tick the checkbox before to enable the multi-registrar server mode. By default, it is
disabled.
SIP Transport
Protocol
There are two modes UDP and TCP available for running the SIP protocol. The
default value is UDP.
IMS Network
Once this feature is enabled, the gateway will send signaling messages to the
corresponding externally bound address and port when it registers to the server. By
default, this feature is disabled. Only when this feature is enabled will these items
Externally Bound Address, Externally Bound Port and Authentication
Username be shown.
Externally Bound
Address
Externally bound IP address for registration.
Externally Bound
Port
Externally bound port for registration.
3.4.2 SIP Compatibility
See Figure 3-15 for the SIP Compatibility interface where you can configure the SIP parameters
to determine which SIP servers and SIP messages will the gateway be compatible with. After
configuration, click Save to save your settings into the gateway or click Reset to restore the
configurations.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 19
Figure 3-15 SIP Compatibility Setting Interface
The table below explains the items shown in Figure 3-15.
Item Description
Obtain CalleeID
from
There are two optional ways to obtain the called party number: from “To” Field and
from “Request” Field. The default value is “Request” Field.
Set CallerID Position
There are two options to set the position of the calling party number: “Displayname
of From Field” and “Username of From Field”. The default value is “Username of
From Field”.
Obtain CallerID from
There are two optional ways to obtain the calling party number: from “Displayname
of From Field” and from “Username of From Field”. The default value is “Username
of From Field”.
Use Contact
Address
Sets whether to send the request message according to the content of Contact, with
the default setting of disabled. As it is disabled, if the Contact field indicates an IP
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 20
address within the LAN, the request message will be sent according t o the source
address; if the Contact field indicates an IP address belonging to the WAN, the
request message will be sent according to this IP address.
Two Stage Dialing
for SIP Incoming
Call
Once this feature is enabled, the incoming call from SIP should perform the two
stage dialing operation. By default this feature is disabled.
Maximum Wait
Answer Time
Sets the maximum time for the SIP channel to wait for the answer from the called
party of the outgoing call it initiates. If the call is not answered within the specified
time period, it will be canceled by the channel automatically. The default value is 60,
calculated by s.
SIP Station
Supported
Once this feature is enabled, a SIP terminal can be registered to the gateway to
become a SIP station. By default this feature is disabled.
Set SIP Identifying
Sets the SIP identifying content in the SIP call message. The default setting is
Gateway.
Maximum Wait RTP
Time
Sets the maximum time for the SIP channel to wait for the RTP packet. If no RTP
packet is received within the specified time period, the channel will enter the
pending state automatically and release the call. The default value is 0
（
disabled
）
,
calculated by s.
Ignore ACK
Once this feature is enabled, it is not necessary for the gateway to wait for the ACK
message after sending the 200OK message to establish a call. By default it is
disabled.
Abnormal Call
Hangup Detection
Sets the interval between checks of the remote end’s abnormal hangup, with the
default value of 0 (feature disabled), calculated by s. It is suggested to set to 10s if
this feature is necessary to be used.
Server Status
Detection
The interval of sending a heartbeat packet to detect the master registrar server
status, with the default value of 0 (feature disabled), calculated by s. It is suggested
to set to 15s if this feature is necessary to be used.
Occasion to Reply
183
Sets the occasion to reply the 183 message. Two options including: Immediately
and After ringing, with the default value of Immediately.
Occasion to Reply
200 Ok
Sets the occasion to reply 200 OK. Two options including: After pickup and After
ringing, with the default value of After pickup.
3.4.3 SIP Station
A SIP terminal can be registered to the gateway to become a SIP station. Tick the option of ‘SIP
Station Supported’ on
3.4.2 SIP Compatibility interface, and you will see the item SIP Station on
the VoIP Settings menu. Click ‘SI P Station’ to go into the SIP Station interface. By default, there is
no available SIP station. See
Figure 3-16 below.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 21
Figure 3-16 SIP Station Setting Interface
Click Add New to add SIP stations manually. See Figure 3-17. You can configure basic SIP
station information on this interface. The bound port to a SIP station must be a wireless port and
unique. The username must be the same as that used to register the SIP terminal to the gateway.
Figure 3-17 Add New SIP Station
The table below explains the items shown above:
Item Description
Number The logical number for a SIP station to register to the gateway.
Username The username used to register a SIP station to the gateway.
Password The password used to register a SIP station to the gateway.
Bound Port The wireless port which is bound to the SIP station.
Description It is user-defined, with the default value of default.
Batch Setting Used to set multiple SIP stations at the same time.
After configuration, click Save to save the above settings into the gateway or click Close to cancel
the settings. See
Figure 3-18 for the applied SIP station information.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 22
Figure 3-18 SIP Station Interface
Click Modify in the above figure to modify the configuration of the SIP station. See Figure 3-19.
The configuration items on this interface are the same as those on the Add New SIP Station
interface.
Figure 3-19 SIP Station Modification Interface
To delete a SIP station, check the checkbox before the corresponding index in Figure 3-18 and
click the Delete button. Check All means to select all available items on the current page;
Uncheck All means to cancel all selections on the current page; Inverse means to uncheck the
selected items and check the unselected. To clear all SIP stations at a time, click the Clear All
button in
Figure 3-18.
3.4.4 SIP Server
The gateway supports the multi-registrar server feature. Enable the feature of ‘Multi-Registrar
Server Mode’ on the
SIP interface (see 3.4.1 SIP) and you will see the item SIP Server under the
VoIP Settings menu. Click ‘SIP Server’ to go into the SIP Server interface. By default, there is no
available SIP server. See
Figure 3-20 below.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 23
Figure 3-20 SIP Server Interface
Click Add New to add SIP servers manually. See Figure 3-21. You can configure basic SIP server
information on this interface.
Figure 3-21 Add New SIP Server
All the items except Index and Description are the same as those on the SIP interface (3.4.1 SIP).
Item Description
Index The index of each SIP server. The gateway supports up to 8 SIP servers.
Description More information about each SIP server, with the default value of default.
After configuration, click Save to save the above settings into the gateway or click Cancel to
cancel the settings. See
Figure 3-22 for the SIP server management interface.
Figure 3-22 SIP Server Management
Click Modify in the above figure to modify the configuration of the SIP server. See Figure 3-23.
The configuration items on this interface are the same as those on the Add New SIP Server
interface.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 24
Figure 3-23 SIP Server Modification Interface
To delete a SIP server, check the checkbox before the corresponding index in Figure 3-22 and
click the Delete button. Check All means to select all available items on the current page;
Uncheck All means to cancel all selections on the current page; Inverse means to uncheck the
selected items and check the unselected. To clear all SIP servers at a time, click the Clear All
button in
Figure 3-22.
3.4.5 NAT Setting
See Figure 3-24 for the NAT setting interface where you can configure the parameters for NAT.
After configuration, click Save to save your settings into the gateway or click Reset to restore the
configurations.
Figure 3-24 NAT Setting Interface
The table below explains the items shown in Figure 3-24.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 25
Item Description
STUN Server
Sets whether to enable the STUN server for NAT traversal. By default the STUN
server is disabled.
NAT Type
Detected NAT (Network Address Translation) type. The gateway will return the NAT
type automatically in case STUN Server is enabled. It includes 9 types: unknown;
no NAT; ConeNat; RestrictedNat; PortRestrictedNat; Symmetric NAT; Symmetric
NAT with firewall; can’t detect over (fail to send detect message) and fail to detect
(No reply from the stun server).
STUN Server
Address
Address of the server for STUN traversal.
Mapping Address
It should be filled in when there exists NAT or other mapping relationships which
leads to the failure of direct communication between the gateway and the
destination address, so as to ask the remote end to send signaling messages o r
voice data to it during the signaling or voice communication between the gatewa y
and the destination.
Note: Once this item is filled out, it will be used as the first choice even if Rport and
NAT IP are enabled.
RTP Self-adaption
When this feature is enabled, the RTP reception address or port carried by the
signaling message from the remote end, if not consistent with the actual state, will
be updated to the actual RTP reception address or port. By default, this feature is
disabled.
Rport
When this feature is enabled, a corresponding Rport field will be added t o the Via
message of SIP. The default value is enabled.
Auto Detect NAT IP
When this feature is enabled, the gateway will parse the corresponding address
and port in the message returned by Rport so as to use them for the following
communication. By default, this feature is disabled.
Note: This feature gets valid only when Rport is enabled.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 26
3.4.6 Media
Figure 3-25 Media Settings Interface
See Figure 3-25 for the media settings interface where you can configure the RTP port and
payload type depending on your requirements. After configuration, click Save to save your
settings into the gateway or click Reset to restore the configurations. If a dialog box pops up after
you save your settings asking you to restart the system, do it immediately to apply the changes.
Refer to
3.10.8 Restart for detailed instructions. The table below explains the items shown in
Figure 3-25.
Item Description
DTMF Transmit
Mode
Sets the transmit mode for the IP channel to send DTMF signals. The optional
values are RFC2833, In-band and Signaling, with the default value of RFC2833.
RFC2833 Payload
Payload of the RFC2833 formatted DTMF signals on the IP channel. Range of
value: 90~127, with the default value of 101.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 27
RTP Port Range
Supported RTP port range for the IP end to establish a call conversation, with the
lower limit of 10000 and the upper limit of 60000 and the difference between larger
than 480. The default value is 50000-50767.
Silence
Suppression
Sets whether to send comfort noise packets to replace RTP packets or never to
send RTP packets to reduce the bandwidth usage when there is no voice signal
throughout an IP conversation. The optional values are Enable and Disable, with
the default value of Disable.
JitterBuffer
Acceptable jitter for data packets transmission over IP, which indicates the buffering
capacity. A larger JitterBuffer means a higher jitter processing capability but as well
as an increased voice delay, while a smaller JitterBuffer means a lower jitter
processing capability but as well as a decreased voice delay. Range of value:
20~200, calculated by ms, with the default value of 20.
Voice Gain Output
from IP
Adjusts the gain of the voice output from IP. Range of value: -24~12, calculated by
dB, with the default value of 0.
AGC
If the AGC (Automatic Gain Control) feature is enabled, the gateway will
automatically adjust the input signal amplitude, increasing that of small signals and
decreasing that of large signals.
Target Energy
Threshold
Set the target energy of the AGC, range of value: -50~0, calculated by dB, with the
default value of 0.
Maximum Gain
Threshold
Set the maximum gain threshold that will be applied to the signal. Range of value:
0~48, calculated by dB, with the default value of 48.
Maximum
Attenuation
Threshold
Set the maximum attenuation that will be applied to the signal. Range of value:
-42~0, calculated by dB, with the default value of 0.
Minimum Input
Energy
Set the minimum threshold for the energy processed by AGC. Signals belo w this
threshold will not be processed by AGC. Range of value: -60~ -25, calculated by
dB, with the default value of -60.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 28
CODEC Priority
Supported CODECs and their corresponding priority for the IP end to establish a
call conversation. The table below explains the sub-items:
Sub-item Description
Priority
Priority for choosing the CODEC in an SIP conversation. The
smaller the value is, the higher the priority will be.
CODEC
Three optional CODECs are supported: G711A, G711U,
G729A/B, G723, G722, AMR and iLBC.
Packing Time Time interval for packing an RTP packet, calculated by ms.
Bit Rate
The number of thousand bits (excluding the packet header) that
are conveyed per second.
By default, all of the seven CODECs are supported and or dered G711A, G711U,
G729A/B, G723, G722, AMR and iLBC by priority from high to low.
The packing time and bit rate supported by different CODECs are listed in the table
below. Those values in bold face are the default values.
COEDC Packing Time (ms) Bit Rate (kbps)
G711A 10 / 20 / 30 / 40 / 60 64
G711U 10 / 20 / 30 / 40 / 60 64
G729A/B 10 / 20 / 30 / 40 / 60 8
G723 30 / 60 5.3 / 6.3
G722 10 / 20 / 30 / 40 64
AMR 20 / 40 / 60 4.75
20 / 40 15.2
iLBC
30 / 60 13.3
3.5 Advanced Settings
Advanced Settings includes eleven parts: Network, System Param, Service Config, Dialing
Rule, Function Key, Cue Tone, Color Ring, QoS, Tone Generator, CDR Query and VPN. See
Figure 3-26. Network is used to configure the general properties of the network port; System
Param is used to configure some properties of the system; Service Config is used to configure
some properties which corresponds to the service; Dialing Rule is used to set the judging
conditions for dialing; Function Key is used to set a cluster of combination keys for you to query
or set the network port; Cue Tone is used to set the gateway language for playing voice and the
voice file used for the two-stage dialing; Color Ring is used to upload the color ring file which can
be set as a ringback tone for an incoming call from IP to wireless port;.QoS uses the differentiated
services technology to increase the gateway’s service quality; Tone Generator is used to
configure some properties of tones sent from gateway. CDR Query is used to inquire the detailed
call record; VPN makes use of the tunnel technology to transport the data, and the methods of
user authentication and data encryption to prevent the data being read and distorted when they
are transported on the public network.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 29
Figure 3-26 Advanced Settings
3.5.1 Network
Figure 3-27 Network Settings Interface
See Figure 3-27 for the network settings interface. A gateway has two LANs which can be
configured with the same network type, IP address, subnet mask, default gateway and DNS
server to realize the feature of hot backup. There are three options in type: Static, DHCP and
PPPoE.
After configuration, click Save to save the above settings into the gateway or click Reset to
restore the configurations. After changing the IP address, you shall log in th e gateway again using
your new IP address.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 30
3.5.2 System Param
Figure 3-28 System Parameters Setting Interface
See Figure 3-28 for the System Parameters Setting interface. The table below explains the items
shown in the above figure.
Item Description
WEB Port The port which is used to access the gateway via WEB. The default value is 80.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 31
Access Setting
Sets the IP addresses which can access the gateway via WEB. By default, all IPs
are allowed. You can set an IP whitelist to allow all IPs within it to access the
gateway freely. Also you can set an IP blacklist to forbid all IPs within it to access the
gateway.
SYSLOG Enabled
Sets whether to enable SYSLOG. It is required to fill in SYSLOG Server Address
and SYSLOG Level in case SYSLOG is enabled. By default, SYSLOG is disabled.
Server Address Sets the SYSLOG server address for log reception.
SYSLOG Level
Sets the SYSLOG level. There are three options: ERROR, WARNING, INFO and
DEBUG. The default value is INFO.
AT Debug Enabled
Sets whether to enable the AT debug feature, with the default value of No. Once this
feature is enabled, the related information about AT will be output to the SYSLOG.
Echo Mode Enabled
Sets whether to enable the echo mode, with the default value of No. Once this
feature is enabled, both the sent and received information will be displayed.
Port Select the port to execute the AT debug.
CDR Enabled
Sets whether to enable the feature of CDR. It is required to fill in Server Address
and Server Port in case CDR is enabled. By default, CDR is disabled.
Server Address Sets the server address to receive CDR.
Server Port Sets the server port to receive CDR.
Save CDR Sets whether to save CDR, with the default value of NO.
Amount of Saved
CDR
Sets the amount of saved CDR. Range of value: 200~10000, with the default value
of 5000.
API Enabled
When this feature is enabled, the remote terminal can invoke the API interface. T he
default value is No.
Remote IP Address
allowed to Invoke
API
Sets the remote IP addresses which are allowed to invoke the API interface. Up to 5
addresses can be configured and each of them are separated by “,”. “*” denotes all
IP addresses are allowed.
Username for API
Call, Password for
API Call
The authorized username and password for calling the API interface.
Time Calibration
Sets the calibration mode for the time. Three options available: NTP, Synchronized
with Operator and Close, with the default value of Synchronized with Operator.
NTP Server Address Sets the Server address for NTP time synchronization.
Synchronizing Cycle Sets the cycle for NTP time synchronization. The default value is 3600.
System Time
The system time. Check the checkbox before Modify and change the time in the edit
box if Time Calibration is set to Close.
Time Zone The time zone of the gateway.
Daily Restart
Sets whether to restart the gateway regularly every day at the preset Restart Time.
By default, this feature is disabled.
Restart Time Sets the time to restart the gateway regularly.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 32
3.5.3 Service Config
Figure 3-29 Service Config Interface
See Figure 3-29 for the Service Config interface. The table below explains the items shown in the
above figure.
Item Description
Enable Two Stage
Dialing Mode for
PSTN Outgoing
Calls
Sets whether to enable the two stage dialing mode for PSTN outgoing calls. Under
this mode, for an outgoing call from a wireless port, the IP side will hear the dial
tone. If you fail to input the number during the schedule time, the wireless port will
hang up the call automatically; otherwise, it will make an outgoing call to the number.
The default value is disabled.
Maximum Wait Time
for PSTN Outgoing
Calls
Sets the maximum wait time waiting for the called party pickup during an outgoing
call. Range of value: 10~120, calculated by s, with the default value of 60.
Dial Interval
Sets the largest interval between two digits of a dialing number. Range of value:
1~10, calculated by s, with the default value of 6. In case your dialing rules do not
include “.”, the call will fail if there is no digit dialed or no dialing rule matched during
this interval; in case your dialing rules include “.”, the gateway will wait until this
interval ends and match to the dialing rule “.” if there is no digit dialed or no other
dialing rule matched during this interval.
Busy Tone
Detection Mode
Sets the busy tone detection mode, three options available: Common (hangup on
busy), Delayed (Delayed hangup on busy), Undetected (no busy detection). By
default it is set to Common.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 33
Communication
without Network
Automatically routes a call to the wireless port in case of network failure or call
timeout. The default value is disabled.
IPÆTel Call Failure,
Auto Transfer
Sets whether to enable the feature of transferring the call to a designated IP
automatically when a call from IP to Tel fails, with the default value of disable. If this
feature is enabled, you are required to enter Target Number (Registered) or Target
IP and Target Port (Unregistered).
Tel Æ IP Call Failure,
Auto SMS Reply
Sets whether to enable the feature of automatic SMS reply when a call from Tel to IP
fails, with the default value of disable. The following four options will be availabl e if
this feature is enabled. They are Unconnected, No Answer, Rejected, Fail to
Connect. You can select any one of them and define the correspond ing content to
reply.
Work Mode
Sets the work mode for the echo canceller. There are two options: Near-end
cancellation and Both near-end and far-end cancellation, with the default value of
Near-end cancellation.
Non-linear
Processing
Sets whether to enable the mode of non-linear processing. By default, this feature is
enabled.
Fixed Window Size Sets the size of the window for the fixed cancellation.
Moving Window
Size
Sets the size of the window for the moving cancellation.
3.5.4 Dialing Rule
Considering efficiency, it is not acceptable that the gateway reports to the PBX or relevant devices
every time it receives a number. Instead, we hope that the gateway can automatically judge the
received number to see if it meets the set rule, if it is complete and if it is qualified to make
outgoing calls. Therefore, a whole dialing plan, which consists of multiple dialing rules specifying
the auto judging conditions, is required. Each dialing rule has a priority, which is used to restrict
the sequence and avoid conflict.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 34
Figure 3-30 Dialing Rule Configuration Interface (Standard)
See Figure 3-30 for the Dialing Rule Configuration interface under the standard mode. The list in
the above figure shows the dialing rules with their priorities and description, which can be added
by the Add New button on the bottom right corner. See
Figure 3-31 for the dialing rule adding
interface.
Figure 3-31 Add New Dialing Rule
The table below explains the items shown in Figure 3-31.
Item Description
Index
The unique index of each dialing rule, which denotes its priority. A dialing rule with a
smaller index value has a higher priority and will be checked earlier while matching.
Description Remarks for the dialing rule. It can be a ny information, but can not be left empty.
Dialing Rule Up to 99 dialing rules can be config ured in the gate way, and the maximum length of
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 35
each dialing rule is 127 characters. See below for the meaning of each character in
the dialing rule. The gateway will do instant matching for your dialing number based
on the dialing rule and regard your dialing as finished upon receiving ‘#’ or dialing
timeout.
Character Description
“0”~”9” Digits 0～9.
“A”~”D” Letters A～D.
“x”
A random number. A string of ‘x’s represents several random
numbers. For example, ‘xxx’ denotes 3 random numbers.
“.”
‘.’ indicates a random amount (including zero) of characters
after it.
“[ ]”
‘[ ]’ is used to define the range for a number. Values within it only
can be digits ‘0~9’, punctuations ‘-‘ and ‘,’. For example,
[1-3,6,8] indicates any one of the numbers 1, 2, 3, 6, 8.
“-”
’-’ is used only in ‘[ ]’ between two numbers to indicates any
number between these two numbers.
“,”
’,’ is used to separate numbers or number ranges, representing
alternatives.
“*” Only represents symbol ”*”.
“#”
Only set it at the beginning of the string, representing symbol
“#”.
There are 19 dialing rules already configured on the gateway for easy use. See
below for detailed information.
Priority Dialing Rule Description
99 . Any number in any length.
98 01[3-5,7-8]xxxxxxxxx.
Any 12-digit number starting with 013,
014, 015, 017 or 018
97 010xxxxxxxx An y 11-digit number starting with 010
96 02xxxxxxxxx Any 11-digit number starting with 02
95 0[3-9]xxxxxxxxxx
Any 12-digit number starting with 03, 04,
05, 06, 07, 08 or 09
94 120 Number 120。
93 11[0,2-9]
Number 110, 112, 113, 1 14, 115, 116, 117,
118 or 119
92 111xx Any 5-digit number starting with 111
91 123xx Any 5-digit number starting with 123
90 95xxx Any 5-digit number starting with 95
89 100xx Any 5-digit number starting with 100
88 1[3-5,7-8]xxxxxxxxx
Any 11-digit number starting with 13, 14,
15, 17 or 18
87 [2-3,5-7]xxxxxxx
Any 8-digit number starting with 2, 3, 5, 6
or 7
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 36
86 8[1-9]xxxxxx
Any 8-digit number starting with 81, 82,
83, 84, 85, 86, 87, 88 or 89
85 80[1-9]xxxxx
Any 8-digit number starting with 801, 802,
803, 804, 805,.806, 807, 808 or 809
84 800xxxxxxx Any 10-digit number starting with 800
83 4[1-9]xxxxxx
Any 8-digit number starting with 41, 42,
43, 44, 45, 46, 47, 48 or 49.
82 40[1-9]xxxxx
Any 8-digit number starting with 401, 402,
403, 404, 405, 406, 407, 408 or 409
81 400xxxxxxx Any 10-digit number starting with 400
After configuration, click Save to save the above settings into the gateway or click Close to cancel
the settings.
Click Modify in
Figure 3-30 to modify the dialing rules. See Figure 3-32 for the dialing rule
modification interface. The configuration items on this interface are the same as those on the Add
New Dialing Rule interface.
Figure 3-32 Modify Dialing Rule
To delete a dialing rule, check the checkbox before the corresponding index in Figure 3 -30 and
click the ‘Delete’ button. Check All means to select all available items on the current page;
Uncheck All means to cancel all selections on the current page; Inverse means to uncheck the
selected items and check the unselected. To clear all dialing rules at a time, click the Clear All
button in
Figure 3-30.
See Figure 3-33 for the Dialing Rule Configuration interface under the Character mode. You can
edit the dialing rule list to add a new one or modify an old one. The exact meaning of each rule
element is described on the page.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 37
Figure 3-33 Dialing Rule Configuration Interface (Character)
3.5.5 Function Key
See Figure 3-34 for the function key configuration interface. Here you can set a cluster of
combination keys to query or set the network port.
Figure 3-34 Function Key Configuration Interface
Click “Enable” to enable the corresponding function key. The gateway will use the default function
keys when the mode is set to default; and it will allow you to set new function keys when the mode
is set to user-defined. Click Save to save your settings into the gateway.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 38
3.5.6 Cue Tone
Figure 3-35 Cue Tone Interface
See Figure 3-35 for the Cue Tone interface. The table below explains the items shown in the
above figure.
Item Description
Language
Sets the language for the gateway to play voice, including two options Chinese and
English. The default setting is English.
Upload a file of cue
tone
Uploads a user-defined cue tone file to the gateway.
Two Stage Dialing
for PSTN Outgoing
Calls Tips
Sets the cue tone of two stage dialing for the PSTN outgoing calls, including t wo
options: Dial Tone and File Playback. You are required to upload a file for playing if
File Playback is selected.
Click Save to save the above settings into the gateway.
3.5.7 Color Ring
Figure 3-36 Color Ring Interface
By default, there is no available color ring on the gateway. See Figure 3-36. Click Upload to
upload a new color ring manually. Follow
Figure 3-37 to upload the required color ring file to the
gateway.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 39
Figure 3-37 Color Ring Upload Interface
The table below explains the items shown above:
Item Description
Index The unique index of each color ring to be uploaded.
Description It is user-defined, with the default value of default.
Color Ring The file of the color ring to be uploaded.
After configuration, click Upload to upload the color ring file to the gateway or click Return to
cancel the upload. See
Figure 3-38 for the Color Ring Management interface after the upload.
Figure 3-38 Color Ring Management Interface
Click Modify in Figure 3-38 to modify the configuration of the color ring. See below for the color
ring modification interface. The configuration items on this interface are the same as those on the
Color Ring Upload interface.
Figure 3-39 Color Ring Modification Interface
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 40
To delete a color ring, check the checkbox before the corresponding index in Figure 3-38 and click
the Delete button. Check All means to select all available items on the current page; Uncheck
All means to cancel all selections on the current page; Inverse means to uncheck the selected
items and check the unselected. To clear all color rings at a time, click the Clear All button in
Figure 3-39.
3.5.8 QoS
Figure 3-40 Differentiated Services Setting Interface
See Figure 3-40 for the Differentiated Services setting interface. Using this technology, the
gateway can meet various application requirements under a limited bandwidth and ensure neither
delay nor discard for important services so as to improve its quality of services.
The table below explains the items shown in the above figure.
Item Description
QoS Sets whether to enable the OoS differentiated services. By default, it is disabled.
Media Premium QoS
Sets the priority of the media premium for QoS. A media premium QoS with a bigger
value has a higher priority. The value range is 0~63, with the default value of 46.
Control Premium QoS
Sets the priority of the control premium for QoS. A control premium QoS with a
bigger value has a higher priority. The value range is 0~63, with the default value of
26.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 41
3.5.9 Tone Generator
Figure 3-41 Tone Generator Setting Interface
See Figure 3-41 for the Tone Generator Setting interface. By default, there are three tones on it:
Dial Tone—a single tone with 450HZ frequency, plays continuously; Ringback Tone—a single
tone with 450HZ frequency, repeatedly playing in the method of 1s play and 4s pause; Busy
Tone—a single tone with 450HZ frequency, repeatedly playing in the method of 350ms play and
350ms pause. You can configure the tone gene rator manually. The exact explanation about the
format and the meaning is described on the right of the interface. The value range of the tone
energy herein above is -12~17, calculated by dB, with the default value of 0.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 42
3.5.10 CDR Query
Figure 3-42 CDR Query Setting Interface
See Figure 3-42 for the CDR Query Setting interface. The table below explains the items shown in
the above figure.
Item Description
Starting Date,
Ending Date
Sets the starting and ending dates for CDR query.
Port Sets the port on which CDR query will proceed.
Call Direction Sets the call direction for CDR query.
CallerID, CalleeID Sets the CallerID/CalleeID for CDR query.
Call Duration Sets the minimum/maximum call duration for CDR query.
Click Query to query the CDR information corresponds to the above settings.
Figure 3-43 CDR Information Interface
Note: This page will appear only when the CDR feature is enabled (set in 3.5.2 System Param).
3.5.11 VPN
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 43
Figure 3-44 VPN Settings Interface
Thanks to the embedded VPN Client, the wireless gateway can access the VPN network via
OPENVPN directly, not requiring extra VPN client, which simplifies the network deployment.
Meanwhile, the design of both SIP signaling messages and voice streams transporting via VPN
avoids possible problems induced by the SIP protocol in passing through the firewall and NAT.
See
Figure 3-44 for the VPN Settings interface. The table below gives the explanation to the items
shown in the above figure.
Item Description
Enable OPENVPN
Sets whether to enable the VPN feature, with the default value of No. If this
feature is enabled, the gateway will work as a VPN client.
You are required to upload the VPN certificate after enabling the VPN feature. See Figure 3-45.
Figure 3-45 VPN Certificate Upload Interface
Note: Refer to Appendix C VPN Certificate for how to make a VPN certificate.
3.6 Wireless Settings
Wireless Settings includes ten parts: Basic Param, Wireless Param, Call Forwarding, Short
Message, IMEI, USSD, Email, Balance, SIM Card and PIN Manage. See
Figure 3-46.
Figure 3-46 Wireless Settings
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 44
3.6.1 Basic Parameters
Figure 3-47 Basic Parameters Setting Interface for GSM
Figure 3-48 Basic Parameters Setting Interface for WCDMA
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 45
Figure 3-49 Basic Parameters Setting Interface for CDMA
See Figure 3-47, Figure 3-48, Figure 3-49 for the basic parameters setting interface. The table
below explains the items shown in the above figure.
Item Description
GSM (WCDMA) Voice Encoding
Sets the mode of the GSM (WCDMA) voice encoding. By default, the voice
encoding for GSM is Automatic and for WCDMA is AMR.
GSM (WCDMA/CDMA) DTMF
Send Mode
Sets the mode to send the GSM (WCDMA/CDMA) DTMF , two options available:
Voice Playback and Remote Transmission. The default value is Voice Playback.
GSM (WCDMA/CDMA) DTMF
Receive Mode
Sets the mode to receive the GSM (WCDMA/CDMA) DTMF, two options
available: Chip Receive and Wireless Module Receive. The default value for
GSM and WCDMA is Wireless Modulw Receive; The default value for CDMA is
Chip Receive.
Minimum Duration at ON
The shortest time that a valid tone has to last at ON state, calculated by ms. The
default value is 28.
Note: This configuration item is only valid when the DTMF Receiv e Mode is set
to Chip Receive.
DTMF Voltage Detection for
GSM
Set the On and off of the DTMF detection for GSM.
Network Scan Mode Sets a network for the call, three options av ailable: Automatic, GSM Only and
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 46
WCDMA Only. The default value is Automatic.
Network Scan Sequence
Sets the priority of the network, three options available: Automatic, GSM prior to
WCDMA and WCDMA prior to GSM. The default value is Automatic.
SMS Sending Interval
Sets the interval to send SMS for each port. Range of value: 1~60, with the
default value of 1.
Maximum Pieces of Saved
Logs
Sets the amount of the logs to be saved for each port. Range of value: 50~500,
with the default value of 100.
SIP Answer Code Sets the sip answer code for each state of the calling party.
Set/Cancel Service No. for FWD
Unconditionally, Set/Cancel
Service No. for FWD on Busy,
Set/Cancel Service No. for FWD
on No Reply
Sets or Cancels the service No. for FWD unconditionally, FWD on busy or FWD
on no reply. The former box is used to set the service No, while the latter one is
to cancel the service No,.
Cancel All Service No.
Used to cancel all service numbers for FWD unconditional, FWD on busy and
FWD on no reply.
Cancel Service No. for Call
Waiting
Used to cancel the service number for call waiting.
Click Save to save the setting into the gateway, click Reset to restore the configurations.
3.6.2 Wireless Param
Figure 3-50 Wireless Parameters Configuration Interface
See Figure 3-50 for the Wireless Parameters Configuration interface. Click Modify in Figure 3-50
to modify the properties of the corresponding module. See
Figure 3-51 for the Wireless
Parameters Modification interface.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 47
Figure 3-51 Wireless Parameters Modification Interface
The table below explains the configuration items on the Wireless Parameters Modification
interface.
Item Description
Port The number of the port corresponding to the wireless module.
Cell Phone No.
The number of the SIM card corresponding to the wireless module. T his number
should be configured manually.
IP->GSM(WCDMA/CDMA)
Voice Volume
The volume of the voice from IP to GSM/WCDMA/CDMA. By default, the value for
GSM is 3; the value for WCDMA is 10000; the value for CDMA is 1.
GSM(WCDMA/CDMA)->IP
Voice Volume
The volume of the voice from GSM/WCDMA/CDMA to IP. By default, the value for
GSM is 40; the value for WCDMA is 3; the value for CDMA is 2.
IMSI
International Mobile Subscriber Identification Number, the unique identity of the SIM
card.
IMEI International Mobile Equipment Identity.
Operator
The operator of the wireless module. It is obtained automatically. This configuration
is unavailable for CDMA module.
Working Frequency
Band
Displays the working frequency band of the wireless module. This configuration is
unavailable for CDMA module.
Status Displays the current state of the wireless module.
Apply to all the modules
Sets whether to apply all the settings except for the cell phone number to all the
modules.
Click Modify to save the settings into the gateway, click Reset to restore the configurations, or
click Cancel to cancel the settings.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 48
3.6.3 Call Forwarding
Figure 3-52 Call Forwarding Configuration Interface
See Figure 3-52 for the Call Forwarding Configuration interface. The table below explains the
items shown in the above figure.
Item Description
Port The number of the port corresponding to the wireless module.
FWD
Unconditionally
Sets whether to enable the feature of FWD unconditionally and the FWD number if
it is enabled.
FWD on Busy
Sets whether to enable the feature of FWD on busy and the FWD number if it is
enabled.
Note: Be sure to disable the Call Waiting feature before using it.
FWD on No Reply
Sets whether to enable the feature of FWD on no reply and the FWD number if it is
enabled.
FWD on
Unreachable
Sets whether to enable the feature of FWD on unreachable and the FWD number if
it is enabled. This configuration is unavailable for CDMA module.
FWD Setting Status Displays the setting status of the call forwarding service.
FWD Query Status
Displays the query status of the FWD settings. This configuration is unav ailable for
CDMA module.
Cancel All
Cancels all the setting on call FWD service. This item will appear if none of the cal l
FWD is selected.
Click Modify in Figure 3-52 to modify the properties of the corresponding port. See Figure 3-53 for
the call forwarding modification interface. Then click Modify to save the settings into the gateway.
It will take some time to apply the settings, and you can check the result in the ‘FWD Setting
Status’ column. Click Reset to restore the configurations, or click Cancel to cancel the settings.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 49
Figure 3-53 Wireless Service Modification Interface
3.6.4 Short Message
Figure 3-54 Short Message Interface
See Figure 3-54 for the Short Message interface which displays the related information about the
received/sent SMS.
Click SMS Center to go into the SMS Center Modification interface. See
Figure 3-55. Click Save
to save the settings into the gateway, click Close to cancel the settings.
Figure 3-55 SMS Center Modification Interface
Click SMS Receiver Details in Figure 3-54 to go into the SMS Receiver Details interface. See
Figure 3-56. Such information as the remote cell phone number, the time and the content will be
displayed on this page.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 50
Figure 3-56 SMS Receiving Details Interface
To delete a p iece of SMS receiving detail, check the checkbox before the corresponding index in
Figure 3-56 and click the Delete button. Check All means to select all available items on the
current page; Uncheck All means to cancel all selections on the current page; to clear all SMS
receiver details at a time, click the Clear All button in
Figure 3-56; to go back to the previous page,
click Return.
Click Records in
Figure 3-54 to go into the SMS Sending interface. See Figure 3-57. Such
information as the receive/send status of the SMS, the remote cell phone number, the time, and
the content will be displayed on this page.
Figure 3-57 SMS Sending Interface
To delete a piece of record, check the checkbox before the correspondin g index in Figure 3-57
and click the Delete button. Check All means to select all available items on the current page;
Uncheck All means to cancel all selections on the current page; to clear all records at a time,
click the Clear All button in
Figure 3-56; to go back to the previous page, click Return.
Click Send SMS in Figure 3-54 to go into the Send SMS interface. See Figure 3-58.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 51
Figure 3-58 Send SMS Interface
The table below explains the configuration items on the Send SMS interface.
Item Description
Port Select a port to send the SMS.
Number Import
Click Browse to select the required number file and then click Import to import this
file.
Send to Enter the remote number to receive the SMS.
Encoding Format The encoding format for the SMS, two options available: GSM 7bit and UCS2.
Content The content of the SMS required to be sent.
Result Display the send result of the SMS.
Click Send to send out the SMS, click Clear Result to clear all results. Click Reset to restore the
configurations, or click Return to go back to the previous
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 52
3.6.5 IMEI
Figure 3-59 IMEI Interface
See Figure 3-59 for the IMEI interface. Read the agreement carefully and click Accept before you
go into the IMEI Modification interface. There are two optional modes for IMEI modification:
Manual Modify and Auto Modify. Click Manual Modify to go into the IMEI manual modification
interface (
Figure 3-60).
Figure 3-60 IMEI Manual Modification Interface
The default IMEI information will be displayed after clicking Initial Value in Figure 3-60, you can
save and use it according to your requirement.
Click Auto Modify to go into the IMEI auto modification interface (
Figure 3-61).
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 53
Figure 3-61 IMEI Auto Modification Interface
After configuration, click Save to save the above settings into the gateway or click Reset to
restore the configurations.
Note: This configuration is unavailable for CDMA module.
3.6.6 USSD
Figure 3-62 USSD Setting Interface
See Figure 3-62 for the USSD Setting interface. The table below explains the items shown in the
above figure.
Item Description
Default USSD Encoding Sets the default encoding format for USSD, two options available: ASCII and UCS2.
Port Sets the port used to send the USSD request.
Request Inputs the content of the USSD request.
Respond Displays the result of the USSD respond.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 54
All Selects all the available ports to send the same USSD request.
Click Send in Figure 3-62 to send out the USSD request. Click Clear Data to clear all data.
Note: This configuration is unavailable for CDMA module.
3.6.7 Email
Figure 3-63 Email Setting Interface
See Figure 3-63 for the Email Setting interface. The table below explains the configuration items
on the Email Setting interface.
Item Description
Mailbox Account,
Password
Sets the account and password of the mailbox.
Outgoing (SMTP),
Port
Sets the server address and port for Email sending.
Incoming (POP3),
Port
Sets the server address and port for Email receiving.
Show Log Click it to display the log which contains the Email to SMS converted information.
Convert SMS to
Email
SMS can be converted to Emails if this feature is enabled.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 55
Target Address The target address to which the Email converted by SMS will be sent.
Subject Sets the subject for the Email converted by SMS.
Covert Email to SMS
When this feature is enabled, the mails in a designated format (See Note 4 and 5 in
Figure 3-63) can be converted to SMS.
Receiving Cycle
Sets the cycle to receive mails. Range of value: 1~60, calculated by minute, with
the default value of 5.
SMS Sending Port Sets the port from which the SMS will be sent out. The default value is automatic.
Return Receipt Sets whether to receive a return receipt telling the mail is sent successfully or not.
After configuration, click Save to save the settings into the gateway or click Reset to reset the
settings.
3.6.8 Balance
Figure 3-64 Balance Query Interface
See Figure 3-64 for the Balance Query interface. You can query the balance for a designated cell
phone number. Click Modify in
Figure 3-64 to modify the query mode. See Figure 3-65.
Figure 3-65 Query Mode Modification Interface
The table below explains the configuration items on the Query Mode Modification interface.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 56
Item Description
Query Mode Sets the mode to query the balance.
Destination Number Sets the destination number to query the balance
Content to Send Sets the content to query the balance.
Keywords to Match The balance matching the keywords will be displayed.
Query after SIM
Card Registered
Sets whether to query the balance automatically once t he SIM card is regi stered to
the base station.
Query Regularly Sets the time to query the balance regularl y.
Apply to Other Ports Sets whether to apply these query conditions to other ports or port groups.
Click Modify to save the above settings into the gateway or click Reset to restore the
configurations. Click Cancel to cancel the modification.
3.6.9 SIM Card
Figure 3-66 SIM Card List Interface
See Figure 3-66 for the SIM Card List interface, which displays the states of each SIM card and
the strategy to switch the SIM, etc.. Click the SIM card in Exist state to set it to Using state, at the
same time, the SIM card which is ever in Using state at first will switch to Exist state. Click
Modify to modify the parameters. See
Figure 3-67.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 57
Figure 3-67 SIM Card Management Interface
The table below explains the items shown in the above figure.
Item Description
Port Serial number of the port on the device.
Auto Switch to Available
SIM Card
Once this feature is enabled, it will switch to other available SIM card automaticall y
if the current SIM card is drawn out or the corresponding port is unavailab le due to
the SIM card is damageed. The default value is enable.
Switch Strategy for SIM
Card
Sets the switch strategy for the SIM card. There are four options: Based on Time,
Based on Call, Fixed Time and Disable, with the default value of Disable.
Apply to All Ports Sets whether to apply the above configurations to all ports.
Click Modify to save the above settings into the gateway or click Reset to restore the
configurations. Click Return to cancel the modification.
3.6.10 PIN Manage
Figure 3-68 PIN Manage Interface
See Figure 3-68 for the PIN Manage i nterface, which display the status of the SIM card and the
setting status of PIN and PUK. Click Modify to go into the modification interface. See
Figure 3-69.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 58
Figure 3-69 PIN Manage Modification Interface
Click “Yes” and input the correct PIN to lock the SIM card. The incoming/outgoing calls will not be
initiated once the SIM card is locked. See
Figure 3-70.
Figure 3-70 SIM Card Locked PIN Required
Click Modify in Figure 3-70, you are required to input PIN again, see Figure 3-71.
Figure 3-71 Input PIN Interface
After the correct PIN is input, the SIM card is still locked but the channel turns idle and allows the
initiation of incoming/outgoing calls, see
Figure 3-72.
Figure 3-72 SIM Card Lcoked Do not Require PIN
Click Modify in Figure 3-72 to unlock the SIM card or modify the PIN, see below figure.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 59
Figure 3-73 Lock SIM Card or Modify PIN Interface
The SIM card will also be locked and cannot make incoming/outgoing calls if you input a wrong
PIN code three times, You are required to input the PUK to reset the PIN, see
Figure 3-74.
Figure 3-74 SIM Card Locked Need PIN and PUK
Click Modify in Figure 3-74 to input PUK and reset a new PIN, see Figure 3-75.
Figure 3-75 New PIN setting interface
The SIM card is still locked but do not need PIN and PUK again after inputting the correct PUK
and resetting a new PIN. The status of the port displaying in
Port State is idle. So the port can
make incoming/outgoing calls, Click Modify to save the above settings into the gateway or click
Reset to restore the configurations. Click Cancel to cancel the modification.
Note: The SIM card will be locked forever if you input a wrong PUK more than 10 times. You need
to insert a new card.
3.7 Port Settings
Port Settings includes two parts: Port and Port Group. See Figure 3-76.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 60
Figure 3-76 Port Settings
3.7.1 Port
Figure 3-77 Port Settings Interface
See Figure 3-77 for the Port Settings interface. The list in the above figure shows the feature and
properties of each port. Click Modify in
Figure 3-77 to modify the properties of the corresponding
port. See
Figure 3-78 for the Port Modification interface.
Figure 3-78 Port Modification
The table below explains the configuration items on the port modification interface.
Item Description
Port Serial number of the port on the device.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 61
Register Port
Sets whether to register the port to the SIP server.
When this item is set to No, the item Reg Status on the Port Settings interface (
Figure
3-77) shows Unregistered; when this item is set to Yes, the item Reg Status shows
Failed or Registered.
SIP Account
When the port initiates a call to SIP, this item corresponds to the username of SIP. The
default SIP account is 80XX among which XX represents the corresponding port
number. For example, the default SIP account corresponding to Port 1 is 8001, and
that corresponding to Port 8 is 8008.
Password
Registration password of the port. To register a port to the SIP server, both items SIP
Account and Password must be filled in.
Authentication
Username
Authentication username of a port, used to register the port to the SIP server when
IMS network is enabled.
Note: This item appears only when IMS Network is enabled.
Connection Method
Port connection methods include:
Option Description
Static Binding
(SIP Account)
Bind the number to a wireless port. The number will be listed in the
Bound Number column.
Two Stages
Dialing Mode
(default)
Under this mode, an incoming call from a wireless port will go into
the IVR system. Then IVR will play a speech prompt “Please dial
the extension number”. If you fail to input the correct target
number before IVR finishes the third repeat of the prompt, the port
will hang up the call automatically; otherwise, the call goes out
successfully.
Note: Both items Connection Method and Bound Number will be hidden if the SIP
Station feature is enabled on the SIP Settings interface.
Echo Canceller
The echo cancellation feature for a call conversation over the wireless channel. B y
default, this feature is enabled and the effect can reach 128ms.
Forbid Outgoing
Call
If this feature is enabled, the port will be forbidden to call out. The default setting is
disabled.
Caller ID Detection
If this feature is enabled, the port will detect the Caller IDs from the incoming calls. The
default setting is disabled.
Color Ring
Sets whether to enable the color ring feature or not, with the default setting of being
disabled.
Note: Only when there are available color rings will this item appear.
Color Ring Index The index of the color ring which is quoted by the current wireless port.
After configuration, click Modify to save the settings into the gateway, click Reset to restore the
configurations, or click Cancel to cancel the settings.
Or you can click Batch to modify several pieces of port settings at the same time. See
Figure 3-79
below for the Port Batch Modification interface.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 62
Figure 3-79 Port Batch Modification
Some configuration items on this interface are the same as those on the Port Modification
Interface. The others are described in the table below.
Item Description
Starting Port The starting serial number of the port on the device in the batch setting.
Ending Port The endin g serial number of the port on the device in the batch setting.
Starting SIP Account The starting SIP account in the batch setting.
Starting Authentication
Password
The starting authentication password in the batch setting.
Starting Authentication
Username
The starting authentication username in the batch setting.
SIP Account Batch Rule
The rule for batch setting the SIP account, including Increase and Decrease two
options.
SIP Account Batch Step
Size
Sets the increase or decrease step size of the SIP account in the batch setting.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 63
Authentication Password
Batch Rule
The rule for batch setting the authentication password, including Increase and
Decrease two options.
Authentication Password
Batch Step Size
Sets the increase or decrease step size of the authentication password in the batch
setting.
Authentication Username
Batch Rule
The rule for batch setting the authentication username, including Increase and
Decrease two options.
Authentication Username
Batch Step Size
Sets the increase or decrease step size of the authentication username in the batch
setting.
After configuration, click Save to save the settings into the gateway, or click Cancel to cancel the
settings.
3.7.2 Port Group
Figure 3-80 Port Group Settings Interface
See Figure 3-80 for the port group settings interface. A port group is a set containing single or
multiple ports, used to specify such properties as Port Selection and Authentication Mode for
all the ports in it. A new port group can be added by the Add New button on the bottom right
corner of the above list. See
Figure 3-81 for the port group adding interface. Note that a port which
has been occupied by one port group cannot be chosen by others.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 64
Figure 3-81 Add New Port Group
The table below explains the items in the above figure.
Item Description
Index
The unique index of each port group, which is mainly used in the configuration of
routing rules and number manipulation rules to correspond to port groups.
Description More information about each port group, with default value of default.
Register Port Group
To register the port group to the SIP server. Only when this configuration item is set
to Yes can you see the configuration items SIP Account and Password.
SIP Account
When the port group initiates a call to SIP, this item corresponds to the username of
SIP.
Password
Registration password of the port group. T o register the port group to the SIP server,
both configuration items SIP Account and Password should be filled in.
Authentication
Username
Authentication username of a port, used to register the port to the SIP server when
IMS network is enabled.
Note: This item appears only when IMS Network is enabled.
Server Index The index of the sip server which will be quoted by the current port.
Authentication
Mode
Sets the way for SIP to make outgoing calls (TelÆIP) on the gateway.
Option Description
Do Not Register
(default)
SIP initiates a call in a point-to-point mode.
Register Gateway
SIP initiates a call with the registered SIP account and
password of the whole gateway. (Refer to
3.4.1 SIP for
gateway registration.)
Register Port Group
SIP initiates a call with the registered SIP account and
password of the port group.
Register Port
SIP initiates a call with the registered SIP account and
password of the port.
Group Ringing Ring all the idle wireless ports in this port group.
Register Status
Registration status of the port group. See
Figure 3-80. When Register Port Group
is set to No, the value of this item is Unregistered; when Register Port Group is set
to Yes, the value of this item may be Failed or Registered.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 65
Port Select Mode
When the port group receives a call, it will choose a port based on the select mode
set by this configuration item to ring or to connect. The optional values and their
corresponding meanings are described in the table below.
Option Description
Increase (default)
Search for an idle port in the ascending order of the port
number, starting from the minimum. If no match is found,
search repeatedly until finding a port which is allowed to
enter the call waiting state.
Decrease
Search for an idle port in the descending order of the port
number, starting from the maximum. If no match is found,
search repeatedly until finding a port which is allowed to
enter the call waiting state.
Cyclic Increase
Provided Port N is the available port found last time.
Search for an idle port in the ascending order of the port
number, starting from Port N+1. If no match is found,
search repeatedly until finding a port which is allowed to
enter the call waiting state.
Cyclic Decrease
Provided Port N is the available port found last time.
Search for an idle port in the descending order of the port
number, starting from Port N-1. If no match is found,
search repeatedly until finding a port which is allowed to
enter the call waiting state.
Port
The ports in the port group. If the checkbox before a port is grey , it indicates that the
port is not available or has been occupied. All selected ports for a port group will be
displayed in the Ports column in
Figure 3-80. Note: When a port group contains
multiple ports, the automatic call forward feature is invalid.
After configuration, click Save to save the settings into the gateway, click Cancel to cancel the
settings. Check All means to select all available ports on the current page; Inverse means to
uncheck the selected items and check the unselected.
Click Modify at the end of the list in Port Group Settings Interface to modify the properties of a
port group. See
Figure 3-82 for the Port Group Modification interface. The configuration items on
this interface are the same as those on the Add New Port Group interface.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 66
Figure 3-82 Modify Port Group
To delete a port group, check the checkbox before the corresponding inde x in Figure 3-80 and
click the ‘Delete’ button. Check All means to select all available items on the current page;
Uncheck All means to cancel all selections on the current page; Inverse means to uncheck the
selected items and check the unselected. To clear all port groups at a time, click the Clear All
button in
Figure 3-80.
3.8 Route Settings
Route Settings is used to specify the routing rules for calls on two directions: IPÆTel/IP and
TelÆIP. See
Figure 3-83.
Figure 3-83 Route Settings
3.8.1 Routing Parameters
Figure 3-84 Routing Parameters Configuration Interface
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 67
See Figure 3-84 for the routing parameters configuration interface. On this interface, you can set
the routing rules for calls respectively on two directions IPÆTel/IP and T elÆIP to be routing before
or after number manipulation. The default value is Route before Number Manipulate.
After configuration, click Save to save the above settings into the gateway.
3.8.2 IP to Tel/IP
Figure 3-85 IPÆTel/IP Routing Rule Configuration Interface (Standard)
See Figure 3-85 for the IPÆTel/IP routing rule configuration interface. By default, there is no
available routing rule on the gateway. The IPÆTel/IP routing rule configuration has two modes:
Standard and Character.
Under the Standard mode, click Add New to add them manually. See
Figure 3-86. You may use
the default values of all the configuration items herein.
Figure 3-86 Add New Routing Rule (IPÆTel/IP)
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 68
The table below explains the items shown in the above figure.
Item Description
Index
The unique index of each routing rule, which denotes its priority. A routing rule with
a smaller index value has a higher priority. If a call matches several routing rules, it
will be processed according to the one with the highest priority.
Description More information about each routing rule, with the default value of default.
Source IP
IP address from where the call is initiated. This item can be set to a specific IP
address or “*” which indicates any IP address
CallerID Prefix,
CalleeID Prefix
A string of characters at the beginning of the caller/called party number. It can be a
specific string consisting of digits 0~9, 、”[*]”, ”#" or character ranges defined by [ ].
‘[ ]’ represents a character within the range it defines. Values in [ ] only can be
characters ‘0~9’, ”[*]”, ”#", punctuations ‘-‘ and ‘,’. (’-’ is used between two
characters to indicates any character between these two characters. ’,’ is used to
separate characters or character ranges, representing alternatives.) For example,
057[1-3,6] represents the string 0571, 0572, 0573 or 0576. Also these items can be
set to “*” which indicates any string. These two configuration items together with
Source IP specify a routing rule for calls.
Note: “[*]” represents TFM symbol *, while “*” represents any string.
Route by Number
When this feature is enabled, the gateway will route a call from IP to a
corresponding port based on its number. And the number of the port which this call
will be routed to can be set via the item SIP Account on the Port Settings interface.
In such case, the configuration item Call Destination goes invalid and shows
Route by Number on the routing rule configuration interface. The default setting is
disabled.
Call Destination Designate a port group or an IP for the call to route.
Destination Port
Group
Port group to which the call will be routed.
Destination IP,
Destination Port
The IP address and port to which the call will be routed.
After configuration, click Save to save the settings into the gateway or click Close to cancel the
settings.
See
Figure 3-87 for the IPÆTel/IP routing rule configuration interface after your configuration.
There is a rule displayed with Index 63 and Call Destination ‘Route by Number’, having no
restriction on Source IP, CallerID Prefix and CalleeID Prefix, which indicates the gateway will
route a call from any IP address to a corresponding port based on its number.
Press the Add New button on the bottom right corner of the list to add a new routing rule.
Figure 3-87 IPÆTel/IP Routing Rule Configuration Interface
Click Modify in Figure 3-87 to modify a routing rule. The configuration items on the IPÆTel/IP
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 69
routing rule modification interface are the same as those on the Add New Routing Rule
(IP
Æ
Tel/IP) interface. Note that the item Index cannot be modified.
To delete a routing rule, check the checkbox before the corresponding index in Figure 3-87 an d
click the Delete button. Check All means to select all available items on the current page;
Uncheck All means to cancel all selections on the current page; Inverse means to uncheck the
selected items and check the unselected. To clear all routing rules at a time, click the Clear All
button in
Figure 3-87.
See
Figure 3-88 for the IPÆTel Routing Rule Configuration Interface under the Character mode.
You can edit the routing rule list to add a new one or modify an old one. The exact meaning of
each element of the rule is described on the page.
Figure 3-88 IPÆTel/IP Routing Rule Configuration Interface (Character)
3.8.3 Tel to IP
Figure 3-89 TelÆIP Routing Rule Configuration Interface (Standard)
See Figure 3-89 for the TelÆIP routing rule configuration interface. By default, there is no
available routing rule on the gateway. The TelÆIP routing rule configuration has two modes:
Standard and Character.
Under the Standard mode, click Add New to add them manually. See
Figure 3-90. You may use
the default values of all the configuration items herein except for Destination IP and Destination
Port.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 70
Figure 3-90 Add New Routing Rule (TelÆIP)
The table below explains the items shown in the above figure.
Item Description
Index
The unique index of each routing rule, which denotes its priority. A routing rule with
a smaller index value has a higher priority. If a call matches several routing rules, it
will be processed according to the one with the highest priority.
Description More information about each routing rule, with the default value of default.
Source Port Group
(Call Initiator)
Port group from which the call is initiated. This item can be set to a specific port
group or ‘*’ which indicates any port group.
CallerID Prefix,
CalleeID Prefix
A string of characters at the beginning of the caller/called party number. It can be a
specific string consisting of digits 0~9, ”[*]”, ”#" or characters ranges defined by [ ].
‘[ ]’ represents a character within the range it defines. Values in [ ] only can be digits
‘0~9’, ”[*]”, ”#", punctuations ‘-‘ and ‘,’. (’-’ is used between two characters to
indicates any characters between these two characters. ’,’ is used to separate
characters or characters ranges, representing alternatives.) For example,
057[1-3,6] represents the string 0571, 0572, 0573 or 0576. Also these items can be
set to “*” which indicates any string. These two configuration items together with
Source Port Group (Call Initiator) specify a routing rule for calls.
Note: ”[*]” represents DTFM symbol *, while “*” represents any string.
Destination IP,
Destination Port
IP address and port number of the remote end to which the call will be routed.
After configuration, click Save to save the settings into the gateway or click Close to cancel the
settings.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 71
See Figure 3-91 for the TelÆIP routing rule configuration interface after your configuration. There
is a rule displayed with Index 63, Destination IP ‘192.168.1.101’ and Destination Port ‘5060’ (i.e.
default IP address and port of the gateway), having no restriction on Call Initiator, CallerID Prefix
and CalleeID Prefix, which indicates all the outgoing calls from Tel which conform to the dialing
rule will be routed to the gateway.
Figure 3-91 TelÆIP Routing Rule Configuration Interface
Click Modify in Figure 3-91 to modify a routing rule. The configuration items on the TelÆIP routing
rule modification interface are the same as those on the Add New Routing Rule (Tel
Æ
IP)
interface. Note that the item Index cannot be modified.
To delete a routing rule, check the checkbox before the corresponding index in
Figure 3-91 and
click the Delete button. Check All means to select all available items on the current page;
Uncheck All means to cancel all selections on the current page; Inverse means to uncheck the
selected items and check the unselected. To clear all routing rules at a time, click the Clear All
button in
Figure 3-91.
See
Figure 3-92 for the TelÆIP Routing Rule Configuration Interface under the Character mode.
You can edit the routing rule list to add a new one or modify an old one. The exact meaning of
each element of the rule is described on the page.
Figure 3-92 TelÆIP Routing Rule Configuration Interface (Character)
3.9 Number Manipulation
Number Manipulation includes four parts: IPÆTel CallerID, IPÆTel CalleeID, TelÆIP CallerID
and TelÆIP CalleeID. See
Figure 3-93.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 72
Figure 3-93 Number Manipulation
3.9.1 IP to Tel CallerID
Figure 3-94 IPÆTel CallerID Manipulation Interface (Standard)
See Figure 3-94 for the IPÆTel CallerID manipulation interface under the Standard mode. A new
number manipulation rule can be added by the Add New button on the bottom right corn er of the
list in the above figure. See
Figure 3-95 for the IPÆTel CallerID manipulation rule adding interface.
You may use the default values of all the configuration items herein.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 73
Figure 3-95 Add IPÆTel CallerID Manipulation Rule
The table below explains the items shown in the above figure.
Item Description
Index
The unique index of each number manipulation rule, which denotes its priority. A
number manipulation rule with a smaller index value has a higher priority. If a call
matches several number manipulation rules, it will be proc essed according to the
one with the highest priority.
Description
More information about each number manipulation rule, with the default value of
default.
Call Initiator
IP address from where the call is initiated. This item can be set to a specific IP
address or “*” which indicates any IP address.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 74
CallerID Prefix,
CalleeID Prefix
A string of characters at the beginning of the caller/called party number. It can be a
specific string consisting of digits 0~9, ”[*]”, ”#" or character ranges defined by [ ]. ‘[ ]’
represents a character within the range it defines. Values in [ ] only can be digits
‘0~9’, “[*]”, ”#", punctuations ‘-‘ and ‘,’. (’-’ is used between two characters to
indicates any character between these two characters. ’,’ is used to separate
characters or character ranges, representing alternatives.) For example, 057[1-3,6]
represents the string 0571, 0572, 0573 or 0576. Also these items can be set to “*”
which indicates any string. These two configuration items together with Call
Initiator specify a number manipulation rule for calls.
Note: “[*]” represents DTFM symbol *, while “*” represents any string.
Stripped Digits from
Left
The amount of digits to be deleted from the left end of the number. If the value of
this item exceeds the length of the current number, the whole number will be
deleted.
Stripped Digits from
Right
The amount of digits to be deleted from the right end of the number. If the value of
this item exceeds the length of the current number, the whole number will be
deleted.
Reserved Digits
from Right
The amount of digits to be reserved from the right end of the number. Only w hen the
value of this item is less than the length of the current number will some digits be
deleted from left; otherwise, the number will not be manipulated.
Prefix to Add Designated information to be added to the left end of the current number.
Suffix to Add Designated information to be added to the right end of the current number.
Note: The number manipulation is performed in 5 steps by the order of the following
configuration items: Stripped Digits from Left, Stripped Digits from Right, Reserved Digits
from Right, Prefix to Add and Suffix to Add.
After configuration, click Save to save the settings into the gateway or click Close to cancel the
settings. See the figure below.
Figure 3-96 IPÆTel CallerID Manipulation Interface (Standard)
Click Modify in Figure 3-96 to modify a number manipulation rule. See Figure 3-97 for the IPÆTel
CallerID manipulation rule modification interface. The configuration items on this interface are the
same as those on the Add IP
Æ
Tel CallerID Manipulation Rule interface. Note that the item
Index cannot be modified.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 75
Figure 3-97 Modify IPÆTel CallerID Manipulation Rule
To delete a number manipulation rule, check the checkbox before the corresponding index in
Figure 3-94 and click the Delete button. Check All means to select all available items on the
current page; Uncheck All means to cancel all selections on the current page; Inverse means to
uncheck the selected items and check the unselected. To clear all number manipulation rules at a
time, click the Clear All button in
Figure 3-94.
See Figure 3-98 for the IPÆTel CallerID Manipulation Interface under the Character mode. You
can edit the number manipulation rule list to add a new one or modify an old one. The exact
meaning of each element of the rule is described on the page.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 76
Figure 3-98 IPÆTel CallerID Manipulation Interface (Character)
3.9.2 IP to Tel CalleeID
The number manipulation process for IPÆTel CalleeID is almost the same as that for IPÆTel
CallerID; only the number to be manipulated changes from CallerID to CalleeID. See
Figure 3-99,
Figure 3-100 for IPÆTel CalleeID Manipulation interface. The configuration items on this interface
are the same as those on IP
Æ
Tel CallerID Manipulation Interface (Figure 3-94).
Figure 3-99 IPÆTel CalleeID Manipulation Interface(Standard)
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 77
Figure 3-100 IPÆTel CalleeID Manipulation Interface (Character)
3.9.3 Tel to IP CallerID
Figure 3-101 TelÆIP CallerID Manipulation Interface (Standard)
See Figure 3-101 for the TelÆIP CallerID manipulation interface under the Standard mode. A new
number manipulation rule can be added by the Add New button on the bottom right corn er of the
list in the above figure. See
Figure 3-102 for the TelÆIP CallerID manipulation rule adding
interface. You may use the default values of all the other configuration items herein.
Figure 3-102 Add TelÆIP CallerID Manipulation Rule
The table below explains the items shown in the above figure.
Item Description
Index
The unique index of each number manipulation rule, which denotes its priority. A
number manipulation rule with a smaller index value has a higher priority. If a call
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 78
matches several number manipulation rules, it will be proc essed according to the
one with the highest priority.
Description
More information about each number manipulation rule, with the default value of
default.
Source Port Group
(Call Initiator)
Port group from which the call is initiated. This item can be set to a specific port
group or ‘*’ which indicates any port group.
CallerID Prefix,
CalleeID Prefix
A string of characters at the beginning of the caller/called party number. It can be a
specific string consisting of digits 0~9, ”[*]”, ”#" or character ranges defined by [ ]. ‘[ ]’
represents a character within the range it defines. Values in [ ] only can be digits
‘0~9’, “[*]”, ”#", punctuations ‘-‘ and ‘,’. (’-’ is used between two characters to indicate
any character between these two characters. ’,’ is used to separate characters or
character ranges, representing alternatives.) For example, 057[1-3,6] represents
the string 0571, 0572, 0573 or 0576. Also these items can be set to “*” which
indicates any string. These two configuration items together with Call Initiator
specify a number manipulation rule for calls.
Note: “[*]” represents DTFM symbol *, while “*” represents any string.
Stripped Digits from
Left
The amount of digits to be deleted from the left end of the number. If the value of
this item exceeds the length of the current number, the whole number will be
deleted.
Stripped Digits from
Right
The amount of digits to be deleted from the right end of the number. If the value of
this item exceeds the length of the current number, the whole number will be
deleted.
Reserved Digits
from Right
The amount of digits to be reserved from the right end of the number. Only w hen the
value of this item is less than the length of the current number will some digits be
deleted from left; otherwise, the number will not be manipulated.
Prefix to Add Designated information to be added to the left end of the current number.
Suffix to Add Designated information to be added to the right end of the current number.
Note: The number manipulation is performed in 5 steps by the order of the following
configuration items: Stripped Digits from Left, Stripped Digits from Right, Reserved Digits
from Right, Prefix to Add and Suffix to Add.
After configuration, click Save to save the settings into the gateway or click Close to cancel the
settings.
Click Modify in
Figure 3-101 to modify a number manipulation rule. See Figure 3-103 for the
TelÆIP CallerID manipulation rule modification interface. The configuration items on this interface
are the same as those on the Add Tel
Æ
IP CallerID Manipulation Rule interface. Note that the
item Index cannot be modified.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 79
Figure 3-103 Modify TelÆIP CallerID Manipulation Rule
To delete a number manipulation rule, check the checkbox before the corresponding index in
Figure 3-101 and click the Delete button. Check All means to select all available items on the
current page; Uncheck All means to cancel all selections on the current page; Inverse means to
uncheck the selected items and check the unselected. To clear all number manipulation rules at a
time, click the Clear All button in
Figure 3-101.
See Figure 3-104 for the TelÆIP CallerID Manipulation Interface under the Character mode. You
can edit the number manipulation rule list to add a new one or modify an old one. The exact
meaning of each element of the rule is described on the page.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 80
Figure 3-104 TelÆIP CallerID Manipulation Interface (Character)
3.9.4 Tel to IP CalleeID
The number manipulation process for TelÆIP CalleeID is almost the same as that for TelÆIP
CallerID; only the number to be manipulated changes from CallerID to CalleeID. See
Figure 3-105,
Figure 3-106 for the TelÆIP CalleeID manipulation interface. The configuration items on this
interface are the same as those on Tel
Æ
IP CallerID Manipulation Interface (Figure 3-101).
Figure 3-105 TelÆIP CalleeID Manipulation Interface (Standard)
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 81
Figure 3-106 TelÆIP CalleeID Manipulation Interface (Character)
3.10 System Tools
System Tools is mainly for gateway maintenance. It provides such features as IP modification,
data backup and connectivity check. See
Figure 3-107 for details.
Figure 3-107 System Tools
3.10.1 Upgrade
Figure 3-108 Upgrade Interface
See Figure 3-108 for the upgrade interface where you can upgrade the WEB, gateway service,
kernel and firmware to new versions. Select the upgrade package “*.tar.gz” (The gateway will do
MD5 verification before upgrading and will not start to upgrade until it passes the verification.) via
Browse… and click Update. Then the file uploading interface will appear. See
Figure 3-109.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 82
Figure 3-109 File Uploading Interface
After a successful uploading of the file, the gateway will start to upgrade the system. See Figure
3-110 and you can learn the detailed upgrading information from the upgrade information box at
the bottom.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 83
Figure 3-110 System Upgrading Interface
Note that clicking Reset can only delete the selected update file but not cancel the operation of
Update.
Note: Please contact our technicians if you need to downgrade the gateway to an old version. An
improper operation may cause unexpected problems.
3.10.2 Signaling Capture
Figure 3-111 Signaling Capture Interface
See Figure 3-111 for the Signaling Capture interface. Packet capture contains Signaling Packet
Capture, RTP Packet Capture. You can select either of them to start the capture according to your
requirement. Click Start to start capturing packets. Click Stop to stop the capture. Click
Download to download the captured packets.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 84
3.10.3 Data Recording
Figure 3-112 Data Recording Interface
See Figure 3-112 for the Data Recording interface. Click Start to start the recording. Click Stop to
stop the recording. Click Download to download the recorded data.
3.10.4 Call Log
Figure 3-113 Call Log Interface
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 85
Figure 3-114 SIP Log Interface
See Figure 3-113, Figure 3-114 for the Call Log interf ace. Click the checkbox before Enable Call
Log to enable the call log feature, including Call Log and SIP Log. Call from IP Channel
displays the call log information generated on all IP channels, and Call from Port displays the call
log information generated on the port you select. All the SIP related information will be displayed
in SIP Log.
3.10.5 Change Password
Figure 3-115 Password Changing Interface
See Figure 3-115 for the password changing interface where you can change username and
password of the gateway. Enter the current password, the new username and password, and then
confirm the new password. After configuration, click Save to apply the new username and
password or click Reset to restore the configurations. After changing the username and pa ssword,
you are required to log in again.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 86
3.10.6 Backup & Upload
Figure 3-116 Backup & Upload Interface
See Figure 3-1 16 for the backup and upload interface. To back up the configuration file to your PC,
just click Backup. To upload a configuration file, select it via Browse… and click Upload.
Figure 3-117 Backup & Upload & Prompt Interface
Click OK on the prompt box (Figure 3-117) to upload the configuration file to the gateway . Now the
prompt information ‘System is rebooting, please do not leave this page’ appears. See
Figure
3-118. The gateway will overwrite the current configurations with the uploaded data after restart.
Click Cancel to cancel this upload directly.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 87
Figure 3-118 Configuration File Uploading Interface
3.10.7 Factory Reset
Figure 3-119 Factory Reset Interface
See Figure 3-119 for the factory reset interface. Click Reset to restore all configurations on the
gateway to factory settings.
3.10.8 Restart
Figure 3-120 System Restart Interface
See Figure 3-120 for the restart interface. Click Restart under the service restart interface to
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 88
restart the gateway service or click Restart under the system restart interface to restart the whole
gateway system. A dump file will be generated each time you restart the service or the system.
Click Download and you can download it to help troubleshoot issues.
3.10.9 System Monitor
Figure 3-121 System Monitor Configuration Interface
See Figure 3-121 for the System Monitor Configuration interface. Watchdog is a timing reset
system used to avoid application crash. You can set the dog feeding interval when this feature is
enabled. The feeding interval is calculated by s, with the value range of 1~15s. By default, this
feature is enabled with the default value of 5s. As the feature ‘Automatically restart the service if
undetected’ is enabled, the service application will restart automatically if it is not detected by the
gateway guard application. By default, this feature is enabled.
3.10.10 SNMP Config
Figure 3-122 SNMP Configuration Interface
See Figure 3-122 for the SNMP configuration interface. If the SNMP feature is enabled, once the
gateway receives a request from the SNMP management software, it will collect relevant
information and reply them to the SNMP management software. By default, the SNMP feature is
disabled. The available information includes kernel version, CPU usage, processes, memory
usage, startup information, LAN status and etc. Currently, the gateway only provides the
community string for information acquisition. The table below explains the configuration items
shown in
Figure 3-122.
Item Description
SNMP Server
Address
IP address of SNMP.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 89
Monitoring Port Monitoring Port for SNMP on the gateway.
Access Password Commun ity string used for information acquisition.
3.10.11 PING Test
Figure 3-123 Ping Test Interface
See Figure 3-123 for the Ping test interface. A Ping test can be initiated from the gateway on a
designated IP address to check the connection status between them. The table below explains
the configuration items shown in the above figure.
Item Description
Destination Address Destination IP address or domain name on which the Ping test is executed.
Ping Count The number of times that the Ping test should be executed. Range of value: 1~100.
Package Length Length of the data package used in the Ping test. Range of value: 56~1024 bytes.
Info
The information returned during the Ping test, helping you to learn the network
connection status between the gateway and the destination address.
After configuration, click Start to execute the Ping test; click End to terminate it immediately.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 90
3.10.12 TRACERT Test
Figure 3-124 Tracert Test Interface
See Figure 3-124 for the Tracert test interface. A Tracert test can be initiated from the gateway on
a designated IP address to check the routing status between them. The table below explains the
configuration items shown in the above figure.
Item Description
Source IP Address Source IP address where the Tracert test is initiated.
Destination Address Destination IP address on which the Tracert test is executed.
Maximum Jumps
Maximum number of jumps between the gateway and the destination address
which are returned by the Tracert test. Range of value: 1~255.
Info
The information returned during the Tracert test, helping you to learn the detailed
information about the jumps between the gateway and the destination address.
After configuration, click Start to execute the Tracert test; click End to terminate it immediately.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 91
3.10.13 Wireless Network Test
Figure 3-125 Wireless Network Test Interface
See Figure 3-125 for the Wireless Network Test interface. This test is to check whether the SIM
card inserted in the gateway port can make normal calls. The table below gives the explanation to
the configuration items shown in the above figure.
Item Description
Port The port used for the test
Called Number The called party number which will be dialed for the test
Conversion Time Length The time length of the conversion
Call Times The times of the testing call
After configuration, click Start to execute the test; click Stop to terminate it immediately.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 92
Appendix A Technical Specifications
Dimensions
4004/4008 series: 260×153×30 mm
3
4016 series: 440×44×200 mm3
Weight
4004/4008 series
Net: 1.2 kg
4016 series Net: 3.5 kg
Environment
Operating temperature: 0℃—45℃
Storage temperature: -20℃—85℃
Humidity: 8%— 90% non-condensing
Storage humidity: 8%— 90% non-condensing
LAN
Amount: 2 (10/100 BASE-TX (RJ-45))
Self-adaptive bandwidth supported
Auto MDI/MDIX supported
Console Port
Amount: 1 (RS-232)
Baud rate: 115200bps
Connector: RJ45 to DB-9 Connector (4004/4008
series), Mini-USB connecting line (4016 series)
Data bits: 8 bits
Stop bit: 1 bit
Parity unsupported
Flow control unsupported
Note: Follow the above settings to configure the serial
port; or it may work abnormally.
Power Requirements
Input power: 12V DC ±10%
Input Current: ≥3A DC
Signaling & Protocol
SIP signaling
Supported protocol: SIP V1.0/2.0, RFC3261
Network Protocol
IP v4, UDP/TCP, PPPoE, DHCP,
FTP/TFTP ARP, RARP, NTP,
HTTP, Telnet
Audio Encoding & Decoding
G.711A 64 kbps
G.711U 64 kbps
G.729A/B 8 kbps
G723 5.3/6.3 kbps
G722 64 kbps
AMR 4.75 kbps
iLBC 13.3/15.2 kbps
Sampling Rate
8kHz
Wireless Feature
GSM Frequency band: 850/900/1800/1900MHz
WCDMA Frequency band: GSM 900/1800MHz,
UMTS 900/2100MHz
CDMA Frequency band
：
CDMA 2000 800MHz
SMS CODEC: ASCII/UCS2
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 93
Appendix B Troubleshooting
Q1. What to do if I forget the IP address of the wireless gateway?
There are two ways to get the IP address:
1) Long press the Reset button on the gateway to restore to factory settings. The default IP
address is 192.168.1.101
2) Make a call to any wireless port and press the function key to query the IP address. See
3.5.5 Function Key for more details.
Q2. In what cases can I conclude that the wireless gateway is abnormal and turn to
Synway’s technicians for help?
a) During runtime, the run indicator does not flash or the alarm indicator lights up or flashes,
and such error still exists even after you restart the device or restore it to factory settings.
b) Voice problems occur during call conversation, such as that one party or both parties
cannot hear the voice or the voice quality is unacceptable.
c) The port of the gateway is well connected with the antenna and has a SIM card properly
inserted, but the port indicator never lights up after the gateway startup or the color it
lights up does not comply with the actual port state or port type.
Other problems such as inaccessible calls, failed registrations, incorrect numbers are
probably caused by configuration errors. We suggest you refer to Chapter 3 WEB Configuration
for further examination. If you still cannot figure out or solve your problems, please feel free to
contact our technicians.
Q3. What to do if I cannot enter the WEB interface of the gateway after login?
This problem may happen on some browsers. To settle it, follow the instructions here to
configure your browser. Enter ‘Tools > Internet Options >Security Tab’, and add the current IP
address of the gateway into ‘Trusted Sites’. If you changes the IP address of the gateway,
add your new IP address into the above settings too.
Q4. Is there any cell-phone APP can make calls to the gateway?
Yes. Linphone is a soft SIP phone that is supported by multiple platforms, such as Linux,
Windows, iOS, Android, etc. It must be registered to the SIP registrar server before dialing to
other SIP devices or PSTN telephones,
Q5. Which RTP codecs are supported by the gateway?
At present, the supported RTP codecs are: G.711A, G.711u, G.729, G.723, G.722, AMR and
iLBC.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 94
Appendix C VPN Certificate
The steps to make a VPN certificate;
Step 1 Get the file of client.ovpn from the VPN server and rename it to “client.conf”.
Step 2 Examine or add the following content in/to the file.
The file should contain the following content, in which the black part is fixed while the
red part shall change according to the note.
dev tap (Note: Fill in tap or tun according to the VPN server’s requirement. Currently,
only tap is supported.)
persist-tun
persist-key
cipher AES-128-CBC
tls-client
tls-auth ta.key 1 (Note: It is used to enable the feature of TLS encryption, and should
be consistent with that of the server.)
client
remote 192.168.143.235 1194 udp (Note: Fill in the IP address and the port number
of the VPN server.)
tls-remote yfadmin
comp-lzo
passtos
<ca>-----BEGIN CERTIFICATE-----
Note: Fill in the key copied from the file of ca.crt.
-----END CERTIFICATE----</ca><cert>-----BEGIN CERTIFICATE-----
Note: Fill in the key copied from the file of client.crt, that is, the content inbetween
“-----BEGIN CERTIFICATE-----” and “-----ENDCERTIFICATE-----”
-----END CERTIFICATE----</cert><key>-----BEGIN RSA PRIVATE KEY-----
Note: Fill in the key copied from the file of client.key
-----END RSA PRIVATE KEY----</key>
<tls-auth>
Note: Fill in the key copied from the file of ta.key
</tls-auth>
Step 3 Save the file after your examination or supplement and upload it to the device. Note
that the suffix of the file must be .conf.
Synway Information Engineering Co., Ltd
SMG Series Wireless Gateway User Manual (Version 1.4.0) Page 95
Appendix D Technical/sales Support
Thank you for choosing Synway. Please contact us should you have any
inquiry regarding our products. We shall do our best to help you.
Headquarters
Synway Information Engineering Co., Ltd
http://www.synway.net/
9F, Synway D&R Center, No.3756, Nanhuan Road, Binjiang District,
Hangzhou, P.R.China, 310053
Tel: +86-571-88860561
Fax: +86-571-88850923
Wechat QR Code：Scan the QR code to pay attention to us
Technical Support
Tel: +86-571-88864579
Mobile: +86-18905817070
Email: techsupport@sanhuid.com
Email:
techsupport@synway.net
MSN: synway.support@hotmail.com
Sales Department
Tel: +86-571-88860561
Tel: +86-571-88864579
Fax: +86-571-88850923
Email:
sales@synway.net
Loading...
