ATP2410 Recording Server
ATP2410-8
ATP2410-16
ATP2410-24
Analog Call Recording Server
Version 4.0.0.0
Content
Content ....................................................................................................i
Revision History....................................................................................iii
Chapter 1 Overview..........................................................................1
1.1 Typical Application ......................................................................................... 1
1.2 Feature List.................................................................................................... 1
1.3 Product Appearance ...................................................................................... 3
1.4 Button Operation............................................................................................ 4
Chapter 2 Installation.......................................................................6
2.1 Package List .................................................................................................. 6
2.2 Installation Procedure .................................................................................... 6
2.3 Quick Guide ................................................................................................... 6
Chapter 3 Instructions .....................................................................8
3.1 System Login ................................................................................................. 8
3.2 Channel State ................................................................................................ 9
3.3 Recoding Options ........................................................................................ 12
3.3.1 Recording Inquiry....................................................................................................12
3.3.2 Recording Parameters ............................................................................................15
3.3.3 DVD Writer..............................................................................................................16
3.4 System Settings........................................................................................... 17
3.4.1 System....................................................................................................................18
3.4.2 Storage ...................................................................................................................19
3.4.3 Number...................................................................................................................22
3.4.4 IP ............................................................................................................................25
3.4.5 Debugging Log .......................................................................................................25
3.4.6 Alarm ......................................................................................................................27
3.4.7 Time........................................................................................................................28
3.4.8 SNMP .....................................................................................................................29
3.4.9 Remote Update.......................................................................................................30
3.4.10 WEB Settings..........................................................................................................30
3.5 User Management ....................................................................................... 30
3.6 Info Management......................................................................................... 33
3.6.1 Station Management...............................................................................................34
3.6.2 Customer Management ..........................................................................................36
3.7 Statistics Report........................................................................................... 40
3.8 Operating Log .............................................................................................. 41
3.9 Change Password ....................................................................................... 42
3.10 Database Management ............................................................................... 42
3.10.1 Database Settings ..................................................................................................43
3.10.2 Database Restore...................................................................................................44
3.11 Centralized Management............................................................................. 44
3.11.1 Management...........................................................................................................45
3.11.2 Master/Slave Settings.............................................................................................47
ATP2410 User Manual (Version 4.0.0.0) Page i
3.12 Reboot&Reset ............................................................................................. 48
3.13 FTP Feature................................................................................................. 49
3.14 Real-Time Monitoring................................................................................... 50
3.14.1 Install “RemoteListener”..........................................................................................50
3.14.2 Monitor a Channel ..................................................................................................51
3.14.3 Use Monitoring Tool ................................................................................................51
3.15 Alarm Info .................................................................................................... 51
3.15.1 SD Card Alarm........................................................................................................51
3.15.2 Disk Abnormal Alarm ..............................................................................................52
3.15.3 Long Time No Recording Alarm..............................................................................52
3.15.4 Channel Off-line Alarm............................................................................................52
3.15.5 RecSvr Abnormal Alarm..........................................................................................52
3.15.6 Slave Device Off-line Alarm ....................................................................................53
3.15.7 Database Damage Alarm........................................................................................53
Appendix A Technical Specifications.................................................54
Appendix B Troubleshooting..............................................................55
Appendix C Technical/sales Support.................................................56
ATP2410 User Manual (Version 4.0.0.0) Page ii
Revision History
Version Date Comments
Version 3.1.0.0 2016-7
Version 4.0.0.0 2016-9
Initial publication
New Revision
ATP2410 User Manual (Version 4.0.0.0) Page iii
Chapter 1 Overview
Thank you for choosing ATP2410 Recording Server!
The ATP2410 series recording servers (hereinafter referred to as ‘recording server’) support
continuous 24-hour independent recording of analog calls, saving call records and audio files in
the hard disk. Each call record includes the start time and the end time, phone numbers of the two
parties, call length, station information, channel number, etc. They support online management,
that is, allow users to do such operations as modifying configurations, checking real-time status,
querying recording files, backing up files, recording and burning files through WEB. They are in
hardware equipped with OLED display and configuration buttons for users to query channel state
and hard disk information, and to modify IP address, eliminating the need of PC, and with the LED
indicator to tell the state of channels and devices. Also they provide the DLL and webservice
interfaces for configuration and information inquiry. At present the ATP2410 series has three
modules, ATP2410-8, ATP2410-16 and ATP2410-24 which contain 8, 16, 24 channels
respectively.
1.1 Typical Application
Recording
Server
1.2 Feature List
PBX
parallel circuit
Phone
Recoding line
Phone
LAN
Subscriber
Terminal
Figure 1-1 Typical Application
Feature
Single/multi query items support.
Query items include channel number, caller number, called number,
Recording Inquiry
Call Monitoring
ATP2410 User Manual (Version 4.0.0.0) Page 1
recording time, recording length, call direction, call type (toll/local), etc.
Query results can be exported to Excel.
Remarks can be added on recording items.
Recording files can be played, downloaded, and deleted
Real-time call monitoring (only available to privileged users).
Description
Statistical Report
System Operation Log
Recording Parameters
Single/multi count terms support, including: caller number, called
number, recording time, recording length, call direction, call type
(toll/local), etc.
Statistical reports can give the amount and length of total calls, toll calls,
local calls, outgoing calls, incoming calls and missed calls, as well as
the average call length.
Statistical reports can be exported to excel.
System operation logs record the operating time and details of both the
client and the server.
The settings include file format, compressed format, silence threshold,
alarm condition, etc.
Five recording start conditions are optional: Voltage, Barge-in, DTMF,
Always Recording and Voltage (after call connection). Each channel is
supported to set independently.
Support up to 3 recording periods.
Disk Management
Recording Backup
User Management
Channel Parameters
Number Filtering
Station Management
Automatically scan all the disks and calculate capacity.
Save data into the next disk once the current is full.
Give an alarm or delete part of the data when all disks are full.
Automatically backup recording data to a designated disk everyday
once set.
Support the set of backup expires. After the due time, the backup files
will be deleted automatically.
Automatically delete the earliest files when the disk space is less than
the preset lower limit.
User information can be added, deleted or modified. There is no limit in
the amount of system users.
Different authorities can be customized for different WEB users.
Phone number and station number can be set for a channel.
Each channel can be set separately with a recording direction (record
all, record none, record incoming calls only or record outgoing calls
only).
Setting values for a channel can be applied to all if necessary.
Offline alarm can be set for a designated channel.
A certain number or numbers with a certain prefix can be designated for
recording.
Conditions can be set for recognization of area codes.
Batch adding of number information is supported.
A certain number or numbers with a certain prefix can be designated for
pop-up display of call information.
Station information can be added, deleted or modified.
Station information can be exported to Excel.
ATP2410 User Manual (Version 4.0.0.0) Page 2
Customer Management
Alarming
Reboot&Reset
Driver Configuration
Remote Modification
Centralized Management
Database Management
High Impedance
Recording
Tone Detection
Voltage Detection
Record & Burn
Webservice Interface
Station information can be imported from Excel.
Customer information can be added, deleted or modified.
Customer information can be exported to Excel.
Customer information can be imported from Excel.
Audio alarm, pop-up display alarm and mail alarm are available.
Multiple alarming conditions are optional: SD Card Alarm, Disk
Abnormal Alarm, Long Time No Recording Alarm, Channel Off-line
Alarm, RecSvr Abnormal Alarm, Slave Device Off-line Alarm, Database
Damage Alarm.
Support auto restart when error occurs in software.
Support reboot and reset of the recording server.
Driver configuration can be queried or modified through the web page.
Support remote modification of the IP address of RecSvr.
Support remote modification of time and date on RecSvr.
Support of a master device (PC or ATP2410 recording device) to
manage all slave devices in the network.
Support auto backup of database. Once set, the system will regularly
back up tables in the database.
External interfaces to database can be opened via configuration.
Database can be restored to a previous backup on a designated time.
Support recording in different environments with varied call density,
widely applicable to such occasions as the call recording system and
the call center monitoring system.
Support detection of both DTMF and FSK.
Configurable tone detector is provided to detect all type of tones.
Line voltage can be automatically detected and displayed on the web
page.
Select a recording file to burn.
Configure the webservice interface, with the default value of 80.
1.3 Product Appearance
Alarm Indicator
Power Indicator
HDD Indicator
Run Indicator
LAN Indicator
Channel Indicator
Figure 1-2 Front Panel
ATP2410 User Manual (Version 4.0.0.0) Page 3
ESC Button
+/- Button
OLED Screen
OK Button
Console
Grouding Stud
Power Interface
Reset Button
SD Card Interface
DVD Interface
Figure 1-3 Rear Panel
RJ11
Network Interface
1.4 Button Operation
The recording Server is equipped with configuration buttons and OLED display through which
users can query the operating status and configure the IP address. The button operations are
demonstrated in Figure 1-4 below.
图例：
+/OK
ESC
Figure 1-4 Button Operation
Note:
1. The images in the flow chart are the actual interfaces on the OLED display. The arrows and
corresponding legends indicate the button presses and directions. For exact location of the
buttons on the panel, refer to 1.3 Product Appearance
2. The word ‘Working’ in the main interface
.
shall be ‘Booting’ instead during the
starting process.
3. In the channel state interface
, CH represents channel number while ST indicates
state. The abbreviations and corresponding meanings of the channel states are: ID (Idle), OF
(Offline), RI (Ringing) and PI (Pickup).
4. In the IP configuration interface , users can modify the IP address. The flashing
field in the interface is the current field to be set. Use the ‘+/-’ button to modify it. Press the
“OK” button to go to the next field. After all fields are configured, press “ESC” button to save
the settings and return to the main IP configuration interface.
ATP2410 User Manual (Version 4.0.0.0) Page 4
ATP2410 User Manual (Version 4.0.0.0) Page 5
Chapter 2 Installation
2.1 Package List
ATP2410 Series Recording Server *1, with a 500G 2.5-inch hard disk
Foot Bracket*2, Rubber Foot Pad*4, Screw for Foot Bracket*8
User Manual *1
+19V DC Power Supply *1
2.2 Installation Procedure
Step 1: Connect the +19V DC power line.
Step 2: Connect the network cable.
Step 3: Plug one end of a phone line into an RJ11 jack for the corresponding channel
on the recording server and connect the other end parallelly to any position
between the PBX and the telephone.
4 3 2 1
Ch11 b
PBX
Ch11 a
Ch11 b
Phone
Ch11 a
Figure 2-1 Line Connection
Step 4: Check the state of the channel connected in Step 3 through the OLED display.
If the channel is in the state ID (Idle), it indicates the connection is normal;
otherwise, the channel is not available, and you should check if there is
something wrong with the connection.
Step 5: Modify the IP address through the configuration buttons on the recording
server. For detailed instructions, refer to 1.4 Button Operation
address can also be modified through the WEB interface, refer to 3.4.4 IP
. (Note: The IP
for
detailed instructions and default IP values.)
Step 6: Type in the IP address set in Step 5 into the browser and enter the Recording
Management Software. For detailed instructions about login, refer to 3.1
System Login.
Step 7: Check through the WEB interface if the hard disk is formatted. If not, format it
before use. For detailed instructions about formatting the hard disk, refer to
3.4.2 Storage
.
2.3 Quick Guide
After completing the above steps, you can well run the recording server. The default values of the
main recording parameters are listed here below.
Recording Start Condition: Voltage
ATP2410 User Manual (Version 4.0.0.0) Page 6
Compression Format: G711-A
File Format: wav
Recording Period: 24 hours
Recording Direction: Record all
To modify the recording parameters, refer to 3.3.2 Recording Parameters
Note:
1. We suggest that you change the initial password after your first login. For detailed instructions
about changing the password, refer to 3.9 Change Password
2. To perfect the recording information, you need to add corresponding station and customer
information. For detailed instructions, refer to 3.6 Info Management
3. The detailed configurations and operations of the recording server will be introduced in
Chapter 3 Instructions
.
.
.
.
Special Instructions:
When an alarm buzzes, it should be promptly handled according to the user manual.
Otherwise it may lead to a drop in performance or unexpected errors.
The case of the recording server must be grounded for safety reasons, according to
standard industry requirements. The grounding studs on the machine guarantee
effective earthing. No or improper grounding may cause instability in operation as well as
decrease in lightning resistance.
ATP2410 User Manual (Version 4.0.0.0) Page 7
Chapter 3 Instructions
3.1 System Login
Type the IP address into the browser and enter the login interface. See Figure 3-1.
Figure 3-1 Login Interface
The recording management software has an initial administrator whose user name is ‘admin’ and
initial password is ‘admin’ too.
After login, you can see the main interface as below.
Figure 3-2 Main Interface with All Features
For users owning all authorities, all features in Figure 3-2 are available. For other users, only the
authorized features are shown on this page.
All users can change their password for safety reasons and those with system setting authorities
can modify the IP address of the recording server to put it in the same network segment with the
PC to avoid repeated modification on every visit. For more instructions about IP modification, refer
to 3.4.4 IP
ATP2410 User Manual (Version 4.0.0.0) Page 8
.
3.2 Channel State

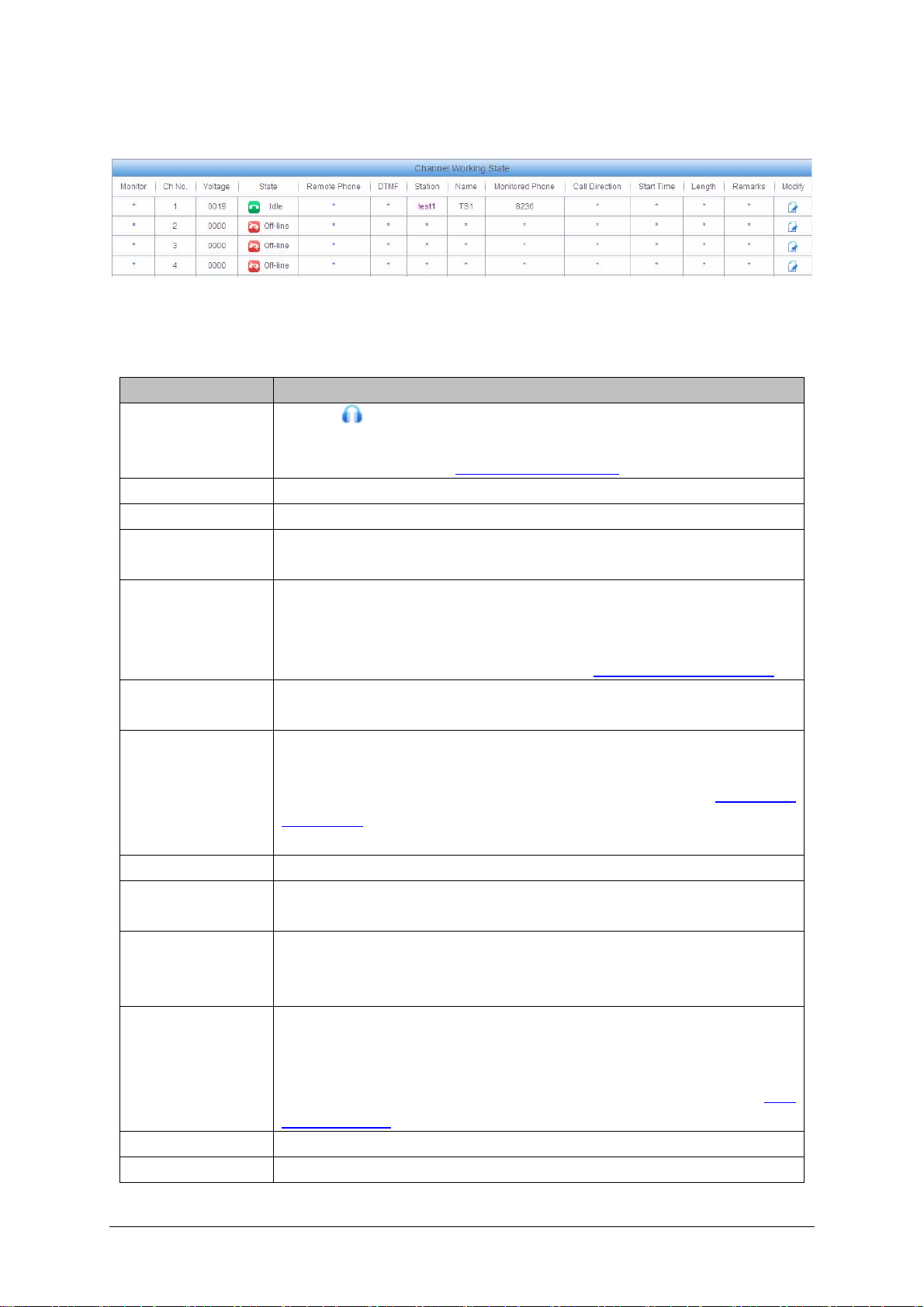

Figure 3-3 Channel State Interface
See Figure 3-3 for the channel state interface. The above list shows the operating states of all
recording channels. Each channel supports customer and station information inquiry as well as
real-time monitoring. The table below explains the query items in Figure 3-3.
Item Descriptions
The icon
Monitor
Ch No. Logical channel number in the recording server.
Voltage Line voltage on the corresponding channel.
State
Remote Phone
DTMF
Station
Name Station name corresponding to the channel.
Monitored Phone
Call Direction
Star t Time
Length Length of the current recording, calculated by s.
Remarks Remarks about the channel, regarded as a mark of different channels. It can be
recording. Click it and you can monitor the call on this channel in real time. For
detailed operations, refer to 3.14 Real-Time Monitoring
Channel state. Each channel has 4 states (see Figure 3-3): Idle, pickup, ringi
off-line.
The number of the remote phone in conversation with the monitoring end. If this
number and its corresponding customer information exist in the database, click it
and you can see the customer information (See Figure 3-4). For instructions about
add
ing or modifying customer information, refer to 3.6.2 Customer Management.
DTMF digits pressed on the remote phone and the phone which is connected to the
recording line.
Station number corresponding to the channel. If the station information exists in the
database, click it and you can see station information (See Figure 3-5). For
instructio
Management. Station, as well as Monitored Phone and Remarks, can be
modified by Modify.
The phone number monitored by the recording channel. It can be modified by
Modify.
Call direction of the current conversation, taking the monitoring end as reference.
That is, if the monitoring end is the calling party, Call Direction column displays the
call out icon; otherwise, it displays the call in icon.
The start time of the current recording. Please note that not all the recording pieces
shown on this page will be saved. Whether a recording to be saved or not depends
on multiple judging conditions. Go to the recording inquiry interface to get the exact
saved recording data. For detailed instructions about querying, refer to 3.3.1
Recording Inquiry.
appearing in the Monitor column indicates that the channel is
.
ng,
ns about adding or modifying station information, refer to 3.6.1 Station
ATP2410 User Manual (Version 4.0.0.0) Page 9
modified by Modify.
If there are remote phones and corresponding customer information existing in the database, click
one and you can see the customer information interface as below.
Figure 3-4 Customer Info Pop-up
If there are stations and corresponding station information existing in the database, click one and
you can see the station information interface as below.
ATP2410 User Manual (Version 4.0.0.0) Page 10
Figure 3-5 Station Info Pop-up
Click Modify in Figure 3-3 to modify information of the corresponding channel. See Figure 3-6 for
the channel info modification interface.
Figure 3-6 Channel Info Modification Interface
The items Monitored Phone, Station and Remarks in Figure 3-6 have the same values as those
in the Channel State Interface. Other items are explained in the table below.
Item Description
Sets calls on which direction will be recorded. Four options are now available:
Rec Direction
Incoming calls only Taking the monitoring end as reference, only record the incoming
ATP2410 User Manual (Version 4.0.0.0) Page 11
Option Description
calls.
Outgoing calls only Taking the monitoring end as reference, only record the outgoing
calls.
Record all Taking the monitoring end as reference, record both the incoming
and outgoing calls.
Record none Taking the monitoring end as reference, record neither the
incoming nor the outgoing calls.
Note: This item is valid only when the Recording Start Condition is not set to
Always recording (Refer to 3.3.2 Recording Parameters
Alarm for Offline Sets the offline alarm for the channel.
Apply on Other Ch
Apply the setting values of Recording Direction and Alarm for Offline to other
channels.
).
After configuration, click Save to save the above settings into the database; click Close to cancel
the settings. The settings will not go into effect until you reboot the recording service. For the
instructions about rebooting the recording server through WEB, refer to 3.12 Reboot&Reset
.
3.3 Recoding Options
Recording options include three parts: Recording Inquiry, Recording Parameters and DVD
Writer. The part Recording Inquiry provides multiple items for users to find the needed recording
files rapidly. The part Recording Parameters offers global settings for the recording server, which
can be configured according to individual requirements. The part DVD Writer offers the interface
to write the required recording file onto DVD.
3.3.1 Recording Inquiry

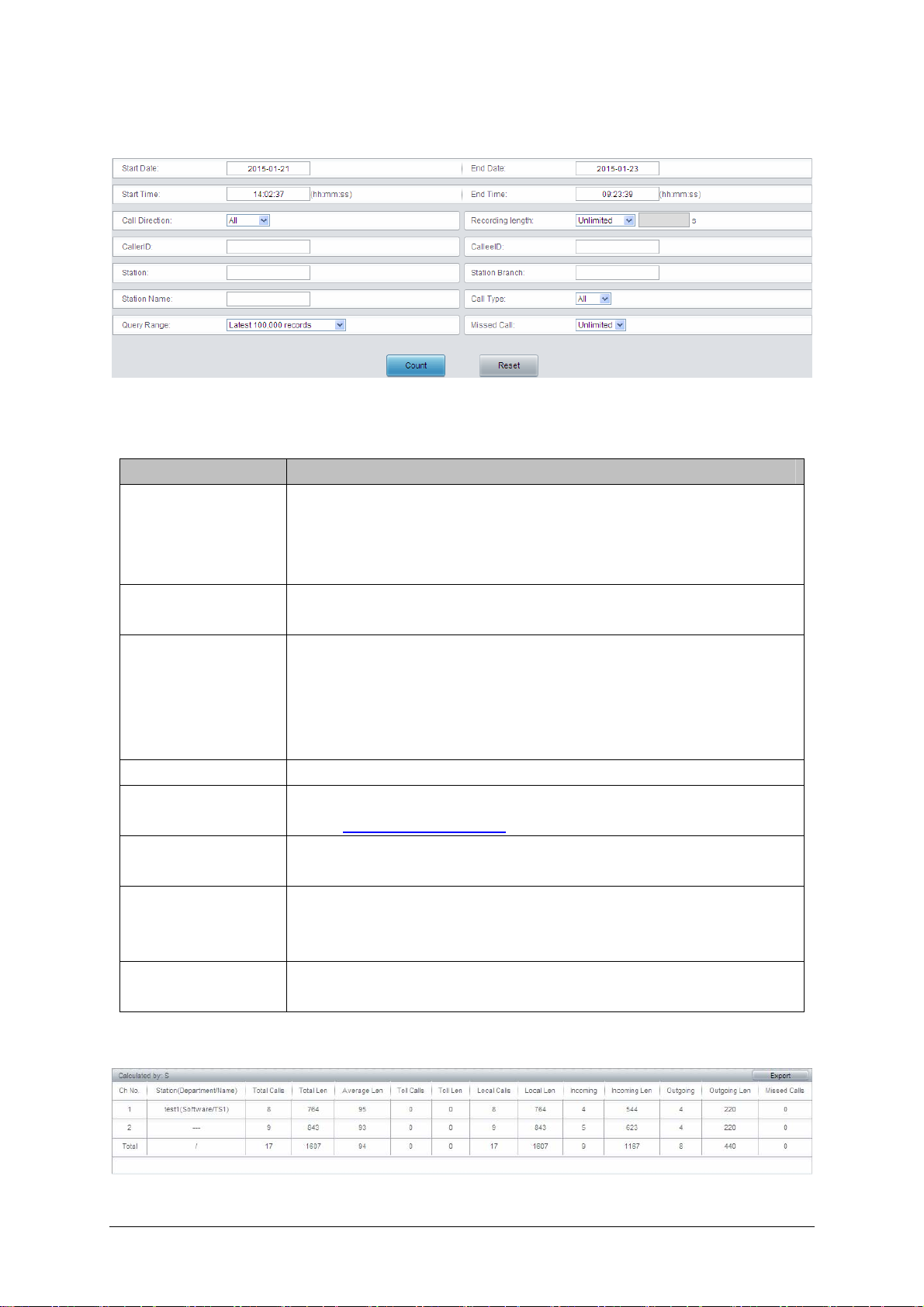

Figure 3-7 Recording Inquiry Interface
See Figure 3-7 for the recording inquiry interface. Users can inquiry the recording files using the
combination of multiple query items. The table below explains the query items in Figure 3-7.
Item Description
Time period of the recording, including time and date. For example, the recording
Start Date; Start Time;
End Date; End Time
in the above figure is required to start from 2016-06-28 00:00:00 and end at
2016-07-05 23:59:59. Please note that the end time and date should not be
earlier than the start time and date.
ATP2410 User Manual (Version 4.0.0.0) Page 12
Call Direction
Recording Length
Station No.; Station
Name；Station Branch
Customer Phone;
Customer Name
CallerID; CalleeID
Played
Channels
Call Type
Missed Call
DTMF DTMF digits in the recording, used as a condition to filter recoding files.
Query Range
Sort by
Remarks Remarks in the recording, used as a condition to filter recording files.
Used as a condition to filter recoding files. Three options are available: All, Call
in, Call out, taking the monitoring end as reference. The default value is All.
Length of the recording, used as a condition to filter recoding files. Three options
Unlimited, Longer than and Shorter than are available. The default value is
Unlimited, which means there is no limit on this item. To choose Longer than or
Shorter than, you should enter the exact time length in the edit box (calculated
by s). Once set, only the qualified recordings will be displayed.
Station information. Refer to 3.6.1 Station Management
a channel, the recording files generated on that channel will contain the station
information. Users can search for the recording files based on Station No.,
Station Name or Station Branch. These three fields can be left empty, which
means ignoring this filter condition. Suggest: Do not fill in both fields at the same
time.
Customer information. Refer to 3.6.2 Customer Management
phone number matches the customer information in the database, the recording
files about this number will contain the customer information. Users can search
for the recording files based on Customer Phone or Customer Name. These two
fields can be left empty, which means ignoring this filter condition. Suggest: Do
not fill in both fields at the same time.
Used as a condition to filter recoding files. Just enter the number you want to
query.
Whether the recording file has been played. There are three options Unlimited,
Yes, No, and the default value is Unlimited.
Designate the range of channels you want to query. The two combo boxes from
left to right indicate the start and end channels respectively. Please note that the
start channel number should not be larger than the end channel number. If the
two channel numbers are the same, only this channel will be required. The
default value is all channels.
Used as a condition to filter recoding files. Three options All, Local, Toll are
available, and the default value is All which indicates ignoring this filter condition.
Whether the calls to be inquired should be missed calls or not. There are three
options Unlimited, Yes, No, and the default value is Unlimited.
Sets the range for data query, including two options: Latest 100,000 records and
All records. The default value is Latest 100,000 records as it is time-consuming
to inquire all recording files.
Determines the sort order of the query result. It can be the ascending or
descending order of Recording Time, Recording Length or Station No., with the
default value of the ascending order of Recording Time.
. If a station is bound with
. If the remote
After the configuration of the above query items, click ‘Inquiry’ to obtain the query results (See
Figure 3-8); click ‘Reset’ to restore the configurations.
ATP2410 User Manual (Version 4.0.0.0) Page 13
Figure 3-8 Recording Query Results
The recording query results include Channel No., Call Direction, Missed Call or not, CallerID,
DTMF, CalleeID, Recording Start Time, Recording Length, Station No., Station Name,
Customer Phone, Remarks&Sign and Add Customer Info of each recording item. On this
interface, users can do the following operations:
Operation Description
Exp
ort the query results to Excel. Due to the upper limit of Excel 2003, the recording
Export
Play
Download
server only supports exporting up to 65535 items. A prompt will pop up once the
number of items you export exceeds 65535.
y the recording file. See
Pla
Figure 3-9
blue indicates that the recording file has not been played; orange indicates it has
been played; and grey indicates it has been deleted and cannot be played.
Do
wnload the recording file to local. If the icon in the Download column is grey, it
indicates that the file has been deleted and cannot be downloaded. Refer to 3.13
FTP Feature for the rule of the system to name the downloaded recording file.
for the player interface. The icon in the Play column has three colors:
Click ‘Station’ Link See corresponding station information in the prompt.
Click ‘Customer’
Link
Click
‘Remarks&Sign’
Link
Add Customer Info
See corresponding customer information in the prompt.
Modify the remarks, and mark the recording file to be important, retain or both.
Add the corresponding customer number to this column. If the icon is green, click it
to add; if the icon is grey, it indicates the customer number is unavailable or has
been added.
The recording file player interface:
Figure 3-9 Recording File Player Interface
Note: If your current browser fails to play the audio file as it can not well support the playing plugin,
please change to another browser and try again.
ATP2410 User Manual (Version 4.0.0.0) Page 14
To delete a recording file, check the corresponding checkbox in
Figure 3-8 and click the ‘Delete’
button. After deletion, the checkbox in the Select column will turn
grey and the recording file become unplayable and undownloadable. Check All means to select
all available items in the current page; Uncheck All means to cancel all selections in the current
page; Inverse means to uncheck the selected items and check the unselected.
3.3.2 Recording Parameters
Figure 3-10 Recording Parameter Configuration Interface
See Figure 3-10 for recording parameter configuration. Users can configure the parameters
depending on actual requirements. The table below explains the items in Figure 3-10.
Item Description
Select Channel Select the current channel to be configured.
There are five options available: Voltage, Barge-in, DTMF, Always Recording and
Voltage (after call connection).
Recording Start
Condition
Recording Start
Condition
Voltage Start recording once pickup operation is detected.
Barge in Start recording once Barge-in is detected.
DTMF Start recording once valid DTMF key combination is detected.
Always recording Never stop recording since the recording service starts.
Voltage (after call
connection)
To select this option, you have to enable the polarity reversal
feature first. If this option is selected, the recording will not start
until the called party picks up the call, and it only contains the
data of conversation, excluding the dialing tone.
Description
Note: When the “Always recording” mode is selected, the recording management
software will by default generate a recording file at the end of each 50-minute
recording. Before each recording file is formally generated, it can be found neither
in the Recording Inquiry interface nor under the Record directory in FTP, but its
temporary file can be found under the temp directory in FTP.
DTMF Key
Combination
This item is valid only when the Recording Start Condition is set to DTMF. The
system will start recording once the DTMF key combination are pressed in the right
order.
Minimum Recording
Length
Compression
Format
Only when the recording time exceeds the set value of this parameter will the
recording be saved into a file. Range of value: 1~60s.
The compression format of the recording files. Currently G.711μ, G.711, ADPCM
and G729A are supported.
File Format The save format of the recording files. Currently only wav and vox are supported
ATP2410 User Manual (Version 4.0.0.0) Page 15
Largest Interval
between Dialing
Codes
Largest Interval
between Combined
DTMF Keys
Choose Recording
Period
and the default format is wav. The vox file has no file header, only saves the
recording data and cannot be played through WEB. Therefore, if you need to play
the file through WEB, choose the format wav for it.
Sets the largest interval (calculated by s) between dialing codes, mainly used for
the occasion that the monitoring end works as the calling party. If all the DTMF
digits are pressed within this interval and before the ringback tone is detected, they
will all be regarded as the remote number. Otherwise, only the digits pressed before
timeout and the detection of ringback tone will be regarded as the remote number.
Sets the largest interval (calculated by s) between combined DTMF key presses.
For example, provided this value is set to 5 and the DTMF Key Combination is set
to ‘*1’, if the time interval between the detection of ‘*’ and ‘1’ is larger than 5s, the
key combination will be regarded as invalid and not start the recording. Only if each
interval between every two key presses of the complete DTMF combination is less
than 5s will the recording server regard them as valid DTMF key combination and
start recording. This item is valid only when the Recording Start Condition is set
to DTMF.
Sets the recording periods. It can be recording in 24 hours or in designated time
periods. To make recording all the time, select ’24 hours’. To designate time periods
for a recording, check one or several (up to 3) period checkboxes and enter
corresponding time ranges.
After configuration, click Save to save the above settings into the database; click Reset to restore
the configurations. The settings will not go into effect until you reboot the recording service. For
the instructions about rebooting the recording server through WEB, refer to 3.12 Reboot&Reset
.
3.3.3 DVD Writer
ATP2410 User Manual (Version 4.0.0.0) Page 16
Figure 3-11 DVD Writer Setting Interface
See Figure 3-11 for the DVD Writer Setting interface. You can write the recording data into DVD
according to your requirement. The table below explains the items in Figure 3-11.
Item Description
Date, Month Sets the data search by date or by month.
Start Date, End Date Sets a start date and an end date for data search.
Month, Year Sets a month of a year for data search.
Media Type Sets the disk type. Two options DVD-R and DVD-RW are available.
Click Connect DVD to check whether the DVD writer is connected to ATP2410. Click Query DVD
to check whether there is a disk in the DVD writer. Click Calculate Data to check whether the
available space of the disk is enough for data recording. If there is no problem with the previous
three clicks, click Write to DVD to write the data into the DVD disk.
3.4 System Settings
The System Settings have sub-menus including System, Storage, Number, IP, Debugging
Log, Alarm, Time, SNMP, Remote Update and WEB Settings. See Figure 3-12 for the system
settings menu on the left side of the main interface.
Figure 3-12 System Settings
ATP2410 User Manual (Version 4.0.0.0) Page 17
3.4.1 System
Figure 3-13 System Configuration Interface
See Figure 3-13 for the System Configuration interface which implements the hardware
configuration of the recording server. The table below explains the above items in Figure 3-13.
Item Description
Board Serial No. Serial number of ATP series board (read-only).
Total Number of
Channels
Line Voltage
Ignored or Not
On-/off-hook
Threshold Voltage
Input Gain
Default Recording
Volume
Bargein Sensitivity
Bargein Threshold
Time
DTMF Reception
Sensitivity
Total number of channels in the system (read-only).
Sets whether to ignore the voltage detection result on the line.
Range of value: 0: Not to ignore (default); 1: Ignore.
Sets the threshold voltage (calculated by V) judging the on-/off-hook operation
on the recording channel of ATP boards. The default value is 16.
Set
s the gain of input signals on the analog recording channel.
Range of value: 0: Normal gain (0DB); 1: Increased gain (20DB). Currently only
the value 0 is supported.
Sets the gain of the recording volume.
Range of value: -7~6, a value greater than 0 denotes volume increasing, while
a value less than 0 denotes volume decreasing; -7 denotes turning off the
volume. The default value is 0. This value multiplying 3 equals the DB value.
Sets the sensitivity of the Barge In detector.
Range of value: 0~31, with the default value of 6. A higher value indicates
greater sensitivity.
Sets the minimum signal duration for the Barge-in detector.
Range of value: 16 and must be the multiple of 16, calculated by millisecond
(ms), with the default value of 32.
Sets the minimum durations of the DTMF signal at on and off states.
Provided the value of this configuration item is n.
n is comprised of 8 bits (namely Bit7…Bit0). Below is the meaning of each bit:
Bit3~Bit0: The minimum duration of the DTMF signal at on state. Range of
value is 1~6 and the unit is 16ms, with the default value of 3;
ATP2410 User Manual (Version 4.0.0.0) Page 18
Bit7~Bit4: The minimum duration of the DTMF signal at off state. Range of
value is 0~6 and the unit is 16ms, with the default value of 0;
Note: If the values of Bit7~Bit4 are 0, the minimum duration of DTMF signal at
off state is determined by the minimum duration at on state. If the minimum
duration of the DTMF signal at on state is less than 3, the value of the minimum
duration of the DTMF signal at off state is 1; otherwise, the value of the
minimum duration of the DTMF signal at off state is 2.
n is represented by hexadecimal number. For example, n=0x43 indicates the
minimum durations of the DTMF signals at on and off states are 48ms and
64ms respectively; n=0x03 indicates the minimum durations of the DTMF
signal at on and off states are 48ms and 32ms respectively.
s whether to regard the DTMF signal in the incoming call as the voice
DTMF as Voice or
Not
Minimum Silence
Length
Noise Threshold
API Function and
Event Output
Log Saving Path Sets the path to save logs. Note that it must be an existing path.
Auto Open AGC
Language
Set
signal.
Range of value: 0: No; 1; Yes (default).
Sets the minimum duration for the line to keep silence.
Range of value: 16 and must be the multiple of 16, calculated by millisecond
(ms), with the default value of 5000.
Sets the threshold value to judge noises for the Barge-in detector. The default
value is 100,000.
Sets whether to output API function call information.
Once the AGC feature is enabled, the driver will automatically adjust the input
signal amplitude, increasing that of small signals and decreasing that of large
signals.
Set
s the language of the recording system, including three options: Simplified
Chinese, Traditional Chinese and English. The default value is Simplified
Chinese.
After configuration, click Save to save the settings into the database; click Reset to restore the
configurations. The settings will not go into effect until you reboot of the recording service. For the
instructions about rebooting the recording service through WEB, refer to 3.12 Reboot&Reset
.
3.4.2 Storage
If there is no disk in the recording server, the storage configuration interface will prompt ‘Hard Disk
can not be found!’ as shown as Figure 3-14 below.
Figure 3-14 No Disk Available
If the disk is unavailable or has not been formatted, the storage configuration interface will show
as Figure 3-15 below.
ATP2410 User Manual (Version 4.0.0.0) Page 19
Figure 3-15
Click Format and the recording server will prompt a dialog box asking you to enter the admin
password. See Figure 3-16.
Figure 3-16 Enter Admin Password
After you enter the correct admin password and click OK, the recording server will prompt a dialog
box asking you whether to keep the current configuration information in HD. See Figure 3-17
Figure 3-17 Keep Current Info
Click either OK or Cancel, and the recording server will prompt a dialog box asking you to confirm
the formatting operation. See Figure 3-18.
Figure 3-18 Confirm Formatting
Click Cancel to cancel the formatting operation. Click OK in Figure 3-18 to start disk formatting.
See Figure 3-19. After formatting, the system will automatically close this page and
jump to the
storage configuration interface. See Figure 3-20.
ATP2410 User Manual (Version 4.0.0.0) Page 20
Figure 3-19 Formatting in Progress
Figure 3-20 Storage Configuration Interface
See Figure 3-20 for storage configuration. The list in the above figure shows the information of all
available disks including disk name, path, type, file format, total capacity, used capacity, available
capacity etc. The two buttons on the top right corner are Format and Remove Disk. The former is
for hard disk formatting while the latter is for the hard disk hot swap, avoiding data damage or
loss.
Note:
Before the operation of Format or Remove Disk, you are required to check the FTP feature
and the log output feature. Close the FTP if you are using it and set API Function and Event
Output in 3.4.1 System Configuration
to Output None if the log output feature is enabled.
Users can do the following configurations for the disks in Figure 3-20:
Item Description
Sets the reserved block space, calculated by MB, with the default value of 800.
Reserved Block
Space of Each Disk
Bytes Auto-deleted
Auto Backup
When the available capacity of the disk is less than the set value of this item, the
recording server will regard the disk as full and send a corresponding alarm (refer to
3.15.2 Disk Abnormal Alarm
The amount of data to be auto-deleted when the disk is full (calculated by MB). The
default value is 1024.
Sets whether to backup the recording files automatically in order to avoid data loss.
Only when this item is set to Yes is the configuration item Time Condition to
Delete a Backup File valid.
).
ATP2410 User Manual (Version 4.0.0.0) Page 21
Backup Path The path for auto backup of the recording data (read-only).
Time Condition to
Delete a Backup File
Time limit for the backup file, calculated by s, with the default value of 36000. After
the expiration, the file will be deleted automatically.
On the storage configuration interface shown in Figure 3-20, the FTP feature can also be set to
ensure the stability of the file backup. The table below explains the corresponding items.
Item Description
FTP Upload Sets whether to upload recording files to a designated FTP.
Connection Test
FTP Address&Port
Storage Path
Username,
Password
Sends a test file to the designated FTP to make sure recording files can be properly
uploaded to it
FTP address and port number. This item should be filled out in the format: FTP
address: port number.
The location of the recording file saved to the designated FTP. It must be a path
already existing on the FTP.
Username and password for the designated FTP, having the access and file upload
authority
After configuration, click Save to save the above settings into the database; click Reset to restore
the configurations. The settings will not go into effect until you reboot the recording service. For
the instructions about rebooting the recording server through WEB, refer to 3.12 Reboot&Reset
.
3.4.3 Number
Figure 3-21 Number Setting Interface
See Figure 3-21 for the number setting interface. The list in the above figure shows the operations
for different incoming calls, including recording, regarding it as area code, regarding it as prefix
number and popping up display. The numbers and corresponding information can be added by
the Add New button on the top right corner. See Figure 3-22 for the number adding interface.
ATP2410 User Manual (Version 4.0.0.0) Page 22
Figure 3-22 Number Adding Interface
The number adding interface supports adding a single number or a batch of numbers. The table
below explains the corresponding items:
Item Description
Phone No. The phone number to be added. This item cannot be left empty（not 0 either）.
Batch Add
Added Quantity
Recording
Area Code
Prefix No.
Pop-up Display
Add multiple numbers at a time. Only when this item is checked is the item Added
Quantity valid.
The quantity of phone numbers to be batch added, limited to100. In batch adding
operation, the numbers to be added will start from the current Phone No. and each
increases by 1.
Sets whether to record the designated number when the preset recording start
condition is met. Checking this item means Yes.
Sets whether to regard the number as area code. If checked, as long as a remote
number matches this number, it will be regarded as a toll call. Otherwise, it will be
regarded as a local call.
Sets whether the number is a complete phone number or only a prefix of a phone
number. If checked, a remote number will be regarded as a matched number as
long as the beginning part of it is the same as the set number. If unchecked, only
when both the content and the length of a remote number are completely the same
as the set number will it be regarded as a matched number.
If checked, as long as the number of an incoming call matches this number, the
recording server will prompt the corresponding call information after pickup (See
Figure 3-23). This feature is only valid at the
Channel State).
channel state interface (Refer to 3.2
ATP2410 User Manual (Version 4.0.0.0) Page 23
Figure 3-23 Incoming Call Pop-up Display
Note:
According to the number matching rule, the recording sever will search for numbers by
length, that is, match the whole number of the incoming call to the set number at first, and
then, if no match is found, ignore the last digit and match it to the set number again, and so
forth. Once matched, the number will be processed following the settings.
After configuration, click Save to save the above settings into the database; click Close to cancel
the settings. The settings will not go into effect until you reboot the recording service. For the
instructions about rebooting the recording server through WEB, refer to 3.12 Reboot&Reset
.
Click Modify in Figure 3-21 to modify number information. See Figure 3-24 for the number info
modification interface. The configuration items on this interface are the sa
me as those on the
Number Adding Interface.
ATP2410 User Manual (Version 4.0.0.0) Page 24
Figure 3-24 Modify Number Info
To delete the numbers, you should check the checkbox before the numbers in Figure 3-21 and
click the ‘Delete’ button. Check All means to select all available items in the current page;
Uncheck All means to cancel all selections in the current page; Inverse means to uncheck the
selected items and check the unselected.
3.4.4 IP
Figure 3-25 IP Configuration Interface
The IP configuration interface is used to set the IP information of the recording server, to put it in
the company LAN. After modification, click Save to save the settings; click Reset to restore the
configurations. Due to the change of IP address, the current WEB connection may fail and you
should access the recording management software again through the new IP address.
Note:
The values of the IP address, Subnet Mask, Default Gateway and DNS Server shown in
Figure 3-25 are all factory default settings.
3.4.5 Debugging Log
Figure 3-26 Debugging Log Configuration Interface
The debugging log configuration interface (see Figure 3-26) is mainly used to set the log output
parameters of the recording server. The debugging logs help trace and debug the recording
management software. The table below explains the above items in Figure 3-26.
ATP2410 User Manual (Version 4.0.0.0) Page 25
Item Description
Log Level
Period to Create a
Log
Max Logs to be
Created
Max Logs to be
Saved
Override Existing
Files
There are four log levels from low to high: Not to output log, Error, Warning and Info.
See the table below for their exact meanings.
Log Level Description
Not to output log Do not output log files.
Error message generated in recording which indicates an operation is
Error
Warning
Info
unsuccessful or wrong. Its information structure contains the field
|ERROR|.
Warning message generated in recording which indicates the operation
may lead to a harmful or wrong result. Its information structure contains
the field |WARNING|.
General information generated in recording which will be printed out
during common function calls or debugging processes. Its information
structure contains the field |INFO|.
Suggest: Set Log Level to Not to output log while the recording server is running
normally.
Sets the cycle to create a log, calculated by hour, with the maximum value of 24 and
the minimum value of 1.
Sets the max number of logs to be created. When the number of created log files
exceeds this value, no more log files will be created. -1 means unlimited.
Sets the max number of logs to be saved. When the number of log files exceeds
this value, the earliest created log files will be overwritten. -1 means unlimited.
Sets whether to override the existing log files after reboot of the recording service. If
this item is set to Yes, the number of the newly created log file will start from 0 and
the existing file with the same number will be overwritten. Otherwise, the recording
server will create a new log file with a different number.
Sets the save path of the log files. It only designates the path of the folder. The log
filename is created automatically in the format shown below and cannot be
Saving Path
modified.
Log File Name Example
RecSvr RecSvrDate_Number.log RecSvr20120321_1.log
RecMonitor RecMonitorDate_Number.log RecMonitor20120321_1.log
After configuration, click Save to save the above settings into the database; click Reset to restore
the configurations. The settings will not go into effect until you reboot the recording service. For
the instructions about rebooting the recording server through WEB, refer to 3.12 Reboot&Reset
.
ATP2410 User Manual (Version 4.0.0.0) Page 26
3.4.6 Alarm
Figure 3-27 Alarm Setting Interface
See Figure 3-27 for the alarm setting interface which is used to configure the alarm methods and
intervals for the recording server. The table below explains the above items.
Item Description
Sets whether to restart the recording service (RecSvr) automatically when it cannot
Auto Restart
Recording Service
Alarm Function
RecSvr Abnormal
Alarm Interval
Channel Off-line
Alarm Interval
Disk Abnormal
Alarm Interval
Slave Device
Off-line Alarm
Interval
Alarm for No
Recording
Daytime Period
Threshold for No
Record in Daytime
be detected by the recording monitoring module (RecMonitor). Once this feature is
enabled, the recording service will be restarted whenever it is accidentally stopped
so that the recording sever can resume the recording even if there is something
wrong with it.
Sets whether to enable the alarm feature, including three modes: Web, Beep and
E-mail.
Alarm interval in case the recording service (RecSvr) goes abnormal and is not
recovered.
Alarm interval in case the voice channel is off-line and not recovered.
Alarm interval in case the disk goes abnormal and is not recovered.
Alarm interval in case slave devices in centralized management are off-line and not
recovered.
Sets whether to send alarm when no recording occurs for a specified time period.
Only when this item is set to Yes are these items Threshold for No Record in
Daytime, Daytime Period and Threshold for No Record at Night valid.
Time period to be regarded as daytime. The other time in the day will be regarded
as night.
Time threshold for no recording alarm in the daytime, calculated by minute. The
daytime can be set in the item Daytime Period.
ATP2410 User Manual (Version 4.0.0.0) Page 27
Threshold for No
Record at Night
Long Time No
Record Alarm
Interval
Send E-mail on
Alarm
Mail Test
Mail User
Password
Mail Server
Mail Recipient
Mail Port Sets the port of the mail server, with the default value of 25.
SSL Encryption Sets whether to enable the SSL encryption feature.
Time threshold for no recording alarm at night, calculated by minute. Apart from the
time set in the item Daytime Period, all the rest is regarded as night.
Alarm interval in case of no recording.
Sets whether to send e-mail to the designated mail box when alarm occurs. For
detailed information about alarms, refer to 3.15 Alarm Info. Please note that the
recording server must be enabled to access a designated mail server; otherwise
this feature will get invalid.
Sends a test e-mail to a designated mail box. Make sure the item Mail User is set
correct so that this alarm e-mail can be received.
The mail account sending the alarm e-mails. We suggest you apply a specialized
mail account to send alarm e-mails.
Password of the mail account sending the alarm e-mails. As this password is
plaintext, we suggest you apply a specialized mail account to send alarms to avoid
the password and corresponding information of the mailbox being acquired by other
users with recording management authorities.
The SMTP Server for the mail account sending alarms. Make sure the recording
server is able to access this mail server; otherwise the alarm e-mails cannot be sent
successfully.
The alarm e-mail recipient. If there are multiple recipients, you should separate
them by ‘,’.
3.4.7 Time
Figure 3-28 Time Setting Interface
ATP2410 User Manual (Version 4.0.0.0) Page 28
See Figure 3-28 for the time setting interface. The time can be modified manually or synchronized
with NTP. To change it manually, tick the checkbox after System Time and do the modification in
the following edit box. To synchronize it with NTP, tick the checkbox after Synchronize with NTP
to enable this feature (disabled by default) and fill in the items Time Zone, NTP Server Address
and Period.
After configuration, click Save to save the above settings into the database; click Reset to restore
the configurations. The settings will not go into effect until you save it.
Item Description
System Time Sets the current time of the recording system.
Time Zone Sets the current time zone.
Synchronize with
NTP
NTP Server Address IP address used to synchronize the time with NTP.
Period Time period to synchronize the time with NTP.
Enables the feature to synchronize the time with NTP.
3.4.8 SNMP
Figure 3-29 SNMP Setting Interface
See Figure 3-29 for the SNMP setting interface which is used to configure SNMP parameters.
Users can use the SNMP browser to acquire information on the recording system. The table
below explains the above items.
Item Description
SNMP Configuration Sets whether to enable the SNMP service.
SNMP Server
Address
Monitoring Port
Read-only
Community String
ATP2410 User Manual (Version 4.0.0.0) Page 29
IP address used to acquire information on the recording system with SNMP.
SNMP monitoring port number, with the default value of 161 and not suggested to
modify.
Read-only SNMP community string, having the same feature as password.
3.4.9 Remote Update
Figure 3-30 Remote Update Interface
Remote update is used to update the WEB interface, the recording service and the kernel version
of the recording server. To update, just put the installation package ATP2400_xxxxxx.pack
provided by our company to your local PC, select it by Select an Update File and click Update.
After update, you should login the system again. Note that clicking Reset can only delete the
selected update file but not cancel the operation of Update.
3.4.10 WEB Settings
Figure 3-31 WEB Settings Interface
See Figure 3-31 for the WEB Settings Interface. You can set the port of the WEB page service
according to your requirement. The default value is 80.
3.5 User Management
Figure 3-32 User Management Interface
See Figure 3-32 for the user management interface. The above list shows the users of the
recording management software and their corresponding authorities. Only the users with
management authority can enter this interface and do such operations as adding or deleting users,
designating each user’s authorities and browsing each user’s original passwords. Authorities
include: System Settings, User Management, Info Management, Recording Management,
Channel Settings, Real-time Monitor, File Deletion, Statistical Report, Log Inquiry, Database
Management, Centralized Management, Centralized Query and FTP Management.
Note:
ATP2410 User Manual (Version 4.0.0.0) Page 30
For safety reasons, this interface will not show the information and authorities of the super
user- administrator.
Click the Add New button on the top right corner to add new users. See Figure 3-33.
Figure 3-33 Add New User
The table below explains the above items in Figure 3-33.
Item Descriptions
User Name
User Password Login password of the user.
Confirm Password Enters the login password again.
Sys Settings Refer to 3.4 System Settings. Only the users with this authority can do
ATP2410 User Manual (Version 4.0.0.0) Page 31
User name displayed on the user management interface. It is also the login name of
the user.
User Manage
Info Manage
Rec Manage
Channel Settings
Monitoring
Stats Report
Log Inquiry
File Deletion
DB Manage
Central Manage
Central Query
FTP Manage
Channels
configurations in the system setting column.
Refer to 3.5 User Management. Only the users with this authority can see this
column on the menu and enter the user management interface to do corresponding
configurations.
Note: As users with this authority can obtain the password of other users from the
user info modification interface, the administrator should think it over every time
before adding a new one.
Refer to 3.6 Info Management
column on the menu and enter the station management interface and the customer
management interface to do corresponding inquiries and configurations.
Refer to 3.3.2 Recording Parameters
column on the menu and set the recording parameters.
Refer to 3.2 Channel State
channel properties.
Refer to 3.14 Real-time Monitoring
the recording channels in real time.
Refer to 3.7 Statistical Report
in the menu and obtain the statistical reports of the recording information.
Refer to 3.8 Operating Log
on the menu and enter the operating log interface to obtain the detailed operations
of each WEB user.
Users with this authority can delete the queried recording files on the recording
query results interface (see
Figure 3-8).
Refer to 3.10 Database Management
auto backup of the database, open the external interface to the database and
restore the database.
Refer to 3.11 Centralized Management
can manage all the slave devices in the network.
Users with this authority can read all data and information on both master and slave
devices.
Y
ou can log in the FTP via your username and password to check the recording
files.
Note: The settings will not go into effect until you reboot the recording system.
he allowed range of channels for a user to check, set by the administrator. The
T
current user can only check the information on those channels and recording files
with authority. Meanwhile, only the channel information which the user has authority
to read will pop up in time.
. Only the users with this authority can see this
. Only the users with this authority can see this
. Only the users with this authority can modify the
. Only the users with this authority can monitor
. Only the users with this authority can see this column
. Only the users with this authority can see this column
. Only the users with this authority can set the
. Only the master users with this authority
After configuration, click Save to save the above settings into the database; click Close to cancel
the settings.
Click Modify in Figure 3-32 to modify the user information. See Figure 3-34 for the user info
modification interface.
The configurations on this interface are the same as those on the user
adding interface.
ATP2410 User Manual (Version 4.0.0.0) Page 32
Figure 3-34 Modify User Info
To delete a user, check the checkbox before username in Figure 3-32 and click the Delete button.
Check All means to select all available items in the current page; Uncheck All means to cancel
all selections in the current page; Inverse means to uncheck the selected items and check the
unselected.
3.6 Info Management
Figure 3-35 Info Manage Menu
Info Management contains Station Management and Customer Management. See below for
ATP2410 User Manual (Version 4.0.0.0) Page 33
detailed introductions.
3.6.1 Station Management
Figure 3-36 Station Management Interface
See Figure 3-36 for the station management interface. The above list shows the information of all
stations in the system, including employee number, name, department, position and remarks.
Users can add, modify, delete and export such station information. Click the Add New button on
the top right corner and you can add new stations to the above list. See Figure 3-37 for the station
adding inte
rface.
Figure 3-37 Add New Stations
The station adding interface supports adding a single station or a batch of stations. The table
below explains the above items in Figure 3-37.
Item Description
When this item is checked, you can import up to 400 pieces of station information
from a local .CSV table to the database at a time (An Excel file can be saved as
Batch Add
Name; Number
ATP2410 User Manual (Version 4.0.0.0) Page 34
a .CSV file). Only when the table complies with the pattern shown in Figure 3-38 can
it be imported. In batch adding, if the employee number imported is the same as the
one that already exists, it will overwrite the current station information.
Employee name and number of the station to be added. They are options you must
fill in when adding a new station and cannot be left empty. The employee number
can be the combination of characters and numbers. It cannot be the same as an
existing one.
Department;
Position; Remarks
Other corresponding information of the station to be added. They are optional.
The pattern of the Excel table for the station batch adding:
Figure 3-38 Excel Pattern for Station Batch Adding
After configuration, click OK to save the above settings into the database. The newly added
stations will be displayed in the list in Figure 3-36. Click Close to cancel the
settings.
Click Modify in Figure 3-36 to modify the station information. See Figure 3-39 for the station info
modification interface. The configurations on this interface are the same as those on the station
adding interface.
Figure 3-39 Modify Station Info
Besides, users can do the following operations on the station management interface:
Operation Description
Export
Delete
Clear Clear all station information.
Export all station information to local in the form of a .CSV table, facilitating the
backup of station information.
Delete checked stations. Check All means to select all available items in the
current page; Uncheck All means to cancel all selections in the current page;
Inverse means to uncheck the selected items and check the unselected.
ATP2410 User Manual (Version 4.0.0.0) Page 35
3.6.2 Customer Management
Figure 3-40 Customer Management Interface
See Figure 3-40 for the customer management interface. The above list shows the information of
all customers in the system, including customer name, company, department, position, telephone,
e-mail, remarks and so on. Users can add, modify, delete and export customer information on this
page. Click the Add New button on the top right corner and you can add new customers to the
above list. See Figure 3-41.
ATP2410 User Manual (Version 4.0.0.0) Page 36
Figure 3-41 Add New Customers
The customer adding interface supports adding a single customer or a batch of customers. The
table below explains the above items in Figure 3-41.
Item Description
When this item is checked, you can import up to 400 pieces of customer
information from a local .CSV table to the database at a time (An Excel file can be
Batch Add
Name Name of the customer to be added. It is an option that you must fill in when
ATP2410 User Manual (Version 4.0.0.0) Page 37
saved as a .CSV file). Only when the table complies with the pattern shown in
Figure -3-42 can it be imported. In batch adding, if
imported is the same as the one that already exists, it will overwrite the current
customer information.
the customer telephone
adding a new customer and cannot be left empty.
Company;
Department; Position;
Address; Zipcode;
Fixedlinenum;
Phonenum; Faxnum;
E-mail; Remarks
Other corresponding information of the customer to be added. They are optional.
The pattern of the Excel table for the customer batch adding:
Figure -3-42 Excel Pattern for Customer Batch Adding
After configuration, click OK to save the above settings into the database. The newly added
customers will be displayed in the list in Figure 3-40. Click Close to cancel the
settings.
Click Modify in Figure 3-40 to modify the customer information. See Figure 3-43 for the customer
info modification interface. The configurations on this interface are the same as those on the
customer adding interface.
ATP2410 User Manual (Version 4.0.0.0) Page 38
Figure 3-43 Modify Customer Info
Besides, users can do the following operations on the customer management interface:
Item Description
Export
Delete
Clear Clear all customer information.
ATP2410 User Manual (Version 4.0.0.0) Page 39
Export all customer information to local in the form of a .CSV table, facilitating
the backup of customer information.
Delete checked customers. Check All means to select all available items in the
current page; Uncheck All means to cancel all selections in the current page;
Inverse means to uncheck the selected items and check the unselected.
3.7 Statistics Report
Figure 3-44 Statistics Configuration Interface
Statistical Report provides multiple terms and term combinations for recording inquiry and
statistics. See Figure 3-44. The table below explains the above items.
Item Description
Time period of the recording, including time and date. For example, the recording
Start Date; Start Time;
End Date; End Time
Call Direction
Recording length
CallerID; CalleeID Filter according to CallerID or CalleeID. Just enter the number to be counted.
Station; Station
Branch; Station Name
Call Type
Query Range
Missed Call
in the above figure is required to start from 2015-01-21 14:02:37 and end at
2015-01-23 09:23:39. Please note that the end time and date should not be
earlier than the start time and date.
Used as a condition to filter recoding files. Three options are available: All, Call in,
Call out, taking the monitoring end as reference.
Length of the recording, used as a condition to filter recoding files. Three options
Unlimited, Longer than and Shorter than are available. Unlimited means ignoring
this filter condition. To choose Longer than or Shorter than, you should enter the
exact time length in the edit box (calculated by s). Once set, only the qualified
recordings will be counted.
Filter according to Station, Station Name or Station Branch. For more information,
refer to 3.6.1 Station Management
Filter according to call type. The optional values are All, Local, To ll , among which
All means ignoring this filter condition.
Sets the range of data query for the statistics report, including two options: Latest
100,000 records and All records. The default value is Latest 100,000 records as it
is time-consuming to inquire all recording files.
s whether to filter the missed calls. Three options Unlimited, Yes, No are
Set
available, and the default value is Unlimited.
.
After the configuration of the above terms, click Count to obtain the statistical report (see Figure
3-45); click R
ATP2410 User Manual (Version 4.0.0.0) Page 40
eset to restore the configurations.
Figure 3-45 Statistical Report
Statistical Report (see Figure 3-45) gives the statistic data of each channel and that of all
channels, which include the number of total calls, toll calls, local calls, outgoing calls, incoming
calls, missed calls, as well as total call length, average call length, toll call length, local call length,
incoming call length and outgoing call length.
Click the Export button on the top right corner to export the statistical report to Excel.
3.8 Operating Log
Figure 3-46 Operating Log Interface
See Figure 3-46 for the operating log interface. It shows the detailed operations of the WEB users
as well as the start and stop status of RecSvr and RecMonitor, helping the administrator to get the
thorough information about the use of the recording management software. The logged
operations are sorted by the descending order of operating time, i.e. the newer the operation is,
the higher it will be ranked on the WEB page.
Click Export button on the top right corner to export the log to Excel for review and backup. Due
to the upper limit of Excel 2003, the recording server only supports exporting up to 65535 inquired
logs. A prompt will pop up once the number of logs you export exceeds 65535.
ATP2410 User Manual (Version 4.0.0.0) Page 41
3.9 Change Password
Figure 3-47 Password Changing Interface
See Figure 3-47 for the password changing interface. You are required to enter the current
password and the new password, and then confirm the new password. Click Save to apply the
new password; click Reset to restore the configurations. After changing the password, you are
required to login again. On this interface, you can only change your own password. If you forget
your current password, turn to the administrator for help.
3.10 Database Management
Database Management is used for querying the database state of the recording server, setting
the auto backup feature and restoring the database. Database Management includes two parts:
Database Settings and Database Restore. See Figure 3-48.
Figure 3-48 Database Management
ATP2410 User Manual (Version 4.0.0.0) Page 42
3.10.1 Database Settings
Figure 3-49 Database Settings Interface
See Figure 3-49 for the Database Settings interface. The database table list shows the basic
information and status of the tables in the database. The table below explains the information
items in the above list.
Item Description
Tab le Name
Table State
Remarks
Name of the table in the database. It can be ignored when the table state shows
normal.
State of the table in the database, Normal or Abnormal. When the Table State
column shows Abnormal, you can use the database restore feature to restore
the database to an earlier backup.
Supp
lementary information about the table state. When the Table State column
shows Abnormal, the Remarks column will provide you with detailed
information.
Users can also do the following configurations on the Database Settings interface:
Item Description
Sets whether to backup the database automatically in order to avoid data loss.
Auto Backup
FTP Backup Sets whether to back up the database to the FTP server.
Only when this item is set to Yes are the configuration items FTP Backup, Auto
Backup Interval, Backup Path and Backup Deletion Interval valid. The
default value is No.
Auto Backup
Interval
Backup Path The path for auto backup of the database.
ATP2410 User Manual (Version 4.0.0.0) Page 43
Time interval to backup the database automatically, calculated by h, with the
default value of 24.
Backup Deletion
Interval
Enable External
Interface
External Interface
Account
Password
Permitted Access
to External
Interface
The validity of a backup file in the database (i.e. how soon will a backup file in the
database be deleted), calculated by day, with the default value of 7. Range of
value: 1~10.
Sets whether to open the database for secondary development. The default
value is No.
Username for accessing the database through an external interface. If the
configuration item Enable External Interface is set to Yes , this configuration
item should not be left empty.
Password for accessing the database through an external interface. If the
configuration item Enable External Interface is set to Yes , this configuration
item should not be left empty.
IP address of the external interface which is permitted to access the database.
To set multiple IP addresses, separate them by ‘,’. This configuration item set to
‘*’ means all addresses are permitted to visit the database.
After configuration, click Save to save the above settings; click Reset to restore the
configurations.
3.10.2 Database Restore
Figure 3-50 Database Restore Interface
See Figure 3-50 for the Database Restore interface. The above list shows the time point of the
database backup. To restore the database to a designated backup, tick the checkbox before the
corresponding time point and click the Restore button. Note that only one time point can be
selected for your restoration; otherwise, it may report error. Clicking Reset can cancel the current
selection of the time point but cannot cancel the operation of Restore.
To delete the database backup, tick the checkbox before the corresponding time point in Figure
3-50 and click the Delete button. Check All means to
select all available items on the current
page; Uncheck All means to cancel all the selections on the current page.
3.11 Centralized Management
Figure 3-51 Centralized Management
Centralized Management provides an access for administrator to manage all slave devices in
the network via a master device. In the network, the number of master devices is limited to one,
but that of slaver devices is unlimited. Centralized Management includes two parts:
Management and Master/Slave Settings. See Figure 3-51. The Managem
ent interface, open to
ATP2410 User Manual (Version 4.0.0.0) Page 44
the master only, shows the basic information about all devices under management and supports
the modification of their parameters and the query of such information as channel state, recording
files, statistics reports and operating logs. The interface Master/Slave Settings, open to both the
master and the slave(s), is used to set the working mode (master/slave) and the number of the
current device.
3.11.1 Management
Figure 3-52 Management Interface
See Figure 3-52 for the Management interface where the device list shows all devices under
management in the network. Only the master device users with the centralized management
authority can enter this page to query or configure the information of the slave devices. A new
device can be added to the list by the Add New button at the bottom of the list. See Figure 3-53
for the slave device addi
ng interface.
Figure 3-53 Add Slave Device
Enter an IP address to add a new device. Another way to add a new device to the list is to click the
Search button at the bottom of the list in Figure 3-52. However, only those devices in the same
network segment will be found
out in this way. For example, if the IP address of the master device
is 192.168.1.5, only those slave devices in the network segment from 192.168.1.1 to
192.168.1.255 can be searched, and those in another segment shall be added manually. See
Figure 3-54 for the device searching interface. The number di
splayed on the right side of the
interface indicates the time used for searching.
Figure 3-54 Device Searching
Please wait for a while until a dialog pops up and prompts ‘Searching completed!’. Then all
searched devices will appear in the device list in Figure 3-52.
The table below explains the items shown in Figure 3-52.
Item Description
Device No. Number of a device under the centralized management.
Device IP IP address of a device under the centralized management.
Total Channels Total number of channels used by a device under the centralized management.
ATP2410 User Manual (Version 4.0.0.0) Page 45
Working State
Details
Recording Files
Statistics Reports
Logs
Parameters
Current working state of a device under the centralized management. The
working states include:
Working State Description
Device Off-line The device fails to be connected or has no response.
Normal The device is working normally.
DB Abnormal The device database goes abnormal.
Rec Program Abnormal The recording service program goes abnormal.
HD Abnormal There is no HD in the device or the HD is full.
Channel Off-line
Rec Operation Abnormal
Some channel(s) in the device is off-line (This working state
only appears when the channel abnormal alarm is enabled.)
Long time no recording in the daytime or at night. (This working
state only appears when the long time no recording alarm is
enabled.)
When a device goes abnormal (i.e. its Working State is not Normal), it will alarm
via sound, WEB prompt or e-mail according to the settings. You can move the
mouse onto the working state of the device to view the detailed information.
You can click the hyperlink Details under the Channel column to query the state
of channels on each slave device. Refer to 3.2 Channel State
for detailed
descriptions.
You can click the hyperlink Recording Files under the Inquiry column to query
the recording files for each slave device. Refer to 3.3.1 Recording Inquiry
for
detailed descriptions.
You can click the hyperlink Stats Report under the Inquiry column to obtain the
statistics reports for each slave device. Refer to 3.7 Statistics Report for detailed
descriptions.
You can click the hyperlink Logs under the Inquiry column to query the
operating logs of each slave device. Refer to 3.8 Operating Log
for detailed
descriptions.
You can click the hyperlink Parameters under the Settings column to configure
each slave device. The configurable parameters include two parts:
Sort Configuration Interface
System Settings
Info Management
Recording Parameters, System, Stora ge, Number, IP,
Debugging Log, Alarm, Time, Remote Update, Reboot&Reset
Station Management, Customer Management, User
Management, Change Password
For more details about the above configuration interfaces, click the hyperlinks to
refer to the corresponding chapters in this manual. On such interfaces in
centralized management as Recording Parameters, Driver, Storage, Debugging
Log and Time, once the modified parameters are to be saved, a dialog box will
prompt asking you for synchronization. See Figure 3-55. Therefore, you can
s
ynchronize the configured parameters of the current device to other devices as
needed.
See Figure 3-55 for the Synchronization interface. To synchronize the configured parameters of
the current device to other devices, tick the checkbox before the device number and click OK.
Just to save the settings into the current device without doing any synchronization, directly click
OK (the current device is ticked by default). Click Cancel to cancel the current settings, not saving
any modification.
ATP2410 User Manual (Version 4.0.0.0) Page 46
Note: If the current device has N channels, the device to be synchronized has M channels and M
is larger than N, in 3.4.1 System Configuration
, only the first N channels will be synchronized,
with the parameters on the other M-N channels unchanged.
Figure 3-55 Synchronization Interface
To delete a slave device from the device list for centralized management, tick the checkbox before
the device in Figure 3-52 and click the Delete button.
T
o restart the devices under centralized management at one time, tick the checkbox before the
devices in Figure 3-52 and click the R
estart Service or Restart System button. This feature is
important especially for parameter configurations (including the configuration via synchronization).
Only after the reboot of recording service will the parameter modifications (except those in 3.5
User Management) go into effect .
Check All means to select all available items on the current page; Uncheck All means to cancel
all the selections on the current page.
3.11.2 Master/Slave Settings
Figure 3-56 Master/Slave Settings Interface
ATP2410 User Manual (Version 4.0.0.0) Page 47
See Figure 3-56 for the Master/Slave Settings Interface. Both master and slave device users
have the right to enter this interface and configure the working mode and the number of the
current device. The table below explains the configuration items in Figure 3-56.
Item Description
Sets the current device to be a master or a slave. The slave is managed by the
master, and the master is managed by the administrator. Five modes are now
available:
Mode Description
Independent Works as an independent device.
Working Mode
Device No. Number of the current device.
Device IP IP address of the current device. This configuration item cannot be modified.
Master IP
Master Works as a master in the centralized management where the
recording device is the host computer,
Slave Works as a slave in the centralized management where the recording
device is the host computer,
Slave (PC) Works as a slave in the centralized management where the PC is the
host computer,
Slave (PC VPN) Works as a slave in the centralized management where the PC
he IP address of the device which works as a master in the centralized
T
management for the current recording server.
(connected via VPN) is the host computer,
After configuration, click Save to save the above settings into the database; click Reset to restore
the configurations.
3.12 Reboot&Reset
Reboot&Reset includes Reboot RecSvr, Reboot System and Clear Data. See below for detailed
introductions.
Figure 3-57 Reboot&Reset Interface
Reboot RecSvr means to restart the recording server (RecSvr) at the WEB end. This feature is
important especially for parameter configuration. Any parameter modification can go into effect
only after the reboot of RecSvr.
Reboot System means to restart the whole recording server.
See Figure 3-58 below for the Clear Data interface. Only administrators
the menu. The data to be cleared contains recording files, log files, backup files, as well as station,
customer, number, user information, recording content and operating logs; the data not to be
cleared contains recording parameters, system settings, etc. To execute this operation, you are
required to enter and confirm your password before clicking the button OK. As this operation
cannot be cancelled, please do it with caution.
can see this feature on
ATP2410 User Manual (Version 4.0.0.0) Page 48
Figure 3-58 Clear Data
3.13 FTP Feature
The FTP feature is designed for the bulk download of recording files. See below for detailed
instructions. Type in ‘ftp://IP address of the recording server’ into the browser and log in FTP. By
default the username of FTP is “admin” and the password is the one corresponds to this account;
Besides, the username and password of the account that has the FTP management permission
can be used for loggin, too. After login, all folders in disks are listed. You can find the needed
recording files following the save path set on the storage configuration interface and download
them.
The recording filename is created automatically in the following format:
yymmdd_hhmmssmmm_ch_userid_localnumber_remotenumber_calldirection.wav
The meaning of each item herein is explained in the table below.
Item Description
yymmdd_hhmmssmmm
ch Recording channel number, numbered from 1.
userid Station number, allowed to be null.
localnumber Local number.
remotenumber Remote number.
calldirection
Recording start time. “yymmdd” indicates year, month and date;
“hhmmssmmm” indicates hour, minute, second and millisecond.
ection. 0 indicates call in; 1 indicates call out; -1 indicates no call
Call dir
direction.
Example:
Recording filename: 20140218_173229541_1_husidong_8236_8218_0.wav
It means the recording starts at 2014-02-18 17:32:29.541 on Channel 1. The station number is
husidong, the direction is call in, the local number is 8236 and the remote number is 8218. If the
station number becomes unknown, the userid husidong herein will change to null and the
filename will be 20140218_173229541_1_8236_8218_0.wav.
Note: The recording filename is created automatically and cannot be modified. Otherwise,
the recording item can not be inquired by the 3.3.1 Recording Inquiry
ATP2410 User Manual (Version 4.0.0.0) Page 49
feature.
3.14 Real-Time Monitoring
3.14.1 Install “RemoteListener”
If a channel is recording, its Monitor column on the 3.2 Channel State interface will display the
Monitor icon
If your computer is not installed with the monitoring plug-in, click the Monitor icon and you can
see a prompt asking you to set the security level. See Figure 3-60. Follow the instructions to
configure the IE explore
'Custom Level' and enable 'Initialize and script ActiveX controls not marked as safe for scripting'.
. See Channel 2 in Figure 3-59. Click this icon to monitor the channel in real time.
Figure 3-59 Channel State Interface
r: Open it and click 'Tools > Internet Options >Security Tab'; then click
Figure 3-60 Prompt: Set Security Level
After setting the security level, click the Monitor icon again. A dialog box will appear asking you to
download and install the monitoring plug-in. See Figure 3-61. Click OK to downloa
d it.
Figure 3-61 Prompt: Download Monitoring Plug-in
See Figure 3-62 for the downloaded file RemoteListener.exe.
Figure 3-62 Monitoring Plug-in
Double click RemoteListener.exe to install the monitoring tool. During installation, if the figure
below appears, click Yes.
Figure 3-63 Registry Editor
ATP2410 User Manual (Version 4.0.0.0) Page 50
3.14.2 Monitor a Channel
After installation, click the Monitor icon of the channel to be monitored on the channel state
interface (see Figure 3-59) and a blue icon will appear in the system tray (see Figure 3-64)
indicating that the monitoring tool is
can it be monitored in real time.
When a channel is being monitored, the icon in its Monitor column will turn into the Stop
Monitor icon
. See Channel 1 in Figure 3-65. Click the Stop Monitor icon to stop the
monitoring of the current channel.
running. Please note that only when a channel is recording
Figure 3-64 Icon for Monitoring Tool
Figure 3-65 A Channel Being Monitored
3.14.3 Use Monitoring Tool
Figure 3-66 Monitoring Plug-in
The monitoring tool is displayed as a blue icon in the system tray. Right click the icon and the
operating interface will appear as shown in Figure 3-66. Users can do the following operations on
this interface
Operation Description
Device Select the playback equipment.
Test Test the playback equipment.
Start Start Monitoring.
Quit Exit the monitoring tool.
Note:
Not all the monitored voice data will be saved to recording files. Whether a recording to be
saved or not depends on multiple judging conditions, such as Recording Direction,
Minimum Recording Length, etc. Only the qualified voice data will be saved.
:
3.15 Alarm Info
3.15.1 SD Card Alarm
Alarm Content No SD Card Detected
ATP2410 User Manual (Version 4.0.0.0) Page 51
Alarm Message None
Warning Tone 1 long sound (A long sound lasts 1000ms)
Note
As the SD c
continuously in case of no SD card found in the device.
ard is necessary for running of device, this alarm will be reported
3.15.2 Disk Abnormal Alarm
Alarm Content Disk Full
Alarm Message Disk %s full (%u<%u)
Warning Tone
Example
Alarm Content No HD Detected
Alarm Message Hard Disk can not be found!
Warning Tone
2 short sounds and 1 long sound (A short sound lasts 50ms while a long sound lasts
400ms; the interval between two adjacent sounds is 100ms)
Example: Disk E full (600<800)
In the above example, Disk E, whose available capacity is 600MB, is regarded as full,
because the reserved block space for each disk is set to 800MB.
2 short sounds and 1 long sound (A short sound lasts 50ms while a long sound lasts
400ms; the interval between two adjacent sounds is 100ms)
3.15.3 Long Time No Recording Alarm
Alarm Content Long Time No Recording at Night
Alarm Message Long time no recording at night!
Warning Tone
Alarm Content Long Time No Recording in Daytime
Alarm Message Long time no recording in daytime!
Warning Tone
2 short sounds (A short sound lasts 50ms and the interval between two adjacent short
sounds is 100ms)
2 short sounds (A short sound lasts 50ms and the interval between two adjacent short
sounds is 100ms)
3.15.4 Channel Off-line Alarm
Alarm Content Voice Channel Off-line
Alarm Message
Warning Tone
Abnormally working channels: a b c d
The characters ‘a b c d’ above indicate the numbers of the abnormally working channels.
4 short sounds (A short sound lasts 50ms; the interval between two adjacent short
sounds is 100ms)
3.15.5 RecSvr Abnormal Alarm
Alarm Content RecSvr Abnormal
Alarm Message RecSvr Abnormal!
Warning Tone
ATP2410 User Manual (Version 4.0.0.0) Page 52
2 long sounds (A long sound lasts 200ms; the interval between two adjacent long sounds
is 100ms)
3.15.6 Slave Device Off-line Alarm
Alarm Content Slave Device in Centralized Management Off-line
Alarm Message
Warning Tone 1 long sound (A long sound lasts 100ms)
DEVICE:a(b) is Off Line!
a indicates the device IP address while b indicates the device number.
3.15.7 Database Damage Alarm
Alarm Content Database Damaged
Alarm Message None
Warning Tone
3 long sounds (A long sound lasts 200ms; the interval between two adjacent long sounds
is 100ms)
ATP2410 User Manual (Version 4.0.0.0) Page 53
Appendix A Technical Specifications
Dimensions
440×44×200 mm3
Weight
2.7 kg (Excluding hard disk and accessories)
Environment
Operating temperature: 0℃—40℃
Storage temperature: -20℃—85℃
Humidity: 8%— 90% non-condensing
Storage humidity: 8%— 90% non-condensing
Input/output Interface
Telephone line jack: 8/16/24 2-pin RJ11 jacks
Audio Specifications
Codec: CCITT A/μ-Law 64kbps
IMA ADPCM 32kbps
Distortion: ≤2%
Frequency response: 300-3400Hz(±3dB)
Signal-to-noise ratio: ≥38dB
Power Requirements
+19V DC：1A
Maximum power consumption: ≤19W
Impedance
Input impedance: ≥1MΩ/500V DC;
≥8kΩ/1000V AC
Insulation resistance of telephone line from PC:
≥2MΩ/500V DC
Telephone line impedance: Compliant with the
national standard impedance for three-component
network
Audio Encoding & Decoding
A-Law 64kbps
μ-Law 64kbps
ADPCM 32kbps
G.729A 8kbps
Sampling Rate
8kHz
Maximum System Capacity
Up to 24 channels
Safety
Lightning resistance: Level 4
ATP2410 User Manual (Version 4.0.0.0) Page 54
Appendix B Troubleshooting
1. How to solve the problem that I can neither play the recording files nor monitor the
recording in real time via IE10?
Currently, the IE10 under Win7 or Win8 operating system is integrated with media player12
which is not well compatible with the web. To solve the problem, you can replace it by media
player11 or below versions, or use other software such as realplayer (downloaded via
http://www.real.com/
2. Is ATP2410 standard 1U in height? Can it be fixed on the rack without pallet?
Yes. ATP2410 adopts the standard 1U design and can be fixed on the rack without pallet.
3. How many days of recording files can be stored in an ATP2410-24 machine equipped
with a 500G HD?
The table below illustrates the data calculated based on continuous 24-hour recording on all
24 channels.
).
Codec Days
A-law 30
μ-Law 30
ADPCM 63
G.729A 240
ATP2410 User Manual (Version 4.0.0.0) Page 55
Appendix C Technical/sales Support
Thank you for choosing Synway. Please contact us should you have any
inquiry regarding our products. We shall do our best to help you.
Headquarters
Synway Information Engineering Co., Ltd
http://www.synway.net/
9F, Synway D&R Center, No.3756, Nanhuan Road, Binjiang District,
Hangzhou, P.R.China, 310053
Tel: +86-571-88860561
Fax: +86-571-88850923
Wechat QR Code: Scan the QR code below to add us on Wechat.
Technical Support
Tel: +86-571-88864579
Mobile: +86-18905817070
Email: techsupport@sanhuid.com
Email: techsupport@synway.net
MSN: synway.support@hotmail.com
Sales Department
Tel: +86-571-88860561
Tel: +86-571-88864579
Fax: +86-571-88850923
Email: sales@synway.net
ATP2410 User Manual (Version 4.0.0.0) Page 56
Loading...
