SYNTEK STA-UI-A0035 User Manual

Download

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

STA-UI-A0035

(BlueW_2310 USB version)

Wifi 802.11 b/g and Bluetooth v2.0 + EDR

Combo USB Dongle

User’s Manual

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

1. Before installation

Requirement environments:

• Windows Vista / Vista-64 / XP sp2 / XP-64 / 2000 sp4 or above

• At least 50 MB of available free hard disk space for installing the drive

• An IEEE 802.11b, or IEEE 802.11g Access Point (for Infrastructure Mode) or

another Wireless Adapter (for Ad-Hoc Mode). Also, the STA-UI-A0035 can compatible with most 802.11n AP router.

• One Available USB port

• CD-ROM Drive (for Driver installation only)

2. Package Contents Check

9 STA-UI-A0035 Combo USB Dongle x 1

 Software CD x 1 include

 User’s Manual  IVT BlueSoleil Bluetooth software and driver

 3DSP WLAN windows software and driver  This Quick Setup Guide x 1  Warranty Card x 1

# Please informs your dealer if there are any missing or damaged parts.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

Contents

1. Introduction............................................................................................................4

2. Product Features.....................................................................................................5

3. Install the Drivers and Utilities..............................................................................6

4. Wireless Configuration........................................................................................19

4.1 Configuring Your Wireless Network with Windows XP .........................19

4.2 Single Access Point Network...................................................................21

4.3 Multiple Access Point Network...............................................................22

4.4 Setting Up a Peer-to-Peer Network..........................................................23

4.5 Wireless Performance Considerations .....................................................24

4.6 WiFi Security Considerations ..................................................................25

5. Bluetooth Configuration and Utilities..................................................................26

5.1 Start the Bluetooth Device .......................................................................26

5.2 Manual Configuration Bluetooth Dongle................................................27

5.3 Start Bluetooth .........................................................................................30

5.4 Establish Bluetooth Connection...............................................................30

5.5 Stop the Bluetooth Device .......................................................................31

6. 3DSP Combo USB Dongle Utility Configuration...............................................33

7. Driver Uninstallation ...........................................................................................34

8. Troubleshooting...................................................................................................37

9. Specifications.......................................................................................................40

10. Contact Information.....................................................................................41

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

1. Introduction

The SYNTEK STA-UI-A0035 product provides the highest level of integration

and most aggressive BOM cost by integrating IEEE 802.11b/g and Bluetooth v2.0 + EDR into a single MAC/Baseband chip utilizing a sin gle 2.4GHz transceiver. Integrated on-chip power amplifier and LNA reduce external component count, while still able to deliver ample transmit power for most applications.

Different from any other wireless LAN and Bluetooth chip se t vendor, SYNTEK and 3DSP uses its patented Software Radio technology to implement both wireless LAN and Bluetooth in software. The highly optimized software radio DSP technology enables STA-UI-A0035 to integrate class 1 Bluetooth v2.0 + EDR function without any added cost to the total sol ution. No extra antenna, P A, RF tr ansceiver, resistor, capacitor, crystal or any components are needed. The software solution even guarantees the Bluetooth RF performance if the wireless LAN performance is tested to be good. It eliminates the need for system manufacturers to separately test the module’s Bluetooth RF performance, therefore reduce the testing time and cost.

The STA-UI-A0035 utilizes 3DSP’s patent pending technologies to fundamentally solve the interference and performance issues existed during 802.11b/g and Bluetooth coexistence, thus improving both 802.11b/g a nd Bluetooth performance and link stability in real environment. As a result, it enhances user experience in a totally wireless environment, where all devices are connected wirelessly through either Bluetooth link or 802.11b/g link.

The single installation package allows for easy setup and configuration of both

802.11b/g and Bluetooth devices. Combined user interface is intuitive to use. Once configured, both wireless links operate transparently in the background.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

2. Product Features

[WiFi]

9 Data Rate up to 54Mbps. 9 Single-band 2.4-GHz 802.11b/g with Bluetooth v2.0 + EDR 9 RF IC integrated on-chip PA capable of delivering 20dBm output power 9 Low active transmit and receive power dissipation and ultra-low power in

stand-by and idle modes

9 Supports IEEE802.11 b/g

Security:

9 WPA and WPA2 for advanced authentication and encryption 9 AES and TKIP in hardware for reduced power dissipation and encryption speed 9 Worldwide regulatory support 9 Patent pending technology maximizes multimedia streaming performance over

Bluetooth over WLAN in coexistence mode

9 Patent pending Software Radio technology allows single radio, single baseband

integration of multiple standards

9 Advanced network security features include WPA, WPA2, 802.11i and 802.11x 9 Long and short preamble supported

[Bluetooth]

9 Support AFH (Adaptive Frequency Hopping) 9 Support Bluetooth v2.0 + EDR 9 Backward compatible with Bluetooth v1.1 and v1.2 9 Support for up to seven active Bluetooth devices 9 Class 1 with 18dbm PA, 100m range

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

3. Install the Drivers and Utilities

1. Insert the Installation Software CD into CD-ROM drive. If the Auto-Run function of CD-ROM is disabled, you can utilize the Windows Explorer to browse CD content and run Setup.exe manually.

If the Auto-Run function of CD-ROM is enabled (in Windows, the default setting of this function is usually enabled), then a CD menu will appear automatically.

1. The Instillation program before install 3DSP Wireless driver, the installation

program will install the requirement program “IVT BlueSoleil” and “Microsoft WPA2 hot fix” (This is not necessary in many PCs if installed) . The program will install IVT BlueSoleil first. Please press the “Yes” button start install BlueSoleil.

2. Select the Language you want to installation from the combo box, and then press

the “OK” button to continue.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

3. Please click Next button several times to continue the software installation. In the

License Agreement window, please read license agreement carefully. Select “I accept the terms in the license agreement” then click “Next” button to continue.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

4. Select you want to place the program shortcut, and indicate the location of where

you want Bluetooth Software to be stored; if you do not change the default settings, it will be stored under C:\Program Files\IVT Corporation\BlueSoleil (Recommended). Click on “Next” button to continue. Or you can select your prefers location to install. After finish, the installation program is ready for install.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

5. The Install Shield Wizard will begin to install the software and copy files to your

hard disk. After copy all the files, the installation will try to install virtual Bluetooth device in your system. It may take a few minutes, please wait it finishes the installation.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

6. After finish installation the IVT Bluesoleil, then the install system will continue

install. If your system is not install the WPA2 hotfix yet. The install program will ask you install it first.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

7. Continue install the 3DSP WLAN driver will be stored under C:\Program

Files\3DSP\BluetoothWLAN_usb\. Click the “Next” for continue.

8. The Install Shield Wizard will begin to install the software and copy files to your

hard disk. Please press “Install” for continues.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

9. While installation, currently driver is not pass the Microsoft WHQL certification.

And the system will promote the caution massage several times. Please press “Continue anyway” to continue. In the Official release driver will no longer this issue.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

10. After finish installation, please select reboot your system to finish the installation.

Or you can select to reboot later.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

11. Please plug the STA-UI-A0035 USB dongle in your PC USB port. After a few

seconds, another “Found New Hardware” message will appear briefly, as shown on the fallowing pictures. The system will prompt installation. Windows will find

another new hardware (see above), and the following screen will appear. Select No, not this time, and click next several times

, then select auto installation driver. Currently driver is not pass the Microsoft WHQL certification. And the system will promote this massage several times. In the future Official release driver will no longer this issue.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

12. The system will prompt now installation the driver for the wireless USB combo

dongle, select continue installation. Because the system will installation both WiFi and Bluetooth. So, this procedure will repeat several times.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

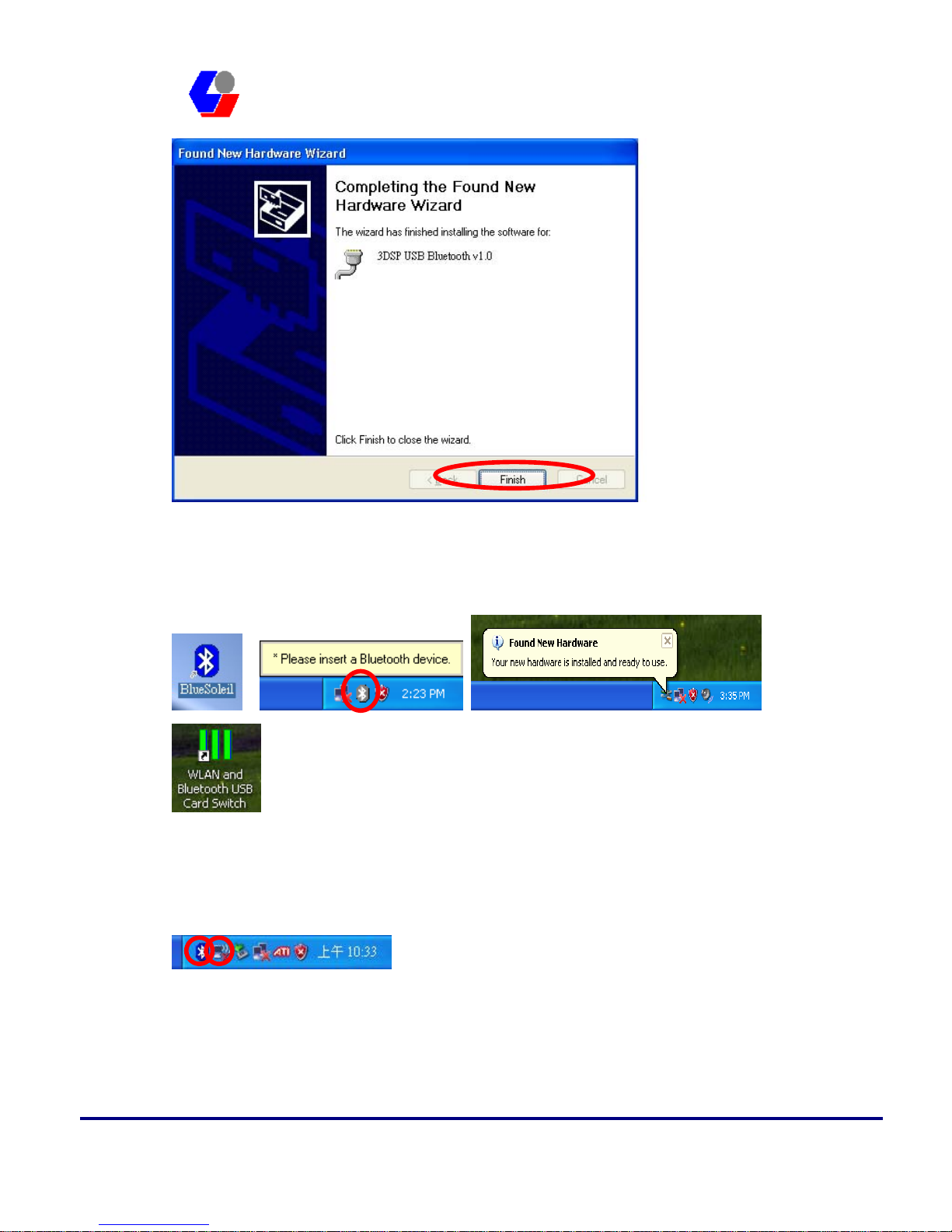

13. There are two new Bluetooth icons appear on the desktop and the windows task

bar respectively when logged in Windows operating system. For more information on the BlueSoleil, please refer to Chapter 2.

14. Please remove the Software CD after the installation is complete.

15.

A Bluetooth icon will appear in your system tray

Click Finish to close the wizard.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

4. Wireless Configuration

4.1 Configuring Your Wireless Network with Windows XP

The Windows XP SP2 operating system has the “Wireless Zero Configuration” feature, which can be used to configure and control the STA-UI-A0035 802.11b/g and Bluetooth v2.0 + EDR Combo USB Dongle. Wireless Zero Configuration is most appropriately used in home and small office networks and in ad hoc networks. Wireless Zero Configuration should not be used in medium or large networks or in the networks where a high degree of security is required.

Follow these steps to configure your USB dongle using Wireless Zero Configuration:

1. From the Start menu, select Control Panel.

2. Click Network Connections.

3. Right-click the network connection associated with your Wireless USB Dongle and select Properties.

4. Click the Wireless Networks tab.

5. Check the Use Windows to configure my wireless network settings checkbox.

6. Click the View Wireless Networks button.

7. Select the Access Point with which you want to connect.

8. Click the Connect button.

9. Type in a network key.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

Follow these steps to start Wireless Zero Configuration:

1. From the Start menu, select Run. Enter

services.msc.

2. Scroll down to Wireless Zero Configuration Service. Double-click on it to open the settings box.

3. Click the Start button to start the service.

4. Set the Startup type drop-down box to automatic.

5. Insert your wireless USB dongle. Windows XP will configure it for you.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

4.2 Single Access Point Network

In a small environment, you can set up a wireless network using a single Access Point and one or more Wireless USB dongle. This type of network provides a coverage area sufficient to satisfy the network requirements for many homes and small businesses. The Access Point connects your network computers to an existing network. Once this “infrastructure” is in place, you can easily add computers to the network by simply configuring the Wireless USB Dongle in those computers. This eliminates the time and expense of running costly cables throughout your network. Notebook users are now free to roam from office to conference room or from kitchen to outdoor patio.

To create a single Access Point network, the Access Point must be connected to a router and a cable modem or a DSL modem. This connection lets the wireless network access the wired network in your home or office and the Internet. Position the Access Point in the center of your network. If you experience a weak signal or no signal at all from an outer computer, move the computer with the Wireless USB Dongle closer to the Access Point or position the Access Point closer to the computer.

Many manufacturers now offer wireless routers, which combine the Access Point and router in one box. Note that the Access Point and USB Dongles must have the same security settings to communicate. The Wireless USB dongle supports all types of Access Points, including 802.11b and 802.11g.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

4.3 Multiple Access Point Network

In a large environment, you can set up a wireless network using multiple Access Points and thereby create a large coverage area. In such a network, computers with Wireless USB Dongles that “roam” between different locations within the network area will be served by the various Access Points and maintain the same network connection. Roaming wireless stations in a multiple Access Point network will automatically switch between Access Points when necessary.

To create a multiple Access Point network, the Access Points must be connected by way of a wired backbone. Access Points must overlap to ensure complete connection coverage for the roaming client. Note that all the Access Points and USB Dongles must have the same security settings to communicate.

The Wireless USB Dongle supports roaming between all types of Access Points, including 802.11b and 802.11g.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

4.4 Setting Up a Peer-to-Peer Network

A Peer-to-Peer Network consists of two or more notebook or desktop computers with Wireless USB Dongles that communicate directly to each other without the use of an Access Point. Such networks are usually small but they can be very useful. Co-workers can quickly set up a Peer-to-Peer group in a temporary environment. If there is a printer nearby that is equipped with a wireless device, the members of the Peer-to-Peer group can send print files to that printer. In addition, if one member of the group is connected to an Infrastructure Network (one that uses an Access Point), all the members of the Peer-to-Peer group can access network storage devices and the Internet, provided that their computers have been set up with the necessary software.

In wireless-LAN literature, Peer-to-Peer Networks is sometimes referred to as Ad Hoc Networks. Both terms mean exactly the same thing. The original term was Ad Hoc (from the Latin “to this”). Ad hoc means done or set up solely in response to a particular situation or problem. Because of the vagueness introduced by the Latin term, some manufacturers have been using the more descriptive term “Peer-to-Peer”. Peer-to-Peer Networks are used far less widely than Infrastructure Networks. Perhaps that is because users have not learned the simple steps to set up a Peer-to-Peer Network. One person in the group has to create a profile with a Network Name (SSID) and other simple settings. After you create the profile, you can communicate that Network Name (SSID) to the other people in your group. They will see the Network Name on their Site Survey screen and connect to the network. These are the steps that the first person, the person who is creating the network, must do on the Connection Profile screen.

1. Enter a unique Profile Name and Network Name (SSID).

2. Select the Peer-to-Peer radio button.

3. In the Network Type pull-down menu, select the network type that matches all the

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

WiFi device in your Peer-to-Peer Group (802.11b and 802.11g).

4. Establish the Privacy settings that all the computers in the network will be using. Remember that if you need to enable encryption in your network, the other computers in the network will need the encryption key. To share an Internet connection, you will need to purchase Internet Sharing Software or use the Internet Connection Sharing (ICS) utility provided with Windows XP.

4.5 Wireless Performance Considerations

Many factors determine the range, coverage, and transmission rate of wireless components (Access Points and Wireless USB Dongle). Be aware of the following:

 When a radio signal travels through building materials such as walls, floors,

concrete, and metal framing, its strength is reduced. The best performance is achieved when wireless components are in direct line-of-sight with one another. A wall may be six inches thick, but if two wireless components form an acute angle to the wall, the wall may appear to be three feet thick to the radio wave.

 Place wireless components away from cordless telephones, microwave

ovens, printers, and monitors. Cordless telephones and other devices that operate in the 5 GHz frequency range can interfere with wireless transmission. The 2.4 GHz spectrum might be occupied by microwave ovens, cordless telephones, and Bluetooth devices.

 Increasing the distance between wireless components significantly

decreases the number of successfully transmitted packets. If you are far away from your Access Point, you cannot expect to have the same transmission rate as someone who is near the same Access Point.

 Your actual data throughput will always be less than the data rate of the

device (54 Mbps or 11 Mbps). In addition to the considerations listed above, the data throughput is less because some of the available bandwidth is used to send control messages and to regulate the wireless traffic. After your dongle receives data, the computer processor and operating system that you are using can cause a further delay in the display of that data.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

4.6 WiFi Security Considerations

Transmitting data via radio waves presents real security risks. Someone within your wireless network range could, with a fair amount of effort, access your network and the data you transmit. You might have heard about the white vans that drive slowly through neighborhoods and capture account numbers and passwords. Eavesdropping on computer networks (a.k.a. “sniffing”) requires costly equipment and it is therefore unlikely that your neighbor is a real threat.

If you want to ensure the security of your data, wireless LAN technology provides different means to that end. WLAN security standards have progressed from WEP to TKIP to WPA and AES. Each stage in this progression provides users with more protection than the previous stage. Using the same type of security standard throughout the network is a necessity. You cannot configure a profile using WPA and expect to communicate with an Access Point using WEP.

For those who want an effective security feature, the STA-UI-A0035 802.11b/g and Bluetooth v2.0 + EDR Combo USB Dongle support the Wired Equivalent Privacy (WEP) security standard. This feature uses a network key called a WEP key, which encrypts data so that it is only readable by other computers that have a matching WEP key. The WEP key must be entered and stored on each wireless device in the network. You cannot configure a profile using one WEP key and expect to communicate with an Access Point using a different WEP key. Assigning WEP keys in a large environment can be problematic for the system administrator. If an employee leaves your company, new WEP keys should be assigned to protect the network from the former employee who knows the secret key.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

5. Bluetooth Configuration and Utilities

5.1 Start the Bluetooth Device

Start the Bluetooth service for ready to service.

1. After you install the USB Dongle, the system tray Icon will become available. If the Bluetooth Services is not start up, please start the IVT BlueSoleil program on your system.

2. Right Click the Bluetooth service tray Icon, press the “Display”.

3. Give this Bluetooth service computer a name and computer type, let the other

Bluetooth identify.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

5.2 Manual Configuration Bluetooth Dongle

If the IVT BlueSoleil can not identify the USB Dongle Bluetooth services, there you can manually configuration the IVT BlueSoleil. a. Open the Device management of your system. [Setup] => [Windows Control

Panel] => [Device Management]. The search the connection port for 3DSP USB Bluetooth v1.0 (COM X). X is the COM port assign like the fallowing picture.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

b. Start the IVT BlueSoleil, the go to [Tool] => [My Bluetooth Device].

c. Set as UART device, and then go to the advance setup page.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

d. Configuration as the fallowing picture setting. Setup the [COM Port] [Transmit speed] [Data Bit] [Parity Check] [Stop bit] [Fallow control]. As COM Port = X that reference from the device management information. Transmit speed = 9600, Data Bit = 8, Parity Check = None, Stop bit = 1, Fallow control = none.

d. After finish setting, please “OK” for finish manually Bluetooth device

configuration.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

5.3 Start Bluetooth

Start BlueSoleil. (Double click the IVT Bluesoleil icon or in the Start Menu)

5.4 Establish Bluetooth Connection

A connection is normally initiated from the client.

z On the server side, start the service. z On the client side, initiate the connection.

Start Service on Server

If BlueSoleil provides service, please start the service:

1. Change to Service Window.

2. Right-click the service icon, select Start Service on the pop-up menu.

Initiate Connection on Client

In Main Window:

1. Single click my device, the center ball, to search the Bluetooth devices in range.

2. Search the selected Bluetooth device service by double-clicking the device icon.

Service button on the top of the BlueSoleil Main Window will be highlighted if the service is supported by the device. Enter the same Bluetooth passkey on both devices if necessary to pair the two devices.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

3. Connect. Single-click the highlighted service button to establish the connection

4. If the other device needs pair, the Bluetooth Icon in the system tray will show a

warning massage that the Bluetooth connection need input pair numbers.

5. Input the same pair number as you input in the other Bluetooth device. Then

click ok to finish the Bluetooth connection pair procedure.

5.5 Stop the Bluetooth Device

Remove the USB Dongle from the system. The tray bar icon will show the BlueSoleil is not available.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

Figure 1-26: The Bluetooth Device is not available.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

6. 3DSP Combo USB Dongle Utility

Configuration.

9 Right-Click on the green three-bar icon in the system tray, a pop-up list that

displays several options will appear. (Recommended)

1. Click Bluetooth to open the Bluetooth utility.

2. Click WLAN to open the WLAN utility.

3. Click Coexist to use both utilities simultaneously.

4. Click Unplug to stop the utilities.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

7. Driver Uninstallation

If you want to remove the wireless Combo card driver, please read this chapter for introduction.

7.1 Go to Windows Control Panel, select and start “Add or remove programs”

service.

7.2 Click the 3DSP WLAN and Bluetooth Card, and then press the “Change”

button. The system will ask you what you want to do with this program. Select “Remove” and press the “Next” button for remove the program.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

7.3 System will ask you again for sure you want to remove it. Click “Continue”

for remove the program.

7.4 Finish removes the program. Please fallow the same method to remove the

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

IVT BlueSoleil for clean your system.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

8. Troubleshooting

This section provides solutions to problems that can may occur when trying to use the STA-UI-A0035 802.11b/g and Bluetooth v2.0 + EDR Combo USB Dongle.

Q1. The computer does not recognize the STA-UI-A0035 802.11b/g and Bluetooth v2.0 + EDR Combo USB Dongle.

A1. Verify that the Wireless USB Dongle is properly inserted into the computer’s USB port. If the problem still exists, please reinstall the driver.

Q2. The computer with the STA-UI-A0035 802.11b/g and Bluetooth v2.0 + EDR Combo USB Dongle is unable to connect to the wireless network.

A2.1 In Infrastructure mode, make sure that the exact same Network Name (SSID) exists on the Wireless USB Dongle Site Survey Screen and on the Access Point settings screen.

A2.2 In Peer-to-Peer mode, all computers in the network must have the exact same Network Name (SSID).

A2.3 On the Connection Profile Screen, verify that the Wireless Mode is set correctly on all computers. It must be Access Point if an Access Point is used or Peer-to-Peer if an Access Point is not used.

A2.4 If Enable Encryption is checked, verify that the encryption keys entered in your profile are the same as the encryption keys on the other network computers.

Q3. The STA-UI-A0035 802.11b/g and Bluetooth v2.0 + EDR Combo USB Dongle are draining my battery’s life.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

A3. Any wireless adapter will shorten your battery’s life to some extent. Heavy network activity (Transmitting and receiving lots of data) will drain your battery much more than if the USB dongle is in idle mode. To get the best energy efficiency, go to the Connection Profile Screen and check Enable Power Saving.

Q4. When I want to install a new version of the software, I have to uninstall the older version. But when I do it, it always asks me for the location of the wlcard50.sys file.

A previous installation did not cleanly remove its driver and INF file. Click ‘Cancel’ to allow the current uninstalla tion to comple te. Then do the following steps to remove any leftover INF file(s):

A4.1 Open a My Computer view of the files in your Windows \INF folder.

z This folder is hidden when Windows is installed. To make it visible,

click on the \Windows directory, and then select “Folder Options…” from the “Tools” menu. Select the “View” tab, select “Show hidden files and folders”, and click “OK”. Then click on the INF folder to see

the contents. A4.2 Make a backup copy of the INF folder before continuing, and follow the procedure very carefully. Your system may become unusable if you delete INF files for devices other than the 3DSP Wireless LAN.

A4.3 Click the “Search” button in the toolbar, and select “All files and folders”. Enter *.INF for the file name, and “3d5b” for the text to search for in the file, and then click “Search”.

A4.4 For all matching files found, delete both the .INF and the corresponding PNF files. Repeat for all *.INF files that are found to contain “3d5b”. For example, if oem6.inf is found to contain “3d5b”, delete oem6.inf and oem6.pnf.

A4.5 Reboot the machine and follow the normal installation procedure.

Q6. I upgrade my driver from V2.1 to V2.2 and use 2.2 version’s uninstallation shortcut to uninstall driver and utilities, but c:\Program Files\3DSP folder still

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

exists after uninstallation.

A6. If you use v2.2’s 3DSP Wireless LAN uninstallation shortcut or running setup.exe to uninstall and your machine has the previous released v2.1CD installed, a wlancfgdlg.ico and its 3DSP folder will exist after uninstallation. You can manually remove 3DSP folder under program files after the driver uninstallation.

This problem will not exist if you use v2.2CD and later version to upgrade or remove programs.

If your machine has the previously released version 2.1 installed, it is recommended to use Add\Remove Programs to uninstall the driver and manually remove c:\program files\3DSP folder before upgrading to version 2.2. You don’t need to do this step in the future driver upgrading.

Q7. I’ve plugged in the USB dongle before running setup.exe, but I am still asked to attach the device at the end of the installation.

A7. If you plug in the USB Dongle before running setup.exe and this is your first time installing driver on a machine, you will be asked to attach the device at the end of the installation. The installation will continue and complete if you remove the device and plug it back in. There won't be a problem if it is a driver upgrade. The installation program can detect the USB Dongle. You do not need to remove the USB Dongle and plug it back in.

Q8. My PC is Microsoft Wi ndows XP SP2, why I can’t make connection with the AP Router which encryption is WPA2-AES or WPA2-TKIP?

A8. It’s because the Microsoft XP SP2 original version is not support the Wireless WPA2. It needs a hotfix pack (KB903357) to solve this problem. In the driver install CD, there are the hotfix files in the folder (Microsoft WPA2 hotfix for XP Service Pack2). We put the English, Simple Chinese and Traditional Chinese version on it. If your environment is different languages, please download it form Microsoft and install.

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

9. Specifications

WLAN Spec IEEE 802.11b/g

Transmit Power 13 dBm to 17 dBm

Sensitivity -74dBm@54Mbps, -85dBm@11Mbps

Frequency Channel 14

Modulation 802.11g: OFDM / 802.11b: DSSS

Security Features WEP, WPA, AES, TKIP, WPA2

WEP Key Bits 64 / 128 bit

Protocol TCP/IP

Bluetooth Spec Bluetooth v1.2 and v2.0 + EDR

Transmit Power ≦20dBm

Sensitivity

3DH5@BER=1%%, -76dBm；2DH5@BER=1%%,

-90dBm；GFSK@BER=0.1%, -88dBm

Frequency Channel 79

Modulation DQPSK, D8PSK, GFSK

Profile

SPP, DUN,HID, HSP, A2DP, OPP, SYN, LAN, PAN,

FAX, FTP, BIP

Operating Temperature 32˚F to 131˚F (0˚ C to 55˚ C)

Storage Temperature 04˚F to 185˚F (-20˚ C to 85˚ C)

Operating Humidity 10% to 85%, Non-Condensing

Storage Humidity 5% to 90%, Non-Condensing

Interface Standard USB 2.0

Power DC: 3.3V@USBs, Normal 320mA / Peak 500mA

Certifications

CE, FCC Class B, Wi-Fi Certification(802.11b/g),

BQB , WHQL: Vista 32-bit, Vista-64bit, XP, 2000

Confidential Version1.0

Released Date: 2008.03.31

太欣半導體股份有限公司

SYNTEK Semiconductor Co., Ltd.

STA-UI-A0035 User’s Manual

10. Contact Information

SYNTEK Semiconductor Co., Ltd.

Taipei Office:

10F, No.1, Alley 30, Lane 358, Rui-Guang Road, Neihu, Taipei Taiwan R.O.C. 114 Tel: 886-2-2659-0055 Fax: 886-2-2659-0077

SYNTEK STA-UI-A0035 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
