Syntax SV266AD User Manual

Preface

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 3.1

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

− Reorient or relocate the receiving antenna.

− Increase the separation between the equipment and the receiver.

− Connect the equipment onto an outlet on a circuit different from that to which

the receiver is connected.

− Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

− This device may not cause harmful interference, and

− This device must accept any interference received, including interference

that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interferencecausing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following:

Chapter 1

Introducing the Mainboard

Describes features of the mainboard, and provides a shipping checklist.

Go to

⇒ page 1

Chapter 2

Installing the Mainboard

Describes installation of mainboard components.

Go to

⇒ page 6

Chapter 3

Using BIOS

Provides information on using the BIOS Setup Utility.

Go to ⇒ page 24

Chapter 4

Using the Mainboard Software

Describes the mainboard software.

Go to

⇒ page 48

Features and Packing List Translations

Liste de contrôle

Comparez ce qui est contenu dans l'emballage de la carte mère avec la liste suivante:

Eléments standards

• Une carte mère

• Un câble plat pour lecteur de disquette (optionnel)

• Un câble plat pour lecteur IDE

• Un CD d'installation automatique pour le logiciel

• Ce manuel utilisateur

Caractéristiques

Processeur La carte mère SV266AD utilise un Socket A AMD 462 broches

présentant les caractéristiques suivantes:

• Supporte un bus frontal (FSB) de 100/133 MHz

• Reçoit des processeurs Athlon/Duron AMD

Chipset Les chipsets KT266A Northbridge et VT8235 Southbridge sont

basés sur une architecture de chipset de bon rapport qualité-prix et de bon rendement énergétique pour implémenter les systèmes d’ordinateurs de bureau AGP/PCI avec une fiabilité et des performances prouvées.

• Supporte les processeurs Athlon AMD (Socket-462)

Socket-A

• Transfert DDR (Double Data Rate) 100/133 MHz sur

adresse CPU Athlon et bus de données

• Offre un contrôleur de Port Graphique Accéléré (AGP)

complet conforme V2.0 et supportant les modes 1x, 2x et 4x en 66 MHz offrant des graphiques 3D éclatants, et des performances vidéo de haute qualité

• Supporte une interface d'Hôte V-Link 66 MHz avec une

bande passante de pointe de 266 Mo/sec et un protocole de transaction V-Link intelligent pour éliminer l’état d’attente/latence de transfert d’accélérateur de données

• Types de mémoire SDRAM DDR de hautes

performances avancés

• Contrôleur USB 2.0 intégré avec trois hubs racine et six

ports de fonction

• Contrôleur EIDE de mode maître Ultra DMA

33/66/100/133 de Canal double

Les caractéristiques clé supplémentaires comprennent le support de six ports USB, une liaison AC 97 pour audio et modem et surveillance matérielle.

Graphiques La carte mère comprend un logement AGP qui offre quatre fois la

bande passante des spécifications AGP d’origine. La technologie AGP offre une connexion directe entre le sous-système graphique et le processeur de sorte que les graphiques n’ont pas à entrer en concurrence avec d’aut

es périphériques pour le temps

iii

d’utilisation du processeur sur le bus PCI.

Mémoire

• Peut recevoir deux logements sans mémoire tampon en

2.5V de 184 broches.

• Supporte les vitesses de mémoire suivantes : DDR

SDRAM: PC2100/ PC1600

• Chaque logement supporte jusqu’à 1 Go avec une

capacité maximum totale de 2 Go.

Audio Le Coded Audio VIA VT1612A est conforme aux spécifications

AC'97 2.2 offrant des performances de résolution en 18 bits. Avec des sorties à 2 canaux la VIA VT1612A offre une qualité stéréo de hautes performances pour connexions d’écouteurs et de haut-parleurs.

• Codec conforme à l’extension AC’97 2.2 S/PDIF

• Stéréo 18 bits full duplex

• Extension stéréo 3D pour contour simulé

• Entrées de niveau de ligne analogique, 2 stéréo, 2 mono

LAN Interne (optionnel)

Le VT6103 est un périphérique à Couche Physique pour Ethernet 10BASE-T et 100BASE-TX utilisant des câbles Non blindés de catégorie 5, Blindés de Type 1, et à Fibres Optiques.

• Double Vitesse – 100/10 Mbps

• Half et Full Duplex

• Conforme à tous les Standards IEEE 802.3, 10Base-T et

100Base-Tx Applicables

• Egaliseur Adaptatif

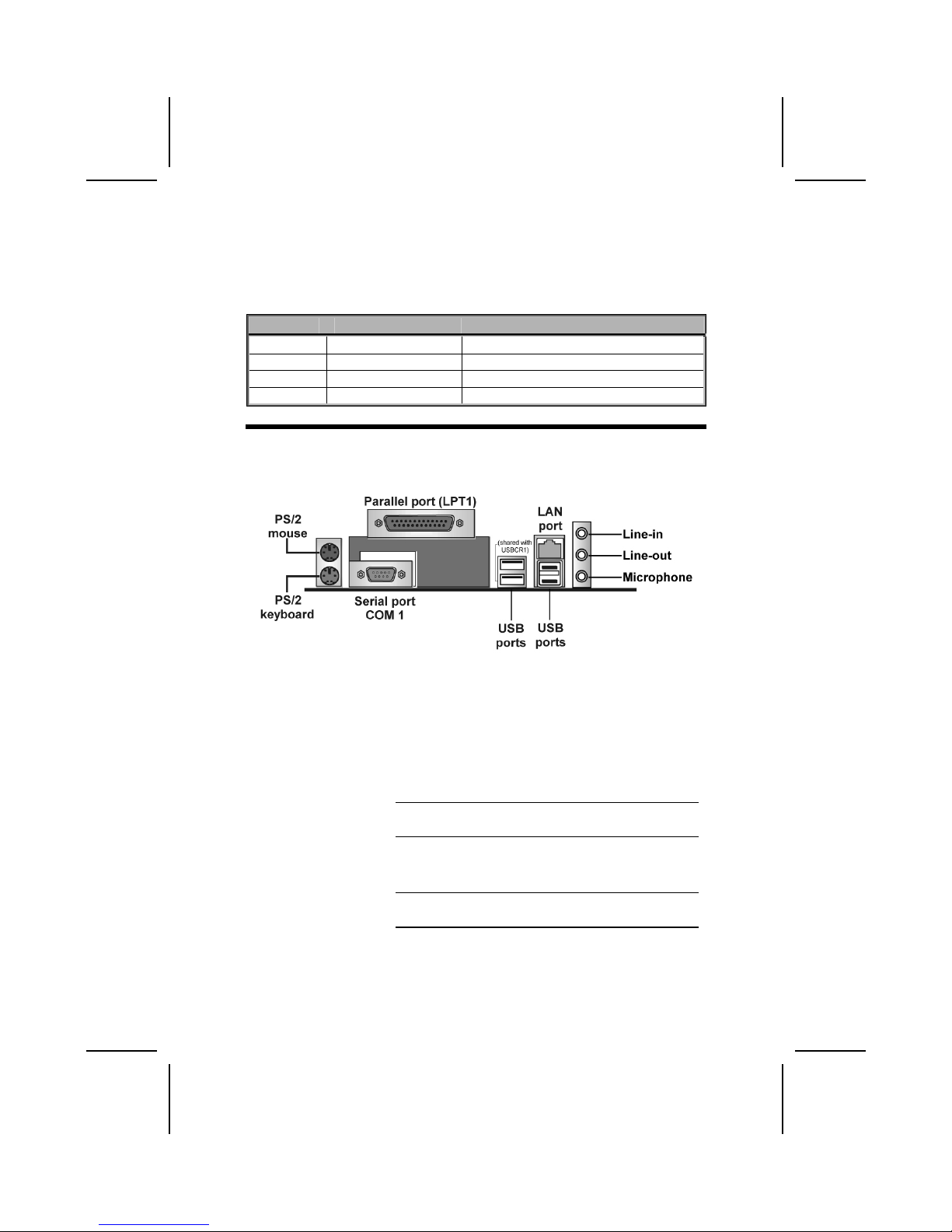

E/S Intégrées La carte mère possède un jeu complet de ports d’E/S et de

connecteurs:

• Deux ports PS/2 pour souris et clavier

• Un port série

• Un port parallèle

• Quatre ports USB

• Un port LAN

• Prises audio pour microphone, ligne d’entrée et ligne de

sortie

Microprogramme BIOS

Cette carte mère utilise Award BIOS qui permet aux utilisateurs de configurer de nombreuses caractéristiques du système comprenant les suivantes:

• Gestion d’alimentation

• Alarmes de réveil

• Paramètres de CPU

• Synchronisation de CPU et de mémoire

Le microprogramme peut aussi être utilisé pour définir les paramètres pour les vitesses d’horloges de différents processeurs.

Certaines spécifications matérielles et éléments de logiciels peuvent être modifiés sans avertissement.

Checkliste

Vergleichen Sie den Packungsinhalt des Motherboards mit der folgenden Checkliste:

Standard Items

• Ein Motherboard

• Ein Bandkabel für Diskettenlaufwerke (optional)

• Ein Bandkabel für IDE-Laufwerke

• Eine Auto-Installations-Support-CD

• Dieses Benutzerhandbuch

Features

Prozessor Das SV266AD Mainboard enthält einen AMD 462-Pin Sockel

A mit den folgenden Eigenschaften:

• Unterstützt 100/133 MHz Front-Side Bus (FSB)

• Nimmt AMD Athlon/Duron Prozessoren auf

Chipsatz Die Chipsätze KT266A Northbridge und VT8235 Southbridge

basieren auf einer kostengünstigen und energiesparenden Architektur zur Implementierung von AGP/PCI-DesktopComputersystemen mit bewiesener Zuverlässigkeit und Leistung.

• Unterstützt Sockel-A (Sockel-462) AMD Athlon

Prozessoren

• 100/133 MHz DDR (Double Data Rate) Transfer auf

Athlon CPU-Adress- und Datenbussen

• Bietet vollständigen Accelerated Graphics Port (AGP)

Controller, der v2.0 entspricht und 66 MHz 1x, 2x und 4x Modi unterstützt und damit lebendige 3D-Grafik und qualitativ hochwertige Videoleistung bietet

• Unterstützt 66 MHz V-Link Host Interface mit einer

Spitzenbandbreite von 266 MB/s und einem intelligenten V-Link Transaction Protocol, um Data-Wait-State/ThrottleTransfer-Latency zu beseitigen

• Erweiterte Hochleistungs- DDR SDRAM Speichertypen

• Integrierter USB 2.0 Controller mit drei Root Hubs und

sechs Funktionsschnittstellen

• Dual-Kanal Ultra DMA 33/66/100/133 Master Mode EIDE

Controller

Zusätzliche Schlüsselmerkmale umfassen die Unterstützung für sechs USB-Ports, ein AC 97-Link für Audio und Modem und Hardwareüberwachung.

Grafik Dieses Mainboard umfasst einen AGP-Steckplatz mit der

vierfachen Bandbreite der ursprünglichen AGP-Spezifikation. AGP-Technologie bietet eine direkte Verbindung zwischen dem Grafiksubsystem und dem Speicher, so dass die Grafik nicht mit anderen Geräten auf dem PCI-Bus um Prozessorzeit wetteifern muss.

Speicher

• Dieses Mainboard verfügt über zwei ungepufferte 2.5 Volt

184-Pin-Speichersteckplätze

• Unterstützung der folgenden Speichergeschwindigkeiten:

DDR SDRAM: PC2100/ PC1600

• Jeder Steckplatz unterstützt bis zu 1 GB; Max.

Gesamtspeichergröße: 2 GB

Audio Der VIA VT1612A Audio-Codec entspricht der AC'97 2.2-

Spezifikation und unterstützt 18-Bit-Auflösungen. Der VIA VT1612A bietet durch 2-Kanal-Klangwiedergabe qualitativ hochwertige Stereoqualität für Kopfhörer und Lautsprecherverbindungen.

• Kompatibel mit AC'97 2.2 S/PDIF-Codec

• 18-Bit Stereo-Vollduplex

• 3D-Stereo für Simulated Surround

• 2 Stereo-, 2 analoge Mono-Eingänge

Onboard-LAN (optional)

Das VT6103 ist ein Physical-Layer-Gerät für Ethernet 10BASE-T und 100BASE-TX bei Benutzung von nicht abgeschirmten Kategorie 5-Kabeln, abgeschirmten Typ 1Kabeln und fiberoptischen Kabeln.

• Duale Geschwindigkeit – 100/10 MB/Sek.

• Halb- und Vollduplex

• Entspricht allen anwendbaren IEEE 802.3, 10Base-T und

100Base-Tx-Standards

• Einstellbarer Equalizer

Integrierte I/O Das Mainboard verfügt über einen kompletten Satz von I/O-

Ports und Anschlüssen:

• Zwei PS/2-Ports für Maus und Tastatur

• Eine serielle Schnittstelle

• Eine parallele Schnittstelle

• Vier USB-Ports

• Eine LAN-Port

• Audiobuchsen für Mikrofon, Line-in und Line-out

BIOS Firmware

Dieses Mainboard setzt das Award BIOS ein, mit dem der Anwender viele Systemeigenschaften selbst konfigurieren kann, einschließlich der folgenden:

• Energieverwaltung

• Wake-up Alarm

• CPU-Parameter

• CPU- und Speichertiming

Mit der Firmware können auch die Parameter für verschiedene Prozessortaktgeschwindigkeiten eingestellt werden.

Bestimmte Hardwarespezifikationen und Teile der Softwareausstattung können ohne weitere Ankündigung abgeändert werden.

Lista di controllo

Comparate il contenuto della confezione della scheda madre con la seguente lista di controllo:

Articoli standard

• Una scheda madre

• Un cavo a nastro per il drive dischetti (opzionale)

• Un cavo a nastro IDE

• Un CD di supporto software auto-installante

• Il manuale dell’utente

Caratteristiche

Processore La scheda madre SV266AD usa un socket AMD 462-pin

Socket A con le seguenti caratteristiche:

• Supporto per il bus di sistema frontside (FSB) 100/133

MHz

• Alloggia processori AMD Athlon/Duron

Chipset I chipset KT266A Northbridge and VT8235 Southbridge sono

basati su un'architettura efficace nei costi, innovativa e efficiente nei consumi per l’implementazione di sistemi personal computer AGP/PCI con provata affidabilità e prestazioni.

• Supporta processori AMD Athlon Socket A (Socket 462)

• Trasferimento 100/133 MHz DDR (Double Data Rate) su

bus indirizzo e dati CPU Athlon

• Fornisce una porta grafica accelerata (AGP) completa

compatibile v2.0 e supporta le modalità 1x, 2x e 4x 66MHz per la fornitura di grafica 3D e alta qualità di prestazioni video

• Supporta interfaccia V-Link Host 66 MHz con un picco di

banda 266 MB/s e protocollo di transazione intelligente VLink per eliminare latenza di trasferimento stato wait data/throttle

• Tipi di memoria DDR SDRAM ad alte prestazioni

avanzate

• Controller USB 2.0 integrata con tre hub root e sei porte

funzione

• Controller EIDE modalità master doppio canale Ultra

DMA 33/66/100/133

Funzioni supplementari includono sei porte USB un collegamento AC97 audio e modem e monitoraggio hardware.

Grafica La scheda madre include uno slot AGP che fornisce quattro volte

la larghezza di banda delle specifiche AGP originarie. La tecnologia AGP fornisce un collegamento diretto tra il sottosistema grafico e il processore in modo che la grafica non deve competere con le altre periferiche presenti sul bus PCI per avere tempo processore.

Memoria

• 2 slot da 184 pin, 2.5V senza buffer

• Supporta le seguenti velocità memoria: DDR SDRAM:

PC2100/ PC1600

• Ciascuno slot su

orta fino a 1 GB con una capacità

vii

massima di 2 GB

Audio VIA VT1612A Audio Codec è conforme alle specifiche AC'97

2.2 poiché fornisce prestazioni con una risoluzione di 18 bit. Grazie alle 2 uscite canale, VIA VT1612A assicura collegamenti per cuffie o microfoni con un'ottima qualità stereo.

• Espansione EAC'97 2.2 S/PDIF conforme con Codec

• Stereo full duplex a 18 bit

• Espansione stereo 3D per simulazione surround

• 2 ingressi stereo, 2 ingressi mono analogici per linee

LAN integrata (opzionale)

La scheda VT6103 è una periferica Physical Layer per Ethernet 10BASE-T e 100BASE-TX usando cavi schermati tipo 1 e non schermati categoria 5 Shielded e cavi a fibre ottiche.

• Doppia velocità – 100/10 Mbps

• Half e Full duplex

• Conforme a tutti gli standard applicabili IEEE802.3,

10Base-T e 100Base-TX

• Equalizzatore adattivo

Inizializza I/O La scheda madre è dotata da una serie completa di porte e

connettori I/O:

• Due porte PS/2 per tastiera e mouse

• Una porta seriale

• Una porta parallela

• Quattro porte USB

• Una porta LAN

• Jack audio per microfono, ingresso linea e uscita linea

Firmware BIOS Questa scheda madre adotto un BIOS Award che permette

agli utenti di configurare le caratteristiche principali del sistema, inclusi:

• Gestione energia

• Allarmi wake up

• Parametri CPU

• Temporizzazione CPU e memoria

Il firmware può anche essere usato per impostare i parametri per diverse velocità di clock.

Alcune specifiche hardware ed elementi software sono soggetti a variazioni senza preavviso.

viii

Lista de Verificación

Compare los contenidos del paquete de la placa principal con la sigte. lista:

Ítems Estándares

• Una placa principal

• Un cable cinta del lector de diskette (optativo)

• Un cable cinta de la unidad IDE

• Un CD de soporte en software de autoinstalación

• Este manual del usuario

Características

Procesador La placa principal SV266AD usa una AMD 462-pin Socket A

que tiene las sigtes. características:

• Soporta bus de lado frontal (FSB) 100/133 MHz

• Acomoda procesadores AMD Athlon/Duron

Chipset Los chipsets KT266A Northbridge y VT8235 Southbridge se

basan de la arquitectura de chipset eficiente de energía y de costo para implementar sistemas de ordenador personal AGP/PCI con fiabilidad y rendimiento comprobados.

• Soporta procesadores Socket-A (Socket-462) AMD

Athlon

• Transferencia 100/133 MHz DDR (Índice de Datos

Doble/Double Data Rate) en dirección Athlon CPU y buses de datos

• Provee controlador Accelerated Graphics Port (AGP) con

funciones completas que se conforman con v2.0 y soporta modos 66 MHz 1x, 2x y 4x que entregan gráficas 3D vivas y rendimiento de vídeo de alta calidad

• Soporta interfaz 66 MHz V-Link Host con una ancha de

banda máxima de 266 MB/s y un protocolo de transacción V-Link inteligente para eliminar demora de transferencia estado de espera/ahogado de datos

• Tipos de memoria DDR SDRAM de alto rendimiento

• Controlador USB 2.0 Integrado con tres hubs de raíz y

puertos de seis funciones

• Controlador EIDE de modo máster de Dual Channel Ultra

DMA 33/66/100/133

Las características claves adicionales incluyen soporte para seis puertos USB, un vínculo AC 97 para sonido y módem y monitoreo de hardware.

Gráficas La placa principal incluye una ranura AGP que provee cuatro

veces la ancha de banda de la especificación AGP original. La tecnología AGP provee una conexión directa entre el subsistema de gráficas y el procesador para que las gráficas no tengan que competir por el tiempo de procesador con otros dispositivos en el bus PCI.

Memoria

• Acomoda dos ranuras de 2.5V 184-pin sin buffer

• Soporta las sigtes. velocidades de memoria: DDR

SDRAM: PC2100/ PC1600

• Cada ranura soporta hasta 1 GB con una capacidad

máxima total de 2 GB

Sonido El Codec de Sonido VIA VT1612A se conforma con la

especificación AC'97 2.2 que provee el rendimiento de resolución de 18-bit. Con 2 salidas de canal el VIA VT1612A provee la calidad de estéreo de alto rendimiento para las conexiones de auriculares o altoparlante.

• Codec conforme con la extensión AC'97 2.2 S/PDIF

• Estéreo de 18-bit full duplex

• Expansión de estéreo 3D para el surround simulado

• 2 entradas de nivel de línea analógica de estéreo, y 2 de

mono

LAN abordo (optativo)

El VT6103 es un dispositivo de Capa Física para Ethernet 10BASE-T y 100BASE-TX con cables de la categoría 5 Sin protección, y de Tipo 1 con protección, y cables de Fibras Ópticas.

• Velocidad Dual – 100/10 Mbps

• Duplex Medio y Completo

• Satisface todas las normas IEEE 802.3, 10Base-T y

100Base-Tx

• Ecualizador Adaptivo

I/O Integrado La placa principal tiene un juego completo de puertos y

conectores I/O:

• Dos puertos PS/2 para ratón y teclado

• Un puerto serial

• Un puerto paralelo

• Cuatro puertos USB

• Un puerto LAN

• Clavijas de sonido para micrófono, entrada y salida de

línea

Firmware de BIOS

Esta placa principal usa Award BIOS que habilita los usuarios a configurar muchas características de sistema que incluyen las sigtes:

• Administración de energía

• Alarmas despertadoras

• Parámetros de CPU

• CPU y cronometraje de memoria

El firmware también se puede usar para configurar parámetros para diferentes velocidades de reloj.

Algunas especificaciones de hardware e ítems de software son sujetos a cambio sin previo aviso.

チェックリスト

下記のチェックリストに列挙されている製品が同封されているかを確認してください。

標準同封アイテム

• メインボード 1枚

• ディスクドライブ用リボンケーブル 1個 (オプション)

• IDEドライブ用リボンケーブル 1個

• 自動インストール機能対応ソフトウェアCD 1枚

• ユーザーマニュアル

製品特徴

プロセッサ SV266ADメインボードは以下の機能を備えたAMD 462ピンソ

ケットAを搭載しています:

• 100/133 MHzシステムバス (FSB) 対応

• AMD Athlon/Duronプロセッサ対応

チップセット KT266A NorthbridgeとVT8235 Southbridgeチップセットは、AGP/

PCIを搭載したデスクトップコンピュータのための経済的で、省電力性に優れたチップセット構造を持ち、高い安定性およびパフォーマンスが保証されています。

• ソケットA (ソケット-462) AMD Athlonプロセッサをサ

ポート

• Athlon CPUアドレスとデータバスにおける100/133 MHz

DDR (Double Data Rate) 転送

• V2.0準拠の完全機能AGP (Accelerated Graphics Port)

コントローラを提供し、さらに66MHz 1x、2x、4xモードで鮮明な3Dグラフィックと高画質ビデオパフォーマンスを提供

• 最大帯域幅266 MB/秒の66MHz V-Linkホストインター

フェースと、データ待機状態/混雑による転送の遅延を防ぐための知的V-Linkトランスアクションプロトコル対応

• 高性能DDR SDRAMメモリタイプ

• 3つのルートハブと6つの機能ポートを備えた統合USB

2.0コントローラ

• デュアルチャンネルUltra DMA 33/66/100/133マスタ

ーモードEIDEコントローラ

この他に、6つのUSBポート、オーディオとモデムのための AC 97リンク、ハードウェアモニタなどの機能を搭載しています。

グラフィックこのメインボードには、本来のAGP仕様の4倍の帯域幅を提供す

ることができるAGPスロットが含まれます。AGP技術はグラフィックサブシステムとプロセッサとの間の直接接続を提供するため、グラフィックがPCIバス上のその他と競合することがなくなります。

メモリ

• 非バッファー式2.5V184ピン・スロットを2つ搭載

• DDR SDRAMメモリに対して、次のデータ転送率をサ

ポート： PC2100/PC1600

• 各スロットには1GB、トータルで最大2 GBまで搭載可能

オーディオオーディオコーデックはAC 97 2.2 仕様に適合したもので、

18ビット分解能を備えております。設けられた2チャンネルの出力にイヤホンまたはスピーカを接続すると、VIA VT1612Aが提供する高品質ステレオ効果を楽しめます。

• AC'97 2.2 S/PDIF

拡張指令集をサポートするコーデック機能

• 全二重18ビットステレオ機能

• サラウンド効果を実現する3D ステレオ拡張機能

• ステレオ・ラインレベル入力を、モノアナログ・ライン

レベル入力を各々2つ対応

オンボードLAN (オプション)

VT6103はイーサネット10BASE-Tと100BASE-TXの物理レイヤーデバイスで、カテゴリ5アンシールドケーブル、タイプ1シールドケーブル、光ファイバーケーブルでの接続に対応しています。

• デュアルスピード – 100/10 Mbps

• 半/全二重

• 既存のIEEE 802.3、10Base-T、および100Base-Tx標準に

すべて対応

• 適応イコライザ

統合の入出力ポートこのメインボードはフルセットのI/Oポートおよびコネクタを

搭載しています。

• マウスとキーボード用のPS/2ポート x 2

• シリアルポート x 1

• パラレルポート x 1

• USBポート x 4

• LANポート x 1

• マイクロフォンやラインイン、ラインアウト向けのオー

ディオジャック

BIOS ファームウェア

このメインボードは次のシステム機能を含めた設定をすることができるAward BIOSを採用しています：

• 電源管理

• Wake-up警告

• CPUパラメータ

• CPUおよびメモリのタイミング

この他に、各種プロセッサクロック速度のパラメータを設定することができます。

一部のハードウェア仕様及びソフトウェアアイテムは予告なく変更されることがあります。

xii

품목 목록

다음 품목들이 메인보드 패키지에 모두 포함되어 있는지 확인해 보십시오:

표준 품목

• 메인 보드 1개

• 디스켓 드라이브 리본 케이블 1개 (선택 사항)

• IDE 드라이브 리본 케이블 1개

• 자동 설치 소프트웨어 지원 CD 1개

• 본 사용자 설명서

기능

프로세서 SV266AD 메인보드는 다음과 같은 특징을 지닌 AMD 462 핀

소켓 A를 사용한다:

• 100/133 MHz frontside bus (FSB) 지원

• AMD Athlon/Duron 프로세서 사용

칩셋 KT266A Northbridge 및 VT8235 Southbridge 칩셋은 비용

효율적이고 에너지 효율적인 칩셋 아키텍쳐를 바탕으로 하여 AGP/PCI 데스크탑 퍼스널 컴퓨터 시스템에 인정된 신뢰성과 성능을 제공한다.

• 소켓 A (소켓 462) AMD Athlon 프로세서 지원

• Athlon CPU 어드레스 및 데이터 버스에 100/133 MHz

DDR (Double Data Rate) 전송

• V2.0과 호환하고 66 MHz 1x, 2x 및 4x 모드를 지원하여

생생한 3D 그래픽과 고품질 비디오 성능을 제공하는 Accelerated Graphics Port (AGP) 컨트롤러 제공

• 데이터 대기 상태 제거/전송 숨김 조절을 위한 최고

대역폭 266 MB/s 및 우수한 V 링크 전송 프로토콜의 66 MHz V 링 크 호스트 인터페이스 지원

• 고급 고성능DDR SDRAM 메모리 타입

• 3 개의 루트 허브 및 6 개의통합 포트를 지닌 USB 2.0

컨트롤러

• 듀얼 채널 Ultra DMA 33/66/100/133 마스터 모드 EIDE

컨트롤러

이외의 주요 특징으로 USB 포트 6개, 오디오 및 모뎀용 AC 97 링크, 하드웨어 모니터링이 있다.

그래픽 본 메인보드는 기존AGP 사양보다 4배의 대역폭을 제공하는

AGP 슬롯 1개가 포함되어 있다. AGP 기술은 그래픽 하부 시스템과 프로세서를 직접 연결함으로써 그래픽이 PCI에 있는 다른 장치와 프로세서 시간을 다툴 필요가 없다.

메모리

• 2 개의 unbuffered 2.5V 184-핀-슬롯 사용.

• 지원하는 메모리 속도: DDR SDRAM: PC2100/ PC1600

• 각 슬롯은 최대 1 GB 지원. 총 용량은 2 GB

xiii

오디오 VIA VT1612A 오디오 코덱은 AC'97 2.2 사양에 부합하며 18

비트 해결 성능을 제공한다. 2-채널 출력 VIA VT1612A 는 해드폰 및 스피커 연결을 위한 고 성능의 스테레오 품질을 제공한다.

• AC'97 2.2 S/PDIF 확장 부합 코덱

• 18 비트 스테레오 풀 듀플렉스

• 3D 스테레오 확장 시뮬레이트 서라운드

• 2 스테레오, 2 모노 아날로그 라인 레벨 입력

보드 내장 LAN (선택 사항)

VT6103 은 카테고리 5 언실드, 타입 1 실드 및 광 섬유 케이블을 사용하는 이더넷 10BASE-T 및 100BASE-TX를 위한 물리적 레이어 장치이다.

• 듀얼 속도 – 100/10 Mbps

• Half 및 Full Duplex

• IEEE 802.3, 10Base-T 및 100Base-Tx 표준 부합

• 적용 가능한 이콸라이저

통합 I/O 본 메인보드는 풀 세트의 I/O 포트 및 커넥터가 있다:

• 마우스와 키보드용 PS/2 포트 2개

• 시리얼 포트 1개

• 패러럴 포트 1개

• USB 포트 4개

• LAN 포트 1개

• 마이크용 오디오 잭, 라인 입력 및 라인 출력

BIOS 펌웨어 본 메인보드는 Award BIOS를 사용하여 다음과 같은 시스템

기능을 구성할 수 있다 :

• 전원관리

• 기상 알람

• CPU 파라미터

• CPU 및 메모리 타이밍

펌웨어는 다른 프로세서 클럭 속도의 파라미터 설정에도 사용될 수 있다.

하드웨어 사양 및 소프트웨어 아이템은 사전 통보 없이 변경될 수 있음.

xiv

檢查表

請依下列檢查表，核對主機板包裝之內容：

標準項目

• 主機板一片

• 磁碟機排線一條(選購)

• IDE磁碟機排線一條

• 自動安裝CD一片

• 本使用手冊

性能

處理器 SV266AD主機板採用具有下列功能之AMD 462針Socket A:

• 支援100/133MHz前端匯流排(FSB)

• 支援AMD Athlon/Duron 處理器

晶片組 KT266A北橋及VT8235南橋晶片組，採行了高效率低成本的之晶

片組架構，可提供AGP/PCI個人電腦系統穩定性及效能。

• 支援Socket-A (Socket-462) AMD Athlon處理器

• 支援Athlon CPU位址與資料匯流排達100/133 MHZ DDR

(Double Data Rate)傳輸速率

• 支援AGP (Accelerated Graphics Port) 控制器所有功能，相容

於v2.0版，支援66 MHz 1x, 2x 以及4x 模式，可輸送鮮明的 3D圖檔以及高畫質影像

• 支援 66MHz之 V-Link 主控介面，提供高達266MB/sec

之頻寬，V-Link傳輸通訊協定可降低資料等待時間/無感傳輸等待時間

• 支援加強型高效能SDR以及DDR SDRAM記憶體型態

• 整合了USB 2.0控制器，提供三個主集線器和六個功能埠

• 內建雙通道UltraDMA- 33/66/100/133 主態EDIE控制器

其他重要功能包括：支援6個USB埠、音效及數據機連接用的 AC 97連接埠、硬體監視功能。

繪圖卡本主機板搭載有一個AGP插槽，可提供相當於舊型AGP規格4倍之

頻寬。AGP技術，係使繪圖子系統與中央處理器直接連接，藉以使繪圖系統無需與PCI插槽上的設備，爭取處理器資源。

記憶體

• 設有2個2.5V 184針的非緩衝式記憶體插槽

• 支援DDR PC1600/PC2100

• 各插槽可插高達1G的記憶體，即共可支援高達2GB之記憶

體容量

音效配備之音效解碼/編碼器採用AC’ 97 2.2 規格，能夠提供18位元

解析度。將耳機或喇叭插入2個輸出端子，即可享受高品質的立體音效。

• 支援AC'97 2.2 S/PDIF 擴展指令集的編解碼器

• 18位元立體聲全雙工

• 可模擬環場音效的3D立體聲擴充功能

• 2 個立體聲的線級輸入端子及2個單音類比線級輸入端子

機載LAN (選購)

VT6103係為乙太10BASE-T 和 100BASE-TX之實體層元件，可用以連接 Category 5(速率100 Mbps) 無遮蔽式雙絞線, Type 1屏蔽電纜以及光纖電纜。

• 支援雙速 – 100/10 Mbps 傳輸速率

• 支援半或全雙工運作模式

• 符合現有的IEEE 802.3, 10BaseT和100Base-Tx雙絞線,

等之標準

• 具有自適均衡器

整合的輸入出功能本主機板完整地支援各種 I輸出入及連接器：

• 2個 PS/2 埠，分供滑鼠及鍵盤連接

• 1個串列埠

• 1個平行埠

• 4個USB埠

• 1個LAN埠

• 麥克風、line-in及line-out音效端

BIOS 韌體本主機板使用了Award BIOS ，使用者可藉此對包括下列之系

統功能進行設定：

• 電源管理

• 喚醒警示

• CPU參數及記憶體定時

• CPU及記憶體的定時

本BIOS也可用以設定各種有關處理器頻率的參數。

有些硬體規格以及軟體物件將視狀況適當調整，不予另行通知。

xvi

校验表

将本主板的组件内容与以下校验表进行对照：

标准组件

• 一只主板

• 一条磁盘驱动器带状电缆（可选）

• 一条 IDE 驱动器带状电缆

• 一张自动安装软件支持光盘

• 本用户手册

特性

处理器 SV266AD 主板使用一个 AMD 462-pin Socket A 插座，此插

座具有以下特点：

• 支持 100/133 MHz 前端总线 (FSB)

• 支持 AMD Athlon/Duron 处理器

芯片组 KT266A 北桥和 VT8235 南桥芯片组是基于一种低成本的高效能

芯片组架构，用于 AGP/PCI 个人电脑，能提供已经证明的可靠性和高性能。

• 支持 Socket-A (Socket-462) AMD Athlon 处理器

• Athlon CPU 地址和数据总线上100/133 MHz DDR MHz

DDR（双数据传输速率）传输

• 提供全功能的加速图形接口 (AGP) 控制器（兼容于

v2.0），支持66 MHz 1x、2x 和 4x 模式，能够提供清晰的 3D 图形和高质量的视频性能

• 支持 266 MB/s 峰值带宽的 66 MHz V-Link 主控接口，

支持智能 V-Link 传输协议，能够减少数据等待和传输延迟

• 高性能 DDR SDRAM 内存类型

• 集成 USB 2.0 控制器，带有 3 个 Root Hub 和 6

个功能端口

• 双通道DMA 33/66/100/133 主控模式 EIDE 控制器其它主要功能包括支持 6 个 USB 端口、用于音频和调制解

调器的 AC 97 连接以及硬件监测。

图形该主板包括一个 AGP 插槽，可提供普通 AGP 规格 4 倍的带宽。

AGP 技术能提供图像子系统和处理器之间的直接连接，这样图像就不需要与 PCI 总线上的其它设备争用处理器时间。

内存

• 提供 2 个非缓冲 2.5V 184 pin 插槽

• 支持以下储存速率：DDR SDRAM：PC2100/ PC1600

• 每个插槽支持 1 GB，总共最大可支持 2 GB

音频 VIA VT1612A 音频编解码器符合 AC'97 2.2 规格，能够提供18

位分辨率性能。VIA VT1612A 带有 2 通道输出，能够为耳机或扬声器连接提供高性能的立体声音质。

• 符合 AC'97 2.2 S/PDIF 扩展的编解码器

• 18 位立体声全双工

• 用于模拟环绕的 3D 立体声扩展

• 2 路立体声、2 路单声道线路电平输入

xvii

Onboard LAN（可选）

VT6103 是一种物理层设备，可用于使用 5 类非屏蔽线、1 类屏蔽线和光缆的以太网 10BASE-T 和 100BASE-TX。

• 双速 – 100/10 Mbps

• 半双工和全双工

• 符合所有相应的 IEEE 802.3、10Base-T 和 100Base-Tx

标准

• 自适应均衡器

集成 I/O 此主板具有完整的 I/O 端口和插孔：

• 2 个用于连接鼠标和键盘的 PS/2 端口

• 1 个串口

• 1 个并口

• 4 个 USB 端口

• 1 个 LAN 端口

• 麦克风、线入和线出声音插孔

BIOS 此主板使用 Award BIOS，可以让用户自己配置以下系统功能：

• 电源管理

• 唤醒报警

• CPU 参数

• CPU 和记忆定时

还可用于设置不同处理器时钟速度的参数。

部分硬件规格和软件项目若有更改恕不另行通知。

xviii

AABBLLEE OOFF

OONNTTEENNTTS

Preface i

Features and Packing List Translations iii

CHAPTER 1 1

Introducing the Mainboard 1

Introduction.................................................................................................1

Checklist .....................................................................................................1

Standard Items................................................................................................. 1

Features .....................................................................................................2

Choosing a Computer Case .......................................................................3

Mainboard Components .............................................................................4

CHAPTER 2 6

Installing the Mainboard 6

Safety Precautions......................................................................................6

Quick Guide................................................................................................6

Installing the Mainboard in a Case..............................................................7

Checking Jumper Settings..........................................................................7

Setting Jumpers ............................................................................................... 7

Checking Jumper Settings ............................................................................... 8

Jumper Settings ............................................................................................... 8

Connecting Case Components...................................................................9

Front Panel Connector................................................................................... 10

Installing Hardware ...................................................................................11

Installing the Processor...................................................................................11

Installing Memory Modules .......................................................................... 13

Installing a Hard Disk Drive/CD-ROM......................................................... 14

Installing a Floppy Diskette Drive................................................................. 16

Installing Add-on Cards................................................................................. 17

Connecting Optional Devices........................................................................ 19

Connecting I/O Devices ............................................................................22

External Connector Color Coding ................................................................. 23

CHAPTER 3 24

Using BIOS 24

About the Setup Utility ..............................................................................24

The Standard Configuration .......................................................................... 24

Starting Setup ................................................................................................ 25

Updating the BIOS ........................................................................................ 26

Using BIOS...............................................................................................27

Standard CMOS Features .............................................................................. 27

Advanced BIOS Setup................................................................................... 29

xix

Advanced Chipset Setup................................................................................ 31

Integrated Peripherals.................................................................................... 35

Power Management Setup............................................................................. 39

PNP/PCI Configurations................................................................................ 43

PC Health Status............................................................................................ 44

Frequency Control......................................................................................... 45

Load Fail-Safe Defaults Option..................................................................... 46

Load Optimized Defaults Option................................................................... 46

Set Password Option...................................................................................... 46

Save & Exit Setup Option ............................................................................. 47

Exit Without Saving ...................................................................................... 47

CHAPTER 4 48

Using the Mainboard Software 48

About the Software CD-ROM ...................................................................48

Auto-installing under Windows 98/ME/2000/XP .......................................48

Running Setup ............................................................................................... 49

Manual Installation....................................................................................51

Utility Software Reference ........................................................................51

CChhaapptteerr 11

Introducing the Mainboard

IInnttrroodduuccttiioonn

Thank you for choosing the SV266AD mainboard. The SV266AD is a high performance and high quality mainboard which is built around the latest and fastest VIA KT266A + VT8235 chipset providing superior performance between the CPU, DRAM, AGP bus, and V-Link bus with pipelined, burst and concurrent operation. This mainboard supports Socket 462 that accommodates AMD Athlon processors with a frontside bus (FSB) speeds up to 133MHz.

The KT266A supports two banks of DDR Synchronous DRAMs up to 2GB for unbuffered modules. It also fully supports full AGP v2.0 capability for maximum bus utilization including 1x, 2x and 4x mode transfers, SBA (SideBand Addressing), Flush/Fence commands and pipelined grants.

The VT8235 Southbridge supports standard intelligent peripheral controllers such as USB v2.0/1.1 and Universal HCI v2.0/1.1 compliant, real time clock with 256 byte extended CMOS, integrated bus-mastering dual full-duplex direct-sound AC97 link compatible sound system and full System Management Bus (SMBus) interface.

Sufficient expansion is provided for with one AGP slot, five 32-bit PCI slot and an optional CNR slot. It also comes with a built-in Enhanced PCI Bus Master PCI IDE controller that provides high-speed connections to full range of IDE devices such as HDD and CD-ROM. This mainboard is designed in a standard ATX form factor using a 4-layer printed circuit board and measures 305 mm x 190 mm.

CChheecckklliisstt

Compare the mainboard’s package contents with the following checklist:

Standard Items

• One mainboard

• One diskette drive ribbon cable (optional)

• One IDE drive ribbon cable

• One auto-install software support CD

• This user’s manual

FFeeaattuurreess

Processor The SV266AD mainboard uses an AMD 462-pin Socket A that

has the following features:

• Supports 100/133 MHz frontside bus (FSB)

• Accommodates AMD Athlon/Duron processors

Chipset The KT266A Northbridge and VT8235 Southbridge chipsets are

based on cost-effective and energy efficient chipset architecture for implementing AGP/PCI desktop personal computer systems with proven reliability and performance.

• Supports Socket-A (Socket-462) AMD Athlon processors

• 100/133 MHz DDR (Double Data Rate) transfer on Athlon

CPU address and data buses

• Provides full featured Accelerated Graphics Port (AGP)

controller which is v2.0 compliant and supports 66 MHz 1x, 2x and 4x modes delivering vivid 3D graphics and high quality video performance

• Supports 66 MHz V-Link Host interface with a peak

bandwidth of 266 MB/s and an intelligent V-Link transaction protocol to eliminate data wait-state/throttle transfer latency

• Advanced high-performance DDR SDRAM memory types

• Integrated USB 2.0 Controller with three root hubs and six

function ports

• Dual Channel Ultra DMA 33/66/100/133 master mode

EIDE controller

Additional key features include support for six USB ports, an AC 97 link for audio and modem and hardware monitoring.

Graphics The mainboard includes an AGP slot that provides four times the

bandwidth of the original AGP specification. AGP technology provides a direct connection between the graphics sub-system and the processor so that the graphics do not have to compete for processor time with other devices on the PCI bus.

Memory

• Accommodates two unbuffered 2.5V 184-pin slots

• Supports the following memory speeds: DDR SDRAM:

PC2100/ PC1600

• Each slot supports up to 1 GB with a total maximum

capacity of 2 GB

Audio The VIA VT1612A Audio Codec conforms to the AC'97 2.2

specifications providing 18-bit resolution performance. With 2 channel outputs the VIA VT1612A provides high-performance stereo quality for headphones or speaker connections.

• AC'97 2.2 S/PDIF extension compliant codec

• 18-bit stereo full duplex

• 3D stereo expansion for simulated surround

• 2 stereo, 2 mono analog line-level inputs

Onboard LAN (optional)

The VT6103 is a Physical Layer device for Ethernet 10BASE-T and 100BASE-TX using category 5 Unshielded, Type 1 Shielded, and Fiber Optic cables.

• Dual Speed – 100/10 Mbps

• Half And Full Duplex

• Meet All A

licable IEEE 802.3, 10Base-T and 100Base-

Tx Standards

• Adaptive Equalizer

Integrated I/O The mainboard has a full set of I/O ports and connectors:

• Two PS/2 ports for mouse and keyboard

• One serial port

• One parallel port

• Four USB ports

• One LAN port

• Audio jacks for microphone, line-in and line-out

BIOS Firmware

This mainboard uses Award BIOS that enables users to configure many system features including the following:

• Power management

• Wake-up alarms

• CPU parameters

• CPU and memory timing

The firmware can also be used to set parameters for different processor clock speeds.

Some hardware specifications and software items are subject to change without prior notice.

CChhoooossiinngg aa CCoommppuutteerr CCaassee

There are many types of computer cases on the market. The mainboard complies with the specifications for the ATX system case. Some features on the mainboard are implemented by cabling connectors on the mainboard to indicators and switches on the system case. Ensure that your case supports all the features required. The mainboard can support one or two floppy diskette drives and four enhanced IDE drives. Ensure that your case has sufficient power and space for all the drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O template in the case matches the I/O ports installed on the rear edge of the mainboard.

This mainboard has an ATX form factor of 305 x 190 mm. Choose a case that accommodates this form factor.

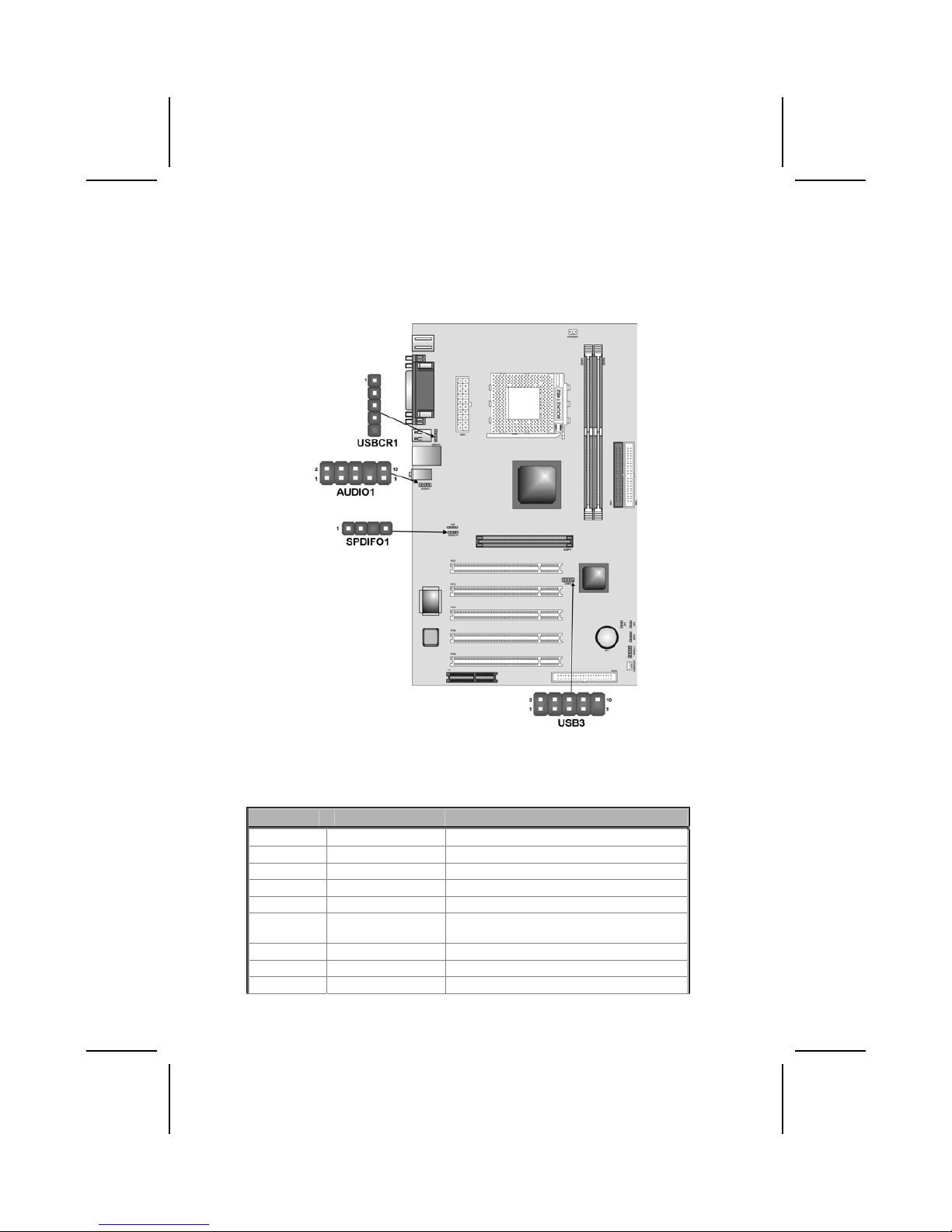

MMaaiinnbbooaarrdd CCoommppoonneennttss

Table of Mainboard Components

Label Component

AGP1 Accelerated Graphics Port ATX1 Power connector AUDIO1 Front-oriented microphone/line-out port header BT1 Three volt realtime clock battery CASFAN1 Auxiliary case cooling fan CD1 CD-in connector CNR1* Communications Networking Riser slot CPUFAN1 Cooling fan for CPU CPU Socket Socket A for AMD Athlon processor DDR1~DDR2 Two 184 pin DDR SDRAM sockets FDD1 Floppy disk drive connector IDE 1 Primary IDE channel IDE 2 Secondary IDE channel JP1 Clear CMOS jumper JP2 CPU frequency selection jumper PANEL1 Connector for case front panel switches and LED indicators PCI1 ~ PCI5 Five 32-bit add-in card slots SPDIFO1* SPDIF out header

SPK1 Speaker connector USB3 Front panel USB headers USBCR1 USB card reader connector

*Optional component

This concludes Chapter 1. The next chapter explains how to install the mainboard.

CChhaapptteerr 22

Installing the Mainboard

SSaaffeettyy PPrreeccaauuttiioonnss

Follow these safety precautions when installing the mainboard:

• Wear a grounding strap attached to a grounded device to avoid

damage from static electricity.

• Discharge static electricity by touching the metal case of a safely

grounded object before working on the mainboard.

• Leave components in the static-proof bags they came in.

• Hold all circuit boards by the edges. Do not bend circuit boards.

QQuuiicckk GGuuiiddee

This Quick Guide suggests the steps you can take to assemble your system with the mainboards.

The following table provides a reference for installing specific components:

Locating Mainboard Components Go to page 4

Installing the Mainboard in a Case Go to page 7

Setting Jumpers Go to page 7

Installing Case Components Go to page 9

Installing the CPU Go to page 11

Installing Memory Go to page 13

Installing an HDD and CD-ROM Drive Go to page 14

Installing an FDD Go to page 16

Installing Add-on Cards Go to page 17

Connecting Options Go to page 19

Connecting Peripheral (I/O) Devices Go to page 21

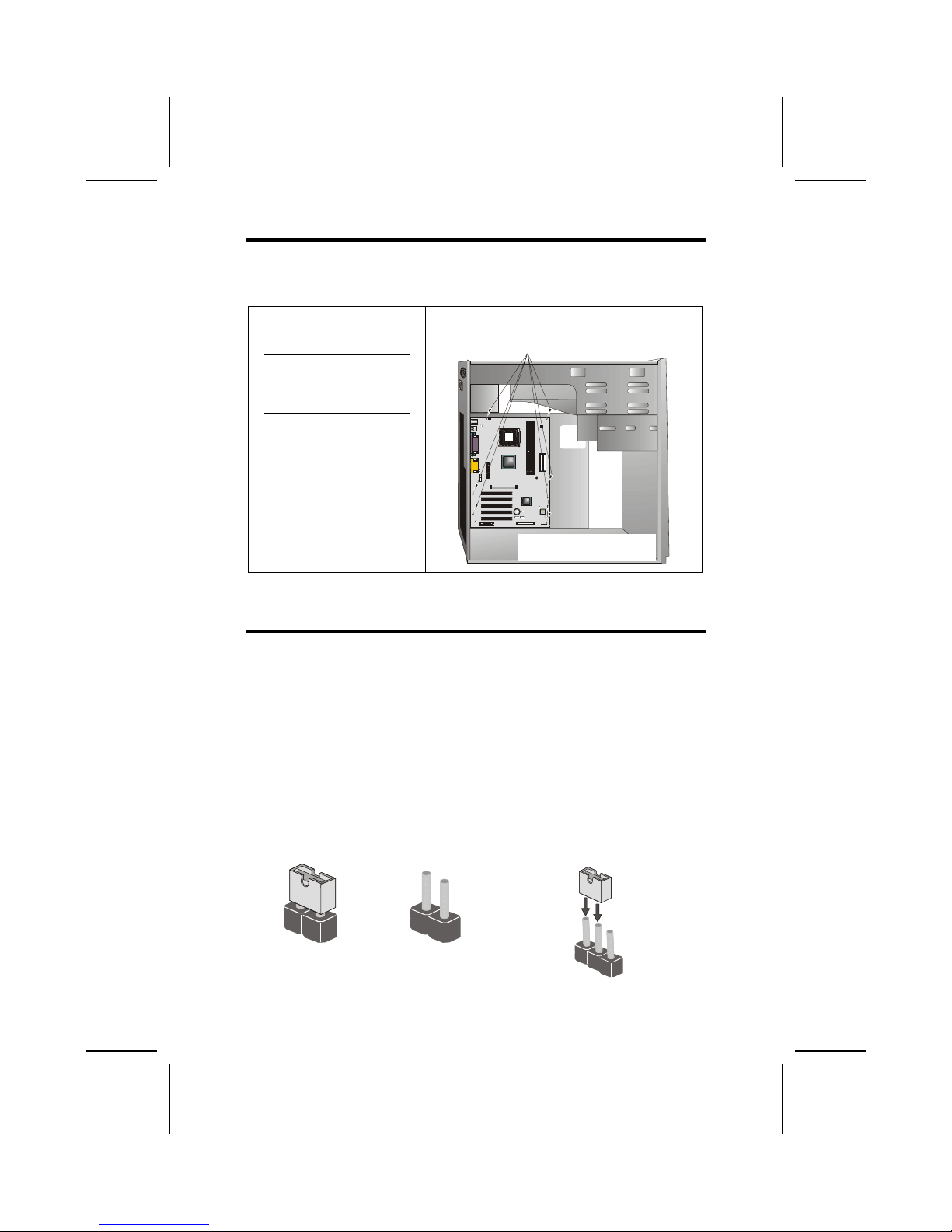

IInnssttaalllliinngg tthhee MMaaiinnbbooaarrdd iinn aa CCaassee

Refer to the following illustration and instructions for installing the mainboard in a case:

This illustration shows an example of a mainboard being installed in a tower-type case:

Note: Do not overtighten

the screws as this can stress the mainboard.

Most system cases have mounting brackets installed in the case, which correspond to the holes in the mainboard. Place the mainboard over the mounting brackets and secure the mainboard onto the mounting brackets with screws.

2. Secure the mainboard with screws where appropriate.

1. Place the mainboard over the mounting brackets.

Ensure that your case has an I/O template that supports the I/O ports and expansion slots on your mainboard.

CChheecckkiinngg JJuummppeerr SSeettttiinnggss

This section explains how to set jumpers for correct configuration of the mainboard.

Setting Jumpers

Use the mainboard jumpers to set system configuration options. Jumpers with more than one pin are numbered. When setting the jumpers, ensure that the jumper caps are placed on the correct pins.

The illustrations below show a 2-pin jumper. When the jumper cap is placed on both pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is OPEN.

This illustration shows a 3-pin jumper. Pins 1 and 2 are SHORT.

Short Open

Checking Jumper Settings

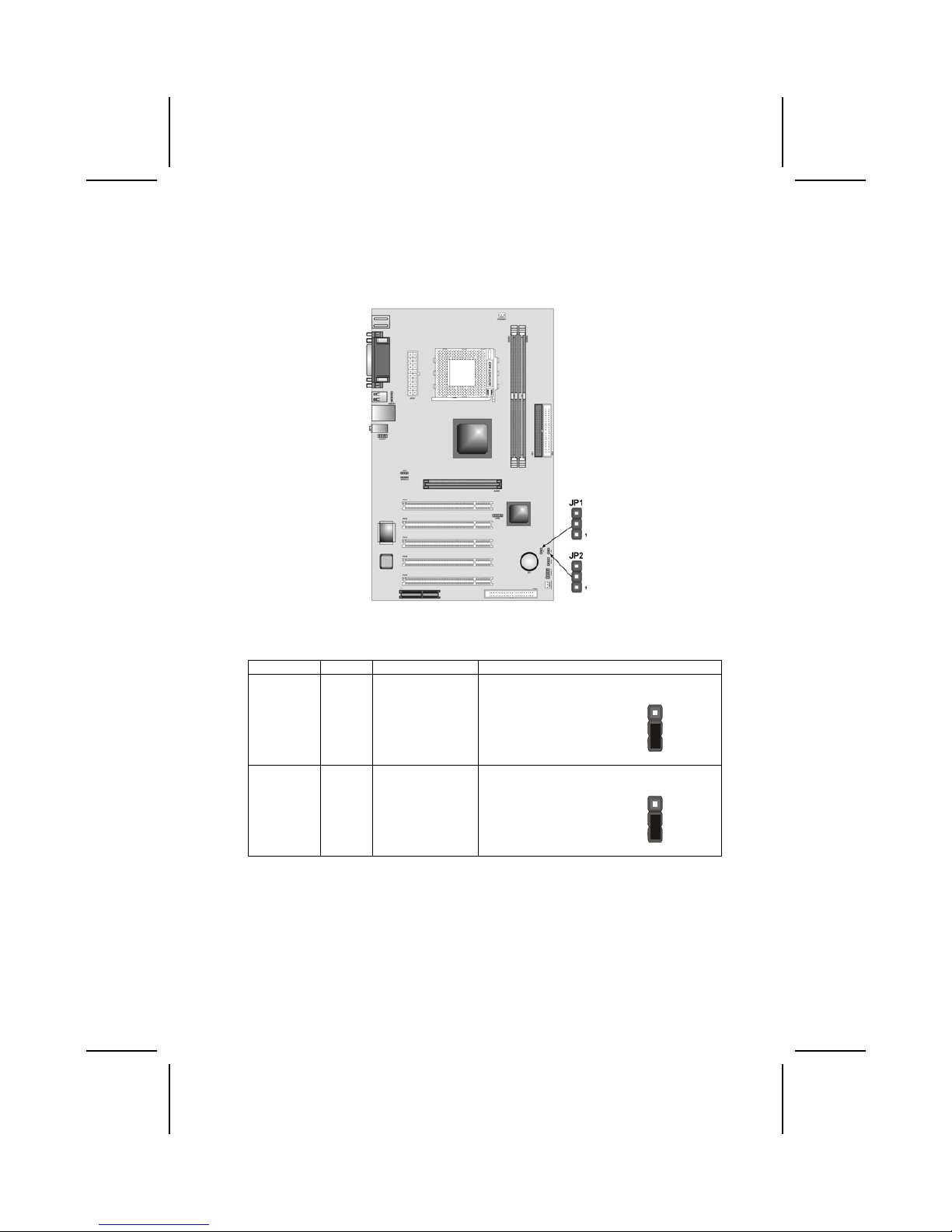

The following illustration shows the location of the mainboard jumpers. Pin 1 is labeled.

Jumper Settings

Jumper Type Description Setting (default)

JP1 3 pin Clear CMOS

1-2: Normal

2-3: Clear

JP1

JP2 3 pin CPU frequency

select

1-2: 100MHz

2-3: 133 MHz

JP2

Jumper 1 – enables you to clear the BIOS. Follow these instructions:

1. Turn the system off.

2. Short pins 2 and 3 on JP1.

3. Return the jumper to the normal setting.

4. Turn the system on. The BIOS is returned to the default settings.

Jumper 2 – set the CPU frequency (100MHz or 133MHz) according to the

CPU.

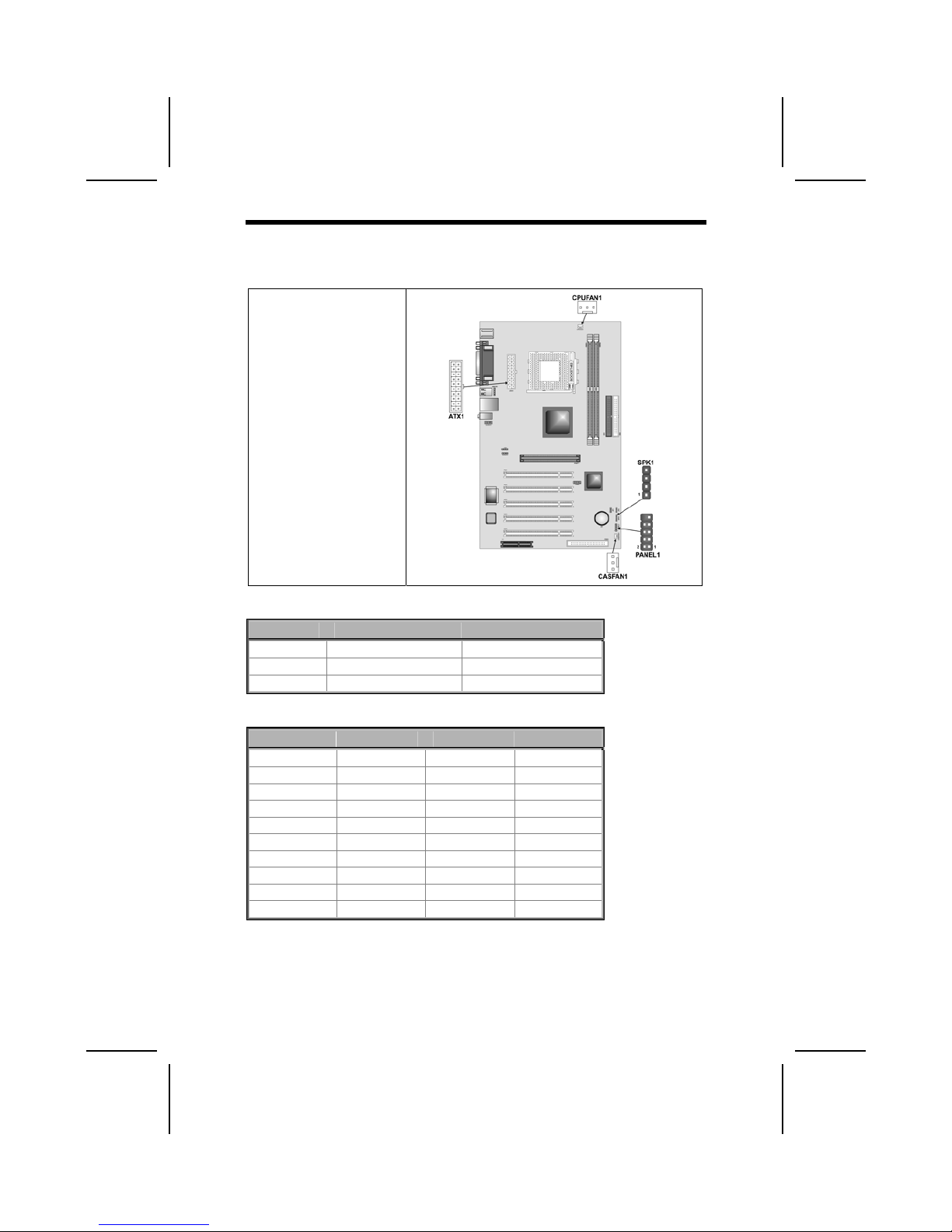

CCoonnnneeccttiinngg CCaassee CCoommppoonneennttss

After you have installed the mainboard into a case, you can begin connecting the mainboard components. Refer to the following:

1. Connect the case power supply connector to ATX1.

2. Connect the CPU cooling fan cable to CPUFAN1.

3. Connect the case cooling fan connector to CASFAN1.

4. Connect the case speaker cable to SPK1.

5. Connect the case switches and indicator to PANEL1.

CPUFAN1/CASFAN1: FAN Power Connectors

Pin Signal Name Function

1 GND System Ground 2 +12V Power +12V 3 Sense Sensor

ATX1: ATX 20-pin Power Connector

Pin Signal Name Pin Signal Name

1 +3.3V 11 +3.3V 2 +3.3V 12 -12V 3 Ground 13 Ground 4 +5V 14 PS ON# 5 Ground 15 Ground 6 +5V 16 Ground 7 Ground 17 Ground 8 PWRGD 18 -5V 9 +5VSB 19 +5V

10 +12V 20 +5V

SPK1: Internal speaker

Pin Signal Name

1 Signal 2 NC 3 Ground 4 VCC

Front Panel Connector

The front panel connector (PANEL1) provides a standard set of switch and LED connectors commonly found on ATX or micro-ATX cases. Refer to the table below for information:

PANEL1

Pin Function Pin Function

Hard disk LED (positive)

MSG LED [dual color or single color (-)]

Hard disk active LED (negative)

MSG LED [dual color or single color (+)]

Reset Switch

Power Switch

Reset Switch

Power Switch

Reserved

No pin

Hard Drive Activity LED

Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that data is being read from or written to the hard drive. For the LED to function properly, an IDE drive should be connected to the onboard IDE interface.

Power / Sleep LED

Connecting pins 2 and 4 to a single- or dual-color, front panel mounted LED provides power on/off, sleep, and message waiting indication.

S0 S1 S4/S5

Green Green blinking Dark

Reset Switch

Supporting the reset function requires connecting pins 5 and 7 to a momentary-contact switch that is normally open. When the switch is closed, the board resets and runs POST.

Power Switch

Supporting the power on/off function requires connecting pins 6 and 8 to a momentary-contact switch that is normally open. The switch should maintain contact for at least 50 ms to signal the power supply to switch on or off. The

time requirement is due to internal debounce circuitry. After receiving a power on/off signal, at least two seconds elapses before the power supply recognizes another on/off signal.

IInnssttaalllliinngg HHaarrddwwaarree

Installing the Processor

Caution: When installing a CPU heatsink and cooling fan make sure that you DO NOT scratch the mainboard or any of the surface-mount resistors with the clip of the cooling fan. If the clip of the cooling fan scrapes across the mainboard, you may cause serious damage to the mainboard or its components.

On most mainboards, there are small surface-mount resistors near the processor socket, which may be damaged if the cooling fan is carelessly installed.

Avoid using cooling fans with sharp edges on the fan casing and the clips. Also, install the cooling fan in a well-lit work area so that you can clearly see the mainboard and processor socket.

Before installing the Processor

This mainboard automatically determines the CPU clock frequency and system bus frequency for the processor. You may be able to change these settings by making changes to jumpers on the mainboard, or changing the settings in the system Setup Utility. We strongly recommend that you do not overclock processors or other components to run faster than their rated speed.

Warning: Overclocking components can adversely affect the reliability of the system and introduce errors into your system. Overclocking can permanently damage the mainboard by generating excess heat in components that are run beyond the rated limits.

This mainboard has a Socket 462 processor socket. When choosing a processor, consider the performance requirements of the system. Performance is based on the processor design, the clock speed and system bus frequency of the processor, and the quantity of internal cache memory and external cache memory.

CPU Installation Procedure

The following illustration shows CPU installation components:

Note: The pin-1 corner is marked with an arrow

Follow these instructions to install the CPU:

1. Pull the CPU socket locking lever away from the socket to unhook it and raise the locking lever to the upright position.

2. Match the corner on the CPU marked with an arrow with pin A-1 on the CPU socket (the corner with the pinhole noticeably missing). Insert the processor into the socket. Do not use force.

3. Swing the locking lever down and hook it under the latch on the edge of the socket.

4. Apply thermal grease to the top of the CPU.

5. Lower the CPU cooling fan/heatsink assembly onto the CPU

6. Secure the two retention clips on either side of the fan/heatsink unit onto the Socket 462 base.

Fan/heatsink unit

secured to sock et

7. Connect the CPU Cooling Fan power cable connector to the CPUFAN connector.

Note: CPU fan and heatsink installation procedures may vary with the type of

CPU fan/heatsink supplied. The form and size of fan/heatsink may also vary.

Installing Memory Modules

This mainboard accommodates two 184-pin 2.5V unbuffered Double Data Rate (DDR) SDRAM memory modules. Each module can be installed with 32 MB to 1 GB of memory; total memory capacity is 2GB.

Note: Double Data Rate SDRAM (DDR SDRAM) doubles the rate to 1.6 GBps

and 2.1 GBps. DDR SDRAM uses additional power and ground lines and requires 184-pin DIMM modules rather than the 168-pin DIMMs used by SDRAM.

Do not remove any memory module from its antistatic packaging until you are ready to install it on the mainboard. Handle the modules only by their edges. Do not touch the components or metal parts. Always wear a grounding strap when you handle the modules.

Installation Procedure

Refer to the following to install the memory modules.

1. This mainboard supports unbuffered DDR SDRAM only. Do not attempt to insert any other type of DDR SDRAM into the slots.

2. Push the latches on each side of the DIMM slot down.

3. Align the memory module with the slot. The DIMM slots are keyed with notches and the DIMMs are keyed with cutouts so that they can only be installed correctly.

4. Check that the cutouts on the DIMM module edge connector match the notches in the DIMM slot.

5. Install the DIMM module into the slot and press it firmly down until it seats correctly. The slot latches are levered upwards and latch on to the edges of the DIMM.

6. Install any remaining DIMM modules.

Installing a Hard Disk Drive/CD-ROM

This section describes how to install IDE devices such as a hard disk drive and a CD-ROM drive.

About IDE Devices

Your mainboard has a primary and secondary IDE channel interface (IDE1 and IDE2). An IDE ribbon cable supporting two IDE devices is bundled with the mainboard.

If you want to install more than two IDE devices, get a second IDE cable and you can add two more devices to the secondary IDE channel.

IDE devices have jumpers or switches that are used to set the IDE device as MASTER or SLAVE. Refer to the IDE device user’s manual. When installing two IDE devices on one cable, ensure that one device is set to MASTER and the other device is set to SLAVE. The documentation of your IDE device explains how to do this.

About UltraDMA

This mainboard supports UltraDMA 66/100/133. UDMA is a technology that accelerates the performance of devices in the IDE channel. To maximize performance, install IDE devices that support UDMA and use 80-pin IDE cables that support UDMA 66/100/133.

Installing a Hard Disk Drive

1. Install the hard disk drive into the drive cage in your system case.

2. Plug the IDE cable into IDE1

(A):

Note: Ribbon cable connectors are usually keyed so that they can only be installed correctly on the device connector. If the connector is not keyed, make sure that you match the pin-1 side of the cable connector with the pin-1 side of the device connector. Each connector has the pin-1 side clearly marked. The pin-1 side of each ribbon cable is always marked with a colored stripe on the cable.

3. Plug an IDE cable connector into the hard disk drive IDE connector (B). It

doesn't matter which connector on the cable you use.

4. Plug a power cable from the case power supply into the power connector on

the hard disk drive (C).

When you first start up your system, the BIOS should automatically detect your hard disk drive. If it doesn’t, enter the Setup Utility and use the IDE Hard Disk Auto Detect feature to configure the hard disk drive that you have installed. See IDE HDD Auto-Detection on page 28 for more information.

Installing a CD-ROM/DVD Drive

1. Install the CD-ROM/DVD drive into the drive cage in your system case.

2. Plug the IDE cable into IDE1

(A). If you have already installed an HDD, use the other connector on the IDE cable.

3. Plug an IDE cable connector into the CD-ROM/DVD drive IDE connector (B). It

doesn't matter which connector on the cable you use.

4. Plug a power cable from the case power supply into the power connector on

the CD-ROM/DVD drive (C).

5. Use the audio cable provided with the CD-ROM/DVD drive to connect to the

mainboard CD-in connector CD1 (D).

When you first start up your system, the BIOS should automatically detect your CD-ROM/DVD drive. If it doesn’t, enter the Setup Utility and configure the CD-ROM/DVD drive that you have installed. See IDE Primary/Secondary

Master/Slave (Auto) on page 28 for more information.

CD1

Pin Signal Name

1 CD IN L 2 GND 3 GND 4 CD IN R

Installing a Floppy Diskette Drive

The mainboard has a floppy diskette drive (FDD) interface and ships with a diskette drive ribbon cable that supports one or two floppy diskette drives. You can install a 5.25-inch drive and a 3.5-inch drive with various capacities. The floppy diskette drive cable has one type of connector for a 5.25-inch drive and another type of connector for a 3.5-inch drive.

1. Install the FDD into the drive cage in your system case.

2. Plug the FDD cable into FDD1

(A):

3. Plug the correct connector on the FDD cable for the 5.25-inch or 3.5-inch drive

into the FDD connector (B).

4. Plug a power cable from the case power supply into the power connector on

the FDD (C).

When you first start up your system, go immediately to the Setup Utility to configure the floppy diskette drives that you have installed.

Installing Add-on Cards

The slots in this mainboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the mainboard’s features and capabilities. With these efficient facilities, you can increase the mainboard’s capabilities by adding hardware which performs tasks that are not part of the basic system.

PCI Slots PCI slots are used to install expansion cards that have the 32-bit

PCI interface.

AGP Slot The AGP slot is used to install a graphics adapter that supports the

4xAGP specification and has a 4xAGP edge connector.

Note: The above layout is for reference only. The AGP slot

may be different from your mainboard. Please refer to actual shipment.

CNR Slot (optional)

This slot is used to insert CNR cards with Modem and Audio functionality.

Note: Before installing an add-on card, check the documentation for the card

carefully. If the card is not Plug and Play, you may have to manually configure the card before installation.

Follow these instructions to install an add-on card:

1. Remove a blanking plate from the system case corresponding to the slot you are going to use.

2. Install the edge connector of the add-on card into the expansion slot. Ensure that the edge connector is correctly seated in the slot.

3. Secure the metal bracket of the card to the system case with a screw.

Note: For some add-on cards, for example graphics adapters and network adapters,

you have to install drivers and software before you can begin using the add-on card.

Connecting Optional Devices

Refer to the following for information on connecting the mainboard’s optional devices:

AUDIO1: Front Panel Audio header

This header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access.

Pin Signal Name Function

1 AUD_MIC Front Panel Microphone input signal 2 AUD_GND Ground used by Analog Audio Circuits 3 AUD_MIC_BIAS Microphone Power 4 AUD_VCC Filtered +5 V used by Analog Audio Circuits 5 AUD_FPOUT_R Right Channel Audio signal to Front Panel 6 AUD_RET_R Right Channel Audio signal to Return from

Front Panel 7 NC Not connected 8 KEY No Pin 9 AUD_FPOUT_L Left Channel Audio signal to Front Panel

10 AUD_RET_L Left Channel Audio signal Return from

Front Panel

USB3: Front panel USB connectors

The mainboard has four USB ports installed on the rear edge I/O port array. Additionally, some computer cases have USB ports at the front of the case. If you have this kind of case, use auxiliary USB connectors USB3 to connect the front-mounted ports to the mainboard.

Pin Signal Name Function

1 USBVCC +5V 2 USBVCC +5V 3 USBP4- Data signal port 4 4 USBP5- Data signal port 5 5 USBP4+ Data signal port 4 + 6 USBP5+ Data signal port 5 + 7 GND Ground 8 GND Ground 9 Key Cut away

10 NC No connection

Note: Please make sure that the USB cable has the same pin assignment as

indicated above. A different pin assignment may cause damage or system hang-up.

USBCR1: USB Card Reader connector

This connector is for connecting internal USB card reader. You can use a card reader to read or transfer files and digital images to your computer.

Pin Signal Name Function

1 USBVCC +5V 2 USB1- Data signal port 13 USB1+ Data signal port 1+ 4 GND Ground 5 Key No pin

Note: The USBCR1 is shared with one of the USB ports of the I/O back panel.

The USB port is located beside the serial port connectors. See “Connecting I/O Devices” for more information.

Please check the pin assignment of the cable and the USB header on the mainboard. Make sure the pin assignment will match before plugging in. Any incorrect usage may cause unexpected damage to the system.

SPDIF1: SPDIF out header (optional)

You can purchase an optional 24-bit digital audio extension bracket from a third-party vendor. You can use the audio RCA jacks to connect to digital audio devices. If your CD-ROM/DVD drive has digital audio output, you can connect it to the input pins of the SPDIF connector.

Pin Signal Name Function

1 SPDIF SPDIF digital output 2 +5V 5V power 3 NC Not connected 4 GND Ground

CCoonnnneeccttiinngg II//OO DDeevviicceess

The backplane of the mainboard has the following I/O ports:

PS/2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device. PS/2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard. LPT1 Use LPT1 to connect printers or other parallel

communications devices.

COM1 Use the COM ports to connect serial devices such as mice or

fax/modems. COM1 is identified by the system as COM1/3.

Audio Ports Use the three audio ports to connect audio devices. The first

jack is for stereo line-in signal. The second jack is for stereo line-out signal. The third jack is for microphone.

Note: The line-in port can be set as another line-out

port when the 4-channel function is enabled.

LAN Port (optional) Connect an RJ-45 jack to the LAN port to connect your

computer to the Network.

USB Ports Use the USB ports to connect USB devices.

Note: One of the USB ports is shared with the

USBCR1 connector.

External Connector Color Coding

Many connectors now use standard colors as shown in the table below.

Connector

Color

Audio line-in Light blue

Audio line-out Lime

Microphone Pink

Parallel Burgundy

PS/2-compatible keyboard Purple

PS/2-compatible mouse Green

Serial Teal or Turquoise

USB Black

This concludes Chapter 2. The next chapter covers the BIOS.

CChhaapptteerr 33

Using BIOS

AAbboouutt tthhee SSeettuupp UUttiilliittyy

The computer uses the latest Award BIOS with support for Windows Plug and Play. The CMOS chip on the mainboard contains the ROM setup instructions for configuring the mainboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives, and peripherals

• Video display type and display options

• Password protection from unauthorized use

• Power management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration

• when a configuration error is detected and you are prompted to

make changes to the Setup Utility

• when trying to resolve IRQ conflicts

• when making changes to the Power Management configuration

• when changing the password or making other changes to the

Security Setup

Starting Setup

The BIOS is immediately activated when you first turn on the computer. The BIOS reads system configuration in CMOS RAM and begins the process of checking out the system and configuring it through the power-on self test (POST).

When these preliminaries are finished, the BIOS seeks an operating system on one of the data storage devices (hard drive, floppy drive, etc.). The BIOS launches the operating system and hands control of system operations to it.

During POST, you can start the Setup program in one on two ways:

1. By pressing Del immediately after switching the system on, or

2. By pressing Del or pressing Ctrl+Alt+Esc when the following message appears briefly at the bottom of the screen during POST:

TO ENTER SETUP BEFORE BOOT PRESS DEL KEY

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the RESET button on the system case. You may also restart by simultaneously pressing Ctrl+Alt+Del. If you do not press the keys at the correct time and the system does not boot, an error message appears and you are again asked to:

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Esc : Quit ↑ ↓ → ← : Select Item F10 : Save & Exit Setup

Time, Date, Hard Disk Type . . .

BIOS Navigation Keys

The BIOS navigation keys are listed below:

Key Function

Esc Exits the current menu

←↑↓→

Scrolls through the items on a menu

+/–/PU/PD Modifies the selected field's values

F10 Saves the current configuration and exits setup

F1 Displays a screen that describes all key functions F5 Loads previously saved values to CMOS F6 Loads a minimum configuration for troubleshooting. F7 Loads an optimum set of values for peak performance

Updating the BIOS

You can download and install updated BIOS for this mainboard from the manufacturer's Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1. If your mainboard has a BIOS protection jumper, change the setting to

allow BIOS flashing.

2. If your mainboard has an item called Firmware Write Protect in Advanced

BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)

3. Create a bootable system disk. (Refer to Windows online help for

information on creating a bootable system disk.)

4. Download the Flash Utility and new BIOS file from the manufacturer's

Web site. Copy these files to the system diskette you created in Step 3.

5. Turn off your computer and insert the system diskette in your computer's

diskette drive. (You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the floppy diskette drive first.)

6. At the A:\ prompt, type the Flash Utility program name and press

<Enter>. You see a screen similar to the following:

FLASH MEMORY WRITER V7.33

For (MAINBOARD NAME) DATE: 10/26/2000 Flash Type File Name to Program :____________________

Error Message

7. Type the filename of the new BIOS in the “File Name to Program” text

box. Follow the onscreen directions to update the mainboard BIOS.

8. When the installation is complete, remove the floppy diskette from the

diskette drive and restart your computer. If your mainboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten.

UUssiinngg BBIIOOSS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing <Enter>.

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle

) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle .

Standard CMOS Features

In the Standard CMOS menu you can set the system clock and calendar, record disk drive parameters and the video subsystem type, and select the type of errors that stop the BIOS POST.

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

Item Help

Date (mm:dd:yy) Tue, July 11 2001 Time (hh:mm:ss) 12 : 8 : 59

IDE Primary Master IDE Primary Slave IDE Secondary Master IDE Secondary Slave

Drive A [1.44M, 3.5 in.] Drive B [None]

Video [EGA/VGA] Halt On [All errors]

Base Memory 640K

Extended Memory 31744K Total Memory 32768K

Menu Level

Change the day, month, year and century.

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Date and Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

IDE Devices (None)

Your computer has two IDE channels (Primary and Secondary) and each channel can be installed with one or two devices (Master and Slave). Use these items to configure each device on the IDE channel.

Press <Enter> to display the IDE submenu:

IDE Primary Master

Item Help

IDE HDD Auto-Detection [Press Enter]

IDE Primary Master [Auto] Access Mode [Auto]

Capacity 0 MB

Cylinder 0 Head 0 Precomp 0 Landing Zone 0 Sector 0

Menu Level

To auto-detect the HDD’s size, head . . . on this channel

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

IDE HDD Auto-Detection

Press <Enter> while this item is highlighted to prompt the Setup Utility to automatically detect and configure an IDE device on the IDE channel.

Note: If you are setting up a new hard disk drive that supports LBA mode, more

than one line will appear in the parameter box. Choose the line that lists LBA for an LBA drive.

IDE Primary/Secondary Master/Slave (Auto)

Leave this item at Auto to enable the system to automatically detect and configure IDE devices on the channel. If it fails to find a device, change the value to Manual and then manually configure the drive by entering the characteristics of the drive in the items described below.

Refer to your drive's documentation or look on the drive casing if you need to obtain this information. If no device is installed, change the value to None.

Note: Before attempting to configure a hard disk drive, ensure that you have the

configuration information supplied by the manufacturer of your hard drive. Incorrect settings can result in your system not recognizing the installed hard disk.

Access Mode

This item defines ways that can be used to access IDE hard disks such as LBA (Large Block Addressing). Leave this value at Auto and the system will automatically decide the fastest way to access the hard disk drive.

Press <Esc> to return to the Standard CMOS Features screen.

Drive A/Drive B (1.44M, 3.5 in./None)

These items define the characteristics of any diskette drive attached to the system. You can connect one or two diskette drives.

Video (EGA/VGA)

This item defines the video mode of the system; you must leave this item at the default value.

Halt On (All, But keyboard)

This item defines the operation of the system POST (Power On Self Test) routine. You can use this item to select which types of errors in the POST are sufficient to halt the system.

Base Memory, Extended Memory, and Total Memory

These items are automatically detected by the system at start up time. These are display-only fields. You cannot make changes to these fields.

Advanced BIOS Setup

This screen contains industry-standard options additional to the core PC AT BIOS.

Phoenix – AwardBIOS CMOS Setup Utility

Advanced BIOS Setup

Item Help

CPU Internal Cache [Enabled] External Cache [Enabled] CPU L2 Cache ECC Checking [Enabled] Quick Power On Self Test [Enabled] First Boot Device [Floppy] Second Boot Device [HDD-0] Third Boot Device [CD-ROM] Boot Other Device [Enabled] Swap Floppy Drive [Disabled] Boot Up Floppy Seek [Enabled] Boot Up NumLock Status [On] Gate A20 Option [Fast]

ATA 66/100 IDE Cable Msg [Enabled]

Typematic Rate Setting [Disabled]

x Typematic Rate (Chars/Sec) 6 x Typematic Delay (Msec) 250

Security Option [Setup] OS Select for DRAM>64MB [Non-OS2]

Menu Level

Allows you to choose the VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempts to write data into this area, BIOS will show a warning message on screen and alarm beep

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

CPU Internal Cache (Enabled)

All processors that can be installed in this mainboard use internal level 1 (L1) cache memory to improve performance. Leave this item at the default value for better performance.

External Cache (Enabled)

Most processors that can be installed in this system use external level 2 (L2) cache memory to improve performance. Leave this item at the default value

for better performance.

CPU L2 Cache ECC Checking (Enabled)

This item enables or disables ECC (Error Correction Code) error checking on the CPU cache memory. We recommend that you leave this item at the default value.

Quick Power On Self Test (Enabled)

Enable this item to shorten the power on testing (POST) and have your system start up faster. You might like to enable this item after you are confident that your system hardware is operating smoothly.

First/Second/Third Boot Device (Floppy/HDD-0/CD-ROM)

Use these three items to select the priority and order of the devices that your system searches for an operating system at start-up time.

Boot Other Device (Enabled)

When enabled, the system searches all other possible locations for an operating system if it fails to find one in the devices specified under the First, Second, and Third boot devices.

Swap Floppy Drive (Disabled)

If you have two floppy diskette drives in your system, this item allows you to swap the assigned drive letters so that drive A becomes drive B, and drive B becomes drive A.

Boot Up Floppy Seek (Enabled)

If this item is enabled, it checks the size of the floppy disk drives at start-up time. You don't need to enable this item unless you have a legacy diskette drive with 360K capacity.

Boot Up NumLock Status (On)

This item defines if the keyboard Num Lock key is active when your system is started.

Gate A20 Option (Fast)

This item defines how the system handles legacy software that was written for an earlier generation of processors. Leave this item at the default value.

ATA 66/100 IDE Cable Msg (Enabled)

Enables or disables the ATA 66/100 IDE Cable Msg. This message will appear during reboot when you use 40-pin cable on your 66/100 hard disks.

Typematic Rate Setting (Disabled)

If this item is enabled, you can use the following two items to set the typematic rate and the typematic delay settings for your keyboard.

• Typematic Rate (Chars/Sec): Use this item to define how many

characters per second are generated by a held-down key.

• Typematic Delay (Msec): Use this item to define how many

milliseconds must elapse before a held-down key begins generating repeat characters.

Security Option (Setup)

If you have installed password protection, this item defines if the password is required at system start up, or if it is only required when a user tries to enter the Setup Utility.

OS Select For DRAM > 64 MB (Non-OS2)

This item is only required if you have installed more than 64 MB of memory and you are running the OS/2 operating system. Otherwise, leave this item at the default.

Video BIOS Shadow (Enabled)

This function, when enabled allows VGA BIOS to be copied to the system DRAM for enhanced performance.

Small Logo (EPA) Show (Disabled)

Determines whether or not the EPA logo appears during boot up.

Advanced Chipset Setup

The parameters in this screen are for system designers, service personnel, and technically competent users only. Do not reset these values unless you understand the consequences of your changes.

Phoenix – AwardBIOS CMOS Setup Utility

Advanced Chipset Setup

Item Help

DRAM Clock/Drive Control [Press Enter] AGP & P2P Bridge Control [Press Enter]

CPU & PCI Bus Control [Press Enter] BIOS Flash PROTECT [Disabled] System BIOS Cacheable [Disabled] Video RAM Cacheable [Disabled]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

DRAM Clock/Drive Control

Scroll to this item and press <Enter> to view the following screen:

DRAM Clock/Drive Control

Item Help

Current FSB Frequency Current DRAM Frequency

DRAM Clock [By SPD] DRAM Timing [By SPD]

x DRAM CAS Latency 2.5 x Bank Interleave Disabled x Precharge to Active (Trp) 3T x Active to Precharge (Tras) 6T x Active to CMD (Trcd) 3T

DRAM Burst Length [4] DRAM Queue Depth [4 level] DRAM Command Rate [2T Command]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Current FSB Frequency

This item displays the frontside bus (FSB) frequency. This is a display-only item. You cannot make changes to this field.

Current DRAM Frequency

This item displays the memory (DRAM) frequency. This is a display-only item. You cannot make changes to this field.

DRAM Clock (100 MHz)

This item enables you to manually set the DRAM Clock. We recommend that you leave this item at the default value.

DRAM Timing (Manual)

Set this to the default value to enable the system to automatically set the SDRAM timing by SPD (Serial Presence Detect). SPD is an EEPROM chip on the DIMM module that stores information about the memory chips it contains, including size, speed, voltage, row and column addresses, and manufacturer. If you disable this item, you can use the following three items to manually set the timing parameters for the system memory

DRAM CAS Latency (2.5)

Enables you to select the CAS latency time in HCLKs of 2/2 or 3/3. The value is set at the factory depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or the installed CPU. The options are "2" and "2.5" default.

Bank Interleave (Disabled)

Enable this item to increase memory speed. When enabled, separate memory banks are set for odd and even addresses and the next byte of memory can be accessed while the current byte is being refreshed.

Precharge to Active (3T/4T)

This item is used to designate the minimum Row Precharge time of the SDRAM devices on the module.

DRAM must continually be refreshed or it will lose its data. Normally, DRAM is refreshed entirely as the result of a single request. This option allows you to determine the number of CPU clocks allocated for the Row Address Strobe (RAS) to accumulate its charge before the DRAM is refreshed. If insufficient time is allowed, refresh may be incomplete and data lost.

Active to Precharge (6T/10T)

This item specifies the number of clock cycles needed after a bank active command before a precharge can occur.

Active to CMD (3T)

This item specifies the minimum required delay between activation of different rows.

DRAM Burst Length (4)

This item describes which burst lengths are supported by the devices on the mainboard. 1 level can provide faster performance but may result in instability whereas 8 level gives the most stable but slowest performance.

DRAM Queue Depth (4 level)

This item sets the depth of the DRAM queue used for CPU’s cache.

DRAM Command Rate (2T Command)

This item enables you to specify the waiting time for the CPU to issue the next command after issuing the command to the DDR memory. We recommend that you leave this item at the default value.

Press <Esc> to return to the Advanced Chipset Setup screen.

AGP & P2P Bridge Control

Scroll to this item and press <Enter> to view the following screen:

AGP & P2P Bridge Control

Item Help

AGP Aperture Size [128M] AGP Mode [4X] AGP Driving Control [Auto]

x AGP Driving Value DA

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

AGP Aperture Size (128 MB)

This item defines the size of the aperture if you use an AGP graphics adapter. The AGP aperture refers to a section of the PCI memory address range used for graphics memory. We recommend that you leave this item at the default value.

AGP Mode (4X)

This item allows you to enable or disable the caching of display data for the processor video memory. Enabling AGP-4X Mode can greatly improve the display speed. Disable this item if your graphics display card does not support this feature.

AGP Driving Control (Auto)

This item is used to signal driving current on AGP cards to auto or manual. Some AGP cards need stronger than normal driving current in order to operate. We recommend that you set this item to the default.

• AGP Driving Value: When AGP Driving Control is set to Manual,

use this item to set the AGP current driving value.

Press <Esc> to return to the Advanced Chipset Setup screen.

CPU & PCI Bus Control

Scroll to this item and press <Enter> to view the following screen:

CPU & PCI Bridge Control

Item Help

PCI1 Master 0 WS Write [Enabled] PCI2 Master 0 WS Write [Enabled] PCI1 Post Write [Enabled] PCI2 Post Write [Enabled] PCI Delay Transaction [Disabled]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

PCI 1/2 Master 0 WS Write (Enabled)

When enabled, writes to the PCI bus are executed with zero wait states, providing faster data transfer.

PCI 1/2 Post Write (Enabled)

When enabled, writes from the CPU to PCU bus are buffered, to compensate for the speed differences between the CPU and PCI bus. When disabled, the writes are not buffered and the CPU must wait until the write is complete before starting another write cycle.

PCI Delay Transaction (Disabled)

The mainboard’s chipset has an embedded 32-bit post write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.

Press <Esc> to return to the Advanced Chipset Setup screen.

BIOS Write Protect (Disabled)

Use this item to enable or disable the BIOS Write Protect.

System BIOS/Video RAM Cacheable (Disabled)

These items allow the video and system to be cached in memory for faster execution. Leave these items at the default value for better performance.

Integrated Peripherals

These options display items that define the operation of peripheral components on the system's input/output ports.

Phoenix – AwardBIOS CMOS Setup Utility

Integrated Peripherals

Item Help

USB 2.0 Support [Enabled]

OnChip IDE Device [Press Enter]

OnChip PCI Device [Press Enter]

Super I/O Device [Press Enter] Init Display First [PCI Slot] OnChip USB Controller [All Enabled] USB Keyboard Support [Disabled] USB Mouse Support [Disabled] IDE HDD Block Mode [Enabled]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

USB 2.0 Support (Enabled)

Select enabled if your system support the USB 2.0 function.

OnChip IDE Device

Scroll to this item and press <Enter> to view the following screen:

OnChip IDE Device

Item Help

OnChip IDE Channel0 [Enabled] OnChip IDE Channel1 [Enabled] IDE Prefetch Mode [Enabled] Primary Master PIO [Auto] Primary Slave PIO [Auto] Secondary Master PIO [Auto] Secondary Slave PIO [Auto] Primary Master UDMA [Auto] Primary Slave UDMA [Auto] Secondary Master UDMA [Auto] Secondary Slave UDMA [Auto]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

On-Chip IDE Channel 0/1 (Enabled)

Use these items to enable or disable the PCI IDE channels that are integrated on the mainboard.

IDE Prefetch Mode (Enabled)

The onboard IDE drive interfaces supports IDE prefetching, for faster drive access. If you install a primary and secondary add-in IDE interface, set this field to Disabled if the interface does not support prefetching.

IDE Primary/Secondary Master/Slave PIO (Auto)

Each IDE channel supports a master device and a slave device. These four items let you assign which kind of PIO (Programmed Input/Output) is used by IDE devices. Choose Auto to let the system auto detect which PIO mode is best, or select a PIO mode from 0-4.

IDE Primary/Secondary Master/Slave UDMA (Auto)

Each IDE channel supports a master device and a slave device. This mainboard supports UltraDMA technology, which provides faster access to IDE devices.

If you install a device that supports UltraDMA, change the appropriate item on this list to Auto. You may have to install the UltraDMA driver supplied with this mainboard in order to use an UltraDMA device.

Press <Esc> to return to the Integrated Peripherals screen.

OnChip PCI Device

Scroll to this item and press <Enter> to view the following screen:

OnChip PCI Device

Item Help

VIA-3Q58 AC97 Audio [Auto]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

VIA-3Q58 OnChip AC97 Audio (Auto)

Enables and disables the onboard audio chip. Disable this item if you are going to install a PCI audio add-in card.

Press <Esc> to return to the Integrated Peripherals screen.

SuperIO Device

Scroll to this item and press <Enter> to view the following screen:

SuperIO Device

Item Help

Onboard FDC Controller [Enabled] Onboard Serial Port 1 [3F8/IRQ4] Onboard Parallel Port [378/IRQ7] Parallel Port Mode [ECP] ECP Mode Use DMA [3]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Onboard FDC Controller (Enabled)

This option enables the onboard floppy disk drive controller.

Onboard Serial Port 1 (3F8/IRQ4)

This option is used to assign the I/O address and interrupt request (IRQ) for the onboard serial port 1 (COM1).

Onboard Parallel Port (378/IRQ7)

This option is used to assign the I/O address and interrupt request (IRQ) for the onboard parallel port.

Parallel Port Mode (ECP)

Enables you to set the data transfer protocol for your parallel port. There are four options: SPP (Standard Parallel Port), EPP (Enhanced Parallel Port), ECP (Extended Capabilities Port) and ECP+EPP.

SPP allows data output only. Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP) are bi-directional modes, allowing both data input and output. ECP and EPP modes are only supported with EPP- and ECP-aware peripherals.

ECP Mode Use DMA (3)

When the onboard parallel port is set to ECP mode, the parallel port can use DMA 3 or DMA 1.

Press <Esc> to return to the Integrated Peripherals screen.

Init Display First (PCI Slot)

Use this item to specify whether your graphics adapter is installed in one of the PCI slots or is integrated on the mainboard.

OnChip USB Controller (All Enabled)

Enable this item if you plan to use the Universal Serial Bus ports on this mainboard.

USB Keyboard Support (Disabled)

Enable this item if you plan to use a keyboard connected through the USB port in a legacy operating system (such as DOS) that does not support Plug and Play.

USB Mouse Support (Disabled)

Enable this item if you plan to use a USB mouse.

IDE HDD Block Mode (Enabled)

Enable this field if your IDE hard drive supports block mode. Block mode enables BIOS to automatically detect the optimal number of block read and writes per sector that the drive can support and improves the speed of access to IDE devices.

Power Management Setup

The Power Management Setup Menu option is used to change the values of the chipset registers for system power management.

Power Management Timeouts

The power-saving modes can be controlled by timeouts. If the system is inactive for a time, the timeouts begin counting. If the inactivity continues so that the timeout period elapses, the system enters a power-saving mode. If any item in the list of Reload Global Timer Events is Enabled, then any activity on that item will reset the timeout counters to zero.

Wake Up Calls

If the system is suspended, or has been powered down by software, it can be resumed by a wake up call that is generated by incoming traffic to a modem, a LAN card, a PCI card, or a fixed alarm on the system realtime clock.

Phoenix – AwardBIOS CMOS Setup Utility

Power Management Setup

Item Help

ACPI function [Enabled] Power Management Option [User Define] HDD Power Down [Disable] Suspend Mode [Disable] Video Off Option [Suspend --> Off] Video Off Method [DPMS Support] MODEM Use IRQ [3] Soft-Off by PWRBTN [Instant-Off] State After Power Failure [Off]

IRQ/Event Activity Detect [Press Enter]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

ACPI Function (Enabled)

This mainboard supports ACPI (Advanced Configuration and Power management Interface). Use this item to enable or disable the ACPI feature.

Note: ACPI is a power management specification that makes hardware status

information available to the operating system. ACPI enables a PC to turn its peripherals on and off for improved power management. It also allows the PC to be turned on and off by external devices, so that mouse or keyboard activity wakes up the computer.

Power Management Option (User Define)

This item acts like a master switch for the power-saving modes and hard disk timeouts. If this item is set to Max Saving, power-saving modes occur after a short timeout. If this item is set to Min Saving, power-saving modes occur after

a longer timeout. If the item is set to User Define, you can insert your own timeouts for the power-saving modes.

HDD Power Down (Disable)

The IDE hard drive will spin down if it is not accessed within a specified length of time. Options are from 1 Min to 15 Min and Disable.

Suspend Mode (Disable)

The CPU clock will be stopped and the video signal will be suspended if no Power Management events occur for a specified length of time. Full power function will return when a Power Management event is detected. Options are from 1 Min to 1 Hour and Disable.

Video Off Option (Suspend --> Off)

This option defines if the video is powered down when the system is put into suspend mode.

Video Off Method (DPMS Support)

This item defines how the video is powered down to save power. This item is set to DPMS (Display Power Management Software) by default.

MODEM Use IRQ (3)

If you want an incoming call on a modem to automatically resume the system from a power-saving mode, use this item to specify the interrupt request line (IRQ) that is used by the modem. You might have to connect the fax/modem to the mainboard Wake On Modem connector for this feature to work.

Soft-Off by PWRBTN (Instant-Off)

Under ACPI (Advanced Configuration and Power management Interface) you can create a software power down. In a software power down, the system can be resumed by Wake Up Alarms. This item lets you install a software power down that is controlled by the power button on your system. If the item is set to Instant-Off, then the power button causes a software power down. If the item is set to Delay 4 Sec. then you have to hold the power button down for four seconds to cause a software power down.

State After PWR-Fail (Off)

This item enables your computer to automatically restart or return to its last operating status after power returns from a power failure.

IRQ/Event Activity Detect

Scroll to this item and press <Enter> to view the following screen:

Phoenix – AwardBIOS CMOS Setup Utility

IRQ/Event Activity Detect

Item Help

VGA [OFF] LPT & COM [LPT/COM] HDD & FDD [ON] PCI Master [OFF] PowerOn by PCI Card [Enabled] Modem Ring Resume [Disabled] RTC Alarm Resume [Disabled]

x Date (of Month) 0 x Resume Time (hh:mm:ss) 0 0 0

IRQs Activity Monitoring [Press Enter]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

This item opens a submenu that enables you to set events that will resume the system from a power saving mode.

VGA (Off)

When set to On, the system power will resume the system from a power saving mode if there is any VGA activity.

LPT & COM (LPT/COM )

When this item is enabled, the system will restart the power-saving timeout counters when any activity is detected on the serial ports, or the parallel port.

HDD & FDD (ON)

When this item is enabled, the system will restart the power-saving timeout counters when any activity is detected on the hard disk drive or the floppy diskette drive.

PCI Master (OFF)

When set to Off, any PCI device set as the Master will not power on the system.

PowerOn by PCI Card (Enabled)

Use this item to enable PCI activity to wakeup the system from a power saving mode.

Modem Ring Resume (Disabled)

Enable Modem Ring-in to resume the system.

RTC Alarm Resume (Disabled)

When set to Enabled, additional fields become available and you can set the date (day of the month), hour, minute and second to turn on your system. When set to 0 (zero) for the day of the month, the alarm will power on your system every day at the specified time.

IRQs Activity Monitoring

Scroll to this item and press <Enter> to view the following screen:

Phoenix – AwardBIOS CMOS Setup Utility

IRQs Activity Monitoring

Item Help

Primary INTR [ON] IRQ 3 (COM2) [Enabled] IRQ 4 (COM1) [Enabled] IRQ 5 (LPT2) [Enabled] IRQ 6 (Floppy Disk) [Enabled] IRQ 7 (LPT1) [Enabled] IRQ 8 (RTC Alarm) [Disabled] IRQ 9 (IRQ2 Redir) [Disabled] IRQ 10 (Reserved) [Disabled] IRQ 11 (Reserved) [Disabled] IRQ 12 (PS/2 Mouse) [Enabled] IRQ 13 (Coprocessor) [Enabled] IRQ 14 (Hard Disk) [Enabled] IRQ 15 (Reserved) [Disabled]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

This screen enables you to set IRQs that will resume the system from a power saving mode.

Set any IRQ to Enabled to allow activity at the IRQ to wake up the system from a power saving mode.

Press <Esc> to return to the Power Management Setup screen.

PNP/PCI Configurations

This section describes configuring the PCI bus system. PCI (Peripheral Component Interconnect) is a system, which allows I/O devices to operate at speeds nearing CPU’s when they communicate with own special components.

All the options describes in this section are important and technical and it is strongly recommended that only experienced users should make any changes to the default settings.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

Item Help

PNP OS Installed [No] Reset Configuration Data [Disabled]

Resources Controlled by [Auto(ESCD)]

x IRQ Resources Press Enter

PCI/VGA Palette Snoop [Disabled] Assign IRQ For VGA [Enabled] Assign IRQ For USB [Enabled]

Menu Level

Default is Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new addon and the system reconfiguration has caused such a serious conflict that the OS cannot boot

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

PNP OS Installed (No)

Setting this option to Yes allows the PnP OS (instead of BIOS) to assign the system resources such as IRQ and I/O address to the ISA PnP device. The default setting is No.

Reset Configuration Data (Disabled)

If you enable this item and restart the system, any Plug and Play configuration data stored in the BIOS setup is cleared from memory. New updated data is created.

Resources Controlled By (Auto(ESCD))

You should leave this item at the default Auto(ESCD). Under this setting, the system dynamically allocates resources to plug and play devices as they are required.

If you cannot get a legacy ISA (Industry Standard Architecture) expansion card to work properly, you might be able to solve the problem by changing this item to Manual, and then opening up the IRQ Resources and Memory Resources sub-menus.

In the IRQ Resources sub-menu, if you change any of the IRQ assignations to Legacy ISA, then that Interrupt Request Line is reserved for a legacy ISA expansion card. Press <Esc> to close the IRQ Resources sub-menu.

In the Memory Resources sub menu, use the first item Reserved Memory

Base to set the start address of the memory you want to reserve for the ISA expansion card. Use the second item Reserved Memory Length to set the amount of reserved memory. Press <Esc> to close the Memory Resources sub-menu.

PCI/VGA Palette Snoop (Disabled)

This item is designed to overcome some problems that can be caused by some non-standard VGA cards. This board includes a built-in VGA system that does not require palette snooping so you must leave this item disabled.

Assign IRQ for VGA/USB (Enabled)

Names the interrupt request (IRQ) line assigned to the USB/VGA (if any) on your system. Activity of the selected IRQ always awakens the system.

PC Health Status

On mainboards that support hardware monitoring, this item lets you monitor the parameters for critical voltages, critical temperatures, and fan speeds.

Phoenix – AwardBIOS CMOS Setup Utility

PC Health Status

Item Help

Target Temperature [Disabled] Shutdown Temperature [Disabled]

Vcore + 2.5V CPU Temperature CPU FAN speed System Fan Speed

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Target Temperature (Disabled)

This item is for CPU Throttling switch. When the CPU reached it’s target temperature, the CPU Throttling will be activated. Enabling this item will protect your CPU not to overheat, but it will reduce the CPU performance.

Shutdown Temperature (Disabled)

Enables you to set the maximum temperature the system can reach before powering down.

System Component Characteristics

These fields provide you with information about the systems current operating status. You cannot make changes to these fields.

Frequency Control

This item enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

Phoenix – AwardBIOS CMOS Setup Utility

Frequency Control

Item Help

Auto Detect DIMM/PCI Clk [Enabled] Spread Spectrum Modulated [Enabled] CPU Clock [Default]

Menu Level

↑ ↓ → ← : Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Auto Detect DIMM/PCI Clk (Enabled)

When this item is enabled, BIOS will disable the clock signal of free DIMM and PCI slots.

Spread Spectrum (Enabled)

If you enable spread spectrum, it can significantly reduce the EMI (ElectroMagnetic Interference) generated by the system.

CPU Host Clock (Default)

This item is used for overclocking only.

Load Fail-Safe Defaults Option

This option opens a dialog box that lets you install fail-safe defaults for all appropriate items in the Setup Utility:

Press <Y> and then <Enter> to install the defaults. Press <N> and then <Enter> to not install the defaults. The fail-safe defaults place no great demands on the system and are generally stable. If your system is not functioning correctly, try installing the fail-safe defaults as a first step in getting your system working properly again. If you only want to install fail-safe defaults for a specific option, select and display that option, and then press <F6>.

Load Optimized Defaults Option

This option opens a dialog box that lets you install optimized defaults for all appropriate items in the Setup Utility. Press <Y> and then <Enter> to install the defaults. Press <N> and then <Enter> to not install the defaults. The optimized defaults place demands on the system that may be greater than the performance level of the components, such as the CPU and the memory. You can cause fatal errors or instability if you install the optimized defaults when your hardware does not support them. If you only want to install setup defaults for a specific option, select and display that option, and then press <F7>.

Set Password Option

This item can be used to install a password. To install a password, follow these steps:

1. Highlight the item Set Password on the main menu and press <Enter>.

2. The password dialog box appears.

Enter Password:

3. If you are installing a new password, type in the password. You cannot use more than eight characters or numbers. The Set Password item differentiates between upper and lower case characters. Press <Enter> after you have typed in the password. If you are deleting a password that is already installed press <Enter> when the password dialog box appears. You see a message that indicates that the password has been disabled.

PASSWORD DISABLED !!! Press any key to continue . . .

4. Press any key. You are prompted to confirm the password:

Confirm Password:

5. Type the password again and press <Enter>, or press <Enter> if you are deleting a password that is already installed.

6. If you typed the password correctly, the password will be installed.

Save & Exit Setup Option

Highlight this item and press <Enter> to save the changes that you have made in the Setup Utility and exit the Setup Utility. When the Save and Exit dialog box appears, press <Y> to save and exit, or press <N> to return to the main menu:

Exit Without Saving

Highlight this item and press <Enter> to discard any changes that you have made in the Setup Utility and exit the Setup Utility. When the Exit Without Saving dialog box appears, press <Y> to discard changes and exit, or press <N> to return to the main menu.

Note: If you have made settings that you do not want to save, use the "Exit

Without Saving" item and press <Y> to discard any changes you have made.

This concludes Chapter 3. Refer to the next chapter for information on the software supplied with the mainboard.

CChhaapptteerr 44

Using the Mainboard Software

AAbboouutt tthhee SSooffttwwaarree CCDD--RROOMM

The support software CD-ROM that is included in the mainboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your mainboard version. More information on some programs is available in a README file, located in the same directory as the software.

Note: Never try to install software from a folder that is not specified for use with

your mainboard.

Before installing any software, always inspect the folder for files named README.TXT, INSTALL.TXT, or something similar. These files may contain important information that is not included in this manual.

AAuuttoo--iinnssttaalllliinngg uunnddeerr WWiinnddoowwss 9988//MMEE//22000000//XXPP

The Auto-install CD-ROM makes it easy for you to install the drivers and software for your mainboard.

Note: If the Auto-install CD-ROM does not work on your system, you can still

install drivers through the file manager for your OS (for example, Windows Explorer). Refer to Utility Folder Installation Notes later in this chapter.

The support software CD-ROM disc loads automatically under Windows 98/ME/2000/XP. When you insert the CD-ROM disc in the CD-ROM drive, the autorun feature will automatically bring up the install screen. The screen has three buttons on it, Setup, Browse CD and Exit.

Note: If the opening screen doesn't appear, double-click the file "setup.exe" in

the root directory.

Setup Tab

Setup Click the Setup button to run the software installation program.

Select from the menu which software you want to install.

Browse CD

The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the support CD.

Before installing the software from Windows Explorer, look for a file named README.TXT, INSTALL.TXT or something similar. This file may contain important information to help you install the software correctly.

Some software is installed in separate folders for different operating systems, such as DOS, WIN NT, or WIN98/95. Always go to the correct folder for the kind of OS you are using.

To install the software, execute a file named SETUP.EXE or INSTALL.EXE by double-clicking the file and then following the instructions on the screen.

Exit The Exit button closes the Auto Setup window.

Application Tab

Lists the software utilities that are available on the CD.

Read Me Tab

Displays the path for all software and drivers available on the CD.

Running Setup

Follow these instructions to install device drivers and software for the mainboard:

1. Click Setup. The installation program begins:

Mainboard model

Note: The following screens are examples only. The screens and driver lists will

be different according to the mainboard you are installing.

The mainboard identification is located in the upper left-hand corner.

2. Click Next. The following screen appears:

3. Check the box next to the items you want to install. The default options

are recommended.

4. Click Next run the Installation Wizard. An item installation screen

appears:

5. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

MMaannuuaall IInnssttaallllaattiioonn

Insert the CD in the CD-ROM drive and locate the PATH.DOC file in the root directory. This file contains the information needed to locate the drivers for your mainboard.

Look for the chipset and mainboard model; then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

UUttiilliittyy SSooffttwwaarree RReeffeerreennccee

All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of the license.

Note: These software(s) are subject to change at anytime without prior notice.

Please refer to the support CD for available software.

AWARD Flash Memory Utility

This utility lets you erase the system BIOS stored on a Flash Memory chip on the mainboard, and lets you copy an updated version of the BIOS to the chip. Proceed with caution when using this program. If you erase the current BIOS and fail to write a new BIOS, or write a new BIOS that is incorrect, your system will malfunction. Refer to Chapter 3, Using BIOS for more information.

WinFlash Utility

The Award WinFlash utility is a Windows version of the DOS Award BIOS flash writer utility. The utility enables you to flash the system BIOS stored on a Flash Memory chip on the mainboard while in a Windows environment. This utility is currently available for WINXP\ME\2000\98SE. To install the WinFlash utility, run WINFLASH.EXE from the following directory:

\UTILITY\WINFLASH 1.51

PC-CILLIN 2002

The PC-CILLIN 2002 software program provides anti-virus protection for your system. This program is available for Windows 2000/ME/98SE/XP and Windows NT. Be sure to check the readme.txt and install the appropriate antivirus software for your operating system.

We strongly recommend users to install this free anti-virus software to help protect your system against viruses.

MediaRing Talk – Telephony Software

To install the MediaRing Talk voice modem software for the built-in modem, go to the directory \UTILITY\MEDIARING TALK, then run MRTALKSETUP72.EXE to install the application software.

Super Voice – Fax/Modem Software

To install the Super Voice voice, fax, data communication application for use with the built-in fax/modem, go the directory \UTILITY\SUPER_VOICE, then run PICSHELL.EXE to install the application software.

PageABC

The PageABC application software enables you to create your very own home page. To install the PageABC, go to the directory \UTILITYPageABC, and then run SETUP.EXE to install the application software.

This concludes Chapter 4.

Syntax SV266AD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
