Synology VS80 User Manual
VS80 User’s Guide
Firmware version 1.3-0303
VS8001042011
Table of Contents
TOC
2
3
Chapter 1: Getting Started with VS80
4
Package Contents
5
Software Specications
5
Operating Requirements
6
Appearance
7
LED Behavior
7
Safety Instructions
8

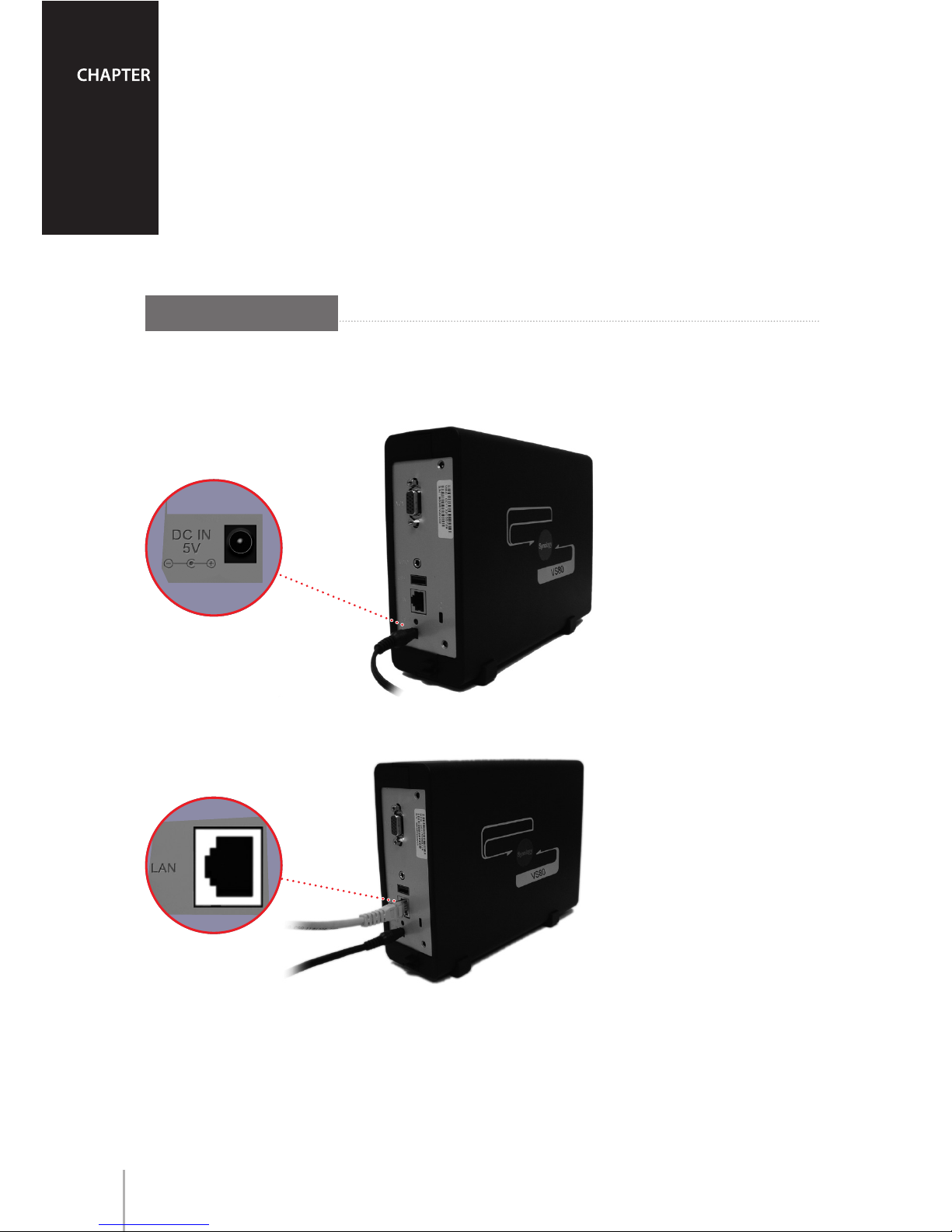

Hardware Setup
8
Chapter 2: Using VS80
10

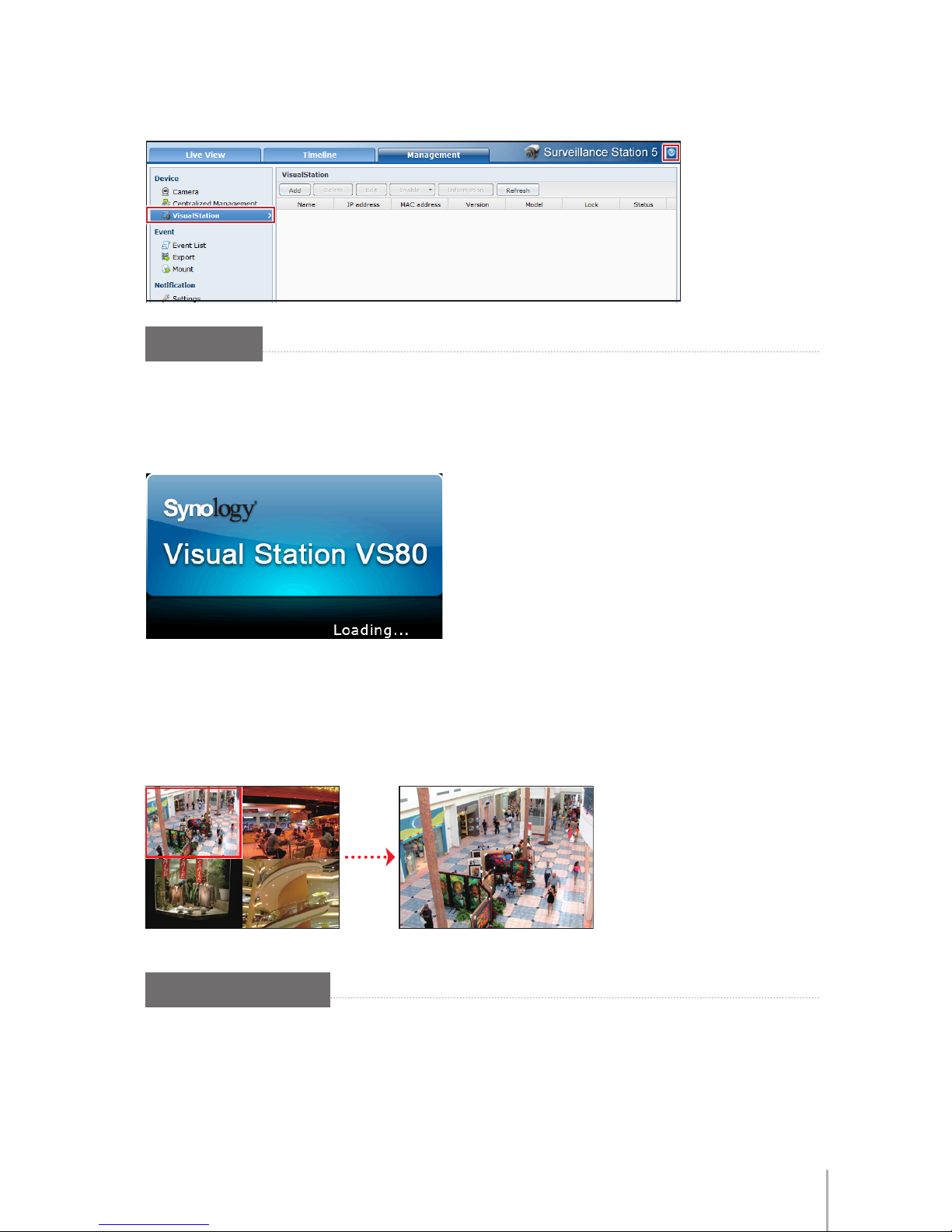

Enabling VS80 on your Synology DiskStation
11
Live-view
11

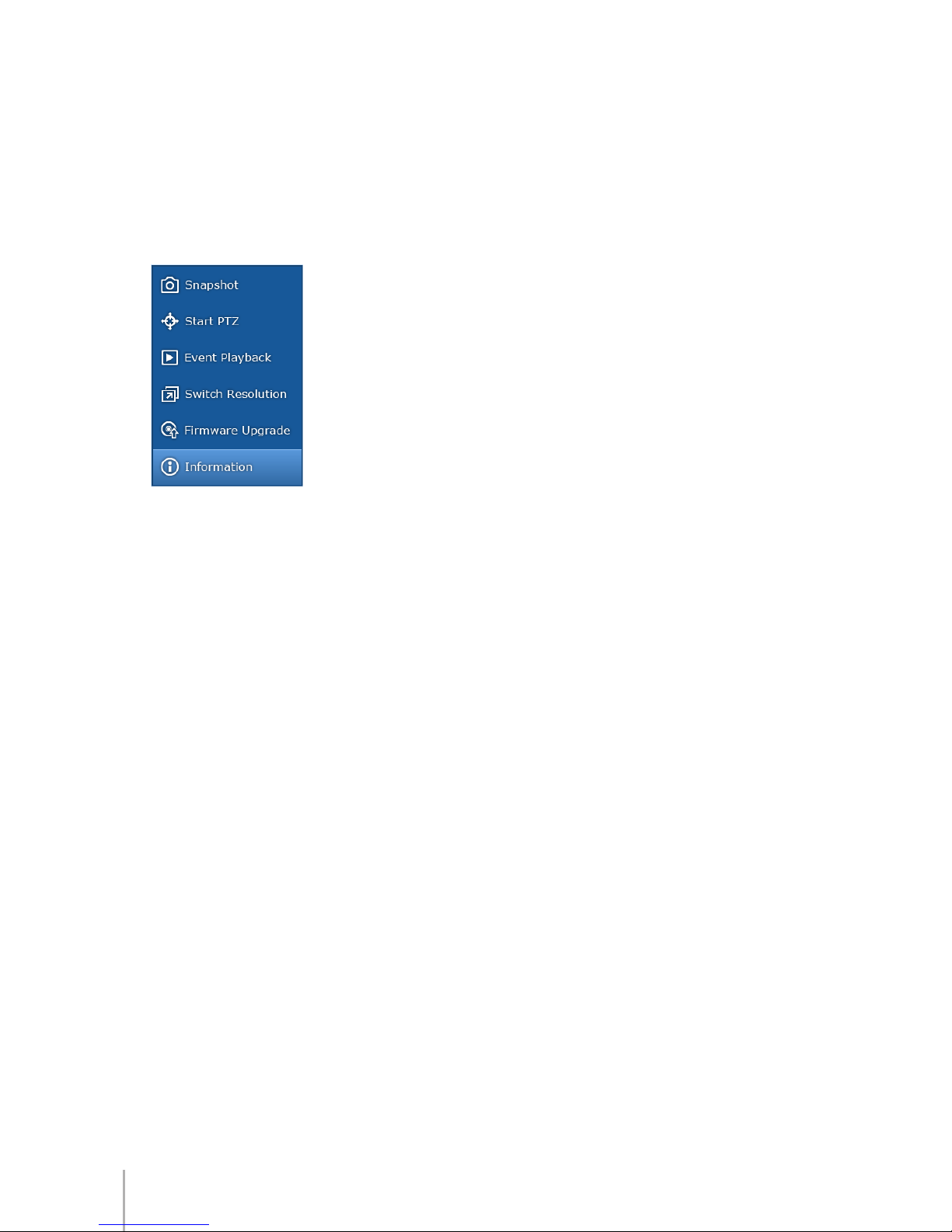

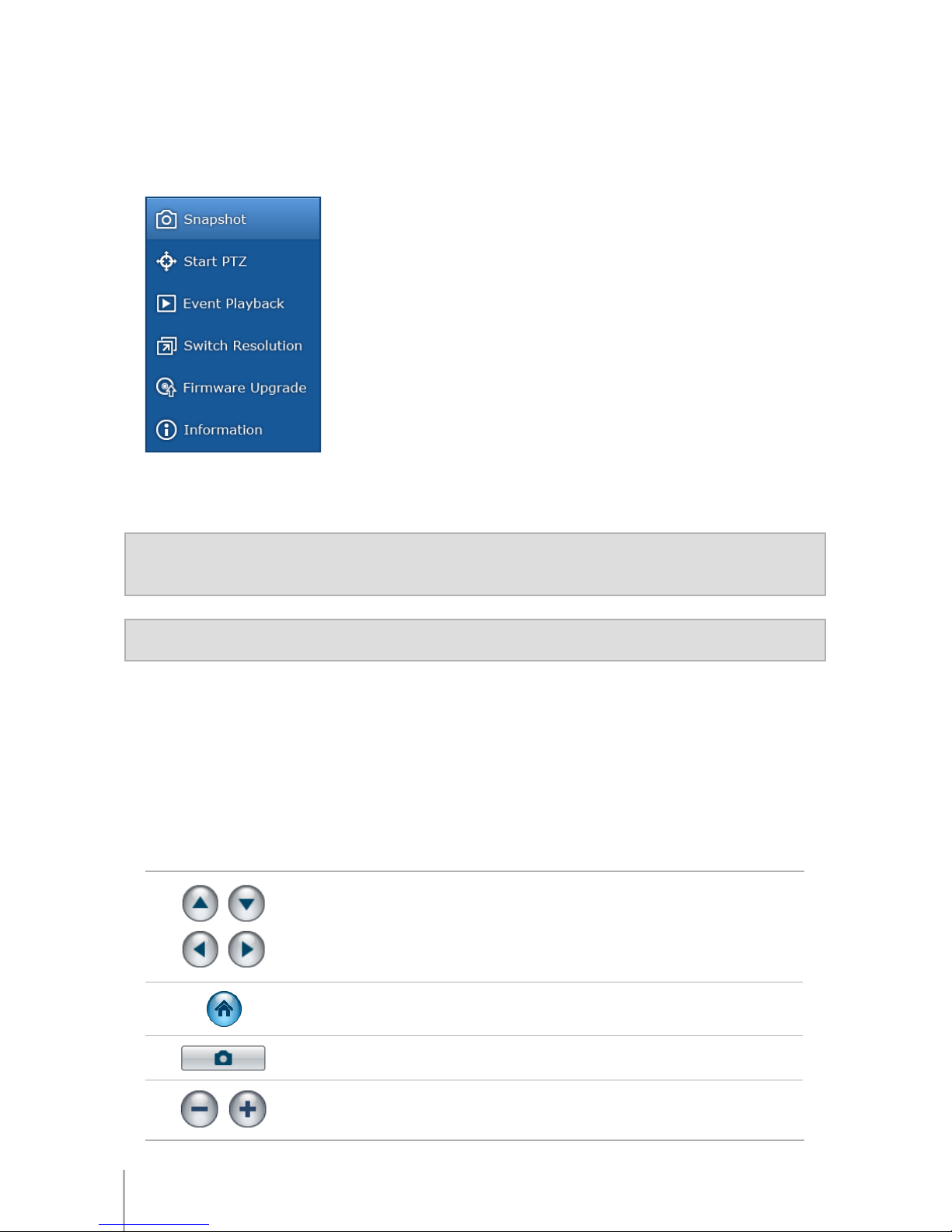

More Functions
12
Snapshot
12
Start PTZ
13

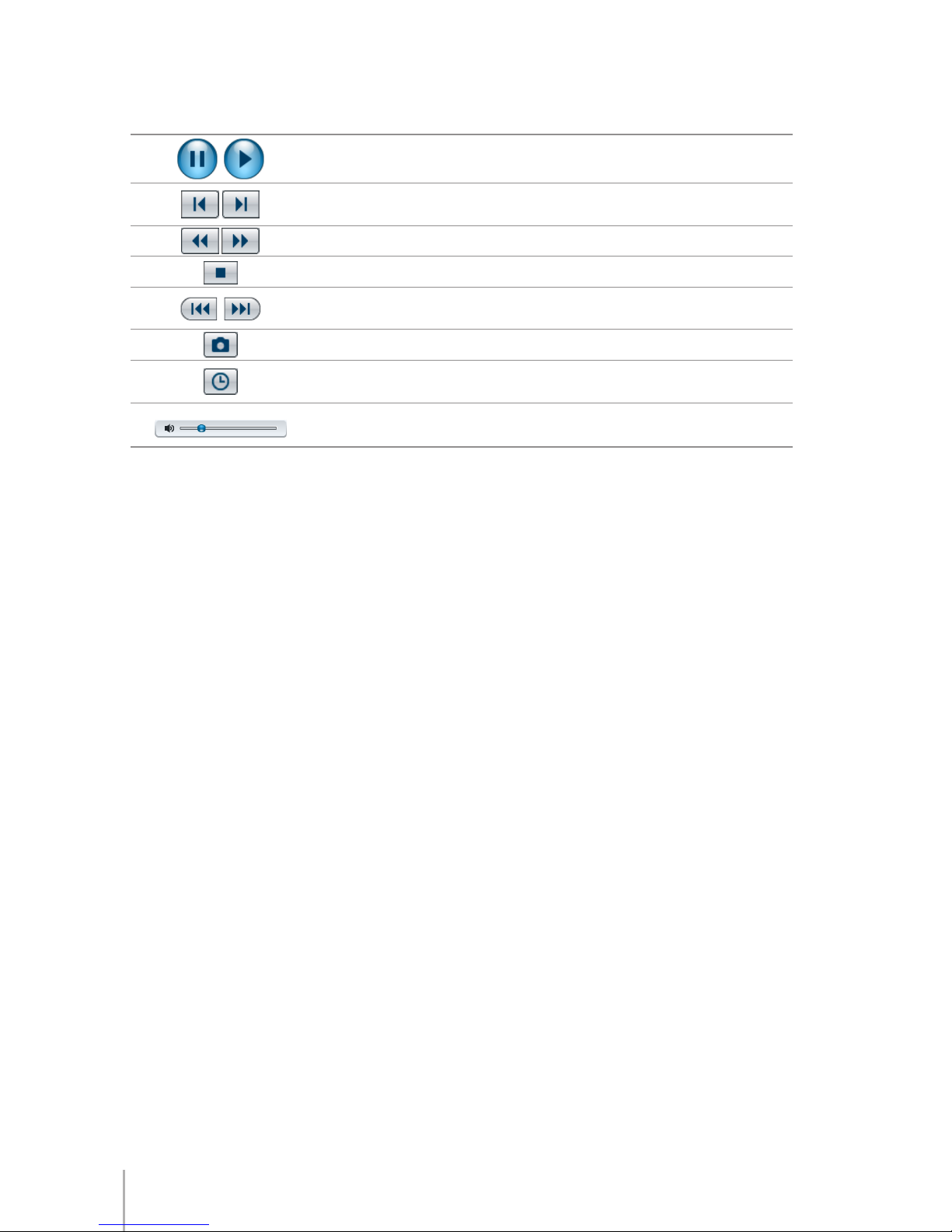

Event Playback
15
Switch Resolution
15
Firmware Upgrade
17
Chapter 3: Troubleshooting
CHAPTER
1
3
Congratulations on your purchase of Synology VS80. It is designed to expand the
exibility of your Surveillance Station.
By connecting VS80 to an video output device, like a LCD or a TV, for example,
users can directly have live-view of their IP camera set up on their Synology
DiskStation, or play the recordings stored on it, all without a PC. If they have
multiple cameras, VS80 even provides live-view of multiple cameras as a video
wall system.
This user’s guide will assist you through the installation and usage of your VS80.
Before going further, please conrm that you have at least one IP camera
managed by your Synology DiskStation. For information on how to set up an
IP camera on your Synology DiskStation, please check the user's guide of your
Synology DiskStation.
Getting Started with VS80
USB Flash
Mouse
Serveillance Station
VS80
VGA
DiskStation
USB
Network
4
Chapter 1: Getting Started with VS80
Package Contents
Before installation, please check the package contents to verify that you have
received the items below.
Main Unit AC power adapter
2M RJ-45 LAN cable
User's Guide
Hardware Specications
USB
1 port in front, 1 port in rear
(For USB disk and mouse)
Video Output
VGA x 1
Audio Output
3.5mm Stereo Audio Jack x 1
Size (HxWxD) (mm)
160x63x218 mm
Weight
0.78Kg
LAN
10/100BaseT
AC Input Power Voltage
100V to 240V AC
Power Frequency
50 / 60Hz, Single Phase
Operating Temperature
5°C ~ 35°C (40°F ~ 95°F)
Storage Temperature
-10°C ~ 70°C (15°F ~ 155°F)
Relative Humidity
5% to 95% RH
Maximum Operating Altitude
10,000 feet
Certication
FCC Class B, CE Class B
Chapter 1: Getting Started with VS80
5
Software Specications
Channel #
4, 6 or 9
Display Mode
2x2, 3x2 or 3x3 panels
Compression Formats
MJPEG, MPEG-4, H.264
Decoding Throughput [MJPEG]
MJPEG:
4,6 channel: 80 FPS, D1
9 channel: 80 FPS, CIF
Decoding Throughput [MPEG4]
MPEG4:
4,6 channel: 80 FPS, D1
9 channel: 80 FPS, CIF
Decoding Throughput [H.264]
H.264:
4,6 channel: 60 FPS, D1
9 channel: 80 FPS, CIF
Maximum Camera Resolution
4,6 channel D1: (640x480 in VGA, 720x480 in
NTSC, 720x576 in PAL)
9 channel CIF: (320x240 in VGA, 352x240 in
NTSC, 352x288 in PAL)
Snapshot
Yes (save to USB disk)
PTZ
Yes (for PTZ cameras only)
Playback
Event Timeline
Firmware Upgrade
Yes (via USB disk)
Resolution
1280x768, 1024x768, 800x600
Operating Requirements
Synology DiskStation
Recommend DSM 3.1 and onwards to support
full features of VS80.
Supported IP cameras
For the complete list of supported IP cameras,
please visit http://www.synology.com
6
Chapter 1: Getting Started with VS80
Front View Rear View
LED indicators
USB 2.0 port
LOCK button
POWER button
VGA port
AUDIO jack
USB 2.0 port
LAN port
RESET button
DC IN 5V port
Article Name Location Description
POWER button
Front The POWER button is used to turn the Synology VS80 on or off.
LOCK button
Front
The LOCK button is used to prevent VS80 from paring with
other Synology DiskStations.
LED Indicator
Front
The LED Indicators are used to display the status of the
system, network connection, and Lock function. For complete
details, please refer to the
LED Behavior
table below.
USB port
Front &
Rear
The Synology VS80 offers 2 USB ports for both mouse plug-in
and USB ash drive connection*. One of the ports is located
on the front and the other on the rear.
VGA port
Rear To connect the monitor’s VGA adapter to VS80.
AUDIO jack
Rear
The AUDIO jack is used to connect external speakers or
earphone to VS80 (for audio supported cameras).
LAN port
Rear The LAN port is used to connect the LAN cable to VS80.
RESET button
Rear
The RESET button is used to restore the settings to the factory
default.
DC IN 5V port
Rear
The DC IN 5V port is used to connect the AC Power Adapter to
provide power to your Synology VS80.
Appearance
Chapter 1: Getting Started with VS80
7
LED Behavior
LED Behavior Description
POWER
Solid Blue
System is ready
Flashing Blue
System is starting up
Off
The power is off
STATUS
Solid Green
Server is connected
Off
Server is not connected
LAN
Solid Green
LAN is connected
Flashing Green
LAN is active
LOCK
Solid Green
Locked (Pairing is not allowed with Synology DiskStation)
Flashing Green
Unlocked (Pairing is allowed with Synology DiskStation)
RESERVE
Off
No functionality (Reserved for future use)
Safety Instructions
To use your Synology product safely, please follow these instructions and warnings
at all time.
Keep away from direct sunlight and away from chemicals. Make sure
the environment does not experience abrupt changes in temperature
or humidity.
Keep Synology product upright. Do not lay it down horizontally.
Do not place the Synology product close to any liquid.
Before cleaning, unplug the power cord rst. Wipe Synology product
with damp paper towels. Do not use chemical or aerosol cleaners to
clean it.
Do not place the Synology product on a cart, table, or desk, which is
not stable to avoid the product from falling over.
The power cord must plug in to the right supply voltage. Make sure
that the supplied AC voltage is correct and stable.
