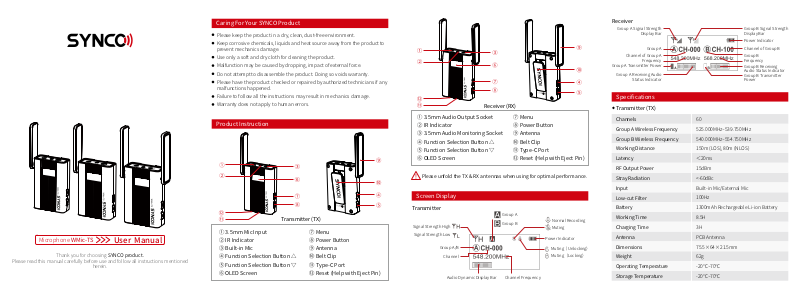

Page 1
Microphone WMic-TS
Please read this manual carefully before use and follow all instructions mentioned
Thank you for choosing SYNCO product.
User Manual
herein.
Caring For Your SYNCO Product
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Product Instruction
Transmitter (TX)
① 3.5mm Mic Input
② IR Indicator
③ Built-in Mic
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
Receiver (RX)
① 3.5mm Audio Output Socket
② IR Indicator
③ 3.5mm Audio Monitoring Socket
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
Please unfold the TX & RX antennas when using for optimal performance.
Screen Display
Transmitter
Signal Strength High
Signal Strength Low
Group A/B
Channel
Audio Dynamic Display Bar Channel Frequency
Group A
Group B
Normal Recording
Muting
Power Indicator
Muting（Unlocking）
Muting（Locking）
Receiver
Group A Signal Strength
Display Bar
Group A
Group A Transmitter Power
Group A Receiving Audio
Frequency
Status Indicator
Specications
◆
Transmitter (TX)
Channels
Group A Wireless Frequency
Group B Wireless Frequency
Working Distance
Latency
RF Output Power
Stray Radiation
Input
Low-cut Filter
Battery
Working Time
Charging Time
Antenna
Dimensions
Weight
Operating Temperature
Storage Temperature
Group B Signal Strength
Display Bar
Power Indicator
Channel of Group B
Group BChannel of Group A
Frequency
Group B Receiving
Audio Status Indicator
Group B Transmitter
Power
60
525.000MHz~539.750MHz
540.000MHz~554.750MHz
150m (LOS), 80m (NLOS)
＜20ms
15dBm
<-60dBc
Built-in Mic/External Mic
100Hz
1300mAh Rechargeable Li-ion Battery
8.5H
3H
PCB Antenna
75.5×64×21.5mm
62g
-20℃~70℃
-20℃~70℃
Page 2
◆
Receiver (RX)
Group A Wireless Frequency
Group B Wireless Frequency
Working Distance
Latency
Receiving Sensitivity
Stray Radiation
SNR
Audio Output Jack
Audio Output
Volume (Gain)
Battery
Working Time
Charging Time
Antenna
Dimensions
Weight
Operating Temperature
Storage Temperature
◆
External Lavalier Microphone
Form Factor
Sound Field
Polar Pattern
Frequency Range
Sensitivity
1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Mono
Omni-directional
20Hz-20KHz
-38dB
525.000MHz~539.750MHz
540.000MHz~554.750MHz
150m (LOS), 80m (NLOS)
＜20ms
-95dBm
<-60dBc
88dB
1 x 1/8” / 3.5 mm TRS Line Out
1 x 1/8” / 3.5 mm TRS Headphone Output
Mono/Stereo
15 Levels Adjustable Volume
1300mAh Rechargeable Li-ion Battery
8.5H
3H
PCB Antenna
75.5×64×21.5mm
72g
-20℃~70℃
-20℃~70℃
Warranty
Warranty Period
Thank you for purchasing SYNCO products.
1. Customers are entitled to free replacement or repair service in case of quality
defect(s) found in the product under normal use within 30 days upon receipt of
the product.
2. Original SYNCO products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the rst end-user.
Within the warranty period, if product defect or failure is attributable to material
defection or technological problem, the defective product or defective part will
be repaired or replaced without charge (service and materials fee).
Warranty Exclusions and Limitations
Faults resulted from inappropriate use of a product without following its
operation specication
Articial damage, e.g. crash, squeeze, scratch, or soaking
Modications to a product by its user or a third party without prior written
consent of SYNCO, e.g. replacement of element or circuit, label alteration
The code on product is inconsistent with that of warranty certicate, or the
code on the product or warranty certicate is altered or torn o
All consumable accessory attached to a product, like cable, wind mu,
battery
Faults as a result of force majeure, such as re, ood, lightning, etc.
Warranty Claim Procedure
If failure or any problem occurs to your product after purchase, please contact
a local agent for assistance, or you can always contact SYNCO’s customer
service through email at
[email protected].
Please retain your sales receipt and warranty certicate as proof of purchase.
If any of these documents is missing, only sales return or chargeable service
will be provided.
If the SYNCO product is out of the warranty coverage, the service and the
parts cost will be charged.
Guangzhou Zhiying Technology Co., Ltd
Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
[email protected]
www.syncoaudio.com
https://www.facebook.com/syncomicrophones
WARRANTY CERTIFICATE
Please register your warranty. Meanwhile, you are welcomed to contact us
via Email：[email protected]
Customer Name:
USER
INFORMATION
SALES
INFORMATION
REPAIR
RECORD
RESULT
Phone Number:
Email:
Address:
Sales Date:
Model:
Product Code:
Dealer:
Service Date:
Technician:
Issue:
Solved Unsolved Returned(Replaced)
