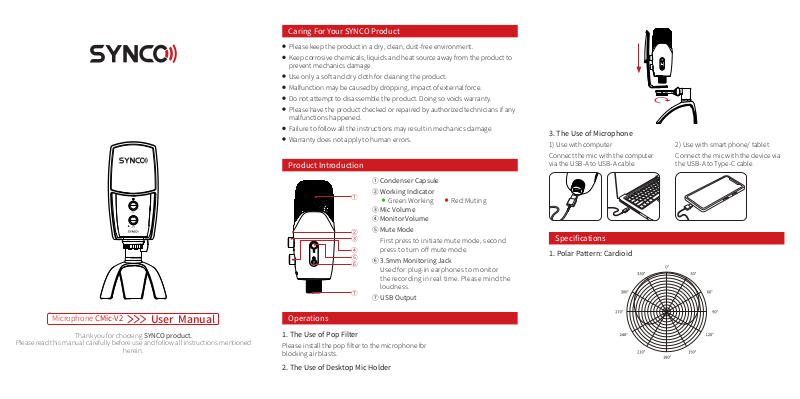

Caring For Your SYNCO Product
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Product Introduction
① Condenser Capsule
② Working Indicator
Green:Working Red:Muting
③ Mic Volume
④ Monitor Volume
⑤ Mute Mode
First press to initiate mute mode, second
press to turn off mute mode.
⑥ 3.5mm Monitoring Jack
Used for plug-in earphones to monitor
the recording in real time. Please mind the
loudness.
⑦ USB Output
3. The Use of Microphone
1) Use with computer
Connect the mic with the computer
via the USB-A to USB-A cable.
Specications
1. Polar Pattern: Cardioid
2) Use with smart phone/ tablet
Connect the mic with the device via
the USB-A to Type-C cable.
Microphone CMic-V2
Please read this manual carefully before use and follow all instructions mentioned
Thank you for choosing SYNCO product.
User Manual
herein.
Operations
1. The Use of Pop Filter
Please install the pop lter to the microphone for
blocking air blasts.
2. The Use of Desktop Mic Holder
Page 2
2. Performance Parameter
Transducer
Frequency Response
Sample/Bit Rate
Signal/Noise
Sensitivity
THD
Impedance
Output Connector
Power Requirement
Dimensions
Cable Length
Weight
Electret Condenser
20Hz-20KHz
192KHz/24-bit
>90dB (1KHz, RL = innity)
-36dB (1V/Pa at 1KHz)
<0.05% (1KHz/0dBFS)
≤2.2KΩ
USB
5V 125mA
61×61×163mm
1.8m
431g
Warranty
Warranty Period
Thank you for purchasing SYNCO products.
1. Customers are entitled to free replacement or repair service in case of quality
defect(s) found in the product under normal use within 30 days upon receipt of
the product.
2. Original SYNCO products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the rst end-user.
Within the warranty period, if product defect or failure is attributable to material
defection or technological problem, the defective product or defective part will
be repaired or replaced without charge (service and materials fee).
consent of SYNCO, e.g. replacement of element or circuit, label alteration
The code on product is inconsistent with that of warranty certicate, or the
code on the product or warranty certicate is altered or torn o
All consumable accessory attached to a product, like cable, wind mu, battery
Faults as a result of force majeure, such as re, ood, lightning, etc.
Warranty Claim Procedure
If failure or any problem occurs to your product after purchase, please contact
a local agent for assistance, or you can always contact SYNCO’s customer
service through email at
Please retain your sales receipt and warranty certicate as proof of purchase.
If any of these documents is missing, only sales return or chargeable service
will be provided.
If the SYNCO product is out of the warranty coverage, the service and the parts
cost will be charged.
WARRANTY CERTIFICATE
Please register your warranty. Meanwhile, you are welcomed to contact us
via Email：[email protected]
Customer Name:
USER
INFORMATION
SALES
INFORMATION
REPAIR
RECORD
RESULT
Phone Number:
Email:
Address:
Sales Date:
Model:
Product Code:
Dealer:
Service Date:
Technician:
Issue:
Solved Unsolved Returned(Replaced)
Warranty Exclusions and Limitations
Faults resulted from inappropriate use of a product without following its
operation specication
Articial damage, e.g. crash, squeeze, scratch, or soaking
Modications to a product by its user or a third party without prior written
Guangzhou Zhiying Technology Co., Ltd
Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
www.syncoaudio.com
