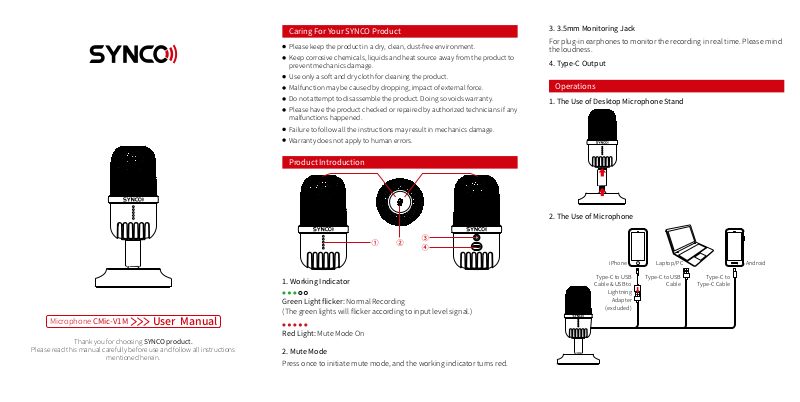

Page 1
Caring For Your SYNCO Product
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Product Introduction
3. 3.5mm Monitoring Jack
For plug-in earphones to monitor the recording in real time. Please mind
the loudness.
4. Type-C Output
Operations
1. The Use of Desktop Microphone Stand
2. The Use of Microphone
Microphone CMic-V1M
Please read this manual carefully before use and follow all instructions
Thank you for choosing SYNCO product.
mentioned herein.
User Manual
1. Working Indicator
Green Light icker: Normal Recording
(The green lights will icker according to input level signal.)
Red Light: Mute Mode On
2. Mute Mode
Press once to initiate mute mode, and the working indicator turns red.
iPhone
Type-C to USB
Cable & USB to
Lightning
Adapter
(excluded)
Laptop/PC Android
Type-C to USB
Cable
Type-C to
Type-C Cable
Page 2
Specications
1. Polar Pattern: Cardioid
2. Performance Parameter
Diaphragm Size
Transducer
Frequency Response
Impedance
Sensitivity
Sampling Rate
Power Supply
S/N Ratio
Maximum SPL
Dimensions (L x Diam)
Output
Net Weight
Warranty
Warranty Period
Thank you for purchasing SYNCO products.
Ø14mm
Electret Condenser
20Hz-20KHz
≤2.2KΩ
-45dB+3dB re 1 Volt/Pascal
48KHz/24bit
5V/1A
72 dB
135dB (1KHz THD > 1%)
47mm x 47mm x 156mm
Type-C
295g
1. Customers are entitled to free replacement or repair service in case of quality
defect(s) found in the product under normal use within 30 days upon receipt of
the product.
2. Original SYNCO products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the rst end-user.
Within the warranty period, if product defect or failure is attributable to
material defection or technological problem, the defective product or defective
part will be repaired or replaced without charge (service and materials fee).
Warranty Exclusions and Limitations
Faults resulted from inappropriate use of a product without following its
operation specication
Articial damage, e.g. crash, squeeze, scratch, or soaking
Modications to a product by its user or a third party without prior written
consent of SYNCO, e.g. replacement of element or circuit, label alteration
The code on product is inconsistent with that of warranty certicate, or the
code on the product or warranty certicate is altered or torn o
All consumable accessory attached to a product, like cable, wind mu,
battery
Faults as a result of force majeure, such as re, ood, lightning, etc.
Warranty Claim Procedure
If failure or any problem occurs to your product after purchase, please
contact a local agent for assistance, or you can always contact SYNCO’s
customer service through email at [email protected].
Please retain your sales receipt and warranty certicate as proof of purchase.
If any of these documents is missing, only sales return or chargeable service
will be provided.
If the SYNCO product is out of the warranty coverage, the service and the
parts cost will be charged.
Guangzhou Zhiying Technology Co., Ltd
Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
[email protected]
www.syncoaudio.com
https://www.facebook.com/syncomicrophones
WARRANTY CERTIFICATE
Please register your warranty. Meanwhile, you are welcomed to contact us
via Email：[email protected]
Customer Name:
USER
INFORMATION
SALES
INFORMATION
REPAIR
RECORD
RESULT
Phone Number:
Email:
Address:
Sales Date:
Model:
Product Code:
Dealer:
Service Date:
Technician:
Issue:
Solved Unsolved Returned(Replaced)
