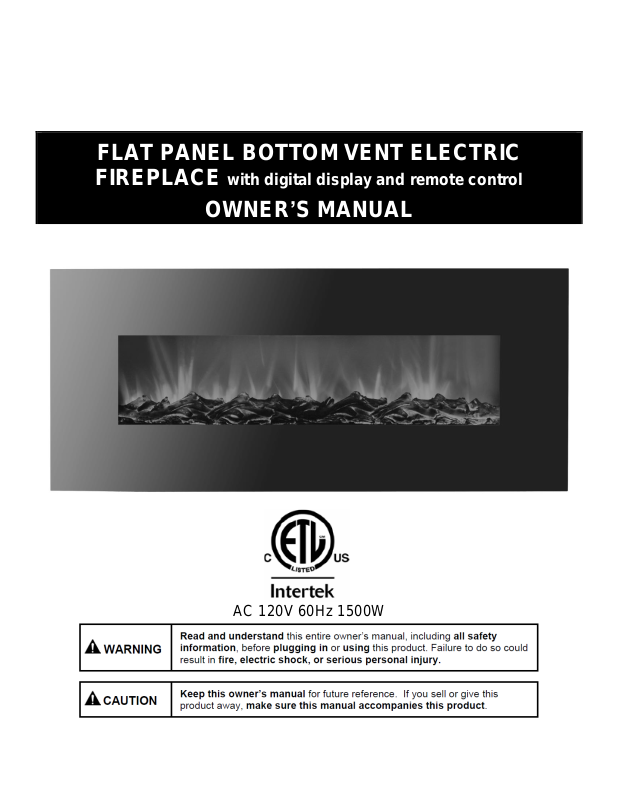

FLAT PANEL BOTTOM VENT ELECTRIC
FIREPLACE with digital display and remote control
OWNER’S MANUAL
AC 120V 60Hz 1500W
Page 2
2
IMPORTANT SAFETY INFORMATION!
WARNING
⚫ Read all instructions before using this heater!
⚫ The air vent for this heater is in the bottom of the unit. When in heater mode, the air vent will
release hot air and the vent portion will be hot. To avoid burns, DO NOT let bare skin touch
hot surfaces. If provided, use handles when moving this heater. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9m) away from the front of the heater and keep them away from the sides and rear.
⚫ Extreme caution is necessary when any heater is used near children or invalids and
whenever the heater is left operating and unattended.DO NOT operate any heater with a
damaged cord or plug or after the heater malfunctions, has been dropped or damaged in
any manner, Discard heater, or return to authorized service facility for examination and /or
repair.
⚫ DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances.
Arrange power cord away from traffic area, and where it will not be tripped over.
⚫ Connect to properly grounded outlets ONLY.
⚫ DO NOT insert or allow foreign objects to enter any ventilation or exhaust openings, as
this may cause electric shock or fire, or damage the heater.
⚫ To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so
could cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become
blocked.
⚫ A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
⚫ Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
⚫ ALWAYS plug heaters directly into a wall outlet/receptacle. Never use with an
extension cord or relocatable power tap (outlet/power strip).
⚫ DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
⚫ NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool, become damp or come in contact with water.
⚫ AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
Blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
⚫ NEVER hang this unit on a wall directly below an electrical outlet.
⚫ NEVER permanently install in a recessed area of the wall. This may result in blocked air
flow, overheating, or fire.
⚫ ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.
⚫ NEVER use a wall mount bracket from another manufacturer.
Page 3
3
WARNING
PREPARATION
This product includes a GLASS panel! Always use extreme caution when handing
glass. Failure to do so could result in personal injury or property damage.
⚫ For residential use only! NOT for commercial use! Any commercial or public use of this
heater videos all warranties and could cause injury.
⚫ This product is not intended to be a primary heater source. It is for supplemental heat
only.
⚫ INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
⚫ Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
⚫ NEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
⚫ Always turn of this heater off before unplugging it from outlet.
⚫ ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
⚫ NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
⚫ ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet
⚫ ONLY use this heater on a 120 Volt 15 Amp grounded circuit. NEVER overload the circuit. If
this heater trips the circuit breaker, unplug all other appliances on the same circuit before the
next use. Avoid plugging other appliances into the same circuit as this heater.
⚫ NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this heater into faulty outlet could result in electric arcing within the
outlet that could cause the outlet to overheat or catch fire.
⚫ ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or face plate is HOT!
iv) If the outlet or face plate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
SAVE THESE INSTRUCTION
Page 4
4
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts
and assembly steps are grounded for wall-hanging or recessing use. Check the parts list to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever
possible. You will need the following tools (not included): Phillips screwdriver; stud finder; level;
tape measure; electric drill; 1/4” wood drill bit, hammer.
PARTS & HARDWARE
A- Fireplace with
pre-installed faux log ember bed and
non-replaceable LED strip (life
span=100,000 hours)
B-4x8mm Screws
C- 4x30 Screws
D-Drywall anchors
E-Wall Bracket
Pre-installed on back of
firebox
F-Metal Bracket
G-Remote Control with pre-
installed 3V CR2025
Lithium Cell Battery

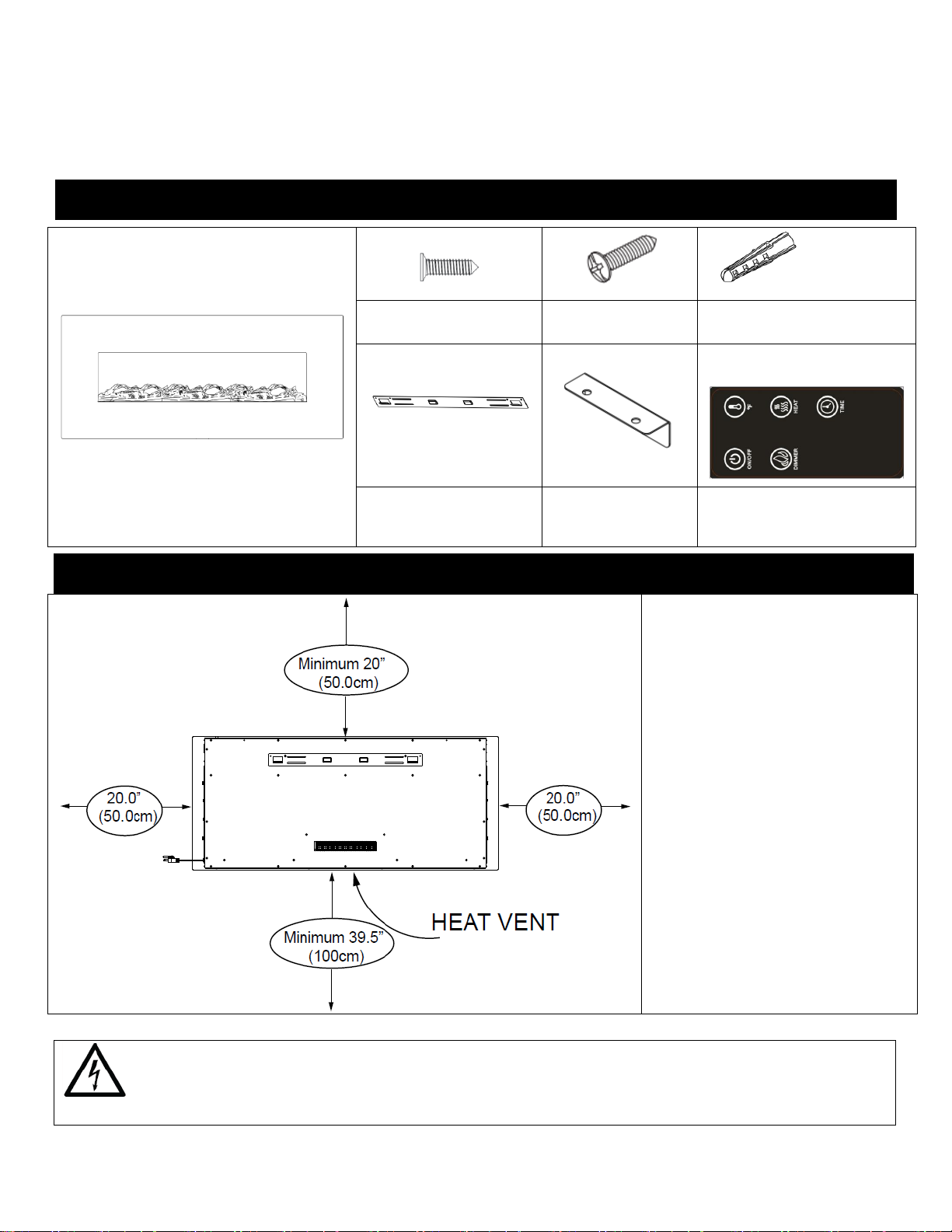

Step 1. Find a safe location.
Minimum clearance on each side:
20” (50cm).
Minimum clearance above:
20” (50cm).
Minimum clearance below:
39.5” (100cm).
Minimum clearance from the
front:
And sides: 3 feet(90cm).
Choose a location near an outlet
so never use extension cord.
DO NOT position the unit
directly below a power outlet.
See safety information on pages 2
and 3 for warnings about safe
placement, safety installation, and
purpose use of this product.
Installation & Assembly
ALWAYS unplug this fireplace heater before Assembly or cleaning, or before relocating. Failure
to do so could result in electric shock, fire, or personal injury.
Page 5
5
Wall Mounted Installation

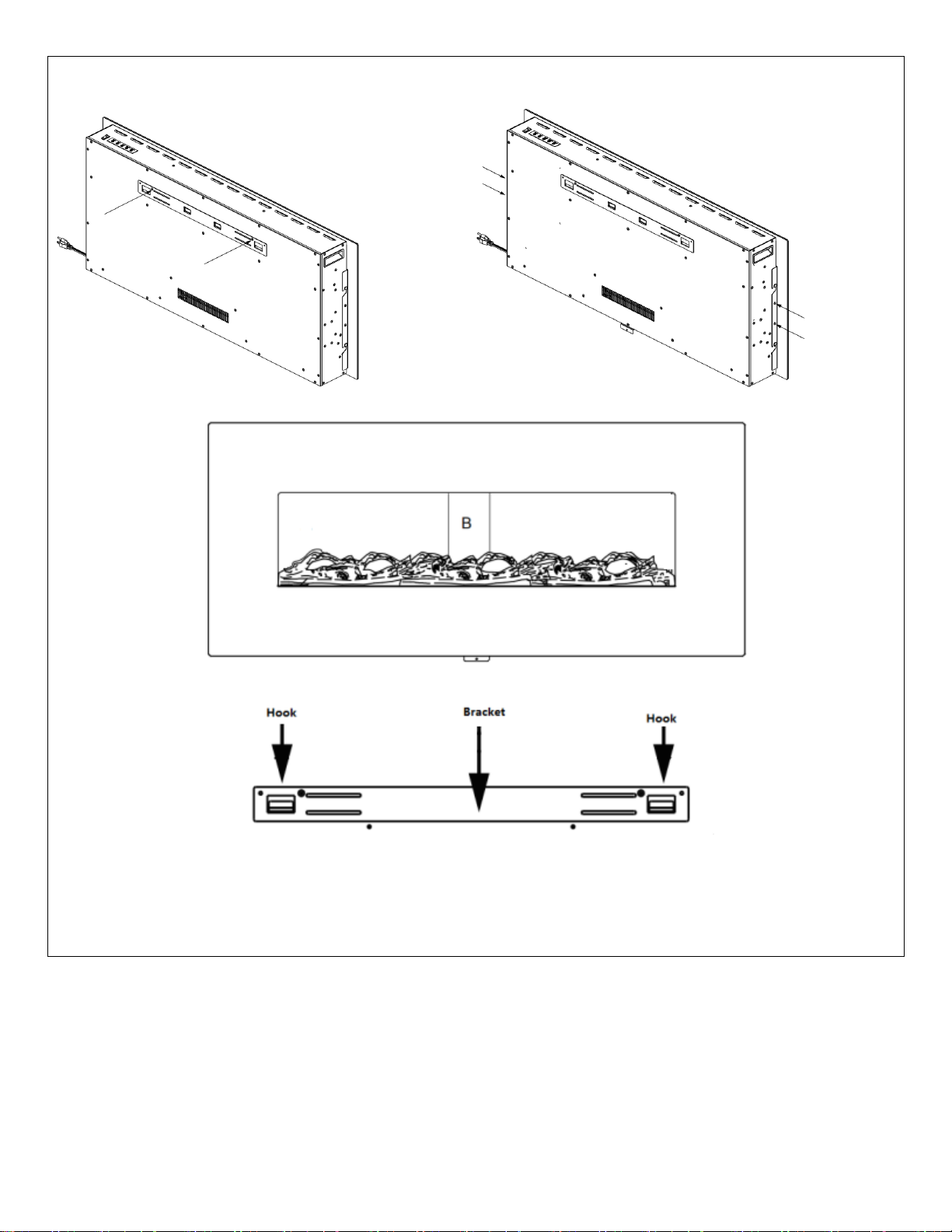

⚫ Remove the back-bracket’s screws from fireplace and remove the both side two white screws.
⚫ Remove the front tempered glass out of appliance and take foam (H) out of appliance.
NOTE: It is strongly Recommended that the mounting bracket(E) be screwed into the wall studs where
possible. If the wall studs cannot be used, ensure that the supplied plastic anchors are used to affix the bracket to
the wall and the bracket are adequately secured.
Page 6
6

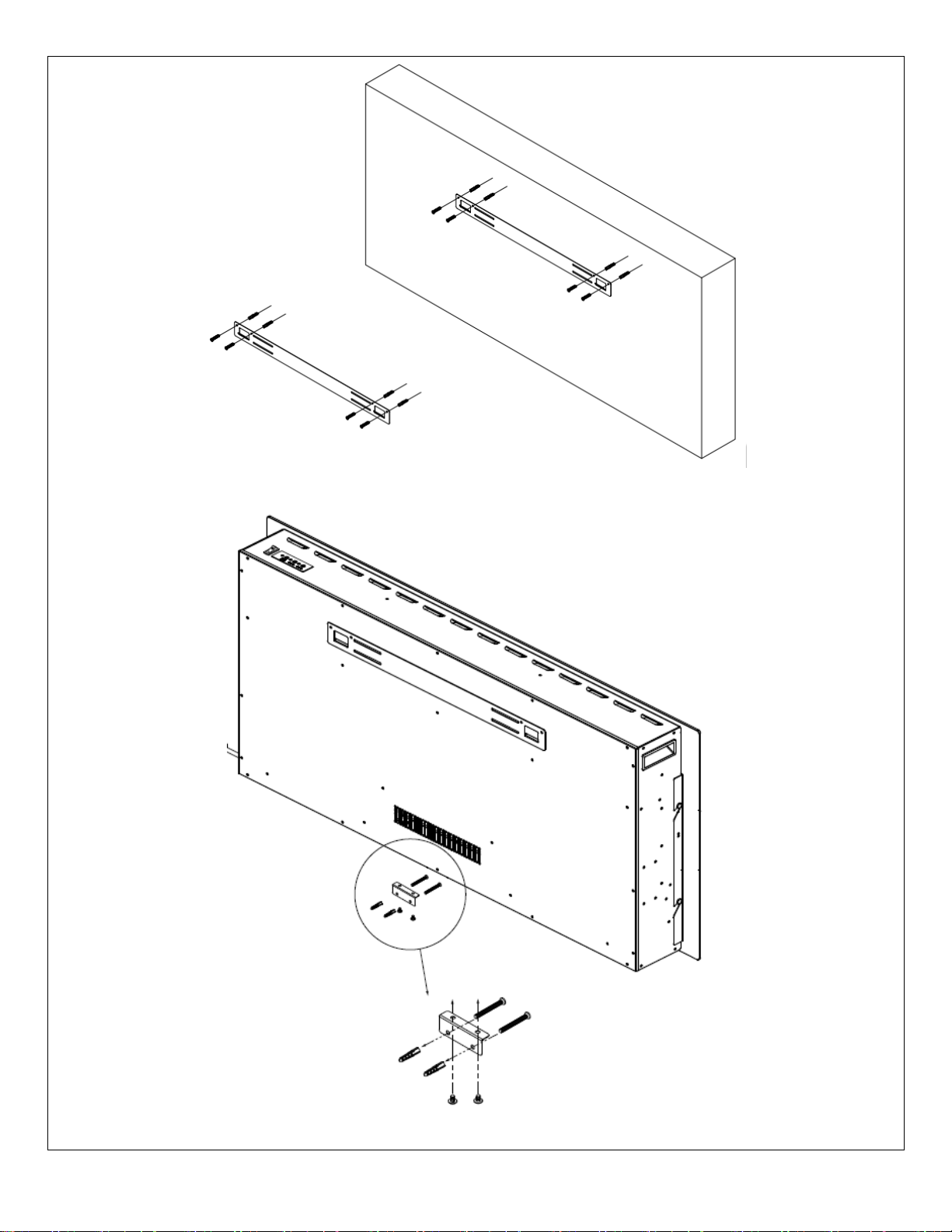

A. Fasten the metal bracket at the back of fireplace with 2pc 4x8mm screw, the other end to the wall with
2pcs of Drywall anchors.
7
Page 7

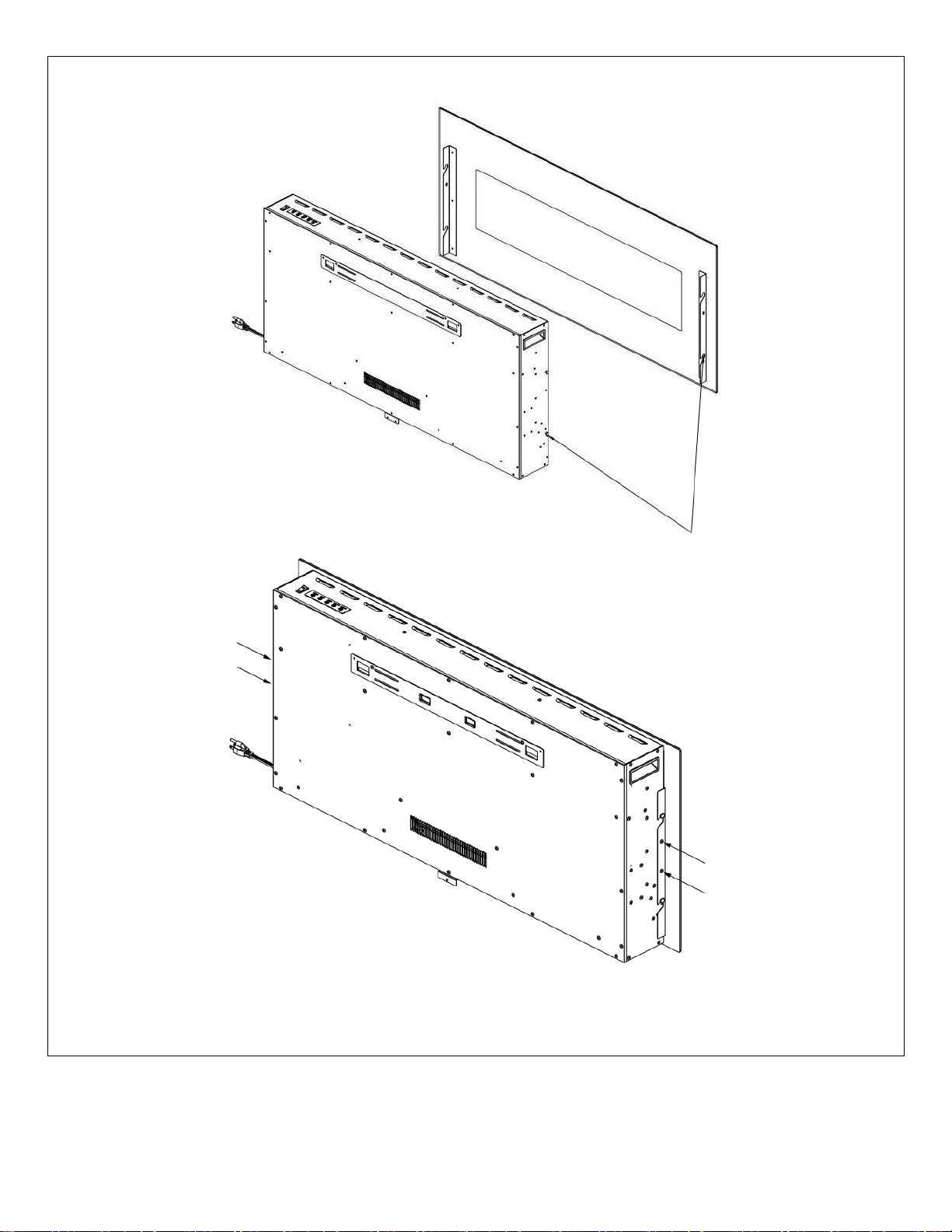

B. With the wall mounting bracket installed have two people lift the appliance up and insert the two hooks
on the bracket into the two slots on the back of the appliance.
C. Fix the tempered glass with 4pcs of 4*8mm white screws provided
D. Check the appliance for stability ensuring that the bracket will not pull free from the wall.
Page 8
8
Read and understand this entire owner’s manual, including all safety information, before plugging in or
using this product. Failure do to so could result in electric shock, fire, serious injury, or death.
Power
Plug the power cord into a 110-120V Volt 15 Amp grounded outlet (see IMPORTANT SAFETY
INFORMATION on Pages 2 and 3). Make sure the outlet is in good condition and that the plug is not loose.
NEVER exceed the maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.
Methods of Operation

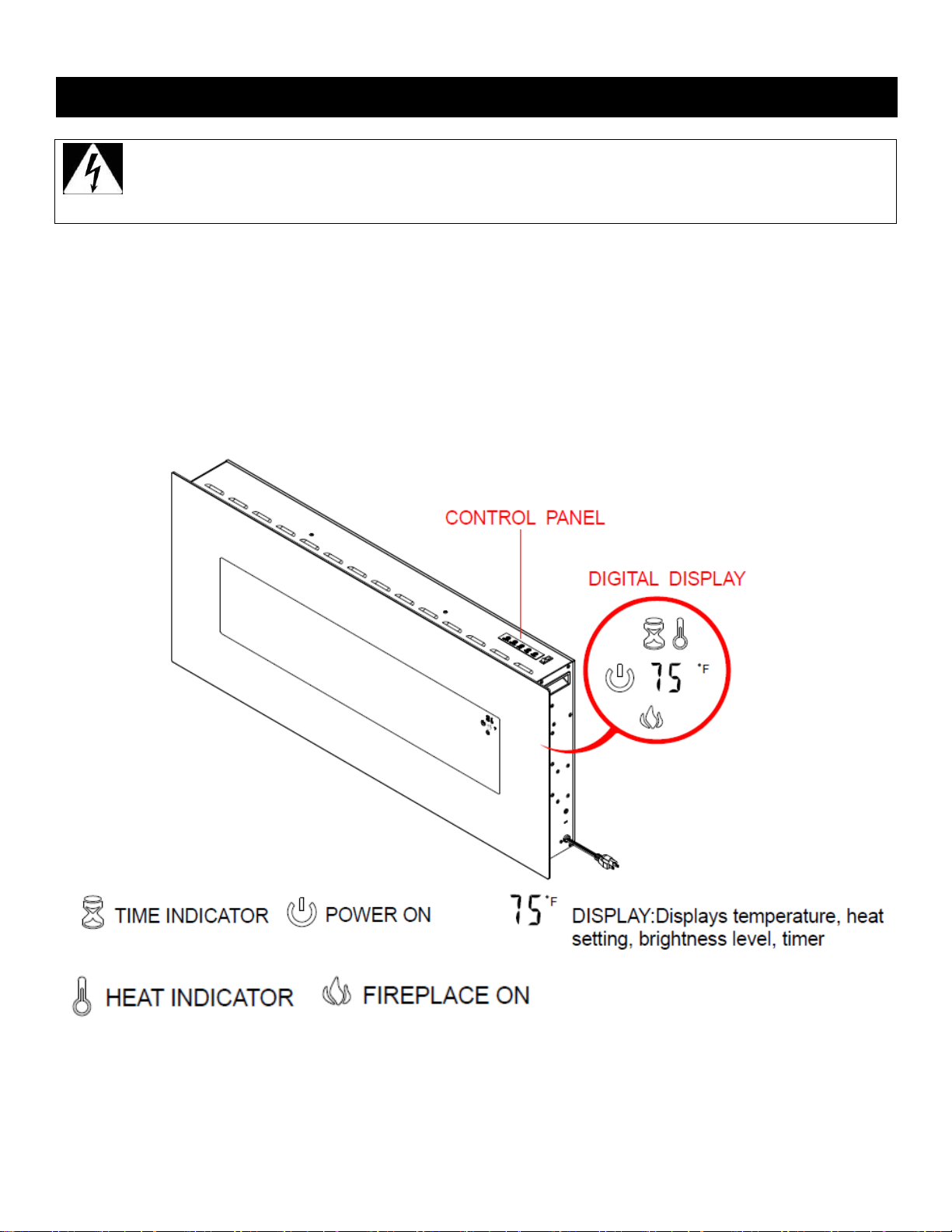

This electric fireplace can be operated by the Control panel, located on the right-side top panel of the fireplace,
or by the battery-powered REMOTE CONTROL.
The operation and functions of the two methods are the same.
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3 and heed all
warnings.
WARNING
Page 9
9

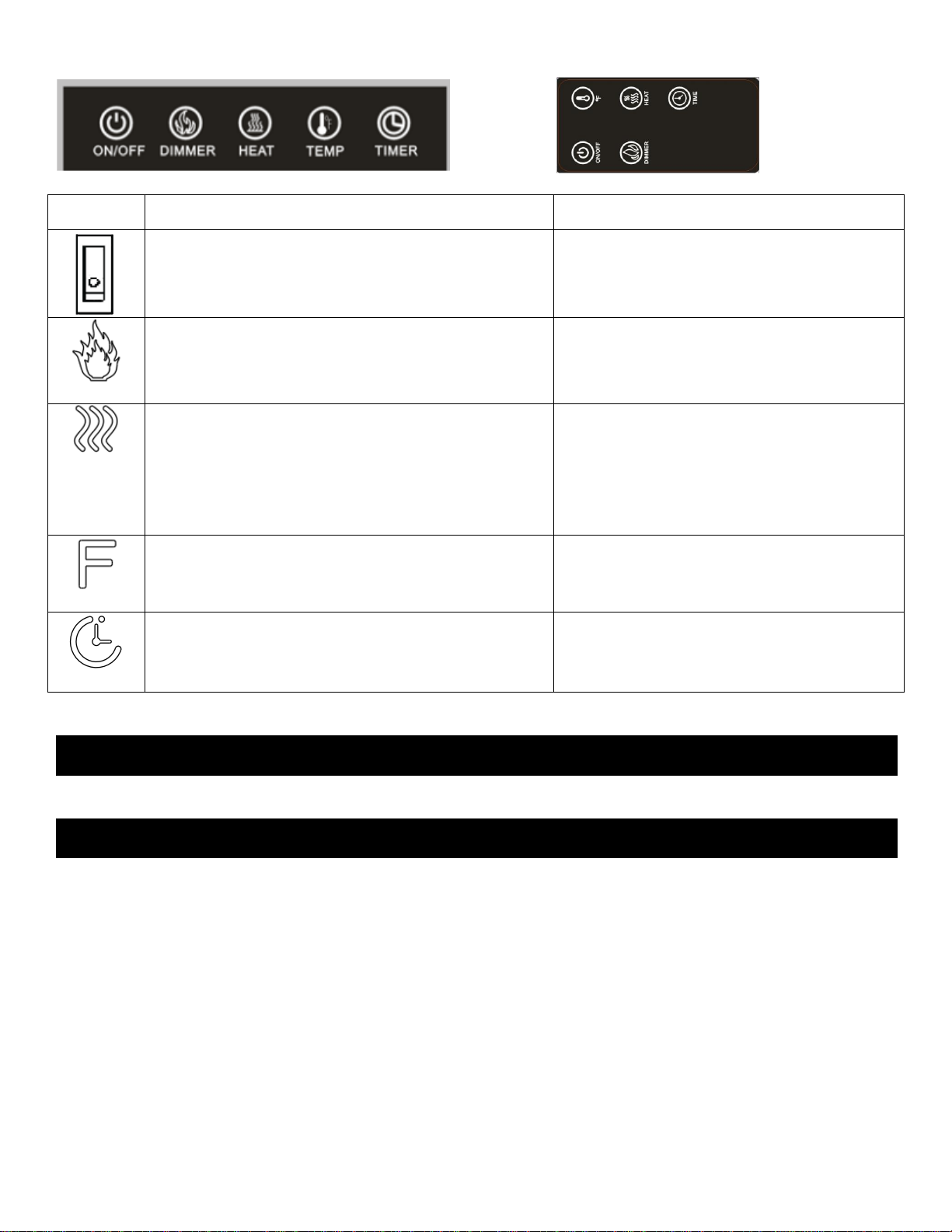

Manual /Remote control Operation
BUTTON
FUNCTION
ACTION&INDICATION
Enable all functions and turn off all functions on control
1. This button should switch on.
2. Enable all functions and turn off all functions
on control
FLAME
FLAME button: Makes flame effect dimmer and brighter.
NOTE: Flame effect stays on until power button is turned
off. Flame effect must be on for heater to turn on.
1. Press once. Flame brightness effect changes.
2. Press again. Until desired setting is reached.
There are 5 levels of brightness from 5,4,3,2,1.
HEATER
HEATER button: Turn heater on and off.
NOTE: To prevent overheating, the heater fan will blow
out cool air for 30 seconds after the heater turn off.
1. Press once. Indicator lights up. 750W heater
turns on and blows warm air.
2. Press again. Indicator lights up. 1500W heaters
turns on and blows hot air.
3. Press again. Heaters turn off.
The fan blows cool air for 30 seconds to allow
heater to cool down, then turns off.
TEMP.
TEMPERATURE button: Control temperature settings to
choose temperature as desired.
Setting range from 62F to 82F.
1. Press once. Indicator light turn on. Temperature
is set to 62F.
2. Press again until desired setting is reached. LED
display show setting.
TIMER
TIMER button: Control timer settings to turn off fireplace
at selected time.
Settings range from 1 hours to 8 hours.
3. Press once. Indicator light turn on. Temperature
is set to hours.
Press again until desired setting is reached. LED
display show setting.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature,
the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes.
3. Inspect the fireplace to make sure no vents are blocked or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If the problem continues, have your outlet and wiring inspected by a professional.
Remote Control Battery Information
NOTICE
When the heater is first turned on, a slight odor may be odor may be present. This is normal and
should not occur again unless the heater is not used for a long period of time.
NOTICE
To improve operation, aim the remote control at the front of the fireplace. DO NOT press the buttons
too quickly. Give the unit time to respond to each command.
Page 10
10

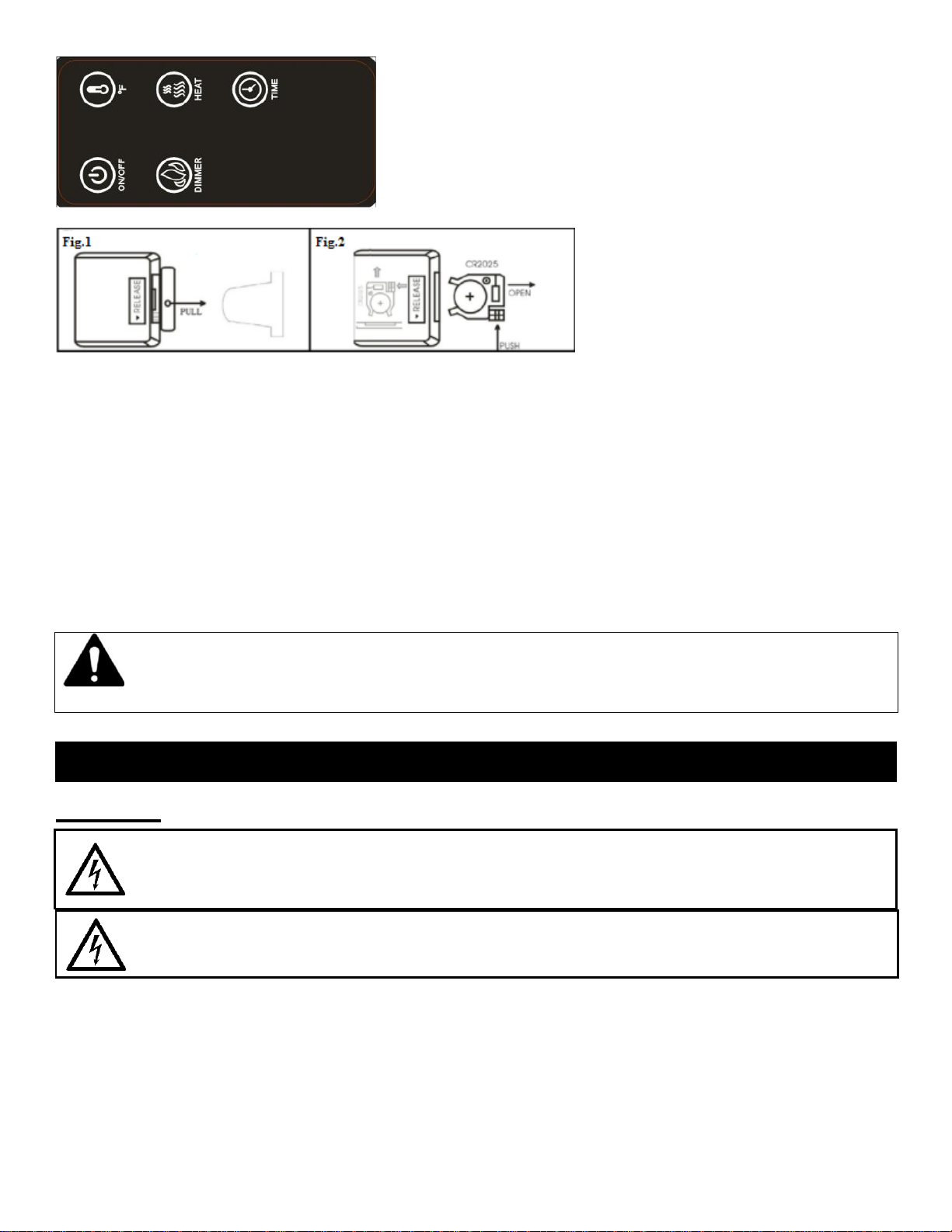

Remote control requires one 3V CR2025 Lithium Cell Battery (included and pre-installed).
Remove the protective sheet between the battery and the contacts
in order to operate (see Fig 1. and Fig.2).
REPLACE THE REMOTE CONTROL BATTERY
When the remote-control stops operating, or its range seems reduced. It is time to replace the battery with a new
one.
1. The battery compartment is located on the back end of the remote.
2. Press and slide the battery door open and remove the old battery.
3. Insert a CR2025 battery, checking that the “+” and “-” terminals of the battery matches the inside of the
battery compartment.
4. Replace the battery compartment door.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an explosion.
Dispose of batteries at your local hazardous material processing center.
CARE AND MAINTENANCE
Cleaning
NEVER immerse in water or spray with water. Doing so could result in electric
shock, fire, or personal injury.
Metal:
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Page 11
11
Buff using a soft non-abrasive cloth, slightly dampened with water.
⚫ DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
• Use a good quality non-abrasive glass cleaner and dry thoroughly with a paper towel or lintfree cloth.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
• Clean the exterior of the fireplace with a slightly damp cloth or duster.
Maintenance
Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
• The fan motors have already been lubricated at the factory and will not require additional
lubrication.
• Electrical components are built into the fireplace and are not serviceable by the consumer.
Storage:
• Store heater in a clean dry place when not in use.
WARNING! No other servicing should be performed by the consumer. Do not attempt to
service the unit yourself.
Troubleshooting
Page 12
12
WARNING
DISCONNECT THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE.
CONTACT A QUALIFIED ELECTRICIAN OR TECHNICIAN SHOULD THIS ELECTRIC APPLIANCE NEED
SERVICE OR REPAIR.
Problem
Possible Cause
Solution
1. Fireplace turns off
and will not turn on.
1. Fireplace has overheated
and safety devise has caused
thermal switch to disconnect
or home circuit breaker has opened.
1. Reset switch by turning main
power off Wait for 10-15 minutes
before turning it back on.
Flame is not moving. 1.Loose wiring.
2.Flame motor defective.
3.Flame rod out of place
1. Inspect wiring for loose
connections.
2. Call a qualified electrician or
service technician to replace flame
motor.

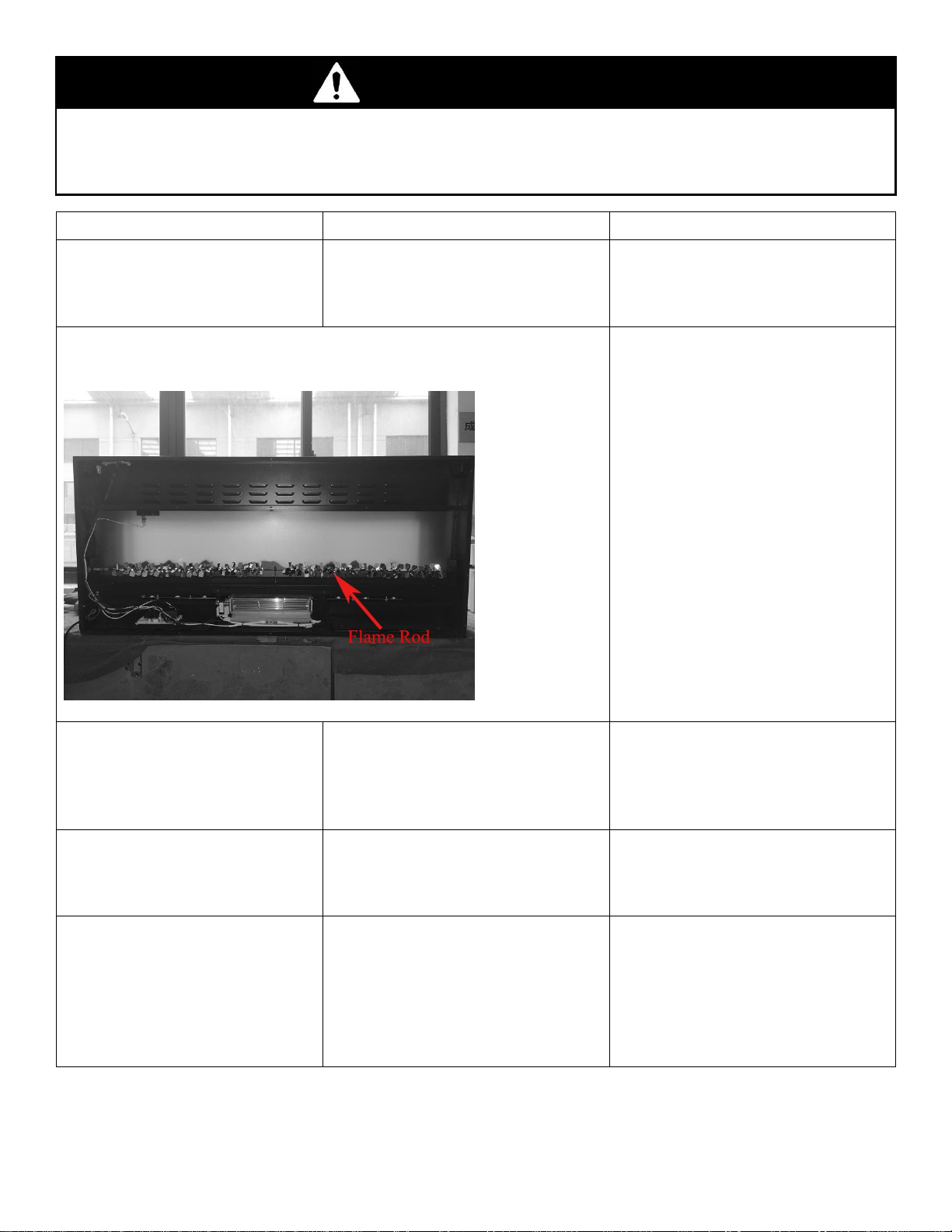

3. “Flame Rod” out of place due to
rough transit/handing of the
product. This issue can be corrected
by removing the glass, flipping the
fireplace upside and down,
removing a set of screws that are
holding the bottom frame plate and
placing the flame rod back in place.
Screw the frame plate back in
place.
3 Flame is not visible.
1. Wiring is loose
1. Disconnect from power source
and inspect wiring for loose
connections and repair or replace if
necessary.
2. Push the flame button to high
4 Log set and /or is not glowing.
1. Wiring is loose
2. Ember is off mode
1. Disconnect from power source
and inspect wiring for loose
connections and repair or replace if
necessary.
5 Remote control
does not work.
1. Low batteries.
2. Not aiming control correctly.
3. Defective remote control and /or
sensor
1. Replace batteries in remote
control.
2. Aim control at sensor located
directly behind glass screen in
center of unit just above logs.
3. Replace remote control and/or
sensor.
Loading...
