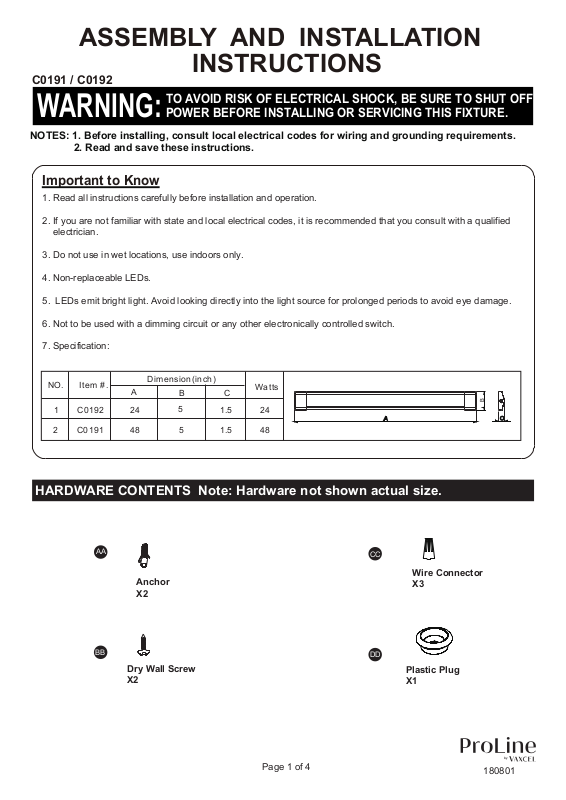

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
C0191 / C0192
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Important to Know
P
1. Read all instructions carefully before installation and operation.
2. If you are not familiar with state and local electrical codes, it is recommended that you consult with a qualified
electrician.
3. Do not use in wet locations, use indoors only.
4. Non-replaceable LEDs.
5. LEDs emit bright light. Avoid looking directly into the light source for prolonged periods to avoid eye damage.
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
6. Not to be used with a dimming circuit or any other electronically controlled switch.
7. Specification:
NO.
1
2
Item #.
C0192
C0191
Dimension(inch )
A
24
48 5
B
5
C
1.5
1.5
Watts
24
48
A

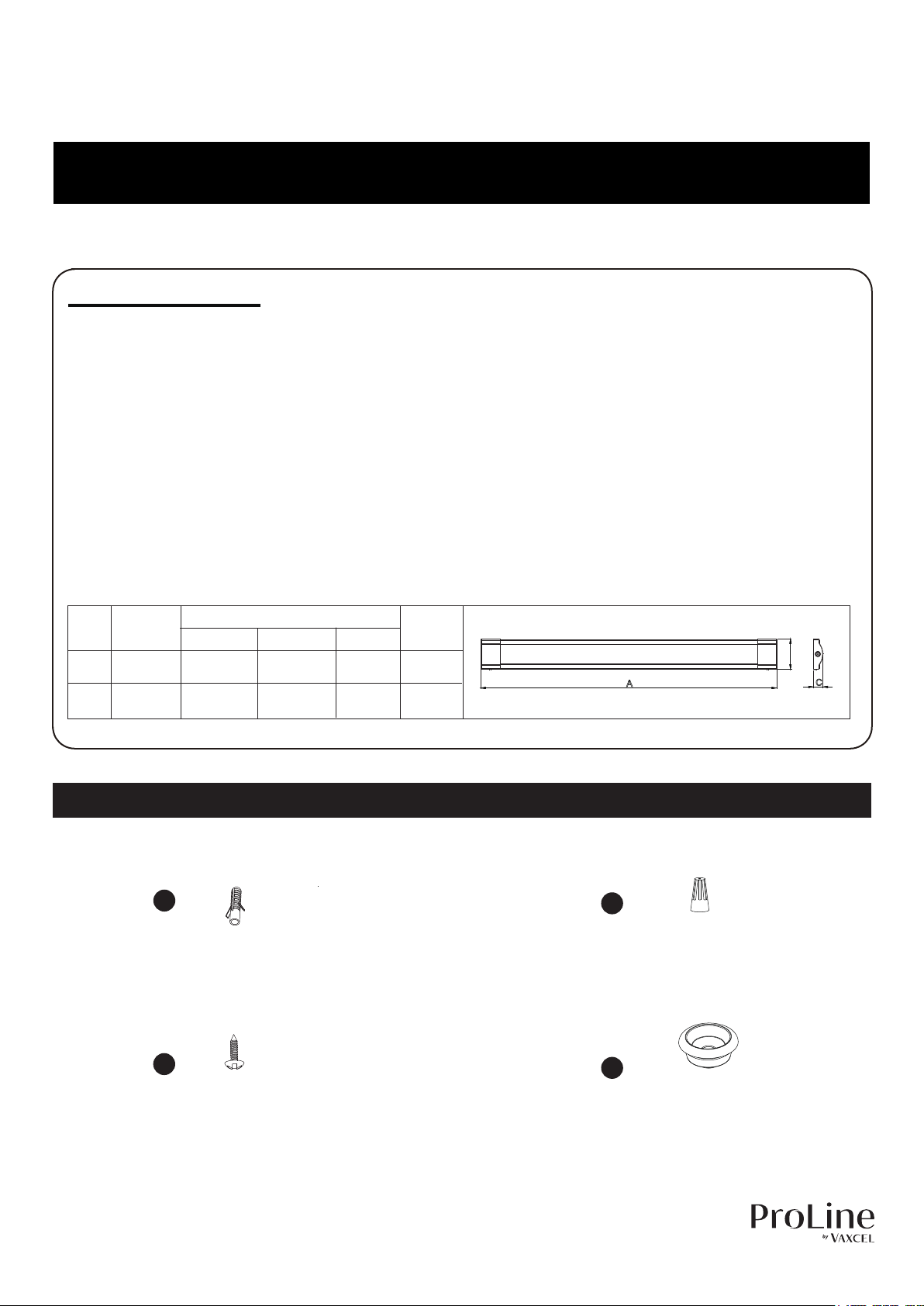

HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
Anchor
X2
CC
Wire Connector
X3
B
C
BB
Dry Wall Screw
X2
Page 1 of 4
DD
Plastic Plug
X1
180801
Page 2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
•
off circuit breaker).
• Be careful not to damage or cut the wire insulation (cove ring) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
• LED electronics can be damaged by electro static discharge (ESD)shock. Before installation, discharge yourself by
touching a grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module.
CAUTION
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
PREPARATION
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder, Wire Stripper.
ASSEMBLY INSTRUCTIONS
Installation Steps
Turn off the power at fuse or circuit box.
1

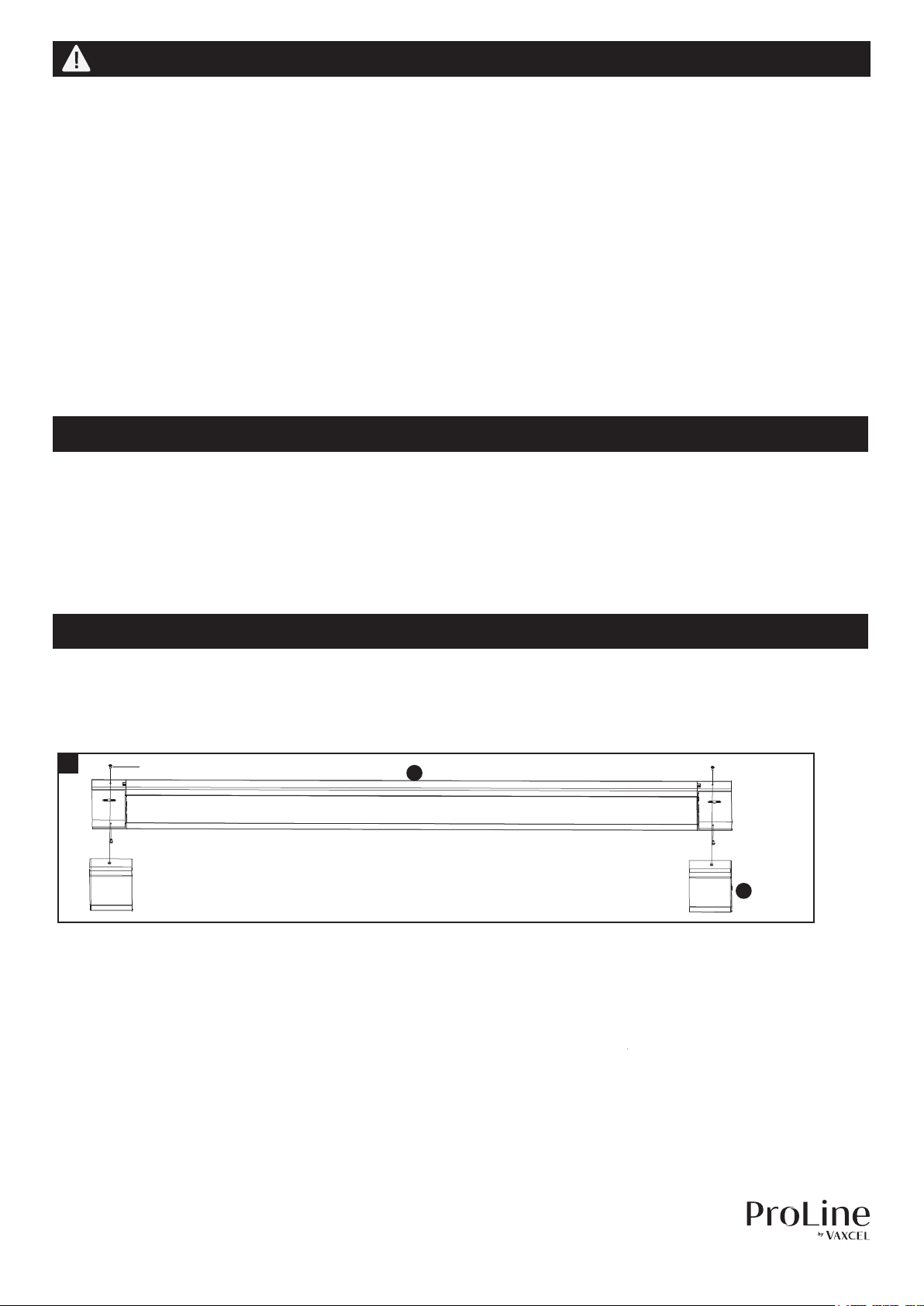

1. Unscrew four set screws to remove two end caps (C) from fixture plate (A).
Set Screw
A
C
Page 2 of 4
180801
Page 3

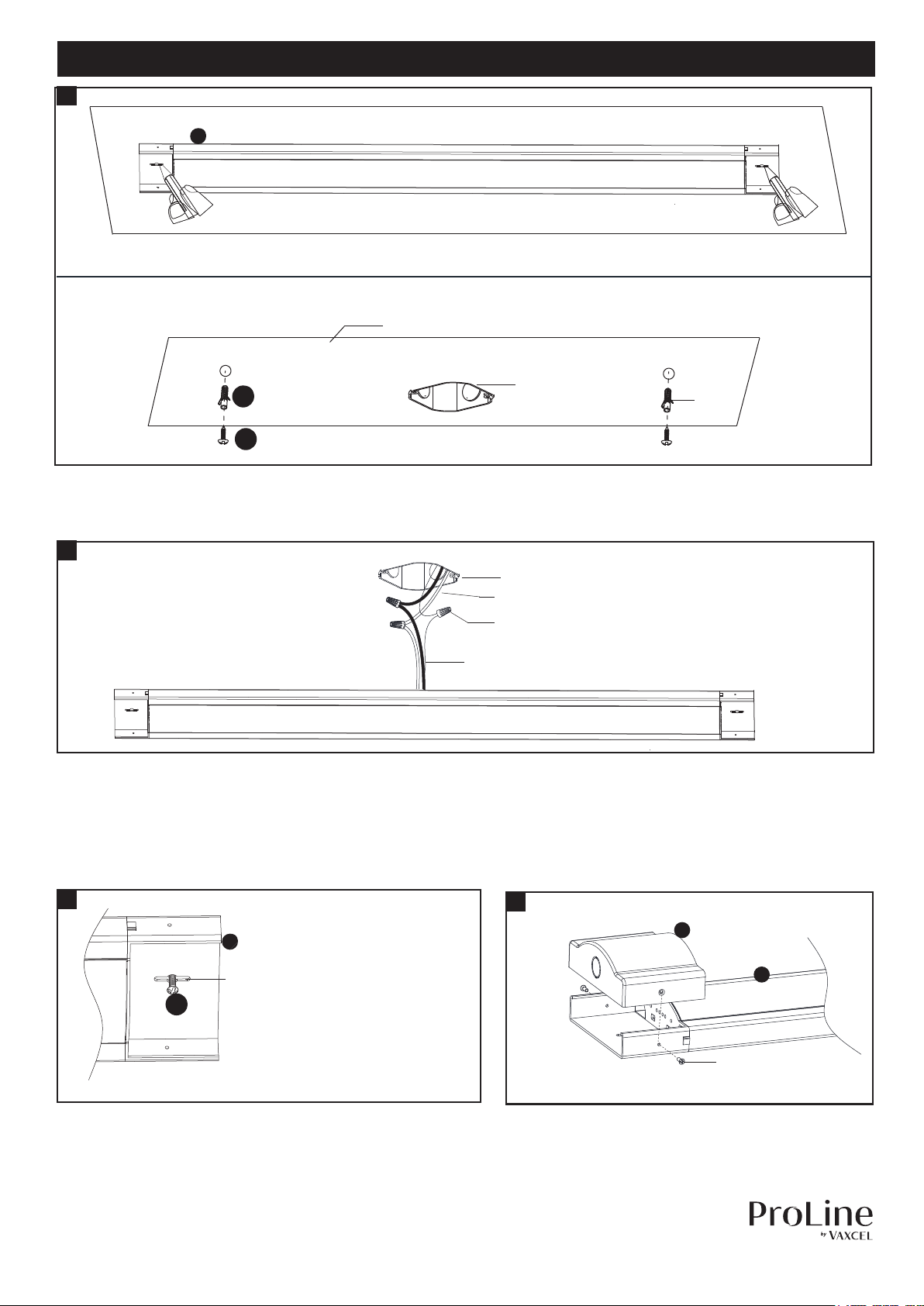

ASSEMBLY INSTRUCTIONS (continued)
2
A
Ceiling
AA
BB
Outlet Box
Anchor
2. Attach the fixture plate (A) to the location where you want to install, mark the target where is for two anchor (AA) to
secure fixture plate (A) to the ceiling. Remove the fixture plate (A) and drill two holes on the target. Hammer the
anchors (AA) to target holes tightly, and then secure the dry wall screws (BB) to anchors in part way.
3
Outlet Box
Source Wire
Wire Connector (C)
Fixture Wire
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Connect the fixture grounding wire (usually green insulation or bare wire) to the house grounding wire from the power
source.
Carefully put the wires back into the outlet box.
4
A
Key hole slot
BB
4. Attach the fixture plate to ceiling by inserting two dry wall
screw (BB) heads into key hole slots, then slide the fixture
plate (A) to left or right until the heads of the dry wall
screw (BB) are located into narrow ends of the key hole slot.
Finally use a screwdriver (not included) to tighten the dry wall
screws (BB).
Page 3 of 4
5
C
B
Set Screw
5. Attach two end caps (C) back to fixture plate by
securing four set screws.
Turn on the power at fuse or circuit box.
180801
Page 4

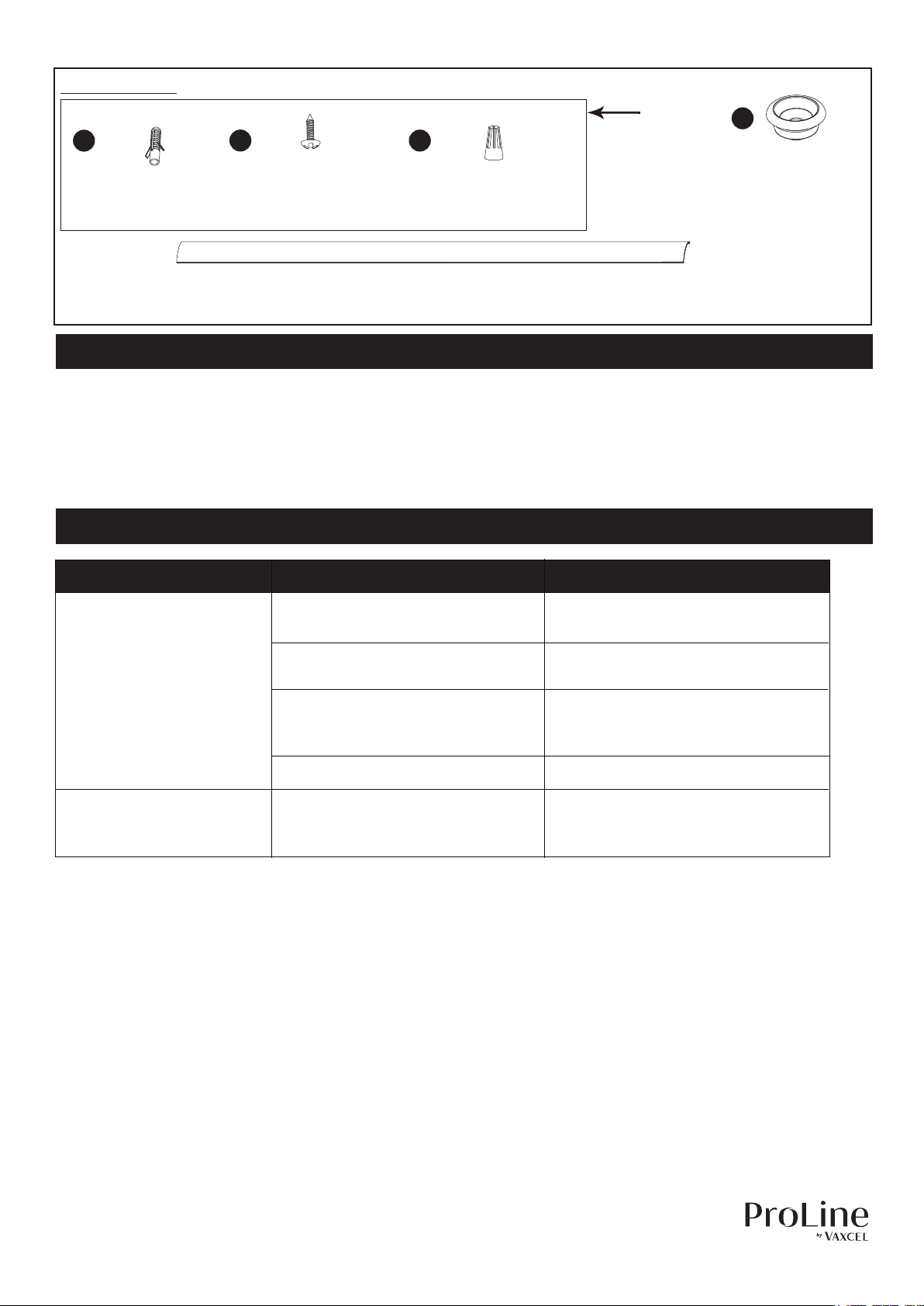

The following parts are available for re-order if damaged or missing. Call us toll-free at 800-482-9235
Spare Parts List:
DD
Plastic Plug
5409PA
AA
Anchor
X2
BB
Dry Wall Screw
X2
CC
Plastic Lens
9745PL FOR C0192
9746PL FOR C0191
Assembly Kit
5402MM (1 SET)
Wire Connector
X3
CARE AND MAINTENANCE
Caution: Before attempting to clean the fixture, disconnect the power to the fixture by turning the breaker off or
removing the fuse from the fuse box.
This LED light fixture is made from quality materials that will last many years with minimum care. You may want to
periodically clean the fixture with a soft cloth. To maintain the best appearance of the fixture, do not use cleaners with
chemicals, solvents or harsh abrasives. Do not use liquid cleaner on the LEDs, LED drive, or wiring inside the light
fixture.
TROUBLESHOOTING
PROBLEM
The fixture will not light
POSSIBLE CAUSE CORRECTIVE ACTION
The power is off.
The circuit breaker is off.
Check to ensure the power
supply is on
Check to ensure the circuit
breaker is in the on position
Check to ensure proper wire
There is a bad connection.
connections are made. Contact a
qualified electrician.
There is a defective switch.
The fuse blows or circuit
breaker tips when the light
is turn on.
If unable to fix any of the above issues, please consult a certified electrician.
The wires are crossed or the power
wire is grounding out.
5-YEAR LIMITED WARRANTY:
Contact a qualified electrician.
Check to ensure proper wire
connections are made. Contact a
qualified electrician.
All products are warranted to be free of defects in material and workmanship for five (5) years from date of purchase.
This warranty is limited to the correction of any such defect, or the replacement of any such defective item(s), provided
that: (a) we are properly notified and consent to return of the item(s) in question:(b) the item (s) is / are returned with
proof of purchase date; and (c) it is found upon inspection by us that the item (s) is / are defective as noted above. This
warranty dose not cover labor costs, consequential damages, nor dose it apply to any item(s) that have been improperly
installed, overloaded, altered, or otherwise abused by the customer, its agent(s) or emplyee(s). Finishes are specially
excluded from the terms of this warranty since they are subject to environmental maintenance deemed beyond our
control. Other than the described obligation, we assume no further liability with respect to the sale or use of our products.
We make no warranty, express or implied, and disclaim any warranty of merchantability or fitness for a particular purpose.
Page 4 of 4
