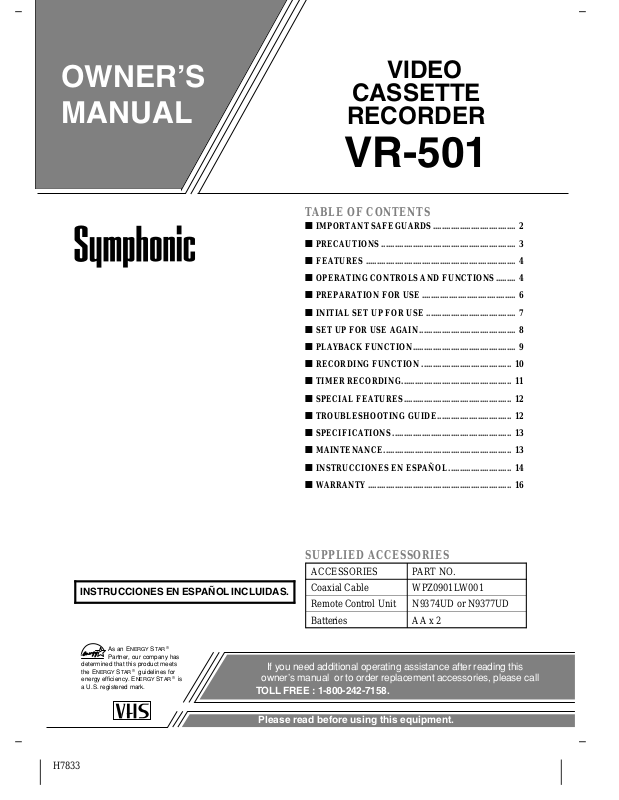

OWNER’S
VIDEO
CASSETTE
MANUAL
RECORDER
VR-501
TABLE OF CONTENTS
■
IMPORTANT SAFEGUARDS ..................................... 2
■
PRECAUTIONS ............................................................ 3
■
FEATURES ................................................................... 4
■
OPERATING CONTROLS AND FUNCTIONS......... 4
■
PREPARATION FOR USE.......................................... 6
■
INITIAL SET UP FOR USE ........................................ 7
■
SET UP FOR USE AGAIN....... .................................... 8
■
PLAYBACK FUNCTION.............................................. 9
■
RECORDING FUNCTION ........................................ 10
■
TIMER RECORDING.......................... .... .... .... .. .... .... . 11
■
SPECIAL FEATURES................................................ 12
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
NERGY STAR
®
®
is
If you need additional operating assistance after reading this
owner’s manual or to order replacement accessories, please call
TOLL FREE : 1-800-242-7158.
As an E
NERGY STAR
Partner, our company has
determined that this product meets
NERGY STAR
the E
energy efficiency. E
a U.S. registered mark.
®
guidelines for
■
TROUBLESHOOTIN G G UI DE...... .. ......................... 12
■
SPECIFICATIONS................ .. .. .............. .............. ..... 13
■
MAINTENANCE......................................................... 13
■
INSTRUCCIONES EN ESPAÑOL............................ 14
■
WARRANTY ................. .. .. .... .. .... .. .. .... .. .... .. .. .... .. .... .. ... 16
SUPPLIED ACCESSORIES
ACCESSORIES PART NO.
Coaxial Cable WPZ0901LW001
Remote Control U nit N9374UD or N937 7UD
Batteries AA x 2
Please read before using this equipment.
WARNING:
GROUND CL AMPS
NEC - NAT IONAL ELECT RICAL CODE
EXAMPLE OF ANT ENNA GROUNDING A S PER
NATIONAL ELECTRICAL CODE
S2898A
WIRE
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-2 1)
ELECTRODE SYSTEM
(NEC ART 250, PART H)
SERVICE
EQUIPMENT
CLAMP
ANTENNA
LEAD IN
ANTENNA
POWER SERVICE GROUNDI NG
GROUND
ELECTRIC
FIGURE A
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The caution marking is located on the rear of the cabinet.
IMPORTANT SAFEGUARDS
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
1. Read Instructions
before the appliance is operated.
2. Retain Instructions
tained for future reference.
3. Heed Warnings
tions should be adhered to.
-All warnings on the appliance and in the operating instruc -
4. Follow Instructions
5. Cleaning
6. Attachments
7. Water and Moisture
8. Accessories
9. Ventilation
10. Power Sources
11. Grounding or Polarization
12. Power Cord Protection
13. Outdoor Antenna Grounding
-Unplug this video product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol c leaners. Use a da mp cloth for cleaning.
EXCEPTION
for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user
for cleaning or any other purpose, may exclude the ref erence to unplugging
the appliance in the cleaning description otherwise required in item 5.
manufacturer as they may cause hazards.
near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet ba sement,
or near a swimming pool, and the like.
pod, bracket, or table. The video product may fall, causing serious injury to
a child or adult, and serious damage to the appliance.
Use only with a cart, stand, tripod, bracket, or ta ble rec ommended by the manufacturer, or sold with the video
product. Any mounting of the appliance should follow
the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An
appliance and cart combination should be moved with
care. Quick stops, excessive force, and uneven surf ac es
may cause the appliance and cart combination to overturn.
and to ensure reliable operation of the video product and to protect it from
overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa,
rug, or other similar surface. This video product should not be placed in a
built-in installation such as a bookcase or rack unless proper ventilation is
provided or the manufacturer’s instructions have been adhered to .
of power source indicated on the marking label. If you are not sure of the
type of power supply to your home, consult your appliance dealer or local
power company. For products intended to operate from battery power, or
other sources, refer to the operating instructions.
ized alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try revers ing
the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpos e of the polar ized plug.
are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience receptacles,
and the point where they exit from the appliance.
connected to the video prod uct, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and builtup static charges. Article 810 of the National Electrical Code, ANSI/NFPA
No. 70, provides information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)
: A product that is meant for uninterrupted service and, that
-Do not use attachments not recommended by the video product
-Do not place this video product on an unstable cart, stand, tri-
-Slots and openings in the cabinet are provided for ventilation
-This video product should be operated only from the type
-All the safety and operating instructions should be read
-The safety and operating instructions should be re-
-All operating and use instructions should be followed.
-Do not use this video product near water, for example,
PORTABLE CART WARNING
(Symbol provided by RETAC)
S3125A
- This video product is equipped with a polar-
-Power supply cords should be routed so that they
-If an outside antenna or cable system is
14. Lightning
15. Power Lines
16. Overloading
17. Object and Liquid Entry
18. Servicing
19. Damage Requiring Service
a.
b.
c.
d.
e.
f.
20. Replacement Parts
21. Safety Check
22. Heat
-For added protection for this video product during a lightning storm,
or when it is left unattended and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable system. This will prevent
damage to the video product due to lightning and power-line surges.
ity of overhead power lines or other electric light or power circuits, or where
it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.
result in a risk of fire or electric shock.
product through any openings as they may touch dangerous voltage points
or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the video product.
or removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
refer ser vic ing to qua lif ie d se r vic e pe rs onne l unde r the foll ow ing c ond it ions :
-An outside antenna system should not be located in the vicin-
-Do not overload wall outlets and extension cords as this can
-Never push objects of any kind into this video
-Do not attempt to service this video product your se lf as opening
-Unplug this video product from the wall outlet and
When the power-supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the video product.
If the video product has been exposed to rain or water.
If the video product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore
the video product to its normal operation.
If the video product has been dropped or damaged in any way.
When the video product exhibits a distinct change in performance-this in-
dicates a need for service.
ice technician has used replacement parts specified by the manufacturer or
have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock or other hazards.
uct, ask the service technician to perform safety checks to determine that the
video product is in proper operating condition.
-This video product should be situated away from heat sources such a s
radiators, heat registers, stoves, or other products (including a mplifiers) that
produce heat.
-When replacement parts are requir ed, be sure the s erv-
-Upon completion of any service or repairs to this video prod-
- 2 - EN
1D19
PRECAUTIONS
INSTALL LOCATION
For safety and optimum performance of your VCR:
●
Install the VCR in a horizontal and stable position.
Do not place anything directly on top of the VCR. Do
not place the VCR directly on top of the TV.
●
Shield it from direct sunlight and keep it away from
sources of intense heat. Avoid dusty or hu mid places.
Avoid places with insufficient ventilation for pr oper
heat dissipation. Do not block the ventilation holes
on the sides of the VCR. Avoid locations subject to
strong vibration or strong magnetic fields.
AVOID THE HAZARDS OF ELECTRI CAL
SHOCK AND FIRE
●
Do not handle the power cord with wet hands.
●
Do not pull on the power cord when disconnecting it
from AC wall outlet. Grasp it by the plug.
●
If, by accident, water is spilled on your VCR, unplug
the power cord immediately and take the unit to our
Authorized Service Center for servicing.
●
Do not put your fin gers or ob jects into t he VCR cas sette holder.
MOISTURE CONDENSATION
WARNING
Moisture condensation may occur inside the unit when
it is moved from a cold place to a warm place, or after
heating a cold room or under conditions of high humidity. Do not use the VCR at least for 2 hours until its inside
is dry.
VIDEO CASSETTE TAPE
●
This VCR will operate with any cassette that has the
mark. For best results, we recommen d the use
of high-quality tapes. Do not use poor quality or damaged tapes.
●
Avoid moisture. Moisture condensation may occur
on the tape if it is moved from a co ld place to a war m
place or visa versa. Before using a tape with these
conditions, to avoid damage of the t ape and your
VCR, wait until the tape has warmed to room temperature and the moisture has evaporated.
●
Avoid extre me heat, high humidi ty and magnetic
fields.
●
Do not tamper with the cassette mechanism.
●
Do not touch the tape with your fingers.
●
You can prevent accidental er asing
of a recording by breaking off the
tab on the back edge of the cassette.
●
If you decide to record on the tape
again, cover the hole with plastic
tape.
Ta b
REMOTE CONTROL
W e do n ot recommen d the use o f universal r emote con trols. Not all of the functions may be controlled with a
universal remote control.
If you decide to use a universal remote control with this
unit, please be aware that the code number given may
not operate this unit. In this case, please call the manufacturer of the universal remote control.
FCC WARNING
This equipme nt may generate or use radio frequency
energy . Changes or modifi cations to this equipment may
cause harmful interference unless the mo dification s are
expressly approved in the instruction manual. The user
could lose the authority to operate this equipment if an
unauthorized change or modi fication is made.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized recording or use of broadcast television
programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication,
use, or other acts which infringe upon the rights of copyright owners.
A NOTE ABOUT RECYCLING
This product’s packaging materials are recyclable and
can be reused. Please dispos e of any materials in accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated
but disposed of in accordance with your local regulations concerning chemical wastes.
SERIAL NUMBER
The serial nu mbe r o f th is pr od uct ma y b e fo un d o n th e
back of the VCR. No other VCR has the same serial
number as yours. You should record the number and
other vital information here and retain this book as a
permanent record of your purchase to aid identificatio n
in case of theft. Serial numbers are not kept on file.
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLEC-
TRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.
- 3 - EN
1D19
FEATURES
Hardware specifications
●
Auto Head Cleaner
●
4 Head
●
Bilingual on-screen menu display selectable in
English or Spanish
●
181 channel capability PLL frequency synthesizer
tuner with direct station call
(A cable converter box may be necessary to view
scrambled cable channels.)
Automatic functions
●
Auto power on and off system
●
Digital Auto Tracking (DTR)
OPERATING CONTROLS AND FUNCTIONS
VCR FRONT PANEL
VIDEO AUDIO
VCR REAR PANEL
21 2223 24
POWER
VCR/TV
POWER VCR/TV TAPE IN TIMER REC
1
Playback
Recording
CHANNELTAPE SPEED
●
S-VHS Quasi Playback (SQPB)
(Allows you to view a tape recorded in S-VHS format.)
●
Auto Repeat
●
2 Step Picture Search Operation
●
Index Search
●
Time Search
●
1 Year, 7 events (including Daily and Weekly
Timer Recording)
●
OTR (One Touch Recording)
REMOTE CONTROL
4
2
5
PLAY
REW
REC
OTR
F.FWD
PAUSE
STILL
S
T
C
T
E
O
J
P
E
/
MENU
13 141110987 1226 23
63
15
14
16
17
7
POWER
MENU
DISPLAY SLOW
REW F.FWD
VCR/TV
123
456
789
0 +100
SEARCH MODE
EXIT
PLAY
EJECT
CHANNEL
COUNTER
MEMORYRESET
2
AUDIO
OUT IN
VIDEO
CH3 CH4
ANT
IN
OUT
13
3
RECORD
STOP
PAUSE/STILL
3
8
12
20
19
18
4
5
6
1.
Cassette Compartment
2.
REW button–
Press to rewind the tape, or to view
the picture rapidly in reverse during the playback
mode. (Rewind Search)
Press to cancel a setting of timer program. Press to
correct digits when setting program (For example:
setting clock or timer program). Press to add or delete
channel numbers during channel pr eset.
3.
EJECT button–
Press to remove the tape from the
VCR.
STOP button–
Press to stop the tape motion.
Press to enter digits when setting program (For example: setting clock or timer program). Press to select the setting modes from the on screen menu.
2526 2827
4.
PLAY button–
Press to begin playbac k.
Press to enter digits when setting program (For example: setting clock or timer program).
Press to select the setting modes from the on screen
menu.
5.
F.FWD button–
Press to rapidly advance the tape, or
view the picture rapidly in forwar d du ring play back.
(Forward Search)
When setting program (For example: setting clock or
timer program), press to determine your selection
and proceed to the next step you want to input. Press
to determine the setting modes from the on screen
menu. Press to add or delet e channel numbers duri ng
channel preset.
- 4 - EN
1D19
6.
PAUSE/STILL button–
Press to temporarily stop
the tape during recording or to view a still picture
during playback.
Frame Advance function–
Press to advance the
picture by one frame at a time during still mode.
7.
POWER button–
Press to turn VCR on and off.
Press to activate timer recording, when the timer program has been set.
8.
VCR/TV button–
Press to select TV or VCR mode.
VCR position: to view playbac k, to monitor video
recordings or watch TV using the VCR tuner.
TV position: to watch TV or to view one program
while recording another.
9.
Remote sensor window–
Receives the infrared
signals from the remote control.
10.
Indicators
POWER indicator–
Indicates that the power is
turned on.
VCR/TV indicator–
Indicates that the VCR is in the
VCR position.
TAPE IN indicator–
Indicates that there is a tape in
the VCR.
TIMER indicator–
Indicates that the timer recording
or OTR has been set.
REC indicator–
Indicates that it is recording.
Flashes when a recording has been paused.
11.
TAPE SPEED button–
Press to choose the desired
recording speed : SP/SLP. (only on the VCR)
12.
CHANNEL Up or Down buttons–
Press to select
the desired channels for vi ewing or recording.
Tracking function–
Press to minimize vide o ‘noise’
(lines or dots on screen) during play back (only on th e
VCR) or slow mode.
Press to stabilize the picture in the Still mode when
the picture begins to vibrate vertically.
13.
RECORD button–
OTR button–
Press for manual re cording.
Press to activate One Touch Record-
ing. (only on the VCR)
14.
MENU button–
Press to display the menu on the TV
screen. Press to exit the menu on the TV screen.
15.
NUMBER buttons–
Press to select desired channels
for viewing or recording. To select channels from 1
to 9, first press "0" button then 1 to 9. (only on the
remote control)
+100 button–
When selecting cable channels which
are higher than 99, press this button first, then press
the last two digits. (To select channel 125, first press
"+100" button then press "2" and "5"). (only on the
remote control)
16.
DISPLAY button–
Press to display the current time,
channel number, real time tape counter, and other information on the TV screen. (only on the remote control)
Each time yo u press this button, TV screen will
change as shown. The status display (STOP, PLAY
etc.) and the tape speed display (SP, LP (playback
only), or SLP) will disappear after 5 seconds.
<OFF mode>
17.
SLOW button–
<COUNT mode> <CLOCK mode>
STOP
Press
once
SP 0:12:34
Press once
Press
once
5:40PM
STOP
CH 02
SP
Press to start slow motion play back.
(only on the remote control)
18.
COUNTER MEMORY button–
Press to set counter
memory on and off. (only on the remote control)
19.
COUNTER RESET button–
Press to reset counter
to 0:00:00. (only on the remote control)
EXIT button–
Press to exit the menu on the TV
screen. (only on the remote control)
20.
SEARCH MODE button–
Press to perform a Time
Search or an Index Search. (o nly o n the rem ote con trol)
21.
Power cord–
Connect to a standard AC outlet
(120V/60Hz).
22.
AUDIO OUT jack–
Connect to the audio input jack
of your audio equipment or another VCR.
23.
AUDIO IN jack–
Connect to the audio output jack of
your audio equipment or another VCR.
24.
ANT. IN terminal–
Connect to an antenna, Cable
system or Satellite system.
25.
VIDEO OUT jack–
Connect to the video input jack
of your video camera or another VCR.
26.
VIDEO IN jack–
Connect to the video output jack of
your video camera or another VCR.
27.
CH3/CH4 selector switch–
Use to se lect a video
output channel (3 or 4) for VCR pl ay back .
28.
ANT. OUT terminal–
Connects to the antenna input
terminal on your TV.
INSTALLING THE BA TTE RIES
1) Open the battery compartment cover by pressing the
cover on the remote unit in the direction of the arrow.
2) Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated by the polarity
(+/-) markings.
3) Replace the cover.
Install 2 X AA battery
- 5 - EN
1D19
PREPARA TION FOR USE
ANTENNA/CABLE CONNECTIONS
For some of the most common typ es of con nections , pleas e r efer to th e d i agr am belo w. Use only one connection.
For any further complex connections, please contact your local dealer. (You may need additional accessories which
are not supplied).
1
Disconnect the antenna or cable from your TV.
2
Connect the antenna or cable to the ANT. IN (Top jack)
of your VCR.
3
Connect one end of the coaxial cable (supplied) to
the ANT.OUT (Bottom jack) of your VCR.
Basic Connections
Audio "Y" cable (not supplied)
Video cable (not supplied)
AUDIO
IN
VIDEO
IN
LR
AUDIO
OUT IN
CH3 CH4
VIDEO
Back of the VCR
ANT
IN
OUT
VHF
UHF
4
Connect the other end of the coaxial cable (supplied)
to the UHF/VHF antenna jack of your TV.
[Cable Box or Satellite Box]
Coaxial Cable
(Supplied)
VHF
UHF
OUT
OR
OR
OR
ANT in
IN
From
Cable or
Satellite
Company
Indoor or
Outdoor
Antenna
From
Cable Company
(No Cable Box)
TV A/V Terminal TV Antenna Terminal
USING OPTIONAL AUDIO/VIDEO
OUTPUT JACKS
If your TV has A/V input jacks, you may connect your
VCR’s AUDIO/VIDEO OUTPUT jacks to the
audio/video input jack s on back of your TV.
Direct audio/video connections usually result in a better
picture and sound quality for tape playback. Please see
your TV’s owner’s manual for A/V input co nnections.
USING AUDIO/VIDEO INPUT JACKS
Y ou can us e the A/V input jacks o n the front or the back
of the VCR.
1) When you connect the external source to input jacks
on the back of the VCR, select "L1" position for recording by pressing the 0, 0, 1 on the remote control
or CHANNEL Up/Down button.
2) When you connect the external source to input jacks
on the front of the VCR, select "L2" position for recording by press ing the 0, 0, 2 on t he remo te contr ol
or CHANNEL Up/Down button.
Note:
"L1" or "L2" is found before the lowest memo-
rized channel. (Example: CH2)
Note to CATV system installer
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building, as close to the point of cable entry as practical.
- 6 - EN
1D19
INITIAL SET UP FOR USE
SETTING THE CH3/CH4
SWITCH
If your TV does not have A/V ter m inals:
When the VCR is in the Playback mode or when the
VCR is in the VCR position, your TV will receive signals from the VCR on either chan nel 3 o r 4 .
T o use the VCR with your TV, set the selector switch to
CH3 or CH4 (which is located
in the back of your VCR),
whichever is not used for normal broadcasts in your area.
Then set your TV to the same
channel.
CH3 CH4
[Back of the VCR]
OUT
CH4
CH3
5
Begin channel preset
by pressing the F. FWD button
CH 01
once. The tuner scans and
memorizes all active channels
AUTO SET UP
in your area.
●
The VCR distinguishes between standard TV channels
and cable channels.
6
After scanning,
the tuner stops on the lowest
memorized channel. The TV screen returns to TV
mode.
●
If "AUTO SET UP" appears on the TV screen again,
check the cable connections. Press the F.FWD bu tton
once again and the VCR will begin preset again.
AUTOMATIC CHANNEL SET UP
You can automatically program the tuner to scan only
the channels you receive in your area.
●
Channel memory programming is
when you connected the VCR to a cable box or
satellite box
as in "Basic connections" on page 6. In
this case, select the VCR and TV to channel 3 or 4
the same channel as the CH3 or CH4 switch on the
back of the VCR. Then, the channel you want to record or view may be selected at the cable box or s atellite box.
●
Follow the steps below once. Repeat it only if there
is a power failure or if the VCR is unplugged for more
than 30 seconds. (In these cases, the programmed
channels are erased.)
●
You must follow the steps below before attempting
to play or record a vi d eo ta p e. I f y ou w ant to play or
record a video tape BEFORE programming the tuner,
you can cancel it by pressing the RESET/EXIT button. To program the tuner again, see "CHAN NEL
SET UP AGAIN" on the next page.
1
You need to connect the antenna or cable to the VCR
first. Then, connect the VCR power plug into a standard AC outlet.
2
Turn on the TV and set the TV to channel 3 or 4.
Now set the CH3/CH4 switch on the back of the VCR
to match the channel selected on the TV.
3
Turn on the VCR
by pressing the POWER button.
Both the POWER indicator and the VCR/TV indicator on the VCR come on.
4
Select the On Screen Language ("ENGLISH" or
"ESPAÑOL")
by pressing
the PLAY or STOP button.
Then, press the F.FWD button.
NOT needed
LANGUAGE SELECT
————————————————
ENGLISH [ON]
B
ESPAÑOL
TO SELECT A DESIRED CHANNEL
Y o u can select the desired channel by using the CHANNEL Up or Down button or directl y pressing the number
buttons on the remote control.
Note for using the number buttons:
●
When selecting cable channels which are higher th an
99, press the +100 button first, then press the last two
digits.
●
You must precede single-digit channel numb ers with
a zero (For example: 02, 03, 04 and s o on ).
CLOCK SET UP
Set the clock accurately for proper automatic timer recording. We suggest that you use a TV or radio station
as your time source.
1
Select main menu
(If the clock is not set, the CLOCK SET menu appears first. In this case, follow step [3].)
2
Select "CLOCK SET"
STOP button. Then, press the F.FWD button.
3
Set the clock.
Set the month
Set the day
Set the year
Set the hour
Set the minute
Set the AM or PM
●
To go back one step, press the REW button.
by pressing the MENU button.
by pressing the PLAY or
Press the PLAY or STOP button repeatedly.
Then, press the F.FWD button.
Press the PLAY or STOP button repeatedly.
Then, press the F.FWD button.
Press the PLAY or STOP button repeatedly.
Then, press the F.FWD button.
The day of the week will appear automatically.
Press the PLAY or STOP button repeatedly.
Then, press the F.FWD button.
Press the PLAY or STOP button repeatedly.
Then, press the F.FWD button.
Press the PLAY or STOP button
repeatedly.
CLOCK SET
MONTH DAY YEAR
03 / 19 MON 2001
HOUR MINUTE AM/PM
05 : 40 PM AM
PM
4
Start the clock
by pressing the RESET/EXIT or
F.FWD button after setting the AM or PM.
- 7 - EN
1D19
SET UP FOR USE AGAIN
TO ADD/DELETE CHANNELS
When the VCR automatically programs the tuner to scan
only the channels you receive in your area, some channels may be skipped due to a weak signal. You can
manually ad d the channel in the VCR memory. (Of
course, you can later delete the added channel from the
memory again.)
1
Select main menu
ing the MENU button.
2
Select "CHANNEL SET UP"
by pressing the PLAY or ST OP
button. Then, press the F .FWD
button.
3
Select "MANUAL SET UP"
by pressing th e PLAY or STOP
button. Then, press the F.FWD
button.
4
Enter the desired channel
number
by pressing the
PLAY or STOP button.
by press-
- M E N U -
TIMER PROGRAMMING
AUTO REPEAT [OFF]
CHANNEL SET UP
B
CLOCK SET
LANGUAGE SELECT
CHANNEL SET UP
——————————————————
AUTO SET UP
MANUAL SET UP
B
MANUAL SET UP
———————————————
CHANNEL 30 ( TV )
DELETE
CHANNEL SET UP AGAIN
1
Select main menu
ing the MENU button.
2
Select "CHANNEL SET UP"
by pressing the PL A Y or ST OP
button. Then, press the F.FWD
button.
3
Select "AUTO SET UP"
pressing the PLAY or STOP
button. Then, press the F.FWD
button. After scanning, the
tuner stops at the lowest memorized channel.
●
The VCR distinguishes between standard TV channels and cable channels.
by press-
by
- M E N U -
TIMER PROGRAMMING
AUTO REPEAT [OFF]
CHANNEL SET UP
B
CLOCK SET
LANGUAGE SELECT
CHANNEL SET UP
———————————— ———— ——
AUTO SET UP
B
MANUAL SET UP
SELECTING THE ON SCREEN
LANGUAGE
1
Select main menu
ing the MENU button.
2
Select "LANGUAGE SE-
by pressing the
LECT"
PLAY or STOP button. Then,
press the F. FWD button.
by press-
- M E N U -
TIMER PROGRAMMING
AUTO REPEAT [OFF]
CHANNEL SET UP
CLOCK SET
LANGUAGE SELECT
B
5
Add or Delete it from memory
by pressing the
F .FWD or REW button so that "ADD" or "DELETE"
flashes on the TV screen accord ing ly.
MANUAL SET UP
———————————————
CHANNEL 30 ( TV )
DELETE
DELETED
-
6
Exit the preset mode
- -
by pressing the RESET/EXIT
MANUAL SET UP
———————————————
CHANNEL 30 ( TV )
ADD
MEMORIZED
-
button.
3
Select the On Screen Language ("ENGLISH" or
"ESPAÑOL")
by pressing the
PLAY or STOP button.
4
Exit the preset mode
button.
LANGUAGE SELECT
——————————————
ENGLISH [ON]
B
ESPAÑOL
by pressing the RESET/EXIT
- 8 - EN
1D19
PLAYBACK FUNCTION
NORMAL PLAYBACK
1
Insert the prerecorded tape.
VCR will turn on. If the safety tab
has been removed, the VCR will
start playback automatically.
2
Turn on the TV and set the TV to channel 3 or 4.
Now set the CH3/CH4 switch on the back of the VCR
to match the channel selected on the TV.
3
Begin playback
●
Tracking adjustment will be set automatically (Digi-
by pressing the PLAY button.
tal Tr acking func tion) when yo u start playbac k. To
adjust the tracking manually, press the CHANNEL
Up or Down button
●
When a tape has reached the end, the VCR will re-
on the VCR
wind the tape to the beginning, eject the tape, and turn
off the VCR automatically.
●
S-VHS Quasi Playback (SQPB)
This unit allows you to view a tape recorded in S-VHS
format. (Noise lines may appear on the picture.)
4
To stop playback,
press the STOP button.
STILL/SLOW
1) You can freeze the picture on TV screen by pressing
the PAUSE/STILL button during playback.
●
You can advance the picture by one frame at a time
by pressing the PAUSE/STILL button during the still
mode.
2) You can see the slow motion by pressing the SLOW
button during playback or the still mode.
●
If the noise bar appears on the TV screen, you can reduce it by pressing the CHANNEL Up or Down button.
●
After the VCR has been in Still/Slow mode for 5 minutes, it will stop automatically to protect the tape and
the video head.
●
To return playback, press the PLAY button.
The
.
AUTO REPEAT PLAYBACK
Use this feature allows you to play a tape over and o ver .
1) Select main menu by pressing the MENU button.
2) Select "AUTO REPEAT" by pressing the PLAY or
STOP button.
3) Begin auto repeat playback by pressing the F.FWD
button so that [ON] will appear next to "AUTO REPEAT" on the TV screen.
●
If the on-screen menu still remains, press the RESET/EXIT button to exit the menu.
●
To cancel the auto repeat mode, press the F.FWD
button at step [3] so that [OFF] appear next to
"AUTO REPEAT" on the TV screen.
●
When you set the auto repeat mode to [ON] while the
counter memory mode is ON, the VCR will exit the
counter memory mode automatically.
SEARCH FUNCTIONS
PICTURE SEARCH
If you want to skip or repeat a scene while in the play
mode, press the F.FWD or REW button.
●
Press it again and the VCR will now search in super
high speed. (in the LP / SLP modes on l y)
TIME SEARCH
You can skip a prog ram for a desired length of time.
1) Press the SEARCH MODE
button so that the Time
Search menu appears.
2) Enter your desired time to
skip by pressing the PLAY or
STOP button within 30 seconds.
3) Press the F.FWD or REW button to start time search.
If you want to go in the forward direction, press the
F.FWD button. I f you want to go in the reve rse direction, press the REW button.
●
After time search, the VCR will play the tape automatically.
INDEX SEARCH
The index signal is recorded on the tape automatically
when the recording is started. If you want to view a recording at a specific start point, it can easily be done.
1) Press the SEARCH MODE
button so that the Index
Search menu appears.
2) Enter your desired number by
pressing the PLAY or STOP
button within 30 seconds.
3) Press the F.FWD or REW button to start index
search. If you want to go in the forward direction,
press the F.FWD button. If you want to go in the
reverse direction, press the REW button.
●
After index search, the VCR will play the tape automatically.
TIME SEARCH
2 : 5 0
INDEX SEARCH
03
- 9 - EN
1D19
RECORDING FUNCTION
Before recording, make sure:
●
The desired channel is selected by p ressing the number buttons on the remote control or the CHANNE L
Up/Down button. (If you connected the VCR to a
cable box or satellite box as in "Basic connections"
on page 6, select the VCR to channel 3 or 4 the same
channel as the CH3 or CH4 switch o n the back of the
VCR. Then, select the channel you wan t to r ecord at
the cable box or satellite box. In this case, you can
ONLY record and view the SAME channel. )
●
There is a tape with its safety tab into the VCR.
●
The desired recording speed is selected in SP(s tan dard play) or SLP( super long play) mode by pressing
the TAPE SPEED button on the VCR.
Tape Speed Recording/Playback Time
T ype of tape
T60T120T160
SP mode 1 hour 2 hours 2-2/3 hours
SLP mode 3 hours 6 hours 8 hours
VIEWING AND RECORDING
THE SAME PROGRAM
1) Begin the recording by pressing the RECORD button.
●
To temporarily stop recording or resume it, press the
PAUSE/STILL button. After the VCR has been in
Pause mode for 5 minutes, it will stop automatically
to protect the tape and the video head.
2) Stop the recording by pressing the STOP button
when recording is completed.
OTR(One Touch Recording)
This function enables you to set the recording length simply by pressing the REC/OTR button
1) Begin OTR by pressing the REC/OT R butto n
VCR
repeatedly until the desired recording length
appears.
●
Recording stops when 0:00 is reached.
Press Display Recorded Length
1 press (normal recording)
2 presses 0:30 30 minutes
3 presses 1:00 60 minutes
↓↓ ↓
17 presses 8:00 480 minutes
18 presses (normal r ecording)
on the VCR.
on the
COPYING A VIDEO TAPE
You can make copies of vid eo tapes made by fr iends or
relatives for your enjoyment.
Warning:
video tapes may be an infri n gem ent of copy ri g ht l aw s .
Connect the recording VCR(this unit), the playing VCR(an-
other source) and your TV using the following diagram.
1) Insert a pre-recorded tape into the playing VCR.
2) Insert a tape with its safety tab into the recording VCR.
3) Press the TAPE SPEED button on the recording VCR
4) Select the "L1" or "L2"position on the recording VCR.
5) Press the REC/OTR button on the recording VCR.
6) Begin playback of the tape in the play ing VCR.
●
●
●
TO MONITOR THE RECORDING
1) Turn on the TV and set the TV to channe l 3 or 4. Now
2) Press the VCR/TV button on the recording VCR so
Unauthorized recordi ngs of copyrighted
[Recording VCR]
(this unit)
Audio/Video cables
(not supplied)
OUT
OUT
IN
IN
VIDEO
AUDIO
[Playing VCR]
(another source)
AUDIO
OUT IN
VIDEO
ANT
IN
OUT
CH3 CH4
Coaxial cable (supplied)
[TV set]
(Use for monitoring)
ANT in
to select the desired recording speed (SP/SLP).
See page 6, under "Using audio/video input jacks".
For best results during dubbing, use the VCR’s front
panel controls whenever possible. The remote control might affect the playing VCR’s operation.
Always use video-quality shielded cables with RCAtype connectors. Standard audio cables are not recommended.
You can use a video disc player, satellite receiver, o r
other audio/video component with A/V outputs in
place of the playing VCR.
set the CH3/CH4 switch on the back of the VCR to
match the channel selected on the TV.
that the VCR/TV indicator comes on.
- 10 - EN
1D19
TIMER RECORDING
Y ou may set the VCR to start recording while you are away.
You can set seven programs to record on specific da ys,
daily or weekly within a 1 year period.
1) I nsert a tape with its safety tab into the VCR.
2) Select main menu by pressing the MENU button.
3) Select "TIMER PROGRAMM ING" by pressing the
PLAY or STOP button. Then, press the F.FWD button.
●
If you have not yet set the clock, "CLOCK SET" appears. If so, follow the steps [3] and [4] in "CLOCK
SET UP " section. Then, set the timer recording.
4) Set the timer.
Set the program number (1~7)
Program number which is not set up flashes.
Press the PLAY or STOP button repeatedly
for the desired program number.
Then, press the F.FWD
Select once, daily or weekly recording
For once: Press the
to point to "ONCE".
For daily (Monday~Friday):
Press the
PLAY or STOP
to point to "DAILY".
For weekly: Press the
button
to point to "WEEKLY".
Then, press the
Set the date
First, press the
then, press the
Next, press the
Then, press the
Set the start time
First, press the
then, press the
Next, press the
then, press the
And then, press the
Then, press the
Set the end time
Follow the instructions of "Set the start time"
to set the end time.
Set the channel number
Press the
PLAY or STOP
for the desired channel number.
Then, press the
If you connected the VCR to a cable box or satellite box as in
"Basic connections" on page 6, select the VCR to channel 3
or 4 the same channel as the CH3 or CH4 switch on the back
of the VCR. Then, select the channel you want to record at
the cable box or satellite box. Leave the cable box or satellite
box on for timer recording.
Set the tape speed
Press the
PLAY or STOP
for the desired tape speed.
Then, press the
●
To go back one step, press the REW button.
button.
PLAY or STOP
PLAY or STOP
F.FWD
button.
PLAY or STOP
F.FWD
button.
PLAY or STOP
F.FWD
button.
PLAY or STOP
F.FWD
button.
PLAY or STOP
F.FWD
button.
PLAY or STOP
F.FWD
button.
button repeatedly
F.FWD
button.
button repeatedly
F.FWD
button.
button
button
button
button
button
button
for the month,
for the day.
for the hour,
for the minute,
button
PROGRAM NUMBER 4
DATE - - / - START TIME - - : - - - END TIME - - : - - - CHANNEL - REC SPEED - -
PROGRAM NUMBER 4
ONCE
DAILY
WEEKLY
for AM or PM.
ONE TIME PROGRAM
PROGRAM NUMBER 4
DATE 05/03 THU
START TIME 07:30 PM
END TIME 08:30 PM
CHANNEL 16
REC SPEED SP
SP
SLP
5) To set another program, repeat step [4]. To exit, pres s
the RESET/EXIT button.
6) Pr ess th e POW ER bu tton to set th e tim er. The TIMER
indicator on the VCR comes on.
HINTS FOR TIMER
RECORDING
●
If there is a power failure or the VCR is unplugged
for more than 30 seconds, the clock setting and all
timer settin gs will b e l ost .
●
If the tape runs out before the end time, the VCR will
switch to the Stop mode immediately, eject the tape
and the VCR power will be turned off. The TIMER
indicator will flash.
●
If a tape is not in the VCR or does not have the safety
tab, the TIMER indicator flashes and timer recording
cannot be performed. Please ins ert a record able tape.
TO STOP AN AUTOMATIC TIMER
PROGRAM ALREADY STARTED
Press the STOP/EJECT button
TO CHECK, CORRECT, OR CANCEL AN
AUTOMATIC TIMER PROGRAM
1) Turn the power on.
2) Select main menu by pressing the MENU button.
3) Select "TIMER PROGRAMMING" by pressing the
PLAY or STOP button. Then, press the F.FWD button.
4) Select the program number which you want to check
by pressing the PLAY or STOP button. The details
of the selected program appears on the TV screen.
●
Go to the digit you want to change by pressing the
F.FWD or REW b utton. Then, enter correct numbers by pressing the PLAY or STOP button.
●
You may cancel the entire program by pressing the
REW button during the program number flashes.
5) Press the RESET/EXIT button to exit.
6) Press the POWER button to return to timer standby mode.
AVOIDING OVERLAPPING PROGRAMS
There may be times when a program will not record.
When programs overlap:
●
The program with the earliest start time has priority.
●
Once the earliest program finishes, the overlapping
program with the lower number will begin recording
in sequence.
●
The illustration below demonstrates the sequence of
recordings.
Program 1
(10:00AM-11:00AM)
Program 2
(9:00AM-10:00AM)
Program 3
(9:30AM-12:00PM)
9:00AM 10:00AM 12:00PM
*Recording period is SHADED
on the VCR
Recording Sequence
11:00AM
.
- 11 - EN
1D19
SPECIAL FEATURES
AUTO REWIND
When a tape has reached the end duri ng recording, playback, or fast-forward, the tape will automatically rewind
to the beginning. After rewinding finishes, the VCR will
eject the tape and turn itself to off.
●
The tape will not auto-rewind during timer recording
or One Touch Recording.
●
When the Counter Memory is activated, the tape will
rewind to the M0:00:00 and the VCR will go into the
Stop mode.
COUNTER MEMORY FUNCTION
Use this feature to memorize the beginning o f recording
start point.
1) Pre ss the COUNTER RESET button on the remote
control to reset the counter.
2) Press the COUNTER
MEMORY button on the
remote control so that "M"
appears on the TV screen.
REC
SP M 0:00:00
3) Record the program.
REAL TIME TAPE COUNTER
●
This shows the elapsed recording or playback time in
hours, minute s, and seconds. (The displayed time
will not change during blank portions on the tape.)
●
The "–" indication will appear when the tape is rewound further than "0:00:00" on the tape counter.
4) After re cording, press the STOP button then the
REW button.
●
When "0:00: 00" is reached, rewinding operation
goes to stop. And you can view the recording program.
●
The COUNTER MEMORY button does not function
if the auto repeat mode is set to [ON]. In this case, set
the auto repeat mode to [OFF].
●
To cancel the counter memory mode, press the
COUNTER MEMORY button so that "M" disappears from the TV screen.
TROUBLESHOOT ING GUIDE
If you have followed the instructions contained in this manual and have difficulty in operating your VCR, locate
the PROBLEM in the left column below. Check the corresponding CORRECTIVE ACTION column to remedy
the problem.
PROBLEM CORRECTIVE ACTION
●
No power.
Timer recording is not possible.
Cannot go into Record mode.
Playback picture is partially noisy.
Cannot view a tape but the audio is
OK.
No picture or poor picture on
playback.
On-the-air TV programs cannot be
seen.
No VCR operation from the infrared
Remote Contr ol .
Video or color fades in and out when
making a copy of a video tape.
Make sure the power plug is connected to an AC outlet.
●
Make sure the power is turned on.
●
Make sure the timer recording is set correctly.
●
Make sure the power is off.
●
Make sure the VCR clock is set correctly.
●
Make sure the tape has a safety tab. If needed, cover the hole with
plastic tape.
●
Adjust tracking control for a better picture by pressing the
CHANNEL Up or Down button on the VCR.
●
Head cleaning may be necessary. Refer to "AUTO HEAD
CLEANING" .
●
Make sure the VCR is not in the Menu mode.
●
Set your TV to the VCR mode and/or press the VCR/TV button so that
the VCR/TV indicator on the VCR comes on.
●
Fine tune your TV.
●
Re-check the ANT. IN and ANT. OUT connections. See page 6.
●
Set your TV to the TV mode and/or press the VCR/TV button so that
the VCR/TV indicator on the VCR disappears.
●
Make sure the power plug is connected to an AC outlet.
●
Check batteries in remote control.
●
You cannot copy a copyrighted video tape. You are exp erien cing
copy guard protection.
- 12 - EN
1D19
SPECIFICATIONS
Television system : NTSC, TV standard
Video heads : Rotary four - head
Tape cassette : video cassette
T ape s peed
Recording : SP, SLP
Playback : SP, LP, SLP
Tuner channel
VHF : #2~#13
UHF : #14~#69
Cable channel : 5A, A-5 ~ A-1, A ~ W+84
RF converter : Built-in VHF converter
Converter output : VHF Channel 3 or 4.
Timer indication : AM/PM 12-hour system
Operating temperature : 5
o
C~40oC (41oF~104oF)
Terminals
Antenna input : F type connector x 1
Antenna output : F type connector x 1
Video input/output : RCA connector x 3
Audio input/output : RCA connector x 3
MAINTENANCE
SERVICING
Should your VCR become inoperative, do not try to correct the problem by yourself. There are no us er-serviceable parts insi de. Turn off, unpl ug the powe r plug, an d
please call our help line at 1-800-242-7158, to locate an
Authorized Service Center.
CABINET CLEANING
●
Wipe the front panel and other exterior surfaces of
the VCR with a s oft cloth immersed in lukewarm
water and wrun g dry.
●
Never use a solvent or alcohol. Do not spray insecti-
cide liquid near the VCR. Such chemicals may cause
damage and discoloration to the exposed surfaces.
Video output level : 1Vp-p
Vi d eo ou t pu t im ped ance : 75Ω
Audio output level : -6dBv (1KHz)
Video input level : 0.5~2.0Vp-p
Audio input level : -10dBv
Power requirement : 120V, 60Hz
Power consumption : 12 W atts
Dimensions : W 14-1/4" (360mm)
H 3-5/8" (92mm)
D 8-1/2" (215.5mm)
W eight : 5.1 lbs. (2.3 Kg.) (approx.)
●
Designs and specifications are subject to change
without notice and without legal obligation.
●
If there is a di scr epa n cy bet we en la ng uag e s, th e de fault language will be English.
AUTO HEAD CLEANING
●
Automatically cleans video heads as you insert o r remove a cassette, so you can see a clear picture.
●
Playback picture may become blurred or in terrup ted
while the TV program reception is clear. Dirt accumulated on the video heads aft er long peri ods of use,
or the usage of rental or worn tapes can cause this
problem.
If a streaky or snowy picture appears during playback, the video heads in your VCR may need to be
cleaned.
1. Please visit yo ur local Audio/Video store and purchase a good quality VHS Video Head Cleaner.
2. If a Video Head Cleaner does not solve the problem,
please call our help li ne at 1-800- 242-7158, t o locate
an Authorized Service Center.
NOTES:
●
Remember to read the instructions included with the
video head cleaner before use.
●
Clean video heads only when problems occu r.
- 13 - EN
1D19
CONEXIONES DE ANTENA/TELEVISIÓN POR CABLE
Para conocer algunos de los tipos de conexión más comunes, consulte
las explicaciones siguientes. Utilice solamente una conexión. Para hacer conexiones más complejas, consulte a su concesionario local. (Tal
vez necesite accesorios adicionales que no han sido incluidos.)
NOTA:
Para obtener más información, consulte la sección "Conexio-
nes de antena/televisión por cable" en la página 6.
1. Desconecte la antena o la caja de tel evi sión por cable de su t elevisor.
2. Conecte la antena o la caja de televisión por cable a ANT.IN (toma
superior) de su videograbadora.
Conexiones básicas
ANT
CH3 CH4
IN
OUT
Cable de audio (tipo "Y")
(no suministrado)
Cable de vídeo
(no suministrado)
IN
IN
LR
VIDEO
AUDIO
AUDIO
OUT IN
VIDEO
Parte trasera de
la videograbadora
3. Conecte un extremo del cable coaxial (suministrado) a ANT.OUT
(toma inferior) de su videograbadora.
4. Conecte el otro extremo del cable coaxial (suministrado) a la toma
de antena UHF/VHF de su televisor.
5. Si su televisor no tiene terminales A/V: Ponga el conmuta dor selector en CH3 o CH4 (en la parte trasera de su videograbadora), el
que no se utilice para las
emisiones normales en su
zona. Luego ajuste el televi-
CH3 CH4
OUT
CH4
CH3
sor al mismo canal.
[Parte trasera de la videograbadora]
[Caja de televisión por cable o caja de emisiones de satélite]
O
Cable coaxial
(suministrado)
O
O
OUT
IN
De empresa
de televisión
por cable o
de emisiones
de satélite
Antena
interior o
exterior
De empresa
de televisión
por cable
(Ninguna caja
de televisión
por cable)
Terminal TV A/V Terminal de antena del televisor
PREPARACIÓN DE CANALES
(La antena o la caja de televisión por
cable deberá estar conectada)
NOTA:
Cuando utilice su nueva videograbadora por primera vez, o
en el caso de ser necesario después de producirse un fallo en la alimentación, la videograba dora se pondrá ini cialmente en e l modo de
preajuste cuando se pulse el botón POWER.
Si conecta una caja de televisión por cable o una caja de emisiones vía
satélite, consulte la sección "Pre paración aut omática de canale s" del
manual del propietario.
1. Encienda el televisor y ponga el televisor en el canal 3 ó 4. Ahora
ponga el conmutador de la parte trasera de la videograbadora para
que concuerde con el canal seleccionado en el televisor.
2. Pulse el botón POWER para encender la video-
grabadora.
3. Seleccione "ENGLISH" o "ESPAÑOL" (Spa-
nish) pulsando el botón PLAY o STOP. Y luego
pulse el botón F.FWD.
4. Pulse una vez el botón F.FWD.
El sintonizador explora y memoriza todos los canales acti vos de
su zona. Tras la exploración, el sintonizador se detiene en el canal
memorizado más bajo.
SELEC. IDIOMA
———————————— ——
ENGLISH
ESPAÑOL [ON]
B
VHF
UHF
VHF
UHF
ANT in
PREPARACIÓN DEL RELOJ
1. Pulse el botón MENU hasta que aparezca el menú principal.
(Si el reloj no está puesto en hora y se pulsa el bot ón MENU, el
menú AJUSTE DE RELO J aparec e en prim er lug ar. En es te cas o,
siga el paso 3.)
2. Pulse el botón PLAY o STOP para indicar a "AJUSTE DE RE LOJ". Luego, pulse el botón F.FWD.
3.
Ajuste el mes.
Ajuste el día.
Ajuste el año.
Ajuste la ora.
Ajuste el minuto.
Ajuste la
mañana (AM) o
la tarde (PM).
●
Para volver atrás un paso, pulse el botón REW.
4. Después de establecer AM o PM, pulse el botón RESET/EXIT o
F.FWD para poner en funcionamiento el reloj.
Pulse repetidamente el botón PLAY o STOP.
Luego, pulse el botón F.FWD.
Pulse repetidamente el botón PLAY o STOP.
Luego, pulse el botón F.FWD.
Pulse repetidamente el botón PLAY o STOP.
Luego, pulse el botón F.FWD.
Pulse repetidamente el botón PLAY o STOP.
Luego, pulse el botón F.FWD.
Pulse repetidamente el botón PLAY o STOP.
Luego, pulse el botón F.FWD.
Pulse repetidamente
el botón PLAY o STOP.
AJUSTE DE RELOJ
MES DIA AÑO
0 3 / 1 9 LUN 2001
HORA MINUTO AM/PM
05 : 40 PM AM
PM
- 14 - ES
1D19
CONTROLES DE FUNCIONAMIENTO Y FUNCIO NES
PANEL DELANTERO
DE LA VIDEOGRABADORA
PANEL TRASERO DE LA
VIDEOGRABADORA
Compartimiento del videocasete
1.
Botón de rebobinado (REW) -
2.
ver rápidamente la imagen en retroceso durante el modo de reproducción.
(Búsqueda con rebobinado)
Púlselo para cancelar un ajuste de programa de temporizador. Púlselo para
corregir los dígitos al programar (por ejemplo: puesta en hora del re loj o un
programa de temporizador). Púlselo pa ra añadir o borrar números de canales
durante el preajuste de canales.
Botón de expulsión (EJECT) -
3.
videograbadora.
Botón de parada (STOP) -
Púlselo para introducir los dígitos cuando establezca programas (por ejemplo: puesta en hora del reloj o un programa de temporizador). Púlselo para
seleccionar los modos de ajuste en el menú en pantalla.
Botón de reproducción (PLAY) -
4.
Púlselo para introducir los dígitos cuando establezca programas (por ejemplo: puesta en hora del reloj o un programa de temporizador).
Púlselo para selecciona r los modos de ajuste en el menú en pa ntalla .
Botón de avance rápido (F.FWD) -
5.
la cinta o para ver rápidamente la imagen en avance durante la reproducción.
(Búsqueda en avance)
Cuando establezca un programa (por ejemplo: puesta en hora del reloj o un
programa de temporizador), púlselo para determinar su s elección y proseguir
con el siguiente paso que desee introducir. Púlselo para determinar los modos de ajuste del menú en pantalla. Púlselo para añadir o borrar números de
canales durante el preajuste de canales.
Botón de pausa/imagen fija (PAUSE/STILL) -
6.
temporalmente la cinta durante la grabación o para ver una imagen fija durante la reproducción.
Función de avance de cuadro -
a cuadro durante el modo de imagen fija.
Botón de la alimentación (POWER) -
7.
la videograbadora. Púlselo para activar la grabación con temporizador cuando ésta haya sido establecida.
Botón de videograbadora/televisor (VCR/TV) -
8.
cionar el modo de la videograbadora (VCR) o del televisor (TV).
Posición VC R:
o ver programas de TV utilizando el sintonizador de la videograbadora.
Posición TV:
graba otro.
Ventanilla sensora del mando a distancia -
9.
frarrojas procedentes del mando a distancia.
Indicadores
10.
Indicador de alimentación (POWER) -
está conectada.
Indicador de videograbadora/televisor (VCR/TV) -
deograbadora está activada.
Indicador de videocasete introducido (TAPE IN) -
un videocasete en la videograbadora.
Indicador del temporizador (TIMER) -
la grabación con temporizador u OTR.
Indicador de grabación (REC) -
bando. Parpadea cuando la grabación ha hecho una pausa.
Botón de velocidad de cinta (TAPE SPEED) -
11.
velocidad de grabación deseada: SP/SLP. (Sólo en la videograbadora)
para ver la reproducción, comprobar las grabaciones de vídeo
para ver programas de TV o para ver un programa mientras se
VIDEO AUDIO
Púlselo para rebobinar la cinta o para
Púlselo para sacar el videocasete de la
Púlselo para detener la cinta.
Púlselo para iniciar la reproducción.
Púlselo para avanzar la imagen cuadro
Indica que la videograbadora está gra -
21 2223 24
Púlselo para avanzar rápidamente
Púlselo para detener
Púlselo para encender y apagar
Púlselo para se lec-
Recibe las señales in-
Indica que la alimentación
Indica que ha sido establecida
Púlselo para elegir la
POWER
VCR/TV
Indica que la vi-
Indica que hay
1
POWER VCR/TV TAPE IN TIMER REC
63
245
PLAY
REW
F.FWD
PAUSE
REC
STILL
OTR
S
T
C
T
E
O
J
P
E
/
CHANNELTAPE SPEED
MENU
13 141110987 1226 23
ANT
IN
AUDIO
OUT IN
OUT
CH3 CH4
VIDEO
2526 2827
Botones de selección de canales (CHANNEL) -
12.
MANDO A DISTANCIA
POWER
7
15
14
16
17
2
3
13
VCR/TV
123
456
789
MENU
0 +100
DISPLAY SLOW
EXIT
PLAY
REW F.FWD
STOP
RECORD
EJECT
CHANNEL
SEARCH MODE
COUNTER
MEMORYRESET
PAUSE/STILL
Púlselos para se-
leccionar los canales deseados para ver o grabar.
Función de seguimiento –
Pulse los botones para minimizar el "ruido"
de vídeo (líneas o puntos en la pa ntalla ) dur a nte la reproducción (sólo en la
videograbadora) o el modo de cámara lenta.
Púlselo para estabilizar la imagen en el modo de imagen fija cuando ésta
empieza a vibrar vertical mente.
Botón de grabación (RECORD) -
13.
Púlselo para realizar la grabación
manual.
Botón de grabación con un toque (OTR) -
Púl selo para activar la
grabación con un toque. (Sólo en la videogr abadora)
Botón de menús (MENU) -
14.
Púlselo para visualizar los menús en la pantalla del televisor. Y vuelva a pulsarlo para salir de los menús de la pantalla
del televisor.
Botones de números (NUMBER) -
15.
Púlselos para seleccionar los canales deseados para ver o grabar. Para selecciona r los cana les del 1 al 9, pulse
primero el botón "0" y luego el botón 1 a 9. (Sólo en el mando a distancia)
Botón +100 -
Cuando seleccione canales de televisión por cable cuyo número sea superior al 99, pulse primero este botón, y luego pulse los dos
últimos dígitos. (Para seleccionar el can al 125, pulse primero el botón
"+100" y luego el "2" y el "5".) (Sólo en el mando a distancia)
Botón del visualizador (DISPLAY) -
16.
Púlselo para visualizar en la pantalla del televisor la hora actual, el número del canal, el contador de cinta en
tiempo real y otra información. (Sólo en el mando a distancia)
Cada vez que pulse este botón, la pantalla del televisor cambiará. La visu alización del estado (PARAR, REPRODUCIR, etc.) y la visualización de
velocidad de la cinta [SP, LP (reproducción solame nte) o SLP] desapar ecerá
después de 5 segundos.
Botón de cámara lenta (SLOW) -
17.
Púlselo para iniciar la reproducción
de cámara lenta. (Sólo en el mando a distancia)
Botón de memoria del contador (COUNTER MEMORY) -
18.
para activar y desactivar la memoria del contador. (Sólo en el mando a distancia)
Botón de reposición del contador (COUNTER RESET) -
19.
para reponer el contador a 0:00:00. (Sólo en el mando a distancia)
Botón de salida (EXIT) -
Púlselo para salir de los menús en pantalla.
(Sólo en el mando a distancia)
Botón del modo de búsqueda (SEARCH MODE) -
20.
Púlselo para realizar una búsqueda con tiempo o una búsqueda con índice. (Sólo en el
mando a distancia)
Cable de alimentación -
21.
Conéctelo a una toma de CA estánd ar (120
V/60 Hz).
Toma de salida de audio (AUDIO OUT) -
22.
Conéctela a la t oma d e en -
trada de audio de su equipo de audio o de otra videograbadora.
Toma de entrada de audio (AUDIO IN) -
23.
Conéctela a la toma de sali-
da de audio de su equipo de audio o de otra videograbadora.
Terminal de entrada de antena (ANT. IN) -
24.
Aquí se conecta una ante-
na, sistema de televisión por ca ble o sistema de emisiones vía satélite.
Toma de salida de vídeo (VIDEO OUT) -
25.
Conéctela a la toma de en-
trada de vídeo de su videocámara o de otra videograbadora.
Toma de entrada de vídeo (VIDEO IN) -
26.
Conéctela a la toma de salida
de vídeo de su videocámara o de otra videogra badora.
Conmutador selector de canales CH3/CH4 -
27.
Se utiliza para seleccio-
nar un canal de salida de vídeo (3 ó 4) para la reproducción de la videograbadora.
Terminal de salida de antena (ANT. OUT) -
28.
Conéctelo al terminal de
entrada de la antena de su televisor.
3
8
12
20
19
18
4
5
6
P ú lselo
Púlselo
- 15 - ES
1D19
FUNAI CORPORATION
LIMITED WARRANTY
Funai Corporation will exchange or repair this product, at its option, in the event of defect in materials or workmanship as follows:
EXCHANGE DURATION:
1-90 DAYS:
91-365 DAYS:
REPAIR DURATION:
LABOR:
PARTS:
LIMITS AND EXCLUSIONS:
This warranty is extended only to t he original re tail purcha ser. A purchas e receipt or other proof of original retail purchase will be
required together with the product to obtain exchange or service under this warranty.
This warranty shall not be extended to any other person or transferee.
This warranty is void and of no effect if any serial numbers on the product are al tered, replaced, defa ced or missing. This FUNAI
CORPORATION Limited warranty applies only to product purchased and used in the United States.
This warranty only covers failures due to defects in material or workmanship, which occur during normal use. It does not cover damage
which occurs in shipment, or failures which are caused by repairs, alterations, or parts not supplied by FUNAI CORPORATION, or
damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance,
commercial use such as hotel, rental or office use of this product, or damage which results from fire, flood, lightning or other acts of
God.
FUNAI CORPORATION will exchange for a new unit without charge for a period of ninety (90) days
from the date of original retail purchase.
FUNAI CORPORATION will exchange for a factory-service-to-new-condition unit for a charge of
$49.00 for the period of ninety on e (91) day s to three hu ndred sixty five (365 ) day s from the date of
original retail pur c hase .
FUNAI CORPORATION will provide the labor without charge for a period of ninety (90) days from
the date of original retail purchase.
FUNAI CORPORATION will provide parts to replace defective parts without charge for a period of
one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts
are excluded from this warranty.
THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (E XCEPT REMOTE CONTROL
UNITS), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMONSTRATION OR FLOOR MODELS.
FUNAI CORPORATION AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY
GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE
INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES INCLUDING
THE WARRANTY OF MERCHANT ABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, THAT ARE HEREBY
DISCLAIMED BY FUNAI CORPORATION AND ITS REPRESENTATIVES OR AGENTS IN THE UNITED STATES.
ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED CENTER. THIS
WARRANTY IS VALID WHEN THE PRODUCT IS DELIVERED PREPAID TO A FUNAI AUTHORIZED SERVICE FACILITY.
IMPORTANT:
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY
FROM STATE TO STATE, IF AT ANY TIME DURING THE WARRANTY PERIOD YOU ARE UNABLE TO OBTAIN
SATISFACTION WITH THE EXCHANGE OR REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORPORATION.
ATTENTION:
FUNAI CORPORATION RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THI S PR ODUCT
WITHOUT PRIOR NOTICE.
For information about your product, or for information on how to exchange or repair your product,
telephone or write to the following:
FUNAI CORPORATION
Customer Service
100 North Stre e t; Teterbor o, NJ 07 608
Telephone (800)242-7158
PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.
Printed in China 0VMN02767
H7833UD
★★★★★
Loading...
