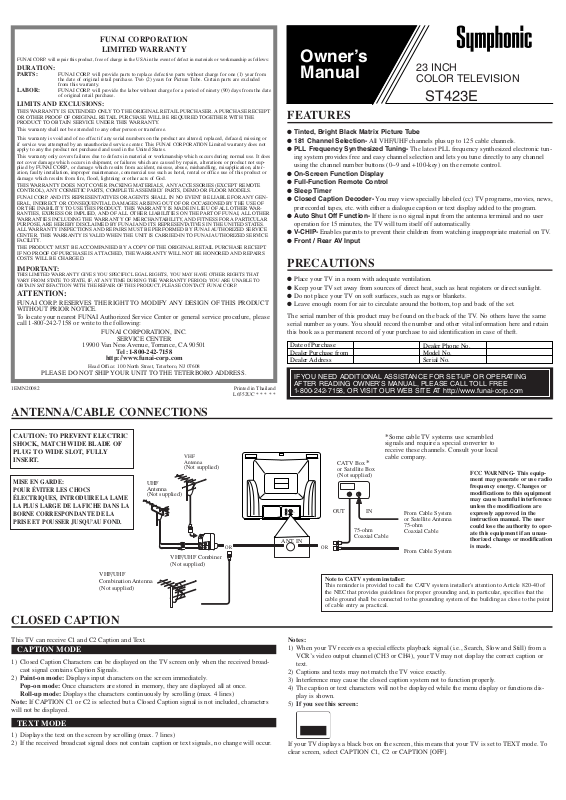

Symphonic ST423E User Manual

This TV can receive C1 and C2 Caption and Text.

CAPTION MODE

1) Closed Caption Characters can be displayed on the TV screen only when the received broad­cast signal contains Caption Signals.

2) Paint-on mode: Displays input characters on the screen immediately.

Pop-on mode: Once characters are stored in memory, they are displayed all at once.
Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)

Note: If CAPTION C1 or C2 is selected but a Closed Caption signal is not included, characters

will not be displayed.

TEXT MODE

1) Displays the text on the screen by scrolling (max. 7 lines)

2) If the received broadcast signal does not contain caption or text signals, no change will occur.

Notes:

1) When your TV receives a special effects playback signal (i.e., Search, Slow and Still) from a
VCR’s video output channel (CH3 or CH4), your TV may not display the correct caption or
text.

2) Captions and texts may not match the TV voice exactly.

3) Interference may cause the closed caption system not to function properly.

4) The caption or text characters will not be displayed while the menu display or functions dis­play is shown.

5)

If you see this screen:

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To
clear screen, select CAPTION C1, C2 or CAPTION [OFF].

ANTENNA/CABLE CONNECTIONS

PRECAUTIONS

● Place your TV in a room with adequate ventilation.

● Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

● Do not place your TV on soft surfaces, such as rugs or blankets.

● Leave enough room for air to circulate around the bottom, top and back of the set.

FEATURES

● Tinted, Bright Black Matrix Picture Tube

● 181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

● PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic tun-

ing system provides free and easy channel selection and lets you tune directly to any channel
using the channel number buttons (0~9 and +100-key) on the remote control.

● On-Screen Function Display

● Full-Function Remote Control

● Sleep Timer

● Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news,

prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

● Auto Shut Off Function- If there is no signal input from the antenna terminal and no user

operation for 15 minutes, the TV will turn itself off automatically.

● V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

● Front / Rear AV Input

The serial number of this product may be found on the back of the TV. No others have the same
serial number as yours. You should record the number and other vital information here and retain
this book as a permanent record of your purchase to aid identification in case of theft.

ANT.IN

CLOSED CAPTION

UHF
Antenna
(Not supplied)

VHF
Antenna

(Not supplied)

VHF/UHF Combiner
(Not supplied)

VHF/UHF
Combination Antenna
(Not supplied)

OR OR

ANT. IN

OUT

IN

75-ohm
Coaxial Cable

From Cable System

From Cable System
or Satellite Antenna
75-ohm
Coaxial Cable

CATV Box

*

or Satellite Box
(Not supplied)

*Some cable TV systems use scrambled

signals and require a special converter to
receive these channels. Consult your local
cable company.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as close to the point
of cable entry as practical.

Owner’s
Manual

1EMN20082 Printed in Thailand

L6552UC * * * * *

23 INCH
COLOR TELEVISION

ST423E

CAUTION: TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY
INSERT.

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING
AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE
1-800-242-7158, OR VISIT OUR WEB SITE AT http://www.funai-corp.com

FUNAI CORPORATION

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PAR TS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from

the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded
from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date

of original retail purchase.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT
OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE
PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or
if service was attempted by an unauthorized service center. This

FUNAI CORPORATION Limited warranty does not

apply to any the product not purchased and used in the United States.
This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does

not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not sup­plied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alter­ation, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or
damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE
CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GEN­ERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF
OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WAR­RANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER
WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR
PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.
ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY FUNAI AUTHORIZED SERVICE
CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED SERVICE
FACILITY

.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT.
IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIRS
COSTS WILL BE CHARGED.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT
VA RY FROM STATE TO STATE, IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO
OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT
WITHOUT PRIOR NOTICE.

To locate your nearest FUNAI Authorized Service Center or general service procedure, please
call 1-800-242-7158 or write to the following:

FUNAI CORPORATION, INC.

SERVICE CENTER

19900 Van Ness Avenue, Torrance, CA 90501

Tel :[phone]

http://www.funai-corp.com

Head Office: 100 North Street, Teterboro, NJ 07608

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

MISE EN GARDE:
POUR ÉVITER LES CHOCS
ÉLECTRIQUES, INTRODUIRE LA LAME
LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA
PRISE ET POUSSER JUSQU’AU FOND.

FCC WARNING- This equip­ment may generate or use radio
frequency energy. Changes or
modifications to this equipment
may cause harmful interference
unless the modifications are
expressly approved in the
instruction manual. The user
could lose the authority to oper­ate this equipment if an unau­thorized change or modification
is made.

Date of Purchase
Dealer Purchase from
Dealer Address

Dealer Phone No.
Model No.
Serial No.

WARNING

:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI­ANCE TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER SER­VICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THIS SYMBOL INDICATES THAT DAN­GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRE­SENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.

The important note is located on the rear of the cabinet.

1. Read instructions-All the safety and operating instruc­tions should be read before the appliance is operated.

2. Retain Instructions-The safety and operating instruc­tions should be retained for future reference.

3. Heed Warnings-All warnings on the appliance and in
the operating instructions should be adhered to.

4. Follow Instructions-All operating and use instructions
should be followed.

5. Cleaning-Unplug TV from the wall outlet before clean­ing. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninterrupt­ed service and, that for some specific reason, such as
the possibility of the loss of an authorization code for a
CATV converter, is not intended to be unplugged by
the user for cleaning or any other purpose, may
exclude the reference to unplugging the appliance in
the cleaning description otherwise required in item 5.

6. Attachments-Do not use attachments not recommended
by the TV manufacturer as they may cause hazards.

7. Water and Moisture-Do not use this TV near water, for
example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming
pool, and the like.

8.

Accessories-Do not place this TV on an unstable cart,
stand, tripod, bracket, or table. The TV may fall, caus­ing serious injury to someone, and serious damage to
the appliance. Use only with a cart, stand, tripod, brack­et, or table recommended by the
manufacturer, or sold with the TV.
Any mounting of the appliance
should follow the manufacturer’s
instructions and should use a
mounting accessory recommended
by the manufacturer. An appliance

and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
AMEUBLES- Cet appareil ne doit être placé que sur
un meuble (avec ou sans roulettes) recommandé par le
fabricant. Si vous l’installez sur
un meuble à roulettes, déplacez
les deux ensembles avec précau­tion. Un arrêt brusque, l’utilisation
d’une force excessive et des sur­faces irrégulières risquent de
déstabiliser l’ensemble et de le
renverser.

9. Ventilation-Slots and openings in the cabinet and the
back or bottom are provided for ventilation and to
ensure reliable operation of the TV and to protect it
from overheating, these openings must not be blocked
or covered. The openings should never be blocked by
placing the TV on a bed, sofa, rug, or other similar sur­face. This TV should never be placed near or over a
radiator or heat register. This TV should not be placed
in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufac­turer’s instructions have been adhered to .

10.

Power Sources-This TV should be operated only from
the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your
home, consult your appliance dealer or local power com­pany. For TVs intended to operate from battery power,
or other sources, refer to the operating instructions.

11. Grounding or Polarization-This TV is equipped with a
polarized alternating-current line plug(a plug having
one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug should still fail to fit,

contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.

12.

Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience recep­tacles, and the point where they exit from the appliance.

13.

Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the TV, be sure the antenna
or cable system is grounded so as to provide some pro­tection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA
No. 70, provides information with respect to proper
grounding of the mast and supporting structure, ground­ing of the lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and require­ments for the grounding electrode. (Fig. A)

14. Lightning-For added protection for this TV receiver
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system.
This will prevent damage to the TV due to lightning
and power-line surges.

15. Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light of power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact
with them might be fatal.

16.

Overloading-Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry-Never push objects of any
kind into this TV through openings as they may touch
dangerous voltage points or short out parts that could

result in a fire or electric shock. Never spill liquid of
any kind on the TV.

18. Servicing-Do not attempt to service this TV yourself as
opening or removing covers may expose you to dan­gerous voltage or other hazards. Refer all servicing to
qualified service personnel.

19. Damage Requiring Service-Unplug this TV from the
wall outlet and refer servicing to qualified service per­sonnel under the following conditions:

a. When the power supply cord or plug is damaged or

frayed.

b. If liquid has been spilled, or objects have fallen into

the TV.

c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the

operating instructions. Adjust only those controls that
are covered by the operating instructions, as improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified techni­cian to restore the TV to its normal operation.

e. If the TV has been dropped or damaged in any way.
f. When the TV exhibits a distinct change in perfor-

mance-this indicates a need for service.

20. Replacement Parts-When replacement parts are
required, be sure the service technician uses replace­ment parts specified by the manufacturer that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, injury to
persons or other hazards.

21. Safety Check-Upon completion of any service or
repairs to this TV, ask the service technician to perform
routine safety checks to determine that the TV is in
proper operating condition.

22. Heat-This TV product should be situated away from
heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ELECTRIC
SERVICE
EQUIPMENT

GROUND
CLAMP

NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING

ELECTRODE SYSTEM
(NEC ART 250, PART H)

S2898A

GROUND CLAMPS

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

ANTENNA
LEAD IN
WIRE

OPERATING CONTROLS AND FUNCTIONS

- FRONT PANEL - - REAR PANEL -

1. HEADPHONE jack- To connect head-

phone (not supplied) for personal listening.

2.

VIDEO (in) jack- Connect to the video
output jack of a video camera or VCR.
Note: The AUDIO and VIDEO jacks on the
front panel are given priority over those on
the rear panel.

3. AUDIO L (in) jack- Connect to the left

channel audio output jack of a video camera
or VCR.
Note: The rear-panel AUDIO L (IN) jack is
for mono input. The sound is heard from
both speakers. Use this jack for connecting
monaural audio equipment.

4.

AUDIO R (in) jack- Connect to the right
channel audio output jack of a video camera
or VCR.

5.

MENU button- Press to display the menu
on the TV screen.

6. VOLUME (VOL) ▲/▼ buttons- Press to

control the volume level.
Press to determine the setting mode from
the menu on the TV screen. (only the VOL
▲ button)
Press to select or adjust from a particular
menu. (for example: Language Selection,
Channel Presetting, Closed Caption Selection,
Picture Adjustment, V-CHIP Set Up)

7. CHANNEL (CH) ▲/▼ buttons- Press to

select memorized channel.
Note:You MUST PRESET channels
BEFORE using CHANNEL

▲/▼ buttons.
(See CHANNEL PRESETTING)
Press to select the setting mode from the
menu on the TV screen.
Press to select item you want to adjust in
the picture control mode.

8.

POWER button- Press to turn the TV ON
and OFF.

9.

Infrared Sensor Window- Receives the
infrared control signals from the remote
control unit.

10.

MUTE button- Press to turn off the sound
portion of the TV program. (Volume level
display turns LIGHT RED from LIGHT
BLUE.) Press this button again or press the
VOL(ume)

▲ or ▼ button to restore

sound.

11. CHANNEL RETURN button- Press to go

back to the previously viewed channel. For
example, pressing this button once will
change channel display from CH 3 (present
channel) to CH 10 (previously viewed
channel), and pressing it a second time will
return from CH 10 to CH 3.

12.DISPLAY button- Press to display the

channel number on the screen. If you press
it again, the channel number will disappear.

13.SLEEP button- Press to display the sleep

timer and start the function. The shut off
time can be determined by the number of
times you press the button. (0, 10, 20, 30,
..90, 0 minutes)

14.GAME button- Press to set Game mode

and external input mode at the same time.
Press this button again to exit this mode.

15.CHANNEL NUMBER buttons- Press

two digits to directly access the desired
channel. Remember to press a "0" before a
single digit channel.
+100 button- Press to select cable chan­nels higher than 99.

16.

ANT(enna). IN jack- Connect to an antenna,
cable system or satellite system.

17.AC cord- Connect to a standard AC outlet

(120V/60Hz).
Note: Unwrap the AC cord completely
from the backcover before plugging the
cord into an AC outlet.

INSTALLING THE BATTERIES

1)

Slide the battery compartment cover on the
remote unit.

2) Insert 2 "AA" penlight batteries into bat­tery compartment in the direction as indi­cated by the polarity (+ / -) markings.
Batteries installed with incorrect polarity
may damage the remote unit.

3) Replace the cover.

EXTERNAL INPUT MODE

When using an external input signal (VCR or
camcorder), connect the player’s audio/video
output cables to the AUDIO IN/ VIDEO IN
jacks of your TV. Then press the GAME but­ton. For details, see “USING THE GAME
BUTTON” in PICTURE ADJUSTMENT sec­tion.

- REMOTE CONTROL -

HEADPHONE L - AUDIO - RVIDEO

MENU

1234 5

6789

VOLUME CHANNEL POWER

AUDIO

L

R

VIDEO

1643217

ANT.IN

POWER

123

456

789

0 +100

DISPLAY

VOL

CH

CH

VOL

SLEEP

CHANNEL

RETURN

8

15

6

5

10

12

11

13

MUTE

MENU

7

GAME

14

PORTABLE CART WARNING

S3126A

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

PREPARATION FOR USE

OPERATIONS

WATCHING A TV PROGRAM

1) Press the POWER button to turn on the TV.

2) Select the desired channel with the CH(annel) ▲ or ▼ button.

3) Adjust the volume to the desired listening level using the VOL(ume)

▲ or ▼ button.

4) Adjust picture controls for a natural looking image. (See "PICTURE ADJUSTMENT".)

SETTING THE SLEEP TIMER

The sleep timer function allows you to have the power automatically turn off
after a set time period.

1) Press the POWER button to turn on the TV and press the SLEEP button
on the remote control .

2) You may change the sleep time by pressing the SLEEP button
on the remote control repeatedly. The timer can be set up to 90
minutes. 10 minutes each time the SLEEP button is pressed.
(The timer display counts up and sleep timer will be displayed
on the screen when you press the SLEEP button on remote
control.)
Note: When you disconnect the unit from the AC outlet or when you have a power failure, the
sleep time will be lost.

CLOSED CAPTION SELECTION

To cancel the sleep timer:

Press the SLEEP button
repeatedly until "SLEEP 0"
is displayed.

You may view specially labeled (cc) TV pro­grams, movies, news and prerecorded tapes,
etc. with either a dialogue caption or text dis­play added to the program.

1) Press the MENU button so that the menu
display appears on the TV screen.

2) Press the CH(annel)

▲ or ▼ button to point

to "CAPTION".

3) Press the VOL(ume)

▲ or ▼ button to select

the mode you wish.

4) When done, press the MENU button to exit
the menu.

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [ C1]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [ C2]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [ T1]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [ T2]

: Press the VOL(ume) ▲ or ▼ button.

PICTURE ADJUSTMENT

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the VOL(ume) ▲ button so that "PICTURE" is selected.

3) Select the feature you wish to adjust with the CH(annel)

▲ or ▼ button and adjust it with the

VOL(ume)

▲ or ▼ button.

LANGUAGE SELECTION

If you want to change the language of the on-screen menu, follow the proce­dure below.

1) Connect the power cord to a standard AC outlet.

Note: If some digits appear in the corner of the screen,
press the POWER button without unplugging the power cord.

2) Press the POWER button to turn on the TV.

3) Press the MENU button so that the menu display appears
on the TV screen.

4) Press the CH(annel)

▲ or ▼ button to point to "[ENGLISH]".

5) Select "ENGLISH" or "ESPAÑOL" = Spanish by using
the VOL(ume)

▲ or ▼ button.

6) Press the MENU button to exit the menu.

CHANNEL PRESETTING

NOTE:You MUST PRESET channels BEFORE using CHANNEL ▲ or ▼ button.

To preset a channel or to change a preset channel, follow the procedure below.

1) Press the POWER button to turn on the TV.

2) Press the MENU button so that the menu display appears
on the TV screen.

3) Press the CH(annel)

▲ or ▼ button to point to "CHANNEL SET".

Then press the VOL(ume)

▲ button.

4) Press the CH(annel)

▲ or ▼ button to point to "AUTO MEMO".

Then press the VOL(ume)

▲ button.

The tuner scans and memorizes all active channels in your area.

● The TV distinguishes between standard TV channels and cable (CATV)

channels.

● When AUTO MEMO action is completed, the lowest memorized channel

reappears on the screen.

● When you press the CH(annel) ▲ or ▼ button after selecting AUTO MEMO,

the tuner will stop at the memorized channels only.

● The TV may memorize TV channels to be CATV channels if the reception conditions are poor.

If this happens, try the AUTO MEMO action again when reception conditions are better.

[ADD/DELETE FUNCTION]

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel)

▲ or ▼ button to point to "CHANNEL SET".

Then press the VOL(ume)

▲ button.

3) Press the VOL(ume)

▲ button so that "ADD/DELETE" is selected.

4) Use the CH(annel)

▲ or ▼ button to select the channel you wish to put

into memory or to erase from memory.
Note: The menu will disappear automatically in about 10 seconds.
Perform "ADD/DELETE" function while this display appears on the
screen.

● Press the VOL(ume) ▲ or ▼ button to light up the channel number

in LIGHT BLUE if you wish to add the channel into memory.

● Press the VOL(ume) ▲ or ▼ button to light up the channel number

in LIGHT RED if you wish to erase the channel from memory.

5) Press the MENU button to exit the menu.

STEREO SOUND SYSTEM

This function suppresses noise, restores the dynamic range and electronically
expands the stereo signal to create a more spacious sound effect.

1) Press the MENU button so that the menu display appears on the TV
screen.

2) Press the CH(annel)

▲ or ▼ button to point to "CHANNEL SET".

Then press the VOL(ume)

▲ button.

3) Press the CH(annel)

▲ or ▼ button so that "STEREO" is selected.

4) Press the VOL(ume)

▲ or ▼ button to select the stereo mode on or off.

Stereo sound is effective when "STEREO" is on.

RESUME FUNCTION

If the power fails or is disconnected while the TV is powered on, the TV will turn on automatical­ly when the power resumes.

GAME MODE

Set to the most suitable position for video
games.

[+] : ON [-] : OFF

BRIGHT

Adjust until the darkest parts of the picture are
as bright as you prefer.

[+] : increase brightness [-] : decrease brightness

CONTRAST

Adjust to increase or decrease contrast.

[+] : increase contrast [-] : decrease contrast

COLOR

Adjust to be brilliant or pale color.

[+] : be brilliant color [ - ] : be pale color

TINT

Adjust to obtain natural skin tones.

[+] : greenish tone [ - ] : reddish tone

SHARPNESS

Adjust to detail in the picture.

[+]:increase sharpness [-]:decrease sharpness

Notes:

●

“+” is achieved by pressing the VOL(ume)

▲ button and “-” by pressing the VOL(ume)
▼ button.

●

In the above steps, the picture adjustment
display will disappear from the TV screen
automatically after about 10 seconds if you
do not press any buttons. Press the MENU
and VOL(ume)

▲ button so that "PIC­TURE" is selected. Then, press the
CH(annel)

▲ or ▼ button repeatedly until

the display returns to the screen.

●

If you adjust another picture control after
you set Game mode to [ON], Game mode is
set to [OFF] automatically.

[USING THE GAME BUTTON]

You may also set Game mode and external
input mode at the same time by pressing the
GAME button on the remote control. “GAME”
appears on the TV screen.

●

To exit Game mode and external input
mode, press the GAME button on the remote
control again.

●

To cancel Game mode only, adjust the picture
control. In this case, “VIDEO” instead of
“GAME” appears on the TV screen.

●

If you press the GAME button when the TV
is off, the TV turns on and will be in Game
mode and external input mode automatically.

: Press the CH(annel)

▲ or ▼ button.

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]

ADD/DELETE
AUTO MEMO
STEREO [ON]

ADD/DELETE
AUTO MEMO
STEREO [OFF]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]

ADD/DELETE
AUTO MEMO
STEREO [ON]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]

CHANNEL SET
[ENGLISH] ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]

ADD/DELETE
AUTO MEMO
STEREO [ON]

SLEEP 10

[-]

GAME MODE

OFF ON

[+]

[-]

BRIGHT

[+]

[-]

CONTRAST

[+] [-]

COLOR

[+] [-]

TINT

[-]

[+]

SHARPNESS

[+]
