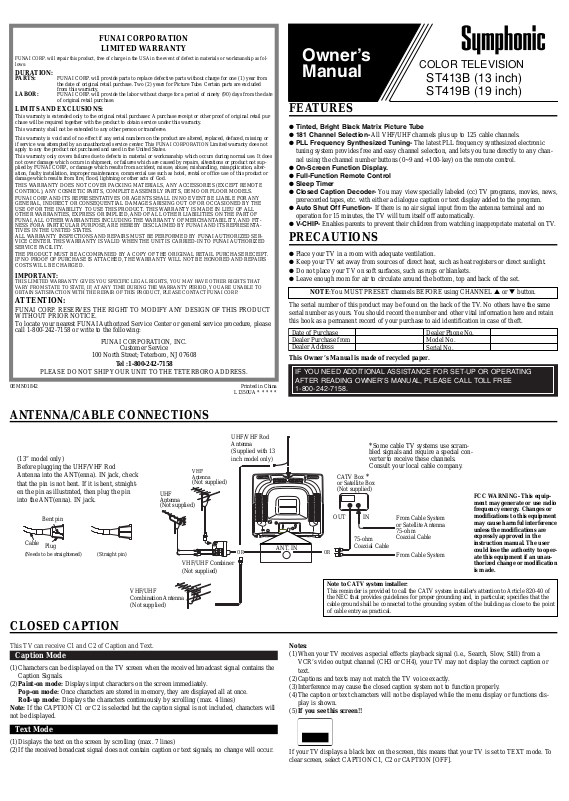

Symphonic ST413B, ST419B User Manual
This TV can receive C1 and C2 of Caption and Text.
Caption Mode
(1)Characters can be displayed on the TV screen when the received broadcast signal contains the
Caption Signals.
(2)Paint-on mode: Displays input characters on the screen immediately.
Pop-on mode: Once characters are stored in memory, they are displayed all at once.
Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)
Note: If the CAPTION C1 or C2 is selected but the caption signal is not included, characters will
not be displayed.
Text Mode
(1)Displays the text on the screen by scrolling (max. 7 lines)
(2)If the received broadcast signal does not contain caption or text signals, no change will occur.
Notes:
(1)When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a
VCR’s video output channel (CH3 or CH4), your TV may not display the correct caption or
text.
(2)Captions and texts may not match the TV voice exactly.
(3)Interference may cause the closed caption system not to function properly.
(4)The caption or text characters will not be displayed while the menu display or functions dis-
play is shown.
(5)If you see this screen!!
If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To
clear screen, select CAPTION C1, C2 or CAPTION [OFF].
ANTENNA/CABLE CONNECTIONS
PRECAUTIONS
● Place your TV in a room with adequate ventilation.
● Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.
● Do not place your TV on soft surfaces, such as rugs or blankets.
● Leave enough room for air to circulate around the bottom, top and back of the set.
FEATURES
● Tinted, Bright Black Matrix Picture Tube
● 181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.
● PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic
tuning system provides free and easy channel selection, and lets you tune directly to any channel using the channel number buttons (0~9 and +100-key) on the remote control.
● On-Screen Function Display.
● Full-Function Remote Control
● Sleep Timer
● Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news,
prerecorded tapes, etc. with either a dialogue caption or text display added to the program.
● Auto Shut Off Function- If there is no air signal input from the antenna terminal and no
operation for 15 minutes, the TV will turn itself off automatically.
● V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.
COLOR TELEVISION
ST413B (13 inch)
ST419B (19 inch)
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
The serial number of this product may be found on the back of the TV. No others have the same
serial number as yours. You should record the number and other vital information here and retain
this book as a permanent record of your purchase to aid identification in case of theft.
ANT.IN
CLOSED CAPTION
UHF
Antenna
(Not supplied)
VHF
Antenna
(Not supplied)
VHF/UHF Combiner
(Not supplied)
VHF/UHF
Combination Antenna
(Not supplied)
UHF/VHF Rod
Antenna
(Supplied with 13
inch model only)
OR
OR
ANT. IN
OUT IN
75-ohm
Coaxial Cable
From Cable System
From Cable System
or Satellite Antenna
75-ohm
Coaxial Cable
CATV Box
*
or Satellite Box
(Not supplied)
*Some cable TV systems use scram-
bled signals and require a special converter to receive these channels.
Consult your local cable company.
Note to CATVsystem installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as close to the point
of cable entry as practical.
FCC WARNING- This equipment may generate or use radio
frequency energy. Changes or
modifications to this equipment
may cause harmful interference
unless the modifications are
expressly approved in the
instruction manual. The user
could lose the authority to operate this equipment if an unauthorized change or modification
is made.
IF YOU NEED ADDITIONALASSISTANCE FOR SET-UP OR OPERATING
AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE
1-800-242-7158.
Owner’s
Manual
FUNAI CORPORATION
LIMITED WARRANTY
FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:
DURATION:
PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from
the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded
from this warranty.
LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date
of original retail purchase.
LIMITS AND EXCLUSIONS:
This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.
This warranty shall not be extended to any other person or transferee.
This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or
if service was attempted by an unauthorized service center. This
FUNAI CORPORATION Limited warranty does not
apply to any the product not purchased and used in the United States.
This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does
not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or
damage which results from fire, flood, lightning or other acts of God.
THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE
CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.
FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALLIN NO EVENT BE LIABLE FOR ANY
GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE
USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTYIS MADE IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PARTOF
FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR APARTICULAR PURPOSE, ARE HEREBYDISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.
ALL WARRANTY INSPECTIONS AND REPAIRS MUSTBE PERFORMED BY FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTYIS VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED
SERVICE FACILITY.
THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINALRETAIL PURCHASE RECEIPT.
IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTYWILL NOT BE HONORED AND REPAIRS
COSTS WILL BE CHARGED.
IMPORTANT:
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT
VARYFROM STATE TO STATE, IF, ATANY TIME DURING THE WARRANTYPERIOD, YOU ARE UNABLE TO
OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACTFUNAI CORP.
ATTENTION:
FUNAI CORP. RESERVES THE RIGHT TO MODIFYANY DESIGN OF THIS PRODUCT
WITHOUT PRIOR NOTICE.
To locate your nearest FUNAI Authorized Service Center or general service procedure, please
call 1-800-242-7158 or write to the following:
FUNAI CORPORATION, INC.
Customer Service
100 North Street; Teterboro, NJ 07608
Tel :1-800-242-7158
PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.
0EMN01842 Printed in China
L1350UA * * * * *
This Owner’s Manual is made of recycled paper.
(13” model only)
Before plugging the UHF/VHF Rod
Antenna into the ANT(enna). IN jack, check
that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin
into the ANT(enna). IN jack.
Bent pin
Cable
Plug
(Needs to be straightened) (Straight pin)
NOTE:You MUST PRESET channels BEFORE using CHANNEL ▲ or ▼ button.
INSTALLING THE BATTERIES
Slide the battery compartment cover on the
remote unit.
Insert 2 "AA" penlight batteries into battery
compartment in the direction as indicated by
the polarity (+ / -) markings. Batteries installed
with incorrect polarity may damage the remote
unit.
Replace the cover.
3
2
1
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFEGUARDS
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THIS SYMBOL INDICATES THATDANGEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANTOPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.
The important note is located on the rear of the cabinet.
1. Read instructions-All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instructions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions
should be followed.
5. Cleaning-Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as
the possibility of the loss of an authorization code for a
CATV converter, is not intended to be unplugged by
the user for cleaning or any other purpose, may
exclude the reference to unplugging the appliance in
the cleaning description otherwise required in item 5.
6. Attachments-Do not use attachments not recommended
by the TV manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this TV near water, for
example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming
pool, and the like.
8. Accessories-Do not place this TV on an unstable cart,
stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to
the appliance. Use only with a cart, stand, tripod,
bracket, or table recommended by
the manufacturer, or sold with the
TV.
Any mounting of the appliance
should follow the manufacturer’s
instructions and should use a
mounting accessory recommended
by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance
and cart combination to overturn.
9. Ventilation-Slots and openings in the cabinet and the
back or bottom are provided for ventilation and to
ensure reliable operation of the TV and to protect it
from overheating, these openings must not be blocked
or covered. The openings should never be blocked by
placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a
radiator or heat register. This TVshould not be placed
in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s instructions have been adhered to .
10.Power Sources-This TV should be operated only from
the type of power source indicated on the marking
label. If you are not sure of the type of power supply to
your home, consult your appliance dealer or local
power company. For TVs intended to operate from battery power, or other sources, refer to the operating
instructions.
11.Grounding or Polarization-This TV is equipped with a
polarized alternating-current line plug(a plug having
one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
12.Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
PORTABLE CART WARNING
S3126A
13.Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSI/NFPANo. 70, provides information with respect
to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
(Fig. A)
14.Lightning-For added protection for this TV receiver
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system.
This will prevent damage to the TV due to lightning
and power-line surges.
15.Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light of power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact
with them might be fatal.
16.Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric
shock.
17.Object and Liquid Entry-Never push objects of any
kind into this TV through openings as they may touch
dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of
any kind on the TV.
18.Servicing-Do not attempt to service this TV yourself as
opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
19.Damage Requiring Service-Unplug this TV from the
wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power supply cord or plug is damaged or
frayed.
b.If liquid has been spilled, or objects have fallen into
the TV.
c. If the TV has been exposed to rain or water.
d.If the TV does not operate normally by following the
operating instructions. Adjust only those controls that
are covered by the operating instructions, as improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician to restore the TV to its normal operation.
e. If the TV has been dropped or damaged in any way.
f. When the TV exhibits a distinct change in perfor-
mance-this indicates a need for service.
20.Replacement Parts-When replacement parts are
required, be sure the service technician uses replacement parts specified by the manufacturer that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, injury to
persons or other hazards.
21.Safety Check-Upon completion of any service or
repairs to this TV, ask the service technician to perform
routine safety checks to determine that the TV is in
proper operating condition.
22.Heat-This TV product should be situated away from
heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
S2898A
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA
LEAD IN
WIRE
OPERATING CONTROLS AND FUNCTIONS
POWER
MENU
VOLUME
CHANNEL
12 3 45
ANT.IN
11
12
- FRONT PANEL -
- REAR PANEL -
1. MENU button- Press to display the menu
on the TV screen.
2. VOLUME ▲/▼ buttons- Press to control
the volume level.
Press to determine a setting mode from the
menu on the TV screen. (only the VOL ▲
button)
Press to select or adjust from a particular
menu. (for example: Language Selection,
Channel Presetting, Closed Caption Selection,
Picture Adjustment, V-CHIPSet Up)
3. CHANNEL ▲/▼ buttons- Press to select
memorized channel.
Press to select a setting mode from the
menu on the TV screen.
Press to select item you want to adjust in
the picture control mode.
4. POWER button- Press to turn the TV ON
and OFF.
5. Infrared Sensor Window- Receives the
infrared control signals from the remote
control unit.
6. CHANNEL NUMBER button- Press two
digits to directly access the desired channel.
Remember to press a "0" before a single
digit channel.
+100 button- Press to select cable channels
which are equal or greater than number 100.
7. MUTE button- Press the MUTE button to
turn off the sound portion of the TV program. (Volume level display turns LIGHT
RED from LIGHT BLUE.) Press the
MUTE button again or press the VOL(ume)
▲ or ▼ button to restore sound.
8. CHANNEL RETURN button- Press this
button to go back to the previously viewed
channel. For example, pressing the CHANNEL RETURN button once will change
channel display from CH 3 (present channel) to CH 10 (previously viewed channel),
and pressing it a second time will return
from CH 10 to CH 3.
9. DISPLAY button- Press to display the
channel number on the screen. If you press
it again, the channel number will disappear.
10.SLEEP button- Press the SLEEP button to
display the sleep timer and start the function. The shut off time can be determined
by the number of times you press the button. (0, 10, 20, 30,..90, 0 minutes)
11.ANT(enna). IN jack- Connect to an anten-
na, cable system, or satellite system.
12.AC cord- Connect to a standard AC outlet
(120V/60Hz).
NOTE: Remove the AC cord from the
hook to avoid breaking the wire before you
connect to a standard AC outlet.
POWER
123
456
789
0 +100
DISPLAY
VOL
CH
CH
VOL
SLEEP
CHANNEL
RETURN
4
6
2
1
7
9
8
10
MUTE
MENU
3
This manual covers 13" and 19". The operation of the two models are exactly the same except the appearance. 19" model is illustrated in this manual.
- REMOTE CONTROL -
PREPARATION FOR USE
LANGUAGE SELECTION
If you want to change the language of the on-screen menu, follow the procedure below.
Connect the power cord to a standard AC outlet.
Press the POWER button to turn on the TV.
Press the MENU button so that the menu display appears
on the TV screen.
Press the CH(annel) ▲ or ▼ button to point to "[ENGLISH]".
Select "ENGLISH" or "ESPAÑOL" = Spanish by using
the VOL(ume) ▲ or ▼ button.
Press the MENU button to exit the menu.
CHANNEL PRESETTING
To preset a channel or to change a preset channel, follow the procedure below.
Press the POWER button to turn on the TV.
Press the MENU button so that the menu display appears
on the TV screen.
Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET".
Then, press the VOL(ume) ▲ button.
Press the CH(annel) ▲ or ▼ button to point to "AUTO MEMO".
Then, press the VOL(ume) ▲ button.
The tuner scans and memorizes all active channels in
your area.
● The TV distinguishes between standard TV channels
and cable (CATV) channels.
● When AUTO MEMO action is completed, the lowest
memorized channel reappears on the screen.
● When you press the CH(annel) ▲ or ▼ button after
selecting AUTO MEMO, the tuner will stop at the memorized
channels only.
● The TV may detect TV channels as CATV channels
if the receiving conditions are poor. In this case, try AUTO MEMO action again when receiving
conditions are better.
[ADD/DELETE FUNCTION]
1)Press the MENU button so that the menu display appears on the TV
screen.
2)Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET".
Then, press the VOL(ume) ▲ button.
3)Press the VOL(ume) ▲ button so that "ADD/DELETE" is selected.
4)Use the CH(annel) ▲ or ▼ button to select the
channel you wish to put into memory or to erase from memory.
Note: The display will return to a normal screen in about 10 seconds.
Perform "ADD/DELETE" function while this display appears on the
screen.
● Press the VOL(ume) ▲ or ▼ button to light up the channel number
in LIGHT BLUE if you wish to add the channel into memory.
● Press the VOL(ume) ▲ or ▼ button to light up the channel number
in LIGHT RED if you wish to erase the channel from memory.
5)Press the MENU button to exit the menu.
RESUME FUNCTION
If the power fails or is disconnected while the TV is powered on, the TV will turn on automatically when the power resumes.
4
3
2
1
6
5
4
3
2
1
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]
ADD/DELETE
AUTO MEMO
ADD/DELETE
AUTO MEMO
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]
OPERATIONS
WATCHING ATV PROGRAM
1)Press the POWER button to turn on the TV.
2)Select the desired channel with the CH(annel) ▲ or ▼ button.
3)Adjust the volume to the desired listening level using the VOL(ume) ▲ or ▼ button.
4)Adjust picture controls for a natural looking image. (See "PICTURE ADJUSTMENT".)
SETTING THE SLEEP TIMER
The sleep timer function enables you to shut off the power without pressing
the POWER button after a desired time period.
1)Press the POWER button to turn on the TV and press the SLEEP button
on the remote control .
2)You may change the sleep time by pressing the SLEEP
button on the remote control repeatedly. The timer can be set up
to 90 minutes, 10 minutes each time the SLEEP button is
pushed. (The timer display counts up and sleep timer will
be displayed on the screen when you press the SLEEP
button on remote control.)
Note: When you disconnect the unit from the AC outlet, or if you have a power failure, the
sleep time will be lost.
CLOSED CAPTION SELECTION
SLEEP 10
To cancel the sleep timer:
Press the SLEEP button repeatedly until "SLEEP 0" is displayed.
You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc.
with either a dialogue caption or text display
added to the program.
1)Press the MENU button so that the menu
display appears on the TV screen.
2)Press the CH(annel) ▲ or ▼ button to point
to "CAPTION".
3)Press the VOL(ume) ▲ or ▼ button to select
the mode you wish.
4)When done, press the MENU button to exit
the menu.
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [ C1]
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [ C2]
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [ T1]
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [ T2]
: Press the VOL(ume) ▲ or ▼ button.
GAME MODE
Set to the most suitable position for TV
GAME.
[+] : ON
[ -] : OFF
BRIGHT
Adjust until the whitest parts of the picture are
as bright as you prefer.
[+] : increase brightness
[ -] : decrease brightness
CONTRAST
Adjust to increase or decrease contrast.
[+] : increase contrast
[ -] : decrease contrast
COLOR
Adjust to be brilliant or pale color.
[+] : be brilliant color
[ -] : be pale color
TINT
Adjust to obtain natural skin tones.
[+] : greenish tone
[ -] : reddish tone
Notes:
● In the above steps, the picture adjustment
display will disappear from the TV screen
automatically after about 10 seconds if you
do not press any buttons, even though you
may not be finished. Press the MENU and
VOL(ume) ▲ button so that "PICTURE" is
selected. Then, press the CH(annel) ▲ or ▼
button repeatedly until the display returns to
the screen.
● If you adjust the other Picture control after
you set the Game mode to [ON], the Game
mode is set to [OFF] automatically. If you
want to set the Game mode, reset it to [ON].
PICTURE ADJUSTMENT
1)Press the MENU button so that the menu display appears on the TV screen.
2)Press the VOL(ume) ▲ button so that "PICTURE" is selected.
3)Select the feature you wish to adjust with the CH(annel) ▲ or ▼ button and adjust it with the
VOL(ume) ▲ or ▼ button.
[-]
GAME MODE
[+]
OFF ON
[-]
BRIGHT
[+]
[-]
CONTRAST
[+] [-]
COLOR
[+] [-]
TINT
[+]
: Press the CH(annel) ▲ or ▼ button.
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]
CHANNEL SET
[ENGLISH]ESPAÑOL
V-CHIP SET UP
CAPTION [OFF]
Loading...
