Symphonic SSL15D5 Schematic

SERVICE MANUAL

15″ LCD TV/DVD

SSL15D5

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

How to Initialize the LCD TV/DVD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Schematic Diagrams / CBA's and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-1

SPECIFICATIONS

< LCD TV Section >

< TUNER >

ANT. Input ---------------------- 75 ohm Unbal., F type
Reference Level--------------- 20 Vp-p (LCD Green Cathode)
Test Input Signal -------------- 400 Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq.

2. Color Killer Sens. CH-4 dBµV20 25

3. AFT Pull In Range (10 mV input) --- MHz ±2.1 ±0.7


Sound

MHz
MHz

45.75

41.25

---

---

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Number of Pixels

2. Brightness cd/m

3. Response Time --- msec 16 ---

4. Support Color --- - 16 mil. (8 bit) ---

5. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels
pixels

°
°

640 × 3

480

2

450 ---

-85 to 85

-85 to 70

---

---

---

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

Horizontal

Vert ical

%
%

5
5

---

---

2. Color Temperature

3. Resolution

--­x
y

Horizontal

Vert ical

°K

line
line

9200

0.286

0.294
400

350

--­±0.3
±0.3

---

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 1.0/1.0 0.8/0.8

2. Audio Distortion 500mW: Lch/Rch % 1.0/1.0 4.0/4.0

-

3. Audio Freq. Response

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent
the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet
limit specifications.

3dB: Lch

-

3dB: Rch

Hz
Hz

50 to 12 k
50 to 12 k

---

---

1-1 L3150SP

<DVD Section>

ITEM CONDITIONS UNIT NOMINAL LIMIT

1. Coaxial Digital Out 75 ohm load mVpp 500 ± 100

NOTES:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply : AC120 V 60 Hz

3. Ambient temperature: +25

°C

1-2 L3150SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.

Drive Mechanism Assembly (within the DVD Mechanism)

Laser Beam Radiation

Laser Pickup

Turntable

WHEN OPEN. DO NOT

Location: Top of DVD mechanism.

CAUTION

LASER RADIATION

STARE INTO BEAM.

2-1 E6NLSP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the Liquid
Crystal Panel and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and
(3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 120 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED
METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the Liquid Crystal
Panel.

CURRENT

TESTER

+

EARTH
GROUND

_

3-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV
receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

4. Hot Chassis Warning ­a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc..
Parts that have special safety characteristics are
identified by a # on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

3-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type
connectors which connect the power cord and the
primary side of the transformer. When replacing
the transformer, follow these steps carefully and
precisely to prevent shock hazards.
Replacement procedure

1) Remove the old connector by cutting the wires
at a point close to the connector.
Important: Do not re-use a connector (discard
it).

2) Strip about 15 mm of the insulation from the
ends of the wires. If the wires are stranded,
twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve
at the center position. Be sure to crimp fully to
the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

M. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

3-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and
wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified
values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.

dd'

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

3-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Pin 1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.

2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape

4-1 TVDVDN_SN

around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

Hot-air
Flat Pack-IC
Desoldering

CBA

Machine

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

Masking
Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

4-2 TVDVDN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

To Solid
Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

4-3 TVDVDN_SN

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

4-4 TVDVDN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

[11] IR Sensor
CBA

[13] Speaker(L)

[7] DVD
Holder(L)

[12] Speaker(R)

[2] Jack Holder

[10] Function CBA

[1] Rear Cabinet

[3] DVD Main
CBA Unit

[4] Loader
PCB Holder

[5] DVD
Mechanism

[6] DVD
Holder(R)

[8] Main CBA

[9] LCD Main CBA &
Liquid Crystal Panel Unit

Step/

Loc.

Part

No.

DVD

[7]

Holder(L)

[8] Main CBA

LCD Main
CBA &

[9]

Liquid
Crystal
Panel Unit

Function

[10]

CBA
IR Sensor

[11]

CBA

[12] Speaker(R)

[13] Speaker(L)

Removal

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

D2 2(S-10) ---

7(S-11), *CN101A,
*CN102A, *CN103A,

D3

*CN801, *CN802,

D4

*CN1651, *CN402,
*CN403

D3D411(S-12), *CLN104,

*CLN105, *CN1751

D3

4(S-13) ---

D4
D3

(S-14) ---

D4
D3

3(S-15) ---

D4
D3

3(S-16) ---

D4

---

---

[14] Front Cabinet

2. Disassembly Method

Removal

Step/

Loc.

Part

No.

Rear

[1]

Cabinet

[2] Jack Holder D2 3(S-4), (S-5) ---

DVD Main

[3]

CBA UnitD2D4

Loader

[4]

PCB Holder
DVD

[5]

Mechanism
DVD

[6]

Holder(R)

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Desolder

10(S-1), 2(S-2),

D1

2(S-3), Tilt Stand
Assembly

3(S-6), *CN201,
*CN301, *CN401,
*CN601, *CN801

D2 (S-7A), 2(S-7B) ---

D2 3(S-8)

D2 2(S-9) ---

Note

---

1

2
3

Front

[14]

↓

(1)

Cabinet

↓

(2)

D3 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

5-1 L3151DC

Reference Notes

1. CAUTION 1: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
To avoid damage of pickup follow next procedures.

1) Short the three short lands of FPC cable with

solder before removing the FFC cable (CN201)
from it. If you disconnect the FFC cable
(CN201), the laser diode of pickup will be
destroyed. (Fig. D2)

2) Disconnect Connectors (CN301), (CN401),

(CN601) and (CN801). Remove three Screws
(S-6) and remove the DVD Main CBA Unit.
(Fig. D2)

2. Reassembly Notes of New DVD Mechanism:
a. To remove the Chassis Cover, remove four

screws A as shown in Fig. D2.

b. To avoid damage of the pickup unit (laser

diode), confirm that the three short lands (either
of two places) are shorted out by soldering
between them as shown in View A in Fig. D2.

c. Connect the FFC cables of the new DVD

Mechanism to the three connectors (CN201,
CN301, CN801) on the DVD Main CBA.

d. After confirming that the FFC cables are

securely connected to the three connectors,
remove the solder from the three short lands. If
the solder is not removed, the laser diode will
not light and it will not be possible to read discs.

e. Insert the pin A on the Chassis Cover into the

hole A on the Main Chassis as shown in Fig.
D2. Then tighten four screws A to install the
Chassis Cover.

3. How to eject a disc in emergency

Press and hold [EJECT] on the unit for more than
5 seconds.

(S-1)

Tilt Stand Assembly

[1] Rear Cabinet

(S-2)

(S-1)

(S-1)

(S-3)

(S-1)

(S-2)

Fig. D1

5-2 L3151DC

[2] Jack Holder

(S-4)

(S-5)

(S-4)

(S-10)

[7] DVD Holder(L)

[6] DVD Holder(R)

[5] DVD Mechanism

(S-9)

(S-8)

A

(S-7B)

Connector

[4] Loader PCB Holder

(S-7A)

[3] DVD Main CBA Unit

Remove four screws A, then short the three short lands by soldering as shown in View for A.

Chassis Cover

Either of two places

Pin A

(S-6)

Screws A

A

View for A

Hole A Main Chassis

Fig. D2

5-3 L3151DC

[14] Front Cabinet

[10] Function CBA

(S-13)

[12] Speaker(R)

(S-15)

(S-12)

(S-12)

[8] Main CBA

(S-14)

[13] Speaker(L)

(S-16)

[11] IR Sensor CBA

(S-16)

(S-12)

(S-12)

[9] LCD Main CBA &
Liquid Crystal Panel Unit

(S-11)

(S-12)

(S-11)

(S-11)

(S-11)

Fig. D3

5-4 L3151DC

TV Cable Wiring Diagram

To DVD Mechanism

To Liquid
Crystal
Panel

Function CBA

CLN904

CN201

CN601

CN301
CN801

CN401

DVD Main
CBA Unit

CN113

CN1701

CN311

CN1751
CN1761

CN103B

CN103A

CN312

CN102B

CN102A

CN104

CN105

CN101A

CLN105

IR Sensor CBA

LCD Main CBA

CN101B

Main CBA

CN402

CN403

CN801

To Speaker

CN1651

CN802

To Speaker

To Liquid
Crystal
Panel

Fig. D4

5-5 L3151DC

3. How to Eject Manually

1. Remove the Rear Cabinet.

2. To remove the Loader PCB Holder with the DVD
Main CBA Unit, remove three screws (S-7) in Fig.
D2. Do not disconnect connectors.

3. To remove the Chassis Cover, remove 4 screws A
as shown in Fig. D5.

4. Remove a disc.

Disc

Chassis Cover

Reassembly note of the Chassis Cover:

5. Insert the pin A on the Chassis Cover into the hole
A on the Main Chassis as shown in Fig. D6.

Chassis Cover

Pin A

Hole A

Main Chassis

Fig. D6

6. Tighten 4 screws A as shown in Fig. D5.

Screws A

Fig. D5

5-6 L3151DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

3. Remote control unit: Part No. NE240UD

4. Color Analyzer

How to make Service remote
control unit:

1. Prepare normal remote control unit (Part No.
NE240UD). Remove 3 screws from the back lid
(Fig. 1-1).

Screws

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV
unit.)

3. Press [DISC MENU] button on the service remote
control unit. Version of micro computer will be
displayed on the LCD or display. (Ex: A95FP-0.23)

1. Initial Setting

General: Enter the Service mode. (See page 6-1.)

Set the each initial data as shown on table 1 below.

Table 1: Initial Data

Button

[Use the attached

Item

BRT
CNT 140
CLR-R 64
CLR-B 64

remote control unit.

(not service remote

control unit)]

[MENU] → [1]

Data

Value

120

Remote control unit (bottom)

2. Cut off pin 10 of the remote control
microprocessor and short circuit pins 10 and 17 of
the microprocessor with a jumper wire.

Fig. 1-1

TNT 128
V-TN T 12 8
SHR 35
S-BRT
S-CNT 140
S-CLR-R 64

[MENU] → [2]

S-CLR-B 64
S-TNT 128
S-SHR 35
C-BRT
C-CNT 140
C-CLR-R 79

[MENU] → [3]

C-CLR-B 79
C-TNT 128
C-SHR 35

120

120

6-1 L3150EA

Button

[Use the attached

Item

D2-BRT
D2-CNT 144

remote control unit.

(not service remote

control unit)]

Data

Value

117

3. If Flicker Adjustment is not fit, the screen becomes
the following.

VCOM

110

D2-CLR-R 82
D2-CLR-B 82
D2-TNT 128
D2-SHR 35
D3-BRT
D3-CNT 140
D3-CLR-R 77
D3-CLR-B 77
D3-TNT 127
D3-SHR 30
DR(C/D1)
C-DR(C/D2) 181
DB(C/D1)
C-DB(C/D2) 158

[MENU] → [5]

120

[MENU] → [6]

181

[VOL p] → [4]

158

[VOL p] → [6]

2. Flicker Adjustment

FLASH (Go and Off)

4. Press [CH. o / p] buttons on the remote control
unit so that flash stops.

1. Enter the Service mode. (See page 6-1.)

2. Press [2] button on the remote control unit.
The following screen appears.

VCOM

110

6-2 L3150EA

The following adjustment normally are not
attempted in the field. Only when replacing the
LCD Panel then adjust as a preparation.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

[RF/VIDEO1]

Screen

VOL. p

buttons

M. EQ. Spec.

C/D1

[VIDEO2]

C/D2

White Purity

(APL 80%)

5. [RF/VIDEO1]
When “x” value and “y” value are not within
specification, adjust “DB (C/D1)” or “DR (C/D1)”.
Refer to “1. Initial Setting.”
Note: “DB(C/D1)” or “DR(C/D1)” must be adjusted
within ±0.01.

[VIDEO2]

When “x” value and “y” value are not within
specification, adjust “DB(C/D2)” or “DR(C/D2)”.
Refer to “1. Initial Setting.”
Note: “C-DB(C/D2)” or “C-DR(C/D2)” must be
adjusted within ±0.01.

6. Turn the power off and on again. (Main power
button on the TV unit.)

Pattern Generator,

Color analyzer

x: 0.256 to 0.316,

y: 0.264 to 0.324

Figure

It carries out in a darkroom.

Perpendicularity

L = 3 cm

INPUT: WHITE 80%

Note: Use the remote control unit.

1. Operate the unit for more than 20 minutes.

2. Input the White Purity (APL 80%).

3. Set the color analyzer to the CHROMA mode and
bring the optical receptor to the center on the
LCD-Panel surface after zero point calibration as
shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

4. [RF/VIDEO1]
Enter the Service mode. Press “VOL p” button on
the remote control unit and select “C/D1-” mode.

[VIDEO2]

Enter the Service mode. Press “VOL p” button on
the remote control unit and select “C/D2-” mode.

Color Analyzer

6-3 L3150EA

HOW TO INITIALIZE THE LCD TV/DVD

To put the program back at the factory-default, initialize the LCD TV/DVD as the following procedure.

< DVD Section >

1. Press [1], [2], [3], [4], and [DISPLAY] buttons on the

remote control unit in that order.
Fig. g appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

Version
Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

Fig. g

"

" differ depending on the models.

*******

: *.**

: *

2. Press [CLEAR] button on the remote control unit.

Fig. h appears on the screen.

MODEL : *******

< LCD TV Section >

1. Turn the power on. (Use main power on the TV
unit.)

2. To enter the service mode, press [DISC MENU]
button on the service remote control unit.

- To cancel the service mode, press [POWER]

button on the remote control.

3. To initialize the LCD television, press [DISPLAY]
button on the remote control unit.

4. Confirm "FF" indication on the upper right of the
screen.

5. Unplug the AC cord.

EEPROM CLEAR : OK

EXIT: SELECTEEPROM CLEAR : CLEAR

Fig. h

When “OK” appears on the screen, the factory
default will be set.

3. To exit this mode, press [CH. o / p] or [SELECT]
button to go to TV mode, or press [POWER] button
to turn the power off.

7-1 L3150INT

FIRMWARE RENEWAL MODE

1. Turn the power on and press [EJECT] button on the
remote control unit to put the LCD TV/DVD into
DVD mode. Then remove the disc.

2. To put the LCD TV/DVD into F/W version up mode,
press [9], [8], [7], [6], and [SEARCH MODE] but­tons on the remote control unit in that order.
Fig. a appears on the screen.

"

" differ depending on the models.

*******

F/W Version Up Mode Model No : *******

Please insert a DISC

for F/W Version Up.

VERSION : *.**

EXIT: SELECT

Fig. a Version Up Mode Screen

3. Insert the disc for version up into the disc slot.

4. The LCD TV/DVD enters the F/W version up mode
automatically. Fig. c appears on the screen. If you
enter the F/W for different models, “Disc Error” will
appear on the screen, then the disc will be ejected
automatically.

"

" differ depending on the models.

*******

5. After programming is finished, the disc will be
ejected automatically. Fig. e appears on the screen
and the checksum will be shown in (*2).

"

" differ depending on the models.

*******

(*2)

F/W Version Up Mode

VERSION : ************.ab6
Completed

SUM : 7ABC

Model No : *******
VERSION : *.**

Fig. e Completed Program Mode Screen

At this time, no button is available.

6. Remove the disc.

7. Press [CH. o / p] button on the unit to go to TV
mode, or press [POWER] button on the unit to turn
the power off.

8. Press [EJECT] button on the remote control unit to
put the LCD TV/DVD into DVD mode again.

9. Press [1], [2], [3], [4], and [DISPLAY] buttons on the
remote control unit in that order.
Fig. g appears on the screen.

"

" differ depending on the models.

*******

(*1)

F/W Version Up Mode Model No : *******

VERSION : ************.ab6
Reading...

VERSION : *.**

Fig. c Programming Mode Screen

The appearance shown in (*1) of Fig. c is
described as follows:

AppearanceNo. State

Reading... Sending files into the memory

1

Erasing... Erasing previous version data

2

Programming...

3 Writing new version data

MODEL : *******

Version
Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

Fig. g

10.Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. h

When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.

11.To exit this mode, press [CH. o / p] or [SELECT]
button to go to TV mode, or press [POWER] button
to turn the power off.

8-1 L3150FW

BLOCK DIAGRAMS < LCD TV SECTION >

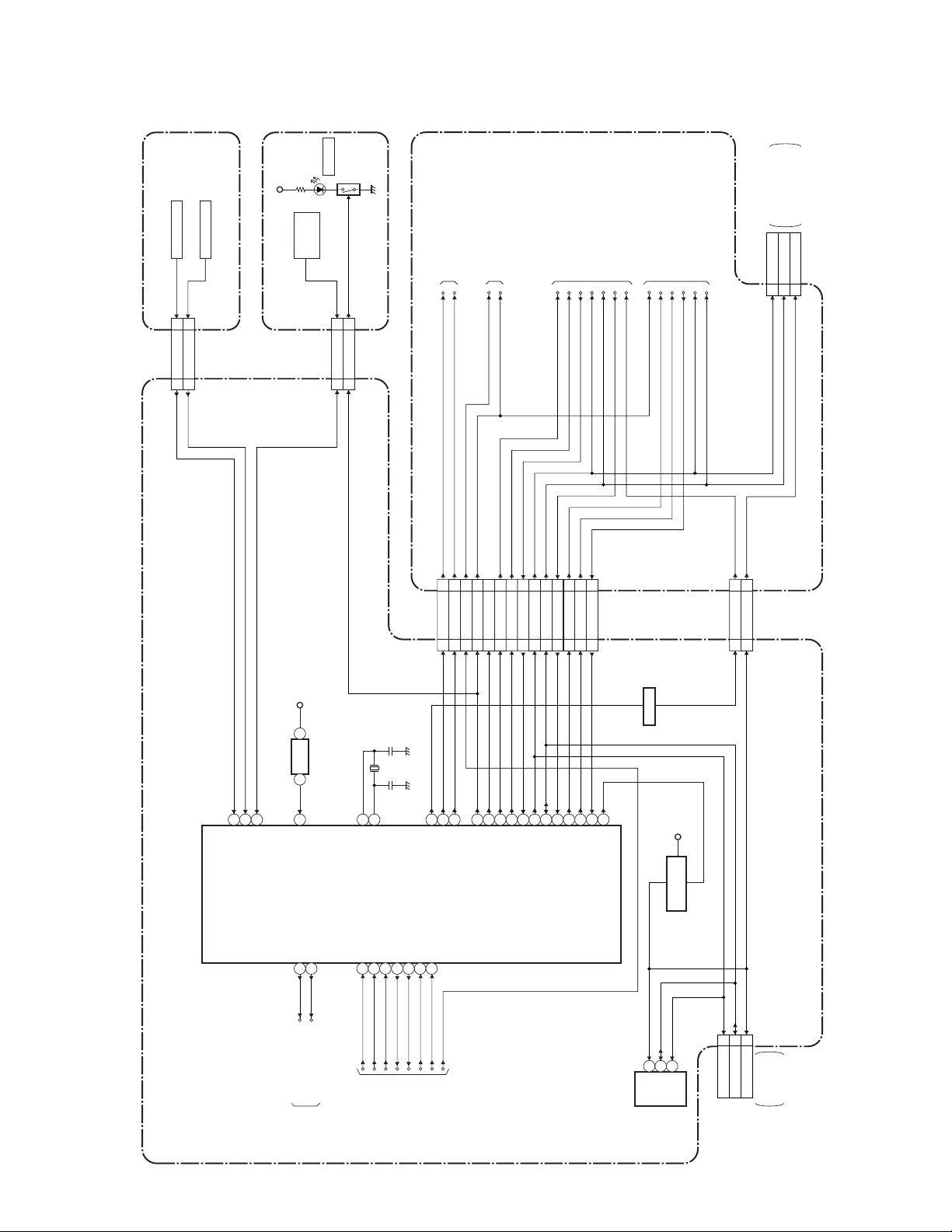

System Control Block Diagram

POWER

D102

AL +5V

Q102

SENSOR

KEY SWITCH

KEY SWITCH

CLN904

KEY-IN-211

FUNCTION CBA

KEY-IN-122

REMOTE

RCV102

IR SENSOR CBA

CLN105

P-ON-H44

RCV-IN33

TO LCD BACKLIGHT

BLOCK DIAGRAM

BACKLIGHT-SW

BACKLIGHT-ADJ

TO POWER SUPPLY

BLOCK DIAGRAM

P-ON-H

DVD-PWR-CON

CN113 IS USED

FOR ADJUSTMENT

AT FACTORY

TO IF/VIDEO

BLOCK DIAGRAM

FSC

SCL

SDA

S-SW

INPUT-0

AFT-IN

INPUT-1

P-ON-H

VOLUME

TO AUDIO

BLOCK DIAGRAM

SCL

DVD-MUTE

AUDIO-MUTE

SDA2

SCL1

BUS-OPEN
4

SDA

CN113 (NO CONNECTION)

CN104

4KEY-IN-2

3

KEY-IN-1

CN105

MAIN CBALCD MAIN CBA UNIT

CN102A

BACKLIGHT-SW

BACKLIGHT-ADJ

P-ON-H16 8

INPUT-012 12

INPUT-111 13

P-ON-H2(NU)

DVD-PWR-CON

19 5

21 3

14 10

18 6

CN102B

AL+3.3V(D)

5

RESET

IC151

4

21

11

RESET

RCV-IN

42

XIN

X161

43

XOUT

27MHz

221817

80

TUNERCLK

BACKLIGHT-SW

BACKLIGHT-ADJ

16

P-ON-H

P-ON-H2

3140193241

INPUT-0

INPUT-1

VOLUME15 9

S-SW717

SCL618

SDA519

AFT-IN10 14

5AFT-IN

20

SCL

SDA

S-SW

VOLUME

AUDIO-MUTE

DVD-MUTE

13 11

23 1

34

23

35

DVD-MUTE

BUS-OPEN

AUDIO-MUTE

Q301

BUFFER

Q131

AL+3.3V(D)

3.3V<-->5V

CONVERTER

FSC123

BUS-OPEN519

CN103B CN103A

IC333 (TV MICRO CONTROLLER)

TO POWER

DVD-MAIN-POWER
26

DVD-MAIN-POWER

SUPPLY

P-25V-ON
12

P-25V-ON

BLOCK

DIAGRAM

DVD-SCLK
25

FP-DIN

FP-CLK

DVD-CS

DVD-SIN

REMOTE-OUT

24

2737333639

SDATA

REMOTE

TREDCONTV

TO SYSTEM

CONTROL / SERVO

DVD-IRCONT

DISC-OUT

DISC-IN

DVD-PWR-CON

DISC-OUT

DISC-IN

BLOCK DIAGRAM

<DVD SECTION>

9-1

IC171

(MEMORY)

7
WP

CN112(NO CONNECTION)

6

5

SCL

SDA

SDA 2

SCL 1

BUS-OPEN 4

NO PART

MOUNTED

FOR CN112

L3151BLS

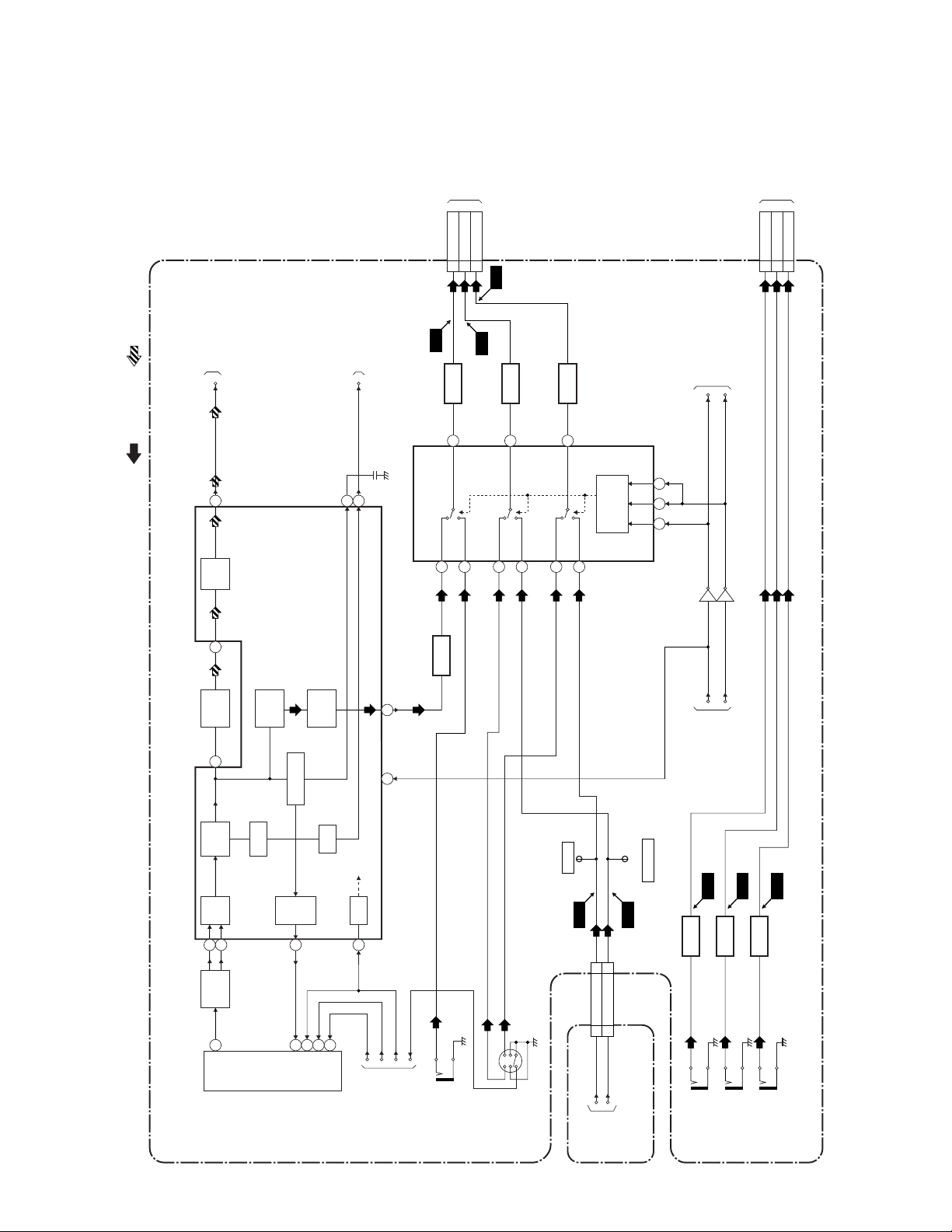

IF/Video Block Diagram

TO

CVBS11

CN103A

LCD BLOCK

DIAGRAM

CN103B

S-VIDEO-C7

S-VIDEO-Y9

WF8

TO

VIDEO-Y5

CN103A

LCD BLOCK

DIAGRAM

CN103B

VIDEO-Pb/Cb

VIDEO-Pr/Cr

3

1

AUDIO SIGNAL

MAIN CBA

VIDEO SIGNAL

TO AUDIO BLOCK

DIAGRAM

SIF

8

SIF

AMP

7

4.5MHz

FILTER

CF31

4

SIF

TRAP

IF AGC DET

WF7

Q703

3

BUFFER

BUFFER

4

5

WF9

Q702

13

BUFFER

14

12

Q701

1

BUFFER

15

2

SW

TO AUDIO

BLOCK DIAGRAM

INPUT-0(INV)

INPUT-1(INV)

11

10

CONTROL

9

Q707

Q708

INPUT-0

INPUT-1

TO SYSTEM CONTROL

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

AFT-IN

13

18

IC781 (INPUT SELECT)

Q32

EQ

AMP

1

2

DEFEAT

VIDEO

VIF

IC31 (IF SIGNAL PROCESS)

16

SAW

FILTER

SF11

IF

TU1

(TUNER UNIT)

DET

AMP

17

VCO

RF

AGC

14

5

173

AGC

XTAL-IN

2

SCL

AFT

SDA

AMP

11

SDA

DVD-Y

TP1805

WF13

CN1701

FSC

SCL

S-SW

CY

JK703

VIDEO1

-IN

JK701

S-VIDEO

TO

SYSTEM CONTROL

BLOCK DIAGRAM

<LCD TV SECTION>

IN

CN601

TO DIGITAL

9-2

3

1

9 DVD-C

8 DVD-Y

VIDEO-C

VIDEO-Y(I/P)

SIGANL

PROCESS

BLOCK

DIAGRAM

TP1806

WF14

CHROMA

DVD MAIN CBA UNIT

Q704

WF10

BUFFER

Q705

JK706

VIDEO-YINJK707

WF11

BUFFER

Q706

VIDEO-Pb/CbINJK708

WF12

BUFFER

VIDEO-Pr/Cr

IN

L3151BLIF

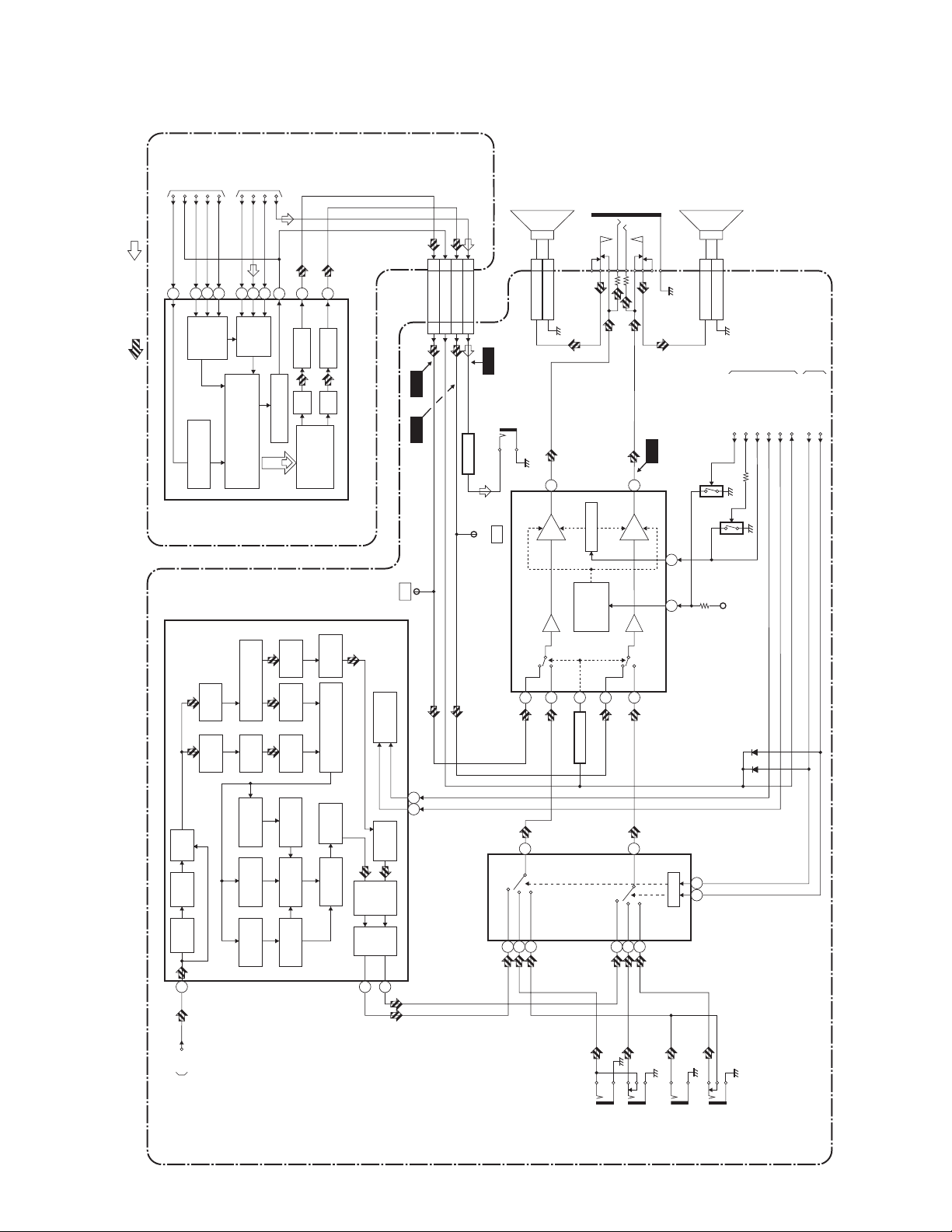

Audio Block Diagram

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

SPDIF

PCM-BCK

PCM-DATA

PCM-LRCLK

768

16

PORT

AUDIO

SERIAL

ZERO DETECT

CONTROLLER

DIGITAL FILTER /FUNCTION

DIAGRAM

L-CH

TO

SYSTEM

CONTROL

DATA(AUDIO) SIGNAL

PCM-SCLK

AUDIO-MUTE

5

AUDIO SIGNAL

(AUDIO DAC)

IC601

/SERVO

BLOCK

DIAGRAM

<DVD

SECTION>

ADAC-ML

ADAC-MD

ADAC-MC

432

PORT

SERIAL

CONTROL

MANAGER

SYSTEM CLOCK

4X/8X OVERSAMPLING

14

15

R-CH

LPF+AMP

LPF+AMP

DAC

DAC

ENHANCED

MODULATOR

MULTI-LEVEL

DELTA-SIGMA

DVD MAIN CBA UNIT

CN601CN1701

13

DVD-AUDIO(L)

6

WF15

WF16

14

15

18

DVD-MUTE

DVD-AUDIO(R)

SPDIF

7

8

11

BUFFER

WF17

JK1701

Q1701

TP1802

DIGITAL

AUDIO OUT

FR

CLN802

CN802

(COAXIAL)

SP802

SPEAKER

GND 2

SP-L 1

L-CH

11

AMP

VOLUME

JK801

HEADPHONE

JACK

14

AMP

WF6

SP801

SPEAKER

R-CH

CLN801

GND 2

SP-R 1

CN801

TO SYSTEM

CONTROL BLOCK

< LCD TV SECTION>

TO IF/VIDEO

BLOCK DIAGRAM

VOLUME

P-ON-H

AUDIO-MUTE

Q803

7

Q802

SCL

SDA

DVD-MUTE

INPUT-0(INV)

INPUT-1(INV)

IC851 (MTS/SAP AUDIO SIGNAL PROCESS)

SIF/BB

SW

INPUT

VCA

SIF

DEMOD

21

STEREO

FILTER

SAP

FILTER

OFFSET

CANCEL

SAP

DEMOD

WIDE BAND

FILTER

dBX

DE-EMPH

SPECTRAL

FILTER

L+R

FILTER

L-R

FILTER

SAP OUT

FILTER

WIDE BAND

RMS DET

SPECTRAL

EXPAND

SPECTRAL

RMS DET

75uS

DE-EMPH

(L-R)/SAP SW

OFFSET

CANCEL

WIDE BAND

EXPAND

L-CH

AGC

30

TP1801

I2C

DECORDER

OFFSET

CANCEL

MATRIX

R-CH

29

FL

MUTE

/STANDBY

CONTROL

(L-CH)

IC801 (AUDIO AMP)

6

8

27
24

13

(L-CH)

TUNER

AUDIO2

AUDIO1

IC852 (INPUT SELECT)

111514

12

SWITCHING

Q804

3

(R-CH)

TUNER

AUDIO1

4

2

(R-CH)

1

3

SW CTL

AUDIO2

5

2

REG+5V

9 10

SIF

TO

IF/VIDEO BLOCK

DIAGRAM

MAIN CBA

AUDIO1(L)

-IN

JK704

JK705

AUDIO1(R)

-IN

JK709

AUDIO2(L)

-IN

JK710

AUDIO2(R)

-IN

9-3

L3151BLA

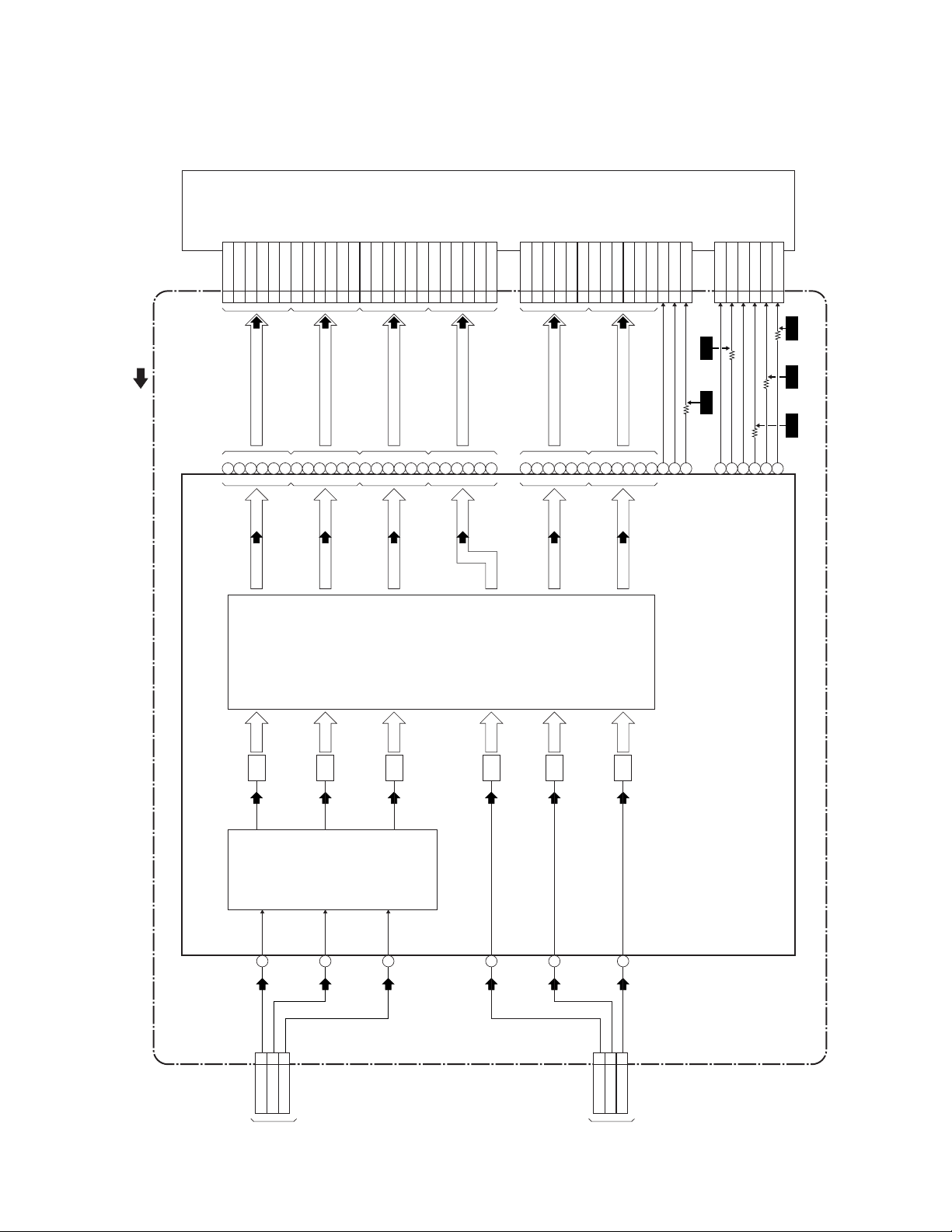

LCD Block Diagram

LCD MODULE

OR(0)34

OR(2)32

OR(3)31

OR(1)33

OR(4)30

OG(0)27

OG(1)26

OG(2)25

OG(3)24

OG(4)23

OG(5)22

OB(0)20

OB(1)19

OB(2)18

OB(3)17

OB(4)16

OB(5)15

ER(0)6

ER(1)5

ER(2)4

ER(3)3

ER(4)2

ER(5)1

EG(0)50

EG(1)49

EG(2)48

EG(3)47

EG(4)46

EG(5)45

EB(0)43

EB(1)42

EB(2)41

EB(3)40

EB(4)39

EB(5)38

OFFEV12

STV113

CLKV14

HMS1-E7

HMS1-013

STH142

POL43

LP44

OR(5)29

CLKH10

VIDEO SIGNAL

LCD MAIN CBA UNIT

CN311

170

169

166

R(ODD)

R

165

164

163

162

161

157

G(ODD)

G

156

155

154

153

152

148

B(ODD)

B

147

146

145

LCD RGB

138

137

SIGNAL

PROCESS

136

135

130

129

R(EVEN)

Y

CN312

128

127

126

125

G(EVEN)

Pb/Cb

118

117

116

115

114

113

Pr/Cr B(EVEN)

108

107

101

105

STV1

OFFEV

R365

106

CLKV

CN311

WF1

WF2

R392

144

143

CLKH1

ODDINV

R202

R394

139

172

173

POL

STH-1

EVENINV

WF4

R201

WF3

WF5

174
LP

IC333 (LCD DRIVE / SIGNAL PROCESS)

A/D

R

CVBS

68

CN103B

CVBS 13

TO

IF/VIDEO

S-VIDEO-Y 15

S-VIDEO-C 17

BLOCK

DIAGRAM

CN103A

A/D

G

VIDEO

SIGNAL

C

49

PROCESS

A/D

B

Y

71

9-4

A/D

74

A/D

52

CN103B

VIDEO-Y 19

TO

IF/VIDEO

A/D

60

21

23

VIDEO-Pr/Cr

VIDEO-Pb/Cb

BLOCK

DIAGRAM

CN103A

L3151BLLCD

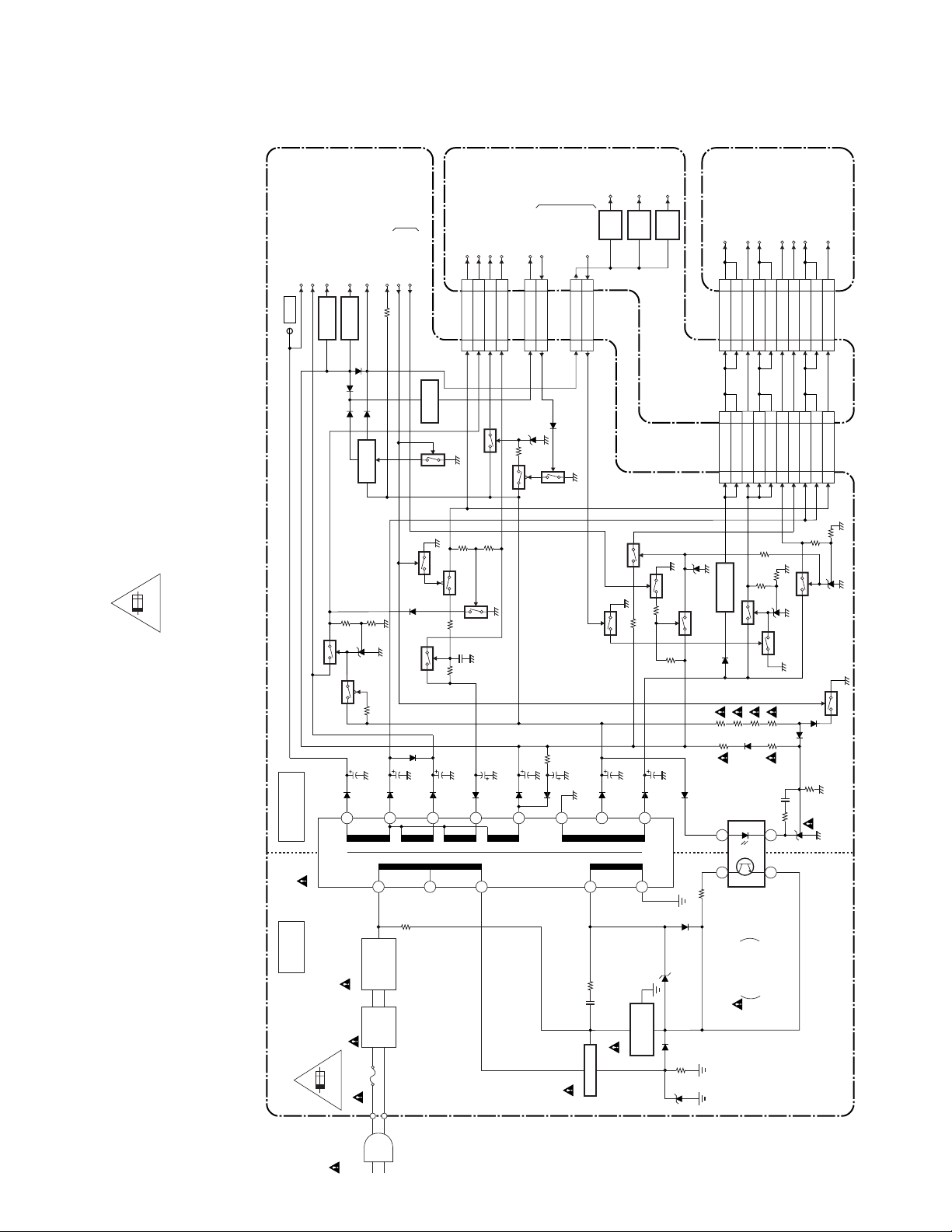

Power Supply Block Diagram

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

REG+5V(2)

AL+12V

+5V REG.

IC671

REG+5V(3)

+5V REG.

IC672

IC531

AL+7V(D)

+7V REG.

TP402

AL+13V

+13V

TO SYSTEM

CONTOROL

P-ON-H

VT+33V

BLOCK DIAGRAM

< LCD TV SECTION >

DVD-PWR-CON

+5V REG.

IC533

Q531

TO SYSTEM

PANEL+3.3V

PANEL+10.8V

PANEL+25V

PANEL-6V

P-25V-ON

AL+5V

CN101B

PANEL+3.3V

PANEL+10.8V

PANEL+25V73

PANEL-6V82

P-25V-ON21 3

46

55

CN101A

Q501

AL+5V22 2

CN102A CN102B

Q502

CONTROL

CN103A CN103B

Q511

BLOCK

DIAGRAM

< LCD TV SECTION >

DVD-MAIN-POWER

DVD-MAIN-POWER

AL+7V(D)21 3

18 6

AL+3.3V(D)

+3.3V

REG.

IC191

AL+1.5V(D)

+1.5V

REG.

IC192

AL+3.3V(A)

+3.3V

REG.

IC193

LCD MAIN

CBA UNIT

EV+1.2V

CN401

EV+1.2V
22

CN1761

CN1751

EV+1.2V
14 14

CN1651

DVD-ON+3.3V

EV+3.3V(D)

EV+3.3V(A)

DVD-ON+5V

EV+9V

EV+1.2V

EV+3.3V(D)

EV+3.3V(A)

EV+3.3V(A)

DVD-ON+3.3V

DVD-ON+5V

33

44

EV+1.2V

EV+3.3V(D)

13 13

12 12

EV+9V

55

66

77

88

99

EV+3.3V(A)

EV+3.3V(A)

DVD-ON+3.3V

DVD-ON+5V

EV+9V

99

88

77

11 11

10 10

SENSOR+3.3V

DVD MAIN CBA UNIT

EV+9V

SENSOR+3.3V

10 10

25 25

EV+9V

SENSOR+3.3V

66

11

Q505

Q509

T601

HOT COLD

9

D605 - D608

L601

11

7

BRIDGE

RECTIFIER

LINE

FILTER

Q512

Q513

6

Q510

16

Q503

Q1653

ERROR

Q1654

Q1657

Q633

MAIN CBA

2

3

VOLTAGE DET

Q1651

IC1652

Q1656

1

4

IC601

Q1652

Q1655

12

14

5

10

13

3

15

2

CONTROL

Q603

SWITCHING

+1.2V REG.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

F601

HOT CIRCUIT. BE CAREFUL.

4A/125V

AC601

AC CORD

4A/125V

9-5

SWITCHING

Q601

L3151BLP

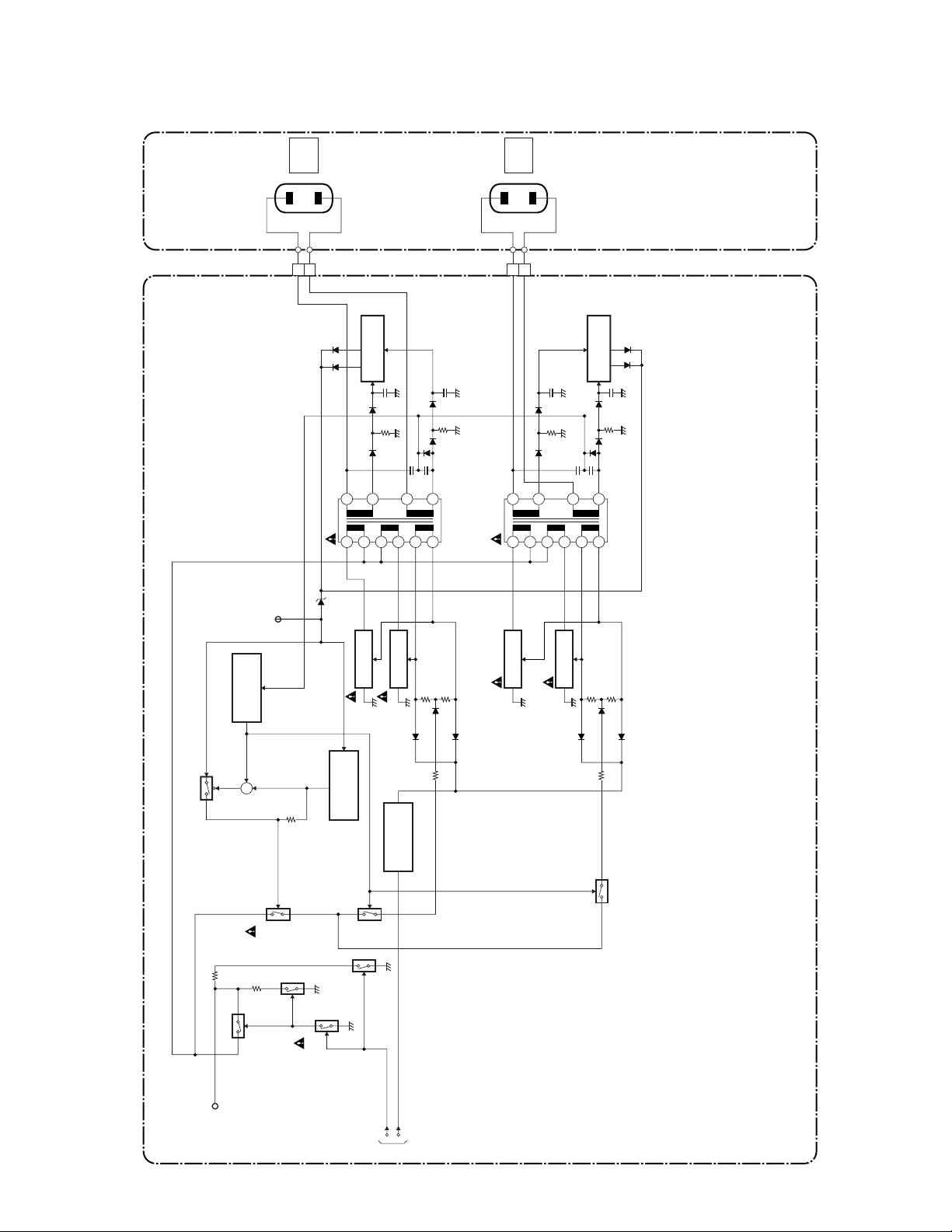

LCD Backlight Block Diagram

BACK

LIGHT

BACK

LIGHT

LCD MODULE

OVER CURRENT

PROTECTOR

Q404

TP403

1

CN402

2

Q421,Q422

OVER VOLTAGE

PROTECTOR

9

T402

3

Q412

10

2

4

SWITCHING

Q411

8

5

1

SWITCHING

7

6

1

CN403

9

T403

3

Q416

SWITCHING

2

Q423,Q424

OVER VOLTAGE

PROTECTOR

8

5

1

SWITCHING

7

6

10

2

4

Q415

MAIN CBA

Q406

Q427

AL+13V

+

OVER VOLTAGE

PROTECTOR

Q405

PWM

CONTOROL

Q410

Q409

Q401

Q408

Q403

TO SYSTEM CONTROL

BLOCK DIAGRAM

BACKLIGHT-ADJ

BACKLIGHT-SW

< LCD TV SECTION >

9-6

L3151BLLB

Q407

Q428

BLOCK DIAGRAMS < DVD SECTION >

System Control / Servo Block Diagram

TO

SYSTEM

CONTROL

BLOCK

DIAGRAM

< LCD TV SECTION >

IC101

(MICRO CONTROLLER)

IC462

+3.3V

RESET73

RESET

1 3

VREF

FOCUS DRIVE

FD-OFST

148

146

25

27

26

-

+

-

+

24

TRACKING

DRIVE

TD-OFST

147

139

-

+

-

+

SDATA

FP-CLK

FP-DIN

DVD-PWR-CON

CN1761

20

19

18

DVD-PWR-CON

19 FP-CLK

18

CN401

TO AUDIO

BLOCK

DIAGRAM

ADAC-ML

ADAC-MD

ADAC-MC

57

56

ADAC-MD

ADAC-MC

SPDL
76

312

645

-

+

-

+

86ADAC-ML

SLD
75

23

-

+

PCM-SCLK

AUDIO-MUTE

88

163

PCM-SCLK

AUDIO-MUTE

IC202

(OP AMP)

59DVD-PWR-CON

60FP-CLK

82

FP-DIN

SP-ROT

SL-ADS

143

140

1

2

3

TRAY-IN
66

7

6

5

REMOTE

TREDCONTV

23 REMOTE2322 SDATA2220 FP-DIN

67

61

SDATA

REMOTE

DISC-IN

DISC-OUT

1

25

21

TREDCONTV

1 DISC-OUT

21 DISC-IN

25

DISC-OUT

78

DISC-IN

81

LCD MAIN CBA UNIT

Q801

RESET

IC461

2 1

+3.3V

1 NOTE:

Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

DVD MAIN CBA UNIT

(SERVO DRIVE)

IC301

FOCUS

ACTUATOR

DRIVE

15

16

FS(+)

FS(-)

TO DIGITAL SIGNAL

TRACKING

ACTUATOR

14

TS(+)

TS(-)

PROCESS BLOCK

DIAGRAM

DRIVE

13

SPINDLE

MOTOR

DRIVE

12

11

DRIVE CBA

9-7

SLED

MOTOR

17

TRAY-IN

DRIVE

18

CN301

SPINDLE

MOTOR

M

3SP(+)

4SP(-)

5TRAY-IN

6GND

SLED

MOTOR

7SL(-)

M

8SL(+)

+3.3V

Q804

CN801CN5001

SENSOR CBA

Q802

2

1

LED-POWER

2 DISC-OUT

1

3

3 DISC-IN

DISC-OUT

DISC-IN

L3151BLSD

Digital Signal Process Block Diagram

TO

AUDIO

BLOCK

DIAGRAM

TO

/IF VIDEO

BLOCK

DIAGRAM

FLASH

ROM

DATA(AUDIO) SIGNAL

DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL

DAT A

RAM

DSP

INST.

ROM

DECODER

STREAM

I/F

DAT A

RAM

I/O

INST.

ROM

PROCESSOR

SPDIF

PCM-BCK

177

170

PCM-DATA

171

AUDIO

I/F

UMAC

PCM-LRCLK

169

SERIAL

GENERAL

I/O

CPU

I/F

READ

MEMORY

INTERRUPT

CONTROLLER

TIMER

VIDEO-Y(I/P)

149

Y(I/P)

D/A

NTSC/PAL

VIDEO

WATCH DOG

TIMER

REMOTE

VIDEO-C

158

C

D/A

ENCODER

I/F

CONTROL

32BIT CPU

BCU

DAT A

INST

DEBUG

RAM

RAM

IC103 (FLASH ROM)

1

23~51

~

9

~

162548

FADR (0-19)

~

293638

FDQ (0-15)

~

45

SDRAM ADDRESS(0-11)

IC101 (MICRO CONTROLLER)

~

217

238

SDRAM ADDRESS(0-11)

~~

222629

35

IC501,502 (SDRAM)

DECODER

EXTERNAL

MEMORY

I/F

~~

1

~

2

134253

SDRAM

I/F

ECC

18

SDRAM DATA(0-15)

252

SDRAM DATA(0-15)

192~212

CPU

I/F

DMA

RF

256

114

115

116

117

~

CN201

DVD/CD

FORMATTER

SIGNAL

PROCESS

132

131

C16

D18

CIRCUIT

134

133

A17

B15

DETECTOR

BCU

129

E14

WATCH DOG

9

GND(LD)

TIMER

INTERRUPT

TIMER

CONTROLLER

CD/DVD
83

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

< DVD SECTION >

6

IC201

(SW)

4

1 3

CD DVD

FS

TS

FS(+)

CN201

FS(+) 2

FS(-)

FS(-) 3

TS(+)

TS(+) 1

TS(-)

TS(-) 4

DVD MAIN CBA UNIT

PICK-UP

UNIT

32BIT

CPU

INST.

ROM

DAT A

RAM

126

124

125

AMP

Q251,Q252

Q253,Q254

AMP

CN201

CD-LD 10

DVD-LD 8

PD-MONI 7

123

6

GND(DVD-PD)

5

GND(CD-PD)

130

F12

CD/DVD 19

9-8

L3151BLD

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often
pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement
components rated for higher voltage, wattage, etc. Replacement parts that have these special safety
characteristics are identified in this manual and its supplements; electrical components having such features are
identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components,
read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same
safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60 ppm/°C CSL --- +350~-1000 ppm/°C

3

, M = 106).

-6

µF).

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

+

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

(Top View)

PNP Transistor

E C B

(Top View)

Schematic Diagram Symbols

Digital Transistor

E C B

NPN Digital Transistor

PNP Digital Transistor

E C B

10-1 L3150SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and STOP modes on the schematics are as shown

below:

< DVD Section >

Unit: Volts

The same voltage for
both PLAY & STOP modes

231

5.0

5.0
(2.5)

Indicates that the voltage
is not consistent here.

5. How to read converged lines

1-D3

Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

PLAY mode
STOP mode

< TV Section > Unit: Volts

Unit: Volts

5.0

The same voltage for
both TV & DVD modes

231

5.0
(2.5)
< 0 >

Indicates that the voltage
is not consistent here.

TV mode (Power on)
TV mode (Power off)
DVD mode

3

AREA D3

2

1

AREA B1

1-D3

ABCD

1-B1

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

10-2 L3150SC

Main 1/5 Schematic Diagram

MAIN 1/5

Ref No. Position

IC531

D-4

IC533

E-3

IC671

E-2

IC672

E-2

Q501 C-4
Q502 C-4
Q503 B-3
Q505 C-3
Q509 C-3
Q510 B-2
Q511 C-3
Q512 C-2
Q513 C-2
Q531 D-3
Q633 E-1

CN101A A-4
CN102A A-3

ICS

TRANSISTORS

CONNECTORS

10-3

L3151SCM1

Main 2/5 Schematic Diagram

MAIN 2/5

Ref No. Position

IC31 I-1
IC851 H-3
IC852 J-4

Q32 J-2

CN113 G-1

ICS

CONNECTOR

TRANSISTOR

10-4

L3151SCM2

Main 3/5 Schematic Diagram

MAIN 3/5

Ref No. Position

IC781

P-3

IC801

N-2

Q701

N-3

Q702

N-3
Q703 N-3
Q704 P-1
Q705 O-1
Q706 P-1
Q707

P-2
Q708

P-2
Q802

O-1
Q803

N-1
Q804 O-2

Q1701 P-4

CN103A

M-2

CN801 M-3
CN802 M-4

CN1701 R-4

TP1801 Q-4
TP1802 Q-4
TP1803 Q-4
TP1804 Q-4
TP1805 Q-4
TP1806 Q-4

ICS

TRANSISTORS

TEST POINTS

CONNECTORS

10-5

L3151SCM3

Main 4/5 Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

MAIN 4/5

Ref No. Position

IC601

U-1

IC1652 W-3

Q601

S-2
Q603

T-2
Q1651 W-1
Q1652 W-1
Q1653 W-1
Q1654 W-3
Q1655 W-3
Q1656 W-2
Q1657 X-2

TP402 X-4

TRANSISTORS

ICS

TEST POINT

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

10-6

L3151SCM4

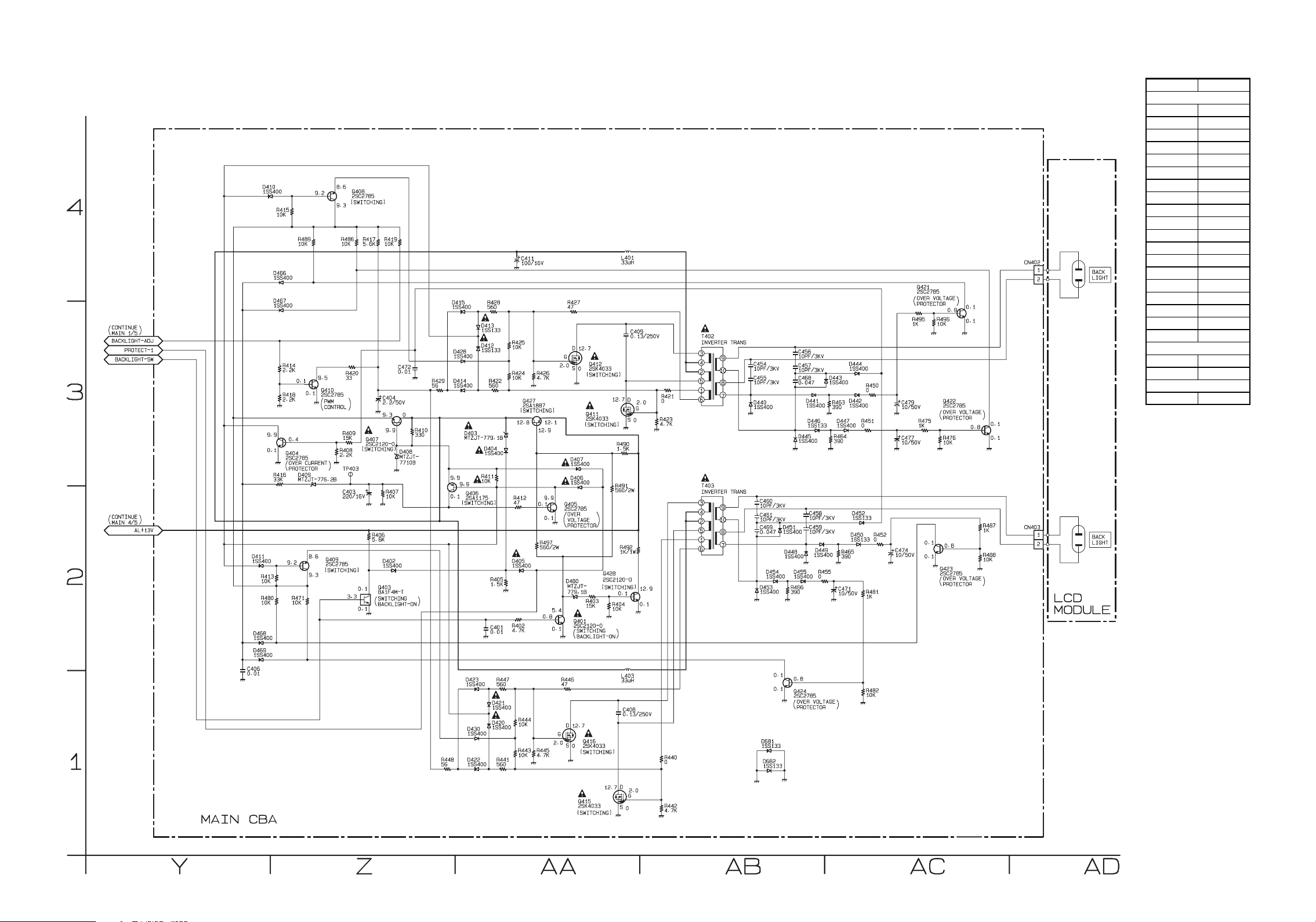

Main 5/5 Schematic Diagram

MAIN5/5

Ref No. Posit ion

Q401 AA-2
Q403 Z-2
Q404 Z-3
Q405 AA-2
Q406 AA-2
Q407 Z-3
Q408 Z-4
Q409 Z-2
Q410 Z-3
Q411 AA-3
Q412 AA-3
Q415 AA-1
Q416 AA-1
Q421 AC-3
Q422 AC-3
Q423 AC-2
Q424 AB-1
Q427 AA-3
Q428 AA-2

CN402

AD-4

CN403

AD-2

TP403 Z-3

CONNECTORS

TEST POINT

TRANSISTORS

10-7

L3151SCM5

Function Schematic Diagram

10-8

L3151SCF

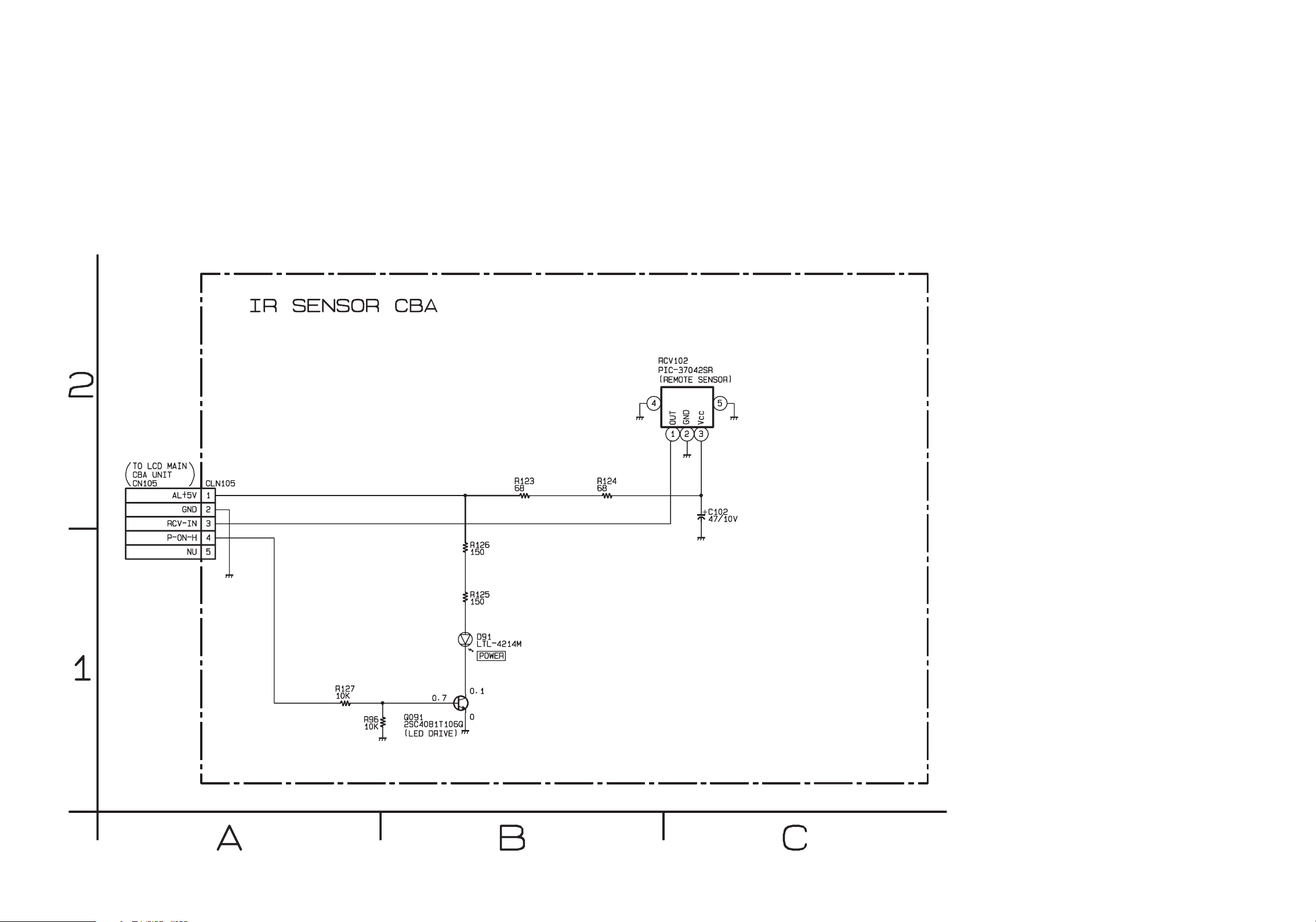

IR Sensor Schematic Diagram

10-9

L3151SCIR

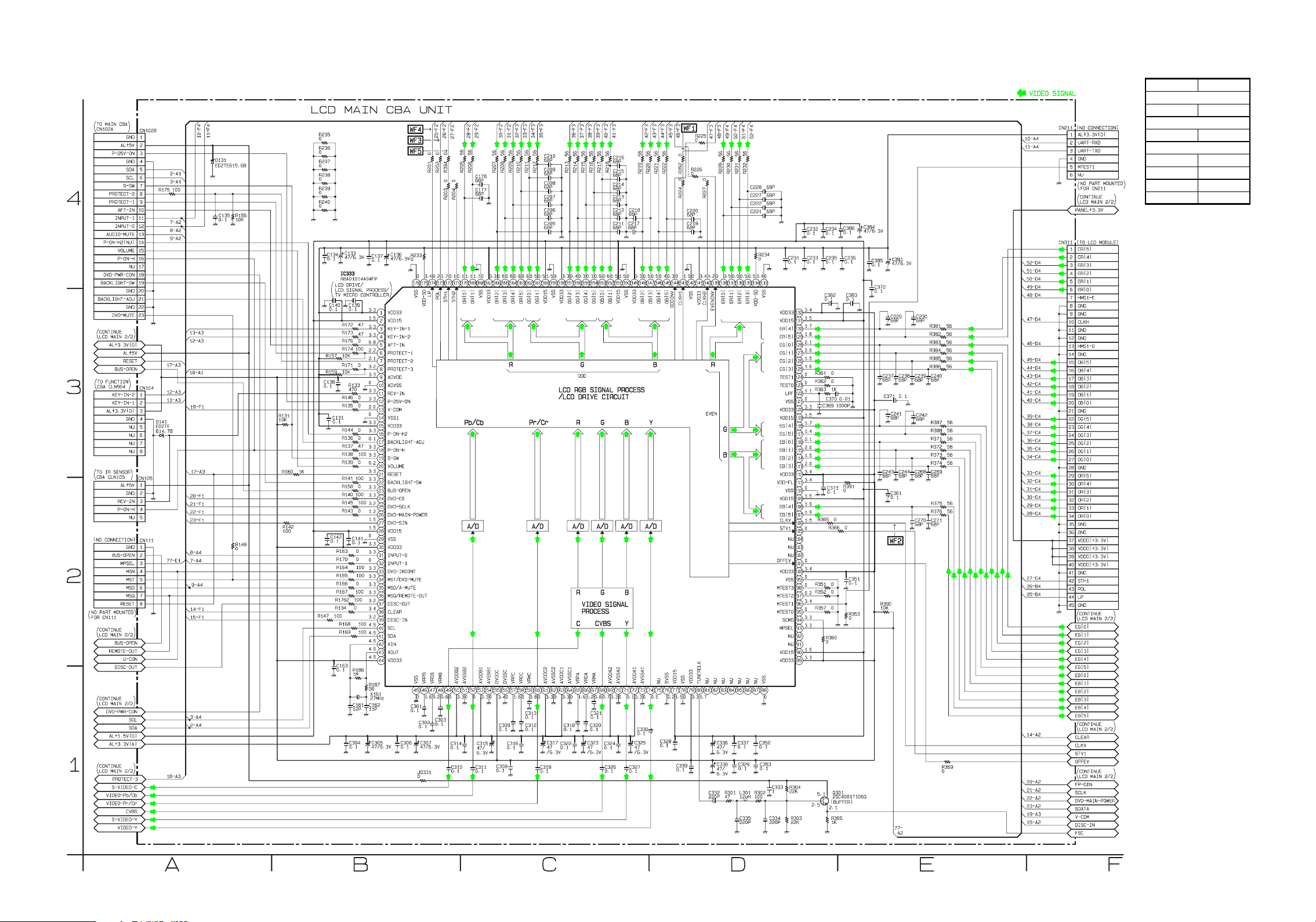

LCD Main 1/2 Schematic Diagram

LCD MAIN 1/2

Ref No. Position

IC333

B-3

Q301

D-1

CN102B A-4

CN104

A-3

CN105

A-2

CN311 F-4

CONNECTORS

IC

TRANSISTOR

10-10

L3151SCL1

LCD Main 2/2 Schematic Diagram

LCD MAIN 2/2

Ref No. Position

IC151 I-3
IC171

J-3

IC191

H-2

IC192

H-1

IC193

H-2

IC201 J-1

Q131

I-4

Q201 J-1

CN101B

L-4

CN103B

G-2

CN312

L-3

CN1751 H-4
CN1761 G-4

ICS

CONNECTORS

TRANSISTORS

10-11

L3151SCL2

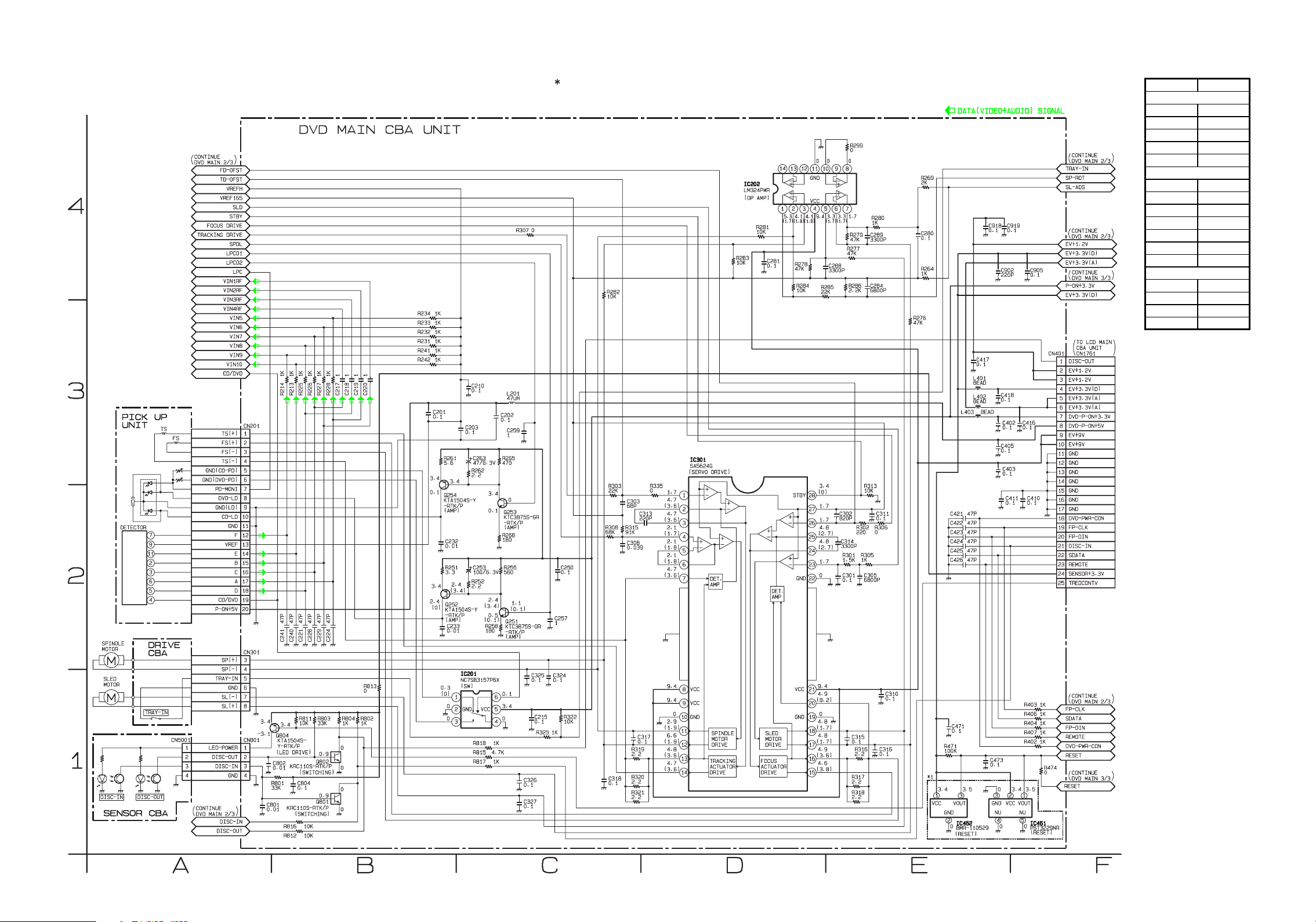

DVD Main 1/3 Schematic Diagram

DVD MAI N 1/3

Ref No. Position

IC201 C-1
IC202 D-4
IC301 D-3
IC461 F-1
IC462 E-1

Q251 C-2
Q252 B-2
Q253 C-2
Q254 B-2
Q801 B-1
Q802 B-1
Q804 B-1

CN201 A-3
CN301 A-2
CN401 F-3
CN801 A-1

TRANSISTORS

CONNECTORS

ICS

1 NOTE:
Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

10-12

L3151SCD1

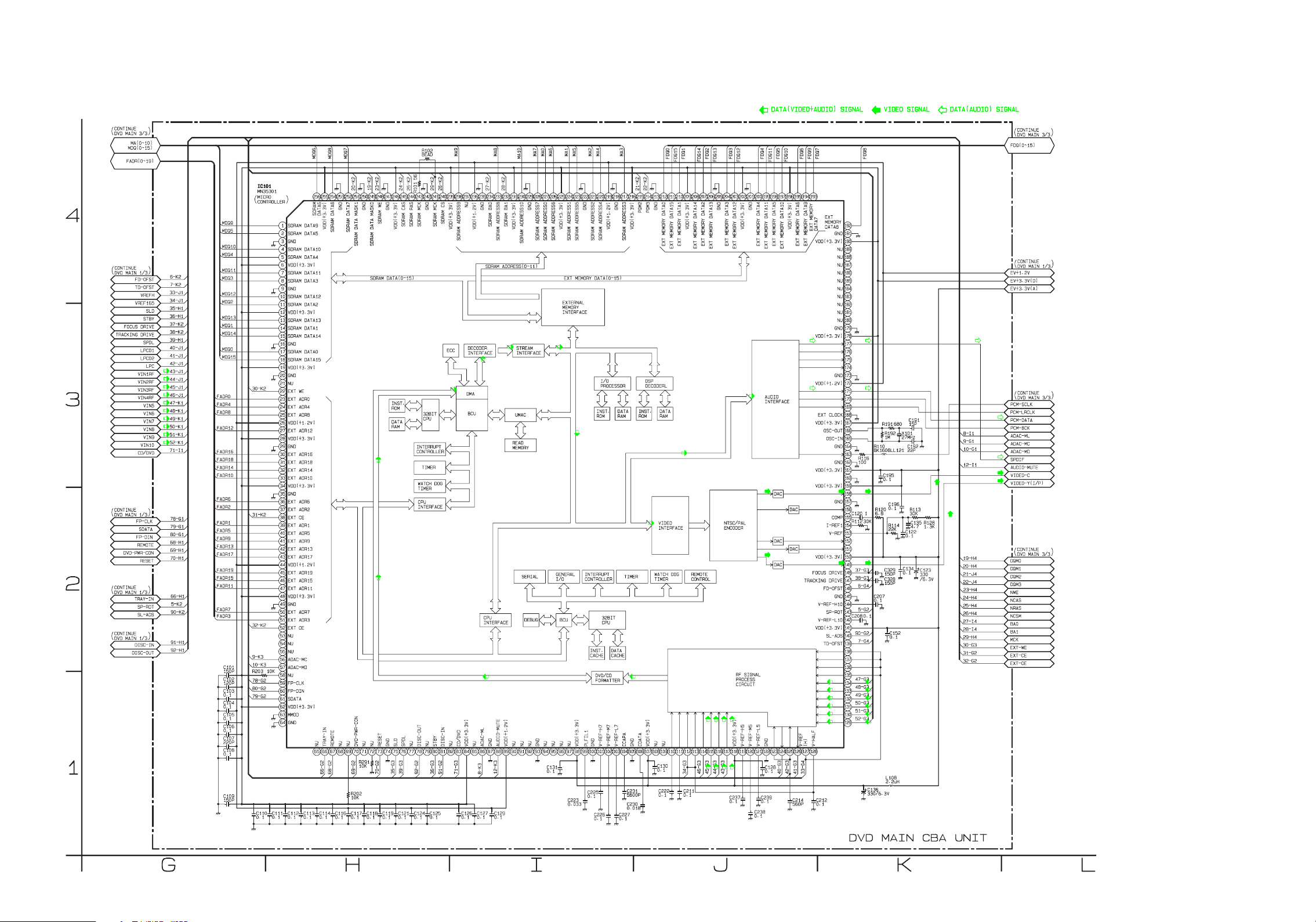

DVD Main 2/3 Schematic Diagram

10-13

L3151SCD2

IC101 Voltage Chart

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

129 2.3 2.3 161 3.4 3.4 193 ~ ~ 225 3.4 3.4

130 2.3 2.3 162 0 0 194 ~ ~ 226 ~ ~

131 2.3 2.3 163 1.8 1.8 195 ~ ~ 227 ~ ~

132 2.4 2.3 164 0 0 196 3.4 3.4 228 ~ ~

133 2.4 2.4 165 1.7 1.8 197 ~ ~ 229 0 0

134 2.4 2.4 166 1.7 1.7 198 ~ ~ 230 ~ ~

135 2.3 2.3 167 3.4 3.4 199 ~ ~ 231 3.4 3.4

136 2.3 2.3 168 0 0 200 ~ ~ 232 1.3 1.6

137 2.3 2.3 169 1.8 1.8 201 0 0 233 ~ ~

138 2.3 2.3 170 1.7 1.7 202 3.4 3.4 234 1.9 2.3

139 1.7 1.7 171 1.3 0.1 203 ~ ~ 235 0 0

140 1.7 1.7 172 1.3 1.3 204 ~ ~ 236 1.3 1.3

141 3.4 3.4 173 0 0 205 0 0 237 ~ ~

142 1.3 1.3 174 ----- ----- 206 ~ ~ 238 ~ ~

143 2.1 1.7 175 ----- ----- 207 ~ ~ 239 3.4 3.4

144 2.2 2.2 176 ----- ----- 208 ~ ~ 240 3.4 3.3

145 0 0 177 1.8 1.7 209 3.4 3.4 241 1.9 1.9

146 1.7 1.7 178 3.4 3.5 210 ~ ~ 242 0 0

147 1.8 1.7 179 0 0 211 ~ ~ 243 1.9 1.9

148 1.7 1.7 180 ----- ----- 212 ~ ~ 244 3.4 3.3

149 0.6 0.5 181 ----- ----- 213 0 0 245 3.4 3.4

150 3.4 3.4 182 ----- ----- 214 2.5 3.0 246 3.4 3.4

151 ----- ----- 183 ----- ----- 215 2.5 3.0 247 0 0

152 ----- ----- 184 ----- ----- 216 3.4 3.4 248 3.3 3.4

153 1.4 1.3 185 ----- ----- 217 ~ ~ 249 3.2 3.0

154 1.4 1.3 186 ----- ----- 218 0 0 250 0 0

155 2.4 2.4 187 ----- ----- 219 1.3 1.3 251 3.2 3.0

156 ----- ----- 188 ----- ----- 220 ~ ~ 252 ~ ~

157 0 0 189 ----- ----- 221 ~ ~ 253 0 0

158 0.9 0.9 190 3.4 3.5 222 0 0 254 ~ ~

159 3.4 3.4 191 0 0 223 ~ ~ 255 3.4 3.4

160 0 0 192 ~ ~ 224 ~ ~ 256 ~ ~

~ : Voltage is not cons istent ----- : Not used Unit : Volts

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

1 ~ ~ 33 ~ ~ 65 ----- ----- 97 ----- -----

2 ~ ~ 343.43.4663.43.5983.43.4

3 0 0 35 0 0 673.23.2990.90.8

4 ~ ~ 36 ~ ~ 68 ----- ----- 100 0 0

5 ~ ~ 37 ~ ~ 69 3.4 3.4 101 2.4 2.4

6 3.4 3.4 38 0.4 0.3 70 3.4 3.4 102 2.2 2.2

7 ~ ~ 39 ~ ~ 71 ----- ----- 103 1.9 1.9

8 ~ ~ 40 ~ ~ 72 1.4 2.7 104 0.4 0.3

9 0 0 41 ~ ~ 73 3.5 3.5 105 0 0

10 ~ ~ 42 ~ ~ 74 0 0 106 1.7 1.7

11 ~ ~ 43 ~ ~ 75 1.7 1.8 107 3.4 3.4

12 3.4 3.4 44 1. 3 1.3 76 2.3 1.8 108 ----- -----

13 ~ ~ 45 ~ ~ 77 ----- ----- 109 ----- -----

14 ~ ~ 46 ~ ~ 78 0 0 110 1.9 1.9

15 ~ ~ 47 ~ ~ 79 ----- ----- 111 1.9 1.9

16 0 0 48 3.4 3.4 80 3.4 0 112 1.7 1.7

17 ~ ~ 49 0 0 81 0 0 113 1.7 1.7

18 ~ ~ 50 ~ ~ 82 ----- ----- 114 1.7 1.7

19 3.4 3.4 51 ~ ~ 83 0.1 0.1 115 1.7 1.7

20 0 0 52 0.8 0.8 84 3.4 3.4 116 1.7 1.7

21 ----- ----- 53 ----- ----- 85 ----- ----- 117 1.7 1.7

22 3.4 3.4 54 ----- ----- 86 3.6 3.4 118 3.4 3.4

23 ~ ~ 55 ----- ----- 87 0 0 119 2.0 2.0

24 ~ ~ 56 3.4 3.4 88 3.5 0.1 120 1.7 1.7

25 ~ ~ 57 3.5 3.5 89 1.3 1.3 121 1.5 1.5

26 1.3 1.3 58 3. 4 3.4 90 ----- ----- 122 0 0

27 ~ ~ 59 3.4 3.4 91 ----- ----- 123 0.3 0.1

28 3.4 3.4 60 3. 4 3.4 92 ----- ----- 124 1.1 0.1

29 0 0 61 3.5 3.5 93 0 0 125 0.3 0.1

30 ~ ~

31 ~ ~

32 ~ ~

62 3.4 3.4

63 0 0
64 0 0

94 ----- ----- 126 0.1 0.1

95 ----- ----- 127 2.3 2.3

96 ----- ----- 128 1.7 1.7

10-14

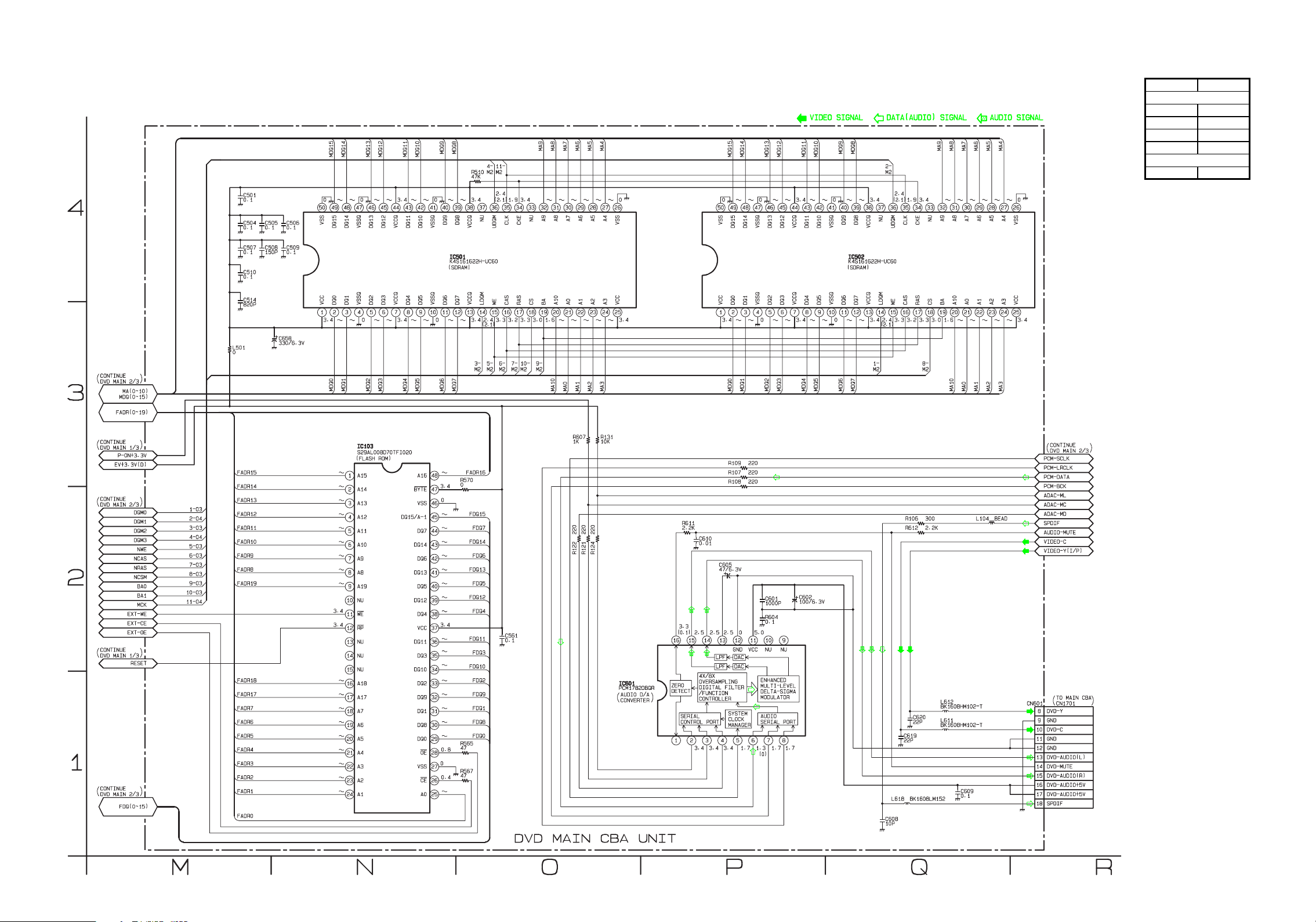

DVD Main 3/3 Schematic Diagram

DVD MAI N 3/3

Ref No. Position

IC103 N-3
IC501 N-4
IC502 P-4
IC601 P-1

CN601 R-1

ICS

CONNECTOR

10-15

L3151SCD3

Main CBA Top View

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

TP1802

FR

TP1803

A-GND

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

TP403

TP1801

FL

TP1805

DVD-Y

TP1806

CHROMA

TP1804

GND

TP402
+13V

10-16

BL3150F01012-1

Main CBA Bottom View

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

MAIN CBA

Ref No. Position Ref No. Position

IC31

E-4 Q601 B-5

IC531

D-4

Q603

B-5

IC533

D-3

Q633

A-5

IC601 A-5

Q701

D-2

IC671

D-4

Q702

D-2

IC672

D-4 Q703 D-2

IC781

E-2 Q704 E-1

IC801

D-5 Q705 E -1

IC851

D-2 Q706 E -2

IC852 E-3

Q707

E-2

IC1652 C-4

Q708

E-2

Q802

D-5

Q32 E-4

Q803

D-4
Q401 B-2 Q804 E-2
Q403 B-1 Q1651 C-4
Q404 B-1 Q1652 C-3
Q405 B-1 Q1653 C-3
Q406 B-1 Q1654 C-4
Q407 A-1 Q1655 C-4
Q408 C-1 Q1656 C-4
Q409 A-2 Q1657 C-4
Q410 B-1 Q1701 E-1
Q411 B-2
Q412 B-2 CN101A C-2
Q415 B-3 CN102A C-2
Q416 B-3 CN103A D-2
Q421 B-1

CN113

E-2
Q422 B-1

CN402

A-2
Q423 B-1

CN403

A-5
Q424 A-2

CN801

E-5
Q427 B-2

CN802

A-5
Q428 B-2 CN1701 E-2
Q501 C-2
Q502 C-2

TP402

A-3
Q503 C-2

TP403

B-1
Q505

C-3 TP1801 E-2

Q509

C-3 TP1802 E-2

Q510

C-2 TP1803 E-2

Q511

C-2 TP1804 E-2
Q512 C-2 TP1805 E-2
Q513 C-3 TP1806 E-3
Q531 C-2

TRANSISTORS

TEST POINTS

TRANSISTORS

CONNECTORS

ICS

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

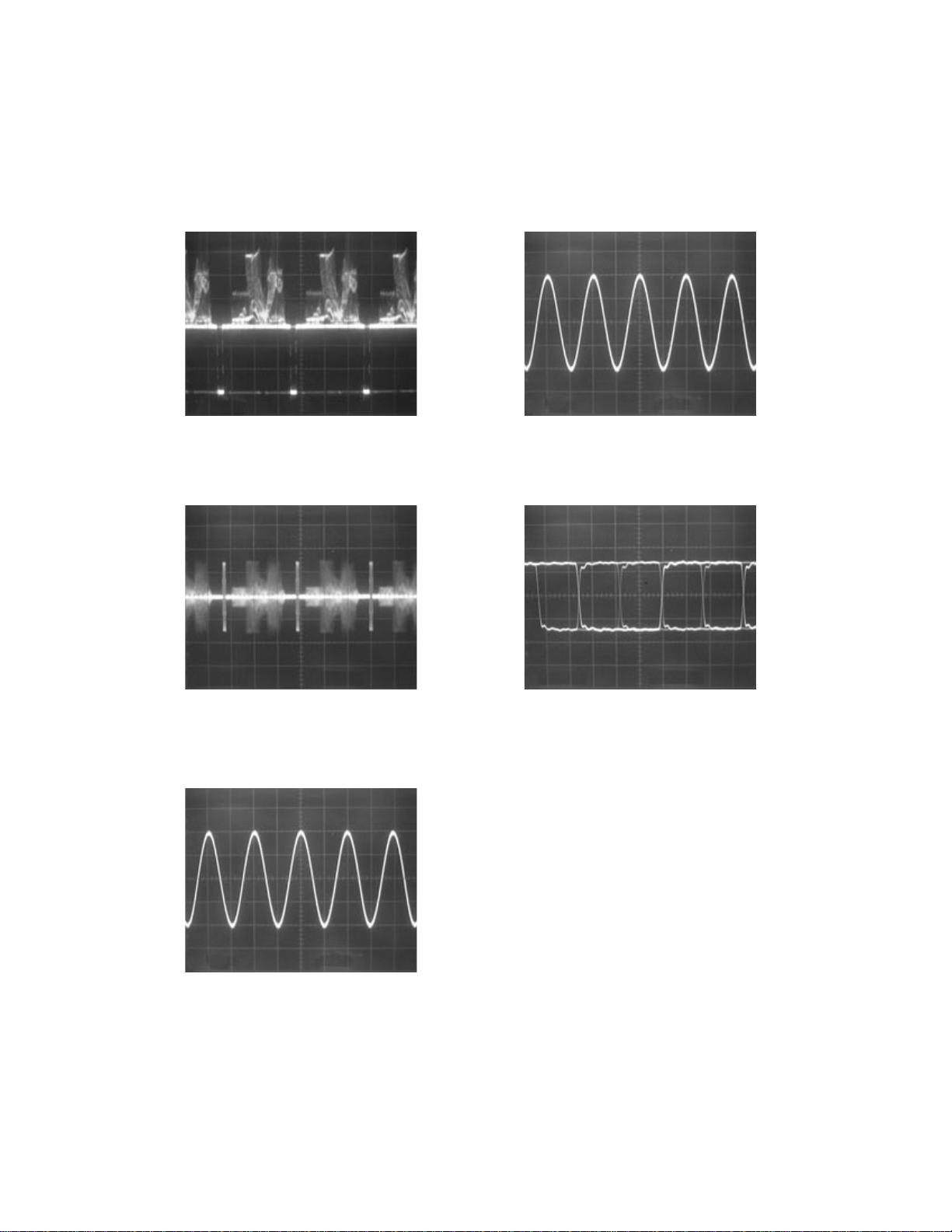

WF7

PIN 11 OF
CN103A

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

WF8 WF9

PIN 9 OF
CN103A

PIN 7 OF
CN103A

WF12

Q706
Emitter

10-17

WF10

Q704
Emitter

WF11

Q705
Emitter

WF13

PIN 1 OF
CN1701

WF14

PIN 3 OF
CN1701

WF15

PIN 6 OF
CN1701

WF16

PIN 8 OF
CN1701

WF17

PIN 11 OF
CN1701

WF6

PIN 14
OF IC801

BL3150F01012-1

Function CBA Top View

IR Sensor CBA Top & Bottom View

Function CBA Bottom View

BL3151F01031

BL3150F01012-3

10-18

BL3151F01031

WAVEFORMS < LCD TV SECTION >

WF1 ~ WF12 = Waveforms to be observed at

Waveform check points.
(Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

CLKH

WF1 1DIV: 1.0V 10

1DIV: 1.0V 10 s
R392

CLKV

WF2

1DIV: 1.0V 20ns
R365

STH1

WF5

AUDIO

WF6

R394

1DIV: 100mV 400
Pin 14 of IC801

S-VIDEO-C

s

WF9

1DIV: 200mV 20 s
Pin 7 of CN103A

VIDEO-Y

s

WF10

1DIV: 200mV 20

s

Q704 Emitter

POL

WF3 1DIV: 200mV 20

1DIV: 1.0V 20

s

R202

LP

WF4

1DIV: 1.0V 10

s

R201

CVBS

WF7

S-VIDEO-Y

WF8

Pin 11 of CN103A

1DIV: 200mV 20
Pin 9 of CN103A

11-1

VIDEO-Pb/Cb

s

WF11

1DIV: 200mV 20

s

Q705 Emitter

VIDEO-Pr/Cr

s

WF12

1DIV: 200mV 20

s

Q706 Emitter

L3151WF1

WAVEFORMS < DVD SECTION >

20

0.1V

DVD-Y

DVD-C

0.1V

20

DVD-AUDIO(L)1V1V

0.5ms

DVD-AUDIO(R)1V1V

0.5ms

SPDIF

1V

0.1

DVD-Y

WF13

DVD-C

WF14

Pin 1 of CN1701

0.1V

Pin 3 of CN1701

20

µ

s0.1V

20

µ

s

DVD-AUDIO(R)

WF16

WF17

Pin 8 of CN1701

SPDIF

Pin 11 of CN1701

1V

0.5ms

0.1

µ

s

WF15

DVD-AUDIO(L)

Pin 6 of CN1701

0.5ms

11-2

NOTE:

Input
CD: 1kHz PLAY
(WF15~WF17)
DVD: POWER ON (STOP) MODE
(WF13~WF14)

L3151WF2

WIRING DIAGRAM < LCD TV SECTION >

>

TO WIRING

DIAGRAM

<DVD SECTION

153

CN1761

DISC-OUT

CN1751

EV+1.2V

CL1651

141012

CN1651

EV+1.2V

NU

CN101A

1

NU

CN101B

2

4

EV+1.2V

EV+1.2V

EV+3.3V(D)

EV+3.3V(D)

EV+1.2V

EV+3.3V(A)

13

11

EV+1.2V

EV+3.3V(A)

EV+3.3V(D)

GND

NU

PANEL+3.3V

386

4

2

895

7

6

NU

GND

PANEL+3.3V

7

6

EV+3.3V(A)

EV+3.3V(A)

DVD-ON+3.3V

DVD-ON+5V

DVD-ON+3.3V

EV+3.3V(A)

9

8

1014121113

8

9

EV+3.3V(A)

DVD-ON+5V

DVD-ON+3.3V

PANEL+25V

PANEL+10.8V

GND

3

4

GND

PANEL+25V

PANEL+10.8V

9

8

101412

EV+9V

EV+9V

DVD-ON+5V

GND

EV+9V

EV+9V

724

6

6

7

51342

GND

EV+9V

EV+9V

GND

PANEL-6V

957

1

2

GND

PANEL-6V

11

GND

GND

GND

GND

GND

GND

CN103A

VIDEO-Pr/Cr

231921

CN103B

VIDEO-Pr/Cr

13

15

GND

GND

GND

SENSOR+3.3V

GND

153

GND

SENSOR+3.3V

VIDEO-Pb/Cb

GND

GND

22

20

GND

GND

VIDEO-Pb/Cb

16

GND

CN102B

CN102A

VIDEO-Y

51342

VIDEO-Y

(CL1761)

TO DVD

MAIN CBA

UNIT CN401

18

17

1923212022

GND

DVD-MUTE

232122192017181615

DVD-MUTE

GND

6

18

GND

FP-DIN

FP-CLK

DISC-IN

DVD-PWR-CON

BACKLIGHT-ADJ

GND

GND

BACKLIGHT-SW

51342

GND

GND

BACKLIGHT-ADJ

BACKLIGHT-SW

S-VIDEO-C

GND

GND

S-VIDEO-Y

8

9

7

15

17

16

141012

GND

GND

S-VIDEO-Y

S-VIDEO-C

SDATA

REMOTE

DVD-PWR-CONNUP-ON-H

6

7

NU

DVD-PWR-CON

CVBS

GNDNUGNDNUAL+3.3V(A)

11

13

GNDNUGND

CVBS

25

24

TREDCONTV

SENSOR+3.3V

AUDIO-MUTE

VOLUME

P-ON-H2(NU)

1411121310

8

9

10

11

P-ON-H

VOLUME

P-ON-H2(NU)

AUDIO-MUTE

15

16

141012

13

8

9

14

NU

AL+3.3V(A)

INPUT-0

PROTECT-1

INPUT-1

AFT-IN

PROTECT-2

978563421

15

16

14

12

13

AFT-IN

INPUT-0

INPUT-1

PROTECT-1

PROTECT-2

GND

AL+7V(D)

BUS-OPEN

PROTECT-3

DVD-MAIN-POWER

172220

18

6

7

51342

GND

AL+7V(D)

BUS-OPEN

PROTECT-3

DVD-MAIN-POWER

SDA

S-SW

SCL

172220

18

SCL

SDA

S-SW

GND

FSC

231921

FSC

GND

GND

P-25V-ON

GND

AL+5V

231921

GND

GND

AL+5V

P-25V-ON

GND

SCL

SDA

BUS-OPEN

(NO CONNECTION)

134

2

CN113

153

2

GND

DVD-Y

CN1701

CN113 IS USED

FOR ADJUSTMENT

AT FACTORY

TU1 TUNER UNIT

(CL1701)

TO DVD

MAIN CBA

UNIT CN601

9

7

4

6

8

10

11

GND

GND

DVD-C

DVD-AUDIO(L)

MAIN CBA

DVD-MUTE

DVD-AUDIO(R)

DVD-AUDIO+5V

DVD-AUDIO+5V

AUDIO2

AUDIO2

AUDIO1

AUDIO1

VIDEO

VIDEO

VIDEO

VIDEO1

SPDIF

(L)-IN

(R)-IN

(L)-IN

(R)-IN

-Pr/Cr IN

-Pb/Cb IN

-Y IN

-IN

LCD MAIN CBA UNIT

CN104

CLN904

1

CN312

GND

KEY-IN-2

132

1

KEY-IN-2

KEY-IN-1

2

KEY-IN-1

2NU

AL+3.3V(D)

GND

4

3

4

GND

AL+3.3V(D)

3

V-COM4V-COM

NUNUNU

NU

576

8

576

8

NU

NUNUNU

FUNCTION CBA

ER(0)

ER(1)

ER(2)

ER(3)

ER(4)

ER(5)

132547689

CN311

5NU

6

7NU

8

9NU

10

11NU12OFFEV

VEEG(-6V)

VDDG(+25V)

VDDD(+3.3V)

AL+5V

RCV-IN

GND

P-ON-H

CN105

132

4

5 NU

CN801

SP-R

1

AL+5V

CLN105

2

GND

3

RCV-IN

4

5

NU

P-ON-H

1

CLN801

GND

2

IR SENSOR CBA

SP801

SPEAKER

GND

CLKH

GND

GND

HMS1-E

GND

HMS1-0

GND

OB(5)

OB(4)

OB(3)

OB(2)

OB(1)

OB(0)

GND

OG(5)

24VREF(7)

25VREF(6)

26VREF(5)

27

GND

OG(4)

28VREF(4)

101312111415171619182120222324272625282930

13STV1

14

15

16GND

CLKV

17NU18NU19NU20NU21

XAO

GND

22

23VREF(8)

VREF(9)

12-1

OG(3)

OG(2)

OG(1)

29

31VREF(1)

VREF(3)30VREF(2)

CN802

SP-L

1

SP802

OG(0)

GND

32

33VDDA(+10.8V)

VREF(0)

GND

2

CLN802

SPEAKER

OR(5)

OR(4)

OR(3)

34

35

36V-COM

V-COM

VDDA(+10.8V)

AC CORD

AC601

OR(2)

OR(1)

OR(0)

GND

GND

VDDD(+3.3V)

VDDD(+3.3V)

40EB(3)

41

EB(2)

42EB(1)

43

EB(0)

VDDD(+3.3V)

44

GND

333231

3435373639384140424344

37GND

38EB(5)

39EB(4)

CN402

2

1

BACK

LIGHT

VDDD(+3.3V)

GND

STH1

POLLPGND

45EG(5)

46

47EG(3)

48

EG(4)

EG(2)49EG(1)

45

50EG(0)

CN403

1

BACK

S-VIDEO

DIGITAL

2

LIGHT

IN

AUDIO OUT

(COAXIAL)

LCD MODULE

L3151WI

WIRING DIAGRAM < DVD SECTION >

TO MAIN CBA

CN1701

TO WIRING DIAGRAM

< LCD TV SECTION >

(CL1761) (CL1701)

TO LCD MAIN CBA UNIT

CN1761

DVD-Y 81
GND 92
DVD-C 103
GND 114
GND 125
DVD-AUDIO(L) 136
DVD-MUTE 147

CN1701

DVD-AUDIO(R) 158
DVD-AUDIO+5V 169
DVD-AUDIO+5V 1710
SPDIF 1811

DISC-OUT 11
EV+1.2V 22
EV+1.2V 33
EV+3.3V(D) 44
EV+3.3V(A) 55
EV+3.3V(A) 66
DVD-P-ON+3.3V 77
DVD-P-ON+5V 88
EV+9V 99
EV+9V 1010
GND 1111
GND 1212
GND 1313
GND 1414

CN1761

GND 1515
GND 1616
GND 1717
DVD-PW-RCON 1818
FP-CLK 1919

(CN1761 is soldered directly to the PCB.)

FP-DIN 2020
DISC-IN 2121
SDATA 2222
REMOTE
SENSOR+3.3V 2424
TREDCONTV 2525

CN601

CN401

2323

P-ON+5V 20

CD/DVD 19

CN201CN301

GND(LD) 9

DVD-LD 8

PD-MONI 7
GND(DVD-PD)
GND(CD-PD) 5

TRAY-IN 5

DVD MAIN CBA UNIT

D 18
A 17
C 16

B

E 14

VREF 13

F 12

GND 11

CD-LD 10

TS(-) 4

FS(-) 3
FS(+) 2
TS(+) 1

SL(+) 8

SL(-) 7

GND 6

SP(-) 4
SP(+) 3

CN801

4

15

6

FS

TS

M

SLED

MOTORMSPINDLE

MOTOR

DETECTOR

7 9 11 2 3 6 5

PICK UP UNIT

DVD MECHANISM

DRIVE CBA

TRAY-IN

CN5001 is soldered

directly to the PCB.

LED-POWER 11
DISC-OUT 22
DISC-IN 33
GND 44

CN5001

DISC-OUT

SENSOR CBA

12-2

DISC-IN

L3151WID

SYSTEM CONTROL TIMING CHARTS

Disc In ~ Play/Play ~ Disc Out

Disc IN

(TL221)

Sled Drive
(TP303)

Disc Drive
(TP301)

Focus Drive
(TP304)

Tracking Drive
(TP302)

3.3V

0V

1.65V

0V

1.65V

0V

1.65V

0V

1.65V

0V

Disc
In

Disc
Rotation

Play

Disc
Stop

Disc
Out

13-1 L3150TI

LEAD IDENTIFICATIONS

2SC2785(F)
BA1F4M-T

ECB

TC4053BF(EL.N)
TC4052BF(EL)

16

1

2SA1175(F)
2SC2120-O(TE2 F T)

KIA7805API

2SD400(F)
2SC2120-Y(TE2 F T)

1: IN
2: GND
3: OUT

123

ECB

AN5832SA-E1V

9

8

32

1

17

16

AN17812A

16

1

9

8

PS2501-1L

1

2

1: A

4

2: K

3

3: E
4: C

PQ070XF01SZH
KA78R08C

1: Vin
2: Vo
3: GND

1234

4: Vc

2SA1887

B C E

NJM78L05

12

3

2SK4033

G D S

S: Souce
D: Drain
G: Gate

2SK3869(Q)

G D S

2SA1576A T106R
2SC4081 T106 Q

S: Souce
D: Drain
G: Gate

C

BE

M61116FP TF0G

20

1

Note:

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
S: Source
G: Gate
D: Drain

11

10

14-1 L3151LE

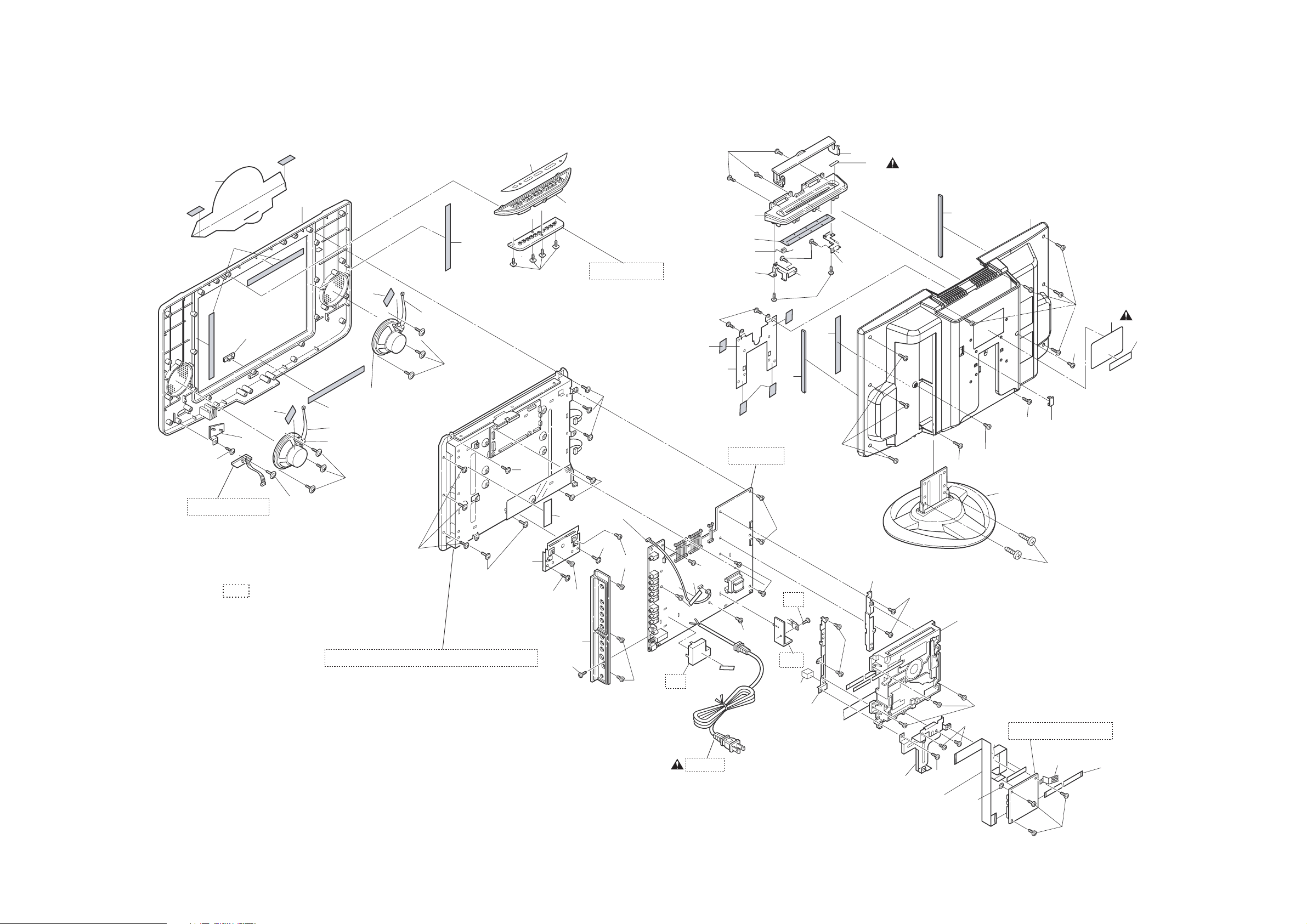

Cabinet

EXPLODED VIEWS

A28

B18

A2

A11

L1

IR Sensor CBA

A1

B5

SP802

B5

L25

B18

CLN801

SP801

L25

See Electrical Parts List
for parts with this mark.

LCD Main CBA & Liquid Crystal Panel Unit

CLN802

L1

L25

B18

L1

A3

B12

L1

L1

L1

A7

B30

L21

B4

L9

Function CBA

L1

L1

CL1651

L1

L21

L21

B7

B35

Z5

L21

L23

L21

L23

B3

A14

B28
B27

B32

B35

Main CBA

L21

B18

L21

L21

L4

B22

B29

B25

B35

L23

B34

L14

L2

B31

L21

A15

A16

B24

L21

B18

L2

1B1

L2

L17

L3

A4

L17

L2

A10

A9

L24

DVD Main CBA Unit

L2

A6

S5

AC601

B26

L3

CL1761

B17

B33

CL1701

L21

15-1 L3151CEX

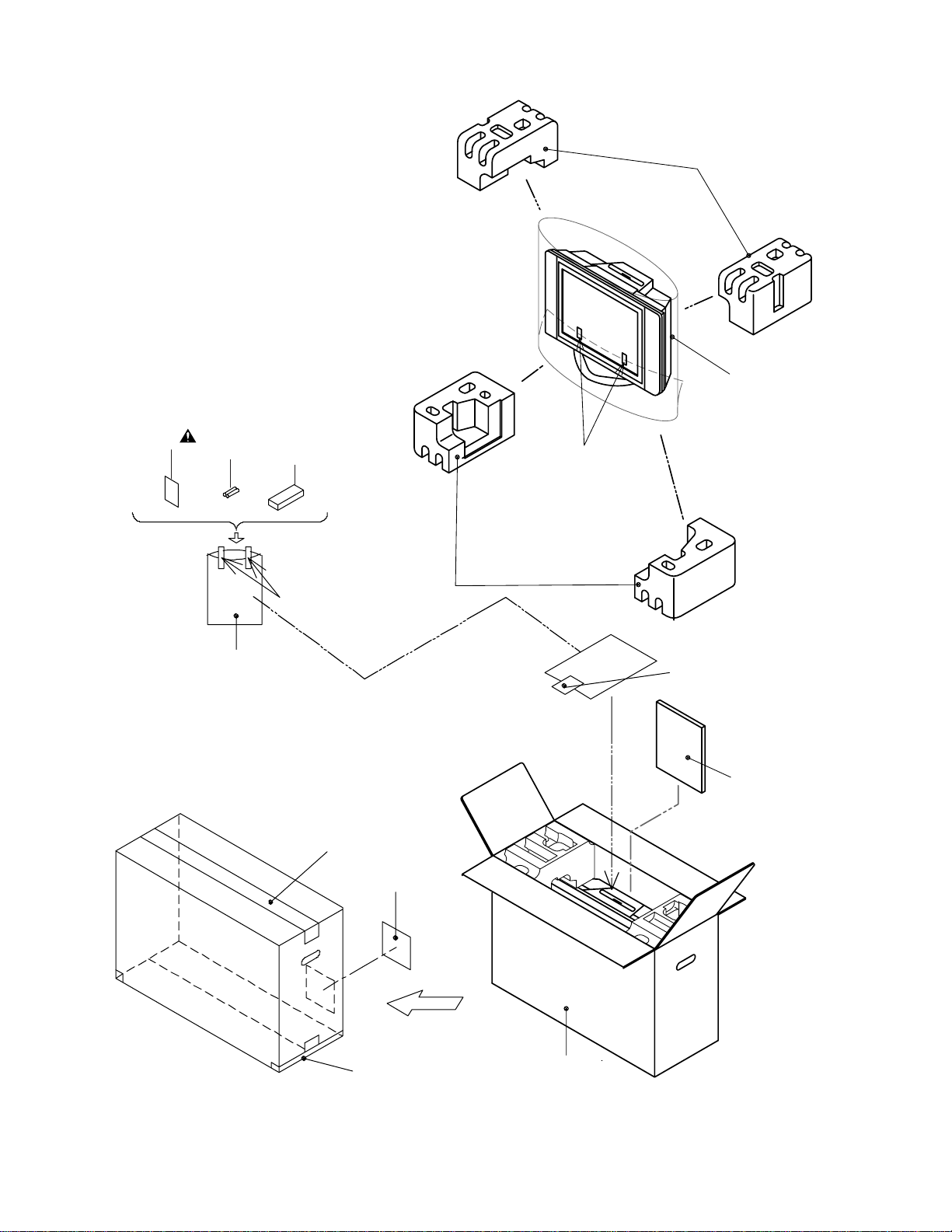

Packing

S2

Some Ref. Numbers are
not in sequence.

S4

X2

X4

X1

X3

Tape

Packing Tape

Tape

S3

Packing Tape

S8

S5

Packing Tape

FRONT

FRONT

S1

15-2 L3151PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A1 FRONT CABINET L3108UJ 1EM220182A
A2 BRAND BADGE L0200UA~SYLVANIA~ 0EM409019
A3 CONTROL PLATE L3151UB 1EM321089
A4 REAR CABINET L3151UB 1EM020507
A6# RATING LABEL L3151UB ---------­A7 FUNCTION KNOB L3151UB 1EM220546
A9 TILT STAND ASSEMBLY L3150UA 1EMN20040A
A10 CONNECTER CAP L3151UB 1EM422131
A11 LED LENS L3107UH 1EM320175
A14 DVD BASE L3150UA 1EM421054A
A15 DVD DOOR L3150UA 1EM421055
A16# CAUTION LABEL L3150UA ---------­A28 POP SHEET L3150UA 1EM320395
1B1 DVD MECHA (TV-SLOT IN) N7XT0JVM N7XT0JVM
B3 STAND HOLDER L3201UB 1EM320164A
B4 JACK HOLDER L3150UA 1EM320237
B5 CLOTH(10X30XT0.5) B5900UA 0EM404486
B12 TILT STAND HOLDER L3107UH 1EM320176
B17 WASHER(D8) H1600UD 0VM408931
B18 CLOTH(10X190XT0.3) L0200UA 1EM420019
B24 15V DVD HOLDER(R) L3150UA 1EM320274B
B25 15V DVD HOLDER(L) L3150UA 1EM320200A
B26 LOADER PCB HOLDER L3150UA 1EM220261
B27 DVD DOOR SPRING L3150UA 1EM420018B
B28 FELT L3150UA 1EM420406A
B29 RUBBER CUSHION NE300UD 1EM421580
B30 LASER CAUTION LABEL L3150UA ---------­B31 BASE HOLDER(L) L3150UA 1EM421403
B32 BASE HOLDER(R) L3150UA 1EM421404
B33 LOADER EARTH PLATE L3150UA 1EM421402A
B34 CLOTH 10X150XT1.0 1EM421092
B35 CLOTH(15X30XT1.0) B7507UH 0EM402452
CL1651 14P WIRE ASSEMBLY WX1L3150-005 WX1L3150-005
CL1701 11P FFC CABLE WX1L3150-001 WX1L3150-001
CL1761 25P FFC CABLE WX1L3150-002 WX1L3150-002
CLN801 SPEAKER WIRE ASSEMBLY WX1L3101-001 WX1L3101-001
CLN802 SPEAKER WIRE ASSEMBLY WX1L3101-001 WX1L3101-001
L1 SCREW P-TIGHT 3X12 WASHER HEAD+ GCMP3120
L2 SCREW P-TIGHT 3X12 BIND HEAD+ BLK GBKP3120
L3 SCREW S-TIGHT M3X10 BIND HEAD+ GBMS3100
L9 SCREW P-TIGHT 3X10 BIND HEAD+ GBKP3100
L14 P-TIGHT SCREW 3X8 BIND + GBMP3080
L17 SCREW S-TIGHT M3X8 BIND HEAD + BLK GBKS3080
L21 SCREW S-TIGHT M3X8 BIND HEAD+ GBMS3080
L23 SCREW P-TIGHT M3X8 BIND HEAD+ BLK GBKP3080
L24 SCREW P-TIGHT 4X16 BIND HEAD + GBMP4160
L25 ASSEMBLED SCREW M3X10 1EM420633
SP801 SPEAKER S08F02B DSD0808XQ010

Ref. No. Description Part No.

SP802 SPEAKER S08F02B DSD0808XQ010

PACKING

S1 CARTON L3151UB 1EM422133
S2 STYROFOAM TOP L3108UJ 1EM020188A
S3 STYROFOAM BOTTOM L3108UJ 1EM020189B
S4 SET BAG L0371UB 1EM320117
S5 SERIAL NO. LABEL L9750UA ---------­S8 STAND HOLD PAD L3108UJ 1EM421191

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A
X2# OWNERS MANUAL L3151UB 1EMN20989
X3 REMOTE CONTROL 192/ECNLC3D1/

X4 DRY BATTERY R6P/2S XB0M451T0001

NE240UD

NE240UD

20050926 16-1 L3151CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DVD MAIN CBA UNIT

Ref. No. Description Part No.

DVD MAIN CBA UNIT N7XT2JUP

LCD MAIN CBA & LIQUID CRYSTAL
PANEL UNIT

Ref. No. Description Part No.

LCD MAIN CBA & LIQUID CRYSTAL PANEL
UNIT

1FSA10096

MMA CBA

Ref. No. Description Part No.

MMA CBA
Consists of the following:

MAIN CBA
FUNCTION CBA
IR SENSOR CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA
Consists of the following:

CAPACITORS

C11 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C12 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C13 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C15 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C21 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C22 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101
C23 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C24 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C25 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C26 PCB JUMPER D0.6-P5.0 JW5.0T
C27 FILM CAP.(P) 0.018µF/50V J CA1J183MS029
C28 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473
C29 CHIP CERAMIC CAP. CH D 3pF/50V CHD1JD3CH3R0
C30 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C31 PCB JUMPER D0.6-P5.0 JW5.0T

1ESA11730

----------

----------

----------

----------

Ref. No. Description Part No.

C32 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101
C34 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C35 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL010
C36 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C37 CHIP CERAMIC CAP. CH J 680pF/50V CHD1JJ3CH681
C39 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMASSLR47
C41 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C42 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C43 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C44 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101
C45 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C46 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C401 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C403 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C404 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C406 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C408 PP CAP. 0.13µF/250V J CT2E134MS041
C409 PP CAP. 0.13µF/250V J CT2E134MS041
C411 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C454 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100
C455 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100
C456 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100
C457 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100
C458 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100
C459 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100
C460 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100
C461 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100
C468 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473
C469 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473
C471 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C472 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C474 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C477 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C479 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C501 ELECTROLYTIC CAP. 22µF/50V M H7 CE1JMAVSL220
C502 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C503 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C504 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C505 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C506 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C507 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C508 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C515 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C531 ELECTROLYTIC CAP. 330µF/50V M CE1JMZPDL331
C532 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224
C534 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C535 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C537 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C538 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C539 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C601# METALIZED FILM CAP. 0.22µF/250V CT2E224MS037
C608 CERAMIC CAP. B K 1000pF/2KV CCD3DKP0B102
C610# ELECTROLYTIC CAP. 100µF/200V M CE2DMZPDL101
C612 FILM CAP.(P) 0.01µF/50V J CMA1JJS00103
C613 FILM CAP.(P) 0.056µF/50V J CMA1JJS00563
C614 PCB JUMPER D0.6-P5.0 JW5.0T
C615 PCB JUMPER D0.6-P5.0 JW5.0T
C631# ELECTROLYTIC CAP. 2200µF/25V M CE1EMZPDL222
C633# ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C635# ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471

20050926 17-1 L3151EL

Ref. No. Description Part No.

C636# CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C637# ELECTROLYTIC CAP. 2200µF/25V M CE1EMZPDL222
C638 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C639# ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471
C641# SAFETY CAP. 4700pF/250V KX CA2E472MR050
C643 ELECTROLYTIC CAP. 1000µF/10V M CE1AMZPDL102
C644# ELECTROLYTIC CAP. 100µF/50V M CE1JMASTL101
C645# ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C646 FILM CAP.(P) 0.082µF/50V J CMA1JJS00823
C648# ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C649 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C650 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C652# ELECTROLYTIC CAP. 470µF/25V M CE1EMZPDL471
C654# ELECTROLYTIC CAP. 100µF/200V M CE2DMZPDL101
C657 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C659 FILM CAP.(P) 0.022µF/50V J CMA1JJS00223
C660 FILM CAP.(P) 0.0068µF/50V J CMA1JJS00682
C671 ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471
C672 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C673 ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471
C674 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C701 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C702 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C703 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C704 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C705 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C706 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C707 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C708 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C711 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C712 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C713 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C714 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C715 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C716 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C722 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C726 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C730 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C734 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C735 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C736 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C738 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C739 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101
C740 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C751 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C752 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C753 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C754 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C781 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMAVSL100
C782 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C784 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C785 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101
C787 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C801 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C802 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C803 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104
C804 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104
C805 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C806 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C807 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C809 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C811 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C812 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

Ref. No. Description Part No.

C813 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C818 ELECTROLYTIC CAP. 2200µF/16V M CE1CMZPDL222
C819 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C820 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C822 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C823 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C824 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562
C825 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562
C826 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C851 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C852 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C853 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2
C854 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C855 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C856 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334
C857 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2
C858 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2
C859 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C860 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMAVSL100
C861 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101
C862 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C863 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2
C864 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223
C865 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C866 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C867 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C868 CHIP CERAMIC CAP. B K 1µF/16V CHD1CK30B105
C869 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223
C1652 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1653 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C1654 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1655 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1656 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C1657 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1658 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1659 CERAMIC CAP. B K 1000pF/500V CCD2JKS0B102
C1662 ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASDL221
C1664 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C1665 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1666 ELECTROLYTIC CAP. 470µF/25V M CE1EMZPDL471
C1667 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1668# ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1703 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C1705 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C1803 PCB JUMPER D0.6-P5.0 JW5.0T
C1804 PCB JUMPER D0.6-P5.0 JW5.0T
C1805 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1806 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

CONNECTORS

CN113 PH CONNECTOR (WHITE) TOP 4P B4B-PH-K-

CN402 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001
CN403 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001
CN801 STRAIGHT CONNECTOR BASE 00 8283 0212

CN802 STRAIGHT CONNECTOR BASE 00 8283 0212

CN1651 PHD CONNECTOR B14B-PHDSS-B(LF)(SN) J3F5D14JG003
CN1701 FMN CONNECTOR TOP 11P 11FMN-BTRK JCFNG11JG002
CN101A TWG CONNECTOR 09P TWG-P09P-A1 J3TWA09TG001
CN102A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001
CN103A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

S(LF)

00 000

00 000

J3PHC04JG017

J383C02UG002

J383C02UG002

20050926 17-2 L3151EL

Ref. No. Description Part No.

DIODES

D31 SWITCHING DIODE 1SS400 QD1Z001SS400
D402 SWITCHING DIODE 1SS400 QD1Z001SS400
D403# ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1
D404# SWITCHING DIODE 1SS400 QD1Z001SS400
D405# SWITCHING DIODE 1SS400 QD1Z001SS400
D406# SWITCHING DIODE 1SS400 QD1Z001SS400
D407# SWITCHING DIODE 1SS400 QD1Z001SS400
D408 ZENER DIODE MTZJT-7710B QDTB00MTZJ10
D409 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D410 SWITCHING DIODE 1SS400 QD1Z001SS400
D411 SWITCHING DIODE 1SS400 QD1Z001SS400
D412# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D413# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D414 SWITCHING DIODE 1SS400 QD1Z001SS400
D415 SWITCHING DIODE 1SS400 QD1Z001SS400
D420# SWITCHING DIODE 1SS400 QD1Z001SS400
D421# SWITCHING DIODE 1SS400 QD1Z001SS400
D422 SWITCHING DIODE 1SS400 QD1Z001SS400
D423 SWITCHING DIODE 1SS400 QD1Z001SS400
D428 SWITCHING DIODE 1SS400 QD1Z001SS400
D430 SWITCHING DIODE 1SS400 QD1Z001SS400
D440 SWITCHING DIODE 1SS400 QD1Z001SS400
D441 SWITCHING DIODE 1SS400 QD1Z001SS400
D442 SWITCHING DIODE 1SS400 QD1Z001SS400
D443 SWITCHING DIODE 1SS400 QD1Z001SS400
D444 SWITCHING DIODE 1SS400 QD1Z001SS400
D445 SWITCHING DIODE 1SS400 QD1Z001SS400
D446 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D447 SWITCHING DIODE 1SS400 QD1Z001SS400
D448 SWITCHING DIODE 1SS400 QD1Z001SS400
D449 SWITCHING DIODE 1SS400 QD1Z001SS400
D450 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D451 SWITCHING DIODE 1SS400 QD1Z001SS400
D452 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D453 SWITCHING DIODE 1SS400 QD1Z001SS400
D454 SWITCHING DIODE 1SS400 QD1Z001SS400
D455 SWITCHING DIODE 1SS400 QD1Z001SS400
D466 SWITCHING DIODE 1SS400 QD1Z001SS400
D467 SWITCHING DIODE 1SS400 QD1Z001SS400
D468 SWITCHING DIODE 1SS400 QD1Z001SS400
D469 SWITCHING DIODE 1SS400 QD1Z001SS400
D480 ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1
D501# SWITCHING DIODE 1SS400 QD1Z001SS400
D502 ZENER DIODE MTZJT-7727B QDTB00MTZJ27
D504# SWITCHING DIODE 1SS400 QD1Z001SS400
D505 IC SHUNT REGULATOR KIA431-AT NSZLA0TJY001
D506 SWITCHING DIODE 1SS400 QD1Z001SS400
D507 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D510 SWITCHING DIODE 1SS400 QD1Z001SS400
D511 SWITCHING DIODE 1SS400 QD1Z001SS400
D512 SWITCHING DIODE 1SS400 QD1Z001SS400
D513 SWITCHING DIODE 1SS400 QD1Z001SS400
D514 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004
D515 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
D520 SCHOTTKY BARRIEA DIODE 11EQS04 QD4Z011EQS04
D522 SWITCHING DIODE 1SS400 QD1Z001SS400
D523 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004
D527 SCHOTTKY BARRIEA DIODE 11EQS04 QD4Z011EQS04
D605# DIODE 1N5397(FORMING B322- NDWZ001N5397
D606# DIODE 1N5397(FORMING B322- NDWZ001N5397
D607# DIODE 1N5397(FORMING B322- NDWZ001N5397

Ref. No. Description Part No.

D608# DIODE 1N5397(FORMING B322- NDWZ001N5397
D609 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D611# ZENER DIODE MTZJT-7722B QDTB00MTZJ22
D612 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D613 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D615 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D616# ZENER DIODE MTZJT-7733B QDTB00MTZJ33
D620 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D624# ZENER DIODE MTZJT-7733B QDTB00MTZJ33
D630# SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009
D631# DIODE FR154 NDLZ000FR154
D633# SCHOTTKY BARRIER DIODE ERC81-006 QDQZERC81006
D635# SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009
D636 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D637# SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009
D641# ZENER DIODE MTZJT-7733C QDTC00MTZJ33
D642 SWITCHING DIODE 1SS400 QD1Z001SS400
D643 SWITCHING DIODE 1SS400 QD1Z001SS400
D645# DIODE FR154 NDLZ000FR154
D646# DIODE 1ZC43 QDQZ0001ZC43
D647# ZENER DIODE MTZJT-7739B QDTB00MTZJ39
D648# SWITCHING DIODE 1SS400 QD1Z001SS400
D649# IC SHUNT REGULATOR KIA431-AT NSZLA0TJY001
D650 SWITCHING DIODE 1SS400 QD1Z001SS400
D651 SWITCHING DIODE 1SS400 QD1Z001SS400
D652 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D653 SWITCHING DIODE 1SS400 QD1Z001SS400
D658 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D659 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D661 RECTIFIER DIODE FR202-B/P NDQZ000FR202
D662# SWITCHING DIODE 1SS400 QD1Z001SS400
D668 SWITCHING DIODE 1SS400 QD1Z001SS400
D671 RECTIFIER DIODE FR202-B/P NDQZ000FR202
D672 SWITCHING DIODE 1SS400 QD1Z001SS400
D681 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D682 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D701 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2
D702 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2
D703 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2
D801 SWITCHING DIODE 1SS400 QD1Z001SS400
D802 SWITCHING DIODE 1SS400 QD1Z001SS400
D803 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D804 SWITCHING DIODE 1SS400 QD1Z001SS400
D805 SWITCHING DIODE 1SS400 QD1Z001SS400
D810 ZENER DIODE MTZJT-773.3B QDTB0MTZJ3R3
D1651 ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6
D1652 IC SHUNT REGULATOR KIA431-AT NSZLA0TJY001
D1653 SWITCHING DIODE 1SS400 QD1Z001SS400
D1654 RECTIFIER DIODE ERA15-02 AERA1502****
D1655 SWITCHING DIODE 1SS400 QD1Z001SS400
D1656 ZENER DIODE MTZJT-773.9B QDTB0MTZJ3R9
D1657 IC SHUNT REGULATOR KIA431-AT NSZLA0TJY001
D1658 RECTIFIER DIODE FR202-B/P NDQZ000FR202
D1659# DIODE FR104-B NDLZ000FR104
D1660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1661 SCHOTTKY BARRIER DIODE 21DQ04 QDQZ0021DQ04
D1664 RECTIFIER DIODE FR202-B/P NDQZ000FR202
D1665 SCHOTTKY BARRIEA DIODE 11EQS04 QD4Z011EQS04
D1666 RECTIFIER DIODE FR202-B/P NDQZ000FR202

ICS

IC31 IC VIF/SIF M61116FP TF0G QSZBA0SHT034
IC531# IC REGULATOR KA78R08C NSZBA0SF3119

20050926 17-3 L3151EL

Ref. No. Description Part No.

IC533 IC NJM78L05 QSBLA0ZJR034
IC601# PHOTO COUPLER PS2501-1L QPEL0PS25011
IC671 VOLTAGE REGULATOR KIA7805API NSBBA0SJY011
IC672 VOLTAGE REGULATOR KIA7805API NSBBA0SJY011
IC781 IC TC4053BF(EL.N) QSZBA0TTS131
IC801 IC AN17812A QSZBA0SMS017
IC851 IC MTS DECORDER AN5832SA-E1V QSZBA0TMS003
IC852 IC SWITCHING TC4052BF(EL) QSZBA0TTS096
IC1652 VOLTAGE REGULATOR PQ070XF01SZH QSZBA0SSH054

COILS

L11 INDUCTOR 22µH-K-5FT LLARKBSTU220
L12 PCB JUMPER D0.6-P5.0 JW5.0T
L13 INDUCTOR 0.47µH-J-26T LLAXJATTUR47
L21 INDUCTOR 100µH-K-5FT LLARKBSTU101
L22 INDUCTOR 150µH-J-26T LLAXJATTU151
L31 INDUCTOR 22µH-K-5FT LLARKBSTU220
L32 INDUCTOR 18µH-J-26T LLAXJATTU180
L401 CHOKE COIL ELC10D330E LLC330KMS003
L403 CHOKE COIL ELC10D330E LLC330KMS003
L601# LINE FILTER 5.0MH 6Y075 LLBG00ZKT004
L701 INDUCTOR 22µH-K-5FT LLARKBSTU220
L781 PCB JUMPER D0.6-P5.0 JW5.0T
L851 PCB JUMPER D0.6-P5.0 JW5.0T
L1701 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q32 TRANSISTOR 2SA1175(F) QQSF02SA1175
Q401# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q403 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M
Q404 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q405 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q406 TRANSISTOR 2SA1175(F) QQSF02SA1175
Q407# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q408 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q409 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q410 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q411# MOS FET 2SK4033 QF1Z2SK4033Q
Q412# MOS FET 2SK4033 QF1Z2SK4033Q
Q415# MOS FET 2SK4033 QF1Z2SK4033Q
Q416# MOS FET 2SK4033 QF1Z2SK4033Q
Q421 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q422 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q423 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q424 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q427 TRANSISTOR 2SA1887 QQWZ02SA1887
Q428 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q501 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q502 TRANSISTOR 2SA1576A T106R QQ1R2SA1576A
Q503 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q505 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q509 TRANSISTOR 2SA1576A T106R QQ1R2SA1576A
Q510 TRANSISTOR 2SA1175(F) QQSF02SA1175
Q511 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M
Q512 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q513 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q531 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q601# FET 2SK3869(Q) QFWZ2SK3869Q
Q603# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q633 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081
Q701 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081
Q702 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081
Q703 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081
Q704 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081

Ref. No. Description Part No.

Q705 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081
Q706 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q707 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081
Q708 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081
Q802 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q803 TRANSISTOR 2SA1175(F) QQSF02SA1175
Q804 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q1651 TRANSISTOR 2SA1175(F) QQSF02SA1175
Q1652 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M
Q1653 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q1654 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q1655 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M
Q1656 TRANSISTOR 2SD400(F) QQUF002SD400
Q1657 TRANSISTOR 2SC2785(F) QQSF02SC2785
Q1701 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081

RESISTORS

R11 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R12 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R15 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R21 CHIP RES.(1608) 1/10W J 270k Ω RRXAJR5Z0274
R23 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R24 CHIP RES.(1608) 1/10W J 820k Ω RRXAJR5Z0824
R34 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R36 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R38 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R40 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153
R42 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R46 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R48 PCB JUMPER D0.6-P5.0 JW5.0T
R49 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R50 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R52 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R402 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R403 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153
R404 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R405 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R406 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R407 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R408 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R409 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153
R410 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R411# CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R412 CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470
R413 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R414 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R415 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R416 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R417 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R418 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R419 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R420 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330
R421 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R422 CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R423 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R424 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R425 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R426 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R427 CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470
R428 CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R429 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560
R440 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R441 CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561

20050926 17-4 L3151EL

Ref. No. Description Part No.

R442 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R443 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R444 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R445 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R446 CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470
R447 CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R448 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560
R450 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R451 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R452 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R455 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R463 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R464 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R465 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R466 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R471 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R475 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R476 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R480 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R481 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R482 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R486 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R487 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R488 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R489 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R490 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R491 METAL OXIDE FILM RES. 2W J 560 Ω RN02561ZU001
R492 METAL OXIDE FILM RES. 1W J 1k Ω RN01102ZU001
R495 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R496 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R497 METAL OXIDE FILM RES. 2W J 560 Ω RN02561ZU001
R501 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H1002
R502 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R503 CHIP RES.(100PPM) 1/10W F 3k Ω RRXAFR5H3001
R504 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471
R505 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R506 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R508 METAL OXIDE FILM RES. 1W J 4.7k Ω RN01472ZU001
R509 PCB JUMPER D0.6-P5.0 JW5.0T
R510 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R512 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R514 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R515 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R516 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R517 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R518 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R519 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R520 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R521 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R522 CHIP RES.(1608) 1/10W J 120k Ω RRXAJR5Z0124
R527 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R528 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R529 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R531 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R532 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R533 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R535 CHIP RES.(1608) 1/10W J 56k Ω RRXAJR5Z0563
R536 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R537 CHIP RES.(1608) 1/10W J 56k Ω RRXAJR5Z0563
R538 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0
R539 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R540 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R552 METAL OXIDE FILM RES. 1W J 1 Ω RN011R0ZU001

Ref. No. Description Part No.

R601# CEMENT RES. 3W K 1.2 Ω RW031R2PG007
R603 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R604 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R605 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R606 PCB JUMPER D0.6-P5.0 JW5.0T
R607 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R608 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R609 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R610 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R613# METAL OXIDE FILM RES. 2W J 0.47 Ω RN02R47ZU001
R620 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151
R621 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R622 PCB JUMPER D0.6-P5.0 JW5.0T
R623 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R632 METAL OXIDE FILM RES. 2W J 560 Ω RN02561ZU001
R635# CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273
R636 PCB JUMPER D0.6-P5.0 JW5.0T
R637# CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R642# CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273
R643# CHIP RES.(1608) 1/10W J 270k Ω RRXAJR5Z0274
R645 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R646 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R647 CHIP RES.(1608) 1/10W F 1.8k Ω RRXAFR5H1801
R648# CHIP RES.(1608) 1/10W F 2k Ω RRXAFR5H2001
R650# CHIP RES.(1608) 1/10W F 1.8k Ω RRXAFR5H1801
R652# CHIP RES. 1/10W F 1.2k Ω RRXAFR5H1201
R653# CHIP RES. 1/10W F 1.2k Ω RRXAFR5H1201
R654# CHIP RES. 1/10W F 1.2k Ω RRXAFR5H1201
R655 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R656 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R657 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391
R658 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471
R659 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R661# CHIP RES.(1608) 1/10W F 1.8k Ω RRXAFR5H1801
R664 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R665# CHIP RES. 1/10W F 1.1k Ω RRXAFR5H1101
R666# CHIP RES.(1608) 1/10W F 2k Ω RRXAFR5H2001
R667 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R668 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R670 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470
R672 PCB JUMPER D0.6-P5.0 JW5.0T
R701 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R702 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R703 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R704 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R705 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R706 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R707 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R708 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R709 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R710 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R711 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R712 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R713 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R714 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R715 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R716 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R717 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R718 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R719 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R720 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R721 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R722 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750

20050926 17-5 L3151EL

Ref. No. Description Part No.

R725 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R732 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R733 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R734 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R735 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R736 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R738 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R739 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R740 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R741 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R742 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R743 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R744 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R747 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R748 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R749 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R752 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R755 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R756 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R757 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R758 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R759 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R782 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R784 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R785 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R786 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R787 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R788 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R789 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R790 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R791 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R792 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R793 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R794 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R798 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R799 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R801 CARBON RES. 1/2W J 180 Ω RCX2JZQZ0181
R802 CARBON RES. 1/2W J 180 Ω RCX2JZQZ0181
R803 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R804 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R805# METAL RESISTER. 2W J 2.7 Ω RN022R7ZU001
R806 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R807# METAL RESISTER. 2W J 2.7 Ω RN022R7ZU001
R808 CHIP RES.(1608) 1/10W J 56k Ω RRXAJR5Z0563
R809 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184
R810 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R811 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R813 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R814 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R816 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R817 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R822 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R823 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R824 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R825 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R826 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R827 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R829 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R830 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R833 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R834 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R835 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R836 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331

Ref. No. Description Part No.

R837 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R838 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R839 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R842 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R843 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R844 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R851 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R852 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R853 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R855 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184
R859 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R860 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R861 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R862 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R863 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1631 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1651 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1653 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R1654 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220
R1655 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R1656 CHIP RES.(1608) 1/10W J 22 Ω RRXAJR5Z0220
R1657 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391
R1659 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R1662 CARBON RES. 1/4W J 1.5 Ω RCX4JATZ01R5
R1663 CARBON RES. 1/4W J 1.5 Ω RCX4JATZ01R5
R1664 CHIP RES.(1608) 1/10W F 18k Ω RRXAFR5H1802
R1665 CHIP RES.(1608) 1/10W F 56k Ω RRXAFR5H5602
R1666 PCB JUMPER D0.6-P5.0 JW5.0T
R1667 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1668 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R1670 CHIP RES.(1608) 1/10W F 8.2k Ω RRXAFR5H0822
R1671 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R1672 CHIP RES.(1608) 1/10W F 220 Ω RRXAFR5H2200
R1673 CHIP RES.(1608) 1/10W F 4.7k Ω RRXAFR5H0472
R1674 CHIP RES. 1/10W F 5.6k Ω RRXAFR5H0562
R1675 CHIP RES.(1608) 1/10W F 15k Ω RRXAFR5H1502
R1677 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0
R1679 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0
R1680 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R1681 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1682 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R1683 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R1701 CHIP RES.(1608) 1/10W J 160 Ω RRXAJR5Z0161
R1704 CARBON RES. 1/4W J 160 Ω RCX4JATZ0161
R1705 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1706 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1707 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1708 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1709 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1802 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1803 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1805 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R1806 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R1807 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R1808 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152

MISCELLANEOUS

AC601# AC CORD LP-11W&PT218P-K90A&S WAC0172LW020
B7 SHIELD BOX TOP L3201UB 1EM320159
B22 POW HEAT SINK PKG ASSEMBLY L3201UB 1EM420650
BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC630 PCB JUMPER D0.6-P5.0 JW5.0T
BC631 PCB JUMPER D0.6-P5.0 JW5.0T

20050926 17-6 L3151EL

Ref. No. Description Part No.

BC632 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC634 PCB JUMPER D0.6-P5.0 JW5.0T
BC636 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC637 PCB JUMPER D0.6-P5.0 JW5.0T
BC1651 PCB JUMPER D0.6-P5.0 JW5.0T
BC1652 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC1653 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC1654 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC1655 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
CF31 CERAMIC FILTER SFSRA4M50CF00-B0 FBB455PMR004
F601# FUSE 4.00A/125V PAGU20CAG402
FH601 FUSE HOLDER MSF-015 XH01Z00LY001
FH602 FUSE HOLDER MSF-015 XH01Z00LY001
GP641# GAP. FNR-G3.10D FAZ000LD6005
JK701 Y/C JACK 1P(SW) MDC-070V1-A JYEL040LY002
JK703 RCA JACK(YELLOW) MTJ-032-06B-20 JXRL010LY050
JK704 RCA JACK(WHITE) MTJ-032-06B-22 JXRL010LY052
JK705 RCA JACK(RED) MTJ-032-06A-21 JYRL010LY014
JK706 RCA JACK(GREEN) MTJ-032-06B-25 JXRL010LY054
JK707 RCA JACK(BLUE) MTJ-032-06B-28 JXRL010LY057
JK708 RCA JACK(RED) MTJ-032-06B-21 JXRL010LY051
JK709 RCA JACK(WHITE) MTJ-032-06B-22 JXRL010LY052
JK710 RCA JACK(RED) MTJ-032-06A-21 JYRL010LY014
JK801 MINI JACK MSJ-2000 JYSL010LY003
JK1701 RCA JACK(ORANGE) MTJ-032-08B-40 FE JXRL010LY128
JS21 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
JS524 PCB JUMPER D0.6-P5.0 JW5.0T
JS530 PCB JUMPER D0.6-P15.0 JW15.0T
JS531 PCB JUMPER D0.6-P5.0 JW5.0T
JS821 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
JS823 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
JS1654 PCB JUMPER D0.6-P16.5 JW16.5T
L4 SCREW B-TIGHT D3X8 BIND HEAD+ GBMB3080
SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB
SF11 SAW FILTER SAFHM45M7VAJZ01B03 FBB456PMR012
T402# INVERTER TRANS ETJV25ZB13AC LTZ00EPMS006
T403# INVERTER TRANS ETJV25ZB13AC LTZ00EPMS006
T601# POWER TRANSFOMER 15V 5741 LTT00CPKT191
TP1801 PCB JUMPER D0.6-P7.5 JW7.5T
TP1802 PCB JUMPER D0.6-P7.5 JW7.5T
TP1803 PCB JUMPER D0.6-P7.5 JW7.5T
TP1804 PCB JUMPER D0.6-P5.0 JW5.0T
TP1805 PCB JUMPER D0.6-P7.5 JW7.5T
TP1806 PCB JUMPER D0.6-P7.5 JW7.5T
TP402 PCB JUMPER D0.6-P10.0 JW10.0T
TP403 PCB JUMPER D0.6-P5.0 JW5.0T
TU1 TUNER UNIT TEFH9-002A UTUNNTUAL045

Ref. No. Description Part No.

R907 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R908 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R909 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R910 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470
R911 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R912 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R913 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R914 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R915 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

SWITCHES

SW901 TACT SWITCH SKQSAB SST0101AL038
SW902 TACT SWITCH SKQSAB SST0101AL038
SW903 TACT SWITCH SKQSAB SST0101AL038
SW904 TACT SWITCH SKQSAB SST0101AL038
SW905 TACT SWITCH SKQSAB SST0101AL038
SW907 TACT SWITCH SKQSAB SST0101AL038
SW911 TACT SWITCH SKQSAB SST0101AL038
SW914 TACT SWITCH SKQSAB SST0101AL038
SW915 TACT SWITCH SKQSAB SST0101AL038
SW916 TACT SWITCH SKQSAB SST0101AL038

MISCELLANEOUS

CLN904 8P WIRE ASSEMBLY WX1L3101-003 WX1L3101-003

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA
Consists of the following:

CAPACITOR

C102 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

DIODE

D102 LED LTL-4214M1 NPQZLTL4214M

TRANSISTOR

Q102 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081

RESISTORS

R123 CHIP RES.(1608) 1/10W J 68 Ω RRXAJR5Z0680
R124 CHIP RES.(1608) 1/10W J 68 Ω RRXAJR5Z0680
R125 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R126 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R127 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

MISCELLANEOUS

CLN105 4P SW WIRE ASSEMBLY WX1L3151-001 WX1L3151-001
RCV102 REMOCON RECEIVE UNIT PIC-37042SR USESJRSKK034

----------

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA
Consists of the following:

CAPACITORS

C903 CERAMIC CAP.(AX) B 0.01µF/50V CCK1JKT0B103
C905 CERAMIC CAP.(AX) B 0.01µF/50V CCK1JKT0B103

RESISTORS

R901 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R902 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470
R903 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R904 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R905 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R906 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

20050926 17-7 L3151EL

----------

SSL15D5

L3151UB

2005-10-13
