SERVICE MANUAL

27" COLOR TELEVISION

SRT2227S

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and de­scribed in this service manual are effective methods of performing service
operations. Some of these service special tools should be used when and
as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to under­stand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai
could not possibly know, evaluate and advice the service trade of all con­ceivable ways in which service might be done or of the possible hazardous
consequences of each way. Consequently, Funai has not undertaken any
such broad evaluation. Accordingly, a servicer who uses a service proce­dure or tool which is not recommended by Funai must first use all precau­tions thoroughly so that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications ........................................................ 1-1

Important Safety Precautions................................ 2-1

Standard Notes for Servicing ................................ 3-1

Disassembly Instructions ...................................... 4-1

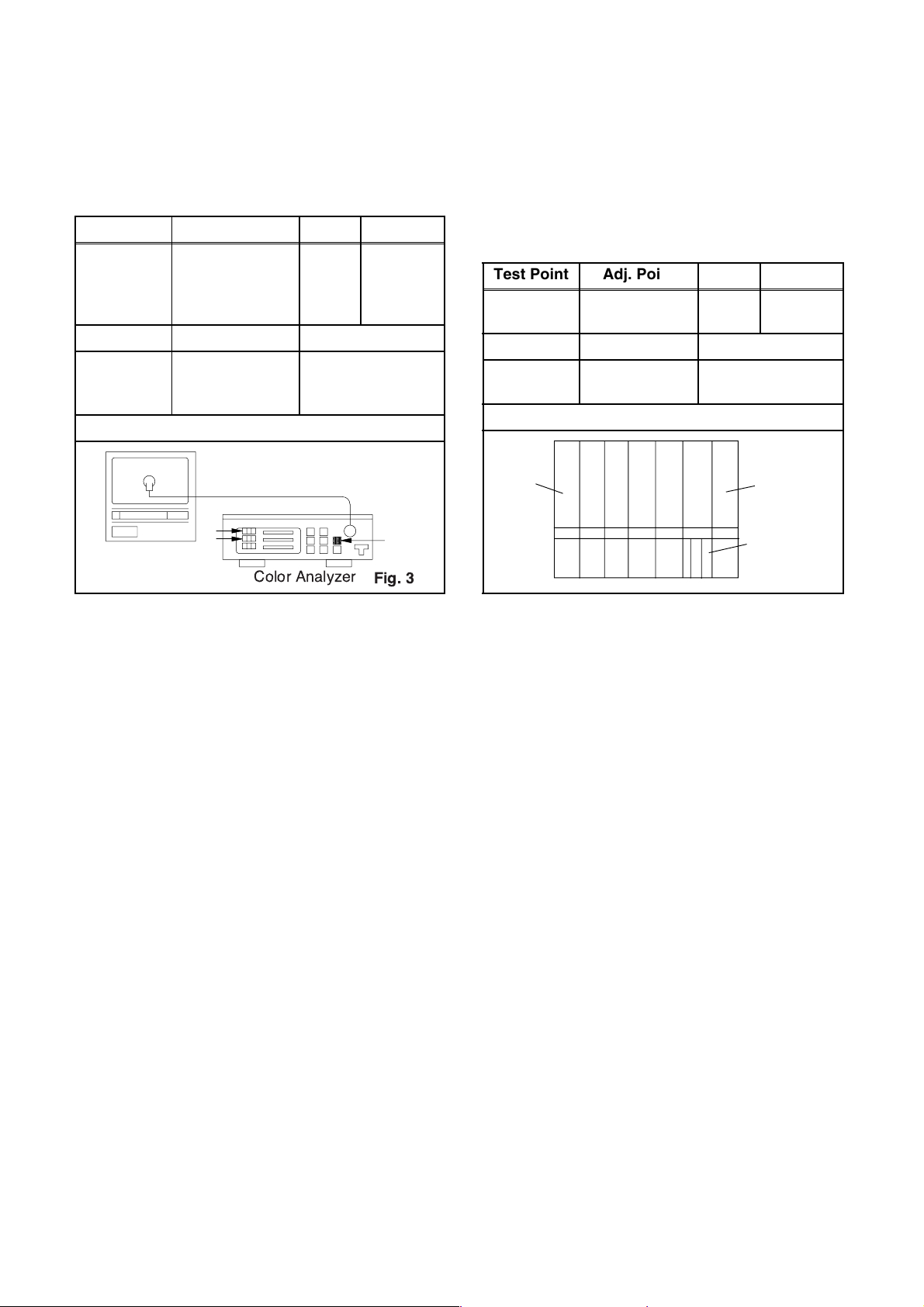

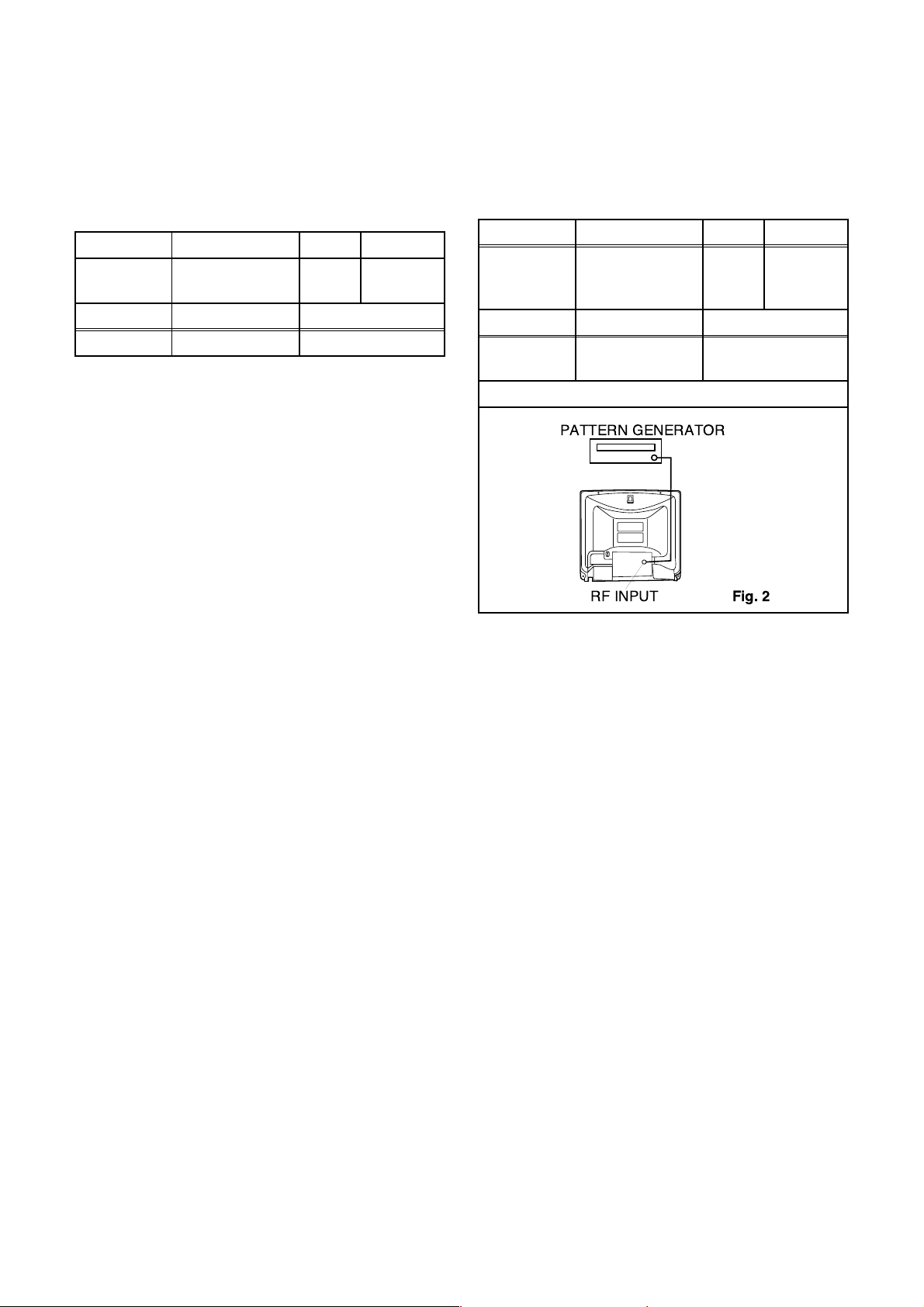

Electrical Adjustment Instructions ......................... 5-1

Block Diagram....................................................... 6-1

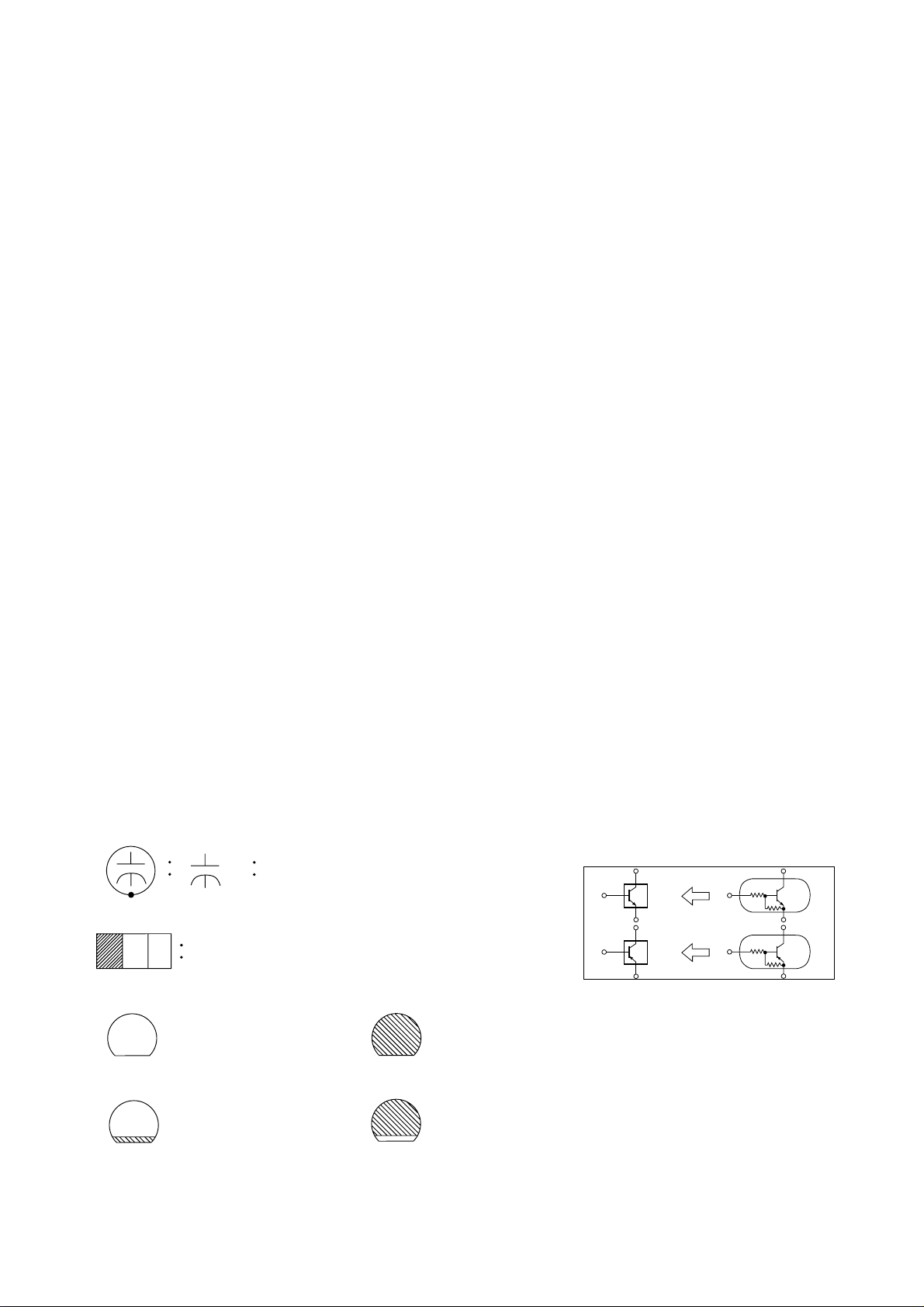

Schematic Diagram / CBA's and Test Points ....... 7-1

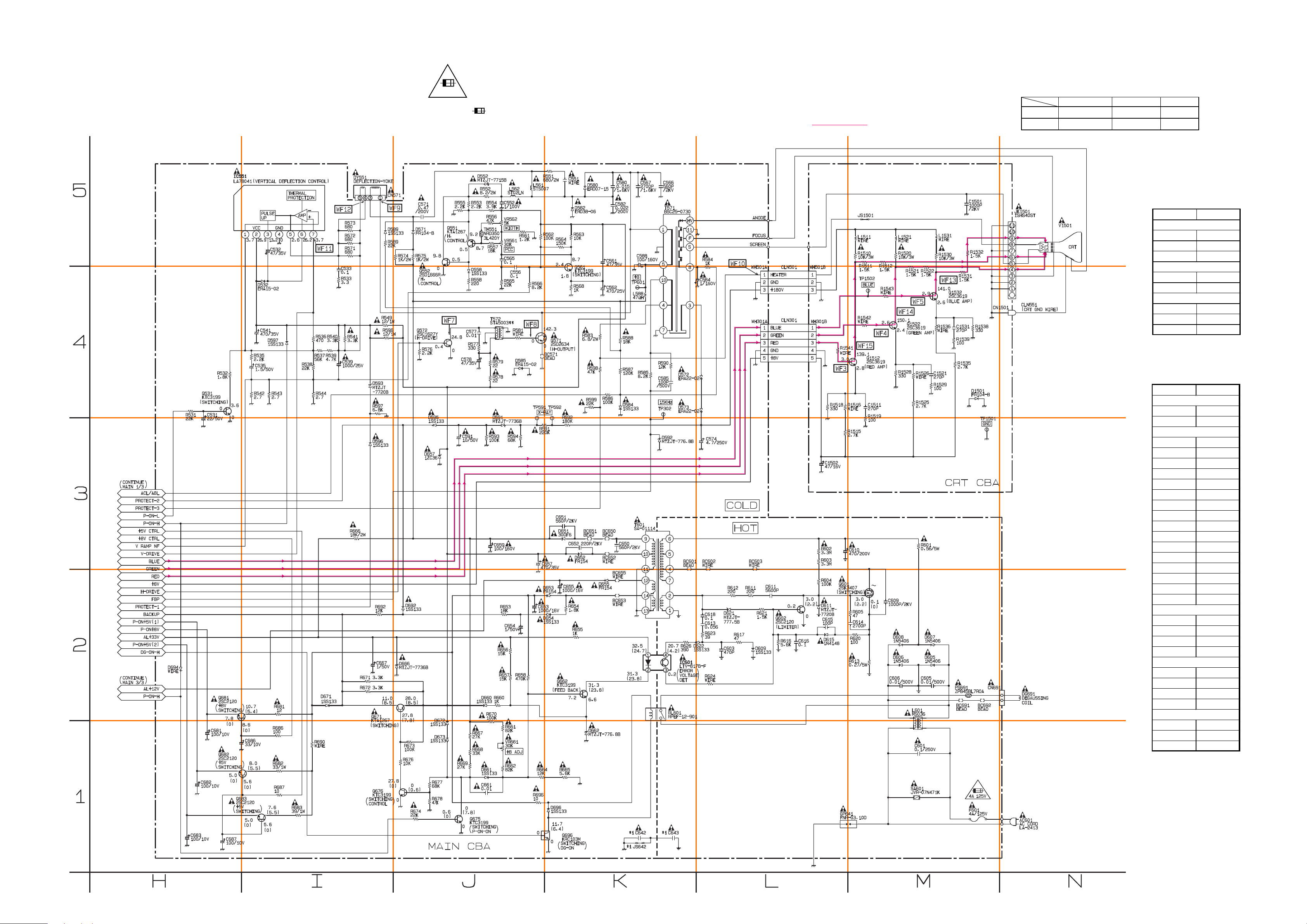

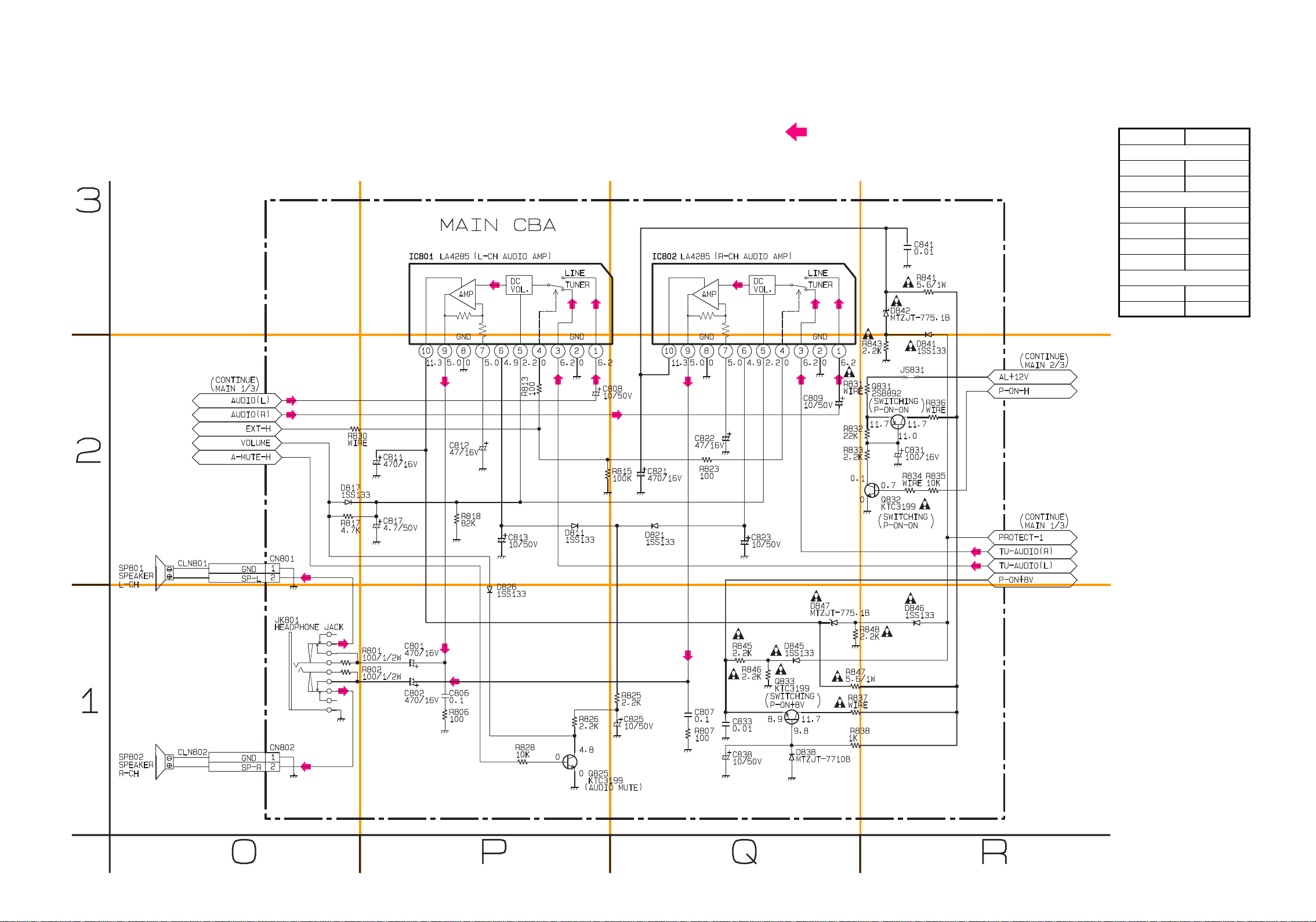

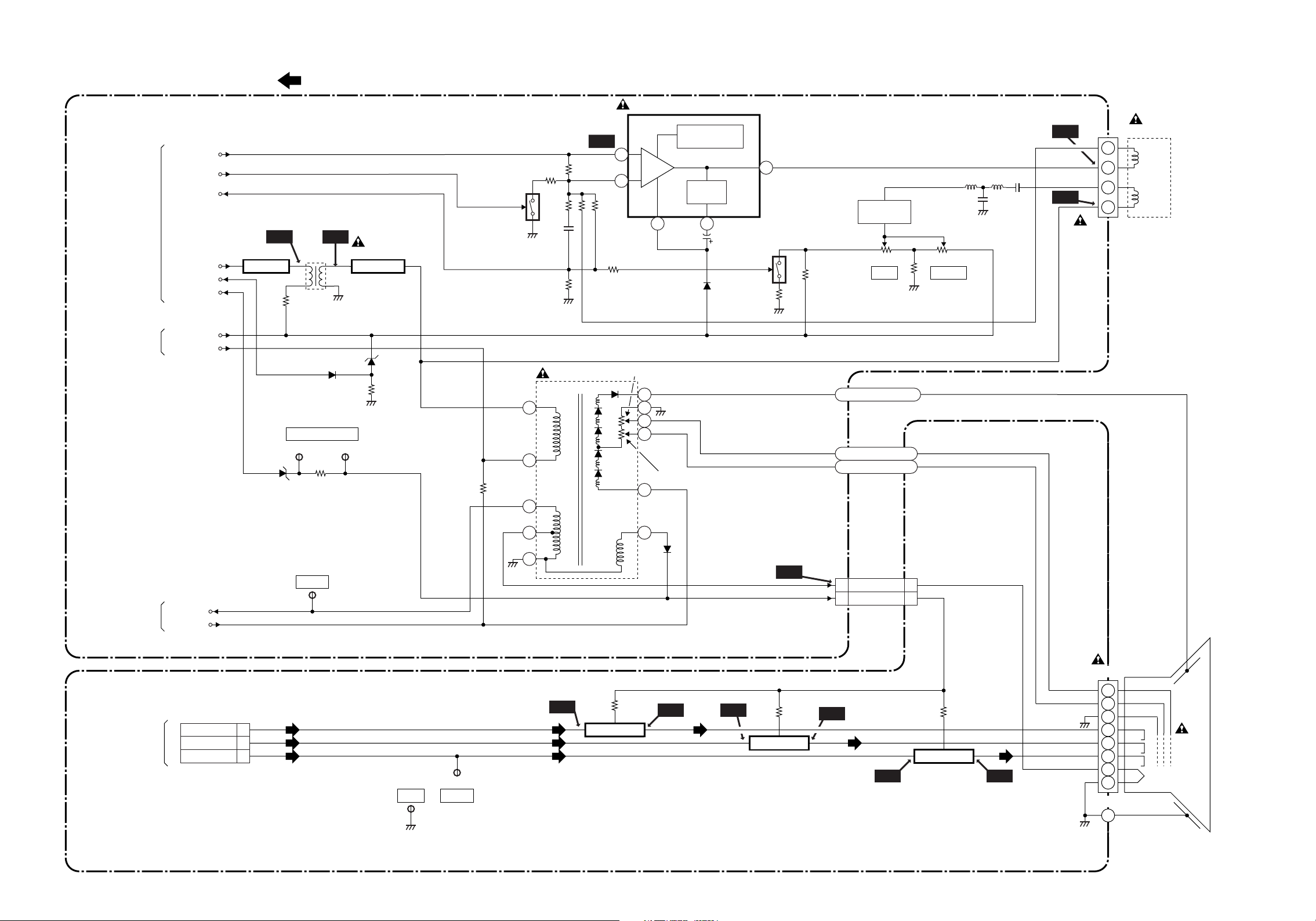

Schematic Diagram .............................................. 7-3

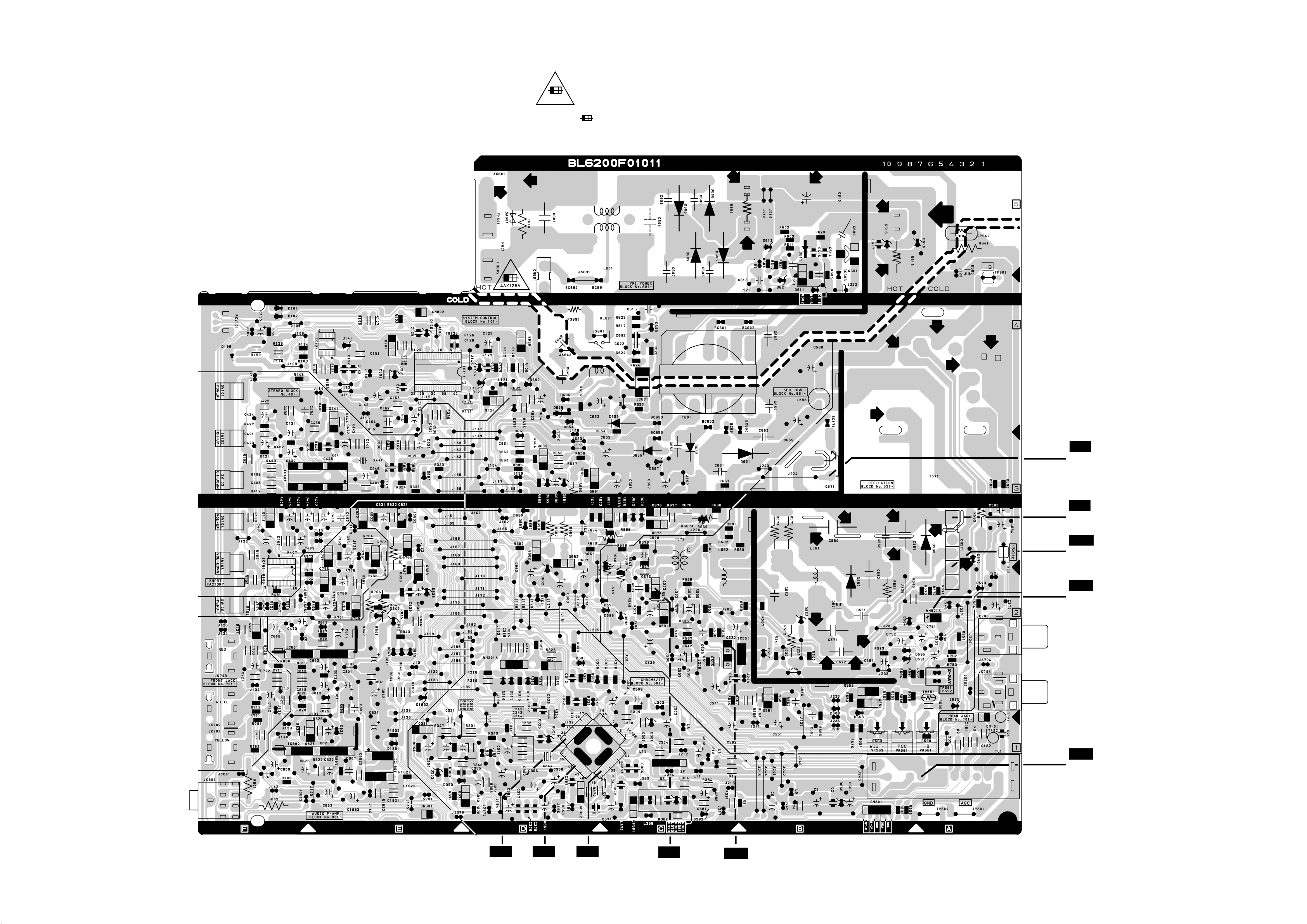

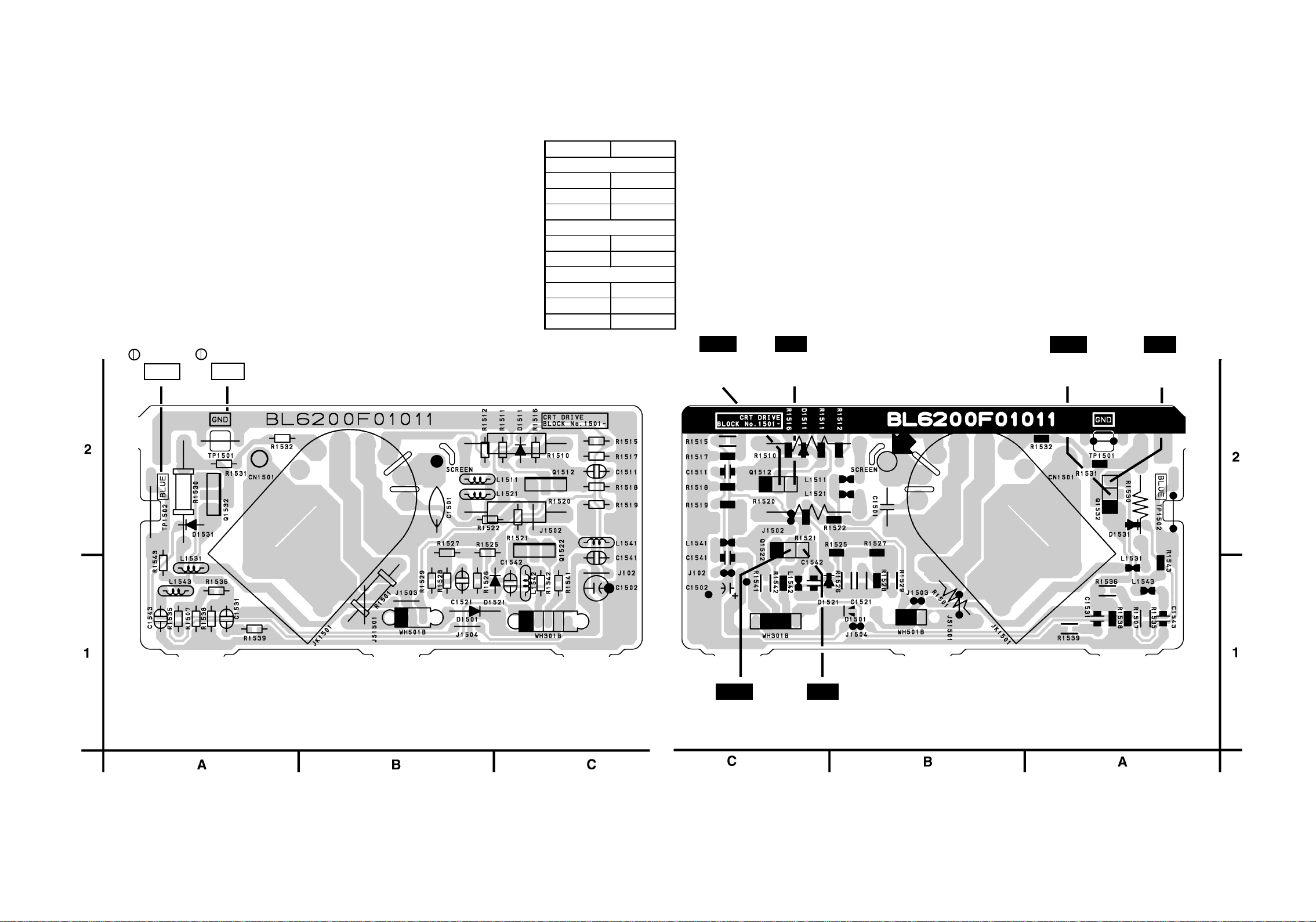

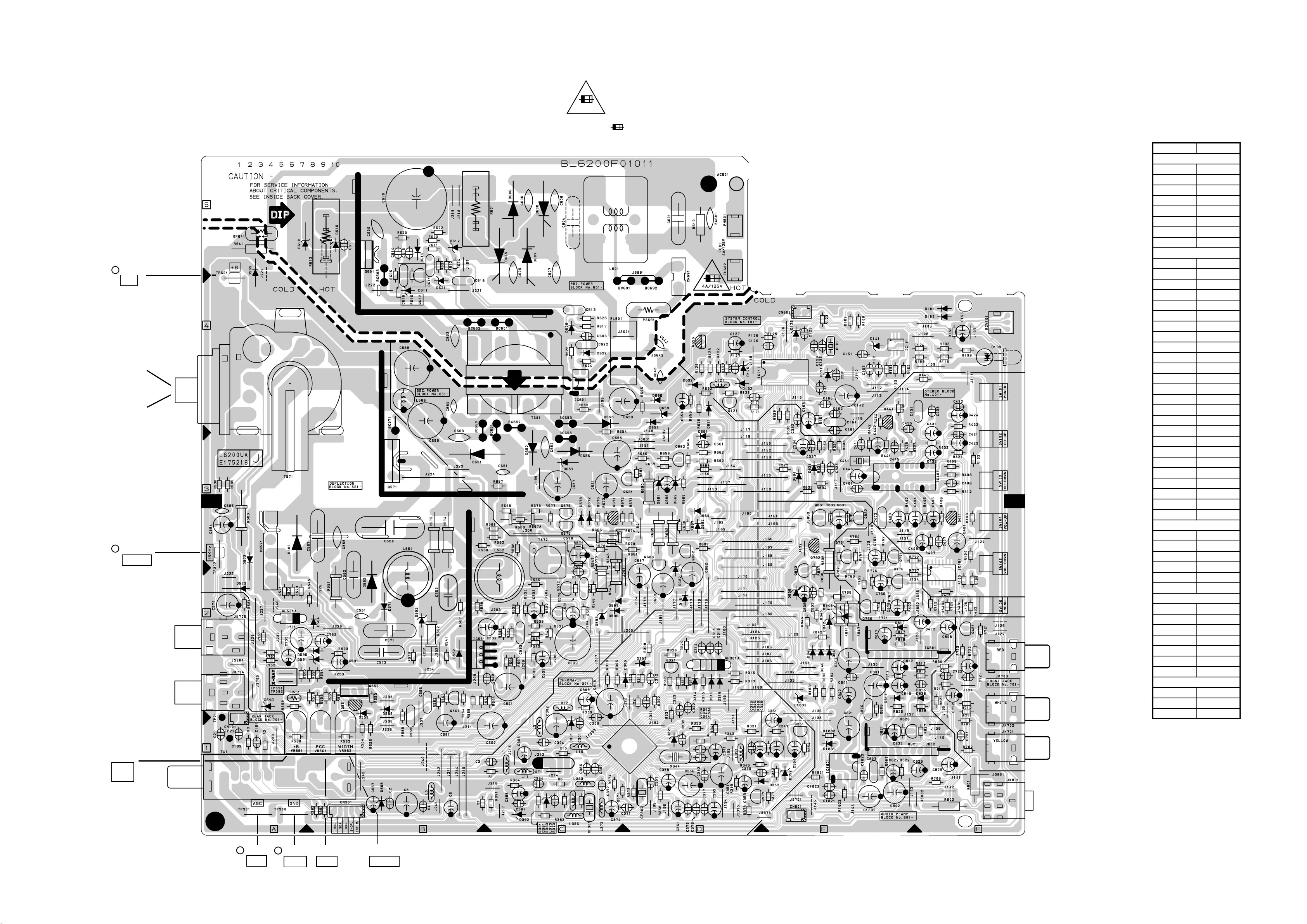

CBA Views and Test Points.................................... 7-9

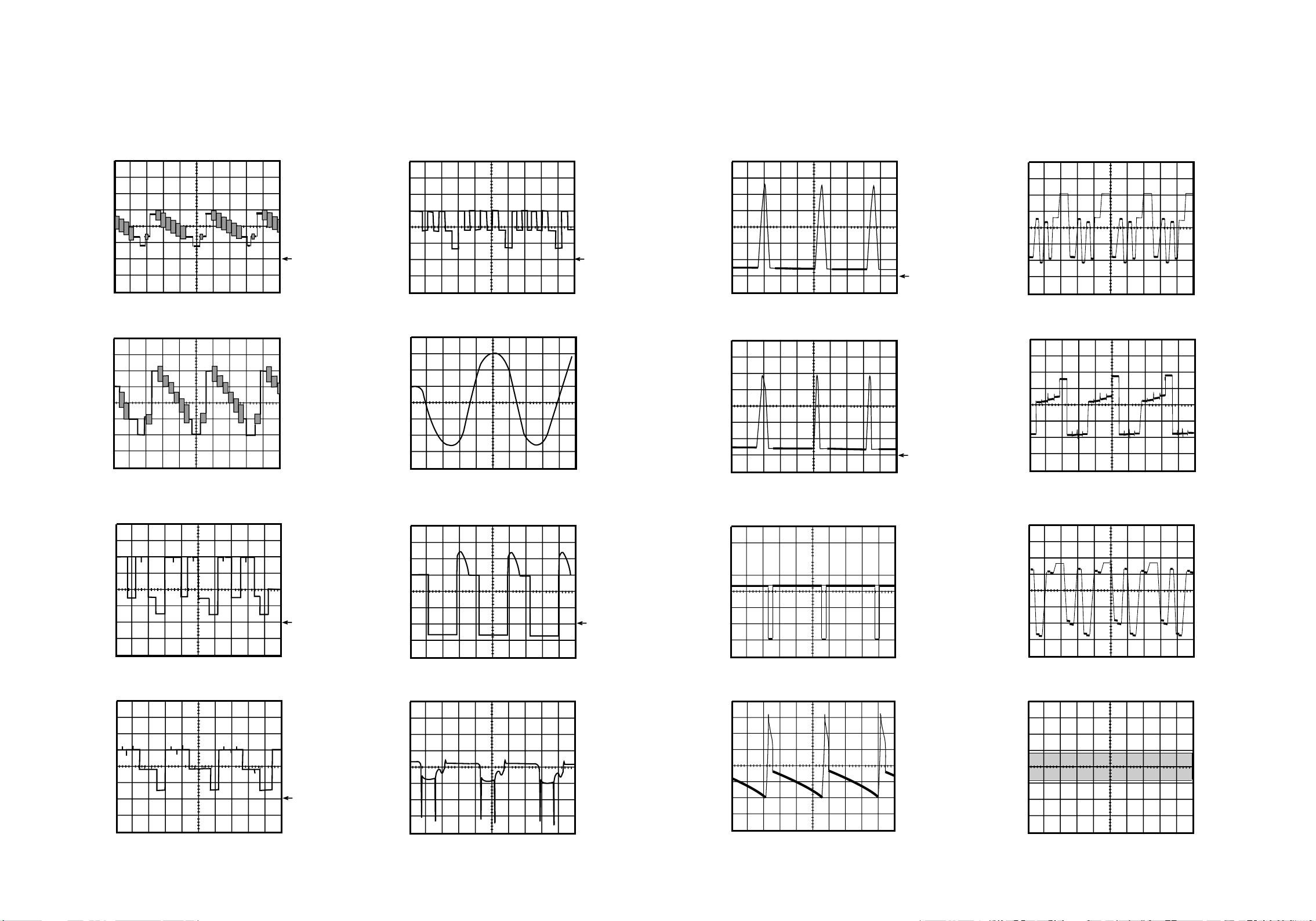

Wave Forms .......................................................... 8-1

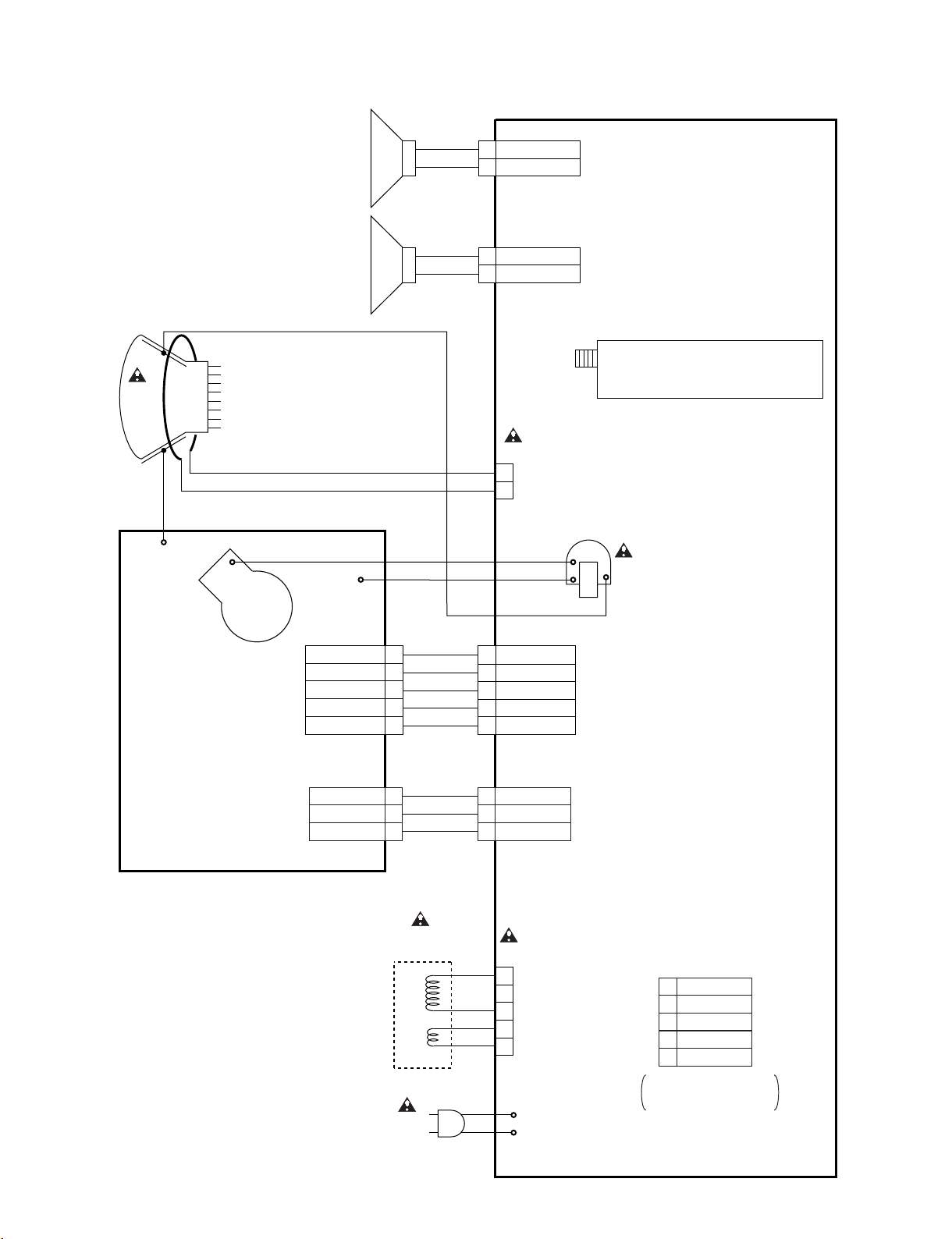

Wiring Diagram...................................................... 9-1

IC Pin Function .................................................... 10-1

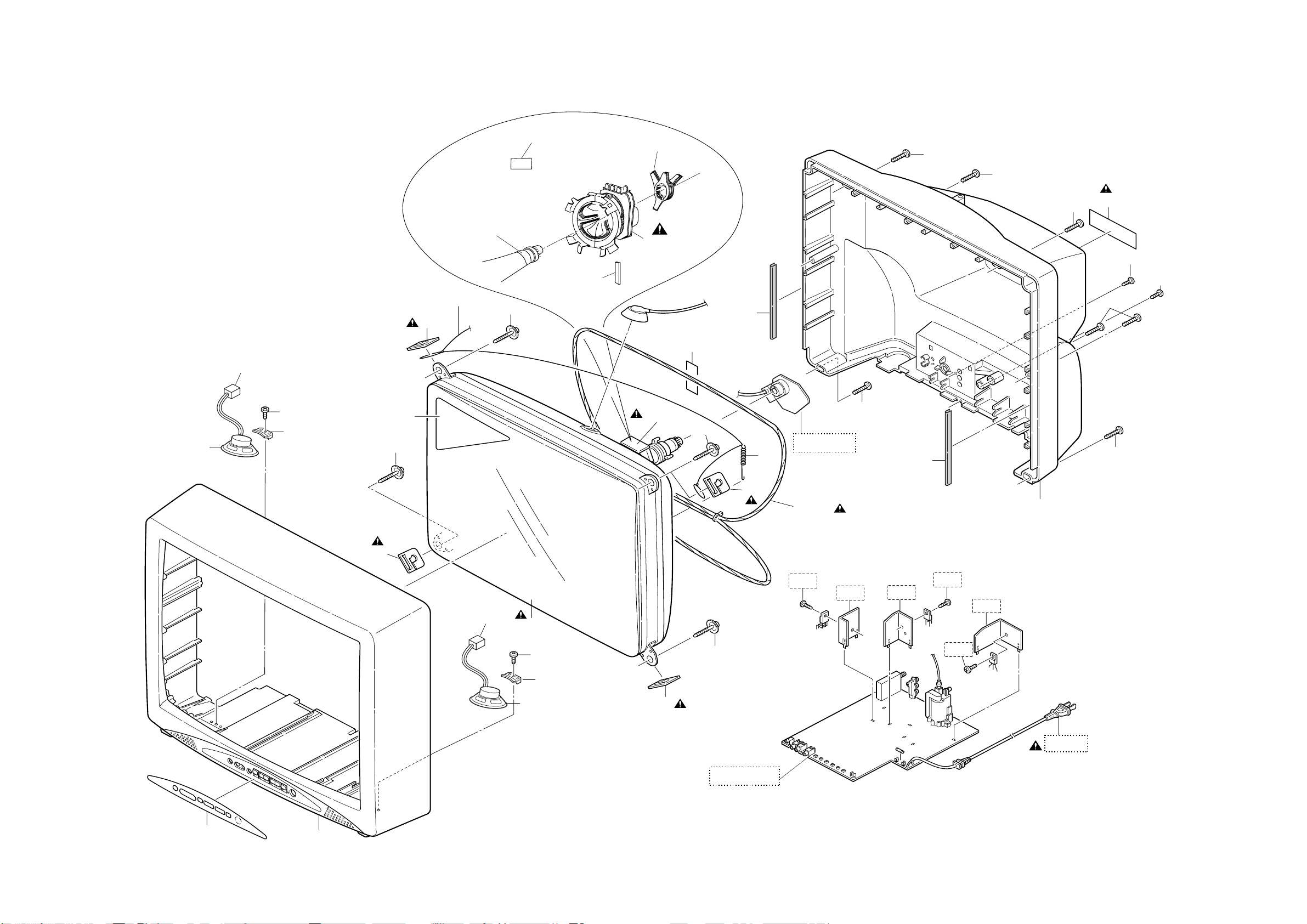

Cabinet Exploded View ....................................... 11-1

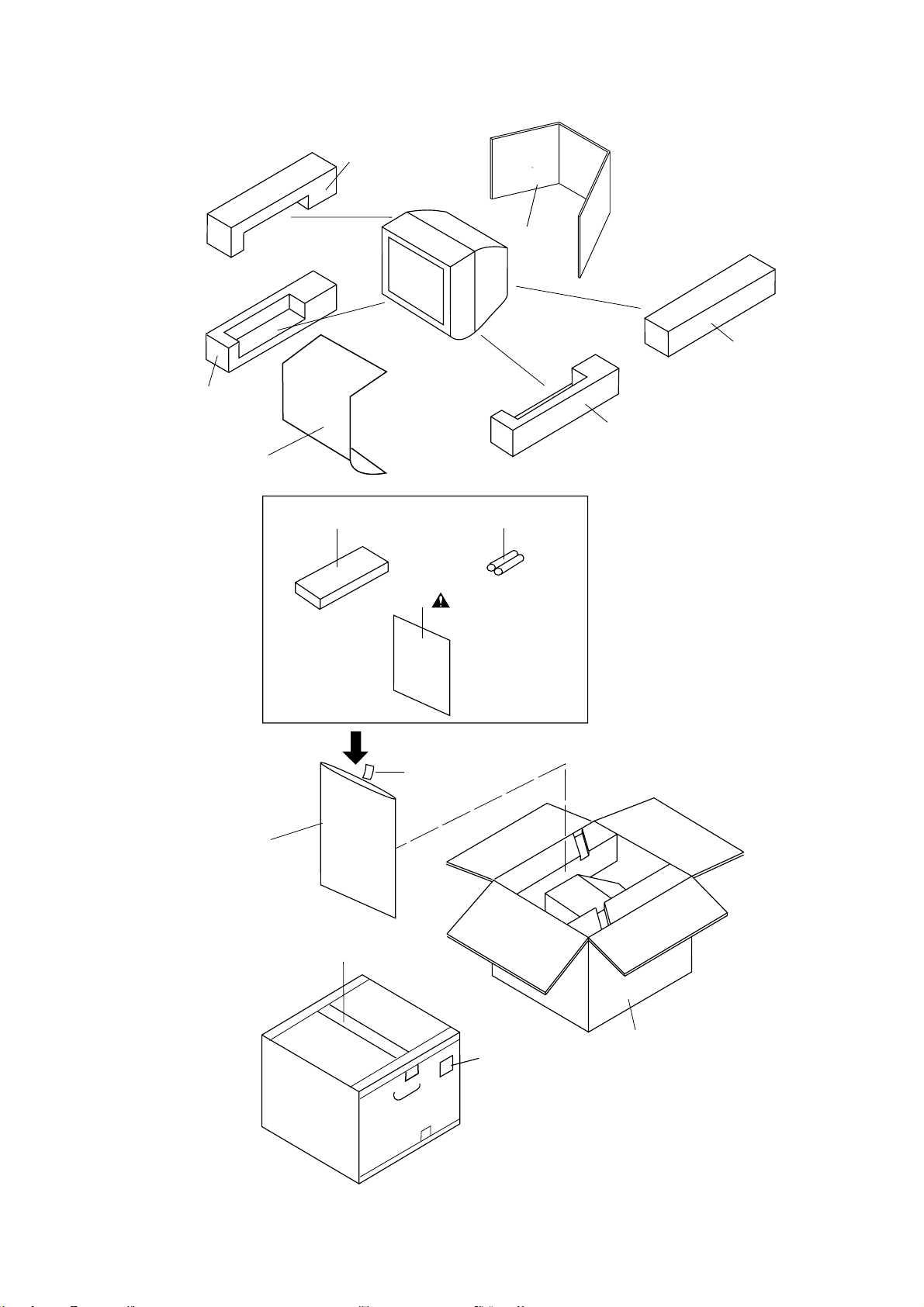

Packing Exploded View ....................................... 11-5

Mechanical Parts List .......................................... 12-1

Electrical Parts List.............................................. 13-1

SPECIFICATIONS

<TUNER>

Description Condition Unit Nominal Limit

1. Intermediate Freq. Picture

2. Peak Picture Sens VHF

3. AFT Pull In Range (10mV input)

ANT. Input ------------------ 75ohm Unbal., F type
Reference Level ----------- 20Vp-p (CRT Green Cathode)

Test Input Signal ---------- 400Hz 30% modulation

Sound

CATV

UHF

-

<DEFLECTION>

Description Condition Unit Nominal Limit

1. Deflection Freq. Horizontal
Vertical

2. Linearity Horizontal
Vertical

3. Over Scan

4. High Voltage

-

-

MHz
MHz

dBµv
dBµv
dBµv

MHz ±2.0 ±0.7

KHz

Hz

%
%

%10

KV 29

45.75

41.25

15
15
15

15.734
60

-

-

-

-

30
30
40

-

-

±15
±10

-

-

<VIDEO & CHROMA>

Description Condition Unit Nominal Limit

1. Misconvergence Center
Side

Corner

2. Brightness APL 100% Ft-L 25 15

3. Color Temperature

4. Resolution Horizontal

<AUDIO>

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD W 1 0.8

2. Audio Distortion (w/LPF) 500mW % 2 7

3. Audio Freq. Response -3dB Hz 70~11K

Note:

Nominal specifications represent the design specifications. All units should be able to approximate
these. Some will exceed and some may drop slightly below these specifications. Limit specifications
represent the absolute worst condition that still might be considered acceptable. In no case should
a unit fail to meet limit specifications.

All items are measured across 8Ω load at speaker output terminal.

-

Vertical

mm
mm
mm

°K 9200°K

Line
Line

-

-

-

250
300

0.4

1.5

2.1

-

-

-

-

1-1 L6200SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom-

always make a safety check of the entire instru-

er,

ment, including, but not limited to, the following
items:

Be sure that no built-in protective devices are de-

a.

fective and have been defeated during servicing.
(1) Protective shields are provided on this chassis
to protect both the technician and the customer.
Correctly replace all missing protective shields, in­cluding any removed for servicing convenience.
(2) When reinstalling the chassis and/or other as­sembly in the cabinet, be sure to put back in place
all protective devices, including but not limited to,
nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks.

ate this instrument or permit it to be operated
without all protective devices correctly in­stalled and functioning. Servicers who defeat
safety features or fail to perform safety checks
may be liable for any resulting damage.

b.Be sure that there are no cabinet openings through

which an adult or child might be able to insert their
fingers and contact a hazardous voltage. Such
openings include, but are not limited to, (1) spac­ing between the picture tube and the cabinet
mask, (2) excessively wide cabinet ventilation
slots, and (3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check -

plug removed from any AC source, connect an
electrical jumper across the two AC plug prongs.
Place the instrument AC switch in the on position.
Connect one lead of an ohmmeter to the AC plug
prongs tied together and touch the other ohmme­ter lead in turn to each tuner antenna input ex­posed terminal screw and, if applicable, to the
coaxial connector. If the measured resistance is
less than 1.0 megohm or greater than 5.2 mego­hm, an abnormality exists that must be corrected
before the instrument is returned to the customer.
Repeat this test with the instrument AC switch in
the off position.

d. Leakage Current Hot Check -

ment completely reassembled, plug the AC line
cord directly into a 120V AC outlet. (Do not use an
isolation transformer during this test.) Use a leak-

With the instrument AC

Do not oper-

With the instru-

age current tester or a metering system that com­plies with American National Standards Institute
(ANSI) C101.1 Leakage Current for Appliances
and Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on posi­tion and then in the off position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle brackets, metal cabinet, screw
heads, metallic overlays, control shafts, etc.), es­pecially any exposed metal parts that offer an elec­trical return path to the chassis. Any current
measured must not exceed 0.5 milli-ampere. Re­verse the instrument power cord plug in the outlet
and repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL
SHOCK HAZARD THAT MUST BE ELIMINATED
BEFORE RETURNING THE INSTRUMENT TO
THE CUSTOMER OR BEFORE CONNECTING
THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits -

the picture tube is the primary potential source of
X-radiation in solid-state TV receivers, it is special­ly constructed to prohibit X-radiation emissions.
For continued X-radiation protection, the replace­ment picture tube must be the same type as the
original. Also, because the picture tube shields
and mounting hardware perform an X-radiation
protection function, they must be correctly in place.
High voltage must be measured each time servic-

CURRENT

TESTER

+

EARTH
GROUND

_

Because

2-1 L6115IMP

ing is performed that involves B+, horizontal de­flection or high voltage. Correct operation of the X­radiation protection circuits also must be recon­firmed each time they are serviced. (X-radiation
protection circuits also may be called "horizontal
disable" or "hold down.") Read and apply the high
voltage limits and, if the chassis is so equipped,
the X-radiation protection circuit specifications giv­en on instrument labels and in the Product Safety
& X-Radiation Warning note on the service data
chassis schematic. High voltage is maintained
within specified limits by close tolerance safety-re­lated components/adjustments in the high-voltage
circuit. If high voltage exceeds specified limits,
check each component specified on the chassis
schematic and take corrective action.

2.Read and comply with all caution and safety-relat­ed notes on or inside the receiver cabinet, on the
receiver chassis, or on the picture tube.

3. Design Alteration Warning -

to the mechanical or electrical design of this TV re­ceiver. Design alterations and additions, including,
but not limited to circuit modifications and the ad­dition of items such as auxiliary audio and/or video
output connections, might alter the safety charac­teristics of this receiver and create a hazard to the
user. Any design alterations or additions will void
the manufacturer's warranty and may make you,
the servicer, responsible for personal injury or
property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning -

The picture tube in this receiver employs integral
implosion protection. For continued implosion pro­tection, replace the picture tube only with one of
the same type number. Do not remove, install, or
otherwise handle the picture tube in any manner
without first putting on shatterproof goggles
equipped with side shields. People not so
equipped must be kept safely away while picture
tubes are handled. Keep the picture tube away
from your body. Do not handle the picture tube by
its neck. Some "in-line" picture tubes are equipped
with a permanently attached deflection yoke; be­cause of potential hazard, do not try to remove
such "permanently attached" yokes from the pic­ture tube.

5. Hot Chassis Warning -

a.Some TV receiver chassis are electrically connect-

ed directly to one conductor of the AC power cord
and maybe safety-serviced without an isolation
transformer only if the AC power plug is inserted
so that the chassis is connected to the ground side
of the AC power source. To confirm that the AC
power plug is inserted correctly, with an AC volt­meter, measure between the chassis and a known

Do not alter or add

earth ground. If a voltage reading in excess of 1.0V
is obtained, remove and reinsert the AC power
plug in the opposite polarity and again measure
the voltage potential between the chassis and a
known earth ground.

Some TV receiver chassis normally have 85V

b.

AC(RMS) between chassis and earth ground re­gardless of the AC plug polarity. This chassis can
be safety-serviced only with an isolation transform­er inserted in the power line between the receiver
and the AC power source, for both personnel and
test equipment protection.

Some TV receiver chassis have a secondary

c.

ground system in addition to the main chassis
ground. This secondary ground system is not iso­lated from the AC power line. The two ground sys­tems are electrically separated by insulation
material that must not be defeated or altered.

Observe original lead dress. Take extra care to as-

6.

sure correct lead dress in the following areas:a.
near sharp edges,b. near thermally hot parts-be
sure that leads and components do not touch ther­mally hot parts,c. the AC supply,d. high voltage,
and,e. antenna wiring. Always inspect in all areas
for pinched, out of place, or frayed wiring. Check
AC power cord for damage.

Components, parts, and/or wiring that appear to

7.

have overheated or are otherwise damaged
should be replaced with components, parts, or wir­ing that meet original specifications. Additionally,
determine the cause of overheating and/or dam­age and, if necessary, take corrective action to re­move any potential safety hazard.

8. Product Safety Notice -

chanical parts have special safety-related charac­teristics which are often not evident from visual
inspection, nor can the protection they give neces­sarily be obtained by replacing them with compo­nents rated for higher voltage, wattage, etc.. Parts
that have special safety characteristics are identi­fied by a ( # ) on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or
other hazards. The product's safety is under re­view continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are strictly inspected to con­firm they comply with the recognized product safe­ty and electrical codes of the countries in which
they are to be sold. However, in order to maintain
such compliance, it is equally important to imple­ment the following precautions when a set is being
serviced.

Some electrical and me-

2-2 L6115IMP

Precautions during Servicing

A.Parts identified by the ( # ) symbol are critical for

safety.
Replace only with part number specified.

B.In addition to safety, other parts and assemblies

are specified for conformance with regulations ap­plying to spurious radiation. These must also be
replaced only with specified replacements.

Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C.Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D.Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E.When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F.Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.)

G.Check that replaced wires do not contact sharp

edged or pointed parts.

H.When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I.Also check areas surrounding repaired locations.

J.Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.

K.Crimp type wire connector

The power transformer uses crimp type connec­tors which connect the power cord and the primary
side of the transformer. When replacing the trans­former, follow these steps carefully and precisely
to prevent shock hazards.
Replacement procedure

1) Remove the old connector by cutting the wires at
a point close to the connector.
Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. In­sert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at
the center position. Be sure to crimp fully to the
complete closure of the tool.

L.When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

2-3 L6115IMP

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original posi­tions. Afterwards, perform the following tests and con­firm the specified values in order to verify compliance
with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Region

110 to 130 V

This table is unofficial and for reference only.

Note:

Be sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d) (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across both terminals of
load Z. See Fig. 2 and following table.

Z

1.5kΩ

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Exposed Accessible Part

AC Voltmeter

0.15µF

Earth Ground

B

Power Cord Plug Prongs

(High Impedance)

Fig. 1

Fig. 2

Table 2 : Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

0.15µF CAP. & 1.5kΩ

110 to 130 V USA

This table is unofficial and for reference only. Be sure to confirm the precise values.

Note:

RES. connected in

parallel

2-4 L6115IMP

i≤0.5mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

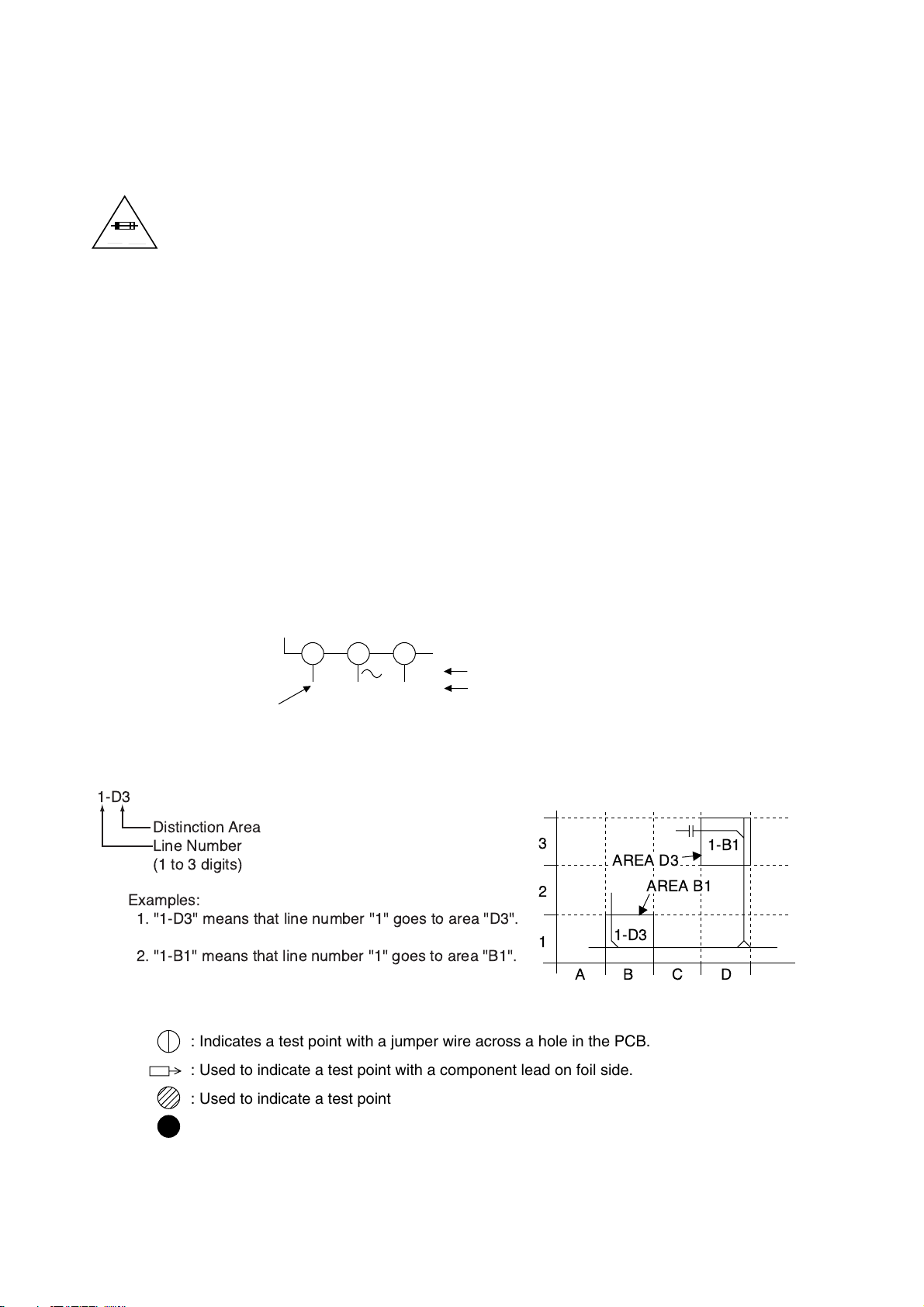

Circuit Board Indications

a. The output pin of the 3 pin Regulator ICs is indicat-

ed as shown.

Top View

Out

b. For other ICs, pin 1 and every fifth pin are indicat-

ed as shown.

Pin 1

c. The 1st pin of every male connector is indicated as

shown.

Pin 1

Input

In

Bottom View

5

10

(2) Remove the flat pack-IC with tweezers while ap-

plying the hot air.

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when remov­ing it.

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

(1) Prepare the hot-air flat pack-IC desoldering ma-

chine, then apply hot air to the Flat Pack-IC (about
5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Masking
Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

3-1 L6115STA

With Soldering Iron:

(1) Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2) Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering ma­chine.(Fig. S-1-4)

soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken to
ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.

Hot Air Blower

or

Iron Wire

Soldering Iron

To Solid
Mounting Point

Fig. S-1-5

Sharp
Pin

Fine Tip
Soldering Iron

Fig. S-1-4

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

With Iron Wire:

(1) Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA con­tact pads as shown in Fig. S-1-5.

(4) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply

CBA

Tweezers

Fine Tip
Soldering Iron

Flat Pack-IC

Fig. S-1-6

3-2 L6115STA

2. Installation

(1) Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

(2) The "I" mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
pre- solder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that

none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling
Semiconductors

Electrostatic breakdown of the semiconductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is prop­erly grounded to remove any static electricity that may
be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semiconductors are to be
placed. Because the static electricity charge on cloth­ing will not escape through the body grounding band,
be careful to avoid contacting semiconductors with
your clothing.

<Incorrect>

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

3-3 L6115STA

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

Caution !

When removing the CRT, be sure to discharge the
Anode Lead of the CRT with the CRT Ground Wire
before removing the Anode Cap.

[1] Rear Cabinet

[2] CRT CBA

[3] Main CBA

[4] CRT

2. Disassembly Method

Removal

Step/

Loc. No.

[1]

[2] CRT CBA 4,5 CN501 2

[3] Main CBA 3,5 CN571 3

[4] CRT 4 4(S-3), Anode Cap 4

Part

Rear
Cabinet

Fig.

No

1,2

Remove/*unlock/

release/unplug/

unclamp/desolder

7(S-1), 1(S-2),
1(S-4)

Note

1

Note :

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order.These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of part to be removed, unhooked, un-

locked, released, unplugged, unclamped, or des­oldered.

S=Screw, P=Spring, L=Locking Tab, CN=Con­nector, *=Unhook, Unlock, Release, Unplug, or
Desolder

2(S-2) = two Screws (S-2)

(5) Refer to the following "Reference Notes in the

Table."

Reference Notes in the Table

1. Removal of the Rear Cabinet. Remove screws
7(S-1), 1(S-2) and 1(S-4) then slide the Rear Cab­inet backward.

2. Removal of the CRT CBA. Disconnect CN501 then
pull the CRT CBA backward.

3. Removal of the Main CBA. Disconnect CN571 on
the Main CBA then slide the Main CBA backward.

Caution !

Discharge the Anode Lead of the CRT with the CRT
Ground Wire before removing the Anode Cap.

4. Removal of the CRT. Remove screws 4(S-3) and
Anode Cap. then slide the CRT backward.

↓↓↓↓↓

(1) (2) (3) (4) (5)

4-1 L6200DC

S-1

S-1

S-4

S-1

S-2

[1] Rear Cabinet

S-1

S-1

Fig. 1

S-1

S-2

S-1

S-4

S-3

S-3

[3] Main CBA

Fig. 3

Anode Cap

S-3

S-1

S-1

[1] Rear Cabinet

Fig. 2

S-1

[4] CRT

S-3

Fig. 4

4-2 L6200DC

TV Cable Wiring Diagram

SP802

SP801

DG691 DEGAUSSING COIL

MAIN CBA

CN691

FLYBACK TRANSFORMER

T571

CLN802

CLN801

CN801

CN802

WH301A

TU1
TUNER

AC601
AC CORD

CN571

FOCUS

SCREEN

ANODE

WH501A

JK1501

CN1501

TO CRT GROUND

WH301B

WH501B

Fig. 5

4-3 L6200DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note:
"CBA" is abbreviation for "Circuit Board Assem­bly".

NOTE:

Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to perform these adjustments only
after all repairs and replacements have been com­pleted.
Also, do not attempt these adjustments unless the
proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

2. DC Voltmeter

3. Oscilloscope: Dual-trace with 10:1 probe,
V-Range:0.001~50V/Div,
F-Range:DC~AC-60MHz

4. Plastic Tip Driver

5. Remote control unit:Part No. N0127UD or N0132UD
or N0105UD or N0108UD

6. DC power supply 13.2V/5A

How to make Service remote control unit:

1.

Prepare normal remote control unit. (Part No.
N0127UD or N0132UD or N0105UD or N0108UD)
Remove 3 Screws from the back lid. (Fig. 1-1)

2. Added J1 (Jumper Wire) to the remote control CBA.
(Fig. 1-2)



  

 

1. DC 120V Adjustment

Purpose:

Symptom of Misadjustment:

the unit does not operate correctly.

Test Point Adj. Point Mode Input

TP601(+120)
TP300(GND)

Note:

1. Connect DC Volt Meter to TP601 and TP300(GND).

2. Adjust VR661 so that the voltage of TP601 becomes

To obtain correct operation.

The picture is dark and

VR661 --- ---

Tape M. EQ. Spec.

--- DC Voltmeter +120±0.5V DC.

TP601, TP300(GND), VR661 --- Main CBA

+120±0.5V DC.

2. Black Strech Control Adjustment

Purpose:

Symptom of Misadjustment:

appear correctly.

Note:

1. Enter the Service mode. (See page 5-1)

2. Press " 6 " button on the Service remote control

3. Press " CH o / p " buttons on the Service remote

4. Press " 6 " button on the Service remote control

5. Press " CH o / p " buttons on the Service remote

6. Turn the power off and on again. (Main power but-

To show the fine black color.

Black color will not

Use Service remote control unit.

unit. " B-S " is indicated.

control unit so that display will change " OFF ", " 0
", " 1 ", " 2 " and " 3 ". Then choose " B-S OFF ".

unit. " B-S*2 " is indicated.

control unit so that display will change " 0", " 1 ". "
2 " and " 3 ". Then choose " B-S*2 0".

ton on the TV unit.)

J 1

REMOTE CONTROL CBA

Fig. 1-2

5-1 L6200EA

3-1. Setting for 7F and FRENCH

data Values

General

1. Enter the Service mode. (See page 5-1)

2. Press " VOL p " button on the Service remote con­trol unit. Display changes " C/D ", " VCO ", " 7F ",
" FRENCH ", " ACCESS CODE ", " STEREO ", "
VIDEO TONE ", " FM-MODE ", and " AV-OUT " cy­clically when " VOL p " button is pressed.

7F

1. Press " VOL p " button on the Service remote con­trol unit. Then select 7F display.

2. Press " CH o / p " buttons on the Service remote
control unit. Then choose 7F=FF.

FRENCH

1. Press " VOL p " button on the Service remote con­trol unit. Then select FRENCH display.

2. Press " CH o / p " buttons on the Service remote
control unit. Then choose FRENCH=OFF.

ACCESS CODE ---- set to ON
VIDEO TONE ---- set to OFF
FM-MODE ---- set to OFF
AV-OUT ---- set to OFF
STEREO ---- set to ON

Note: C/D

and

adjusted at this moment.

data values do not need to be

VCO

TINT (TNT)

1. Press " MENU " button on the Service remote con­trol unit. Then select " TINT " (TNT) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of " TINT " (TNT) be­comes 60.

V-TINT (V-TNT)

1. Press " MENU " button on the Service remote con­trol unit. Then select " V-TINT " (V-TNT) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of " V-TINT " (V-TNT)
becomes 62.

SHARP (SHARP)

1. Press " MENU " button on the Service remote con­trol unit. Then select " SHARP " (SHARP) display.

2. Press " CH o / p " buttons on the Service remote
control unit and select " SHARP ON ".

Note: BRIGHT

ed at this moment.

data value does not need to be adjust-

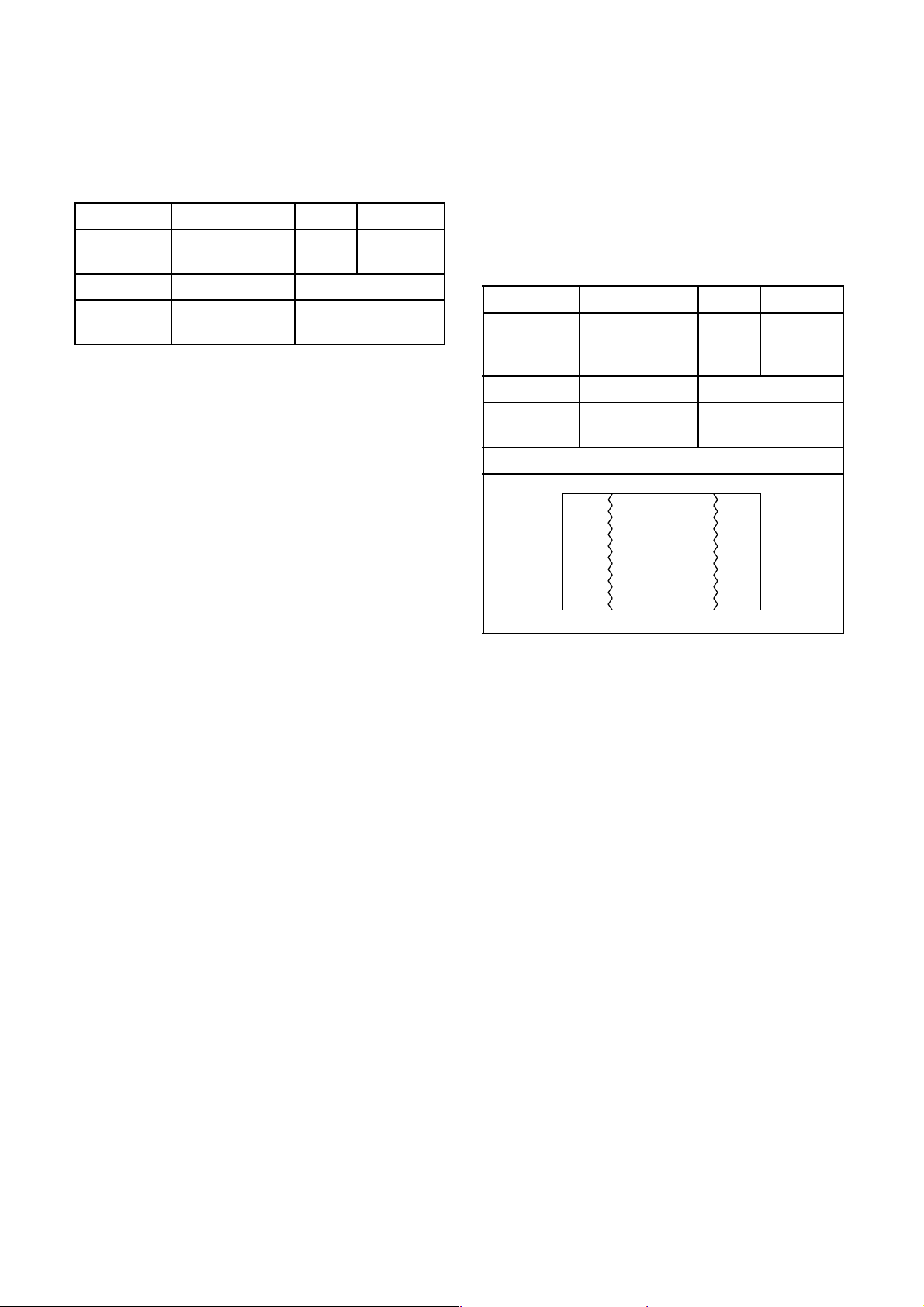

4. H fo Adjustment

Purpose:

Symptom of Misadjustment:

correct, sqew distortion will appear on the screen.

Test Point Adj. Point Mode Input

To get correct horizontal frequency.

If H f

TP302

CH o / p button
["H-ADJ"] MODE

adjustment is in

0

---

3-2. Setting for CONTRAST,

COLOR, TINT, V-TINT and
SHARP data Values

General

1. Enter the Service mode. (See page 5-1)

2. Press " MENU " button on the Service remote control
unit. Display changes " BRIGHT ", " CONTRAST ",
" COLOR ", " TINT ", " V-TINT " and " SHARP "
cyclically when " MENU " button is pressed.

CONTRAST (CNT)

1. Press " MENU " button on the Service remote con­trol unit. Then select " CONTRAST " (CNT) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of " CONTRAST "
(CNT) becomes 84.

COLOR (CLR)

1. Press " MENU " button on the Service remote con­trol unit. Then select " COLOR " (CLR) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of " COLOR " (CLR)
becomes 58.

Tape M. EQ. Spec.

---

TP302 --- Main CBA

Note:

Use Service remote control unit.

1. Connect Frequency Counter to TP302 and ground.

2. Set the unit to the VIDEO mode which is located be­fore CH2 and no input is necessary. Enter the Ser­vice mode. (See Page 5-1)

3. Operate the unit for at least 20 minutes.

4. Press " 2 " button on the Service remote control unit
and select H-ADJ Mode. (By pressing " 2 " button
the display will change from TV AGC to H-ADJ)

5. Press " CH o / p " button on the Service remote
control unit so that the display will change " 0 " ~ " 7
". At this moment, Choose display one of them from
" 0 " ~ " 7 " when the Frequency Counter shows

15.734 kHz±300Hz or closer.

6. Turn the power off and on again. (Main Power but­ton on the TV unit.)

Frequency

Counter

15.734kHz±300Hz

5-2 L6200EA

5. VCO Adjustment

Purpose:

Symptom of Misadjustment:

correctly and/or synchronization is faulty.

Test Point Adj. Point Mode Input

Note:

1.

2. Enter the Service mode. (See Page 5-1)

3. Press " 3 " button on the Service remote control

4. If the display color is changed from red to green,

5. Turn the Power off and on again. (Main power but-

To operate VCO correctly.

VCO does not work

--- --- No signal

Tape M. EQ. Spec.

--- --- ---

Use service remote control unit.

Disconnect the RF input and set the unit to Channel 4.

unit. The Auto VCO adjustment is started.

This adjustment is done.

ton on the TV unit.)

6. AGC Adjustment

Purpose:

Symptom of Misadjustment:

chronize correctly when RF input level is too weak and
picture distortion may occur if it is too strong.

Test Point Adj. Point Mode Input

Notes:

1. Enter the Service mode. (See Page 5-1) Then

2. Receive the Color Bar signal for channel 4

3. Press " CH o / p " buttons so that the voltage of

4. Press " CH o / p " buttons so that the voltage of

5. Press " CH o / p " buttons so that the voltage of

Set AGC (Auto Gain Control) Level.

AGC does not syn-

TP301

Tape M. EQ. Spec.

---

TP301 --- Main CBA

Use Service remote control unit.

press number " 2 " button on the Service remote
control unit.

(67.25MHz). (RF Input Level: 60dBµV)

TP301 becomes +2.5±0.1V DC. If the tuner is
used TEDH9-309A. (Tuner type number)

TP301 becomes +2.8±0.1V DC. If the tuner is
used B8095AD. (Tuner type number)

TP301 becomes +2.7±0.1V DC. If the tuner is
used ENV56DB3G3. (Tuner type number)

CH o / p

buttons

Pattern

Generator DC

Volt Meter

RF

+2.5±0.1VDC or
+2.8±0.1VDC or

by Tuner Type.

Color Bar

67.25MHz
60dBµV

+2.7±0.1VDC

6. Turn the Power off and on again. (Main power but­ton on the TV unit.)

7. Black Level Adjustment

Purpose:

Symptom of Misadjustment:

rect, Proper brightness can not be obtained by adjust­ing the Brightness Control.

1. Enter the Service mode. (See page 5-1).

2. Press " MENU " button on the Service remote con-

3. Press " CH o / p " buttons on the Service remote

4. Turn the power off and on again. (Main power but-

Set Black Level

If black level is incor-

trol unit and select " BRT "mode. (Display changes
" BRT ", " CNT ", " CLR " and " TNT "cyclically
when MENU button is pressed).

control unit so that the value of " BRT " becomes

128.

ton on the TV unit.)

8. C-Trap Adjustment

Purpose:

Symptom of Misadjustment:

is incorrect, stripes will appears on the screen.

TP1502(Blue)

Note:

1. Connect Oscilloscope to TP1502 and TP1501

2. Enter the Service mode. (See Page 5-1) Receive

3. Press " 0 " button on the Service remote control

4. Press " CH o / p " buttons on the Service remote

5. Turn the power off and on again. (Main power but-

To get minimum leakage of the color signal carrier.

If C- Trap Adjustment

Test Point Adj. Point Mode Input

TP1501

(GND)

Tape M. EQ. Spec.

--- Oscilloscope ---

TP1501, TP1502 --- CRT CBA

Use Service remote control unit.

(GND).

color bar signal from RF Input.

unit and select C-TRP Mode.

control unit so that the display will change " 0 ", " 1
", " 2 " and " 3 ". Choose display " 0 ", " 1 ", " 2 " or
" 3 " when B-Out (3.58MHz) value becomes mini­mum on the oscilloscope reading.

ton on the TV unit.)

CH o / p

buttons

RF

Color

Bar

5-3 L6200EA

9. V. Size Adjustment

Purpose:
Symptom of Misadjustment:

cal size of image on the screen may not be properly dis­played.

Test Point Adj. Point Mode Input

Note:

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the Monoscope Pattern.

4. Press " 9 " button on the Service remote control unit

5. Press " CH o / p " buttons on the Service remote

6. Turn the power off and on again. (Main power but-

To obtain correct vertical width of screen image.

If V. Size is incorrect, verti-

Screen Control

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Use service remote control unit.

and select " V-S " mode. (Display changes " V-S "
and " V-P " cyclically when " 9 " button is pressed).

control unit so that the monoscope pattern will be
90±5% of display size and the circle is round.

ton on the TV unit.)

CH o / p

buttons [ V-S ]

Mode

RF

Mono-

scope

10. V. Position Adjustment

Purpose:

image.

Symptom of misadjustment:

rect, vertical height of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

Note:

1. Operate the unit for at least 20 minutes.

2. Enter the Service Mode. (See page 5-1)

3. Receive the Monoscope Pattern.

4. Press " 9 " button on the Service remote control unit

5. Press " CH o / p " buttons on the Service remote

6. Turn the Power off and on again. (Main power but-

To obtain correct vertical width of screen

If V. Position is incor-

Screen Control

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Use Service remote control unit

and select " V-P "mode. (Display change " V-S " and
" V-P " cyclically when " 9 " button is pressed).

control unit so that the top and bottom of the mono­scope pattern will be equal of each other.

ton on the TV unit.)

CH o / p

buttons [ V-P ]

Mode

RF

Mono-

scope

11. H. Position Adjustment

Purpose:

screen image.

Symptom of Misadjustment:

rect, horizontal position of image on the screen may
not be properly displayed.

Test Point Adj. Point Mode Input

Note:

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the Monoscope Pattern.

4. Press " 8 " button on the remote control unit and

5. Press " CH o / p " buttons on the Service remote

6. Turn the Power off and on again. (Main power but-

To obtain correct horizontal position of

If H. Position is incor-

Screen Control

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Use Service remote control unit

select " H-P "mode.

control unit so that the monoscope pattern will be
90±5% of display size and the circle is round.

ton on the TV unit.)

CH o / p

buttons [ H-P ]

Mode

RF

Mono-

scope

12. H. Size Adjustment

Purpose:

image.

Symptom of Misadjustment:

horizontal size of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

Note:

1. Operate the unit for at least 20 minutes.

2. Receive the Monoscope Pattern.

3. Adjust VR562 so that the monoscope pattern will

4. Turn the Power off and on again. (Main power but-

To obtain correct horizontal size of screen

If H. Size is incorrect,

--- VR562 RF

Tape M. EQ. Spec.

--- Monoscope 90±5%

Use Service remote control unit

be 90±5% of display size and circle is round.

ton on the TV unit.)

Mono-

scope

5-4 L6200EA

13. PIN Cushion Adjustment

Purpose

screen image.

Symptom of Misadjustment:

rect, vertical line of image on the screen may not be
properly displayed.

Note:

1. Operate the unit for at least 20 minutes.

2. Receive the Cross hatch Pattern.

3. Adjust VR561 so that the cross hatch pattern will

4. Turn the Power off and on again. (Main power but-

: To obtain correct straight vertical line of

If H.Pin cushion is incor-

Test Point Adj. Point Mode Input

--- VR561 RF

Tape M. EQ. Spec.

--- Cross hatch

Use Service remote control unit

be straight line of display.

ton on the TV unit.)

Cross

hatch

14. Cut-off Adjustment

Purpose:

screen voltage.

Symptom of Misadjustment:

reddish, greenish or bluish.

Test Point Adj. Point Mode Input

To adjust the beam current of R, G, B, and

White color may be

Screen-Control

---

Tape M. EQ. Spec.

---

CH o / p

buttons

Pattern

Generator

Figure

 

RF

See Reference

Notes below.

Raster

Black

 

Screen Control FBT --- Main CBA

Note:

F.B.T= Fly Back Transformer
Use Service remote control unit

1. Degauss the CRT and allow CRT to operate for 20
minutes before starting the alignment.

2. Input the Black Raster Signal from RF Input.

3. Enter the Service mode. (See page 5-1)

4. Press " VOL p " button on the Service remote con­trol unit and select " C/D " mode. (Display changes
" C/D ", "VCO ", " 7F ", " FRENCH ", " ACCESS
CODE ", " STEREO ", " VIDEO TONE ", " FM­MODE ", and " AV-OUT " cyclically when " VOL p
" button is pressed.) then press " 1 ". The display
will momentarily show " CUT OFF R " (R= Red).
Now there should be a horizontal line across the
center of the picture tube. If needed gradually turn
the screen control on the flyback, clockwise until
the horizontal line appears. Adjust the Red Cut off
by pressing the " CH o / p " buttons. Proceed to
Step 5 when the Red Cut off adjustment is done.

5. Press the " 2 "button. The display will momentarily
show " CUT OFF G " (G=Green). Adjust the Green
Cut off by pressing the " CH o / p " buttons. Proceed
to step 6 when the Green Cut off adjustment is done.

6. Press the " 3 " button. The display will momentarily
show " CUT OFF B " (B=Blue). Adjust the Blue cut
off by pressing the " CH o / p " buttons. When
done with steps 4, 5 and 6 the horizontal line
should be pure white if not, then attempt the Cut off
adjustment again.

 

5-5 L6200EA

15. White Balance Adjustment

Purpose:

for pure white.

Symptom of Misadjustment:

or reddish.

Test Point Adj. Point Mode Input

Screen

To mix red, green and blue beams correctly

White becomes bluish

CH o / p

buttons

Tape M. EQ. Spec.

Pattern

Generator,

Color analyzer

Figure

RF

See below

White

Raster

(APL

100%)

Confirm that Cut Off Adj. is correct after this

Note:

adjustment, and attempt Cut Off Adj. if needed.

16. Sub-Brightness Adjustment

Purpose:
Symptom of Misadjustment:

incorrect, proper brightness cannot be obtained by
adjusting the Brightness Control.

Test Point Adj. Point Mode Input

To get proper brightness.

If Sub-Brightness is

---

Tape M. EQ. Spec.

---

CH o / p

buttons

Pattern

Generator

Figure

RF IQW

See below

 

Use Service remote control unit

Note:

1. Operate the unit more than 20 minutes.

2. Face the unit to east. Degauss the CRT using De­gaussing Coil.

3. Input the White Raster (APL 100%).

4. Set the color analyzer to the CHROMA mode and af­ter zero point calibration, bring the optical receptor to
the center on the tube surface (CRT).

5. Enter the Service mode. Press " VOL p " button on
the Service remote control unit and select " C/D "
mode. (Display changes " C/D ", "VCO ", " 7F ",
" FRENCH ", " ACCESS CODE ", " STEREO ", "
VIDEO TONE ", " FM-MODE ", and " AV-OUT " cy­clically when " VOL p " button is pressed.) then Press
No. 8 button on the Service remote control Unit.

6. Press No. 4 button on the service remote control unit
for Red adjustment. Press N0. 5 button on the Ser­vice remote control unit for Blue adjustment.

7. In each color mode, Press " CH o / p " button to ad­just the values of color.

8. Adjusting Red and Blue color so that the temperature
becomes 9200K (x : 286 / y : 294)±3%.

9. At this time, Re-check that Horizontal line is white. If
not, Re-adjust Cut-off Adjustment until the Horizontal
Line becomes pure white.

10. Turn off and on again to return to normal mode. Re­ceive APL 100% white signal and Check Chroma
temperatures become 9200K (x : 286 / y : 294)±3%.

 

White

IQW Setup level --- 7.5 IRE

Note:

Use Service remote control unit

1. Enter the Service mode. (See page 5-1)
Then input IQW signal from RF Input.

2. Press " MENU " button on the Service remote control
unit and Select " BRT " mode. (Display changes "
BRT ", " CNT ", " CLR ", and " TNT " cyclically when
MENU button is pressed). Press " CH o / p " buttons
so that the bar is just visible (See above figure).

3. Turn the power off and on again. (Main power but­ton on the TV unit.)

Black

This bar
just
visible

Fig. 4

5-6 L6200EA

17. Focus Adjustment

Purpose:
Symptom of Misadjustment:

incorrect, blurred images are shown on the display.

Test Point Adj. Point Mode Input

Note:

1. Operate the unit more than 30 minutes

2. Face the unit to the East and Degauss the CRT

3. Input the Monoscope Pattern.

4. Adjust the Focus Control on the FBT to obtain

Set the optimum Focus.

If Focus Adjustment is

--- Focus Control ---

Tape M. EQ. Spec.

---

Focus VR (FBT) - Main CBA FBT=Fly Back Trans-

former

using Degaussing Coil.

clear picture.

Pattern

Generator

Mono-

scope

See below

The following 2 adjustments normally are not
attempted in the field. Only when replacing the
CRT then adjust as a preparation.

18. Purity Adjustment

Purpose:

Symptom of Misadjustment:

ment is incorrect, large areas of color may not be
properly displayed.

Test Point Adj. Point Mode Input

To obtain pure color.

If Color Purity Adjust-

Deflection

---

Tape M. EQ. Spec.

---

GREEN RED BLUE

Yoke Purity

Magnet

Pattern

Generator

Figure

---

See below.

Red

Color

Fig. 5

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjust­ing.

3. Fully degauss the unit using an external degauss­ing coil.

4. Loosen the screw on the Deflection Yoke Clamper
and pull the Deflection Yoke back away from the
screen. (See Fig. 6)

5. Loosen the Ring Lock and adjust the Purity Mag­nets so that a red field is obtained at the center of
the screen. Tighten Ring Lock. (See Fig. 5,6)

6. Slowly push the Deflection Yoke toward bell of
CRT and set it where a uniform red field is ob­tained.

7. Tighten the clamp screw on the Deflection Yoke.

5-7 L6200EA

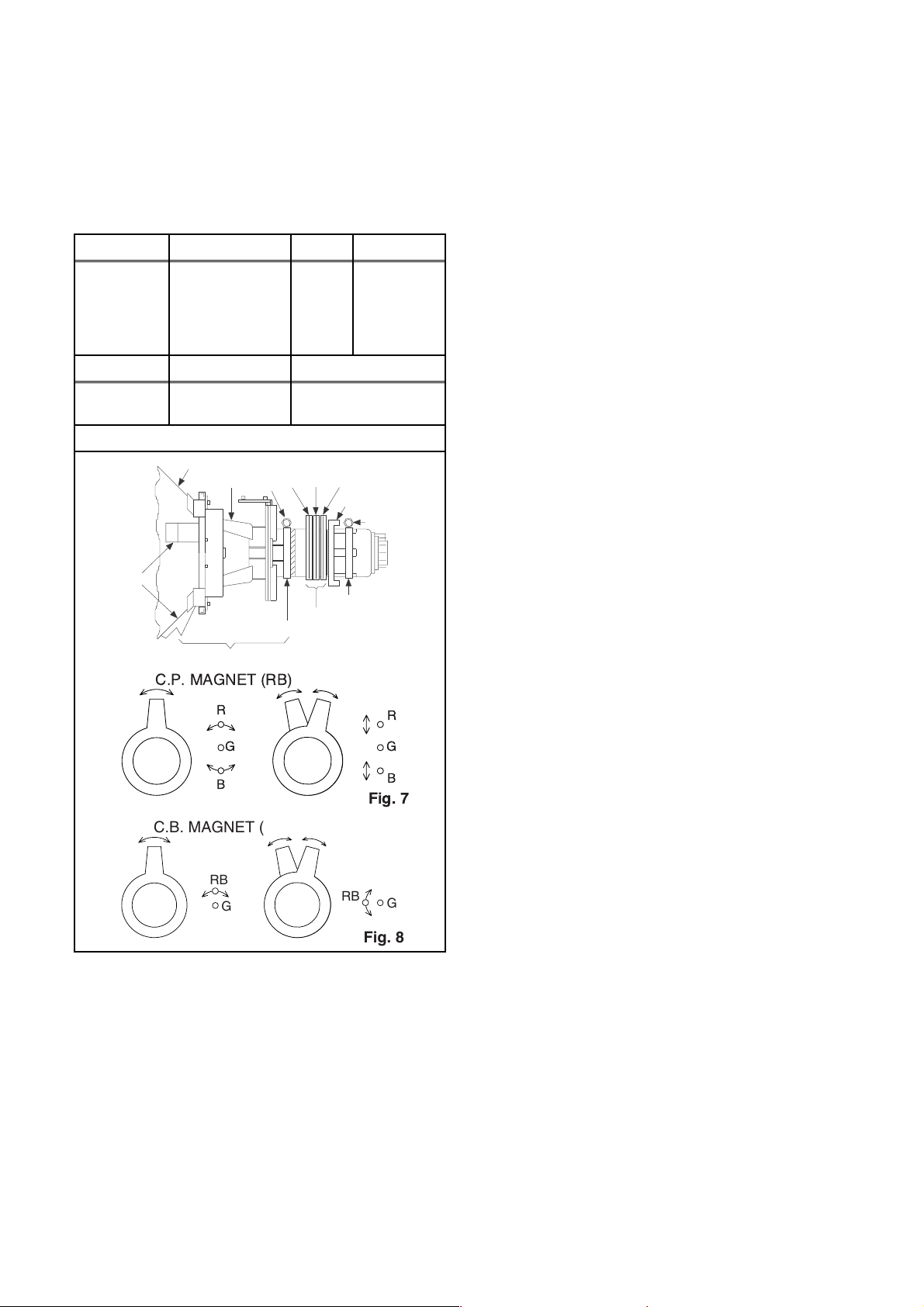

19. Convergence Adjustment

Purpose:

and blue beams.

Symptom of Misadjustment:

ment is incorrect, the edge of white letters may have
color edges.

Test Point Adj. Point Mode Input

To obtain proper convergence of red, green

If Convergence Adjust-

C.P. Magnet

Dot Pattern

Crosshatch

---

(RB),

C.P. Magnet

(RB-G),

---

Deflection Yoke

Tape M. EQ. Spec.

or

1. Loosen the Ring Lock and align red with blue dots
or Crosshatch at the center of the screen by rotat­ing (RB) C.P. Magnets. (See Fig. 7)

2. Align red / blue with green dots at the center of the
screen by rotating (RB-G) C.P. Magnet. (See Fig. 8)

3. Fix the C.P. Magnets by tightening the Ring Lock.

4. Remove the DY Wedges and slightly tilt the De­flection Yoke horizontally and vertically to obtain
the best overall convergence.

5. Fix the Deflection Yoke by carefully inserting the
DY Wedges between CRT and Deflection Yoke.

---

DY WEDGE

Pattern

Generator

CRT

DEFLECTION YOKE

  





C.B. MAGNET (RB-G)

Figures

COIL

SCREW



PURITY

C.P. MAGNET

COIL CLAMPER

See below.

RB-GRB

RING LOCK

SCREW

C.P. MAGNET CLAMPER

Fig. 6







 

RB

RB

G

G

Fig. 8

5-8 L6200EA

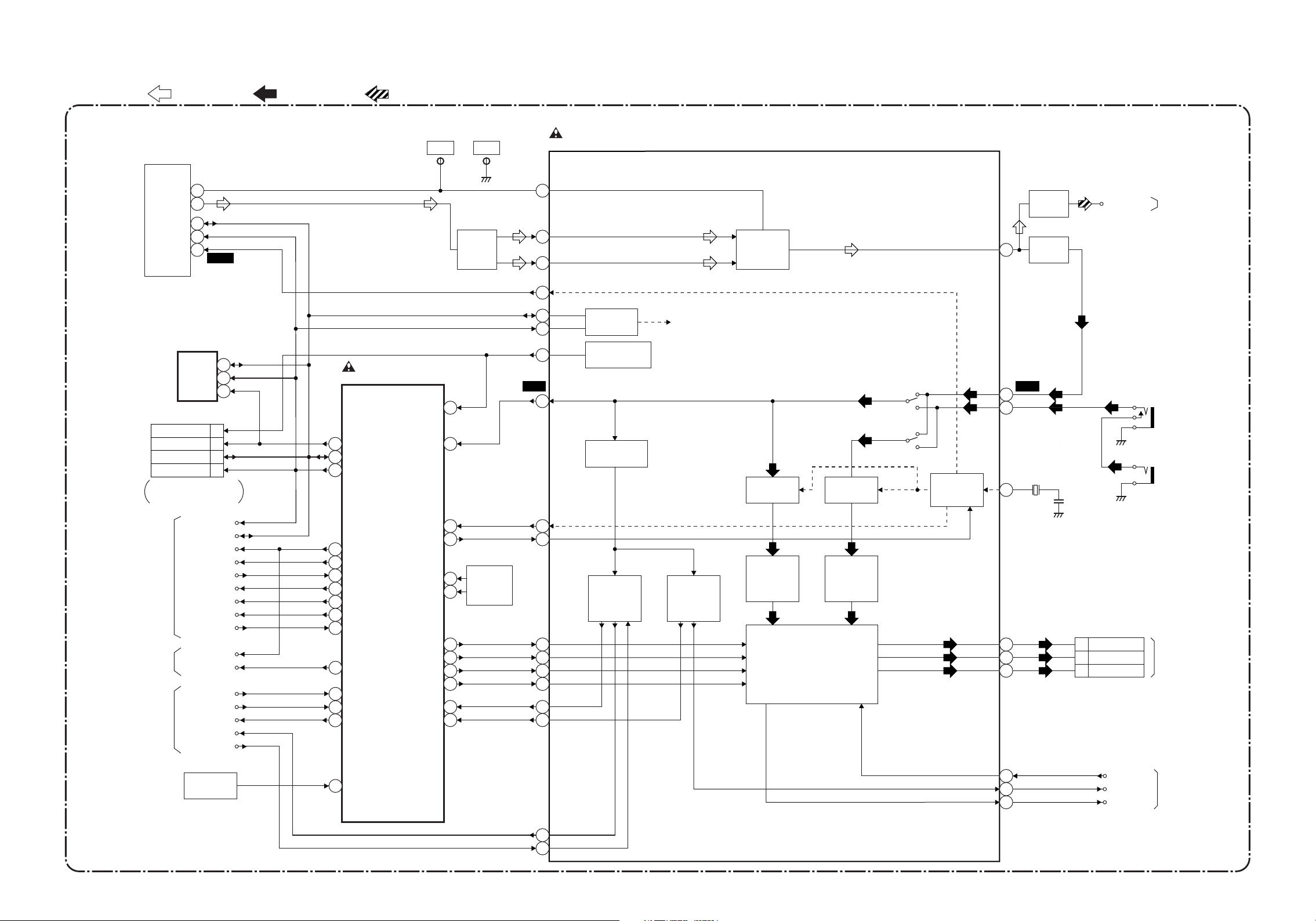

IF/Video/System Control Block Diagram

BLOCK DIAGRAMS

TU1

1

AGC

IF

11

SDA

5

SCL

4

EXT.CLK

(NO CONNECTION)

INT.MONITOR
I2C-OPEN 2
SDA 4
SCL 5

CN301 is used for
adjustment at factory

8

WF16

IC151

MEMORY

SDA

SCL

CS

CN301

5
6
7

1

VIDEO SIGNALRF/IF SIGNAL

MAIN CBA

IC111 TV MICON

INT-MONITOR/SD

I2C-OPEN

42

SDA

31

SCL

30

AUDIO SIGNAL

TP301

AGC

39

CV-IN

26

TP300

GND

SF1

SAW
FILTER

IC333 VIDEO/AUDIO/CHROMA/DEFLECTION/IF

59

63

64

43

26
27

18

31

SERIAL
I/F

INTELLIGENT
MONITORING

SYNC
SEPARATION

IF SIGNAL
CONTROL
CIRCUIT

CHROMA
TRAP

CHROMA
BPF

TUNER

LINE

TUNER

LINE

CLOCK
CONTROL
CIRCUIT

58

41
38

34

CF302

4.5MHz
BPF

CF301

4.5MHz
TRAP

WF1WF2

X344

3.58MHz

TU AUDIO

TO AUDIO/POWER
CONTROL
BLOCK DIAGRAM

JK701
V-IN(FRONT)

JK704
V-IN(REAR)

FROM/TO
AUDIO/POWER
CONTROL
BLOCK DIAGRAM

TO
POWER SUPPLY
BLOCK DIAGRAM

FROM/TO CRT/H.V.
BLOCK DIAGRAM

SCL

SDA

P-ON-H

A-MUTE-H

VOLUME

EXT-H
MONO-OUT
STEREO-IN

P-ON-H

PROTECT-1
PROTECT-2

V-DRIVE

V.RAMP NF

RCV101

REMOTE
SENSOR

P-ON-H

29

A-MUTE-H

10

RESET27RESET
VOLUME

2

EXT-H

3

MONO-OUT

12
40

STEREO-IN

11

DG-ON-HDG-ON-H

PROTECT1

7

PROTECT2

6

P-ON-LP-ON-L

14

RCV-IN

9

FSC-IN

CLK-CTRL

KEY-IN1
KEY-IN2 8

OSD-R

OSD-G

OSD-B

OSD-BLK

V-SYNC

H-SYNC

28
32

34
35
36
33

37
38

5

KEY
SWITCH

29
25

23
22
21
24

20
19

LUMA
SIGNAL

V-SYNC
PROCESS
CIRCUIT

5
6

H-SYNC
PROCESS
CIRCUIT

PROCESS
CIRCUIT

OSD MIX/RBG MATRIX/
BLANKING

CHROMA
SIGNAL
PROCESS
CIRCUIT

16
15
14

10
11
33

WH301A TO WH301B

BLUE1
GREEN2
RED3

FBP
H-DRIVE
ACL/ABL

TO CRT/H.V.
BLOCK DIAGRAM

FROM/TO
CRT/H.V.
BLOCK DIAGRAM

6-1 6-2

L6200BLIF

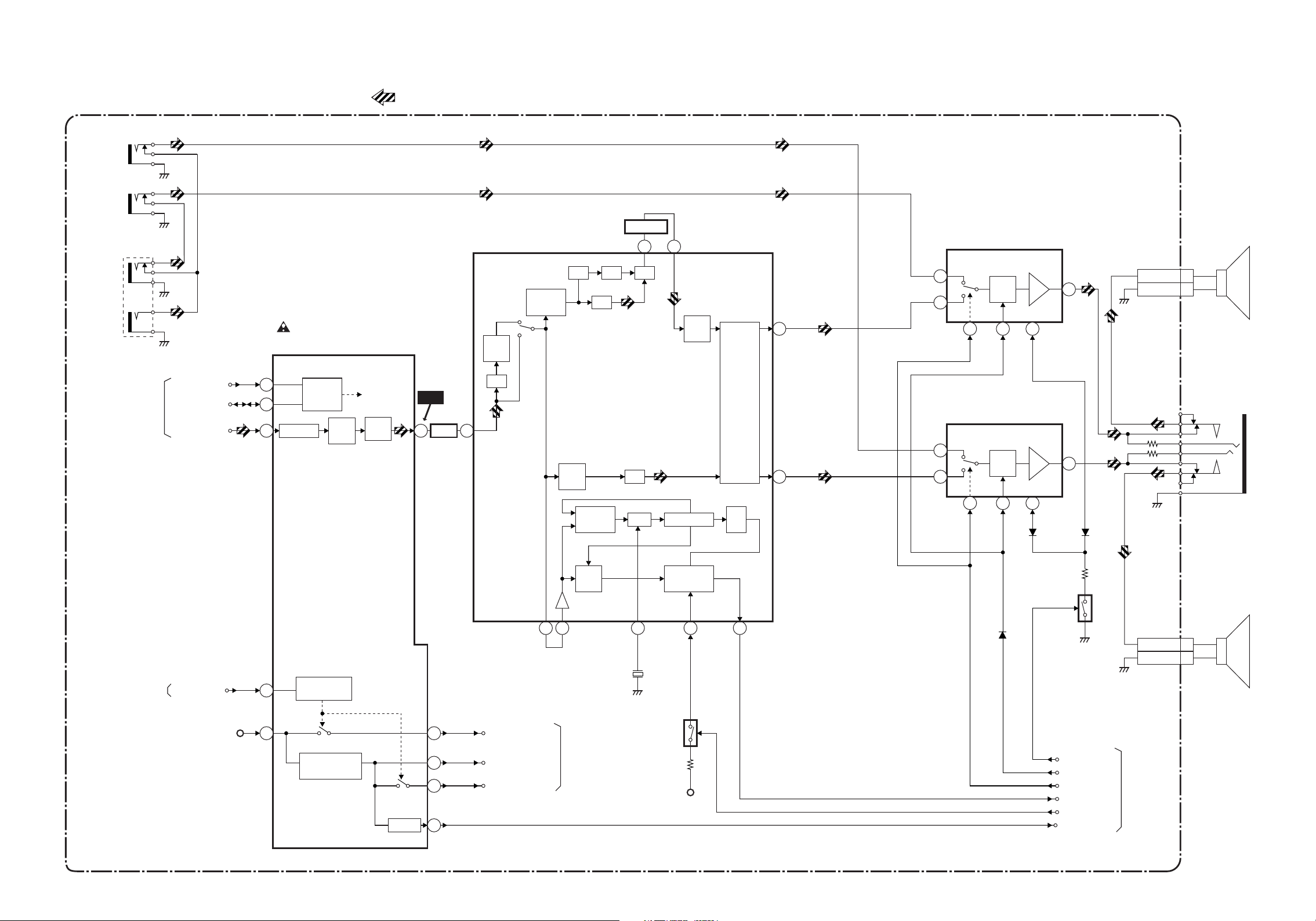

Audio/Power Control Block Diagram

AUDIO SIGNAL

JK702

A-IN(L)

(FRONT)

JK703

A-IN(R)

(FRONT)

JK704

A-IN(R)
(REAR)

A-IN(L)

(REAR)

FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK DIAGRAM

SCL

SDA

TU AUDIO

MAIN CBA

IC333

VIDEO/AUDIO/CHROMA/DEFLECTION/IF

27

26

48

SERIAL

LIMITER

I/F

FM

DET

AF
AMP

54 5

WF6

AMP

Q377

IC401

MTS/SAP AUDIO SIGNAL PROCESS

L-R

DEMOD

5fH

TRAP

ATT

L+R

AMP

Q411

LPF

PHASE

COMP.

BUFFER

1110

VCABPF DET

L-R

AMP

LPF

VCO COUNTER

MATRIX

ST

SW

13

14

IC802

(R-CH AUDIO AMP)

1

3

IC801

(L-CH AUDIO AMP)

1

3

DC
VOL.

4

5 6

DC
VOL.

5 6

4

MUTE

MUTE

SP802
SPEAKER
R-CH

CN802

SP-R

2

9

9

SP-GND

1

JK801
HEADPHONE
JACK

FROM IF/VIDEO/
SYSTEM CONTROL
BLOCK DIAGRAM

P-ON-H

+8V

STEREO

DRIVER

202122

Q441

+8V

28

44 47

POWER ON
CONTROL

P-ON-ON

+5.7V 
REGULATOR

P-ON-ON

RESET

32

49

30

+8V CTRL

+5V CTRL2

+5V CTRL

PIL.

DET.

2 1

X441

TO POWER SUPPLY
BLOCK DIAGRAM

6-3 6-4

Q825

A-MUTE-H
VOLUME
EXT-H
STEREO-IN
MONO-OUT
RESET

SP801
SPEAKER
L-CH

CN801

SP-L 2

SP-GND 1

FROM/TO
IF/VIDEO/
SYSTEM
CONTROL
BLOCK
DIAGRAM

L6200BLA

CRT/H.V. Block Diagram

VIDEO SIGNAL

FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK DIAGRAM

FROM POWER
SUPPLY BLOCK
DIAGRAM

V-DRIVE

P-ON-L

V.RAMP NF

H-DRIVE
PROTECT1
PROTECT2

DEF+B

+B

MAIN CBA

WF7 WF8

Q572 Q571

H.DRIVE

T572

H.OUTPUT

X-RAY CHECK

TP591 TP592

Q531

(SWITCHING)

1

5

10

4

WF11

T571 F.B.T.

IC551 V-DEFLECTION CONTROL

THERMAL
PROTECTION

7

AMP

1

6 3

FOCUS VR

HV

11

F
S

8

3

PULSE
UP

SCREEN VR

Q561

5

4

3

1

DY551 D.Y.

V­DRIVE

H­DRIVE

ANODE

WF12

5

Q551,
Q552

H.
CONTROL

VR562VR561

PCC WIDTH

ANODE

FOCUS
SCREEN

WF9

CN571

FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK DIAGRAM

FROM IF/VIDEO
/SYSTEM CONTROL
BLOCK DIAGRAM

FBP

ACL/ABL

RED

GREEN 2

BLUE 1

TP302

15kHz

WH301BTO WH301A

3

J1501

GND

J1502
BLUE

7

WF10

HEATER1 1

3 3

+180V

WF3

Q1512

RED AMP

WF15

WF4

Q1522

WF14

GREEN AMP

WH501BWH501A

Q1532

BLUE AMP

WF5 WF13

JK1501

7
4
8

6
11
10

9

CN1501

FOCUS
SCREEN
GND

R
G
B

HEATER

GND

V1501
CRT

CRT CBA

6-5 6-6

L6200BLCRT

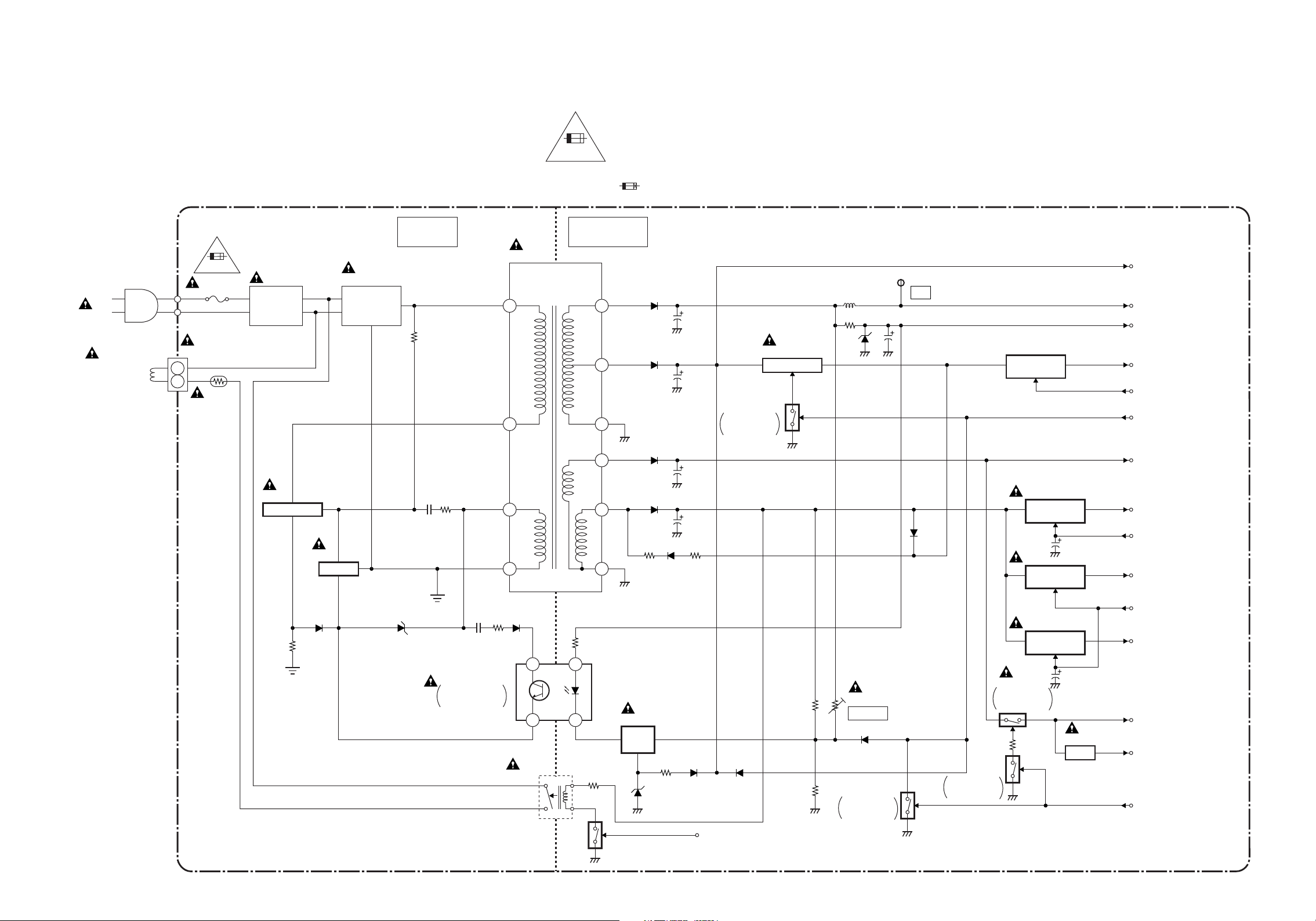

Power Supply Block Diagram

AC601
AC CORD

DG691
DEGAUSSING

COIL

CAUTION !

Switching power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

HOT COLD

T601

6

4

CN691

4A/125V

F601
4A/125V

PS691

L601

LINE
FILTER

D605 - D608

BRIDGE
RECTIFIER

4A/125V

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MEMO TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

9

Q671

10

11

Q676
SWITCHING

CONTROL

SWITCHING

TP601

+B

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

DEF +B

+B

AL+33V

Q121

+5V
SWITCHING

P-ON+5V

+5V CTRL2
(FROM PIN 32 OF IC333)

BACKUP CTRL
(FROM PIN 46 OF IC301)

Q601

SWITCHING

Q602

LIMITER

IC601

ERROR
VOLTAGE DET

12

2

1 13

4

3

RL601

14

1

2

Q662

FEED
BACK

Q696
(SWITCHING)

DG-ON-H
(FROM PIN11 OF IC111)

VR661

+B ADJ

Q675
SWITCHING

P-ON-ON

Q832

SWITCHING
P-ON-ON

Q681

+8V
SWITCHING

Q682

+5V
SWITCHING

Q683

+5V
SWITCHING

Q831

SWITCHING
P-ON-ON

MAIN CBA

Q833

REG.

AL+12V

P-ON+8V

+8V CTRL
(FROM PIN47 OF IC333)

P-ON+5V

+5V CTRL
(FROM PIN49 OF IC333)

P-ON+5V

P-ON+12V

P-ON+8V

P-ON-H
(FROM PIN29 OF IC111)

6-7 6-8

L6200BLP

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often
pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement compo­nents rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are
identified in this manual and its supplements; electrical components having such features are identified by the
mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts
list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteris­tics as specified in the parts list may create shock, fire, or other hazards.

Note:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P=10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metalized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

3

, M=106).

-6

µF).

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60ppm/°C CSL --- +350~-1000ppm/°C

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by thefollowing symbols.

CBA Symbols

(Top View) (Bottom View)

+

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

Electrolytic Capacitor

(Top View)

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

7-1 L1500SC

LILIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE

SAME TYPE FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MEMO TYPE.

A V

RISK OF FIRE-REPLACE FUSE AS MARKED.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the pow­er supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the

parts list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).

(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "I" is a leadless (chip) component.

6. Voltage indications on the schematics are as shown below:
Plug the TV power cord into a standard AC outlet.:

Voltage

7. How to read converged lines



 
 
   

 !

" ##  $   ##    ##"

" ##  $   ##    ##"

8. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

5.0

(3.0)

231

5.0
(3.0)

Power on mode

Power off mode

Indicates that the voltage
is not consistent here.

Unit: Volts



 





 







: Used to indicate a test point with a test pin.

7-2 L1500SC

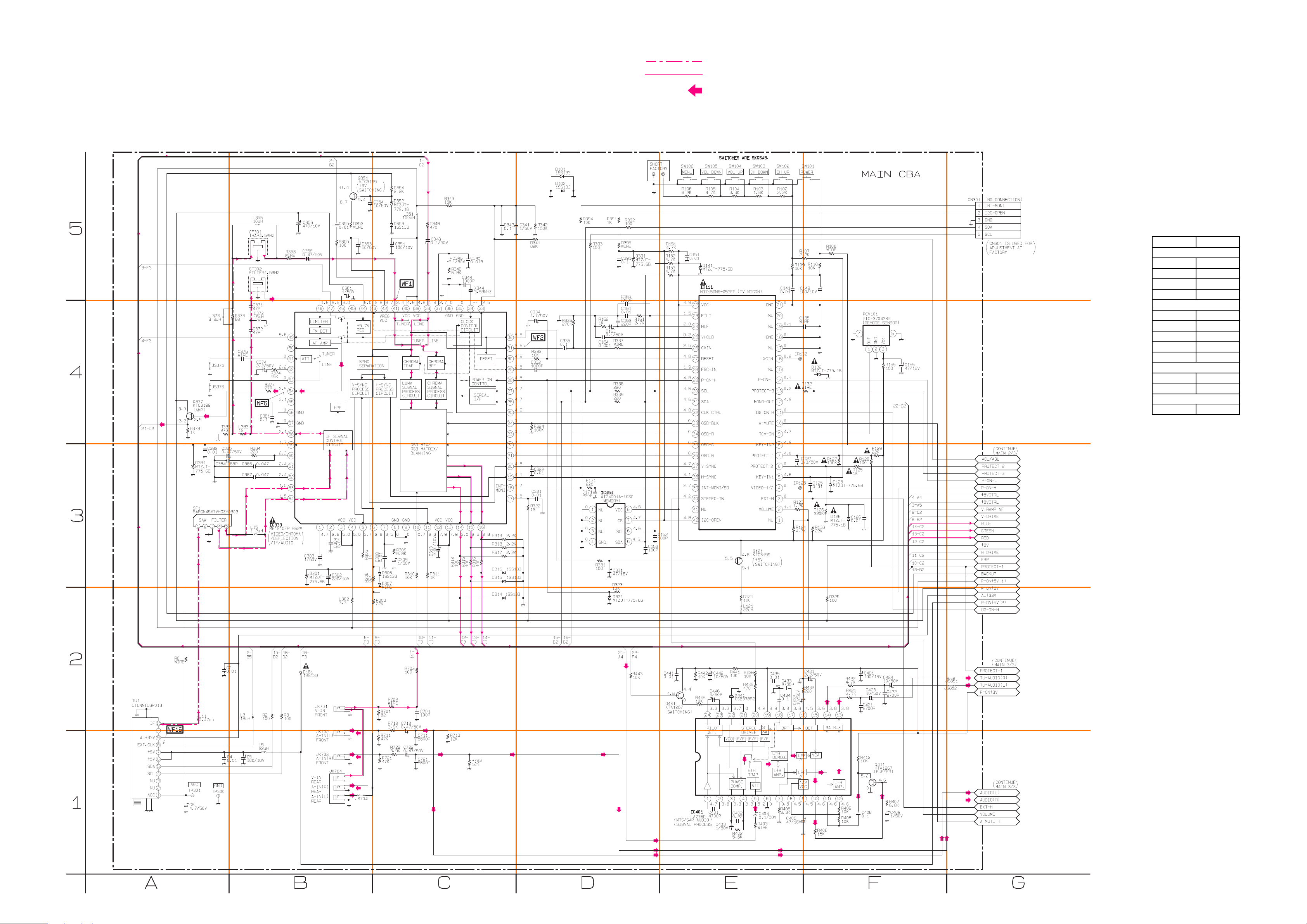

Main 1/3 Schematic Diagram

A5

A4

B5

B4

C5

C4

D5

D4

IF SIGNAL
VIDEO SIGNAL

AUDIO SIGNAL

E5

E4

F5

F4

G5

G4

MAIN 1/3

Ref No. Posit i o n

ICS
IC111 E-5
IC151 D-3
IC333 B-3
IC401 E-1

TR AN SISTO RS
Q121 E-3
Q351 B-5
Q377 A-4
Q411 F-1
Q441 E-2

TEST PO INTS
TP300 A-1
TP301 A-1

CONNECTO R

CN301 G-5

A3

A2

B3

B2

C3

C2

D3

D2

E3

E2

F3

F2

G3

G2

A1

7-3

B1

C1

D1

E1

7-4 7-5

F1

G1

L6200SCM1

Main 2/3 & CRT Schematic Diagram

CAUTION !

Fixed voltage power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

H5

H4

I5

I4

4A/125V

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MEMO TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

J5

J4

K5

K4

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOO TING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

VIDEO SIGNAL

L5

L4

M5

M4

1 NOTE:

*

The Capacitor ( C643 ) is either type A or type B.
These two types are exchangeable and can be equally used
whichever the model is . The difference between type A and
type B is shown in the table below.

C643 C642 JS642

Type A
Type B

0.01/250V
4700P/250V

N5

0.01/250V
Not Used

Not Used

WIRE

CRT

Ref No. Posit i o n

TR ANSISTOR S
Q1512 M-4
Q1522 M-4
Q1532 M-4

TEST PO INTS
TP1501 M-4
TP1502 M-4

CONNECTO RS

CN1501 M-4

WH301B L-4
WH501B L-5

N4

H3

H2

I3

I2

J3

J2

K3

K2

L3

L2

M3

M2

N3

N2

MAIN 2/3

Ref No. Posit i o n

ICS
IC551 H-5
IC601 K-2

TR AN SISTO RS
Q531 H-4
Q551 J-5
Q552 J-4
Q561 K-4
Q571 K-4
Q572 J-4
Q601 L-2
Q602 L-2
Q662 K-2
Q671 I-2
Q675 J-1
Q676 I-1
Q681 H-2
Q682 H-1
Q683 H-1
Q696 K-1

TEST PO INTS
TP302 K-4
TP591 J-4
TP592 K-4
TP601 K-4

CONNECTO RS
CN571 I -5
CN691 M-2

WH301A L-4
WH501A L-4

VARIABLE R ESISTO R S

VR561 J-5
VR562 J-5
VR661 J-1

H1

7-6

I1

J1

K1

7-7 7-8

L1

M1

N1

L6200SCM2

Main 3/3 Schematic Diagram

O3

O2

P3

P2

Q3

Q2

AUDIO SIGNAL

R3

R2

MAIN 3/3

Ref No. Position

ICS
IC801 P-3
IC802 Q-3

TRANSISTORS
Q825 P-1
Q831 R-2
Q832 R-2
Q833 Q-1

CONNECTOR
CN801 O-2
CN802 O-1

O1

7-9

P1

Q1

R1

7-10

L6200SCM3

CRT CBA Top View CRT CBA Bottom View

CRT CBA

Ref No. Posi ti o n

TRANSISTORS
Q1512 C-2
Q1522 C-1
Q1532 A-2

TEST PO IN TS
TP1501 A - 2
TP1502 A - 2

CONNECTORS

CN1501 A-2
WH301B C-1
WH501B B-1

TP1502

BLUE

TP1501

GND

WF15

Q1512
Collector

WF3

Q1512
Base

WF13

Q1532
Collector

WF5

Q1532
Base

7-11

WF14

Q1522
Collector

WF4

Q1522
Base

7-12

BL6200F01011

Main CBA Top View

TEST PO IN TS

TP601

+B

FOCUS-VR
(UPPER SIDE)

SCREEN-VR
(LOWER SIDE)

CAUTION !

Fixed voltage power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MEMO TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOO TING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

MAIN CBA

Ref No. Posi ti o n

ICS
IC111 D-4
IC151 E - 4
IC333 C-1
IC401 F-3
IC551 B - 2
IC601 C-4
IC801 F-2
IC802 F-1

TRANSISTORS
Q121 D-4
Q351 E-1
Q377 E-1
Q411 F-3
Q441 E-4
Q531 C-2
Q551 B-2
Q552 B-2
Q561 B-2
Q571 B-3
Q572 C-2
Q601 B-5
Q602 B-4
Q662 D-3
Q671 C-3
Q675 C-3
Q676 C-3
Q681 D-3
Q682 D-3
Q683 D-3
Q696 D-4
Q825 E-1
Q831 E-3
Q832 E-3
Q833 E-2

TP302

15KHz

VR661

+B
ADJ

TP300 A-1
TP301 A-1
TP302 A-2
TP591 A-2
TP592 A-2
TP601 A-5

CONNECTORS

CN301 B-1
CN571 A-3
CN691 D-4
CN801 E-1

CN802 E-4
WH301A D-2
WH501A A-2

VARIABLE R ESISTO R S

VR561 B-1

VR562 B-1

VR661 A-1

7-13

TP301

AGC

TP300

GND

VR561

PCC

VR562

WIDTH

7-14

7-15 BL6200F01011

Main CBA Bottom View

CAUTION !

Fixed voltage power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MEMO TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOO TING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF8

Q571
Base

WF9

PIN 1
OF CN571

WF12

PIN 4
OF CN571

WF10

PIN 3
OF WH501A

PIN 8
OF TU1

WF2

PIN 31
OF IC333

WF1

PIN 41
OF IC333

WF6

PIN 51
OF IC333

WF7

Q572
Collector

WF11

PIN 7
OF IC551

7-16 7-17 7-18

WF16

BL6200F01011

WF1 ~ WF16 = Waveforms to be observed at
 Waveform check points.
 (Shown in Schematic Diagram.)

WAVEFORMS

Input:  NTSC Color Bar Signal (with 1kHz Audio Signal)
INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

WF1

WF2

1DIV: 0.5V 20 sec
IC 333 Pin 41

1DIV: 0.5V 20 sec
IC 333 Pin 31

GND

WF5

WF6

1DIV: 2V 20 sec
Q 1532 Base

1DIV: 0.2V 20msec
IC 333 Pin 54

GND

WF9

WF10

1DIV: 200V 20 sec
CN 571 Pin 1

1DIV: 5V 20 sec
WH501A Pin 1

GND

GND

WF13

WF14

1DIV: 20V 20 sec
Q1532 Collector

1DIV: 20V 20 sec
Q 1522 Collector

WF3

WF4

1DIV: 2V 20 sec
Q1512 Base

1DIV: 2V 20 sec
Q 1522 Base

GND

GND

WF7

WF8

1DIV: 10V 20 sec
Q 572 Collector

1DIV: 5V 20 sec
Q 571 Base

GND

WF11

1DIV: 2V 5msec
IC 551 Pin 7

10 V 5 ms

WF12

1DIV: 10V 5msec
CN 571 Pin 4

WF15

WF16

1DIV: 20V 20 sec
Q 1512 Collector

1DIV: 0.2V 20 sec
TU 1 Pin 8

L6200WF8-1 8-2

WIRING DIAGRAM

V1501

CRT

CLN551

CN1501

GND

ANODE

FOCUS

SP801
SPEAKER

L-CH

SP802
SPEAKER

R-CH

SCREEN

CLN801

CLN802

CN801

SP-GND

1

SP-L

2

CN802

SP-GND

1

SP-R

2

CN691

1
2

TU1 TUNER UNIT

MAIN CBA
BL6200F01011

T571
FBT

CRT CBA
BL6200F01011

WH301B

BLUE

GREEN

RED
GND

+8V

HEATER 1

GND 2

+180V 3

1
2
3
4
5

HD

VD

AC601

CLN301

CLN501

DY551
D.Y.

1
2
3
4
5

WH301A
BLUE
GREEN
RED
GND
+8V

WH501AWH501B

HEATER1
GND2
+180V3

CN571
1

2
3
4
5

(NO CONNECTION)

CN301
1

INT.MONITOR

2

I2C-OPEN

3

GND

4

SDA

5

SCL

CN301 IS USED FOR
ADJUSTMENT AT
FACTORY.

9-1

L6200WI

IC PIN FUNCTIONS

IC111(TV Micro Computer)

Pin

Signal Name Function

No.

1 N.U. Not Used

2VOLUME Volume

3EXT-H Ext-H

4 N.U. Not Used

5 KEY-IN 1 Key Input 1 (Main)

6 PROTECT-2 Power Supply Protection

7 PROTECT-1 Power Supply Protection

8 KEY-IN 2 Key Input 2 (Main)

9 RCV-IN Input For Remote Control

10 A-MUTE-H Audio Mute

11 DG-ON-H Degaussing Coil Control

12 MONO-OUT MONO-OUT

13 PROTECT-3 Power Supply Protection

14 N.U. Not Used

15 N.U. Not Used

16 N.U. Not Used

Pin

Signal Name Function

No.

35 OSD-G Green Output

36 OSD-B Blue Output

37 V-SYNC

38 H-SYNC

39

40 N.U. Not Used

41 N.U. Not Used

42 I2C-OPEN

INT-MONI/

SD

Input For Vertical

Synchronize Signal

Input For Horizontal

Synchronize Signal

Intelligent Monitor/

Detection SD signal

White Balance Adjustment

Judgement

17 N.U. Not Used

18 GND GND

19 N.U. Not Used

20 N.U. Not Used

21 GND GND

22 VCC +5V

23 FILT PLL Filter

24 HLF Filter for CCD

25 VHOLD VHOLD

26 CVIN Input for Video Signal

27 RESET RESET

28 FSC-IN External Clock Input

29 P-ON-H Output for P-ON-H

30 SCL

31 SDA

32 CLK-CTRL Clock Control Signal

I2C-BUS ControllerInter-

face (Clock)

I2C-BUS ControllerInter-

face (Data)

33 OSD-BLK Picture Shut Down Output

34 OSD-R Red Output

10-1 L6200PIN

Cabinet

EXPLODED VIEWS

SHINWHA
TAPE SGT-730
(BLACK)

V501-1

L2

L2

SP801

Details for DY551
and surrounding parts

CLN801

L1

B4

B2

A6

SHINWHA
TAPE SGT-730
(WHITE)

CLN551

B3

B2

V501-2

DY551

Scotch Tape
#880

DY551

B2

B5

B3

B1

CRT CBA

DG691

L2

B5

A4

L2

A5

L4

L3

L2

L2

A2

B3

L-1

B-8

B-7

L-1

B-6

CLN802

V501

L1

B4

SP802

A1

11-1 11-2 L6200CEX

B3

B2

MAIN CBA

L-1

AC601

Packing

S2

S6

S2

S3

S3

S4

X1

X3

PACKING TAPE

X4

X2

TAPE

FRONT

S1

S5

11-3 L6200PEX

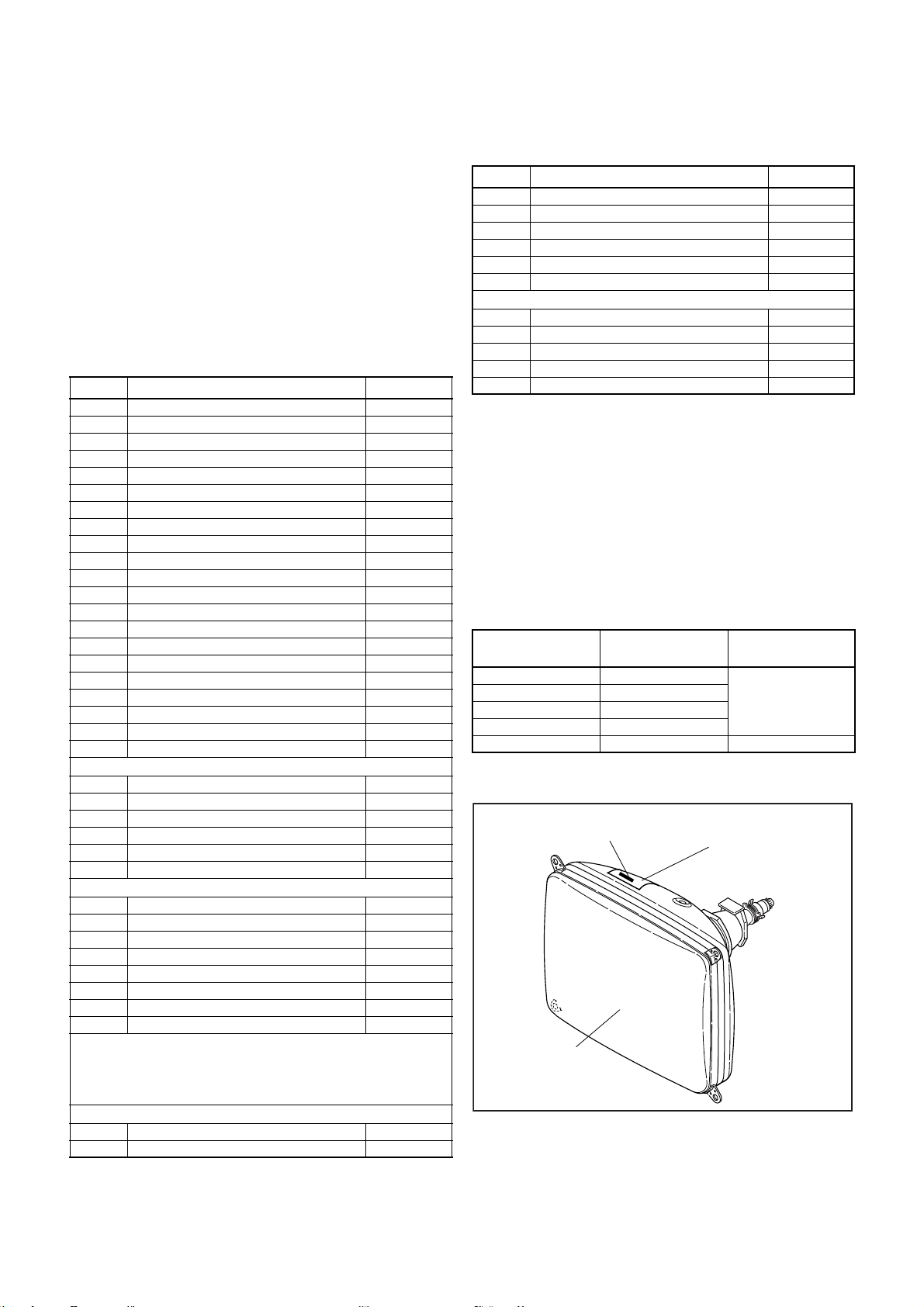

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTE:
Parts that are not assigned part numbers (----------) are
not available.

Ref. No. Description Part No.

A1 FRONT CABINET L1200UA 0EM000443

A2 CONTROL PLATE L6200UA 0EM301604

A4 REAR CABINET L1200UA 0EM000444

A5# RATING LABEL L6200UA ----------

A6 POP LABEL L6200UA 0EM407112

B1 TENSION SPRING B0080B0:EM40808 26WH006

B2 M7 CRT SCREW(D22) T7205UF 0EM406573

B3# DEGAUSS HOLDER L1200UA 0EM405869

B4 SPEAKER HOLDER L1200UA 0EM405691

B5 CLOTH L9800UA:95X15XT:0.5 0EM405041

CLN551 CRT GND WIRE CRT GND WX1L1200-007

CLN801 WIRE ASSEMBLY SPEAKER WIRE(180MM) WX1L9800-001

CLN802 WIRE ASSEMBLY SPEAKER WIRE(180MM) WX1L1131-001

DG691# DEGAUSSING COIL F-029 or LLBH00ZTM029

# DEGAUSSING COIL AVDG122 LLBH00ZWR043

L1 SCREW, P-TIGHT 3X12 BIND HEAD+ GBMP3120

L2 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180

L3 SCREW TAPPING M4X14 DBU14140

L4 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100

SP801 SPEAKER S08N04 DSD0808XQ013

SP802 SPEAKER S08N04 DSD0808XQ013

PACKING

S1 CARTON L6200UA 0EM407113

S2 STYROFOAM TOP ASSEMBLY L1200UA 0EM405907

S3 STYROFOAM BOTTOM ASSEMBLY L1200UA 0EM405908

S4 SET SHEET PCEC:003502019816 0EM403887

S5 SERIAL NO. LABEL L6200UA 0EM407114

S6 HOLD PAD L6200UA 0EM407286

ACCESSORIES

X1 POLYETHYLENE BAG F8626B5 Z325350

X2# OWNER'S MANUAL L6200UA:ENGLISH/SPANISH 0EMN01909

X3 REMOCON UNIT 130/ERC001/N0136UD N0136UD

X4 DRY BATTERY R6P UM3 or XB0M451GH001

DRY BATTERY R6P/2S or XB0M451T0001

DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002

DRY BATTERY R6P(AR)2PX or XB0M451HU002

DRY BATTERY R6P(AR)2P X ICI XB0M451HU003

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS
ALSO HAS MATCHING COMBINATION WITH DY551.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. DY551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

CRT TYPE A

DY551# DEFLECTION YOKE ODY-C29029 LLBY00ZQS006

V501# CRT A68KTB359X(B) or TCRT190QS024

Ref. No. Description Part No.

# CRT A68KTB359X(PB) or TCRT190QS025

# CRT A68KTB259X2 or TCRT190QS021

# CRT A68KTB259X(P) TCRT190QS023

V501-1 PCM JH88DTA XM04000BV010

V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

CRT TYPE B

DY551# DEFLECTION YOKE CDY-F2927H LLBY00ZQS014

V501# CRT A68QBT892X TCRT190SM028

V501-1 PCM JH88DTA XM04000BV010

V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

Table 1 (V501 and DY551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electri­cal Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and DY551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.

V501: CRT Type No. V501: CRT Part No.

CRT A68KTB359X(B) TCRT190QS024

CRT A68KTB359X(PB) TCRT190QS025

CRT A68KTB259X2 TCRT190QS021

CRT A68KTB259X(P) TCRT190QS023

CRT A68QBT892X TCRT190SM028 LLBY00ZQS014

DY551: Deflection

Yoke Part No.

LLBY00ZQS006

CRT Warning Label Location

CRT Type No.

CRT Warning
Label

CRT

20020216 12-1 L6200CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTES:

1. Parts that are not assigned part numbers (-----------

--) are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA-361 CBA

Ref. No. Description Part No.

MMA-361 CBA 0ESA04659

Consists of the followings

MAIN CBA --------------

CRT CBA --------------

MAIN CBA

Ref. No. Description Part No.

MAIN CBA

Consists of the followings

CAPACITORS

C2 CERAMIC CAP.(AX) F Z 0.01µF/50V or CA1J103TU014

CERAMIC CAP. YV Z 0.01µF/50V or CCD1JZSYV103

CERAMIC CAP. F Z 0.01µF/50V CCD1JZS0F103
C4 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C5 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C6 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C125 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C126 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C127 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASTL3R3

ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3

C135 PCB JUMPER D0.6-P5.0 JW5.0T
C141 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C142 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C151 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C152 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101

C153 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C155 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C161 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103

C162 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C163 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1

------------

Ref. No. Description Part No.

C164 FILM CAP.(P) 0.001µF/50V J or CMA1JJS00102

FILM CAP.(P) 0.001µF/50V J CA1J102MS029

C165 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

C171 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C302 ELECTROLYTIC CAP. 220µF/10V M or CE1AMASTL221

ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221

C303 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C304 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C308 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C309 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C313 ELECTROLYTIC CAP. 1000µF/10V M(VR) or CE1AMZNTL102

ELECTROLYTIC CAP. 1000µF/10V M or CE1AMZNDL102

ELECTROLYTIC CAP. 1000µF/10V M CE1AMZADL102
C321 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C322 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C331 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470

C332 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C334 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C335 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104
C341 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C342 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104

C344 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C345 CERAMIC CAP.(AX) Y M 0.015µF/6V CDA0KMT0Y153
C346 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C348 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1
C351 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C353 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C354 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C355 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C356 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471
C358 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C361 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C371 CERAMIC CAP.(AX) SL J 47pF/50V CCA1JJTSL470

C372 CERAMIC CAP.(AX) SL J 47pF/50V CCA1JJTSL470
C374 ELECTROLYTIC CAP. 2.2µF/50V M LL or CE1JMASLL2R2

ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2

20020216 13-1 L6200EL

Ref. No. Description Part No.

C375 PCB JUMPER D0.6-P5.0 JW5.0T
C381 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104

C382 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C384 CERAMIC CAP.(AX) CH J 68pF/50V CA1J680TU008
C385 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C386 CERAMIC CAP.(AX) B K 0.047µF/50V CA1J473TU011
C387 CERAMIC CAP.(AX) B K 0.047µF/50V CA1J473TU011
C391 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104

C401 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472
C402 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J CA1J224MS029
C403 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C404 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1
C405 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C408 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104
C409 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C421 CERAMIC CAP.(AX) X K 2700pF/16V CDA1CKT0X272

C422 CERAMIC CAP.(AX) X K 2700pF/16V CDA1CKT0X272
C423 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C424 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C431 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C432 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C433 CERAMIC CAP.(AX) X K 2700pF/16V CDA1CKT0X272
C434 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C435 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C441 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C442 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C446 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C481 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C531 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASTL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C532 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C533 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C535 ELECTROLYTIC CAP. 1.5µF/50V M LL CE1JMASLL1R5
C539# ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102

# ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102
# ELECTROLYTIC CAP. 1000µF/25V M CE1EMZADL102

C541 ELECTROLYTIC CAP. 470µF/35V M(VR) or CE1GMZNTL471

ELECTROLYTIC CAP. 470µF/35V M or CE1GMZADL471

Ref. No. Description Part No.

ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471

C551# PCB JUMPER D0.6-P10.0 JW10.0T
C552# METALIZED PLYESTER CAP. 1µF/100V J CT2A105MS065
C556 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029

C561 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470

C562 ELECTROLYTIC CAP. 470µF/25V M or CE1EMZNTL471

ELECTROLYTIC CAP. 470µF/25V M or CE1EMZNDL471
ELECTROLYTIC CAP. 470µF/25V M CE1EMZADL471

C565 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029

C566 CERAMIC CAP. LB 560pF/2KV or CA3D561KG004

CERAMIC CAP. BN 560pF/2KV or CCD3DKA0B561

CERAMIC CAP. 560pF/2KV CA3D561PAN04

C567# PP CAP. 0.0027µF/1.6KV J or CA3C272VC010
# PP CAP. 0.0027µF/1.6KV J CT3C272MS039
C571# P.P.CAP 0.47µF/200 J or CA2D474VC012
# PP CAP. 0.47µF/250V J CT2E474MS041
C574 ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASDL4R7
C577 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J CA1J103MS029

C578 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C580# PP CAP. 0.015µF/1.6KV J or CA3C153VC010
# PP CAP. 0.015µF/1.6KV J CT3C153MS039
C582# P.P. CAP. 0.022µF/200V J or CA2D223VC013
# P.P. CAP. 0.022µF/200V K CBP2DKD00223
C584# ELECTROLYTIC CAP. 1µF/160V M or CE2CMASTL1R0
# ELECTROLYTIC CAP. 1µF/160V M CE2CMASDL1R0

C585 CERAMIC CAP. B K 100pF/500V CCD2JKS0B101
C588 ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPTL101

ELECTROLYTIC CAP. 100µF/160V M CE2CMZNDL101
C591# ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100
# ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C601# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

# FILM CAP.(MP) 0.1µF/250V M or CT2E104DC009
# FILM CAP.(MP) 0.1µF/250V K CT2E104DC011

C603 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471
C605 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZD0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103
C606 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZD0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103

C609 CERAMIC CAP. B K 1000pF/2KV or CCD3DKD0B102

CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. 1000pF/2KV CA3D102PAN04
C610# ELECTROLYTIC CAP. 470µF/200V or CA2D471NC013
# ELECTROLYTIC CAP. 470µF/200V M CE2DMZNDL471
C611 FILM CAP.(P) 0.0056µF/50V J or CMA1JJS00562

FILM CAP.(P) 0.0056µF/50V J CA1J562MS029
C613 FILM CAP.(P) 0.056µF/50V J or CMA1JJS00563

FILM CAP.(P) 0.056µF/50V J CA1J563MS029

C614 CERAMIC CAP.(AX) X K 2700pF/16V CDA1CKT0X272

C615 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C616 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C618 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029

If C643 is 4700pF, then JS642 (PCB JUMPER) is used.

C643# SAFETY CAP. 4700pF/250V KX CA2E472MR050

JS642 PCB JUMPER D0.6-P7.5 JW7.5T

20020216 13-2 L6200EL

Ref. No. Description Part No.

If C642 is 0.01µF, then C643 is 0.01µF.

C642# SAFETY CAP. 10000pF/250V or CCG2EMA0F103
# SAFETY CAP. F M 0.01µF/250V or CCG2EMP0F103
# CERAMIC CAP. 0.01µF F CS CCG2HMN0F103

C643# SAFETY CAP. 10000pF/250V or CCG2EMA0F103
# SAFETY CAP. F M 0.01µF/250V or CCG2EMP0F103

# CERAMIC CAP. 0.01UF F CS CCG2HMN0F103

C650 CERAMIC CAP. LB 560pF/2KV or CA3D561KG004

CERAMIC CAP. BN 560pF/2KV or CCD3DKA0B561

CERAMIC CAP. 560pF/2KV CA3D561PAN04

C651 CERAMIC CAP. LB 560pF/2KV or CA3D561KG004

CERAMIC CAP. BN 560pF/2KV or CCD3DKA0B561

CERAMIC CAP. 560pF/2KV CA3D561PAN04

C652 CERAMIC CAP. B K 220pF/2KV or CCD3DKD0B221

CERAMIC CAP. B K 220pF/2KV or CCD3DKP0B221

CERAMIC CAP. 220pF/2KV CA3D221PAN04

C653# ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) or CE1CMZNTL102

# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102
# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZADL102

C654 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C655# ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) or CE1CMZNTL102

# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102
# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZADL102
C657# ELECTROLYTIC CAP. 470µF/35V M(VR) or CE1GMZNTL471
# ELECTROLYTIC CAP. 470µF/35V M or CE1GMZADL471
# ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471
C659# ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPTL101
# ELECTROLYTIC CAP. 100µF/160V M CE2CMZNDL101

C661# CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C667 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C681 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C682 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C683 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C686 ELECTROLYTIC CAP. 33µF/16V M or CE1CMASTL330

ELECTROLYTIC CAP. 33µF/16V M CE1CMASDL330

C687 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C701 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101

C711 CERAMIC CAP.(AX) X K 5600pF/16V CDA1CKT0X562
C712 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C721 CERAMIC CAP.(AX) X K 5600pF/16V CDA1CKT0X562
C722 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C801 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471

C802 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471

C806 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029

C807 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029

C808 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

Ref. No. Description Part No.

C809 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C811 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C812 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C813 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C817 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C821 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C822 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C823 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C825 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C831 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C833 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C838 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C841 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

CONNECTORS

CN301 CONNECTOR BASE, 5P TUC-P05P-B1 J3TUA05TG001

CN571# CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002

# CONNECTOR BASE, 5P RTB-1.5-5P or J3RTC05JG001

# CONNECTOR BASE, 5P W-P3005-02 1730812

CN691# CONNECTOR BASE, 2P TV-50P-02-V3 or J3TVC02TG002

# CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001

CN801 STRAIGHT CONNECTOR BASE 00 8283 0212 00

CN802 STRAIGHT CONNECTOR BASE 00 8283 0212 00

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG002

J383C02UG002

DIODES

D101 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D102 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D125 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D126# ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1

D132# ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1

D141 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D161# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D301 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D306 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D307 PCB JUMPER D0.6-P5.0 JW5.0T

D314 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D315 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

20020216 13-3 L6200EL

Ref. No. Description Part No.

DIODE 1SS176TPA7 1SS176T

D316 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D321 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D352 ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1

D353 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D381 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D391 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D532 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERA15-02 AERA1502****

D552# ZENER DIODE MTZJT-7715B QDTB00MTZJ15

D558 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D571 DIODE FR104-B or NDLZ000FR104

RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D572# DIODE FR104-B or NDLZ000FR104

# RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

# RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D573# DIODE FR104-B or NDLZ000FR104

# RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

# RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D580# DIODE ERD07-15L QD4ZERD0715L

D582# FAST RECOVERY DIODE ERD38-06 QDQZ0ERD3806

D584# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D585 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERA15-02 AERA1502****

D589 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D591# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

# ZENER DIODE MTZJT-7736A QDTA00MTZJ36

D592 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8

D593 ZENER DIODE MTZJT-7720B QDTB00MTZJ20

D595# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D596# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D597 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D605# DIODE 1N5406 or NDLZ001N5406

# DIODE ERC04-06L3 QD4Z0ERC0406

D606# DIODE 1N5406 or NDLZ001N5406

# DIODE ERC04-06L3 QD4Z0ERC0406

D607# DIODE 1N5406 or NDLZ001N5406

# DIODE ERC04-06L3 QD4Z0ERC0406

D608# DIODE 1N5406 or NDLZ001N5406

# DIODE ERC04-06L3 QD4Z0ERC0406

D609 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D611# ZENER DIODE MTZJT-7720B QDTB00MTZJ20

Ref. No. Description Part No.

D615# SWITCHING DIODE 1N4148 T-77 QDTZ001N4148

D621 ZENER DIODE MTZJT-777.5B QDTB0MTZJ7R5

D622 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D651# FAST RECOVERY DIODE 30DF6 or QDWZ00030DF6

# DIODE ERD29-06J QD4Z0ERD2906

D652# DIODE FR154 or NDLZ000FR154

# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D653# DIODE FR154 or NDLZ000FR154

# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D654# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D655# DIODE FR154 or NDLZ000FR154

# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D657# DIODE 1ZC36 QDQZ0001ZC36

D660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D661# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D662# ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8

D666# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

# ZENER DIODE MTZJT-7736A QDTA00MTZJ36

D671 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D672 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D673 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D692# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D694 PCB JUMPER D0.6-P5.0 JW5.0T

D696 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D811 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D817 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D821 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D826 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D838 ZENER DIODE MTZJT-7710B QDTB00MTZJ10

D841# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D842# ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1

D845# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

20020216 13-4 L6200EL

Ref. No. Description Part No.

# DIODE 1SS176TPA7 1SS176T

D846# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D847# ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1

ICS

IC111# IC M37150M8-053FP QSZAB0SMB088

IC151 IC:MEMORY AT24C01A-10SC or NSMMA0SAZ011

IC(EEPROM) M24C01-MN6 or NSMMA0SSS027

IC:MEMORY BR24C01AF-W or QSMBA0SRM002

IC:MEMORY S524C20D21 NSZBA0SSM028

IC333# IC:CHROMA/IF 1 CHIP M61210FP-R62* QSZAC0RMB086

IC401 IC:USA STEREO DECODER LA7765 QSZBA0SSY003

IC551# IC:VERTICAL OUTPUT LA78041 or QSZBA0SSY006

# IC:VERTICAL OUTPUT LA78045 QSZBA0SSY004

IC601# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F

# PHOTOCOUPLER LTV-817C-F NPEC0LTV817F

IC801 IC:AF POWER AMP LA4285 QSZBA0SSY002

IC802 IC:AF POWER AMP LA4285 QSZBA0SSY002

COILS

L3 INDUCTOR 18µH-J-26T or LLAXJATTU180

INDUCTOR 18µH-K-26T LLAXKDTKA180

L5 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220

L11 INDUCTOR 0.47µH-J-26T or LLAXJATTUR47

INDUCTOR 0.47µH-K-26T LLAXKDTKAR47

L15 INDUCTOR 1.2µH-J-26T or LLAXJATTU1R2

INDUCTOR 1.2µH-K-26T LLAXKDTKA1R2

L121 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220

L302 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3

L351 INDUCTOR 100µH-K-5FT or LLARKBSTU101

INDUCTOR 100µH-K LLARKDQKA101

L356 INDUCTOR 10µH-J-26T or LLAXJATTU100

INDUCTOR 10µH-K-26T LLAXKDTKA100

L372 INDUCTOR 15µH-J-26T or LLAXJATTU150

INDUCTOR 15µH-K-26T LLAXKDTKA150

L373 INDUCTOR 8.2µH-J-26T or LLAXJATTU8R2

INDUCTOR 8.2µH-K-26T LLAXKDTKA8R2

L383 CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120

CARBON RES. 1/6W J 12 Ω RCX6JATZ0120

L561# LINEARITY COIL STS007 or LLBD00ZY2002

# LINEARITY COIL ELH5L6129N LLBD00ZMS007

L562# LINEARITY COIL ST02LN or LLBD00ZY2003

# CHOKE COIL ELC13B102L LLC102KMS001
L588 CHOKE COIL 47µH-K or LLBD00PKV007

POT COIL 47µH K or LLBD**DMM001
POT COIL 47µH K LLBD00DQE001

L601# LINE FILTER JLB2808 or LLBG00ZXB004

# LINE FILTER MS036 LLBG00ZY2009

TRANSISTORS

Q121 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Ref. No. Description Part No.

Q351 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q377 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q411 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q441 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q531 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q551 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q552# TRANSISTOR 2SD1666R or QQER02SD1666

# TRANSISTOR 2SD1666S or QQES02SD1666

# TRANSISTOR KTD2059(O) or NQ400KTD2059

# TRANSISTOR KTD2059(Y) NQ4Y0KTD2059

Q561 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q571# TRANSISTOR 2SD2634 QQZZ02SD2634

Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627

Q601# FET 2SK3407 QFFZ02SK3407

Q602# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q662# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785

20020216 13-5 L6200EL

Ref. No. Description Part No.

# TRANSISTOR 2SC2785(J) or QQSJ02SC2785

# TRANSISTOR KTC3199(GR) or NQS10KTC3199

# TRANSISTOR KTC3198(GR) or NQS40KTC3198

# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q671# TRANSISTOR 2SA1175(F) or QQSF02SA1175

# TRANSISTOR KTA1267(GR) or NQS10KTA1267

# TRANSISTOR KTA1266(GR) or NQS40KTA1266

# TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

# TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

# TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q675 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q676 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q681# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

# TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q682# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

# TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q683# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

# TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q696 RES. BUILT-IN TRANSISTOR BA1F4M-T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q825 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q831 TRANSISTOR 2SB892(S) or QQSS002SB892

TRANSISTOR 2SB892(T) QQST002SB892

Q832# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785

# TRANSISTOR 2SC2785(J) or QQSJ02SC2785

# TRANSISTOR KTC3199(GR) or NQS10KTC3199

# TRANSISTOR KTC3198(GR) or NQS40KTC3198

# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q833# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785

# TRANSISTOR 2SC2785(J) or QQSJ02SC2785

# TRANSISTOR KTC3199(GR) or NQS10KTC3199

Ref. No. Description Part No.

# TRANSISTOR KTC3198(GR) or NQS40KTC3198

# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R2 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R3 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R6 PCB JUMPER D0.6-P5.0 JW5.0T
R102 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R103 CARBON RES. 1/4W J 1.8k Ω or RCX4JATZ0182

CARBON RES. 1/6W J 1.8k Ω RCX6JATZ0182
R104 CARBON RES. 1/4W J 3.3k Ω or RCX4JATZ0332

CARBON RES. 1/6W J 3.3k Ω RCX6JATZ0332
R105 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R106 CARBON RES. 1/4W J 8.2k Ω or RCX4JATZ0822

CARBON RES. 1/6W J 8.2k Ω RCX6JATZ0822
R107 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222

R108 PCB JUMPER D0.6-P5.0 JW5.0T
R109 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R110 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R121 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R123 CARBON RES. 1/4W J 1.2k Ω or RCX4JATZ0122

CARBON RES. 1/6W J 1.2k Ω RCX6JATZ0122
R124 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R125# CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
# CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R126# CARBON RES. 1/4W J 220k Ω or RCX4JATZ0224
# CARBON RES. 1/6W J 220k Ω RCX6JATZ0224
R127# CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104
# CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R128# CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101
# CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R129# CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223
# CARBON RES. 1/6W J 22k Ω RCX6JATZ0223

R132 PCB JUMPER D0.6-P5.0 JW5.0T
R133 CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223

CARBON RES. 1/6W J 22k Ω RCX6JATZ0223
R151 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R152 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R153 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R155 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R161 CARBON RES. 1/4W J 2.7k Ω or RCX4JATZ0272

CARBON RES. 1/6W J 2.7k Ω RCX6JATZ0272
R162 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R171 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

20020216 13-6 L6200EL

Ref. No. Description Part No.

R305 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R306 CARBON RES. 1/4W J 82k Ω or RCX4JATZ0823

CARBON RES. 1/6W J 82k Ω RCX6JATZ0823

R308 CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223

CARBON RES. 1/6W J 22k Ω RCX6JATZ0223

R309 CARBON RES. 1/4W J 6.8k Ω or RCX4JATZ0682

CARBON RES. 1/6W J 6.8k Ω RCX6JATZ0682

R310 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103

R311 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R314 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R315 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R316 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R317 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222

R318 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222

R319 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222

R322 CARBON RES. 1/4W J 1M Ω or RCX4JATZ0105

CARBON RES. 1/6W J 1M Ω RCX6JATZ0105

R323 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103

R324 CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104

CARBON RES. 1/6W J 100k Ω RCX6JATZ0104

R329 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R331 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R333 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103

R336 CARBON RES. 1/4W J 270k Ω or RCX4JATZ0274

CARBON RES. 1/6W J 270k Ω RCX6JATZ0274

R337 PCB JUMPER D0.6-P5.0 JW5.0T
R338 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R339 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R341 CARBON RES. 1/4W J 82k Ω or RCX4JATZ0823

CARBON RES. 1/6W J 82k Ω RCX6JATZ0823

R342 CARBON RES. 1/4W J 150k Ω or RCX4JATZ0154

CARBON RES. 1/6W J 150k Ω RCX6JATZ0154

R343 CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153

CARBON RES. 1/6W J 15k Ω RCX6JATZ0153

R346 CARBON RES. 1/4W J 6.8k Ω or RCX4JATZ0682

CARBON RES. 1/6W J 6.8k Ω RCX6JATZ0682

R348 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R353 PCB JUMPER D0.6-P5.0 JW5.0T
R354 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222

R355 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R358 PCB JUMPER D0.6-P5.0 JW5.0T
R373 CARBON RES. 1/4W J 68 Ω or RCX4JATZ0680

CARBON RES. 1/6W J 68 Ω RCX6JATZ0680

Ref. No. Description Part No.

R374 CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153

CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R377 CARBON RES. 1/4W J 270 Ω or RCX4JATZ0271

CARBON RES. 1/6W J 270 Ω RCX6JATZ0271
R378 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R383 CARBON RES. 1/4W J 270 Ω or RCX4JATZ0271

CARBON RES. 1/6W J 270 Ω RCX6JATZ0271
R384 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R391 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R392 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R393 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R394 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R395 PCB JUMPER D0.6-P5.0 JW5.0T
R402 CARBON RES. 1/4W J 5.6k Ω or RCX4JATZ0562

CARBON RES. 1/6W J 5.6k Ω RCX6JATZ0562

R403 PCB JUMPER D0.6-P5.0 JW5.0T
R405 CARBON RES. 1/4W J 3.3k Ω or RCX4JATZ0332

CARBON RES. 1/6W J 3.3k Ω RCX6JATZ0332
R406 CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153

CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R407 CARBON RES. 1/4W J 6.8k Ω or RCX4JATZ0682

CARBON RES. 1/6W J 6.8k Ω RCX6JATZ0682
R408 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R409 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R412 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R421 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R422 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R432 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R435 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R436 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R441 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R442 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R443 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R445 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R531 CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223

CARBON RES. 1/6W J 22k Ω RCX6JATZ0223
R532 CARBON RES. 1/4W J 1.8k Ω or RCX4JATZ0182

CARBON RES. 1/6W J 1.8k Ω RCX6JATZ0182
R533 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3
R535 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R536 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

20020216 13-7 L6200EL

Ref. No. Description Part No.

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R537 CARBON RES. 1/4W J 56k Ω or RCX4JATZ0563

CARBON RES. 1/6W J 56k Ω RCX6JATZ0563

R538 CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223

CARBON RES. 1/6W J 22k Ω RCX6JATZ0223

R539 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472

R540 CARBON RES. 1/4W J 2.7k Ω or RCX4JATZ0272

CARBON RES. 1/6W J 2.7k Ω RCX6JATZ0272
R541# CARBON RES. 1/4W J 2.7k Ω or RCX4JATZ0272
# CARBON RES. 1/6W J 2.7k Ω RCX6JATZ0272
R542 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R543 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R544 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R549# METAL OXIDE FILM RES. 1W J 12 Ω or RN01120ZU001
# METAL OXIDE FILM RES. 1W J 12 Ω RN01200DP003
R551 METAL OXIDE FILM RES. 2W J 680 Ω or RN02681ZU001

METAL OXIDE FILM RES. 2W J 680 Ω RN02681DP004
R552# METAL OXIDE FILM RES. 2W J 8.2 Ω or RN028R2ZU001
# METAL OXIDE FILM RES. 2W J 8.2 Ω RN028R2DP004
R553 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R554 CARBON RES. 1/4W J 3.9k Ω or RCX4JATZ0392

CARBON RES. 1/6W J 3.9k Ω RCX6JATZ0392
R555 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R556 CARBON RES. 1/4W J 47k Ω or RCX4JATZ0473

CARBON RES. 1/6W J 47k Ω RCX6JATZ0473
R557 CARBON RES. 1/4W J 18k Ω or RCX4JATZ0183

CARBON RES. 1/6W J 18k Ω RCX6JATZ0183
R558 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R561 CARBON RES. 1/4W J 1.2k Ω or RCX4JATZ0122

CARBON RES. 1/6W J 1.2k Ω RCX6JATZ0122
R562 CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104

CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R563 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R564 CARBON RES. 1/4W J 150k Ω or RCX4JATZ0154

CARBON RES. 1/6W J 150k Ω RCX6JATZ0154
R565 CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223

CARBON RES. 1/6W J 22k Ω RCX6JATZ0223
R566 CARBON RES. 1/4W J 8.2k Ω or RCX4JATZ0822

CARBON RES. 1/6W J 8.2k Ω RCX6JATZ0822
R568 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R571 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681
R572 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681
R573 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681
R574 METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001

METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004
R575 METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001

METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004
R576 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222

Ref. No. Description Part No.

R577 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R578# CARBON RES. 1/4W J 22 Ω or RCX4JATZ0220
# CARBON RES. 1/6W J 22 Ω RCX6JATZ0220
R579# CARBON RES. 1/4W J 22 Ω or RCX4JATZ0220
# CARBON RES. 1/6W J 22 Ω RCX6JATZ0220

R581 PCB JUMPER D0.6-P5.0 JW5.0T
R583# METAL OXIDE FILM RES. 2W J 6.8 Ω or RN026R8ZU001
# METAL OXIDE FILM RES. 2W J 6.8 Ω RN026R8DP004
R584# CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
# CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R585 CARBON RES. 1/4W J 8.2k Ω or RCX4JATZ0822

CARBON RES. 1/6W J 8.2k Ω RCX6JATZ0822
R586 CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104

CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R587 CARBON RES. 1/4W J 120k Ω or RCX4JATZ0124

CARBON RES. 1/6W J 120k Ω RCX6JATZ0124
R588# CARBON RES. 1/4W J 18k Ω or RCX4JATZ0183
# CARBON RES. 1/6W J 18k Ω RCX6JATZ0183
R589 CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223

CARBON RES. 1/6W J 22k Ω RCX6JATZ0223
R590 CARBON RES. 1/4W J 12k Ω or RCX4JATZ0123

CARBON RES. 1/6W J 12k Ω RCX6JATZ0123
R591# CARBON RES. 1/4W J 220k Ω or RCX4JATZ0224
# CARBON RES. 1/6W J 220k Ω RCX6JATZ0224
R592# CARBON RES. 1/4W J 180k Ω or RCX4JATZ0184
# CARBON RES. 1/6W J 180k Ω RCX6JATZ0184
R593# CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104
# CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R594# CARBON RES. 1/4W J 68k Ω or RCX4JATZ0683
# CARBON RES. 1/6W J 68k Ω RCX6JATZ0683
R596# METAL OXIDE FILM RES. 1W J 12 Ω or RN01120ZU001
# METAL OXIDE FILM RES. 1W J 12 Ω RN01200DP003
R597# CARBON RES. 1/4W J 6.8k Ω or RCX4JATZ0682
# CARBON RES. 1/6W J 6.8k Ω RCX6JATZ0682
R598# CARBON RES. 1/4W J 47k Ω or RCX4JATZ0473
# CARBON RES. 1/6W J 47k Ω RCX6JATZ0473
R599# CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223
# CARBON RES. 1/6W J 22k Ω RCX6JATZ0223
R601# CEMENT RES. 5W K 0.56 Ω or RW05R56DP007
# CEMENT RES. 5W K 0.56 Ω RW05R56PG001
R602# CARBON RES. 1/4W J 3.3M Ω or RCX4JATZ0335
# CARBON RES. 1/6W J 3.3M Ω RCX6JATZ0335
R603 CARBON RES. 1/4W J 3.3M Ω or RCX4JATZ0335

CARBON RES. 1/6W J 3.3M Ω RCX6JATZ0335
R604 CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104

CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R605 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R611 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R612 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R613# CEMENT RES. 5W K 0.27 Ω or RW05R27DP005
# CEMENT RESISTOR 5W K 0.27 Ω RW05R27PG001
R616 CARBON RES. 1/4W J 5.6k Ω or RCX4JATZ0562

CARBON RES. 1/6W J 5.6k Ω RCX6JATZ0562
R617 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R620 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

20020216 13-8 L6200EL

Ref. No. Description Part No.

R621 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152

R623 CARBON RES. 1/4W J 39 Ω or RCX4JATZ0390

CARBON RES. 1/6W J 39 Ω RCX6JATZ0390

R624 PCB JUMPER D0.6-P5.0 JW5.0T
R626 CARBON RES. 1/4W J 390 Ω or RCX4JATZ0391

CARBON RES. 1/6W J 390 Ω RCX6JATZ0391

R653 CARBON RES. 1/4W J 18k Ω or RCX4JATZ0183

CARBON RES. 1/6W J 18k Ω RCX6JATZ0183
R654# CARBON RES. 1/4W J 1.8k Ω or RCX4JATZ0182
# CARBON RES. 1/6W J 1.8k Ω RCX6JATZ0182
R655# CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
# CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R656# CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153
# CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R657# CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153
# CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R658 CARBON RES. 1/4W J 470k Ω or RCX4JATZ0474

CARBON RES. 1/6W J 470k Ω RCX6JATZ0474
R660 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R661# CARBON RES. 1/4W J 82k Ω or RCX4JATZ0823
# CARBON RES. 1/6W J 82k Ω RCX6JATZ0823
R662# CARBON RES. 1/4W J 82k Ω or RCX4JATZ0823
# CARBON RES. 1/6W J 82k Ω RCX6JATZ0823
R664# CARBON RES. 1/4W J 12k Ω or RCX4JATZ0123
# CARBON RES. 1/6W J 12k Ω RCX6JATZ0123
R665# CARBON RES. 1/4W J 5.6k Ω or RCX4JATZ0562
# CARBON RES. 1/6W J 5.6k Ω RCX6JATZ0562
R666# METAL RESISTOR 2W J 18k Ω or RN02183ZU001
# METAL OXIDE FILM RES. 2W J 18k Ω RN02183DP004
R667# CARBON RES. 1/4W J 27k Ω or RCX4JATZ0273
# CARBON RES. 1/6W J 27k Ω RCX6JATZ0273
R668# CARBON RES. 1/4W J 33k Ω or RCX4JATZ0333
# CARBON RES. 1/6W J 33k Ω RCX6JATZ0333
R669# CARBON RES. 1/4W J 27k Ω or RCX4JATZ0273
# CARBON RES. 1/6W J 27k Ω RCX6JATZ0273
R670# CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104
# CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R671 CARBON RES. 1/4W J 3.3k Ω or RCX4JATZ0332

CARBON RES. 1/6W J 3.3k Ω RCX6JATZ0332
R672 CARBON RES. 1/4W J 3.3k Ω or RCX4JATZ0332

CARBON RES. 1/6W J 3.3k Ω RCX6JATZ0332
R673 CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104

CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R674# CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223
# CARBON RES. 1/6W J 22k Ω RCX6JATZ0223
R676 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R677 CARBON RES. 1/4W J 68k Ω or RCX4JATZ0683

CARBON RES. 1/6W J 68k Ω RCX6JATZ0683
R678 CARBON RES. 1/4W J 47k Ω or RCX4JATZ0473

CARBON RES. 1/6W J 47k Ω RCX6JATZ0473
R681# CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120
# CARBON RES. 1/6W J 12 Ω RCX6JATZ0120
R682# METAL OXIDE FILM RES. 1W J 33 Ω or RN01330ZU001
# METAL OXIDE FILM RES. 1W J 33 Ω RN01330DP003
R683# METAL OXIDE FILM RES. 1W J 39 Ω or RN01390ZU001
# METAL OXIDE FILM RES. 1W J 39 Ω RN01390DP003
R686 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

Ref. No. Description Part No.

R687 CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

CARBON RES. 1/6W J 10 Ω RCX6JATZ0100

R690 PCB JUMPER D0.6-P15.0 JW15.0T
R692 CARBON RES. 1/4W J 12k Ω or RCX4JATZ0123

CARBON RES. 1/6W J 12k Ω RCX6JATZ0123
R696# CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100
# CARBON RES. 1/6W J 10 Ω RCX6JATZ0100
R701 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820

R702 PCB JUMPER D0.6-P5.0 JW5.0T
R703 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R711 CARBON RES. 1/4W J 47k Ω or RCX4JATZ0473

CARBON RES. 1/6W J 47k Ω RCX6JATZ0473
R712 CARBON RES. 1/4W J 3.9k Ω or RCX4JATZ0392

CARBON RES. 1/6W J 3.9k Ω RCX6JATZ0392
R713 CARBON RES. 1/4W J 12k Ω or RCX4JATZ0123

CARBON RES. 1/6W J 12k Ω RCX6JATZ0123
R721 CARBON RES. 1/4W J 47k Ω or RCX4JATZ0473

CARBON RES. 1/6W J 47k Ω RCX6JATZ0473
R722 CARBON RES. 1/4W J 3.9k Ω or RCX4JATZ0392

CARBON RES. 1/6W J 3.9k Ω RCX6JATZ0392
R723 CARBON RES. 1/4W J 12k Ω or RCX4JATZ0123

CARBON RES. 1/6W J 12k Ω RCX6JATZ0123
R801 CARBON RES. 1/2W J 100 Ω or RCX2JZQZ0101

CARBON RES. 1/2W J 100 Ω or RCX2101KA013

CARBON RES. 1/2W J 100 Ω RCX2JZPZ0101
R802 CARBON RES. 1/2W J 100 Ω or RCX2JZQZ0101

CARBON RES. 1/2W J 100 Ω or RCX2101KA013

CARBON RES. 1/2W J 100 Ω RCX2JZPZ0101
R806 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R807 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R813 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R815 CARBON RES. 1/4W J 100k Ω or RCX4JATZ0104

CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R817 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R818 CARBON RES. 1/4W J 82k Ω or RCX4JATZ0823

CARBON RES. 1/6W J 82k Ω RCX6JATZ0823
R823 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R825 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R826 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R828 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103

R830 PCB JUMPER D0.6-P5.0 JW5.0T

R831# PCB JUMPER D0.6-P5.0 JW5.0T
R832 CARBON RES. 1/4W J 22k Ω or RCX4JATZ0223

CARBON RES. 1/6W J 22k Ω RCX6JATZ0223
R833 CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222

CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222

R834 PCB JUMPER D0.6-P5.0 JW5.0T
R835 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103

R836 PCB JUMPER D0.6-P15.0 JW15.0T

R837# PCB JUMPER D0.6-P5.0 JW5.0T

20020216 13-9 L6200EL

Ref. No. Description Part No.

R838 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R841# METAL OXIDE FILM RES. 1W J 5.6 Ω or RN015R6ZU001
# METAL OXIDE FILM RES. 1W J 5.6 Ω RN015R6DP003
R843# CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222
# CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R845# CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222
# CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R846# CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222
# CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222
R847# METAL OXIDE FILM RES. 1W J 5.6 Ω or RN015R6ZU001
# METAL OXIDE FILM RES. 1W J 5.6 Ω RN015R6DP003
R848# CARBON RES. 1/4W J 2.2k Ω or RCX4JATZ0222
# CARBON RES. 1/6W J 2.2k Ω RCX6JATZ0222

SWITCHES

SW101 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW102 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW103 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW104 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW105 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW106 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

MISCELLANEOUS

AC601# AC CORD LA-2413 WAC0172LW007

B-6 HEAT SINK(PEN)ASSEMBLY L1200UZ 0EM405718

B-7 HEAT SINK(PGI)ASSEMBLY L6200UZ 0EM407070

B-8 HEAT SINK(PGJ)ASSEMBLY L6200UZ 0EM407072

BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026

BC601 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC602 PCB JUMPER D0.6-P5.0 JW5.0T

BC603 PCB JUMPER D0.6-P5.0 JW5.0T

BC650 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC651 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC652 PCB JUMPER D0.6-P5.0 JW5.0T

BC653 PCB JUMPER D0.6-P5.0 JW5.0T

BC655 PCB JUMPER D0.6-P5.0 JW5.0T

BC691 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC692 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

CF301 4.5M TRAP XT4.5MB2 or FBE455PLN001

CERAMIC TRAP 4.5MHz or FBE455PMR003

CERAMIC TRAP 4.5MHz FBE455PMS001

CF302 4.5M FILTER LTH4.5MCB or FBB455PLN001

CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

CERAMIC FILTER 4.5MHz FBB455PMS001

CLN301 WIRE ASSEMBLY WX1L1200-102 WX1L1200-102

CLN501 WIRE ASSEMBLY WX1L1200-103 WX1L1200-103

F601# FUSE 4A/125V 237 TYPE or PAGJ20CAG402

# FUSE STC4A125V U/CT PAGE20CW3402

FH601 FUSE HOLDER MSF-015 or XH01Z00LY001

Ref. No. Description Part No.

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424

FH602 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424

GP641# GAP. FNR-G3.10D FAZ000LD6005

JK701 RCA JACK 1P(YELLOW)WITH SWITCH AV1-09S-3JYRL010RP009

JK702 RCA JACK 1P(WHITE)WITH SWITCH AV1-09S-4 JYRL010RP010

JK703 RCA JACK 1P(RED)WITH SW ITCH AV1-09S-2 JYRL010RP008

JK704 RCA JACK 3P (SW) MSP-213-V2-432 JYRL030LY008

JK801 HEADPHONE JACK MSJ-035-10A B JYSL020LY002

JS375 PCB JUMPER D0.6-P5.0 JW5.0T

JS376 PCB JUMPER D0.6-P5.0 JW5.0T

JS642 PCB JUMPER D0.6-P7.5 JW7.5T

JS704 PCB JUMPER D0.6-P5.0 JW5.0T

JS831 PCB JUMPER D0.6-P7.5 JW7.5T

JS851 PCB JUMPER D0.6-P5.0 JW5.0T

JS852 PCB JUMPER D0.6-P5.0 JW5.0T

L-1 SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080

SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080

SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080

PS691# THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A

RCV101 REMOCON RECEIVE UNIT MIM-93M8DKL or USESJRSUNT02

REMOCON RECEIVE UNIT PIC-26042SR-2 or USESJRSKK032

REMOCON RECEIVE UNIT PIC-37042SR USESJRSKK034

RL601# POWER RELAY SDT-S-112LMR or MRNDC12QN014

# POWER RELAY RPEF-12-901 MRNDC12KB002

SA601# SURGE ABSORBER PVR-07D471KB or NVQZ07D471KB

# SURGE ABSORBER CNR-07D471K or NVQZR07D471K

# SURGE ABSORBER AVR-S07D471KAAS or QVQZ0AVRS07D

# SURGE ABSORBER JVR-07N471K or NVQZVR07N471

# VARISTOR ENC471D-07A QVQZ0471D07A

SF1 SAW FILTER SAFGM45M7VHGZM0B03 FBB456PMR007

T571# FLYBACK TRANS BSC25-2096S or LTF00CPS2028

# FLYBACK TRANS BSC25-0730 LTF00CPP1011

T572 HORIZONTAL DRAIVE TRANS STA5003** LTH00CPY2003

T601# SWICHING TRANS KD-01706 or LTT00CPKT071

# SWITCHING TRANS SA-01114 LTT00CPSA099

TH551 THERMISTOR NRD3503L420Y or QNWLNRD35034

THERMISTOR PTN-51F or QMSZ00PTN51F

THERMISTOR DC30-4M 503KB QMVZ304M503K

TP300 PCB JUMPER D0.6-P10.0 JW10.0T

TP301 PCB JUMPER D0.6-P10.0 JW10.0T

TP302 PCB JUMPER D0.6-P10.0 JW10.0T

TP591 PCB JUMPER D0.6-P5.0 JW5.0T

TP592 PCB JUMPER D0.6-P5.0 JW5.0T

TP601 PCB JUMPER D0.6-P7.5 JW7.5T

TU1 TUNER ENV56DB3G3 or UTUNNTUMS009

TUNER B8095AP UTUNNTUSP018

VR561 CARBON P.O.T. 30k Ω B or VRCB303KA011

CARBON P.O.T. 30k Ω B VRCB303HH014

VR562 CARBON P.O.T. 5k Ω B or VRCB502KA011

CARBON P.O.T. 5k Ω B VRCB502HH014
VR661# CARBON P.O.T. 30k Ω B or VRCB303KA011
# CARBON P.O.T. 30k Ω B VRCB303HH014

X344 X'TAL 3.579545 MHz FXD355LLN003

X441 CERAMIC RESONATOR ZTB378F2 or FY0374PLN001

CERAMIC RESONATOR CSB378F2 FY0374PMR001

20020216 13-10 L6200EL

CRT CBA

Ref. No. Description Part No.

CRT CBA

Consists of the followings

CAPACITORS

C1501 CERAMIC CAP. B K 1000pF/2KV or CCD3DKD0B102

CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. 1000pF/2KV CA3D102PAN04

C1502 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470

C1511 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271

C1521 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271

C1531 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271

CONNECTOR

CN1501 PIN CONNECTOR 005P-5100 JTEA001TG001

DIODES

D1501 DIODE FR104-B or NDLZ000FR104

RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

COILS

L1511 PCB JUMPER D0.6-P5.0 JW5.0T

L1521 PCB JUMPER D0.6-P5.0 JW5.0T

L1531 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q1512 TRANSISTOR KTC3503Y or NQWY0KTC3503

TRANSISTOR 2SC3619 QQ9Z02SC3619

Q1522 TRANSISTOR KTC3503Y or NQWY0KTC3503

TRANSISTOR 2SC3619 QQ9Z02SC3619

Q1532 TRANSISTOR KTC3503Y or NQWY0KTC3503

TRANSISTOR 2SC3619 QQ9Z02SC3619

RESISTORS

R1510# FIXED METAL OXIDE FILM RES. 3W J 10k Ω or RN03103KE008
# METAL RESISTOR 3W J 10k Ω or RN03103ZU001
# METAL RES. 3W J 10k Ω or RN03103UB503
# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005

R1511 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152

R1512 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152

R1515 CARBON RES. 1/4W J 2.7k Ω or RCX4JATZ0272

CARBON RES. 1/6W J 2.7k Ω RCX6JATZ0272

R1516 PCB JUMPER D0.6-P5.0 JW5.0T
R1518 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R1519 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1520# FIXED METAL OXIDE FILM RES. 3W J 10k Ω or RN03103KE008

# METAL RESISTOR 3W J 10k Ω or RN03103ZU001
# METAL RES. 3W J 10k Ω or RN03103UB503
# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005

R1521 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152

R1522 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152

R1525 CARBON RES. 1/4W J 2.7k Ω or RCX4JATZ0272

CARBON RES. 1/6W J 2.7k Ω RCX6JATZ0272

R1526 PCB JUMPER D0.6-P5.0 JW5.0T
R1528 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R1529 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

------------

Ref. No. Description Part No.

R1530# FIXED METAL OXIDE FILM RES. 3W J 10k Ω or RN03103KE008
# METAL RESISTOR 3W J 10k Ω or RN03103ZU001
# METAL RES. 3W J 10k Ω or RN03103UB503
# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005

R1531 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152
R1532 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152
R1535 CARBON RES. 1/4W J 2.7k Ω or RCX4JATZ0272

CARBON RES. 1/6W J 2.7k Ω RCX6JATZ0272

R1536 PCB JUMPER D0.6-P5.0 JW5.0T
R1538 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R1539 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1541 PCB JUMPER D0.6-P5.0 JW5.0T

R1542 PCB JUMPER D0.6-P5.0 JW5.0T

R1543 PCB JUMPER D0.6-P5.0 JW5.0T

MISCELLANEOUS

JK1501# CRT SOCKET ISHS40ST or JSCC290PK006

# CRT SOCKET HPS0521-012212 JSCC290HD012

JS1501 PCB JUMPER D0.6-P7.5 JW7.5T

TP1501 PCB JUMPER D0.6-P7.5 JW7.5T

TP1502 PCB JUMPER D0.6-P10.0 JW10.0T

20020216 13-11 L6200EL

SRT2227S L6200UA

Printed in Japan

2002-02-30 HO
