Symphonic CSC313E Schematic

SERVICE MANUAL

Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List

When servicing the deck mechanism, refer to MK14 Deck Mechanism Section.

Deck Mechanism Part No.: N2426FT

13″ COLOR TV/VCR COMBINATION

CSC313E

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

MAIN SECTION

13″ COLOR TV/VCR COMBINATION

CSC313E

Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3-1

Preparation for Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

How to Initialize the TV/VCR Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-1

Mechanical Trouble Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1

Power Supply Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

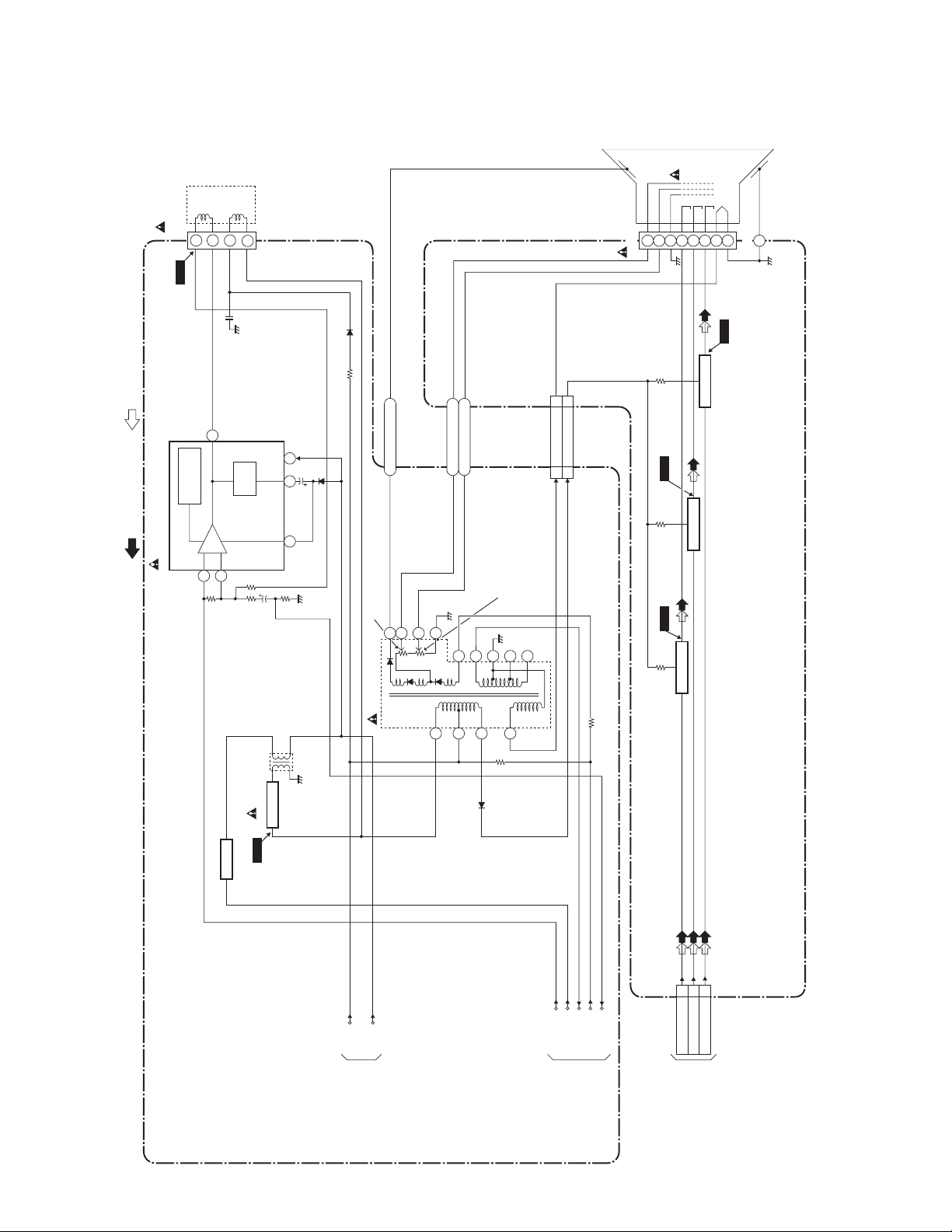

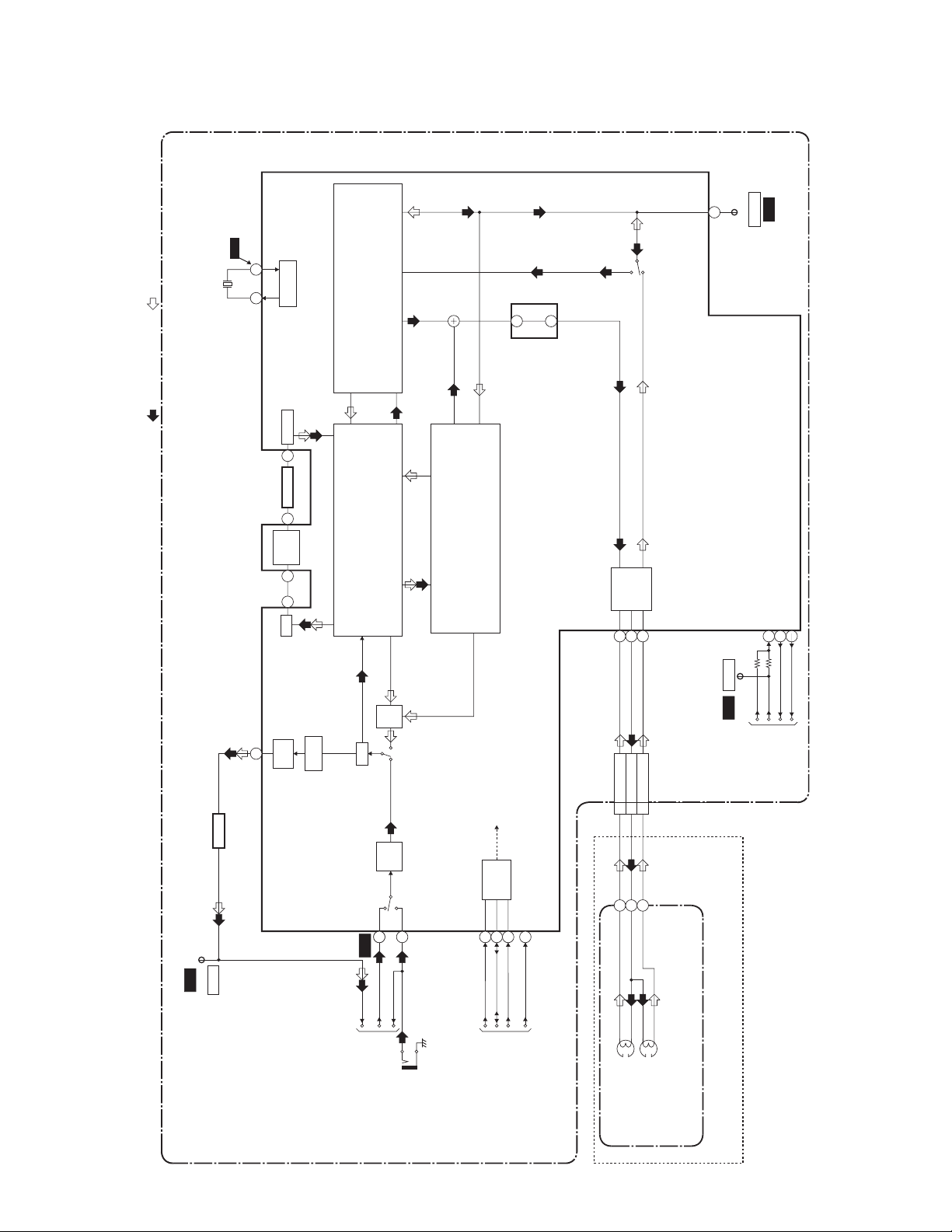

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1

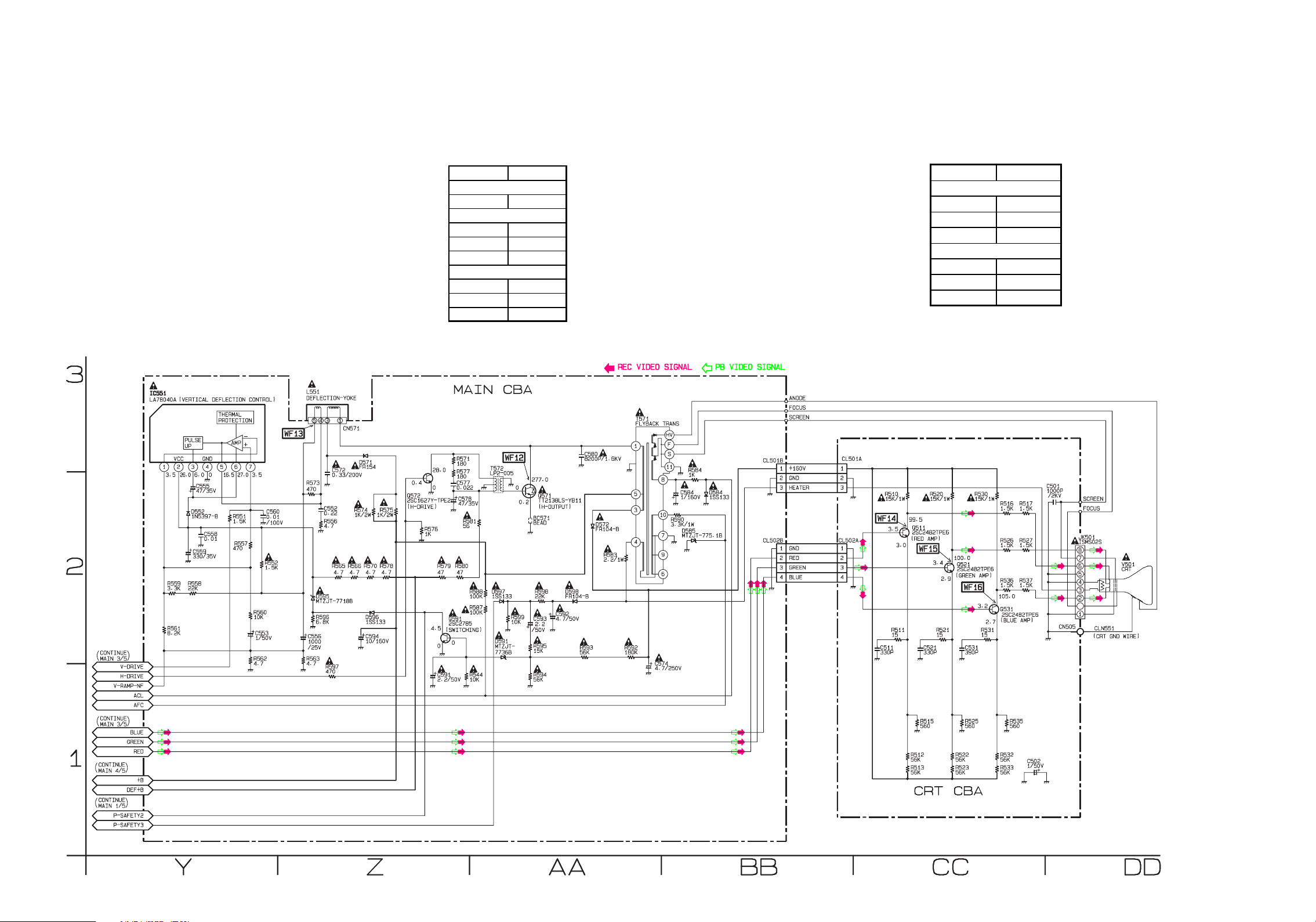

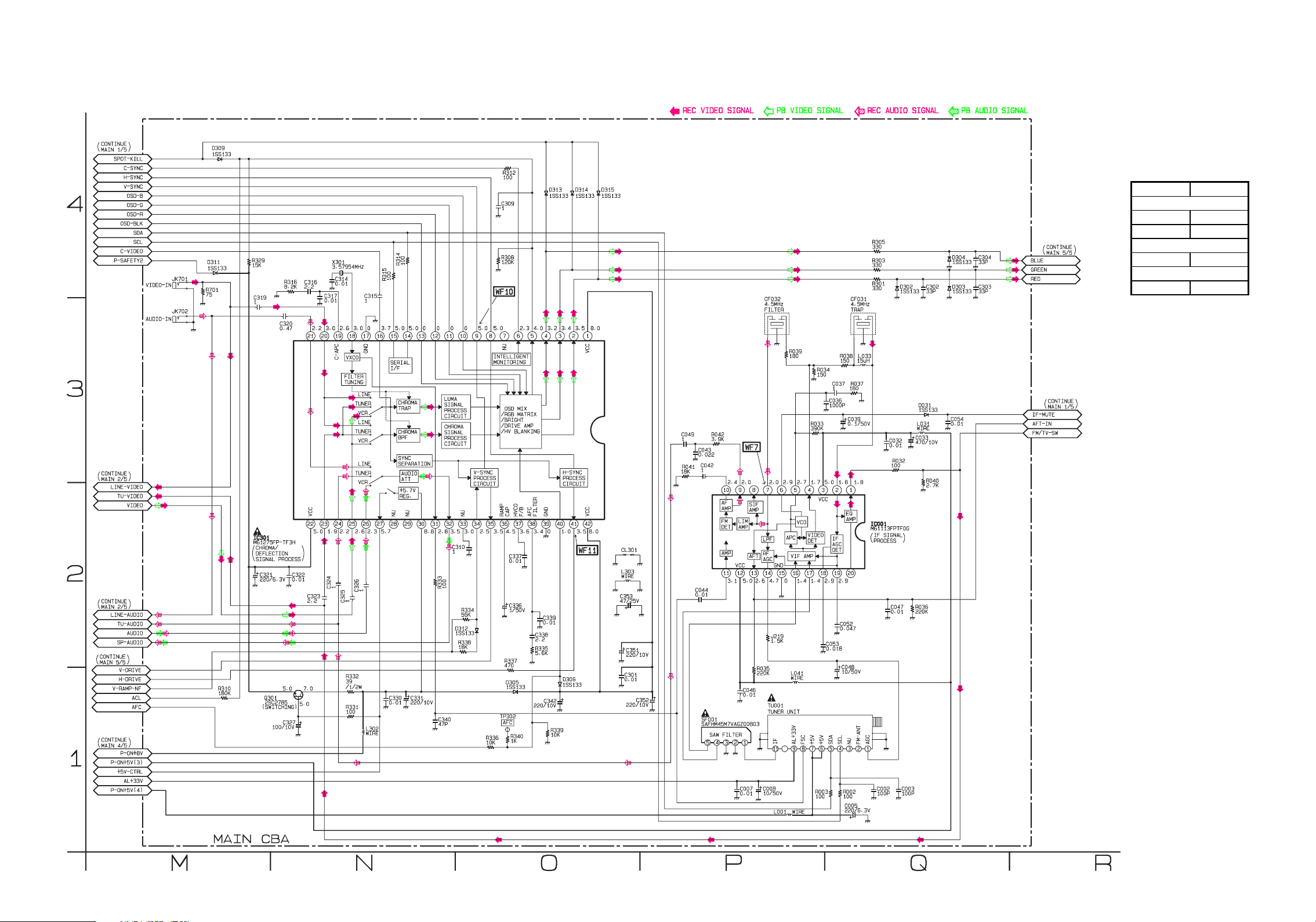

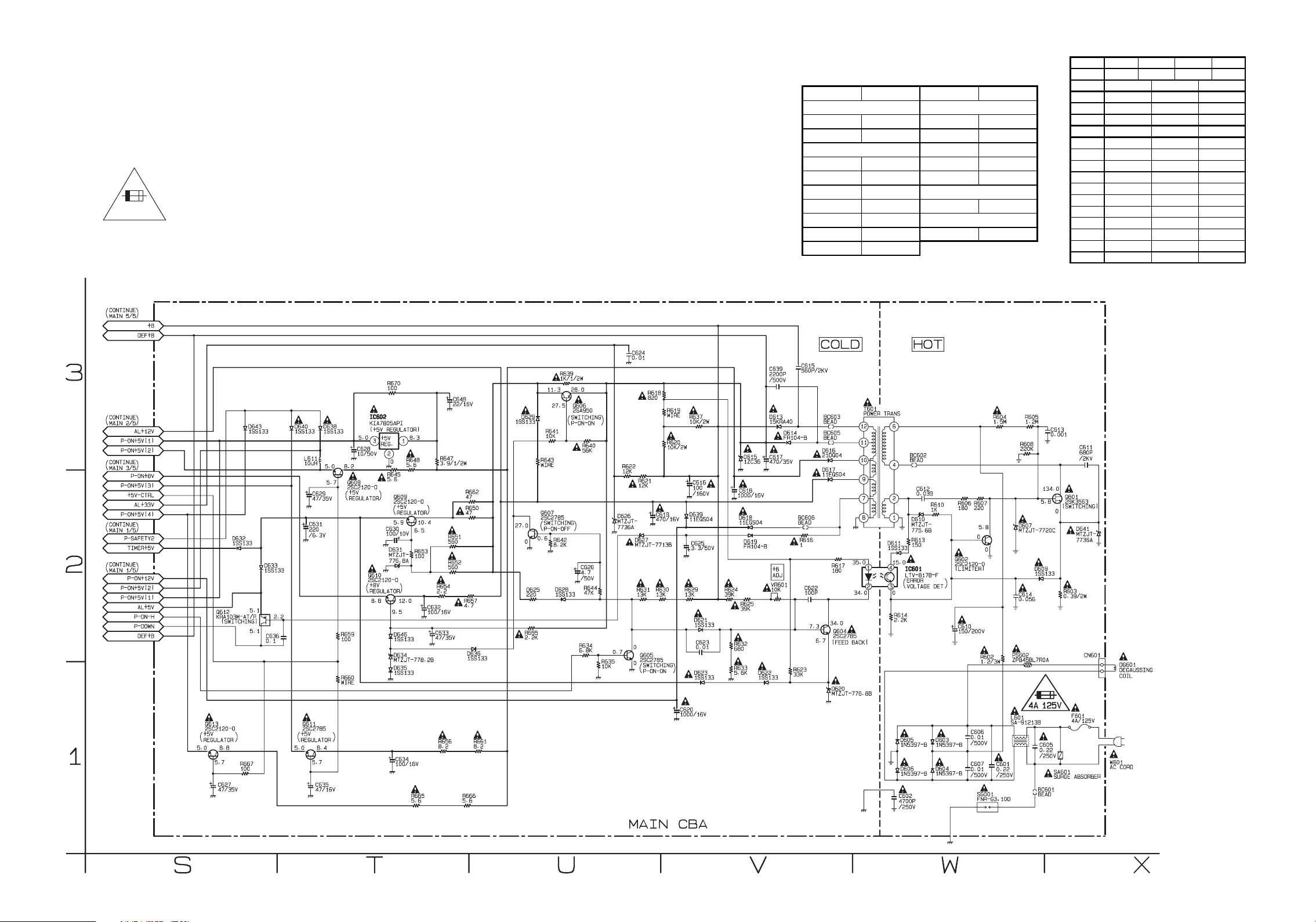

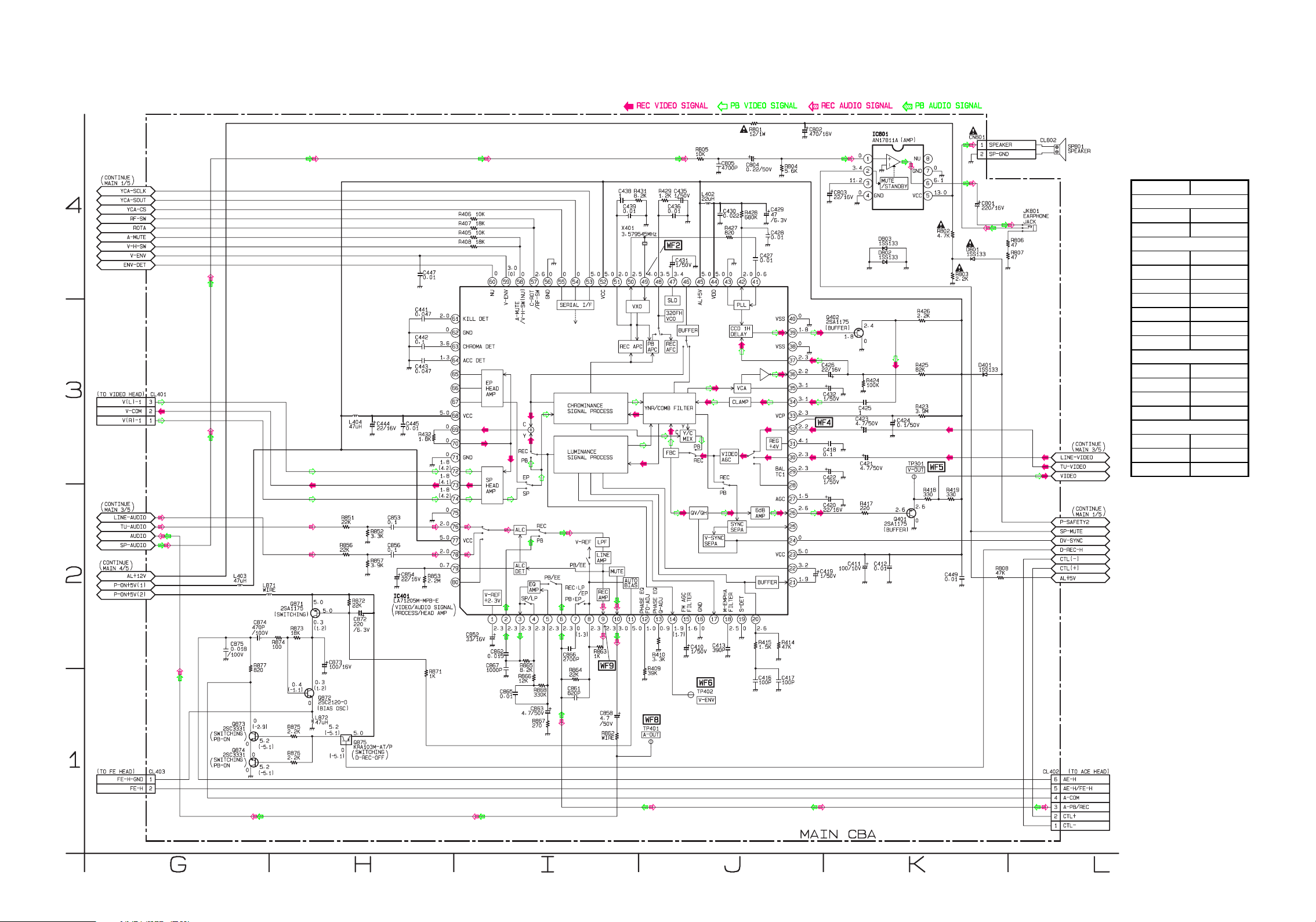

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

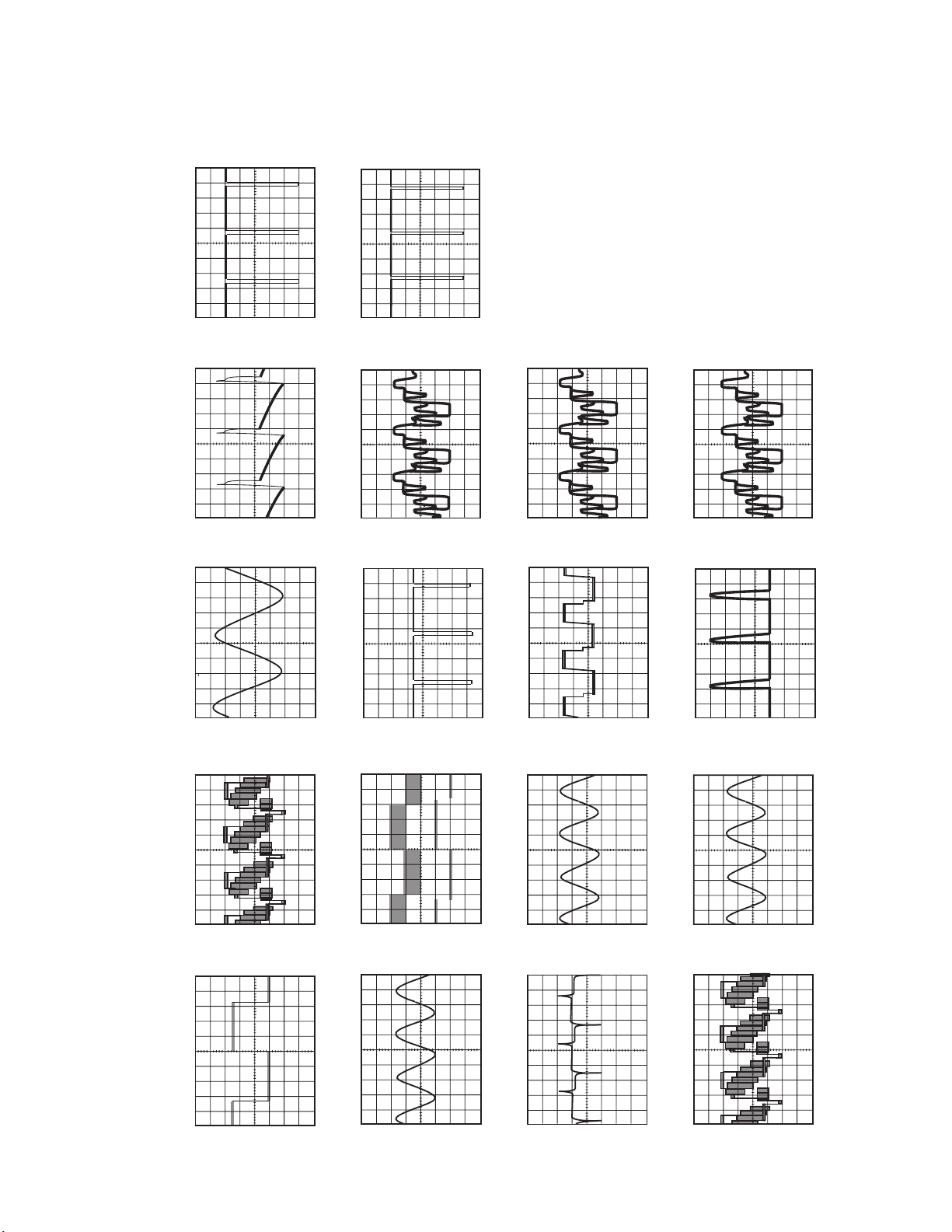

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

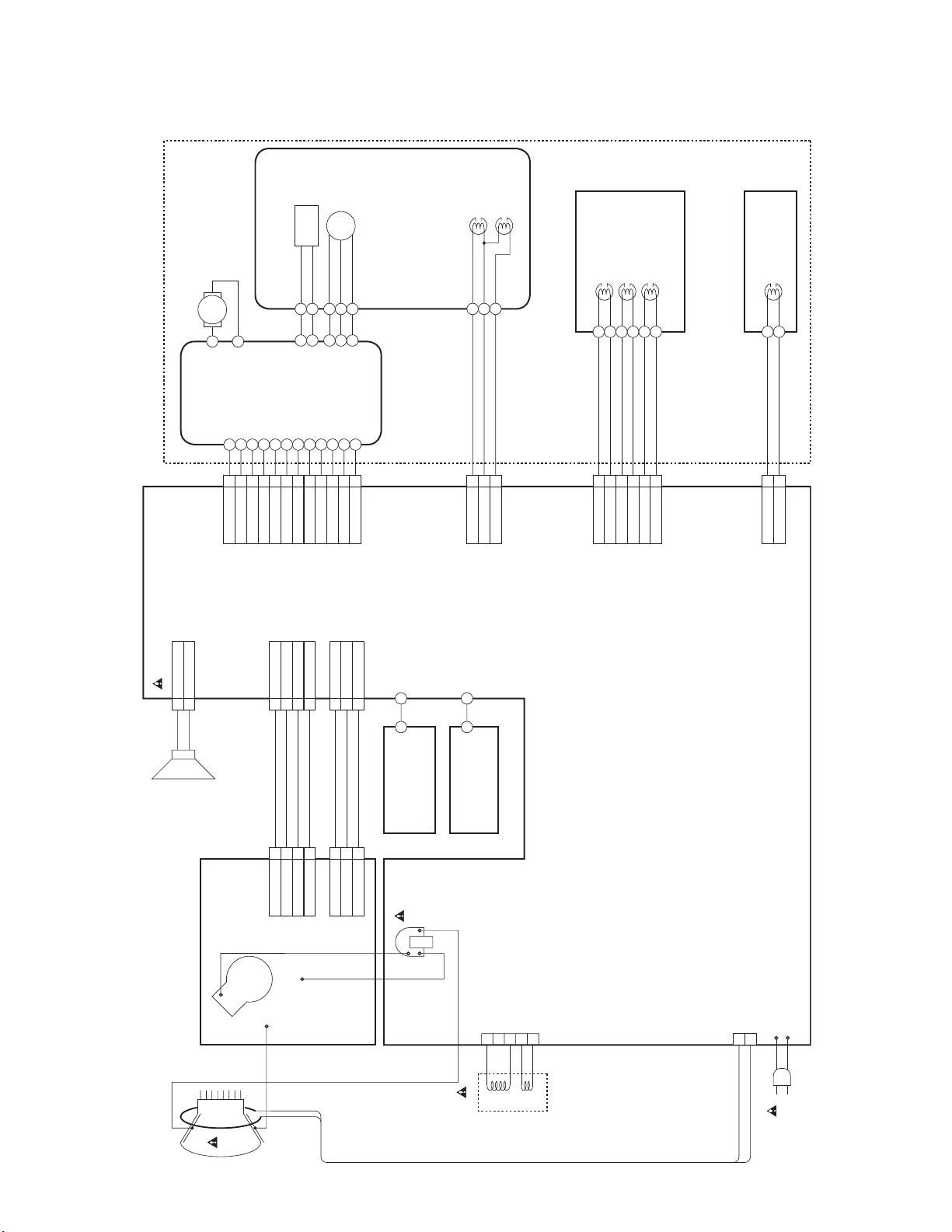

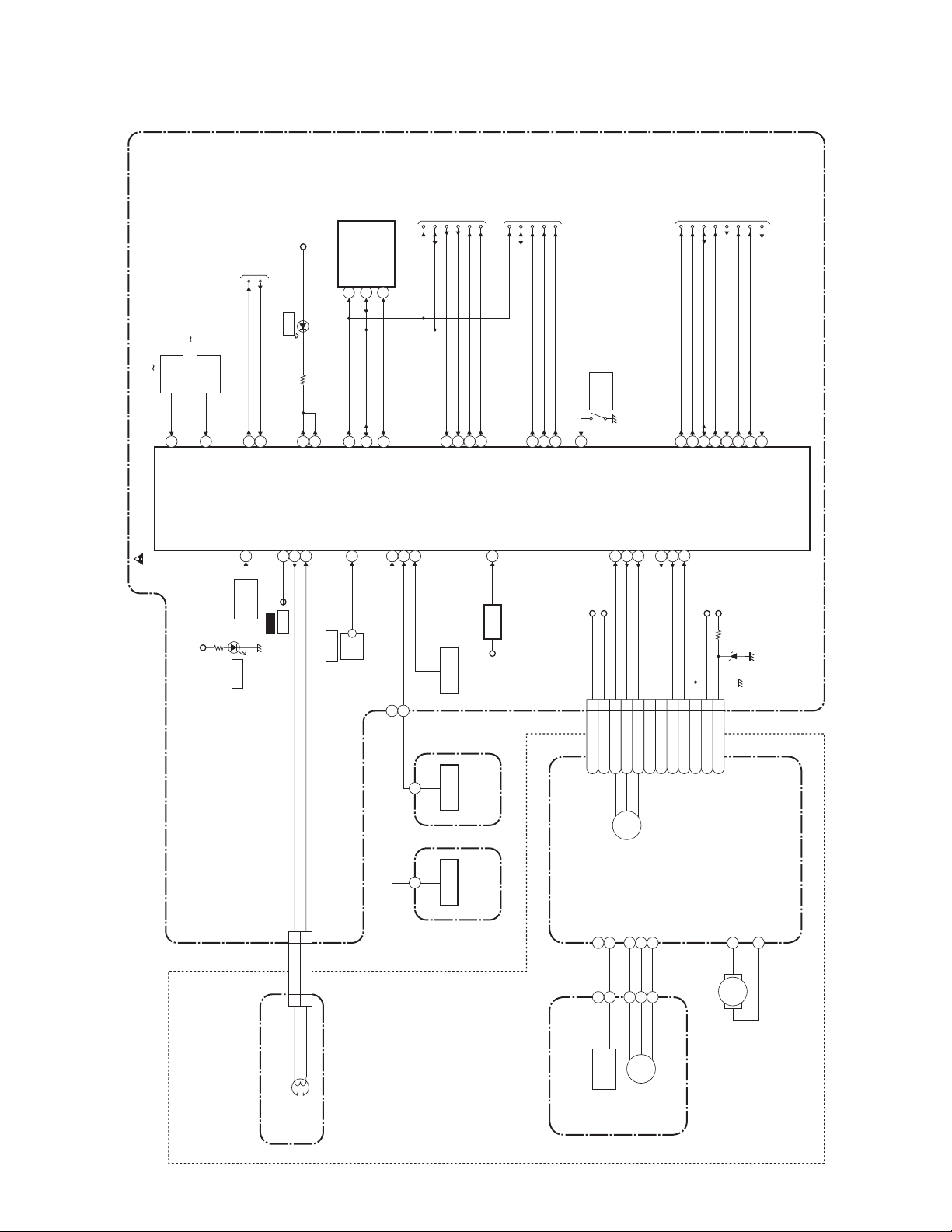

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14-1

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

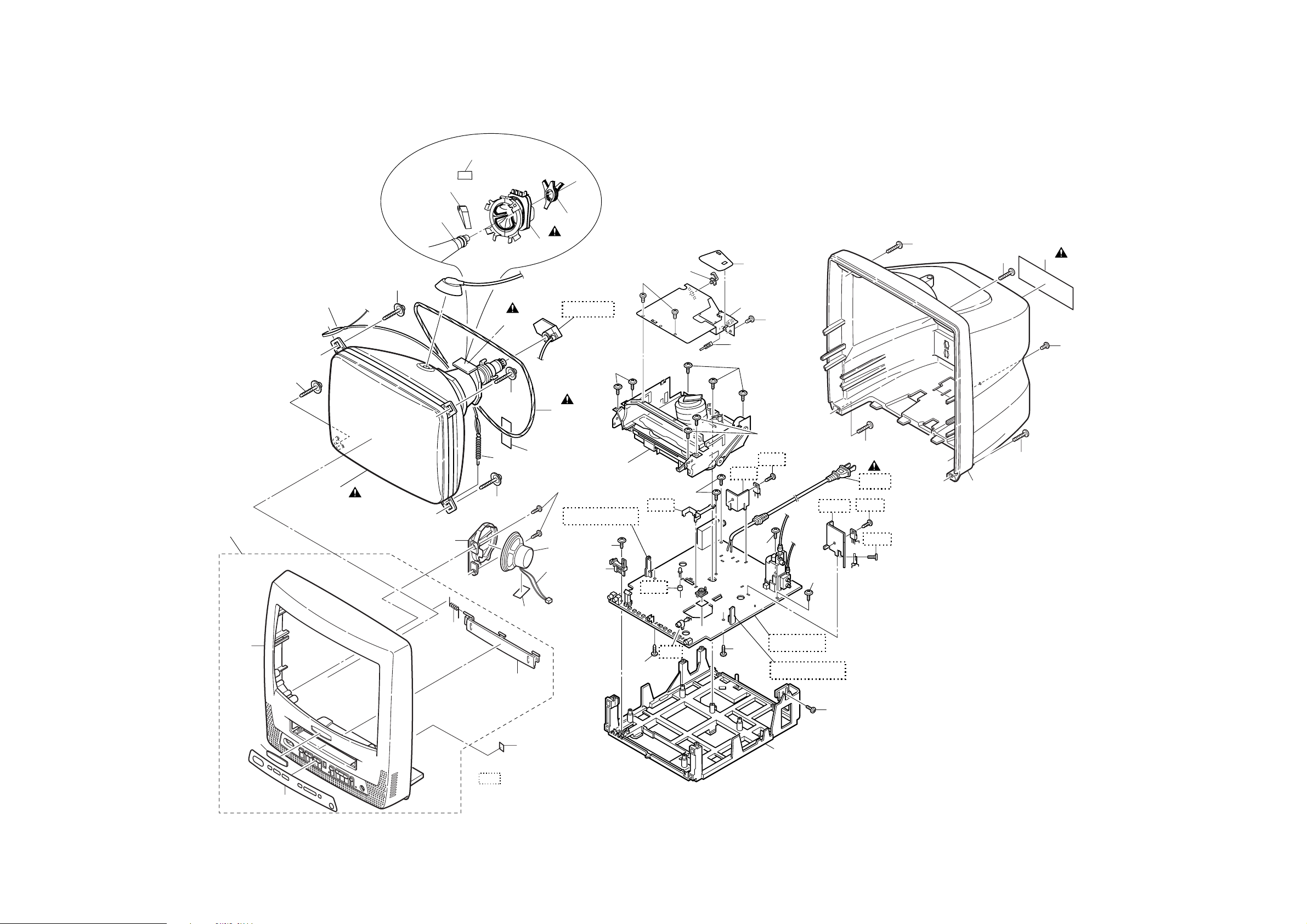

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19-1

SPECIFICATIONS

*ˆ Mode---------SP mode unless otherwise specified * Test input terminal

<Except Tuner>--------Video input (1 Vp-p)

Audio input (-10 dB)

<Tuner>------------------Ant. input (80 dBµV) Video: 87.5%

Audio: 25 kHz dev. (1 kHz Sin)

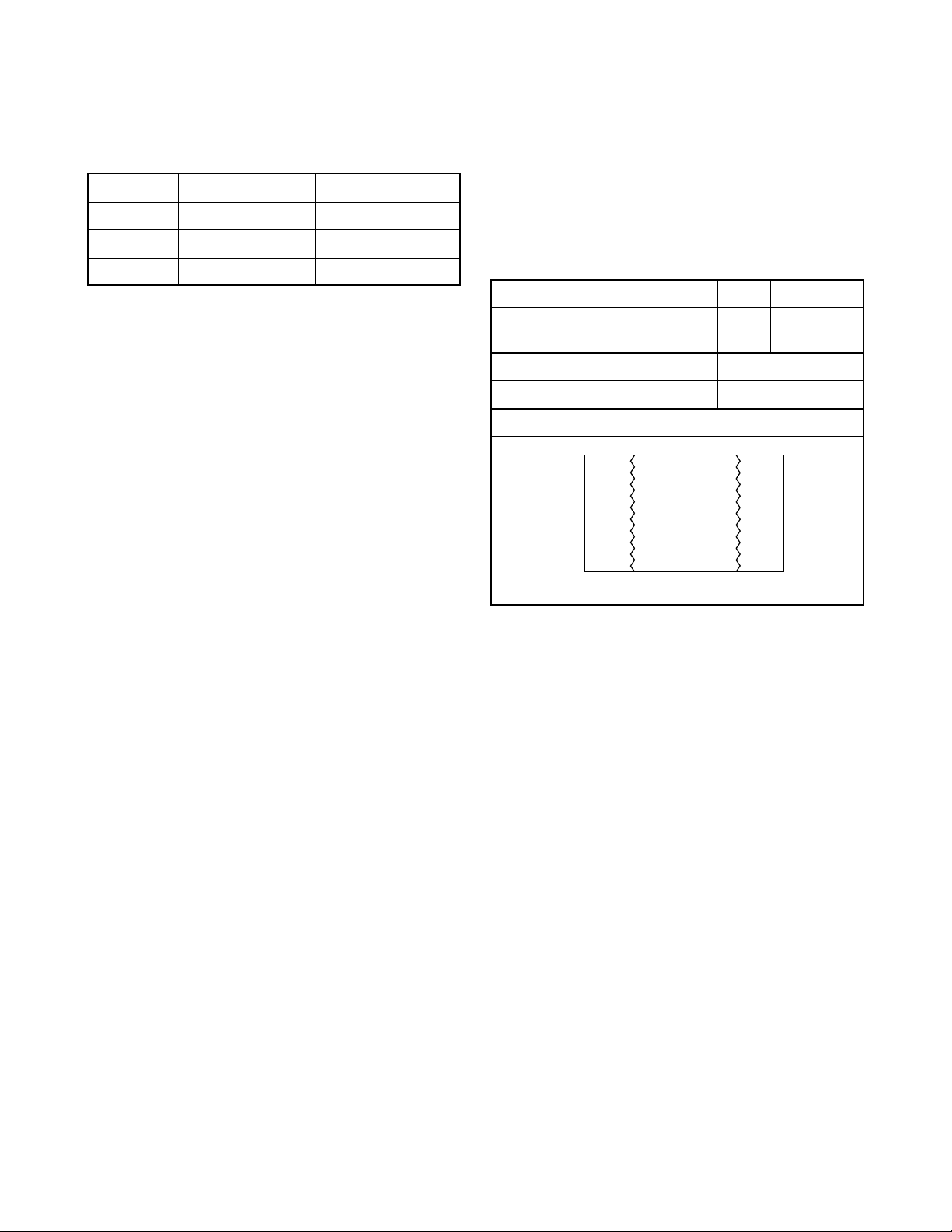

< DEFLECTION >

Description Condition Unit Nominal Limit

1. Over Scan --- % 90 ±5

2. Linearity

3. High Voltage --- kV 22 ---

Horizontal % --- 15

Vertical % --- 10

< VIDEO & CHROMA >

Description Condition Unit Nominal Limit

Center m/m --- 0.3

1. Misconvergence

2. Tint Control Range --- deg ±30 ---

3. Contrast Control Range --- dB 12 8

4. Brightness APL 100% ft-L 55 40

5. Color Temperature --- K 9200 ---

Corner m/m --- 1.5

Side m/m --- 1.2

< VCR >

Description Condition Unit Nominal Limit

1. Horizontal Resolution (R/P) Line 230 200

2. Jitter (Low) (R/P) µs 0.05 0.2

3. S/N Chroma

4. Wow & Flutter (RMS) (R/P) % 0.25 0.5

AM(SP) (R/P) dB 38 33 PM(SP) (R/P) dB 36 33

< TUNER >

Description Condition Unit Nominal Limit

1. Video S/N --- dB 45 40

2. Audio S/N (W/LPF) --- dB 43 40

1-1-1 T5517SP

< AUDIO>

All items are measured across 8 Ω resistor at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power (Max.) (R/P) W 1.0 0.8

2. Audio S/N (W/LPF) (R/P) dB 40 36

3. Audio distortion (W/LPF) (R/P) % 3.0 5.0

4. Audio Freq. Response (-10dB 1kHz IN)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

200 Hz (R/P) dB -2.0 -2.0±5.0 8 kHz (R/P) dB 0 0±6.0

1-1-2 T5517SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the

AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits -

Because the picture tube is the primary potential source of X-radiation in solid-state TV receivers, it is specially constructed to prohibit X-radiation emissions. For continued X-radiation protection, the replacement picture tube must be the same type as the original.

CURRENT

TESTER

EARTH GROUND

1-2-1 TVVCRN_ISP

Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be measured each time servicing is performed that involves B+, horizontal deflection or high voltage. Correct operation of the X-radiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called “horizontal disable” or “hold down.”) Read and apply the high voltage limits and, if the chassis is so equipped, the X-radiation protection circuit specifications given on instrument labels and in the Product Safety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/ adjustments in the high-voltage circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safety-related notes on or inside the receiver cabinet, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning - The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the picture tube only with one of the same type number. Do not remove, install, or otherwise handle the picture tube in any manner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be kept safely away while picture tubes are handled. Keep the picture tube away from your body. Do not handle the picture tube by its neck. Some “in-line” picture tubes are equipped with a permanently attached deflection yoke; because of potential hazard, do not try to remove such “permanently attached” yokes from the picture tube.

5. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC

power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product's Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm with the

1-2-2 TVVCRN_ISP

recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

When replacing the power transformer in sets where the connections between the power cord and power transformer primary lead wires are performed using crimp type connectors, in order to prevent shock hazards, perform carefully and precisely the following steps. Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the VCR

connectors, first, disconnect the AC plug from AC supply socket.

1-2-3 TVVCRN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

dd'

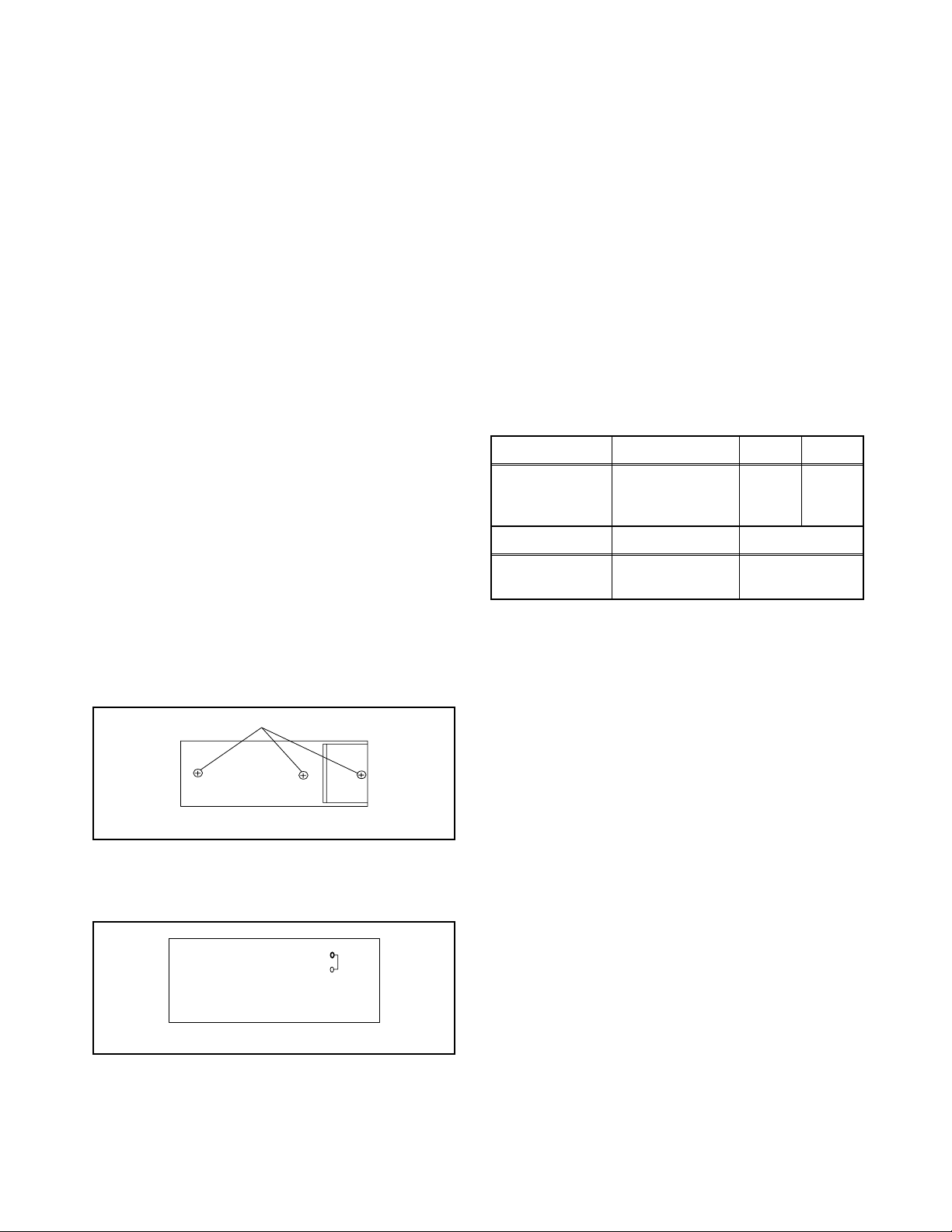

Fig. 1

Exposed Accessible Part

AC Voltmeter (High Impedance)

Earth Ground

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

1-2-4 TVVCRN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

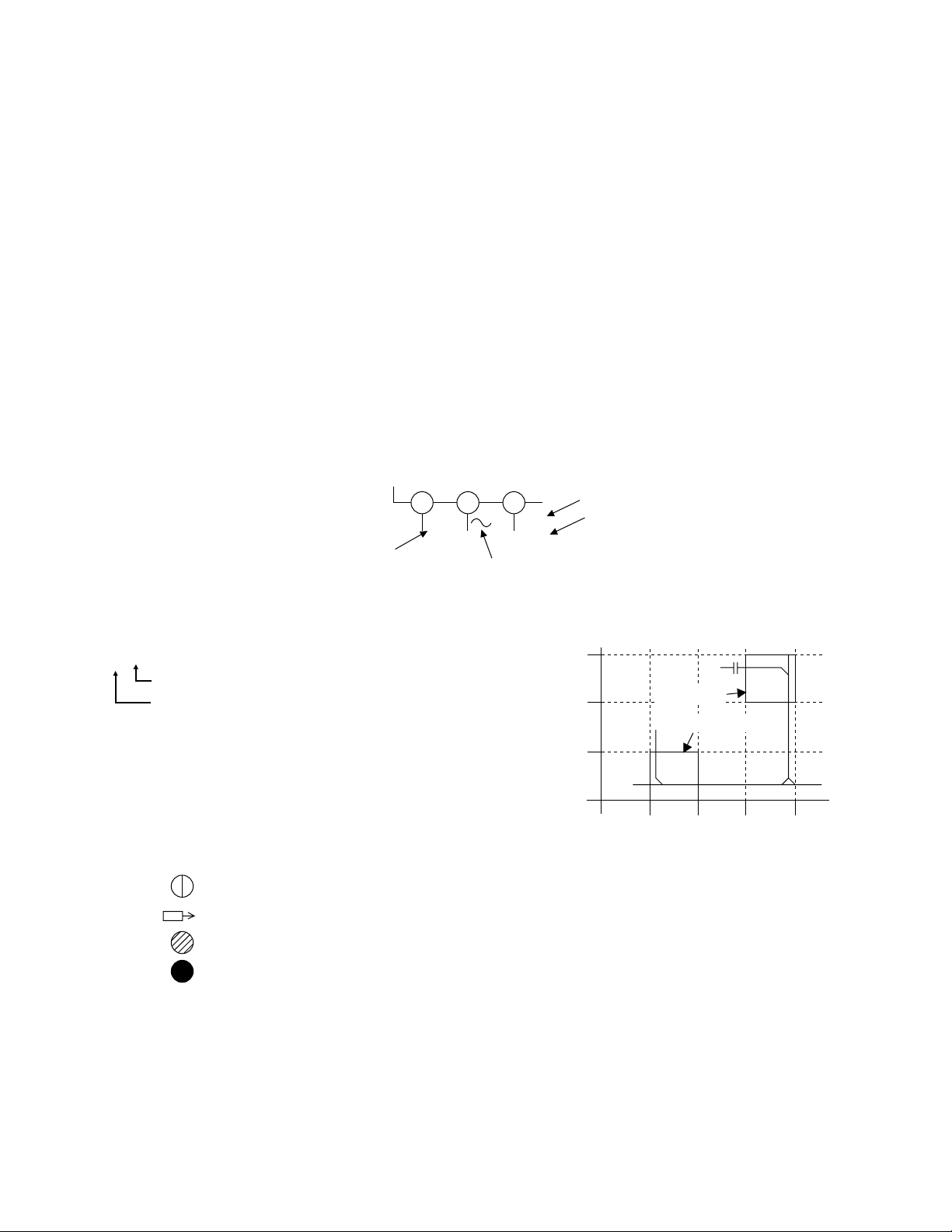

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

How to Read the Values of the Rectangular Type Chip Components

Example: (a) Resistor

473

= 473 = 47 [kΩ]

(b) Capacitor

= Not shown

Caution:

Once chip parts (Resistors, Capacitors, Transistors, etc.) are removed, they must not be reused. Always use a new part.

(Top View)

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord.

2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

1-3-1 TVVCRN_SN

Replacement Procedures for Leadless (Chip) Components

The Following Procedures are Recommended for the Replacement of the Leadless Components Used in this Unit.

3. Installing the leadless component

a. Presolder the contact points of the circuit board. b. Press the part downward with tweezers and solder

both electrodes as shown below.

Note: Do not glue the replacement leadless

component to the circuit board.

1. Preparation for replacement

1-1. Pb free solder a. Soldering Iron

Use a soldering iron for Pb free solder.

b. Solder

Be sure to use Pb free solder.

c. Soldering time

Do not apply heat for more than 4 seconds.

d. Preheating

Leadless capacitor must be preheated before installation. (130 °C ~ 150 °C, for about two minutes.)

1-2. Standard solder a. Soldering Iron

Use a pencil-type soldering iron (less than 30 watts).

b. Solder

Eutectic solder (Tin 63%, Lead 37%) is recommended.

c. Soldering time

Do not apply heat for more than 4 seconds.

d. Preheating

Leadless capacitor must be preheated before installation. (130 °C ~ 150 °C, for about two minutes.)

Chip

Soldering Iron

Tweezers

Soldering Iron

Solder

Note:

a. Leadless components must not be reused after

removal.

b. Excessive mechanical stress and rubbing for

the component electrode must be avoided.

2. Removing the leadless component

Grasp the leadless component body with tweezers and alternately apply heat to both electrodes. When the solder on both electrodes has melted, remove leadless component with a twisting motion.

Note:

a. Do not attempt to lift the component off the

board until the component is completely disconnected from the board by the twisting action.

b. Take care not to break the copper foil on the

printed board

Soldering Iron

Presolder

1-3-2 TVVCRN_SN

How to Remove / Install Flat Pack-IC

1. Removal

pin or the solder lands under the IC when removing it.

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Hot-air Flat Pack-IC Desoldering

CBA

Masking Tape

Tweezers

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Machine

Flat Pack-IC

Fig. S-1-2

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

Fig. S-1-4

1-3-3 TVVCRN_SN

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Hot Air Blower

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Tweezers

Flat Pack-IC

Fig. S-1-6

1-3-4 TVVCRN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

1-3-5 TVVCRN_SN

PREPARATION FOR SERVICING

How to Enter the Service Mode

Caution 1:

1. Optical sensors system are used for Tape Start and End Sensor on this equipment. Read this page carefully and prepare as described on this page before starting to service; otherwise, the unit may operate unexpectedly.

Preparing 1:

1. Cover Q202 (START SENSOR) and Q201 (END SENSOR) with Insulation Tape or enter the service mode to activate Sensor Inhibition automatically.

Note: Avoid playing, rewinding or fast forwarding the

tape to its beginning or end, because both Tape End Sensors are not active.

How to Enter the Service Mode

1. Turn power on.

2. Use service remote control unit and press [WAKEUP/SLEEP] button. (See page 1-6-1.)

3. When entering the service mode, one of the number (1, 2 or 4) will display at corners of the screen.

4. During the service mode, electrical adjustment mode can be selected by remote control key. (Service remote control unit).

Details are as follows.

Key Adjustment Mode

Picture adjustment mode: Press the [MENU] button to change from BRT (Bright), *CNT (Contrast), *COL (Color),

*TNT(Tint) and *V-TNT(V-Tint). Press [CH o/p] buttons to display Initial Value. *Marked items are not necessary to adjust normally.

Key Adjustment Mode

6 No need to use.

VOL p

Caution 2:

1. The deck mechanism assembly is mounted on the Main CBA directly, and SW211 (REC-SAFETY SW) is mounted on the Main CBA. When deck mechanism assembly is removed from the Main CBA due to servicing, this switch can not be operated automatically.

Head switching position adjustment: See adjustment instructions page 1-6-6.

Purity check mode: Shows Red, Green, Blue or White cyclically on the screen each time the [7] button is pressed.

H. Shift adjustment: See adjustment instructions page 1-6-4.

V.Size/V. Shift adjustment: See adjustment instructions page 1-6-4.

Initial Setting mode: See adjustment instructions page 1-6-1. Cut-off adjustment: See adjustment instructions page 1-6-4.

Preparing 2:

1. To eject the tape, press the [STOP/EJECT] button on the unit (or Remote Control).

2. When you want to record during the Service mode, press the [Rec] button while depressing SW211 (REC-SAFETY SW) on the Main CBA.

Q201 (END SENSOR)

Q202 (START SENSOR)

C-Trap adjustment: See adjustment instructions page 1-6-2.

1 No need to use.

3 No need to use.

Y DL Time TV/Y DL Time EXT/Y SW LPF/Black Stretch Off/ Black Stretch CONT/C. Angle data values setting: See adjustment instructions page 1-6-3.

H adjustment mode: See adjustment instructions page 1-6-2.

Auto record mode: Perform recording (15 Sec.) --> Stop --> Rewind (Zero return) automatically.

SW211 (REC-SAFETY SW)

1-4-1 T5517PFS

MAIN CBA

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

CAUTION!

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

[1] Rear Cabinet

[2] Tray Chassis

[3] Deck Unit

[4] Main CBA

[5] CRT

2. Disassembly Method

Removal

Step/

Loc.

No.

[1]

[2]

Part

Rear Cabinet

Tr ay Chassis

Remove/*Unhook/

Fig.

No.

D1 D2

D3 D4 D5

Unlock/Release/

Unplug/Unclamp/

Desolder

4(S-1), (S-2) 1

Anode Cap, CN505, CRT CBA, CN601, CN801, CN571

Note

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following “Reference Notes in the

Ta bl e ” .

Reference Notes in the Table

1. Removal of the Rear Cabinet. Remove screws 4(S-1) and (S-2).

2. CAUTION!: Discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

Removal of the Tray Chassis. Discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap. Disconnect the following: Anode Cap, CN505, CRT CBA, CN601, CN571 and CN801. Then, pull the Tray Chassis backward.

3. Removal of the Deck Unit. Remove screws 7(S-3), (S-4) and (S-5). Then, desolder connectors (CL201, CL401, CL402, CL403) and lift up the Deck Unit.

4. Removal of the Main CBA. Remove screws 5(S-6) and (S-7). Then, pull up the Main CBA.

5. Removal of the CRT. Remove screws 4(S-8) and pull the CRT backward.

7(S-3), (S-4), (S-5),

[3] Deck Unit

[4] Main CBA

[5] CRT D4 4(S-8) 5

↓

(1)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

↓

(2)

*Desolder (CL201,

CL401, CL402, CL403)

5(S-6), (S-7) 4

↓

(3)

↓

(4)

↓

(5)

1-5-1 T5516DC

(S-1)

(S-2)

[1] Rear Cabinet

(S-1)

Fig. D1

(S-1)

(S-2)

(S-1)

[1] Rear Cabinet

Fig. D2

1-5-2 T5516DC

[2] Tray Chassis

(S-3)

[4] Main CBA

(S-6)

(S-3)

[3] Deck Unit

(S-3)

(S-6)

(S-4)

(S-5)

(S-7)

Fig. D3

1-5-3 T5516DC

(S-8)

Anode Cap.

(S-8)

CRT CBA

(S-8)

[5] CRT

(S-8)

Fig. D4

1-5-4 T5516DC

ANODE

CRT

GND

MAIN CBA

CN505

SCREEN

TO SPEAKER

CL502A

CL501A

FOCUS

CRT CBA

CN801

CL201

CYLINDER ASSEMBLY

CL401

CL403

CL402

TO DEGAUSS COIL

CN601

AC CORD

CL502B

CN571

CL501B

CAPSTAN MOTOR

FE HEAD

ACE HEAD ASSEMBLY

1-5-5 T5516DC

DECK UNIT

Fig. D5

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. AC Milli Voltmeter (RMS)

3. Alignment Tape (FL8A, FL8N), Blank Tape

4. DC Voltmeter

5. Oscilloscope: Dual-trace with 10:1 probe, V-Range: 0.001~50 V/Div, F-Range: DC~AC-60 MHz

6. Frequency Counter

7. Plastic Tip Driver

How to make service remote control unit:

1. Prepare remote control unit. (Part No. N0107UD or N0150UD) Remove 3 screws from the back lid. (Fig. 1-1)

Screws

Note: The remote control with the unit cannot be

used as service remote control unit.

How to Enter the Service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press [WAKE-UP/SLEEP] button on the service remote control unit.

1. DC 105V (+B) Adjustment

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dark and

unit does not operate correctly.

Test Point Adj. Point Mode Input

D613

Cathode(+B)

C613(-)(GND)

Tape M. EQ. Spec.

---

Note: D613 Cathode(+B), C613(-)(GND),

VR601 --- Main CBA

1. Connect the unit to AC Power Outlet.

2. Connect DC Volt Meter to D613 Cathode(+B) and C613(-)(GND).

3. Adjust VR601 so that the voltage of D613 Cathode(+B) becomes +105±0.5 V DC.

VR601 --- ---

DC Voltmeter

Plastic Tip Driver

+105±0.5 V DC

Remote control unit (bottom)

2. Remote control unit: Part No. N0107UD Add J1 (Jumper Wire) to the remote control CBA. (Fig. 1-2)

J 1

Remote Control CBA

Remote control unit: Part No. N0150UD Cut off pin 10 of the remote control microprocessor and short circuit pins 10 and 17 of the microprocessor with a jumper wire.

Fig. 1-1

Fig. 1-2

2. Initial Setting

General

1. Enter the Service mode. (See page 1-6-1.)

2. Press [VOL p] button on the service remote control unit. Display changes “C/D,” “7F,” “FM,” “ACCESS CODE,” “9V,” and “RC5” cyclically when [VOL p] button is pressed.

3. To set each data value shown below, press [CH o / p] buttons on the service remote control unit.

7F --- Set to “FF.”

FM --- Set to “OFF.”

ACCESS CODE --- Set to “ON.”

9V --- Set to “OFF.”

RC5 --- Set to “OFF.”

Note: C/D data value does not need to be adjusted

at this moment.

1-6-1 T5517EA

3. H Adjustment

4. C-Trap Adjustment

Purpose: To get correct horizontal position and size of

screen image. Symptom of Misadjustment: Horizontal position and

size of screen image may not be properly displayed.

Test Point Adj. Point Mode Input

R583 [CH o / p] buttons Video ---

Tape M. EQ. Spec.

--- Frequency Counter 15.734 kHz±300 Hz

Note: R583 --- Main CBA

1. Connect Frequency Counter to R583.

2. Set the unit to the VIDEO mode and no input is necessary. Enter the Service mode. (See page 1-6-1.)

3. Operate the unit for at least 20 minutes.

4. Press [2] button on the remote control unit and select H-Adj mode. (Press [2] button, then display will change H-Adj.)

5. Press [CH o / p] buttons on the remote control unit so that the display will change “0” to “7.” At this moment, choose display “0” to “7” when the Frequency counter display is closest to 15.734 kHz ± 300 Hz.

6. Turn the power off and on again.

Purpose: To get minimum leakage of the color signal carrier.

Symptom of Misadjustment: If C-Trap Adjustment is incorrect, stripes will appear on the screen.

Test Point Adj. Point Mode Input

J271

(B-OUT)

Tape M. EQ. Spec.

---

minimum

Note: J271(B-OUT) --- Main CBA

1. Connect Oscilloscope to J271.

2. Input a color bar signal from RF input. Enter the Service mode. (See page 1-6-1.)

3. Press [0] button on the remote control unit and select C-TRAP mode. (Fig. 3)

4. Press [CH o / p] buttons on the remote control unit so that the carrier leakage B-Out (3.58 MHz) value becomes minimum on the oscilloscope.

5. Turn the power off and on again.

[CH o / p]

buttons

Oscilloscope

Pattern Generator

Figure

--- Color Bar

---

Fig. 2

1-6-2 T5517EA

5. Setting for Y DL Time TV, Y DL Time EXT, Y SW LPF, Black Stretch Off, Black Stretch CONT and C. Angle Data Values

C-TRAP Adjustment (Factory mode)

[0] button

C-TRP 0 C-TRP 1

[CH ] button

Purpose: To get minimum leakage of the color signal carrier.

Symptom of Misadjustment: If Y DL Time Adjustment is incorrect, stripes will appear on the screen.

1. Enter the Service mode. (See page 1-6-1.)

2. Y DL Time TV Adjustment: Press [0] button on

the service remote control unit twice to show “D-T TV” on the display. Y DL Time EXT Adjustment: Press [0] button on the service remote control unit three times to show “D-T EXT” on the display. Y SW LPF Adjustment: Press [0] button on the service remote control unit four times to show “Y SW” on the display. Black Stretch Off Adjustment: Press [0] button on the service remote control unit five times to show “B-S” on the display. Black Stretch CONT Adjustment: Press [0] button on the service remote control unit six times to show “BS2” on the display. C. Angle Adjustment: Press [0] button on the service remote control unit seven times to show “C-ANG” on the display.

3. Y DL Time TV Adjustment: Select “2” by

pressing [CH o / p] buttons on the service remote control. Y DL Time EXT Adjustment: Select “2” by pressing [CH o / p] buttons on the service remote control. Y SW LPF Adjustment: Select “1” by pressing [CH o / p] buttons on the service remote control. Black Stretch Off Adjustment: Select “OFF” by pressing [CH o / p] buttons on the service remote control. Black Stretch CONT Adjustment: Select “0” by pressing [CH o / p] buttons on the service remote control. C. Angle Adjustment: Select “103” by pressing [CH o / p] buttons on the service remote control.

[CH ] button

[0] button

Y DL Time TV Adjustment

[CH ]

D-T TV 0 D-T TV 1

[0] button

button

[CH ] button

Y DL Time EXT Adjustment

[CH ]

D-T EXT 0 D-T EXT 1

[0] button

button

[CH ] button

Y SW LPF Adjustment

[CH ]

Y SW

[0] button

button

0 Y SW

[CH ] button

Black Stretch Off Adjustment

[CH ]

B-S OFF

[0] button

button

[CH ] button

B-S 0

Black Stretch CONT Adjustment

[CH ]

BS2 0

[0] button

button

[CH ] button

BS2 1

C. Angle Adjustment

[CH ]

C-ANG 103

button

[CH ] button

C-ANG 95

Fig. 3

1-6-3 T5517EA

6. V. Size Adjustment

8. H. Shift Adjustment

Purpose: To obtain correct vertical height of screen

image. Symptom of Misadjustment: If V. Size is incorrect,

vertical height of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-6-1.)

Press [9] button on the remote control unit and select V-S mode. (Press [9] button then display will change to V-P and V-S).

2. Input monoscope pattern.

3. Press [CH o / p] buttons on the remote control

unit so that the monoscope pattern is 90±5% of display size and the circle is round.

[CH o / p]

buttons

--- Monoscope

7. V. Shift Adjustment

Purpose: To obtain correct vertical position of screen

image. Symptom of Misadjustment: If V. position is

incorrect, vertical position of image on the screen may not be properly displayed.

Purpose: To obtain correct horizontal position and size of screen image.

Symptom of Misadjustment: Horizontal position and size of screen image may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator ---

1. Enter the Service mode. (See page 1-6-1.) Press [8] button on the remote control unit and select H-P mode.

2. Input monoscope pattern.

3. Press [CH o / p] buttons on the remote control unit so that the left and right side of the monoscope pattern are equal to each other.

4. Turn the power off and on again.

[CH o / p]

buttons

--- Monoscope

9. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage. Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator ---

1. Enter the Service mode. (See page 1-6-1.) Press [9] button on the remote control unit and select V-P mode. (Press [9] button then display will change to V-P and V-S).

2. Input monoscope pattern.

3. Press [CH o / p] buttons on the remote control unit so that the top and bottom of the monoscope pattern are equal to each other.

[CH o / p]

buttons

--- Monoscope

Screen-Control

---

Tape M. EQ. Spec.

---

Note: Screen Control FBT --- Main CBA

F.B.T= Fly Back Transformer Use the Remote Control Unit

[CH o / p]

buttons

Pattern

Generator

Figure

Pattern Generator

EXT. Input

EXT.

See Reference

Notes below.

Black

Raster,

White

Raster

Fig. 4

1-6-4 T5517EA

1. Degauss the CRT and allow CRT to operate for 20 minutes before starting the alignment.

2. Set the screen control to minimum position. Input the Black raster signal from RF input.

3. Enter the Service mode. (See page 1-6-1.) Dimmed horizontal line appears on the CRT.

4. Press the [VOL p] button. (Press [VOL p] button then display will change CUT OFF/DRIVE adjustment).

5. Choose CUT OFF/DRIVE mode then press [1] button. This adjustment mode is CUT OFF (R).

6. Press the [CH o / p] buttons until the horizontal line becomes white.

7. Choose CUT OFF/DRIVE mode then press [2] button. This adjustment mode is CUT OFF (G). Press [CH o / p] buttons until the horizontal line becomes white.

8. Choose CUT OFF/DRIVE mode then press [3] button. This adjustment mode is CUT OFF (B). Press [CH o / p] buttons until the horizontal line becomes white.

9. Input the White Raster Signal from Video In.

10. Choose CUT OFF/DRIVE mode then press [4] button. Adjust the RED DRIVE as needed with the [CH o / p] buttons to get the following value, X = 286, Y = 294.

11. Choose CUT OFF/DRIVE mode then press [5] button. Adjust the BLUE DRIVE as needed with the [CH o / p] buttons to get the following value, X = 286.

12. Turn the power off and on again.

10. Sub-Brightness Adjustment

Purpose: To get proper brightness. Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by adjusting the Brightness Control.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

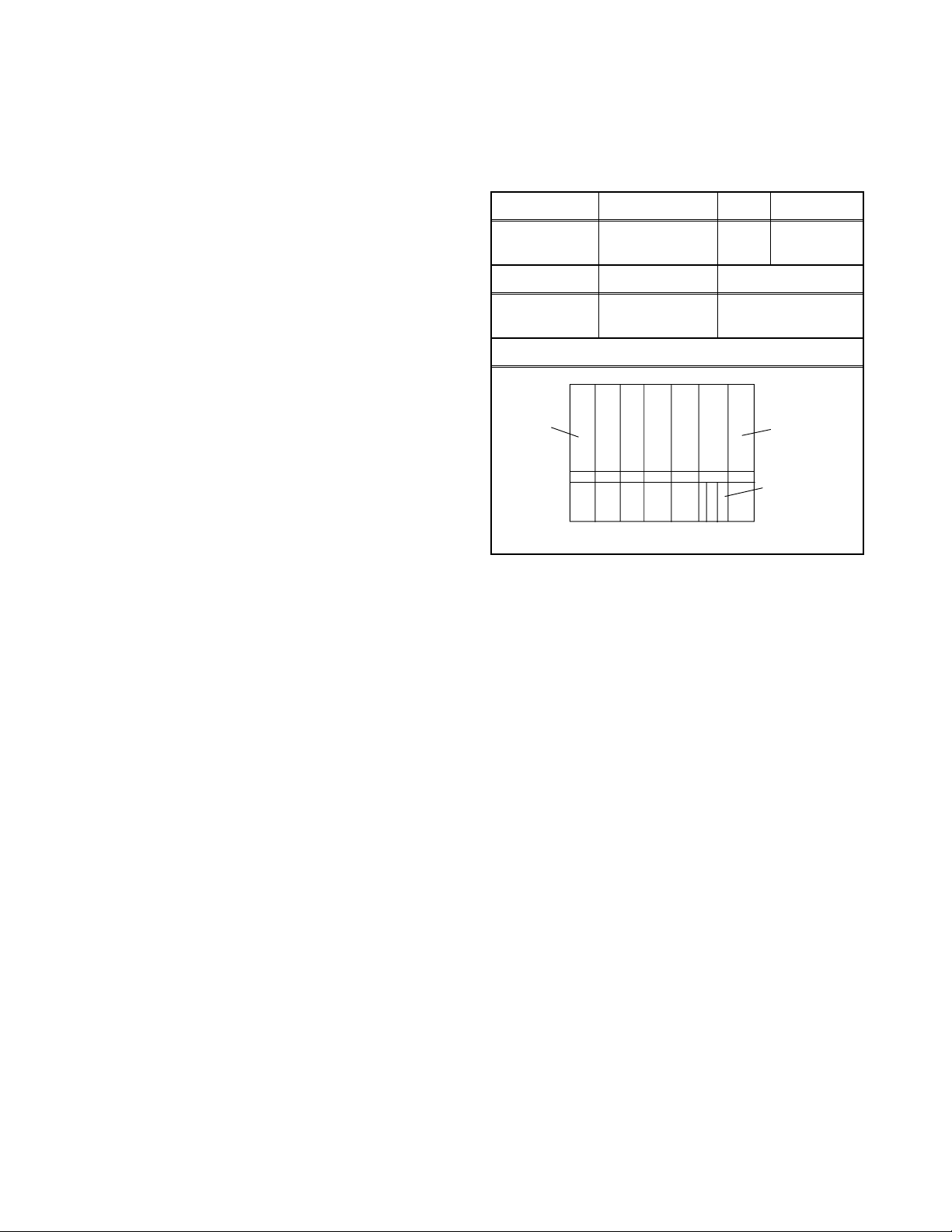

White

Note: SMPTE Setup level --- 7.5 IRE

1. Enter the Service mode. (See page 1-6-1.) Then input SMPTE signal from RF input.

2. Press [MENU] button. (Press [MENU] button then display will change BRT, CNT, COL, TNT and V-T.) Select BRT and press [CH o / p] buttons so that the bar is just visible (See above figure).

3. Turn the power off and on again.

[CH o / p]

buttons

Pattern

Generator

Figure

---

SMPTE

7.5IRE

See below

Black

This bar just visible

Fig. 5

1-6-5 T5517EA

11. Focus Adjustment

Purpose: Set the optimum Focus. Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test Point Adj. Point Mode Input

--- Focus Control --- Monoscope

Tape M. EQ. Spec.

--- Pattern Generator See below

Note: Focus VR FBT --- Main CBA,

FBT = Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and degauss the CRT using a degaussing coil.

3. Input the monoscope pattern.

4. Adjust the Focus Control on the FBT to obtain a clear picture.

12. Head Switching Position

Adjustment

The following 2 adjustments normally are not attempted in the field. They should be done only when replacing the CRT then adjust as a preparation.

14. Purity Adjustment

Purpose: To obtain pure color. Symptom of Misadjustment: If Color Purity

Adjustment is incorrect, large areas of color may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator See below

GREEN RED BLUE

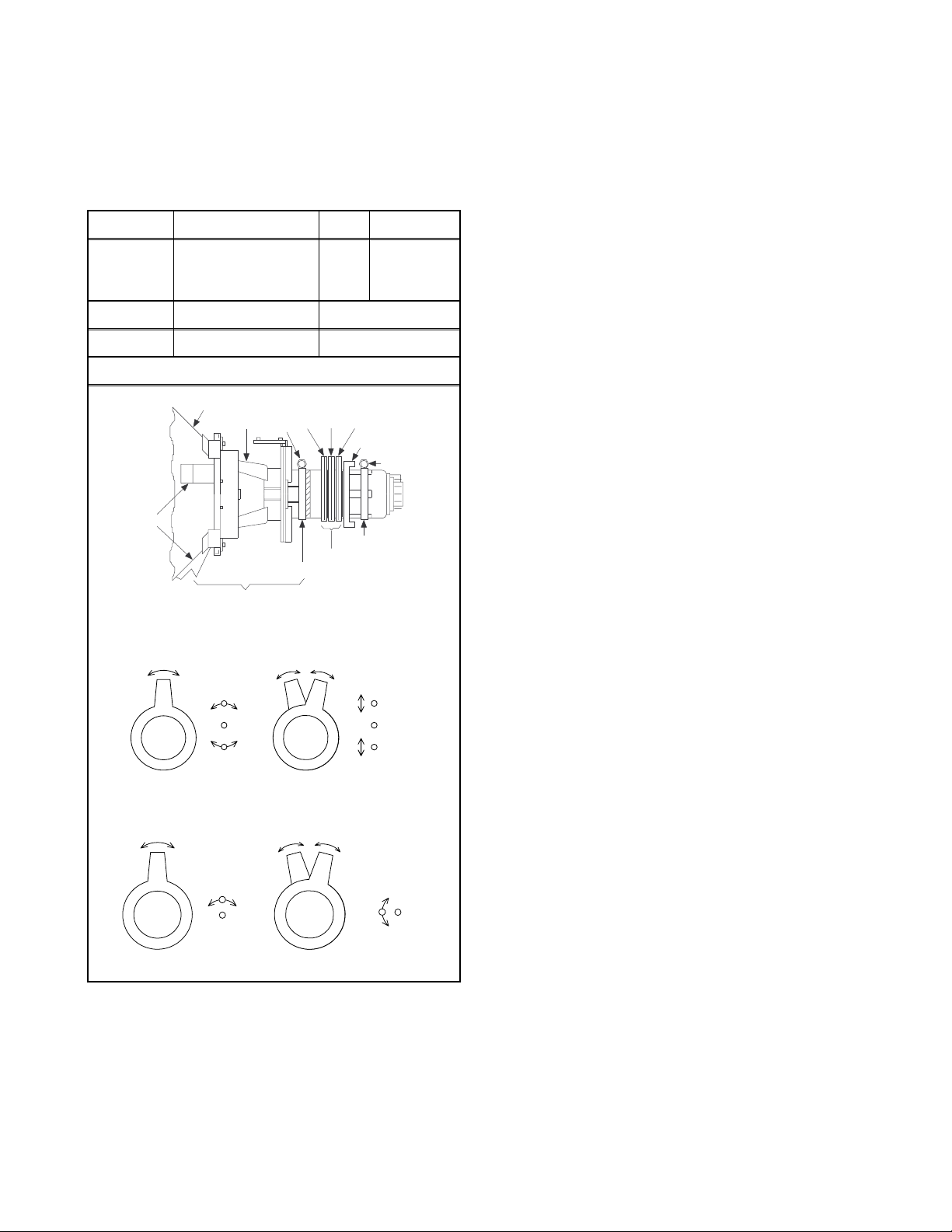

Deflection Yoke

Purity Magnet

Figure

--- *Red Color

Purpose: Determine the Head Switching Position during Playback.

Symptom of Misadjustment: May cause Head Switching Noise or Vertical Jitter in the picture.

Note: Unit reads Head Switching Position automatically and displays it on the screen (Upper Left Corner).

1. Insert the test tape (FL8A, FL8N).

2. Set the unit to the stop condition.

3. Enter the Service mode. (See page 1-6-1.)

4. Press [PAUSE] button on the remote control unit.

5. Confirm that indication of OSD is 6.5H.

13. CCS Text Box Location

When replacing the CRT, the CCS Box might not stay in appropriate position. Then, replace micro computer.

Note: This adjustment automatically done by the

microcomputer.

Fig. 6

* This becomes RED COLOR if the [7] button is pressed while in service mode.

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjusting.

3. Fully degauss the unit using an external degaussing coil.

4. Set the unit to the AUX mode which is located before CH2 then input a red raster from video in.

5. Loosen the screw on the Deflection Yoke Clamper and pull the Deflection Yoke back away from the screen. (See Fig. 7.)

6. Loosen the Ring Lock and adjust the Purity Magnets so that a red field is obtained at the center of the screen. Tighten Ring Lock. (See Fig. 6, 7.)

7. Slowly push the Deflection Yoke toward the bell of the CRT and set it where a uniform red field is obtained.

8. Tighten the clamp screw on the Deflection Yoke.

1-6-6 T5517EA

15. Convergence Adjustment

Purpose: To obtain proper convergence of red, green

and blue beams. Symptom of Misadjustment: If Convergence

Adjustment is incorrect, the edge of white letters may have color edges.

Test Point Adj. Point Mode Input

4. Fix the C.P. Magnets by tightening the Ring Lock.

5. Remove the DY Wedges and slightly tilt the Deflection Yoke horizontally and vertically to obtain the best overall convergence.

6. Fix the Deflection Yoke by carefully inserting the DY Wedges between CRT and Deflection Yoke.

---

C.P. Magnet (RB)

C.P. Magnet (RB-G)

Deflection Yoke

Dot Pattern

--Crosshatch

Tape M. EQ. Spec.

--- Pattern Generator See below

Figure

CRT

RB-GRB

RING LOCK

SCREW

C.P. MAGNET CLAMPER

C.P. MAGNET

DY WEDGE

COIL

SCREW

COIL CLAMPER

DEFLECTION YOKE

PURITY

Fig. 7

C.P. MAGNET (RB)

Fig. 8

C.B. MAGNET (RB-G)

Fig. 9

1. Set the unit to the AUX mode which is located before CH2 then input a dot or crosshatch pattern.

2. Loosen the Ring Lock and align red with blue dots or crosshatch at the center of the screen by rotating (RB) C.P. Magnets. (See Fig. 8.)

3. Align red / blue with green dots at the center of the screen by rotating (RB-G) C.P. Magnet. (See Fig. 9.)

1-6-7 T5517EA

HOW TO INITIALIZE THE TV/VCR COMBINATION

To put the program back at the factory-default, initialize the TV/VCR Combination as the following procedure.

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV unit.)

3. Press [WAKE-UP/SLEEP] button on the service remote control unit to enter the Service mode. (Refer to “How to Enter the Service mode” on page 1-6-1.)

4. Press [VOL p] button on the service remote control unit twice, and confirm that OSD indication is “7F = FF.” If needed, set it to become “7F = FF” by pressing [CH o / p] buttons on the service remote control unit.

5. Confirm that OSD indication on the four corners on TV screen changes from on and off light indication to red by pressing a [DISPLAY] button. (It takes one or two seconds.)

6. Turn the power off by pressing main power button on the TV unit, and unplug the AC cord from the AC outlet.

1-7-1 T5517INT

MECHANICAL TROUBLE INDICATOR

1. Each Malfunction Indication

If the MONITOR is turned ON right after the Mechanical Malfunction occurs or POWER SAFETY is turned ON, display the following character to show Malfunction after the EJECT display.

Immediately preceding

Malfunction

REEL Malfunction R DRUM Malfunction D CASSETTE LOADING

Malfunction TAPE LOADING Malfunction T P-SAFETY 2 2 P-SAFETY 3 3 P-SAFETY 1 1

Example: If REEL Malfunction

EJECT R

Display character

2. Each Malfunction evaluation

POWER SAFETY

POWER SAFETY 2

If P-SAFETY 2 port becomes continuously 2.5 V or less for 120 msec. (4 times 40 msec. interval) when PON-H port is ON, the unit shall be assumed to be the Power Malfunction 2 and immediately turn OFF the POWER/MONITOR and switch over the Mechanical Malfunction mode with POWER OFF.

(Shall not unload) (To return from this mode shall become possible only

by POWER Key as in the case of the Mechanical Malfunction).

* However the POWER SAFETY 2 function shall be disabled during 500 msec. right after the P-ON-H turns ON.

POWER SAFETY 3

If P-SAFETY 3 port becomes continuously 2.5 V or over for 120 msec. (4 times 40 msec. interval) when MONITOR is ON, P-SAFETY 3 function is available. After that, if P-SAFETY 3 port becomes continuously

2.5V or less for 120 msec. (4 times 40 msec. interval), the unit shall be assumed to be the Power Malfunction 3 and immediately turn OFF the POWER/MONITOR and switch over the Mechanical Malfunction mode with POWER OFF.

method

P-SAFETY 1 protect

If P-SAFETY 1 port becomes continuously 2.5 V or more for 120 msec. (4 times 40 msec. interval), the unit shall immediately turn OFF the POWER/ MONITOR and switch over to the Mechanical Malfunction mode with POWER OFF.

(To return from this mode shall become possible only by POWER Key as in the case of the Mechanical Malfunction).

(Shall not unload) (To return from this mode shall become possible only

by POWER Key as in the case of the Mechanical Malfunction).

1-8-1 T5517MTI

Mechanical Malfunction determination

1. REEL Malfunction detection Countermeasure for REEL and CAPSTAN motor

rotation malfunction (Except CASSETTE LOADING function)

After the Malfunction detection with REEL/ CAPSTAN sensor, the unit shall switch over to STOP (B) and be REEL Mechanical Malfunction.

a. If the T-REEL pulse is not impressed after a

lapse of 5 sec. at SP, 10 sec. at LP, 14 sec. at SLP, or more in the REEL Rotation Mode like PLAY/REC, FS/RS Mode, and the T-REEL or S-REEL pulse is not impress after a lapse of 4 sec. or more in REEL Rotation Mode of FF/ REW, it shall be assumed to stop the rotation and switch over to STOP (B) position, then POWER be turned OFF and the unit be REEL Mechanical Malfunction. (T-REEL and S-REEL for the models on S-REEL and only T-REEL for other models)

b. If the C-FG pulse is not impressed for a lapse

of 1 sec. or more during the CAPSTAN MOTOR rotation, it shall be MOTOR Rotation Malfunction (REEL Malfunction).

2. DRUM Malfunction detection Detect the DRUM rotation at the D-FG input

terminal. If the variation of D-FG input level is not detected

for a lapse of 1 sec. or more when D-CONT is “H”, it shall be assumed to be Rotation Malfunction and be DRUM Malfunction.

When detect Drum Malfunction, POWER shall be turned OFF after the unit switches over to STOP (B) Mode.

3. Countermeasure for TAPE LOADING Malfunction Detect the Malfunction with the LOADING Switch. a. TAPE LOADING Malfunction

If LD-SW does not go to the established position after a lapse of 7 sec. or more from TAPE LOADING or TAPE UNLOADING start, the LOADING function shall immediately be stopped and POWER be turned OFF, and inform the Timer about the LOADING Mechanical Malfunction.

b. LD-SW Position Malfunction at each mode

When the unit operates at each mode, even if the LD-SW position changes from the established one in its mode, it keeps the function according to its mode.

4. Countermeasure for CASSETTE LOADING Malfunction

a. CASSETTE IN operating Malfunction

If LD-SW does not go to SB position after a lapse of 5 sec. or more from the CASSETTE

insertion start, the unit starts the CASSETTE OUT operation.

After switch over to CASSETTE OUT operation and then a laps of 5 sec. or more from the CASSETTE OUT operation start, if LD-SW does not go to the EJ position or if START Sensor and END Sensor does not turn “ON” at the EJ position, the unit starts again to insert CASSETTE.

(However in S-INH state, the START/END Sensor shall be disabled).

b. CASSETTE OUT operating Malfunction

After a lapse of 5 sec. or more from CASSETTE OUT operation start, if LD-SW does not go to the EJ position or if START Sensor and END Sensor does not turn “ON” at the EJ position, the unit starts to insert CASSETTE.

(However in S-INH state, the START/END Sensor shall be disabled).

When the unit switches over to CASSETTE insertion at CASSETTE IN or CASSETTE OUT Malfunction, if LD-SW does not go to the SB position after a lapse of 5 sec. or more from CASSETTE insertion start, the function shall immediately be stopped and POWER be turned OFF, and the unit be CASSETTE LOADING Malfunction.

c. When POWER is turned ON, if the CL position

or GC position cannot be detected after 5 sec. LD-REV operation and 5 sec. LD-FWD operation, the function shall immediately be stopped and POWER be turned OFF, and the unit be CASSETTE LOADING Malfunction.

d. When POWER is turned ON without

CASSETTE (EJ position) and LD-SW is monitored all the time, if the CL or GC position is detected continuously for 1 sec. or more, the POWER shall be turned OFF and the unit be CASSETTE LOADING Malfunction.

Countermeasure for Mechanical Malfunction

If the unit detects Mechanical Malfunction, turn the POWER OFF. If the unit is Mechanical Malfunction, Key input except POWER key shall be disabled and CASSETTE insertion disabled. When POWER Key is entered, the POWER is turned ON and the unit switches over the EJECT Mode. (Return with POWER ON)

1-8-2 T5517MTI

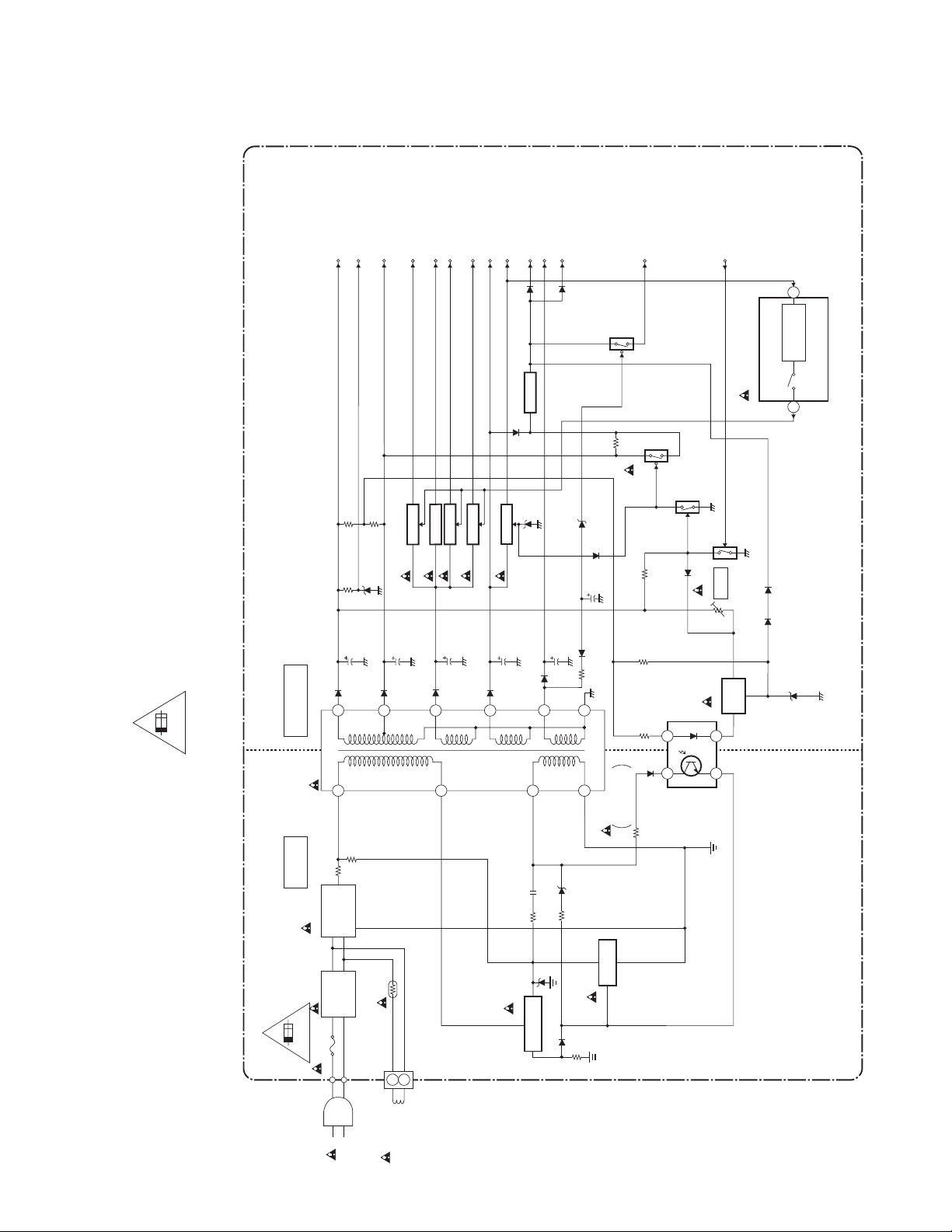

POWER SUPPLY TROUBLESHOOTING GUIDE

It is highly recommended that a variable isolation transformer which can monitor current be used. (Alternatively a variable AC source which monitors current will do). Read directions below before power is added!

YES

Repair

method

CHECK

Check Fuse (F601) is blown out or not. If fuse is blown out, do repair method #1.

Check whether the primary rectifying DC of the Switching power supply has an output. (Reading should be about 168V.)

YES

Voltage of the 105V line higher than normal?

The transformer of the power supply makes a higher sound or the oscillation wave form is abnormal. (E.g. intermittent oscillation) Connect the positive probe of oscilloscope to the pin 16 of T601, then connect the negative probe to the pin 12. Observe the waveform and check to see if the waveform is out of limit of value shown in Fig. 1.

There is no problem on the SW power supply.

Voltage approx. 5 Vp-p

Repair method #1

(Power must be off) Short circuit in the secondary side. check diode D613,

D614, D616, D617 and D618, switching transistor (Q601), control transistor (Q602), diode and resistor replace as necessary.

Disconnect 105V diode (D613), 25V diode (D614), 8V diode (D616), 12V diode (D617), 12V diode (D618) and Check the load continuity of 105V line, 25V line, 8V line, 12V line through a tester (resistance range).

If the tester indicates a lower resistance value around 0 ohm, the line is short-circuited.

Before repairing the switching power supply, find out the short-circuited area of such line and repair it.

If the tester does not indicate any low resistance value (around 0 ohm), no load is short-circuited and there is no problem.

Check for any defective parts while the secondary rectifying diodes are disconnected (D613, D614, D616, D617 and D618) perform a diode check in both forward and reverse directions through a tester.

Repair method #2

Check the primary rectifying diodes (D603-D606) as possible problems. Remove the above mentioned parts and check them. Perform check according to the step 1 and 2 of repair method #1 and check for defects following parts, then if necessary replace with factory originals.

R602 is open or not. Q601, Q602, D607, D608 and D611 are short or not.

Repair method #3

The feedback circuit which is monitored by the output of D613 105V may not work and this may be regarded as a possible cause, remove IC601 (Photo Coupler), diode (D620) and transistor (Q604) check for defects.

0 V

Repair method #4

Check control circuitly which is connecting to Pin 2 and 1 of Switching Transformer T601.

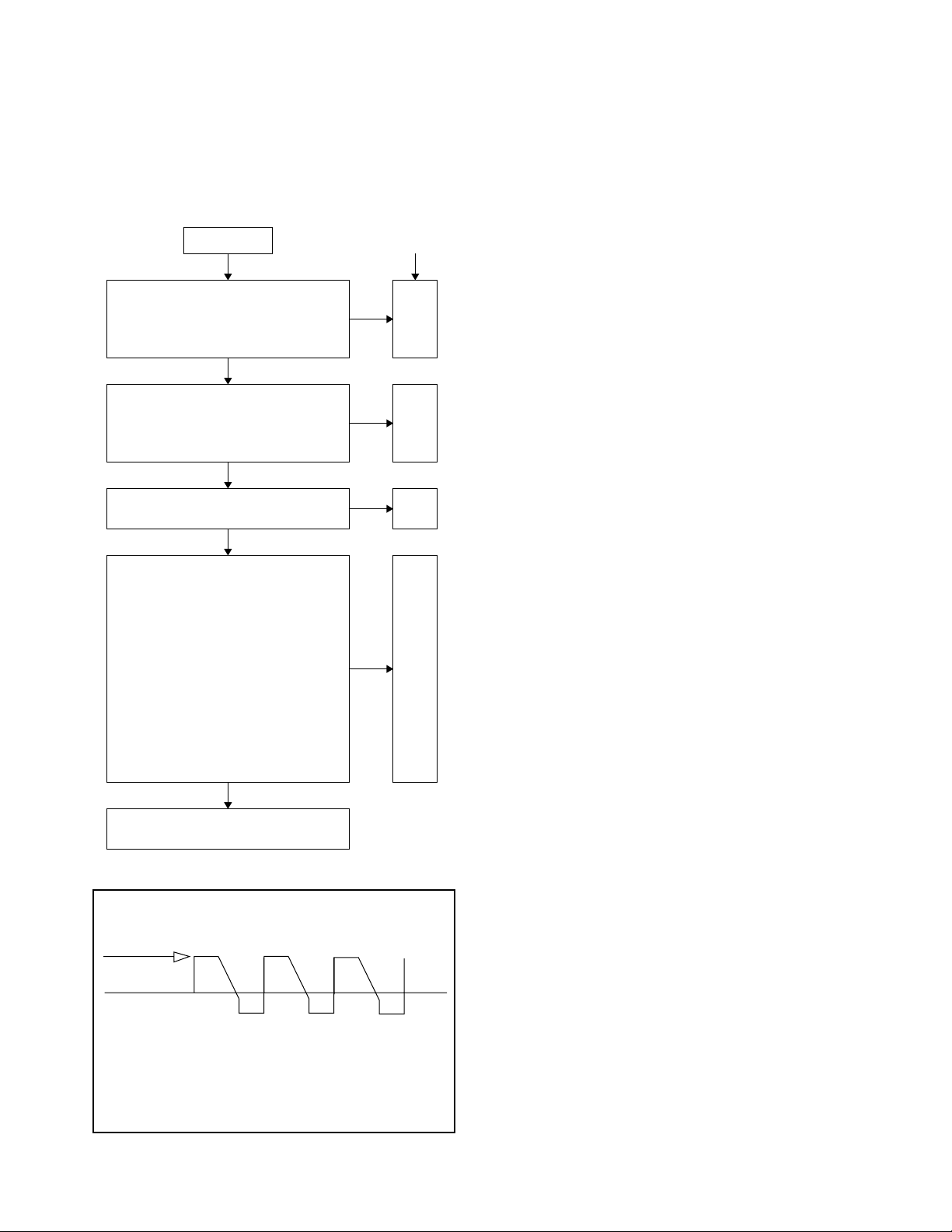

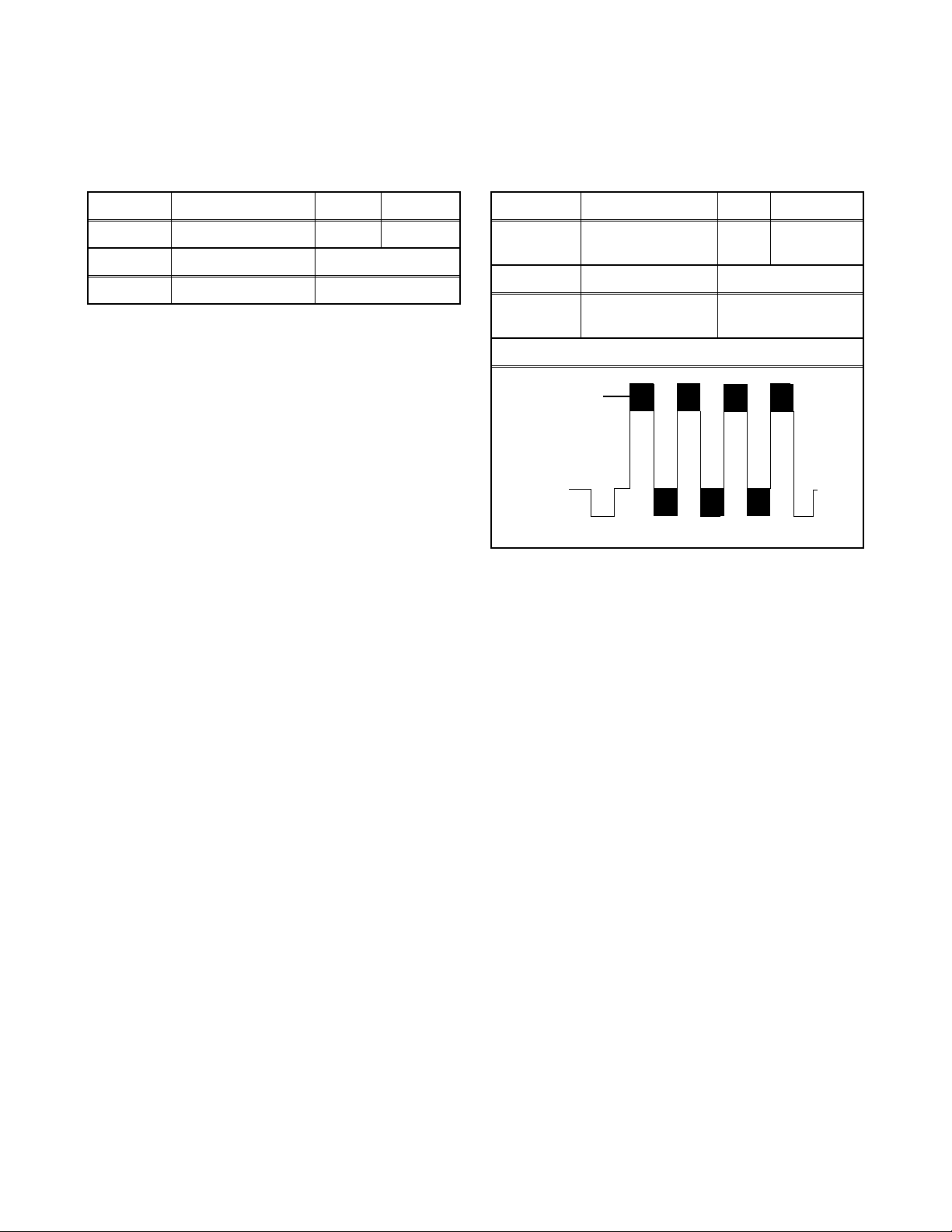

T = Approx. 6 to 14 µsec.

Oscilloscope setting: 1 V/DIV.

2 µsec./DIV

Fig. 1

1-9-1 T5517TR

BLOCK DIAGRAMS

Servo/System Control Block Diagram

CHROMA /TUNER

BLOCK

AL+5V

SCL

C-OPEN I

SDA

AFT-IN

C-SYNC

AFT-IN

C-SYNC

IF-MUTE

KEY

SW201 SW204,SW206

SWITCH

SW205,SW207 SW210

KEY 1

KEY 0

POWER SUPPLY

BLOCK

P-ON-H

P-DOWN

P-ON-H

P-DOWN

D204 REC

REC LED

(MEMORY)

SCL

IC202

SCL

SDA

FM/TV-SW

IF-MUTE

FM/TV-SW

SCL

SDA

AUDIO BLOCK

A-MUTE

D-REC-H

SP-MUTE

A-MUTE

D-REC-H

SP-MUTE

REC

SAFETY

SW211

REC-SAFETY

YCA-CS

YCA-SCLK

YCA-SOUT

YCA-CS

YCA-SCLK

VIDEO BLOCK

ROTA

V-ENV

DV-SYNC

V-ENV

DV-SYNC

YCA-SOUT

RF-SW

ROTA

ENV-DET

RF-SW

ENV-DET

IC201

(SERVO/SYSTEM CONTROL)

RS201

AL+5V

D203

MAIN CBA

REMOTE

S-LED

TP201

SENSOR

WF3

CTL AMP OUT

CTL(+)

CTL(-)

CTL

SW212

CL402

22CTL(+)

11CTL(-)

LD-SW

ST-SENS.

T-REEL

END-SENS.

T-REELST-SENS.

END-SENS.

Q201

Q202 Q206

RESET

Q205

RESET

TIMER+5V

SENSOR CBA

(END-SENSOR)

SENSOR CBA

(ST-SENSOR)

C-F/R

C-FG

P-ON+12V

P-ON+5V

1P-ON+12V

2P-ON+5V(2)

3C-FG

4C-F/R

CL201

CAPSTAN

CAPSTAN MOTOR

MOTOR

C-CONT

6FG-GND

C-CONT

D-PFG

LD-CONT82D-CONT

7LD-CONT

9D-PFG

D-CONT

D/L+12V

10M-GND

11D/L+12V

DEF+B

12D/L+15V

)

ASSEMBLY

(DECK

ACE HEAD ASSEMBLY

CONTROL

HEAD

1-10-1

SENSOR

DRUM

MOTOR

CYLINDER ASSEMBLY

MOTOR

T5516BLS

Video Block Diagram

REC VIDEO SIGNAL PB VIDEO SIGNAL MODE: SP/REC

MAIN CBA

X401

3.58MHz

WF2

4950

VXO

LUMINANCE

Q402

CCD 1H

VCA

CLAMP

BUFFER

DELAY

36 37 39 34

SIGNAL PROCESS

YNR/COMB FILTER

CHROMINANCE

SIGNAL PROCESS

HEAD

AMP

TP402

V-ENV

WF6

C-ROT/RF-SW

ENV-DET

V-ENV

WF5

Q401

TP301

V-OUT

6dB

AMP

QV/QH

BUFFER

IC401

(VIDEO SIGNAL PROCESS/ HEAD AMP)

Y/C

FBC

VIDEO

TUNER

WF4

LINE-VIDEO

VIDEO

TU-VIDEO

CHROMA/TUNER

BLOCK

MIX

AGC

JK701

LINE

FRONT V-IN

I/F

SERIAL

YCA-SCLK

YCA-SOUT55YCA-CS

SERVO/SYSTEM

DV-SYNC

CONTROL BLOCK

V-COM

V(R)-1

V(L)-1

CL401

123

VIDEO (L)-1 HEAD

VIDEO (R)-1 HEAD

RF-SW

TP202

ROTA

RF-SW

WF1

CYLINDER ASSEMBLY

V-ENV

ENV-DET

SERVO/SYSTEM

CONTROL BLOCK

1-10-2

(DECK ASSEMBLY)

T5516BLV

Audio Block Diagram

JK801

EARPHONE JACK

Mode : SP/REC

CL802

CN801

SP801

SPEAKER

SP-GND 2

SPEAKER

SERVO/SYSTEM

CONTROL BLOCK

SERVO/

SYSTEM

CONTROL

BLOCK

A-MUTE

D-REC-H

MUTE

LINE

AMP

REC

ALC

TUNER

LINE

78 76

AMP

8 9

WF9

MAIN CBA

PB-AUDIO SIGNAL REC-AUDIO SIGNAL

IC301(CHROMA/DEFLECTION SIGNAL PROCESS)

AMP

IC801 (AMP)

MUTE

/STANDBY

WF8

AUDI O

ATT

TUNER

LINE

VCR

I/F

SERIAL

2414152621

SP-MUTE

TP401

A-OUT

(AUDIO SIGNAL PROCESS)

IC401

CL402

SP/LP-ON

AMP

A-COM

A-PB/REC 346

AE-H

AE-H/FE-H 5

Q872

BIAS

OSC

AUTO

Q871

BIAS

Q873

CL403

P-ON+5V

FE-H

FE-H-GND

P-ON+5V

Q875

Q874

TU-AUDIO

CHROMA/TUNER

BLOCK

SCL

SDA

SERVO/SYSTEM

JK702

CONTROL BLOCK

FRONT A-IN

ACE HEAD ASSEMBLY

(DECK MECHANISM)

1-10-3

AUDIO

HEAD

AUDIO

ERASE

HEAD

FE HEAD UNIT

FULL

ERASE

HEAD

T5516BLA

Chroma/Tuner Block Diagram

MAIN CBA

REC VIDEO SIGNAL PB VIDEO SIGNAL Mode : SP/REC

REC-AUDIO SIGNAL

TO AUDIO BLOCKTOSERVO/ SYSTEM

TU VIDEO TO VIDEO BLOCK

TU-AUDIO

AMP

DET

WF7

IF-MUTE

VCO F/B

CONTROL BLOCK

FM/TV-SW

VIDEO

TUNER

VCR

VIDEO BLOCK

LINE-VIDEO

LINE

VCR

TUNER

LINE

X301

CHROMA

3.58MHz

BPF

VXCO

FILTER

TUNING

CHROMA

SIGNAL

PROCESS

CIRCUIT

RED 2

CL502B

CRT/H.V. BLOCK

CL502A

GREEN3

BLUE 4

453

TP302

AFC

WF11

AFC

CRT/H.V. BLOCK

H-DRIVE

ACL

V-RAMP-NF

V-DRIVE

CF031

IC001 (IF SIGNAL PROCESS)

SF001

4.5MHz

TRAP

VIDEO

DET

VIF

AMP

SAW

FILTER

CF032

4.5MHz

FILTER

VCO

AFT

AMP

LPF

AGC

IF AGC DET

IC301 (CHROMA/DEFLECTION SIGNAL PROCESS)

SERIAL

I/F

INTELLIGENT

MONITORING

SYNC

SEPARATION

CHROMA

TRAP

LUMA

SIGNAL

IC201

PROCESS

CIRCUIT

H-SYNC

PROCESS

V-SYNC

PROCESS

(SYSTEM CONTROL/OSD)

CIRCUIT

OSD MIX/RBG MATRIX/

BLIGHT/DRIVE AMP/

CV-IN

OSD-R

OSD-G

HV BLANKING

595860

OSD-B

V-SYNC

OSD-BLK

WF18

WF10

H-SYNC

WF17

TU001

SCL

SDA

AFT-IN

SCL

FSC

SDA

AGC

1-10-4

C-SYNC

SERVO/SYSTEM

CONTROL BLOCK

T5516BLC

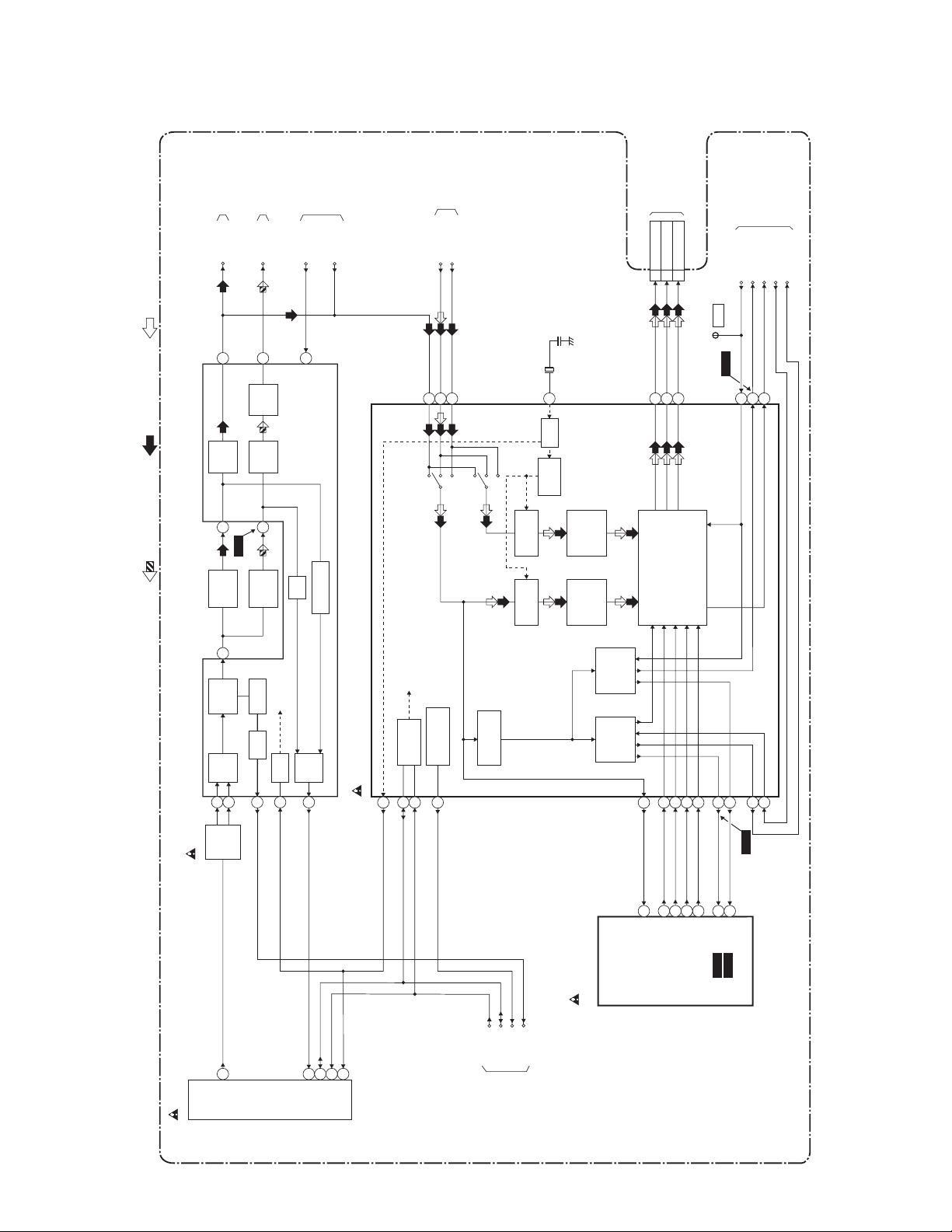

CRT/H.V. Block Diagram

V-

DRIVEH-DRIVE

L551

DEFLECTION-YOKE

543

WF13

Mode : SP/REC

CN571

ANODE

JK501

FOCUS

SCREEN

GND

V501

CRT

RGB

HEATER

WF16

GND

CN505

REC VIDEO SIGNAL PB VIDEO SIGNAL

IC551 (V-DEFLECTION CONTROL)

THERMAL

PROTECTION

AMP

WF15WF14

Q511

GREEN AMP

Q521

RED AMP

BLUE AMP

Q531

CRT CBA

CL501ACL501B

VCC

T572

Q571

H.OUTPUT

3 2

PUMP

ANODE

FOCUS VR

T571 F.B.T.

FOCUS

SCREEN

33HEATER

11+160V

SCREEN VR

MAIN CBA

Q572

H.DRIVE

WF12

DEF+B

POWER SUPPLY BLOCK

1-10-5

AFC

ACL

V-RAMP-NF

V-DRIVE

H-DRIVE

CHROMA/TUNER BLOCK

2RED

CL502A

3GREEN

4BLUE

CHROMA/TUNER

BLOCK CL502B

T5516BLCRT

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

DEF+B

AL+33V

P-ON+5V

AL+12V

P-ON+5V

P-ON+8V

AL+5V

P-ON+12V

TIMER+5V

Q612

P-DOWN

(TO PIN84 OF IC201)

P-ON-H

(TO PIN31 OF IC201)

3027

+5.7V

REGULATOR

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A 125V

T601

Q609

+5V REG.

Q606

Q607

+5V REG.

IC602

Q608

Q613

Q611

+8V REG.

Q610

Q605

+B ADJ.

VR601

FEED

4 1

IC601

ERROR

VOLTAGE DET

Q604

3 2

P-ON-ON

IC301

MAIN CBA

BACK

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT COLD

BRIDGE

D603 - D606

L601

LINE

4A 125V

F601

HOT CIRCUIT. BE CAREFUL.

4A/125V

RECTIFIER

FILTER

W601

PS601

CN601

DG601

DEGAUSSING

COIL

1-10-6

Q601

SWITCHING

Q602

LIMITER

T5516BLP

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

, M = 106).

-6

µF).

1-11-1 Z13N_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY

WITH SAME TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Mode: SP/REC

5. Voltage indications for PLAY and REC modes on the schematics are as shown below:

Unit: Volts

The same voltage for both PLAY & REC modes

6. How to read converged lines

1-D3 Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

7. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin.

5.0

231

5.0 (2.5)

Indicates that the voltage is not consistent here.

PLAY mode REC mode

AREA D3

1-B1

AREA B1

1-D3

ABCD

: Used to indicate a test point with a test pin.

1-11-2 Z13N_SC

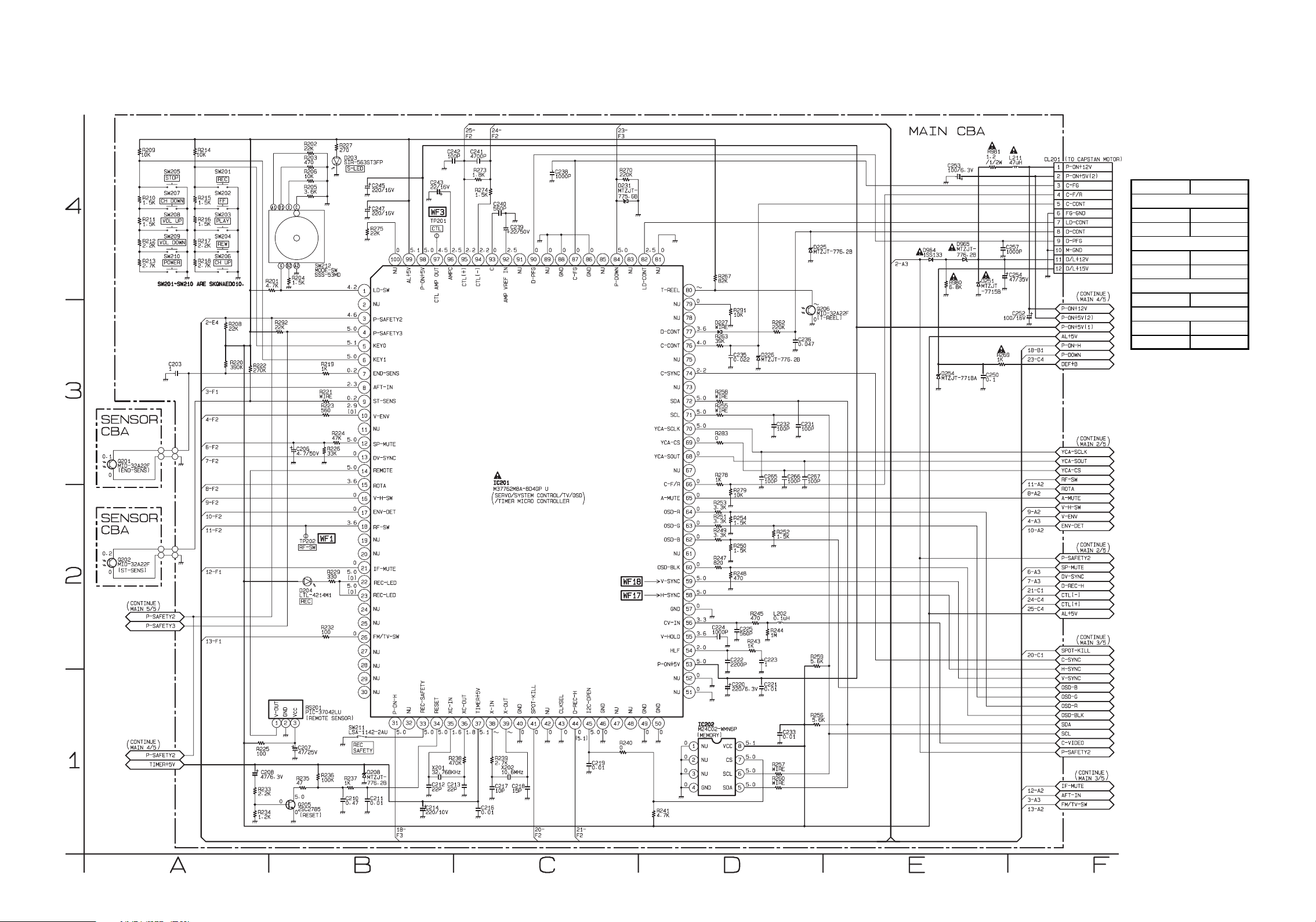

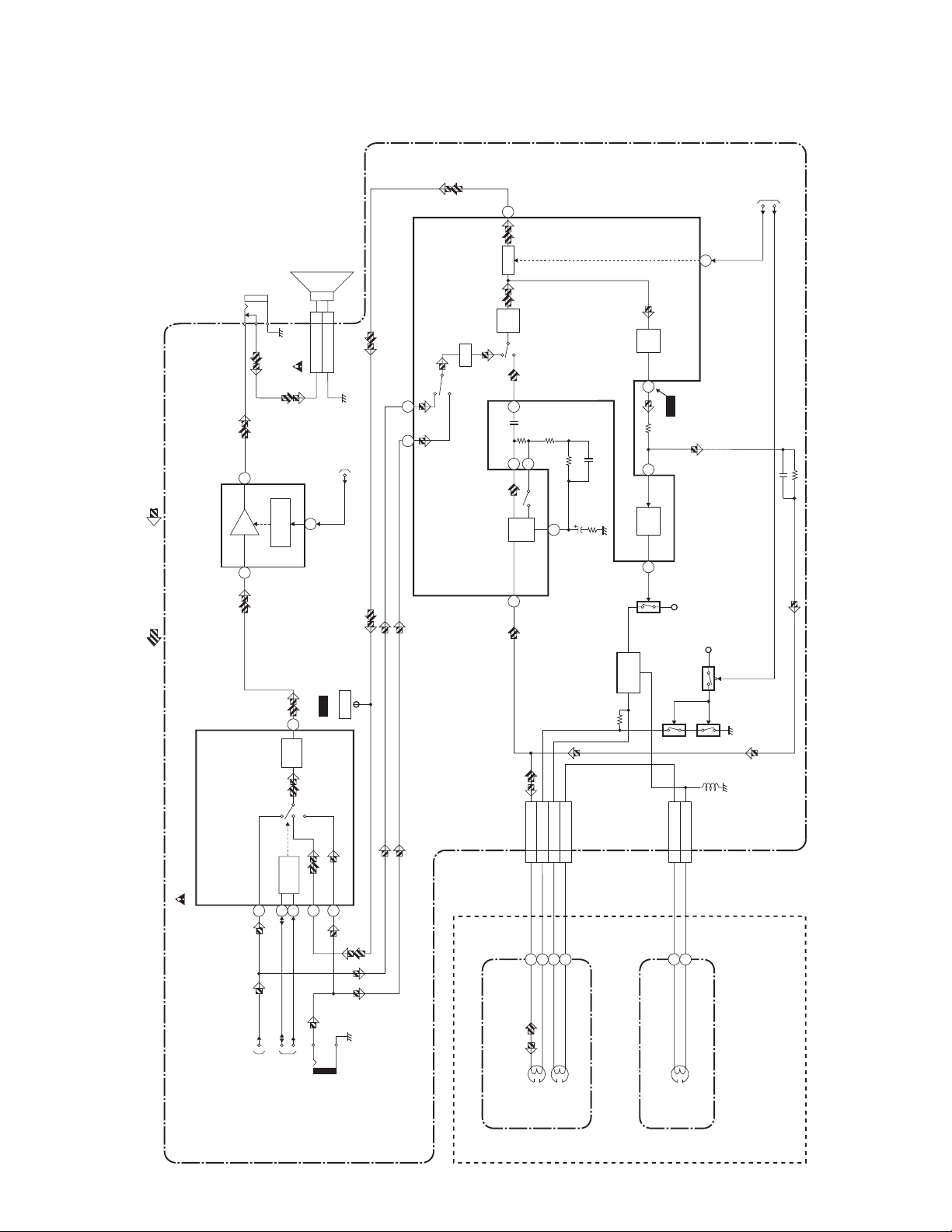

Main 1/5 & Sensor Schematic Diagram

MAIN 1/5

Ref No. Position

IC201

C-3

IC202

D-1

Q205

B-1

Q206

D-3

CL201

F-4

TP201 B-4 TP202 B-2

TEST POINTS

ICS

TRANSISTORS

CONNECTOR

1-11-3

T5516SCM1

Main 2/5 Schematic Diagram

MAIN 2/5

Ref No. Position

IC401

H-2

IC801

K-4

Q401

K-2

Q402

K-3

Q871

H-2 Q872 H-1 Q873

G-1 Q874 G-1 Q875 H-1

CL401

G-3

CL402

L-1

CL403

G-1

CN801

K-4

TP301

K-2

TP401

J-1

TP402 J-1

TEST POINTS

CONNECTORS

ICS

TRANSISTORS

1-11-4

T5516SCM2

Main 3/5 Schematic Diagram

MAIN 3/5

Ref No. Position

IC001

Q-2

IC301

M-2

Q301

N-1

TP302 O-1

ICS

TRANSISTOR

TEST POINT

1-11-5

T5516SCM3

Main 4/5 Schematic Diagram

VOLTAGE CHART (Power off mode)

Ref. No. 1 4

IC601 11.0 16.0

Ref. No.

IC602

Ref. No.

Q601

Ref. No.

Q602 Q604 Q605 Q606 Q607 Q608 Q609 Q610 Q611 Q612 Q613

1.4 0

1.9 0

8.2

0.7 0

6.5

B 0

7.8 0

3 0

1.8

5.6

3.0

5.1

3.0

8.8 0

3.0

8.2

5.1 0

10.0

137.0 C

3.2

9.9

7.9

5.8

0.9

0.1

6.7 0

8.9 0

123

3.0 0 1.8

MAIN 4/5

Ref No. Position Ref No. Position

IC601

W-2

Q609

T-2

IC602

T-3

Q610

T-2

Q611

T-1

Q601

X-2

Q612

S-2

Q602

W-2

Q613

S-1

Q604

V-2 Q605 U-2 CN601 X-2 Q606

U-3 Q607 U-2 VR601 V-2 Q608 T-2

ICS

TRANSISTORS

VARIABLE RESISTOR

CONNECTOR

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

4A 125V

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

1-11-6

T5516SCM4

Main 5/5 & CRT Schematic Diagram

CRT

Ref No. Position

Q511

CC-2

Q521

CC-2

Q531

CC-2

CL501A

BB-3

CL502A

BB-2

CN505 DD-2

TRANSISTORS

CONNECTORS

MAIN 5/5

Ref No. Position

IC551

TRANSISTORS Q571 Q572 Q591

CONNECTORS

CL501B CL502B

CN571 Z-3

AA-2

BB-3 BB-2

Y-3

Z-2 Z-2

1-11-7

T5516SCM5

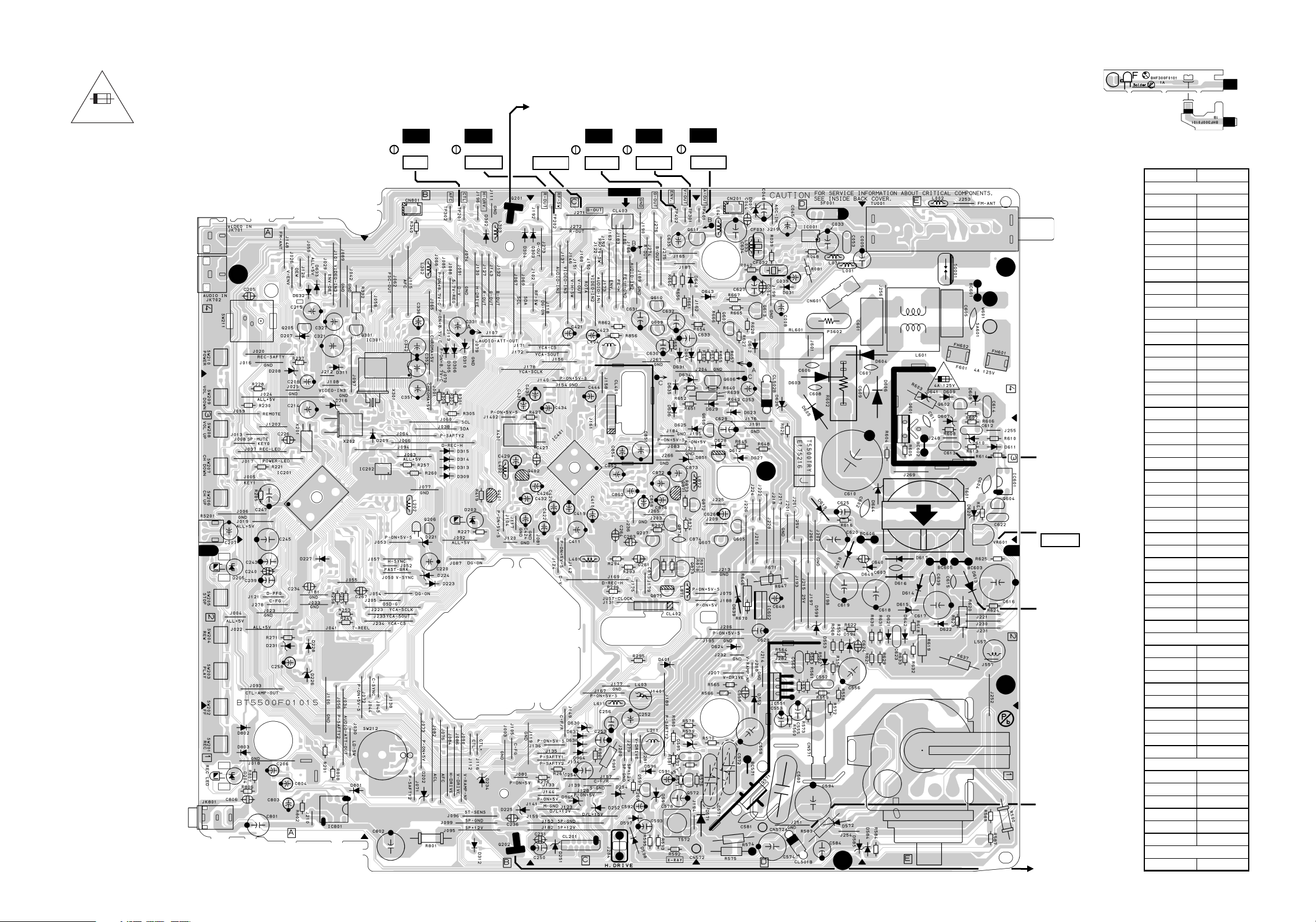

Main CBA Top View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

CAUTION !

MAIN CBA

Ref No. Position

IC001

D-4

IC201

A-3

IC202

B-3

IC301

B-4

IC401

C-3

IC551

D-2 IC601 E-3 IC602

D-2 IC801

A-1

Q205

A-4

Q206

B-3

Q301

A-4

Q401

B-3

Q402

B-3

Q571

D-1

Q572

C-1

Q591

C-1

Q601

E-3

Q602

E-3

Q604

E-3

Q605

D-3

Q606

D-3

Q607

D-2

Q608

D-3

Q609

C-4

Q610

C-4

Q611

C-4

Q612

D-3

Q613

D-4

Q871

C-3

Q872

D-3

Q873

C-2

Q874

C-3

Q875

C-2

CL201

C-1 CL401

C-3 CL402

C-2 CL403

C-4

CL501B

D-1

CL502B

D-3

CN571

D-1

CN601

D-4

CN801

B-4

TP201

B-4

TP202

C-4

TP301

C-4

TP302

B-4

TP401

D-4

TP402

C-4

VR601 E-2

ICS

VARIABLE RESISTOR

CONNECTORS

TEST POINTS

TRANSISTORS

Sensor CBA Top View

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

4A 125V

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF3

TP201

CTL

WF1

TP202

RF-SW

TO SENSOR CBA (END-SENSOR)

WF6

J271 B-OUT

TP402

V-ENV

WF5

TP301

V-OUT

1-11-8

WF8

TP401

A-OUT

BHF300F01011A

BHF300F01011B

C613 GND (+B Adjustment)

VR601

+B ADJ

D613 Cathode (+B Adjustment)

R583 (H Adjustment)

TO SENSOR CBA (START-SENSOR)

BT5500F01015

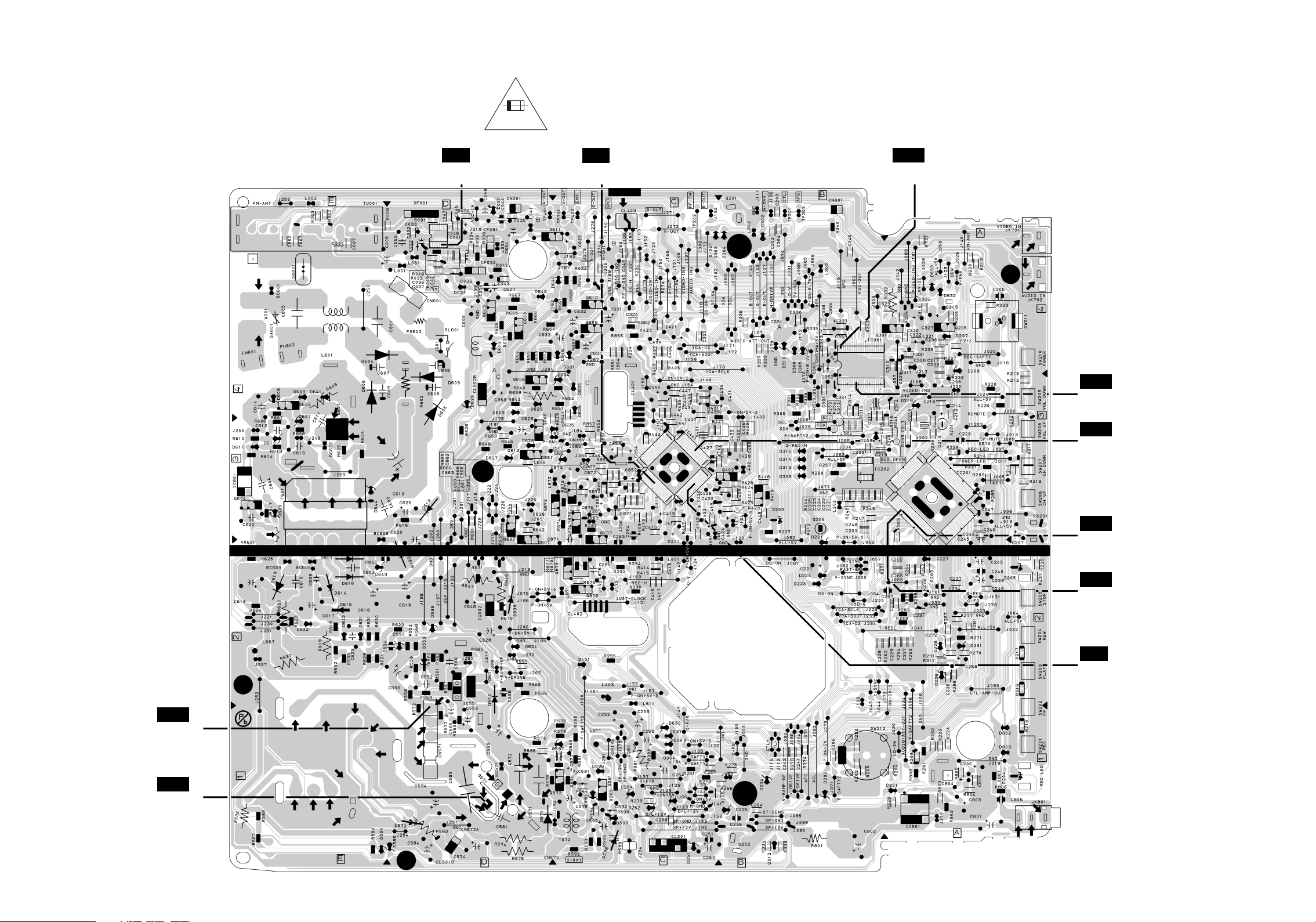

Main CBA Bottom View

CAUTION !

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF7

PIN 7 OF IC001

4A 125V

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

WF9

PIN 9 OF IC401

WF11

PIN 41 OF IC301

WF10

PIN 9 OF IC301

WF13

PIN 5 OF CN571

WF2

PIN 49 OF IC401

WF18

PIN 59 OF IC201

WF17

PIN 58 OF IC201

WF4

PIN 32 OF IC401

WF12

Q571 Collector

1-11-9

BT5500F01015

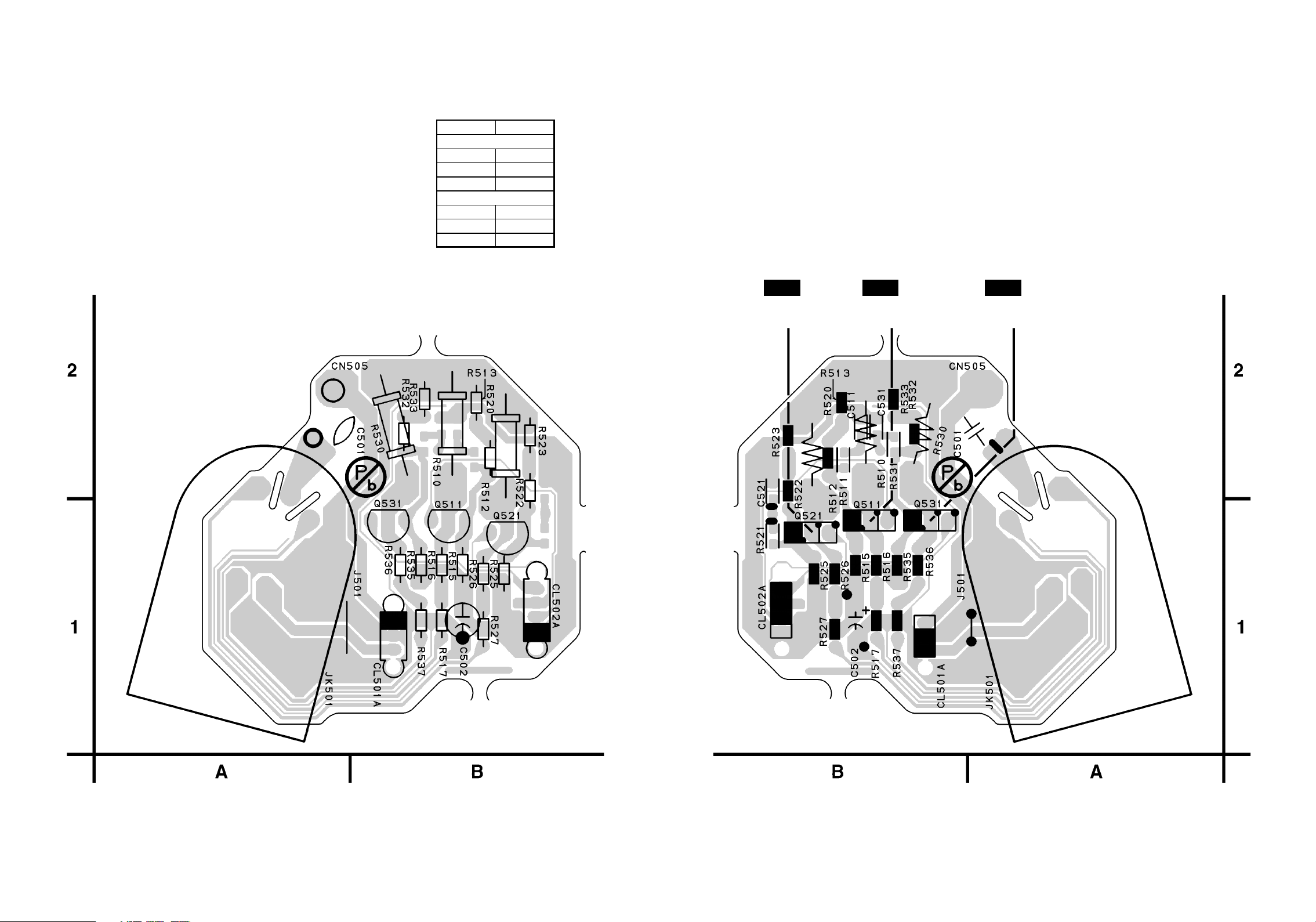

CRT CBA Top View CRT CBA Bottom View

CRT CBA

Ref No. Position

TRANSISTORS Q511 Q521 Q531

CONNECTORS

CL501A CL502A

CN505 A-2

B-1 B-1 B-1

B-1 B-1

WF15

Q521 Collector

WF14

Q511 Collector

WF16

Q531 Collector

1-11-10

BT5500F01015

µs

1DIV: 1V 20

IC201 PIN 58

WAVEFORMS

1DIV: 1V 5ms

IC201 PIN 59

WF17

WAVEFORM NOTES

INPUT: NTSC COLOR BAR SIGNAL (WITH 1kHz AUDIO SIGNAL)

BRIGHTNESS, COLOR AND TINT CONTROLS: CENTER POSITION

CONTRAST CONTROL: APPROX 70%

VOLTAGES SHOWN ARE RANGE OF OSCILLOSCOPE SETTING.

1DIV: 10V 5ms

CN571 PIN 5

WF13

1DIV: 0.5V 0.5ms

IC401 PIN 9

WF9

WF18

µs

1DIV: 20V 20

Q511 COLLECTOR

WF14

1DIV: 2V 5ms

IC301 PIN 9

WF10

µs

1DIV: 20V 20

Q521 COLLECTOR

WF15

µs

1DIV: 1V 20

IC301 PIN41

WF11

µs

1DIV: 20V 20

Q531 COLLECTOR

WF16

µs

1DIV: 200V 20

Q571 COLLECTOR

WF12

µs

1DIV: 0.5V 20

TP301 V-OUT

WF5

1DIV: 2V 5ms

TP202 RF-SW

WF1

Upper: WF6 Lower: WF1

1DIV: 0.2V 2DIV: 5V 5ms

TP402 V-ENV

µs

1DIV: 0.2V 0.1

IC401 PIN 49

WF2

1-12-1

1DIV: 0.2V 0.5ms

IC001PIN 7

WF7

1DIV: 1V 10ms

TP201 CTL

WF3

1DIV: 0.5V 0.5ms

TP401 A-OUT

WF8

µs

1DIV: 0.25V 20

IC401 PIN 32

WF4

Z13WF

MOTOR

M LOADING

CAPSTAN MOTOR

WIRING DIAGRAM FOR

DECK MECHANISM SECTION

1P-ON+12V

2P-ON+5V(2)

3C-FG

WIRING DIAGRAM

DRUM

MOTOR

SENSOR

CYLINDER ASSEMBLY

4C-F/R

5C-CONT

6FG-GND

7LD-CONT

8D-CONT

9D-PFG

10M-GND

11D/L+12V

12D/L+15V

VIDEO

(L)-1 HEAD

3V(L)-1

2V-COM

VIDEO

(R)-1 HEAD

1V(R)-1

AUDIO ERASE

HEAD

6AE-H

5AE-H/FE-H

4A-COM

AUDIO HEAD

CONTROL HEAD

3A-PB/REC

2CTL(+)

1CTL(-)

FULL ERASE HEAD

ACE HEAD ASSEMBLY

FE HEAD

1FE-H-GND

2FE-H

CN801

1 SPEAKER

CL802

SP801

2 SP-GND

SPEAKER

CRT CBA

CL201

CL502B

1 GND

1GND

CL502A

2 RED

2RED

3 GREEN

4 BLUE

3GREEN

4BULE

1 +160V

1+160V

CL501A CL501B

2 GND

2GND

3 HEATER

3HEATER

CL401

SENSOR CBA

(END-SENSOR)

T571

FBT

SENSOR CBA

(ST-SENSOR)

CL402

CL403

MAIN CBA

ANODE

FOCUS

CRT

CN505

GND

SCREEN

CN571

D.Y.

1-13-1

CN601

W601

T5516WI

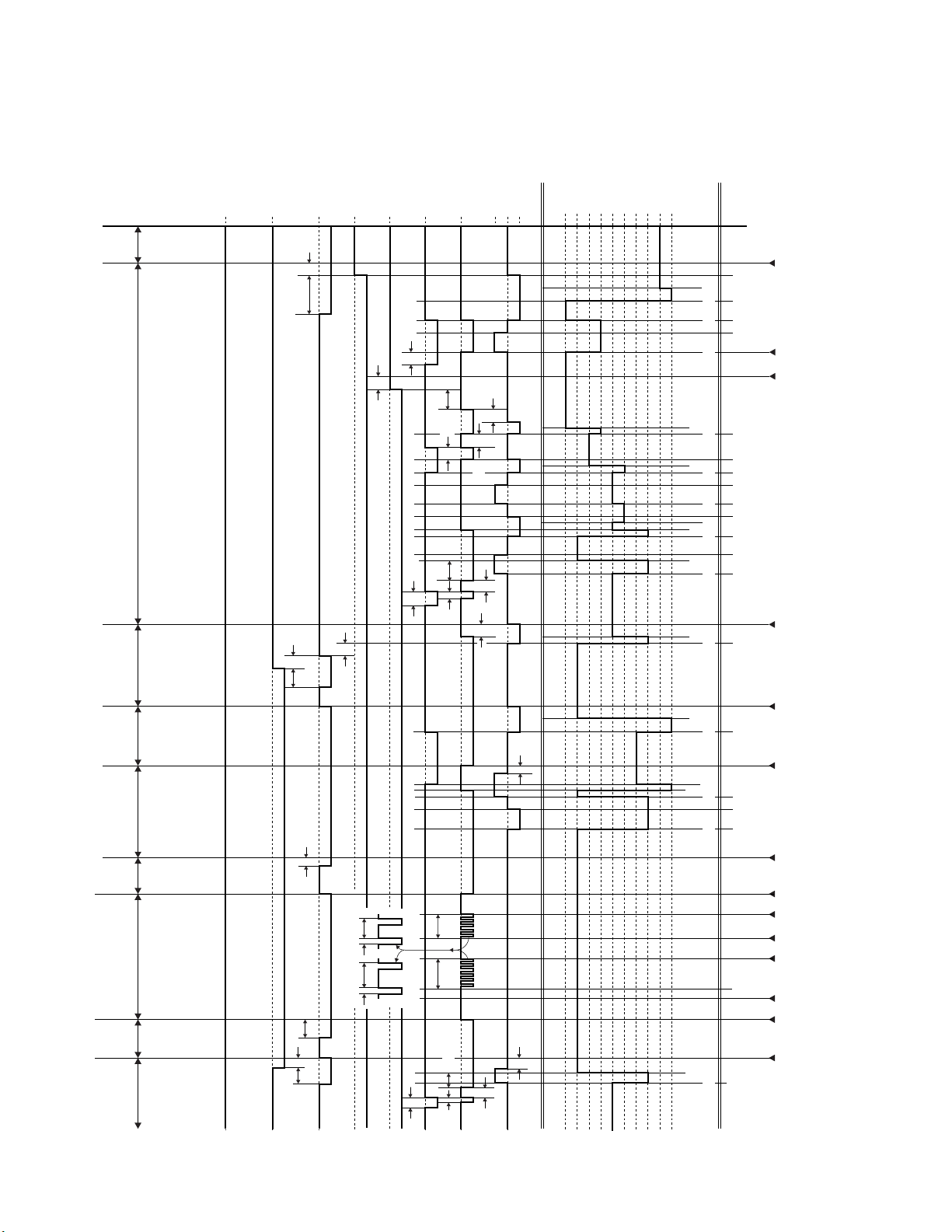

Chart 1

DISPLAY

SYSTEM CONTROL TIMING CHARTS

LD-CONT

D-REC-H

D-PB-H

A-MUTE-H

P-ON

ROTATION

DRUM

C-F/R

C-DRIVE

CL/SS

LD-SW

PIN NO.

1. EJECT (POWER OFF) -> CASSETTE IN (POWER ON) -> STOP(B) -> STOP(A) -> PLAY -> RS -> FS -> PLAY -> STILL(N-CANCEL) -> PLAY -> STOP(A)

-OFF

POWER

STOP

PLAY RS

0.2S

after channel setting

+620mS(PAL)

+100mS(NTSC)

0.2S

0.3S

0.8S

0.2S

40mS

1.2S

0.2S

0.4S

20mS

"Z"

0.2S

CLEJ SB

TL SB

SMSF AL AL RS AU AL SM

EJECT

CASS.LOAD

LD-FWD

0.2S

LD-REV

STOP(B)

LD-FWD

0.4S

LD-FWD

0.2S

LD-REV

0.2S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

PLAY

ST-S "OFF"

REC SFT-SW

POWER

PLAY

LD-FWD

0.3S

1.0S

PLAY STILL STOPPLAY

SP MODE

>5.0S 5.0S

6mS 6mS240mS80mSNTSC

6mS 6mS160mS80mSPA L

1.0S

0.12S

0.8S

LP/SLP MODE

40mS

20mS0.4S

0.3S

0.2S

RS1(RS2)

LD-REV

AL AU

0.2S

LD-FWD

FS1(FS2)

PLAY

STILL

NOISE CANCEL

STILL

NOISE CANCEL

STILL

PLAY

LD-REV

STOP(A)

REW

PLAY

PAUSE

PAUSE ON

PAUSE OFF

PAUSE ON

PAUSE OFF

PLAY

STOP /EJECT

1-14-1 Z13N2HTI

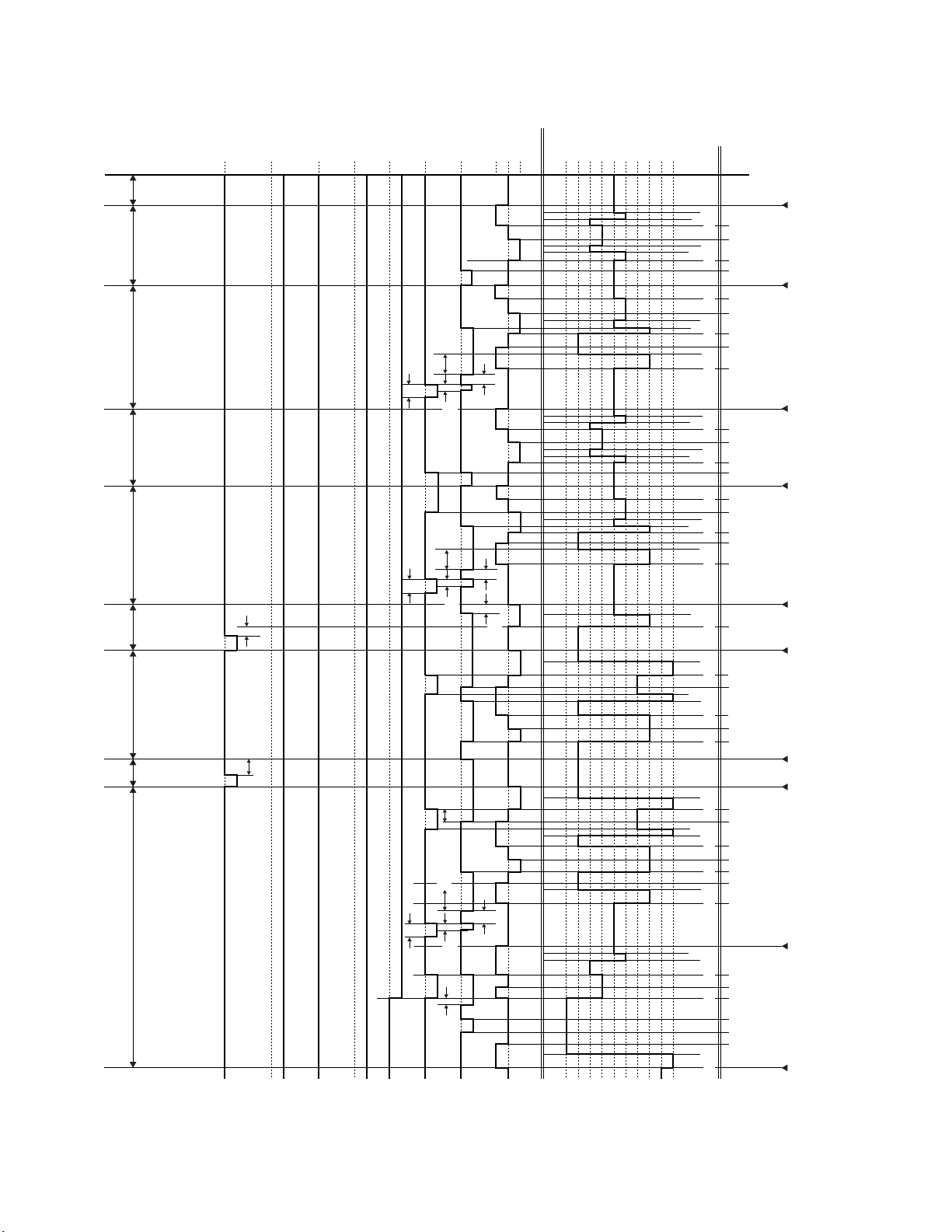

Chart 2

DISPLAY

D-REC-H

D-PB-H

P-ON

A-MUTE-H

ROTATION

DRUM

C-F/R

C-DRIVE

LD-CONT

PIN NO.

LD-SW

CL/SS

2. STOP(A) -> FF -> STOP(A) -> REW -> STOP(A) -> REC -> PAUSE -> PAUSE or REC -> STOP(A) -> EJECT

STOP

STOPFF

REW STOP

REC

RECREC PAUSE STOP

1.0S

1.2S

40mS

0.4S

20mS

0.4S

20mS

1.5S(NTSC)

1.0S(PAL)

0.4S

"Z"

0.2S

SM SF FB SM AU AU SS

FB SF AU AUFB SF

TL TL SMSM SF SFAL AL SM AL AL ALAU AU SM TL SB EJRS RSSM

SF FB SM

SS SS SF

AL AL AUSS FB CL

STOP(A)

LD-REV

0.2S

LD-FWD

0.2S FF

REV

1.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-REV

0.2S

LD-FWD

0.2S REW LD-REV

1.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

REC

LD-FWD

2.5S Short REV

LD-REV

0.2S

LD-FWD

REC PAUSE

REC

LD-FWD

1.5S

LD-REV

0.2S LD-FWD

0.5S

LD-REV

STOP /EJECT

REW

STOP /EJECT

REC

PAUSE

REC or PAUSE

STOP /EJECT

20mS

0.1S

0.2S

STOP(A)

LD-REV

0.2S LD-REV

0.5S

0.2S

0.5S

CASS. UNLD

EJECT

STOP /EJECT

ST-S "ON"

1-14-2 Z13N2HTI

IC PIN FUNCTION DESCRIPTIONS

IC201 (TV/VCR Micro Controller IC)

“H” ≥ 4.5 V, “L” ≤ 1.0 V

IN/

No.

OUT

1 IN LD-SW Loading Switch Input 2 - NU Not Used

3IN

4IN

5 IN KEY0 Key 0 Input 6 IN KEY1 Key 1 Input 7 IN END-SENS End-Sensor 8 IN AFT-IN AFT Input

9 IN ST-SENS Start-Sensor 10 IN V-ENV Video Envelope Input 11 - NU Not Used 12 OUT SP-MUTE Speaker Mute Output 13 OUT DV-SYNC Artificial V-Sync Output 14 IN REMOTE Remote Signal Input

15 OUT ROTA

16 - V-H-SW Video Head Switching Pulse 17 IN ENV-DET Envelope Comparator Signal 18 OUT RF-SW Video Head Switching Pulse 19 - NU Not Used 20 - NU Not Used 21 - IF-MUTE IF-MUTE Signal

22 OUT REC-LED

23 OUT REC-LED

24 - NU Not Used 25 - NU Not Used 26 - FM/TV-SW FM/TV-SW Signal 27 - NU Not Used 28 - NU Not Used 29 - NU Not Used 30 - NU Not Used 31 OUT P-ON-H Power On Signal at High 32 - NU Not Used

33 IN

Signal

Name

P-SAFETY 2Power Supply Failure

Detection 2

P-SAFETY 3Power Supply Failure

Detection 3

Color Phase Rotary Changeover SIgnal

Recording LED Control Signal

RECSAFETY

Record Protection Tab Detection

Function

IN/

No.

OUT

34 IN RESET

35 IN XC-IN Sub Clock 32 kHz 36 OUT XC-OUT Sub Clock 32 kHz 37 - TIMER+5V Vcc 38 IN X-IN Main Clock Input 39 OUT X-OUT Main Clock Output 40 - GND GND 41 OUT SPOT-KILL Counter-measure for Spot 42 - NU Not Used 43 IN CLKSEL Clock Select (GND) 44 OUT D-REC-H Delayed Record Signal

45 IN I2C-OPEN

46 - GND GND 47 - NU Not Used 48 - NU Not Used 49 - GND OSD GND 50 - GND GND 51 - NU Not Used 52 - NU Not Used 53 - P-ON+5V OSD Vcc 54 - HLF HLF 55 IN V-HOLD VHOLD 56 IN CV-IN Video Signal Input 57 - GND GND 58 IN H-SYNC H-SYNC Input 59 IN V-SYNC V-SYNC Input 60 OUT OSD-BLK Output for Picture Cut off 61 - NU Not Used 62 OUT OSD-B Blue Output 63 OUT OSD-G Green Output 64 OUT OSD-R Red Output 65 OUT A-MUTE Audio Mute Output

66 OUT C-F/R

67 - NU Not Used 68 - YCA-SOUT YCA-SOUT Signal 69 - YCA-CS YCA-CS Signal 70 - YCA-SCLK YCA-SCLK Signal

Signal

Name

Function

System Reset Signal (Reset = “L”)

White Balance Adjust Mode Judgment

Capstan Motor FWD/REV Control Signal

1-15-1 T5517PIN

IN/

No.

OUT

71 OUT SCL

IN/

OUT 73 - NU Not Used 74 IN C-SYNC C-Sync Input 75 - NU Not Used

76 OUT C-CONT

77 OUT D-CONT Drum Motor Control Signal 78 - NU Not Used 79 - NU Not Used

80 IN T-REEL

81 - NU Not Used 82 OUT LD-CONT Loading Motor Control Signal 83 - NU Not Used

84 IN P-DOWN

85 - NU Not Used 86 - GND GND

87 IN C-FG

88 - GND GND (AMP) 89 - NU Not Used 90 IN D-PFG Drum Motor Pulse Generator 91 - NU Not Used

92 OUT

93 - C C

IN/

OUT

IN/

OUT 96 - AMPC AMPC

97 OUT

98 - P-ON+5V Power Supply for AMP 99 - AL+5V A/D, D/A Standard Voltage

100 - NU Not Used

Signal

Name

E2PROM/CHROMA IC Tuner Communication Clock

SDA

AMP VREF IN

CTL (-) CTL (-)

CTL (+) CTL (+)

CTL AMP OUT

E2PROM/CHROMA IC Tuner Communication Data

Capstan Motor Control Signal

Take Up Reel Rotation Signal

Power Voltage Down Detector Signal

Capstan Motor Rotation Detection Pulse

Standard Voltage Input

Control Amp Output

Function

1-15-2 T5517PIN

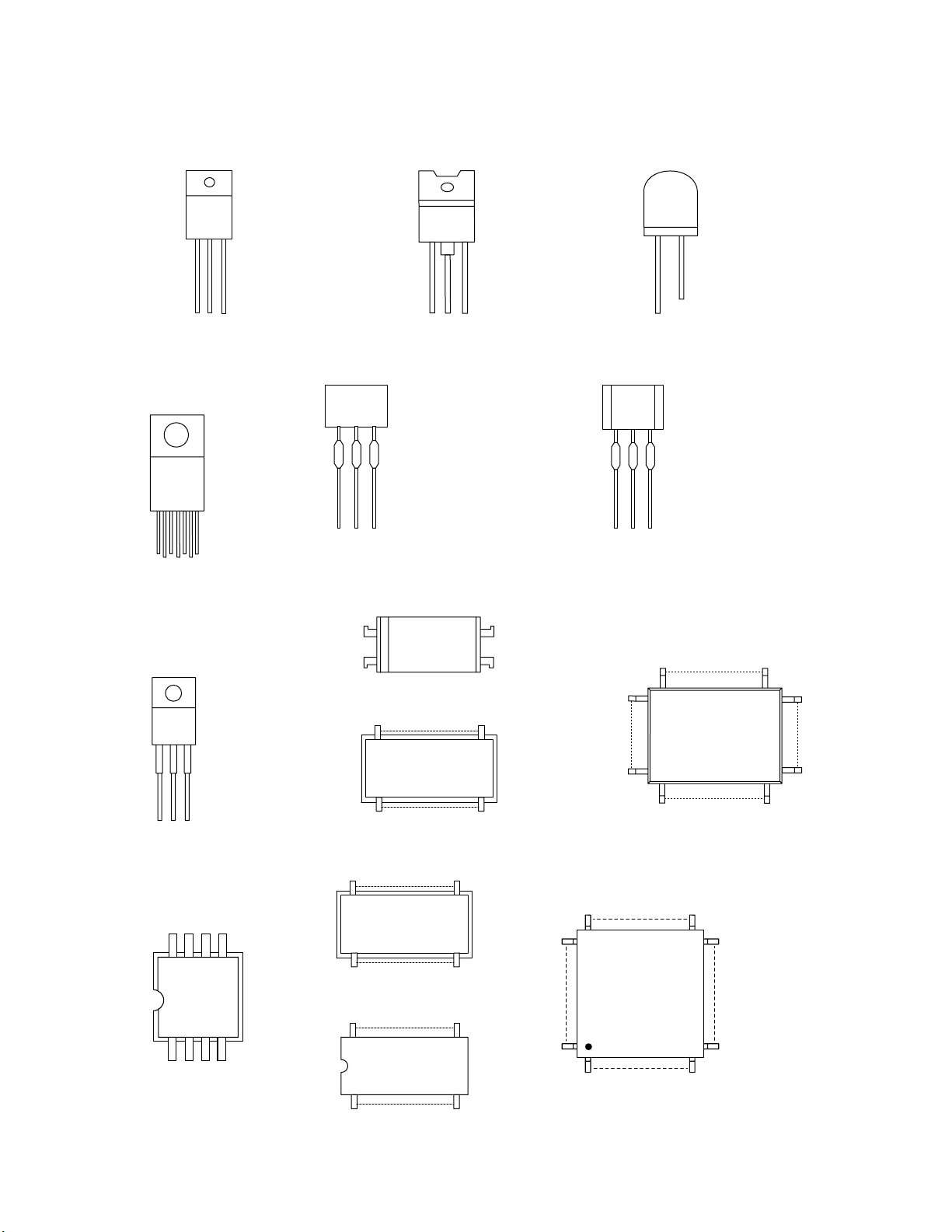

LEAD IDENTIFICATIONS

2SK3563

S D G

LA78040A

E C B

TT2138LS-YB11

B C E

2SC2120-O(TE2 F T) 2SC3331(T) KRA103M-AT/P

LTV-817B-F

MID-32A22F

2SA1175(F) 2SA950(O) 2SC1627Y-TPE2 2SC2482 TPE6 2SC2785(F)

E C B

KIA7805API

1: IN 2: GND 3: OUT

123

M24C02-WMN6P

AN17811A

M61113FPTF0G

M61275FP-TF3H

42 22

1: A

2: K 3: E

4: C

M37762M8A-8D4GP U

100

LA71205M-MPB-E

Note:

A: Anode K: Cathode E: Emitter C: Collector B: Base

R: Reference

S: Source

G: Gate D: Drain

1-16-1 T5516LE

Cabinet

Details for L551 and surrounding parts

CLN551

V501-2

SHINWHA TAPE SGT-730 (WHITE)

SHINWHA TAPE SGT-730 (BLACK)

L551

EXPLODED VIEWS

V501-1

L551

TB24

TL3

CRT CBA

TB2

TL3

A1X

A1-1

V501

TB8

A1-5

TB11

A1-4

DG601

SCOTCH TAPE #880

SENSOR CBA

SP801

CL802

TL1

TB10

TL1

1B1

TL4

TB3

TB21

TL1

TB7

TB24

TL1

TB9

TL1

TL5

TL1

TL2

MAIN CBA

SENSOR CBA

TL1

TB26

W601

TL2

A1-3

A1-2

A1-1

B13

See Electrical Parts List for parts with this mark.

TB1

1-17-1 T5516CEX

Packing

TAPE

S15

FRONT

1-17-2 T5516PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

A1X FRONT CABINET ASSEMBLY T5516CS 1EM120607 A1-1 FRONT CABINET T5303UD 0EM000603 A1-2 CONTROL PLATE T5512UN 1EM320195 A1-3 BRAND PLATE T5501UB ~SYMPHONIC~ 0EM409083 A1-4 CASSETTE DOOR T5303UD 0EM406915 A1-5 SPRING DOOR(Z10) T5200UA 0EM406687 A2 REAR CABINET T5400UA 0EM000691 A3# RATING LABEL T5516CS --------1B1 DECK ASSEMBLY CZD014/VM2426 N2426FT B1 SPRING TENSION B0080B0 EM40808 26WH006 B2 M5 CRT SCREW(B) B4000UA 0VM403923 B3 SHIELD PLATE T5500UA 0EM408707 B13 CLOTH(15X10XT0.5) L9700UA 0EM405038 CL802 WIRE ASSEMBLY 2P/150 WX1B5900-001 CLN551 CRT GND WIRE WX1L7720-001 DG601# DEGAUSSING COIL F-019 LLBH00ZTM019 L1 SCREW P-TIGHT 4X18 BIND HEAD + GBMP4180 L2 SCREW TAPPING M4X14 DBU14140 L4 SCREW P-TIGHT 3X10 BIND HEAD GBUP3100 L7 SCREW P-TIGHT 3X10 BIND HEAD+ GBKP3100 SP801 SPEAKER S08F02B DSD0808XQ010 TB1 TRAY CHASSIS T5400UA 0EM000688A TB2 TOP SHIELD T5500UA 0EM201787 TB8 SPEAKER HOLDER T5100UA 0EM201157B TB10 RCA HOLDER T5400UA 0EM407677 TB11 CLOTH(10X30XT 0.3) T5300UA 0EM407441 TB24 WIRE HOLDER T5400UA 0EM407678 TL1 SCREW P-TIGHT 3X12 WASHER HEAD+ GCMP3120 TL3 SCREW S-TIGHT 3X4 BIND HEAD+ GBMS3040 TL4 SCREW B-TIGHT D3X8 BIND HEAD+ GBMB3080 TL5 SCREW P-TIGHT M3X8 BIND HEAD+ GBCP3080

PACKING

S1 CARTON T5516CS 1EM421659 S2 STYROFOAM TOP ASSEMBLY T5400UA 0EM407693 S3 STYROFOAM BOTTOM ASSEMBLY T5400UA 0EM407694 S4 SERIAL NO. LABEL T5516CS --------S6 SET SHEET B5506UG 800X1500 0EM402369 S15 LABEL EAS(H3761UD) MAKER

NO.ZLLFNSLE1

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420 X2# OWNERS MANUAL T5516CS 1EMN20749 X3 REMOTE CONTROL 512/ERC001/N0150UD N0150UD X4 DRY BATTERY R6P(AR)2PX XB0M451HU002 X5 ROD ANTENNA T5200UA 0EMN01755

---------

Ref. No. Description Part No.

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS ALSO HAS MATCHING COMBINATION WITH L551. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. L551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

CRT TYPE A

L551# DEFLECTION YOKE LLBY00ZSY005 LLBY00ZSY005 V501# CRT A34AGT13X TCRT190CP036 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2 WEDGE FT-00110W XV10000T4001

CRT TYPE B

L551# DEFLECTION YOKE LLBY00ZSY002 LLBY00ZSY002 V501# CRT A34JQQ093X TCRT190MS010 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2 WEDGE FT-00110W XV10000T4001

CRT TYPE C

L551# DEFLECTION YOKE KDY3GCE83X LLBY00ZMS027 V501# CRT A34KQW42X TCRT190SM013 V501-1 C.P.MAGNET JH225-014 XM04000BV009 V501-2 WEDGE FT-00110W XV10000T4001

CRT TYPE D

L551# DEFLECTION YOKE CDY-M1422F LLBY00ZQS001 V501# CRT A34JLL90X(W) TCRT190QS015 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2 WEDGE FT-00110W XV10000T4001

CRT TYPE E

L551# DEFLECTION YOKE CDY-M1455F LLBY00ZQS007 V501# CRT A34LRQ90X(VW) TCRT190P7003 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2 WEDGE FT-00110W XV10000T4001

CRT TYPE F

L551# DEFLECTION YOKE LLBY00ZSY002 LLBY00ZSY002 V501# CRT A34KPU02XX TCRT190GS016 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2 WEDGE FT-00110W XV10000T4001

CRT TYPE G

L551# DEFLECTION YOKE LLBY00ZSY002 LLBY00ZSY002 V501# CRT A34JXV70X TCRT190THA02 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2 WEDGE FT-00110W XV10000T4001

Table 1 (V501 and L551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electrical Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT Warning Label which is located on the CRT. Then See the Table 1 for V501 and L551 combination chart. Please refer this CRT, Deflection Yoke combination chart for parts order.

V501: CRT Type No. V501: CRT Part No.

A34AGT13X TCRT190CP036 LLBY00ZSY005 A34JQQ093X TCRT190MS010 LLBY00ZSY002 A34KQW42X TCRT190SM013 LLBY00ZMS027 A34JLL90X(W) TCRT190QS015 LLBY00ZQS001 A34LRQ90X(VW) TCRT190P7003 LLBY00ZQS007

L551: Deflection

Yoke Part No.

20050826 1-18-1 T5516CA

V501: CRT Type No. V501: CRT Part No.

A34KPU02XX TCRT190GS016 LLBY00ZSY002 A34JXV70X TCRT190THA02 LLBY00ZSY002

L551: Deflection

Yoke Part No.

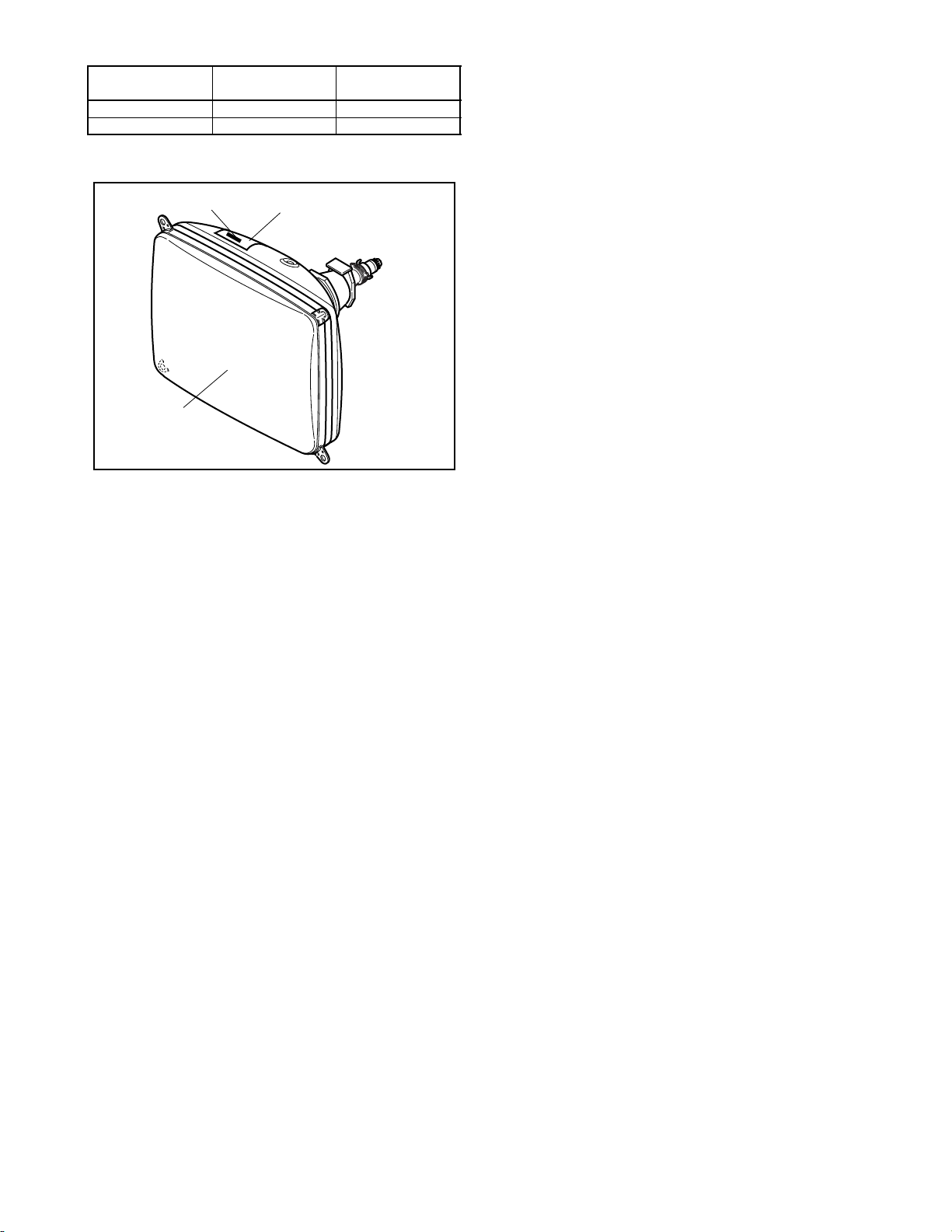

CRT Warning Label Location

CRT Type No.

CRT

CRT Warning Label

20050826 1-18-2 T5516CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA CBA

Ref. No. Description Part No.

MMA CBA Consists of the following:

MAIN CBA CRT CBA SENSOR CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA Consists of the following:

CAPACITORS

C002 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C003 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C005 CAP ALUMINUM ELECTOLYTIC 220µF/6.3V M CE0KMASDL221 C007 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C008 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMAVSL100 C032 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C033 CAP ALUMINUM ELECTOLYTIC 470µF/10V M CE1AMASDL471 C036 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C037 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C039 ELECTROLYTIC CAP. 0.1µF/50V M H7 CE1JMAVSLR10 C042 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C043 CHIP CERAMIC CAP. F Z 0.022µF/50V CHD1JZB0F223 C044 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103 C046 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C047 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C048 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C049 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C052 CHIP CERAMIC CAP. F Z 0.047µF/50V CHD1JZB0F473 C053 FILM CAP.(P) 0.018µF/50V J CA1J183MS029 C054 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103 C203 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C206 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C207 ELECTROLYTIC CAP. 47µF/25V M H7 CE1EMAVSL470 C208 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C210 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZB0F474 C211 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C212 CHIP CERAMIC CAP. CH J 22pF/50V CHD1JJBCH220 C213 CHIP CERAMIC CAP. CH J 22pF/50V CHD1JJBCH220

1ESA10553

----------

---------0ESA06170

----------

Ref. No. Description Part No.

C214 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221 C216 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C217 CHIP CERAMIC CAP. CH D 10pF/50V CHD1JDBCH100 C218 CHIP CERAMIC CAP. CH J 15pF/50V CHD1JJBCH150 C219 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C220 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221 C221 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C222 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JKB0B222 C223 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C224 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C225 CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJBCH561 C231 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C232 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C233 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C235 CHIP CERAMIC CAP. B K 0.022µF/50V CHD1JKB0B223 C236 CERAMIC CAP.(AX) F Z 0.047µF/16V CCA1CZTFZ473 C238 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C239 CAP ALUMINUM ELECTOLYTIC 22µF/50V M CE1JMASDL220 C240 CERAMIC CAP B J 560pF/50V CCA1JJT0B561 C241 CHIP CERAMIC CAP. B K 4700pF/50V CHD1JKB0B472 C242 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C243 ELECTROLYTIC CAP. 22µF/16V M LL CE1CMASLL220 C245 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C247 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C250 CERAMIC CAP.(AX) F 0.1µF/50V CCK1JZT0F104 C252 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C253 CAP ALUMINUM ELECTOLYTIC 100µF/6.3V M CE0KMASDL101 C254 CAP ALUMINUM ELECTOLYTIC 47µF/35V M CE1GMASDL470 C257 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C265 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C266 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C267 CERAMIC CAP.(AX) CH J 100pF/50V CCK1JJTCH101 C301 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C302 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330 C303 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330 C304 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330 C309 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C310 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C314 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C315 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C316 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZB0F225 C317 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C319 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C320 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZB0F474 C321 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221 C322 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C323 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZB0F225 C324 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C325 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C326 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C327 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101 C330 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C331 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221 C336 ELECTROLYTIC CAP. 1µF/50V H7(P=2.5MM) CA1J1R0S6023 C337 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C338 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZB0F225 C339 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C340 CHIP CERAMIC CAP. CH J 47pF/50V CHD1JJBCH470 C342 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221 C351 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221

20050826 1-19-1 T5516EL

Ref. No. Description Part No.

C352 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221 C353 ELECTROLYTIC CAP. 47µF/25V M H7 CE1EMAVSL470 C410 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C411 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101 C412 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C413 CHIP CERAMIC CAP. CH J 390pF/50V CHD1JJBCH391 C416 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C417 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C418 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C419 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C420 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C421 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C422 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C423 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C424 ELECTROLYTIC CAP. 0.1µF/50V M H7 CE1JMAVSLR10 C425 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C426 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C427 CERAMIC CAP.(AX) B 0.01µF/50V CCK1JKT0B103 C428 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C429 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C430 CHIP CERAMIC CAP. B K 0.022µF/50V CHD1JKB0B223 C431 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C432 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C435 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C436 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C438 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C439 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C441 CHIP CERAMIC CAP. F Z 0.047µF/50V CHD1JZB0F473 C442 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C443 CHIP CERAMIC CAP. F Z 0.047µF/50V CHD1JZB0F473 C444 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C445 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C447 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C449 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C552 MYLAR CAP. 0.22µF/50V J CMA1JJS00224 C553 ELECTROLYTIC CAP. 1µF/50V LL CE1JMASLH1R0 C555 CAP ALUMINUM ELECTOLYTIC 47µF/35V M CE1GMASDL470 C556 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPDL102 C558 CERAMIC CAP.(AX) B 0.01µF/50V CCK1JKT0B103 C559 CAP ALUMINUM ELECTOLYTIC 330µF/35V M CE1GMASDL331 C560 FILM CAP.(P) 0.01µF/100V J CMA2AJS00103 C572# P.P. CA P 0 .3 3 µF/200V J CA2D334VC012 C574# ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASDL4R7 C577 FILM CAP.(P) 0.022µF/50V J CMA1JJS00223 C578 CAP ALUMINUM ELECTOLYTIC 47µF/35V M CE1GMASDL470 C580# P.P. CAP 0.0082µF/1.6K J CA3C822VC011 C584# ELECTROLYTIC CAP. 1µF/160V M CE2CMASDL1R0 C591# ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2 C592# ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C593# CAP ALUMINUM ELECTOLYTIC 2.2µF/50V M CE1JMASDL2R2 C594 CAP ALUMINUM ELECTOLYTIC 10µF/160V M CE2CMZPDL100 C601# METALIZED FILM CAP. 0.22µF/250V CT2E224MS037 C602# SAFETY CAP. 4700pF/250V KX CA2E472MR050 C605# METALIZED FILM CAP. 0.22µF/250V CT2E224MS037 C606 CERAMIC CAP. F Z 0.01µF/500V CCD2JZP0F103 C607 CERAMIC CAP. F Z 0.01µF/500V CCD2JZP0F103 C610# ELECTROLYTIC CAPACIT0R 150µF/200V CA2D151S6012 C611 CERAMIC CAP. BN 680pF/2KV CCD3DKA0B681 C612 FILM CAP.(P) 0.039µF/50V J CMA1JJS00393 C613 FILM CAP.(P) 0.001µF/50V J CMA1JJS00102 C614# FILM CAP.(P) 0.056µF/50V J CMA1JJS00563 C615 CERAMIC CAP. BN 560pF/2KV CCD3DKA0B561 C616# ELECTROLYTIC CAP. 100µF/160V M CE2CMZPDL101

Ref. No. Description Part No.

C617# CAP ALUMINUM ELECTOLYTIC 470µF/35V M CE1GMASDL471 C618# CAP ALUMINUM ELECTOLYTIC 1000µF/16V M CE1CMZPDL102 C619# CAP ALUMINUM ELECTOLYTIC 470µF/16V M CE1CMASDL471 C620# CAP ALUMINUM ELECTOLYTIC 1000µF/16V M CE1CMZPDL102 C622 CERAMIC CAP.(AX) CH J 100pF/50V CCK1JJTCH101 C623 FILM CAP.(P) 0.01µF/50V J CMA1JJS00103 C624 CERAMIC CAP.(AX) B 0.01µF/50V CCK1JKT0B103 C625 CAP ALUMINUM ELECTOLYTIC 3.3µF/50V M CE1JMASDL3R3 C626 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C627 CAP ALUMINUM ELECTOLYTIC 47µF/35V M CE1GMASDL470 C628 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C629 CAP ALUMINUM ELECTOLYTIC 47µF/35V M CE1GMASDL470 C630 CAP ALUMINUM ELECTOLYTIC 100µF/10V M CE1AMASDL101 C631 CAP ALUMINUM ELECTOLYTIC 220µF/6.3V M CE0KMASDL221 C632 CAP ALUMINUM ELECTOLYTIC 100µF/16V M CE1CMASDL101 C633 CAP ALUMINUM ELECTOLYTIC 47µF/35V M CE1GMASDL470 C634 CAP ALUMINUM ELECTOLYTIC 100µF/16V M CE1CMASDL101 C635 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470 C636 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C639 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222 C648 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C801 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C802 CAP ALUMINUM ELECTOLYTIC 470µF/16V M CE1CMASDL471 C803 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C804 ELECTROLYTIC CAP. 0.22µF/50V M H7 CE1JMAVSLR22 C805 CHIP CERAMIC CAP. B K 4700pF/50V CHD1JKB0B472 C852 ELECTROLYTIC CAP. 33µF/16V M H7 CE1CMAVSL330 C853 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C854 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C856 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C858 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C861 CHIP CERAMIC CAP. CH J 820pF/50V CHD1JJBCH821 C862 CHIP CERAMIC CAP. B K 0.015µF/50V CHD1JKB0B153 C863 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C865 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C866 CHIP CERAMIC CAP. B K 2700pF/50V CHD1JKB0B272 C867 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C872 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221 C873 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C874 CERAMIC CAP. B K 470pF/100V CCD2AKS0B471 C875 FILM CAP.(P) 0.018µF/100V J CMA2AJS00183

CONNECTORS

CN571 CONNECTOR BASE 5P TV-50P-05-V3 J3TVC05TG002 CN601 CONNECTOR BASE 2P TV-50P-02-V3 J3TVC02TG002 CN801# STRAIGHT CONNECTOR BASE 00 8283 0212

00 000

J383C02UG002

DIODES

D031 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D203 LED SIR-563ST3F P QPQPS1R563ST D204 LED LTL-4214M1 NPQZLTL4214M D208 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D225 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D226 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D227 PCB JUMPER D0.6-P5.0 JW5.0T D231 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D251# ZENER DIODE MTZJT-7715B QDTB00MTZJ15 D254 ZENER DIODE MTZJT-7718A QDTA00MTZJ18 D302 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D303 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D304 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D305 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D306 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D309 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

20050826 1-19-2 T5516EL

Ref. No. Description Part No.

D311 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D312 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D313 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D314 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D315 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D401 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D552 DIODE 1N5397-B NDLZ001N5397 D571# DIODE FR154 NDLZ000FR154 D572# DIODE FR104-B NDLZ000FR104 D584# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D585 ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1 D591# ZENER DIODE MTZJT-7736B QDTB00MTZJ36 D595# ZENER DIODE MTZJT-7718B QDTB00MTZJ18 D596 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D597# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D598# DIODE FR104-B NDLZ000FR104 D603# DIODE 1N5397-B NDLZ001N5397 D604# DIODE 1N5397-B NDLZ001N5397 D605# DIODE 1N5397-B NDLZ001N5397 D606# DIODE 1N5397-B NDLZ001N5397 D607# ZENER DIODE MTZJT-7720C QDTC00MTZJ20 D609# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D610 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D611 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D613# DIODE 15KRA40 QDLZ015KRA40 D614# DIODE FR104-B NDLZ000FR104 D615# DIODE 1ZC36 QDQZ0001ZC36 D616# SCHOTTKY BARRIEA DIODE 21DQ04 QDQZ0021DQ04 D617# SCHOTTKY BARRIEA DIODE 11EQS04 QD4Z011EQS04 D618# SCHOTTKY BARRIEA DIODE 11EQS04 QD4Z011EQS04 D619 DIODE FR104-B NDLZ000FR104 D620# ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8 D621# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D622# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D623# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D625 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 D626 ZENER DIODE MTZJT-7736A QDTA00MTZJ36 D627# ZENER DIODE MTZJT-7713B QDTB00MTZJ13 D628 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D629# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D631 ZENER DIODE MTZJT-776.8A QDTA0MTZJ6R8 D632 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D633 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D634 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2 D635 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D636 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D638# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D639 SCHOTTKY BARRIEA DIODE 11EQS04 QD4Z011EQS04 D640# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D641# ZENER DIODE MTZJT-7736A QDTA00MTZJ36 D643 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D646 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D801# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D802 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D803 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D964# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D965# ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2

ICS

IC001 IC VIF/SIF M61113FP TF0G QSZBA0SHT035 IC201# MICRO COMPUTER(PB FREE) M37762M8A-

IC202 IC(EEP-ROM) M24C02-WMN6P NSZAA0SSS021 IC301# VCD IC M61275FP-TF3H QSZAD0RMB133

8D4GP U

QSZAB0RHT013

Ref. No. Description Part No.

IC401 IC Y/C/A LA71205M-MPB-E QSZBA0RSY037 IC551# VERTICAL OUTPUT IC LA78040A QSBBA0SSY003 IC601# PHOTOCOUPLER LTV-817B-F NPEB0LTV817F IC602# VOLTAGE REGULATOR KIA7805API NSBBA0SJY011 IC801 AUDIO AMP IC AN17811A QSZAA0SMS015

COILS

L001 PCB JUMPER D0.6-P5.0 JW5.0T L031 PCB JUMPER D0.6-P5.0 JW5.0T L033 INDUCTOR 15µH-J-26T LLAXJATTU150 L041 PCB JUMPER D0.6-P5.0 JW5.0T L202 INDUCTOR 0.10µH-K-26T LLAXKATTUR10 L211# CHOKE COIL 47µH-K LLBD00PKV007 L302 PCB JUMPER D0.6-P5.0 JW5.0T L303 PCB JUMPER D0.6-P5.0 JW5.0T L402 INDUCTOR 22µH-J-26T LLAXJATTU220 L403 CHOKE COIL 47µH-K LLBD00PKV007 L404 CHOKE COIL 47µH-K LLBD00PKV007 L601# LINE FILTER SA-91213B LLBG00ZSA002 L611 INDUCTOR 10µH-J-26T LLAXJATTU100 L871 PCB JUMPER D0.6-P5.0 JW5.0T L872 INDUCTOR 47µH-K-5FT LLARKBSTU470

TRANSISTORS

Q205 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q206 PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F Q301 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q401 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q402 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q571# TRANSISTOR TT2138LS-YB11 QQZZ00TT2138 Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627 Q591# TRANSISTOR 2SC2785(F) QQSF02SC2785 Q601# MOS FET 2SK3563 QFWZ02SK3563 Q602# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q604# TRANSISTOR 2SC2785(F) QQSF02SC2785 Q605 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q606# TRANSISTOR 2SA950(O) Q2SA9500TPE2 Q607 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q608# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q609 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q610# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q611# TRANSISTOR 2SC2785(F) QQSF02SC2785 Q612 RES. BUILT-IN TRANSISTOR KRA103M-AT/P NQSZ0KRA103M Q613# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q871 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q872 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q873 TRANSISTOR 2SC3331(T) QSC3331TNPAA Q874 TRANSISTOR 2SC3331(T) QSC3331TNPAA Q875 RES. BUILT-IN TRANSISTOR KRA103M-AT/P NQSZ0KRA103M

RESISTORS

R002 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R003 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R032 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R033 CHIP RES.(1608) 1/10W J 390k Ω RRXAJB5Z0394 R034 CHIP RES.(1608) 1/10W J 150 Ω RRXAJB5Z0151 R035 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224 R036 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224 R037 CHIP RES.(1608) 1/10W J 180 Ω RRXAJB5Z0181 R038 CHIP RES.(1608) 1/10W J 150 Ω RRXAJB5Z0151 R039 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R040 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R041 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183 R042 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392 R201 CARBON RES. 1/4W G 4.7k Ω RCX4GATZ0472

20050826 1-19-3 T5516EL

Ref. No. Description Part No.

R202 CHIP RES. 1/10W F 22k Ω RRXAFB5J2202 R203 CHIP RES. 1/10W F 470 Ω RRXAFB5J4700 R204 CHIP RES. 1/10W F 1.5k Ω RRXAFB5J1501 R205 CHIP RES. 1/10W F 3.6k Ω RRXAFB5J3601 R206 CHIP RES. 1/10W F 10k Ω RRXAFB5J1002 R208 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R209 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R210 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R211 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R212 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R213 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R214 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R215 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R216 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R217 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R218 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R219 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R220 CHIP RES.(1608) 1/10W J 390k Ω RRXAJB5Z0394 R221 PCB JUMPER D0.6-P5.0 JW5.0T R222 CHIP RES.(1608) 1/10W J 270k Ω RRXAJB5Z0274 R223 CHIP RES.(1608) 1/10W J 560 Ω RRXAJB5Z0561 R224 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473 R225 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R226 CHIP RES.(1608) 1/10W J 33k Ω RRXAJB5Z0333 R227 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 R229 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331 R232 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R233 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R234 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJB5Z0122 R235 CHIP RES.(1608) 1/10W J 47 Ω RRXAJB5Z0470 R236 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R237 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R238 CHIP RES.(1608) 1/10W J 470k Ω RRXAJB5Z0474 R239 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R240 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R241 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R243 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R244 CHIP RES.(1608) 1/10W J 1M Ω RRXAJB5Z0105 R245 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R247 CHIP RES.(1608) 1/10W J 820 Ω RRXAJB5Z0821 R248 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R249 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R250 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R251 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332 R252 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R253 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R254 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R255 PCB JUMPER D0.6-P5.0 JW5.0T R256 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562 R257 PCB JUMPER D0.6-P5.0 JW5.0T R258 PCB JUMPER D0.6-P5.0 JW5.0T R259 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562 R260 PCB JUMPER D0.6-P5.0 JW5.0T R262 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224 R263 CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393 R267 CHIP RES.(1608) 1/10W J 82k Ω RRXAJB5Z0823 R269# CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R270 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224 R273 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJB5Z0182 R274 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R275 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R278 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R279 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

Ref. No. Description Part No.

R283 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R291 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R292 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R301 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R303 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R305 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R308 CARBON RES. 1/4W J 120k Ω RCX4JATZ0124 R310 CHIP RES.(1608) 1/10W J 180k Ω RRXAJB5Z0184 R312 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R314 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R315 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R316 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822 R329 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153 R331 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R332 CARBON RES. 1/2W J 39 Ω RCX2JZQZ0390 R333 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R334 CHIP RES.(1608) 1/10W J 56k Ω RRXAJB5Z0563 R335 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562 R336 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R337 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R338 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183 R339 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R340 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R405 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R406 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R407 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183 R408 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183 R409 CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393 R410 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332 R414 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473 R415 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R417 CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221 R418 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331 R419 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R423 CHIP RES.(1608) 1/10W J 3.9M Ω RRXAJB5Z0395 R424 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R425 CHIP RES.(1608) 1/10W J 82k Ω RRXAJB5Z0823 R426 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R427 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R428 CHIP RES.(1608) 1/10W J 680k Ω RRXAJB5Z0684 R429 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJB5Z0122 R431 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822 R432 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJB5Z0182 R544# CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R551 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R552# CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R556 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R557 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R558 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R559 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R560 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R561 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R562 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R563 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R565# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R566# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R570# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R571 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R573 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R574# METAL OXIDE FILM RES. 2W J 1k Ω RN02102ZU001 R575# METAL OXIDE FILM RES. 2W J 1k Ω RN02102ZU001 R576 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R577 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

20050826 1-19-4 T5516EL

Ref. No. Description Part No.

R578# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R579# CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R580# CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R581# CARBON RES. 1/4W J 56 Ω RCX4JATZ0560 R583# METAL OXIDE FILM RES. 1W J 2.2 Ω RN012R2ZU002 R584# CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R587# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R588# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R590 METAL OXIDE FILM RES. 1W J 3.3k Ω RN01332ZU001 R592# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184 R593# CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R594# CHIP RES.(1608) 1/10W J 56k Ω RRXAJB5Z0563 R595# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R596 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R597# CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R598# CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R599# CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R602# CEMENT RES 3W K 1.2 Ω RW031R2PG007 R603# METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001 R604# CARBON RES. 1/4W J 1.5M Ω RCX4JATZ0155 R605 CARBON RES. 1/4W J 1.2M Ω RCX4JATZ0125 R606 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R607 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R608 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224 R610 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R613 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R614 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R616# CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R617 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R618# CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R619 PCB JUMPER D0.6-P12.5 JW12.5T R620# METAL OXIDE FILM RES. 2W J 10k Ω RN02103ZU001 R621# CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R622 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R623 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R624# CARBON RES. 1/4W G 39k Ω RCX4GATZ0393 R625# CARBON RES. 1/4W G 39k Ω RCX4GATZ0393 R629# CARBON RES. 1/4W J 13k Ω RCX4JATZ0133 R630# CARBON RES. 1/4W J 13k Ω RCX4JATZ0133 R631# CARBON RES. 1/4W J 13k Ω RCX4JATZ0133 R632# CARBON RES. 1/4W G 680 Ω RCX4GATZ0681 R633# CARBON RES. 1/4W G 5.6k Ω RCX4GATZ0562 R634 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R635 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R637# METAL OXIDE FILM RES. 2W J 10k Ω RN02103ZU001 R639# CARBON RES. 1/2W J 1k Ω RCX2JZQZ0102 R640# CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R641 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R642 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822 R643 PCB JUMPER D0.6-P5.0 JW5.0T R644 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473 R645# CARBON RES. 1/4W J 5.6 Ω RCX4JATZ05R6 R647 CARBON RES. 1/2W J 3.9 Ω RCX2JZQZ03R9 R648# CARBON RES. 1/4W J 5.6 Ω RCX4JATZ05R6 R650# CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R651# CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R652# CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R653 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R654# CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2 R655# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R656# CARBON RES. 1/4W J 8.2 Ω RCX4JATZ08R2 R657# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R659 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

Ref. No. Description Part No.

R660 PCB JUMPER D0.6-P5.0 JW5.0T R661# CARBON RES. 1/4W J 8.2 Ω RCX4JATZ08R2 R662 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R665# CARBON RES. 1/4W J 5.6 Ω RCX4JATZ05R6 R666 CARBON RES. 1/4W J 5.6 Ω RCX4JATZ05R6 R667 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R670 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R701 CHIP RES.(1608) 1/10W J 75 Ω RRXAJB5Z0750 R801# METAL OXIDE FILM RES. 1W J 12 Ω RN01120ZU001 R802# CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R803# CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R804 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562 R805 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R806 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R807 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R808 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R851 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R852 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332 R853 CHIP RES.(1608) 1/10W J 2.2M Ω RRXAJB5Z0225 R856 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R857 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJB5Z0392 R862 PCB JUMPER D0.6-P5.0 JW5.0T R863 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R864 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R865 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822 R866 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123 R867 CHIP RES.(1608) 1/10W J 270 Ω RRXAJB5Z0271 R868 CHIP RES.(1608) 1/10W J 330k Ω RRXAJB5Z0334 R871 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R872 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R873 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183 R874 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R875 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R876 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R877 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R980# CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R981# CARBON RES. 1/2W J 1.2 Ω RCX2JZQZ01R2

SWITCHES

SW201 TACT SWITCH SKQNAED010 SST0101AL055 SW202 TACT SWITCH SKQNAED010 SST0101AL055 SW203 TACT SWITCH SKQNAED010 SST0101AL055 SW204 TACT SWITCH SKQNAED010 SST0101AL055 SW205 TACT SWITCH SKQNAED010 SST0101AL055 SW206 TACT SWITCH SKQNAED010 SST0101AL055 SW207 TACT SWITCH SKQNAED010 SST0101AL055 SW208 TACT SWITCH SKQNAED010 SST0101AL055 SW209 TACT SWITCH SKQNAED010 SST0101AL055 SW210 TACT SWITCH SKQNAED010 SST0101AL055 SW211 LEAF SWITCH LSA-1142-2AU SSC0101KB014 SW212 ROTARY MODE SWITCH SSS-53MD SSR0106KB003

MISCELLANEOUS

BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026 BC601 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC603 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC605 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC606 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 CF031 CERAMIC TRAP 4.5MHz FBE455PMR003 CF032 CERAMIC FILTER SFSRA4M50CF00-B0 FBB455PMR004 CL201 FMN CONNECTOR TOP 12P 12FMN-BTRK JCFNG12JG002 CL301 LEAD WIRE WX3001A65512 WX3001A65512 F601# FUSE 4.00A/125V PAGU20CAG402

20050826 1-19-5 T5516EL

Ref. No. Description Part No.

FH601# FUSE HOLDER MSF-015 XH01Z00LY001 FH602# FUSE HOLDER MSF-015 XH01Z00LY001 J219 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 JK701 RCA JACK(YELLOW) MSP-281V42-B JXRL010LY003 JK702 RCA JACK(WHITE) MSP-281V1-B JXRL010LY005 JK801 EARPHONE JACK MSJ-035-12APC JYSL030LY001 PS602# THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A RS201 REMOTE RECEIVER PIC-37042LU USESJRSKK033 SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB SF001# SAW FILTER (PB FREE)

SG001# GAP. FNR-G3.10D FAZ000LD6005 T571# FLYBACK TRANSFORMER JF0501-3101B LTF00CPXB039 T572 H0RIZONTAL DRIVE TRANS LP2-005 LTH00CPA5005 T601# SWITCHING TRANS 01746 LTT00CPKT089 TB3 HEAD SHIELD(DC) T5400UA 0EM301721 TB7 LED HOLDER T5400UA 0EM407679 TB9 13VPOW HEAT SINK PHA T5400UA 0EM407602 TB21 BUSH LED(F) H3700UD 0VM409508 TB26 13V H/V HEAT SINK PGZ T5400UA 0EM301720 TL2 SCREW B-TIGHT D3X8 BIND HEAD+ GBMB3080 TP201 PCB JUMPER D0.6-P5.0 JW5.0T TP202 PCB JUMPER D0.6-P25.0 JW25.0T TP301 PCB JUMPER D0.6-P5.0 JW5.0T TP302 PCB JUMPER D0.6-P5.0 JW5.0T TP401 PCB JUMPER D0.6-P5.0 JW5.0T TP402 PCB JUMPER D0.6-P5.0 JW5.0T TU001# TUNER ENV56DC9G3 UTUNNTUMS010 VR601# CARBON P.O.T. VZ067TL1 B103 PB(F) VRCB103HH014 W601# AC CORD (PB FREE) A0A0280-012 WAC0172LTE12 X201 XTAL 32.768kHz(20PPM) FXC323LJNY01 X202 XTAL HC-49/U 10.6MHz FXD106LLN001 X301 XTAL 3.579545 MHz FXD355LLN003 X401 XTAL 3.579545MHz(20PPM) FXC355LLN003

SAFHM45M7VAGZ00B03

FBB456LMR001

Ref. No. Description Part No.

R523 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R525 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R526 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R527 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R530# METAL OXIDE FILM RES. 1W J 15k Ω RN01153ZU001 R531 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150 R532 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R533 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R535 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R536 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R537 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 CL501A LEAD WIRE 3P/300MM WX1T5500-001 CL502A LEAD WIRE 4P/300MM WX1T5500-002 JK501# CRT SOCKET ISMS02S JSCC220PK003

SENSOR CBA

Ref. No. Description Part No.

SENSOR CBA Consists of the following:

TRANSISTORS

Q201 PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F Q202 PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F

0ESA06170

CRT CBA

Ref. No. Description Part No.

CRT CBA Consists of the following:

CAPACITORS

C501 CERAMIC CAP. B K 1000pF/2KV CCD3DKP0B102 C502 CAP ALUMINUM ELECTOLYTIC 1µF/50V M CE1JMASDL1R0 C511 CHIP CERAMIC CAP. B K 390pF/50V CHD1JKB0B391 C521 CHIP CERAMIC CAP.(MELF) W K 390pF/50V CZM1JKB0B391 C531 CHIP CERAMIC CAP. B K 390pF/50V CHD1JKB0B391

CONNECTOR

CN505 CONNECTOR PIN 1P RT-01N-2.3A 1730688

TRANSISTORS

Q511 TRANSISTOR 2SC2482 TPE6 QQSZ02SC2482 Q521 TRANSISTOR 2SC2482 TPE6 QQSZ02SC2482 Q531 TRANSISTOR 2SC2482 TPE6 QQSZ02SC2482

RESISTORS

R510# METAL OXIDE FILM RES. 1W J 15k Ω RN01153ZU001 R511 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150 R512 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R513 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R515 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R516 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R517 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R520# METAL OXIDE FILM RES. 1W J 15k Ω RN01153ZU001 R521 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150 R522 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

----------

20050826 1-19-6 T5516EL

CSC313E

T5516CS

2005-09-07

Symphonic CSC313E Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

PREPARATION FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

HOW TO INITIALIZE THE TV/VCR COMBINATION

MECHANICAL TROUBLE INDICATOR

POWER SUPPLY TROUBLESHOOTING GUIDE

BLOCK DIAGRAMS

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

SYSTEM CONTROL TIMING CHARTS

IC PIN FUNCTION DESCRIPTIONS

LEAD IDENTIFICATIONS

EXPLODED VIEWS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST
