SERVICE MANUAL

15″ COLOR LCD

TELEVISION

6615LF4/ STL1505

15″ COLOR LCD

TELEVISION

6615LF

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to initialize the LCD Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

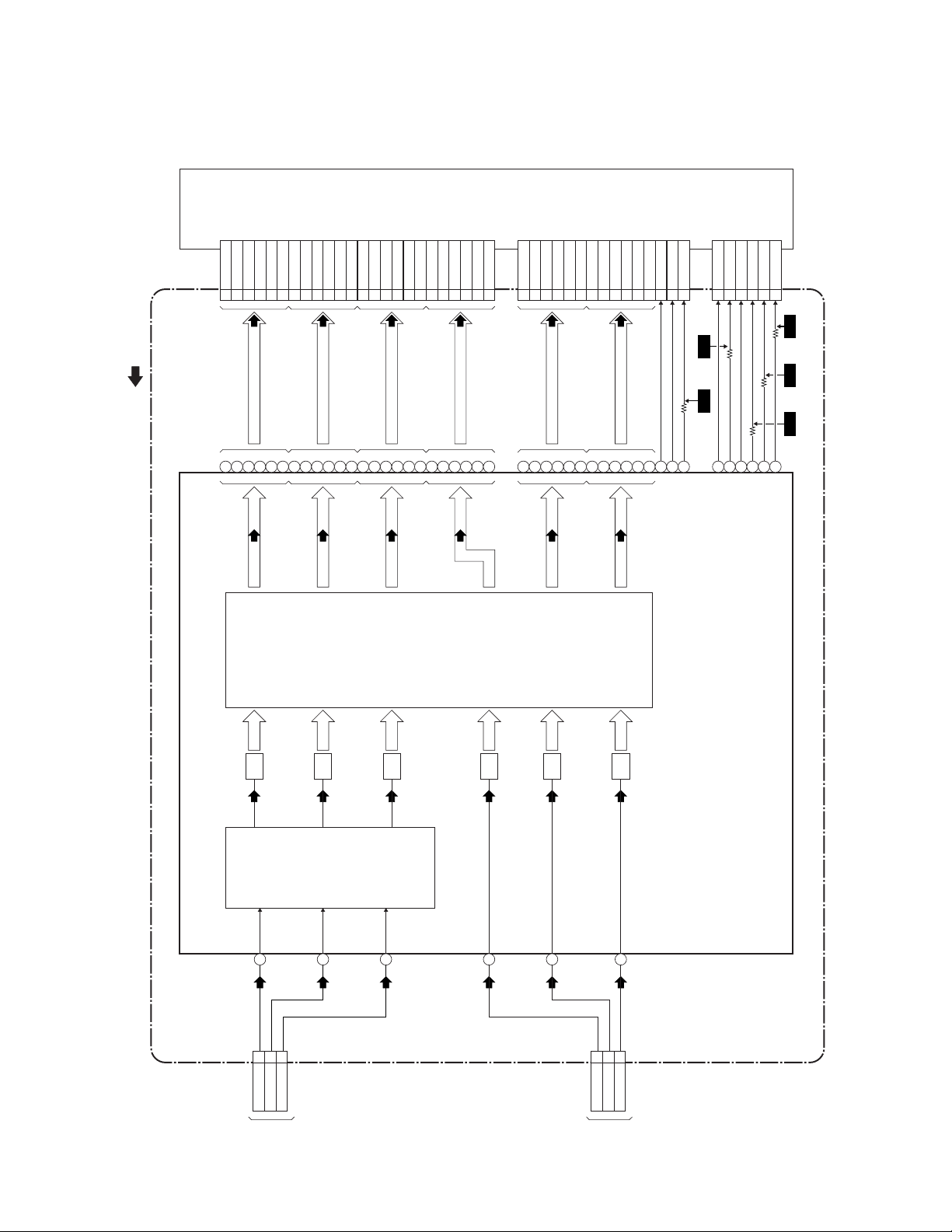

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

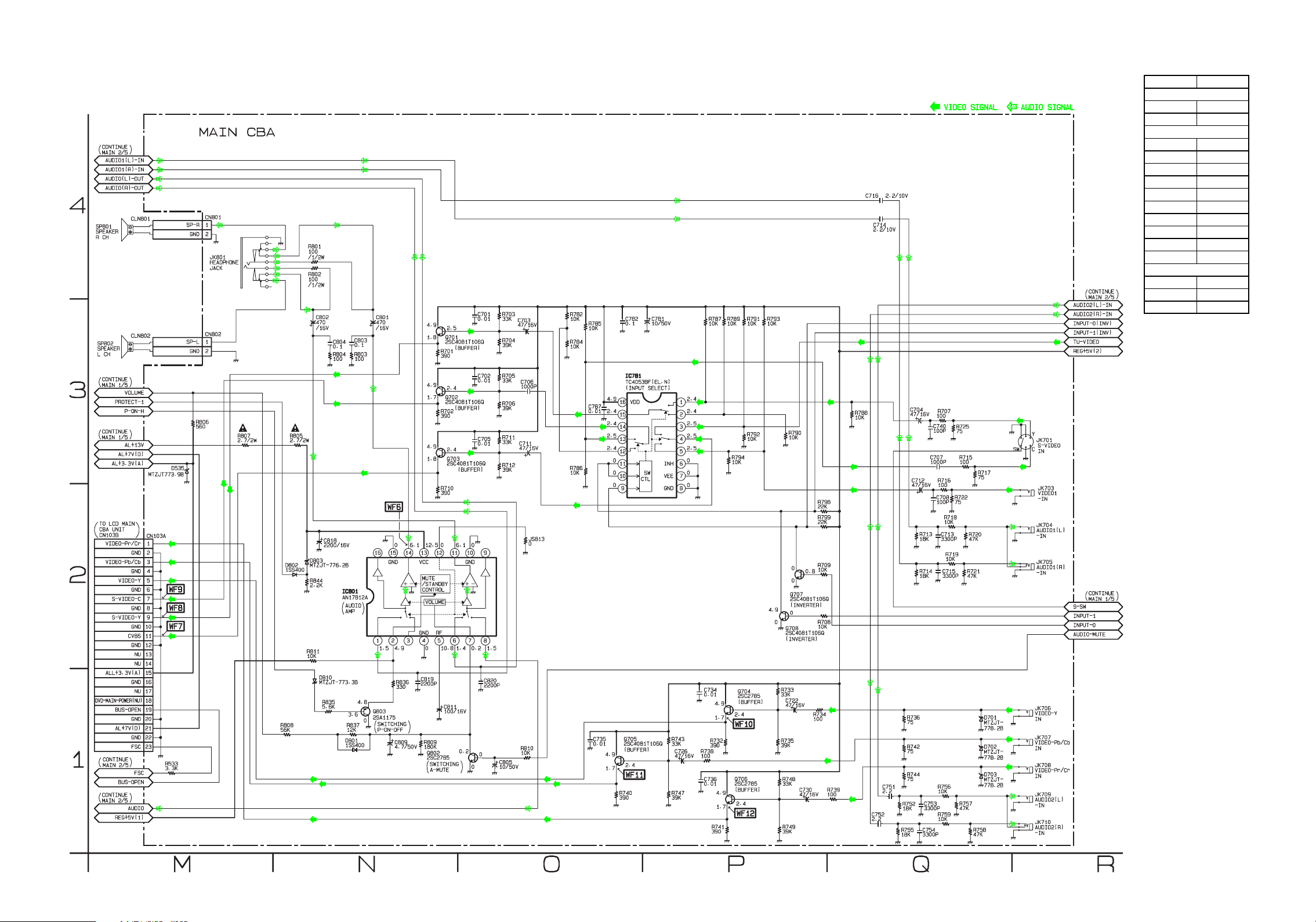

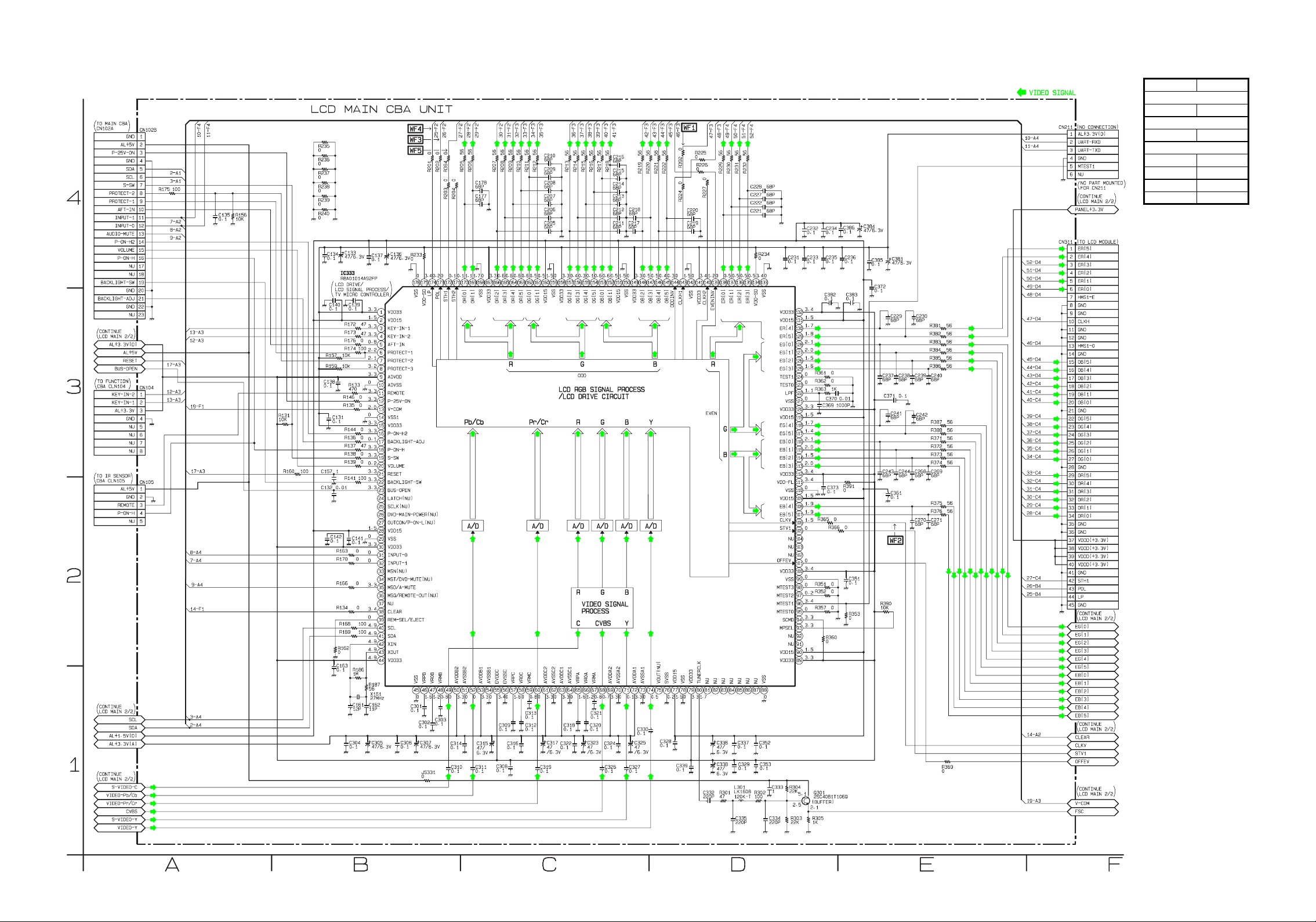

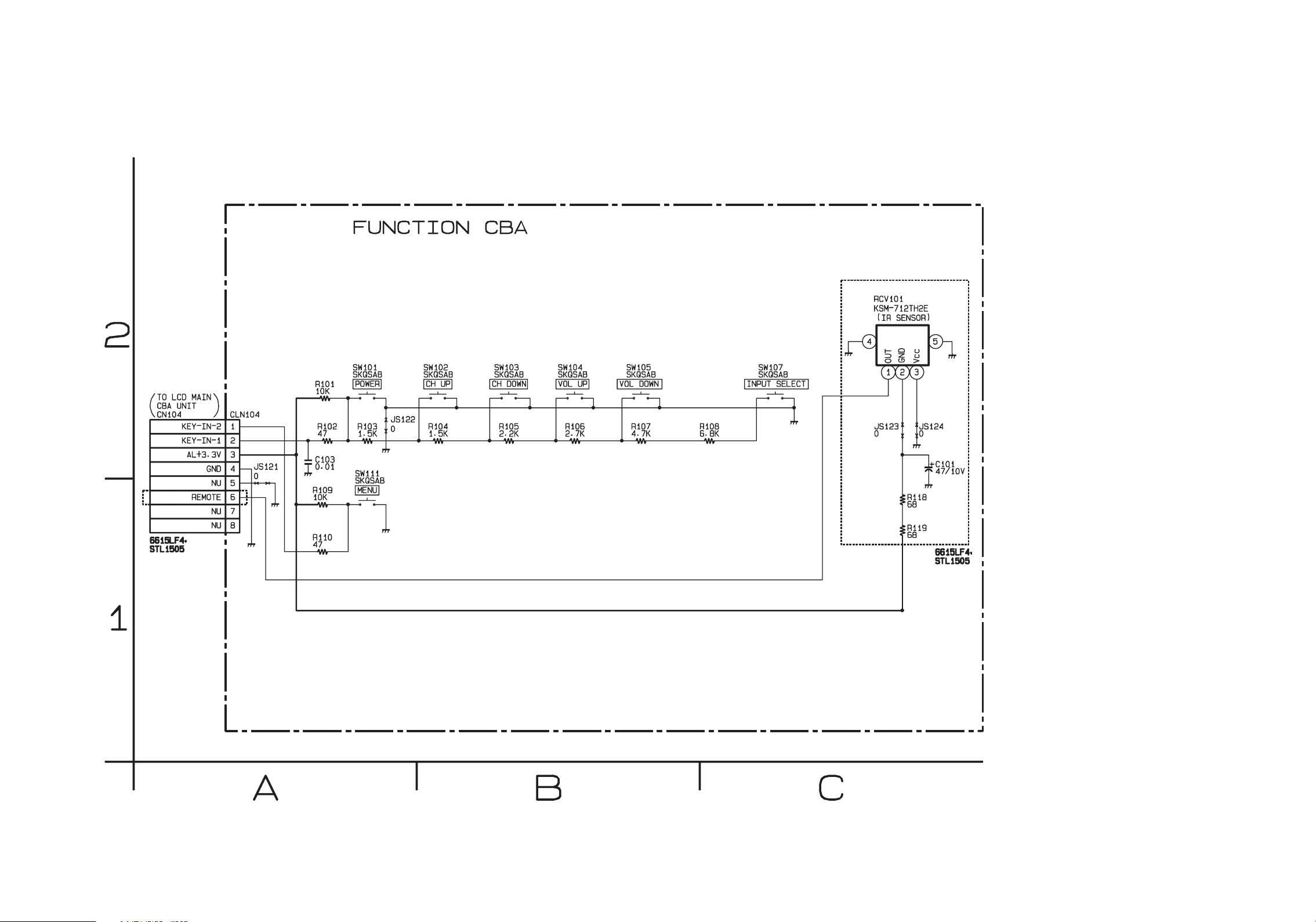

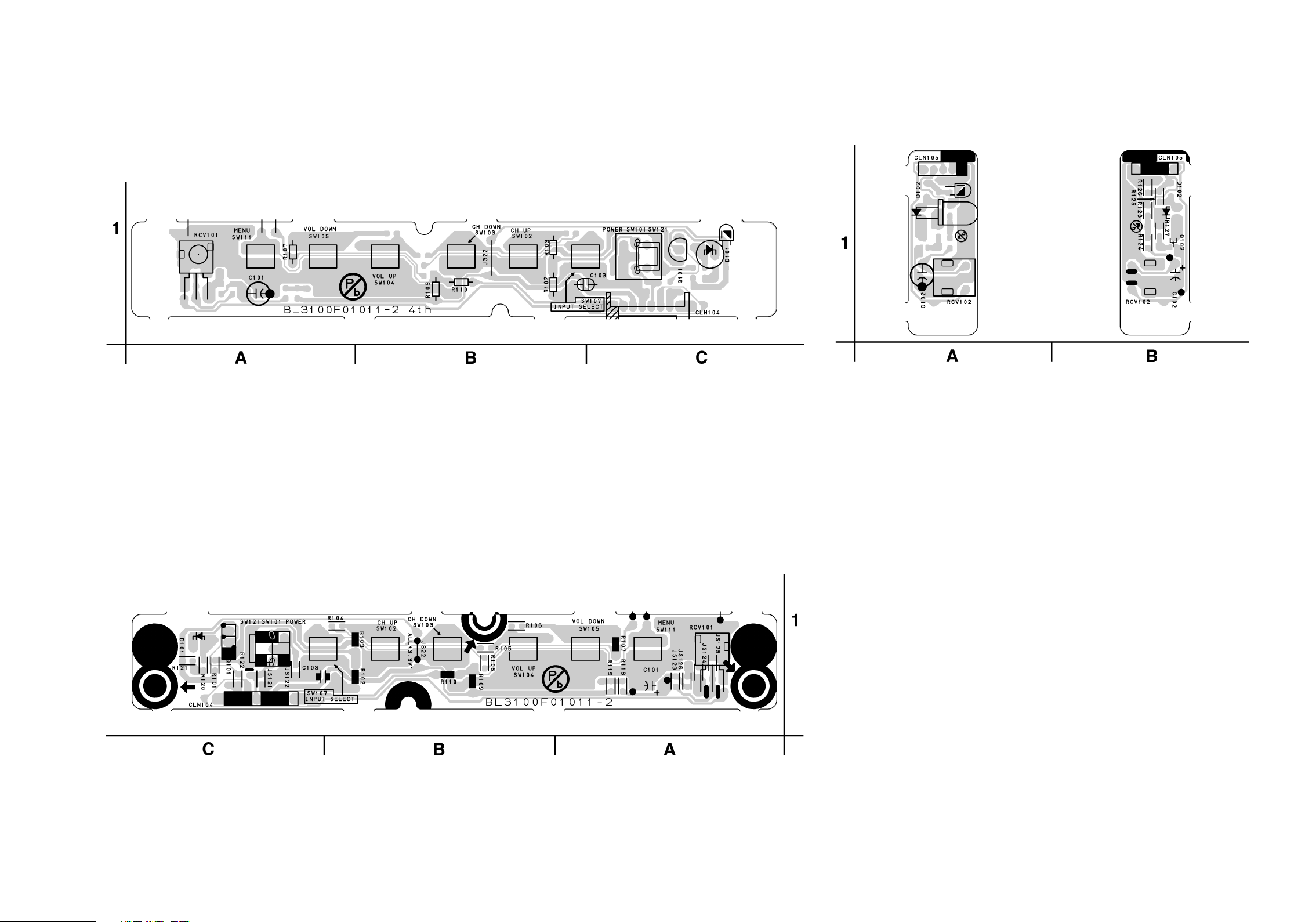

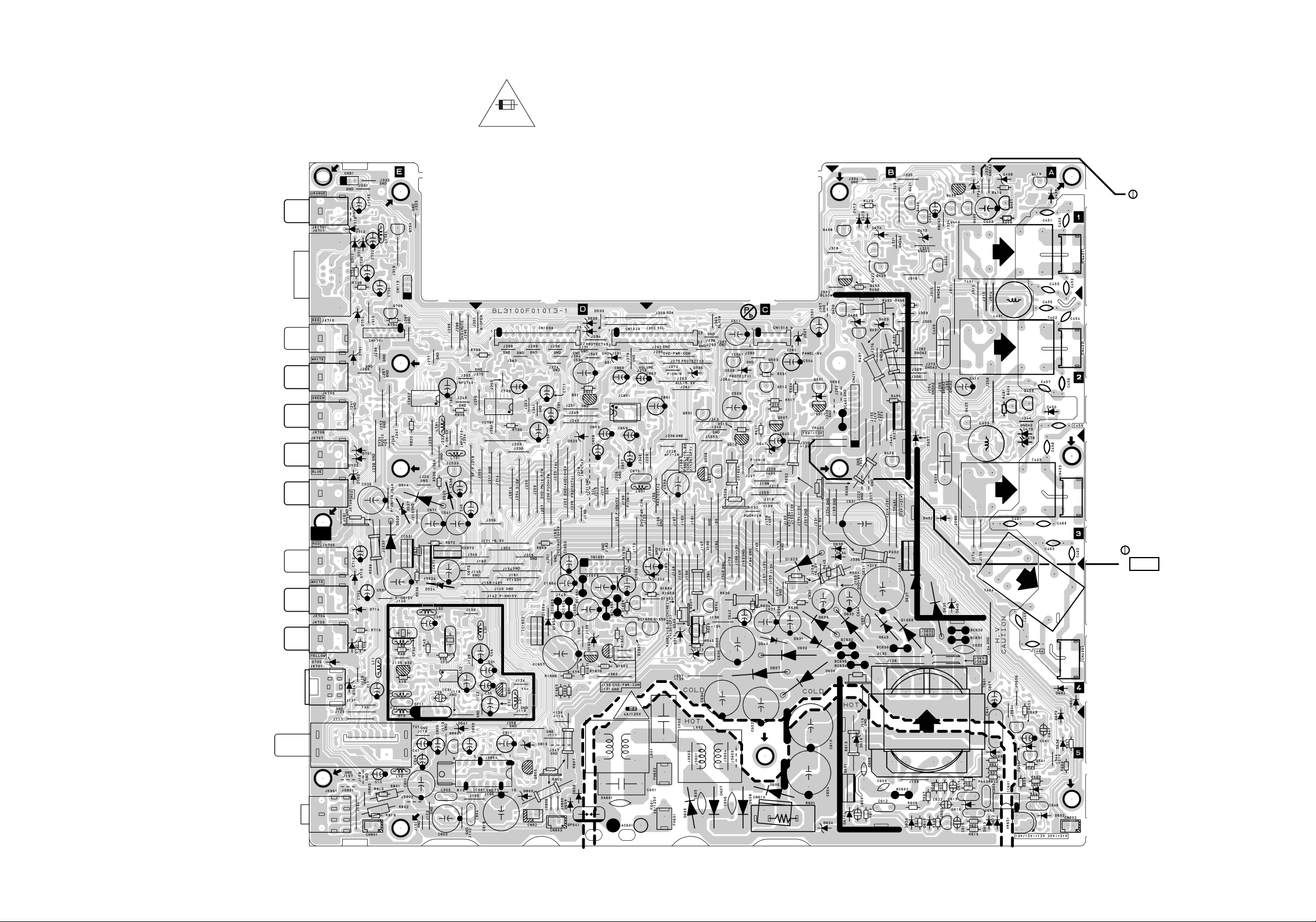

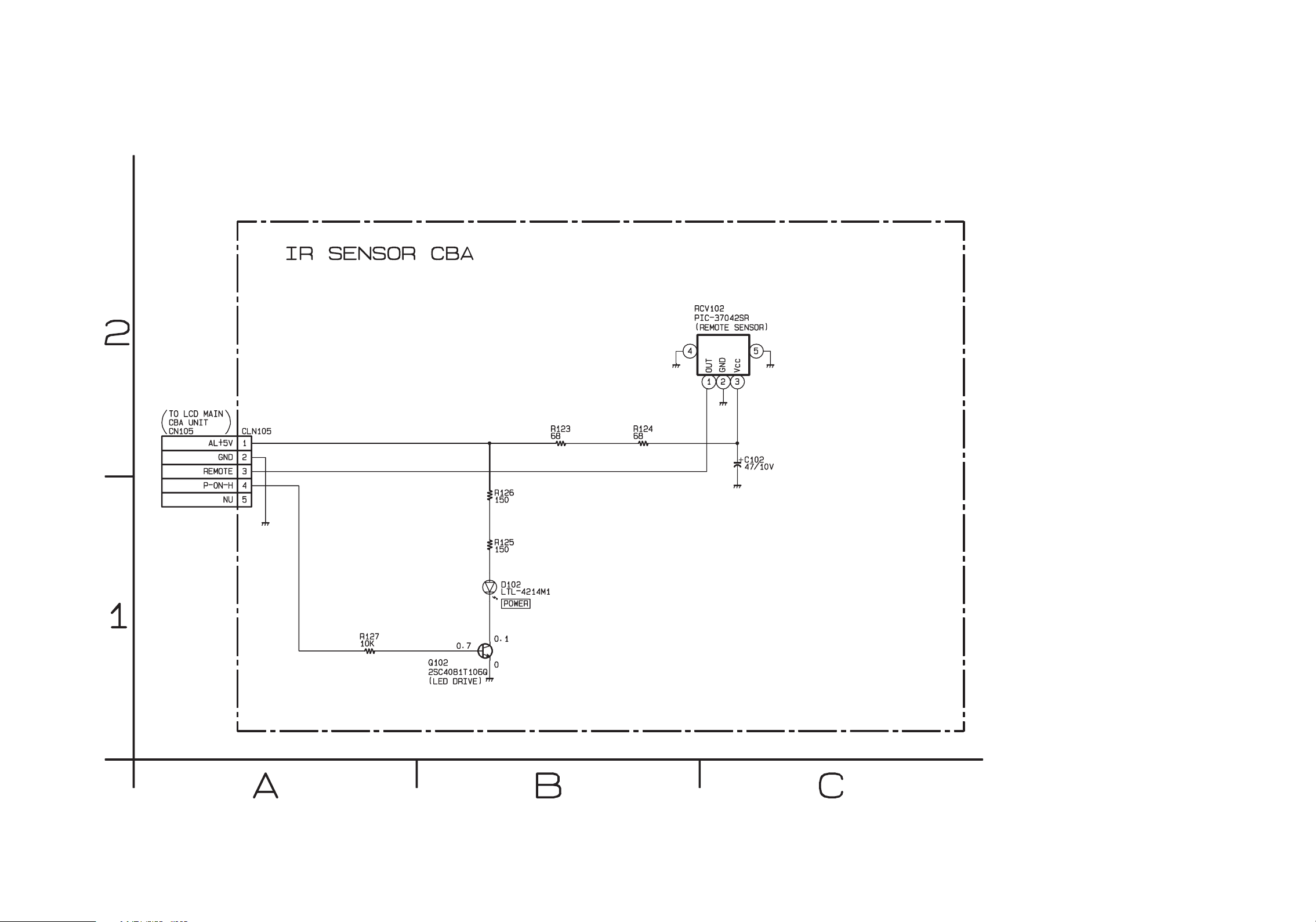

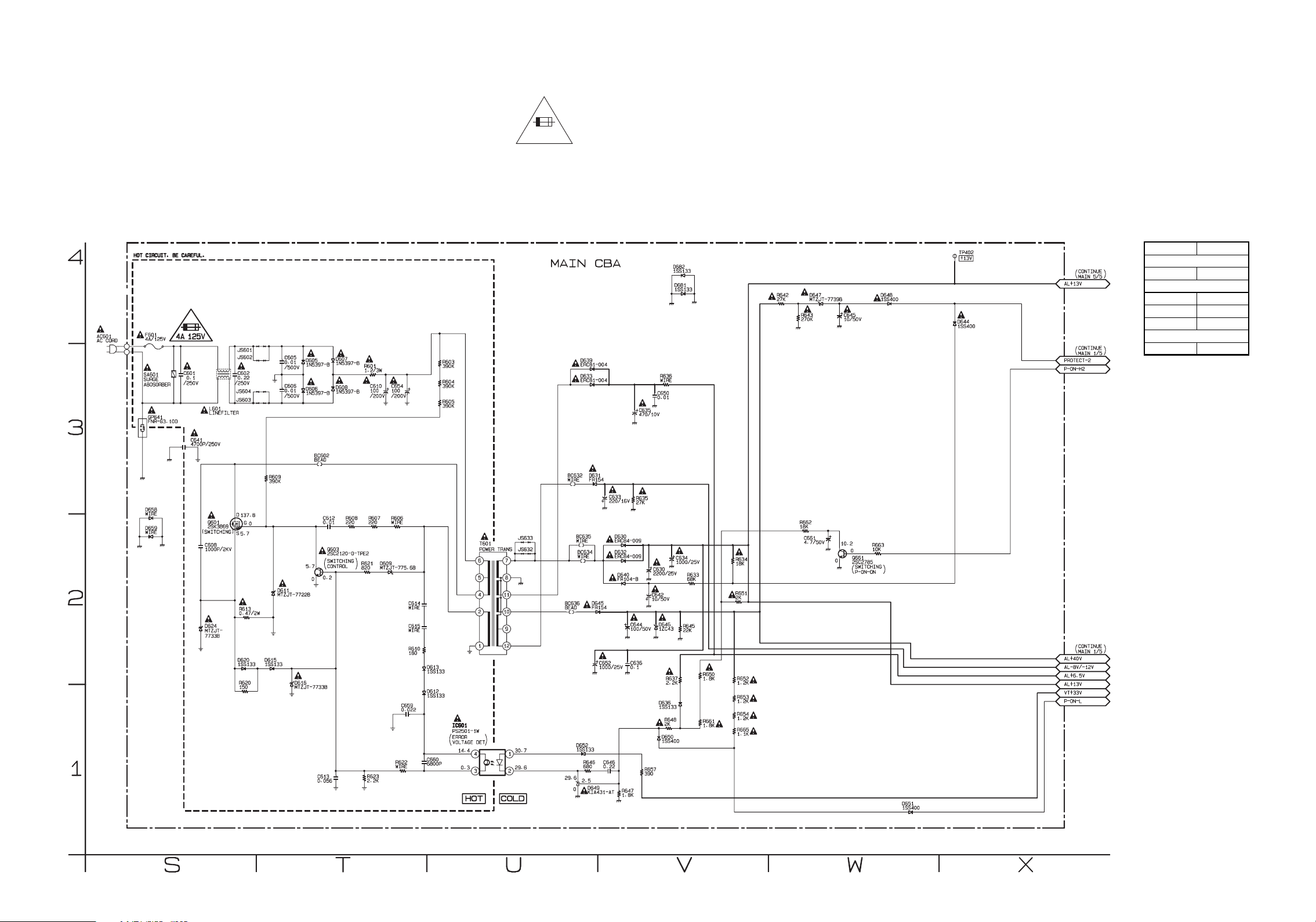

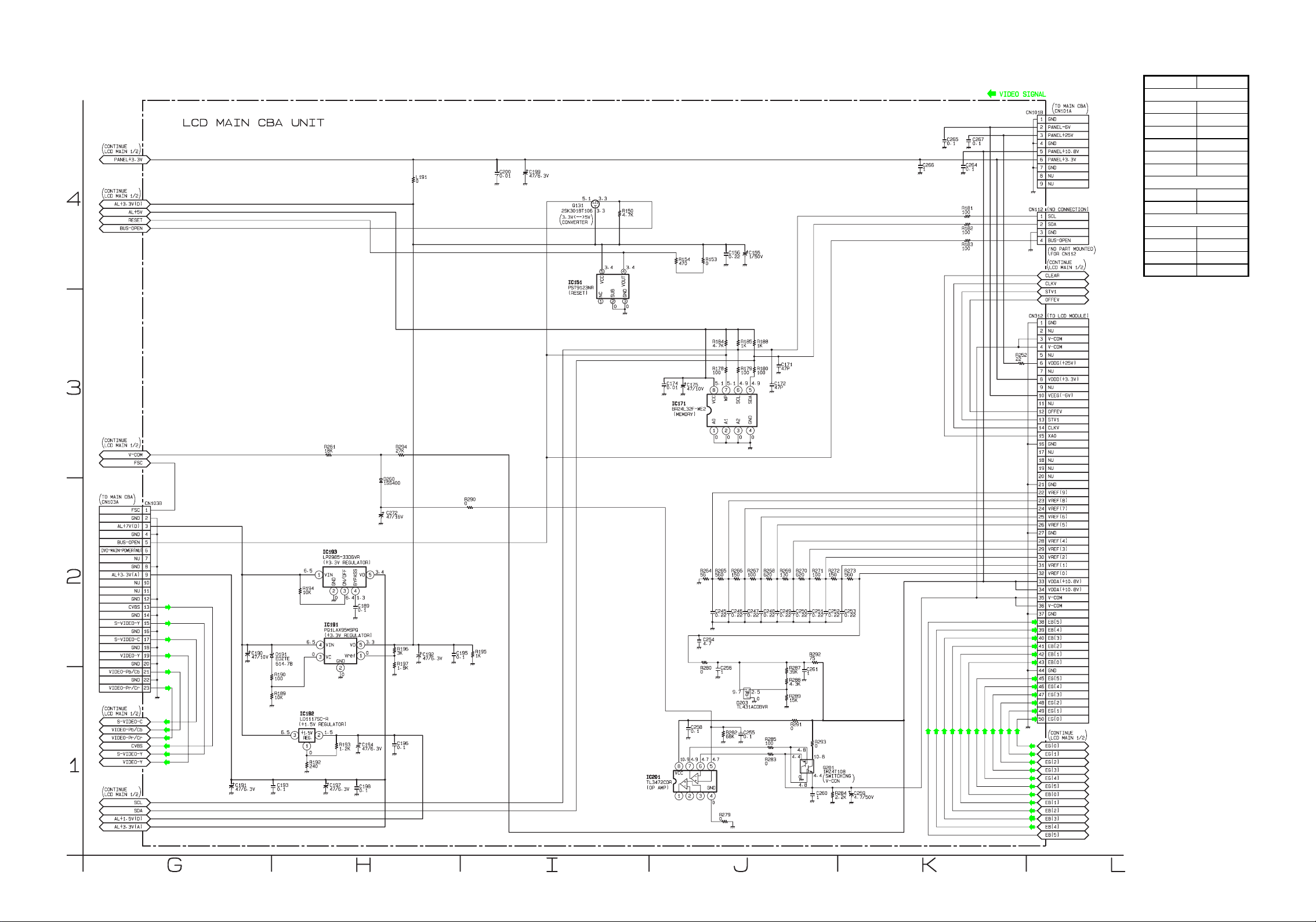

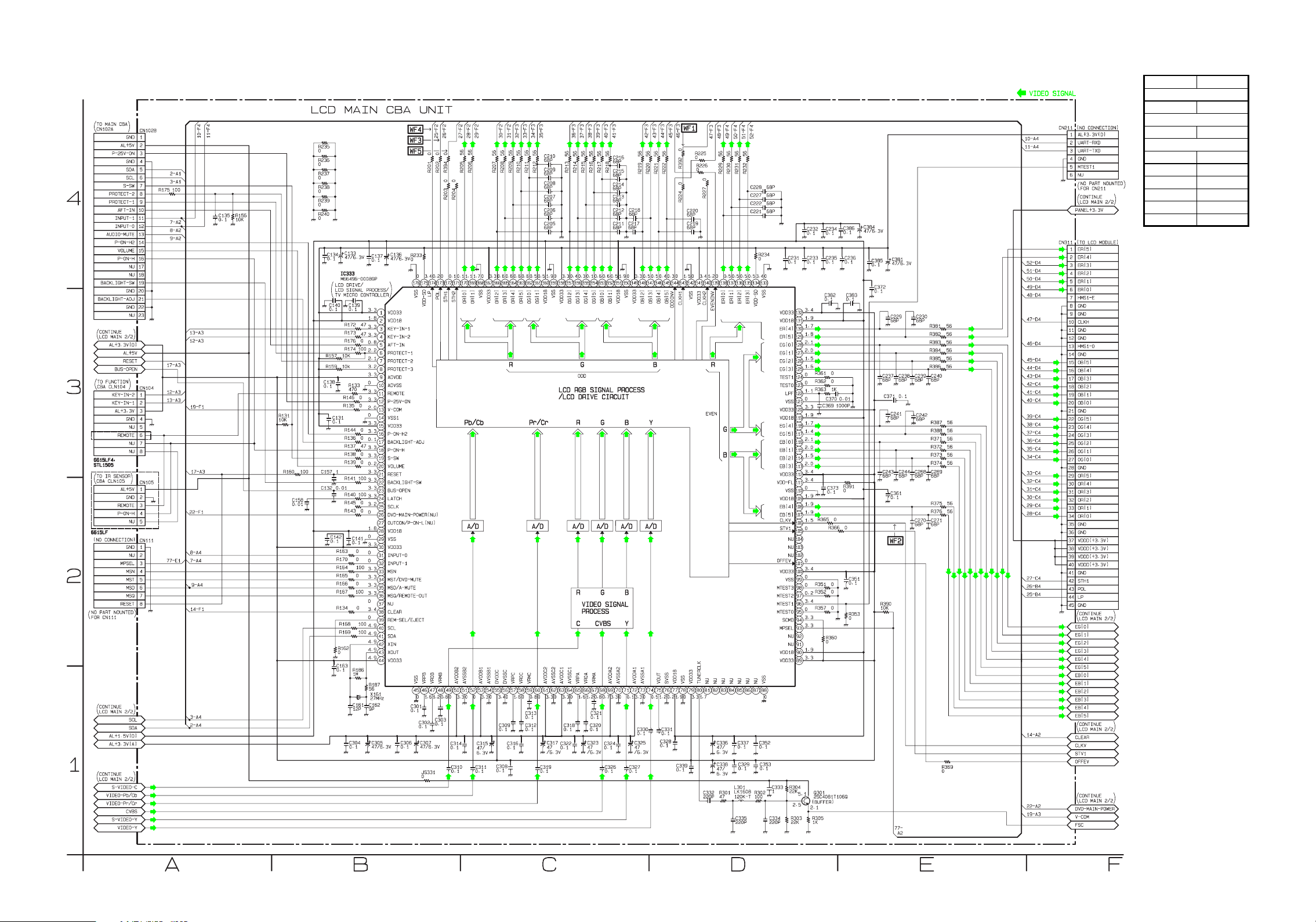

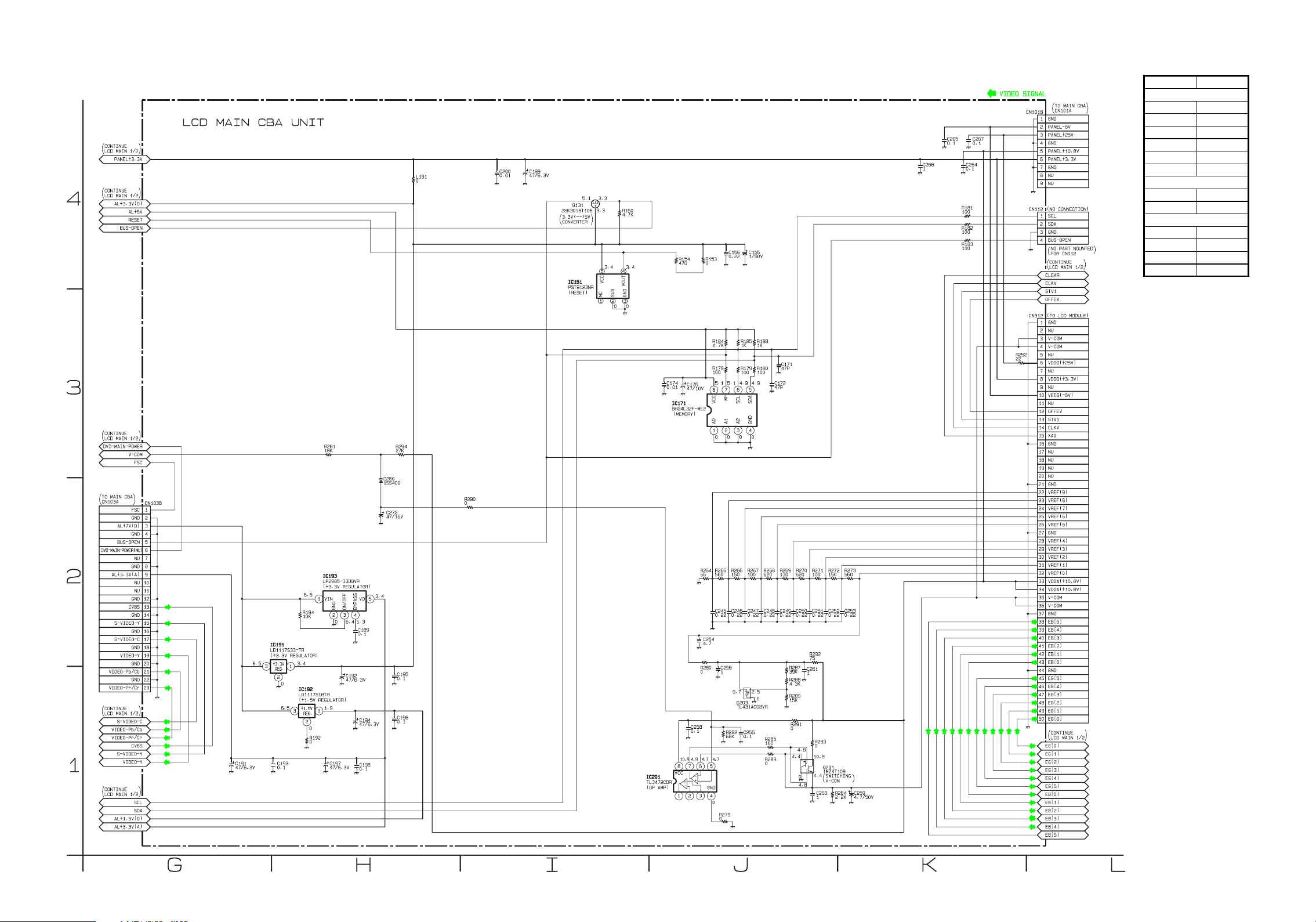

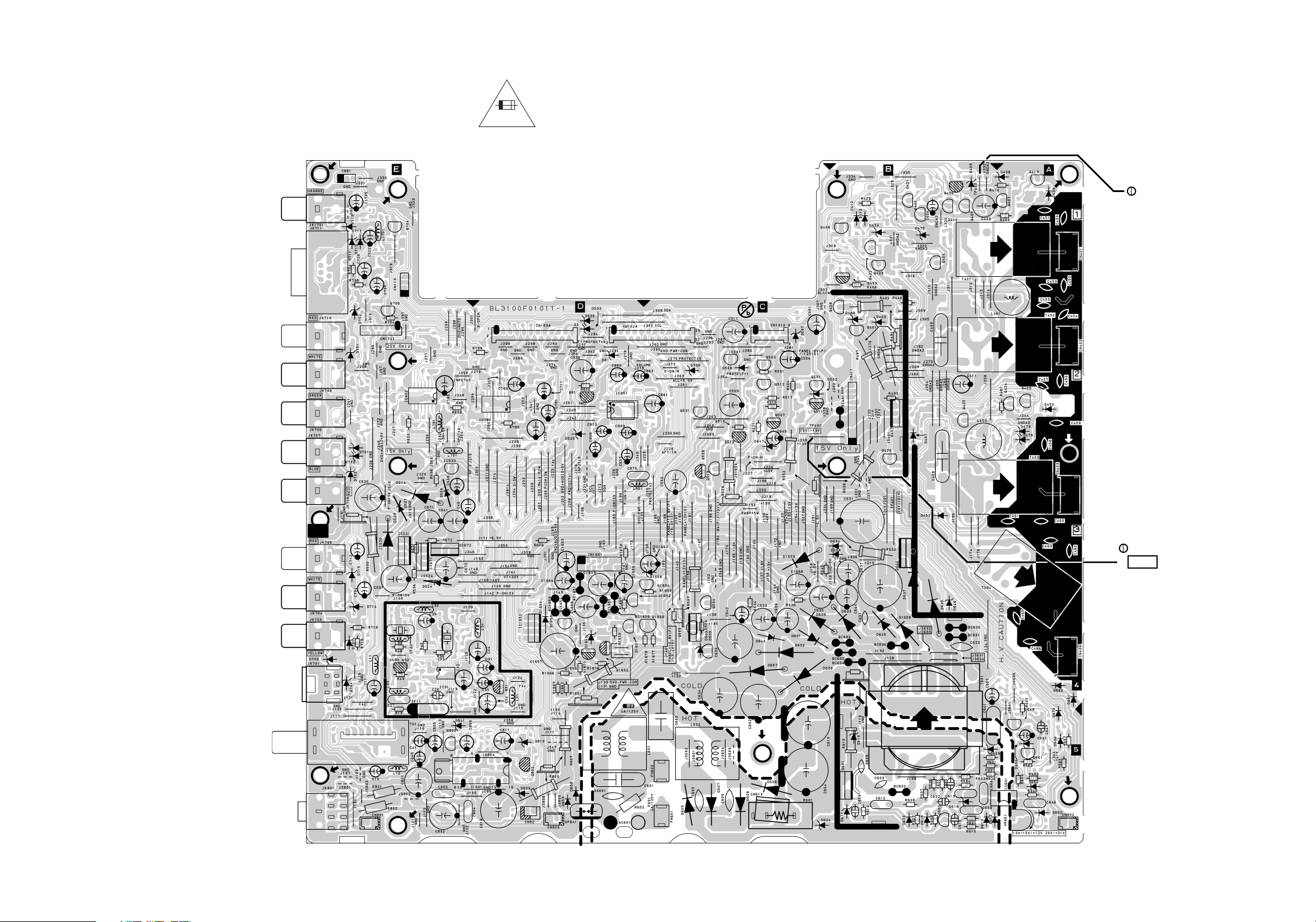

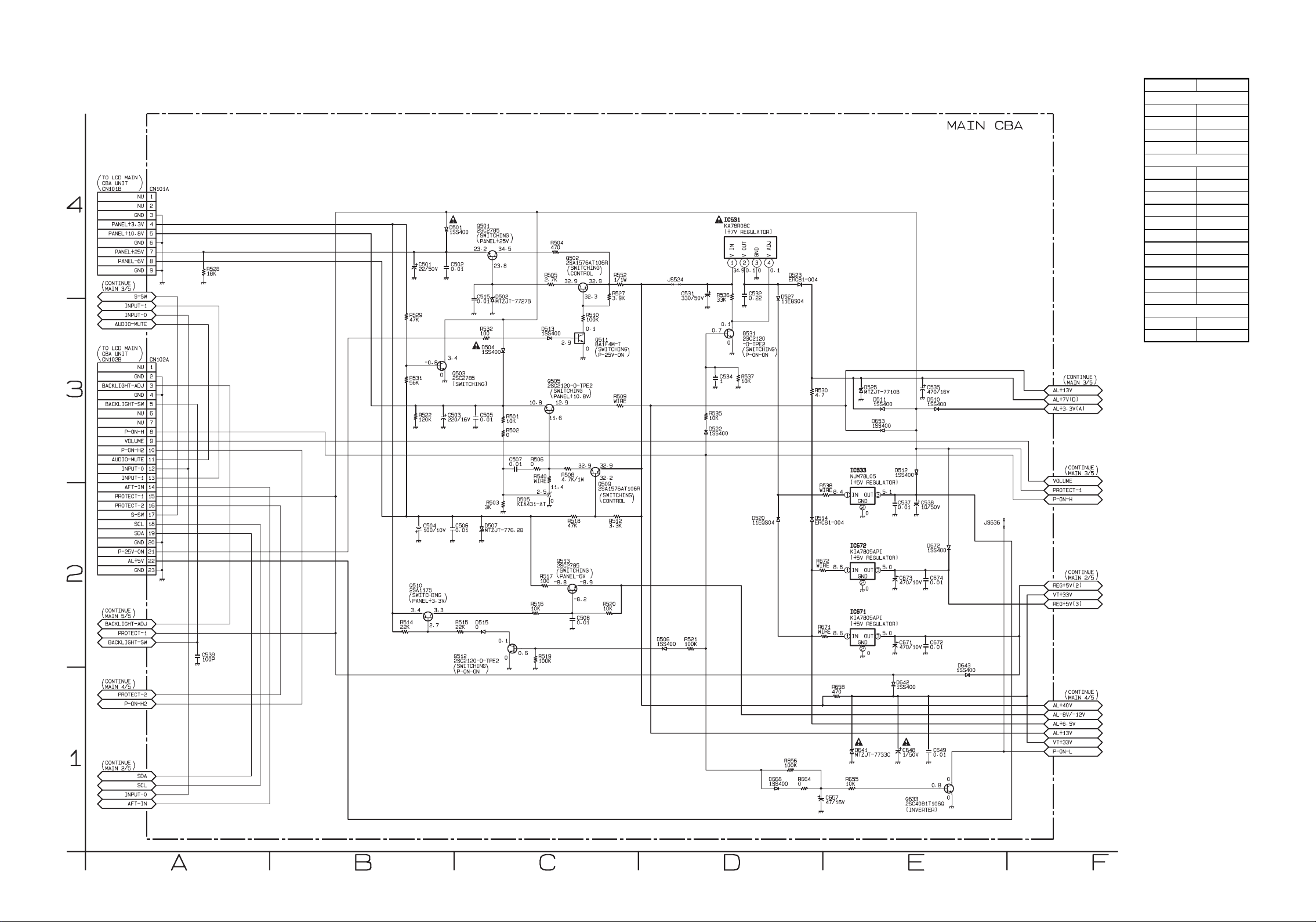

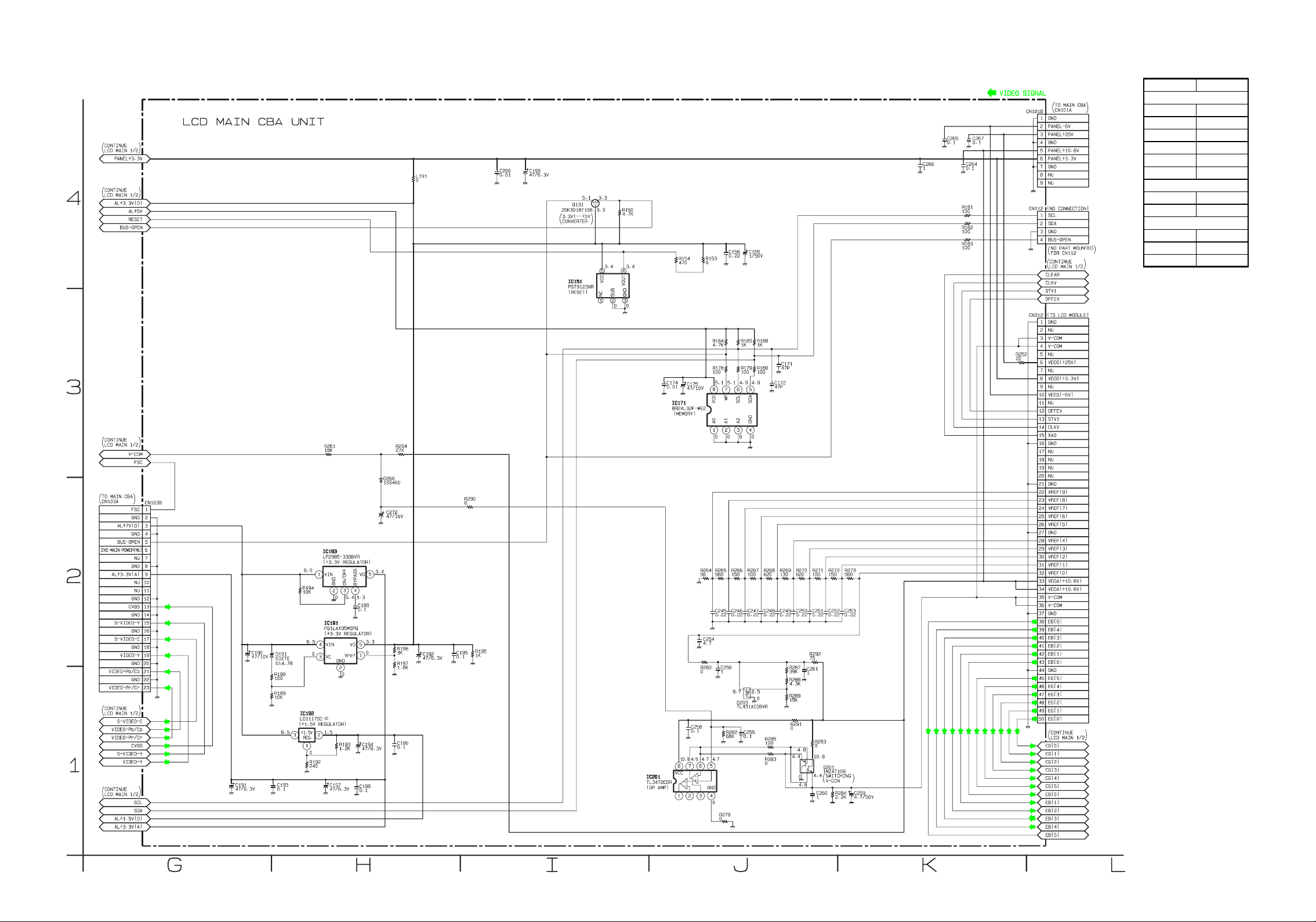

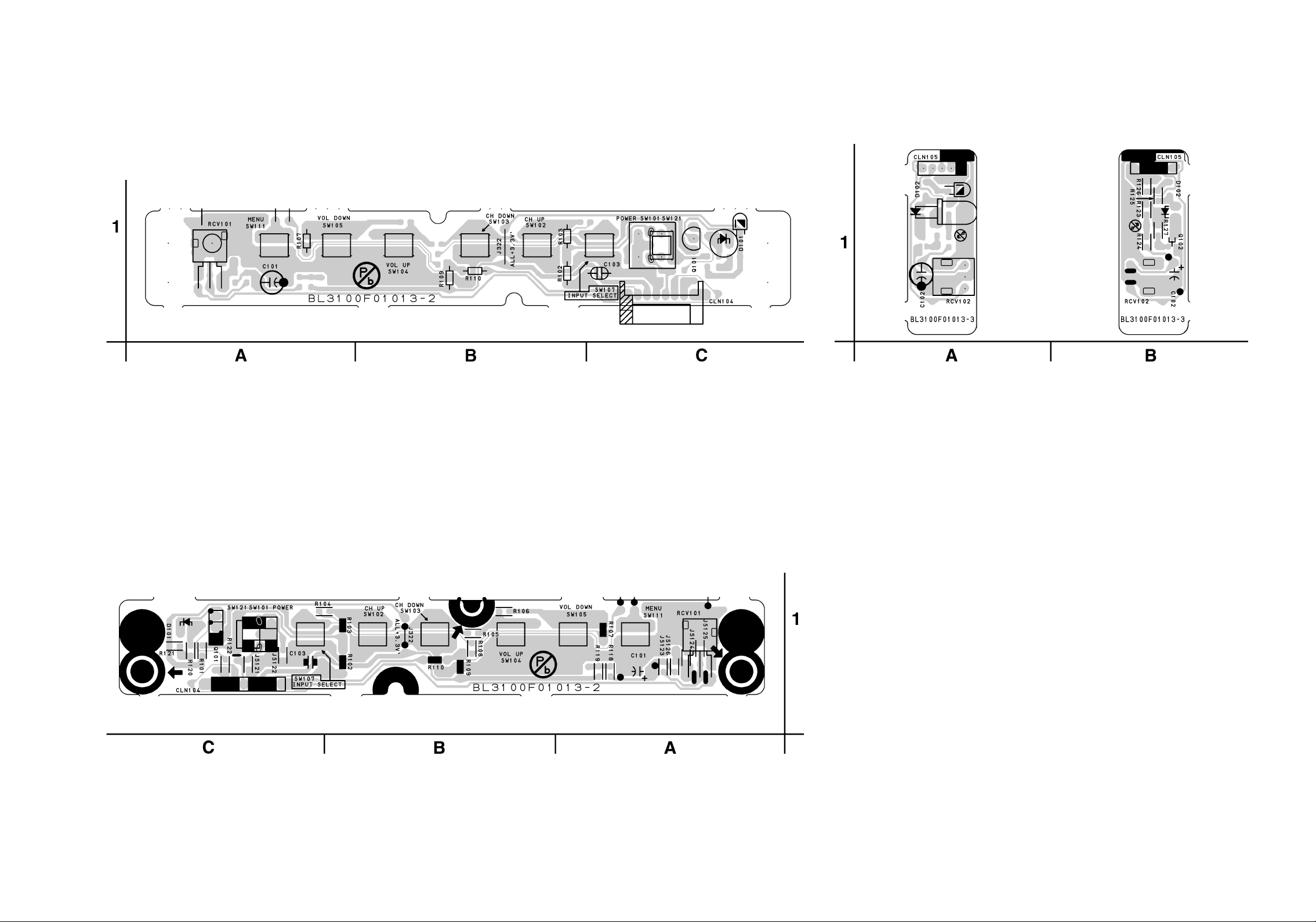

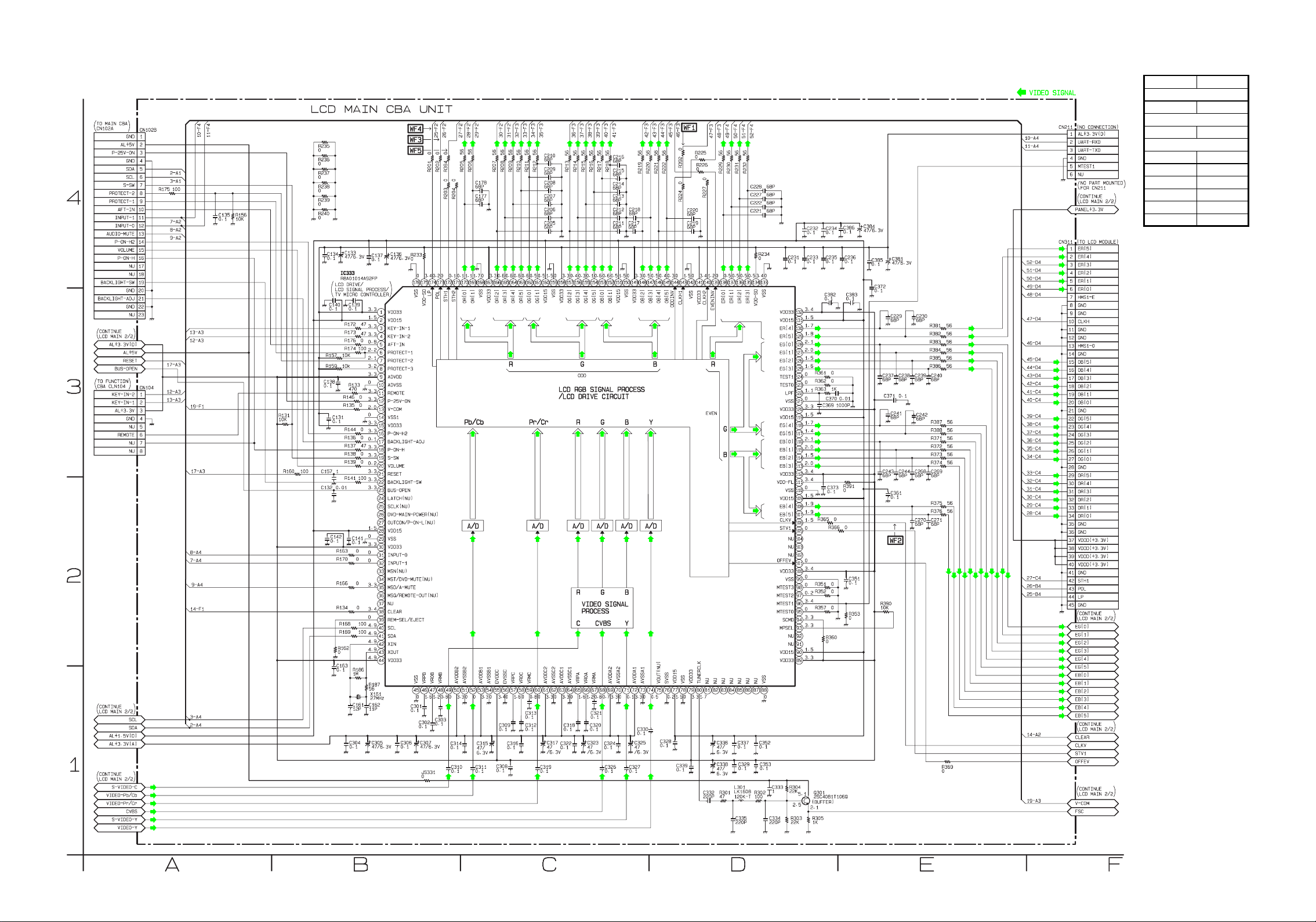

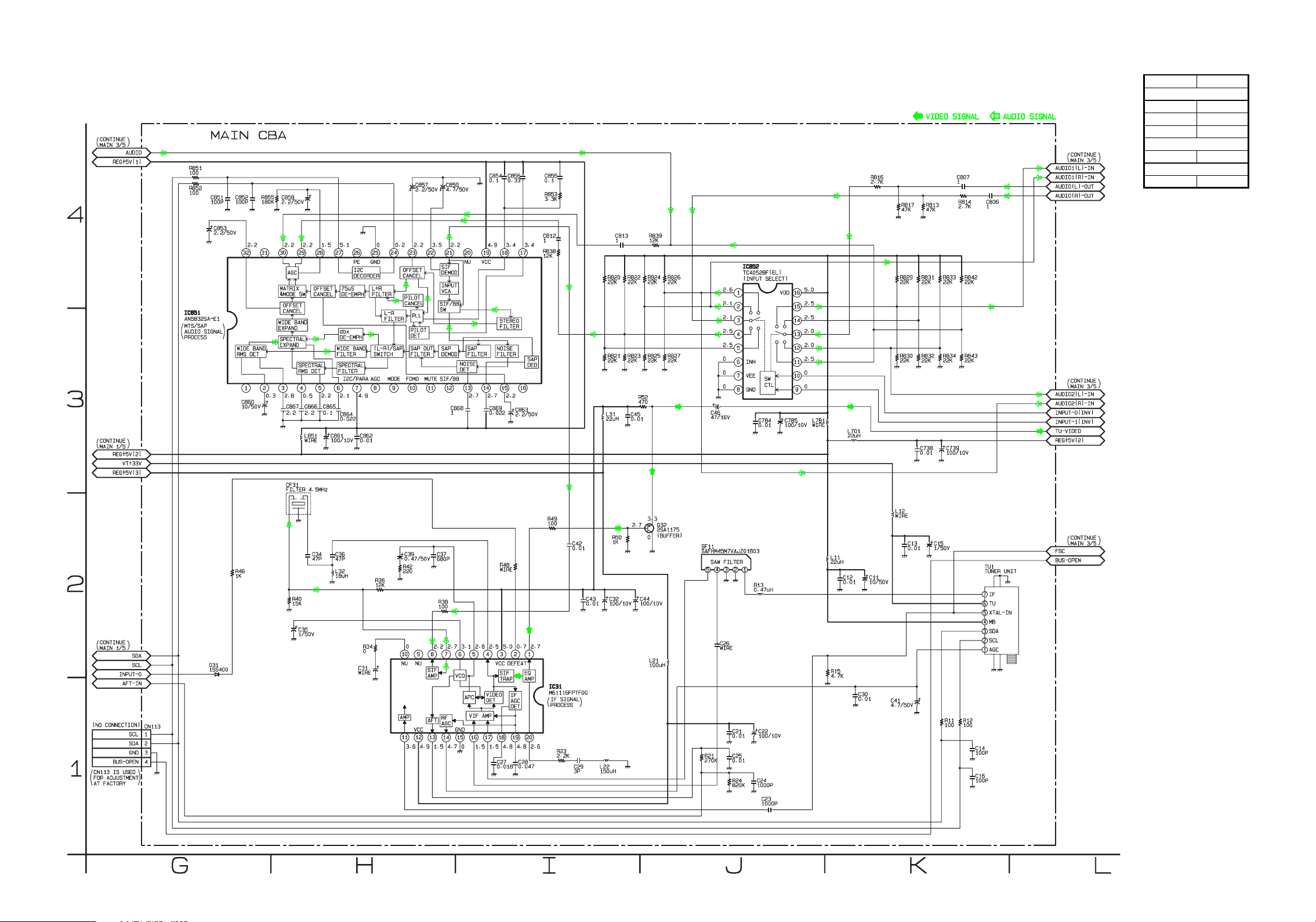

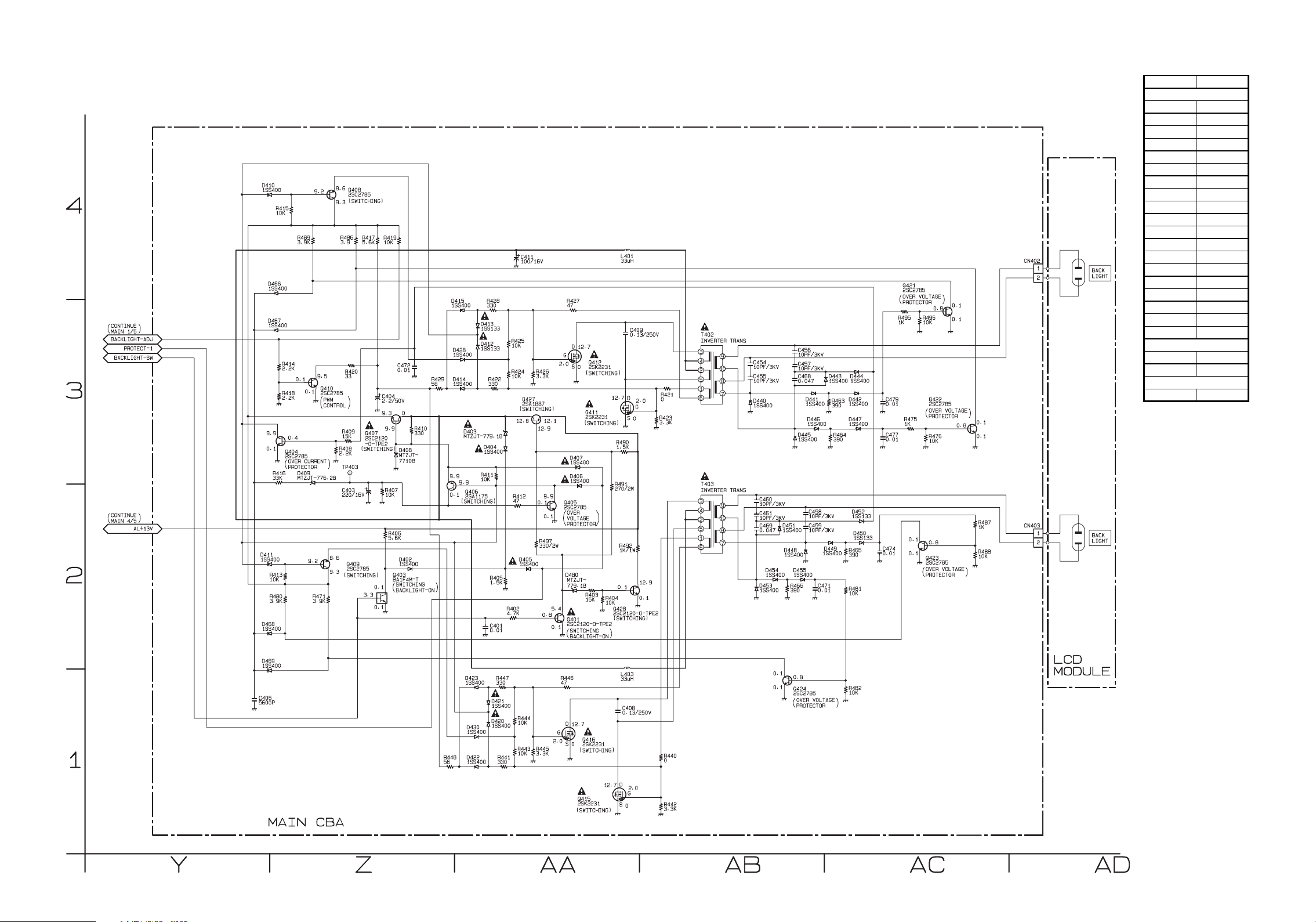

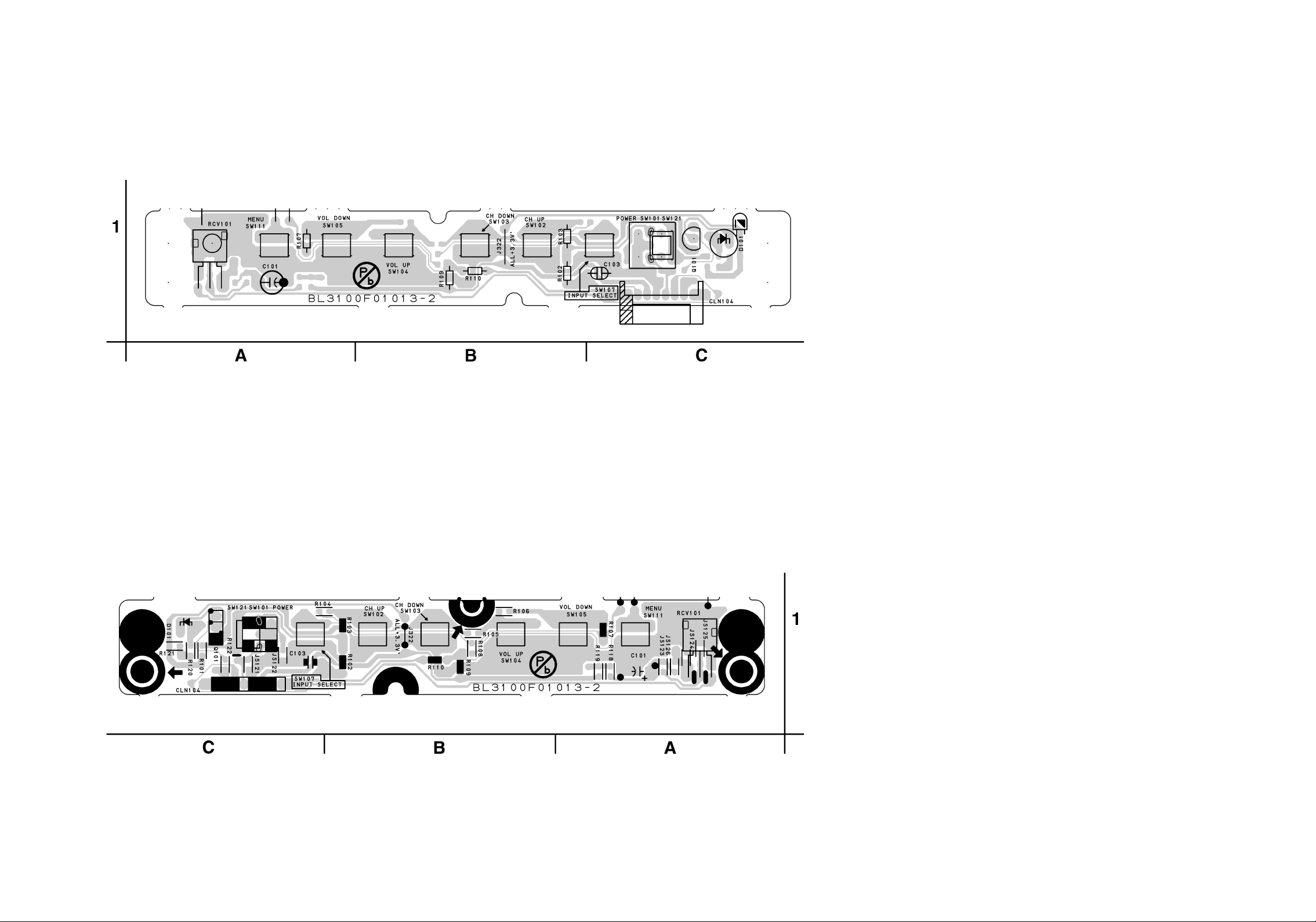

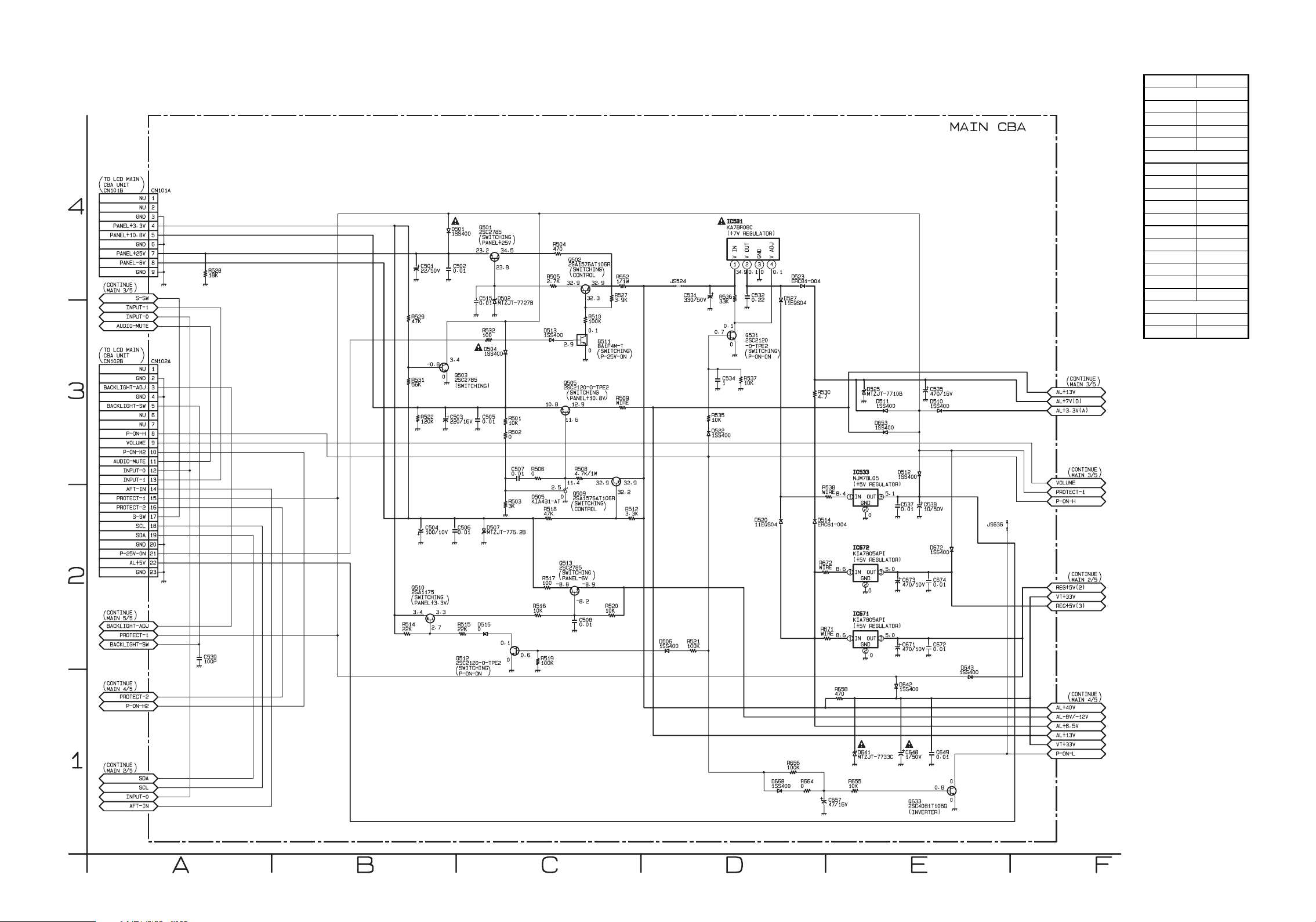

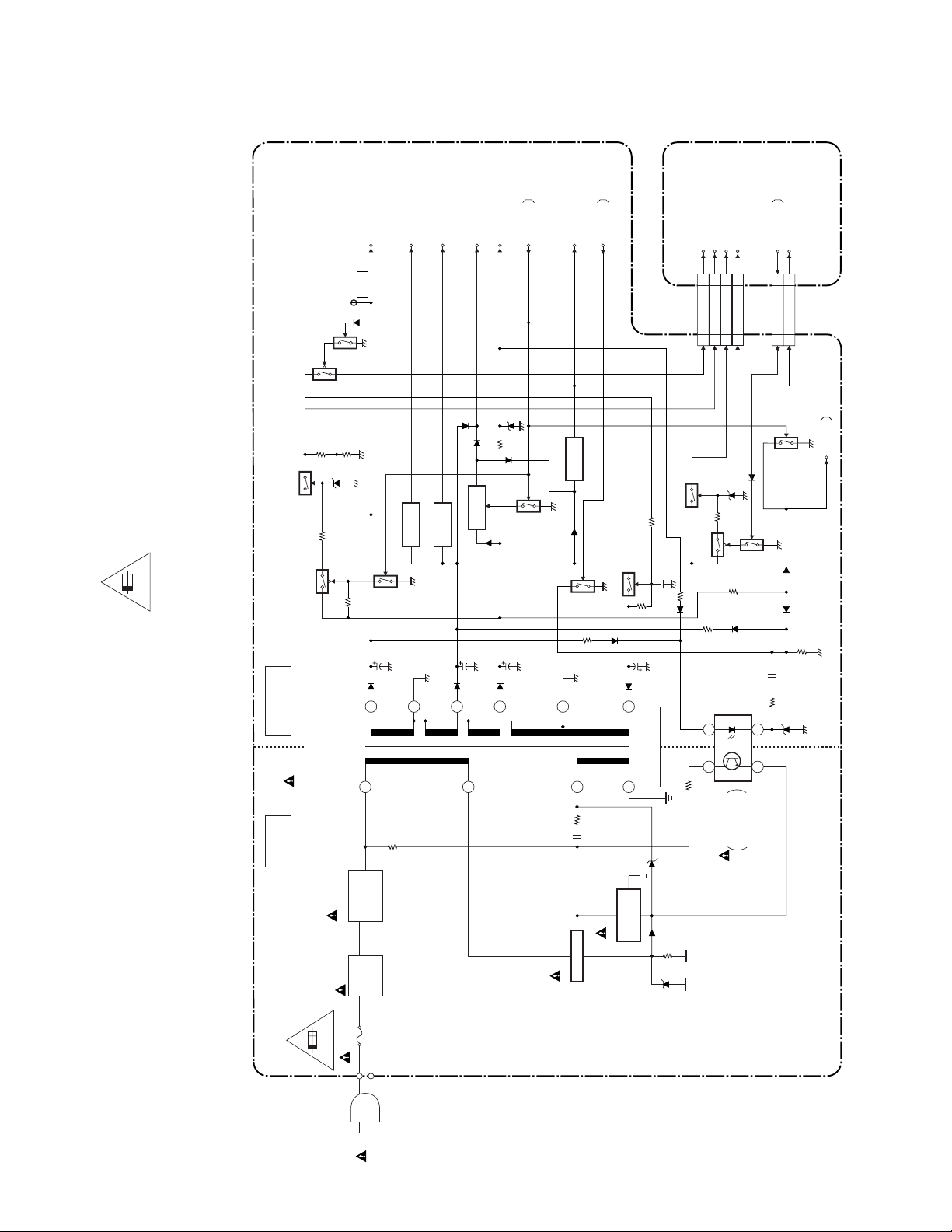

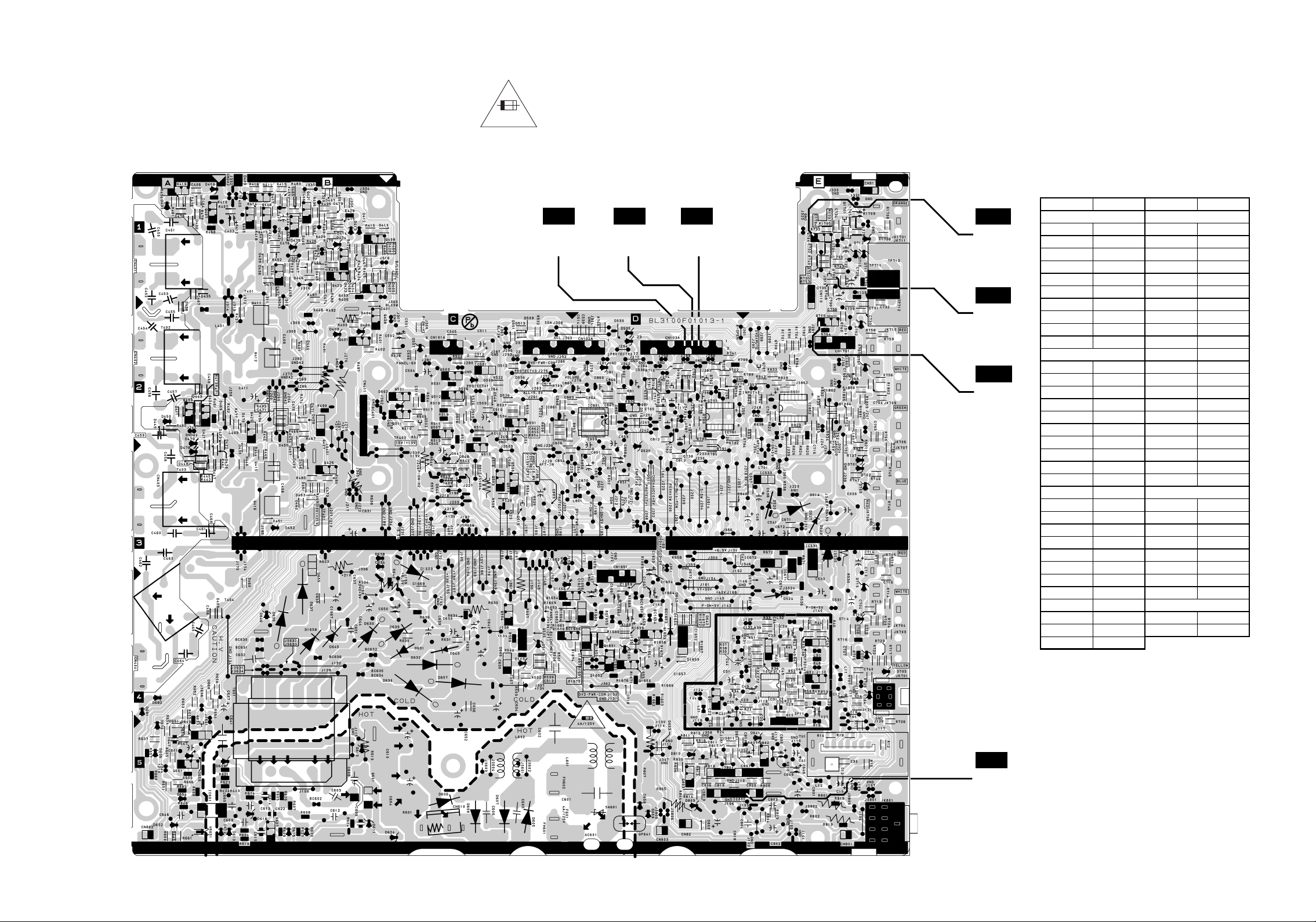

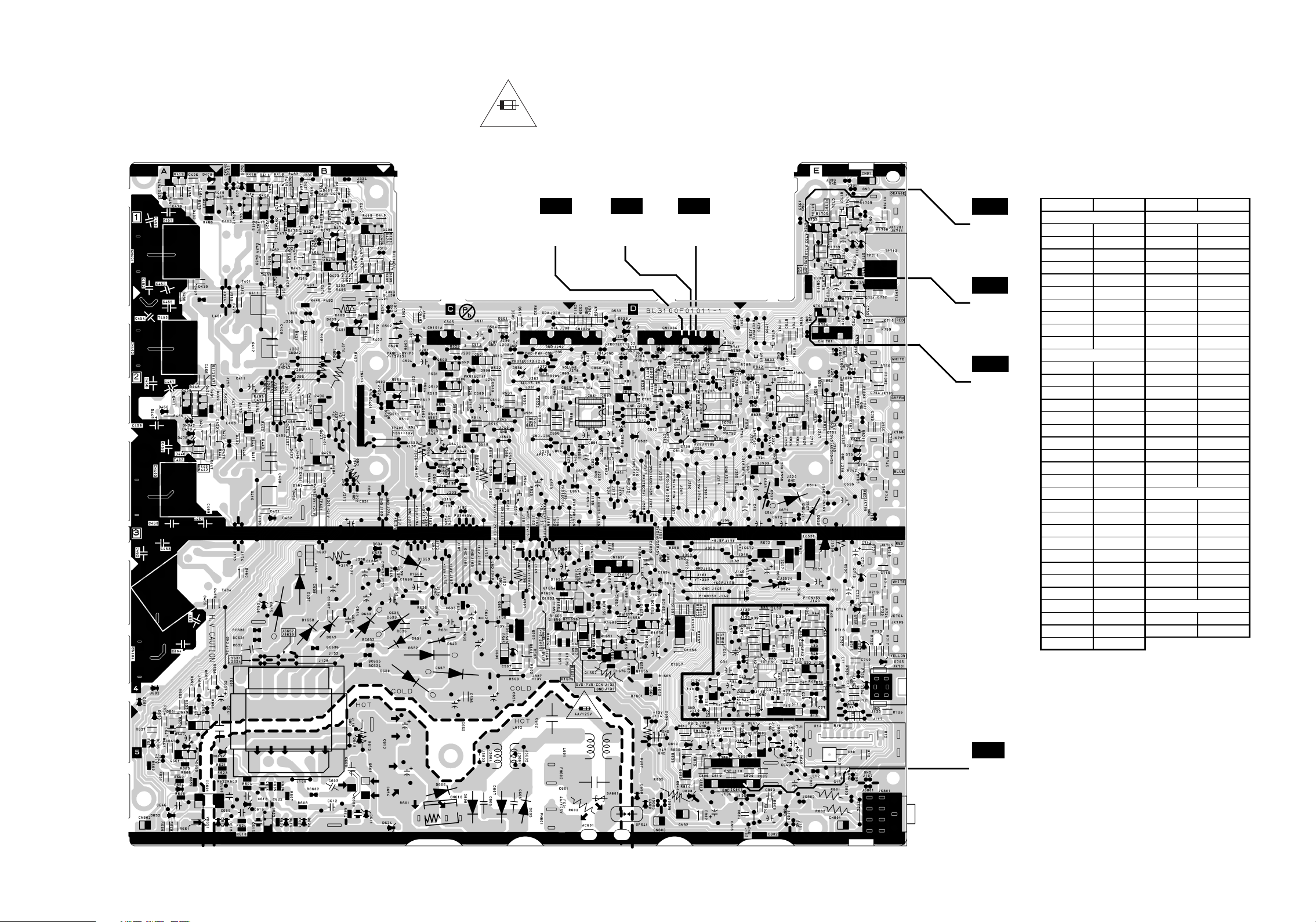

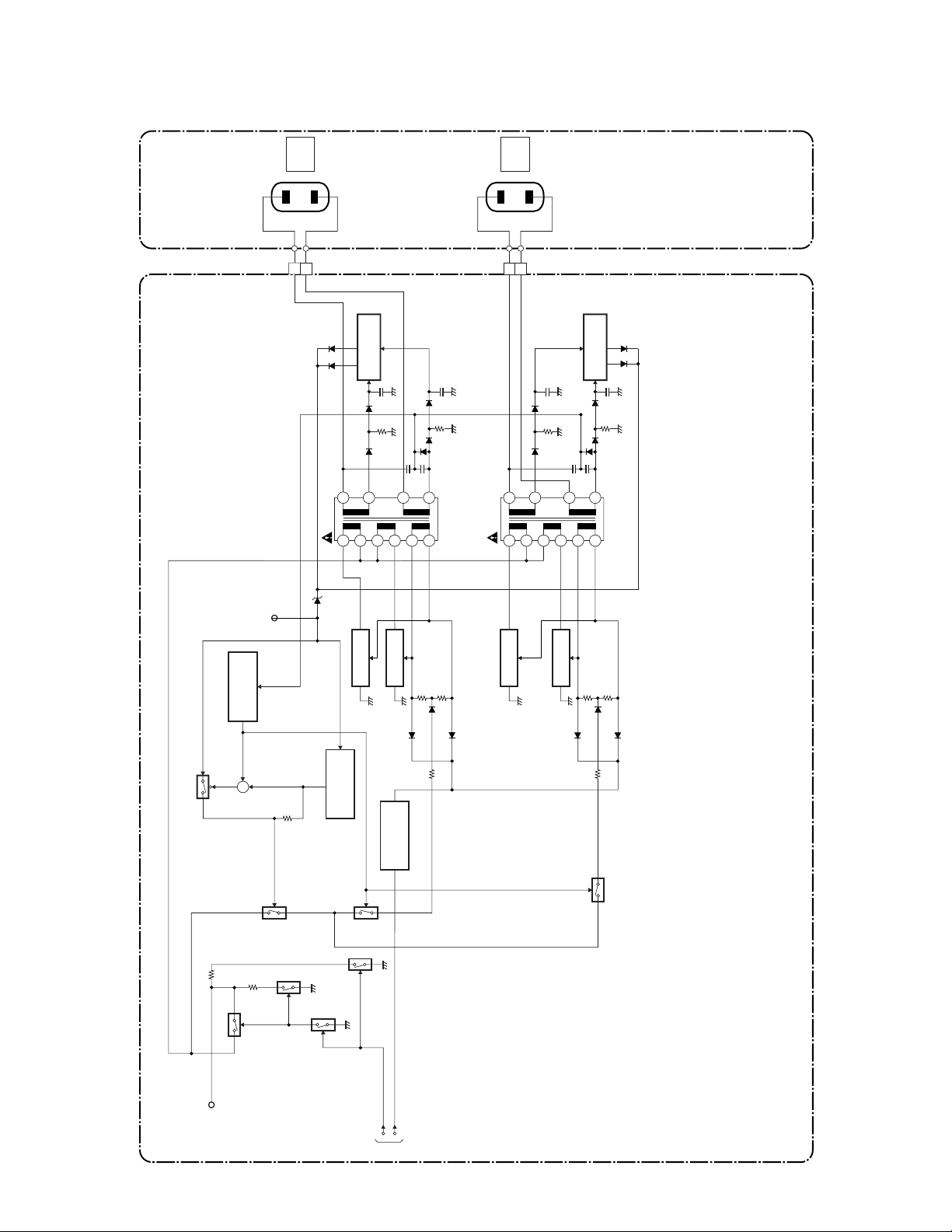

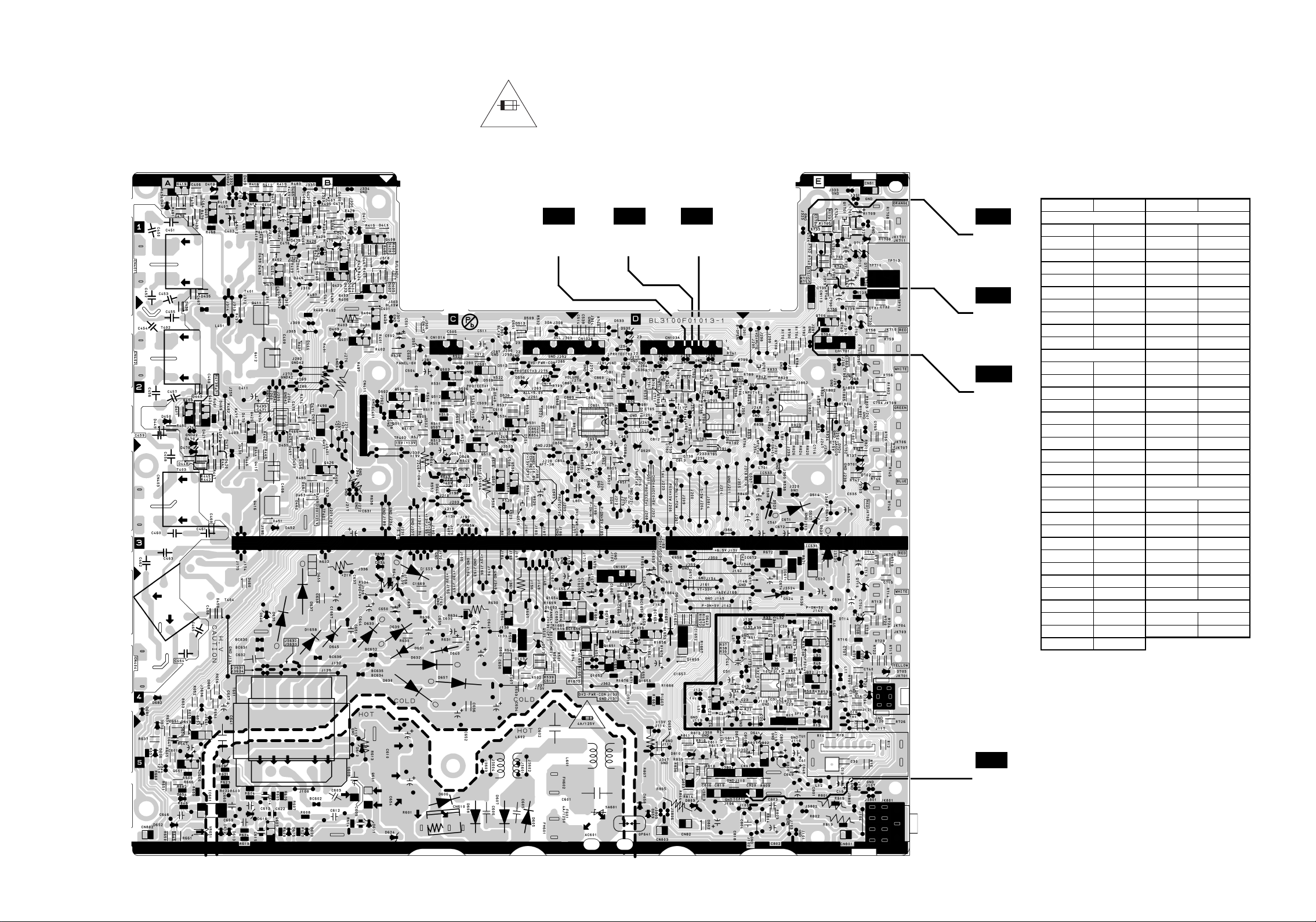

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

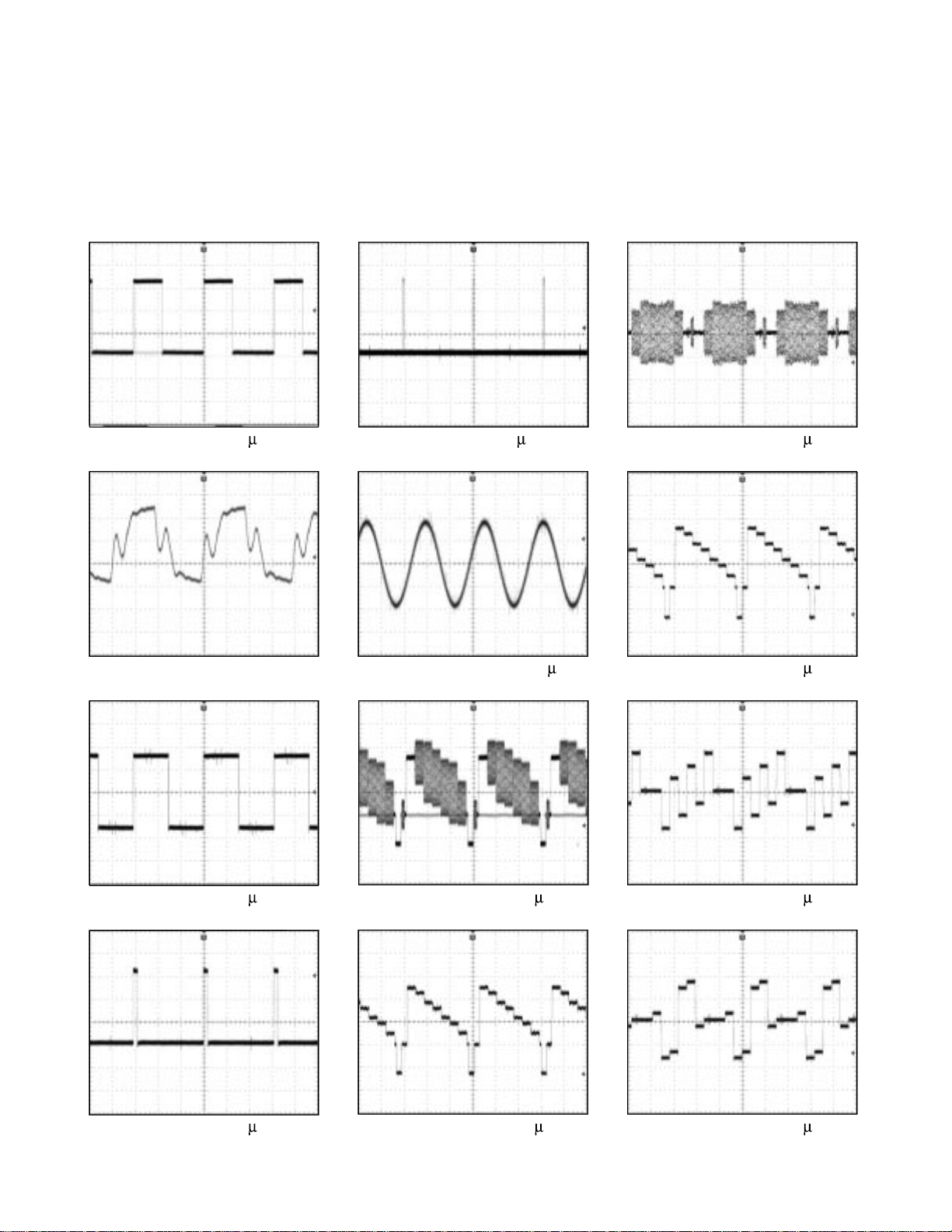

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

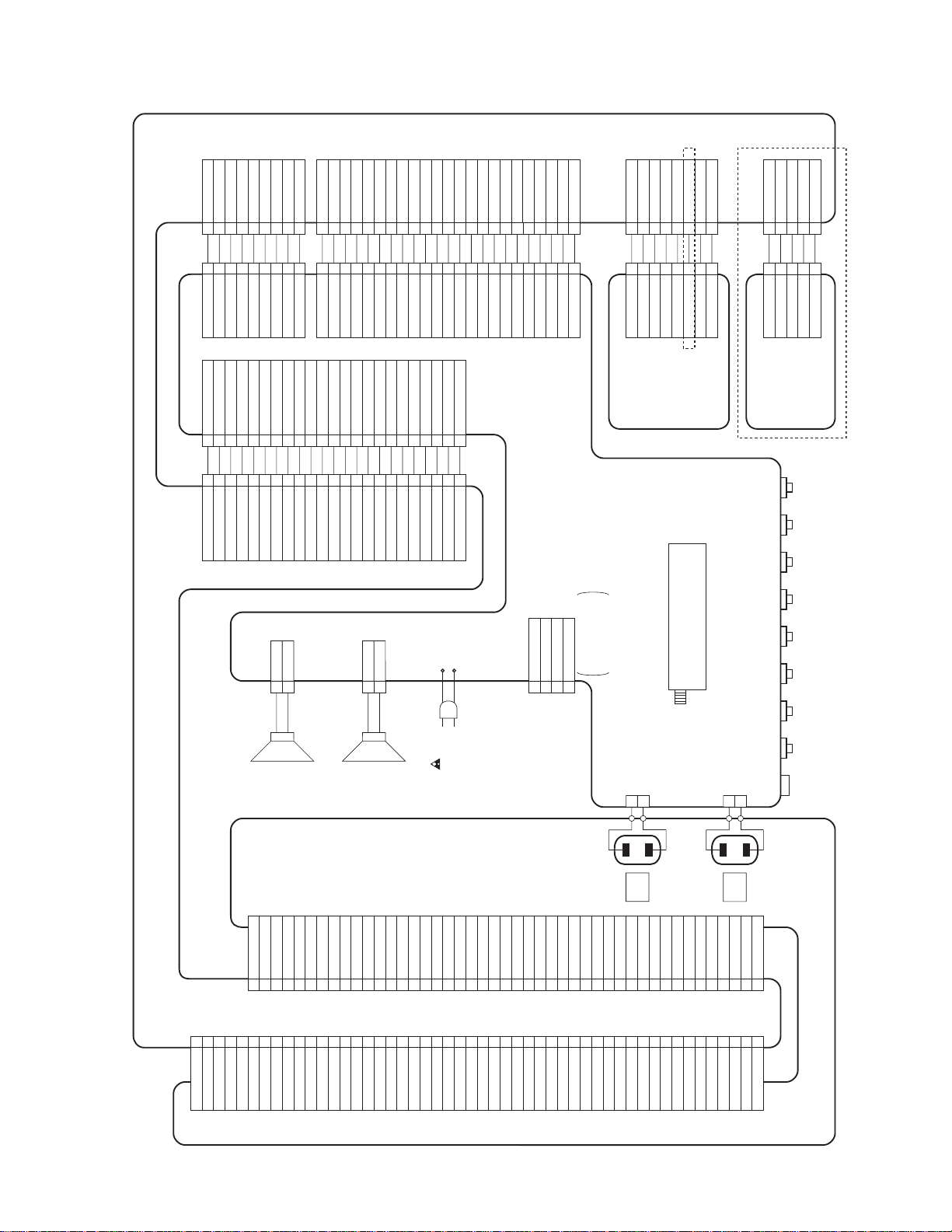

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

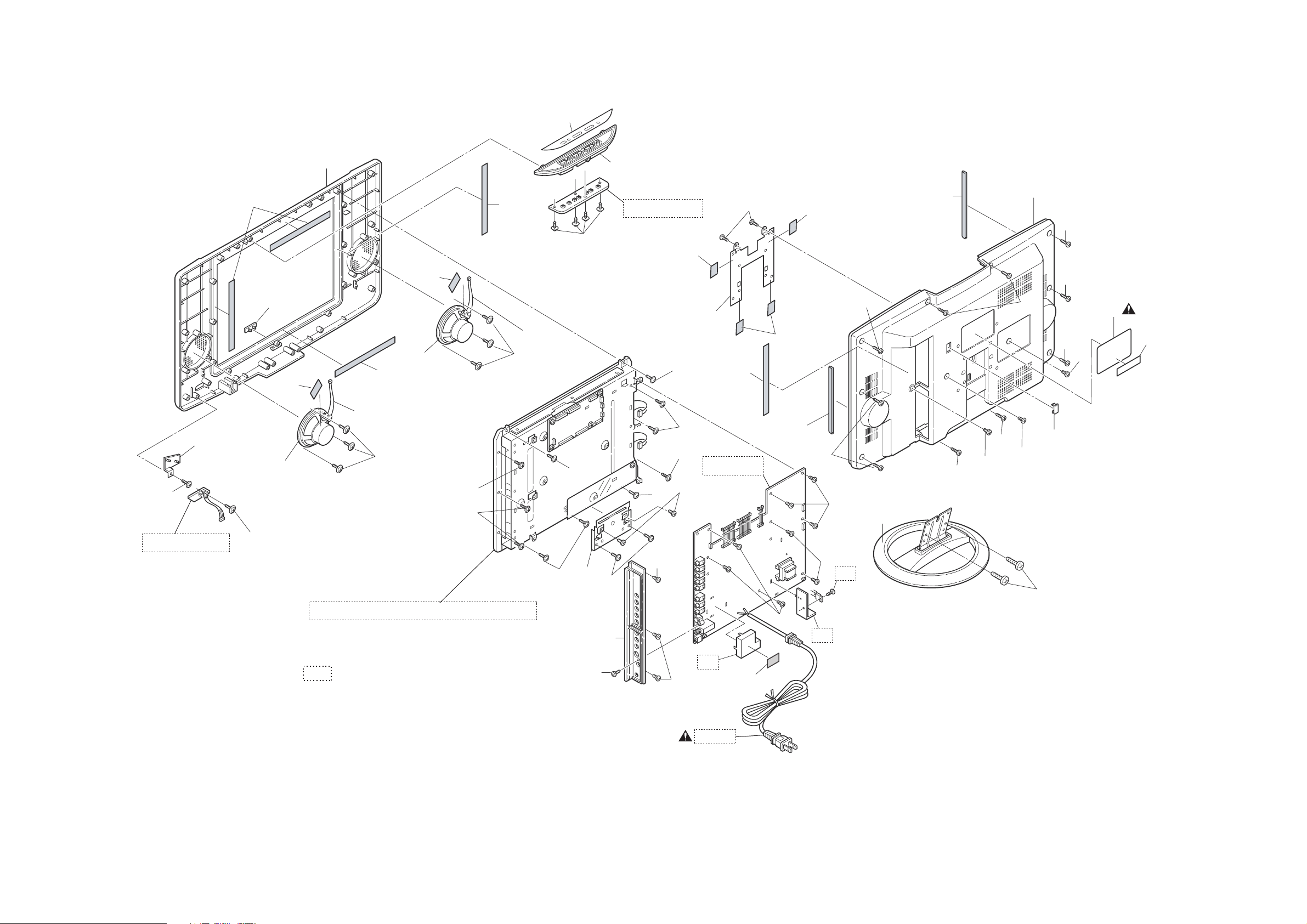

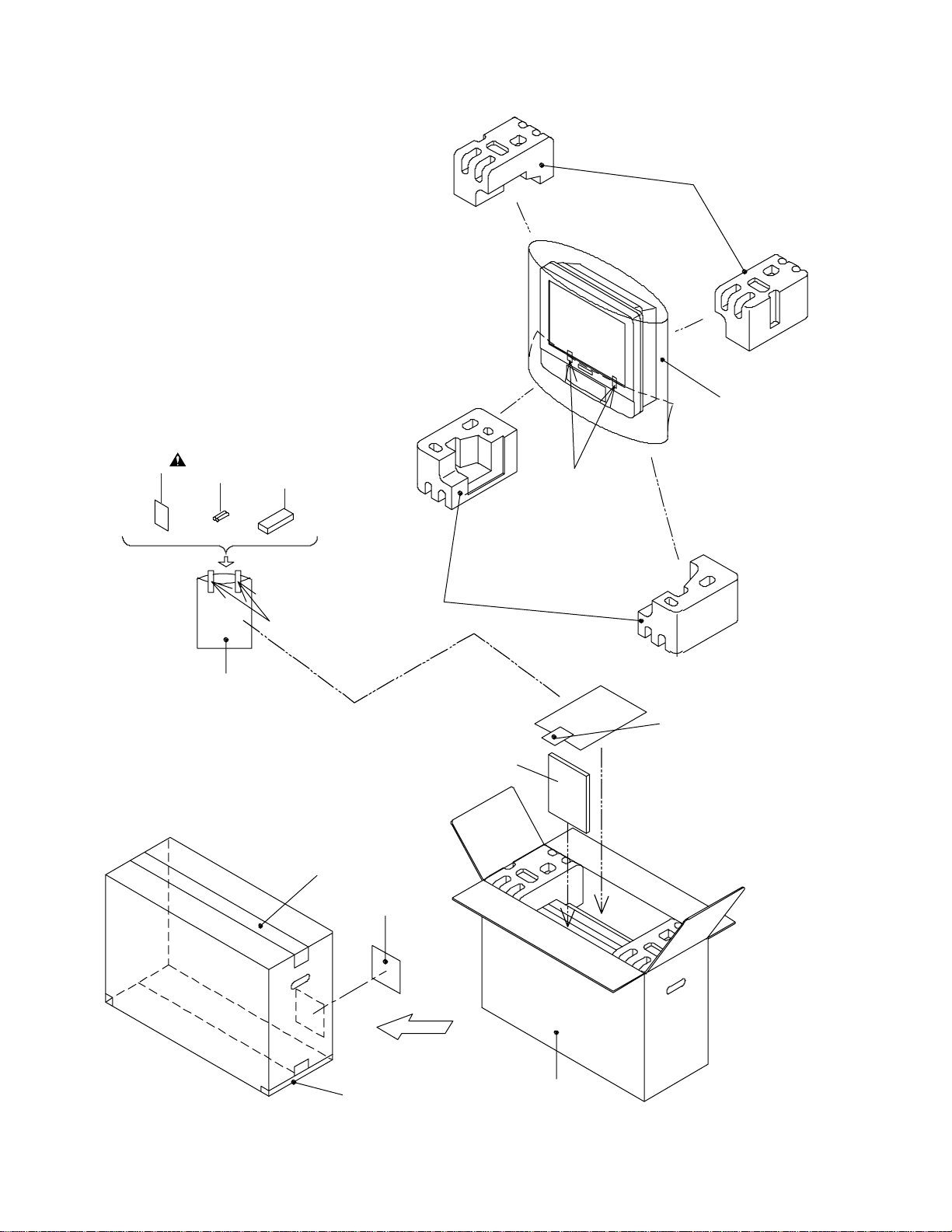

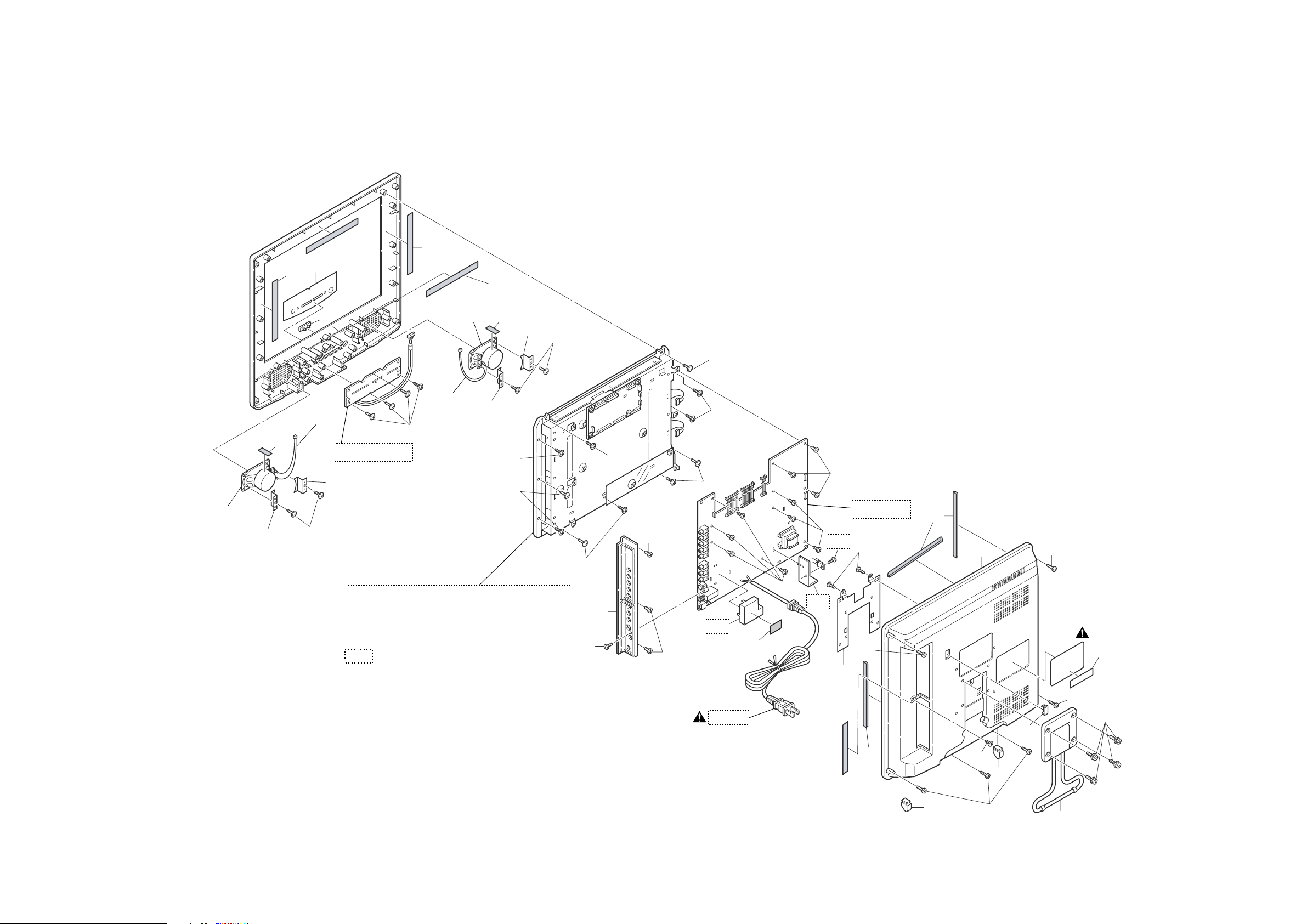

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

SPECIFICATIONS

< TUNER >

ANT. Input ---------------------- 75 ohm Unbal., F type Reference Level--------------- 20 Vp-p (LCD Green Cathode) Test Input Signal -------------- 400 Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq.

2. Color Killer Sens.

3. AFT Pull In Range (10 mV input) --- MHz ±2.1 ±0.7


Sound

CH-2 CH-10 CH-55

MHz MHz

dBµV dBµV dBµV

45.75

41.25 15

15 15

---

--20

20 20

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Number of Pixels

2. Brightness cd/m

3. Response Time --- msec 16 ---

4. Support Color --- - 26 mil. (6 bit) ---

5. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels pixels

° °

640 × 3

480

2

500 ---

-80 to 80

-65 to 70

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K

line line

7 7

9200

0.286

0.294 400

350

---

--±0.3 ±0.3

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 1.0/1.0 0.8/0.8

2. Audio Distortion 500mW: Lch/Rch % 1.0/1.0 4.0/4.0

-

3. Audio Freq. Response

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

3dB: Lch

-

3dB: Rch

Hz Hz

50 to 12 k 50 to 12 k

---

1-1 L0306SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the Liquid Crystal Panel and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the Liquid Crystal Panel.

CURRENT

TESTER

+

EARTH GROUND

_

2-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to prevent shock hazards. Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

M. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

dd'

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter (High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

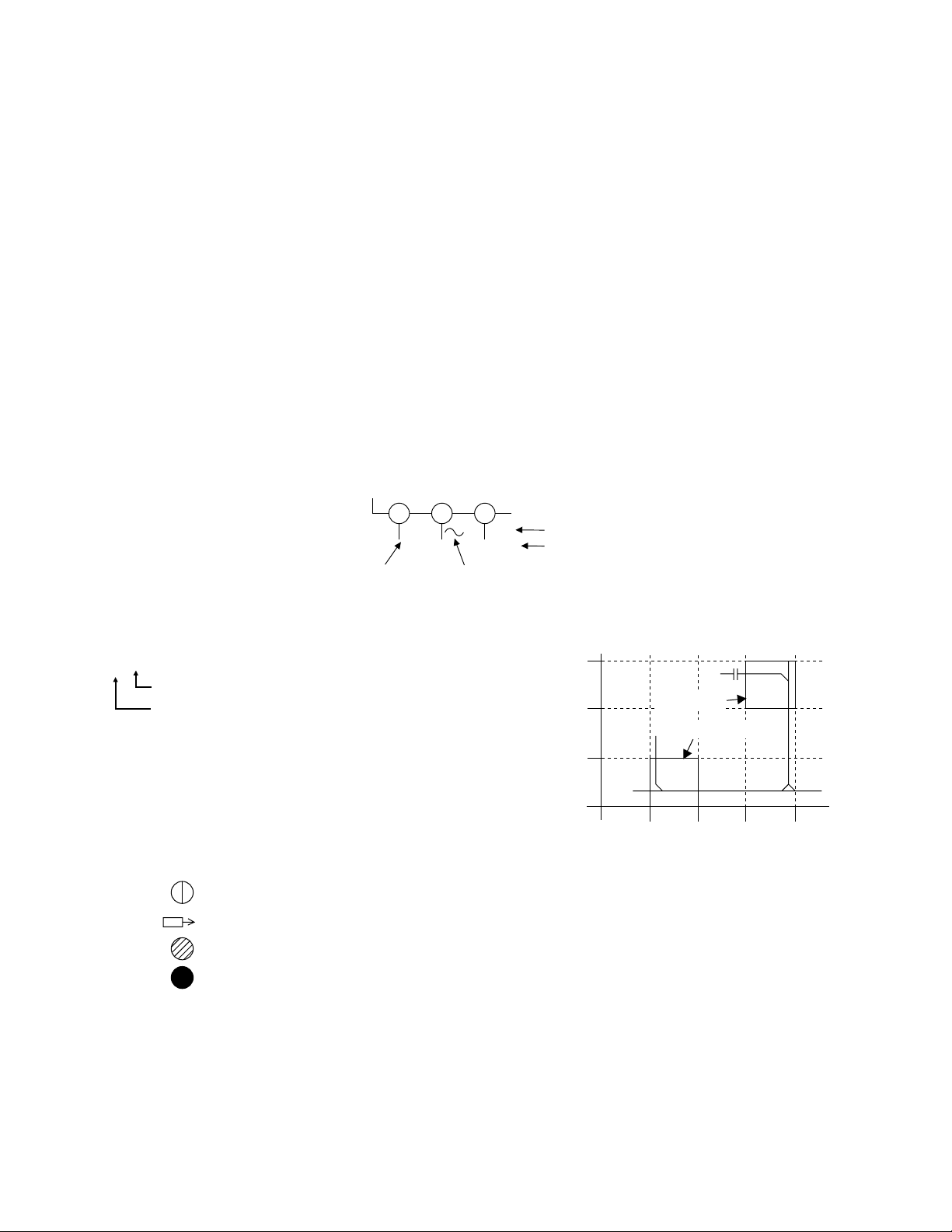

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Tape

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

[ 6615LF4/STL1505 ]

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[5] Function CBA

[6] Speaker (s)

[1] Rear Cabinet

[2] Jack Holder

[3] Main CBA

[4] LCD Main CBA & Liquid Crystal Panel Unit

[7] Front Cabinet

2. Disassembly Method

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

Removal

Step/

Loc.

No.

[7]

↓

(1)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

Part

Front Cabinet

↓

(2)

Remove/*Unhook/

Fig.

No.

D2 --------------- ---

(3)

Unlock/Release/

Unplug/Unclamp/

Desolder

↓

Note

↓

(4)

↓

(5)

Rear

[1]

Cabinet

[2] Jack Holder D2 3(S-3), (S-4) ---

[3] Main CBA

LCD Main CBA &

[4]

Liquid Crystal Panel Unit

Function

[5]

CBA

[6] Speaker (s)

D1 6(S-1), (S-2) ---

10(S-5), *CN101A,

D2

*CN102A, *CN103A,

D3

*CN402, *CN403, *CN801, *CN802

D2

11(S-6), *CLN104 ---

D3

D2

4(S-7) ---

D3 D2

4(S-8) ---

D3

---

4-1 L3100_05DC

(S-1)

[1] Rear Cabinet

(S-1)

(S-2)

[7] Front Cabinet

[6] Speaker

(S-7)

[5] Function CBA

(S-8)

[4] LCD Main CBA & Liquid Crystal Panel Unit

(S-8)

(S-6)

[2] Jack Holder

(S-4)

(S-6)

(S-3)

(S-5)

(S-6)

(S-3)

(S-1)

(S-6)

(S-5)

Fig. D1

[3] Main CBA

(S-5)

Fig. D2

4-2 L3100_05DC

TV Cable Wiring Diagram

LCD Main CBA & Liquid Crystal Panel Unit

Function CBA

CLN104

CN104

CN113

CN801

To Speaker

CN103B

CN103A

CN102B

CN102A

CN101B

CN101A

Main CBA

CN402

CN403

CN802

To Speaker

LCD Main CBA & Liquid Crystal Panel Unit

Fig. D3

4-3 L3100_05DC

[ 6615LF ]

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[5] Function CBA

[7] Speaker (s)

[1] Rear Cabinet

[2] Jack Holder

[3] Main CBA

[4] LCD Main CBA & Liquid Crystal Panel Unit

[8] Front Cabinet

[6] IR Sensor CBA

2. Disassembly Method

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

Front

[8]

↓

(1)

Cabinet

↓

(2)

D2 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

Rear

[1]

Cabinet

D1 10(S-1), 3(S-2) ---

[2] Jack Holder D2 3(S-3), (S-4) ---

8(S-5), *CN101A,

[3] Main CBA

*CN102A, *CN103A,

D3

*CN402, *CN403,

---

D2

*CN801, *CN802

LCD Main

[4]

CBA & Liquid Crystal

D2D311(S-6), *CLN104,

*CLN105

---

Panel Unit Function

[5]

CBA IR Sensor

[6]

CBA

[7] Speaker (s)

D2

4(S-7) ---

D3 D2

(S-8) ---

D3 D2

6(S-9) ---

D3

4-4 L3108DC

(S-1)

[1] Rear Cabinet

(S-1)

(S-2)

[8] Front Cabinet

(S-1)

[7] Speaker

(S-9)

(S-1)

(S-7)

(S-1)

(S-2)

[5] Function CBA

(S-6)

Fig. D1

[3] Main CBA

[7] Speaker

[6] IR Sensor CBA

(S-6)

(S-9)

(S-6)

(S-8)

[4] LCD Main CBA & Liquid Crystal Panel Unit

(S-6)

[2] Jack Holder

(S-4)

4-5 L3108DC

(S-3)

(S-5)

(S-6)

(S-3)

(S-5)

Fig. D2

TV Cable Wiring Diagram

LCD Main CBA & Liquid Crystal Panel Unit

CN104

Function CBA

CLN104

CLN105

CN113

CN801

CN103B

CN103A

CN102B

CN102A

CN105

CN101A

IR Sensor CBA

CN101B

Main CBA

CN402

CN403

CN802

To Speaker

LCD Main CBA & Liquid Crystal Panel Unit

Fig. D3

4-6 L3108DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

3. Remote control unit: Part No. N0105UD or N0127UD

4. Color Analyzer

How to make Service remote control unit:

1. Prepare normal remote control unit. (Part No. N0105UD or N0127UD) Remove 3 Screws from the back lid. (Fig. 1-1)

Screws

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV unit.)

3. Press [SLEEP] button on the service remote control unit. Version of micro computer will be displayed on the LCD or display. (Ex: 0004FP-

0.47)

1. Initial Setting

General: Enter the Service mode. (See page 5-1.)

Set the each initial data as shown on table 1 below.

Table 1: Initial Data

Button

Item

BRT CNT 195 CLR-R 64 CLR-B 64 TNT 60

(on the service

remote control)

[MENU] → [1]

Data

Value

140

Remote control unit (bottom)

2. Added J1 (Jumper Wire) to the remote control CBA. (Fig. 1-2)

J 1

Remote Control CBA

Fig. 1-1

Fig. 1-2

V-TN T 60 SHR 35 S-BRT S-CNT 195 S-CLR-R 64

[MENU] → [2]

S-CLR-B 64 S-TNT 64 S-SHR 35 C-BRT C-CNT 164 C-CLR-R 64

[MENU] → [3]

C-CLR-B 64 C-TNT 64 C-SHR 35

143

140

5-1 L3100EA

Item

Button

(on the service

remote control)

Data

Value

3. If Flicker Adjustment is not fit, the screen become the following.

D2-BRT D2-CNT 153 D2-CLR-R 63

[MENU] → [5]

D2-CLR-B 63 D2-TNT 64 D2-SHR 35 D3-BRT D3-CNT 160 D3-CLR-R 66

[MENU] → [6]

D3-CLR-B 66 D3-TNT 64 D3-SHR 35 DR(C/D1)

[VOL p] → [4]

D-DR(C/D2) 147 DB(C/D1)

[VOL p] → [6]

D-DB(C/D2) 142

146

143

126

119

VCOM

110

FLASH (Go and Off)

4. Press [CH o / p] buttons on the remote control unit so that flash stops.

2. Flicker Adjustment

1. Enter the Service mode. (See page 5-1.)

2. Press [2] button on the remote control unit. The following screen appears.

VCOM

110

5-2 L3100EA

The following adjustment normally are not attempted in the field. Only when replacing the LCD Panel then adjust as a preparation.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

[RF/VIDEO1]

Screen

VOL. p

buttons

M. EQ. Spec.

C/D1

[VIDEO2]

C/D2

White Purity

(APL 80%)

or

(APL 20%)

5. [RF/VIDEO1] When “x” value and “y” value are not within specification, adjust “DB (C/D1)” or “DR (C/D1)”. Refer to “1. Initial Setting.” Note: “DB(C/D1)” or “DR(C/D1)” must be adjusted within ±0.01.

[VIDEO2]

When “x” value and “y” value are not within specification, adjust “DB(C/D2)” or “DR(C/D2)”. Refer to “1. Initial Setting.” Note: “DB(C/D2)” or “DR(C/D2)” must be adjusted within ±0.01.

6. Turn the power off and on again. (Main power button on the TV unit.)

Pattern Generator,

Color analyzer

x: 0.256 to 0.316,

y: 0.264 to 0.324

Figure

It carries out in a darkroom.

Perpendicularity

L = 3 cm

INPUT: WHITE 80%

Note: Use service remote control unit

1. Operate the unit for more than 20 minutes.

2. Input the White Purity (APL 80% or APL 20%).

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. [RF/VIDEO1] Enter the Service mode. Press “VOL p” button on the remote control unit and select “C/D/S-1” mode.

[VIDEO2]

Enter the Service mode. Press “VOL p” button on the remote control unit and select “C/D/S-2” mode.

Color Analyzer

5-3 L3100EA

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize the LCD television:

1. Turn the power on. (Use main power on the TV unit.)

2. To enter the service mode, press [POWER], [2], [7], [1], and [MUTE] buttons on the remote control unit in that order within 5 seconds.

- To cancel the service mode, press [POWER]

button on the remote control.

3. To initialize the LCD television, press “DISPLAY” button on the remote control unit.

4. Confirm "FF" indication on the upper right of the screen.

6-1 L0306INT

BLOCK DIAGRAMS

System Control Block Diagram

POWER

D102

AL +5V

Q102

SENSOR

REMOTE

RCV102

CLN105

P-ON-H44

REMOTE33

CN105

6615LF

KEY SWITCH

IR SENSOR CBA

CLN104

KEY-IN-211

CN104

SENSOR

REMOTE

KEY SWITCH

RCV101

KEY-IN-122

REMOTE66

6615LF4,

STL1505

CN113 IS USED

FOR ADJUSTMENT

AT FACTORY

TO POWER SUPPLY

BLOCK DIAGRAM

P-ON-H

P-ON-H2

FUNCTION CBA

TO LCD BACKLIGHT

BACKLIGHT-SW

BACKLIGHT-ADJ

TO IF/VIDEO

BLOCK DIAGRAM

FSC

SCL

SDA

S-SW

INPUT-0

AFT-IN

INPUT-1

P-ON-H

VOLUME

TO AUDIO

BLOCK DIAGRAM

SDA

SCL

AUDIO-MUTE

SDA2SCL1BUS-OPEN

4

CN113 (NO CONNECTION)

IC333 (TV MICRO CONTROLLER)

4KEY-IN-2

3

KEY-IN-1

MAIN CBALCD MAIN CBA UNIT

FSC123

BACKLIGHT-SW

BACKLIGHT-ADJ

P-ON-H16 8

INPUT-012 12

INPUT-111 13

P-ON-H214 10

19 5

21 3

CN102B CN102A

TO POWER

SUPPLY

BLOCK

P-25V-ON

12

P-25V-ON

DIAGRAM

221817

23

BUS-OPEN

BACKLIGHT-SW

BACKLIGHT-ADJ

16

P-ON-H

P-ON-H2

3140193241

INPUT-0

INPUT-1

P-ON+3.3V(D)

X161

27MHz

RESET

Q151

11

REMOTE

21

RESET

42

XIN

43

XOUT

S-SW717

SCL618

SDA519

AFT-IN10 14

5AFT-IN

SCL

SDA

S-SW

VOLUME15 9

AUDIO-MUTE 13 11

20

35

VOLUME

AUDIO-MUTE

Q301

Q131

80

TUNERCLK

IC171

(MEMORY)

BUFFER

3.3V<-->5V

CONVERTER

7

6

5

WP

SCL

SDA

BUS-OPEN519

CN103B CN103A

CN112(NO CONNECTION)

SDA 2

SCL 1

BUS-OPEN 4

NO PART

MOUNTED

FOR CN112

7-1

L3100BLS

IF/Video Block Diagram

TO

CVBS11

CN103A

LCD BLOCK

DIAGRAM

CN103B

S-VIDEO-C7

S-VIDEO-Y9

WF8

TO

VIDEO-Y5

CN103A

LCD BLOCK

DIAGRAM

CN103B

VIDEO-Pb/Cb

VIDEO-Pr/Cr

3

1

AUDIO SIGNAL

MAIN CBA

VIDEO SIGNAL

TO AUDIO BLOCK

DIAGRAM

SIF

8

SIF

AMP

7

4.5MHz

FILTER

CF31

4

SIF

TRAP

IF AGC DET

WF7

Q703

3

BUFFER

4

5

WF9

Q702

13

BUFFER

14

12

Q701

1

BUFFER

15

2

SW

TO AUDIO

BLOCK DIAGRAM

INPUT-0(INV)

INPUT-1(INV)

11

10

CONTROL

9

Q707

Q708

INPUT-0

INPUT-1

TO SYSTEM CONTROL

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

AFT-IN

13

18

IC781 (INPUT SELECT)

Q32

EQ

AMP

1

2

DEFEAT

VIDEO

DET

VIF

AMP

IC31 (IF SIGNAL PROCESS)

16

17

SAW

FILTER

SF11

IF

TU1

(TUNER UNIT)

VCO

RF

AGC

14

5

173

AGC

XTAL-IN

2

SCL

AFT

SDA

AMP

11

SDA

TO

FSC

SCL

SYSTEM

CONTROL

BLOCK

WF10

WF11

WF12

S-SW

DIAGRAM

JK703

VIDEO1

BUFFER

Q704

Q705

CY

-IN

JK701

S-VIDEO

IN

JK706

VIDEO-YINJK707

BUFFER

Q706

VIDEO-Pb/CbINJK708

BUFFER

VIDEO-Pr/Cr

IN

7- 2 L3100BLIF

Audio Block Diagram

AUDIO SIGNAL

30

L-CH

OFFSET

CANCEL

75uS

DE-EMPH

MATRIX AGC

29

R-CH

OFFSET

CANCEL

WIDE BAND

EXPAND

WIDE BAND

RMS DET

WIDE BAND

FILTER

(L-R)/SAP

SW

SPECTRAL

EXPAND

dBX

DE-EMPH

SPECTRAL

RMS DET

SPECTRAL

FILTER

SP802

SPEAKER

L-CH

CLN802

SP-L 1

CN802

SP801

SPEAKER

R-CH

JK801

HEADPHONE

JACK

GND 2

WF6

VOLUME

/STANDBY

CONTROL

14

RF

AMP

11

AMP

MUTE

CLN801

GND 2

SP-R 1

CN801

TO IF/VIDEO

SCL

BLOCK DIAGRAM

SDA

INPUT-0(INV)

INPUT-1(INV)

TO SYSTEM

CONTROL BLOCK

VOLUME

P-ON-H

AUDIO-MUTE

Q803

5

7

2

Q802

+5V

IC851 (MTS/SAP AUDIO SIGNAL PROCESS)

L+R

FILTER

OFFSET

STEREO

FILTER

SIF/BB

SW

INPUT

VCA

SIF

DEMOD

21

SIF

L-R

FILTER

CANCEL

SAP OUT

FILTER

SAP

DEMOD

SAP

FILTER

I2C

DECORDER

27

24

IC801 (AUDIO AMP)

13

TUNER

AUDIO2

AUDIO1

IC852 (INPUT SELECT)

111512

14

(L-CH)

6

(L-CH)

(R-CH)

TUNER

AUDIO1

4

2

1

3

AUDIO2

1

9 10

SW CTL

5

MAIN CBA

TO

IF/VIDEO BLOCK

DIAGRAM

7-3

AUDIO1(L)

JK704

JK705

AUDIO1(R)

-IN

JK709

AUDIO2(L)

-IN

JK710

AUDIO2(R)

-IN

L3100BLA

LCD Block Diagram

LCD MODULE

OR(0)34

OR(2)32

OR(3)31

OR(1)33

OR(4)30

OR(5)29

OG(0)27

OG(1)26

OG(2)25

OG(3)24

OG(4)23

OG(5)22

OB(0)20

OB(1)19

OB(2)18

OB(3)17

OB(4)16

OB(5)15

ER(0)6

ER(1)5

ER(2)4

ER(3)3

ER(4)2

ER(5)1

EG(0)50

EG(1)49

EG(2)48

EG(3)47

EG(4)46

EG(5)45

EB(0)43

EB(1)42

EB(2)41

EB(3)40

EB(4)39

EB(5)38

OFFEV12

STV113

CLKV14

HMS1-E7

HMS1-013

STH142

POL43

LP44

CLKH10

VIDEO SIGNAL

LCD MAIN CBA UNIT

CN311

170

169

166

R(ODD)

R

165

164

163

162

161

157

156

G(ODD)

G

155

154

153

152

148

B(ODD)

B

147

146

145

LCD RGB

138

137

SIGNAL

PROCESS

136

135

130

129

R(EVEN)

Y

CN312

128

127

126

125

G(EVEN)

Pb/Cb

118

117

116

115

114

113

Pr/Cr B(EVEN)

108

107

101

105

STV1

OFFEV

R365

106

CLKV

CN311

WF1

WF2

R392

144

143

CLKH1

ODDINV

R202

R394

139

172

STH-1

EVENINV

173

POL

WF4

R201

WF3

WF5

174 LP

IC333 (LCD DRIVE / SIGNAL PROCESS)

A/D

R

CVBS

68

CN103B

CVBS 13

TO

IF/VIDEO

S-VIDEO-Y 15

S-VIDEO-C 17

BLOCK

DIAGRAM

CN103A

A/D

G

VIDEO

SIGNAL

C

49

PROCESS

A/D

B

Y

71

7-4

A/D

74

A/D

52

CN103B

VIDEO-Y 19

TO

IF/VIDEO

A/D

60

21

23

VIDEO-Pr/Cr

VIDEO-Pb/Cb

BLOCK

DIAGRAM

CN103A

L3100BLLCD

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

Q505

4A/125V

Q510

Q512

Q509

TP402

+13V

AL+13V

Q507

IC671

REG+5V

+5V REG.

IC672

REG+5V

IC531

+5V REG.

VT+33V

AL+7V(D)

+7V REG.

P-ON-H

Q531

IC533

AL+5V

+5V REG.

Q661

P-ON-H2

Q513

PANEL+3.3V

PANEL+10.8V

PANEL+25V

PANEL-6V

CN101B

PANEL+3.3V

PANEL+10.8V

PANEL+25V73

PANEL-6V82

46

55

CN101A

Q501

Q502

CN102A CN102B

Q511

P-25V-ON

P-25V-ON21 3

Q633

AL+5V

AL+5V22 2

LCD MAIN CBA UNIT

TO AUDIO

BLOCK DIAGRAM

P-ON-H

MAIN CBA

8

7

T601

6

HOT COLD

BRIDGE

RECTIFIER

D605 - D608

L601

LINE

FILTER

F601

4A/125V

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

4A/125V

10

11

4

9

2

SWITCHING

Q601

12

1

CONTROL

Q603

SWITCHING

1

4

IC601

ERROR

2

3

VOLTAGE DET

AC601

AC CORD

7-5

L3100BLP

LCD Backlight Block Diagram

BACK

LIGHT

BACK

LIGHT

LCD MODULE

OVER CURRENT

PROTECTOR

Q404

TP403

1

CN402

2

Q421,Q422

OVER VOLTAGE

PROTECTOR

1

CN403

2

Q423,Q424

OVER VOLTAGE

PROTECTOR

MAIN CBA

9

T402

3

Q412

10

2

4

SWITCHING

Q411

8

5

1

SWITCHING

7

6

9

T403

3

SWITCHING

Q416

8

5

1

SWITCHING

7

6

10

2

4

Q415

Q406

Q427

AL+13V

+

OVER VOLTAGE

PROTECTOR

Q405

PWM

CONTOROL

Q410

Q409

Q401

Q408

Q403

TO SYSTEM CONTROL

BLOCK DIAGRAM

BACKLIGHT-SW

BACKLIGHT-ADJ

7-6

L3100BLLB

Q407

Q428

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60 ppm/°C CSL --- +350~-1000 ppm/°C

3

, M = 106).

-6

µF).

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

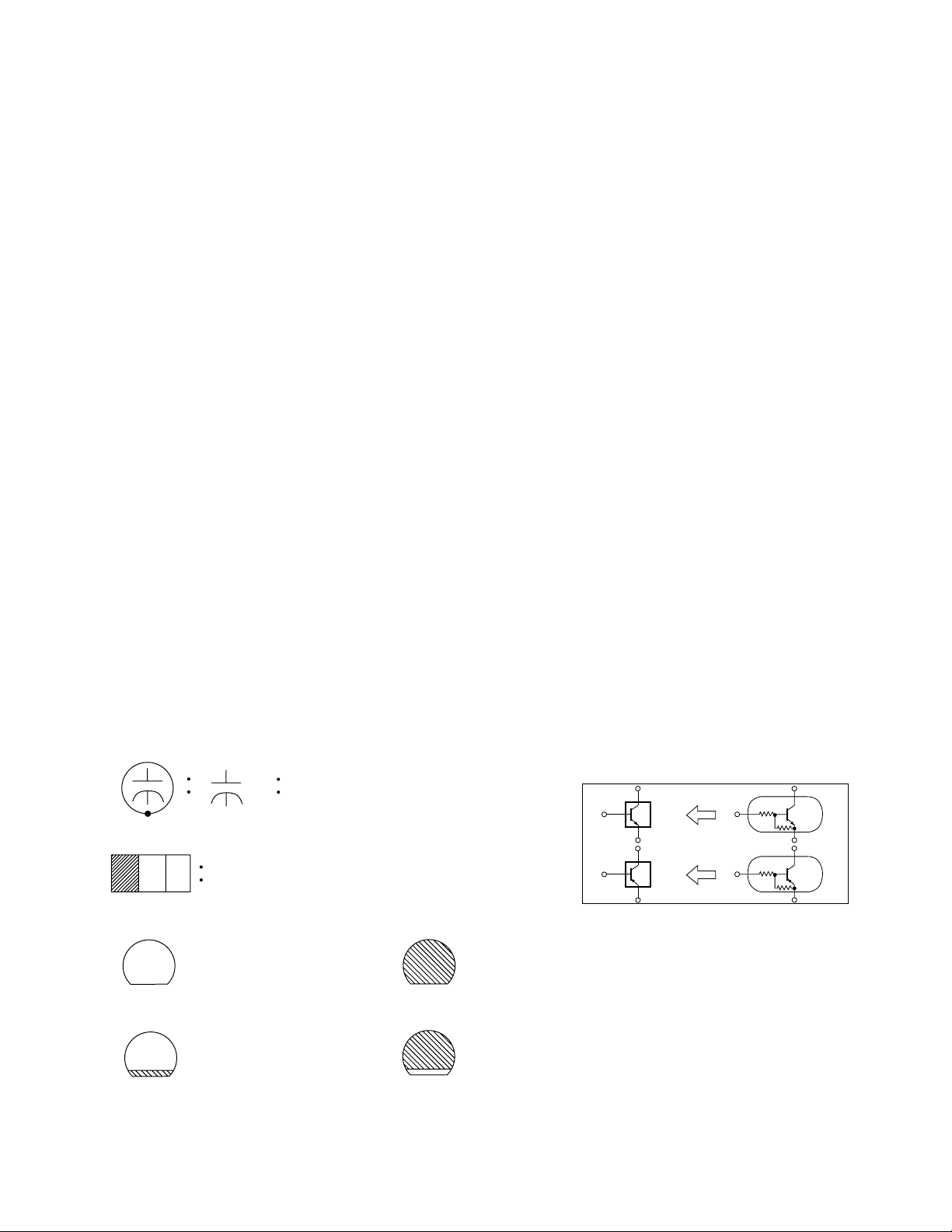

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

+

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

PNP Transistor

E C B

(Top View)

Schematic Diagram Symbols

Digital Transistor

E C B

NPN Digital Transistor

PNP Digital Transistor

E C B

8-1 LC2N_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0

(3.0)

3

(3.0)

5.0

Power on mode Power off mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

8-2 LC2N_SC

Main 1/5 Schematic Diagram

MAIN 1/5

Ref No. Position

IC531

D-4

IC533

E-3

IC671

E-2

IC672

E-2

Q501 C-4 Q502 C-4 Q503 B-3 Q505 C-3 Q509 C-3 Q510 B-2 Q511 C-3 Q512 C-2 Q513 C-2 Q531 D-3 Q633 E-1

CN101A A-4 CN102A A-3

ICS

TRANSISTORS

CONNECTORS

8-3

L3100SCM1

Main 2/5 Schematic Diagram

MAIN 2/5

Ref No. Position

IC31 I-1 IC851 H-3 IC852 J-4

Q32 J-2

CN113 G-1

ICS

TRANSISTOR

CONNECTOR

8-4

L3100SCM2

Main 3/5 Schematic Diagram

MAIN 3/5

Ref No. Position

IC781

P-3

IC801

N-2

Q701

N-3

Q702

N-3 Q703 N-3 Q704 P-1 Q705 O-1 Q706 P-1 Q707 P-2 Q708

P-2 Q802

O-1 Q803

N-1

CN801

M-4

CN802 M-3

CN103A M-2

ICS

TRANSISTORS

CONNECTORS

8-5

L3100SCM3

Main 4/5 Schematic Diagram

MAIN 4/5

Ref No. Position

IC601

U-1

Q601 S-2 Q603

T-2 Q661 W-2

TP402 X-4

TRANSISTORS

IC

TESTPOINT

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

8-6

L3100SCM4

Main 5/5 Schematic Diagram

MAIN5/5

Ref No. Position

Q401 AA-2 Q403 Z-2 Q404 Z-3 Q405 AA-2 Q406 AA-2 Q407 Z-3 Q408 Z-4 Q409 Z-2 Q410 Z-3 Q411 AA-3 Q412 AA-3 Q415 AA-1 Q416 AA-1 Q421 AC-4 Q422 AC-3 Q423 AC-2 Q424 AB-1 Q427 AA-3 Q428 AA-2

CN402

AD-4

CN403

AD-2

TP403 Z-3

TRANSISTORS

CONNECTORS

TESTPOINT

8-7

L3100SCM5

Function Schematic Diagram

8-8

L3100SCF

IR Sensor Schematic Diagram ( 6615LF)

8-9

L3108SCIR

LCD Main 1/2 Schematic Diagram

LCD MAIN 1/2

Ref No. Position

IC333

B-3

Q301

D-1

CN104

A-3

CN105

A-2

CN111

A-2

CN211

F-4

CN311 F-4

CN102B A-4

CONNECTORS

IC

TRANSISTOR

8-10

L3100SCL1

LCD Main 2/2 Schematic Diagram

LCD MAIN 2/2

Ref No. Position

IC151 I-3 IC171

J-3

IC191

H-2

IC192

H-1

IC193

H-2

IC201 J-1

Q131

I-4

Q201 J-1

CN112

L-4

CN312

L-3

CN101B

L-4

CN103B G-2

ICS

CONNECTORS

TRANSISTORS

8-11

L3100SCL2

Main CBA Top View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

TP403

8-12

TP402

+13V

BL3100F01011-1

Main CBA Bottom View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

MAIN CBA

Ref No. Position Ref No. Position

IC31

E-4

Q505

C-4

IC531

E-3

Q509

C-3

IC533

E-3

Q510

C-3

IC601 A-5

Q511

C-2

IC671

E-4 Q512 C-2

IC672

E-3 Q513 C-3

IC781

D-2 Q531 C-2

IC801

D-5 Q601 B-5

IC851

D-2

Q603

B-5

IC852 E-2

Q633

A-5

Q661

A-5

Q32 E-4

Q701

D-2

Q401 B-2

Q702

D-2 Q403 B-1 Q703 D-2 Q404 B-1 Q704 E-1 Q405 B-1 Q705 E-1 Q406 B-1 Q706 E-2 Q407 A-1

Q707

E-2 Q408 B-1

Q708

E-2 Q409 A-2

Q802

E-5 Q410 B-1

Q803

D-5 Q411 B-2 Q412 B-2

CN113

E-1 Q415 B-3

CN402

A-2 Q416 B-3

CN403

A-3 Q421 B-1

CN801

E-5 Q422 B-1

CN802

A-5 Q423 B-1 CN101A C-2 Q424 A-2 CN102A D-2 Q427 B-2 CN103A D-2 Q428 B-2 Q501 C-2

TP402

C-2 Q502 C-2 TP403 B-1 Q503 C-2

TEST POINTS

TRANSISTORS

CONNECTORS

ICS TRANSISTORS

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

WF7

PIN 11 OF CN103A

WF8

PIN 9 OF CN103A

8-13

WF9

PIN 7 OF CN103A

WF10

Q704 Emitter

WF11

Q705 Emitter

WF12

Q706 Emitter

WF6

PIN 14 OF IC801

BL3100F01011-1

Function CBA Top View

IR Sensor CBA Top & Bottom View (6615LF)

Function CBA Bottom View

BL3100F01011-2

BL3100F01011-3

8-14

BL3100F01011-2

WAVEFORMS

WF1 ~ WF12 = Waveforms to be observed at

Waveform check points.

(Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

CLKH

WF1 1DIV: 1.0V 10

1DIV: 1.0V 10 s R392

CLKV

WF2

1DIV: 1.0V 20ns R365

STH1

WF5

AUDIO

WF6

R394

1DIV: 100mV 400 Pin 14 of IC801

S-VIDEO-C

s

WF9

1DIV: 200mV 20 s Pin 7 of CN103A

VIDEO-Y

s

WF10

1DIV: 200mV 20

s

Q704 Emitter

POL

WF3 1DIV: 200mV 20

1DIV: 1.0V 20

s

R202

LP

WF4

1DIV: 1.0V 10

s

R201

CVBS

WF7

S-VIDEO-Y

WF8

Pin 11 of CN103A

1DIV: 200mV 20 Pin 9 of CN103A

VIDEO-Pb/Cb

s

WF11

1DIV: 200mV 20

s

Q705 Emitter

VIDEO-Pr/Cr

s

WF12

1DIV: 200mV 20

s

Q706 Emitter

L3100WF9-1

WIRING DIAGRAM

6615LF4,

STL1505

6615LF

NU

CN101B

9

153

NU

CN101A

CN102A

132547689

232120

NU

CN102B

NU

8

2

NU

22

GND

PANEL+3.3V

7

6

4

GND

PANEL+3.3V

BACKLIGHT-ADJNUGND

GND

BACKLIGHT-ADJ

PANEL+10.8V

BACKLIGHT-SWNUNU

19

BACKLIGHT-SW

LCD MAIN CBA

CN103B

GND

PANEL+25V

PANEL-6V

GND

4

7

6

GND

PANEL+25V

18

17

NU

CN801

SP-R

1

CLN801

2

8

PANEL-6V

P-ON-H

161113

P-ON-H

GND

2

VIDEO-Pb/Cb

GND

VIDEO-Pr/Cr

153

232120

22

9

153

2

GND

CN103A

VIDEO-Pr/Cr

VIDEO-Pb/Cb

AUDIO-MUTE

VOLUME

P-ON-H2

INPUT-0

INPUT-1

10131211141517161918212022

14

12

15

INPUT-0

INPUT-1

P-ON-H2

VOLUME

AUDIO-MUTE

GND

VIDEO-Y

19

4

GND

VIDEO-Y

PROTECT-1

AFT-IN

9

10

AFT-IN

PROTECT-1

CN802

SP-L

1

GND

18

6

GND

PROTECT-2

8

PROTECT-2

GND

2

CLN802

S-VIDEO-C

GND

S-VIDEO-Y

161113

15

17

9

7

8

GND

S-VIDEO-Y

S-VIDEO-C

SDA

S-SW

SCL

724

6

SCL

SDA

S-SW

GND

CVBS

GNDNUGNDNUAL+3.3V(A)

14

12

101412

11

13

NU

GNDNUGND

GND

CVBS

GND

P-25V-ON

GND

AL+5V

23

153

GND

AL+5V

P-25V-ON

9

10

15

AL+3.3V(A)

NU

DVD-MAIN-POWER(NU)

724

6

8

18

16

17

NU

DVD-MAIN-POWER(NU)

(NO CONNECTION)

CN113

GND

AL+7V(D)

BUS-OPEN

1923212022

GND

AL+7V(D)

BUS-OPEN

GND

SCL

SDA

134

2

GND

FSC

153

FSC

GND

CN113 IS USED

FOR ADJUSTMENT

BUS-OPEN

KEY-IN-2

CN104

132

1

CLN104

KEY-IN-2

MAIN CBA

AT FACTORY

KEY-IN-1

2

KEY-IN-1

AL+3.3V

GND

4

3

4

GND

AL+3.3V

NUNUREMOTE

NU

576

8

576

8

NU

REMOTE

FUNCTION CBA

TU1 TUNER UNIT

AL+5V

CN105

134

1

AL+5V

CLN105

GND

2

GND

REMOTE

3

REMOTE

NU

P-ON-H

5

5NU

4

P-ON-H

AUDIO2

(L)-IN

AUDIO2

(R)-IN

AUDIO1

(L)-IN

AUDIO1

(R)-IN

VIDEO

-Pr/Cr

VIDEO

-Pb/Cb

VIDEO

-Y

IR SENSOR CBA

IN

1

CN312

GND

VIDEO1

AC CORD

AC601

CN402

2

SP801

SPEAKER

HMS1-E

ER(0)

ER(1)

ER(2)

ER(3)

ER(4)

ER(5)

132547689

CN311

2NU

3

5NU

6

7NU

8

9NU

10

11NU12OFFEV

V-COM4V-COM

VDDG(+25V)

VDDD(+3.3V)

VEEG(-6V)

SP802

SPEAKER

GND

CLKH

GND

HMS1-0

GND

OB(5)

OB(4)

OB(3)

OB(2)

OB(1)

OB(0)

GND

OG(5)

OG(4)

OG(3)

OG(2)

101312111415171619182120222324272625282930

13STV1

14

15

16GND

CLKV

17NU18NU19NU20NU21

XAO

GND

22

23VREF(8)

VREF(9)

24VREF(7)

25VREF(6)

26VREF(5)

27

GND

28VREF(4)

29

VREF(3)30VREF(2)

OG(1)

OG(0)

31VREF(1)

32

VREF(0)

GND

OR(5)

33VDDA(+10.8V)

34

VDDA(+10.8V)

1

BACK

LIGHT

OR(4)

OR(3)

OR(2)

OR(1)

OR(0)

GND

333231

3435373639384140424344

35

36V-COM

37GND

38EB(5)

39EB(4)

40EB(3)

V-COM

GND

VDDD(+3.3V)

41

42EB(1)

EB(2)

VDDD(+3.3V)

GND

43

44

45EG(5)

46

GND

EB(0)

EG(4)

CN403

1

BACK

STH1

47EG(3)

2

LIGHT

POLLPGND

45

48

50EG(0)

EG(2)49EG(1)

-IN

S-VIDEO

OUT IN

LCD MODULE

L3100WI10-1

Cabinet

[ 6615LF4/STL1505 ]

EXPLODED VIEWS

A1

SP801

B1

B5

B6

CLN801

L1

B6

A3

A2

Function CBA

B1

L1

B6

SP802

CLN802

B1

B6

B5

L1

B1

L1

L3

L1

L3

L4

Main CBA

L10

B6

A4

L2

LCD Main CBA & Liquid Crystal Panel Unit

See Electrical Parts List for parts with this mark.

L9

B4

L3

B6

B7

L3

B7

AC601

B8

11-1 L3100_05_08CEX

B3

L2

B6

A5

A10

L17

A5

L2

A6

S5

L2

L6

A9

[ 6615LF ]

A3

L1

A11

B6

A2

B5

SP801

A1

SP802

B6

CLN801

L7

B5

L1

B6

CLN802

L7

L1

A7

Function CBA

L1

B9

L1

L3

L10

B3

B8

Main CBA

B9

B6

B9

L2

L3

L2

A9

B6

L2

L17

L2

L17

A4

A10

L2

A6

S5

L17

IR Sensor CBA

L7

LCD Main CBA & Liquid Crystal Panel Unit

See Electrical Parts List for parts with this mark.

L1

B12

L9

B4

L1

L3

L4

L21

L3

B6

B7

AC601

11-2 L3100_05_08CEX

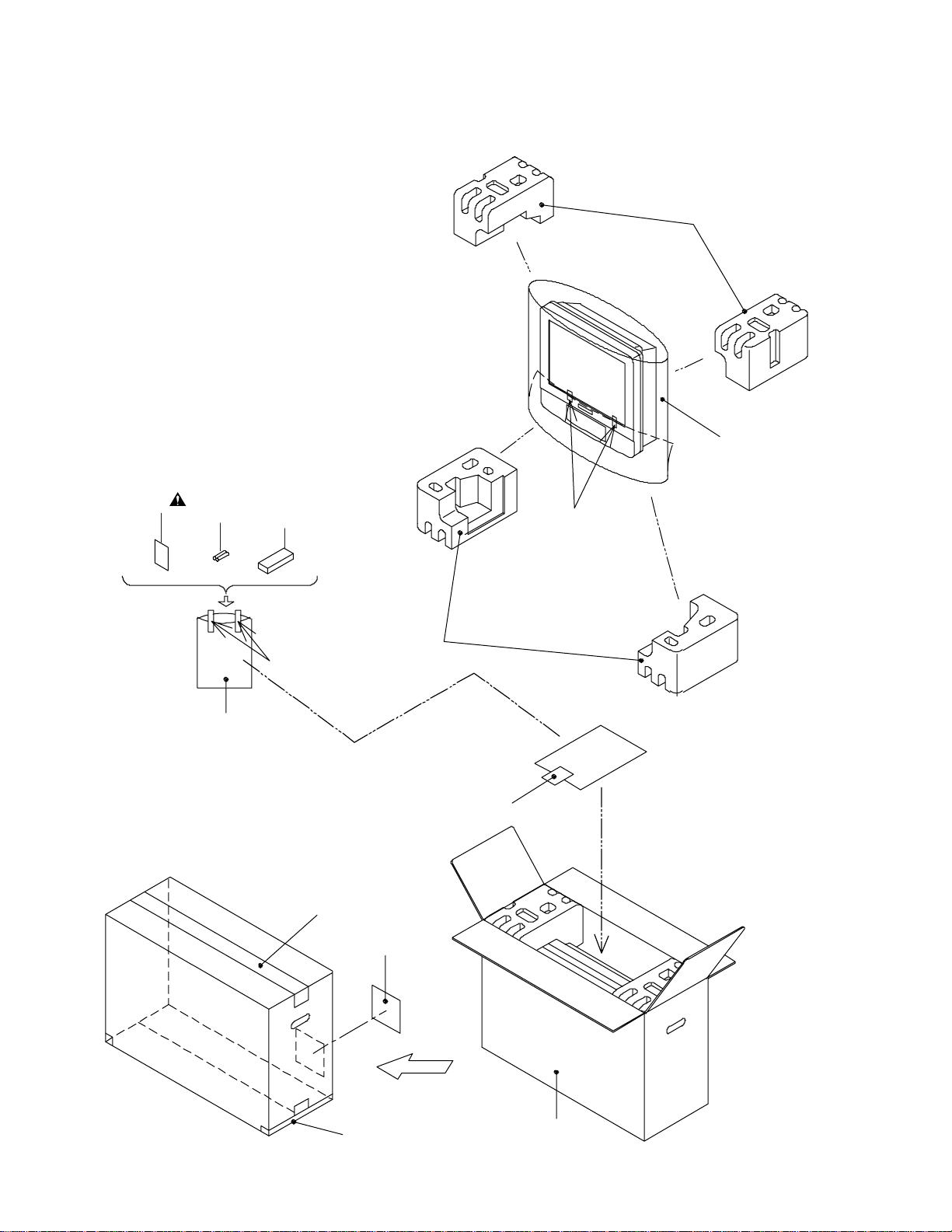

Packing

[ 6615LF4/STL1505 ]

Some Ref. Numbers are not in sequence.

S2

S4

X2

X4

X1

X3

Tape

Packing Tape

Tape

S3

Packing Tape

S5

Packing Tape

FRONT

S1

11-3 L3100PEX

[ 6615LF ]

S2

Some Ref. Numbers are not in sequence.

S4

X2

X4

X1

X3

Tape

Packing Tape

Tape

S3

Packing Tape

S14

S5

Packing Tape

FRONT

S1

11-4 L3100PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Comparison Chart of Models and Marks

Model Mark

6615LF4 A STL1505 B

6615LF C

Ref. No. Mark Description Part No.

A1 A,B FRONT CABINET L0201UB 0EM201816A A1 C FRONT CABINET L3108UJ 1EM220182 A2 A,C BRAND BADGE L0200UA~SYLVANIA~ 0EM409019 A2 B BRAND BADGE L6509UK 0EM408355 A3 A,B CONTROL PLATE L0201UB 0EM302073A A3 C CONTROL PLATE L3107UH 1EM320177 A4 A,B REAR CABINET L3100UA 1EM020145 A4 C REAR CABINET L3107UH 1EM020161 A5 A,B RUUBBER FOOT L3201UB 1EM320183 A6# A RATING LABEL L3100UA ---------A6# B RATING LABEL L3105UF ---------A6# C RATING LABEL L3108UJ ---------A7 C FUNCTION KNOB L3107UH 1EM220101 A9 A,B PHOTO STAND ASSEMBLY L3100UA 1EMN20241 A9 C TILT STAND ASSEMBLY L0110UA 0EMN02169 A10 A,B CONNECTOR CAP L3100UA 1EM420655 A10 C CONNECTOR CAP L3107UH 1EM420711 A11 C LED LENS L3107UH 1EM320175 B1 A,B SPEAKER HOLDER L0110UA 0EM407855C B3 STAND HOLDER L3201UB 1EM320164 B4 JACK HOLDER L3201UB 1EM120107 B5 CLOTH(10X30XT0.5) B5900UA 0EM404486 B6 CLOTH(10X190XT0.3) L0200UA 1EM420019 B7 CLOTH(20X65XT0.5) L0100JA 0EM407914 B8 CLOTH 10X150XT1.0 1EM421092 B9 C CLOTH(15X30XT1.0) B7507UH 0EM402452 B12 C TILT STAND HOLDER L3107UH 1EM320176 CLN801 A,B SPEAKER WIRE ASSEMBLY

CLN801 C SPEAKER WIRE ASSEMBLY

CLN802 A,B SPEAKER WIRE ASSEMBLY

CLN802 C SPEAKER WIRE ASSEMBLY

L1 SCREW P-TIGHT 3X12 WASHER

L2 SCREW P-TIGHT 3X12 BIND HEAD+ GBMP3120 L3 SCREW S-TIGHT M3X8 BIND HEAD+ GBMS3080 L6 A,B DOUBLE SEMS SCREW M4X9 L0130UA 0EM408146 L7 C ASSEMBLED SCREW M3X10 1EM420633 L9 SCREW P-TIGHT 3X10 BIND HEAD+ GBKP3100 L10 P-TIGHT SCREW 3X8 BIND + GBMP3080

WX1L3100-001

WX1L3101-001

WX1L3100-001

WX1L3101-001

HEAD+

WX1L3100-001

WX1L3101-001

WX1L3100-001

WX1L3101-001

GCMP3120

Ref. No. Mark Description Part No.

L17 SCREW S-TIGHT M3X8 BIND HEAD +

L21 C SCREW P-TIGHT 4X16 BIND HEAD + GBMP4160 SP801 SPEAKER S0407F10 DSD0807XQ002 SP802 SPEAKER S0407F10 DSD0807XQ002

BLK

GBKS3080

PACKING

S1 A CARTON L3100UA 1EM420654 S1 B CARTON L3105UF 1EM420828 S1 C CARTON L3108UJ 1EM420892 S2 A,B STYROFOAM TOP L3100UA 1EM020146 S2 C STYROFOAM TOP L3108UJ 1EM020188 S3 A,B STYROFOAM BOTTOM L3100UA 1EM020147 S3 C STYROFOAM BOTTOM L3108UJ 1EM020189 S4 SET BAG L3100UA 1EM320214 S5 SERIAL NO. LABEL L9750UA ---------S14 C STAND HOLD PAD L3108UJ 1EM421191

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420 X2# A OWNERS MANUAL L3100UA 1EMN20242 X2# B OWNERS MANUAL L3105UF 1EMN20255 X2# C OWNERS MANUAL L3108UJ 1EMN20275 X3 REMOTE CONTROL 170/ECNLC301/

X4 DRY BATTERY R03/2S XB0M451T0006

NE900UD

20050329 12-1 L3100CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Comparison Chart of Models and Marks

Model Mark

6615LF4 A STL1505 B

6615LF C

LCD MAIN CBA & LIQUID CRYSTAL PANEL UNIT

Ref. No. Description Part No.

LCD MAIN CBA & LIQUID CRYSTAL PANEL UNIT

1FSA10032

ANALOG MAIN CBA ASSEMBLY

Ref. No. Mark Description Part No.

A,BCANALOG MAIN CBA ASSEMBLY

ANALOG MAIN CBA ASSEMBLY Consists of the following:

MAIN CBA FUNCTION CBA

C

IR SENSOR CBA

MAIN CBA

Ref. No. Mark Description Part No.

MAIN CBA Consists of the following:

CAPACITORS

C11 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C12 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C13 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C14 CHIP CERAMIC CAP.(1608) CH J 100pF/

C15 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL010 C16 CHIP CERAMIC CAP.(1608) CH J 100pF/

C21 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C22 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101 C23 CHIP CERAMIC CAP.(1608) CH J

50V

1000pF/ 50V

1ESA10645 1ESA10729

----------

CHD1JK30B103

CHD1JJ3CH101

CHD1JK30B103

CHD1JJ3CH102

Ref. No. Mark Description Part No.

C24 CHIP CERAMIC CAP.(1608) CH J

C25 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C26 PCB JUMPER D0.6-P5.0 JW5.0T C27 FILM CAP.(P) 0.018µF/50V J CMA1JJS00183 C28 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C29 CHIP CERAMIC CAP. CH D 3pF/ 50V CHD1JD3CH3R0 C30 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C31 PCB JUMPER D0.6-P5.0 JW5.0T C32 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101 C34 CHIP CERAMIC CAP.(1608) CH J 47pF/

C35 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL010 C36 CHIP CERAMIC CAP.(1608) CH J 47pF/

C37 A,B CHIP CERAMIC CAP. B K 680pF/ 50V CHD1JK30B681 C37 C CHIP CERAMIC CAP. CH J 680pF/ 50V CHD1JJ3CH681 C39 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMASSLR47 C41 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7 C42 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C43 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C44 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101 C45 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C46 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C401 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C403 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C404 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C406 CHIP CERAMIC CAP.(1608) B K 5600pF/

C408 PP CAP. 0.13µF/250V J CT2E134MS041 C409 PP CAP. 0.13µF/250V J CT2E134MS041 C411 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMASSL101 C454 CERAMIC CAP. SL D 10pF/ 3KV CCD3FDASL100 C455 CERAMIC CAP. SL D 10pF/ 3KV CCD3FDASL100 C456 CERAMIC CAP. SL D 10pF/ 3KV CCD3FDASL100 C457 CERAMIC CAP. SL D 10pF/ 3KV CCD3FDASL100 C458 CERAMIC CAP. SL D 10pF/ 3KV CCD3FDASL100 C459 CERAMIC CAP. SL D 10pF/ 3KV CCD3FDASL100 C460 CERAMIC CAP. SL D 10pF/ 3KV CCD3FDASL100 C461 CERAMIC CAP. SL D 10pF/ 3KV CCD3FDASL100 C468 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C469 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C471 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C472 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C474 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C477 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C479 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C501 ELECTROLYTIC CAP. 22µF/50V M H7 CE1JMASSL220 C502 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C503 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C504 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101

1000pF/ 50V

50V

CHD1JJ3CH102

CHD1JK30B103

CHD1JK30B473

CHD1JK30B103

CHD1JJ3CH470

CHD1JK30B103

CHD1JK30B562

CHD1JK30B473

CHD1JK30B103

20050329 13-1 L3100EL

Ref. No. Mark Description Part No.

C505 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C506 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C507 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C508 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C515 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C531 ELECTROLYTIC CAP. 330µF/50V M CE1JMASDL331 C532 CHIP CERAMIC CAP.(1608) B K 0.22µF/

C534 CHIP CERAMIC CAP. B K 1µF/16V CHD1CK30B105 C535 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C537 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C538 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C539 CHIP CERAMIC CAP.(1608) CH J 100pF/

C601# METALLIZED FILM CAP. 0.1µF/250V CT2E104MS037 C602# METALLIZED FILM CAP. 0.22µF/250V CT2E224MS037 C605 A,B CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103 C605 C CERAMIC CAP. F Z 0.01µF/500V CCD2JZP0F103 C606 A,B CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103 C606 C CERAMIC CAP. F Z 0.01µF/500V CCD2JZP0F103 C608 CERAMIC CAP. B K 1000pF/ 2KV CCD3DKP0B102 C610# ELECTROLYTIC CAP. 100µF/200V M CE2DMZPDL101 C612 FILM CAP.(P) 0.01µF/50V J CMA1JJS00103 C613 FILM CAP.(P) 0.056µF/50V J CMA1JJS00563 C614 PCB JUMPER D0.6-P5.0 JW5.0T C615 PCB JUMPER D0.6-P5.0 JW5.0T C630# ELECTROLYTIC CAP. 2200µF/25V M CE1EMZPDL222 C633# ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C634# ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNTL102 C635# ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471 C636 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C641# SAFETY CAP. 4700pF/ 250V KX CA2E472MR050 C642# ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C644# ELECTROLYTIC CAP. 100µF/50V M CE1JMASTL101 C645# ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C646 MYLAR CAP. 0.22µF/50V J CMA1JJS00224 C648 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL010 C649 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C650 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C652# ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNTL102 C654# ELECTROLYTIC CAP. 100µF/200V M CE2DMZPDL101 C657 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C659 FILM CAP.(P) 0.022µF/50V J CMA1JJS00223 C660 FILM CAP.(P) 0.0068µF/50V J CMA1JJS00682 C661 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7 C671 ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471 C672 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C673 ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471 C674 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C701 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C702 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C703 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C704 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C705 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V

25V

50V

CHD1JK30B103

CHD1EK30B224

CHD1JK30B103

CHD1JJ3CH101

CHD1JK30B104

CHD1JK30B103

Ref. No. Mark Description Part No.

C706 CHIP CERAMIC CAP.(1608) CH J

C707 CHIP CERAMIC CAP.(1608) CH J

C708 CHIP CERAMIC CAP.(1608) CH J 100pF/

C711 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C712 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C713 CHIP CERAMIC CAP.(1608) B K 3300pF/

C714 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C715 CHIP CERAMIC CAP.(1608) B K 3300pF/

C716 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C722 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C726 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C730 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C734 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C735 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C736 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C738 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C739 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101 C740 CHIP CERAMIC CAP.(1608) CH J 100pF/

C751 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C752 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C753 CHIP CERAMIC CAP.(1608) B K 3300pF/

C754 CHIP CERAMIC CAP.(1608) B K 3300pF/

C781 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C782 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C784 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C785 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101 C787 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C801 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C802 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C803 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C804 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C805 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C806 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C807 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C809 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7 C811 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMASSL101 C812 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C813 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C818 ELECTROLYTIC CAP. 2200µF/16V M CE1CMZPDL222 C819 CHIP CERAMIC CAP. B K 2200pF/ 50V CHD1JK30B222 C820 CHIP CERAMIC CAP. B K 2200pF/ 50V CHD1JK30B222 C851 CHIP CERAMIC CAP.(1608) CH J 100pF/

C852 CHIP CERAMIC CAP.(1608) CH J 100pF/

C853 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C854 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C855 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C856 CHIP CERAMIC CAP.(1608) B K 0.33µF/

C857 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C858 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C859 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7

1000pF/ 50V

50V

10V

CHD1JJ3CH102

CHD1JJ3CH101

CHD1JK30B332

CHD1JK30B103

CHD1JJ3CH101

CHD1JK30B332

CHD1JK30B104

CHD1JK30B103

CHD1JJ3CH101

CHD1JK30B104

CHD1AK30B334

20050329 13-2 L3100EL

Ref. No. Mark Description Part No.

C860 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C861 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101 C862 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C863 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C864 CHIP CERAMIC CAP.(1608) B K 0.022µF/

C865 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C866 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C867 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C868 CHIP CERAMIC CAP. B K 1µF/16V CHD1CK30B105 C869 CHIP CERAMIC CAP.(1608) B K 0.022µF/

50V

CHD1JK30B103

CHD1JK30B223

CHD1JK30B104

CHD1JK30B223

CONNECTORS

CN113 PH CONNECTOR (WHITE) TOP 4P B4B-

CN402 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001 CN403 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001 CN801 STRAIGHT CONNECTOR BASE 00 8283

CN802 STRAIGHT CONNECTOR BASE 00 8283

CN101A TWG CONNECTOR 09P TWG-P09P-A1 J3TWA09TG001 CN102A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001 CN103A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

PH-K-S(LF)

0212 00 000

J3PHC04JG017

J383C02UG002

DIODES

D31 SWITCHING DIODE 1SS400 QD1Z001SS400 D402 SWITCHING DIODE 1SS400 QD1Z001SS400 D403# ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1 D404# SWITCHING DIODE 1SS400 QD1Z001SS400 D405# SWITCHING DIODE 1SS400 QD1Z001SS400 D406# SWITCHING DIODE 1SS400 QD1Z001SS400 D407# SWITCHING DIODE 1SS400 QD1Z001SS400 D408 ZENER DIODE MTZJT-7710B QDTB00MTZJ10 D409 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D410 SWITCHING DIODE 1SS400 QD1Z001SS400 D411 SWITCHING DIODE 1SS400 QD1Z001SS400 D412# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D413# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D414 SWITCHING DIODE 1SS400 QD1Z001SS400 D415 SWITCHING DIODE 1SS400 QD1Z001SS400 D420# SWITCHING DIODE 1SS400 QD1Z001SS400 D421# SWITCHING DIODE 1SS400 QD1Z001SS400 D422 SWITCHING DIODE 1SS400 QD1Z001SS400 D423 SWITCHING DIODE 1SS400 QD1Z001SS400 D428 SWITCHING DIODE 1SS400 QD1Z001SS400 D430 SWITCHING DIODE 1SS400 QD1Z001SS400 D440 SWITCHING DIODE 1SS400 QD1Z001SS400 D441 SWITCHING DIODE 1SS400 QD1Z001SS400 D442 SWITCHING DIODE 1SS400 QD1Z001SS400 D443 SWITCHING DIODE 1SS400 QD1Z001SS400 D444 SWITCHING DIODE 1SS400 QD1Z001SS400 D445 SWITCHING DIODE 1SS400 QD1Z001SS400 D446 SWITCHING DIODE 1SS400 QD1Z001SS400 D447 SWITCHING DIODE 1SS400 QD1Z001SS400 D448 SWITCHING DIODE 1SS400 QD1Z001SS400 D449 SWITCHING DIODE 1SS400 QD1Z001SS400 D450 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D451 SWITCHING DIODE 1SS400 QD1Z001SS400 D452 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D453 SWITCHING DIODE 1SS400 QD1Z001SS400 D454 SWITCHING DIODE 1SS400 QD1Z001SS400 D455 SWITCHING DIODE 1SS400 QD1Z001SS400 D466 SWITCHING DIODE 1SS400 QD1Z001SS400

Ref. No. Mark Description Part No.

D467 SWITCHING DIODE 1SS400 QD1Z001SS400 D468 SWITCHING DIODE 1SS400 QD1Z001SS400 D469 SWITCHING DIODE 1SS400 QD1Z001SS400 D480 ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1 D501# SWITCHING DIODE 1SS400 QD1Z001SS400 D502 ZENER DIODE MTZJT-7727B QDTB00MTZJ27 D504 SWITCHING DIODE 1SS400 QD1Z001SS400 D505 IC SHUNT REGULATOR KIA431-AT NSZLA0TJY001 D506 SWITCHING DIODE 1SS400 QD1Z001SS400 D507 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D510 SWITCHING DIODE 1SS400 QD1Z001SS400 D511 SWITCHING DIODE 1SS400 QD1Z001SS400 D512 SWITCHING DIODE 1SS400 QD1Z001SS400 D513 SWITCHING DIODE 1SS400 QD1Z001SS400 D514 SCHOTTKY BARRIER DIODE ERC81-

D515 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 D520 SCHOTTKY BARRIER DIODE 11EQS04 QD4Z011EQS04 D522 SWITCHING DIODE 1SS400 QD1Z001SS400 D523 SCHOTTKY BARRIER DIODE ERC81-

D525 ZENER DIODE MTZJT-7710B QDTB00MTZJ10 D527 SCHOTTKY BARRIER DIODE 11EQS04 QD4Z011EQS04 D535 ZENER DIODE MTZJT-773.9B QDTB0MTZJ3R9 D605# DIODE 1N5397-B NDLZ001N5397 D606# DIODE 1N5397-B NDLZ001N5397 D607# DIODE 1N5397-B NDLZ001N5397 D608# DIODE 1N5397-B NDLZ001N5397 D609 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D611# ZENER DIODE MTZJT-7722B QDTB00MTZJ22 D612 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D613 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D615 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D616# ZENER DIODE MTZJT-7733B QDTB00MTZJ33 D620 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D624# ZENER DIODE MTZJT-7733B QDTB00MTZJ33 D630# SCHOTTKY BARRIER DIODE ERC84-

D631# DIODE FR154 NDLZ000FR154 D632 SCHOTTKY BARRIER DIODE ERC84-

D633# SCHOTTKY BARRIER DIODE ERC81-

D636 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D639# SCHOTTKY BARRIER DIODE ERC81-

D640# DIODE FR104-B NDLZ000FR104 D641 ZENER DIODE MTZJT-7733C QDTC00MTZJ33 D642 SWITCHING DIODE 1SS400 QD1Z001SS400 D643 SWITCHING DIODE 1SS400 QD1Z001SS400 D644# SWITCHING DIODE 1SS400 QD1Z001SS400 D645# DIODE FR154 NDLZ000FR154 D646# DIODE 1ZC43 QDQZ0001ZC43 D647 ZENER DIODE MTZJT-7739B QDTB00MTZJ39 D648# SWITCHING DIODE 1SS400 QD1Z001SS400 D649# IC SHUNT REGULATOR KIA431-AT NSZLA0TJY001 D650 SWITCHING DIODE 1SS400 QD1Z001SS400 D651 SWITCHING DIODE 1SS400 QD1Z001SS400 D652 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D653 SWITCHING DIODE 1SS400 QD1Z001SS400 D658 PCB JUMPER D0.6-P5.0 JW5.0T D659 PCB JUMPER D0.6-P5.0 JW5.0T D668 SWITCHING DIODE 1SS400 QD1Z001SS400 D672 SWITCHING DIODE 1SS400 QD1Z001SS400 D681 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

004

009

004

QDPZERC81004

QDLZERC84009

QDPZERC81004

20050329 13-3 L3100EL

Ref. No. Mark Description Part No.

D682 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D701 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2 D702 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2 D703 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2 D801 SWITCHING DIODE 1SS400 QD1Z001SS400 D802 SWITCHING DIODE 1SS400 QD1Z001SS400 D803 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D810 ZENER DIODE MTZJT-773.3B QDTB0MTZJ3R3

ICS

IC31 IC VIF/SIF M61116FP TF0G QSZBA0SHT034 IC531# IC REGULATOR KA78R08C NSZBA0SF3119 IC533 IC NJM78L05 QSBLA0ZJR034 IC601# PHOTOCOUPLER PS2501-1W QPEW0PS25011 IC671 VOLTAGE REGULATOR KIA7805API NSBBA0SJY011 IC672 VOLTAGE REGULATOR KIA7805API NSBBA0SJY011 IC781 IC TC4053BF(EL.N) QSZBA0TTS131 IC801 IC AN17812A QSZBA0SMS017 IC851 IC MTS DECORDER AN5832SA-E1 QSZBA0TMS003 IC852 IC SWITCHING TC4052BF(EL) QSZBA0TTS096

COILS

L11 INDUCTOR 22µH-K-5FT LLARKBSTU220 L12 PCB JUMPER D0.6-P5.0 JW5.0T L21 INDUCTOR 100µH-K-5FT LLARKBSTU101 L22 INDUCTOR 150µH-J-26T LLAXJATTU151 L31 INDUCTOR 22µH-K-5FT LLARKBSTU220 L32 INDUCTOR 18µH-J-26T LLAXJATTU180 L401 CHOKE COIL ELC10D330E LLC330KMS003 L403 CHOKE COIL ELC10D330E LLC330KMS003 L601# LINE FILTER TLF14CB3321R0 LLBG00ZTU012 L701 INDUCTOR 22µH-K-5FT LLARKBSTU220 L781 PCB JUMPER D0.6-P5.0 JW5.0T L851 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q32 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q401# TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q403 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M Q404 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q405 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q406 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q407 TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q408 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q409 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q410 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q411# MOS FET 2SK2231 QF1Z2SK2231Q Q412# MOS FET 2SK2231 QF1Z2SK2231Q Q415# MOS FET 2SK2231 QF1Z2SK2231Q Q416# MOS FET 2SK2231 QF1Z2SK2231Q Q421 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q422 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q423 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q424 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q427 TRANSISTOR 2SA1887 QQWZ02SA1887 Q428 TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q501 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q502 TRANSISTOR 2SA1576A T106R QQ1R2SA1576A Q503 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q505 TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q509 TRANSISTOR 2SA1576A T106R QQ1R2SA1576A Q510 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q511 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M Q512 TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q513 TRANSISTOR 2SC2785(F) QQSF02SC2785

Ref. No. Mark Description Part No.

Q531 TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q601# FET 2SK3869(Q) QFWZ2SK3869Q Q603# TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q633 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081 Q661 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q701 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081 Q702 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081 Q703 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081 Q704 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q705 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081 Q706 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q707 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081 Q708 TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081 Q802 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q803 TRANSISTOR 2SA1175(F) QQSF02SA1175

RESISTORS

R11 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R12 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R13 INDUCTOR 0.47µH-J-26T LLAXJATTUR47 R15 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R21 CHIP RES.(1608) 1/10W J 270k Ω RRXAJR5Z0274 R23 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R24 CHIP RES.(1608) 1/10W J 820k Ω RRXAJR5Z0824 R34 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R36 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R38 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R40 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153 R42 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221 R46 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R48 PCB JUMPER D0.6-P5.0 JW5.0T R49 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R50 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R52 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471 R402 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R403 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153 R404 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R405 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152 R406 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R407 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R408 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R409 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153 R410 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R411 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R412 CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470 R413 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R414 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R415 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R416 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R417 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R418 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R419 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R420 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330 R421 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R422 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331 R423 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R424 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R425 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R426 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R427 CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470 R428 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331 R429 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560 R440 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

20050329 13-4 L3100EL

Ref. No. Mark Description Part No.

R441 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331 R442 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R443 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R444 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R445 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R446 CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470 R447 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331 R448 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560 R463 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R464 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R465 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R466 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R471 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392 R475 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R476 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R480 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392 R481 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R482 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R486 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392 R487 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R488 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R489 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392 R490 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R491 METAL OXIDE FILM RES 2W J 330 Ω RN02331KE010 R492 METAL OXIDE FILM RES. 1W J 1k Ω RN01102KE010 R495 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R496 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R497 METAL OXIDE FILM RES 2W J 330 Ω RN02331KE010 R501 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H1002 R502 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R503 CHIP RES.(100PPM) 1/10W F 3k Ω RRXAFR5H3001 R504 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R505 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272 R506 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R508 MRTAL OXIDE FILM RES. 1W J 4.7k Ω RN01472KE010 R509 PCB JUMPER D0.6-P5.0 JW5.0T R510 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R512 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R514 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R515 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R516 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R517 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R518 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R519 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R520 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R521 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R522 CHIP RES.(1608) 1/10W J 120k Ω RRXAJR5Z0124 R527 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392 R528 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R529 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R530 METAL OXIDE FILM RES. 2W J 4.7 Ω RN024R7KE010 R531 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R532 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R533 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R535 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R536 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R537 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R538 PCB JUMPER D0.6-P5.0 JW5.0T R552 FIXED METAL OXIDE FILM RE S. 1W J 1 ΩRN011R0KE010

R601# CEMENT RES. 3W K 1.2 Ω RW031R2PG007 R603# CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R604 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394

Ref. No. Mark Description Part No.

R605 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R606 PCB JUMPER D0.6-P5.0 JW5.0T R607 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R608 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R609 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R610 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R613# METAL OXIDE FILM RES. 2W J 0.47 Ω RN02R47KE010 R620 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R621 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R622 PCB JUMPER D0.6-P5.0 JW5.0T R623 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R633 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683 R634# CARBON RES. 1/4W J 18k Ω RCX4JATZ0183 R635# CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273 R636 PCB JUMPER D0.6-P5.0 JW5.0T R637 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R642# CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273 R643# CHIP RES.(1608) 1/10W J 270k Ω RRXAJR5Z0274 R645 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R646 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R647 CHIP RES.(1608) 1/10W F 1.8k Ω RRXAFR5H1801 R648# CHIP RES.(1608) 1/10W F 2k Ω RRXAFR5H2001 R650# CHIP RES.(1608) 1/10W F 1.8k Ω RRXAFR5H1801 R651 CHIP RES.(1608) 1/10W F 2k Ω RRXAFR5H2001 R652# CHIP RES. 1/10W F 1.2k Ω RRXAFR5H1201 R653# CHIP RES. 1/10W F 1.2k Ω RRXAFR5H1201 R654# CHIP RES. 1/10W F 1.2k Ω RRXAFR5H1201 R655 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R656 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R657 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R658 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R661# CHIP RES.(1608) 1/10W F 1.8k Ω RRXAFR5H1801 R662 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183 R663 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R664 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R665# CHIP RES. 1/10W F 1.1k Ω RRXAFR5H1101 R671 PCB JUMPER D0.6-P5.0 JW5.0T R672 PCB JUMPER D0.6-P5.0 JW5.0T R701 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R702 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R703 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R704 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R705 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R706 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R707 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R708 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R709 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R710 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R711 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R712 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R713 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R714 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R715 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R716 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R717 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R718 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R719 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R720 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R721 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R722 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R725 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R732 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R733 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333

20050329 13-5 L3100EL

Ref. No. Mark Description Part No.

R734 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R735 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R736 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R738 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R739 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R740 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R741 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R742 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R743 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R744 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R747 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R748 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R749 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R752 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R755 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R756 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R757 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R758 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R759 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R782 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R784 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R785 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R786 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R787 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R788 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R789 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R790 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R791 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R792 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R793 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R794 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R798 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R799 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R801 CARBON RES. 1/2W J 100 Ω RCX2JZQZ0101 R802 CARBON RES. 1/2W J 100 Ω RCX2JZQZ0101 R803 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R804 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R805# METAL OXIDE FILM RES. 2W J 2.7 Ω RN022R7KE010 R806 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R807# METAL OXIDE FILM RES. 2W J 2.7 Ω RN022R7KE010 R808 CHIP RES.(1608) 1/10W J 56k Ω RRXAJR5Z0563 R809 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184 R810 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R811 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R813 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R814 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272 R816 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272 R817 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R820 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R821 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R822 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R823 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R824 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R825 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R826 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R827 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R829 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R830 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R831 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R832 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R833 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R834 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R835 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562

Ref. No. Mark Description Part No.

R836 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331 R837 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123 R838 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R839 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123 R842 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R843 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R844 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R851 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R852 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R853 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R855 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184

MISCELLANEOUS

AC601# AC CORD PB8K9F4110AB057 WAC0172LW020 B6 POW HEAT SINK PKG ASSEMBLY

B7 SHIELD BOX TOP L3201UB 1EM320159 BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC632 PCB JUMPER D0.6-P5.0 JW5.0T BC634 PCB JUMPER D0.6-P5.0 JW5.0T BC635 PCB JUMPER D0.6-P5.0 JW5.0T BC636 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 CF31 CERAMIC FILTER SFSRA4M50CF00-B0 FBB455PMR004 F601# FUSE 4.00A/125V PAGU20CAG402 FH601 FUSE HOLDER MSF-015 XH01Z00LY001 FH602 FUSE HOLDER MSF-015 XH01Z00LY001 GP641

#

JK701 Y/C JACK 1P(SW) MDC-070V1-A JYEL040LY002 JK703 RCA JACK(YELLOW) MTJ-032-06B-20 JXRL010LY050 JK704 RCA JACK(WHITE) MTJ-032-06B-22 JXRL010LY052 JK705 RCA JACK(RED) MTJ-032-06A-21 JYRL010LY014 JK706 RCA JACK(GREEN) MTJ-032-06B-25 JXRL010LY054 JK707 RCA JACK(BLUE) MTJ-032-06B-28 JXRL010LY057 JK708 RCA JACK(RED) MTJ-032-06B-21 JXRL010LY051 JK709 RCA JACK(WHITE) MTJ-032-06B-22 JXRL010LY052 JK710 RCA JACK(RED) MTJ-032-06A-21 JYRL010LY014 JK801 HEADPHONE JACK MSJ-035-10A B JYSL020LY002 JS524 PCB JUMPER D0.6-P5.0 JW5.0T JS601 PCB JUMPER D0.6-P7.5 JW7.5T JS602 PCB JUMPER D0.6-P10.0 JW10.0T JS603 PCB JUMPER D0.6-P7.5 JW7.5T JS604 PCB JUMPER D0.6-P10.0 JW10.0T JS632 PCB JUMPER D0.6-P10.0 JW10.0T JS633 PCB JUMPER D0.6-P10.0 JW10.0T JS636 PCB JUMPER D0.6-P5.0 JW5.0T JS805 PCB JUMPER D0.6-P5.0 JW5.0T JS806 PCB JUMPER D0.6-P5.0 JW5.0T JS813 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 L4 SCREW B-TIGHT D3X8 BIND HEAD+ GBMB3080 SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB SF11 SAW FILTER SAFHM45M7VAJZ01B03 FBB456PMR012 T402# INVERTER TRANS ETJV25ZB13AC LTZ00EPMS006 T403# INVERTER TRANS ETJV25ZB13AC LTZ00EPMS006 T601# SWITCHING TRANS 5725 LTT00CPKT185 TP402 PCB JUMPER D0.6-P12.5 JW12.5T TP403 PCB JUMPER D0.6-P5.0 JW5.0T TU1 TUNER UNIT TEFH9-002A UTUNNTUAL045

L3201UB

GAP. FNR-G3.10D FAZ000LD6005

1EM420650

20050329 13-6 L3100EL

FUNCTION CBA

Ref. No. Mark Description Part No.

FUNCTION CBA Consists of the following:

CAPACITORS

C101 A,B ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470 C103 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

RESISTORS

R101 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R102 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R103 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R104 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152 R105 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R106 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272 R107 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R108 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682 R109 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R110 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R118 A,B CHIP RES.(1608) 1/10W J 68 Ω RRXAJR5Z0680 R119 A,B CHIP RES.(1608) 1/10W J 68 Ω RRXAJR5Z0680

SWITCHES

SW101 TACT SWITCH SKQSAB SST0101AL038 SW102 TACT SWITCH SKQSAB SST0101AL038 SW103 TACT SWITCH SKQSAB SST0101AL038 SW104 TACT SWITCH SKQSAB SST0101AL038 SW105 TACT SWITCH SKQSAB SST0101AL038 SW107 TACT SWITCH SKQSAB SST0101AL038 SW111 TACT SWITCH SKQSAB SST0101AL038

MISCELLANEOUS

CLN104 A,B 8P WIRE ASSEMBLY WX1L3100-003 WX1L3100-003 CLN104 C 8P WIRE ASSEMBLY WX1L3101-003 WX1L3101-003 JS121 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS122 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS123 A,B CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS124 A,B CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 RCV101 A,B PHOTO LINK MODULE KSM-712TH2E USESJRSKK044

----------

IR SENSOR CBA

Ref. No. Mark Description Part No.

C IR SENSOR CBA

Consists of the following:

CAPACITOR

C102 C ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

DIODE

D102 C LED LTL-4214M1 NPQZLTL4214M

TRANSISTOR

Q102 C TRANSISTOR 2SC4081 T106 Q QQ1Q02SC4081

RESISTORS

R123 C CHIP RES.(1608) 1/10W J 68 Ω RRXAJR5Z0680 R124 C CHIP RES.(1608) 1/10W J 68 Ω RRXAJR5Z0680 R125 C CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151 R126 C CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151 R127 C CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

C CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

MISCELLANEOUS

CLN105 C 5P WIRE ASSEMBLY WX1L3101-004 WX1L3101-004 RCV102 C REMOCON RECEIVE UNIT PIC-

37042SR

----------

USESJRSKK034

20050329 13-7 L3100EL

6615LF4/STL1505/6615LF

L3100UA/05UF/08UJH

2005-04-22

SUPPLEMENT

SERVICE MANUAL

Rating Label

This service manual is for the 6615LF4 different LCD Module Assembly model, which is different from the previous 6615LF4 model. For 6615LF4 different LCD Module Assembly model, the letter (L3110UA) is printed on rating label on the back of the unit. Refer to the rating label illustration at right.

"L3110UA"

15″ COLOR LCD

TELEVISION

6615LF4

TABLE OF CONTENTS

Schematic Diagrams / CBA's and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Different parts from the previous model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60 ppm/°C CSL --- +350~-1000 ppm/°C

3

, M = 106).

-6

µF).

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

+

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

PNP Transistor

E C B

(Top View)

Schematic Diagram Symbols

Digital Transistor

E C B

NPN Digital Transistor

PNP Digital Transistor

E C B

1-1 LC2N_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0

(3.0)

3

5.0

(3.0)

Power on mode Power off mode

5. How to read converged lines

1-D3 Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

1-2 LC2N_SC

Main 1/5 Schematic Diagram (6615LF4)

MAIN 1/5

Ref No. Position

IC531

D-4

IC533

E-3

IC671

E-2

IC672

E-2

Q501 C-4 Q502 C-4 Q503 B-3 Q505 C-3 Q509 C-3 Q510 B-2 Q511 C-3 Q512 C-2 Q513 C-2 Q531 D-3 Q633 E-1

CN101A A-4 CN102A A-3

ICS

TRANSISTORS

CONNECTORS

1-3

L3110SCM1

LCD Main 1/2 Schematic Diagram

LCD MAIN 1/2

Ref No. Position

IC333

B-3

Q301

D-1

CN104

A-3

CN105

A-2

CN111

A-2

CN211

F-4

CN311 F-4

CN102B A-4

CONNECTORS

IC

TRANSISTOR

1-4 L3110SCL1

LCD Main 2/2 Schematic Diagram

LCD MAIN 2/2

Ref No. Position

IC151 I-3 IC171

J-3

IC191

H-2

IC192

H-1

IC193

H-2

IC201 J-1

Q131

I-4

Q201 J-1

CN112

L-4

CN312

L-3

CN101B

L-4

CN103B G-2

ICS

CONNECTORS

TRANSISTORS

1-5

L3110SCL2

Main CBA Top View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

TP403

1-6

TP402

+13V

BL3100F01013-1

Main CBA Bottom View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

MAIN CBA

Ref No. Position Ref No. Position

IC31

E-4

Q505

C-4

IC531

E-3

Q509

C-3

IC533

E-3

Q510

C-3

IC601 A-5

Q511

C-2

IC671

E-4 Q512 C-2

IC672

E-3 Q513 C-3

IC781

D-2 Q531 C-2

IC801

D-5 Q601 B-5

IC851

D-2

Q603

B-5

IC852 E-2

Q633

A-5

Q661

A-5

Q32 E-4

Q701

D-2

Q401 B-2

Q702

D-2 Q403 B-1 Q703 D-2 Q404 B-1 Q704 E-1 Q405 B-1 Q705 E-1 Q406 B-1 Q706 E-2 Q407 A-1

Q707

E-2 Q408 B-1

Q708

E-2 Q409 A-2

Q802

E-5 Q410 B-1

Q803

D-5 Q411 B-2 Q412 B-2

CN113

E-1 Q415 B-3

CN402

A-2 Q416 B-3

CN403

A-3 Q421 B-1

CN801

E-5 Q422 B-1

CN802

A-5 Q423 B-1 CN101A C-2 Q424 A-2 CN102A D-2 Q427 B-2 CN103A D-2 Q428 B-2 Q501 C-2

TP402

C-2 Q502 C-2 TP403 B-1 Q503 C-2

TEST POINTS

TRANSISTORS

CONNECTORS

ICS TRANSISTORS

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

WF7

PIN 11 OF CN103A

WF8

PIN 9 OF CN103A

1-7

WF9

PIN 7 OF CN103A

WF10

Q704 Emitter

WF11

Q705 Emitter

WF12

Q706 Emitter

WF6

PIN 14 OF IC801

BL3100F01013-1

Function CBA Top View

Function CBA Bottom View

BL3100F01013-2

1-8

BL3100F01013-2

Different parts from the previous model

Ref. No. Description Part No.

MECHANICAL PARTS

# RATING LABEL L3110UA ----------

A6

ELECTRICAL PARTS

LCD MAIN CBA & LIQUID CRYSTAL PANEL UNIT

1FSA10049

2-1 L3110PL

6615LF4

L3110UA

2005-09-16

SUPPLEMENT

SERVICE MANUAL

Rating Label

This service manual is for the 6615LF different LCD Module Assembly model, which is different from the previous 6615LF model. For 6615LF different LCD Module Assembly model, the letter (L3118UJ) is printed on rating label on the back of the unit. Refer to the rating label illustration at right.

L3118UJ

"L3118UJ"

15″ COLOR LCD

TELEVISION

6615LF

TABLE OF CONTENTS

Schematic Diagrams / CBA's and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Different parts from the previous model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60 ppm/°C CSL --- +350~-1000 ppm/°C

3

, M = 106).

-6

µF).

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

+

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

PNP Transistor

E C B

(Top View)

Schematic Diagram Symbols

Digital Transistor

E C B

NPN Digital Transistor

PNP Digital Transistor

E C B

1-1 LC2N_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0

(3.0)

3

5.0

(3.0)

Power on mode Power off mode

5. How to read converged lines

1-D3 Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

1-2 LC2N_SC

Main 1/5 Schematic Diagram

MAIN 1/5

Ref No. Position

IC531

D-4

IC533

E-3

IC671

E-2

IC672

E-2

Q501 C-4 Q502 C-4 Q503 B-3 Q505 C-3 Q509 C-3 Q510 B-2 Q511 C-3 Q512 C-2 Q513 C-2 Q531 D-3 Q633 E-1

CN101A A-4 CN102A A-3

ICS

TRANSISTORS

CONNECTORS

1-3

L3118SCM1

LCD Main 1/2 Schematic Diagram

LCD MAIN 1/2

Ref No. Position

IC333

B-3

Q301

D-1

CN104

A-3

CN105

A-2

CN311 F-4

CN102B A-4

CONNECTORS

IC

TRANSISTOR

1-4 L3118SCL1

LCD Main 2/2 Schematic Diagram

LCD MAIN 2/2

Ref No. Position

IC151

I-3

IC171

J-3

IC191

H-2 IC192 H-1 IC193

H-2 IC201 J-1

Q131

I-4

Q201

J-1

CN312

L-3

CN101B

L-4

CN103B G-2

ICS

CONNECTORS

TRANSISTORS

1-5

L3118SCL2

Main CBA Top View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

TP403

1-6

TP402

+13V

BL3100F01013-1

Main CBA Bottom View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

MAIN CBA

Ref No. Position Ref No. Position

IC31

E-4

Q505

C-4

IC531

E-3

Q509

C-3

IC533

E-3

Q510

C-3

IC601 A-5

Q511

C-2

IC671

E-4 Q512 C-2 IC672

E-3 Q513 C-3 IC781

D-2 Q531 C-2 IC801

D-5 Q601 B-5 IC851

D-2

Q603

B-5

IC852 E-2

Q633

A-5

Q661

A-5

Q32 E-4

Q701

D-2

Q401 B-2

Q702

D-2 Q403 B-1 Q703 D-2 Q404 B-1 Q704 E-1 Q405 B-1 Q705 E-1 Q406 B-1 Q706 E-2 Q407 A-1

Q707

E-2 Q408 B-1

Q708

E-2 Q409 A-2

Q802

E-5 Q410 B-1

Q803

D-5 Q411 B-2 Q412 B-2

CN113

E-1 Q415 B-3

CN402

A-2 Q416 B-3

CN403

A-3 Q421 B-1

CN801

E-5 Q422 B-1

CN802

A-5 Q423 B-1 CN101A C-2 Q424 A-2 CN102A D-2 Q427 B-2 CN103A D-2 Q428 B-2 Q501 C-2 TP402 C-2 Q502 C-2 TP403 B-1 Q503 C-2

CONNECTORS

TEST POINT

TRANSISTORSICS

TRANSISTORS

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

WF7

PIN 11 OF CN103A

WF8

PIN 9 OF CN103A

1-7

WF9

PIN 7 OF CN103A

WF10

Q704 Emitter

WF11

Q705 Emitter

WF12

Q706 Emitter

WF6

PIN 14 OF IC801

BL3100F01013-1

Function CBA Top View

IR Sensor CBA Top & Bottom View

Function CBA Bottom View

BL3100F01013-2

BL3100F01013-3

1-8

BL3100F01013-2

Different parts from the previous model

Ref. No. Description Part No.

MECHANICAL PARTS

# RATING LABEL L3118UJ ----------

A6

ELECTRICAL PARTS

LCD MAIN CBA & LIQUID CRYSTAL PANEL UNIT

1FSA10049

2-1 L3118PL

6615LF

L3118UJ

2005-09-21

Symphonic 6615LF4, STL1505, 6615LF Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

HOW TO INITIALIZE THE LCD TELEVISION

BLOCK DIAGRAMS

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

EXPLODED VIEWS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Different parts from the previous model

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Different parts from the previous model
