SERVICE MANUAL

24″ COLOR TELEVISION

6424FF/ST424FF

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to initialize the Television. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

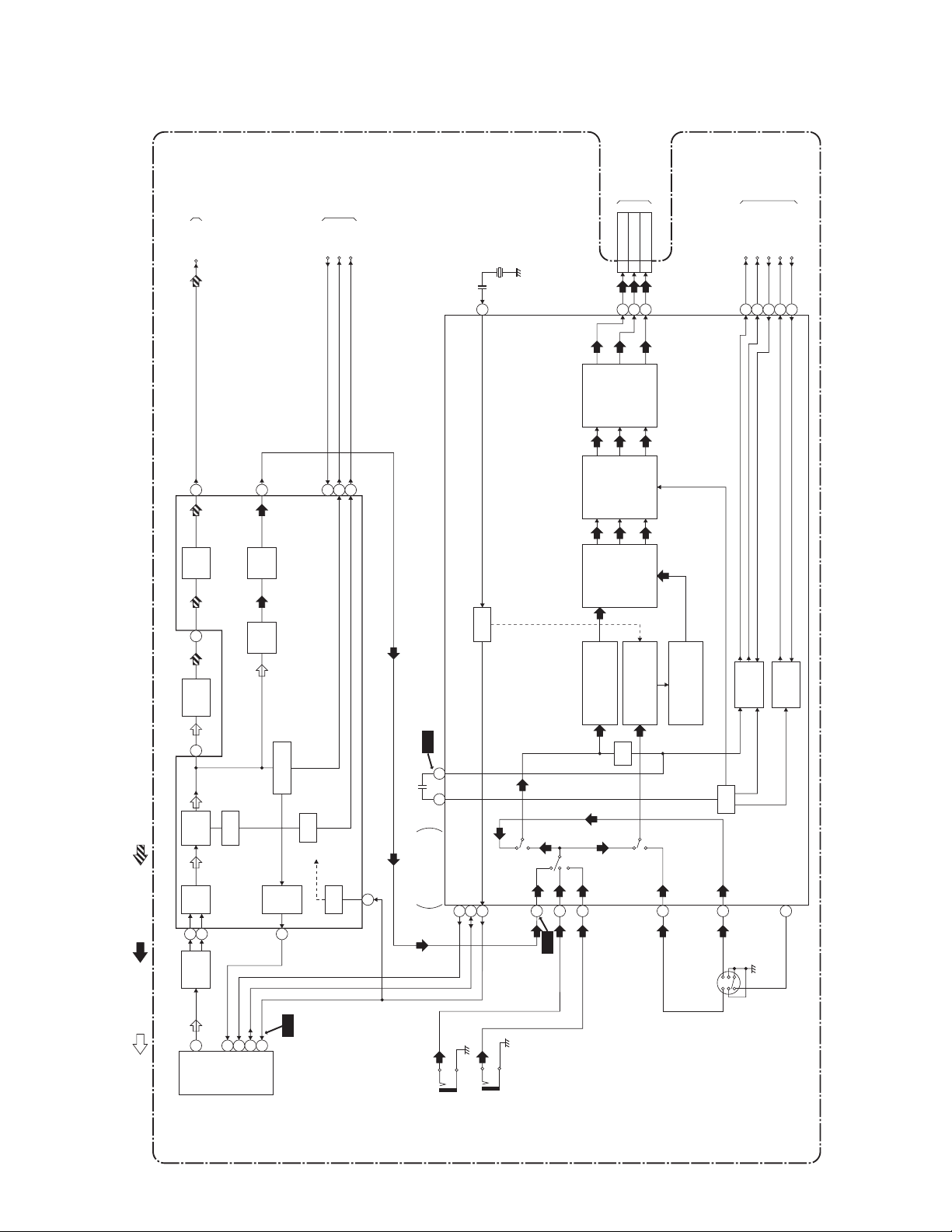

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

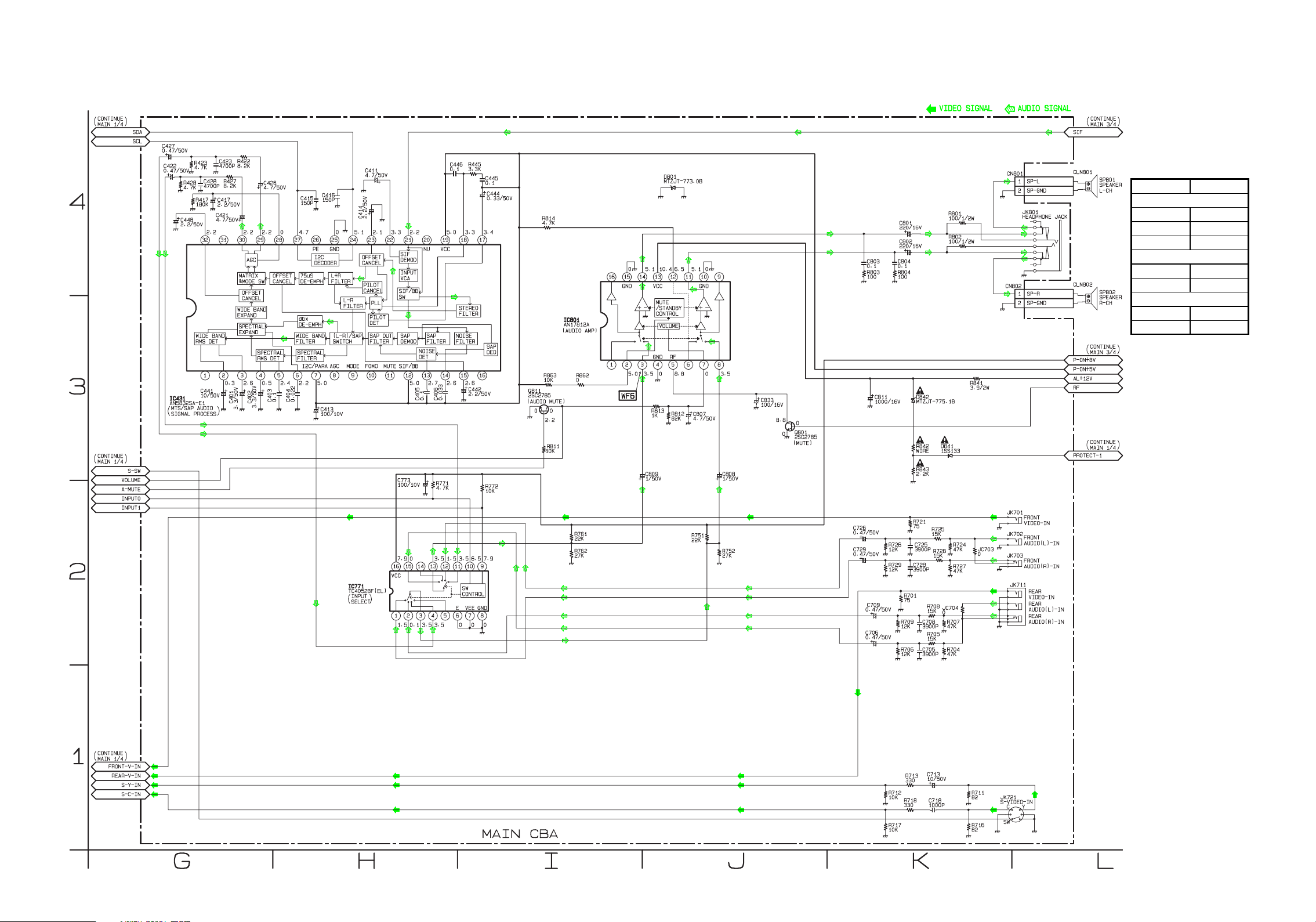

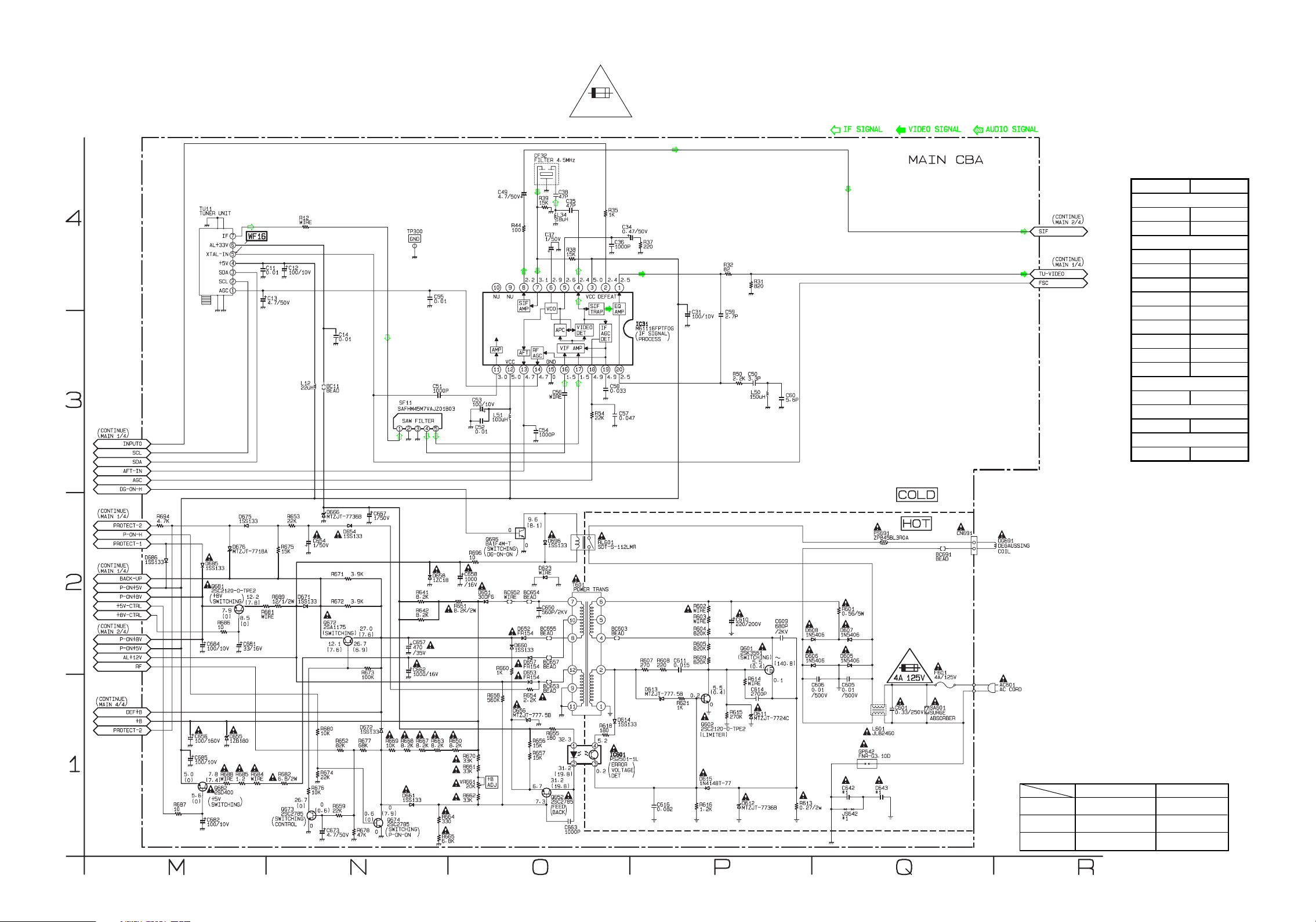

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

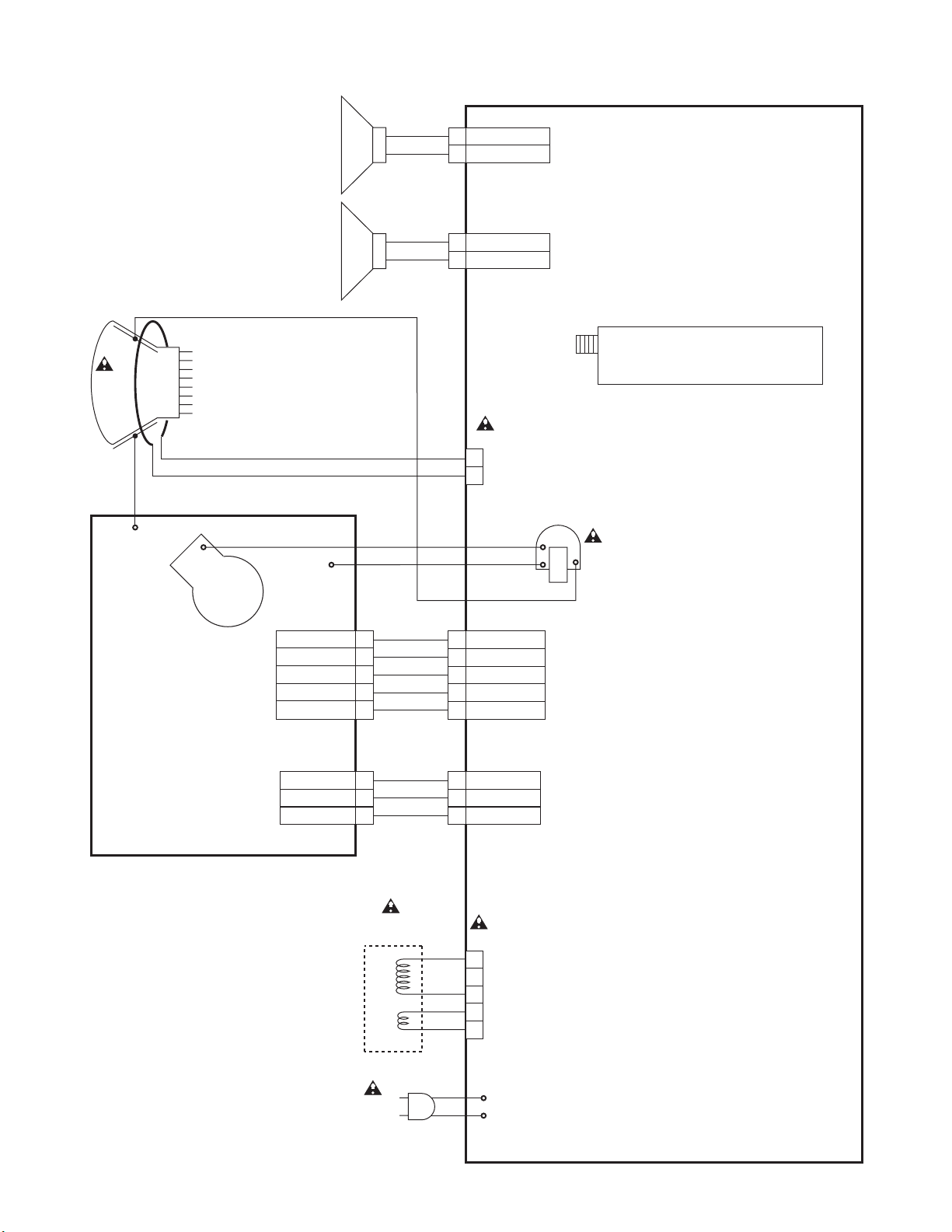

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Page 3

SPECIFICATIONS

< TUNER >

ANT. Input ---------------------- 75 ohm Unbal., F type Reference Level--------------- 20 Vp-p (CRT Green Cathode) Test Input Signal -------------- 400 Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq.

2. Peak Picture Sens

3. AFT Pull In Range (10 mV input) --- MHz ±2.0 ±0.7


Sound

VHF

CATV

UHF

MHz MHz

dBµV dBµV dBµV

45.75

41.25 15

15 15

---

--30

30 40

< DEFLECTION >

Description Condition Unit Nominal Limit

1. Deflection Freq.

2. Linearity

3. Over Scan --- % 10 ---

4. High Voltage --- kV 29 ---

Horizontal

Vert ical

Horizontal

Vert ical

kHz

% %

15.734 60

---

±15 ±10

< VIDEO & CHROMA >

Description Condition Unit Nominal Limit

1. Misconvergence

Center

Side

Corner

mm mm mm

---

0.4

1.5

2.1

2. Brightness APL 100% Ft-L 30 24

3. Color Temperature --- °K 9200 °K ---

4. Resolution

Horizontal

Vert ical

Line Line

250 300

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD W 1 0.8

2. Audio Distortion (w/LPF) 500 mW % 2 7

3. Audio Freq. Response -3 dB Hz 70 ~ 11 k ---

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

1-1 L3400SP

Page 4

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the

AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits -

Because the picture tube is the primary potential source of X-radiation in solid-state TV receivers, it is specially constructed to prohibit X-radiation emissions. For continued Xradiation protection, the replacement picture tube must be the same type as the original.

CURRENT

TESTER

EARTH GROUND

2-1 TVN_ISP

Page 5

Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be measured each time servicing is performed that involves B+, horizontal deflection or high voltage. Correct operation of the X-radiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called “horizontal disable” or “hold down.”) Read and apply the high voltage limits and, if the chassis is so equipped, the Xradiation protection circuit specifications given on instrument labels and in the Product Safety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/ adjustments in the high-voltage circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safetyrelated notes on or inside the receiver cabinet, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning - The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the picture tube only with one of the same type number. Do not remove, install, or otherwise handle the picture tube in any manner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be kept safely away while picture tubes are handled. Keep the picture tube away from your body. Do not handle the picture tube by its neck. Some “in-line” picture tubes are equipped with a permanently attached deflection yoke; because of potential hazard, do not try to remove such “permanently attached” yokes from the picture tube.

5. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without

an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes

2-2 TVN_ISP

Page 6

of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to prevent shock hazards. Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

2-3 TVN_ISP

Page 7

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

dd'

Fig. 1

Exposed Accessible Part

AC Voltmeter (High Impedance)

Earth Ground

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 TVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

Page 8

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

Page 9

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Tape

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

Page 10

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Page 11

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

Page 12

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

CAUTION!

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

[1] Rear Cabinet

[2] CRT CBA

[3] Main CBA

[4] CRT

2. Disassembly Method

Removal

Step/

Loc.

No.

[1]

Part

Rear Cabinet

Remove/*Unhook/

Fig.

No.

D1 D2

Unlock/Release/

Unplug/Unclamp/

Desolder

6(S-1), (S-2), 2(S-3) 1

Note

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

Reference Notes in the Table

1. Removal of the Rear Cabinet: Remove screws 6(S-1), (S-2) and 2(S-3) then slide the Rear Cabinet backward.

2. Removal of the CRT CBA: Disconnect CN1501 then pull the CRT CBA backward.

3. Removal of the Main CBA: Disconnect CN571 on the Main CBA then slide the Main CBA backward.

4. CAUTION: Discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap. Removal of the CRT: Remove screws 4(S-4) and Anode Cap. then slide the CRT backward.

[2] CRT CBA

[3] Main CBA

[4] CRT D4 4(S-4), Anode Cap 4

↓

(1)

↓

(2)

CN1501 2

D5 D3

CN571 3

↓

(3)

↓

(4)

↓

(5)

4-1 L3420DC

Page 13

S-1

ANT. IN

S-2

S-3

[1] Rear Cabinet

S-1

S-1S-1

Fig. D1

S-1

S-3

S-2

S-4

[3] Main CBA

[2] CRT CBA

Anode Cap

S-4

Fig. D3

S-4

S-1

[1] Rear Cabinet

S-1

Fig. D2

S-4

[4] CRT

Fig. D4

4-2 L3420DC

Page 14

TV Cable Wiring Diagram

DG691 DEGAUSSING COIL

SP802

SP801

CLN802

CN802

CN691

MAIN CBA

CLN801

CN801

WH301A

AC601 AC CORD

FLYBACK TRANSFORMER

T571

WH501A

CN571

FOCUS

SCREEN

ANODE

TU11 TUNER

TO CRT GROUND

WH501B

CN1501

JK1501

WH301B

Fig. D5

4-3 L3420DC

Page 15

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. DC Voltmeter

3. Oscilloscope: Dual-trace with 10:1 probe, V-Range: 0.001~50 V/Div, F-Range: DC~AC-60 MHz

4. Plastic Tip Driver

5. Remote control unit: Part No. N0108UD, N0132UD, NE121UD or NE122UD

6. DC power supply 13.2V/5A

How to make Service remote control unit:

1. Prepare normal remote control unit. (Part No. N0108UD, N0132UD, NE121UD or NE122UD) Remove 3 Screws from the back lid. (Fig. 1-1)

Screws

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV unit.)

3. Press [SLEEP] button on the service remote control unit. Version of micro computer will display on the CRT. (Ex: 058-0.06)

4. Check the display on the lower left is “3641” and if it is not “3641,” set it at “3641” according to "Initial Setting" on page 5-2.

1. +B Adjustment

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dark and

the unit does not operate correctly.

Test Point Adj. Point Mode Input

TP601(+B)

TP300(GND)

Tape M. EQ. Spec.

--- DC Voltmeter +120±0.5 V DC.

Note: TP601, TP300(GND), VR661 --- Main CBA

1. Connect DC Volt Meter to TP601 and TP300(GND).

2. Adjust VR661 so that the voltage of TP601 becomes +120±0.5 V DC.

VR661 --- ---

Remote control unit (bottom)

2. Added J1 (Jumper Wire) to the remote control CBA. (Fig. 1-2)

J 1

Remote Control CBA

Fig. 1-1

Fig. 1-2

5-1 L3420EA

Page 16

2. Initial Setting

General

1. Enter the Service mode. (See page 5-1.)

2. Press [VOL p] button on the service remote control unit. Display changes “C/D,” “7F,” “LANGUAGE,” “ACCESS CODE,” “SOUND TYPE,” “VIDEO TONE,” “FM-MODE,” “V-OUT,” “VIDEO,” “AV MEMO,” “STABLE SOUND,” “FILTER,” “500,” “YUV MEMORY,” “NO SIG BRT,” “A-MUTE POL,” and “V-MENU” cyclically when [VOL p] button is pressed.

3. To set the following each data value, press [CH o / p] buttons on the service remote control unit.

7F --- Set to “FF.”

LANGUAGE --- Set to “SPA/FRA.”

ACCESS CODE --- Set to “ON.”

SOUND TYPE --- Set to “MTS.”

VIDEO TONE --- Set to “ON.”

FM-MODE --- Set to “OFF.”

V-OUT --- Set to “OFF.”

VIDEO --- Set to “V1/V2.”

AV MEMO --- Set to “OFF.”

STABLE SOUND --- Set to “OFF.”

FILTER --- Set to “OFF.”

Adjusting the monitoring time --- Set to “500.”

YUV MEMORY --- Set to “OFF.”

NO SIG BRT --- Set to “0.”

A-MUTE POL --- Set to “H.”

V-MENU --- Set to “OFF.”

3. Setting for BRIGHT, CONTRAST,

COLOR, S-COLOR, TINT, V-TINT, S-TINT, SHARP, and S-SHARP Data Values

General

1. Enter the Service mode. (See page 5-1.)

2. Press [MENU] button on the service remote control unit. Display changes "BRT," "CNT," "CLR," "S-CLR," "TNT," "V-TNT," "S-TNT," "SHARP," and "S-SRP" cyclically when [MENU] button is pressed.

CNT

1. Press [MENU] button on the service remote control unit. Then select “CONTRAST” (CNT) display.

2. Press [CH o / p] buttons on the service remote control unit so that the value of “CONTRAST” (CNT) becomes 84.

CLR

1. Press [MENU] button on the service remote control unit. Then select “COLOR” (CLR) display.

2. Press [CH o / p] buttons on the service remote control unit so that the value of “COLOR” (CLR) becomes 56.

S-CLR

1. Press [MENU] button on the service remote control unit. Then select “S-COLOR” (S-CLR) display.

2. Press [CH o / p] buttons on the service remote control unit so that the value of “S-COLOR” (SCLR) becomes 56.

TNT

1. Press [MENU] button on the service remote control unit. Then select “TINT” (TNT) display.

2. Press [CH o / p] buttons on the service remote control unit so that the value of “TINT” (TNT) becomes 58.

V-TN T

1. Press [MENU] button on the service remote control unit. Then select “V-TINT” (V-TNT) display.

2. Press [CH o / p] buttons on the service remote control unit so that the value of “V-TINT” (V-TNT) becomes 59.

S-TINT

1. Press [MENU] button on the service remote control unit. Then select “S-TINT” (S-TNT) display.

2. Press [CH o / p] buttons on the service remote control unit so that the value of "S-TINT" (S-TNT) becomes 59.

SHARP

1. Press [MENU] button on the service remote control unit. Then select “SHARP” (SHARP) display.

2. Press [CH o / p] buttons on the service remote control unit and select “40.”

S-SHARP

1. Press [MENU] button on the service remote control unit. Then select “S-SHARP” (S-SRP) display.

2. Press [CH o / p] buttons on the service remote control unit and select “42.”

Note: BRIGHT data value does not need to be

adjusted at this moment.

5-2 L3420EA

Page 17

4. H f0 Adjustment

7. SD Check Mode

Purpose: To get correct horizontal frequency. Note: Use service remote control unit.

1. Press [2] button on the service remote control unit and select H-ADJ mode. (By pressing [2] button the display will change from TV AGC to H-ADJ.)

2. Press [CH o / p] buttons on the service remote control unit so that display will change “0” ~ “7”. At this moment, Choose “4”.

3. Turn the power off and on again. (Main Power button on the TV unit.)

5. Black Stretch Control Adjustment

Purpose: To show the fine black color. Symptom of Misadjustment: Black color will not

appear correctly. Note: Use service remote control unit.

1. Enter the Service mode. (See page 5-1.)

2. Press [6] button on the service remote control unit. “B-S” is indicated.

3. Press [CH o / p] buttons on the service remote control unit so that display will change “OFF,” “0,” and “1.” Then choose “B-S OFF.”

4. Press [6] button on the service remote control unit. “B-S2” is indicated.

5. Press [CH o / p] buttons on the service remote control unit so that display will change “0” and “1.” Then choose “B-S2 0.”

6. Turn the power off and on again, using the main power button on the TV unit.

6. Purity Check

1. Enter the Service mode. (See page 5-1.)

2. Press [1] button on the remote control unit. The unit enter the SD-Check mode.

3. The unit starts selecting the added channel from first channel according to the memorized CH ADD/ DELL data and CATV/TV data in RAM.

SD Check mode (Factory mode)

Press [1] buton.

7 Please wait

OSD color: Magenta

There is no SD after selecting channel.

13 Please wait

There are SD in all channel.

When SD-Check starting, there is no ADD channel.

26 OK

OSD color: Magenta

30 NG

OSD color: Magenta

1. Enter the Service mode. (See page 5-1.)

2. Press [7] button on the remote control unit. Each time pressing [7] button on the service remote control unit, display changes Red mode, Green mode, Blue mode, and White mode cyclically.

3. Select White mode.

4. Turn the power off and on again. (Main power button on the TV unit.)

ADD nothing

OSD color: Magenta

5-3 L3420EA

Page 18

8. H. Position Adjustment

10. V. Position Adjustment

Purpose: To obtain correct horizontal position of

screen image. Symptom of Misadjustment: If H. Position is

incorrect, horizontal position of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1.)

3. Receive the monoscope pattern.

4. Press [8] button on the remote control unit. “H-P” is indicated.

5. Press [CH o / p] buttons on the service remote control unit so that the monoscope pattern will be 90±5% of display size and the circle is round.

6. Turn the power off and on again. (Main power button on the TV unit.)

[CH o / p]

buttons

RF Monoscope

9. V. Size Adjustment

Purpose: To obtain correct vertical width of screen

image. Symptom of Misadjustment: If V. Size is incorrect,

vertical size of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit.

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1.)

3. Receive the monoscope pattern.

4. Press [9] button on the service remote control unit and select “V-S” mode. (Display changes “V-S” and “V-P” cyclically when [9] button is pressed).

5. Press [CH o / p] buttons on the service remote control unit so that the monoscope pattern will be 90±5% of display size and the circle is round.

6. Turn the power off and on again. (Main power button on the TV unit.)

[CH o / p]

buttons

RF Monoscope

Purpose: To obtain correct vertical width of screen image.

Symptom of misadjustment: If V. Position is incorrect, vertical height of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Monoscope See below.

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1.)

3. Receive the monoscope pattern.

4. Press [9] button on the service remote control unit and select “V-P” mode. (Display change “V-S” and “V-P” cyclically when [9] button is pressed).

5. Press [CH o / p] buttons on the service remote control unit so that the top and bottom of the monoscope pattern will be equal of each other.

6. Turn the power off and on again. (Main power button on the TV unit.)

[CH o / p]

buttons

RF Monoscope

11. Software Reset

To reset software, press [5] button on the remote control unit for at least 5 seconds after pressing [CH RETURN] button on the remote control unit.

12. H. Size Adjustment

Purpose: To obtain correct horizontal size of screen

image. Symptom of Misadjustment: If H. Size is incorrect,

horizontal size of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

--- VR562 RF Monoscope

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Receive the Monoscope Pattern.

3. Adjust VR562 so that the monoscope pattern will be 90±5% of display size and circle is round.

4. Turn the power off and on again. (Main power button on the TV unit.)

5-4 L3420EA

Page 19

13. PIN Cushion Adjustment

Purpose: To obtain correct straight vertical line of

screen image. Symptom of Misadjustment: If H.Pin cushion is

incorrect, vertical line of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

--- VR561 RF Cross hatch

Tape M. EQ. Spec.

--- Cross hatch ---

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Receive the Cross hatch Pattern.

3. Adjust VR561 so that the cross hatch pattern will be straight line of display.

4. Turn the power off and on again. (Main power button on the TV unit.)

14. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage. Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

Test Point Adj. Point Mode Input

1. Degauss the CRT and allow CRT to operate for 20 minutes before starting the alignment.

2. Input the Black Raster Signal from RF Input.

3. Enter the Service mode. (See page 5-1.)

4. Press [VOL p] button on the service remote control unit and select “C/D” mode. (Display changes “C/D,” “7F,” “LANGUAGE,” “ACCESS CODE,” “SOUND TYPE,” “VIDEO TONE,” “FMMOD E,” “ V-OU T,” “VI DEO,” “ AV M EMO,” “STABL E SOUND,” “FILTER,” “500,” “YUV MEMORY,” “NO SIG BRT,” “A-MUTE POL,” and “V-MENU” cyclically when [VOL p] button is pressed.) then press “1.” The display will momentarily show “CUT OFF R” (R= Red). Now there should be a horizontal line across the center of the picture tube. If needed gradually turn the screen control on the flyback, clockwise until the horizontal line appears. Adjust the Red Cut off by pressing [CH o / p] buttons. Proceed to Step 5 when the Red Cut off adjustment is done.

5. Press [2] button. The display will momentarily show “CUT OFF G” (G = Green). Adjust the Green Cut off by pressing [CH o / p] buttons. Proceed to step 6 when the Green Cut off adjustment is done.

6. Press [3] button. The display will momentarily show “CUT OFF B” (B = Blue). Adjust the Blue cut off by pressing [CH o / p] buttons. When done with steps 4, 5 and 6 the horizontal line should be pure white if not, then attempt the Cut off adjustment again.

Screen-Control

---

Tape M. EQ. Spec.

---

Note: Screen Control FBT --- Main CBA

FBT = Fly Back Transformer Use service remote control unit

[CH o / p]

buttons

Pattern

Generator

Figure

Pattern Generator

Ext. Input

See Reference

Notes below.

Black

Raster

Fig. 2

5-5 L3420EA

Page 20

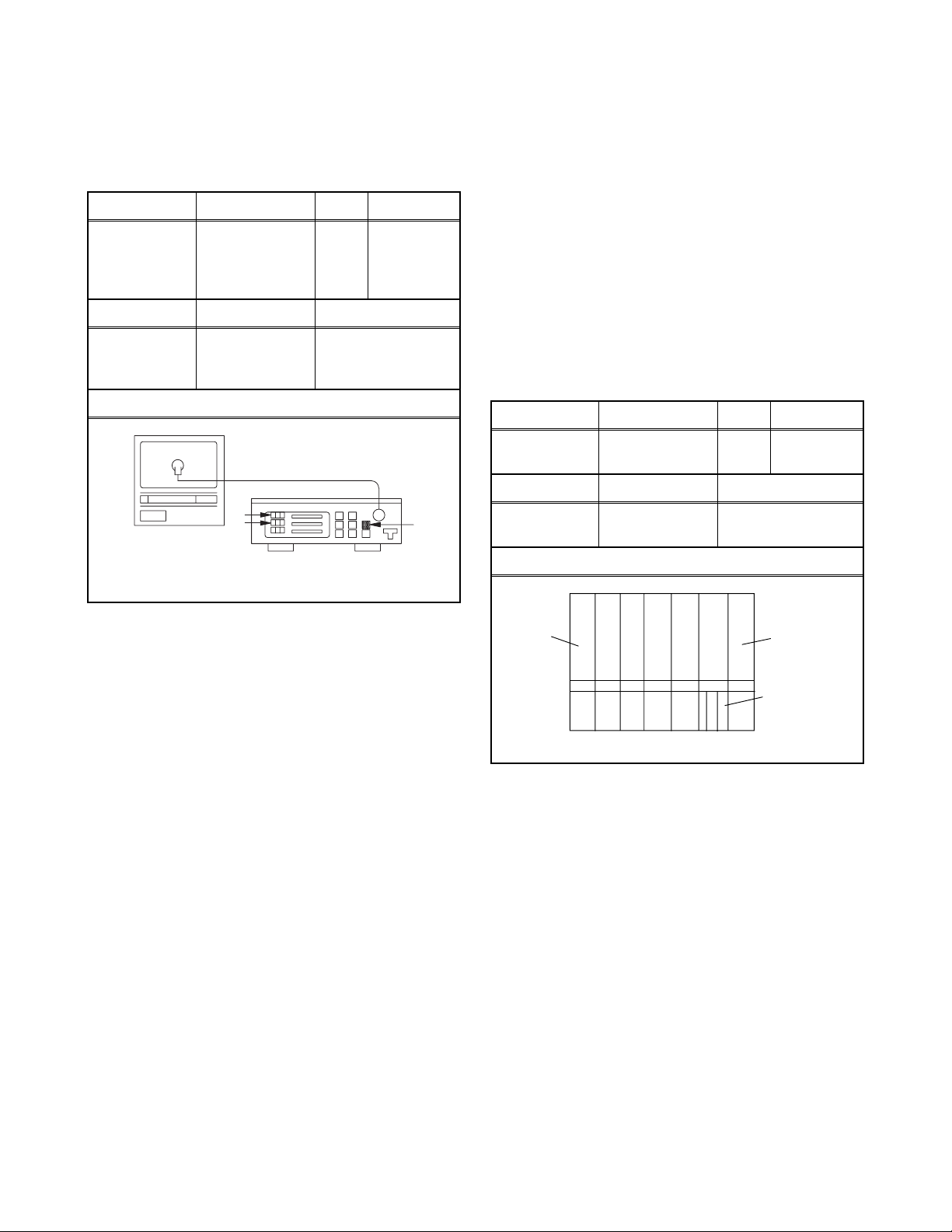

15. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

White

Screen

[CH o / p]

buttons

Raster

(APL

100%)

9. At this time, Re-check that Horizontal line is white. If not, Re-adjust Cut-off Adjustment until the Horizontal Line becomes pure white.

10. Turn off and on again to return to normal mode. Receive APL 100% white signal and Check Chroma temperatures become 9200K (x: 286 / y:

294)±3%.

Note: Confirm that Cut Off Adj. is correct after this

adjustment, and attempt Cut Off Adj. if needed.

16. Sub-Brightness Adjustment

Tape M. EQ. Spec.

Pattern

---

Note: Use service remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to east. Degauss the CRT using Degaussing Coil.

3. Input the White Raster (APL 100%).

4. Set the color analyzer to the CHROMA mode and after zero point calibration, bring the optical receptor to the center on the tube surface (CRT).

5. Enter the Service mode. (See page 5-1.) Press [VOL p] button on the service remote control unit and select “C/D” mode. (Display changes “C/D,” “7F,” “LANGUAGE,” “ACCESS CODE,” “SOUND TYPE,” “VIDEO TONE,” “FM-MODE,” “V-OUT,” “VIDEO,” “AV MEMO,” “STABLE SOUND,” “FILTER,” “500,” “YUV MEMORY,” “NO SIG BRT,” “A-MUTE POL,” and “V-MENU” cyclically when [VOL p] button is pressed.) then Press [8] button on the service remote control Unit.

6. Press [4] button on the service remote control unit for Red adjustment. Press [5] button on the service remote control unit for Blue adjustment.

7. In each color mode, Press [CH o / p] buttons to adjust the values of color.

8. Adjusting Red and Blue color so that the temperature becomes 9200K (x: 286 / y: 294)±3%.

Generator,

Color analyzer

Figure

Color Analyzer

See below

Fig. 3

Purpose: To get proper brightness. Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by adjusting the Brightness Control.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

White

Note: IQW Setup level --- 7.5 IRE

Use service remote control unit

1. Enter the Service mode. (See page 5-1.) Then input IQW signal from RF Input.

2. Press [MENU] button on the service remote control unit and Select “BRT” mode. (Display changes “BRT,” “CNT,” “CLR,” “TNT,” “V-TNT,” and “SHARP” cyclically when [MENU] button is pressed). Press [CH o / p] buttons so that the bar is just visible (See above figure).

3. Turn the power off and on again. (Main power button on the TV unit.)

[CH o / p]

buttons

Pattern

Generator

Figure

RF IQW

See below

Black

This bar just visible

Fig. 4

5-6 L3420EA

Page 21

17. Focus Adjustment

Purpose: Set the optimum Focus. Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test Point Adj. Point Mode Input

--- Focus Control --- Monoscope

Tape M. EQ. Spec.

The following adjustments normally are not attempted in the field. Only when replacing the CRT then adjust as a preparation.

18. Purity Adjustment

Purpose: To obtain pure color. Symptom of Misadjustment: If Color Purity

Adjustment is incorrect, large areas of color may not be properly displayed.

---

Note: Focus VR (FBT) --- Main CBA,

FBT = Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and Degauss the CRT using Degaussing Coil.

3. Input the Monoscope Pattern.

4. Adjust the Focus Control on the FBT to obtain clear picture.

Pattern

Generator

See below

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

GREEN RED BLUE

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjusting.

3. Fully degauss the unit using an external degaussing coil.

4. Loosen the screw on the Deflection Yoke Clamper and pull the Deflection Yoke back away from the screen. (See Fig. 6)

5. Loosen the Ring Lock and adjust the Purity Magnets so that a red field is obtained at the center of the screen. Tighten Ring Lock. (See Fig. 5,6)

6. Slowly push the Deflection Yoke toward bell of CRT and set it where a uniform red field is obtained.

7. Tighten the clamp screw on the Deflection Yoke.

Deflection Yoke

Purity Magnet

Pattern

Generator

Figure

--- Red Color

See below

Fig. 5

5-7 L3420EA

Page 22

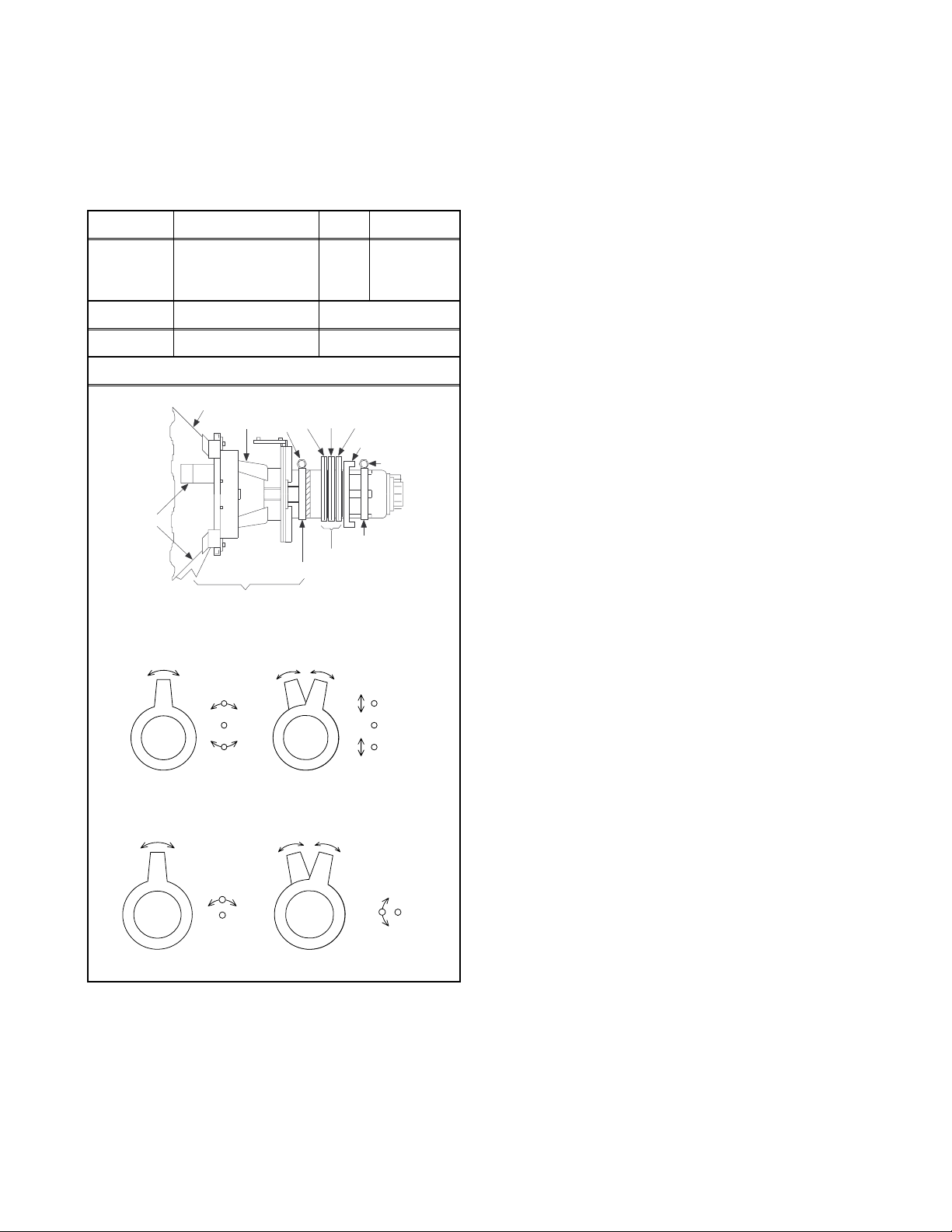

19. Convergence Adjustment

Purpose: To obtain proper convergence of red, green

and blue beams. Symptom of Misadjustment: If Convergence

Adjustment is incorrect, the edge of white letters may have color edges.

Test Point Adj. Point Mode Input

4. Remove the DY Wedges and slightly tilt the Deflection Yoke horizontally and vertically to obtain the best overall convergence.

5. Fix the Deflection Yoke by carefully inserting the DY Wedges between CRT and Deflection Yoke.

---

C.P. Magnet (RB)

C.P. Magnet (RB-G)

Deflection Yoke

Dot Pattern

--Crosshatch

Tape M. EQ. Spec.

--- Pattern Generator See below

Figure

CRT

RB-GRB

RING LOCK

SCREW

C.P. MAGNET CLAMPER

C.P. MAGNET

DY WEDGE

COIL

SCREW

COIL CLAMPER

DEFLECTION YOKE

PURITY

Fig. 6

C.P. MAGNET (RB)

Fig. 7

C.B. MAGNET (RB-G)

Fig. 8

1. Loosen the Ring Lock and align red with blue dots or Crosshatch at the center of the screen by rotating (RB) C.P. Magnets. (See Fig. 7)

2. Align red / blue with green dots at the center of the screen by rotating (RB-G) C.P. Magnet. (See Fig.

3. Paintlock the C.P. Magnets after adjustment.

5-8 L3420EA

Page 23

HOW TO INITIALIZE THE TELEVISION

To put the program back at the factory-default, initialize the television as the following procedure.

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV unit.)

3. Press [SLEEP] button on the service remote control unit to enter the Service mode. (Refer to “How to Set up the Service mode” on page 5-1.)

4. Press [VOL p] button on the service remote control unit twice, and confirm that OSD indication is “7F = FF.” If needed, set it to become “7F = FF” by pressing [CH o / p] buttons on the service remote control unit.

5. Confirm that OSD indication on the four corners on TV screen changes from on and off light indication to red by pressing a [DISPLAY] button. (It takes one or two seconds.)

6. Turn the power off by pressing main power button on the TV unit, and unplug the AC cord from the AC outlet.

6-1 L3300INT

Page 24

BLOCK DIAGRAMS

System Control Block Diagram

IF/VIDEO BLOCK

INPUT0

Q161

Q131

INPUT1

INPUT0

AUDIO BLOCK

VOLUME

A-MUTE

DG-ON-H

+5V-CTRL

POWER SUPPLY

+5V-CTRL2

+8V-CTRL

BLOCK

PROTECT-2

PROTECT-1

P-ON-H

PROTECT-2

CRT/H.V. BLOCK

PROTECT-3

TV MICON/VIDEO

/AUDIO/CHROMA

/DEFLECTION

IC111

REMOTE

RCV101

RCV-IN

KEY

SENSOR

KEY-IN1

SWITCH

KEY-IN2

IC151

(MEMORY)

SCL

SDA

72 I2C-OPEN

SCL

SDA

INPUT0

SCL

SDA

AFT-IN

INPUT1

AGC

A-MUTE

VOLUME

742818

DG-ON-H

+5V-CTRL

+8V-CTRL

+5V-CTRL2

P-ON-H

PROTECT-1

676876

PROTECT-2

PROTECT-3

AUDIO BLOCK

7-1

IF/VIDEO BLOCK

MAIN CBA

L3420BLS

Page 25

IF/Video Block Diagram

AUDIO BLOCK

SYSTEM

CONTROL

BLOCK

CRT/H.V. BLOCK

WH301B

CRT/H.V. BLOCK

AGC

INPUT0

SIF

MAIN CBA

SIF

AMP

SIF

AMP

TRAP

AFT-IN

DEFEAT

VCXO

X301

3.58MHz

BLUE5

GREEN4

WH301A

525150

RGB DRIVE

/CUT OFF

/H.V. BLK

OSD SW

CONTRAST

BRIGHTNESS

RGB MATRIX

/COLOR CONT

RED3

ACL

H-DRIVE

FBP-IN

RAMP-OUT

5346453837

V-RAMP-F/B

CF32

AUDIO SIGNAL

IC31 (IF SIGNAL PROCESS)

VIDEO SIGNALRF/IF SIGNAL

SF11

TU11

4.5MHz

FILTER

VIDEO

DET

VIF

AMP

SAW

FILTER

VCO

173

SCL

AGC

V-SYNC

PROCESS

CIRCUIT

S-SW

CHROMINANCE

PROCESS

CIRCUIT

LPF

CIRCUIT

CHROMA COMB

BASEBAND TINT

LUMINANCE

PROCESS

WF2

IF AGC DET

AFT

AGC

WF16

SDA

XTAL-IN

AMP

TV MICON/VIDEO

/AUDIO/CHROMA

/DEFLECTION

IC111

JK701

VIDEO-IN

(FRONT)

SCL

581656

SDA

JK711

VIDEO-IN

(REAR)

WF1

H-SYNC

OSD

JK721

S-VIDEO-IN

7-2

L3420BLIF

Page 26

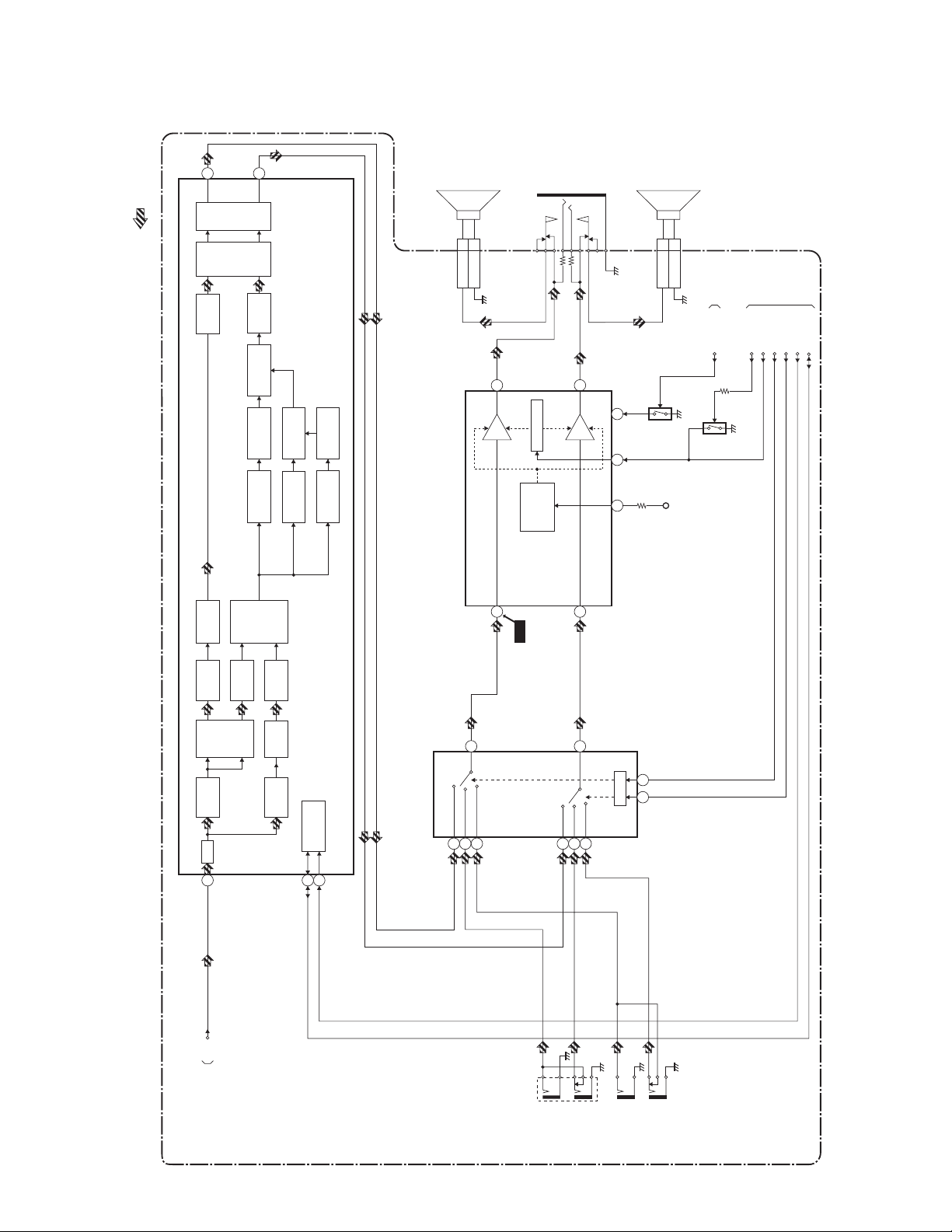

Audio Block Diagram

AUDIO SIGNAL

L-CH

OFFSET

CANCEL

75uS

DE-EMPH

MATRIX AGC

R-CH

OFFSET

CANCEL

WIDE BAND

EXPAND

WIDE BAND

RMS DET

WIDE BAND

FILTER

(L-R)/SAP

SPECTRAL

EXPAND

dBX

DE-EMPH

SPECTRAL

RMS DET

SPECTRAL

FILTER

SP801

SPEAKER

L-CH

CLN801

SP-L 1

CN801

IC801 (AUDIO AMP)

SP802

SPEAKER

R-CH

JK801

HEADPHONE

JACK

SP-GND 2

VOLUME

/STANDBY

CONTROL

AMP

(R-CH)

AMP

MUTE

(L-CH)

WF6

CLN802

SP-R 1

SP-GND 2

CN802

SYSTEM

CONTROL

VOLUME

A-MUTE

INPUT0

INPUT1

BLOCK

SCL

SDA

POWER

SUPPLY

BLOCK

Q801

+5V

Q811

IC431 (MTS/SAP AUDIO SIGNAL PROCESS)

MAIN CBA

L+R

FILTER

L-R

OFFSET

CANCEL

STEREO

FILTER

VCA

SIF

IF/VIDEO BLOCK

FILTER

SAP OUT

FILTER

SAP

DEMOD

SAP

FILTER

I2C

DECORDER

TUNER

FRONT

REAR

IC771 (INPUT SELECT)

111512

(L-CH)

(R-CH)

TUNER

AUDIO(L)-IN

(REAR)

JK711

REAR

421

JK711

FRONT

AUDIO(R)-IN

(REAR)

SW CTL

JK702

AUDIO(L)-IN

(FRONT)

9 10

JK703

AUDIO(R)-IN

(FRONT)

7-3

L3420BLA

Page 27

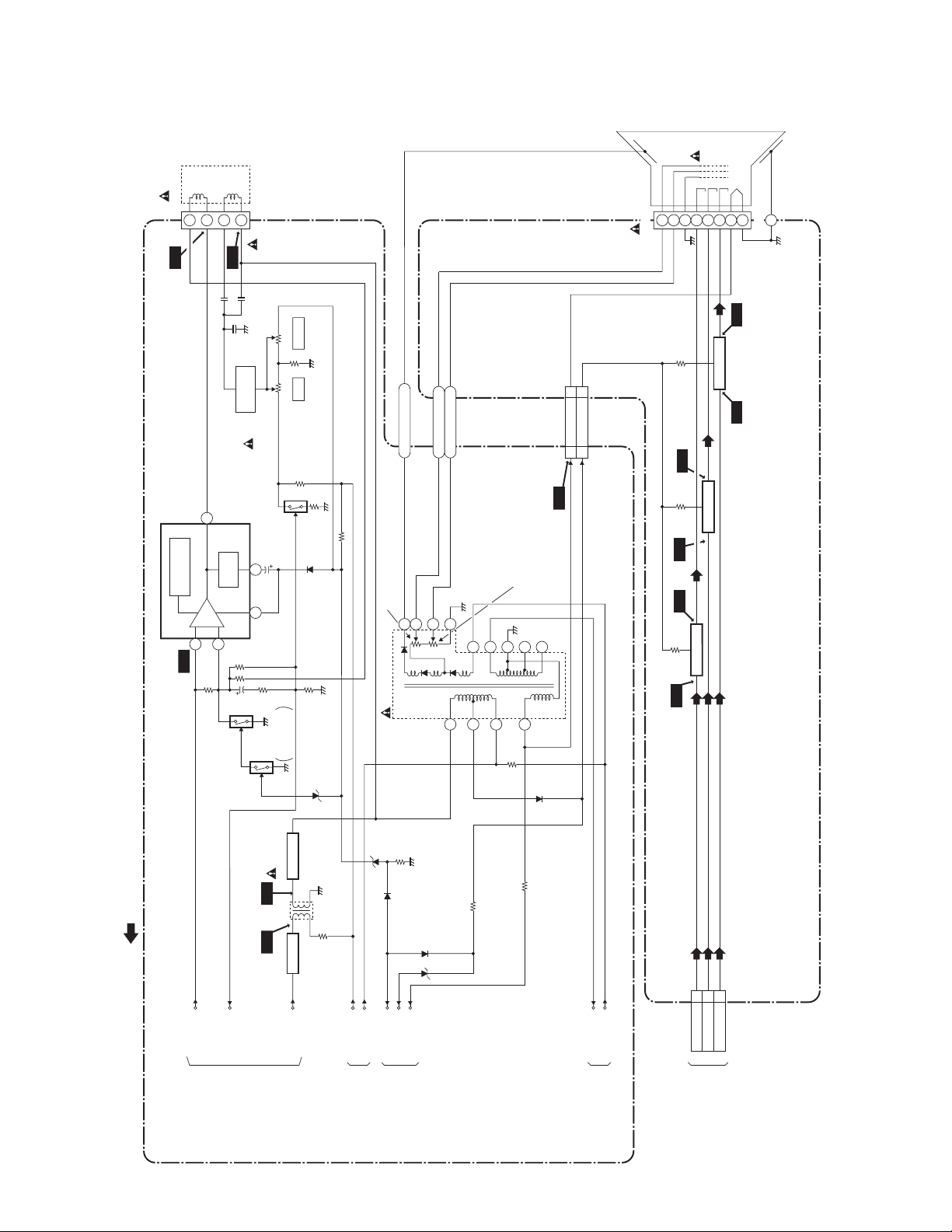

CRT/H.V. Block Diagram

V-

DRIVEH-DRIVE

DY551 D.Y.

CN571

WF12

WF9

Q551,

CONTROL

Q552

VR562VR561

PCC WIDTH

ANODE

FOCUS

SCREEN

ANODE

JK1501

WH501BWH501A

HEATER33

+200V 11

FOCUS

SCREEN

GND

748

WF14

V501

CRT

RGB

HEATER

Q1531,

Q1532

BLUE AMP

WF5 WF13

GND

CN1501

THERMAL

PROTECTION

IC551 (V-DEFLECTION CONTROL)

WF11

MAIN CBA

VIDEO SIGNAL

RAMP-OUT

PULSE

AMP

Q511

(SWITCHING)

V-RAMP-F/B

Q561

(SWITCHING)

6 3

Q512

WF7 WF8

SWITCHING

P-ON-ON

H.OUTPUT

T572

H.DRIVE

Q572 Q571

H-DRIVE

DEF+B

T571 F.B.T. FOCUS VR

PROTECT-3

PROTECT-1

PROTECT-2

SCREEN VR

810796

315

WF10

ACL

FBP-IN

Q1521,

WF4

WF15

Q1511,

Q1512

WF3

WH301B

GREEN AMP

Q1522

RED AMP

RED

GREEN 4

CRT CBA

BLUE 5

IF/VIDEO BLOCK

TO POWER

SUPPLY BLOCK

SYSTEM CONTROL

BLOCK

7-4

IF/VIDEO BLOCK

WH301A

L3420BLCRT

Page 28

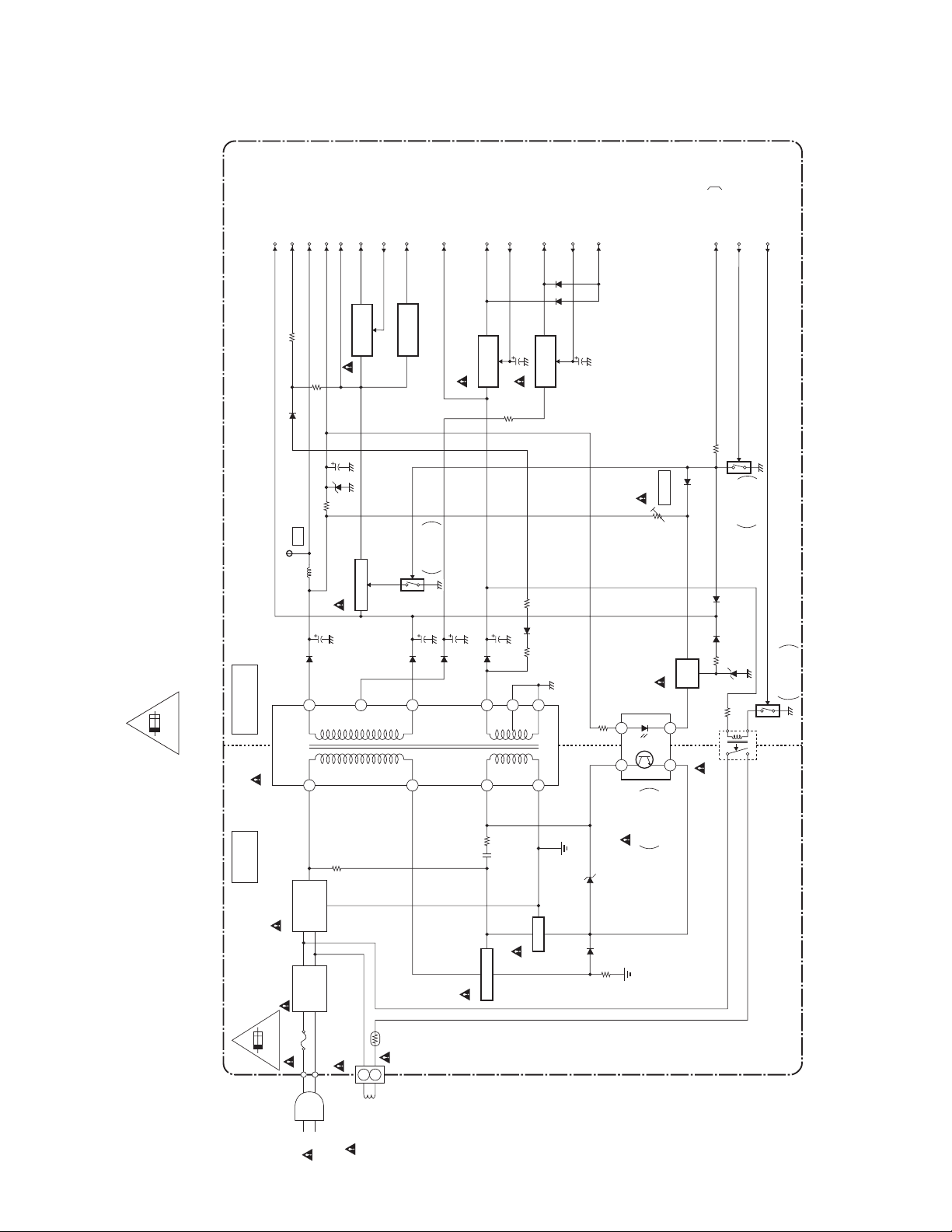

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

AUDI O

BLOCK

AL+33V

PROTECT-2

(TO PIN 67 OF IC111)

DEF +B

BACK-UP

MAIN CBA

TP601

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

T601

P-ON+5V

+5V

Q111

SWITCHING

Q672

+5V-CTRL2

(TO PIN 18 OF IC111)

SWITCHING

Q321

AL+9V

+9V

SWITCHING

Q673

SWITCHING

AL+12V

CONTROL

Q681

P-ON+8V

+8V

+8V-CTRL

(TO PIN40 OF IC111)

SWITCHING

Q682

P-ON+5V

+5V

SWITCHING

1 11

PROTECT-1

(TO PIN68 OF IC111)

+5V-CTRL

(TO PIN28 OF IC111)

P-ON-H

(TO PIN79 OF IC111)

DG-ON-H

Q674

SWITCHING

P-ON-ON

(TO PIN74 OF IC111)

Q696

SWITCHING

DG-ON-ON

+B ADJ

VR661

FEED

BACK

Q652

RL601

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT COLD

D605 - D608

L601

F601

4A/125V

BRIDGE

RECTIFIER

LINE

FILTER

AC601

AC CORD

CN691

DG691

PS691

DEGAUSSING

COIL

7-5

SWITCHING

Q601

Q602

LIMITER

IC601

ERROR

VOLTAGE DET

L3420BLP

Page 29

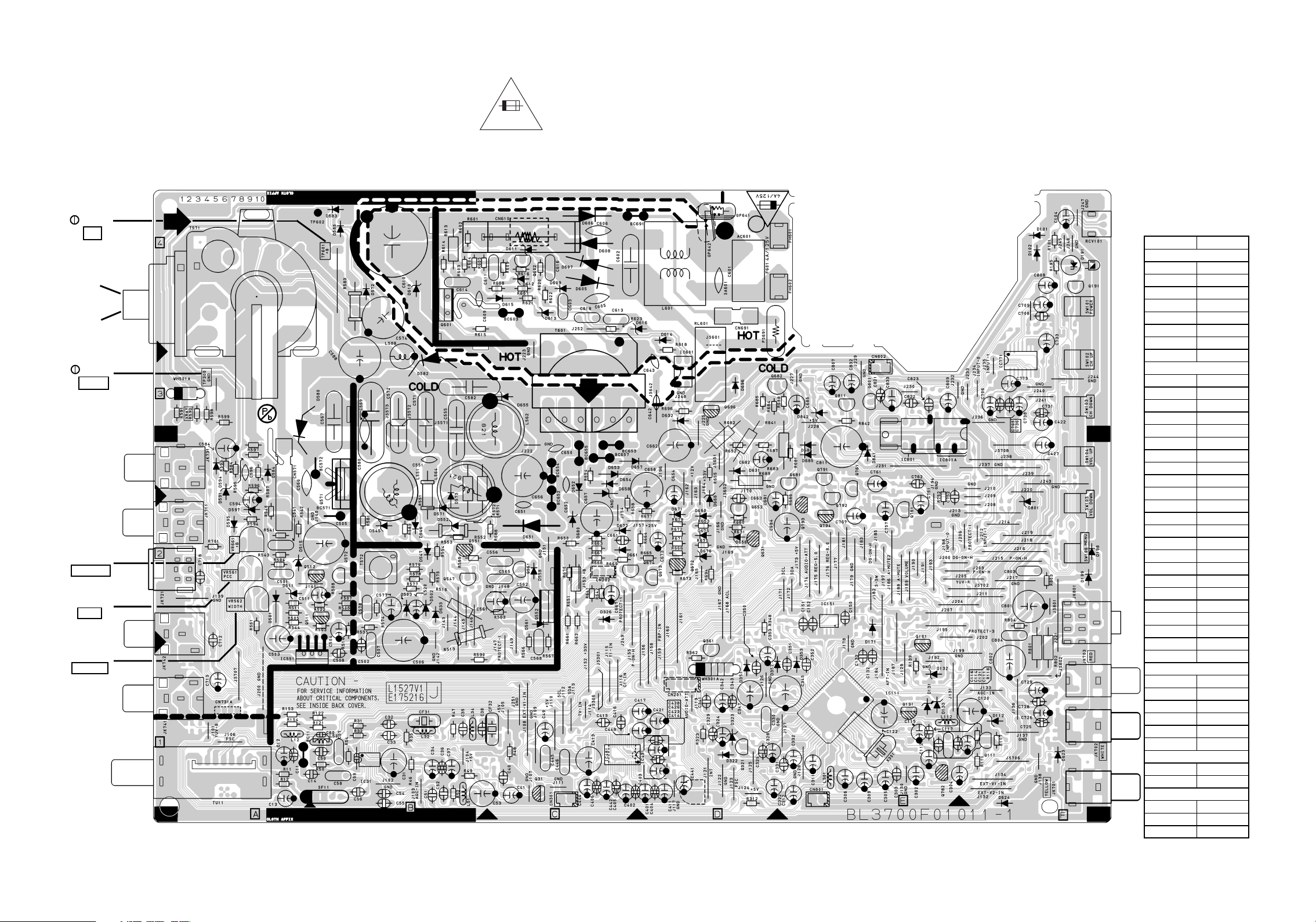

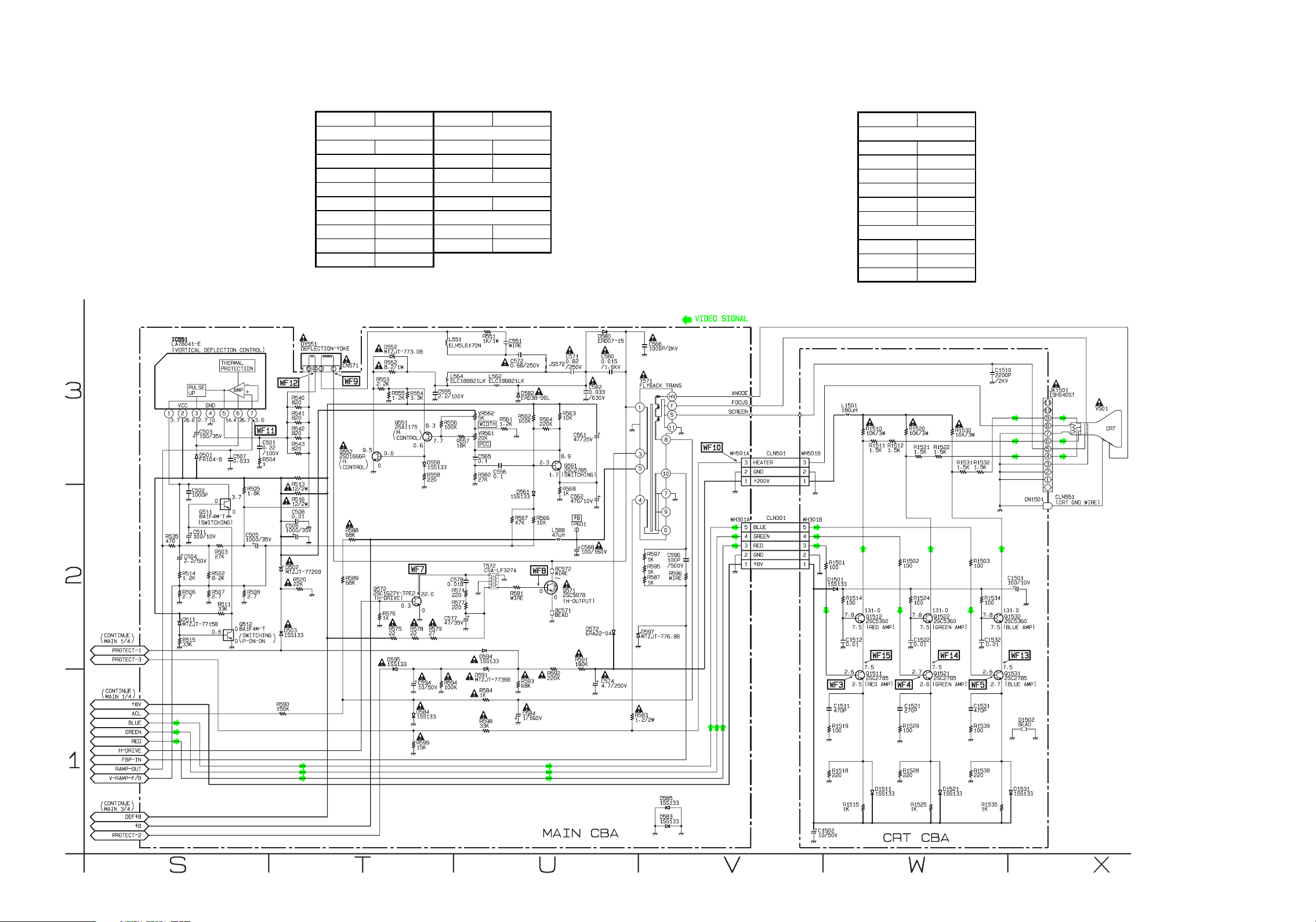

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

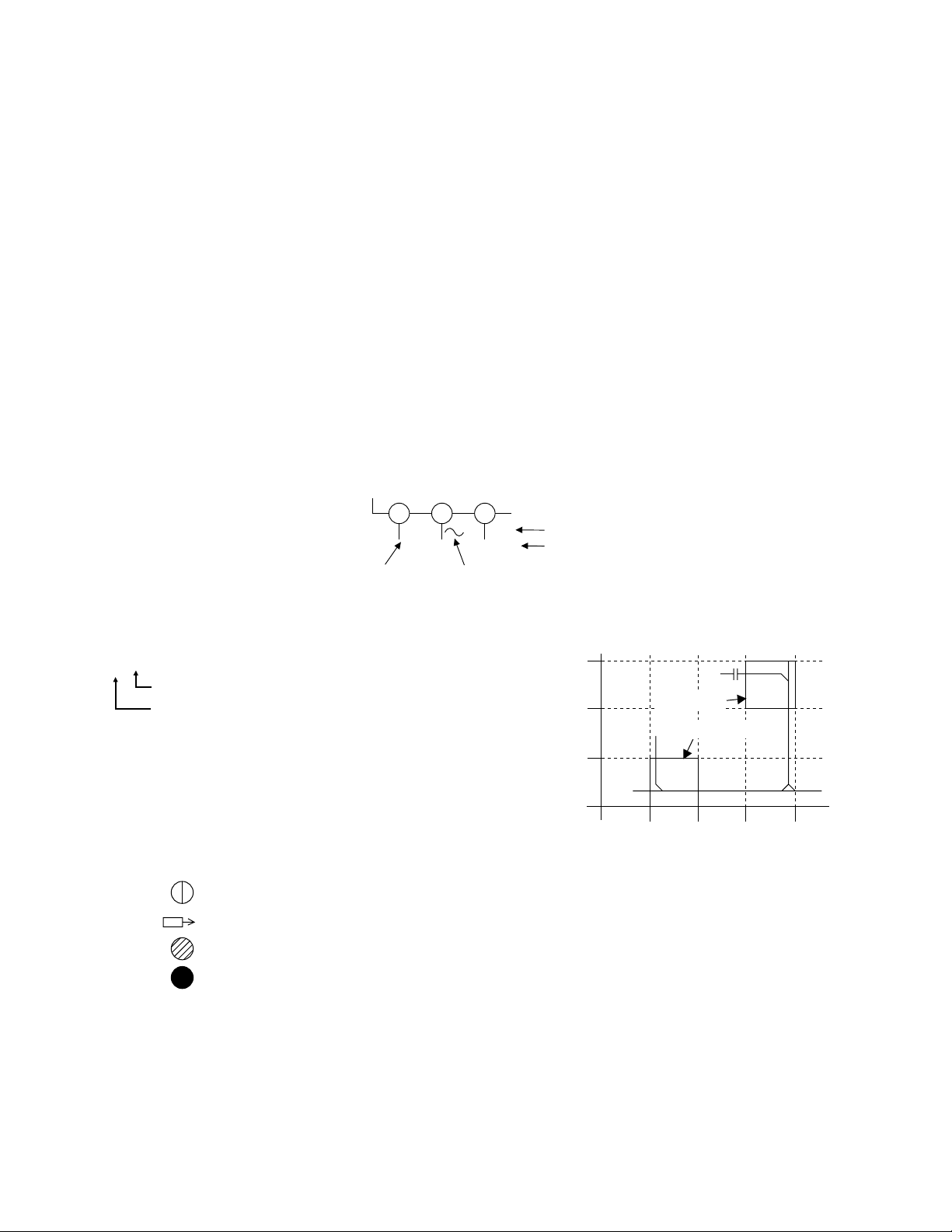

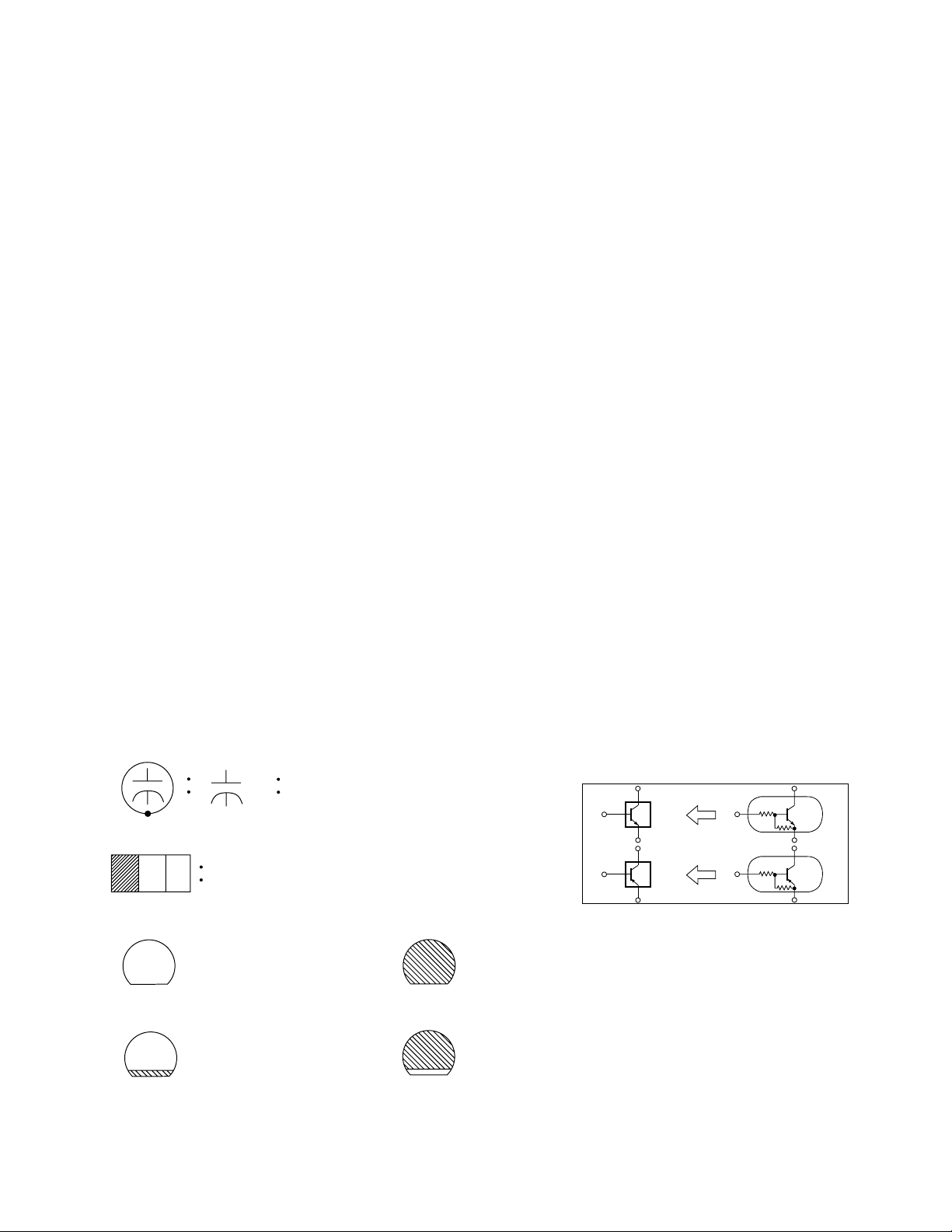

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60 ppm/°C CSL --- +350~-1000 ppm/°C

, M = 106).

-6

µF).

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

PNP Transistor

E C B

(Top View)

Schematic Diagram Symbols

Digital Transistor

E C B

NPN Digital Transistor

PNP Digital Transistor

E C B

8-1 L15N_SC

Page 30

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

(Unit: Volt)

5.0

(3.0)

5.0

Power on mode Power off mode

5. How to read converged lines

1-D3 Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

8-2 L15N_SC

Page 31

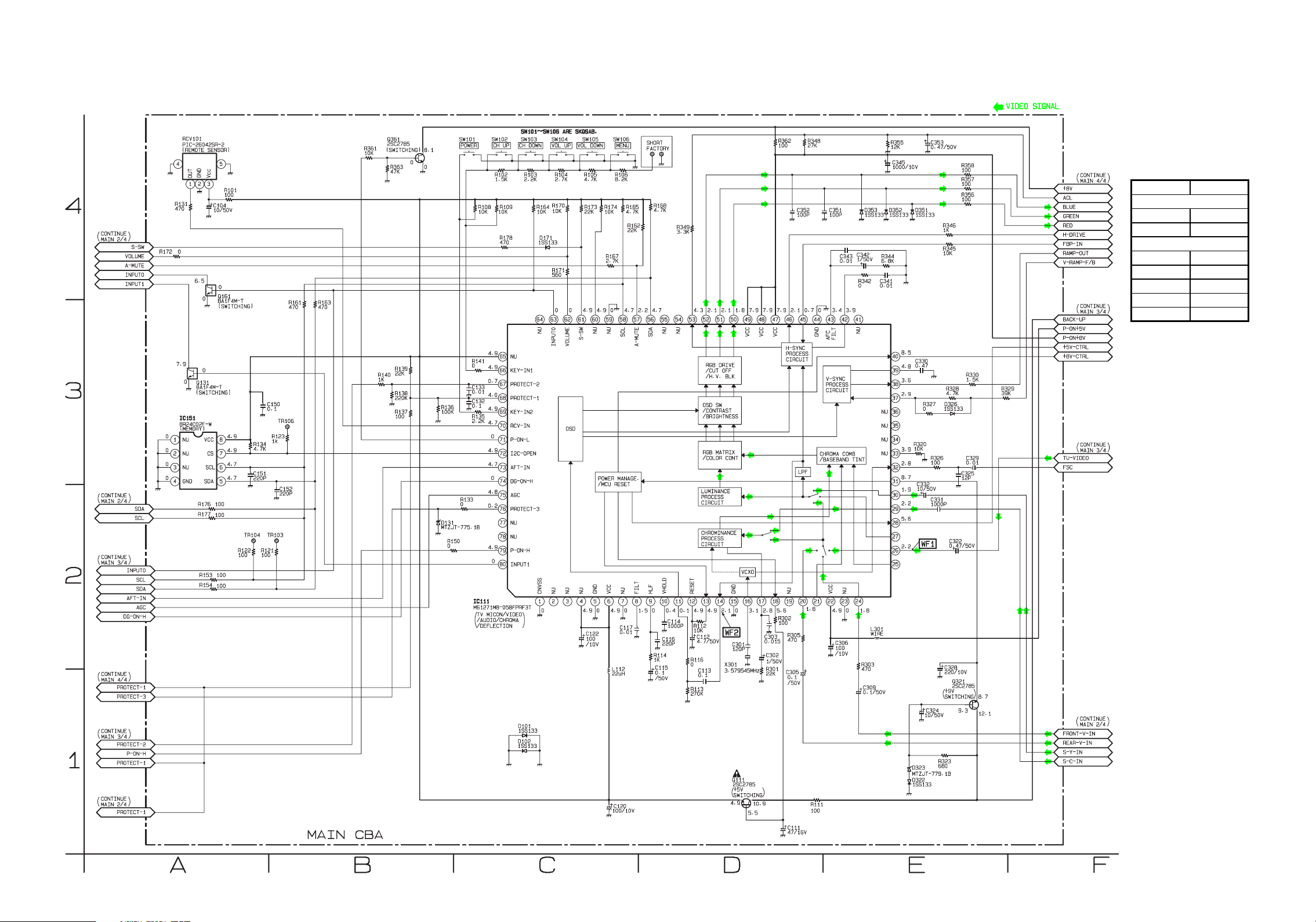

Main 1/4 Schematic Diagram

MAIN 1/4

Ref No. Position

IC111

C-2

IC151

A-3

Q111 D-1 Q131 A-3 Q161 A-4 Q321 E-1 Q361 B-4

ICS

TRANSISTORS

8-3

L3420SCM1

Page 32

Main 2/4 Schematic Diagram

MAIN 2/4

Ref No. Position

IC431 G-3 IC771 H-2 IC801 I-3

Q801 J-3 Q811 I-3

CN801

L-4

CN802 L-4

TRANSISTORS

CONNECTORS

ICS

8-4

L3420SCM2

Page 33

Main 3/4 Schematic Diagram

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

MAIN 3/4

Ref No. Position

IC31

P-3

IC601

O-1

Q601

P-2

Q602

P-1 Q652 O-1 Q672 N-2 Q673 N-1 Q674 N-1 Q681

M-2 Q682

M-1 Q696

O-2

CN691

Q-2

TP300

N-4

VR661 O-1

TRANSISTORS

VARIABLE RESISTOR

CONNECTOR

TEST POINT

ICS

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

8-5

1 NOTE:

These components (C643, C642, JS642) can be used in any models. However, you cannot mix components under Group A with the ones under Group B. You can choose either Group. The difference between Group A and Group B is shown below.

Group A Group B

C643

C642

JS642

0.01/250V

Not Used

4700P/250V

Not Used

WIRE

L3420SCM3

Page 34

Main 4/4 & CRT Schematic Diagram

CRT

Ref No. Position

Q1511 W-1 Q1512 W-2 Q1521 W-1 Q1522

W-2

Q1531

X-1

Q1532

X-2

CN1501 X-2 WH301B V-2 WH501B V-3

TRANSISTORS

CONNECTORS

MAIN 4/4

Ref No. Position Ref No. Position

IC551

TRANSISTORS Q511 S-2 WH501A V-3 Q512 S-2 Q551 T-3 Q552 T-3 Q561 U-3 VR561 U-3 Q571 U-2 VR562 U-3 Q572 T-2

S-3 CN571 T-3

CONNECTORS

WH301A V-2

TEST POINT

TP601

VARIABLE RESISTORS

U-2

8-6

L3420SCM4

Page 35

Main CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

MAIN CBA

Ref No. Position

IC31

B-1

IC111

E-1

IC151

E-2 IC431 D-1 IC551

A-1 IC601

D-3 IC771

F-3 IC801

E-3

Q111 F-1 Q131 E-1 Q161 E-2 Q321 D-1 Q361 D-1 Q511 A-2 Q512 B-2 Q551

B-2

Q552

C-2

Q561

C-2

Q571

B-2

Q572

B-2

Q601

B-4

Q602

C-4

Q652 D-2 Q672 D-2 Q673 D-2 Q674

D-3

Q681

E-3

Q682

D-3

Q696

D-3

Q801 E-3 Q811 E-3

CN571

A-3

CN691

D-4

CN801

E-1

CN802

E-3

WH301A D-1 WH501A A -3

TP300

A-3

TP601

B-4

VR561 A-2 VR562 A-2 VR661 A-2

TEST POINTS

VARIABLE RESISTORS

TRANSISTORS

ICS

CONNECTORS

CAUTION !

TP601

FOCUS-VR (UPPER SIDE)

SCREEN-VR (LOWER SIDE)

TP300

GND

VR661

+B ADJ

VR561

PCC

VR562

WIDTH

4A/125V

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

8-7

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

BL3700F01011-1

Page 36

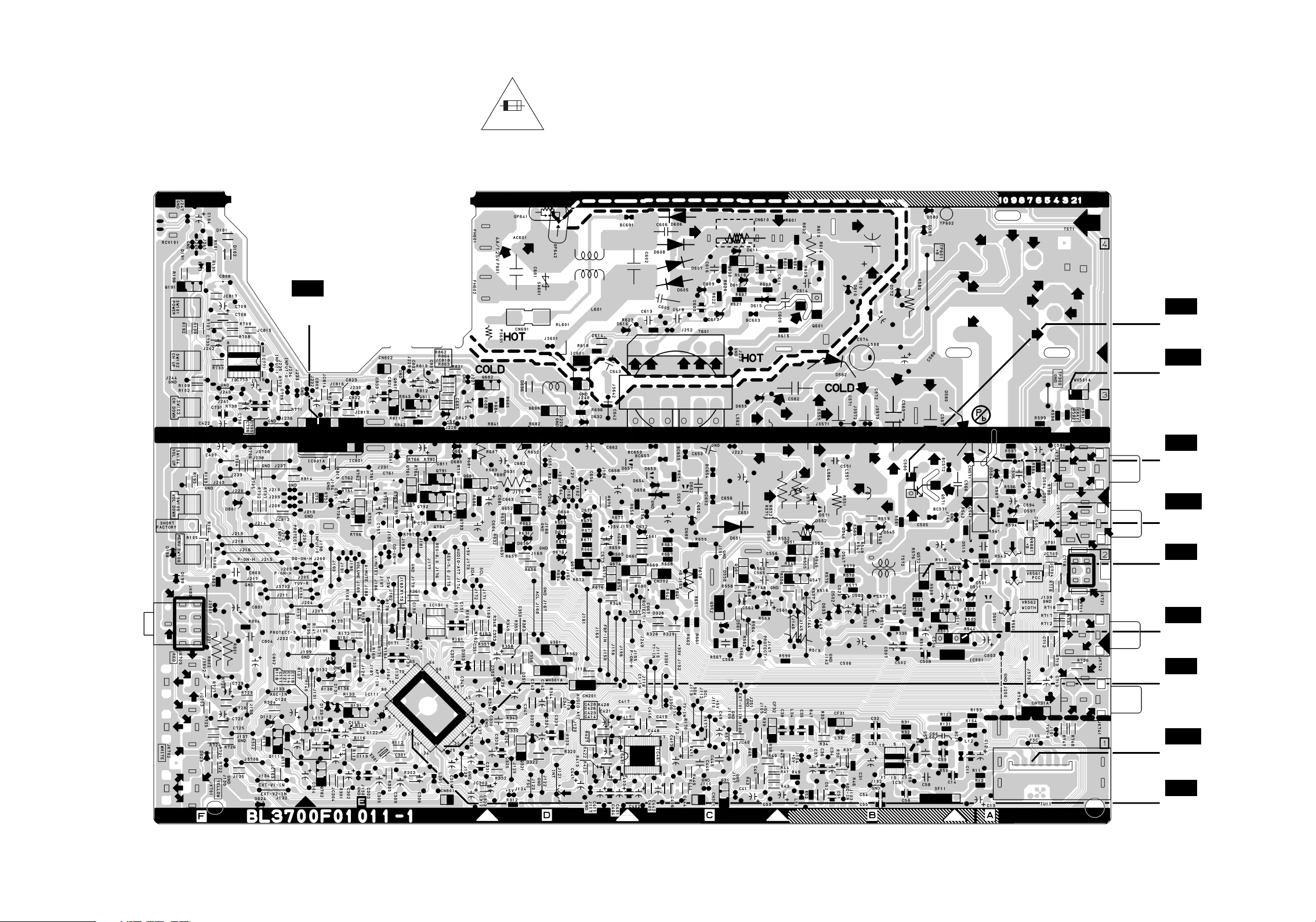

Main CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

WF6

PIN 3 OF IC801

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

WF8

Q571 Base

WF10

PIN 3 OF WH501A

WF9

PIN 1 OF CN571

WF12

PIN 4 OF CN571

WF7

Q572 Collector

WF11

PIN 7 OF IC551

WF1

PIN 26 OF IC111

WF16

PIN 5 OF TU11

8-8

WF2

PIN 14 OF IC111

BL3700F01011-1

Page 37

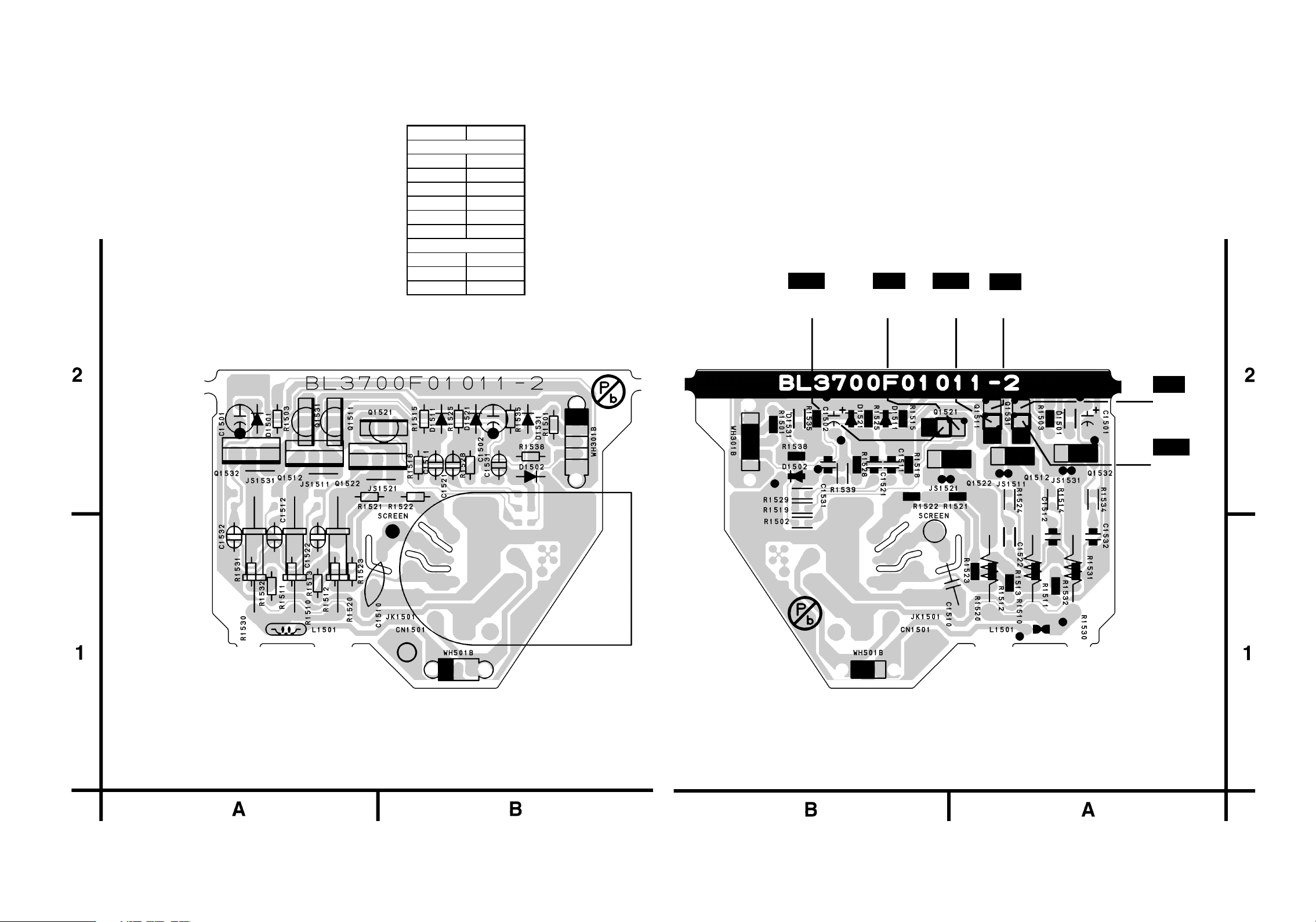

CRT CBA Top View CRT CBA Bottom View

CRT CBA

Ref No. Position

TRANSISTORS Q1511 A-2 Q1512 A-2 Q1521 Q1522 Q1531 Q1532

CONNECTORS

CN1501 B-1 WH301B B-2 WH501B B-1

A-2 A-2 A-2 A-2

WF14

Q1521 Collector

WF4

Q1521 Base

WF15

Q1511 Collector

WF3

Q1511 Base

WF5

Q1531 Base

WF13

Q1531 Collector

8-9

BL3700F01011-2

Page 38

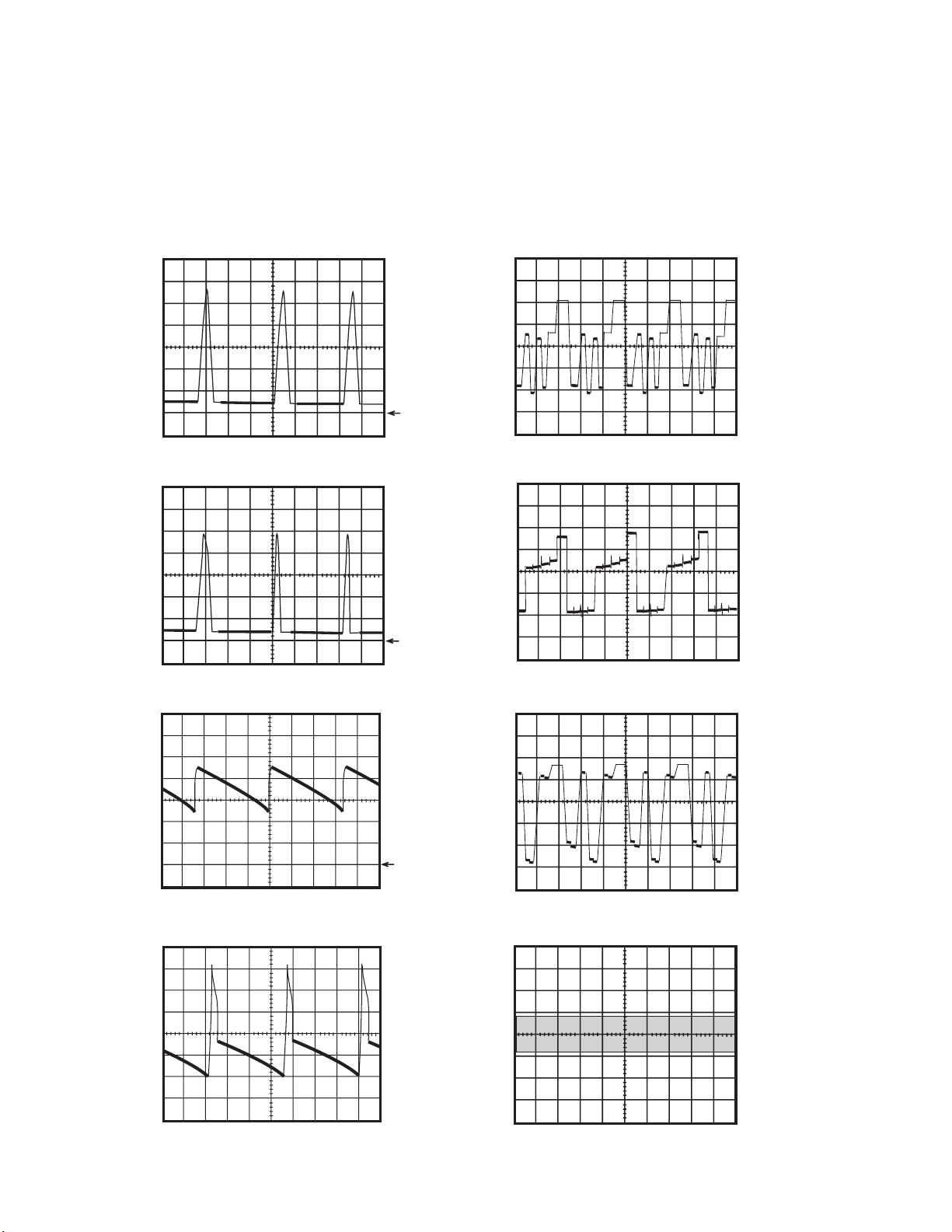

WAVEFORMS

)

WF1 ~ WF16 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal) INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%

WF1

WF2

1DIV: 0.5V 20µs IC 111 Pin 26

1DIV: 0.5V 20µs IC 111 Pin 14

GND

WF5

WF6

GND

1DIV: 2V 20µs Q 1531 Base

1DIV: 0.2V 20ms IC 801 Pin 3

WF3

WF4

1DIV: 2V 20µs Q1511 Base

1DIV: 2V 20µs Q 1521 Base

GND

9-1

WF7

WF8

GND

1DIV: 10V 20µs Q 572 Collector

1DIV: 5V 20µs Q 571 Base

L15WF

Page 39

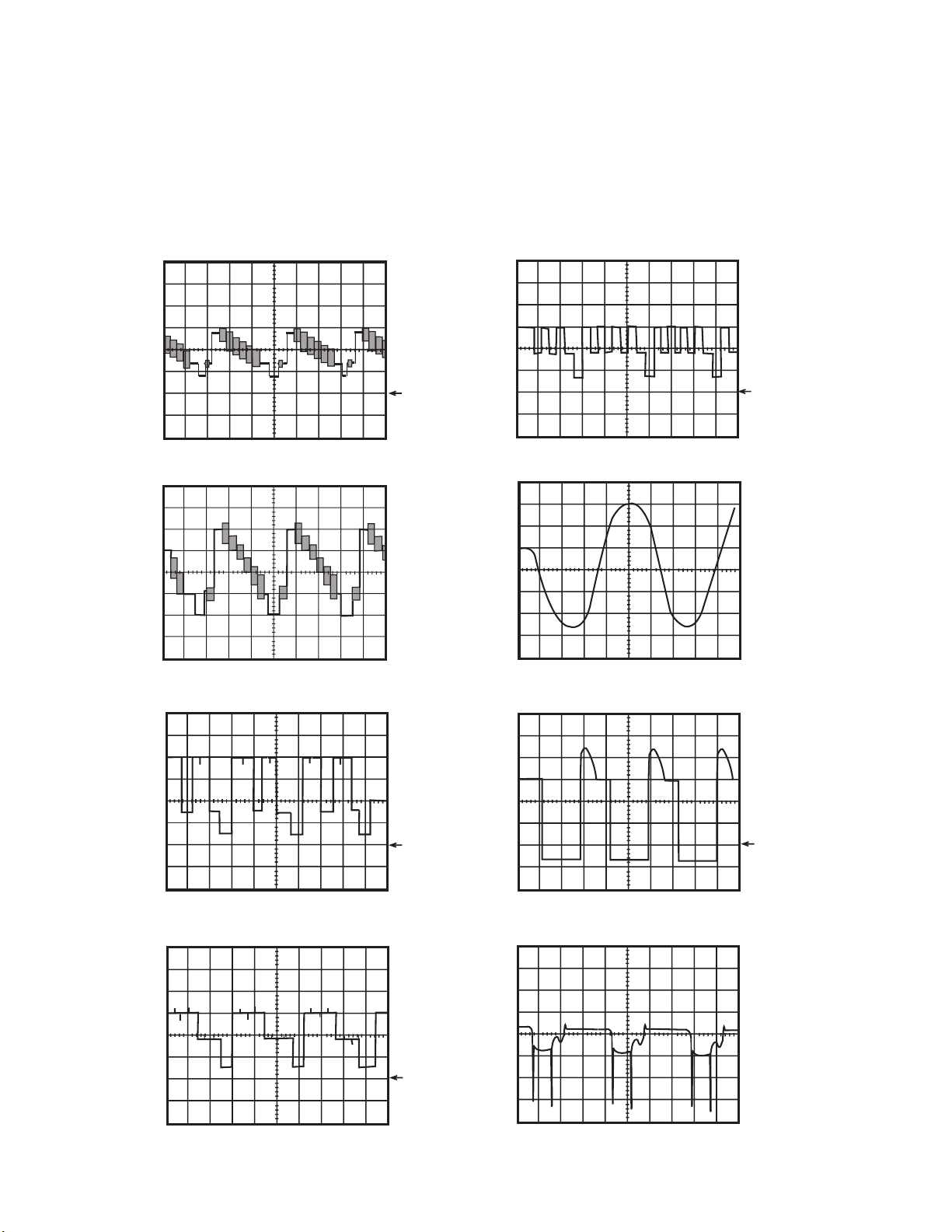

WF1 ~ WF16 = Waveforms to be observed at Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal) INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

GND

WF9

WF10

1DIV: 200V 20µs CN 571 Pin 1

1DIV: 5V 20µs WH501A Pin 3

GND

WF13

WF14

1DIV: 20V 20µs Q 1531 Collector

1DIV: 20V 20µs Q 1521 Collector

WF11

WF12

1DIV: 1V 5ms IC 551 Pin 7

1DIV: 10V 5ms CN 571 Pin 4

WF15

WF16

1DIV: 20V 20µs Q 1511 Collector

1DIV: 0.2V 20µs TU 11 Pin 5

L15WF9-2

Page 40

WIRING DIAGRAM

V501

CRT

GND

CN1501

ANODE

FOCUS

SP801 SPEAKER

L-CH

SP802 SPEAKER

R-CH

SCREEN

CLN801

CLN802

SP-L

SP-GND

SP-R

SP-GND

1 2

CN801

CN802

TU11 TUNER UNIT

MAIN CBA

CN691

T571 FBT

CRT CBA

WH301B

BLUE

GREEN

RED GND

+8V

HEATER 3

GND 2

+200V 1

5 4 3 2 1

CLN301

CLN501

DY551 D.Y.

5 4 3 2 1

WH301A

BLUE GREEN RED GND +8V

WH501AWH501B

HEATER3 GND2 +200V1

CN571

1 2 3 4 5

AC601

10-1

L3420WI

Page 41

IC PIN FUNCTION DESCRIPTIONS

IC111 (TV Micro Controller)

Signal Name Function

No.

1 CNVSS GND 2 N.U. Not Used 3 N.U. Not Used 4 N.U. Not Used 5GND GND 6 VCC ALL +5V 7 N.U. (GND) 8 FILT FILT

9HLF Filter for CCD 10 VHOLD VHOLD 11 CVIN Input for Video Signal 12 RESET RESET

MCU RESET

OUT 14 Y-SW OUT Composite Signal Output 15 GND GND 16 3.58 X'TAL 3.58MHz Crystal 17 C-APC CHROMINANCE APC

MCU 5.7REG 18

OUT 19 N.U. Not Used 20 CVBS IN 3 Composite Signal Input 3 21 N.U. Not Used 22 VCC VCC 23 N.U. (GND) 24 CVBS IN2 Composite Signal Input 2 25 N.U. Not Used 26 CVBS IN1 Composite Signal Input 1 27 N.U. Not Used

5.7V REG

OUT 29 C(Y/C) IN Chrominance Signal Input 30 Y(Y/C) IN Luminance Signal Input 31 V REG VCC DC 8.7V Input 32 FSC OUT Clock Output 3.58MHz 33 N.U. Not Used 34 N.U. Not Used 35 N.U. Not Used 36 N.U. Not Used 37 V RAMP F/B V Ramp Feed Back

RESET Signal Output

Micro controller Control Voltage Output

5.7V Output

Signal Name Function

No.

38 V RAMP OUT Vertical Output 39 V RAMP CAP V Ramp OSC Capacitor

8.7 VREG

OUT 41 N.U. Not Used 42 H VCO F/B H Vco Feed Back 43 AFC FILT Horizontal AFC Filter 44 GND GND 45 FBP IN Flyback Pulse Input 46 H-OUT H Pulse Output 47 VCC Vcc 48 VCC Vcc 49 VCC Vcc 50 R OUT Red Output 51 G OUT Green Output 52 B OUT Blue Output 53 ACL IB-Input 54 N.U. Not Used 55 N.U. Not Used

56 SDA

57 A-MUTE Audio Mute

58 SCL

59 N.U. (GND) 60 N.U. Not Used 61 S-SW Detect S Signal 62 VOLUME Volume 63 INPUTO Input Select 0 64 N.U. Not Used 65 N.U. Not Used 66 KEY-IN 1 Key Input 1 (Main) 67 PROTECT-2 Power Supply Protection 68 PROTECT-1 Power Supply Protection 69 KEY-IN 2 Key Input 2 (Main) 70 RCV-IN Input For Remote Control 71 P-ON-L Output for P-ON-L

72 I2C OPEN

73 AFT-IN AFT Voltage Input 74 DG-ON-H Degaussing Coil Control

DC 8.7V Output

I2C-BUS Controller Interface (Data)

I2C-BUS Controller Interface (Clock)

White Balance Adjustment Judgement

11-1 L3420PIN

Page 42

Signal Name Function

No.

75 AGC AGC Voltage Input 76 PROTECT-3 Power Supply Protection 77 N.U. Not Used 78 N.U. Not Used 79 P-ON-H Output for P-ON-H 80 INPUT1 Input Select 1

11-2 L3420PIN

Page 43

Cabinet

Details for DY551 and surrounding parts

SHINWHA TAPE SGT-730 (WHITE)

B-20

SHINWHA TAPE SGT-730 (BLACK)

V501-2

B-2

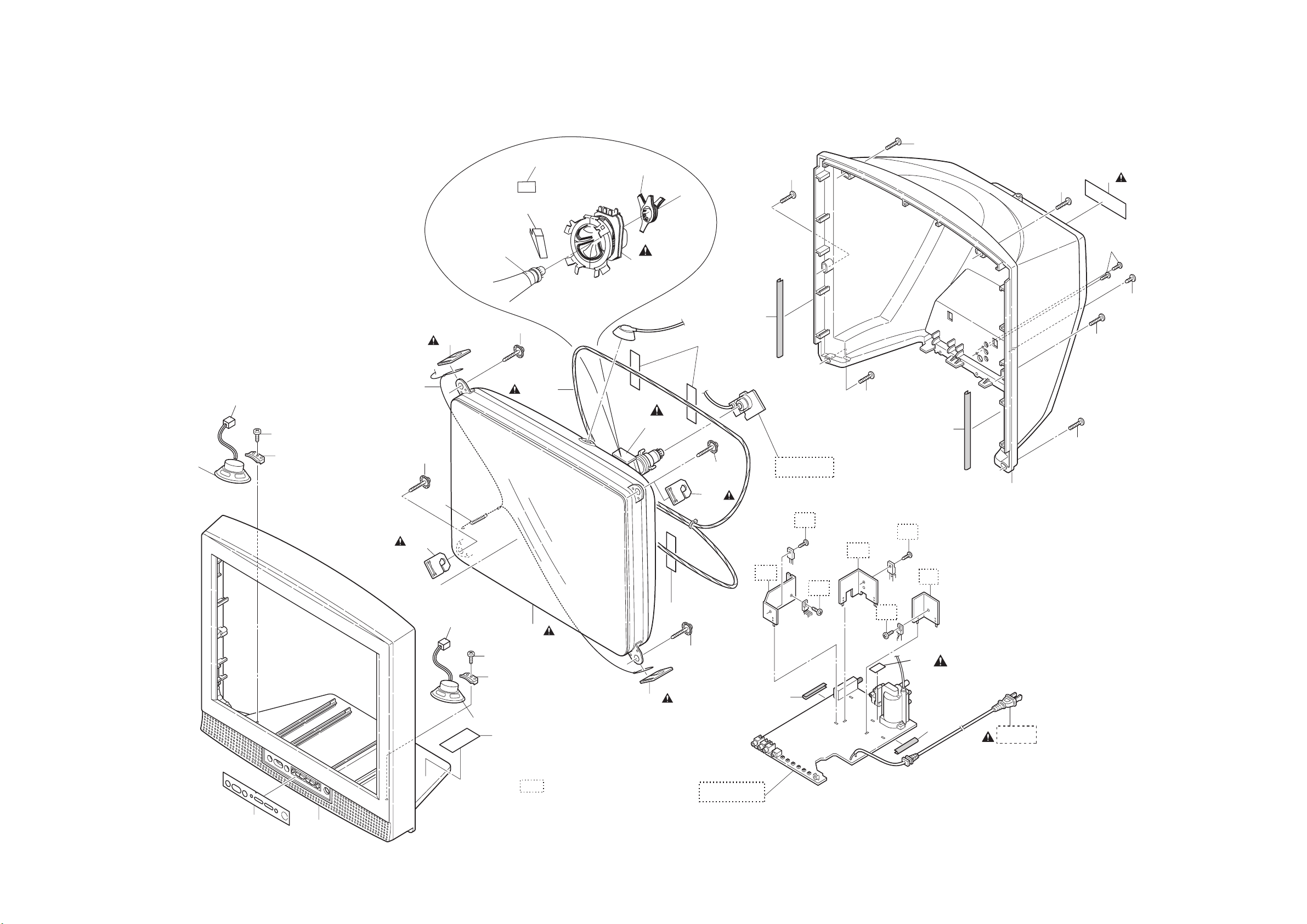

EXPLODED VIEWS

V501-1

DY55 1

Scotch Tape #880

B-11

L-8

A-4

L-8

L-10

L-9

L-8

SP801

CLN801

L-1

CLN551

B-20

B-2

B-1

CLN802

L-1

B-4

DG691

V501

DY55 1

Scotch Tape #880

B-2

B-20

B-2

B-20

PB6

L-8

B-11

L-8

CRT CBA

A-2

PB4

A-3

A-1

SP802

B-7

See Electrical Parts List for parts with this mark.

12-1 L3420CEX

PB6

AC601

MAIN CBA

Page 44

Packing

S-2

Tape

X-2X-1

X-5

X-3

S-1

S-3

S-4

S-6

FRONT

S-5

Packing tape

12-2 L3420PEX

Page 45

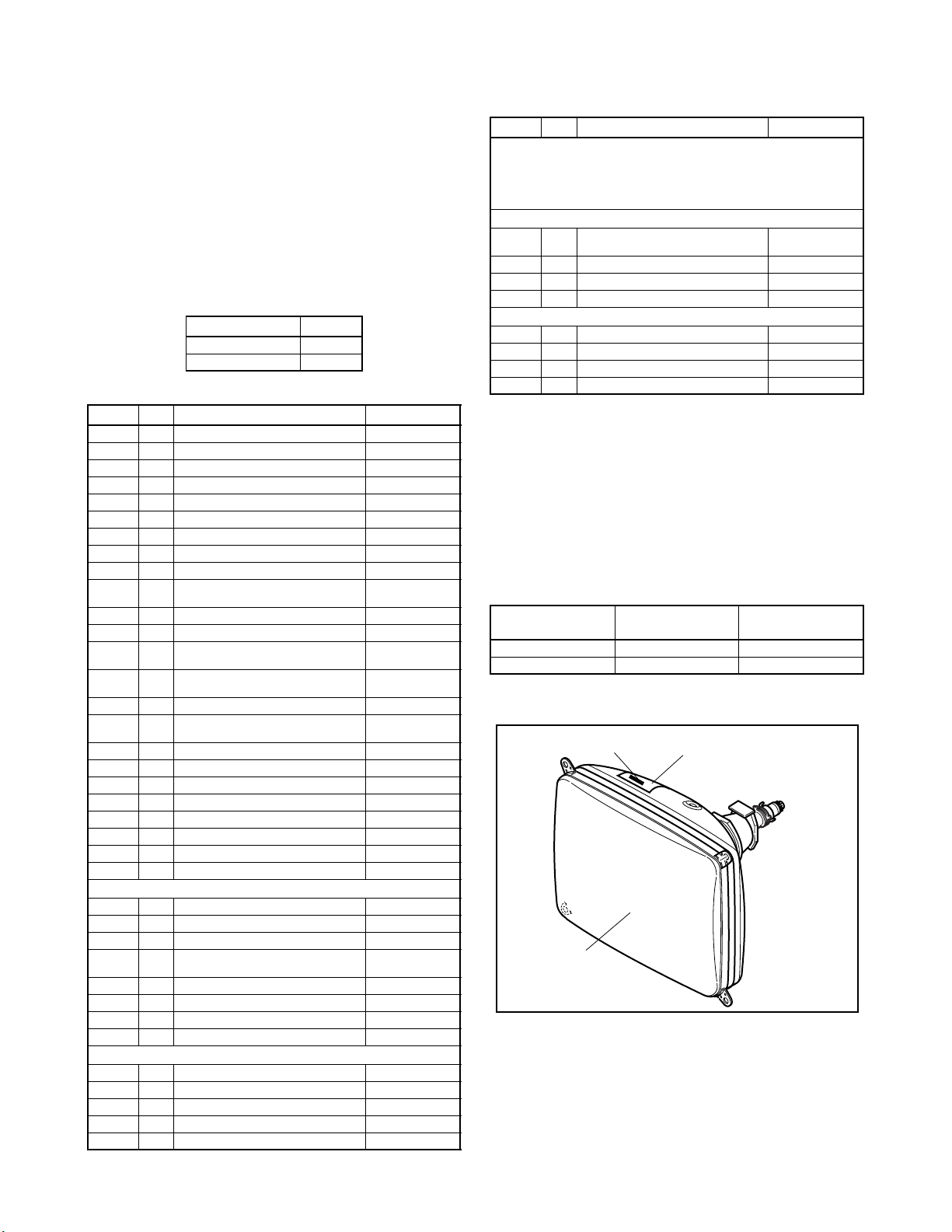

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Comparison Chart of Models and Marks

Model Mark

6424FF A

ST424FF B

Ref. No. Mark Description Part No.

A-1 FRONT CABINET L3420UA 1EM020135

A-2 REAR CABINET L3420UA 1EM020136

A-3 A CONTROL PLATE L3420UA 1EM320172

A-3 B CONTROL PLATE L3425UF 1EM320398

A-4# A RATING LABEL L3420UA ----------

A-4# B RATING LABEL L3425UF ----------

B-1 SPRING TENSION B0080B0 EM40808 26WH006

B-2 SCREW L1500UA 0EM406142

B-4 SPEAKER HOLDER L1200UA 0EM405691

B-7 LABEL CRITICAL PARTS WARN ING

B-11 CLOTH 190X15XT0.5 TS7623

B-20# HOLDER DEGAUSS L1200UA 0EM405869

CLN551 WIRE CRT GND(PB FREE) WX1L3420-

CLN801 WIRE ASSEMBLY SPEAKER

CLN802 WIRE ASSEMBLY WX1L2700-001 WX1L2700-001

DG691

L-1 SCREW P-TIGHT 3X12 BIND HEAD+ GBMP3120

L-8 SCREW P-TIGHT 4X18 BIND HEAD + GBMP4180

L-9 SCREW TAPPING M4X14 DBU14140

L-10 SCREW P-TIGHT 3X10 BIND HEAD+ GBKP3100

SP801 SPEAKER S08N04 DSD0808XQ013

PB4# CHASISS NO. LABEL L1524P1 1EM420778

PB6 CLOTH(65) L7735TR 65X10X0.5T 0EM402149

SP802 SPEAKER S08N04 DSD0808XQ013

B8007C3 EM41210

001

WIRE(180MM)

DEGAUSSING COIL LLBH00ZTM048 LLBH00ZTM048

PACKING

S-1 A CARTON L3420UA 1EM420675

S-1 B CARTON L3425UF 1EM421129

S-2 STYROFOAM TOP ASSEMBLY L3420UA 1EM420676

S-3 STYROFOAM BOTTOM ASSEMBLY

S-4 SHEET SET PCEC 003502019816 0EM403887

S-5 A SERIAL NO. LABEL L3420UA ----------

S-5 B SERIAL NO. LABEL L3425UF ----------

S-6 HOLD PAD L3420UA 1EM420812

L3420UA

ACCESSORIES

X-1 REMOTE CONTROL NE122UD NE122UD

X-2 DRY BATTERY R6P/2S XB0M451T0001

X-3# A OWNERS MANUAL ENGLISH/SPANISH 1EMN20250

X-3# B OWNERS MANUAL ENGLISH/SPANISH 1EMN20411

X-5 BAG POLYETHYLENE 235X365XT0.03 0EM408420

24LH199

WX1L3420-001

WX1L9800-001

1EM420677

Ref. No. Mark Description Part No.

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS ALSO HAS MATCHING COMBINATION WITH DY551. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. DY551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

CRT TYPE A

DY5 5 1# DEFLECTION YOKE(PB FREE) CDY-

V501# CRT A59QDF891X TCRT190SM035

V501-1 PCM JH88DTA XM04000BV010

V501-2 WEDGE FT-00110W XV10000T4001

Q2512F

LLBY00ZQS021

CRT TYPE B

DY5 5 1# DEFLECTION YOKE 6150Z-1230U LLBY00ZGS011

V501# CRT A59QDC280X TCRT190GS048

V501-1 PCM JH88DTA XM04000BV010

V501-2 WEDGE FT-00110W XV10000T4001

Table 1 (V501 and DY551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electrical Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT Warning Label which is located on the CRT. Then See the Table 1 for V501 and DY551 combination chart. Please refer this CRT, Deflection Yoke combination chart for parts order.

V501: CRT Type No. V501: CRT Part No.

A59QDF891X TCRT190SM035 LLBY00ZQS021

A59QDC280X TCRT190GS048 LLBY00ZGS011

DY551: Deflection

Yoke Part No.

CRT Warning Label Location

CRT Type No.

CRT

CRT Warning Label

20050426 13-1 L3420CA

Page 46

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA CBA

Ref. No. Description Part No.

MMA CBA Consists of the following:

MAIN CBA CRT CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA Consists of the following:

CAPACITORS

C11 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103 C12 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C13 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C14 CERAMIC CAP.(AX) B 0.01µF/50V CCK1JKT0B103 C31 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C34 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C35 CERAMIC CAP.(AX) SL J 47pF/50V CCA1JJTSL470 C36 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102 C37 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C38 CERAMIC CAP.(AX) SL J 47pF/50V CCA1JJTSL470 C49 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C50 CERAMIC CAP.(AX) CH K 3.3pF/50V CCA1JKTCH3R3 C51 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102 C52 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C53 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C54 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102 C55 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103 C56 PCB JUMPER D0.6-P5.0 JW5.0T C57 FILM CAP.(P) 0.047µF/50V J CMA1JJS00473 C58 FILM CAP.(P) 0.033µF/50V J CMA1JJS00333 C59 CERAMIC CAP.(AX) CH K 2.7pF/50V CCA1JKTCH2R7 C60 CERAMIC CAP.(AX) CH K 5.6pF/50V CCA1JKTCH5R6 C104 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C111 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470 C112 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C113 CHIP CERAMIC CAP. F Z 0.1µF/25V CHD1EZB0F104 C114 FILM CAP.(P) 0.001µF/50V J CMA1JJS00102 C115 ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1 C116 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221

1ESA10581

----------

Ref. No. Description Part No.

C117 CERAMIC CAP.(AX) Y K 0.01µF/16V CCA1CKT0Y103 C120 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C122 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C132 CERAMIC CAP.(AX) F 0.1µF/50V CCK1JZT0F104 C133 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103 C150 CHIP CERAMIC CAP. F Z 0.1µF/25V CHD1EZB0F104 C151 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221 C152 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221 C301 CHIP CERAMIC CAP. CH J 120pF/50V CHD1JJBCH121 C302 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C303 CERAMIC CAP.(AX) B 0.015µF/50V CCK1JKT0B153 C305 ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1 C306 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C309 ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1 C322 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C324 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C325 CERAMIC CAP.(AX) SL J 12pF/50V CCA1JJTSL120 C328 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221 C329 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103 C330 STACKED FILM CAP. 0.47µF/50V J CMA1JJS00474 C331 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102 C332 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C341 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C342 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C343 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C345 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102 C351 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C352 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101 C353 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C401 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3 C402 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3 C403 CERAMIC CAP.(AX) F 0.1µF/50V CCK1JZT0F104 C404 CERAMIC CAP.(AX) B 0.022µF/50V CCK1JKT0B223 C405 CHIP CERAMIC CAP. F Z 0.1µF/25V CHD1EZB0F104 C406 CHIP CERAMIC CAP. B K 0.033µF/25V CHD1EKB0B333 C411 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C413 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C414 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C415 CHIP CERAMIC CAP. CH J 150pF/50V CHD1JJBCH151 C416 CHIP CERAMIC CAP. CH J 150pF/50V CHD1JJBCH151 C417 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C421 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C422 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMASSLR47 C423 CHIP CERAMIC CAP. B K 4700pF/50V CHD1JKB0B472 C426 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C427 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMASSLR47 C428 CERAMIC CAP.(AX) X K 4700pF/16V CCA1CKT0X472 C441 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C442 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C444 ELECTROLYTIC CAP. 0.33µF/50V M CE1JMASDLR33 C445 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C446 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C448 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C501 FILM CAP.(P) 0.22µF/100V J CMA2AJS00224 C502 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102 C503 ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101 C504 ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2 C505 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZNTL102 C506 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZNTL102 C507 FILM CAP.(P) 0.033µF/50V J CMA1JJS00333

20050426 14-1 L3420EL

Page 47

Ref. No. Description Part No.

C508 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103 C511 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C551 PCB JUMPER D0.6-P7.5 JW7.5T C555 METALIZED PLYESTER CAP. 2.2µF/100V J CT2A225MS065 C556 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C561 ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470 C562 ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471 C565 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C566# CERAMIC CAP. BN 1000pF/2KV CCD3DKA0B102 C571# PP CAP 0.82µF/250V J CT2E824MS041 C572# PP CAP. 0.68µF/250V J CT2E684MS041 C574# ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASTL4R7 C577 ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470 C578 FILM CAP.(P) 0.018µF/50V J CMA1JJS00183 C580# PP CAP. 0.015µF/1.6KV J CA3C153VC010 C582# P.P. CAPACITOR 0.033µF/630V J CT2K333KF011 C584# ELECTROLYTIC CAP. 1µF/160V M CE2CMASDL1R0 C588# ELECTROLYTIC CAP. 100µF/160V M CE2CMZPTL101 C594# ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C596 CERAMIC CAP. B K 100pF/500V CCD2JKS0B101 C601# METALLIZED FILM CAP. 0.33µF/250V CT2E334MS037 C605 CERAMIC CAP. F Z 0.01µF/500V CCD2JZP0F103 C606 CERAMIC CAP. F Z 0.01µF/500V CCD2JZP0F103 C609 CERAMIC CAP. BN 680pF/2KV CCD3DKA0B681 C610# ELECTROLYTIC CAP. 220µF/200V CA2D221NC088 C611 FILM CAP.(P) 0.015µF/50V J CMA1JJS00153 C614 CERAMIC CAP.(AX) X K 2700pF/16V CCA1CKT0X272 C616 FILM CAP.(P) 0.082µF/50V J CMA1JJS00823

If C 642 is 0.01µF, then C643 is 0.01µF.

C642# SAFETY CAP. 10000pF/250V CCG2EMA0F103 C643# SAFETY CAP. 10000pF/250V CCG2EMA0F103

If C643 is 4700pF, then JS642 (PCBJUMPER) is used.

C643# SAFETY CAP. 4700pF/250V KX CA2E472MR050 JS642 PCB JUMPER D0.6-P10.0 JW10.0T C650 CERAMIC CAP. BN 560pF/2KV CCD3DKA0B561 C654# ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C656# ELECTROLYTIC CAP. 100µF/160V M CE2CMZPTL101 C657# ELECTROLYTIC CAP. 470µF/35V M(VR) CE1GMZNTL471 C658# ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) CE1CMZNTL102 C662# ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) CE1CMZNTL102 C663 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102 C667 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C673 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C681 ELECTROLYTIC CAP. 33µF/16V M CE1CMASDL330 C682 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C684 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102 C685 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C705 CERAMIC CAP.(AX) X K 3900pF/16V CCA1CKT0X392 C706 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C708 CHIP CERAMIC CAP. B K 3900pF/50V CHD1JKB0B392 C709 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C713 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C718 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102 C725 CHIP CERAMIC CAP. B K 3900pF/50V CHD1JKB0B392 C726 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C728 CHIP CERAMIC CAP. B K 3900pF/50V CHD1JKB0B392 C729 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C773 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C801 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C802 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C803 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C804 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C807 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

Ref. No. Description Part No.

C808 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C809 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C811 ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) CE1CMZNTL102 C833 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

CONNECTORS

CN571# CONNECTOR BASE 5P TV-50P-05-V3 J3TVC05TG002 CN691# CONNECTOR BASE 2P TV-50P-02-V3 J3TVC02TG002 CN801 STRAIGHT CONNECTOR BASE 00 8283 0212

CN802 STRAIGHT CONNECTOR BASE 00 8283 0212

00 000

J383C02UG002

DIODES

D101 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D102 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D131 ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1 D171 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D322 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D323 ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1 D326 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D351 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D352 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D353 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D501 DIODE FR104-B NDLZ000FR104 D502# ZENER DIODE MTZJT-7720B QDTB00MTZJ20 D503# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D511 ZENER DIODE MTZJT-7715B QDTB00MTZJ15 D552# ZENER DIODE MTZJT-773.0B QDTB0MTZJ3R0 D558 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D561 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D572 FAST RECOVERY DIODE ERA22-04 QDPZ0ERA2204 D580 DIODE ERD07-15 QDLZ0ERD0715 D582# FAST RECOVERY DIODE ERD38-06L AERD3806L000 D583 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D584# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D585 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D591# ZENER DIODE MTZJT-7736B QDTB00MTZJ36 D594# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D595# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D597 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8 D605# DIODE 1N5406 NDLZ001N5406 D606# DIODE 1N5406 NDLZ001N5406 D607# DIODE 1N5406 NDLZ001N5406 D608# DIODE 1N5406 NDLZ001N5406 D611# ZENER DIODE MTZJT-7724C QDTC00MTZJ24 D612# ZENER DIODE MTZJT-7736B QDTB00MTZJ36 D613 ZENER DIODE MTZJT-777.5B QDTB0MTZJ7R5 D614 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D615# SWITCHING DIODE 1N4148 T-77 QDTZ001N4148 D623 PCB JUMPER D0.6-P5.0 JW5.0T D651# FAST RECOVERY DIODE 30DF6 QDWZ00030DF6 D652# DIODE FR154 NDLZ000FR154 D653# DIODE FR154 NDLZ000FR154 D654# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D655# ZENER DIODE 1ZB180 QDQZ001ZB180 D656# ZENER DIODE MTZJT-777.5B QDTB0MTZJ7R5 D657# DIODE FR154 NDLZ000FR154 D658# DIODE 1ZC18 QDQZ0001ZC18 D660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D661# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D666 ZENER DIODE MTZJT-7736B QDTB00MTZJ36 D671 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D672 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D675 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

20050426 14-2 L3420EL

Page 48

Ref. No. Description Part No.

D676 ZENER DIODE MTZJT-7718A QDTA00MTZJ18 D685# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D686 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D696# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D801 ZENER DIODE MTZJT-773.0B QDTB0MTZJ3R0 D841# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D842# ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1

ICS

IC31 IC VIF/SIF M61116FP TF0G QSZBA0SHT034 IC111 MICRO COMPUTER/VCD (PB FREE)

IC151 IC MEMORY BR24C02F-W QSMBA0SRM003 IC431 IC MTS DECORDER AN5832SA-E1 QSZBA0TMS003 IC551 IC VERTICAL OUTPUT LA78041-E QSZBA0SSY006 IC601# PHOTO COUPLER PS2501-1L QPEL0PS25011 IC771 IC SWITCHING TC4052BF(EL) QSZBA0TTS096 IC801 IC AN17812A QSZBA0SMS017

M61271M8-058FP RF3T

QSZAC0RMB182

COILS

L12 INDUCTOR 22µH-K-5FT LLARKBSTU220 L34 INDUCTOR 18µH-J-26T LLAXJATTU180 L50 INDUCTOR 150µH-J-26T LLAXJATTU151 L51 INDUCTOR 100µH-J-5FT LLARJCSTU101 L112 INDUCTOR 22µH-K-5FT LLARKBSTU220 L301 PCB JUMPER D0.6-P5.0 JW5.0T L551 LINEARITY COIL ELH5L6170N LLBD00PMS053 L562 CHOKE COIL ELC18B821LK LLC821KMS001 L564 CHOKE COIL ELC18B821LK LLC821KMS001 L588 CHOKE COIL 47µH-K LLBD00PKV007 L601# LINE FILTER JLB2460 LLBG00ZXB012

TRANSISTORS

Q111# TRANSISTOR 2SC2785(F) QQSF02SC2785 Q131 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M Q161 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M Q321 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q361 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q511 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M Q512 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M Q551 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q552# TRANSISTOR 2SD1666R QQER02SD1666 Q561 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q571# TRANSISTOR 2SC5978 QQZZ02SC5978 Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627 Q601# MOS FET 2SK3561 QFWZ02SK3561 Q602# TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q652# TRANSISTOR 2SC2785(F) QQSF02SC2785 Q672# TRANSISTOR 2SA1175(F) QQSF02SA1175 Q673 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q674 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q681# TRANSISTOR 2SC2120-O-TPE2 QQS002SC2120 Q682# TRANSISTOR 2SD400(E) QQUE002SD400 Q696 RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M Q801 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q811 TRANSISTOR 2SC2785(F) QQSF02SC2785

RESISTORS

R12 PCB JUMPER D0.6-P5.0 JW5.0T R31 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R32 CARBON RES. 1/4W J 82 Ω RCX4JATZ0820 R35 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R37 CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221 R38 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153 R39 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153 R44 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R50 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

Ref. No. Description Part No.

R54 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R101 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R102 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R103 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R104 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R105 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R106 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822 R108 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R109 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R111 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R112 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R113 CHIP RES.(1608) 1/10W J 270k Ω RRXAJB5Z0274 R114 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R116 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R121 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R122 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R123 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R131 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R133 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R134 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R135 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R136 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R137 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R138 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224 R139 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R140 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R141 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R150 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R153 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R154 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R161 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R162 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R163 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R164 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R165 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R167 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R168 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R170 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R171 CHIP RES.(1608) 1/10W J 560 Ω RRXAJB5Z0561 R172 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R173 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R174 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R176 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R177 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R178 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R301 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R302 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R303 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R305 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R320 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R323 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R326 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R327 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R328 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R329 CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393 R330 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R342 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R344 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R345 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R346 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R348 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273 R349 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332 R355 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123

20050426 14-3 L3420EL

Page 49

Ref. No. Description Part No.

R356 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R357 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R358 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R361 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R362 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R363 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473 R417 CHIP RES.(1608) 1/10W J 180k Ω RRXAJB5Z0184 R422 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822 R423 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R427 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822 R428 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R445 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332 R503 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273 R504 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R505 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R506 CARBON RES. 1/4W J 2.7 Ω RCX4JATZ02R7 R507 CARBON RES. 1/4W J 2.7 Ω RCX4JATZ02R7 R508 CARBON RES. 1/4W J 2.7 Ω RCX4JATZ02R7 R511 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R513# METAL OXIDE FILM RES. 2W J 12 Ω RN02120ZU001 R514 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R515 CHIP RES.(1608) 1/10W J 33k Ω RRXAJB5Z0333 R516# METAL OXIDE FILM RES. 2W J 12 Ω RN02120ZU001 R520# CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R522 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R535 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R540 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R541 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R542 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R543 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R551 METAL OXIDE FILM RES. 1W J 1k Ω RN01102ZU001 R552# METAL OXIDE FILM RES. 1W J 8.2 Ω RN018R2ZU001 R553 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R554 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R555 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R556 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R557 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183 R558 CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221 R560 CHIP RES.(1608) 1/10W J 27k Ω RRXAJB5Z0273 R561 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R562 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R563 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R564 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224 R566 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R567 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R568 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R574 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R575# CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R576 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R577 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R578# CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R579# CARBON RES. 1/4W J 27 Ω RCX4JATZ0270 R581 PCB JUMPER D0.6-P5.0 JW5.0T R583# METAL OXIDE FILM RES. 1W J 1.2 Ω RN011R2ZU001 R584# CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R587 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R588# CARBON RES. 1/4W J 68k Ω RCX4JATZ0683 R589 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683 R590 CARBON RES. 1/4W J 150k Ω RCX4JATZ0154 R591# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184 R592# CARBON RES. 1/4W J 220k Ω RCX4JATZ0224 R593# CARBON RES. 1/4W J 68k Ω RCX4JATZ0683 R594# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

Ref. No. Description Part No.

R595 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R596 PCB JUMPER D0.6-P5.0 JW5.0T R597 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R598# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R599# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R601# CEMENT RES. 5W K 0.56 Ω RW05R56DP007 R602# PCB JUMPER D0.6-P5.0 JW5.0T R603 PCB JUMPER D0.6-P5.0 JW5.0T R604 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824 R605 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824 R607 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 R608 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R609 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824 R613# METAL OXIDE FILM RES. 2W J 0.27 Ω RN02JZLZ0R27 R614 PCB JUMPER D0.6-P5.0 JW5.0T R615 CARBON RES. 1/4W J 270k Ω RCX4JATZ0274 R616 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R618 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R621 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R641 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R642 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R650# CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R651# METAL OXIDE FILM RES. 2W J 8.2k Ω RN02822ZU001 R652 CARBON RES. 1/4W J 82k Ω RCX4JATZ0823 R653 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R654# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R655 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R656 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153 R657 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153 R658 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R659 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R660 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R661# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R662# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R663# CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R664# CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R665# CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R667# CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R668# CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R669# CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R670# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R671 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392 R672 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392 R673 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R674 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R675 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R676 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R677 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683 R678 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473 R680 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R681 PCB JUMPER D0.6-P5.0 JW5.0T R682# METAL OXIDE FILM RES. 2W J 6.8 Ω RN026R8ZU001 R684# PCB JUMPER D0.6-P5.0 JW5.0T R685# CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R686 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R687 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R688# PCB JUMPER D0.6-P5.0 JW5.0T R689 CARBON RES. 1/2W J 12 Ω RCX2JZQZ0120 R694 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R696 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R701 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750 R704 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473 R705 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153

20050426 14-4 L3420EL

Page 50

Ref. No. Description Part No.

R706 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123

R707 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473

R708 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153

R709 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123

R711 CHIP RES.(1608) 1/10W J 82 Ω RRXAJB5Z0820

R712 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R713 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331

R716 CHIP RES.(1608) 1/10W J 82 Ω RRXAJB5Z0820

R717 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R718 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331

R721 CHIP RES.(1608) 1/10W J 75 Ω RRXAJB5Z0750

R724 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473

R725 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153

R726 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123

R727 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473

R728 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153

R729 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123

R751 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R752 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273

R761 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R762 CHIP RES.(1608) 1/10W J 27k Ω RRXAJB5Z0273

R771 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472

R772 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R801 CARBON RES. 1/2W J 100 Ω RCX2JZQZ0101

R802 CARBON RES. 1/2W J 100 Ω RCX2JZQZ0101

R803 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R804 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R811 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R812 CHIP RES.(1608) 1/10W J 82k Ω RRXAJB5Z0823

R813 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102

R814 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472

R841 METAL OXIDE FILM RES. 2W J 3.9 Ω RN023R9ZU001

R842# PCB JUMPER D0.6-P5.0 JW5.0T

R843# CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222

R862 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000

R863 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

SWITCHES

SW101 TACT SWITCH SKQSAB SST0101AL038

SW102 TACT SWITCH SKQSAB SST0101AL038

SW103 TACT SWITCH SKQSAB SST0101AL038

SW104 TACT SWITCH SKQSAB SST0101AL038

SW105 TACT SWITCH SKQSAB SST0101AL038

SW106 TACT SWITCH SKQSAB SST0101AL038

MISCELLANEOUS

AC601# AC CORD PB8K9F4110AB057 WAC0172LW020

B2 HEAT SINK(PIJ)ASSEMBLY L2700UA 0EM408529

B3 HEAT SINK(PIH)ASSEMBLY L2700UA 0EM408525

B4 HEAT SINK(PII)ASSEMBLY L2700UA 0EM408527

BC11 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026

BC572 PCB JUMPER D0.6-P5.0 JW5.0T

BC603 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC652 PCB JUMPER D0.6-P5.0 JW5.0T

BC653 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC654 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC655 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC657 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC691 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

CF32 CERAMIC FILTER SFSRA4M50CF00-B0 FBB455PMR004

CLN301 WIRE ASSEMBLY WX1L1200-102 WX1L1200-102

CLN501 WIRE ASSEMBLY WX1L1200-103 WX1L1200-103

F601# FUSE 4A/125V 237 TYPE PAGJ20CAG402

Ref. No. Description Part No.

FH601 FUSE HOLDER MSF-015 XH01Z00LY001

FH602 FUSE HOLDER MSF-015 XH01Z00LY001

GP642# GAP. FNR-G3.10D FAZ000LD6005

JC703 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000

JC704 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000

JK701 RCA JACK(YELLOW) MTJ-032-06B-20 JXRL010LY050

JK702 RCA JACK(WHITE) MTJ-032-06B-22 JXRL010LY052

JK703 RCA JACK 1P(RED)WITH SW ITCH AV1-09S-2 JYRL010RP008

JK711 RCA JACK 3P (SW) MSP-213-V2-432 JYRL030LY008

JK721 Y/C JACK 1P(SW) MDC-070V1-A JYEL040LY002

JK801 HEADPHONE JACK MSJ-035-10A B JYSL020LY002

JS572 PCB JUMPER D0.6-P5.0 JW5.0T

L1 SCREW B-TIGHT D3X8 BIND HEAD+ GBMB3080

PS691# THERMISTOR ZPB45BL3R0A QNBZ45BL3R0A

RCV101 REMOCON RECEIVE UNIT PIC-26042SR-2 USESJRSKK032

RL601# POWER RELAY SDT-S-112LMR MRNDC12QN014

SA601# SURGE ABSORBER PVR-07D471KB NVQZ07D471KB

SF11 SAW FILTER SAFHM45M7VAJZ01B03 FBB456PMR012

T571# FLYBACK TRANSFORMER JF0501-3301 LTF00CPXB046

T572 HORIZONTAL DRAIVE TRANS CSA-LF327A LTH00CPSA006

T601# SWITCHING TRANS 5708 LTT00CPKT170

TP300 PCB JUMPER D0.6-P10.0 JW10.0T

TP601 PCB JUMPER D0.6-P20.0 JW20.0T

TU11 TUNER UNIT TEFH9-001A UTUNNTUAL042

VR561 CARBON P.O.T. 20k Ω B VRCB203KA011

VR562 CARBON P.O.T. 5k Ω B VRCB502KA011

VR661# CARBON P.O.T. 20k Ω B VRCB203KA011

X301 XTAL 3.579545 MHz FXD355LLN003

CRT CBA

Ref. No. Description Part No.

CRT CBA Consists of the following:

CAPACITORS

C1501 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C1502 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C1510 CERAMIC CAP. B K 2200pF/2KV CCD3DKD0B222

C1511 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471

C1512 CERAMIC CAP.(AX) B 0.01µF/50V CCK1JKT0B103

C1521 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271

C1522 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C1531 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471

C1532 CERAMIC CAP.(AX) B 0.01µF/50V CCK1JKT0B103

CONNECTOR

CN1501 PIN CONNECTOR 005P-5100 JTEA001TG001

DIODES

D1501 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1502 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

D1511 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1521 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1531 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

COIL

L1501 INDUCTOR 180µH-J-5FT LLARJCSTU181

TRANSISTORS

Q1511 TRANSISTOR 2SC2785(F) QQSF02SC2785

Q1512 TRANSISTOR 2SC5360 QQ9Z02SC5360

Q1521 TRANSISTOR 2SC2785(F) QQSF02SC2785

Q1522 TRANSISTOR 2SC5360 QQ9Z02SC5360

Q1531 TRANSISTOR 2SC2785(F) QQSF02SC2785

Q1532 TRANSISTOR 2SC5360 QQ9Z02SC5360

RESISTORS

R1501 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

----------

20050426 14-5 L3420EL

Page 51

Ref. No. Description Part No.

R1502 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R1503 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R1510# METAL RESISTOR 3W J 10k Ω RN03103ZU001

R1511 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1512 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1514 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R1515 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R1518 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

R1519 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R1520# METAL RESISTOR 3W J 10k Ω RN03103ZU001

R1521 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1522 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1524 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R1525 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R1528 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

R1529 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R1530# METAL RESISTOR 3W J 10k Ω RN03103ZU001

R1531 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1532 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1534 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R1535 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R1538 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

R1539 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

MISCELLANEOUS

JK1501# CRT SOCKET ISHS40ST JSCC290PK006

20050426 14-6 L3420EL

Page 52

6424FF/ST424FF

L3420UA/25UF

2005-05-18

Symphonic 6424FF, ST424FF Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

HOW TO INITIALIZE THE TELEVISION

BLOCK DIAGRAMS

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

IC PIN FUNCTION DESCRIPTIONS

EXPLODED VIEWS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST
