Page 1

19” COLOR TELEVISION

SERVICE MANUAL

ST419D/6419TD

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is impo rtant to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications........................................................ 1-1

Important Safety Precautions................................ 2-1

Standard Notes for Servicing................................ 3-1

Disassembly Instructions ...................................... 4-1

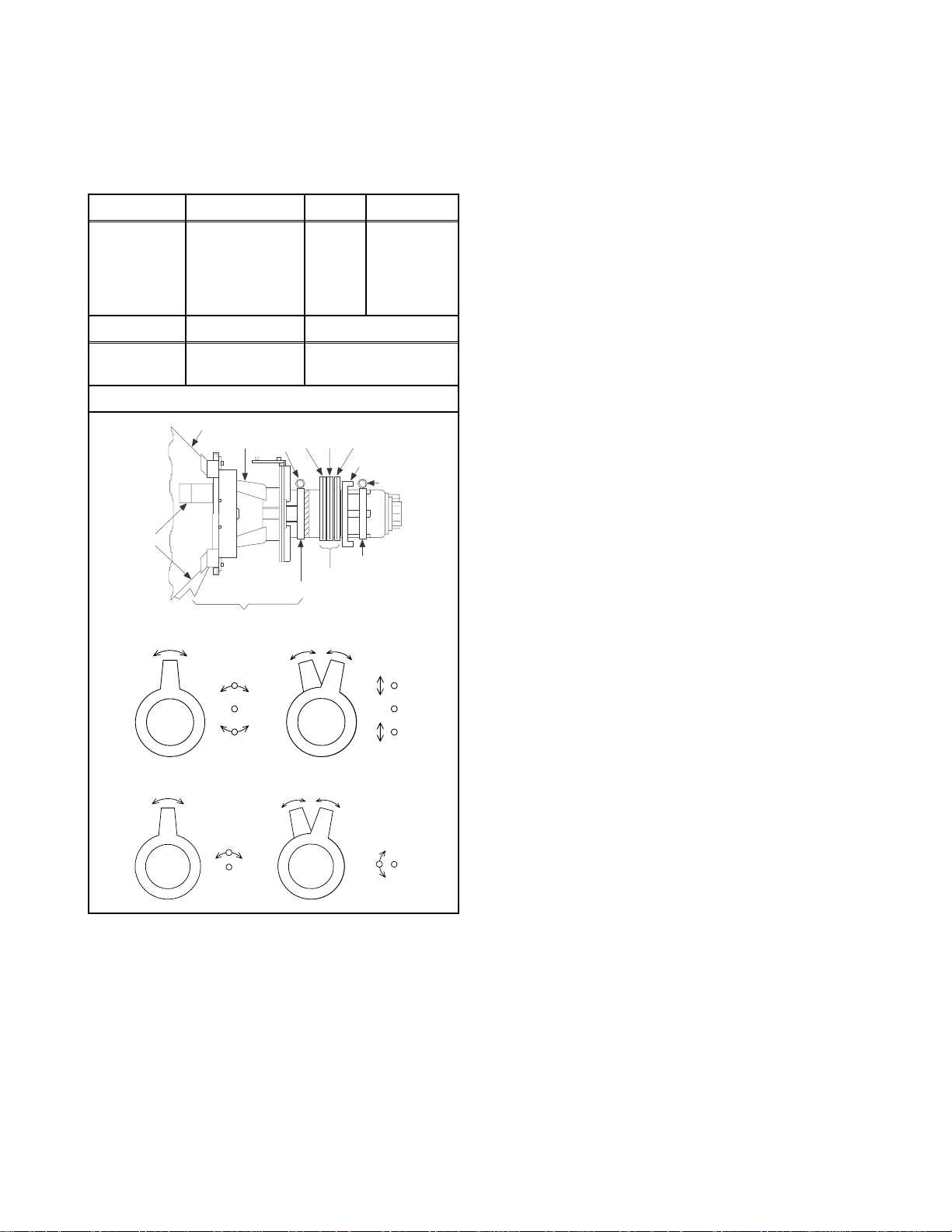

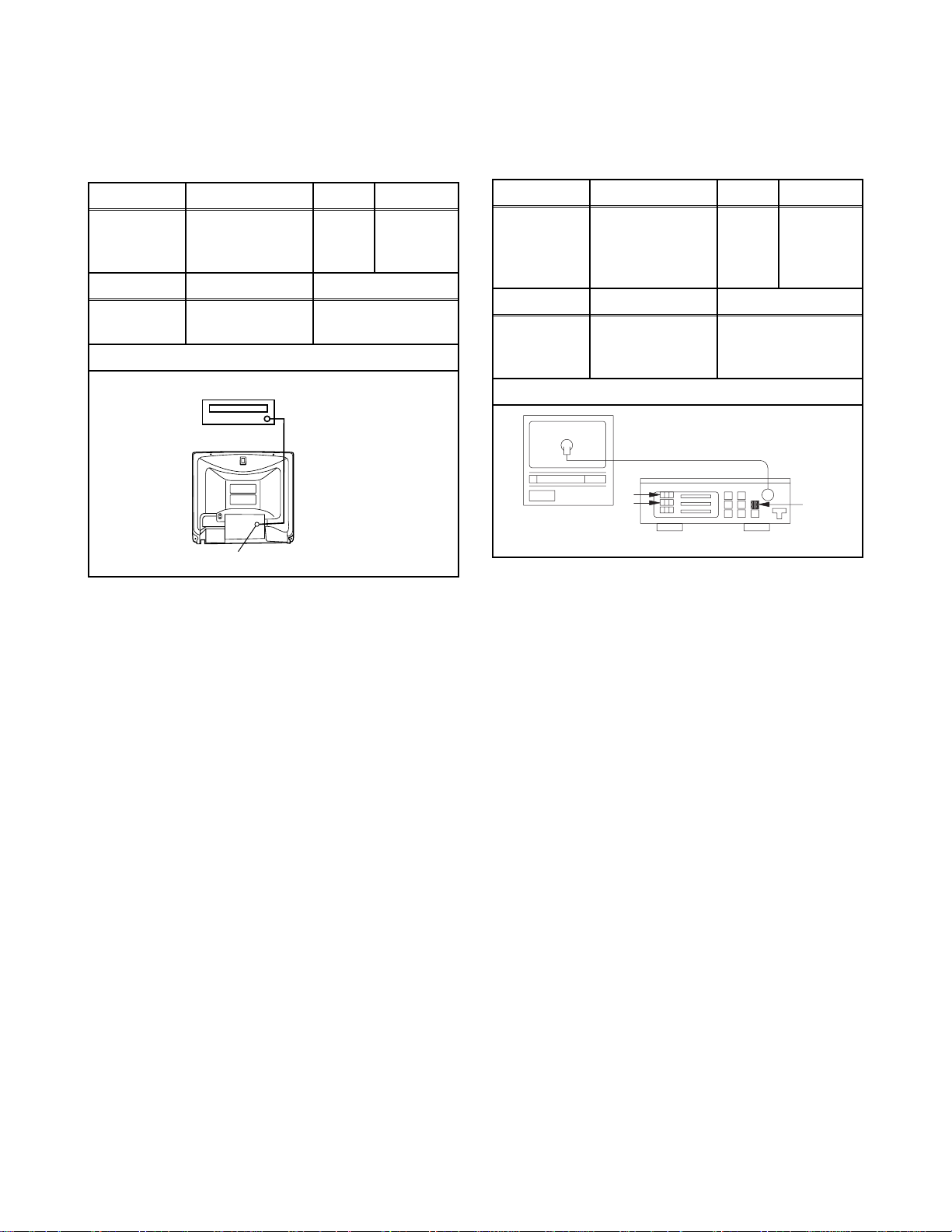

Electrical Adjustment Instructions......................... 5-1

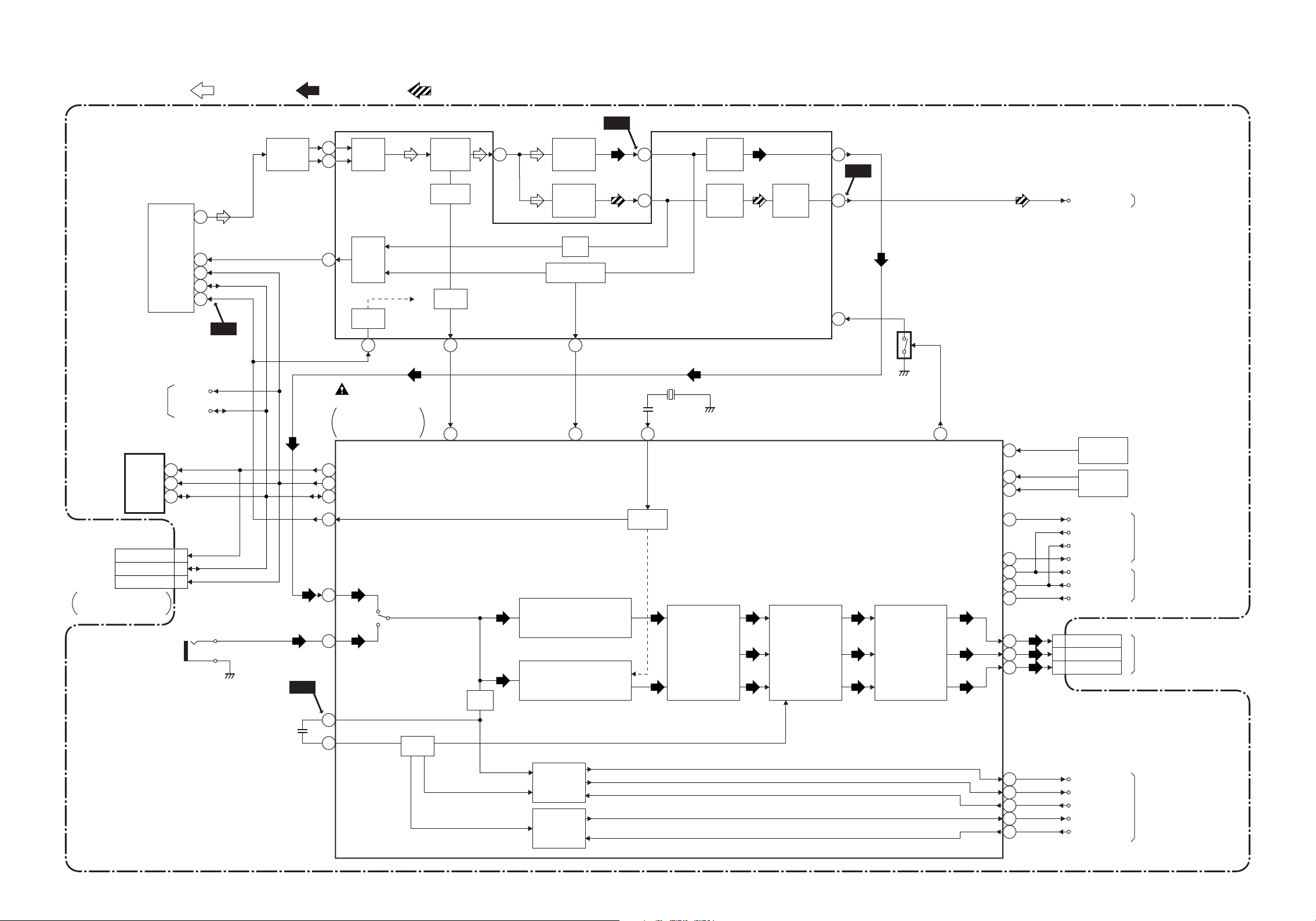

Block Diagram....................................................... 6-1

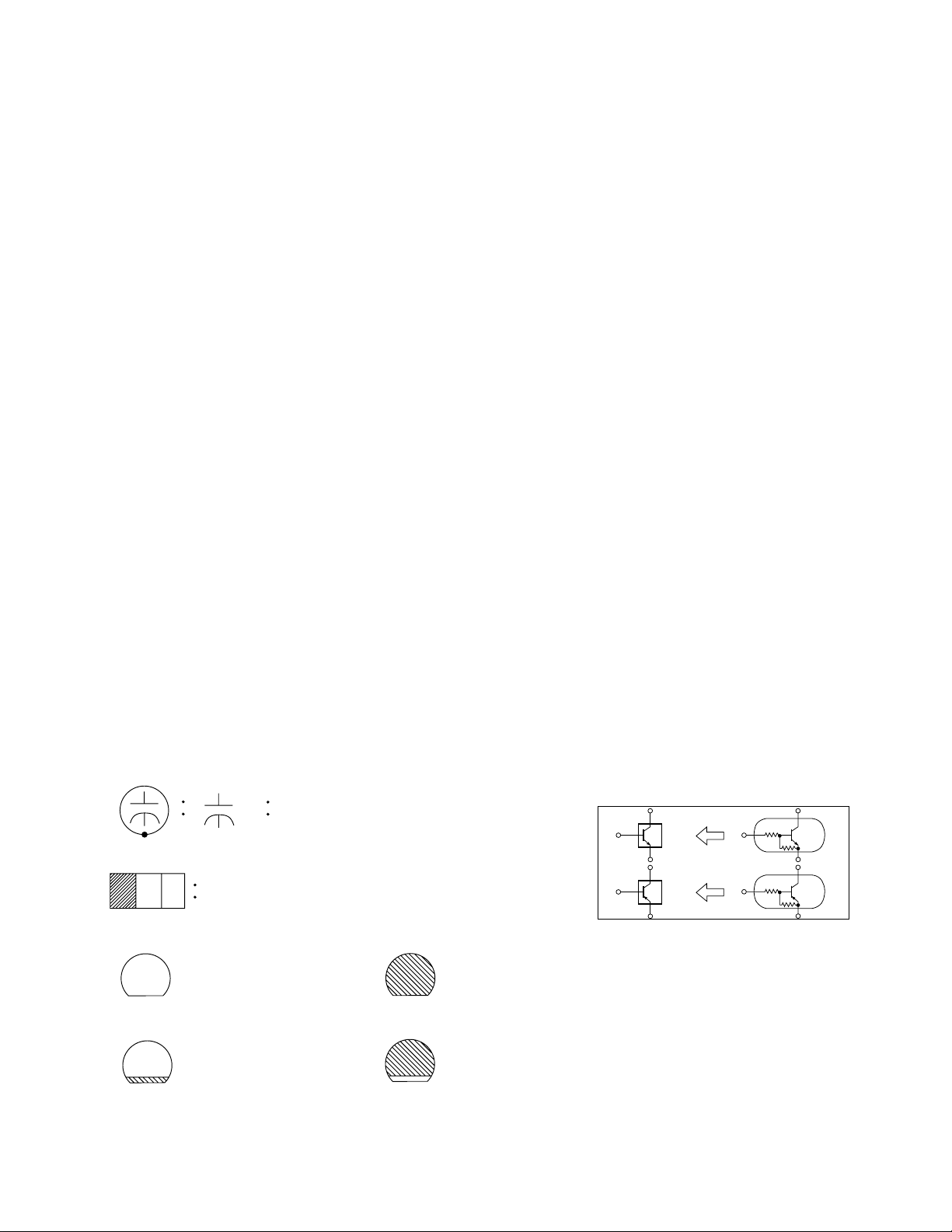

Schematic Diagram / CBA’s and Test Points........ 7-1

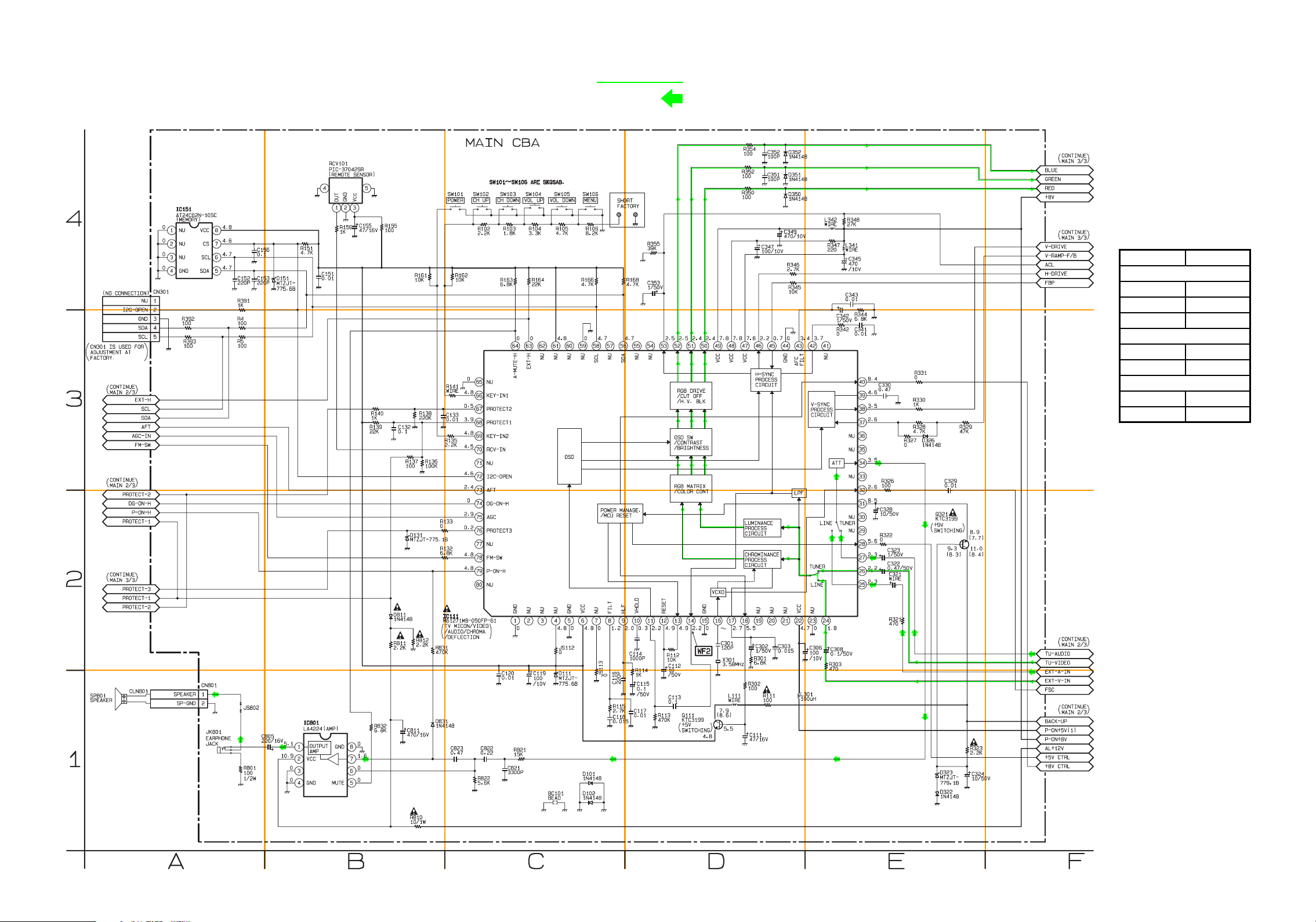

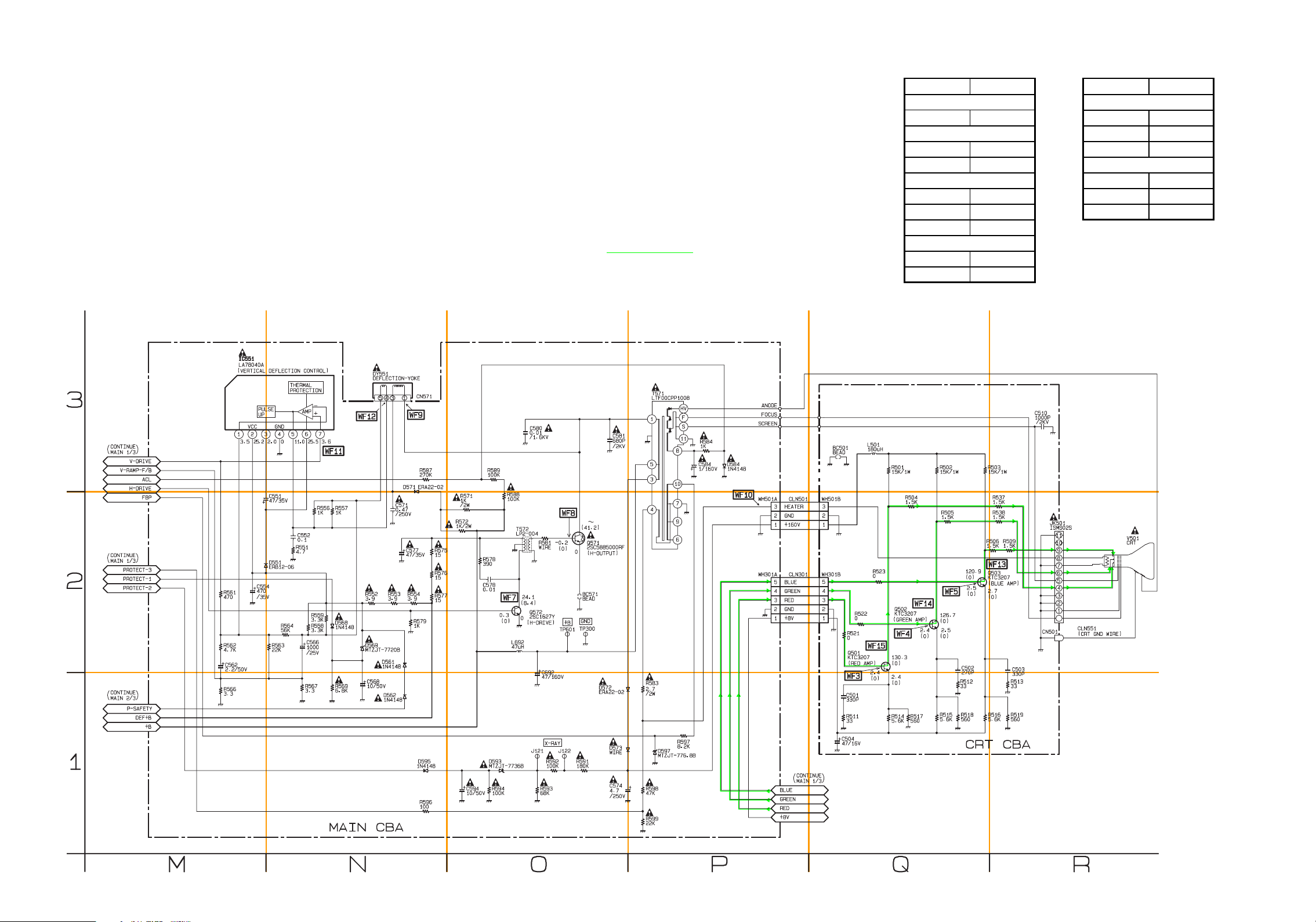

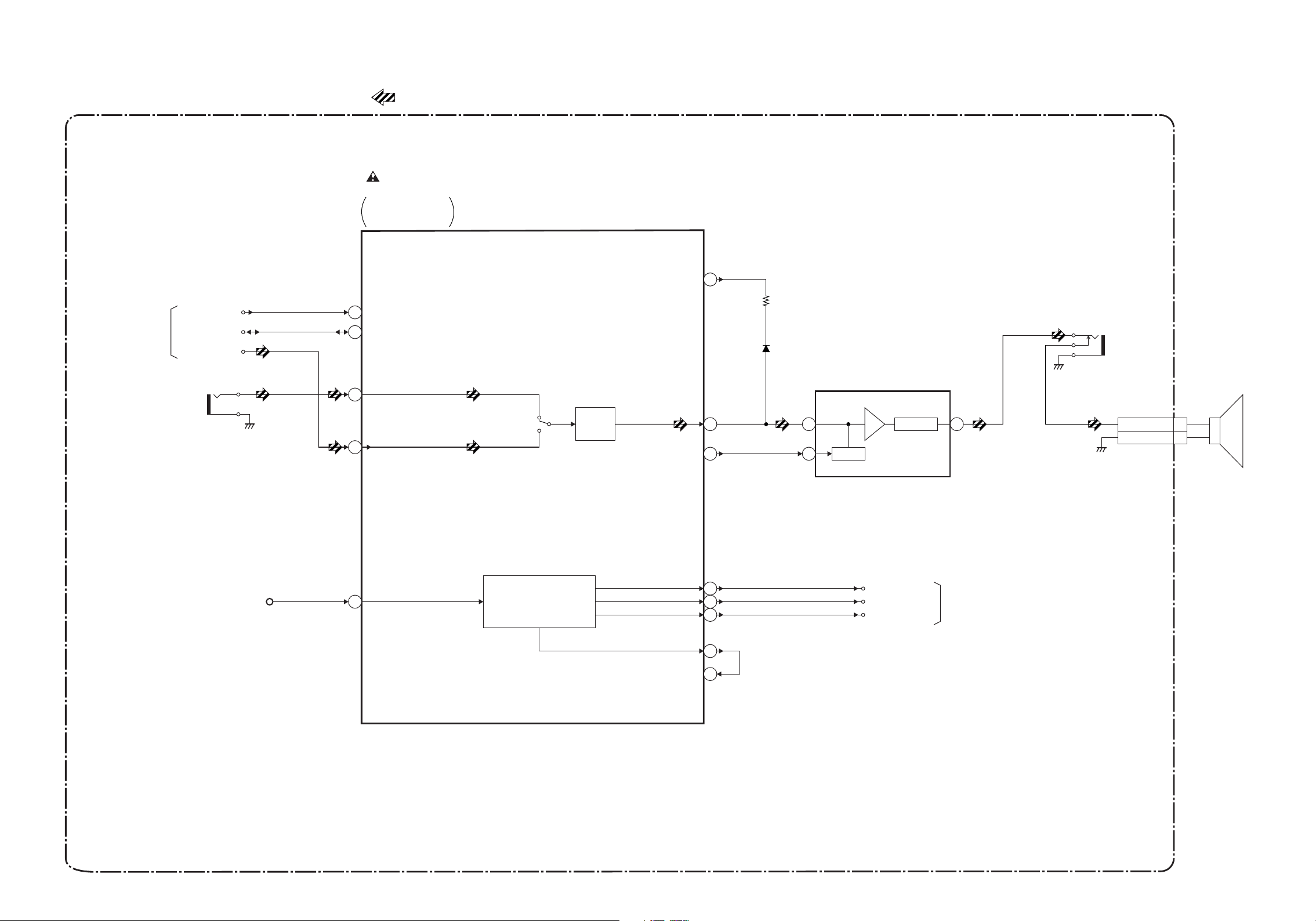

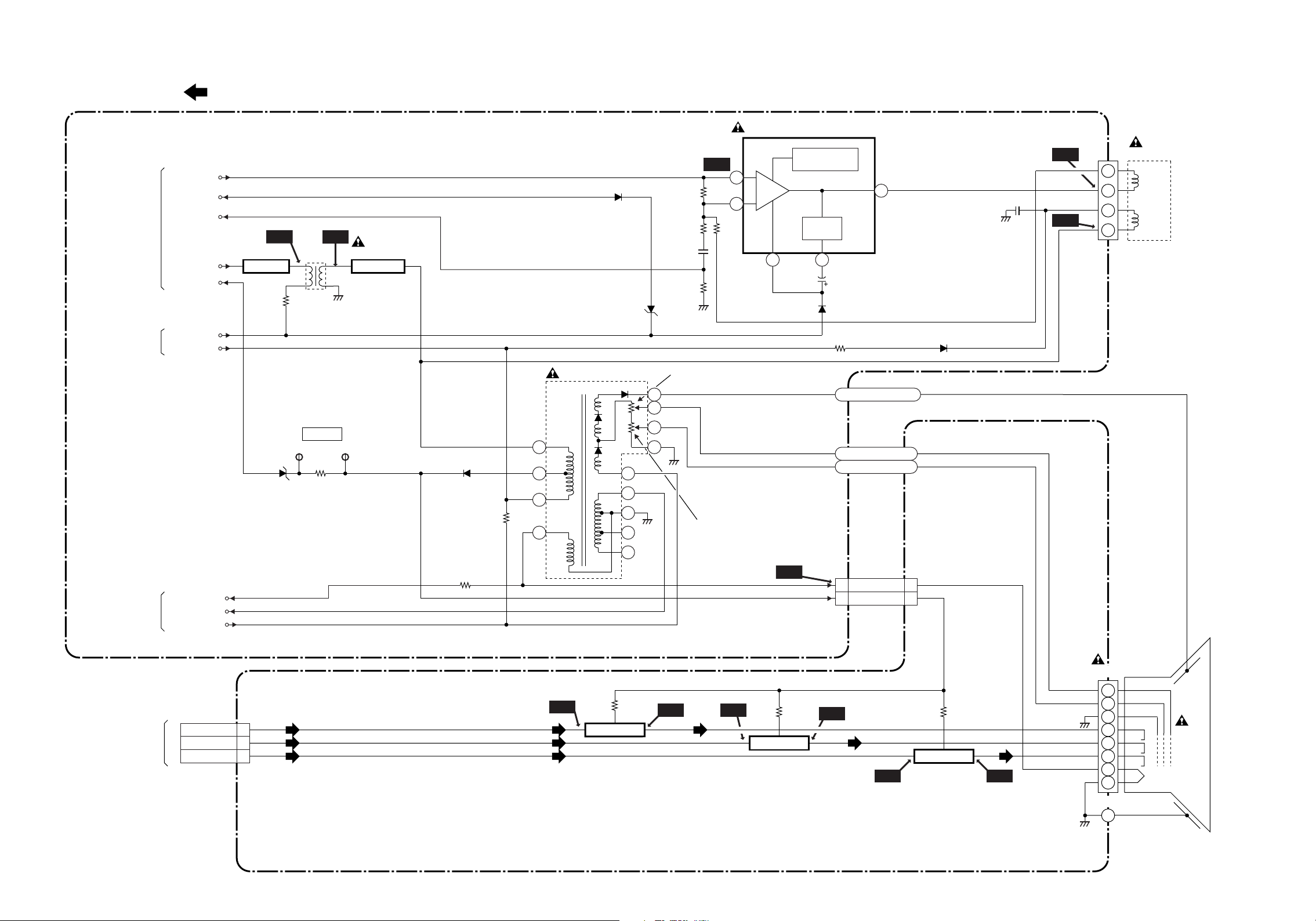

Schematic Diagram............................................... 7-3

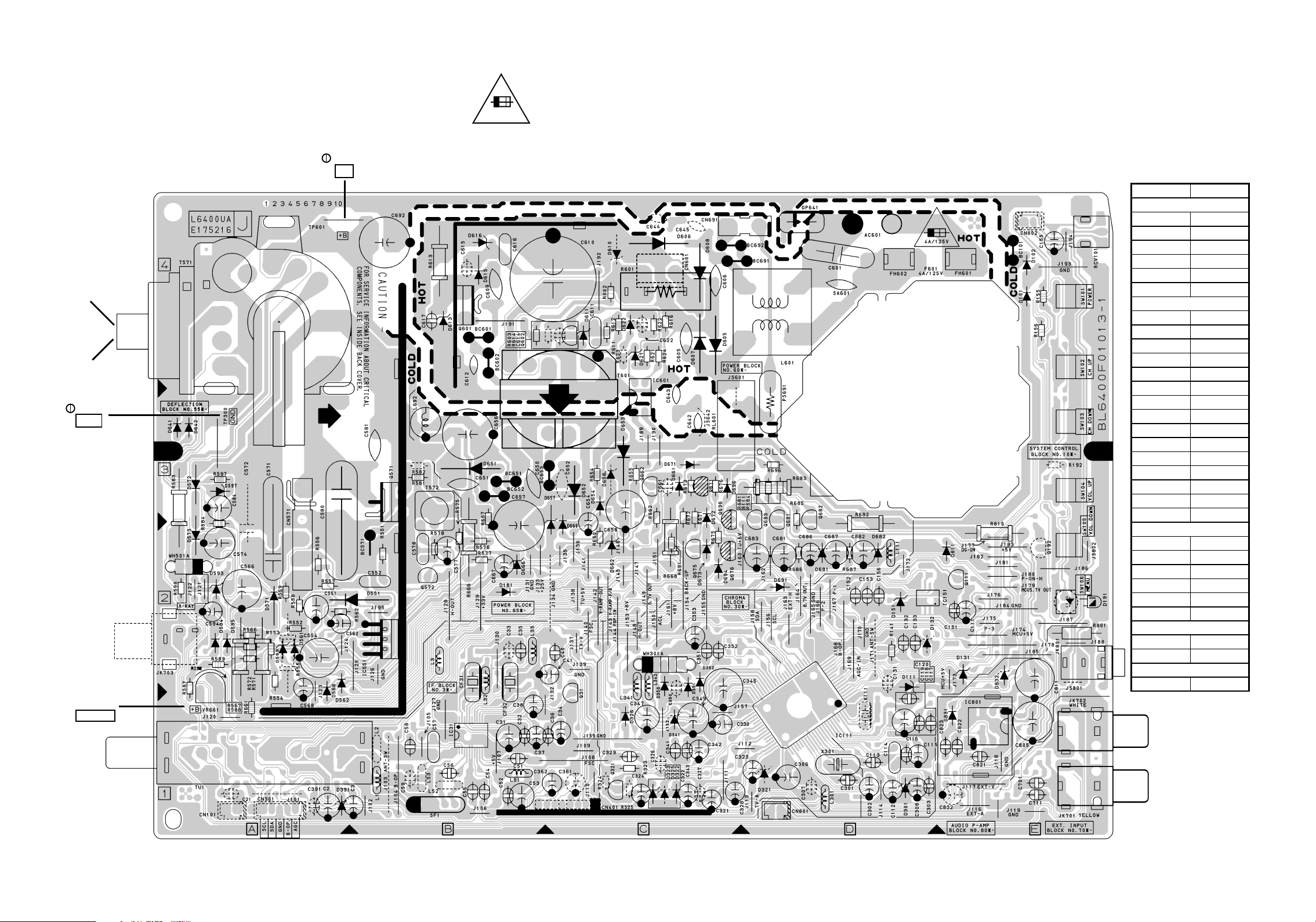

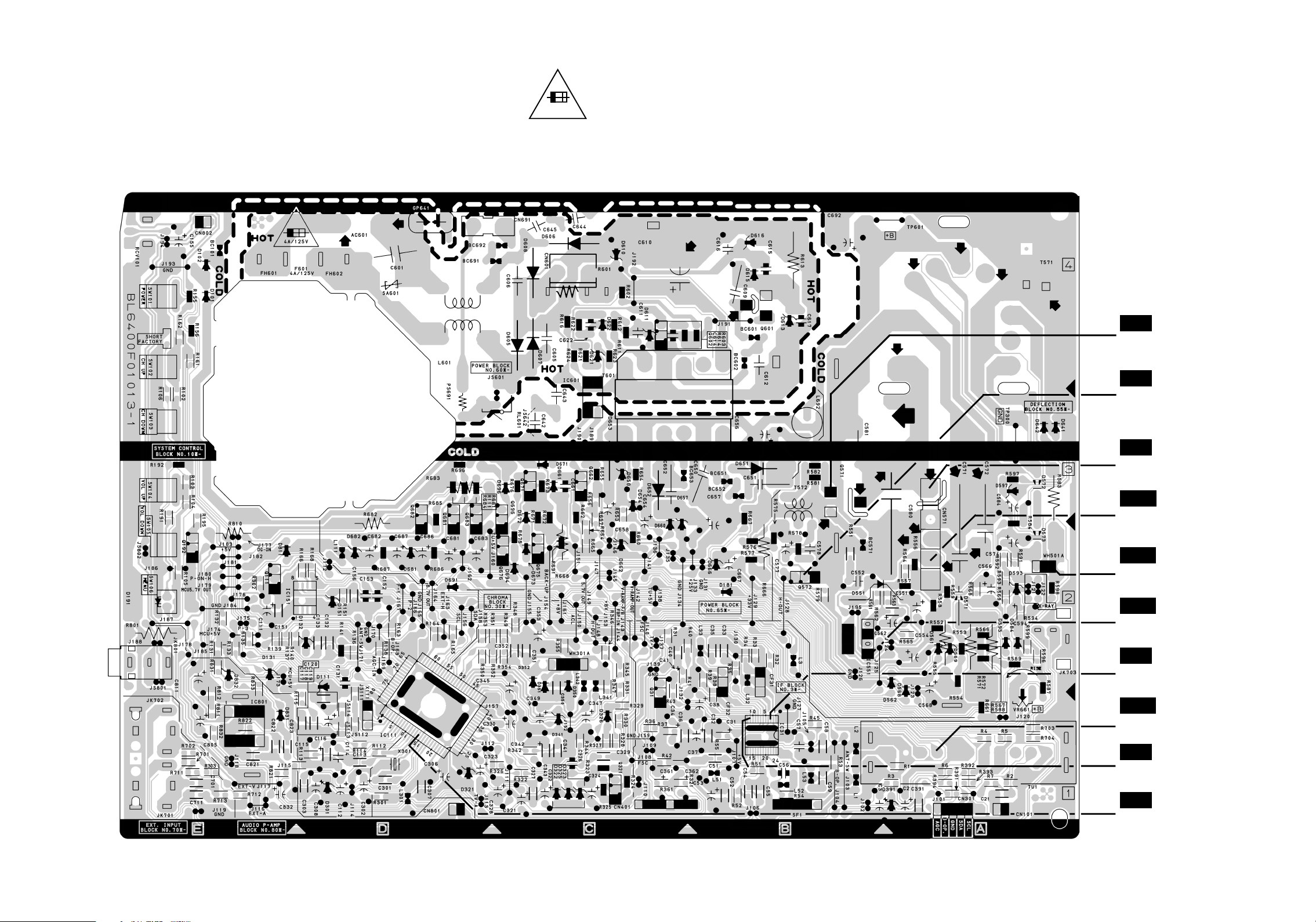

CBA Views and Test Points................................... 7-9

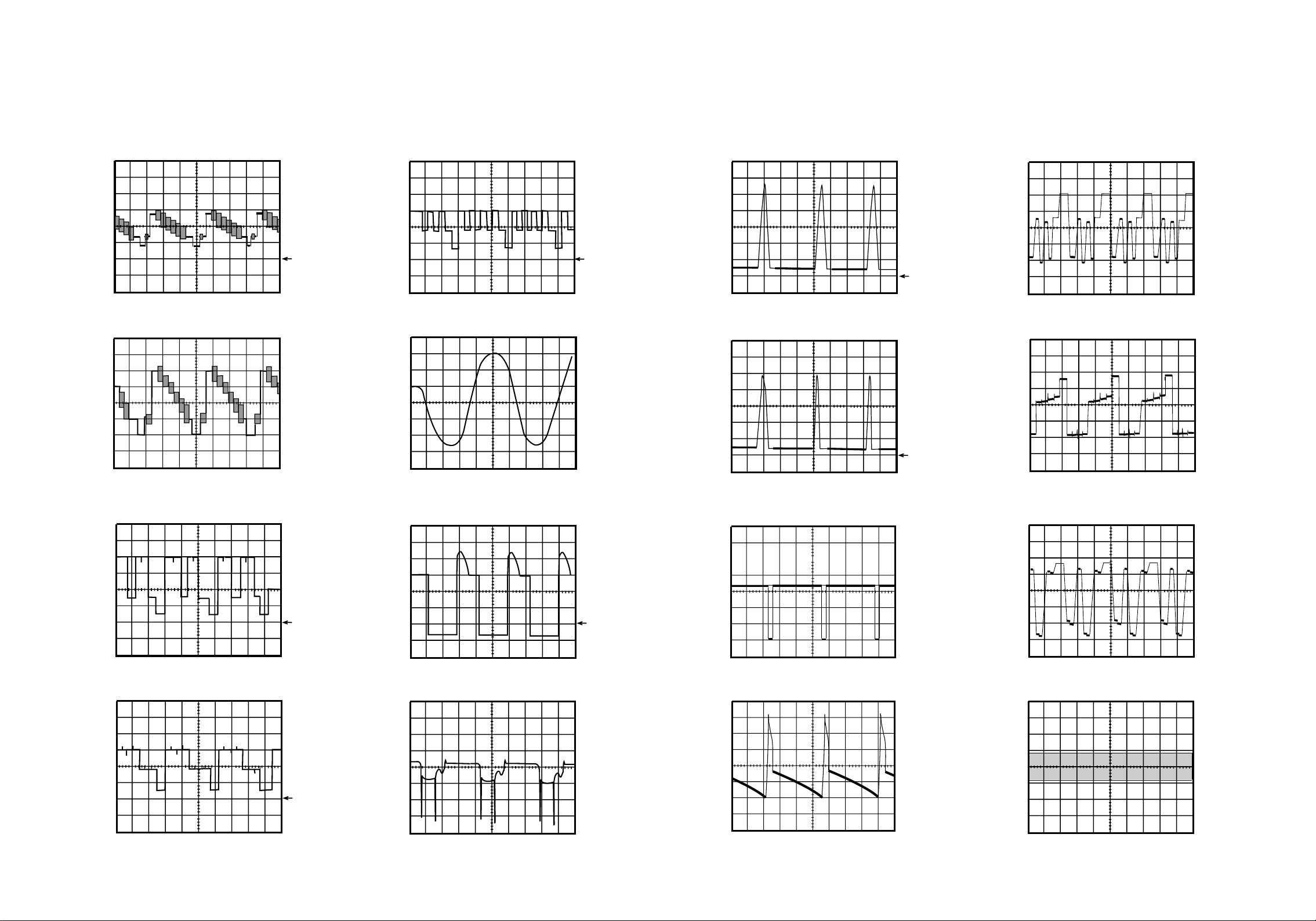

Wave Forms.......................................................... 8-1

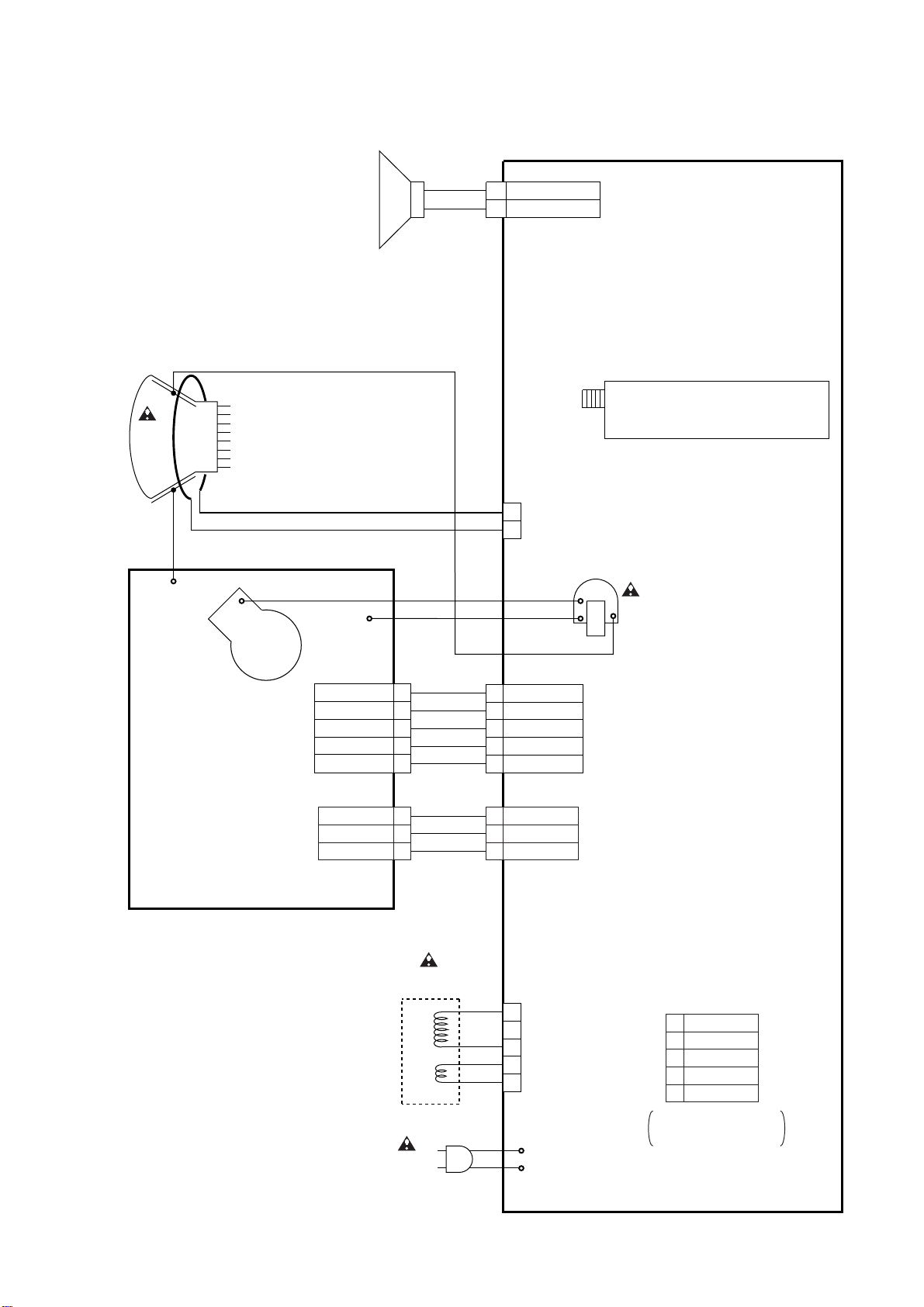

Wiring Diagram...................................................... 9-1

IC Pin Function.................................................... 10-1

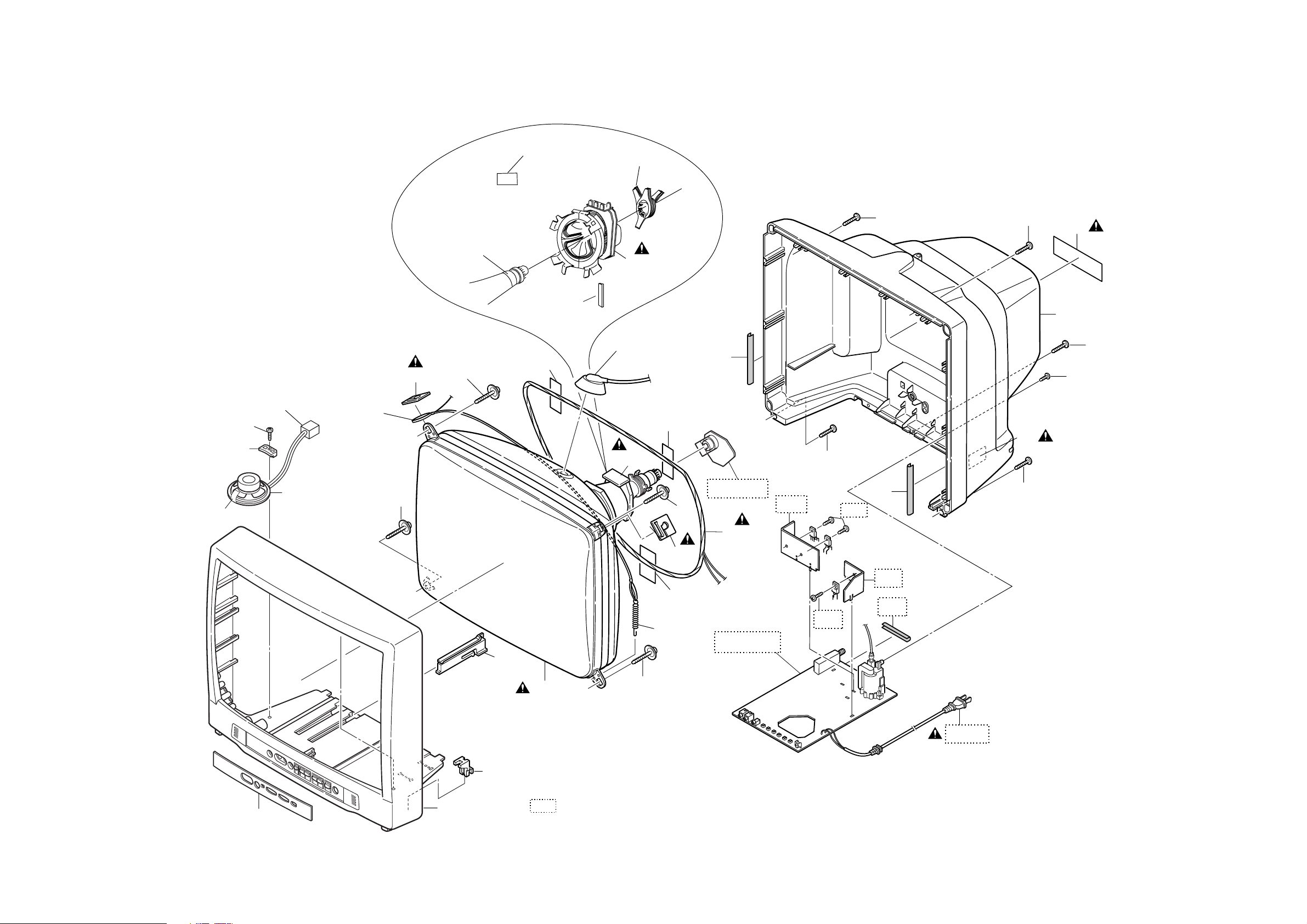

Cabinet Exploded View ....................................... 11-1

Packing Exploded View....................................... 11-3

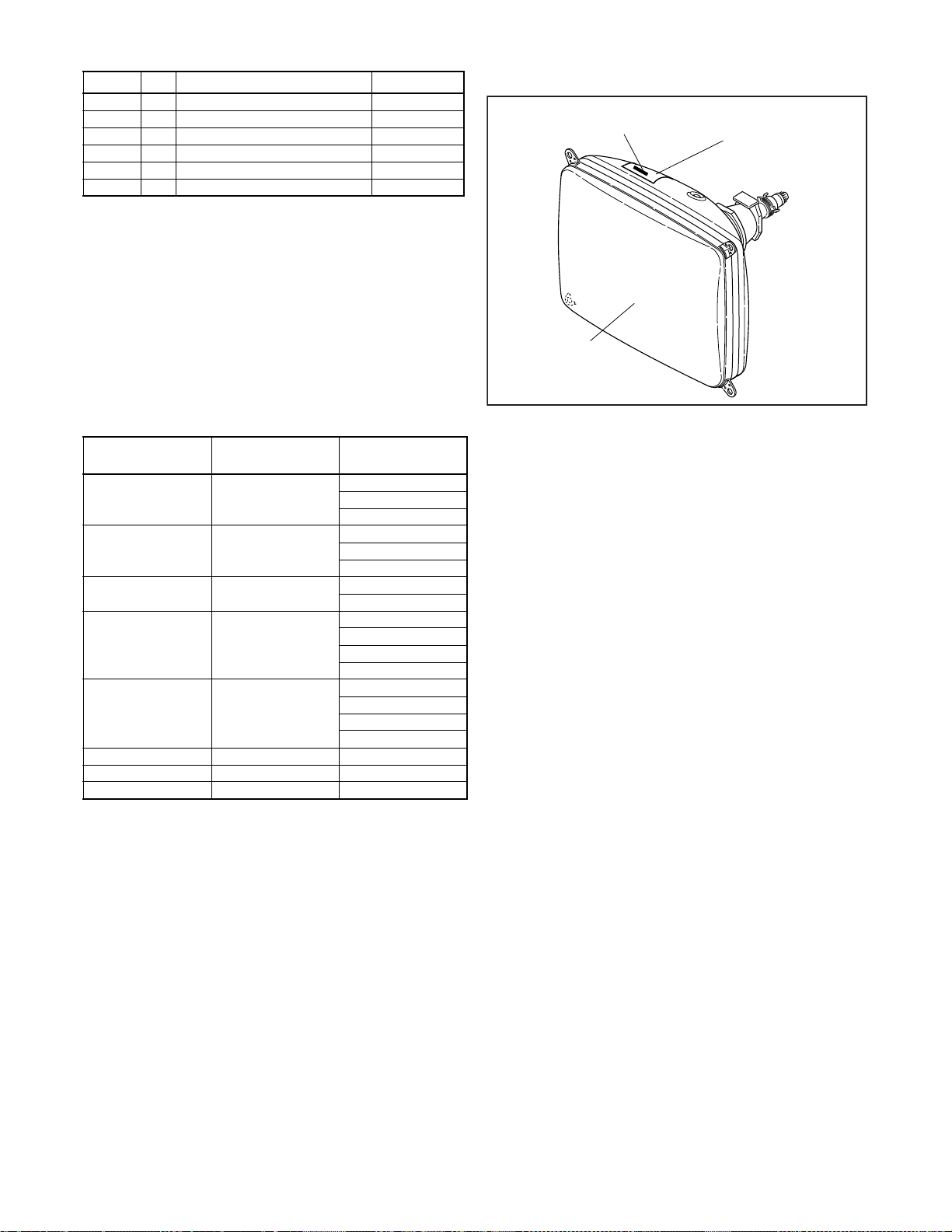

Mechanical Parts List .......................................... 12-1

Electrical Parts List.............................................. 13-1

Page 3

SPECIFICATIONS

<TUNER> ANT. Input ------------------- 75ohm Unbal., F type

Reference Level ----------- 20Vp-p (CRT Green Cathode) Test Input Signal ---------- 400Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq. Picture Sound

2. Peak Picture Sens VHF

CATV

UHF

3. AFT Pull In Range (10mV input)

Description Condition Unit Nominal Limit

1. Deflection Freq. Horizontal

Vertical

2. Linearity Horizontal

Vertical

3. Over Scan

4. High Voltage

Description Condition Unit Nominal Limit

MHz MHz

dBµv dBµv dBµv

MHz ±2.0 ±0.7

KHz

% %

%10

KV 26

45.75

41.25 15

15 15

15.734 60

30 40

±15 ±10

1. Misconvergence Center Side

Corner

2. Brightness APL 100% Ft-L 40 25

3. Color Temperature

4. Resolution Horizontal

<AUDIO>

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD W 1 0.8

2. Audio Distortion (w/LPF) 500mW % 2 7

3. Audio Freq. Response -3dB Hz 100~11K

Note:

Nominal specifications represent the design specifications. All units should be able to approximate these. Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

All items are measured across 8Ω load at speaker output terminal.

Vertical

mm mm mm

°K 9200°K

Line Line

250 300

0.4

1.5

2.1

1-1 L6115SP

Page 4

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the fact ory, our products are stri ctly insp ected for recogni zed pr oduct sa fety and elec trical codes of the countries in which they are to be sold. Howev er, in order to ma intain such c ompliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrum ent t o the c ustom -

er, always make a safety check of the entire instru-

ment, including, but not limited to, the following items:

a. Be sure that no built-in protec tive devic es are de -

fective and have b een defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician an d the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalli ng the c hassis an d/or othe r assembly in the cabinet, be sure to put back in place all protective de vices, in cluding but not li mited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment cove rs/shields, and isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, ( 1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper acr oss the two AC plug prongs. Place the instrument AC switch in the o n position. Connect one lead of an oh mmeter to the A C plug prongs tied together and to uch the other ohmme ter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 mego hm or greater than 5 .2 megohm, an abnormality exists that must be corrected before the instrument is r eturne d to the cu stomer . Repeat this test with the ins trument AC switch in the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer d uring thi s test.) Use a leak-

age current tester or a me tering syst em that com plies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laborat ories (UL) 1410, (50.7). With the instrument AC switc h first in the on posi tion and then in the o ff position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle br ackets, metal cabi net, screw heads, metallic overlay s, control shafts, etc.), es pecially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not excee d 0.5 milli-ampere. Re verse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR AC CES SORI ES.

e. X-Radiation and High Voltage Limits - Because

the picture tube i s the prim ary potentia l source of X-radiatio n in solid- state TV receiver s, it is s pecially constructed to prohibit X-radiation emissions. For continued X-radiation pr otection, the replacement picture tube must be the same type as the original. Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be mea su re d ea ch tim e s er vic -

CURRENT

TESTER

EARTH GROUND

2-1 L6115IMP

Page 5

ing is performed that inv olves B+, horizontal deflection or high voltage. Correct operation of the Xradiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called "horiz ontal disable" or "hold do wn.") R ead a nd a ppl y th e hi gh voltage limits a nd, if the chassis is so e quipped, the X-radiation protection circuit specifications given on instrument labe ls and i n the P roduct S afety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/adjus tme nts in th e hig h-vo lta ge circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safety-related notes on or inside th e receiver cabi net, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modificatio ns and the addition of items such as auxiliary audio and/or video output connections, mig ht alter the safety ch aracteristics of this receiver and create a hazard to the user. Any design alter ations or addition s will void the manufacturer's warr anty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning - The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the pic ture tube only with one of the same type numbe r. Do not rem ove, install , or otherwise handle the picture tube in any ma nner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be ke pt safely away while p icture tubes are handled. Keep the picture tube away from your body. Do not handl e the pictur e tu be b y its neck. Some "in-line" picture tubes are equipped with a permanently at tached deflection yoke ; because of potential hazard, do not try to remove such "permanently attached" yokes from the picture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conduc tor of th e AC powe r cor d and maybe safety-serviced without an isolation transformer only i f the AC power plug i s inserted so that the chassis is connected to the ground side of the AC power source. To confi rm that the AC power plug is ins erted correctly, with an AC voltmeter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between ch assis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power so urce , for both pers onnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This se conda ry gro und s ystem is no t iso lated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas:a. near sharp edges,b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply,d. high voltage, and,e. antenna wir ing. Always insp ect in all ar eas for pinched, out of plac e, or frayed wiring. C heck AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet origin al specifications. Additiona lly, determine the cause of ov erheating and/or damage and, if nece ss ar y, ta ke corre ct i ve ac ti o n to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have s pecia l safety- relat ed char acteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replaci ng them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ( # ) on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create sh ock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate . Prior to shi pment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. Howev er, in orde r to mai ntain such compliance , it is equally i mportant to imple ment the following precautions when a set is being serviced.

2-2 L6115IMP

Page 6

Precautions during Servicing

A. Parts identified b y the ( # ) symbo l are c ritica l for

safety. Replace only with part number specified.

B. In addition to safety, othe r parts and assemblies

are specified for conformance with regulations applying to spurious radiati on. These must also be replaced only with specified replacements.

Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors. E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely abo ut the terminals before so ldering.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fusible resistor s, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it. I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set. K. Crimp type wire connector

The power transform er uses crimp type connec-

tors which connect the power cord and the primary

side of the transformer. When replacing the trans-

former, follow these step s carefully and precis ely

to prevent shock hazards.

Replacement procedure

1) Remove the old conn ector by c utting the wire s at

a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the ins ulation from the ends

of the wires. If the wires are stranded, twist the

strands to avoid frayed conductors.

3) Align the lengths of the wires to be con nected. Insert the wires fully into the connector.

4) Use the crimping tool to crim p the met al sleeve at the center position . Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, discon nect the AC plug from the AC supply outlet.

2-3 L6115IMP

Page 7

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform th e fol lo wing tes ts and c on firm the specified values in orde r to verify comp liance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance d istance (d) a nd (d') betwee n soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

T able 1 : Ratings for selected area

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d) (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cor d plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals , video and audio input and outp ut terminals, micr ophone jacks, earphone jack s, etc.) is lower than or equal to the sp ecified value in the table below.

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

1.5kΩ

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Exposed Accessible Part

AC Voltmeter

0.15µF

Earth Ground

Power Cord Plug Prongs

(High Impedance)

Fig. 1

Fig. 2

Table 2 : Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

0.15µF CAP. & 1.5kΩ

110 to 130 V USA

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

RES. connected in

parallel

2-4 L6115IMP

i≤0.5mA rms

Exposed accessible

parts

Page 8

STANDARD NOTES FOR SERVICING

Circuit Board Indications

a. The output pin of the 3 pin Regulator ICs is indicat-

ed as shown.

Top View

Out

b. For other ICs, pin 1 a nd ever y fifth pin are in dic at -

ed as shown.

Pin 1

c. The 1st pin of every male connector is indicated as

shown.

Pin 1

Input

Bottom View

(2) Remove the flat pack-IC with tweezers while ap-

plying the hot air.

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. Do not supply hot air to the chip pa rts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protec t other par ts from damage. (F ig. S-1-2)

2. The flat pack-IC on the CBA is affixed with glue, so be careful not to br eak or d amage the foi l of ea ch pin or the solder lands u nder the IC when rem oving it.

Hot-air Flat Pack-IC Desoldering Machine

CBA

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

(1) Prepare the hot-air flat pack-IC desoldering ma-

chine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Masking Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

3-1 L6115STA

Page 9

With Soldering Iron:

(1) Using desoldering brai d, remove the solder from

all pins of the flat pac k-IC. When you use solde r flux which is appl ied to all pins of the flat pack- IC, you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2) Lift each lead of the flat pack-IC up ward one by

one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine.(Fig. S-1-4)

soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken to ensure that the flat pack- IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

Iron Wire

Soldering Iron

To Solid Mounting Point

Fig. S-1-5

Sharp Pin

Fine Tip Soldering Iron

Fig. S-1-4

(3) Bottom of the flat pack-IC is fixe d with glue to t he

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

With Iron Wire:

(1) Using desoldering brai d, remove the solder from

all pins of the flat pac k-IC. When you use solde r flux which is appl ied to all pins of the flat pack- IC, you can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

(4) Bottom of the flat pack-IC is fixe d with glue to t he

CBA; when removing entire flat pack-IC, first apply

CBA

Tweezers

Fine Tip Soldering Iron

Flat Pack-IC

Fig. S-1-6

3-2 L6115STA

Page 10

2. Installation

(1) Using desoldering brai d, remove the solder from

the foil of each pin of th e flat pac k-IC on the CBA so you can install a replacement flat pack-IC more easily.

(2) The "I" mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then pre- solder the four corners of the flat pack-IC. (See Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that

none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semiconductors

Electrostatic breakdown of the semiconductors may occur due to a pote ntial difference caused by el ectrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grou ndi ng ban d ( 1 MΩ) th at i s pr op erly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to pla ce a conductive sheet or copp er plate with proper grounding (1MΩ) on the workbench or other surface, where the semiconductors are to be placed. Because th e static electrici ty charge on clothing will not es cape throu gh the body gr ounding ba nd, be careful to avoid contacting semiconductors with your clothing.

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-3 L6115STA

Page 11

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicate s the disassem bly steps for the cabinet parts, and the CBA in order to g ain access to item(s) to be servic ed. Wh en rea ssemb ling, fol low th e steps in reverse order. Bend, route and dress the cables as they were.

Caution !

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

[1] Rear Cabinet

[2] CRT CBA

[3] Main CBA

[4] CRT

2. Disassembly Method

Removal

Step/

Loc. No.

[1]

[2] CRT CBA 4,5 CN501 2 [3] Main CBA 3,5 CN571 3 [4] CRT 4 4(S-2), Anode Cap 4

Part

Rear Cabinet

Fig.

1,2 5(S-1), (S-3) 1

Remove/*unlock/

release/unplug/

unclamp/desolder

Note

Note :

(1) Order of steps in procedure. Wh en reassemb ling,

follow the steps in reverse order.These number s are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of part to be removed, unhooked, un-

locked, released, unplugged, unclamped, or desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Connector, *=Unhook, Unlock, Release, Unplug, or Desolder

2(S-2) = two Screws (S-2)

(5) Refer to the following "Reference Notes in the

Table."

Reference Notes in the Table

1. Removal of the Rear Cabinet. Remove screws 5(S-1) and (S-3) then slide the Rear Cabinet backward.

2. Removal of the CRT CBA. Disconnect CN501 then pull the CRT CBA backward.

3. Rem oval of the M ain CBA. D isconnect CN571 on the Main CBA then slide the Main CBA backward.

Caution !

Discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

4. Rem oval of the CRT. Remove screws 4(S-2) and Anode Cap. then slide the CRT backward.

↓↓↓↓↓

(1) (2) (3) (4) (5)

4-1 L6400DC

Page 12

S-3

S-1

Front Cabinet

[3] Main CBA

Front Cabinet

S-1

[1] Rear Cabinet

S-1

Fig. 1

S-1

S-3

S-1

Control Plate

Degauss Holder

CRT Ground Wire

Front Cabinet

S-2

[4] CRT

Fig. 3

Anode Cap.

Degaussing Coil

[2] CRT CBA

S-2

Degauss Holder

S-2

Control Plate

Fig. 2

Fig. 4

4-2 L6400DC

Page 13

TV Cable Wiring Diagram

L691 DEGAUSSING COIL

MAIN CBA

SP801

CLN801

CN801

AC601 AC CORD

CN691

FLYBACK TRANSFORMER

T571

CN571

FOCUS

SCREEN

WH301A

TU1 TUNER

WH501A

JK501

WH301B

ANODE

WH501B

CN501

TO CRT GROUND

4-3 L6400DC

Fig. 5

Page 14

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: "CBA" is abbreviation for "Circuit Board Assembly."

NOTE:

Electrical adjustm ent s ar e r equ ired after replacing circuit components a nd certain mechanic al parts. It is important to perform these adjustm ents only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. DC Voltmeter

3. Oscilloscope: Dual-trace with 10:1 probe, V-Range: 0.001~50V/Div, F-Range: DC~AC-60MHz

4. Plastic Tip Driver

5. Remote control unit: Part No. N0 121UD or N0134UD

6. DC power supply 13.2V/5A

7. Color Analyzer

How to make service remote control unit:

1. Prepare normal remote control unit. (Part No. N0121UD or N0134UD) Remove 3 S crews from the back lid. (Fig. 1-1)

2. Add J1 (Jumper Wire) to the r emote cont rol CBA. (Fig. 1-2)

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on. (Use mai n power on the TV un it.)

3. Press "SLEEP" button on the service remote control unit. Version of m icro co mpu ter wi ll dis pl ay on the CRT. (Ex: 050-0.11)

4. When CPU version is 050-0.11: Check the display on the lower left is "10" and if it is not "10," set it at "10" according to "3-1 7F, FRENCH, ACCESS CODE, STEREO, VIDEO TONE, FM-MODE, VOUT."

1. DC 114V Adjustment

Purpose: To obtain correct oper ation. Symptom of Misadjustment: The picture is dark and

the unit does not operate correctly.

Test Point Adj. Point Mode Input

TP601

TP300 (GND)

Tape M. EQ. Spec.

--- DC Voltmeter +114±0.5V DC.

Note:TP601, TP300 (GND), VR661 --- Main CBA

1. Connect DC Volt Meter to TP601 an d TP3 00 (GND) .

2. Adjust VR661 so th at the voltage o f TP60 1 becomes +114±0.5V DC.

VR661 --- ---

SCREW

REMOTE CONTROL UNIT

J 1

REMOTE CONTROL CBA

Fig. 1-1

Fig. 1-2

5-1 L6400EA

Page 15

2. Black Stretch Control Adjustment

Purpose: To show the fine black color. Symptom of Misadjustment: Black color will not

appear correctly. Note: Use service remote control unit.

1. Enter the Service mode. (See page 5-1)

2. Press "6" button on the service remote control unit. "B-S" is indicated.

3. Press "CH o / p" butt ons on the service remote con- trol unit so that displa y will change "OFF," "0, " "1," "2" and "3." Then choose "B-S OFF."

4. Press "6" button on the service remote control unit. "B-S*2" is indicat ed.

5. Press "CH o / p" butt ons on the servi ce remote control unit so that display will change "0" and "1." Then choose "B-S*2 0."

6. Turn the power off and on again, using the mai n power button on the TV unit.

3-1. Setting for Data Values

General

1. Enter the Service mode. (See page 5-1)

2. To select the Data Value, press "VOL p" button on the service remote control unit.

3. To set the following each data value, press "CH o / p" buttons on the service remote control unit.

7F --- set to 7F FRENCH --- set to OFF ACCESS CODE --- set to OFF STEREO --- set to OFF VIDEO TONE --- set to OFF FM-MODE --- set to OFF V-OUT --- set to OFF

3-2. Setting for CONTRAST,

COLOR, TINT, V-TINT and SHARP data Values

General

1. Enter the Service mode. (See page 5-1)

2. Press "MENU" button on the service remote control unit. Display changes "BRIGHT," "CONTRAST," "COLOR," "TINT," "V-TINT" and "SHARP" cyclically when "MENU" button is pressed.

CONTRAST (CNT)

1. Press "MENU" button on the service remote control unit. Then select "CONTRAST" (CNT) displ ay.

2. Press "CH o / p" buttons on the service remote control unit so that the value of "CONTRAST" (CNT) becomes 84.

COLOR (CLR)

1. Press "MENU" butto n on the ser vice remot e control unit. Then select "COLOR" (CLR) display.

2. Press "CH o / p" buttons on the service remote control unit so that the val ue of "COLOR" (CLR) becomes 58.

TINT (TNT)

1. Press "MENU" butto n on the ser vice remot e control unit. Then select "TINT" (TNT) display.

2. Press "CH o / p" buttons on the service remote control unit so that the value of "T INT" (TNT) becomes 57.

V-TINT (V-TNT)

1. Press "MENU" butto n on the ser vice remot e control unit. Then select "V-TINT" (V-TNT) display.

2. Press "CH o / p" buttons on the service remote control unit so that the value of "V- TINT" (V-TNT ) becomes 60.

SHARP (SHARP)

1. Press "MENU" butto n on the ser vice remot e control unit. Then select "SHARP" (SHARP) display.

2. Press "CH o / p" buttons on the service remote control unit so that the value of "SHARP" (SHARP) becomes 40.

Note: BRIGHT data value does not need to be adjust-

ed at this moment.

5-2 L6400EA

Page 16

4. Black Level Adjustment

Purpose: Set Black Level Symptom of Misadjustment: If Black level is i ncor-

rect, Proper brightness can not be obtained by adjust ing the Brightness Control.

Note: TP300 (GND,) D316 (Cathode) --- MAIN CBA

1. Enter the Service mode. (See page 5-1.)

2. Press "MENU" button on the service remote control unit and select "BRT" mode. (Display changes "BRT," "CNT," "CLR," "TNT," "V-TINT" and "SHARP" cyclically when MENU button is pressed.)

3. Press "CH o / p" butt ons on the servi ce remote control unit so that the value of "BRT" becomes

128.

4. Turn the power off and on again, using the mai n power button on the TV unit.

5. V. Size Adjustment

Purpose: To obtain correct vertical width of screen image. Symptom of Misadjustment: If V.Size is incorrect, vertical

size of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

Screen Cont rol

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit.

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the Monoscope Pattern.

Press "9" button on the ser vice remote c ontrol uni t and select "V-S" mode. (Display changes "V-S" and "V-P" cyclically when "9" bu tto n i s pr ess ed. )

5. Press "CH o / p" butt ons on the servi ce remote control unit so that the m onoscope pattern will be 90±5% of display size and the circle is round.

6. Turn the power off and on again, using the mai n power button on the TV unit.

CH o / p

buttons [ V-S ]

Mode

Mono-

scope

6. V. Position Adjustment

Purpose: To obtain correct vertical width of screen

image. Symptom of misadjustment: If V. Position is incor-

rect, vertical height of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

--- Screen Control CH o / p

buttons

[ V-P ] Mode

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service Mode. (See page 5-1)

3. Receive the Monoscope Pattern.

4. Press "9" button on the service remote control unit and select "V-P" mode. (Display change "V-S" and "V-P" cyclically when "9" button is pressed.)

5. Press "CH o / p" buttons on the service remote control unit so that the top and bottom of the monoscope pattern will be equal of each other.

6. Turn the power off and on again, us ing the main power button on the TV unit.

RF Mono-

scope

7. H. Position Adjustment

Purpose: To obtain correct horizontal position of

screen image. Symptom of Misadjustment: If H. Position is incor-

rect, horizontal position of im age on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

Screen Control

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the Monoscope Pattern.

4. Press "8" button on the remote control unit and select "H-P" mode.

5. Press "CH o / p" buttons on the service remote control unit so th at the mono scope p attern will be 90±5% of display size and the circle is round.

6. T urn the power off and on again, using the main power button on the TV unit.

CH o / p

buttons

[ H-P ] Mode

Mono-

scope

5-3 L6400EA

Page 17

8. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage. Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

9. White Balance Adjustment

Purpose: To mi x r ed , gr ee n an d bl ue bea ms co rre ctly

for pure white. Symptom of Misadjustment: White becomes blui sh

or reddish.

Test Point Adj. Point Mode Input

Screen-Control

---

Tape M. EQ. Spec.

---

Note: Screen Control FBT --- Main CBA

FBT= Fly Back Transformer Use service remote control unit

1. Degauss the CRT and allow CRT to operate for 20 minutes before starting the alignment.

2. Input the Black Raster Signal from RF Input.

3. Enter the Service mode. (See page 5-1)

4. Press "VOL p" button on the service remote control unit and select "C/D" mode. (Display changes "C/ D," "7F," "FRENCH," "ACCESS CODE," "STEREO," "VIDEO TONE," "FM-MODE" and "V-OUT" cyclically when "VOL p" button is pressed.) then press "1." The displ ay wi ll mome ntar ily sh ow "CUT OFF R" (R= Red. ) Now ther e should be a h orizontal line across the center of the picture tube. If needed gradually turn the screen control on the flyback, clockwise until the horizontal line appears. Adjust the Red Cut off by pressing the "CH o / p" buttons. Proceed to Step 5 when the Red Cut off adjustment is done.

5. Press the "2" button. The display will momentarily show "CUT OFF G" (G=Green.) Adjust the Green Cut off by pressing the "CH o / p" buttons. Proceed to step 6 when the Green Cut of f adjustment is done.

6. Press the "3" button. The disp la y will mom ent arily show "CUT OFF B" (B= Blue.) Adjust th e Blue cut off by pressing the "CH o / p" buttons. When done with steps 4, 5 and 6 the horizontal line should be pure white if not, then attempt the Cut off adjustment again.

CH o / p

buttons

Pattern

Generator

Figure

PATTERN GENERATOR

EXT. INPUT

See Reference

Notes below.

Fig 2

Black

Raster

Test Point Adj. Point Mode Input

Screen-Control

Screen

Tape M. EQ. Spec.

Note: Use service remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to east. Degauss the CRT using Degaussing Coil.

3. Input the White Raster (APL 100%).

4. S et the color an alyzer to the CHROMA mod e and after zero point calibration, bring the optical receptor to the center on the tube surface (CRT).

5. Enter the Service mode. Press "VOL p" button on the service remote control unit and select "C/D" mode. (Display change s "C/D," "7F," "FRENCH," "ACCESS CODE," "STEREO," "VIDEO TONE," "FM-MODE" and "V-OUT" cyclically when "VOL p" button is pressed.) Then pre ss "8" button on the Service remote control Unit.

6. Press "4" bu tton on the service r emote c ontrol un it for Red adjustment. Press "5" button on the service remote control unit for Blue adjustment.

7. In each color mode, press "CH o / p" b utton to adjust the values of color.

8. Adjusting Re d a n d Bl u e color so that t he tem p er ature becomes 9200K (x: 286 / y: 294) ±3%.

9. At this time, re-c heck that Hori zontal li ne is white. If not, Re-adjust Cut-off Adjustment unti l the Horizontal Line becomes pure white.

10. Turn off and on again to return to n ormal mode. Receive APL 100% white signal and Check Chroma temperatures become 9200K (x: 286 / y: 294) ±3%.

CH o / p

buttons

Pattern

Generator,

Color analyzer

Figure

Color Analyzer

See below

White

Raster

(APL

100%)

Fig. 3

5-4 L6400EA

Page 18

Note: Confirm that Cut Off Adj. is correct after this adjustment, and attempt Cut Of f Adj. if nee ded.

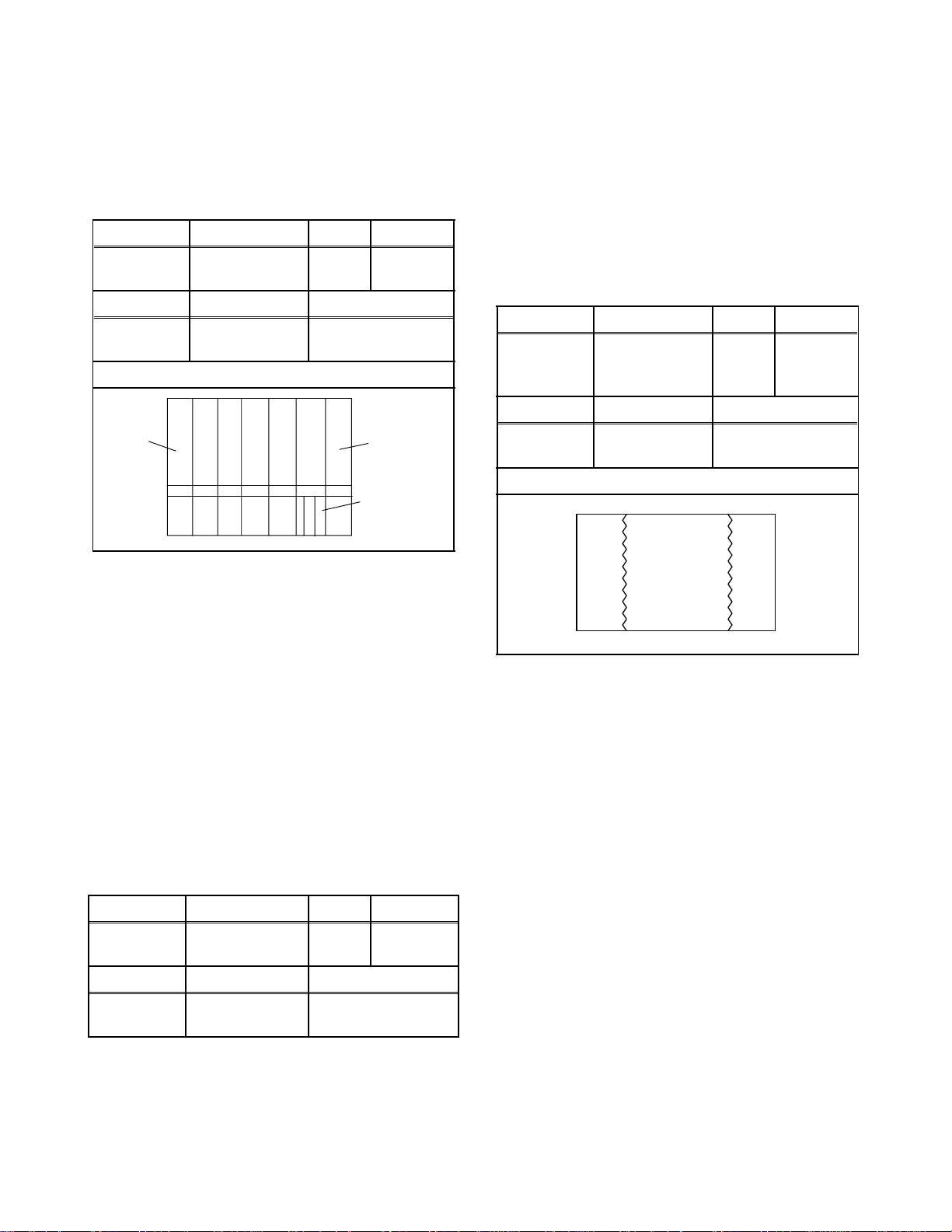

10. Sub-Brightness Adjustment

Purpose: To get proper brightness. Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by adjusting the Brightness Control.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

White

CH o / p

buttons

Pattern

Generator

Figure

RF IQW

See below

Black

This bar just visible

Fig. 4

3. Input the Monoscope Pattern.

4. Adjust the Focus Control on the FBT to obtain clear picture.

The following 2 adjustments normally are not attempted in the field. Only when replacing the CRT then adjust as a preparation.

12. Purity Adjustment

Purpose: To obtain pure color. Symptom of Misadjustment: If Color Purity Adjust-

ment is incorrect, large areas of color may not be properly displayed.

Test Point Adj. Point Mode Input

Deflection

---

Tape M. EQ. Spec.

---

Yoke

Purity Magnet

Pattern

Generator

Figure

---

See below.

Red

Color

Note: IQW Setup level --- 7.5 IRE

Use service remote control unit

1. Enter the Service mode. (See page 5-1) Then input IQW signal from RF Input.

2. Press "MENU" button on the service remote control unit and Select "BRT" mode. (Display changes "BRT," "CNT," "CLR," "TNT," "V-TINT" and "SHARP" cyclically when MENU button is pressed.) Press "CH o / p" buttons so that the bar is just visible (See above figure).

3. Turn the power off and on again, using the mai n power button on the TV unit.

11. Focus Adjustment

Purpose: Set the optimum Focus. Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test Point Adj. Point Mode Input

--- Focus Control RF

Tape M. EQ. Spec.

---

Pattern

Generator

Mono-

scope

See below

GREEN RED BLUE

Fig. 5

1. Set the unit facing East.

2. Operate the unit for over 30 minutes before adjusting.

3. Fully degauss the unit using an extern al de gaus s ing coil.

4. Loosen the screw on the Deflection Yoke Clamper and pull the Deflection Yo ke back away from the screen. (See Fig. 6)

5. Loosen the Ring Lock and adjust th e Purity Mag nets so that a red fi eld is ob tained at the center of the screen. Tighten Ring Lock. (See Fig. 5, 6)

6. Slowly push the Deflection Yoke toward bell of CRT and set it where a uniform red field is obtained.

7. Tighten the clamp screw on the Deflection Yoke.

Note: Focus VR (FBT) --- Main CBA,

FBT= Fly Back Transformer

1. Operate the unit more than 30 minutes

2. Face the unit to the East and degauss the CRT using a degaussing coil.

5-5 L6400EA

Page 19

13. Convergence Adjustment

Purpose: To obtain proper conver ge nce o f red , g re en

and blue beams. Symptom of Misadjustment: If Convergence Adjust-

ment is incorrect, the edge of white letters m ay have color edges.

Test Point Adj. Point Mode Input

C.P. Magnet

(RB,)

---

C.P. Magnet

---

(RB-G,)

Deflection Y o ke

Tape M. EQ. Spec.

---

Pattern

Generator

Figure

CRT

SCREW

PURITY

COIL

Dot Pattern

Crosshatch

See below.

RB-GRB

RING LOCK

SCREW

DY WEDGE

C.P. MAGNET CLAMPER

C.P. MAGNET

COIL CLAMPER

DEFLECTION YOKE

Fig. 6

C.P. MAGNET (RB)

Fig. 7

C.B. MAGNET (RB-G)

Fig. 8

1. Loos en the R ing Loc k and al ign re d with b lue dots or Crosshat ch at the cent er of the s creen by rot ating (RB) C.P. Magnets. (See Fig. 7)

2. Align red / blue with green dots at the center of the screen by rotating (RB-G) C.P. Magnet. (See Fig. 8)

3. Fix the C.P. Magnets by tightening the Ring Lo ck.

4. Remove the DY Wedges and slightly tilt the Deflection Yoke horizontally and vertically t o obtain the best overall convergence.

5. Fix the Deflection Yoke by carefully inserting the DY Wedges between CRT and Deflection Yoke.

5-6 L6400EA

Page 20

IF/Video/System Control Block Diagram

BLOCK DIAGRAMS

TU1

FROM/TO AUDIO/POWER CONTROL BLOCK

IC151

(MEMORY)

CS 72 I2C-OPEN SCL SDA 5

AGC

SCL SDA

EXT.CLK

7 6

SCL

SDA

1 4 5 8

WF16

SF1

SAW FILTER

VIDEO SIGNALRF/IF SIGNAL

IC31 (IF SIGNAL PROCESS)

VIF AMP

AGC

AMP

14 16 22

IC111

TV MICON/VIDEO /AUDIO/CHROMA /DEFLECTION

SCL

SDA

AUDIO SIGNAL

CF31

VIDEO DET

VCO

AFT

73 75

AFT AGC-IN EXT-H

4.5MHz TRAP

CF32

4.5MHz FILTER

LPF

IF AGC DET

WF1

X301

3.58MHz

EQ AMP

FM DET

AF AMP

VCO F/B

WF6

Q31

MAIN CBA

RCV-IN

KEY-IN1 KEY-IN2

66 69

TU-AUDIO

RCV101

REMOTE SENSOR

KEY SWITCH

TO AUDIO/POWER CONTROL BLOCK

I2C-OPEN 2 SDA 4 SCL 5

CN301 is used for adjustment at factory

JK701 VIDEO-IN

CN301(NO CONNECTION)

WF2

TUNER

LINE

LUMINANCE PROCESS CIRCUIT

CHROMINANCE PROCESS CIRCUIT

LPF

OSD

H-SYNC PROCESS CIRCUIT

V-SYNC PROCESS CIRCUIT

VCXO

RGB MATRIX /COLOR CONT

OSD SW CONTRAST BRIGHTNESS

RGB DRIVE /CUT OFF /H.V. BLK

DG-ON-H

P-ON-H PROTECT-1 PROTECT-2 PROTECT-3

79 68 67 76

52 51 50

53 46 45 38 37

WH301A

DG-ON-H PROTECT-1 PROTECT-2 P-ON-H PROTECT-1 PROTECT-2 PROTECT-3

BLUE5 GREEN4 RED3

ACL H-DRIVE FBP V-DRIVE V-RAMP-F/B

FROM/TO POWER SUPPLY BLOCK

FROM CRT/H.V. BLOCK

TO CRT/H.V. BLOCK WH301B

FROM/TO CRT/H.V. BLOCK

6-1 6-2

L6400BLIF

Page 21

Audio/Power Control Block Diagram

AUDIO SIGNAL

IC111

TV MICON/VIDEO /AUDIO/CHROMA /DEFLECTION

79P-ON-H

FROM/TO IF/VIDEO /SYSTEM CONTROL BLOCK

TU-AUDIO

JK702 AUDIO-IN

SCL SCL

SDA

AL+9V

SDA

LINE

TUNER

POWER MANAGE. MCU RESET

ATT

A-MUTE-H

40 18 28

IC801

(AMP)

MUTE

OUTPUT

+8V CTRL +5V CTRL2 +5V CTRL

TO POWER SUPPLY BLOCK

JK801 EARPHONE JACK

CN801

SPEAKER

SP-GND

CLN801 1 2

SP801 SPEAKER

RESET

MAIN CBA

6-3 6-4

L6400BLA

Page 22

CRT/H.V. Block Diagram

VIDEO SIGNAL

V-DRIVE

PROTECT-1

FROM/TO IF/VIDEO /SYSTEM CONTROL BLOCK

V-RAMP-F/B

Q572 Q571

H-DRIVE

PROTECT-2

WF7 WF8

H.DRIVE

T572

MAIN CBA

H.OUTPUT

WF11

IC551 (V-DEFLECTION CONTROL)

THERMAL PROTECTION

AMP

PULSE UP

6 3

DY551 D.Y.

VDRIVE

HDRIVE

WF12

WF9

CN571

FROM POWER SUPPLY BLOCK

FROM/TO IF/VIDEO /SYSTEM CONTROL BLOCK

FROM IF/VIDEO /SYSTEM CONTROL BLOCK WH301A

DEF+B

PROTECT-3

FBP ACL

RED

GREEN 4

BLUE 5

WH301B

X-RAY

J121 J122

T571 F.B.T.

WF3

Q501

RED AMP

WF15

FOCUS VR

SCREEN VR

WF4

WF10

Q502

GREEN AMP

ANODE

FOCUS SCREEN

HEATER3 3

1 1

+160V

WF14

WH501BWH501A

Q503

BLUE AMP

WF5 WF13

JK501

7 4 8

6 11 10

CN501

ANODE

FOCUS SCREEN GND

R G B

HEATER

GND

V501 CRT

CRT CBA

6-5 6-6

L6400BLCRT

Page 23

Power Supply Block Diagram

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug tothe AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

HOT COLD

AC601 AC CORD

DG691 DEGAUSSING

COIL

F601 4A/125V

CN691

4A/125V

PS691

L601

LINE FILTER

Q601

D605 - D608

BRIDGE RECTIFIER

SWITCHING

T601

4A/125V

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

TP601

Q671

SWITCHING

TP300

GND

Q111

+5V SWITCHING

Q321

+9V SWITCHING

AL+33V

DEF +B

BACK-UP +5V CTRL2

(FROM PIN18 OF IC111) AL+5V

AL+9V

AL+12V

Q602

LIMITER

IC601

ERROR VOLTAGE DET

1 11

RL601

Q662

FEED BACK

Q696

SWITCHING DG-ON-ON

VR661

+B ADJ

Q675 SWITCHING

P-ON-ON

Q676 SWITCHING

CONTROL

MAIN CBA

Q681

+8V SWITCHING

Q682

+5V SWITCHING

Q683

+5V SWITCHING

P-ON+8V

+8V CTRL (FROM PIN40 OF IC111)

PROTECT-2 (TO PIN67 OF IC111)

P-ON+5V

+5V CTRL (FROM PIN28 OF IC111)

P-ON+5V

PROTECT-1 (TO PIN68 OF IC111)

P-ON-H (FROM PIN79 OF IC111)

DG-ON-H (FROM PIN74 OF IC111)

6-7 6-8

L6400BLP

Page 24

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for highe r vo ltage, wattage, etc. Replacemen t parts th at hav e t hese s pe ci al s afet y ch ar acter isti cs are identified in this man ual and its supplements; electrical comp onents having such features are ide ntified by the mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Note:

1. Do not use the part number show n on these drawings for orderi ng. The correct part numbe r is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P=10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

, M=106).

-6

µF).

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60ppm/°C CSL --- +350~-1000ppm/°C

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

Electrolytic Capacitor

(Top View)

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

7-1 L13SC

Page 25

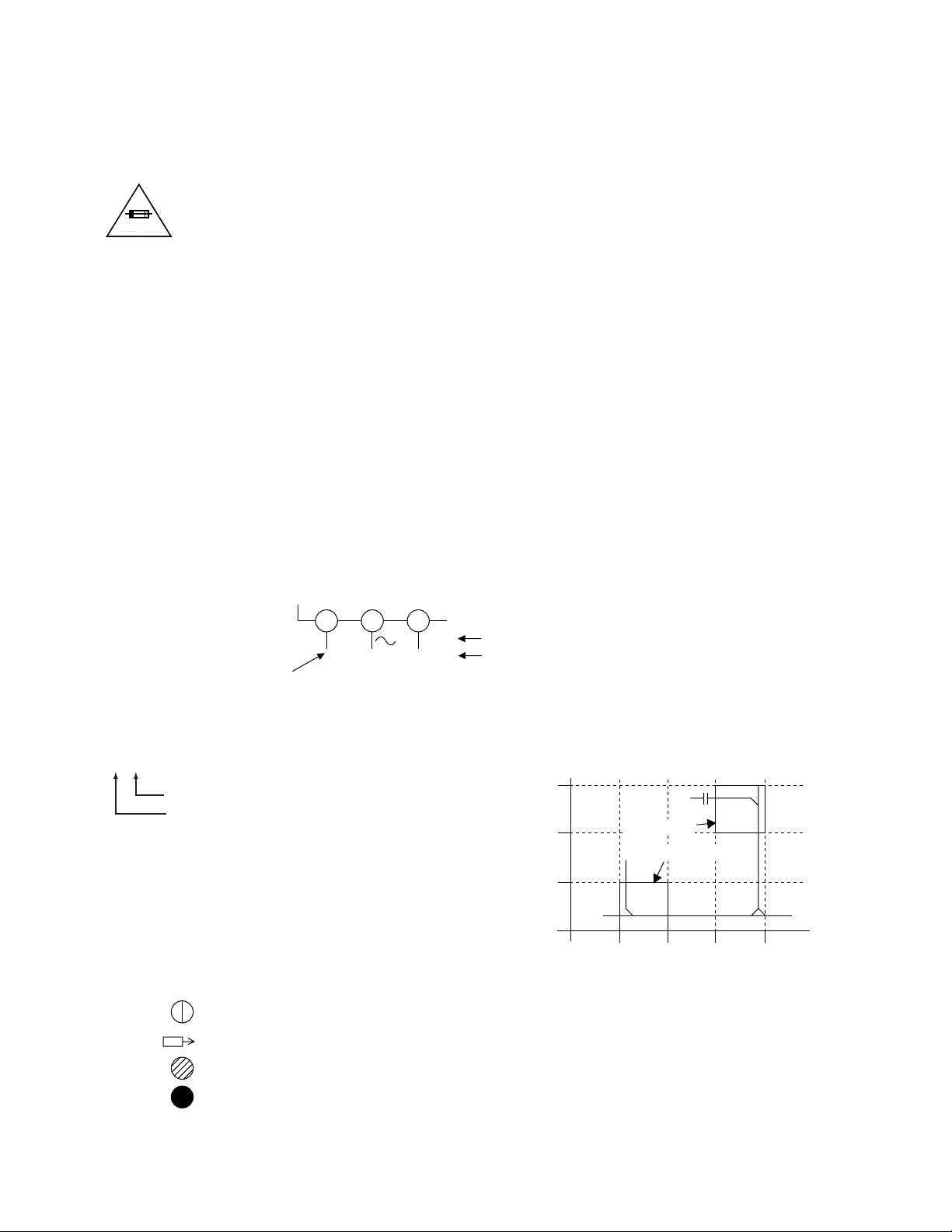

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE ___A, ___V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE ___A, ___V.

RISK OF FIRE-REPLACE FUSE AS MARKED.

A V

2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

(1) Do not use the part number sh own on the dra wings for orde ring. The correc t part number i s shown in the

parts list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain ori ginal func tion and reli ability of repaired u nits, use only origin al replacem ent parts which are

listed with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect). (2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "I" is a leadless (chip) component.

6. Voltage indications on the schemat ics are as sho wn belo w: Plug the TV power cord into a standard AC outlet.:

Voltage

7. How to read converged lines

1-D3

Distinction Area Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

8. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

5.0

(3.0)

231

5.0 (3.0)

Power on mode

Power off mode

Indicates that the voltage is not consistent here.

Unit: Volts

AREA D3

AREA B1

1-D3

ABCD

1-B1

: Used to indicate a test point with a test pin.

7-2 L13SC

Page 26

Main 1/3 Schematic Diagram

IC111

IC801

VIDEO SIGNAL

AUDIO SIGNAL

MAIN 1/3

Ref No. Position

IC151

TRANSISTORS Q111 D-1 Q321 E-2

CONNECTORS

CN301 CN801 A-1

ICS

C-2

A-4 B-1

A-4

7-3 7-4

L6400SCM1

Page 27

Main 2/3 Schematic Diagram

IF SIGNAL VIDEO SIGNAL AUDIO SIGNAL

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK FIRE, REPLACE ONL Y WITH THE SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

MAIN 2/3

Ref No. Posit i o n

ICS

IC31

IC601

TRANSISTORS

Q31 Q601 Q602 J-1 Q662 Q671 Q675 Q676 Q681 Q682 Q683 Q696

CONNECTOR

CN691 K-2

VARIABLE R ESISTO R

VR661 I-1

J-3

I-1

J-4 J-2

I-1 H-2 H-1 H-1 G-2 G-1 G-1

I-2

7-5

1 NOTE:

The Capacitor ( C643 ) is either type A or type B.

These two types are exchangeable and can be equally used whichever the model is . The difference between type A and type B is shown in the table below.

Type A Type B

7-6

C643 C642 JS642

0.01/250V 4700P/250V

0.01/250V Not Used

Not Used

WIRE

L6400SCM2

Page 28

Main 3/3 & CRT Schematic Diagram

TEST PO IN TS

Q502

MAIN 3/3

Ref No. Posit i o n

IC551

TRANSISTORS Q571 Q572

CONNECTORS

CN571 WH301A P-2 WH501A P-2

M-3

O-2 O-2

N-3

CRT

Ref No. Posit i o n

TRANSISTORS

Q501

Q503

CONNECTORS

CN501 R-2 WH301B Q-2 WH501B Q-2

Q-2 Q-2 R-2

VIDEO SIGNAL

TP300 TP601 O-2

O-2

7-7

7-8

L6400SCM3

Page 29

Main CBA Top View

IC111

IC151

IC801

Q662

Q671

CN301

TP601

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

TP601

FOCUS-VR (UPPER SIDE)

SCREEN-VR (LOWER SIDE)

TP300

GND

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK FIRE, REPLACE ONLY WITH THE SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED. ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT SLOWL Y , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPL Y CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

MAIN CBA

Ref No. Positi on

WH301A C-2 WH501A A-2

VARI ABL E R ESIST O R

ICS

IC31

IC551 IC601

TRANSISTORS

Q31 Q111 E-2 Q321 C-1

Q571 Q572 Q601 Q602

Q675 Q676 Q681 Q682 Q683 Q696

CONNECTORS

CN571 CN691 CN801

TEST PO IN TS

TP300

VR661 A-1

B-1

D-1

E-2 B-2

C-4

E-1

C-1

B-3 B-2 B-4

B-4 C-3 C-3 C-2 C-2 D-3 D-3 D-3 C-3

A-1

A-3 C-4 D-1

A-3

A-4

VR661

+B ADJ

7-9

7-10

BL6400F01013-1

Page 30

Main CBA Bottom View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK FIRE, REPLACE ONLY WITH THE SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF8

Q571 Base

WF7

Q572 Collector

WF9

PIN 1 OF CN571

WF12

PIN 4 OF CN571

WF10

PIN 3 OF WH501A

WF11

PIN 7 OF IC551

WF1

PIN 3 OF IC31

WF16

PIN 8 OF TU1

WF6

PIN 11 OF IC31

WF2

PIN 14 OF IC111

7-11 7-12

BL6400F01013-1

Page 31

CRT CBA Top View CRT CBA Bottom View

CRT CBA

Ref No. Position

TRANSISTORS Q501 B-2 Q502 Q503

CONNECTORS

CN501 A-1 WH301B B-1 WH501B B-1

B-2 B-2

WF13

Q503 Collector

WF5

Q503 Base

WF4

Q502 Base

WF14

Q502 Collector

WF3

Q501 Base

WF15

Q501 Collector

7-13 BL6400F01013-27-14

Page 32

WF1 ~ WF16 = Waveforms to be observed at   Waveform check points.   (Shown in Schematic Diagram.)

WAVEFORMS

Input:  NTSC Color Bar Signal (with 1kHz Audio Signal) INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

WF1

WF2

1DIV: 0.5V 20µsec IC 31 Pin 3

1DIV: 0.5V 20µsec IC 111 Pin 14

GND

WF5

WF6

1DIV: 2V 20µsec Q 503 Base

1DIV: 0.2V 20msec IC 31 Pin 11

GND

WF9

WF10

1DIV: 200V 20µsec CN 571 Pin 1

1DIV: 5V 20µsec WH501A Pin 3

GND

WF13

WF14

1DIV: 20V 20µsec Q503 Collector

1DIV: 20V 20µsec Q 502 Collector

WF3

WF4

1DIV: 2V 20µsec Q501 Base

1DIV: 2V 20µsec Q 502 Base

GND

WF7

WF8

8-1 8-2

1DIV: 10V 20µsec Q 572 Collector

1DIV: 5V 20µsec Q 571 Base

WF11

1DIV: 2V 5msec IC 551 Pin 7

10 V 5 ms

WF12

1DIV: 10V 5msec CN 571 Pin 4

WF15

WF16

1DIV: 20V 20µsec Q 501 Collector

1DIV: 0.2V 20µsec TU 1 Pin 8

L13WF

Page 33

WIRING DIAGRAM

V501 CRT

CLN551

CN501

GND

ANODE

FOCUS

SP801 SPEAKER

SCREEN

CLN801

CN801 SPEAKER1 SP-GND2

CN691

1 2

TU1 TUNER UNIT

MAIN CBA BL6400F01013-1

T571 FBT

CRT CBA BL6400F01013-2

WH301B

+8V GND

RED

GREEN

BLUE

+160V 1

GND

HEATER

1 2 3 4 5

2 3

DY551 D.Y.

AC601

CLN301

CLN501

WH301A

+8V

1 2

GND

RED

GREEN

BLUE

WH501AWH501B

+160V1

GND

HEATER

CN571

1 2 3 4 5

(NO CONNECTION)

CN301

I2C-OPEN

GND

SDA

SCL

CN301 IS USED FOR ADJUSTMENT AT FACTORY

9-1 L6400WI

Page 34

IC PIN FUNCTIONS

IC111(TV Micro Computer)

Signal Name Function

No.

1GND GND 2 N.U. Not Used 3 N.U. Not Used 4 N.U. Not Used 5GND GND 6VCC AL+5V 7 N.U. Not Used 8 FILT FILT

9 HLF Filter for CCD 10 VHOLD VHOLD 11 CVIN Input for Video Signal 12 RESET RESET

MCU RESET

OUT 14 Y-SW OUT Composite Signal Output 15 GND GND 16 3.58 X'TAL 3.58MHz Crystal 17 C-APC CHROMINANCE APC

MCU 5.7REG

OUT 19 N.U. Not Used 20 N.U. Not Used 21 N.U. Not Used 22 VCC VCC 23 N.U. (GND) 24 CVBS IN2 Composite Signal Input 2 25 AUDIO IN2 Audio Signal Input 2 26 CVBS IN1 Composite Signal Input 1 27 AUDIO IN1 Audio Signal Input 1 28 5.7V REG OUT 5.7V Output 29 N.U. Not Used 30 N.U. Not Used 31 V REG VCC DC 8.7V Input 32 FSC OUT Clock Output 3.58MHz 33 N.U. Not Used

AUDIO ATT

OUT

RESET Signal Output

Micro controller Control Voltage Output

Audio Signal Output

Signal Name Function

No.

35 N.U. Not Used 36 N.U. Not Used 37 V RAMP F/B V Ramp Feed Back 38 V RAMP OUT Vertical Output 39 V RAMP CAP V Ramp OSC Capacitor 40 8.7 VREG OUT DC 8.7V Output 41 N.U. Not Used 42 H VCO F/B H Vco Feed Back 43 AFC FILT Horizontal AFC Filter 44 GND GND 45 FBP IN Flyback Pulse Input 46 H-OUT H Pulse Output 47 VCC Vcc 48 VCC Vcc 49 VCC Vcc 50 R OUT Red Output 51 G OUT Green Output 52 B OUT Blue Output 53 ACL IB-Input 54 N.U. Not Used 55 N.U. Not Used

56 SDA 57 N.U. Not Used 58 SCL 59 N.U. (GND)

60 N.U. Not Used 61 N.U. (+5V) 62 N.U. Not Used 63 EXT-H EXT-H 64 A-MUTE-H Audio Mute 65 N.U. Not Used 66 KEY-IN 1 Key Input 1 (Main) 67 PROTECT 2 Power Supply Protection 68 PROTECT 1 Power Supply Protection 69 KEY-IN 2 Key Input 2 (Main) 70 RCV-IN Input For Remote Control

I2C-BUS Controller Interface (Data)

I2C-BUS Controller Interface (Clock)

10-1 L6307PIN

Page 35

Signal Name Function

No.

71 N.U. Not Used 72 I2C OPEN 73 AFT AFT Voltage Input

74 N.U. Not Used 75 AGC AGC Voltage Input 76 PROTECT 3 Power Supply Protection 77 N.U. Not Used 78 FM-SW Switching IF IC VCO 79 P-ON-H Output for P-ON-H 80 N.U. Not Used

White Balance Adjustm ent Judgement

10-2 L6307PIN

Page 36

Cabinet

EXPLODED VIEWS

SHINWHA TAPE SGT-730 (BLACK)

V501-1

Details for DY551 and surrounding parts

CLN801

SP801

CLN551

SHINWHA TAPE SGT-730 (WHITE)

V501-2

SCOTCH TAPE #880

DY551

ANODE CAP Part of Flyback Transformer

SCOTCH TAPE #880

DY551

CRT CBA

DG691

PB2

PL1

PB1

SCOTCH TAPE #880

MAIN CBA

V501

11-1 11-2 L6400CEX

See Electrical Parts List for parts with this mark.

PL1

PB3

AC601

Page 37

Packing

Some Ref. Numbers are not in sequence.

PACKING TAPE

FRONT

TAPE

11-3 L6400PEX

Page 38

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these compone nts, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assign ed part numbers (---------) are not available.

Comparison Chart of Models and Marks

Model Mark

ST419D

6419TD

Ref. No. Mark Description P art No.

A1 FRONT CABINET L1400UA 0EM000479 A2 A CONTROL PLATE L61 15UR 0EM301595 A2 B CONTROL PLATE L6101UB 0EM301600 A3 REAR CABINET L6400UA or 0EM000683

REAR CABINET L6405UF 0EM000679 A4# A RA TING LABEL L6400UA ---------A4# B RA TING LABEL L6401UB ---------B1 TENSION SPRING B0080B0:EM40808 26WH006 B2 CRT MOUNTING SCREW

B3 PCB HO LDER L140 0UA 0EM301429 B4 SPEAKER HOLDER L1400UA 0EM406026 B5# CRITICAL PARTS WARNING LABEL

B6# DEGAUSS HOLDER L9800UA 0EM404845 B7 AC CORD HO LDER L140 0UA 0EM406104 B8 CLOTH L9800UA:95X15XT:0.5 0EM405041 B9 CLOTH(10X30XT1.0) L9814UQ 0EM405137 CLN551 CRT GND WIRE CRT GND WX1L7820-003 CLN801 WIRE ASSEMBLY SPEAKER

DG691# DEGAUSSING COIL AVDG014 or LLBH00ZWR003 # DEGAUSSING COIL F-003 LLBH00ZTM003 L1 SCREW, P-TIGHT 3X12 BIND HEAD+ GBMP3120 L2 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180 L3 SCREW TAPPING M4X14 DBU14140 SP801 SPEAKER S08F02B or DSD0808XQ010

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PAR TS AND EACH PAR TS ALSO HAS MATCHING COMBINATION WITH DY551. PLEASE SEE TABLE 1 FOR DET AILS OF MA T CHING COMBINA TION.

2. DY551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501. PLEASE SEE TABLE 1 FOR DET AILS OF MA T CHING COMBINA TION.

B0030U1:K42419

B8007C3:EM41210

WIRE(220MM)

SPEAKER J-F097-C5 DSD0808DCP01

CRT TYPE A

DY551# DEFLECTION YOKE KDY3MDA84X or LLBY00ZMS013 # DEFLECTION YOKE LLBY00ZSY006 or LLBY00ZSY006 # DEFLECTION YOKE CDY-M2019F LLBY00ZQS004 V501# CRT A48JLL90X or TCRT190QS009 # CRT A48JLL90X(K) TCRT190QS019

V501-1 C.P .MAGNET JH225-014 or XM04000BV009

CPM E-225-F01 XM04000ETC01

A B

8A00083

24LH199

WX1L7950-001

Ref. No. Mark Description Part No.

V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

CRT TYPE B

DY551# DEFLECTION YOKE KDY3MCB20X or LLBY00ZMS016 # DEFLECTION YOKE 330P510A37 LLBY00ZTHA01

V501# CRT A48LGS30X TCRT190THA01 V501-1 C.P.MAG NET JH22 5-014 o r X M04000B V009

CPM E-225-F01 XM04000ETC01

V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

CRT TYPE C

DY551# DEFLECTION YOKE DSE-1922FU(T) or LLBY00ZSM007 # DEFLECTION YOKE TMY0301F or LLBY00ZMS017 # DEFLECTION YOKE CDY-M2023F or LLBY00ZQS005 # DEFLECTION YOKE LLBY00ZSY007 LLBY00ZSY007 V501# CRT A48LRH93X(W)D or TCRT190PTD01 # CRT A48LRH93X(W) TCRT190P7002

V501-1 C.P.MAG NET JH22 5-014 o r X M04000B V009

CPM E-225-F01 XM04000ETC01

V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

CRT TYPE D

DY551# DEFLECTION YOKE LLBY00ZSY008 LLBY00ZSY008 V501# CRT A48LVL095X TCRT190MS011 V501-1 C.P.MAG NET JH22 5-014 o r X M04000B V009

CPM E-225-F01 XM04000ETC01

V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

CRT TYPE E

V501# CRT A48AKH13X01 K TCRT190CP043

CRT TYPE F

DY551# DEFLECTION YOKE KDY3MDD74X LLBY00ZMS024 V501# CRT A48AKH13X TCRT190CP044 V501-1 C.P.MAG NET JH22 5-014 o r X M04000B V009

CPM E-225-F01 XM04000ETC01

V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

PACKING

S1 A CARTON L6400UA 0EM407509 S1 B CARTON L6401UB 0EM407796 S2 STYRFOAM TOP ASSE MBLY L9814UQ 0EM405094 S3 STYRFOAM B0TTOM ASSEMBLY

S4 SET SHEET L1400UA:1000X1500 0EM406680 S5 HOLD PAD L6 100UA 0EM406812 S6 A SERIAL NO. LABEL L6400UA 0EM407508 S6 B SERIAL NO. LABEL L6401UB 0EM407795

L6100UA

0EM406813

ACCESSORIES

X1# A OWNER'S MANUAL(E)/(S)

X1# B OWNER'S MANUAL(E)/(S)

X2 REMOTE CONTROL 130/ERC001/

X3 DRY BA TTER Y R6P UM3 or XB0M451GH001

L6400UA:ENGLISH/SPANISH

L6401UB:ENGLISH/SPANISH

N0108UD or REMOTE CONTROL 130/ERC001/

N0132UD

DRY BATT ERY R6P/2S or XB0M451T0001

0EMN02011

0EMN02074

N0108UD

N0132UD

20030115 12-1 L6400CA

Page 39

Ref. No. Mark Description P art No.

DRY BATTER Y(SUNRISE) R6SSE/2S or XB0M451MS002

DRY BATTER Y R6P(AR)2PX or XB0M451HU002

DRY BATTER Y R6P(AR)2P X ICI XB0M451HU003 X4 A RETURN STOP SHEET L6100UA 0EM407076 X4 B RETURN STOP SHEET L6101UB 0EM407077 X5 POL YETHYLENE BAG F8626B5 Z325350

Table 1 (V501 and DY551 Combination)

Note 1: Purity and Convergence Adjus tments must be

performed following C RT replacement. Refe r to Electr ical Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT Warning Label which is locate d on the CRT. Then See the Table 1 for V501 and DY551 combination chart. Please refer this CRT, Deflection Yoke combination chart for parts order.

CRT Warning Label Location

CRT Type No.

CRT

CRT Warning Label

V501: CRT Type No. V501: CRT Part No.

CRT A48JLL90 X TCRT190QS0 09

CRT A48JLL90X(K) TCRT190QS019

CRT A48LGS30X TCRT190THA01

CRT A48LRH93X(W)D TCRT190PTD01

CRT A48LRH93X(W) TCRT190P7002

CRT A48L VL095X TCRT190MS01 1 LLBY00ZSY008

CRT A48AKH13X 01 K TCRT190CP04 3 ----------

CRT A48AKH13 X TCR T190CP 044 LLBY00ZMS024

DY551: Deflection

Yoke Part No.

LLBY00ZMS013

LLBY00ZSY006 LLBY00ZQS004 LLBY00ZMS013

LLBY00ZSY006 LLBY00ZQS004 LLBY00ZMS016 LLBY00ZTHA01 LLBY00ZSM007 LLBY00ZMS017 LLBY00ZQS005

LLBY00ZSY007 LLBY00ZSM007 LLBY00ZMS017 LLBY00ZQS005

LLBY00ZSY007

20030115 12-2 L6400CA

Page 40

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part num bers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA CBA

Ref. No. Description Part No.

MMA-383 CBA 0ESA04923 Consists of the following MAIN CBA -------------CRT CBA ----------- ---

MAIN CBA

Ref. No. Description Part No.

MAIN CBA

Consists of the following

CAPACITORS

C2 ELECTROL YTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C3 ELECTROL YTIC CAP. 4.7µF/50V M or CE1JMASTL4 R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C31 ELECTROLYTIC CAP . 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C32 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP .(MELF) F Z 0.01µF/16V CZM1CZB0F103

C34 ELECTROLYTIC CAP . 0. 47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C35 CHIP CERAMIC CAP. CH J 5 6pF/50V or CHD1JJBCH560

CHIP CERAMIC CAP .(MELF) SL J 56pF/50V CZM1JJBSL560

C36 CHIP CERAMIC CAP. B K 1000pF/50V or CHD1JKB0B102

CHIP CERAMIC CAP .(MELF) Y K 1000pF/35V CZM1GKB0Y102

C37 ELECTROLYTIC CAP . 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C38 ELECTROLYTIC CAP . 10 µF/50V M or CE 1JMAST L100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C40 CHIP CERAMIC CAP. B K 0.015µF/5 0V or CHD1JKB0B153

CHIP CERAMIC CAP . B K 0.015µF/50V CHD1JKB0B153

C41 ELECTROLYTIC CAP . 0. 47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C51 CHIP CERAMIC CAP. B K 1000pF/50V or CHD1JKB0B102

CHIP CERAMIC CAP .(MELF) Y K 1000pF/35V CZM1GKB0Y102

------------

Ref. No. Description Part No.

C52 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103

C53 ELECTROLYTIC CAP . 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C54 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103

C55 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103 C56 PCB JUMPER D0.6-P5.0 JW5.0T C57 FILM CAP.(P) 0. 047µF/50V J or CMA1JJS00473

FILM CAP.(P ) 0.047 µF/ 50V J CA1J473MS029 C58 FILM CAP.(P) 0. 033µF/50V J or CMA1JJS00333

FILM CAP.(P ) 0.033 µF/ 50V J CA1J333MS029 C111 ELECTROLYTIC CAP . 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470 C112 ELECTROL YTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C113 CHIP CERAMIC CAP . F Z 0.1µF/2 5V or CHD1EZB0F104

CHIP CERAMIC CAP . F Z 0.1µF/25V CHD1EZB0F104 C114 FILM CAP .(P) 0.001µF/50V J or CMA1JJS00102

FILM CAP.(P ) 0.001 µF/ 50V J CA1J102MS029 C115 ELECTROL YTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1 C116 CHIP CERAMIC CAP . CH J 220pF/50V or CHD1JJBCH221

CHIP CERAMIC CAP .(MELF) B K 220pF/50V CZM1JKB0B221 C117 CHIP CERAMIC CAP . B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103 C118 CHIP CERAMIC CAP . B K 0.015µF/50V or CHD1JKB0B153

CHIP CERAMIC CAP . B K 0.015µF/50V CHD1JKB0B153 C119 ELECTROL YTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C120 CHIP CERAMIC CAP . B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103 C132 CHIP CERAMIC CAP . F Z 0.1µF/2 5V or CHD1EZB0F104

CHIP CERAMIC CAP . F Z 0.1µF/25V CHD1EZB0F104 C133 CHIP CERAMIC CAP . B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103 C151 CHIP CERAMIC CAP . B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103 C152 CERAMIC CAP .(AX) B K 220pF/50V CCA1JKT0B221 C153 CERAMIC CAP .(AX) B K 220pF/50V CCA1JKT0B221 C155 ELECTROL YTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470 C156 CHIP CERAMIC CAP . F Z 0.1µF/2 5V or CHD1EZB0F104

CHIP CERAMIC CAP . F Z 0.1µF/25V CHD1EZB0F104 C301 CHIP CERAMIC CAP . CH J 120pF/50V or CHD1JJBCH121

CHIP CERAMIC CAP .(MELF) B K 120pF/50V CZM1JKB0B121 C302 ELECTROL YTIC CAP. 1µF/50V M or CE1JMA STL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R 0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010 C303 CHIP CERAMIC CAP . B K 0.015µF/50V or CHD1JKB0B153

CHIP CERAMIC CAP . B K 0.015µF/50V CHD1JKB0B153 C306 ELECTROL YTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C308 ELECTROL YTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10

20030115 13-1 L6400EL

Page 41

Ref. No. Description Part No.

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1 C321 PCB JUMPER D0.6-P5.0 JW5.0T C322 ELECTROLYTI C CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C323 ELECTROLYTI C CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010 C324 ELECTROLYTI C CAP. 10µF/50V M or CE1 JMASTL1 00

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C328 ELECTROLYTI C CAP. 10µF/50V M or CE1 JMASTL1 00

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C329 CHIP CERAMIC CAP . B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP .(MELF) F Z 0.01µF/16V CZM1CZB0F103 C330 FILM CAP. 0.47µF/50V J or 122Z317S

TF CAP . 0.47µF/50V J CT1J474MS045 C341 CHIP CERAMIC CAP . B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103 C342 ELECTROLYTI C CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010 C343 CHIP CERAMIC CAP . B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103 C345 ELECTROLYTI C CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471 C347 ELECTROLYTI C CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C349 ELECTROLYTI C CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471 C351 CHIP CERAMIC CAP. CH J 100pF/50V or CHD1JJBCH101

CHIP CERAMIC CAP .(MELF) SL J 100pF/50V CZM1JJBSL101 C352 CHIP CERAMIC CAP. CH J 100pF/50V or CHD1JJBCH101

CHIP CERAMIC CAP .(MELF) SL J 100pF/50V CZM1JJBSL101 C353 ELECTROLYTI C CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010 C362 ELECTROLYTI C CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C551 ELECTROLYTI C CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470 C552 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF /50V J CA1J104MS029 C554 ELECTROLYTI C CAP. 470µF/35V M(VR) or CE1GMZNTL471

ELECTROLYTIC CAP. 470µF/35V M or CE1GMZNDL471

ELECTROLYTIC CAP. 470µF/35V M CE1GMZADL471 C562 ELECTROLYTI C CAP. 2.2µF/50V M LL or CE1JMA SLL2 R2

ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2 C566 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102

ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZADL102 C568 ELECTROLYTI C CAP. 10µF/50V M or CE1 JMASTL1 00

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C571# PP CAP . 0.47µF/250V J or CT2E474MS041 # P.P.CAP 0.47µF/ 200 J CA2D474VC012 C574# ELECTROLYTIC CAP. 4.7µF/250V M or CE2EMASTL4R7 # ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASDL4R7 C577# ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470 # ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470 C578 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J CA1J103MS029 C580# PP CAP . 0.01µF/1.6KV J or CT3C103MS039 # PP CAP. 0.01µF/1.6KV J or CBH3CJQ00103

Ref. No. Description Part No.

# P. P.CAP 0.01µF/1.6KV J or CA3C103VC011 # METALLIZED FILM CAP. 0.01µF/1.6KV J CT3C103F7002 C581# CERAMIC CAP. LB 680pF/2K or CA3D681KG004 # CERAMIC CAP . BN 680pF/2KV or CCD3DKA0B681 # CERAMIC CAP . 680pF/2KV CA3D681PAN04 C584# ELECTROL YTIC CAP. 1µF/160V M or CE2CMASTL1R0 # ELECTROLYTIC CAP . 1µF/160V M CE2CMASDL1R0 C594# ELECTROL YTIC CAP. 10µF/50V M or CE1JMASTL100 # ELECTROLYTIC CAP . 10µF/50V M CE1JMASDL100 C601# METALLIZED FILM CAP . 0.1µF/25 0V or CT2E104MS037 # FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011 # METALLIZED FILM CAP. 0.1µF/275V K CT2E104HJE06

C605 CERAMIC CAP . F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP . 0.01µF /AC250V CCD2EZA0F103

C606 CERAMIC CAP . F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP . 0.01µF /AC250V CCD2EZA0F103

C609 CERAMIC CAP . B K 1000pF/2KV or CCD3DKD0B102

CERAMIC CAP . B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. B K 1000pF/2KV CA3D102MR030 C610# ELECTROL YTIC CAP. 220µF/200V or CA2D221NC088 # ELECTROLYTIC CAP . 220µF/200V SL X CA2D221S6003 C611 FILM CAP .(P) 0.068µF/50V J or CMA1JJS00683

FILM CAP.(P ) 0.068 µF/ 50V J CA1J683MS029 C612 CERAMIC CAP. LB 330pF/2KV or CA3D331KG004

CERAMIC CAP . BN 330pF/2KV or CCD3DKA0B331

CERAMIC CAP . 330pF/2KV CA3D331PAN04 C616 FILM CAP .(P) 0.056µF/50V J or CMA1JJS00563

FILM CAP.(P ) 0.056 µF/ 50V J CA1J563MS029 C617 CERAMIC CAP .(AX) B K 330pF/50V CCA1JKT0B331

If C642 is 0.01µF , then C643 is 0.01µF.

C642# SAFETY CAP. 10000pF/250V or CCG2EMA0F103 # SAFETY CAP. F M 0.01µF/250V or CCG2EMP0F103 # CERAMIC CAP . 0.01µF F CS CCG2HMN0F103 C643# SAFETY CAP. 10000pF/250V or CCG2EMA0F103 # SAFETY CAP. F M 0.01µF/250V or CCG2EMP0F103 # CERAMIC CAP . 0.01µF F CS CCG2HMN0F103

If C643 is 4700pF , then JS642(PCBJUMPER) is used.

C643# SAFETY CAP. 4700pF/250V KX CA2E472MR050 JS642 PCB JUMPER D0.6-P7.5 JW7.5T C650 CERAMIC CAP. LB 470pF/2KV or CA3D471KG004

CERAMIC CAP . BN 470pF/2KV or CCD3DKA0B471

CERAMIC CAP . 470pF/2KV CA3D471PAN04 C651 CERAMIC CAP. LB 470pF/2KV or CA3D471KG004

CERAMIC CAP . BN 470pF/2KV or CCD3DKA0B471

CERAMIC CAP . 470pF/2KV CA3D471PAN04 C654# ELECTROL YTIC CAP. 1µF/50V M or CE1JMA STL1R0

# ELECTROLYTIC CAP . 1µF/50V M or CE1JMASD L1R0 # ELECTROLYTIC CAP . 1µF/50V M CE1JMASDL010 C656# ELECTROL YTIC CAP. 100µF/160V M or CE2CMZPTL101 # ELECTROLYTIC CAP . 100µF/160V M CE2CMZNDL101 C657# ELECTROL YTIC CAP. 1000µF/35V M or CE1GMZNTL102 # ELECTROLYTIC CAP . 1000µF/35V M or CE1GMZNDL102 # ELECTROLYTIC CAP . 1000µF/35V M CE1GMZADL102 C658# ELECTROL YTIC CAP. 1000µF/16V M(VR/HC) orCE1CMZNTL102

# ELECTROLYTIC CAP . 1000µF/16V M or CE1CMZPDL102 # ELECTROLYTIC CAP . 1000µF/16V M CE1CMZADL102

C667 ELECTROL YTIC CAP. 1µF/50V M or CE1JMA STL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R 0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010 C681 ELECTROL YTIC CAP. 100µF/10V M or CE1AMASTL101

20030115 13-2 L6400EL

Page 42

Ref. No. Description Part No.

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C682 ELECTROLYTI C CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C683 ELECTROLYTI C CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C686 ELECTROLYTI C CAP. 33µF/16V M or CE1 CMASTL3 30

ELECTROLYTIC CAP. 33µF/16V M CE1CMASDL330

C687 ELECTROLYTI C CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C692 ELECTROLYTI C CAP. 47µF/160V M or CE2CMZPTL470

ELECTROLYTIC CAP. 47µF/160V M W/F CE2CMZNDL470

C701 CHIP CERAMIC CAP. CH J 100pF/50V or CHD1JJBCH101

CHIP CERAMIC CAP .(MELF) SL J 100pF/50V CZM1JJBSL101 C711 CERAMIC CAP .(AX) X K 1200pF/16V CDA1CKT0X122 C805 ELECTROLYTI C CAP. 220µF/16V M or CE1CMASTL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C811 ELECTROLYTI C CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C821 CERAMIC CAP.(AX) X K 3300pF/16V CDA1CKT0X332 C822 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZB0F224

CHIP CERAMIC CAP . F Z 0.22µF/16V CHD1CZB0F224 C823 CHIP CERAMIC CAP. F Z 0.47µF/10V or CHD1AZB0F474

CHIP CERAMIC CAP . F Z 0.47µF/16V or CHD1CZB0F474

CHIP CERAMIC CAP . F Z 0.47µF/10V or CHD1AZB0F474

CHIP CERAMIC CAP . F Z 0.47µF/16V CHD1CZB0F474

CONNECTORS

CN571 CONNECTOR BASE, 5P TV -50P-05-V3 or J3TVC05TG002

CONNECTOR BASE, 5P RTB-1.5-5P J3RTC05JG001 CN691 CONNECTOR BASE, 2P TV -50P-02-V3 or J3TVC02TG002

CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001 CN801 STRAIGHT CONNECTOR BASE 00 8283

0212 00 000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG0 02

DIODES

D101 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D102 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D111 ZENER DIODE MTZJT-7 75.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS D131 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS D151 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS D181# SWITCHING DIODE 1SS133(T- 77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D322 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D323 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS D326 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D350 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D351 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D352 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D551 DIODE 1N5399-B/P or NDLZ001N5399

RECTIFIE R DIODE ERB12 -06 QDQZ0E RB120 6 D561# SWITCHING DIODE 1SS133(T- 77) or QDTZ001SS133

Ref. No. Description Part No.

# SWITCHING DIODE 1N4148 NDTZ001N4148 D562# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D568# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D569# ZENER DIODE MT ZJT -77 20B or Q DTB00MT ZJ20 # ZENER DIODE DZ-20BSBT265 NDTB00DZ20BS D571 DIODE FR104-B or NDLZ000FR104

RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIO DE 10ELS 2 QDQZ0010ELS2 D572# RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202 # RECTIFIER DIODE 10ELS2 QDQZ0010ELS 2 D573# PCB JUMPER D0.6-P5.0 JW5.0T D584# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D593# ZENER DIODE MT ZJT -77 36B or QDTB00MTZJ36 # ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS D595 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D597 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS D605# DIODE 1N5399-B/P or NDLZ001N5399 # RECTIFIER DIODE ERB12-06 QDQZ0ERB1206 D606# DIODE 1N5399-B/P or NDLZ001N5399 # RECTIFIER DIODE ERB12-06 QDQZ0ERB1206 D607# DIODE 1N5399-B/P or NDLZ001N5399 # RECTIFIER DIODE ERB12-06 QDQZ0ERB1206 D608# DIODE 1N5399-B/P or NDLZ001N5399 # RECTIFIER DIODE ERB12-06 QDQZ0ERB1206 D611 ZENER DIODE MTZJT -7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS D613 ZENER DIODE MTZJT -7718B or QDTB00MTZJ18

ZENER DIODE DZ-18BSBT265 NDTB00DZ18BS D615# SWITCHING DIODE 1N4148 T-77 QDTZ001N4148 D616# ZENER DIODE MT ZJT -77 15B or QDTB00MTZJ15 # ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS D621 ZENER DIODE MTZJT-773.0B or QDTB0MTZJ3R0

ZENER DIODE DZ-3.0BSBT265 NDTB0DZ3R0BS D641 BEAD INDUCTORS FBR07HA121 TB-00 LLBF00ZTU021 D642 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D651# FA ST RECOVE RY DI ODE CA20 1-4 o r QDWZ00CA2014

# RECOVERY DIODE ERC18-04 or QDZZ0ERC1804 # FAST RECOVERY DIODE ERC25-06 QDQZ0ERC2506 D652# DIODE FR154 or NDLZ000FR154 # FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402 D653# DIODE FR154 or NDLZ000FR154 # FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402 D654# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D657# DIODE 1ZC36 or QDQZ0001ZC36 # ZENER DIODE RD39FB QDQZ000RD39F

D660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D661# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D662# ZENER DIODE MTZJT - 776.8B or QDTB0MTZJ6R8 # ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS D666 ZENER DIODE MTZJT -7736B or QDTB00MTZJ36

ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS D671# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

20030115 13-3 L6400EL

Page 43

Ref. No. Description Part No.

# SWITCHING DIODE 1N4148 NDTZ001N4148 D672 PCB JUMPER D0.6-P5.0 JW5.0T D673 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D682# ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6 # ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS D691# SWITCHING DIODE 1SS133(T- 77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D694# PCB JUMPER D0.6-P5.0 JW5.0T D696 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D81 1 # SWITCHING DIODE 1SS133(T -77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D831 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

ICS

IC31 IC:VIF/SIF DETECTOR M61111FP QSZBA0SMB010 IC111# IC M6 1271M8-0 50FP- 61 QSZAB0RMB127 IC151 IC:MEMORY S524C20D21 or NSZBA0SSM028

IC:MEMORY AT24C02N -10SC or NSMMA0SAZ012

IC(EEPROM) M24C02-MN6 or NSMMA0SSS028

IC:MEMORY BR24C02F-W or QSMBA0SRM003

IC:MEMORY BR24C02F or QSMMA0SRM003

IC:EEPROM CAT24WC02JI NSZBA0SBG001 IC551# VERTICAL OUTPUT IC LA78040A or QSBBA0SSY003 # VERTICAL OUTPUT IC AN5522 QSZBA0SMS002 IC601# PHOTOCOUPLER PS2501-1W or QPEW0PS25011

# PHOTO COUPLER PS2501-1L or QPEL0PS25011 # PHOTOCOUPLER LT V -817B-F or NPEB0LTV817F # PHOTOCOUPLER LT V -817C-F NPEC0LTV817F

IC801 AUDIO AMP LA4224 QSZAA0SSY005

COILS

L1 PCB JUMPER D0.6-P5.0 JW5.0T L3 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220 L32 INDUCTOR 15µH-J-26T or LLAXJATTU150

INDUCTOR 15µH-K-26T LLAXKDTKA150 L33 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220 L51 INDUCTOR 100µH-K-5FT or LLARKBSTU101

INDUCTOR 100µH-K LLARKDQKA101 L111 PCB JUMPER D0.6-P5.0 JW5.0T L301 INDUCTOR 100µH-K-5FT or LLARKBSTU101

INDUCTOR 100µH-K LLARKDQKA101 L341 PCB JUMPER D0.6-P5.0 JW5.0T L342 PCB JUMPER D0.6-P5.0 JW5.0T L601# LINE FILTER TLF12UA302W1R0 or LLBG00ZTU025

# LINE FILTER 5.0MH 6Y075 or LLBG00ZKT004 # LINE FILTER LF005 or LLBG00ZLH001 # LINE FILTER U U10. 5-A or LLBG00ZY2008 # LINE FILTER SA-91213B or LLBG00ZSA002 # LINE FILTER TLF14CB3321R0 or LLBG00ZTU012 # LINE FILTER 6.35MH UU10-002 LLBG00ZKV001

L692 CHOKE COIL 47µH-K or LLBD00PKV007

POT COIL 47µH K LLBD**DMM00 1

TRANSISTORS

Q31 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

Ref. No. Description Part No.

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1 1 1 TRANSISTO R 2SC278 5(F) or QQSF02SC27 85

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q321# TRANSI STOR 2SC278 5(F) or QQSF02SC27 85

# TRANSISTOR 2SC2785(H) or QQSH02SC2785 # TRANSISTOR 2SC2785(J) or QQSJ02SC2785 # TRANSISTOR KTC3199(GR) or NQS10KTC3199 # TRANSISTOR KTC3198(GR) or NQS40KTC3198 # TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q571# TRANSI STOR TT2 140LS- YB11 or QQZZ00TT2140 # TRANSISTOR 2SC5885000R F QQZZ02SC5885

Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627 Q601# MOS FET 2SK2662 QF5Z02SK2662 Q602# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120 # TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 Q662# TRANSI STOR 2SC278 5(F) or QQSF02SC27 85

# TRANSISTOR 2SC2785(H) or QQSH02SC2785 # TRANSISTOR 2SC2785(J) or QQSJ02SC2785 # TRANSISTOR KTC3199(GR) or NQS10KTC3199 # TRANSISTOR KTC3198(GR) or NQS40KTC3198 # TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q671# TRANSISTOR 2SA1175(F) or QQSF02SA1 175 # TRANSISTOR KTA1267(GR) or NQS10KTA1267 # TRANSISTOR KTA1266(GR) or NQS40KTA1266 # TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q675 TRANSISTOR 2S C2785( F) or QQSF02SC27 85

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q676 RES. BUILT -I N TRANSIST OR BA1F4M -T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q681 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120 TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q682 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120 TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q683 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120 TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q696 RES. BUILT -I N TRANSIST OR BA1F4M -T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

RESISTORS

R3 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000

R4 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R5 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R31 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222

R32 CHIP RES.(1608) 1/10W J 390 Ω or RRXAJB5Z0391

CHIP RES.(1608) 1/10W J 390 Ω RRXAJB5Z0391

20030115 13-4 L6400EL

Page 44

Ref. No. Description Part No.

R33 CHIP RES.(160 8) 1 /10W J 27 0 Ω or RRXAJB5Z0271

CHIP RES.(1 608) 1/ 10W J 27 0 Ω RRXAJB5Z0271 R34 CHIP RES.(160 8) 1 /10W J 22 0 Ω or RRXAJB5Z0221

CHIP RES.(1 608) 1/ 10W J 22 0 Ω RRXAJB5Z0221 R36 CHIP RES.(160 8) 1 /10W J 10 k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJB5Z0103 R37 CHIP RES.(160 8) 1 /10W J 22 0 Ω or RRXAJB5Z0221

CHIP RES.(1 608) 1/ 10W J 22 0 Ω RRXAJB5Z0221 R38 CHIP RES.(160 8) 1 /10W J 3. 3k Ω or RRXAJB5Z0332

CHIP RES.(1 608) 1/ 10W J 3.3 k Ω RRXAJB5Z0332 R39 CHIP RES.(160 8) 1 /10W J 27 k Ω or RRXAJB5Z0273

CHIP RES.(1 608) 1/ 10W J 27 k Ω RRXAJB5Z0273 R41 CHIP RES.(160 8) 1 /10W J 6. 8k Ω or RRXAJB5Z0682

CHIP RES.(1 608) 1/ 10W J 6.8 k Ω RRXAJB5Z0682 R43 CHIP RES.(160 8) 1 /10W J 12 k Ω or RRXAJB5Z0123

CHIP RES.(1 608) 1/ 10W J 12 k Ω RRXAJB5Z0123 R45 CHIP RES.(160 8) 1 /10W J 22 k Ω or RRXAJB5Z0223

CHIP RES.(1 608) 1/ 10W J 22 k Ω RRXAJB5Z0223 R51 CHIP RES.(160 8) 1 /10W J 22 0k Ω or RRXAJB5Z0224

CHIP RES.(1 608) 1/ 10W J 22 0k Ω RRXAJB5Z0224 R52 CHIP RES.(160 8) 1 /10W J 22 0k Ω or RRXAJB5Z0224

CHIP RES.(1 608) 1/ 10W J 22 0k Ω RRXAJB5Z0224 R102 CHIP RES.(1608) 1 /10W J 2. 2k Ω or RRXAJB5Z0222

CHIP RES.(1 608) 1/ 10W J 2.2 k Ω RRXAJB5Z0222 R103 CHIP RES.(1608) 1 /10W J 1. 8k Ω or RRXAJB5Z0182

CHIP RES.(1 608) 1/ 10W J 1.8 k Ω RRXAJB5Z0182 R104 CHIP RES.(1608) 1 /10W J 3. 3k Ω or RRXAJB5Z0332

CHIP RES.(1 608) 1/ 10W J 3.3 k Ω RRXAJB5Z0332 R105 CHIP RES.(1608) 1 /10W J 4. 7k Ω or RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJB5Z0472 R106 CHIP RES.(1608) 1 /10W J 8. 2k Ω or RRXAJB5Z0822

CHIP RES.(1 608) 1/ 10W J 8.2 k Ω RRXAJB5Z0822 R111# CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101 # CARBON RES. 1/6W J 100 Ω RCX6JATZ0101 R11 2 CHIP RES .(160 8) 1 /10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJB5Z0103 R11 3 CHIP RES .(160 8) 1 /10 W J 470 k Ω or RRXAJB5Z0474

CHIP RES.(1 608) 1/ 10W J 47 0k Ω RRXAJB5Z0474 R11 4 CHIP RES .(160 8) 1 /10 W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1 608) 1/ 10W J 1k Ω RRXAJB5Z0102 R11 5 CHIP RES .(160 8) 1 /10 W J 2.7 k Ω or RRXAJB5Z0272

CHIP RES.(1 608) 1/ 10W J 2.7 k Ω RRXAJB5Z0272 R132 CHIP RES.(1608) 1 /10W J 6. 8k Ω or RRXAJB5Z0682

CHIP RES.(1 608) 1/ 10W J 6.8 k Ω RRXAJB5Z0682 R133 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R135 CHIP RES.(1608) 1 /10W J 2. 2k Ω or RRXAJB5Z0222

CHIP RES.(1 608) 1/ 10W J 2.2 k Ω RRXAJB5Z0222 R136 CHIP RES.(1608) 1/10W J 100k Ω or RRXAJB5Z0104

CHIP RES.(1 608) 1/ 10W J 10 0k Ω RRXAJB5Z0104 R137 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1 608) 1/ 10W J 10 0 Ω RRXAJB5Z0101 R138 CHIP RES.(1608) 1/10W J 220k Ω or RRXAJB5Z0224

CHIP RES.(1 608) 1/ 10W J 22 0k Ω RRXAJB5Z0224 R139 CHIP RES.(1608) 1 /10W J 22 k Ω or RRXAJB5Z0223

CHIP RES.(1 608) 1/ 10W J 22 k Ω RRXAJB5Z0223 R140 CHIP RES.(1608) 1 /10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1 608) 1/ 10W J 1k Ω RRXAJB5Z0102 R141 PCB JUMPER D0.6-P5.0 JW5.0T R151 CHIP RES.(1608) 1 /10W J 4. 7k Ω or RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJB5Z0472

Ref. No. Description Part No.

R155 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0 101

CARBON RES. 1/ 6W J 100 Ω RCX6JA T Z010 1

R156 CARBON RES. 1/4W J 1k Ω or RCX4JAT Z010 2

CARBON RES. 1/ 6W J 1k Ω RCX6JATZ0102

R161 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R162 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R163 CHIP RES.(1608) 1/10W J 6.8k Ω or RRXAJB5Z0682

CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682

R164 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R166 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472

R168 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472

R301 CHIP RES.(1608) 1/10W J 6.8k Ω or RRXAJB5Z0682

CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682

R302 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R303 CHIP RES.(1608) 1/10W J 470 Ω or RRXAJB5Z0471

CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471

R321 CHIP RES.(1608) 1/10W J 470 Ω or RRXAJB5Z0471

CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471

R322 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R323# CARBON RES. 1/4W J 2. 2k Ω RCX4JA TZ022 2 R326 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R327 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R328 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R329 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473 R330 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R331 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R342 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R344 CHIP RES.(1608) 1/10W J 6.8k Ω or RRXAJB5Z0682

CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R345 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R346 CHIP RES.(1608) 1/10W J 2.7k Ω or RRXAJB5Z0272

CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R347 CHIP RES.(1608) 1/10W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221 R348 CHIP RES.(1608) 1/10W J 27k Ω or RRXAJB5Z0273

CHIP RES.(1608) 1/10W J 27k Ω RRXAJB5Z0273 R350 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R352 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R354 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R355 CHIP RES.(1608) 1/10W J 39k Ω or RRXAJB5Z0393

CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393 R391 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102

20030115 13-5 L6400EL

Page 45

Ref. No. Description Part No.

R392 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1 608) 1/ 10W J 10 0 Ω RRXAJB5Z0101

R393 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1 608) 1/ 10W J 10 0 Ω RRXAJB5Z0101

R551 CHIP RES.(1608) 1 /10W J 4. 7 Ω or RRXAJB5Z04R7

CHIP RES.(1 608) 1/ 10W J 4.7 Ω RRXAJB5Z04R7 R552# CARBON RES. 1/4W J 3.9 Ω RCX4JATZ03R9 R553# CARBON RES. 1/4W J 3.9 Ω RCX4JATZ03R9 R554# CARBON RES. 1/4W J 3.9 Ω RCX4JATZ03R9 R556 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102 R557 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102 R558 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R559 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R561 CHIP RES.(1608) 1/10W J 470 Ω or RRXAJB5Z0471

CHIP RES.(1 608) 1/ 10W J 47 0 Ω RRXAJB5Z0471 R562 CHIP RES.(1608) 1 /10W J 4. 7k Ω or RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJB5Z0472 R563 CHIP RES.(1608) 1 /10W J 22 k Ω or RRXAJB5Z0223

CHIP RES.(1 608) 1/ 10W J 22 k Ω RRXAJB5Z0223 R564 CHIP RES.(1608) 1 /10W J 56 k Ω or RRXAJB5Z0563

CHIP RES.(1 608) 1/ 10W J 56 k Ω RRXAJB5Z0563 R566 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3 R567 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3 R569# CHIP RES.(1 608) 1/10 W J 6.8 k Ω or RRXAJB5Z0682 # CHIP RES.(1 608) 1/ 10W J 6. 8k Ω RRXAJB5Z0682 R571# METAL OXIDE FILM RES. 2W J 1k Ω or RN021 02ZU001 # METAL OXIDE FIL M RES. 2W J 1k Ω RN02102DP004 R572# METAL OXIDE FILM RES. 2W J 1k Ω or RN021 02ZU001 # METAL OXIDE FIL M RES. 2W J 1k Ω RN02102DP004 R575# CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150 # CARBON RES. 1/6W J 15 Ω RCX6JATZ0150 R576# CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150 # CARBON RES. 1/6W J 15 Ω RCX6JATZ0150 R577# CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150 # CARBON RES. 1/6W J 15 Ω RCX6JATZ0150 R578 CARBON RES. 1/4W J 390 Ω or RCX4JATZ0391

CARBON RES. 1/6W J 390 Ω RCX6JATZ0391 R579 CHIP RES.(1608) 1 /10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1 608) 1/ 10W J 1k Ω RRXAJB5Z0102 R581 PCB JUMPER D0.6-P5.0 JW5.0T R583# METAL OXIDE FILM RES. 2W J 2.7 Ω or RN02JZLZ02R7 # METAL OXIDE RESISTO R 2W 2.7 Ω(J) RN02JZPZ02R7 R584# CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102 # CARBON RES. 1/6W J 1k Ω RCX6JATZ0102 R587 CARBON RES. 1/4W J 270k Ω RCX4JATZ0274 R588# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R589 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R591# CHIP RES.(1 608) 1/10 W J 180 k Ω or RRXAJB5Z0184 # CHIP RES.(1 608) 1/ 10W J 18 0k Ω RRXAJB5Z0184 R592# CHIP RES.(1 608) 1/10 W J 100 k Ω or RRXAJB5Z0104 # CHIP RES.(1 608) 1/ 10W J 10 0k Ω RRXAJB5Z0104 R593# CHIP RES.(1 608) 1/10 W J 68k Ω or RRXAJB5Z0683 # CHIP RES.(1 608) 1/ 10W J 68 k Ω RRXAJB5Z0683 R594# CHIP RES.(1 608) 1/10 W J 100 k Ω or RRXAJB5Z0104 # CHIP RES.(1 608) 1/ 10W J 10 0k Ω RRXAJB5Z0104 R596 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1 608) 1/ 10W J 10 0 Ω RRXAJB5Z0101

Ref. No. Description Part No.

R597 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0 822 R598# CARBON RES . 1/4W J 47k Ω RCX4JATZ047 3 R599# CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223 # CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R601# CEMENT RES. 5W K 1.2 Ω or RW051R2DP005

# CEMENT RESISTOR 5W K 1.2 Ω or RW051R2PG001 # CEMENT RESISTOR 5W J 1.2 Ω or RW051R2Y4001 # CEMENT RES. 3W K 1.2 Ω RW031R2PG007

R602# CARBON RES. 1/4W J 82 0k Ω RCX4JATZ0824 R603 CARBON RES. 1/4W J 820k Ω RCX4JA TZ0 824 R61 1 CARBON RES. 1/4W J 27 0 Ω or RCX4JA TZ0 271

CARBON RES. 1/ 6W J 270 Ω RCX6JA T Z027 1

R612 CARBON RES. 1/4W J 270 Ω or RCX4JATZ0 271

CARBON RES. 1/ 6W J 270 Ω RCX6JA T Z027 1 R613# METAL OXIDE FILM RES. 2W J 0.33 Ω or RN02JZLZ0R33 # METAL RES 2W J 0.33 Ω RN02JZPZ0R33 R616 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0 152 R621 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0 122 R622 CARBON RES. 1/4W J 82 Ω or RCX4JATZ082 0

CARBON RES. 1/ 6W J 82 Ω RCX6JAT Z0820 R624 PCB JUMPER D0.6-P5.0 JW5.0T R653 CHIP RES.(1608) 1/10W J 15k Ω or RRXAJB5Z0153

CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153 R654# CARBON RES. 1/4W J 2. 7k Ω RCX4JA TZ027 2 R655# CARBON RES. 1/4W J 1k Ω or RCX4JATZ0 102 # CARBON RES. 1/6W J 1k Ω RCX6JAT Z010 2 R656# CHIP RES.(1608) 1/10W J 15k Ω or RRXAJB5Z0153 # CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153 R657# CHIP RES.(1608) 1/10W J 15k Ω or RRXAJB5Z0153 # CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153 R660 CARBON RES. 1/4W J 1k Ω or RCX4JAT Z010 2

CARBON RES. 1/ 6W J 1k Ω RCX6JATZ0102 R661# CARBON RES. 1/4W J 22 0k Ω RCX4JATZ0224 R662# CARBON RES. 1/4W J 6. 8k Ω RCX4JA TZ068 2 R664# CHIP RES.(1608) 1/10W J 12k Ω or RRXAJB5Z0123 # CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123 R665# CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472 # CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R666# METAL OXIDE FILM RES. 2W J 15k Ω RN02153DP004 R667# PCB JUMPER D0.6-P5.0 JW5.0T R668# METAL OXIDE FILM RES. 1W J 56k Ω RN01563DP003 R671 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0 332 R672 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0 332 R673 CARBON RES. 1/4W J 100k Ω RCX4JA TZ0 104 R675 CARBON RES. 1/4W J 22 k Ω RCX4JATZ0223 R676 CARBON RES. 1/4W J 10 k Ω RCX4JATZ0103 R681# CARBON RES. 1/4W J 12 Ω or RCX4JA T Z012 0 # CARBON RES. 1/6W J 12 Ω RCX6JATZ0120 R682# METAL OXIDE FILM RES. 1W J 56 Ω or RN01560ZU001 # METAL OXIDE FILM RES. 1W J 56 Ω RN01560DP003 R683# METAL OXIDE FILM RES. 1W J 39 Ω or RN01390ZU001 # METAL OXIDE FILM RES. 1W J 39 Ω RN01390DP003 R684 CARBON RES. 1/4W J 47 Ω or RCX4JATZ047 0

CARBON RES. 1/ 6W J 47 Ω RCX6JAT Z0470 R685 CARBON RES. 1/4W J 47 Ω or RCX4JATZ047 0

CARBON RES. 1/ 6W J 47 Ω RCX6JAT Z0470 R686 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0 101

CARBON RES. 1/ 6W J 100 Ω RCX6JA T Z010 1 R687 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0 101

CARBON RES. 1/ 6W J 100 Ω RCX6JA T Z010 1 R691# CARBON RES . 1/4W J 15k Ω RCX4JATZ015 3

20030115 13-6 L6400EL

Page 46

Ref. No. Description Part No.

R696 CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

CARBON RES. 1/6W J 10 Ω RCX6JATZ0100

R701 CHIP RES.(1608) 1 /10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1 608) 1/ 10W J 75 Ω RRXAJB5Z0750

R702 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000

R71 1 CHIP RES .(160 8) 1 /10 W J 47k Ω or RRXAJB5Z0473

CHIP RES.(1 608) 1/ 10W J 47 k Ω RRXAJB5Z0473

R712 CHIP RES.(1608) 1 /10W J 3. 3k Ω or RRXAJB5Z0332

CHIP RES.(1 608) 1/ 10W J 3.3 k Ω RRXAJB5Z0332

R801 CARBON RES. 1/2W J 100 Ω or RCX2JZQZ0101

CARBON RES. 1/2W J 100 Ω RCX2JZPZ0101 R810# METAL OXIDE FILM RES. 1W J 10 Ω or RN01 100ZU001 # METAL OXIDE FIL M RES. 1W J 10 Ω RN01 100DP003 R81 1 # CHIP RES .(160 8) 1 /10 W J 2.2 k Ω or RRXAJB5Z0222 # CHIP RES.(1 608) 1/ 10W J 2. 2k Ω RRXAJB5Z0222 R812# CHIP RES.(1 608) 1/10 W J 2.2 k Ω or RRXAJB5Z0222 # CHIP RES.(1 608) 1/ 10W J 2. 2k Ω RRXAJB5Z0222 R821 CHIP RES.(1608) 1 /10W J 15 k Ω or RRXAJB5Z0153

CHIP RES.(1 608) 1/ 10W J 15 k Ω RRXAJB5Z0153 R822 CHIP RES.(1608) 1 /10W J 5. 6k Ω or RRXAJB5Z0562

CHIP RES.(1 608) 1/ 10W J 5.6 k Ω RRXAJB5Z0562 R831 CHIP RES.(1608) 1/10W J 470k Ω or RRXAJB5Z0474

CHIP RES.(1 608) 1/ 10W J 47 0k Ω RRXAJB5Z0474 R832 CHIP RES.(1608) 1 /10W J 6. 8k Ω or RRXAJB5Z0682

CHIP RES.(1 608) 1/ 10W J 6.8 k Ω RRXAJB5Z0682

SWITCHES

SW101 TACT SWITCH SKQSAB or SS T0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029 SW102 TACT SWITCH SKQSAB or SS T0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029 SW103 TACT SWITCH SKQSAB or SS T0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029 SW104 TACT SWITCH SKQSAB or SS T0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029 SW105 TACT SWITCH SKQSAB or SS T0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029 SW106 TACT SWITCH SKQSAB or SS T0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

MISCELLANEOUS

AC601# AC CORD LA-2366 or WAC0172LW006 # AC CORD WAC0172AS006 or WAC0172AS006 # AC CORD WAC0172L TE01 or WAC0172 L TE01 # AC CORD A0A0280-007 or WAC0172LTE04 # AC CORD PB8K9F9110A-057 WAC0172L W008

BC101 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026 BC601 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC651 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC652 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC653 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC691 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC692 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

Ref. No. Description Part No.

CF31 CERAMIC TRAP 4.5MHz or FBE455PMR003

CERAMIC TRAP 4.5MHz FBE455PMS002

CF32 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

CERAMIC FILTER 4.5MHz FBB455PMS001 CLN301 WIRE ASSEMBLY WX1L1100-102 WX1L1100-102 F601# FUSE 4A/125V 237 TYPE or PAGJ20CAG402

# FUSE STC4A125V U/CT or PAGE20CW3402 # FUSE 4.00A/125V PAGG20CNG402

FH601 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 XH01Z00DK001 FH602 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 XH01Z00DK001 GP641# GAP. FNR-G3.10D FAZ000LD6005 JK701 RCA JACK(YELLOW) MTJ-032-06B-20 or JXRL010LY050

RCA JACK 1P AV -8.4-9Y JXRL010RP010 JK702 RCA JACK(WHITE) MTJ-032-06B-22 or JXRL010LY052

RCA JACK 1P AV -8.4-9W JXRL010RP01 1 JK801 EARPHONE JACK HTJ-035-1ZEBTZ or JYSL030GE001

EARPHONE JACK MSJ-035-12APC or JYSL030LY001

EARPHONE JACK HSJ1403-01-010 or JYSL030HD002

EARPHONE JACK LGY6501-0600 JYSL030SR001 JS112 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 JS113 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 JS802 PCB JUMPER D0.6-P5.0 JW5.0T PB1 HEAT SINK(PGW) L6400UZ 0EM407501 PB2 HEAT SI NK(PGX)ASSEMBLY L6400UZ 0EM407502 PB3 CLOTH(65) L7735TR:65X10X0.5T 0EM402149 PL1 SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080

SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080 PS691# THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A RCV101 REMOCON RECEIVE UNIT MIM-93M8DKL or USESJRSUNT02

REMOCON RECEIVE UNIT PIC-26042SR-2 orUSESJRSKK032

REMOCON RECEIVE UNIT PIC-37042SR USESJRSKK034 RL601# POWER RELA Y SDT -S-1 12LMR or MRNDC12QN014

# POWER RELAY RPEF-12-901 or MRNDC12KB002 # RELAY ALKS321 MRNDC12MS013 SA601# SURGE ABSORBER JVR-07N471K or NVQZVR07N471 # SURGE ABSORBER CNR-10D471K or NVQZR10D471K # SURGE ABSORBER CNR-07D471K or NVQZR07D471K # SURGE ABSORBER PVR-07D471KB or NVQZ07D471KB # SURGE ABSORBER AVR-S07D471KAAS or QVQZ0AVRS07D # VARISTOR ENC471D-07A QVQZ0471D07A

SF1 SAW FILTER SAFGM45M7VHHzC0B03 FBB456PMR008 T571# FLYBACK TRANSFORME R JF0501-2419 or LTF00CPX B027

# FLYBACK TRANS BSC21-2047S or LTF00CPS2050 # FLYBACK TRANS BSC25-0243 or LTF00CPP1008 # FLYBACK TRANS FNI20A001 LTF00CPSM019

T572 H0RIZONTAL DRIVE TRANS LP2-004 LTH00CP A5004 T601# SWITCHING TRANS KD-01743 or LTT00CPKT088 # SWITCHING TRANS CSA-SW0049 LTT00CPSA122 TP300 PCB JUMPER D0.6-P12.5 JW12.5T TP601 PCB JUMPER D0.6-P10.0 JW10.0T TU1 TUNER UNIT TEQH9-001A UTUNNTUAL032 VR661# CARBON P .O.T. 50k Ω B or VRCB503KA011 # CARBON P .O.T. 50k Ω B VRCB503HH014 X301 X'T AL 3.5 79545 MHz or FXD355LLN003

X'TAL 3.579545MHz(30PPM) FXD355LCHE01

20030115 13-7 L6400EL

Page 47

CRT CBA

Ref. No. Description Part No.

CRT CBA

Consists of the following

CAPACITORS

C501 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJBCH331

CHIP CERAMIC CAP .(MELF) B K 330pF/50 V CZM1JKB0 B331

C502 CHIP CERAMIC CAP. CH J 270pF/50V or CHD1JJBCH271

CHIP CERAMIC CAP .(MELF) B K 270pF/50 V CZM1JKB0 B271

C503 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJBCH331

CHIP CERAMIC CAP .(MELF) B K 330pF/50 V CZM1JKB0 B331

C504 ELECTROLYTI C CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470

C510 CERAMIC CAP . B K 1000pF/2KV or CCD3DKD0B102

CERAMIC CAP . B K 1000pF/2KV or CCD3DKP0B102 CERAMIC CAP. B K 1000pF/2KV CA3D102MR030

CONNECTOR

CN501 PIN CONNECTOR 005P-5100 JTEA001 TG0 01

COILS

L501 INDUCTOR 180µH-J-5FT or LLARJCSTU181

INDUCTOR 180µH-K-5FT LLARKDSKA181

TRANSISTORS

Q501 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468 TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468 TRANSISTOR KTC3207 NQSZ0KTC3207

Q502 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468 TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468 TRANSISTOR KTC3207 NQSZ0KTC3207

Q503 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468 TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468 TRANSISTOR KTC3207 NQSZ0KTC3207

RESISTORS

R501 METAL OXIDE FILM RES. 1W J 15k Ω or RN 01153ZU00 1

METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003

R502 METAL OXIDE FILM RES. 1W J 15k Ω or RN 01153ZU00 1

METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003

R503 METAL OXIDE FILM RES. 1W J 15k Ω or RN 01153ZU00 1

METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003 R504 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0 152 R505 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0 152 R506 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0 152 R509 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0 152 R51 1 CHIP RES .(160 8) 1 /10 W J 33 Ω or RRXAJB5Z0330

CHIP RES.(1 608) 1/ 10W J 33 Ω RRXAJB5Z0330 R512 CHIP RES.(1608) 1 /10W J 33 Ω or RRXAJB5Z0330

CHIP RES.(1 608) 1/ 10W J 33 Ω RRXAJB5Z0330 R513 CHIP RES.(1608) 1 /10W J 33 Ω or RRXAJB5Z0330

CHIP RES.(1 608) 1/ 10W J 33 Ω RRXAJB5Z0330 R514 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0 562 R515 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0 562 R516 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0 562 R517 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0 561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561 R518 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0 561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561 R519 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0 561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561 R521 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

------------

Ref. No. Description Part No.

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000

R522 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000

R523 CHIP RES. 1/10W J 0 Ω or RRXAJB5Z0000

CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000 R537 CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0152 R538 CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0152

MISCELLANEOUS

BC501 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 CLN501 PARALLEL WIRE 3P WX1L11 14-101 JK501# CRT SOCKET ISMS02S JSCC220PK003

20030115 13-8 L6400EL

Page 48

ST419D/6419TD L6400UA/1UB

Printed in Japan

2003-01-30 HO
