13” COLOR TELEVISION
SERVICE MANUAL
ST413D/6413TD
IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service
operations. Some of these service special tools should be used when and
as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is impo rtant to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai
could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous
consequences of each way. Consequently, Funai has not undertaken any
such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
TABLE OF CONTENTS
Specifications........................................................ 1-1
Important Safety Precautions................................ 2-1
Standard Notes for Servicing................................ 3-1
Disassembly Instructions ...................................... 4-1
Electrical Adjustment Instructions......................... 5-1
Block Diagram....................................................... 6-1
Schematic Diagram / CBA’s and Test Points........ 7-1
Schematic Diagram............................................... 7-3

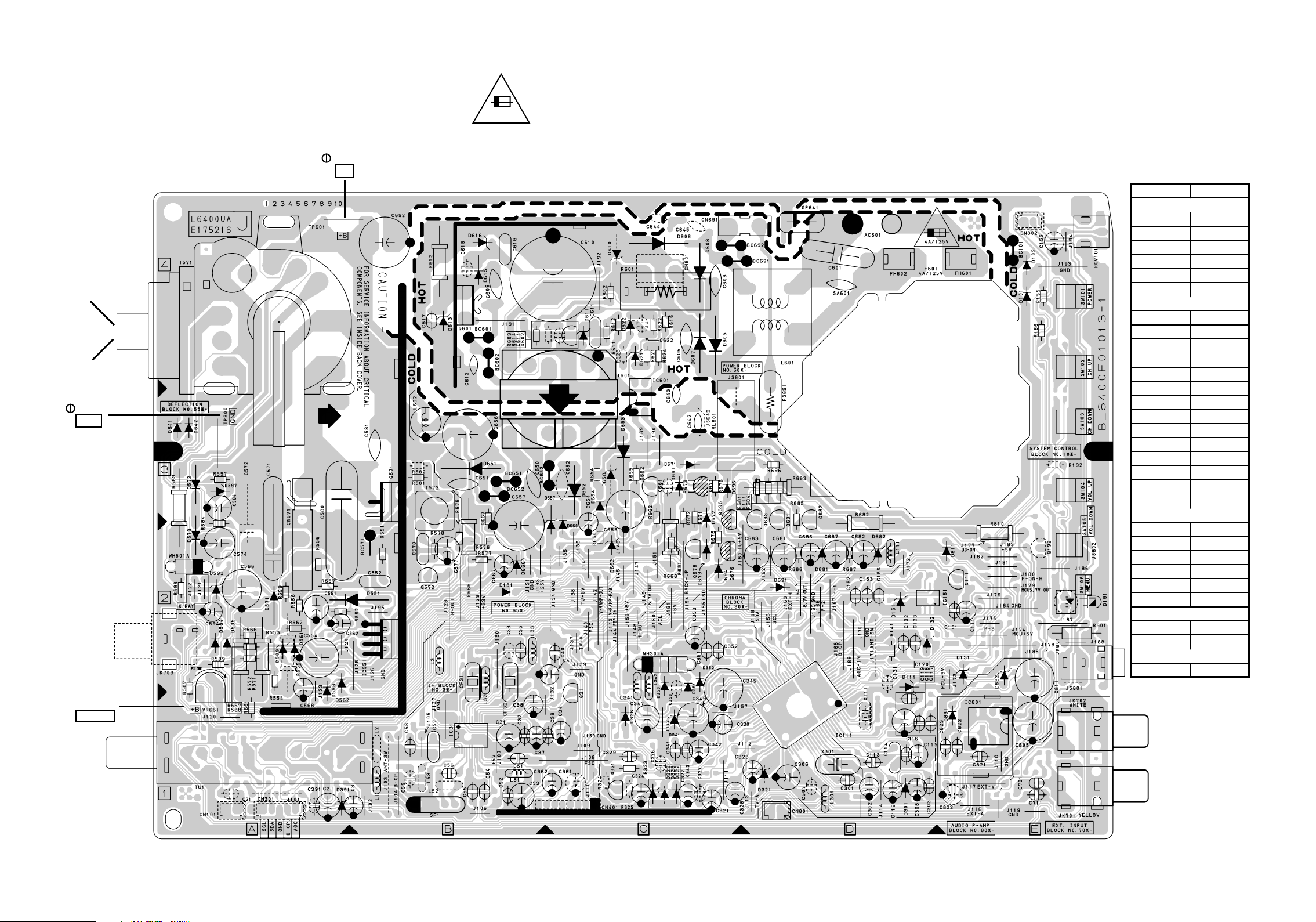

CBA Views and Test Points................................... 7-9
Wave Forms.......................................................... 8-1
Wiring Diagram...................................................... 9-1
IC Pin Function.................................................... 10-1

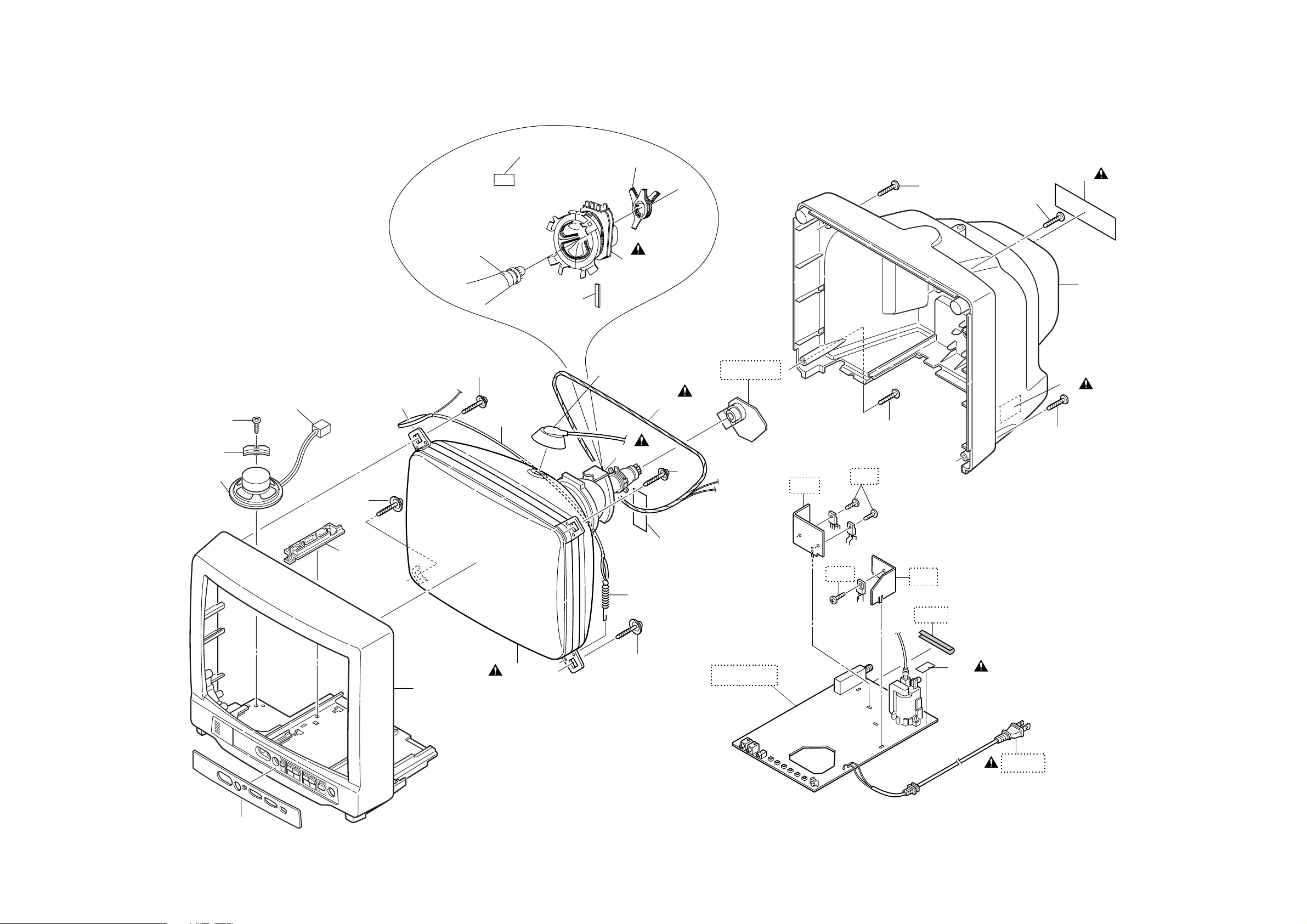

Cabinet Exploded View ....................................... 11-1
Packing Exploded View....................................... 11-3
Mechanical Parts List .......................................... 12-1
Electrical Parts List.............................................. 13-1
SPECIFICATIONS
<TUNER> ANT. Input ------------------- 75ohm Unbal., F type
Reference Level------------20Vp-p (CRT Green Cathode)
Test Input Signal -----------400Hz 30% modulation
Description Condition Unit Nominal Limit
1. Intermediate Freq. Picture
Sound
2. Peak Picture Sens VHF
CATV
UHF
MHz
MHz
dBµv
dBµv
dBµv
45.75
41.25
15
15
15
-
-
30
30
40
3. AFT Pull In Range
(10mV input)
- MHz ±2.0 ±0.7
<DEFLECTION>
Description Condition Unit Nominal Limit
1. Deflection Freq. Horizontal
Vertical
2. Linearity Horizontal
Vertical
3. Over Scan - % 10 -
4. High Voltage - KV 23 -
KHz
Hz
%
%
15.734
60
-
-
<VIDEO & CHROMA>
Description Condition Unit Nominal Limit
1. Misconvergence Center
Side
Corner
2. Brightness APL 100% Ft-L 60 40
3. Color Temperature - °K 9200°K -
mm
mm
mm
-
-
-
-
-
±15
±10
0.3
1.2
1.5
4. Resolution Horizontal
<AUDIO>
Description Condition Unit Nominal Limit
1. Audio Output Power 10% THD W 1 0.8
2. Audio Distortion (w/LPF) 500mW % 2 7
3. Audio Freq. Response
Note:
Nominal specifications represent the design specifications. All units should be able to approximate
these. Some will exceed and some may drop slightly below these specifications. Limit specifications
represent the absolute worst condition that still might be considered acceptable. In no case should
a unit fail to meet limit specifications.
All items are measured across 8Ω load at speaker output terminal.
Vertical
-
3dB Hz 100~11K -
1-1 L6015SP
Line
Line
250
300
-
-
IMPORTANT SAFETY PRECAUTIONS
Prior to shipment from the fact ory, our products are stri ctly insp ected for recogni zed pr oduct sa fety and elec trical
codes of the countries in which they are to be sold. Howev er, in order to ma intain such c ompliance, it is equally
important to implement the following precautions when a set is being serviced.
Safety Precautions for TV Circuit
1. Before returning an instrum ent t o the c ustom -
er, always make a safety check of the entire instru-
ment, including, but not limited to, the following
items:
a. Be sure that no built-in protec tive devic es are de -
fective and have b een defeated during servicing.
(1) Protective shields are provided on this chassis
to protect both the technician an d the customer.
Correctly replace all missing protective shields, including any removed for servicing convenience.
(2) When reinstalli ng the c hassis an d/or othe r assembly in the cabinet, be sure to put back in place
all protective de vices, in cluding but not li mited to,
nonmetallic control knobs, insulating fishpapers,
adjustment and compartment cove rs/shields, and
isolation resistor/capacitor networks. Do not oper-
ate this instrument or permit it to be operated
without all protective devices correctly installed and functioning. Servicers who defeat
safety features or fail to perform safety checks
may be liable for any resulting damage.
b. Be sure that there are no cabinet openings through
which an adult or child might be able to insert their
fingers and contact a hazardous voltage. Such
openings include, but are not limited to, ( 1) spacing between the picture tube and the cabinet
mask, (2) excessively wide cabinet ventilation
slots, and (3) an improperly fitted and/or incorrectly
secured cabinet back cover.
c. Antenna Cold Check - With the instrument AC
plug removed from any AC source, connect an
electrical jumper acr oss the two AC plug prongs.
Place the instrument AC switch in the o n position.
Connect one lead of an oh mmeter to the A C plug
prongs tied together and to uch the other ohmme ter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the
coaxial connector. If the measured resistance is
less than 1.0 mego hm or greater than 5 .2 megohm, an abnormality exists that must be corrected
before the instrument is r eturne d to the cu stomer .
Repeat this test with the ins trument AC switch in
the off position.
d. Leakage Current Hot Check - With the instru-
ment completely reassembled, plug the AC line
cord directly into a 120V AC outlet. (Do not use an
isolation transformer d uring thi s test.) Use a leak-
age current tester or a me tering syst em that com plies with American National Standards Institute
(ANSI) C101.1 Leakage Current for Appliances
and Underwriters Laborat ories (UL) 1410, (50.7).
With the instrument AC switc h first in the on posi tion and then in the o ff position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle br ackets, metal cabi net, screw
heads, metallic overlay s, control shafts, etc.), es pecially any exposed metal parts that offer an electrical return path to the chassis. Any current
measured must not excee d 0.5 milli-ampere. Re verse the instrument power cord plug in the outlet
and repeat the test.
READING SHOULD
NOT BE ABOVE 0.5 mA
LEAKAGE
DEVICE
BEING
TESTED
TEST ALL EXPOSED
METAL SURFACES
ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED
ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL
SHOCK HAZARD THAT MUST BE ELIMINATED
BEFORE RETURNING THE INSTRUMENT TO
THE CUSTOMER OR BEFORE CONNECTING
THE ANTENNA OR AC CES SORI ES.
e. X-Radiation and High Voltage Limits - Because
the picture tube i s the prim ary potentia l source of
X-radiatio n in solid- state TV receiver s, it is s pecially constructed to prohibit X-radiation emissions.
For continued X-radiation pr otection, the replacement picture tube must be the same type as the
original. Also, because the picture tube shields
and mounting hardware perform an X-radiation
protection function, they must be correctly in place.
High voltage must be mea su re d ea ch tim e s er vic -
CURRENT
TESTER
+
EARTH
GROUND
_
2-1 L6115IMP
ing is performed that inv olves B+, horizontal deflection or high voltage. Correct operation of the Xradiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation
protection circuits also may be called "horiz ontal
disable" or "hold do wn.") R ead a nd a ppl y th e hi gh
voltage limits a nd, if the chassis is so e quipped,
the X-radiation protection circuit specifications given on instrument labe ls and i n the P roduct S afety
& X-Radiation Warning note on the service data
chassis schematic. High voltage is maintained
within specified limits by close tolerance safety-related components/adjus tme nts in th e hig h-vo lta ge
circuit. If high voltage exceeds specified limits,
check each component specified on the chassis
schematic and take corrective action.
2. Read and comply with all caution and safety-related notes on or inside th e receiver cabi net, on the
receiver chassis, or on the picture tube.
3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV receiver. Design alterations and additions, including,
but not limited to circuit modificatio ns and the addition of items such as auxiliary audio and/or video
output connections, mig ht alter the safety ch aracteristics of this receiver and create a hazard to the
user. Any design alter ations or addition s will void
the manufacturer's warr anty and may make you,
the servicer, responsible for personal injury or
property damage resulting therefrom.
4. Picture Tube Implosion Protection Warning -
The picture tube in this receiver employs integral
implosion protection. For continued implosion protection, replace the pic ture tube only with one of
the same type numbe r. Do not rem ove, install , or
otherwise handle the picture tube in any ma nner
without first putting on shatterproof goggles
equipped with side shields. People not so
equipped must be ke pt safely away while p icture
tubes are handled. Keep the picture tube away
from your body. Do not handl e the pictur e tu be b y
its neck. Some "in-line" picture tubes are equipped
with a permanently at tached deflection yoke ; because of potential hazard, do not try to remove
such "permanently attached" yokes from the picture tube.
5. Hot Chassis Warning -
a. Some TV receiver chassis are electrically connect-
ed directly to one conduc tor of th e AC powe r cor d
and maybe safety-serviced without an isolation
transformer only i f the AC power plug i s inserted
so that the chassis is connected to the ground side
of the AC power source. To confi rm that the AC
power plug is ins erted correctly, with an AC voltmeter, measure between the chassis and a known
earth ground. If a voltage reading in excess of 1.0V
is obtained, remove and reinsert the AC power
plug in the opposite polarity and again measure
the voltage potential between the chassis and a
known earth ground.
b. Some TV receiver chassis normally have 85V
AC(RMS) between ch assis and earth ground regardless of the AC plug polarity. This chassis can
be safety-serviced only with an isolation transformer inserted in the power line between the receiver
and the AC power so urce , for both pers onnel and
test equipment protection.
c. Some TV receiver chassis have a secondary
ground system in addition to the main chassis
ground. This se conda ry gro und s ystem is no t iso lated from the AC power line. The two ground systems are electrically separated by insulation
material that must not be defeated or altered.
6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas:a.
near sharp edges,b. near thermally hot parts-be
sure that leads and components do not touch thermally hot parts, c. the AC supply,d. high voltage,
and,e. antenna wir ing. Always insp ect in all ar eas
for pinched, out of plac e, or frayed wiring. C heck
AC power cord for damage.
7. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or wiring that meet origin al specifications. Additiona lly,
determine the cause of ov erheating and/or damage and, if nece ss ar y, ta ke corre ct i ve ac ti o n to remove any potential safety hazard.
8. Product Safety Notice - Some electrical and mechanical parts have s pecia l safety- relat ed char acteristics which are often not evident from visual
inspection, nor can the protection they give necessarily be obtained by replaci ng them with components rated for higher voltage, wattage, etc.. Parts
that have special safety characteristics are identified by a ( # ) on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create sh ock, fire, and/or
other hazards. The product's safety is under review continuously and new instructions are issued
whenever appropriate . Prior to shi pment from the
factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which
they are to be sold. Howev er, in orde r to mai ntain
such compliance , it is equally i mportant to imple ment the following precautions when a set is being
serviced.
2-2 L6115IMP
Precautions during Servicing
A. Parts identified b y the ( # ) symbo l are c ritica l for
safety.
Replace only with part number specified.
B. In addition to safety, othe r parts and assemblies
are specified for conformance with regulations applying to spurious radiati on. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation Tape
2) PVC tubing
3) Spacers
4) Insulators for transistors.
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely abo ut the terminals before so ldering.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fusible resistor s, etc.)
G. Check that replaced wires do not contact sharp
edged or pointed parts.
H. When a power cord has been replaced, check that
5~6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder drop-
lets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transform er uses crimp type connec-
tors which connect the power cord and the primary
side of the transformer. When replacing the trans-
former, follow these step s carefully and precis ely
to prevent shock hazards.
Replacement procedure
1) Remove the old conn ector by c utting the wire s at
a point close to the connector.
Important: Do not re-use a connector (discard it).
2) Strip about 15 mm of the ins ulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3) Align the lengths of the wires to be con nected. Insert the wires fully into the connector.
4) Use the crimping tool to crim p the met al sleeve at
the center position . Be sure to crimp fully to the
complete closure of the tool.
L. When connecting or disconnecting the internal
connectors, first, discon nect the AC plug from the
AC supply outlet.
2-3 L6115IMP
Safety Check after Servicing
Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original positions. Afterwards, perform th e fol lo wing tes ts and c on firm the specified values in orde r to verify comp liance
with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance d istance (d) a nd (d') betwee n soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)
T able 1 : Ratings for selected area
AC Line Voltage Region
110 to 130 V
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
USA or
CANADA
Clearance
Distance (d) (d')
≥ 3.2 mm
(0.126 inches)
2. Leakage Current Test
Confirm the specified (or lower) leakage current between B (earth ground, power cor d plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals , video and audio input and outp ut
terminals, micr ophone jacks, earphone jack s, etc.) is
lower than or equal to the sp ecified value in the table
below.
Measuring Method : (Power ON)
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across both terminals of
load Z. See Fig. 2 and following table.
Z
1.5kΩ
Chassis or Secondary Conductor
Primary Circuit Terminals
dd'
Exposed Accessible Part
AC Voltmeter
0.15µF
Earth Ground
B
Power Cord Plug Prongs
(High Impedance)
Fig. 1
Fig. 2
Table 2 : Leakage current ratings for selected areas
AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:
0.15µF CAP. & 1.5kΩ
110 to 130 V USA
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
RES. connected in
parallel
2-4 L6115IMP
i≤0.5mA rms
Exposed accessible
parts
STANDARD NOTES FOR SERVICING
Circuit Board Indications
a. The output pin of the 3 pin Regulator ICs is indicat-
ed as shown.
Top View
Out
b. For other ICs, pin 1 a nd ever y fifth pin are in dic at -
ed as shown.
Pin 1
c. The 1st pin of every male connector is indicated as
shown.
Pin 1
Input
In
Bottom View
5
10
(2) Remove the flat pack-IC with tweezers while ap-
plying the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. Do not supply hot air to the chip pa rts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protec t other par ts from
damage. (F ig. S-1-2)
2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to br eak or d amage the foi l of ea ch
pin or the solder lands u nder the IC when rem oving it.
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
(1) Prepare the hot-air flat pack-IC desoldering ma-
chine, then apply hot air to the Flat Pack-IC (about
5 to 6 seconds). (Fig. S-1-1)
Fig. S-1-1
Masking
Tape
Tweezers
Flat Pack-IC
Fig. S-1-2
3-1 L6115STA
With Soldering Iron:
(1) Using desoldering brai d, remove the solder from
all pins of the flat pac k-IC. When you use solde r
flux which is appl ied to all pins of the flat pack- IC,
you can remove it easily. (Fig. S-1-3)
Flat Pack-IC
Desoldering Braid
Soldering Iron
Fig. S-1-3
(2) Lift each lead of the flat pack-IC up ward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering machine.(Fig. S-1-4)
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken to
ensure that the flat pack- IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
Hot Air Blower
or
Iron Wire
Soldering Iron
To Solid
Mounting Point
Fig. S-1-5
Sharp
Pin
Fine Tip
Soldering Iron
Fig. S-1-4
(3) Bottom of the flat pack-IC is fixe d with glue to t he
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1) Using desoldering brai d, remove the solder from
all pins of the flat pac k-IC. When you use solde r
flux which is appl ied to all pins of the flat pack- IC,
you can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.
(4) Bottom of the flat pack-IC is fixe d with glue to t he
CBA; when removing entire flat pack-IC, first apply
CBA
Tweezers
Fine Tip
Soldering Iron
Flat Pack-IC
Fig. S-1-6
3-2 L6115STA
2. Installation
(1) Using desoldering brai d, remove the solder from
the foil of each pin of th e flat pac k-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
(2) The "I" mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
pre- solder the four corners of the flat pack-IC.
(See Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
Instructions for Handling
Semiconductors
Electrostatic breakdown of the semiconductors may
occur due to a pote ntial difference caused by el ectrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grou ndi ng ban d ( 1 MΩ) th at i s pr op erly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
Be sure to pla ce a conductive sheet or copp er plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semiconductors are to be
placed. Because th e static electrici ty charge on clothing will not es cape throu gh the body gr ounding ba nd,
be careful to avoid contacting semiconductors with
your clothing.
<Incorrect>
CBA
Presolder
Flat Pack-IC
Fig. S-1-8
<Correct>
1MΩ
CBA
Grounding Band
1MΩ
CBA
Conductive Sheet or
Copper Plate
3-3 L6115STA
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicate s the disassem bly steps for the
cabinet parts, and the CBA in or der to gain acce ss to
item(s) to be servic ed. Wh en rea ssemb ling, fol low th e
steps in reverse order. Bend, route and dress the
cables as they were.
Caution !
When removing the CRT, be sure to discharge the
Anode Lead of the CRT with the CRT Ground Wire
before removing the Anode Cap.
[1] Rear Cabinet
[2] CRT CBA
[3] Main CBA
[4] CRT
Note :
(1) Order of steps in procedure. Wh en reassemb ling,
follow the steps i n reverse or der. These n umbers
are also used as the Identification (location) No. of
parts in figures.
(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of part to be removed, unhooked, un-
locked, released, unplugged, unclamped, or
desoldered.
S=Screw, P=Spring, L=Locking Tab, CN=Connector, *=Unhook, Unlock, Release, Unplug, or
Desolder
2(S-2) = two Screws (S-2)
(5) Refer to the following "Reference Notes in the
Table.
Reference Notes in the Table
1. Removal of the Rear Cabinet. Remove screws
4(S-1), then slide the Rear Cabinet backward.
2. Removal of the CRT CBA. Disconnect CN501 then
pull the CRT CBA backward.
3. Rem oval of the M ain CBA. D isconnect CN571 on
the Main CBA then slide the Main CBA backward.
2. Disassembly Method
Removal
Step/
Loc. No.
[1]
[2] CRT CBA 4,5 CN501 2
[3] Main CBA 3,5 CN571 3
[4] CRT 4 4(S-2), Anode Cap 4
Part
Rear
Cabinet
Fig.
No
1,2 4(S-1) 1
↓↓↓↓↓
(1) (2) (3) (4) (5)
Remove/*unlock/
release/unplug/
unclamp/desolder
Note
Caution !
Discharge the Anode Lead of the CRT with the CRT
Ground Wire before removing the Anode Cap.
4. Rem oval of the CRT. Remove screws 4(S-2) and
Anode Cap. then slide the CRT backward.
4-1 L6300DC
S-1
S-1
[1] Rear Cabinet
Front Cabinet
[3] Main CBA
Control Plate
[1] Rear Cabinet
Front Cabinet
S-1
S-1
Fig. 1
S-1
S-1
Front
Cabinet
CRT
Ground Wire
S-2
Anode Cap.
S-2
[4] CRT
Fig. 3
Degaussing
Coil
[2] CRT
S-2
CBA
S-2
Control Plate
Control Plate
Fig. 4
Fig. 2
4-2 L6300DC
TV Cable Wiring Diagram
L691 DEGAUSSING COIL
MAIN CBA
SP801
CLN801
CN801
AC601
AC CORD
CN691
FLYBACK TRANSFORMER
T571
CN571
FOCUS
SCREEN
WH301A
TU1
TUNER
WH501A
JK501
WH301B
ANODE
WH501B
CN501
TO CRT GROUND
Fig. 5
4-3 L6300DC
ELECTRICAL ADJUSTMENT INSTRUCTIONS
General Note:
"CBA" is abbreviation for "Circuit Board Assembly."
NOTE:
Electrical adjustm ent s ar e r equ ired after replacing
circuit components a nd certain mechanic al parts.
It is important to perform these adjustm ents only
after all repairs and replacements have been completed.
Also, do not attempt these adjustments unless the
proper equipment is available.
Test Equipment Required
1. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray
Scale, Monoscope, Multi-Burst)
2. DC Voltmeter
3. Oscilloscope: Dual-trace with 10:1 probe,
V-Range: 0.001~50V/Div,
F-Range: DC~AC-60MHz
4. Plastic Tip Driver
5. Remote control unit: Part No. N0 121UD or N0134UD
6. DC power supply 13.2V/5A
7. Color Analyzer
How to make service remote control
unit:
1. Prepare normal remote control unit. (Part No.
N0121UD or N0134UD) Remove 3 S crews from
the back lid. (Fig. 1-1)
2. Add J1 (Jumper Wire) to the r emote cont rol CBA.
(Fig. 1-2)
How to set up the service mode:
Service mode:
1. Use the service remote control unit.
2. Turn the power on. (Use mai n power on the TV un it.)
3. Press "SLEEP" button on the service remote control unit. Version of m icro co mpu ter wi ll dis pl ay on
the CRT. (Ex: 050-0.11)
4. When CPU version is 050-0.11: Check the display
on the lower left is "10" and if it is not "10," set it at
"10" according to "3-1 7F, FRENCH, ACCESS
CODE, STEREO, VIDEO TONE, FM-MODE, VOUT."
1. DC 105V Adjustment
Purpose: To obtain correct oper ation.
Symptom of Misadjustment: The picture is dark and
the unit does not operate correctly.
Test Point Adj. Point Mode Input
TP601
TP300
(GND)
Tape M. EQ. Spec.
--- DC Voltmeter +105±0.5V DC.
Note: TP601, TP300 (GND,) VR661 --- Main CBA
1. Connect DC Volt Meter to TP601 and TP300
(GND.)
2. Adjust VR661 so th at the voltage o f TP60 1 becomes
+105±0.5V DC.
VR661 --- ---
SCREW
REMOTE CONTROL UNIT
J 1
REMOTE CONTROL CBA
Fig. 1-1
Fig. 1-2
5-1 L6300EA
2. Black Stretch Control Adjustment
Purpose: To show the fine black color.
Symptom of Misadjustment: Black color will not
appear correctly.
Note: Use service remote control unit.
1. Enter the Service mode. (See page 5-1)
2. Press "6" button on the service remote control unit.
"B-S" is indicated.
3. Press "CH o / p" butt ons on the service remote con-
trol unit so that displa y will change "OFF," "0, " "1," "2"
and "3." Then choose "B-S OFF."
4. Press "6" button on the service remote control unit.
"B-S*2" is indicat ed.
5. Press "CH o / p" butt ons on the servi ce remote
control unit so that display will change "0" and "1."
Then choose "B-S*2 0."
6. Turn the power off and on again, using the mai n
power button on the TV unit.
3-1. Setting for Data Values
General
1. Enter the Service mode. (See page 5-1)
2. To select the Data Value, press "VOL p" button on
the service remote control unit.
3. To set the following each data value, press "CH o
/ p" buttons on the service remote control unit.
7F --- set to 7F
FRENCH --- set to OFF
ACCESS CODE --- set to OFF
STEREO --- set to OFF
VIDEO TONE --- set to OFF
FM-MODE --- set to OFF
V-OUT --- set to OFF
3-2. Setting for CONTRAST,
COLOR, TINT, V-TINT and
SHARP data Values
General
1. Enter the Service mode. (See page 5-1)
2. Press "MENU" button on the service remote control
unit. Display changes "BRIGHT," "CONTRAST,"
"COLOR," "TINT," "V-TINT" and "SHARP" cyclically
when "MENU" button is pressed.
CONTRAST (CNT)
1. Press "MENU" button on the service remote control
unit. Then select "CONTRAST" (CNT) displ ay.
2. Press "CH o / p" buttons on the service remote
control unit so that the value of "CONTRAST"
(CNT) becomes 84.
COLOR (CLR)
1. Press "MENU" butto n on the ser vice remot e control unit. Then select "COLOR" (CLR) display.
2. Press "CH o / p" buttons on the service remote
control unit so that the val ue of "COLOR" (CLR)
becomes 58.
TINT (TNT)
1. Press "MENU" butto n on the ser vice remot e control unit. Then select "TINT" (TNT) display.
2. Press "CH o / p" buttons on the service remote
control unit so that the value of "T INT" (TNT) becomes 57.
V-TINT (V-TNT)
1. Press "MENU" butto n on the ser vice remot e control unit. Then select "V-TINT" (V-TNT) display.
2. Press "CH o / p" buttons on the service remote
control unit so that the value of "V- TINT" (V-TNT )
becomes 60.
SHARP (SHARP)
1. Press "MENU" butto n on the ser vice remot e control unit. Then select "SHARP" (SHARP) display.
2. Press "CH o / p" buttons on the service remote
control unit so that the value of "SHARP" (SHARP)
becomes 40.
Note: BRIGHT data value does not need to be adjust-
ed at this moment.
5-2 L6300EA
4. Black Level Adjustment
Purpose: Set Black Level
Symptom of Misadjustment: If Black level is i ncor-
rect, Proper brightness can not be obtained by adjust ing the Brightness Control.
Note: TP300 (GND,) D316 (Cathode) --- MAIN CBA
1. Enter the Service mode. (See page 5-1.)
2. Press "MENU" button on the service remote control unit and select "BRT" mode. (Display changes
"BRT," "CNT," "CLR," "TNT," "V-TINT" and
"SHARP" cyclically when MENU button is
pressed.)
3. Press "CH o / p" butt ons on the servi ce remote
control unit so that the value of "BRT" becomes
128.
4. Turn the power off and on again, using the mai n
power button on the TV unit.
5. V. Size Adjustment
Purpose: To obtain correct vertical width of screen image.
Symptom of Misadjustment: If V.Size is incorrect, vertical
size of image on the screen may not be properly displayed.
Test Point Adj. Point Mode Input
Screen Cont rol
---
Tape M. EQ. Spec.
--- Monoscope 90±5%
Note: Use service remote control unit.
1. Operate the unit for at least 20 minutes.
2. Enter the Service mode. (See page 5-1)
3. Receive the Monoscope Pattern.
4.
Press "9" button on the ser vice remote c ontrol uni t
and select "V-S" mode. (Display changes "V-S" and
"V-P" cyclically when "9" bu tto n i s pr ess ed. )
5. Press "CH o / p" butt ons on the servi ce remote
control unit so that the m onoscope pattern will be
90±5% of display size and the circle is round.
6. Turn the power off and on again, using the mai n
power button on the TV unit.
CH o / p
buttons [ V-S ]
Mode
RF
Mono-
scope
6. V. Position Adjustment
Purpose: To obtain correct vertical width of screen
image.
Symptom of misadjustment: If V. Position is incor-
rect, vertical height of image on the screen may not be
properly displayed.
Test Point Adj. Point Mode Input
--- Screen Control
CH o / p
buttons
[ V-P ] Mode
Tape M. EQ. Spec.
--- Monoscope 90±5%
Note: Use service remote control unit
1. Operate the unit for at least 20 minutes.
2. Enter the Service Mode. (See page 5-1)
3. Receive the Monoscope Pattern.
4. Press "9" button on the service remote control unit
and select "V-P" mode. (Display change "V-S" and
"V-P" cyclically when "9" button is pressed.)
5. Press "CH o / p" buttons on the service remote
control unit so that the top and bottom of the monoscope pattern will be equal of each other.
6. Turn the power off and on again, us ing the main
power button on the TV unit.
RF Mono-
scope
7. H. Position Adjustment
Purpose: To obtain correct horizontal position of
screen image.
Symptom of Misadjustment: If H. Position is incor-
rect, horizontal position of im age on the screen may
not be properly displayed.
Test Point Adj. Point Mode Input
Screen Control
---
Tape M. EQ. Spec.
--- Monoscope 90±5%
Note: Use service remote control unit
1. Operate the unit for at least 20 minutes.
2. Enter the Service mode. (See page 5-1)
3. Receive the Monoscope Pattern.
4. Press "8" button on the remote control unit and select "H-P" mode.
5. Press "CH o / p" buttons on the service remote
control unit so th at the mono scope p attern will be
90±5% of display size and the circle is round.
6. T urn the power off and on again, using the main
power button on the TV unit.
CH o / p
buttons
[ H-P ] Mode
RF
Monoscope
5-3 L6300EA
8. Cut-off Adjustment
Purpose: To adjust the beam current of R, G, B, and
screen voltage.
Symptom of Misadjustment: White color may be
reddish, greenish or bluish.
9. White Balance Adjustment
Purpose: To mi x r ed , gr ee n an d bl ue bea ms co rre ctly
for pure white.
Symptom of Misadjustment: White becomes blui sh
or reddish.
Test Point Adj. Point Mode Input
Screen-Control
---
Tape M. EQ. Spec.
---
Note: Screen Control FBT --- Main CBA
FBT= Fly Back Transformer
Use service remote control unit
1. Degauss the CRT and allow CRT to operate for 20
minutes before starting the alignment.
2. Input the Black Raster Signal from RF Input.
3. Enter the Service mode. (See page 5-1)
4. Press "VOL p" button on the service remote control
unit and selec t "C/D" mode. (Displ ay changes "C/
D," "7F," "FRENCH," "ACCESS CODE," "STEREO," "VIDEO TONE," "FM-MODE" and "V-OUT"
cyclically when "VOL p" button is pressed.) then
press "1." The displ ay wi ll mome ntar ily sh ow "CUT
OFF R" (R= Red. ) Now ther e should be a h orizontal
line across the center of the picture tube. If needed
gradually turn the screen control on the flyback,
clockwise until the horizontal line appears. Adjust
the Red Cut off by pressing the "CH o / p" buttons.
Proceed to Step 5 when the Red Cut off adjustment
is done.
5. Press the "2" button. The display will momentarily
show "CUT OFF G" (G=Green.) Adjust the Green
Cut off by pressing the "CH o / p" buttons. Proceed
to step 6 when the Green Cut of f adjustment is done.
6. Press the "3" button. The disp la y will mom ent arily
show "CUT OFF B" (B= Blue.) Adjust th e Blue cut
off by pressing the "CH o / p" buttons. When
done with steps 4, 5 and 6 the horizontal line
should be pure white if not, then attempt the Cut off
adjustment again.
CH o / p
buttons
Pattern
Generator
Figure
PATTERN GENERATOR
EXT. INPUT
RF
See Reference
Notes below.
Fig 2
Black
Raster
Test Point Adj. Point Mode Input
Screen-Control
Screen
Tape M. EQ. Spec.
Note: Use service remote control unit
1. Operate the unit more than 20 minutes.
2. Face the unit to east. Degauss the CRT using Degaussing Coil.
3. Input the White Raster (APL 100%).
4. S et the color an alyzer to the CHROMA mod e and
after zero point calibration, bring the optical receptor to the center on the tube surface (CRT).
5. Enter the Service mode. Press "VOL p" button on
the service remote control unit and select "C/D"
mode. (Display changes "C/D," "7F," "FRENCH,"
"ACCESS CODE," "STEREO," "VIDEO TONE,"
"FM-MODE" and "V-OUT" cycl ically when "VOL p"
button is pressed.) Then press "8" button on the
Service remote control Unit.
6. Press "4" bu tton on the service r emote c ontrol un it
for Red adjustment. Press "5" button on the service
remote control unit for Blue adjustment.
7. In each color mode, press "CH o / p" b utton to adjust the values of color.
8. Adjusting Re d a n d Bl u e color so that t he tem p er ature becomes 9200K (x: 286 / y: 294) ±3%.
9. At this time, re-c heck that Hori zontal li ne is white.
If not, Re-adjust Cut-off Adjustment unti l the Horizontal Line becomes pure white.
10. Turn off and on again to return to n ormal mode. Receive APL 100% white signal and Check Chroma
temperatures become 9200K (x: 286 / y: 294) ±3%.
CH o / p
buttons
Pattern
Generator,
Color analyzer
Figure
Color Analyzer
RF
See below
White
Raster
(APL
100%)
Fig. 3
5-4 L6300EA
Note: Confirm that Cut Off Adj. is correct after this
adjustment, and attempt Cut Of f Adj. if nee ded.
10. Sub-Brightness Adjustment
Purpose: To get proper brightness.
Symptom of Misadjustment: If Sub-Brightness is
incorrect, proper brightness cannot be obtained by
adjusting the Brightness Control.
Test Point Adj. Point Mode Input
---
Tape M. EQ. Spec.
---
White
CH o / p
buttons
Pattern
Generator
Figure
RF IQW
See below
Black
This bar
just
visible
Fig. 4
3. Input the Monoscope Pattern.
4. Adjust the Focus Control on the FBT to obtain
clear picture.
The following 2 adjustments normally are not
attempted in the field. Only when replacing the
CRT then adjust as a preparation.
12. Purity Adjustment
Purpose: To obtain pure color.
Symptom of Misadjustment: If Color Purity Adjust-
ment is incorrect, large areas of color may not be
properly displayed.
Test Point Adj. Point Mode Input
Deflection
---
Tape M. EQ. Spec.
---
Yoke
Purity Magnet
Pattern
Generator
Figure
---
See below.
Red
Color
Note: IQW Setup level --- 7.5 IRE
Use service remote control unit
1. Enter the Service mode. (See page 5-1)
Then input IQW signal from RF Input.
2. Press "MENU" button on the service remote control
unit and Select "BRT" mode. (Display changes
"BRT," "CNT," "CLR," "TNT," "V-TINT" and
"SHARP" cyclically when MENU button is
pressed.) Press "CH o / p" buttons so that the bar
is just visible (See above figure).
3. Turn the power off and on again, using the mai n
power button on the TV unit.
11. Focus Adjustment
Purpose: Set the optimum Focus.
Symptom of Misadjustment: If Focus Adjustment is
incorrect, blurred images are shown on the display.
Test Point Adj. Point Mode Input
--- Focus Control RF
Tape M. EQ. Spec.
---
Pattern
Generator
Mono-
scope
See below
GREEN RED BLUE
Fig. 5
1. Set the unit facing East.
2. Operate the unit for over 30 minutes before adjusting.
3. Fully degauss the unit using an extern al de gaus s ing coil.
4. Loosen the screw on the Deflection Yoke Clamper
and pull the Deflection Yo ke back away from the
screen. (See Fig. 6)
5. Loosen the Ring Lock and adjust th e Purity Mag nets so that a red fi eld is ob tained at the center of
the screen. Tighten Ring Lock. (See Fig. 5, 6)
6. Slowly push the Deflection Yoke toward bell of
CRT and set it where a uniform red field is obtained.
7. Tighten the clamp screw on the Deflection Yoke.
Note: Focus VR (FBT) --- Main CBA,
FBT= Fly Back Transformer
1. Operate the unit more than 30 minutes
2. Face the unit to the East and degauss the CRT using a degaussing coil.
5-5 L6300EA
13. Convergence Adjustment
Purpose: To obtain proper conver ge nce o f red , g re en
and blue beams.
Symptom of Misadjustment: If Convergence Adjustment is incorrect, the edge of white letters m ay have
color edges.
Test Point Adj. Point Mode Input
C.P. Magnet
Dot Pattern
Crosshatch
---
(RB,)
C.P. Magnet
(RB-G,)
---
Deflection Y o ke
Tape M. EQ. Spec.
---
Pattern
Generator
See below.
Figure
CRT
RB-GRB
RING LOCK
SCREW
C.P. MAGNET CLAMPER
C.P. MAGNET
Fig. 6
DY WEDGE
COIL
SCREW
COIL CLAMPER
DEFLECTION YOKE
PURITY
C.P. MAGNET (RB)
R
or
R
G
G
G
B
Fig. 7
C.B. MAGNET (RB-G)
RB
RB
G
G
Fig. 8

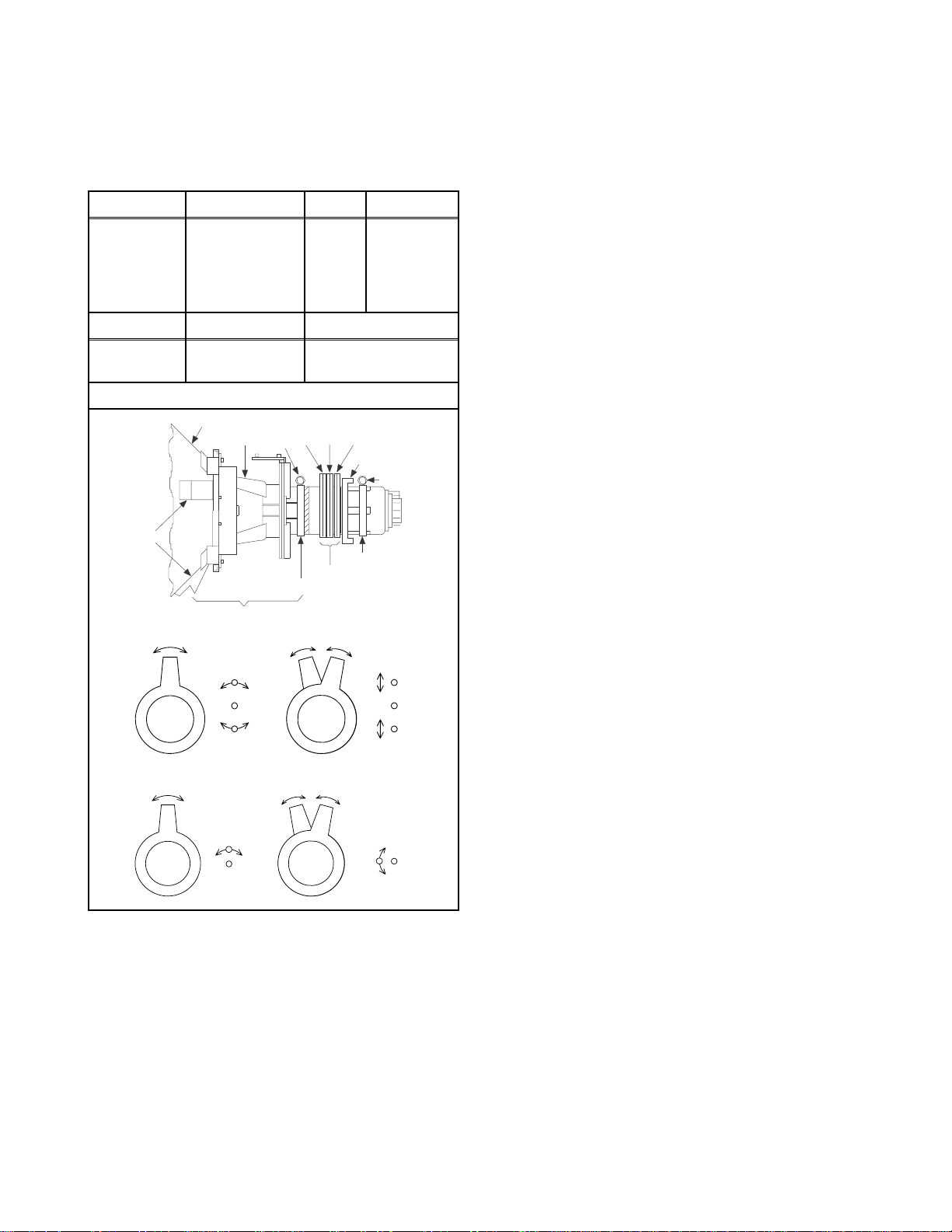

1. Loos en the R ing Loc k and al ign re d with b lue dots
or Crosshat ch at the cent er of the s creen by rot ating
(RB) C.P. Magnets. (See Fig. 7)
2. Align red / blue with green dots at the center of the
screen by rotating (RB-G) C.P. Magnet. (See Fig. 8)
3. Fix the C.P. Magnets by tightening the Ring Lo ck.
4. Remove the DY Wedges and slightly tilt the Deflection Yoke horizontally and vertically t o obtain
the best overall convergence.
5. Fix the Deflection Yoke by carefully inserting the
DY Wedges between CRT and Deflection Yoke.
5-6 L6300EA
IF/Video/System Control Block Diagram
BLOCK DIAGRAMS
TU1
FROM/TO
AUDIO/POWER
CONTROL BLOCK
IC151
(MEMORY)
CS 72 I2C-OPEN
SCL
SDA 5
AGC
SCL
SDA
EXT.CLK
7
6
IF
SCL
SDA
11
1
4
5
8
WF16
SF1
SAW
FILTER
VIDEO SIGNALRF/IF SIGNAL
IC31 (IF SIGNAL PROCESS)
20
VIF
AMP
21
RF
17
AGC
AMP
14 16 22
IC111
TV MICON/VIDEO
/AUDIO/CHROMA
/DEFLECTION
58
SCL
56
SDA
AUDIO SIGNAL
CF31
VIDEO
DET
VCO
AFT
73 75
AFT AGC-IN EXT-H
5
4.5MHz
TRAP
CF32
4.5MHz
FILTER
LPF
IF AGC DET
WF1
3
8
16
X301
3.58MHz
EQ
AMP
FM
DET
AF
AMP
VCO F/B
11
1
WF6
7
Q31
MAIN CBA
63
RCV-IN
KEY-IN1
KEY-IN2
70
66
69
TU-AUDIO
RCV101
REMOTE
SENSOR
KEY
SWITCH
TO
AUDIO/POWER
CONTROL BLOCK
I2C-OPEN 2
SDA 4
SCL 5
CN301 is used for
adjustment at factory
JK701
VIDEO-IN
32
CN301(NO CONNECTION)
26
24
WF2
14
11
TUNER
LINE
LUMINANCE
PROCESS
CIRCUIT
CHROMINANCE
PROCESS
CIRCUIT
LPF
OSD
H-SYNC
PROCESS
CIRCUIT
V-SYNC
PROCESS
CIRCUIT
VCXO
RGB MATRIX
/COLOR CONT
OSD SW
CONTRAST
BRIGHTNESS
RGB DRIVE
/CUT OFF
/H.V. BLK
P-ON-H
PROTECT-1
PROTECT-2
PROTECT-3
79
68
67
76
52
51
50
53
46
45
38
37
WH301A
PROTECT-1
PROTECT-2
P-ON-H
PROTECT-1
PROTECT-2
PROTECT-3
BLUE5
GREEN4
RED3
ACL
H-DRIVE
FBP
V-DRIVE
V-RAMP-F/B
FROM/TO
POWER SUPPLY BLOCK
FROM
CRT/H.V. BLOCK
TO
CRT/H.V. BLOCK
WH301B
FROM/TO
CRT/H.V. BLOCK
6-1 6-2
L6300BLIF
Audio/Power Control Block Diagram
AUDIO SIGNAL
IC111
TV MICON/VIDEO
/AUDIO/CHROMA
/DEFLECTION
79P-ON-H
FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK
TU-AUDIO
JK702
AUDIO-IN
SCL SCL
SDA
AL+9V
58
56
25
27
31
SDA
LINE
TUNER
POWER MANAGE.
MCU RESET
ATT
A-MUTE-H
34
64
40
18
28
IC801
7
5
(AMP)
MUTE
OUTPUT
+8V CTRL
+5V CTRL2
+5V CTRL
1
TO POWER
SUPPLY BLOCK
JK801
EARPHONE
JACK
CN801
SPEAKER
SP-GND
CLN801
1
2
SP801
SPEAKER
13
RESET
12
MAIN CBA
6-3 6-4
L6300BLA
CRT/H.V. Block Diagram
VIDEO SIGNAL
V-DRIVE
PROTECT-1
FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK
V-RAMP-F/B
Q572 Q571
H-DRIVE
PROTECT-2
WF7 WF8
H.DRIVE
T572
MAIN CBA
H.OUTPUT
WF11
IC551 (V-DEFLECTION CONTROL)
THERMAL
PROTECTION
7
AMP
1
PULSE
UP
6 3
5
4
3
1
DY551 D.Y.
VDRIVE
HDRIVE
WF12
5
WF9
CN571
FROM POWER
SUPPLY BLOCK
FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK
FROM IF/VIDEO
/SYSTEM CONTROL
BLOCK
WH301A
DEF+B
+B
PROTECT-3
FBP
ACL
RED
GREEN 4
BLUE 5
WH301B
3
X-RAY
J121 J122
1
3
5
4
T571 F.B.T.
WF3
Q501
8
10
7
9
6
RED AMP
HV
F
S
11
WF15
FOCUS VR
SCREEN VR
WF4
WF10
Q502
GREEN AMP
ANODE
FOCUS
SCREEN
HEATER3 3
1 1
+160V
WF14
WH501BWH501A
Q503
BLUE AMP
WF5 WF13
JK501
7
4
8
6
11
10
9
CN501
ANODE
FOCUS
SCREEN
GND
R
G
B
HEATER
GND
V501
CRT
CRT CBA
6-5 6-6
L6300BLCRT
Power Supply Block Diagram
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug tothe AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
HOT CIRCUIT. BE CAREFUL.
HOT COLD
AC601
AC CORD
DG691
DEGAUSSING
COIL
CN691
4A/125V
F601
4A/125V
PS691
JS601
L601
LINE
FILTER
Q601
D605 - D608
BRIDGE
RECTIFIER
SWITCHING
T601
6
4
2
4A/125V
CAUTION:
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.
NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
TP601
+B
7
10
8
Q671
SWITCHING
12
TP300
GND
Q111
+5V
SWITCHING
Q321
+9V
SWITCHING
+B
AL+33V
DEF +B
BACK-UP
+5V CTRL2
(FROM PIN18 OF IC111)
AL+5V
AL+9V
AL+12V
Q602
LIMITER
IC601
ERROR
VOLTAGE DET
1 11
4
3
1
2
Q662
FEED
BACK
VR661
+B
ADJ
Q675
SWITCHING
P-ON-ON
Q676
SWITCHING
CONTROL
MAIN CBA
Q681
+8V
SWITCHING
Q682
+5V
SWITCHING
Q683
+5V
SWITCHING
P-ON+8V
+8V CTRL
(FROM PIN40 OF IC111)
PROTECT-2
(TO PIN67 OF IC111)
P-ON+5V
+5V CTRL
(FROM PIN28 OF IC111)
P-ON+5V
PROTECT-1
(TO PIN68 OF IC111)
P-ON-H
(FROM PIN79 OF IC111)
6-7 6-8
L6300BLP

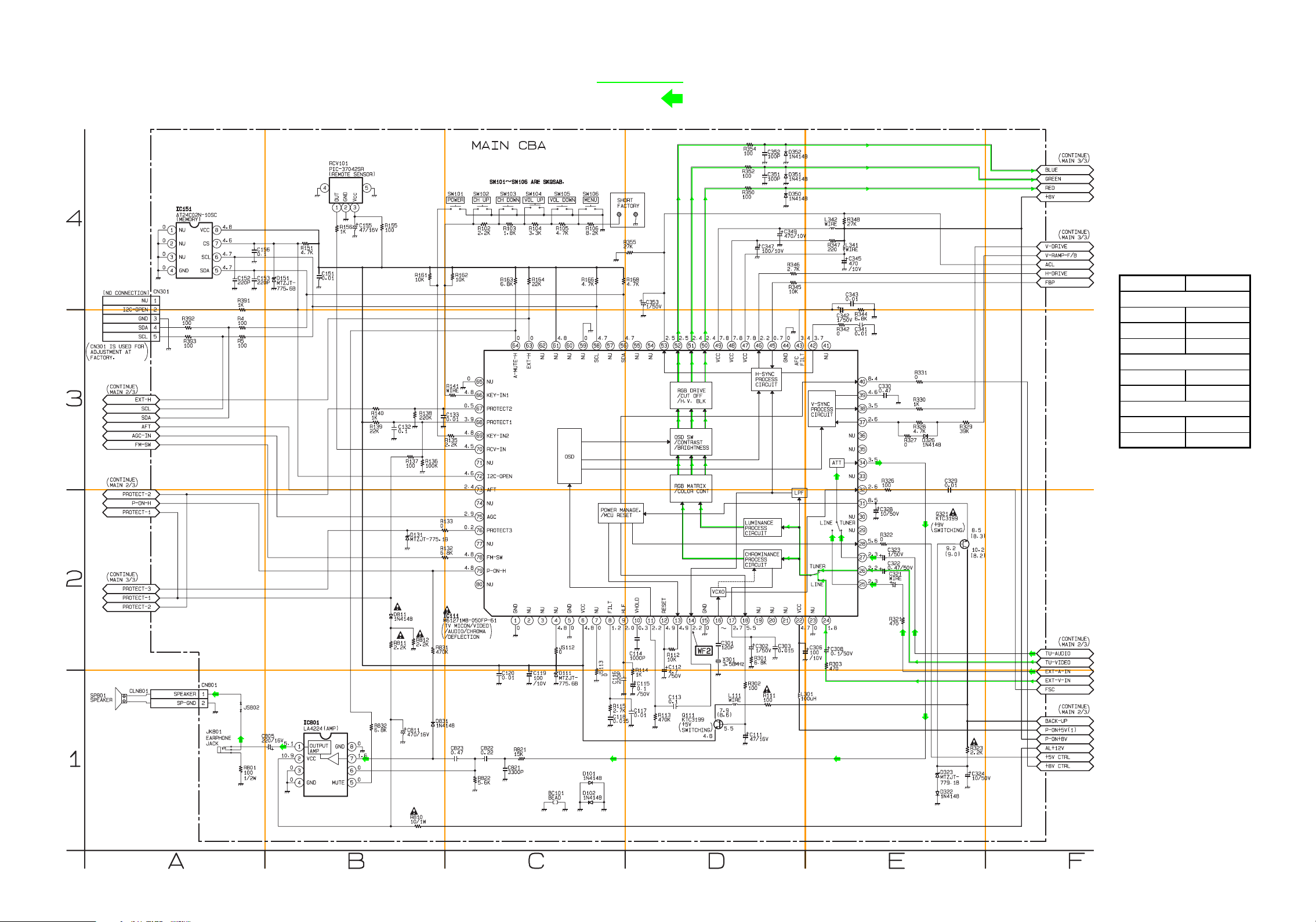

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS
Standard Notes
Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often
pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for highe r vo ltage, wattage, etc. Replacemen t parts th at hav e t hese s pe ci al s afet y ch ar acter isti cs are
identified in this man ual and its supplements; electrical comp onents having such features are ide ntified by the
mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts
list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.
Note:
1. Do not use the part number show n on these drawings for orderi ng. The correct part numbe r is shown in the
parts list, and may be slightly different or amended since these drawings were prepared.
2. All resistance values are indicated in ohms (K=10
3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.
4. All capacitance values are indicated in µF (P=10
5. All voltages are DC voltages unless otherwise specified.
Note of Capacitors:
ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type
3
, M=106).
-6
µF).
Temperature Characteristics of Capacitors are noted with the following:
B --- ±10% CH --- 0±60ppm/°C CSL --- +350~-1000ppm/°C
Tolerance of Capacitors are noted with the following:
Z --- +80~-20%
Note of Resistors:
CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.
Capacitors and transistors are represented by the following symbols.
CBA Symbols
(Top View) (Bottom View)
+
(Bottom View)
Transistor or Digital Transistor
E C B
(Top View)
NPN Transistor
Electrolytic Capacitor
(Top View)
PNP Transistor
Schematic Diagram Symbols
Digital Transistor
E C B
(Top View)
E C B
NPN Digital Transistor
E C B
(Top View)
PNP Digital Transistor
E C B
7-1 L13SC

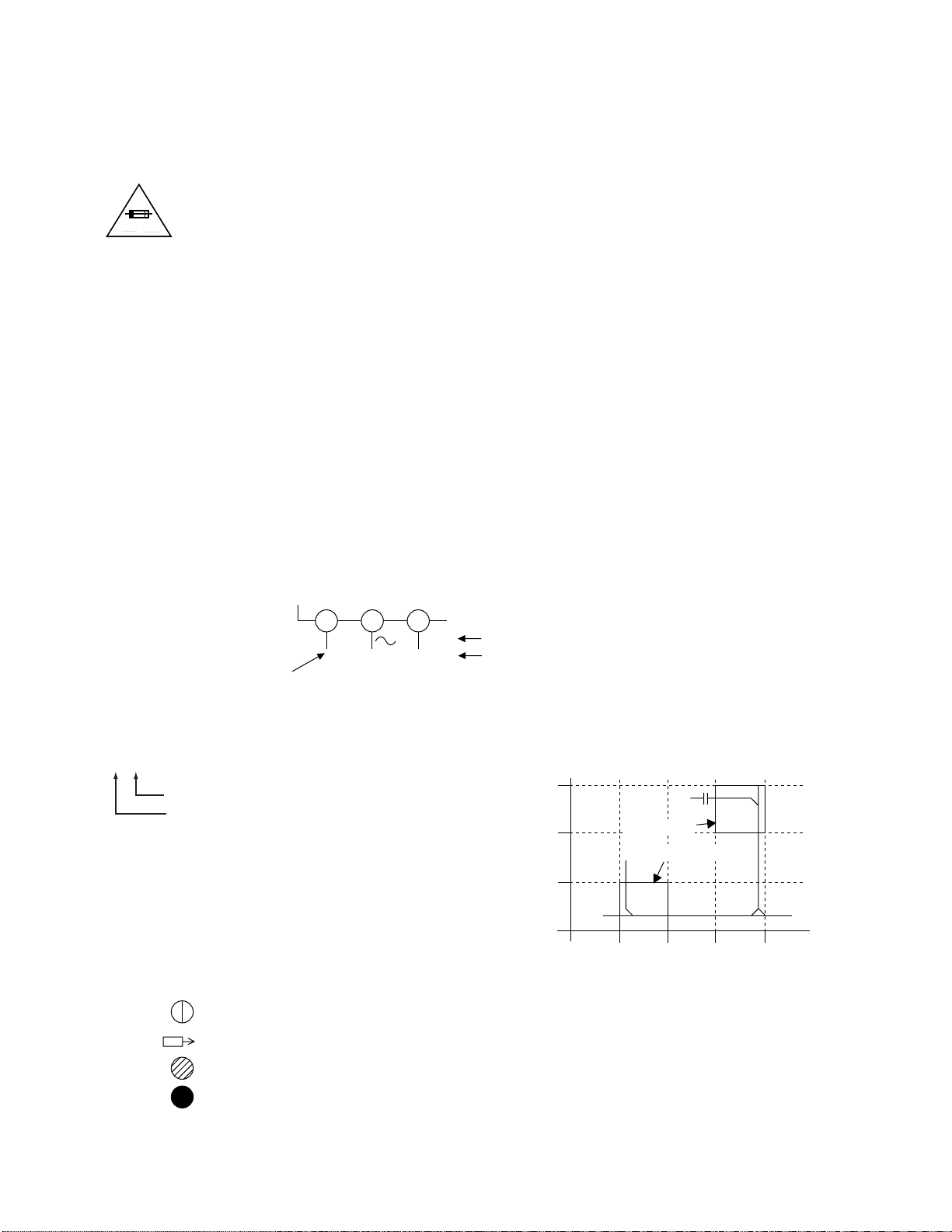

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:
1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME
TYPE ___A, ___V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE ___A, ___V.
RISK OF FIRE-REPLACE FUSE AS MARKED.
A V
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.
3. Note:
(1) Do not use the part number sh own on the dra wings for orde ring. The correc t part number i s shown in the
parts list, and may be slightly different or amended since the drawings were prepared.
(2) To maintain ori ginal func tion and reli ability of repaired u nits, use only origin al replacem ent parts which are
listed with their part numbers in the parts list section of the service manual.
4. Wire Connectors
(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).
(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).
5. Note: Mark "I" is a leadless (chip) component.
6. Voltage indications on the schemat ics are as sho wn belo w:
Plug the TV power cord into a standard AC outlet.:
Voltage
7. How to read converged lines
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to area "D3".
2. "1-B1" means that line number "1" goes to area "B1".
8. Test Point Information
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
5.0
(3.0)
231
5.0
(3.0)
Power on mode
Power off mode
Indicates that the voltage
is not consistent here.
Unit: Volts
3
AREA D3
2
1
AREA B1
1-D3
ABCD
1-B1
: Used to indicate a test point with a test pin.
7-2 L13SC
Main 1/3 Schematic Diagram
VIDEO SIGNAL
AUDIO SIGNAL
A4
A3
B4
B3
C4
C3
D4
D3
E4
E3
F4
F3
MAIN 1/3
Ref No. Position
ICS
IC111
IC151
IC801
TRANSISTORS
Q111 D-1
Q321 E- 2
CONNECTORS
CN301
CN801 A-1
C-2
A-4
B-1
A-4
A2
A1
B2
B1
7-3 7-4
C2
C1
D2
D1
E2
E1
F2
F1
L6300SCM1
Main 2/3 Schematic Diagram
IF SIGNAL
VIDEO SIGNAL
AUDIO SIGNAL
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
4A/125V
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
FIRE, REPLACE ONL Y WITH THE SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
G4
G3
H4
H3
I4
I3
J4
J3
K4
K3
L4
L3
MAIN 2/3
Ref No. Posit i o n
ICS
IC31
IC601
TRANSISTORS
Q31
Q601
Q602 J-1
Q662
Q671
Q675
Q676
Q681
Q682
Q683
CONNECTOR
CN691 K-2
VARIABLE R ESISTO R
VR661 I-1
J-3
I-1
J-4
J-2
I-1
H-2
H-1
H-1
G-2
G-1
G-1
G2
G1
7-5
H2
H1
I2
I1
J2
J1
K2
K1
L2
1 NOTE:
*
The Capacitor ( C643 ) is either type A or type B.
These two types are exchangeable and can be
equally used whichever the model is . The difference
between type A and type B is shown in the table below.
Type A
Type B
7-6
L1
C643 C642 JS642
0.01/250V
4700P/250V
0.01/250V
Not Used
Not Used
WIRE
L6300SCM2
Main 3/3 & CRT Schematic Diagram
TEST PO IN TS
MAIN 3/3
Ref No. Position
IC
IC551
TRANSISTORS
Q571
Q572
CONNECTORS
CN571
WH301A P-2
WH501A P-2
M-3
O-2
O-2
N-3
CRT CBA
Ref No. Posit i o n
TRANSISTORS
Q501
Q502
Q503
CONNECTORS
CN501 R-2
WH301B Q-2
WH501B Q-2
Q-2
Q-2
R-2
M3
M2
N3
N2
O3
O2
VIDEO SIGNAL
P3
P2
TP300
TP601 O-2
O-2
Q3
Q2
R3
R2
M1
N1
7-7
O1
P1
Q1
7-8
R1
L6300SCM3
Main CBA Top View
IC111
IC151
IC801
Q662
Q671
CN301
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
TP601
+B
FOCUS-VR
(UPPER SIDE)
SCREEN-VR
(LOWER SIDE)
TP300
GND
4A/125V
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
FIRE, REPLACE ONLY WITH THE SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.
MAIN CBA
Ref No. Positi on
WH301A C-2
WH501A A-2
VARI ABL E R ESIST O R
ICS
IC31
IC551
IC601
TRANSISTORS
Q31
Q111 E-2
Q321 C-1
Q571
Q572
Q601
Q602
Q675
Q676
Q681
Q682
Q683
CONNECTORS
CN571
CN691
CN801
TEST PO IN TS
TP300
TP601
VR661 A-1
B-1
D-1
E-2
B-2
C-4
E-1
C-1
B-3
B-2
B-4
B-4
C-3
C-3
C-2
C-2
D-3
D-3
D-3
A-1
A-3
C-4
D-1
A-3
A-4
VR661
+B ADJ
7-9
7-10
BL6400F01013-1

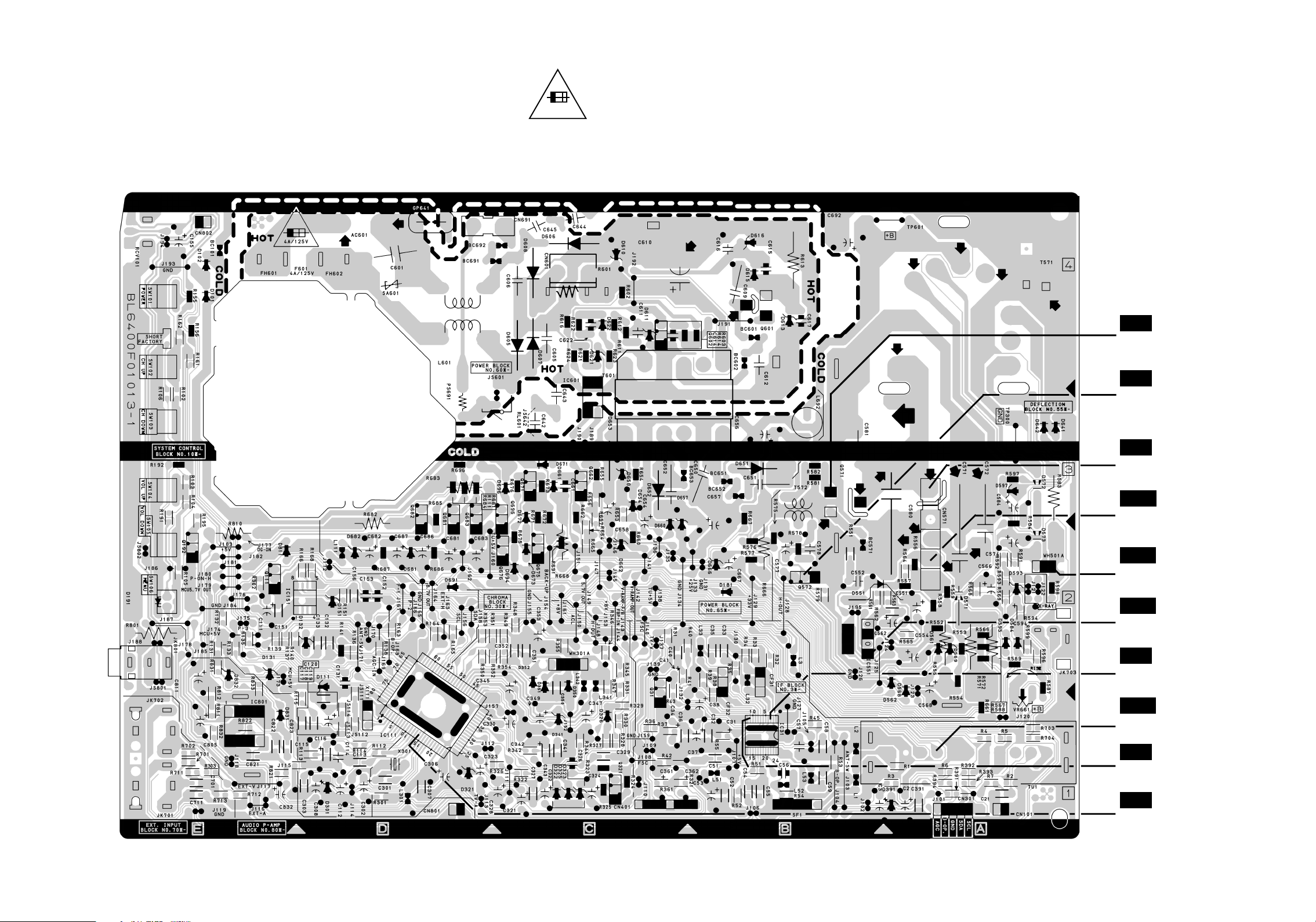

Main CBA Bottom View
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
4A/125V
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
FIRE, REPLACE ONLY WITH THE SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.
WF8
Q571
Base
WF7
Q572
Collector
WF9
PIN 1
OF CN571
WF12
PIN 4
OF CN571
WF10
PIN 3
OF WH501A
WF11
PIN 7
OF IC551
WF1
PIN 3
OF IC31
WF16
PIN 8
OF TU1
WF6
PIN 11
OF IC31
WF2
PIN 14
OF IC111
7-11 7-12
BL6400F01013-1
CRT CBA Top View CRT CBA Bottom View
CRT CBA
Ref No. Position
TRANSISTORS
Q501 B- 2
Q502
Q503
CONNECTORS
CN501 A-1
WH301B B-1
WH501B B-1
B-2
B-2
WF13
Q503
Collector
WF5
Q503
Base
WF4
Q502
Base
WF14
Q502
Collector
WF3
Q501
Base
WF15
Q501
Collector
7-13 BL6400F01013-27-14
WF1 ~ WF16 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
WAVEFORMS
Input: NTSC Color Bar Signal (with 1kHz Audio Signal)
INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.
reconnect to AC outlet and then turn power on.
(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)
WF1
WF2
1DIV: 0.5V 20µsec
IC 31 Pin 3
1DIV: 0.5V 20µsec
IC 111 Pin 14
GND
WF5
WF6
1DIV: 2V 20µsec
Q 503 Base
1DIV: 0.2V 20msec
IC 31 Pin 11
GND
WF9
WF10
1DIV: 200V 20µsec
CN 571 Pin 1
1DIV: 5V 20µsec
WH501A Pin 3
GND
GND
WF13
WF14
1DIV: 20V 20µsec
Q503 Collector
1DIV: 20V 20µsec
Q 502 Collector
WF3
WF4
1DIV: 2V 20µsec
Q501 Base
1DIV: 2V 20µsec
Q 502 Base
GND
GND
GND
WF7
WF8
8-1 8-2
1DIV: 10V 20µsec
Q 572 Collector
1DIV: 5V 20µsec
Q 571 Base
WF11
1DIV: 2V 5msec
IC 551 Pin 7
10 V 5 ms
WF12
1DIV: 10V 5msec
CN 571 Pin 4
WF15
WF16
1DIV: 20V 20µsec
Q 501 Collector
1DIV: 0.2V 20µsec
TU 1 Pin 8
L13WF
WIRING DIAGRAM
V501
CRT
CLN551
CN501
GND
ANODE
FOCUS
SP801
SPEAKER
SCREEN
CLN801
CN801
SPEAKER1
SP-GND2
CN691
1
2
TU1 TUNER UNIT
MAIN CBA
BL6400F01013-1
T571
FBT
CRT CBA
BL6400F01013-2
WH301B
+8V
GND
RED
GREEN
BLUE
+160V 1
GND
HEATER
1
2
3
4
5
2
3
DY551
D.Y.
HD
VD
AC601
CLN301
CLN501
WH301A
+8V
1
2
GND
3
RED
4
GREEN
5
BLUE
WH501AWH501B
+160V1
2
GND
3
HEATER
CN571
1
2
3
4
5
(NO CONNECTION)
CN301
1
NU
2
I2C-OPEN
3
GND
4
SDA
5
SCL
CN301 IS USED FOR
ADJUSTMENT AT
FACTORY
9-1 L6300WI
IC PIN FUNCTIONS
IC111(TV Micro Computer)
Pin
Signal Name Function
No.
1GND GND
2 N.U. Not Used
3 N.U. Not Used
4 N.U. Not Used
5GND GND
6VCC AL+5V
7 N.U. Not Used
8 FILT FILT
9 HLF Filter for CCD
10 VHOLD VHOLD
11 CVIN Input for Video Signal
12 RESET RESET
MCU RESET
13
OUT
14 Y-SW OUT Composite Signal Output
15 GND GND
16 3.58 X'TAL 3.58MHz Crystal
17 C-APC CHROMINANCE APC
MCU 5.7REG
18
OUT
19 N.U. Not Used
20 N.U. Not Used
21 N.U. Not Used
22 VCC VCC
23 N.U. (GND)
24 CVBS IN2 Composite Signal Input 2
25 AUDIO IN2 Audio Signal Input 2
26 CVBS IN1 Composite Signal Input 1
27 AUDIO IN1 Audio Signal Input 1
28 5.7V REG OUT 5.7V Output
29 N.U. Not Used
30 N.U. Not Used
31 V REG VCC DC 8.7V Input
32 FSC OUT Clock Output 3.58MHz
33 N.U. Not Used
AUDIO ATT
34
OUT
RESET Signal Output
Micro controller Control
Voltage Output
Audio Signal Output
Pin
Signal Name Function
No.
35 N.U. Not Used
36 N.U. Not Used
37 V RAMP F/B V Ramp Feed Back
38 V RAMP OUT Vertical Output
39 V RAMP CAP V Ramp OSC Capacitor
40 8.7 VREG OUT DC 8.7V Output
41 N.U. Not Used
42 H VCO F/B H Vco Feed Back
43 AFC FILT Horizontal AFC Filter
44 GND GND
45 FBP IN Flyback Pulse Input
46 H-OUT H Pulse Output
47 VCC Vcc
48 VCC Vcc
49 VCC Vcc
50 R OUT Red Output
51 G OUT Green Output
52 B OUT Blue Ou tput
53 ACL IB-Input
54 N.U. Not Used
55 N.U. Not Used
56 SDA
57 N.U. Not Used
58 SCL
59 N.U. (GND)
60 N.U. Not Used
61 N.U. (+5V)
62 N.U. Not Used
63 EXT-H EXT-H
64 A-MUTE-H Audio Mute
65 N.U. Not Used
66 KEY-IN 1 Key Input 1 (Main)
67 PROTECT 2 Power Supply Protection
68 PROTECT 1 Power Supply Protection
69 KEY-IN 2 Key Input 2 (Main)
70 RCV-IN Input For Remote Control
I2C-BUS Controller Interface
(Data)
I2C-BUS Controller Interface
(Clock)
10-1 L6307PIN
Pin
Signal Name Function
No.
71 N.U. Not Used
72 I2C OPEN
73 AFT AFT Voltage Input
74 N.U. Not Used
75 AGC AGC Voltage Input
76 PROTECT 3 Power Supply Protection
77 N.U. Not Used
78 FM-SW Switching IF IC VCO
79 P-ON-H Output for P-ON-H
80 N.U. Not Used
White Balance Adjustm ent
Judgement
10-2 L6307PIN
Cabinet
L1
B4
Details for DY551
and surrounding parts
CLN801
SHINWHA
TAPE SGT-730
(WHITE)
B2
CLN551
EXPLODED VIEWS
SHINWHA
TAPE SGT-730
(BLACK)
V501-2
ANODE CAP
Part of Flyback
Transformer
V501-1
DY551
DY551
DG691
CRT CBA
L2
A4
L2
L2
A3
B5
L2
SP801
B2
B3
A1
V501
B1
B2
B2
SCOTCH
TAPE #880
MAIN CBA
PB2
PL1
PL1
PB1
PB3
PB4
AC601
A2
11-1 11-2 L6300CEX
Packing
S2
S5
S2
S4
X1
X2
X5
X3
X4
TAPE
S3
X6
PACKING TAPE
S6
FRONT
S1
PACKING TAPE
11-3 L6300PEX
MECHANICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these compone nts, read carefully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.
NOTE:
Parts that are not assign ed part numbers (---------) are
not available.
Comparison Chart of Models and Marks
Model Mark
ST413D
6413TD
Ref. No. Mark Description Part No.
A1 FRONT CABINET L1300UA 0EM000485
A2 A CONTROL PLATE L6300UA 0EM301706
A2 B CONTROL PLATE L6301UB 0EM301757
A3 REAR CABINET L6300UA or 0EM101240
REAR CABINET L6300UA or 0EM101248
REAR CABINET L6305UF 0EM000678
A4# A RA TING LABEL L6300UA ---------A4# B RA TING LABEL L6301UB ---------B1 TENSION SPRING B0080B0:EM40808 26WH006
B2 CRT MOUNTING SCREW
B3 PCB HOLDER L130 0UA 0EM301412
B4 SPEAKER HOLDER L1300UA 0EM406030
B5# CRITICAL PARTS WARNING LABEL
CLN551 CRT GND WIRE CR T GND WX1L7720-001
CLN801 WIRE ASSEMBLY WX1L9200-001
DG691# DEGAUSSING COIL F-017 or LLBH00ZTM017
# DEGAUSSING COIL AVDG013 or LLBH00ZWR017
# DEGAUSSING COIL or LLBH00ZTZ017
# DEGAUSS ING COIL LLBH00 ZTM022 LLBH00Z TM022
L1 SCREW , P-TIGHT 3X12 BIND HEAD+ GBMP3120
L2 SCREW , P-TIGHT 4X18 BIND HEAD + GBMP4180
PB4# CHASISS NO. LABEL L6300UA 0EM407512
SP801 SPEAKER S08F02B or DSD0808XQ010
Note:
1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PAR TS AND EACH PAR TS
ALSO HAS MATCHING COMBINATION WITH DY551.
PLEASE SEE TABLE 1 FOR DET AILS OF MA T CHING COMBINA TION.
2. DY551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501.
PLEASE SEE TABLE 1 FOR DET AILS OF MA T CHING COMBINA TION.
B0030U1:K42419
B8007C3:EM41210
SPEAKER J-F097-C5 DSD0808DCP01
CRT TYPE A
DY551# DEFLECTION YOKE KDY3GDA82X or LLBY00ZMS011
# DEFLECTION YOKE LLBY00ZSY005 LLBY00ZSY005
V501# CRT A34AGT13X TCRT190CP036
V501-1 C.P .MAGNET JH225-FN-00 XM04000BV003
V501-2 WEDGE FT -001 1 0W or XV10000T4001
WEDGE DB25SR XV10000D9001
CRT TYPE B
DY551# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002
A
B
8A00083
24LH199
Ref. No. Mark Description Part No.
# DEFLECTION YOKE CDY-M1456S or LLBY00ZQS008
# DEFLECTION YOKE KDY3GC734X or LLBY00ZMS006
# DEFLECTION YOKE KDY3GCE83X or LLBY00ZMS027
# DEFLECTION YOKE DSE1493FU(S) LLBY00ZSM008
V501# CRT A34KQW42X TCRT190SM013
V501-1 C.P.MAG NET JH22 5-014 XM04000BV009
V501-2 WEDGE FT-00110W or XV10000T4001
WEDGE DB25SR XV10000D9001
CRT TYPE C
DY551# DEFLECTION YOKE KDY3GD591X or LLBY00ZMS005
# DEFLECTION YOKE CDY-M1422F LLBY00ZQS001
V501# CRT A34JLL90X(W) TCRT190QS015
V501-1 C.P.MAGN ET JH22 5-FN-00 XM04000BV003
V501-2 WEDGE FT-00110W or XV10000T4001
WEDGE DB25SR XV10000D9001
CRT TYPE D
DY551# DEFLECTION YOKE LLBY00ZSY003 or LLBY00ZSY003
# DEFLECTION YOKE KDY3GD592X or LLBY00ZMS004
# DEFLECTION YOKE CDY-M1455F LLBY00ZQS007
V501# CRT A34LRQ90X(VW) TCRT190P7003
V501-1 C.P.MAGN ET JH22 5-FN-00 XM04000BV003
V501-2 WEDGE FT-00110W or XV10000T4001
WEDGE DB25SR XV10000D9001
CRT TYPE E
DY551# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002
# DEFLECTION YOKE KDY3GC587X or LLBY00ZMS003
# DEFLECTION YOKE CDY-M1456S or LLBY00ZQS008
# DEFLECTION YOKE KDY3GCE83X LLBY00ZMS027
V501# CRT A34KPU02XX TCRT190GS016
V501-1 C.P.MAGN ET JH22 5-FN-00 XM04000BV003
V501-2 WEDGE FT-00110W or XV10000T4001
WEDGE DB25SR XV10000D9001
CRT TYPE F
DY551# DEFLECTION YOKE KDY3GCB05X or LLBY00ZMS014
# DEFLECTION YOKE ST14PWRF01 LLBY00 ZSAM01
V501# CRT A34LEX10X TCRT190SAM01
V501-1 C.P.MAGN ET JH22 5-FN-00 XM04000BV003
V501-2 WEDGE FT-00110W or XV10000T4001
WEDGE DB25SR XV10000D9001
CRT TYPE G
DY551# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002
# DEFLECTION YOKE KDY3GCB82X or LLBY00ZMS018
# DEFLECTION YOKE KDY3GCE83X LLBY00ZMS027
V501# CRT A34JQQ093X TCRT190MS010
V501-1 C.P.MAGN ET JH22 5-FN-00 XM04000BV003
V501-2 WEDGE FT-00110W or XV10000T4001
WEDGE DB25SR XV10000D9001
CRT TYPE H
V501# CRT A34JXV70X TCRT190THA02
V501-2 WEDGE FT-00110W or XV10000T4001
WEDGE DB25SR XV10000D9001
PACKING
S1 A CARTON L6300UA 0EM407710
S1 B CARTON L6301UB 0EM407806
S2 STYRFOAM TOP ASSEMBLY L6000UA 0EM406803
S3 STYRFOAM BOTTOM ASSEMBLY
L6000UA
0EM406802
20030115 12-1 L6300CA
Ref. No. Mark Description Part No.
S4 SET SHEET L6000UA:700X1200 0EM407141
S5 HOLD PAD L6000UA 0EM201556
S6 A SERIAL NO. LABEL L6300UA 0EM407511
S6 B SERIAL NO. LABEL L6301UB 0EM407805
ACCESSORIES
X1# A OWNER'S MANUAL(E)/(S)
X1# B OWNER'S MANUAL(E)/(S)
X2 REMOTE CONTROL 130/ERC001/
X3 DRY BATTERY R6P UM3 or XB0M451GH001
X4 A RETURN STOP SHEET L6100UA 0EM407076
X4 B RETURN STOP SHEET L6101UB 0EM407077
X5 POLYETHYLENE BAG F8626B5 Z325350
X6 ROD ANTENNA L7720UA:NTSC W/COO 0EMN00673
X6# ROD ANTENNA T5000UA 0EMN01599
L6400UA:ENGLISH/SPANISH
L6401UB:ENGLISH/SPANISH
N0108UD or
REMOTE CONTROL 130/ERC001/
N0132UD
DRY BATTER Y R6P/2S or XB0M451T0001
DRY BATTER Y(SUNRISE) R6SSE/2S or XB0M451MS002
DRY BATTER Y R6P(AR)2PX or XB0M451HU002
DRY BATTER Y R6P(AR)2P X ICI XB0M451HU003
0EMN02011
0EMN02074
N0108UD
N0132UD
Table 1 (V501 and DY551 Combination)
Note 1: Purity and Convergence Adjus tments must be
performed following C RT replacement. Refe r to Electr ical Adjustment Instructions.
CRT Warning Label Location
CRT Type No.
CRT
CRT Warning
Label
Note 2: Please confirm CRT Type No. on the CRT
Warning Label which is locate d on the CRT. Then See
the Table 1 for V501 and DY551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.
V501: CRT Type No. V501: CRT Part No.
CRT A34AGT13X TCRT190CP036
CRT A34KQW42X TCRT190SM013
CRT A34JLL90X(W) TCRT190QS015
CRT A34LRQ90X(VW) TCRT190P7003
CRT A34KPU02XX TCRT190GS016
CRT A34LEX10 X TCRT190SA M01
CRT A34JQ Q093 X TCRT190MS010
CRT A34JXV70X TCRT190THA02 ----------
DY551: Deflection
Yoke Part No.
LLBY00ZMS011
LLBY00ZSY005
LLBY00ZSY002
LLBY00ZQS008
LLBY00ZMS006
LLBY00ZMS027
LLBY00ZSM008
LLBY00ZMS005
LLBY00ZQS001
LLBY00ZSY003
LLBY00ZMS004
LLBY00ZQS007
LLBY00ZSY002
LLBY00ZMS003
LLBY00ZQS008
LLBY00ZMS027
LLBY00ZMS014
LLBY00ZSAM01
LLBY00ZSY002
LLBY00ZMS018
LLBY00ZMS027
20030115 12-2 L6300CA
ELECTRICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these compone nts, read carefully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.
NOTES:
1. Parts that are not assigned part num bers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
MMA CBA
Ref. No. Description Part No.
MMA-384 CBA 0ESA04985
Consists of the following
MAIN CBA -------------CRT CBA --------------
MAIN CBA
Ref. No. Description Part No.
MAIN CBA
Consists of the following
CAPACITORS
C2 ELECTROL YTIC CAP. 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C3 ELECTROL YTIC CAP. 4.7µF/50V M or CE1JMASTL4 R7
ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C31 ELECTROLYTIC CAP . 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C32 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B1 03
C34 ELECTROLYTIC CAP . 0. 47µF/50V M or CE1JMASTLR47
ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C35 CHIP CERAMIC CAP. CH J 5 6pF/50V CHD1JJBCH560
C36 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102
C37 ELECTROLYTIC CAP . 1µF/50V M or CE1JMASTL1R0
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C38 ELECTROLYTIC CAP . 10 µF/50V M or CE1JMASTL100
ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C40 CHIP CERAMIC CAP. B K 0.015µF/5 0V CHD1JKB0B153
C41 ELECTROLYTIC CAP . 0. 47µF/50V M or CE1JMASTLR47
ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C51 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102
C52 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B1 03
C53 ELECTROLYTIC CAP . 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C54 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B1 03
C55 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B1 03
------------
Ref. No. Description Part No.
C56 PCB JUMPER D0.6-P5.0 JW5.0T
C57 FILM CAP.(P) 0. 047µF/50V J or CMA1JJS00473
FILM CAP.(P ) 0.047 µF/ 50V J CA1J473MS029
C58 FILM CAP.(P) 0. 033µF/50V J or CMA1JJS00333
FILM CAP.(P ) 0.033 µF/ 50V J CA1J333MS029
C111 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470
ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C112 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7
ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C113 CHIP CERAMIC CAP . F Z 0.1µF/25V CHD1EZB0F104
C114 FILM CAP .(P) 0.001µF/50V J or CMA1JJS00102
FILM CAP.(P ) 0.001 µF/ 50V J CA1J102MS029
C115 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10
ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10
ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1
C116 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJBCH221
C117 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103
C118 CHIP CERAMIC CAP . B K 0.015µF/50V CHD1JKB0B153
C119 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C120 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103
C132 CHIP CERAMIC CAP . F Z 0.1µF/25V CHD1EZB0F104
C133 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103
C151 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103
C152 CERAMIC CAP .(AX) B K 220pF/50V CCA1JKT0B221
C153 CERAMIC CAP .(AX) B K 220pF/50V CCA1JKT0B221
C155 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470
ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C156 CHIP CERAMIC CAP . F Z 0.1µF/25V CHD1EZB0F104
C301 CHIP CERAMIC CAP. CH J 120pF/50V CHD1JJBCH121
C302 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C303 CHIP CERAMIC CAP . B K 0.015µF/50V CHD1JKB0B153
C306 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C308 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10
ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10
ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1
C321 PCB JUMPER D0.6-P5.0 JW5.0T
C322 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47
ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C323 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C324 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100
ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C328 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100
ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C329 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103
C330 FILM CAP . 0.47 µF/50V J or 122Z317S
TF CAP. 0.47µF/50V J CT1J474M S045
C341 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103
C342 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C343 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103
20030115 13-1 L6300EL
Ref. No. Description Part No.
C345 ELECTROLYTI C CAP. 470µF/10V M or CE1AMASTL471
ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471
C347 ELECTROLYTI C CAP. 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C349 ELECTROLYTI C CAP. 470µF/10V M or CE1AMASTL471
ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471
C351 CHIP CERAMIC CAP . CH J 100pF/50V CHD1JJBCH101
C352 CHIP CERAMIC CAP . CH J 100pF/50V CHD1JJBCH101
C353 ELECTROLYTI C CAP. 1µF/50V M or CE1JMASTL1R0
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C362 ELECTROLYTI C CAP. 2.2µF/50V M or CE1JMASTL2 R2
ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C551 ELECTROLYTI C CAP. 47µF/35V M or CE1GMASTL470
ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C552 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104
FILM CAP.(P) 0.1µF /50 V J CA1J10 4MS 029
C554 ELECTROLYTI C CAP. 100µF/35V M o r CE1GMASTL101
ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101
C562 ELECTROLYTI C CAP. 2.2µF/50V M LL or CE1JMASLL2R2
ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2
C566 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL10 2
ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZP DL102
ELECTROLYTIC CAP. 1000µF/25V M CE1EMZADL102
C568 ELECTROLYTI C CAP. 10µF/50V M or CE1JMASTL100
ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C571# PP CAP . 0.33µF/250V J or CT2E334MS041
# P.P. CAP 0.33µF/200V J or CA2D334VC012
# METALLIZED FILM C AP. 0.33µF/200V J CT2D334F7001
C574# ELECTROLYTIC CAP. 4.7µF/250V M or CE2EMASTL4R7
# ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASDL4R7
C577# ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470
# ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C578 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103
FILM CAP.(P) 0.01µF/50V J CA1J103MS029
C580# PP CAP. 0 .00 82µF/1.6KV J or CT3C822MS039
# PP CAP. 0. 0082 µF/1.6KV J or CBH3CJQ00822
# P.P. CAP 0.0082µF/1. 6K J or CA3C822VC01 1
# METALLIZED FILM CAP. 0.0082µF/1.6KV J CT3C822F7 002
C584# ELECTROLYTIC CAP. 1µF/160V M or CE2CMASTL1R0
# ELECTROLYTIC CAP. 1µF/160V M CE2CMASDL1R0
C594# ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100
# ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C601# META LLIZED FILM CAP. 0.1µF/250V or CT2E104MS037
# FILM CAP .(MP) 0. 1µF/250V K or CT2E104DC011
# METALLIZED FILM C AP. 0.1µF/275V K CT2E104HJE06
C605 CERAMIC CAP . F Z 0.01µF/500V or CCD2JZP0F103
CERAMIC C AP. 0.01µF/AC250V CCD2EZA0F103
C606 CERAMIC CAP . F Z 0.01µF/500V or CCD2JZP0F103
CERAMIC C AP. 0.01µF/AC250V CCD2EZA0F103
C609 CERAMIC CAP . B K 1000pF/2KV or CCD3DKD0B102
CERAMIC CAP . B K 1000pF/2KV or CCD3DKP0B102
CERAMIC CAP. B K 1000pF/2KV CA3D102MR03 0
C610# ALMINIUM ELECTROLYTIC CAP150µF/200V orCA2D151NC088
# ELECTROLYTIC CAPACIT0R 150µF/200V CA2D151 S60 12
C611 FILM CAP.(P) 0.068µF/50V J or CMA1JJS00683
FILM CAP.(P) 0.068µF/50 V J CA1J683MS029
C612 CERAMIC CAP . LB 330pF/2KV or CA3D331KG004
CERAMIC CAP . BN 330pF/2KV or CCD3DKA0B331
CERAMIC CAP. 330pF/2KV CA3D331PAN04
Ref. No. Description Part No.
C616 FILM CAP .(P) 0.039µF/50V J or CMA1JJS00393
FILM CAP.(P ) 0.039 µF/ 50V J CA1J393MS029
C617 CERAMIC CAP .(AX) B K 330pF/50V CCA1JKT0B331
If C642 is 0.01µF , then C643 is 0.01µF.
C642# SAFETY CAP. 10000pF/250V or CCG2EMA0F103
# SAFETY CAP. F M 0.01µF/250V or CCG2EMP0F103
# CERAMIC CAP . 0.01µF F CS CCG2HMN0F103
C643# SAFETY CAP. 10000pF/250V or CCG2EMA0F103
# SAFETY CAP. F M 0.01µF/250V or CCG2EMP0F103
# CERAMIC CAP . 0.01µF F CS CCG2HMN0F103
If C643 is 4700pF , then JS642(PCBJUMPER) is used.
C643# SAFETY CAP. 4700pF/250V KX CA2E472MR050
JS642 PCB JUMPER D0.6-P7.5 JW7.5T
C650 CERAMIC CAP . LB 220pF/2KV or CA3D221KG004
CERAMIC CAP . BN J 220pF/2KV or CCD3DKA0B221
CERAMIC CAP . 220pF/2KV CA3D221PAN04
C654# ELECTROL YTIC CAP. 1µF/50V M or CE1JMASTL1R0
# ELECTROLYTIC CAP . 1µF/50V M or CE1JMASDL1R0
# ELECTROLYTIC CAP . 1µF/50V M CE1JMASDL010
C656# ELECTROL YTIC CAP. 100µF/160V M or CE2CMZPTL101
# ELECTROLYTIC CAP . 100µF/160V M CE2CMZNDL101
C657# ELECTROL YTIC CAP. 1000µF/35V M or CE1GMZNTL102
# ELECTROLYTIC CAP . 1000µF/35V M or CE1GMZNDL102
# ELECTROLYTIC CAP . 1000µF/35V M CE1GMZADL102
C658# ELECTROL YTIC CAP. 1000µF/16V M(VR/HC) orCE1CMZNTL102
# ELECTROLYTIC CAP . 1000µF/16V M or CE1CMZPDL102
# ELECTROLYTIC CAP . 1000µF/16V M CE1CMZADL102
C667 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C681 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C682 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C683 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C686 ELECTROLYTIC CAP. 33µF/16V M or CE1CMASTL330
ELECTROLYTIC CAP. 33µF/16V M CE1CMASDL330
C687 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101
ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C692 ELECTROLYTIC CAP. 47µF/160V M or CE2CMZPTL470
ELECTROLYTIC CAP. 47µF/160V M W/F CE2CMZNDL470
C701 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101
C711 CERAMIC CAP .(AX) X K 1200pF/16V CDA1CKT0X122
C805 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASTL221
ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C811 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471
ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C821 CERAMIC CAP .(AX) X K 3300pF/16V CDA1CKT0X332
C822 CHIP CERAMIC CAP . F Z 0.22µF/16V CHD1CZB0F224
C823 CHIP CERAMIC CAP . F Z 0.47µF/10V or CHD1AZB0F474
CHIP CERAMIC CAP . F Z 0.47µF/16V CHD1CZB0F474
CONNECTORS
CN571 CONNECTOR BASE, 5P TV -50P-05-V3 or J3TVC05TG002
CONNECTOR BASE, 5P RTB-1.5-5P J3RTC05JG001
CN691 CONNECTOR BASE, 2P TV -50P-02-V3 or J3TVC02TG002
CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001
CN801 STRAIGHT CONNECTOR BASE 00 8283 0212
00 000 or
STRAIGHT PIN HEADER, 2P 173981-2 1770258
J383C02UG002
20030115 13-2 L6300EL
Ref. No. Description Part No.
DIODES
D101 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D102 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D111 ZENER DIODE MTZJT-775. 6B or QDTB0MTZJ5R6
ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS
D131 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1
ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS
D151 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6
ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS
D181# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D322 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D323 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1
ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS
D326 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D350 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D351 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D352 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D551 DIODE 1N5399-B/P or NDLZ001N5399
RECTIFIE R DIODE ERB12 -06 QDQZ0ERB1206
D561# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D562# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D568# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D569# ZENER DIODE MTZJT-7720B or QDTB00MTZJ20
# ZENER DIODE DZ-20BSBT265 NDTB00DZ20BS
D571 DIODE FR104-B or NDLZ000FR104
RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202
RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D572# RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202
# RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D573 PCB JUMPER D0.6-P5.0 JW5.0T
D584# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D593# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36
# ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS
D595 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D597 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8
ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D605# DIODE 1N5399-B/P or NDLZ001N5399
# RECTIFIER DIODE ERB1 2-06 QDQZ0ERB1206
D606# DIODE 1N5399-B/P or NDLZ001N5399
# RECTIFIER DIODE ERB1 2-06 QDQZ0ERB1206
D607# DIODE 1N5399-B/P or NDLZ001N5399
# RECTIFIER DIODE ERB1 2-06 QDQZ0ERB1206
D608# DIODE 1N5399-B/P or NDLZ001N5399
# RECTIFIER DIODE ERB1 2-06 QDQZ0ERB1206
D611 ZENER DIODE MTZJT-7715B or QDTB00MTZJ15
ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS
D613 ZENER DIODE MTZJT-7718B or QDTB00MTZJ18
Ref. No. Description Part No.
ZENER DIODE DZ-18BSBT265 NDTB00DZ18 BS
D615# SWITCHING DIODE 1N4148 T-77 QDTZ001N4148
D621 ZENER DIODE MTZJT-773.0B or QDTB0MTZJ3R0
ZENER DIODE DZ-3.0BSBT265 NDTB0DZ3R0BS
D641 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
D642 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D651# FA ST RECOVE RY DI ODE CA20 1-4 o r QDWZ00CA2014
# RECOVERY DIODE ERC18-04 or QDZZ0ERC1804
# FAST RECOVERY DIODE ERC25-06 QDQZ0ERC2506
D652# DIODE FR154 or NDLZ000FR154
# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D653# DIODE FR154 or NDLZ000FR154
# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D654# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D657# DIODE 1ZC36 or QDQZ0001ZC36
# ZENER DIODE RD39FB QDQZ000RD39F
D658# ZENER DIODE MT ZJT -77 15B or QDTB00MTZJ 15
# ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS
D660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D661# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D662# ZENER DIODE MTZJT - 776.8B or QDTB0MTZJ6R8
# ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D666 ZENER DIODE MTZJT -7736B or QDTB00MTZJ36
ZENER DIODE DZ-36BSBT265 NDTB00DZ36 BS
D671# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D672 PCB JUMPER D0.6-P5.0 JW5.0T
D673 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
D682# ZENER DIODE MTZJT - 775.6B or QDTB0MTZJ5R6
# ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS
D691# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D694# PCB JUMPER D0.6-P5.0 JW5.0T
D811# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D831 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
SWITCHING DIODE 1N4148 NDTZ001N4148
ICS
IC31 IC:VIF/SIF DETECTOR M6111 1FP QSZBA0SMB010
IC11 1# IC M61271M8-050FP-61 QSZAB0RMB127
IC151 IC:MEMORY S524C20D21 or NSZBA0SSM028
IC:MEMORY A T24C02N-10SC or NSMMA0SAZ012
IC(EEPROM) M24C02-MN6 or NSMMA0SSS028
IC:MEMORY BR24C02F-W or QSMBA0SRM003
IC:MEMORY BR24C02F or QSMMA0SRM003
IC:EEPROM CAT24WC02JI NSZBA0SBG001
IC551# VERTICAL O UTPUT IC LA78040A or QSBBA0SSY003
# VERTICAL OUTPUT IC AN5522 QSZBA0SMS002
IC601# PHOTOCOUPLER PS2501-1W or QPEW0PS25011
# PHOTO COUPLER PS2501-1L or QPEL0PS25011
# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817 F
# PHOTOCOUPLER LTV-817C-F NPEC0LTV817F
IC801 AUDIO AMP LA4224 QSZAA0SSY005
COILS
L1 PCB JUMPER D0.6-P5.0 JW5.0T
20030115 13-3 L6300EL
Ref. No. Description Part No.
L3 INDUCTOR 22µH-K-5FT or LLARKBSTU220
INDUCTOR 22µH-K LLARKDQKA220
L32 INDUCTOR 15µH-J-26T or LLAXJATTU150
INDUCTOR 15µH-K-26T LLAXKDTKA150
L33 INDUCTOR 22µH-J-26T or LLAXJATTU220
INDUCTOR 22µH-K-26T LLAXKDTKA220
L51 INDUCTOR 100µH-K-5FT or LLARKBSTU101
INDUCTOR 100µH-K LLARKDQKA101
L111 PCB JUMPER D0.6-P5.0 JW5.0T
L301 INDUCTOR 100µH-K-5FT or LLARKBSTU101
INDUCTOR 100µH-K LLARKDQKA101
L341 PCB JUMPER D0.6-P5.0 JW5.0T
L342 PCB JUMPER D0.6-P5.0 JW5.0T
L601# LINE FILTER TLF12UA302W1R0 or LLBG00ZTU025
# LINE FILTER 5 .0M H 6Y07 5 o r LLBG00ZKT0 04
# LINE FILTER LF005 or LLBG00ZLH001
# LINE FILTER U U10. 5-A or LLBG00Z Y20 08
# LINE FILTER SA-91213B or LLBG00ZSA002
# LINE FILTER TLF14CB3321R0 or LLBG00ZTU012
# LINE FILTER 6 .35 MH U U10-0 02 LLBG00ZKV001
L692 CHOKE COIL 47µH-K or LLBD00PKV007
POT COIL 47µH K LLBD**DMM001
TRANSISTORS
Q31 TRANSISTOR 2SC2785(F) or QQSF02SC2785
TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q11 1 TRANSISTOR 2SC2785(F) or QQSF02SC2785
TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q321# TRANSISTOR 2SC2785(F) or QQSF02SC2785
# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR KTC3199(GR) or NQS10KTC3199
# TRANSISTOR KTC3198(GR) or NQS40KTC3198
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q571# TRANSISTOR TT2138LS-YB1 1 or QQZZ00TT2138
# TRANSISTOR 2SC5884000RF QQZZ02SC5884
Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627
Q601# MOS FET 2SK2662 or QF5Z02SK2662
# FET 2SK3543 QFWZ02SK3543
Q602# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120
# TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120
Q662# TRANSISTOR 2SC2785(F) or QQSF02SC2785
# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR KTC3199(GR) or NQS10KTC3199
# TRANSISTOR KTC3198(GR) or NQS40KTC3198
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q671# TRANSISTOR 2SA1175(F) or QQSF02SA1 175
# TRANSISTOR KT A1267(GR) or NQS10KT A1267
# TRANSISTOR KT A1266(GR) or NQS40KT A1266
# TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q675 TRANSISTOR 2SC2785(F) or QQSF02SC2785
TRANSISTOR 2SC2785(H) or QQSH02SC2785
Ref. No. Description Part No.
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q676 RES. BUILT -I N TRANSIST OR BA1F4M -T or QQSZ00BA1F4M
RES. BUILT-IN TRANSIST OR KRC103M NQSZ0KRC103M
Q681 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120
TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q682 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120
TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q683 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120
TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
TRANSISTOR KTC3203(Y) NQSY0KTC3203
RESISTORS
R3 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R4 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R5 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R31 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R32 CHIP RES.(1608) 1/10W J 390 Ω RRXAJB5Z0391
R33 CHIP RES.(1608) 1/10W J 270 Ω RRXAJB5Z0271
R34 CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221
R36 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R37 CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221
R38 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332
R39 CHIP RES.(1608) 1/10W J 27k Ω RRXAJB5Z0273
R41 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682
R43 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123
R45 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R51 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224
R52 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224
R102 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R103 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJB5Z0182
R104 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332
R105 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472
R106 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822
R111# CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101
# CARBON RES. 1/6W J 100 Ω RCX6JA TZ010 1
R112 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R113 CHIP RES.(1608) 1/10W J 470k Ω RRXAJB5Z0474
R114 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102
R115 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272
R132 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682
R133 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R135 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R136 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104
R137 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R138 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224
R139 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R140 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102
R141 PCB JUMPER D0.6-P5.0 JW5.0T
R151 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472
R155 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101
CARBON RES. 1/ 6W J 100 Ω RCX6JATZ0101
R156 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
CARBON RES. 1/ 6W J 1k Ω RCX6JATZ010 2
R161 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R162 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R163 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682
20030115 13-4 L6300EL
Ref. No. Description Part No.
R164 CHIP RES.(1608) 1 /10W J 22 k Ω RRXAJB5Z0223
R166 CHIP RES.(1608) 1 /10W J 4. 7k Ω RRXAJB5Z0472
R168 CHIP RES.(1608) 1 /10W J 4. 7k Ω RRXAJB5Z0472
R301 CHIP RES.(1608) 1 /10W J 6. 8k Ω RRXAJB5Z0682
R302 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R303 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471
R321 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471
R322 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R323# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R326 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R327 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R328 CHIP RES.(1608) 1 /10W J 4. 7k Ω or RRXAJB5Z0472
CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJB5Z0472
R329 CHIP RES.(1608) 1 /10W J 39 k Ω or RRXAJB5Z0393
CHIP RES.(1 608) 1/ 10W J 39 k Ω RRXAJB5Z0393
R330 CHIP RES.(1608) 1 /10W J 1k Ω RRXAJB5Z0102
R331 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R342 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R344 CHIP RES.(1608) 1 /10W J 6. 8k Ω RRXAJB5Z0682
R345 CHIP RES.(1608) 1 /10W J 10 k Ω RRXAJB5Z0103
R346 CHIP RES.(1608) 1 /10W J 2. 7k Ω RRXAJB5Z0272
R347 CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221
R348 CHIP RES.(1608) 1 /10W J 27 k Ω RRXAJB5Z0273
R350 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R352 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R354 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R355 CHIP RES.(1608) 1 /10W J 27 k Ω RRXAJB5Z0273
R391 CHIP RES.(1608) 1 /10W J 1k Ω RRXAJB5Z0102
R392 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R393 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R551 CHIP RES.(1608) 1 /10W J 4. 7 Ω RRXAJB5Z04R7
R552# CARBON RES. 1/4W J 3.9 Ω RCX4JATZ03 R 9
R553# CARBON RES. 1/4W J 1 Ω or RCX4JATZ00 10
# CARBON RES. 1/4W J 1 Ω RCX6JATZ00 10
R554# CARBON RES. 1/4W J 1 Ω or RCX4JATZ00 10
# CARBON RES. 1/4W J 1 Ω RCX6JATZ00 10
R556 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
CARBON RES. 1/6W J 1k Ω RCX6JA TZ0102
R557 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
CARBON RES. 1/6W J 1k Ω RCX6JA TZ0102
R558 CARBON RES. 1/4W J 3.3k Ω RCX4JA TZ 0332
R559 CARBON RES. 1/4W J 3.3k Ω RCX4JA TZ 0332
R561 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471
R562 CHIP RES.(1608) 1 /10W J 3. 3k Ω RRXAJB5Z0332
R563 CHIP RES.(1608) 1 /10W J 10 k Ω RRXAJB5Z0103
R564 CHIP RES.(1608) 1 /10W J 22 k Ω RRXAJB5Z0223
R566 CARBON RES. 1/4W J 2.2 Ω or RCX4JATZ02R2
CARBON RES. 1/6W J 2.2 Ω RCX6JATZ0 2R 2
R569# CHIP RES.(1 608) 1/10 W J 6.8 k Ω RRXAJB5Z0682
R571# METAL OXIDE FILM RES. 2W J 470 Ω or RN02471ZU001
# METAL OXIDE FILM RES. 2W J 470 Ω RN02471DP004
R575# CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470
# CARBON RES. 1/6W J 47 Ω RCX6JATZ04 70
R576# CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470
# CARBON RES. 1/6W J 47 Ω RCX6JATZ04 70
R577# PCB JUMPER D0.6-P5.0 JW5.0T
R578 CARBON RES. 1/4W J 560 Ω or RCX4JA TZ05 61
CARBON RES. 1/6W J 560 Ω RCX6JA TZ 0561
R579 CHIP RES.(1608) 1 /10W J 1k Ω RRXAJB5Z0102
R581 PCB JUMPER D0.6-P5.0 JW5.0T
R583# METAL OXIDE FILM RES. 2W J 1.8 Ω or RN02JZLZ01R8
Ref. No. Description Part No.
# METAL FILM RES.(ST RAIGHT) 2W J 1.8 Ω RN02J ZPZ01R8
R584# CARBON RES. 1/4W J 1k Ω or RCX4JA TZ010 2
# CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R587 CARBON RES. 1/4W J 100k Ω RCX4JATZ010 4
R588# CARBON RES. 1/4W J 10 0k Ω RCX4JATZ0 104
R589 CARBON RES. 1/4W J 120k Ω RCX4JATZ012 4
R591# CHIP RES.(1608) 1/10W J 180k Ω RRXAJB5Z0184
R592# CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104
R593# CHIP RES.(1608) 1/10W J 68k Ω RRXAJB5Z0683
R594 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104
R596 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R597 CARBON RES. 1/4W J 8.2k Ω RCX4JA TZ0 822
R598# CARBON RES . 1/4W J 47k Ω RCX4JATZ047 3
R599# CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R601# CEMENT RES. 5W K 1.2 Ω or RW051R2DP005
# CEMENT RESISTOR 5W K 1.2 Ω or RW051R2PG001
# CEMENT RESISTOR 5W J 1.2 Ω or RW051R2Y4001
# CEMENT RES. 3W K 1.2 Ω RW031R2PG007
R602# CARBON RES. 1/4W J 82 0k Ω RCX4JATZ0 824
R603 CARBON RES. 1/4W J 820k Ω RCX4JATZ082 4
R61 1 CARBON RES. 1/ 4W J 270 Ω or RCX4JATZ027 1
CARBON RES. 1/ 6W J 270 Ω RCX6JATZ0271
R612 CARBON RES. 1/4W J 270 Ω or RCX4JATZ0271
CARBON RES. 1/ 6W J 270 Ω RCX6JATZ0271
R613# METAL OXIDE FILM RES. 2W J 0.47 Ω or RN02JZLZ0R47
# METAL RES. 2W J 0.47 Ω RN02JZPZ0R47
R616 CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0 152
R621 CARBON RES. 1/4W J 1.2k Ω RCX4JA TZ0 122
R622 CARBON RES. 1/4W J 150 Ω or RCX4JATZ0151
CARBON RES. 1/ 6W J 150 Ω RCX6JATZ0151
R624 PCB JUMPER D0.6-P5.0 JW5.0T
R653 CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153
R654# CARBON RES. 1/4W J 3. 3k Ω RCX4JATZ0332
R655# CARBON RES. 1/4W J 1k Ω or RCX4JA TZ010 2
# CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R656# CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153
R657# CHIP RES.(1608) 1/10W J 15k Ω RRXAJB5Z0153
R660 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
CARBON RES. 1/ 6W J 1k Ω RCX6JATZ010 2
R661# CARBON RES. 1/4W J 18 0k Ω RCX4JATZ0 184
R662# CARBON RES . 1/4W J 33k Ω RCX4JATZ033 3
R664# CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123
R665# CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472
R666# METAL OXIDE FILM RES. 2W J 15k Ω RN02153DP004
R667# PCB JUMPER D0.6-P5.0 JW5.0T
R668# METAL OXIDE FILM RES. 1W J 56k Ω RN01563DP003
R671 CARBON RES. 1/4W J 3.3k Ω RCX4JA TZ0 332
R672 CARBON RES. 1/4W J 3.3k Ω RCX4JA TZ0 332
R673 CARBON RES. 1/4W J 100k Ω RCX4JATZ010 4
R675 CARBON RES. 1/4W J 22 k Ω RCX4JATZ0223
R676 CARBON RES. 1/4W J 10 k Ω RCX4JATZ0103
R681# CARBON RES. 1/4W J 12 Ω or RCX4JATZ012 0
# CARBON RES. 1/6W J 12 Ω RCX6JATZ0 120
R682# METAL OXIDE FILM RES. 1W J 56 Ω or RN01560ZU001
# METAL OXIDE FILM RES. 1W J 56 Ω RN01560DP003
R683# METAL OXIDE FILM RES. 1W J 39 Ω or RN01390ZU001
# METAL OXIDE FILM RES. 1W J 39 Ω RN01390DP003
R684 CARBON RES. 1/4W J 47 Ω or RCX4JA TZ0470
CARBON RES. 1/ 6W J 47 Ω RCX6JATZ0470
R685 CARBON RES. 1/4W J 47 Ω or RCX4JA TZ0470
CARBON RES. 1/ 6W J 47 Ω RCX6JATZ0470
20030115 13-5 L6300EL
Ref. No. Description Part No.
R686 CARBON RES. 1/4W J 100 Ω or RCX4JA TZ01 01
CARBON RES. 1/6W J 100 Ω RCX6JA TZ 0101
R687 CARBON RES. 1/4W J 100 Ω or RCX4JA TZ01 01
CARBON RES. 1/6W J 100 Ω RCX6JA TZ 0101
R691# CARBON RES. 1/4W J 15k Ω RCX4JATZ 0153
R701 CHIP RES.(1608) 1 /10W J 75 Ω RRXAJB5Z0750
R702 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R71 1 CHIP RES.(1 608) 1/ 10W J 47 k Ω RRXAJB5Z0473
R712 CHIP RES.(1608) 1 /10W J 3. 3k Ω RRXAJB5Z0332
R801 CARBON RES. 1/2W J 100 Ω or RCX2JZQZ0101
CARBON RES. 1/2W J 100 Ω RCX2JZPZ0101
R810# METAL OXIDE FILM RES. 1W J 10 Ω or RN01100ZU0 01
# METAL OXIDE FIL M RES. 1W J 10 Ω RN01 100D P003
R81 1 # CHIP RES .(160 8) 1 /10 W J 2.2 k Ω RRXAJB5Z0222
R812# CHIP RES.(1 608) 1/10 W J 2.2 k Ω RRXAJB5Z0222
R821 CHIP RES.(1608) 1 /10W J 15 k Ω RRXAJB5Z0153
R822 CHIP RES.(1608) 1 /10W J 5. 6k Ω RRXAJB5Z0562
R831 CHIP RES.(1608) 1/10W J 470k Ω RRXAJB5Z0474
R832 CHIP RES.(1608) 1 /10W J 6. 8k Ω RRXAJB5Z0682
SWITCHES
SW101 T ACT SWITCH SKQSAB or SST0101AL038
TACT SWITCH KSM0612B or SST0101HH003
TACT SWITCH SKHHAM SST0101AL029
SW102 T ACT SWITCH SKQSAB or SST0101AL038
TACT SWITCH KSM0612B or SST0101HH003
TACT SWITCH SKHHAM SST0101AL029
SW103 T ACT SWITCH SKQSAB or SST0101AL038
TACT SWITCH KSM0612B or SST0101HH003
TACT SWITCH SKHHAM SST0101AL029
SW104 T ACT SWITCH SKQSAB or SST0101AL038
TACT SWITCH KSM0612B or SST0101HH003
TACT SWITCH SKHHAM SST0101AL029
SW105 T ACT SWITCH SKQSAB or SST0101AL038
TACT SWITCH KSM0612B or SST0101HH003
TACT SWITCH SKHHAM SST0101AL029
SW106 T ACT SWITCH SKQSAB or SST0101AL038
TACT SWITCH KSM0612B or SST0101HH003
TACT SWITCH SKHHAM SST0101AL029
MISCELLANEOUS
AC601# AC CORD LA-2366 or WAC0172LW006
# AC CORD WAC0172AS006 or W AC0172AS006
# AC CORD WAC0172LTE01 or WAC0172L TE01
# AC CORD A0A0280-007 or WAC0172LTE04
# AC CORD PB8K9F9110A-057 WAC0172LW008
BC101 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026
BC601 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
BC602 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
BC651 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
BC652 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
BC653 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
BC691 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
BC692 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
CF31 CERAMIC TRAP 4.5MHz or FBE455PMR003
CERAMIC TRAP 4.5MHz FBE455PMS002
CF32 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004
CERAMIC FILTER 4.5MHz FBB455PMS001
CLN301 WIRE ASSEMBLY WX1L9700-104 WX1L9700-104
F601# FUSE 4A/125V 237 TYPE or P AGJ20CAG402
# FUSE STC4A125V U/CT or PAGE20CW3402
Ref. No. Description Part No.
# FUSE 4.00A/125V PAGG20CNG402
FH601 FUSE HOLDER MSF-015 or XH01Z00LY001
FUSE HOLDER FH-V-03078 XH01Z00DK001
FH602 FUSE HOLDER MSF-015 or XH01Z00LY001
FUSE HOLDER FH-V-03078 XH01Z00DK001
GP641# GAP. FNR-G3.10D FAZ000LD6005
J115 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
JK701 RCA JACK(YELLOW) MTJ-032-06B-20 or JXRL010LY050
RCA JACK 1P AV -8.4-9Y JXRL010RP010
JK702 RCA JACK(WHITE) MTJ-032-06B-22 or JXRL010LY052
RCA JACK 1P AV -8.4-9W JXRL010RP011
JK801 EARPHONE JACK HTJ-035-1ZEBTZ or JYSL030GE001
EARPHONE JACK MSJ-035-12APC or JYSL030LY001
EARPHONE JACK HSJ1403-01-010 or JYSL030HD002
EARPHONE JACK LGY6501-0600 JYSL030SR001
JS112 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
JS113 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
JS601 PCB JUMPER D0.6-P5.0 JW5.0T
JS802 PCB JUMPER D0.6-P5.0 JW5.0T
PB1 HEAT SINK(PGW) L6400UZ 0EM407501
PB2 HEAT SI NK(PGY)ASSEMBLY L6300UZ 0EM407516
PB3 CLOTH(65) L7735TR:65X10X0.5T 0EM402149
PL1 SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080
SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080
PS691# THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A
RCV101 REMOCON RECEIVE UNIT MIM-93M8DKL or USESJRSUNT02
REMOCON RECEIVE UNIT PIC-26042SR-2 or USESJRSKK032
REMOCON RECEIVE UNIT PIC-37042SR USESJRSKK034
SA601# SURGE ABSORBER JVR-07N471K or NVQZVR07N471
# SURGE ABSORBER CNR-10D471K or NVQZR10D471K
# SURGE ABSORBER CNR-07D471K or NVQZR07D471K
# SURGE ABSORBER PVR-07D471KB or NVQZ07D471KB
# SURGE ABSORBER AVR-S07D471KAAS or QVQZ0AVRS07D
# VARISTOR ENC471D-07A QVQZ0471D07A
SF1 SAW FILTER SAFGM45M7VHHzC0B03 FBB456PMR008
T571# FLYBACK TRANSFORMER JF0501-241 8 or LTF00CPXB026
# FLYBACK TRANS BSC21-2016S or LTF00CPS2040
# FLYBACK TRANS BSC25-0241 or LTF00CPP1007
# FLYBACK TRANS FNI14A001 LTF00CPSM0 18
T572 H0RIZONTAL DRIVE TRANS LP2-005 LTH00CPA5005
T601# SWITCHING TRANS 02Y0438 LTT00CPKT099
TP300 PCB JUMPER D0.6-P12.5 JW12.5T
TP601 PCB JUMPER D0.6-P10.0 JW10.0T
TU1 TUNER UNIT TEQH9-001A UTUNNTUAL032
VR661# CARBON P .O.T. 30k Ω B or VRCB303KA011
# CARBON P .O.T. 30k Ω B VRCB303HH014
X301 X'T AL 3.579 545 MHz or FXD355LLN003
X'TAL 3.579545MHz(30PPM) FXD355LCHE01
CRT CBA
Ref. No. Description Part No.
CRT CBA
Consists of the following
CAPACITORS
C501 CHIP CERAMIC CAP . CH J 270pF/50V CHD1JJBCH271
C502 CHIP CERAMIC CAP . CH J 270pF/50V CHD1JJBCH271
C503 CHIP CERAMIC CAP . CH J 330pF/50V CHD1JJBCH331
C504 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470
ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
------------
20030115 13-6 L6300EL
Ref. No. Description Part No.
C510 CERAMIC CAP . B K 1000pF/2KV or CCD3DKD0B102
CERAMIC CAP . B K 1000pF/2KV or CCD3DKP0B102
CERAMIC CAP . B K 1000pF/2KV CA3D102MR030
CONNECTOR
CN501 PIN CONNECTOR 005P-5100 JTEA001TG001
COILS
L501 INDUCTOR 150µH-J-5FT or LLARJCSTU151
INDUCTOR 150µH-K-5FT LLARKDSKA151
TRANSISTORS
Q501 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482
TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468
TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468
TRANSISTOR KTC3207 NQSZ0KTC3207
Q502 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482
TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468
TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468
TRANSISTOR KTC3207 NQSZ0KTC3207
Q503 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482
TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468
TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468
TRANSISTOR KTC3207 NQSZ0KTC3207
RESISTORS
R501 METAL OXIDE FILM RES. 1W J 15k Ω or RN01 153 ZU00 1
METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003
R502 METAL OXIDE FILM RES. 1W J 15k Ω or RN01 153 ZU00 1
METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003
R503 METAL OXIDE FILM RES. 1W J 15k Ω or RN01 153 ZU00 1
METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003
R504 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R505 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R506 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R509 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R51 1 CHIP RES.(1 608) 1/ 10W J 33 Ω RRXAJB5Z0330
R512 CHIP RES.(1608) 1 /10W J 33 Ω RRXAJB5Z0330
R513 CHIP RES.(1608) 1 /10W J 33 Ω RRXAJB5Z0330
R514 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R515 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R516 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R517 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561
CARBON RES. 1/6W J 560 Ω RCX6JATZ056 1
R518 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561
CARBON RES. 1/6W J 560 Ω RCX6JATZ056 1
R519 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561
CARBON RES. 1/6W J 560 Ω RCX6JATZ056 1
R521 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R522 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R523 CHIP RES. 1/10W J 0 Ω RRXAJB5Z0000
R537 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R538 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
MISCELLANEOUS
BC501 BEAD INDUCTORS FBR07HA121T B-00 LLBF00ZTU021
CLN501 PARALLEL WIRE L=250 3P WX1L1000-102
JK501# CRT SOCKET ISMS02S JSCC220PK003
20030115 13-7 L6300EL
ST413D/6413TD L6300UA/1UB
Printed in Japan
2003-01-30 HO
Loading...
