Symphonic 6309CE, SC309E Schematic

Page 1

SERVICE MANUAL

Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List

9" COLOR TV/VCR COMBINATION

When servicing the deck mechanism, refer to MK12.5 Deck Mechanism Section.

Deck Mechanism Part No.: N2226FT

SC309E/6309CE

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

Page 3

MAIN SECTION

9" COLOR TV/VCR COMBINATION

SC309E/6309CE

Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List

TABLE OF CONTENTS

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

Mechanical Trouble Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-8

Power Supply Trouble Shooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-10

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

Cabinet Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

Packing Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-3

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Page 4

SPECIFICATIONS

*ˆMode---------SP mode unless otherwise specified *Test input terminal

<Except Tuner>-------------Video input (1Vp-p) Audio input (-10dB) <Tuner>-----------------------Ant. input (80dBµV) Video: 87.5% Audio: 25kHz dev (1kHz Sin)

Description Condition Unit Nominal Limit

1. Over Scan — % 90 ±5

2. Linearity Horizontal % — 12

Vertical % — 10

3. High Voltage — kV 18 —

Description Condition Unit Nominal Limit

1. Misconvergence Center m/m — 0.3

Corner m/m — 1.5

Side m/m — 1.2

2. Tint Control Range — deg ±30 —

3. Contrast Control Range — dB 6 —

4. Brightness APL 100% ft-L 30 —

5. Color Temperature — K 9200 —

<VCR>

Description Condition Unit Nominal Limit

1. Horizontal Resolution (R/P) Line 230 200

2. Jitter (Low) (R/P) µS 0.05 0.2

3. S/N Chroma AM(SP) (R/P) dB 38 33

PM(SP) (R/P) dB 36 33

4. Wow & Flutter (RMS) (R/P) % 0.25 0.5

<TUNER>

Description Condition Unit Nominal Limit

1. Video S/N — dB 45 40

2. Audio S/N (W/LPF) — dB 43 40

1-1-1 T4501SP

Page 5

<AUDIO>

All items are measured across 8Ω resistor at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power (Max.) (R/P) W 0.8 0.6

2. Audio S/N (W/LPF) (R/P) dB 40 36

3. Audio Distortion (W/LPF) (R/P) % 3.0 5.0

4. Audio Freq. Response (-10dB Ref. 1KHz)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these. Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

200Hz (R/P)

8kHz (R/P)

dB dB

-2.0 0

-2.0±5.0 0±6.0

1-1-2 T4501SP

Page 6

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom-

er, always make a safety check of the entire instru-

ment, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leak-

age current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG

AS REQUIRED

CURRENT

TESTER

EARTH GROUND

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube is the primary potential source of X-radiation in solid-state TV receivers, it is specially constructed to prohibit X-radiation emissions. For continued X-radiation protection, the replacement picture tube must be the same type as the original. Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be measured each time servic-

1-2-1 SFTY_2

Page 7

ing is performed that involves B+, horizontal deflection or high voltage. Correct operation of the X-radiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called "horizontal disable" or "hold down.") Read and apply the high voltage limits and, if the chassis is so equipped, the X-radiation protection circuit specifications given on instrument labels and in the Product Safety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/adjustments in the high-voltage circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safety-related notes on or inside the receiver cabinet, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning -

The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the picture tube only with one of the same type number. Do not remove, install, or otherwise handle the picture tube in any manner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be kept safely away while picture tubes are handled. Keep the picture tube away from your body. Do not handle the picture tube by its neck. Some "in-line" picture tubes are equipped with a permanently attached deflection yoke; because of potential hazard, do not try to remove such "permanently attached" yokes from the picture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ( # ) on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product's Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

1-2-2 SFTY_2

Page 8

Precautions during Servicing

A. Parts identified by the ( # ) symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements.

Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors. E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.

K. Crimp type wire connector

When replacing the power transformer in sets where the connections between the power cord and power transformer primary lead wires are performed using crimp type connectors, in order to prevent shock hazards, perform carefully and precisely the following steps.

Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the VCR con-

nectors, first, disconnect the AC plug from AC supply socket.

1-2-3 SFTY_2

Page 9

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

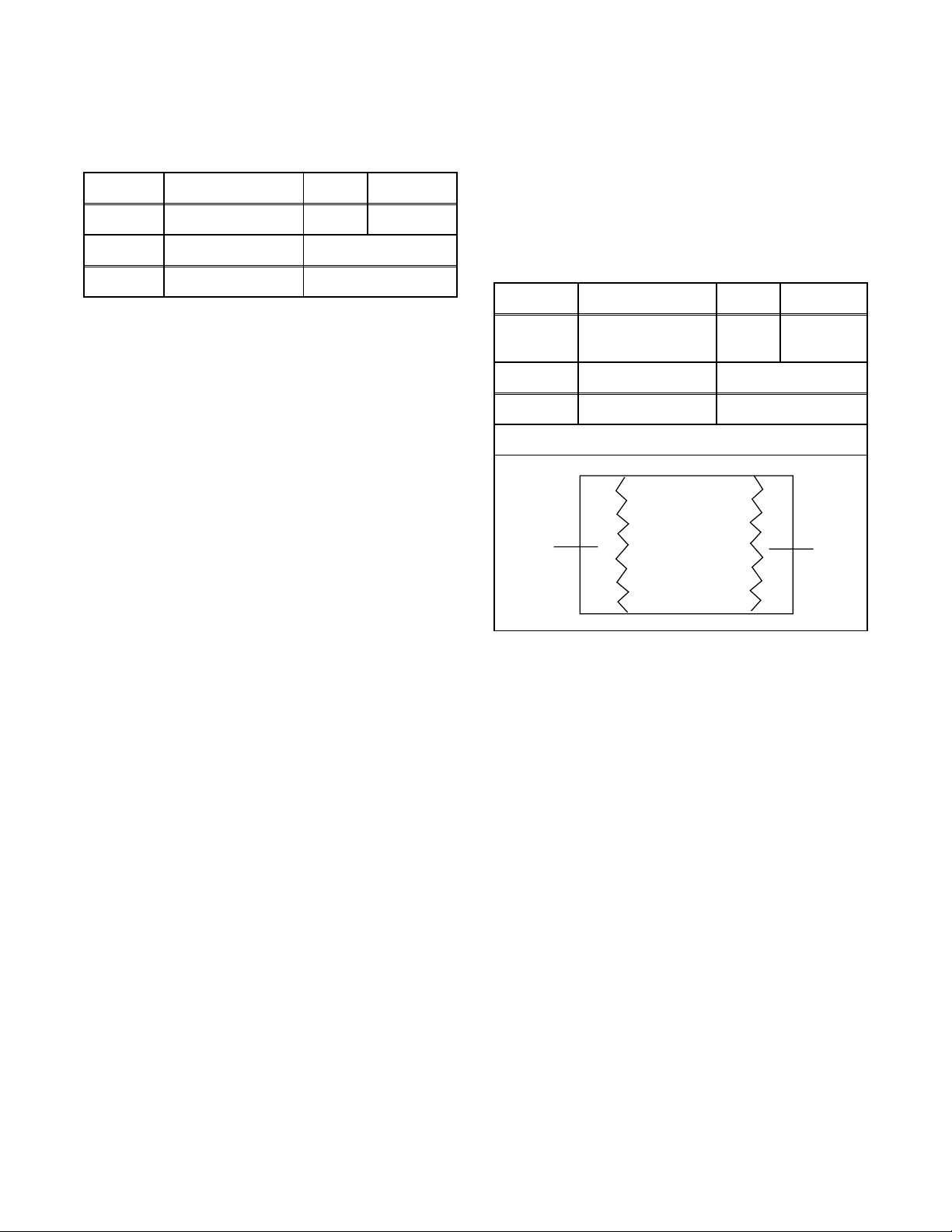

Table 1 : Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d) (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

Table 2 : Leakage current ratings for selected areas

Exposed Accessible Part

One side of

Power Cord Plug Prongs

Fig. 1

AC Voltmeter (High Impedance)

Fig. 2

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

USA or

CANADA

0.15µF CAP. & 1.5kΩ RES. connected in

parallel

1-2-4 SFTY_2

i≤0.5mA rms

Exposed accessible

parts

Page 10

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown:

Top View

Out

2. For other ICs, pin 1 and every 5th pin is indicated as shown:

Pin 1

3. The 1st pin of every pin connector are indicated as shown:

Pin 1

Input

Bottom View

Instructions for Connectors

How to Read the Values of the Rectangular Type Chip Components

Example: (a) Resistor

473

= 473 = 47 [kΩ]

(b) Capacitor

= Not Shown

Caution:

Once chip parts (Resistors, Capacitors, Transistors, etc.) are removed, they must not be reused. Always use a new part.

Pb (Lead) Free Solder

Pb free mark will be found on PCBs used Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

(Top View)

1. When you connect or disconnect FFC cable (connector), be sure to disconnect the AC cord.

2. FFC cable (connector) should be inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

[ CBA= Circuit Board Assembly ]

Pb free mark

Replacement Procedures for Leadless (Chip) Components

The Following Procedures are Recommended for the Replacement of the Leadless Components Used in this Unit.

1. Preparation for replacement

1.1. Pb free solder

a. Soldering Iron

Use a soldering iron for Pb free solder.

b. Solder

Be sure to use Pb free solder.

c. Soldering time

Do not apply heat for more than 4 seconds.

1-3-1 SFTY_Z13N

Page 11

d. Preheating

Leadless capacitor must be preheated before installation. (130°C~150°C, for about two minutes.)

1.2. Standard solder

a. Soldering Iron

Use a pencil-type soldering iron (less than 30 watts).

b. Solder

Eutectic solder (Tin 63%, Lead 37%) is recommended.

c. Soldering time

Do not apply heat for more than 4 seconds.

d. Preheating

Leadless capacitor must be preheated before installation. (130°C~150°C, for about two minutes.)

Notes:

a. Leadless components must not be reused after

removal.

b. Excessive mechanical stress and rubbing for the

component electrode must be avoided.

2. Removing the leadless component

Grasp the leadless component body with tweezers and alternately apply heat to both electrodes. When the solder on both electrodes has melted, remove leadless component with a twisting motion.

Tweezers

Chip

Soldering Iron

Tweezers

Solder

Soldering Iron

Notes:

a. Do not attempt to lift the component off the board

until the component is completely disconnected from the board by the twisting action.

b. Take care not to break the copper foil on the printed

board

3. Installing the leadless component

a. Presolder the contact points of the circuit board. b. Press the part downward with tweezers and solder

both electrodes as shown below.

Note:

Do not glue the replacement leadless component to the circuit board.

Presolder

1-3-2 SFTY_Z13N

Page 12

How to Remove / Install Flat Pack IC

Caution:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not apply the hot air to the chip parts around the Flat Pack-IC for over 6 seconds as damage may occur to the chip parts. Put Masking Tape around the Flat Pack-IC to protect other parts from damage. (Fig. S-1-2)

3. The Flat Pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or solder lands under the IC when removing it.

1. Removal

With Hot - Air Flat Pack - IC Desoldering Machine:

a. Prepare the Hot - Air Flat Pack - IC Desoldering

Machine, then apply hot air to Flat Pack - IC (about 5~6 seconds). (Fig. S-1-1)

b. Remove the Flat Pack- IC with tweezers while

applying the hot air.

With Soldering Iron:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux which is applied to all pins of the Flat Pack - IC, you can remove it easily. (Fig. S-1-3)

b. Lift each lead of the Flat Pack - IC upward one by

one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air Desoldering Machine. (Fig. S-1-4)

With Iron Wire:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux which is applied to all pins of the Flat Pack - IC, you can remove it easily. (Fig. S-1-3)

b. Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

c. Pull up on the wire as the solder melts so as to lift

the IC leads from the CBA contact pads, while heating the pins using a fine tip soldering iron or hot air blower.

Note:

When using a soldering iron, care must be taken to ensure that the Flat Pack - IC is not being held by glue, or when it is removed from the CBA, it may be damaged if force is used.

2. Installation

a. Using desoldering braid, remove the solder from

the foil of each pin of the Flat Pack - IC on the CBA, so you can install a replacement Flat Pack - IC more easily.

b. The "I" mark on the Flat Pack - IC indicates pin 1

(See Fig. S-1-6). Make sure this mark matches the 1 on the CBA when positioning for installation. Then pre - solder the four corners of the Flat PackIC (See Fig. S-1-7).

c. Solder all pins of the Flat Pack - IC. Make sure that

none of the pins have solder bridges.

Fig. S-1-1

Hot-air Flat Pack-IC Desoldering

CBA

Masking Tape

Tweezers

Flat Pack-IC

Desoldering Braid

Machine

Flat Pack-IC

Fig. S-1-2

Soldering Iron

Fig. S-1-3

1-3-3 SFTY_Z13N

Page 13

Fine Tip Soldering Iron

Sharp Pin

Fig. S-1-4

Hot Air Blower

Iron Wire

Soldering Iron

Presolder

Flat Pack-IC

CBA

Fig. S-1-7

To Solid Mounting Point

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-5

Fig. S-1-6

1-3-4 SFTY_Z13N

Page 14

Instructions for Handling Semiconductors

Electrostatic breakdown of the semiconductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

Ground for Work Bench

Be sure to place a conductive sheet or copper plate with proper grounding (1MΩ) on the work bench or other surface, where the semiconductors are to be placed. Because the static electricity charge on the clothing will not escape through the body grounding band, be careful to avoid contacting semiconductors to clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

1-3-5 SFTY_Z13N

Page 15

PREPARATION FOR SERVICING

How to Enter the Service Mode

Caution: 1

1. Optical sensors system are used for Tape Start and End Sensor on this equipment. Read this page carefully and prepare as described on this page before starting to service; otherwise, the unit may operate unexpectedly.

Preparing: 1

1. Cover Q202 (START SENSOR) and Q201 (END SENSOR) with Insulation Tape or enter the service mode to activate Sensor Inhibition automatically.

Note: Avoid playing, rewinding or fast forwarding the tape to its beginning or end, because both Tape End Sensors are not active.

How to Enter the Service Mode

1. Turn power on.

2. Use service remote control unit and press WAKEUP/SLEEP key. (See page1-6-1)

3. When entering the service mode, one of the number (1, 2 or 4) will display at corners of the screen.

4. During the service mode, electrical adjustment mode can be selected by remote control key (service remote control unit).

Details are as follows

Key Adjustment Mode

Picture adjustment mode: Press the MENU button to change from BRT (Bright), *CNT (Contrast), *COL (Color),

*TNT(Tint) and *V-T. Press CH UP/ DOWN key to display Initial Value. Maximum and Minimum cyclically. *Marked items are not necessary to adjust normally.

C-Trap and Y DL Time TV/Y DL Time EXT/Y SW LPF/Black Stretch Off/ Black Stretch CONT/C. Angle adjustment mode: See adjustment instructions page 1-6-2 and 1-6-3.

Key Adjustment Mode

Purity check mode: Shows Red, Green,

VOL p

Caution: 2

1. The deck mechanism assembly is mounted on the Main CBA directly, and SW211 (REC-SAFETY SW) is mounted on the Main CBA. When deck mechanism assembly is removed from the Main CBA due to servicing, this switch can not be operated automatically.

Blue or White cyclically on the screen each time the "7" key is pressed.

H. Shift adjustment mode: See adjustment instructions page 1-6-4.

V. size/V. shift adjustment: See adjustment instructions page 1-6-4.

Initial Setting mode: See adjustment instructions page 1-6-2. Cut-off Adjustment mode: See adjustment instructions page 1-6-5.

Preparing: 2

1. To eject the tape, press the STOP/EJECT button on the unit (or Remote Control).

2. When you want to record during the Service mode, press the Rec button while depressing SW211 (REC-SAFETY SW) on the Main CBA.

Q201 (END SENSOR)

SW211

(REC-SAFETY SW)

Q202 (START SENSOR)

MAIN CBA

1 No need to use.

3 No need to use.

6 No need to use.

H adjustment mode: See adjustment instructions page 1-6-2.

Auto record mode: Perform recording (15 Sec.)-->Stop-->Rewind (Zero return) automatically.

Head switching point adjustment mode: See adjustment instructions page 1-6-

1-4-1 T4501PFS

Page 16

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[1] REAR CABINET

[2] VCR CHASSIS UNIT

[3] POWER SUPPLY

CBA UNIT

[5] POWER SUPPLY

CBA

[4] TRAY CHASSIS UNIT

[6] DECK UNIT

[7] MAIN CBA

[8] CRT

2. Disassembly Method

REMOVAL

ID/

LOC.

No.

[1]

[2]

[3]

[4]

[5]

[6] Deck Unit 3, 5

[7] Main CBA 3, 5 5(S-9), (S-10) 6 [8] CRT 4 4(S-11) 7

↓

(1)

PART

Rear Cabinet

VCR Chassis Unit

Power Supply CBA Unit

Tr ay Chassis Unit

DC Power Supply CBA

↓

(2)

REMOVE/ *UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/ DESOLDER

1, 2 4(S-1), (S-2), (S-3) 1

Anode Cap, CN505,

3,4,

CRT CBA, CL601,

CN801, CN571

3, 5 4(S-4), CN602 3

3 ---------- -

3, 5 4(S-5) 4

7(S-6), (S-7), (S-8), Desolder (CL201, CL401, CL402, CL403)

↓

(3)

↓

(4)

Note

(5)

↓

(1): Order of steps in Procedure. When reassembling,

follow the steps in reverse order.These numbers are also used as the identification (location) No. of

parts in Figures. (2): Parts to be removed or installed. (3): Fig. No. showing Procedure of Part Location. (4): Identification of part to be removed, unhooked,

unlocked, released, unplugged, unclamped, or

desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Connec-

tor, *=Unhook, Unlock, Release, Unplug, or Desol-

der

2(S-2) = two Screw (S-2) (5): Refer to the following"Reference Notes in the

Table" following.

Reference Notes in the Table

1. Removal of the Rear Cabinet.

Remove Screws 4(S-1), Screw (S-2) and Screw (S-

3).

Caution Caution ##

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

2. Removal of the Tray Chassis.

3. Removal of the Power Supply CBA Unit.

4. Removal of the DC Power Supply CBA.

5. Removal of the Deck Unit.

6. Removal of the Main CBA.

7. Removal of the CRT.

Discharge the Anode Lead of the CRT with the CRT Ground before removing the Anode Cap. Disconnect the following: Anode Cap, CN505, CRT CBA, CL601, CN571 and CN801. Then, pull the Tray Chassis backward.

Remove Screws 4(S-4) and disconnect connector CN602.

Remove Screws 4(S-5).

Remove Screws 7(S-6), (S-7) and (S-8). Then, desolder connectors (CL201, CL401, CL402, CL403) and lift up the Deck Unit.

Remove Screws 5(S-9) and (S-10), and pull up the Main CBA.

Remove Screws 4(S-11) and pull the CRT backward.

1-5-1 T4501DC

Page 17

S-1

S-3

[1] REAR CABINET

S-2

S-1

Fig. 1

S-1

S-3

S-2

S-1

[1] REAR CABINET

Fig. 2

1-5-2 T4501DC

Page 18

S-4

[4] TRAY CHASSIS UNIT

S-6

S-9

[7] MAIN CBA

S-6

[6] DECK UNIT

S-9

[3] POWER SUPPLY CBA UNIT

[5] DC POWER SUPPLY CBA

S-5

S-9

S-7

S-8

S-4

S-5

S-4

S-10

[2] VCR CHASSIS UNIT

Fig. 3

1-5-3 T4501DC

Page 19

[8] CRT

ANODE CAP.

CRT CBA

S-11

Fig. 4

1-5-4 T4501DC

Page 20

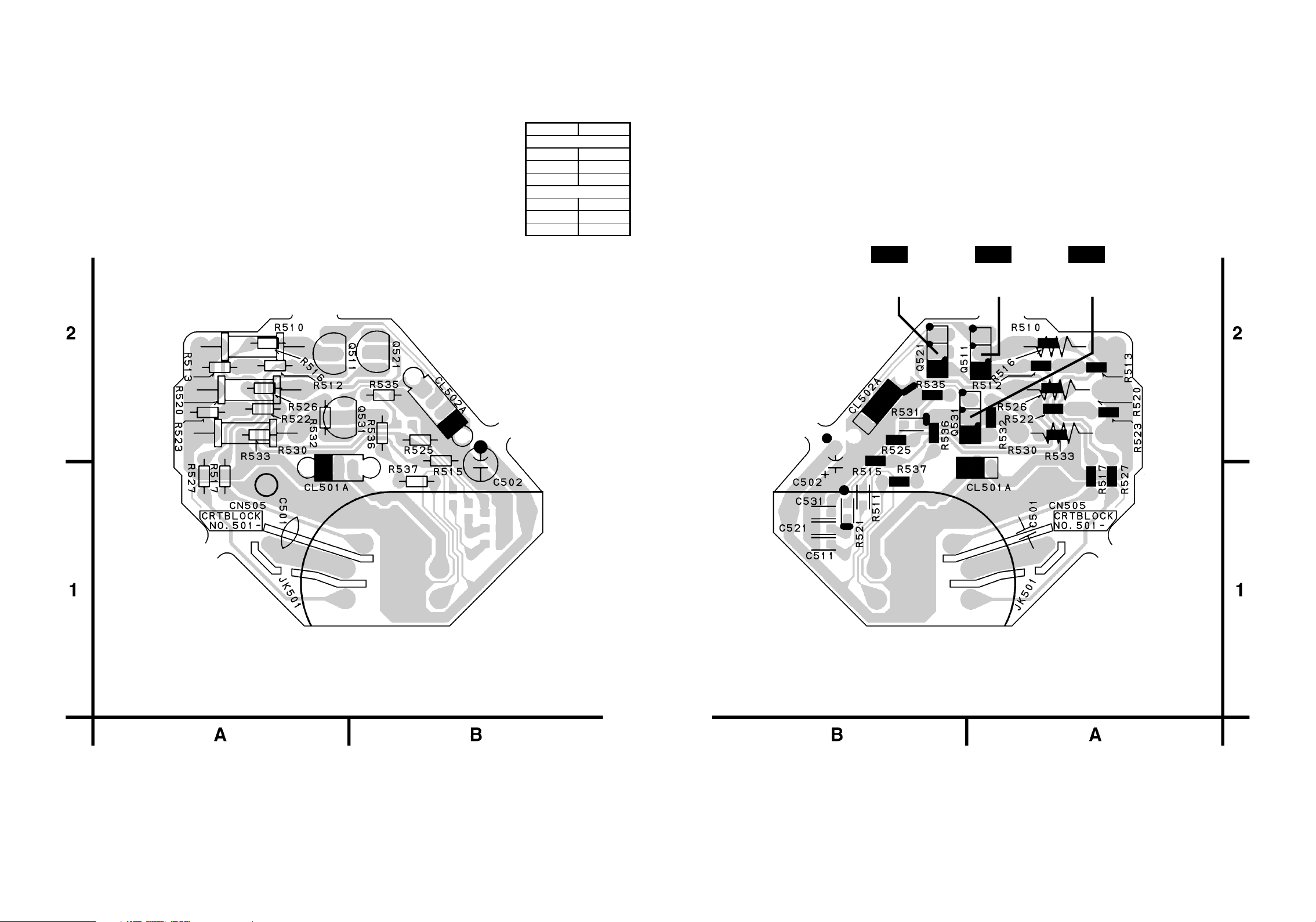

CRT CBA

CRT

TO SPEAKER

MAIN CBA

ANODE

CN801

GND

CL403

CL401

CL502B

CL502A

CL501A

CN505

CL601

TO DEGAUSS COIL

SCREEN

FOCUS

FE HEAD

CL201

CYLINDER ASSEMBLY

CL402

CL501B

ACE HEAD ASSEMBLY

WH1951A

CN602

DC POWER SUPPLY CBA

CN571

CAPSTAN MOTOR

DECK UNIT

Fig. 5

1-5-5 T4501DC

Page 21

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note:

"CBA" is abbreviation for "Circuit Board Assembly."

NOTE:

Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. AC Milli Voltmeter (RMS)

3. Alignment Tape (FL8A, FL8N), Blank Tape

4. DC Voltmeter

5. Oscilloscope: Dual-trace with 10:1 probe,

V-Range: 0.001~50V/Div, F-Range: DC~AC-60MHz

6. Frequency Counter

7. Plastic Tip Driver

How to make service remote control unit:

1. Prepare remote control unit. (Part No. N0107UD or N0150UD) Remove 3 screws from the back lid. (Fig. 1-1)

SCREW

How to Set up the Service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press " WAKE-UP/SLEEP " button on the service remote control unit.

1a. DC 117V (+B) Adjustment

(AC Power)

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dark and

unit does not operate correctly.

Test point Adj. Point Mode Input

D613 Cathode

(+B)

C613

(GND)

Tape M. EQ. Spec.

---

Note: D613 Cathode (+B), C613 (GND), VR601 --Main CBA

1. Connect the unit to AC Power Outlet.

2. Connect DC Volt Meter to D613 Cathode (+B) and C613 (GND).

3. Adjust VR601 so that the voltage of D613 Cathode (+B) becomes +117±0.5V DC.

VR601 --- -----

DC Voltmeter

Plastic Tip Driver

+117±0.5V DC

Remote control unit (Bottom)

2. Remote control unit: Part No. N0107UD Add J1 (Jumper Wire) to the remote control CBA. (Fig. 1-2)

J 1

Remote control CBA

Remote control unit: Part No. N0150UD Cut off pin 10 of the remote control microprocessor and short circuit pins 10 and 17 of the microprocessor with a jumper wire.

Note: The remote control with the unit cannot be used as service remote control unit.

Fig. 1-1

Fig. 1-2

1b. DC 117V (+B) Adjustment

(DC Power)

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dark and

unit does not operate correctly.

Test point Adj. Point Mode Input

D613 Cathode

(+B)

C613

(GND)

Tape M. EQ. Spec.

---

Note: VR1951 --- HV/DC Power Supply CBA

D613 Cathode (+B), C613 (GND) --- Main CBA

1-6-1 T4501EA

VR1951 --- -----

DC Voltmeter

Plastic Tip Driver

+117±0.5V DC

Page 22

1. Input 13.2V DC to DC Jack.

2. Connect DC Volt Meter to D613 Cathode (+B) and C613 (GND).

3. Adjust VR1951 so that the voltage of D613 Cathode (+B) becomes +117±0.5V DC.

2. Initial Setting

General

1. Enter the Service mode. (See page 1-4-1)

2. Press "VOL p" button on the service remote control

unit. Display changes "C/D," "7F," "FM," "ACCESS CODE," "9V," and "RC5" cyclically when "VOL p" button is pressed.

3. To set each data value shown below, press "CH o

/ p" buttons on the service remote control unit.

7F --- Set to "FF."

4. C-Trap Adjustment

Purpose: To get minimum leakage of the color signal

carrier. Symptom of Misadjustment: If C-Trap Adjustment is

incorrect, stripes will appear on the screen.

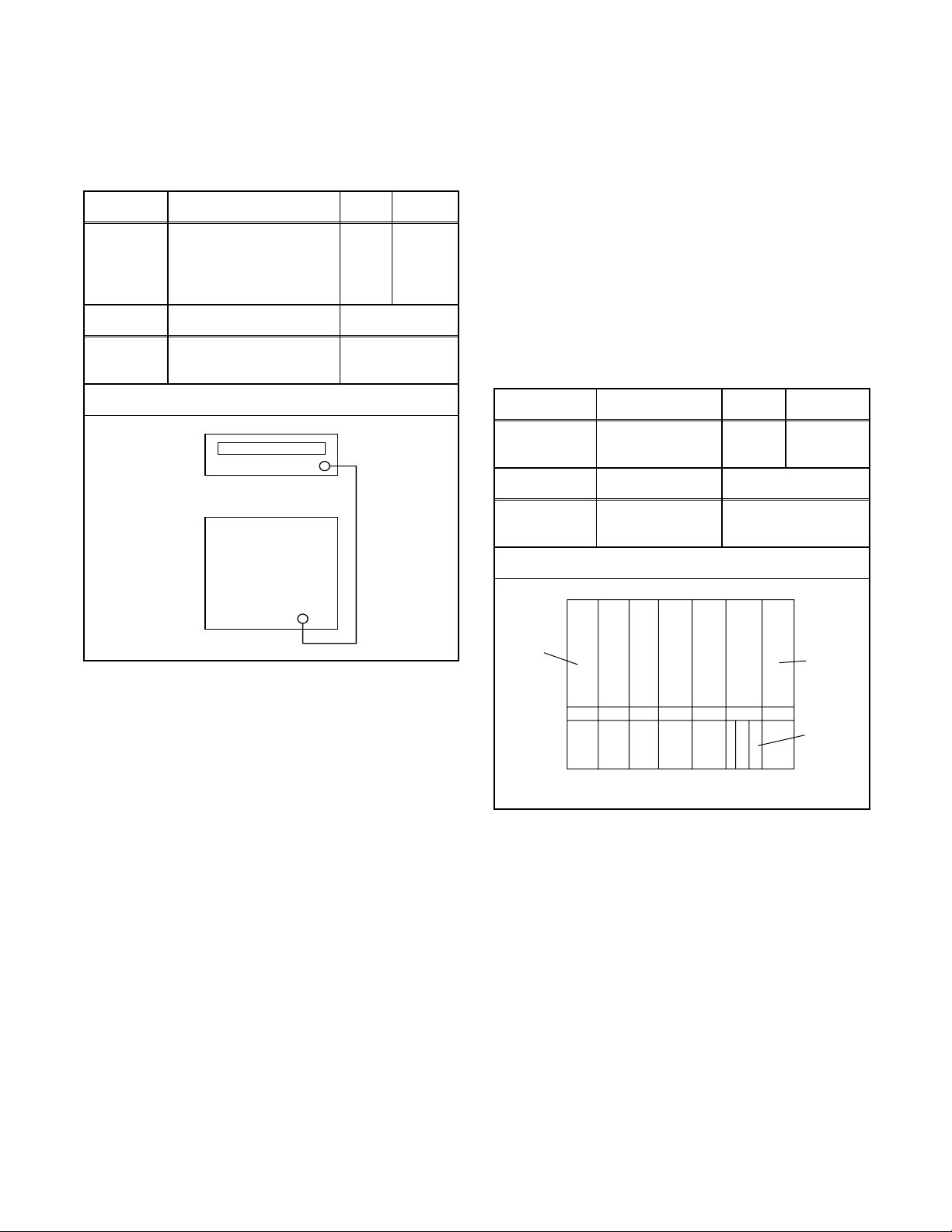

Test point Adj. Point Mode Input

J271

Tape M. EQ. Spec.

---

CH o / p

buttons

Oscilloscope

Pattern Generator

Figure

--- Color Bar

---

FM --- Set to "OFF."

ACCESS CODE --- Set to "OFF."

9V --- Set to "OFF."

RC5 --- Set to "OFF."

Note: C/D data value does not need to be adjusted at

this moment.

3. H Adjustment

Purpose: To get correct horizontal position and size of

screen image. Symptom of Misadjustment: Horizontal position and

size of screen image may not be properly displayed.

Test point Adj. Point Mode Input

R583

Tape M. EQ. Spec.

--- Frequency Counter 15.734kHz±300Hz

Note: R583 --- Main CBA

1. Connect Frequency Counter to R583.

2. Set the unit to the VIDEO mode and no input is necessary. Enter the Service mode. (See page 1-4-1.)

3. Operate the unit for at least 20 minutes.

4. Press "2" button on the remote control unit and select H-Adj mode.

5. Press CH o / p buttons on the remote control unit so that the display will change "0" to "7." At this moment, choose display "0" to "7" when the Frequency counter display is closest to

15.734kHz±300Hz.

6. Turn the power off and on again.

CH o / p

buttons

Video ---

minimum

Fig. 2

Note: J271--- Main CBA

1. Connect Oscilloscope to J271.

2. Input a color bar signal from RF input. Enter the Service mode. (See page 1-4-1.)

3. Press "0" button on the remote control unit and select C-TRAP mode.

4. Press CH o / p buttons on the remote control unit so that the carrier leakage B-Out (3.58MHz) value becomes minimum on the oscilloscope.

5. Turn the power off and on again.

1-6-2 T4501EA

Page 23

5. Y DL Time TV/Y DL Time EXT/ Y SW LPF/Black Stretch Off/ Black Stretch CONT/C. Angle Adjustment

Purpose: To get minimum leakage of the color signal

carrier. Symptom of Misadjustment: If Y DL Time Adjust-

ment is incorrect, stripes will appear on the screen.

1. Enter the Service mode. (See page 1-4-1.)

2. Y DL Time TV Adjustment: Press "0" button on

the service remote control unit twice to show "D-T TV" on the display. Y DL Time EXT Adjustment: Press "0" button on the service remote control unit three times to show "D-T EXT" on the display. Y SW LPF Adjustment: Press "0" button on the service remote control unit four times to show "Y SW" on the display. Black Stretch Off Adjustment: Press "0" button on the service remote control unit five times to show "B-S" on the display. Black Stretch CONT Adjustment: Press "0" button on the service remote control unit six times to show "BS2" on the display. C. Angle Adjustment: Press "0" button on the service remote control unit seven times to show "CANG" on the display.

3. Y DL Time TV Adjustment: Select "2" by pressing

"CH o / p" buttons on the service remote control. Y DL Time EXT Adjustment: Select "2" by pressing "CH o / p" buttons on the service remote control. Y SW LPF Adjustment: Select "1" by pressing "CH o / p" buttons on the service remote control. Black Stretch Off Adjustment: Select "OFF" by pressing "CH o / p" buttons on the service remote control. Black Stretch CONT Adjustment: Select "0" by pressing "CH o / p" buttons on the service remote control. C. Angle Adjustment: Select "103" by pressing "CH o / p" buttons on the service remote control.

C-TRAP Adjustment (Factory mode)

"0" button

C-TRP 0 C-TRP 1

"0" button

CH button

Y DL Time TV Adjustment

D-T TV 0 D-T TV 1

"0" button

button

CH button

Y DL Time EXT Adjustment

D-T EXT 0 D-T EXT 1

"0" button

button

CH button

Y SW LPF Adjustment

Y SW

"0" button

button

0 Y SW

CH button

Black Stretch Off Adjustment

B-S OFF

"0" button

button

CH button

Black Stretch CONT Adjustment

BS2 0

button

CH button

B-S 0

BS2 1

"0" button

C. Angle Adjustment

C-ANG 103

button

CH button

C-ANG 95

1-6-3 T4501EA

Page 24

6. V. Size Adjustment

8. H. Shift Adjustment

Purpose: To obtain correct vertical height of screen

image. Symptom of Misadjustment: If V. Size is incorrect,

vertical height of image on the screen may not be properly displayed.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-4-1.)

Press "9" button on the remote control unit and select V-S mode. (Press "9" button then display will change to V-P and V-S).

2. Input monoscope pattern.

3. Press CH o / p buttons on the remote control unit

so that the monoscope pattern is 90±5% of display size and the circle is round.

CH o / p

buttons

--- Monoscope

7. V. Shift Adjustment

Purpose: To obtain correct horizontal position and

size of screen image. Symptom of Misadjustment: Horizontal position and

size of screen image may not be properly displayed.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-4-1.) Press "8" button on the remote control unit and select H-P mode.

2. Input monoscope pattern.

3. Press CH o / p buttons on the remote control unit so that the left and right side of the monoscope pattern are equal to each other.

4. Turn the power off and on again.

CH o / p

buttons

--- Monoscope

Purpose: To obtain correct vertical position of screen image.

Symptom of Misadjustment: If V. position is incorrect, vertical position of image on the screen may not be properly displayed.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-4-1.) Press "9" button on the remote control unit and select V-P mode. (Press "9" button then display will change to V-P and V-S).

2. Input monoscope pattern.

3. Press CH o / p buttons on the remote control unit so that the top and bottom of the monoscope pattern are equal to each other.

CH o / p

buttons

--- Monoscope

1-6-4 T4501EA

Page 25

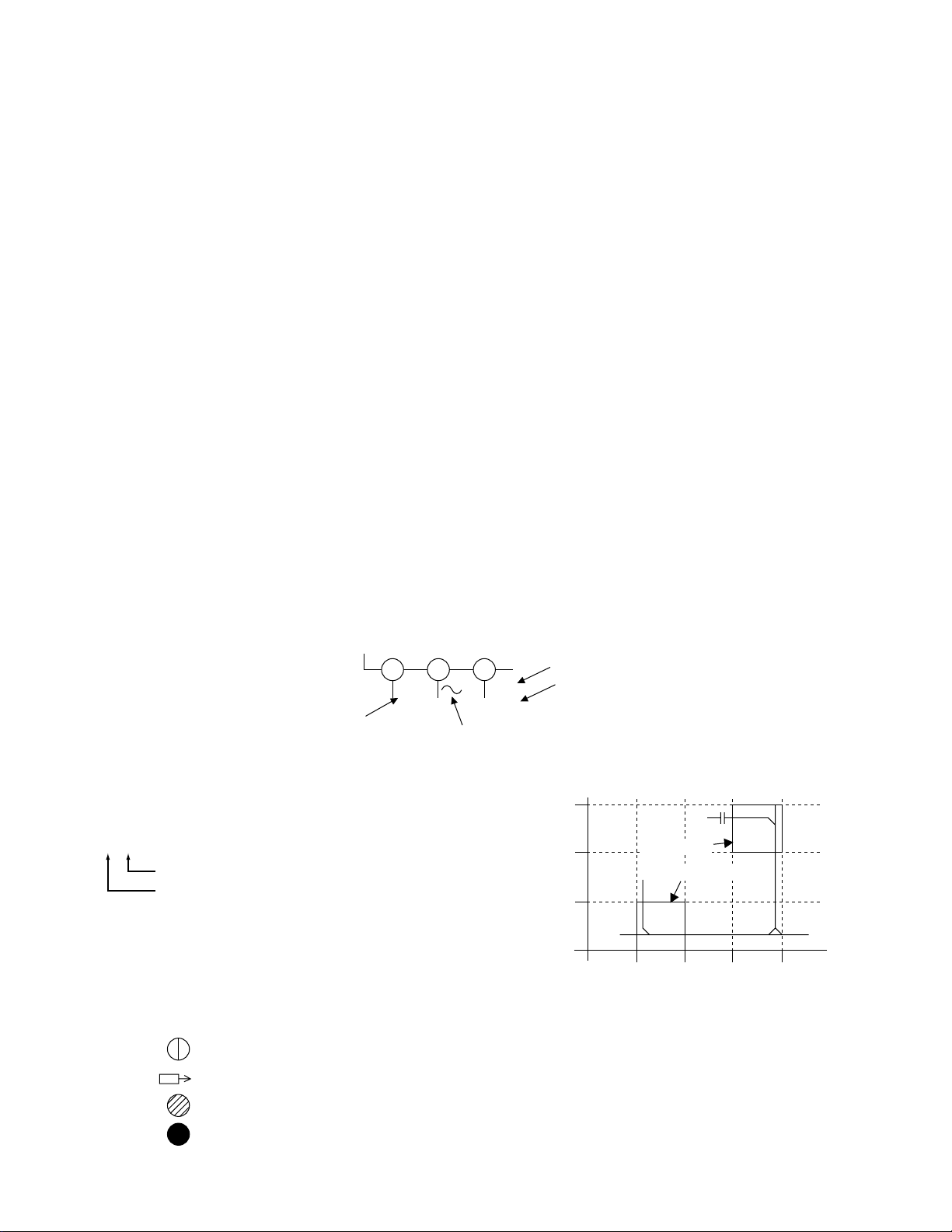

9. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage. Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

Test point Adj. Point Mode Input

Black

--- Screen-Control Ext.

Tape M. EQ. Spec.

--- Pattern Generator

See Reference

Raster /

White

Raster

Notes below

9. Input the White Raster Signal from Video In.

10.Choose CUT OFF/DRIVE mode then press "4." Adjust the RED DRIVE as needed with the CH o / p buttons to get the following value, X= 286, Y=

294.

11.Choose CUT OFF/DRIVE mode then press "5." Adjust the BLUE DRIVE as needed with the CH o / p buttons to get the following value, X= 286.

12.Turn the power off and on again.

10. Sub-Brightness Adjustment

Purpose: To get proper brightness. Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by adjusting the Brightness Control.

Figure

PATTERN GENERATOR

EXT. INPUT

Fig. 3

Notes: Screen Control FBT --- HV/DC Power Supply

CBA F.B.T= Fly Back Transformer Use the Remote Control Unit

1. Degauss the CRT and allow CRT to operate for 20 minutes before starting the alignment.

2. Set the screen control to minimum position. Input the Black raster signal from RF input.

3. Enter the Service mode. (See page 1-4-1.) Dimmed horizontal line appears on the CRT.

4. Press the "VOL p" button. (Press "VOL p" then display will change CUT OFF/ DRIVE adjustment).

5. Choose CUT OFF/DRIVE mode then press "1" button. This adjustment mode is CUT OFF (R).

6. Press the "CH o / p" button until the horizontal line becomes white.

7. Choose CUT OFF/DRIVE mode then press "2" button. This adjustment mode is CUT OFF (G). Press "CH o / p" until the horizontal line becomes white.

8. Choose CUT OFF/DRIVE mode then press "3" button. This adjustment mode is CUT OFF (B). Press "CH o / p" until the horizontal line becomes white.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

CH o / p

buttons

Pattern

Generator

Figure

---

White

SYMPTE

7.5 IRE

See below

Black

This bar just visible

Fig. 4

Note: SYMPTE Setup level --- 7 IRE

1. Enter the Service mode. (See page 1-4-1.) Then input SYMPTE signal from RF input.

2. Press MENU button. (Press MENU button then display will change BRT, CNT, COL, TNT, V-T and SHP). Select BRT and press CH o / p buttons so that the bar is just visible (See above figure).

3. Turn the power off and on again.

1-6-5 T4501EA

Page 26

11. Focus Adjustment

Purpose: Set the optimum Focus. Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test point Adj. Point Mode Input

--- Focus Control --- Monoscope

Tape M. EQ. Spec.

--- Pattern Generator See below.

Note: Focus VR (FBT) --- MAIN CBA FBT= Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and degauss the CRT using a Degaussing Coil.

3. Input the monoscope pattern.

4. Adjust the Focus Control on the FBT to obtain clear picture.

12. Head Switching Position Adjustment

The following 2 adjustments normally are not attempted in the field. They should be done only when replacing the CRT then adjust as a preparation.

14. Purity Adjustment

Purpose: To obtain pure color. Symptom of Misadjustment: If Color Purity Adjust-

ment is incorrect, large areas of color may not be properly displayed.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator See below.

Deflection Yoke

Purity Magnet

Figure

--- *Red Color

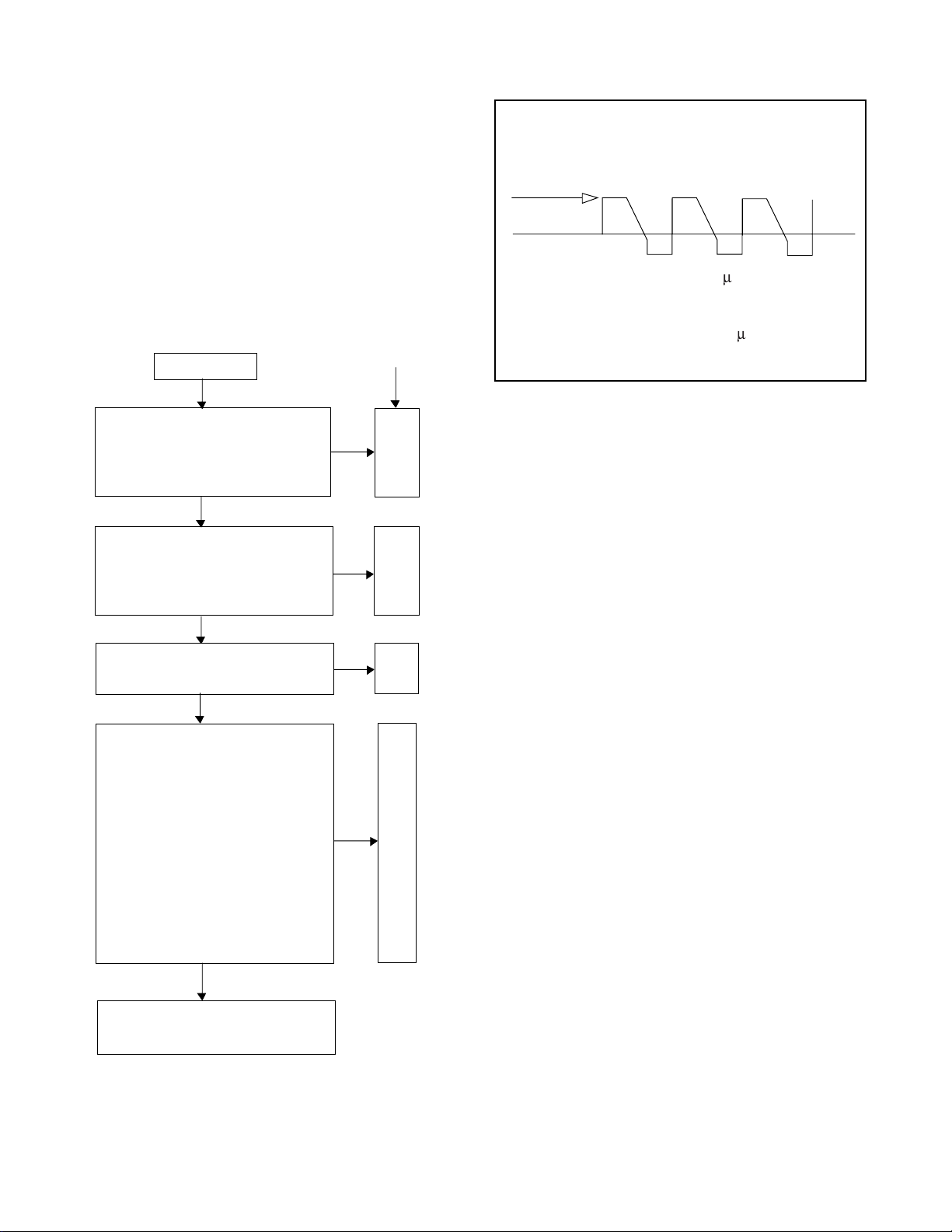

Purpose: Determine the Head Switching Point during Playback.

Symptom of Misadjustment: May cause Head Switching Noise or Vertical Jitter in the picture.

Note: Unit reads Head Switching Position automatically and displays it on the screen (Upper Left Corner).

1. Playback test tape (FL8A, FL8N).

2. Enter the Service mode. (See page 1-4-1.) Then press the number "5" button on the remote control unit.

3. The Head Switching position will display on the screen; if adjustment is necessary follow step 4.

6.5H(412.7µs) is preferable.

4. Press "CH o" or "CH p" button on the remote control unit if necessary. The value will be changed in

0.5H steps up or down. Adjustable range is up to

9.5H. If the value is beyond adjustable range, the display will change as:

Lower out of range: 0.0H Upper out of range: -.-H

5. Turn the power off and on again.

13. CCS Text Box Location

When replacing the CRT, the CCS Box might not stay in appropriate position. Then, replace micro computer.

Note: This adjustment automatically done by the microcomputer.

GREEN

* This becomes RED COLOR if push 7KEY with a

service mode.

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjusting.

3. Fully degauss the unit using an external degaussing coil.

4. Set the unit to the AUX mode which is located before CH2 then input a red raster from video in.

5. Loosen the screw on the Deflection Yoke Clamper and pull the Deflection Yoke back away from the screen. (See Fig. 6.)

6. Loosen the Ring Lock and adjust the Purity Magnets so that a red field is obtained at the center of the screen. Tighten Ring Lock. (See Fig. 5,6.)

7. Slowly push the Deflection Yoke toward the bell of the CRT and set it where a uniform red field is obtained.

8. Tighten the clamp screw on the Deflection Yoke.

RED

BLUE

Fig. 5

1-6-6 T4501EA

Page 27

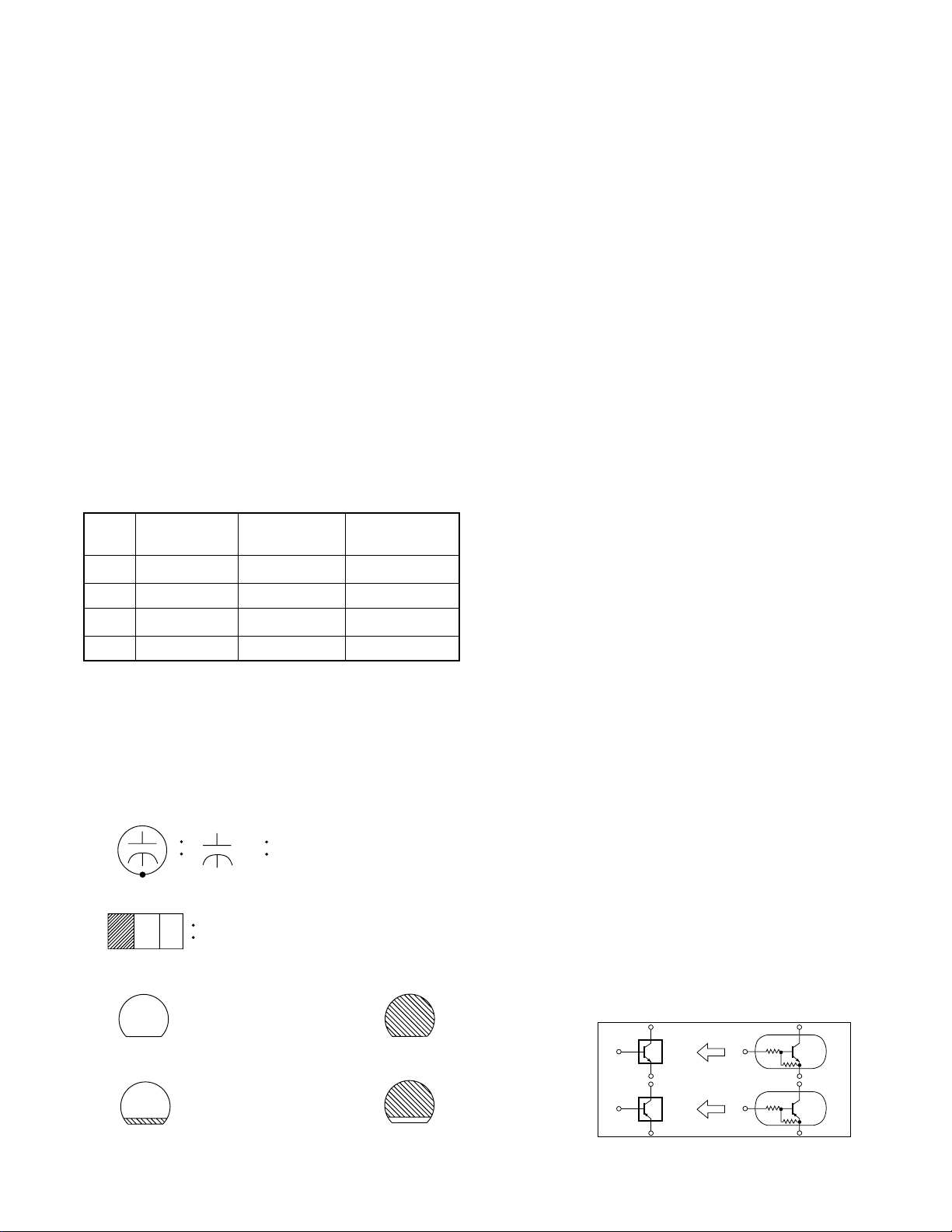

15. Convergence Adjustment

Purpose: To obtain proper convergence of red, green

and blue beams. Symptom of Misadjustment: If Convergence Adjust-

ment is incorrect, the edge of white letters may have color edges.

Test point Adj. Point Mode Input

C.P. Magnet (RB),

---

C.P. Magnet (RB-G),

Deflection Yoke

Tape M. EQ. Spec.

--- Pattern Generator See below.

Figure

---

Dot Pattern

Crosshatch

1. Set the unit to the AUX mode which is located before CH2 then input a Dot or crosshatch pattern.

2. Loosen the Ring Lock and align red with blue dots or Crosshatch at the center of the screen by rotating (RB) C.P. Magnets. (See Fig. 7.)

3. Align red / blue with green dots at the center of the screen by rotating (RB-G) C.P. Magnet. (See Fig. 8.)

4. Fix the C.P. Magnets by tightening the Ring Lock.

5. Remove the DY Wedges and slightly tilt the Deflection Yoke horizontally and vertically to obtain the best overall convergence.

6. Fix the Deflection Yoke by carefully inserting the DY Wedges between CRT and Deflection Yoke.

DY WEDGE

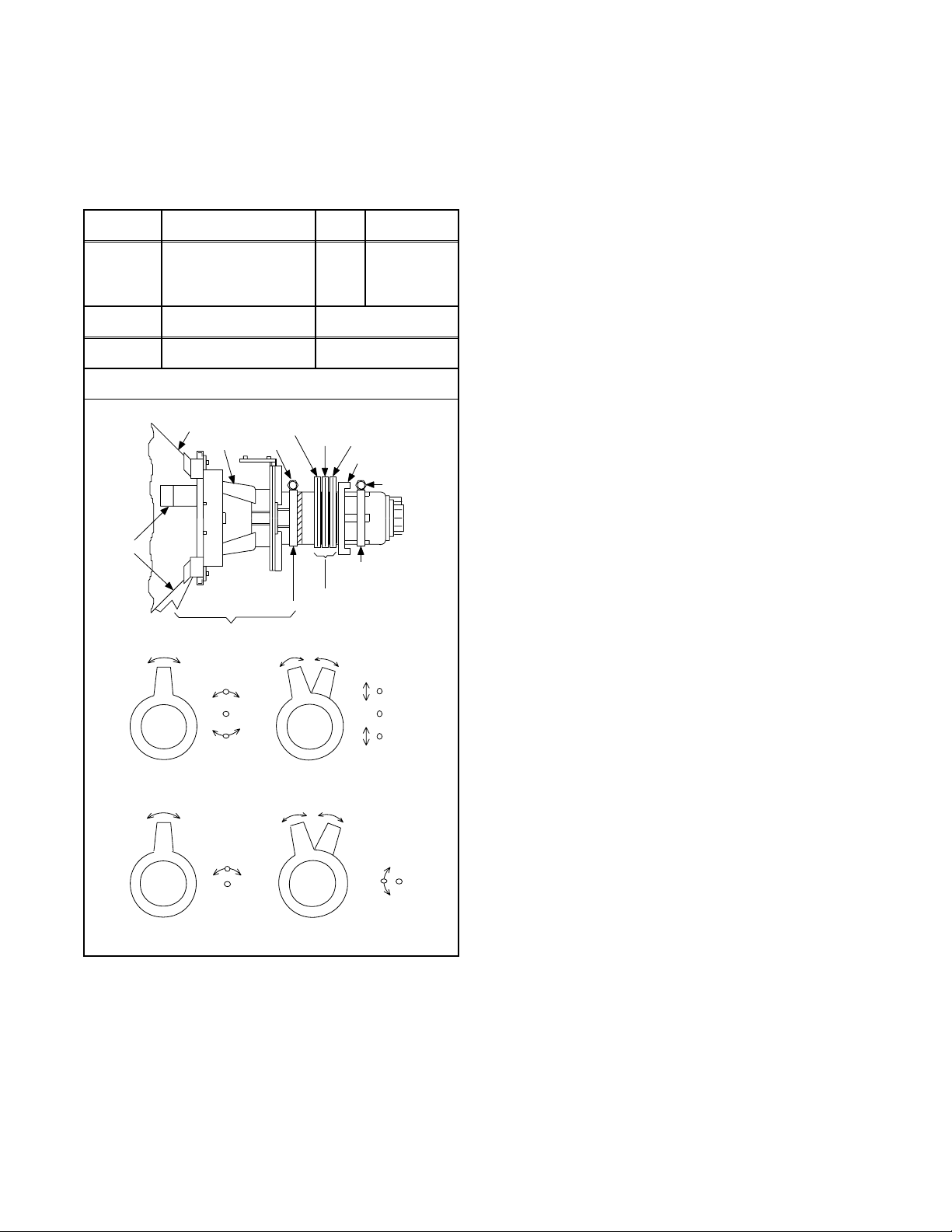

CRT

COIL

COIL CLAMPER

DEFLECTION YOKE

PURITY

SCREW

C.P. MAGNET (RB)

C.P. MAGNET (RB-G)

RB-G

RING LOCK

C.P. MAGNET CLAMPER

C.P. MAGNET

SCREW

Fig. 6

Fig. 7

Fig. 8

1-6-7 T4501EA

Page 28

BLOCK DIAGRAMS

Servo/System Control Block Diagram

CHROMA/TUNER

BLOCK

AL+5V

AFT

SCL

SDA

C-SYNC

AFT-IN

C-SYNC

EXT-L

KEY

SW201 SW204,SW206

SWITCH

SW205,SW207 SW210

KEY 1

KEY 0

TO POWER

SUPPLY BLOCK

P-ON-H

P-DOWN

P-ON-H

P-DOWN

D204 REC

REC LED

(MEMORY)

SCL

IC202

SCL

SDA

C-OPEN

EXT-L

SCL

SDA

SP-MUTE

AUDIO BLOCK

A-MUTE

D-REC-H

EXT-H/INSEL

A-MUTE

D-REC-H

SP-MUTE

REC/EE/PB

REC

SW211

REC-SAFETY

SAFETY

V-ENV

DV-SYNC

REC/EE/PB

V-ENV

DV-SYNC

REC/EE/PB

ROTA

RF-SW

VIDEO BLOCK

RENTAL

SPL-PLAY

SP/LP/SLP

EXT-H/INSEL

RENTAL

SPL-PLAY

SP/LP/SLP

EXT-H/INSEL

IC201

(SERVO/SYSTEM CONTROL)

RS201

AL+5V

D203

MAIN CBA

REMOTE

SENSOR

S-LED

CTL AMP-OUT

CTL(+)

TP201

CTL

WF3

CL402

55CTL(+)

CTL(-)

66CTL(-)

LD-SW

SW212

LD-SW

ST-SENS.

T-REEL

END-SENS.

T-REELST-SENS.

END-SENS.

Q201

Q202 Q206

RESET

Q205

RESET

TIMER+5V

SENSOR CBA

(END-SENSOR)

SENSOR CBA

(ST-SENSOR)

C-F/R

C-FG

P-ON+12V

P-ON+5V

1P-ON+12V

2P-ON+5V(2)

3C-FG

4C-F/R

CL201

CAPSTAN

CAPSTAN MOTOR

MOTOR

C-CONT

6FG-GND

C-CONT

D-PFG

LD-CONT82D-CONT

7LD-CONT

9D-PFG

D-CONT

D/L+12V

10M-GND

11D/L+12V

DEF+B

12D/L+15V

)

ASSEMBLY

(DECK

AC HEAD ASSEMBLY

CONTROL

HEAD

1-7-1

SENSOR

CYLINDER ASSEMBLY

DRUM

MOTOR

T4501BLS

Page 29

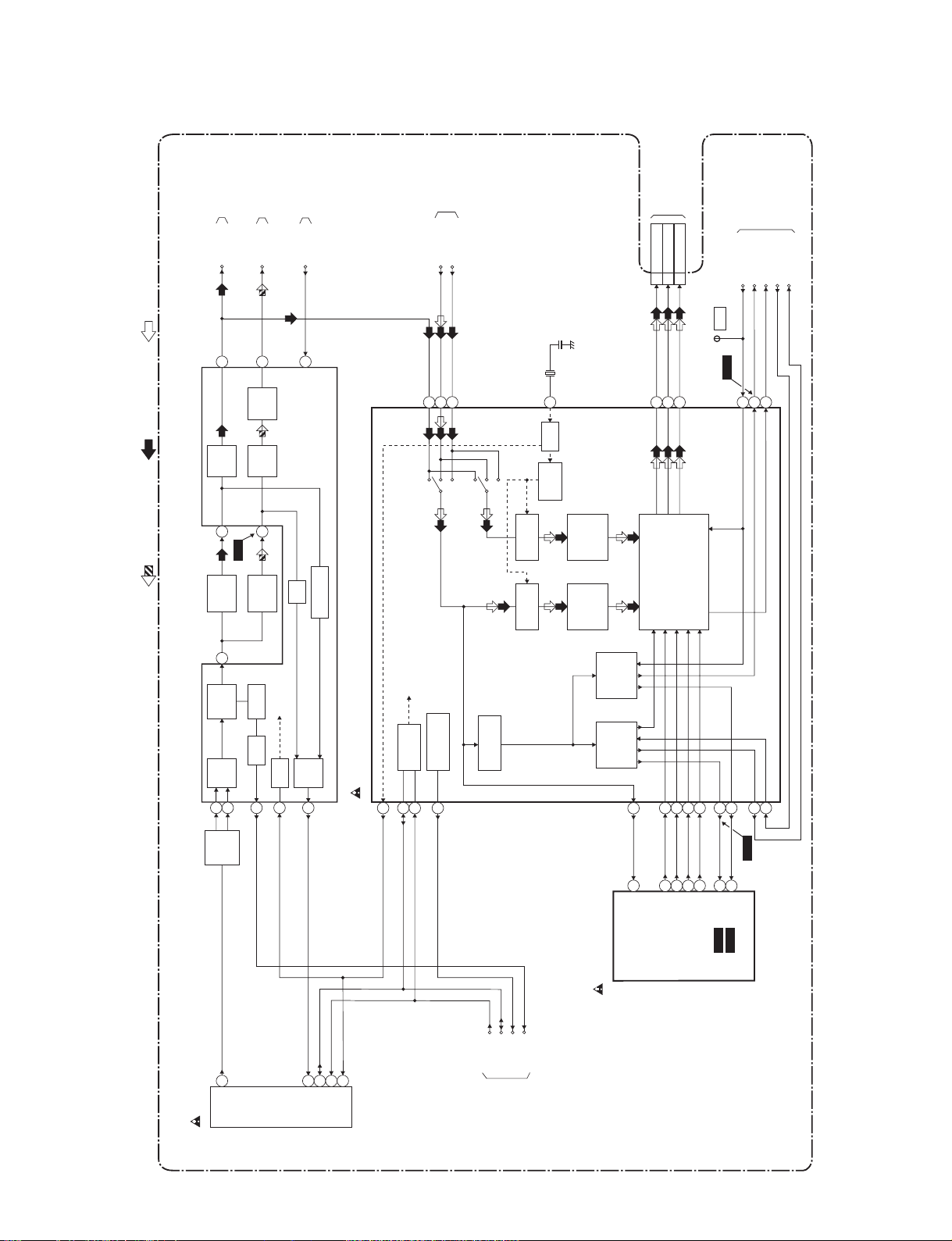

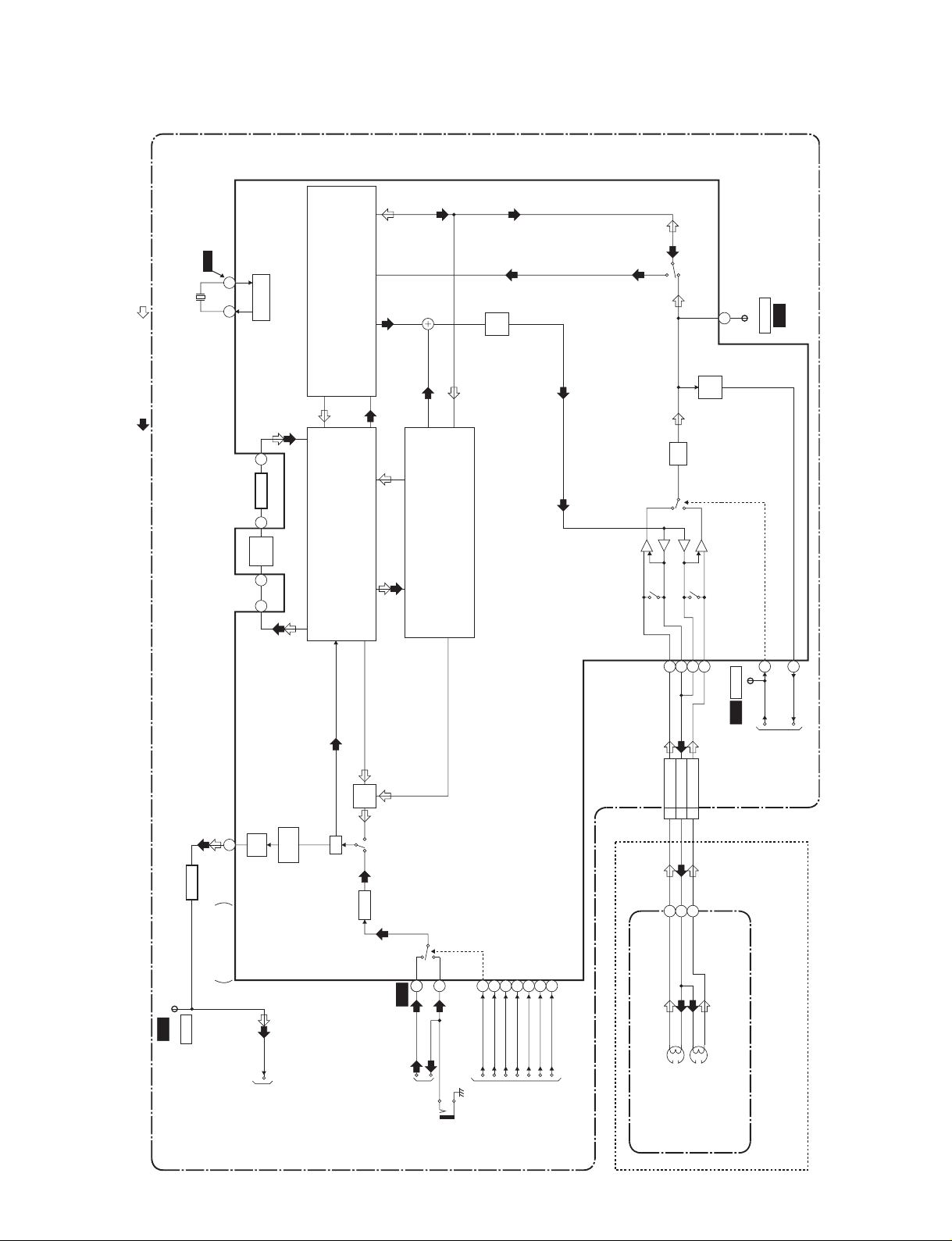

Video Block Diagram

X401

3.58MHz

REC VIDEO SIGNAL PB VIDEO SIGNAL MODE: SP/REC

MAIN CBA

WF2

6162

VXO

Q402

BUFFER

CCD 1H

45 47 49 44

DELAY

LUMINANCE

SIGNAL PROCESS

DOC YNR Y/C COMB

CHROMINANCE

SIGNAL PROCESS

AGC

AMP

DET

ENV

HPF

J274

RF-SW

WF1

TP402

RF-SW

V-ENV

WF6

V-ENV

WF5

Q401

TP301

BUFFER

V-OUT

IC401

VIDEO/AUDIO

SIGNAL PROCESS

6dB

AMP

CHARA

VIDEO

TO CHROMA/

TUNER BLOCK

MIX

FBC

Y/C

V-AGC

MIX

TUNER

WF4

TU-VIDEO

TO CHROMA/

LINE

LINE-VIDEO

TUNER BLOCK

JK701

REAR V-IN

1-7-2

REC/EE/PB

RENTAL 361671

REC/EE/PB

RENTAL

EXT-H/INSEL

SPL-PLAY

SERVO/SYSTEM

SP/LP/SLP

DV-SYNC

ROTA

TRICK

395973

DV-SYNC

SP/LP/SLP

ROTA

CONTROL BLOCK

V-COM

V(L)

CL401

321

VIDEO (L) HEAD

CYLINDER ASSEMBLY

(DECK ASSEMBLY)

V(R)

VIDEO (R) HEAD

SERVO/SYSTEM

CONTROL BLOCK

T4501BLV

Page 30

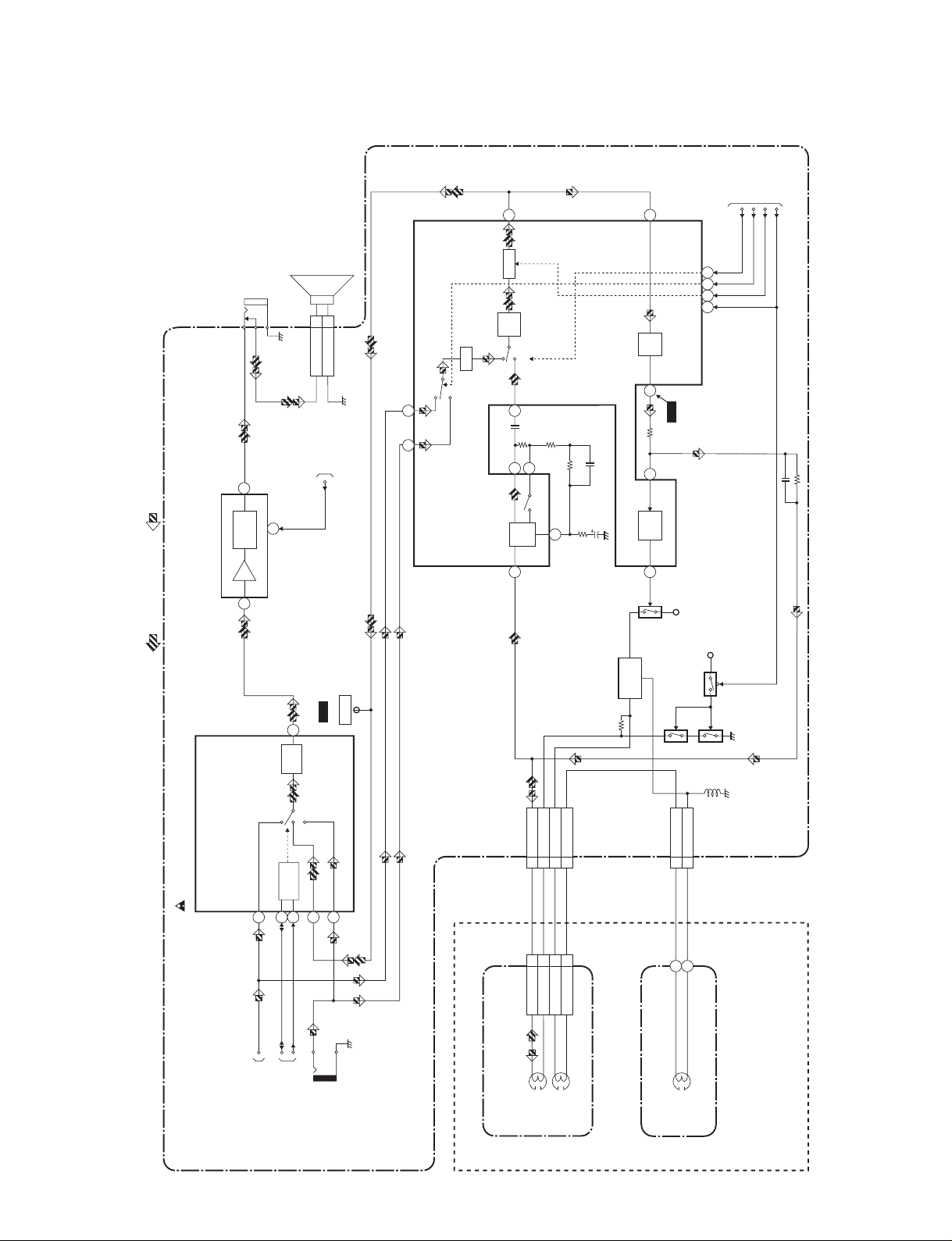

Audio Block Diagram

JK801

EARPHONE JACK

Mode : SP/REC

SP801

CLN802

CN801

SPEAKER

SERVO/

SPEAKER

SP-GND 2

SYSTEM

CONTROL

BLOCK

SERVO/

SYSTEM

CONTROL

BLOCK

REC

6 7

AMP

WF9

D-REC-H

11 12 71 16

A-MUTE

REC/EE/PB

EXT-H/INSEL

D-REC-H

MUTE

LINE

AMP

ALC

TUNER

LINE

80 76

100

MAIN CBA

PB-AUDIO SIGNAL REC-AUDIO SIGNAL

IC301(VIDEO/AUDIO SIGNAL PROCESS)

IC801 (AMP)

AMP

MUTE

OUTPUT

241415

TUNER

AUDI O

ATT

LINEVCR

I/F

SERIAL

SP-MUTE

WF8

TP401

A-OUT

(AUDIO PROCESS)

IC401

CL402

SP/LP-ON

AMP

A-COM

A-PB/REC 431

3A-COM

AE-H

AE-H/FE-H 2

Q872

BIAS

OSC

AUTO

Q871

BIAS

Q873

CL403

FE-H 2

P-ON+5V

Q875

FE-H-GND 1

P-ON+5V

Q874

TU-AUDIO

CHROMA/TUNER

BLOCK

SCL

SDA

SERVO/SYSTEM

JK702

CONTROL BLOCK

A-IN

CN287

A-PB/REC

AE-H

AE-H/FE-H

AC HEAD ASSEMBLY

AUDIO

HEAD

AUDIO

ERASE

HEAD

BLOCK DIAGRAM FOR SECTION 2 (DECK MECHANISM)

1-7-3

FE HEAD UNIT

FULL

ERASE

HEAD

T4501BLA

Page 31

Chroma/Tuner Block Diagram

MAIN CBA

REC VIDEO SIGNAL PB VIDEO SIGNAL Mode : SP/REC

REC-AUDIO SIGNAL

TU VIDEO TO VIDEO BLOCK

AMP

WF7

TO AUDIO BLOCKTOSERVO/ SYSTEM

TU AUDIO

AMP

DET

CONTROL BLOCK

EXT-L

VCO F/B

VIDEO

TUNER

VCR

VIDEO BLOCK

LINE-VIDEO

LINE

VCR

TUNER

LINE

X301

CHROMA

3.58MHz

BPF

VXCO

FILTER

TUNING

CHROMA

SIGNAL

PROCESS

CIRCUIT

RED 2

CL502B

CRT/H.V. BLOCK

CL502A

GREEN3

BLUE 4

453

AFC

TP302

WF11

AFC

CRT/H.V. BLOCK

H-DRIVE

ACL

V-RAMP-NF

V-DRIVE

CF031

IC100 (IF SIGNAL PROCESS)

SF001

TU001

4.5MHz

TRAP

VIDEO

DET

VIF

AMP

SAW

FILTER

CF032

4.5MHz

FILTER

VCO

AFT

AMP

LPF

AGC

IF AGC DET

SCL

SDA

IC301 (VIDEO/AUDIO/CHROMA/DEFLECTION)

FSC

OSD MIX/RBG MATRIX/

BLIGHT/DRIVE AMP/

CHROMA

TRAP

LUMA

SIGNAL

PROCESS

CIRCUIT

H-SYNC

PROCESS

CIRCUIT

V-SYNC

PROCESS

IC201

(SYSTEM CONTROL/OSD)

CIRCUIT

CV-IN

INTELLIGENT

MONITORING

SYNC

SCL

SEPARATION

SDA

AFT

C-SYNC

SERIAL

I/F

HV BLANKING

101112

626364

OSD-B

OSD-R

OSD-G

OSDT-BLK

595860

V-SYNC

WF18

H-SYNC

WF17

WF10

1-7-4

SERVO/SYSTEM

CONTROL BLOCK

T4501BLC

Page 32

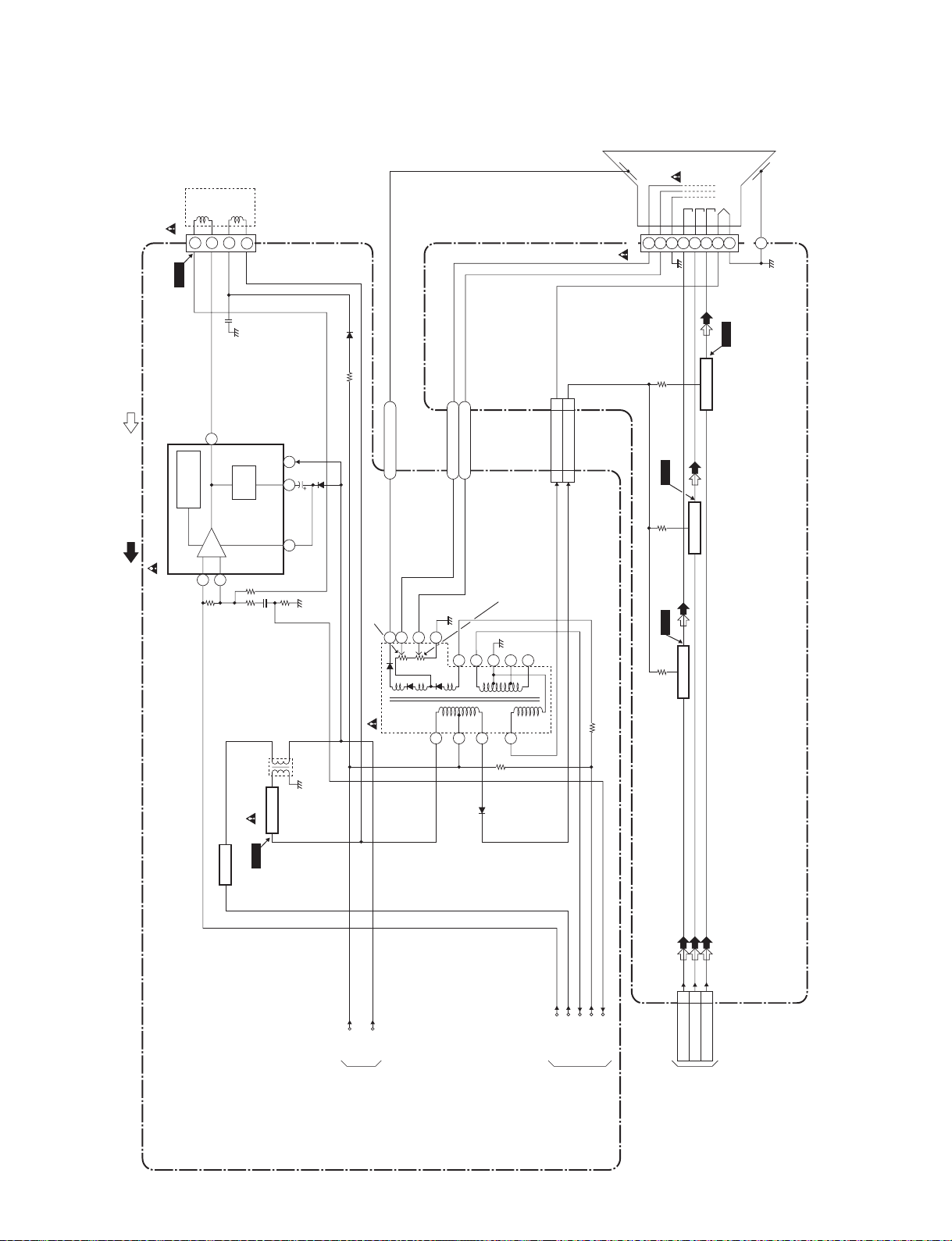

CRT/H.V. Block Diagram

V-

DRIVEH-DRIVE

DEFLECTION-YOKE

543

WF13

Mode : SP/REC

CN571

ANODE

JK501

FOCUS

SCREEN

GND

V501

RGB

CRT

HEATER

GND

CN505

WF16

REC VIDEO SIGNAL PB VIDEO SIGNAL

IC551 (V-DEFLECTION CONTROL)

THERMAL

PROTECTION

AMP

WF15WF14

Q511

GREEN AMP

Q521

RED AMP

BLUE AMP

Q531

CRT CBA

CL501ACL501B

VCC

T572

Q571

H.OUTPUT

3 2

PUMP

ANODE

FOCUS VR

T571 F.B.T.

FOCUS

SCREEN

33HEATER

11P-ON+160V

SCREEN VR

MAIN CBA

Q572

H.DRIVE

WF12

2RED

3GREEN

4BLUE

CL502A

DEF+B

POWER SUPPLY

BLOCK

1-7-5

V-DRIVE

H-DRIVE

AFC

ACL

V-RAMP-NF

CHROMA/TUNER

BLOCK

CHROMA/TUNER

BLOCK CL502B

T4501BLCRT

Page 33

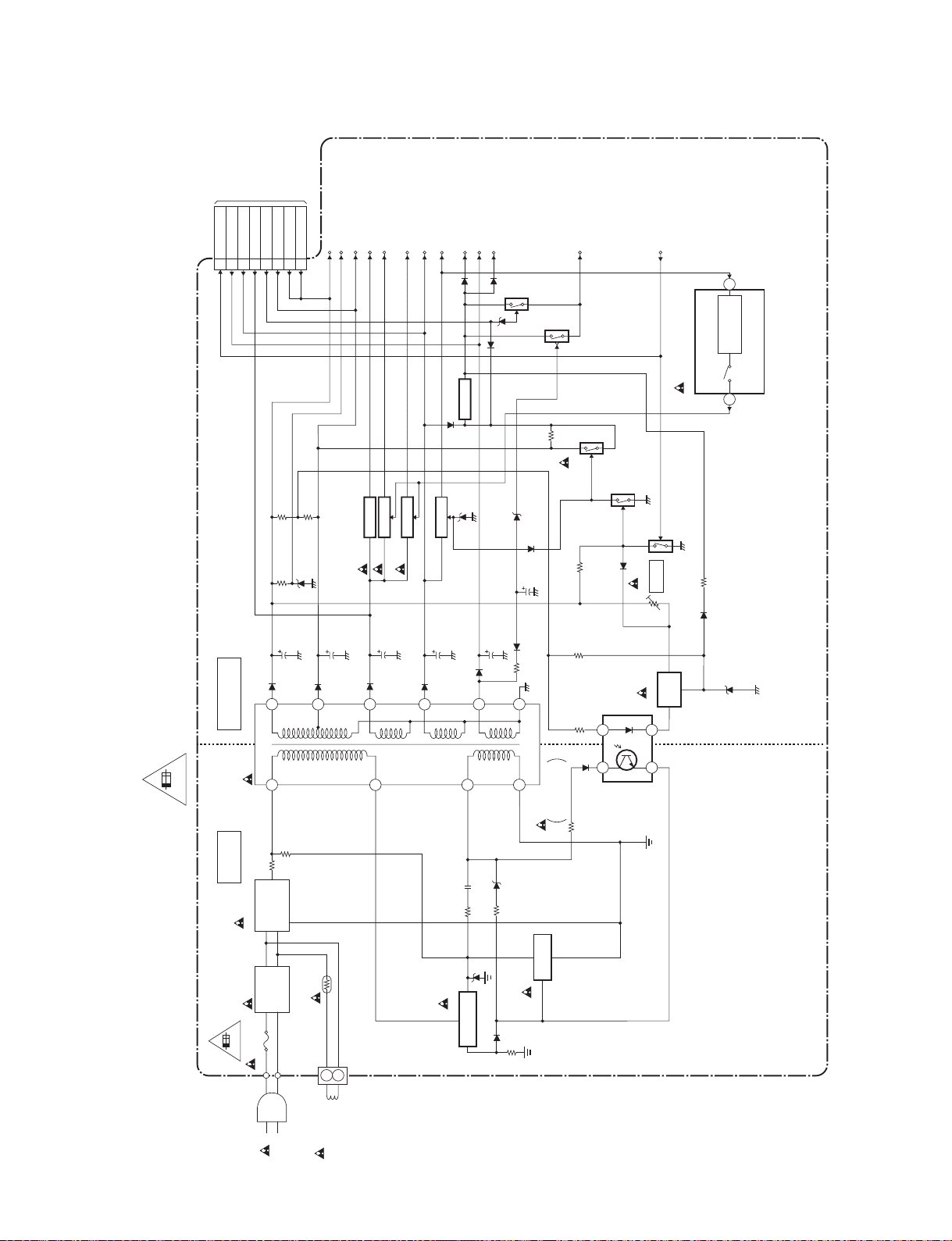

Power Supply Block Diagram

DC POWER

SUPPLY BLOCK

CN1951

DEF+B

AL+33V

P-ON+5V

1 P-ON-H

3 P-ON+12V

5 AL+12V

7 P-ON+9V

8 DC+13V

10 DEF+B

13 +B

14 +B

CN602

NOTE :

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

AL+12V

P-ON+5V

P-ON+8V

Q609

P-ON+12V

AL+5V

+5V REG.

TIMER+5V

Q958

Q612

P-DOWN

(TO PIN84 OF IC201)

Q606

Q607

P-ON-H

(TO PIN31 OF IC201)

IC301

3027

+5.7V

REGULATOR

P-ON-ON

MAIN CBA

+5V REG.

IC602

Q608

Q611

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,

REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.

CAUTION:

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

4A 125V

T601

HOT COLD

BRIDGE

RECTIFIER

D603 - D606

FILTER

PS601

L601

LINE

+8V REG.

Q610

Q601

Q605

+B ADJ.

VR601

FEED

BACK

4 1

IC601

ERROR

VOLTAGE DET

LIMITER

Q602

Q604

3 2

4A 125V

F601

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

W601

CL601

DG1601

DEGAUSSING

COIL

SWITCHING

1-7-6

T4501BLP

Page 34

DC Power Supply Block Diagram

TO POWER

13578

SUPPLY BLOCKCN602

101314

NOTE :

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,

REPLACE ONLY WITH SAME TYPE 8 A, 125V FUSE.

ADJ.

VR1951

CAUTION:

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 8A, 125V.

8A 125V

T1951

6 8

WH1951B

13578

1 P-ON-H

3 P-ON+12V

WH1951A CN1951

5 AL+12V

7 P-ON+9V

Q1953

101314

8 DC+13V

10 DEF+B

JUNCTION CBA

13 +B

14 +B

SW/CTL

Q1954,

Q1955

Q1952

Q1956

Fixed voltage power supply circuit is used in this unit.

If Main Fuse (F1951) is blown, check to see that all components in the power supply

circuit are not defective before you connect the DC plug to the DC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

JK1951

DC JACK

F1951

DC IN

8A 125V

8A/125V

Q1931

Q1933

OSC

IC1951 (PWM CONTROL)

1-7-7

Q1930

DRIVE

Q1932

SHORT

PROTECTION

6 5 7

DC POWER SUPPLY CBA

Q1951

T4501BLD

Page 35

MECHANICAL TROUBLE INDICATOR

1, Each Malfunction Indication

If the MONITOR is turned ON right after the Mechanical Malfunction occurs or POWER SAFETY is turned ON, display the following character to show Malfunc-

tion after the EJECT display.

Immediately preceding

Malfunction REEL Malfunction R DRUM Malfunction D CASSETTE LOADING Mal-

function TAPE LOADING Malfunction T P-SAFETY 2 2 P-SAFETY 3 3 P-SAFETY 1 1

Example: If REEL Malfunction

EJECT R

Display character

2, Each Malfunction evaluation method

P-SAFETY 1 protect

If P-SAFETY 1 port becomes continuously 2.5V or more for 120 msec. (4 times 40 msec. interval), the unit shall immediately turn OFF the POWER/MONITOR and switch over to the Mechanical Malfunction mode with POWER OFF.

(To return from this mode shall become possible only by POWER Key as in the case of the Mechanical Malfunction).

POWER SAFETY

1) POWER SAFETY 2 If P-SAFETY 2 port becomes continuously 2.5V or

less for 120 msec. (4 times 40 msec. interval) when P-ON-H port is ON, the unit shall be assumed to be the Power Malfunction 2 and immediately turn OFF the POWER/MONITOR and switch over the Mechanical Malfunction mode with POWER OFF.

(Shall not unload) (To return from this mode shall become possible

only by POWER Key as in the case of the Mechanical Malfunction).

* However the POWER SAFETY 2 function shall be disabled during 500 msec. right after the P-ON-H turns ON.

2) POWER SAFETY 3 If P-SAFETY 3 port becomes continuously 2.5V or

over for 120 msec. (4 times 40 msec. interval) when MONITOR is ON, P-SAFETY 3 function is available. After that, if P-SAFETY 3 port becomes continuously 2.5V or less for 120 msec. (4 times 40 msec. interval), the unit shall be assumed to be the Power Malfunction 3 and immediately turn OFF the POWER/MONITOR and switch over the Mechanical Malfunction mode with POWER OFF.

(Shall not unload) (To return from this mode shall become possible

only by POWER Key as in the case of the Mechanical Malfunction).

1-7-8 T4501MTI

Page 36

Mechanical Malfunction determination

1) REEL Malfunction detection Countermeasure for REEL and CAPSTAN motor

rotation malfunction (Except CASSETTE LOADING function)

After the Malfunction detection with REEL/CAPSTAN sensor, the unit shall switch over to STOP (B) and be REEL Mechanical Malfunction.

a) If the T-REEL pulse is not impressed after a lapse

of 5 sec. at SP, 10 sec. at LP, 14 sec. at SLP, or more in the REEL Rotation Mode like PLAY/REC, FS/RS Mode, and the T-REEL or S-REEL pulse is not impress after a lapse of 4 sec. or more in REEL Rotation Mode of FF/REW, it shall be assumed to stop the rotation and switch over to STOP (B) position, then POWER be turned OFF and the unit be REEL Mechanical Malfunction. (T-REEL and SREEL for the models on S-REEL and only T-REEL for other models)

b) If the C-FG pulse is not impressed for a lapse of 1

sec. or more during the CAPSTAN MOTOR rotation, it shall be MOTOR Rotation Malfunction (REEL Malfunction).

2) DRUM Malfunction detection Detect the DRUM rotation at the D-FG input termi-

nal. If the variation of D-FG input level is not detected

for a lapse of 1 sec. or more when D-CONT is "H", it shall be assumed to be Rotation Malfunction and be DRUM Malfunction.

When detect Drum Malfunction, POWER shall be turned OFF after the unit switches over to STOP (B) Mode.

3) Countermeasure for TAPE LOADING Malfunction Detect the Malfunction with the LOADING Switch.

a) TAPE LOADING Malfunction

If LD-SW does not go to the established position after a lapse of 7 sec. or more from TAPE LOADING or TAPE UNLOADING start, the LOADING function shall immediately be stopped and POWER be turned OFF, and inform the Timer about the LOADING Mechanical Malfunction.

b) LD-SW Position Malfunction at each mode

When the unit operates at each mode, even if the LD-SW position changes from the established one in its mode, it keeps the function according to its mode.

4) Countermeasure for CASSETTE LOADING Malfunction

a) CASSETTE IN operating Malfunction

If LD-SW does not go to SB position after a lapse of 5 sec. or more from the CASSETTE insertion start, the unit starts the CASSETTE OUT operation.

After switch over to CASSETTE OUT operation and then a laps of 5 sec. or more from the CASSETTE OUT operation start, if LD-SW does not go to the EJ position or if START Sensor and END Sensor does not turn "ON" at the EJ position, the unit starts again to insert CASSETTE.

(However in S-INH state, the START/END Sensor shall be disabled).

b) CASSETTE OUT operating Malfunction

After a lapse of 5 sec. or more from CASSETTE OUT operation start, if LD-SW does not go to the EJ position or if START Sensor and END Sensor does not turn "ON" at the EJ position, the unit starts to insert CASSETTE.

(However in S-INH state, the START/END Sensor shall be disabled).

When the unit switches over to CASSETTE insertion at CASSETTE IN or CASSETTE OUT Malfunction, if LD-SW does not go to the SB position after a lapse of 5 sec. or more from CASSETTE insertion start, the function shall immediately be stopped and POWER be turned OFF, and the unit be CASSETTE LOADING Malfunction.

c) When POWER is turned ON, if the CL position or

GC position cannot be detected after 5 sec. LDREV operation and 5 sec. LD-FWD operation, the function shall immediately be stopped and POWER be turned OFF, and the unit be CASSETTE LOADING Malfunction.

d) When POWER is turned ON without CASSETTE

(EJ position) and LD-SW is monitored all the time, if the CL or GC position is detected continuously for 1 sec. or more, the POWER shall be turned OFF and the unit be CASSETTE LOADING Malfunction.

Countermeasure for Mechanical Malfunction

If the unit detects Mechanical Malfunction, turn the POWER OFF. If the unit is Mechanical Malfunction, Key input except POWER key shall be disabled and CASSETTE insertion disabled. When POWER Key is entered, the POWER is turned ON and the unit switches over the EJECT Mode. (Return with POWER ON)

1-7-9 T4501MTI

Page 37

Power Supply Trouble Shooting Guide

It is highly recommended that a variable isolation transformer which can monitor current be used. (Alternatively a variable AC source which monitors current will do). Read directions below before power is added

CHECK

Repair method

Check Fuse (F601) is blown out or not. If fuse is blown out,

YES

do repair method #1

Check whether the primary rectifying DC of the Switching power supply has an output.

(Reading should be about 168V.

YES

Voltage of the 105V line higher than normal?

YES

The transformer of the power supply makes a higher sound or the oscillation wave form is abnormal. (E.g. intermittent oscillation) Connect the positive probe of oscilloscope to the pin 16 of

YES

T601, then connect the negative probe to the pin 12. Observe the waveform and check to see if the waveform is out of limit of value shown in Fig.1.

Voltage approx. 5Vp-p

T=Approx. 6 to 14 sec

Oscilloscope setting: 1V/DIV.

2 sec./DIV

Fig.1

Repair method #1

(Power must be off) Short circuit in the secondary side. check diode D613,

D614, D616, D617 and D618, switching transistor (Q601), control transistor (Q602), diode and resistor replace as necessary.

Disconnect 105V diode (D613), 25V diode (D614), 8V diode (D616), 12V diode (D617), 12V diode (D618) and Check the load continuity of 105V line, 25V line, 8V line, 12V line through a tester (resistance range).

If the tester indicates a lower resistance value around 0 ohm, the line is short-circuited.

Before repairing the switching power supply, find out the short-circuited area of such line and repair it.

If the tester does not indicate any low resistance value (around 0 ohm), no load is short-circuited and there is no problem.

Check for any defective parts while the secondary rectifying diodes are disconnected (D613, D614, D616, D617 and D618) perform a diode check in both forward and reverse directions through a tester.

There is no problem on the SW power supply

1-7-10 T4501TR1

Page 38

Repair method #2

Check the primary rectifying diodes (D603-D606) as possible problems. Remove the above mentioned parts and check them. Perform check according to the step 1 and 2 of repair method #1 and check for defects following parts, then if necessary replace with factory originals.

R602 is open or not. Q601, Q602, D607, D608 and D611 are short or not.

Repair method #3

The feedback circuit which is monitored by the output of D613 105V may not work and this may be regarded as a possible cause, remove IC601 (Photo Coupler), diode (D620) and transistor (Q604) check for defects.

Repair method #4

Check control circuitly which is connecting to Pin 2 and 1 of Switching Transformer T601.

1-7-11 T4501TR1

Page 39

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

Warning

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Capacitor Temperature Markings

Mark

(B)

(F) +30 -80% 20°C -25~+85°C

Capacity

change rate

±10%

Standard

temperature

20°C -25~+85°C

Temperature

range

Note:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

M=10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF

-6

(P=10

5. All voltages are DC voltages unless otherwise specified.

µF).

(SR)

(Z) +30 -80% 20°C -10~+70°C

Capacitors and transistors are represented by the following symbols.

±15%

20°C -25~+85°C

CBA Symbols

(Top View) (Bottom View)

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

E C B

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

(Top View)

E C B

NPN Digital Transistor

(Top View)

PNP Digital Transistor

E C B

1-8-1 SC_1

Page 40

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE_A,_V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are listed

with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect). (2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "•" is a leadless (chip) component.

6. Mode: SP/REC

7. Voltage indications for PLAY and REC modes on the schematics are as shown below:

PLAY mode REC mode

ABCD

AREA D3

1-D3

The same voltage for both PLAY & REC modes

8. How to read converged lines

1-D3

Distinction Area Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

5.0

231

5.0 (2.5)

Indicates that the voltage is not consistent here.

Unit: Volts

1-B1

AREA B1

9. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

1-8-2 SC_2

Page 41

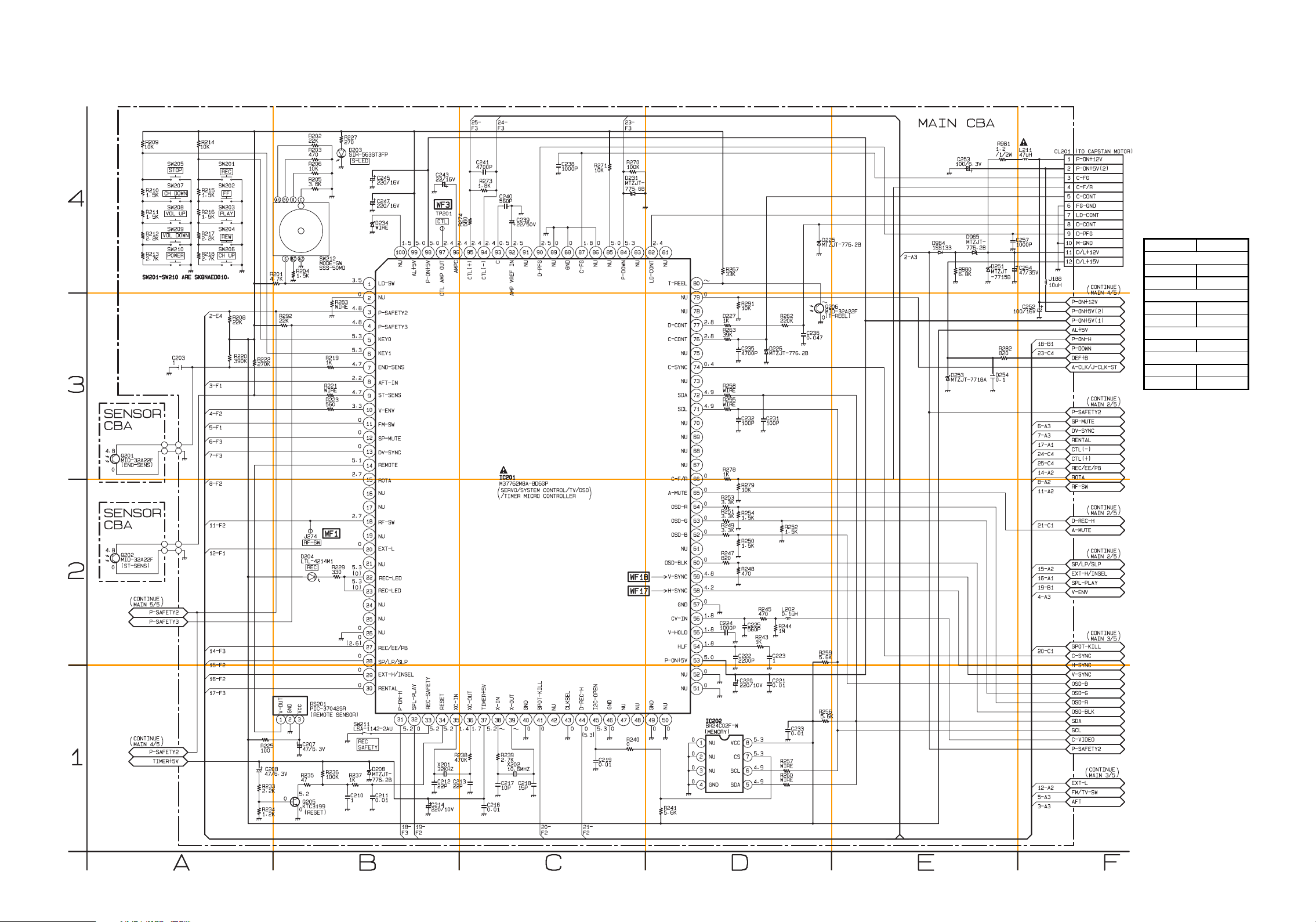

Main 1/5 Schematic Diagram

MAIN 1/5

Ref No. Position

IC201

C-3

IC202

D-1

Q205

B-1

Q206

D-3

CL201 F-4

J274 B-2

TP201 B-4

CONNECTOR

ICS

TRANSISTORS

TEST POINTS

1-8-3 1-8-4

T4501SCM1

Page 42

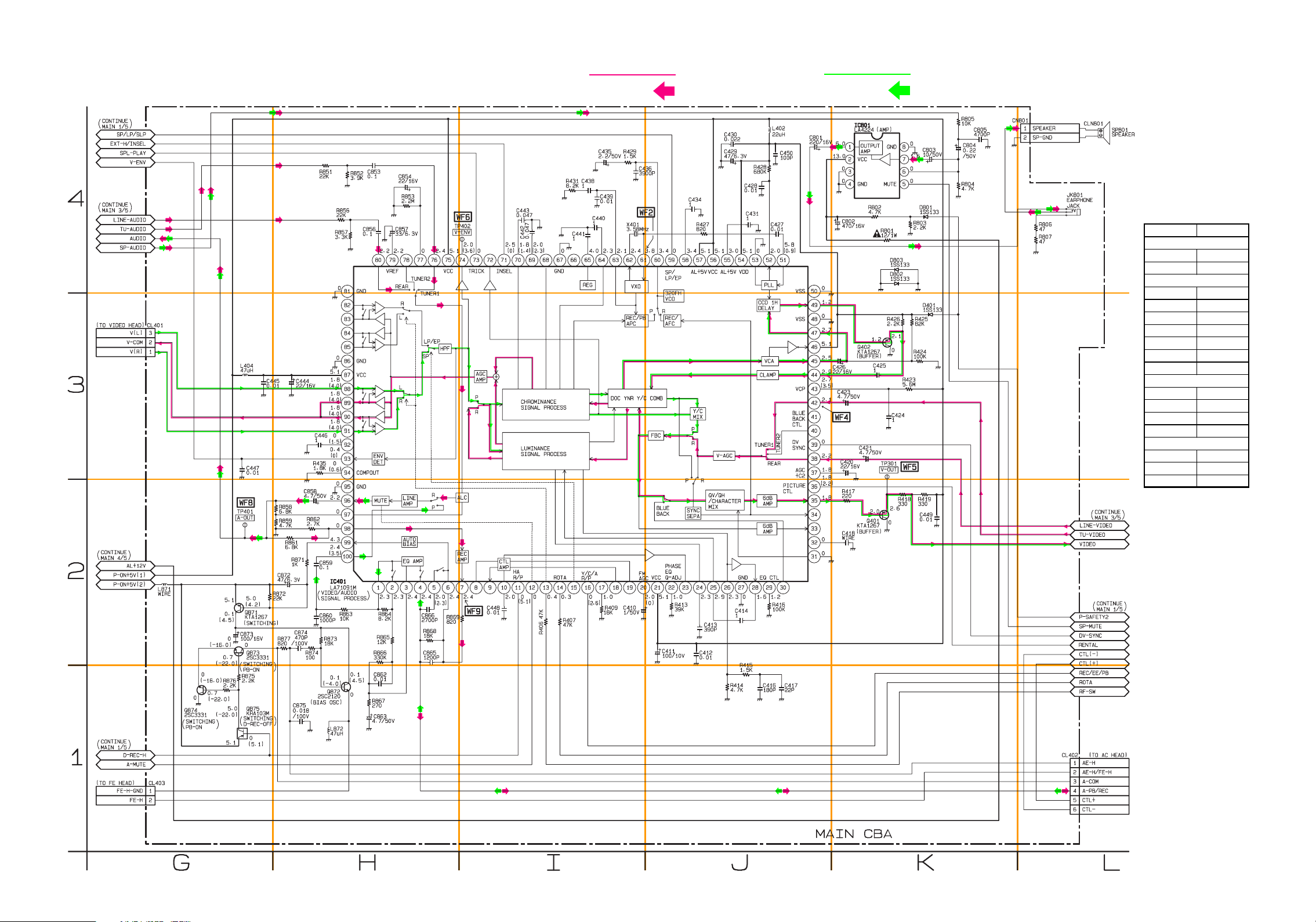

Main 2/5 Schematic Diagram

MAIN 2/5

Ref No. Position

IC401

H-2

IC801

K-4

Q401

K-2

Q402

K-3

Q871

G-2 Q872 H-1 Q873

G-2 Q874

G-1 Q875 G-1

CL401

G-3

CL402 L-1 CL403

G-1

CN801

L-4

TP301

K-3

TP401

G-2

TP402 I-4

CONNECTOR

ICS

TRANSISTORS

TEST POINTS

REC Video Signal

REC Audio Signal

PB Video Signal

PB Audio Signal

1-8-5

1-8-6

T4501SCM2

Page 43

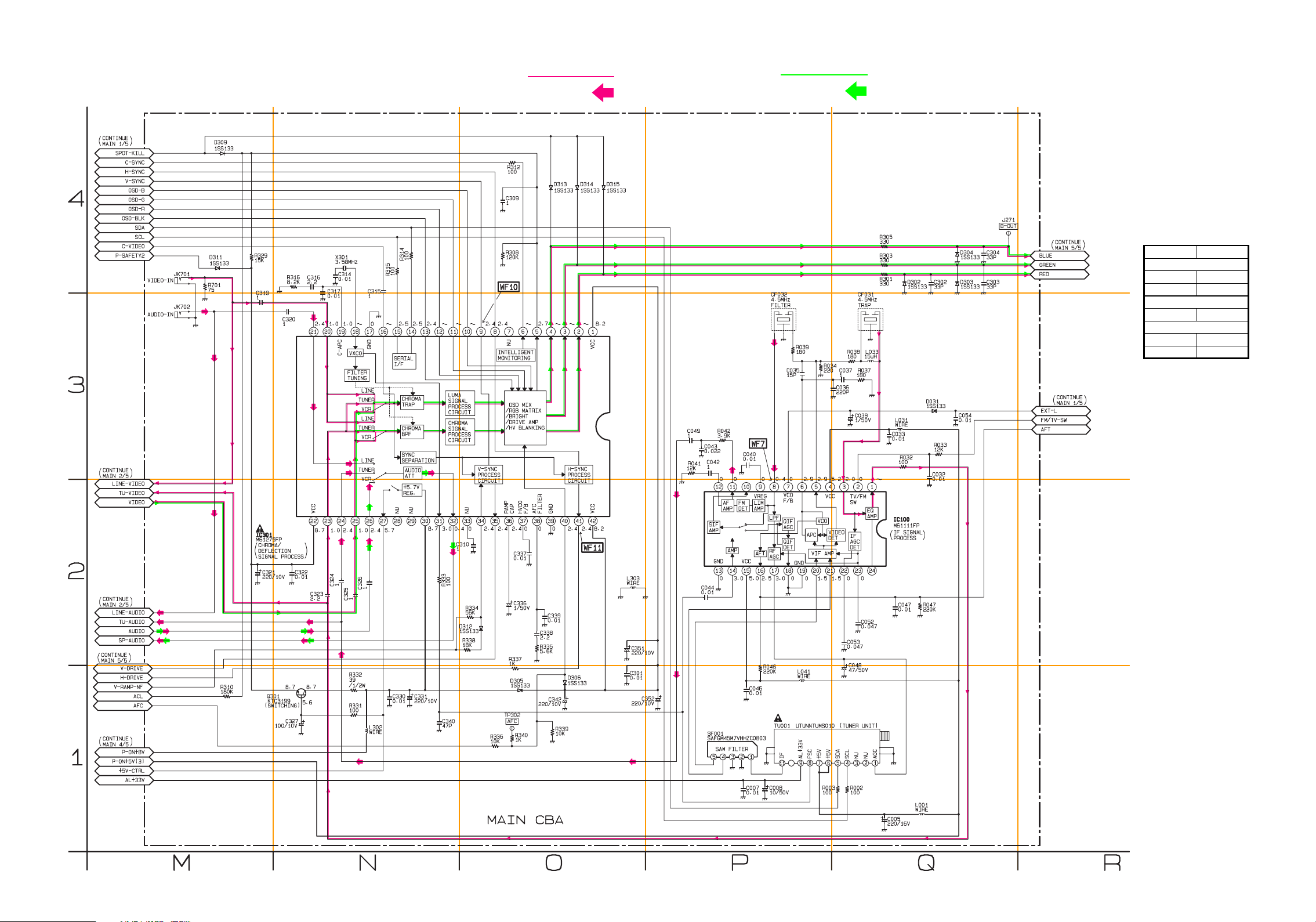

Main 3/5 Schematic Diagram

MAIN 3/5

Ref No. Position

IC100

Q-2

IC301

M-2

Q301

N-1

J271 Q-4

TP302 O-1

ICS

TRANSISTOR

TEST POINT

REC Video Signal

REC Audio Signal

PB Video Signal

PB Audio Signal

1-8-7 1-8-8

T4501SCM3

Page 44

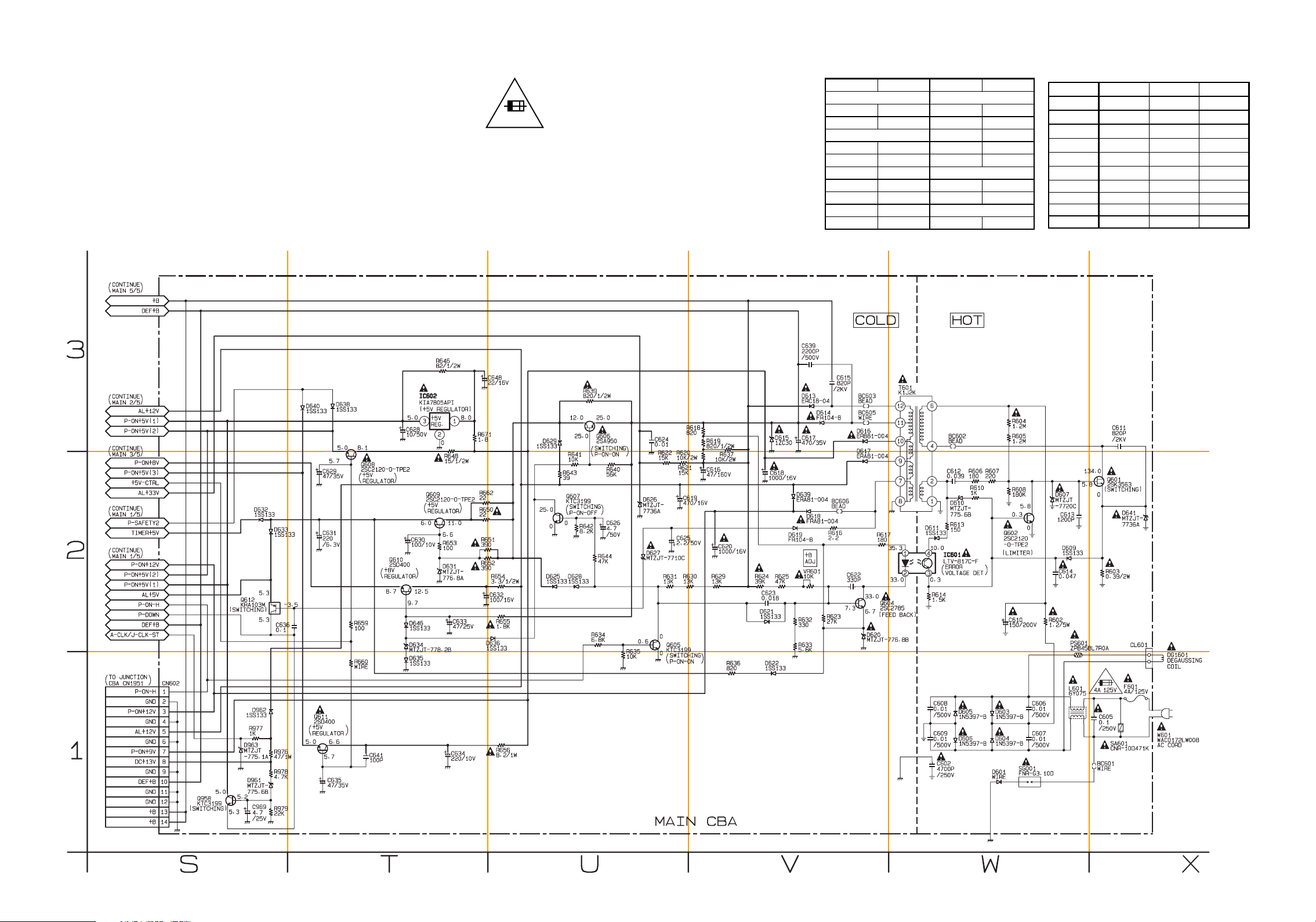

Main 4/5 Schematic Diagram

VOLTAGE CHART (Power off mode)

Ref. No. S D G

Q601 0.0 137.0 1.8

Ref. No. E C B

Q602 0 3.2 0.5 Q605 0 7.0 0 Q606 7.0 7.0 7.0 Q608 5.0 7.5 5.7 Q609 6.0 6.5 6.6

Q610 0.7 4.7 1.3 Q611 0 2.4 0 Q612 5.3 5.3 0.8

MAIN 4/5

Ref No. Position Ref No. Position

IC601

W-2

Q609

T-2

IC602

T-3

Q610

T-2

Q611

T-1

Q601

X-2

Q612

S-2

Q602

W-2

Q958

S-1

Q604

V-2 Q605 U-2 CL601 X-2 Q606

U-3

CN602

S-1

Q607

U-2 Q608 T-2 VR601 V-2

ICS

TRANSISTORS

VARIABLE RESI STOR

CONNECTORS

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

1-8-9

1-8-10

T4501SCM4

Page 45

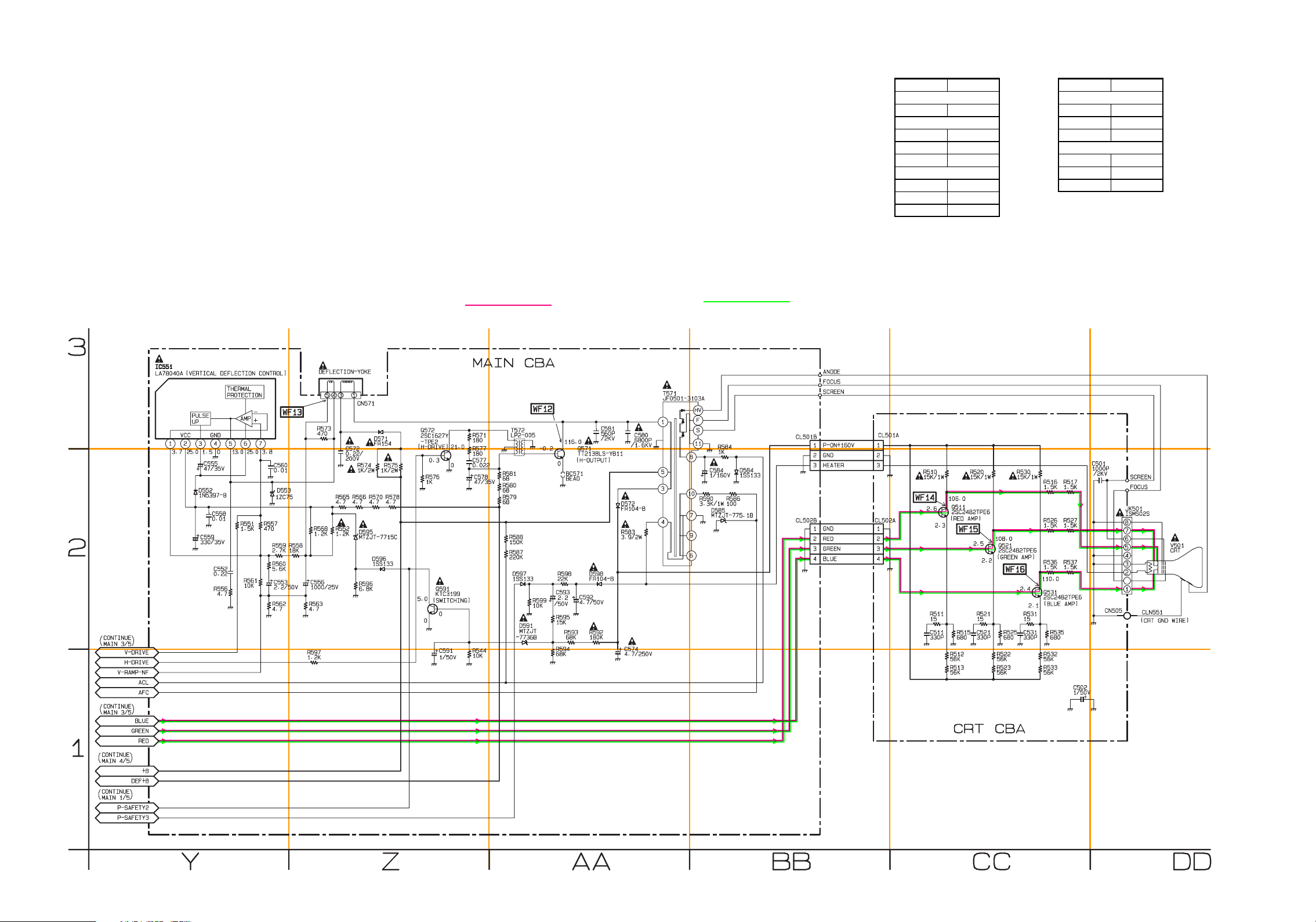

Main 5/5 & CRT Schematic Diagram

MAIN 5/5

Ref No. Position

IC551

Y-3

Q571

AA-2

Q572

Z-3 Q591

Z-2

CL501B BB-3 CL502B

BB-2

CN571 Z-3

TRANSISTORS

CONNECTORS

CRT

Ref No. Position

TRANSISTORS Q511 Q521 Q531

CONNECTORS

CL501A CL502A

CN505 DD-2

CC-2 CC-2 CC-2

BB-3 BB-2

REC Video Signal

AA3

AA2

PB Video Signal

BB3

BB2

CC3

CC2

DD3

DD2

1-8-11 1-8-12

AA1

BB1

CC1

DD1

T4501SCM5

Page 46

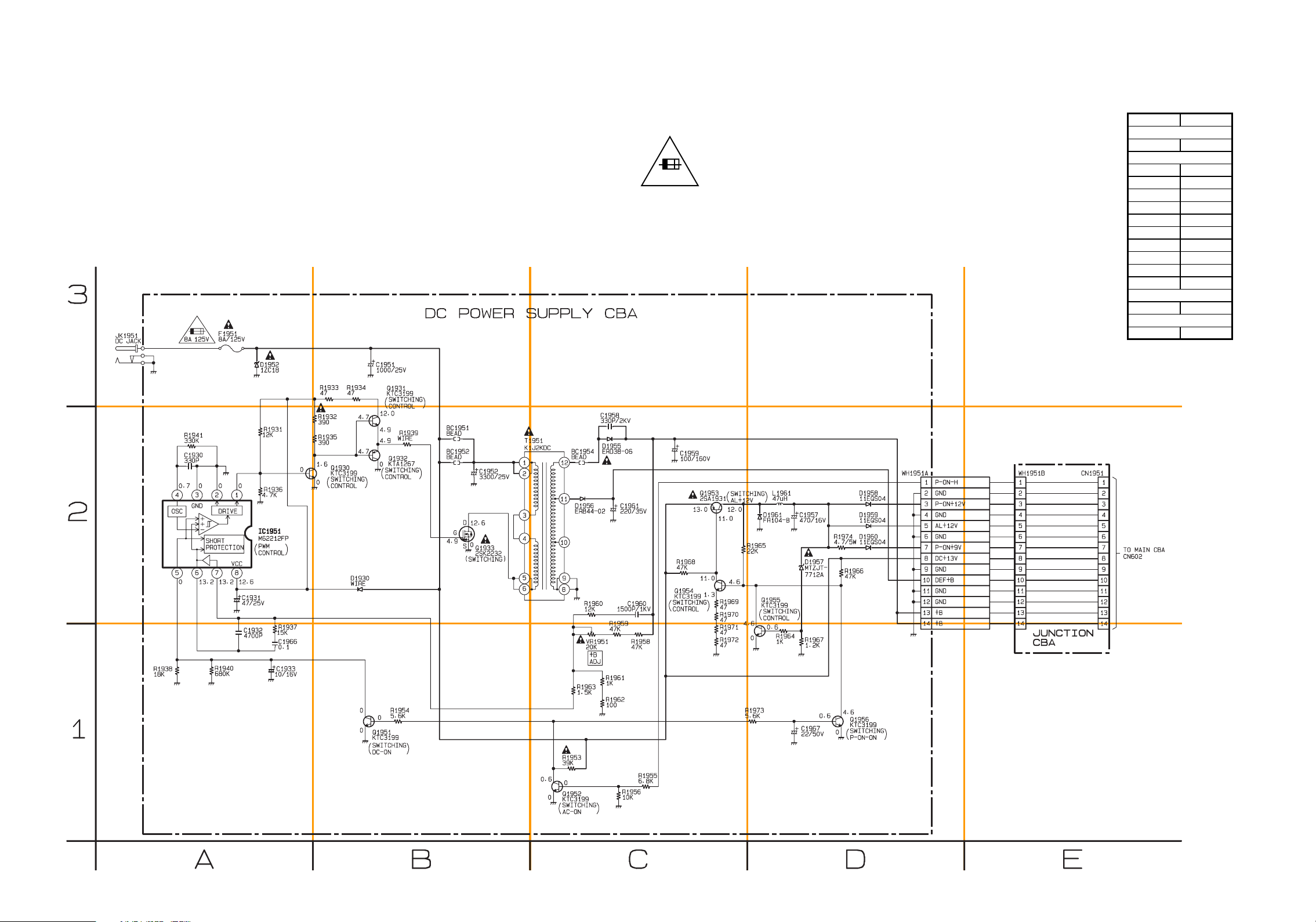

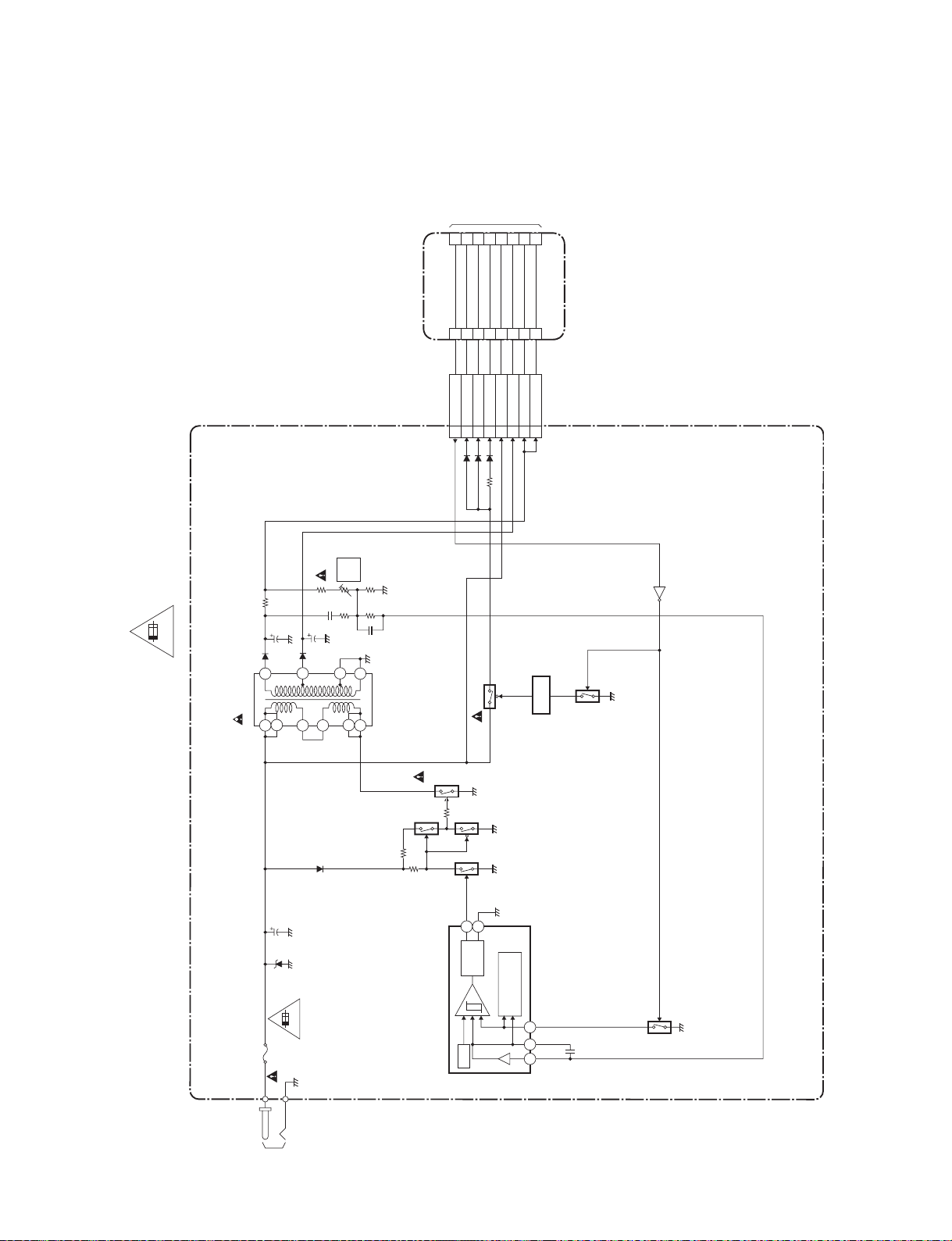

DC Power Supply Schematic Diagram

DC POWER SUPPLY

Ref No. Position

IC1951

A-2

Q1930

B-2 Q1931 B-2 Q1932

B-2 Q1933

B-2 Q1951

B-1 Q1952

C-1 Q1953

C-2 Q1954

C-2 Q1955

D-1 Q1956

D-1

WH1951A

D-2

VR1951 C-1

VARIABLE RESI STOR

TRANSISTORS

CONNECTOR

CAUTION !

Fixed voltage power supply circuit is used in this unit. If Main Fuse (F1951) is blown, check to see that all components in the power supply circuit are not defective before you connect the DC plug to the DC power supply. Otherwise it may cause some components in the power supply circuit to fail.

8A 125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 8A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 8A, 125V.

1-8-13 1-8-14

T4501SCDC

Page 47

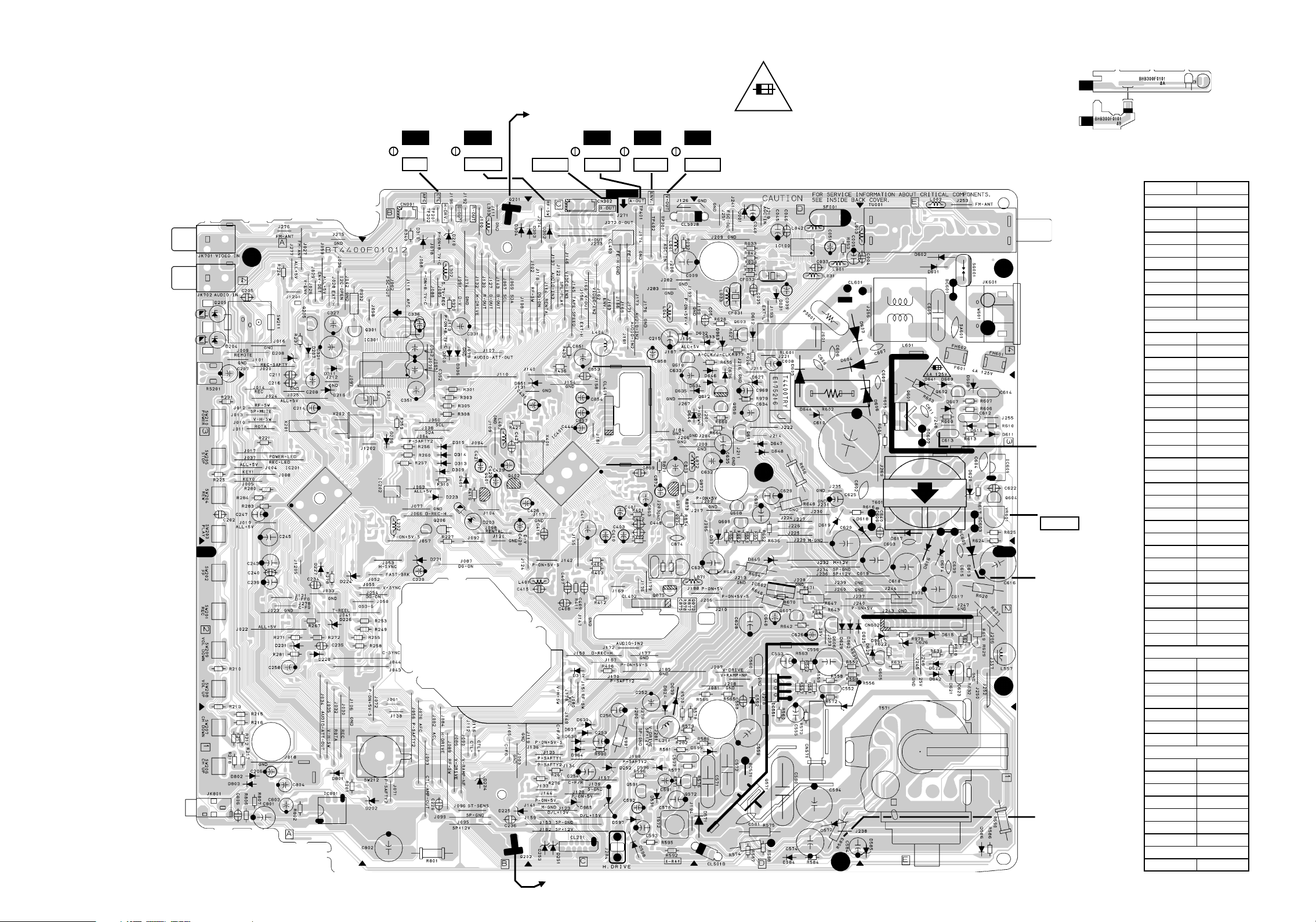

Main CBA Top View

MAIN CBA

Ref No. Position

IC100

D-4

IC201

A-3

IC202

B-3

IC301

B-4

IC401

C-3

IC551

D-2

IC601 E-3 IC602

D-2

IC801

A-1

Q205

A-4

Q206

B-3

Q301

B-4

Q401

B-3

Q402

B-3

Q571 D-1 Q572

C-1

Q591

C-1

Q601

E-3

Q602

E-3

Q604

E-3

Q605

E-2

Q606

D-2

Q607

D-2

Q608

D-3

Q609

D-3

Q610

C-4

Q611

D-3

Q612

D-3

Q871

C-3

Q872

D-3

Q873

C-2

Q874

C-3

Q875 C-2 Q958

D-3

CL201

C-1

CL501B

D-1

CL502B

C-4 CL601 D-4 CN571

D-1 CN602

E-2 CN801

B-4

J271 C-4 J274 C-4

TP201

B-4 TP301

C-4 TP302

B-4 TP401

C-4 TP402

C-4

VR601 E-3

ICS

VARIABLE RESI STOR

CONNECTORS

TEST POINTS

TRANSISTORS

CAUTION !

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

1-8-15

WF3

TP201

CTL

WF1

J274

RF-SW

TO SENSOR CBA (END-SENSOR)

WF8

J271

B-OUT

TP401

A-OUT

D254

TO SENSOR CBA (START-SENSOR)

WF6

TP402

V-ENV

WF5

TP301

V-OUT

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK

OF FIRE, REPLACE ONLY WITH AME TYPE 4A, 125V FUSE.

4A 125V

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED. ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

C613 GND (+B Adjustment)

VR601

+B ADJ

D613 Cathode (+B Adjustment)

D553

R583 (H Adjustment)

1-8-16

Sensor CBA Top View

BHB300F01014-A

BHB300F01014-B

BT4400F01012-A

Page 48

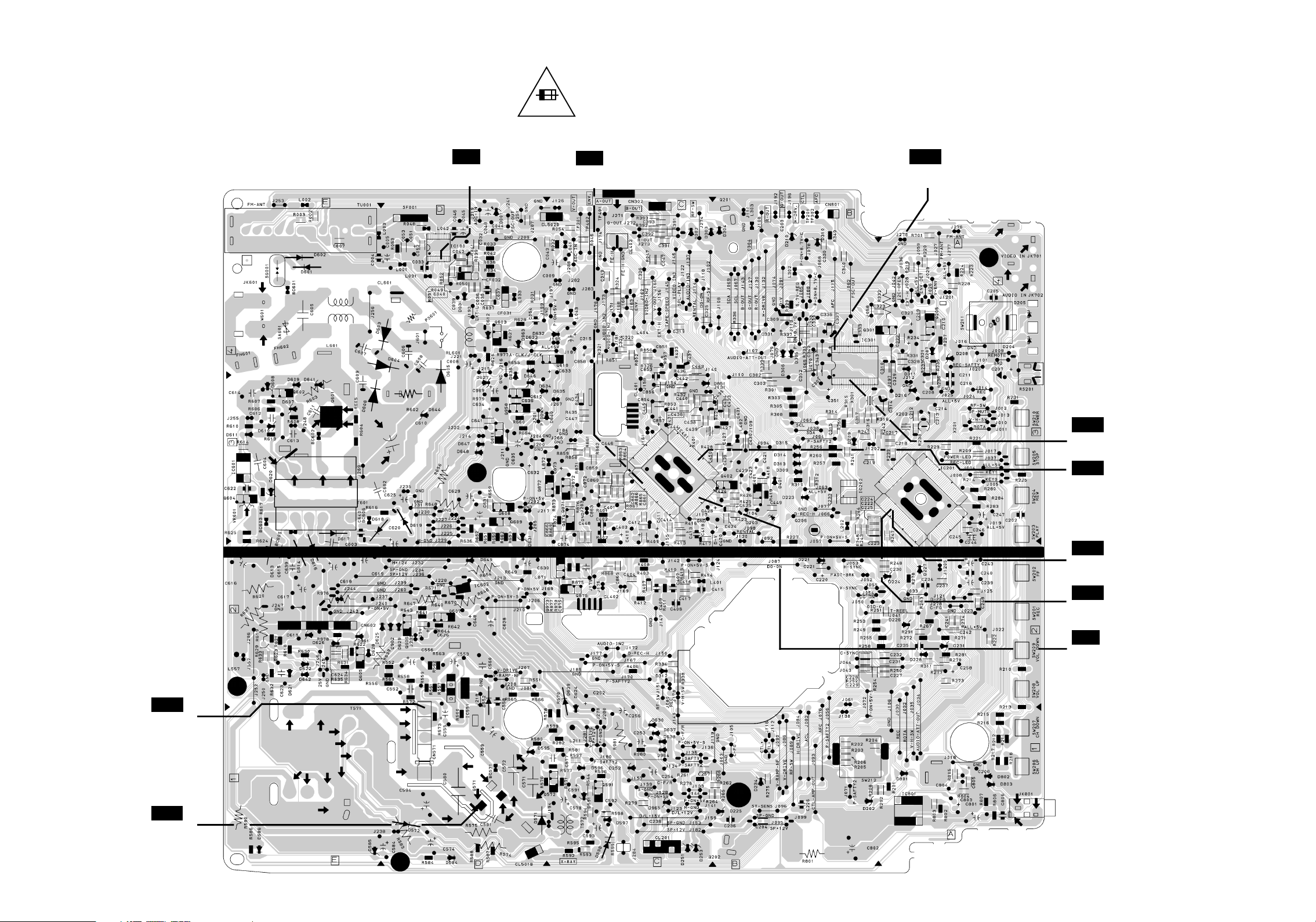

Main CBA Bottom View

CAUTION !

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF7

PIN 8 OF IC100

4A 125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

WF9

PIN 7 OF IC401

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF11

PIN 41 OF IC301

WF13

PIN 5 OF CN571

WF10

PIN 9 OF IC301

WF2

PIN 61 OF IC401

WF18

PIN 59 OF IC201

WF17

PIN 58 OF IC201

WF4

PIN 42 OF IC401

WF12

Q571 Collector

1-8-17

1-8-18

BT4400F01012-A

Page 49

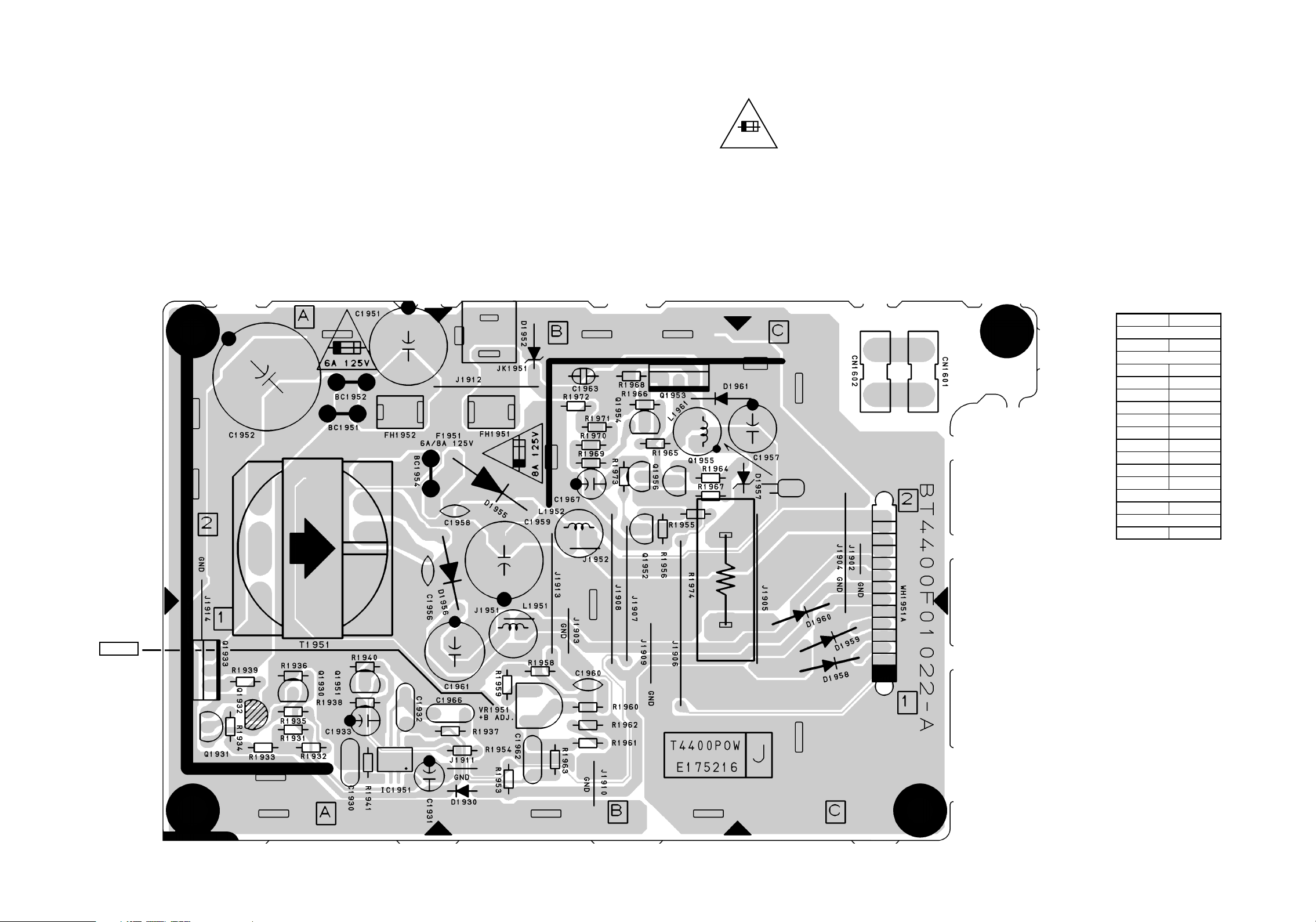

DC Power Supply CBA Top View

DC POWER SUPPLY CBA

Ref No. Position

IC1951

A-1

Q1930

A-1 Q1931

A-1 Q1932

A-1 Q1933

A-1 Q1951

A-1 Q1952

B-2 Q1953

B-2 Q1954

B-2 Q1955

B-2 Q1956

B-2

WH1951A

C-2

VR1951 B-1

VARIABLE RESI STOR

TRANSISTORS

CONNECTOR

CAUTION !

8A 125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 8A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 8A, 125V.

VR1951

+B ADJ

1-8-20

BT4400F01022-A1-8-19

Page 50

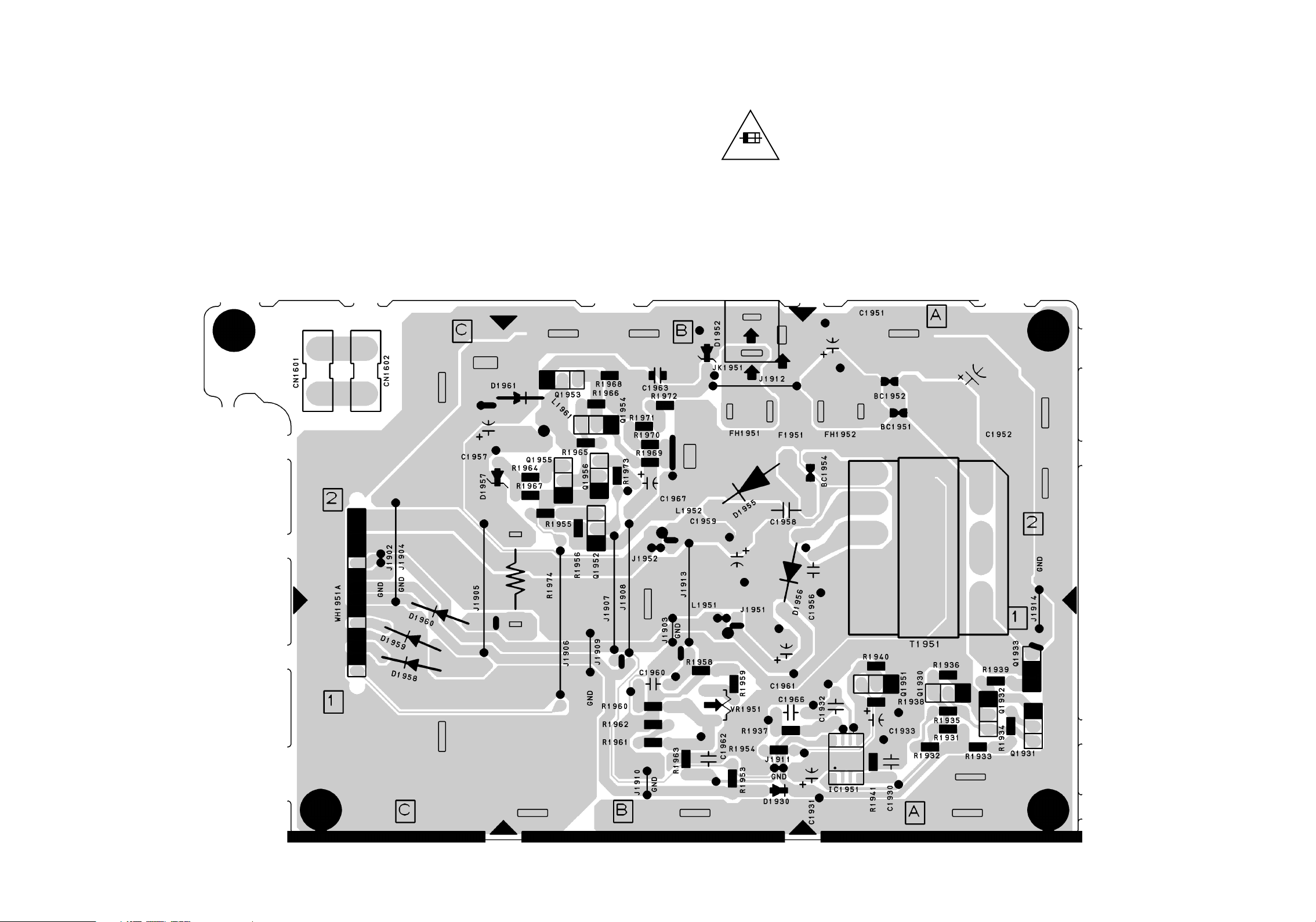

DC Power Supply CBA Bottom View

CAUTION !

8A 125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 8A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 8A, 125V.

1-8-21

1-8-22

BT4400F01022-A

Page 51

CRT CBA Top View

CRT CBA

Ref No. Position

TRANSISTORS Q511 Q521 Q531

CONNECTORS

CL501A CL502A

CN505 A-1

CRT CBA Bottom View

B-2 B-2 B-2

A-1 B-2

WF15

Q521 Collector

WF14

Q511 Collector

WF16

Q531 Collector

1-8-23 1-8-24

BT4400F01012-B

Page 52

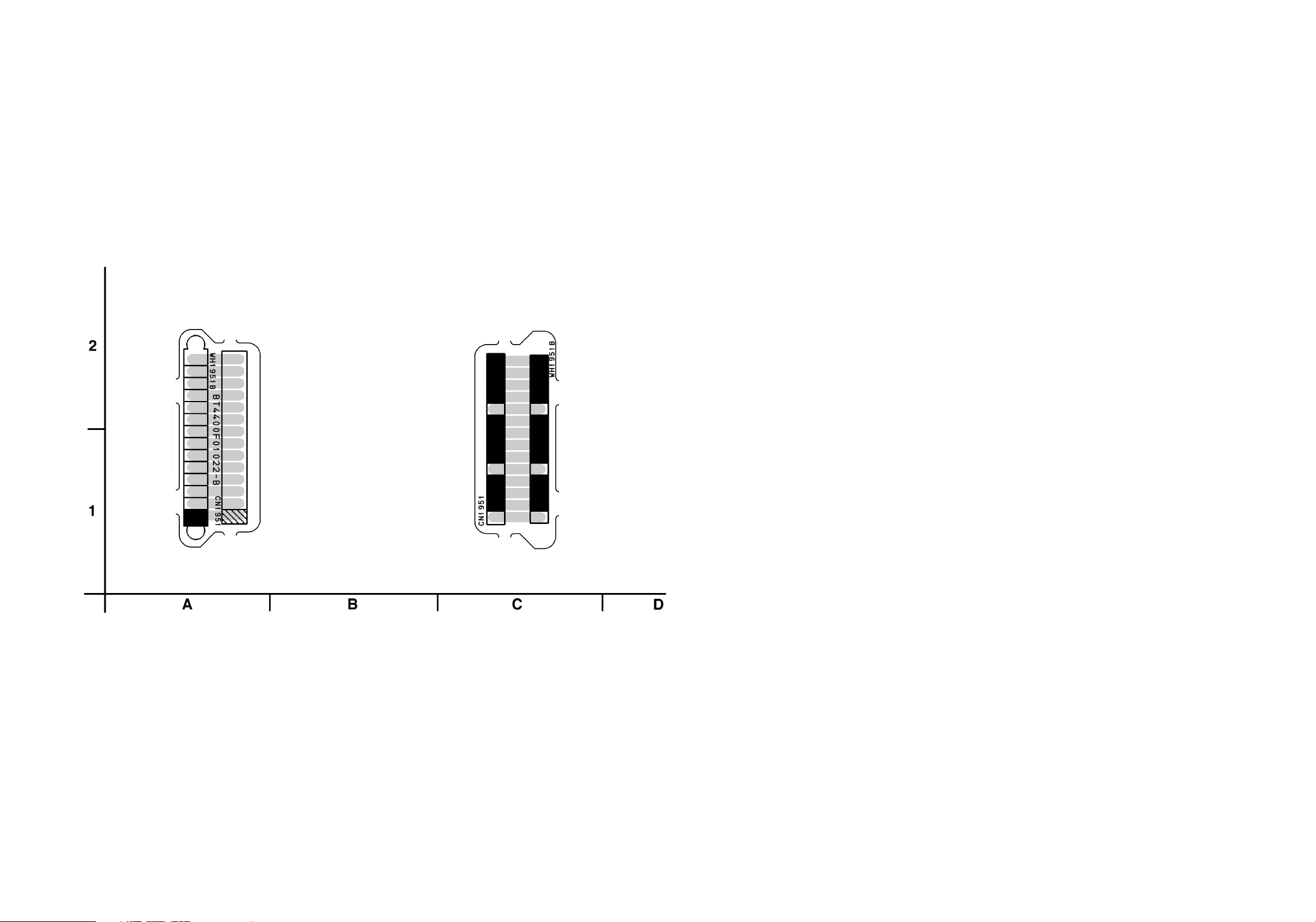

Junction CBA Top View

Junction CBA Bottom View

1-8-25

BT4400F01022-B

1-8-26

Page 53

sec

1DIV: 1V 20

IC201 PIN 58

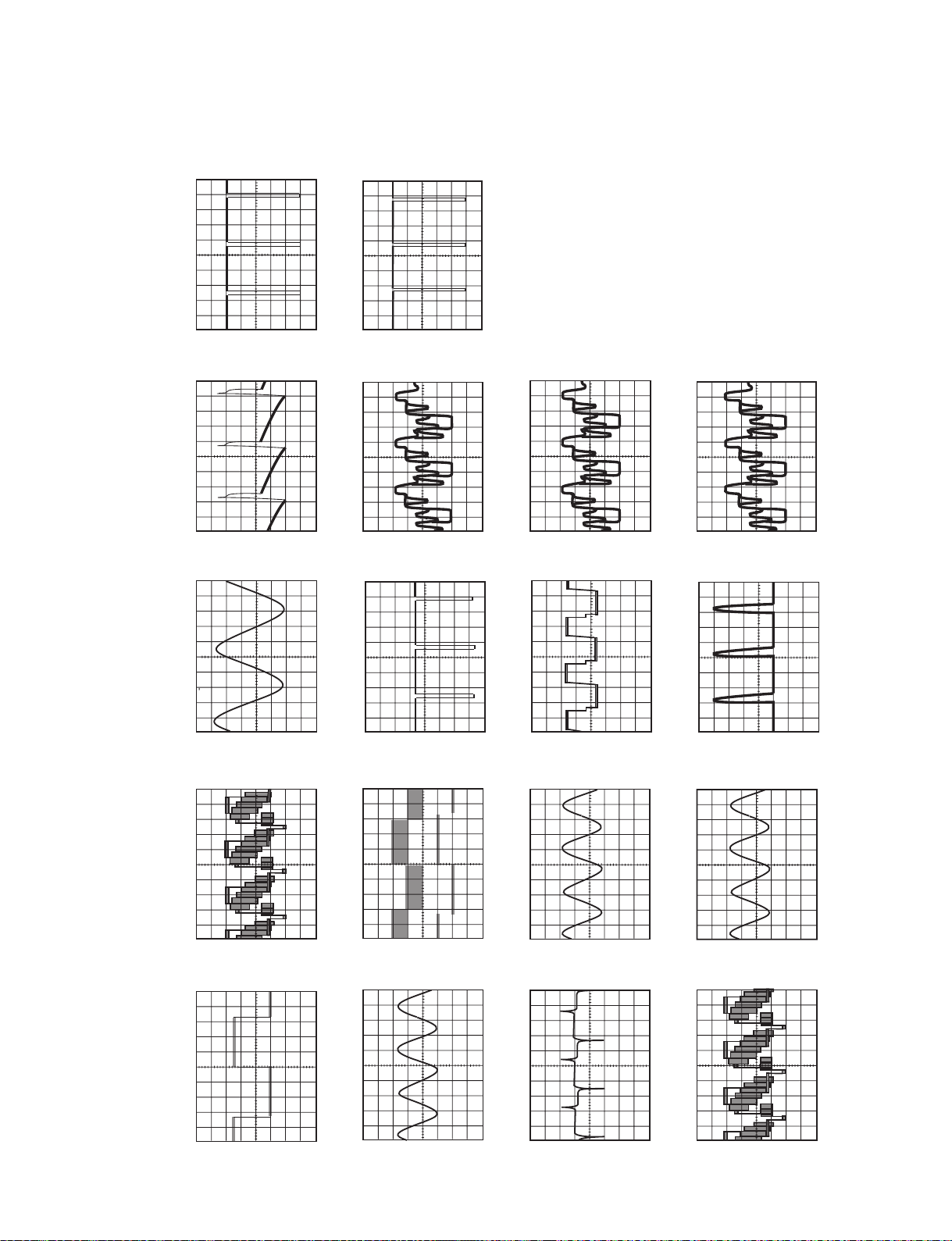

WAVEFORMS

1DIV: 1V 5msec

IC201 PIN 59

WF17

WAVEFORM NOTES

INPUT: NTSC COLOR BAR SIGNAL (WITH 1kHz AUDIO SIGNAL)

BRIGHTNESS, COLOR AND TINT CONTROLS: CENTER POSITION

CONTRAST CONTROL: APPROX 70%

VOLTAGES SHOWN ARE RANGE OF OSCILLOSCOPE SETTING.

1DIV: 10V 5msec

CN571 PIN 5

WF13

1DIV: 0.5V 0.5msec

IC401 PIN 7

WF9

WF18

sec

1DIV: 20V 20

Q511 COLLECTOR

WF14

1DIV: 2V 5msec

IC301 PIN 9

WF10

sec

1DIV: 20V 20

Q521 COLLECTOR

WF15

sec

1DIV: 1V 20

IC301 PIN41

WF11

sec

1DIV: 20V 20

Q531 COLLECTOR

WF16

sec

1DIV: 200V 20

Q571 COLLECTOR

WF12

sec

1DIV: 0.5V 20

TP301 V-OUT

WF5

1DIV: 2V 5msec

J274 RF-SW

WF1

Upper: WF6 Lower: WF1

1DIV: 0.2V 2DIV: 5V 5msec

TP402 V-ENV

sec

1DIV: 0.2V 0.1

IC401 PIN 61

WF2

1-9-1

1DIV: 0.2V 0.5msec

IC100 PIN 8

WF7

1DIV: 1V 10msec

TP201 CTL

WF3

1DIV: 0.5V 0.5msec

TP401 A-OUT

WF8

sec

1DIV: 0.25V 20

IC401 PIN 42

WF4

T4501WF

Page 54

MOTOR

CAPSTAN MOTOR

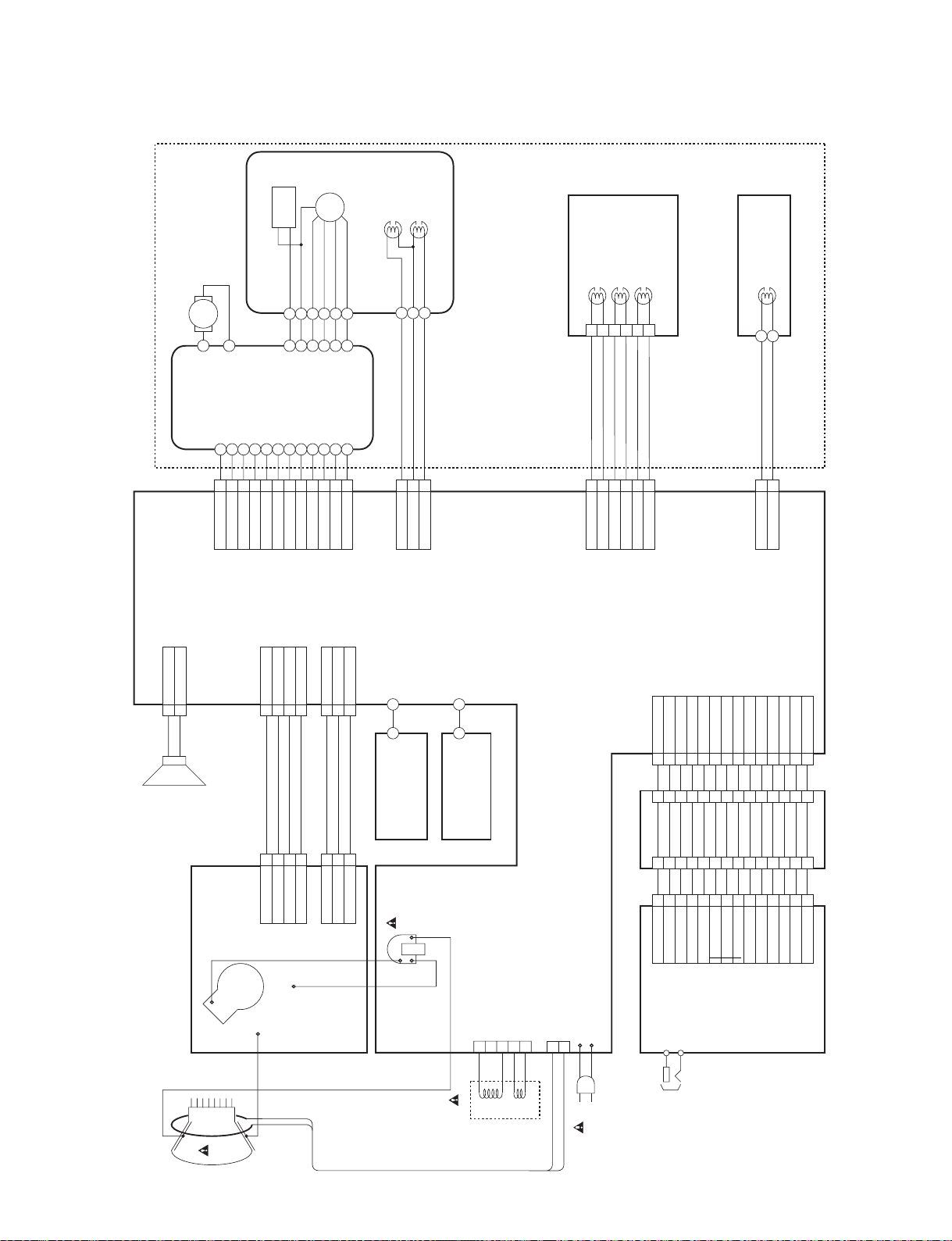

WIRING DIAGRAM FOR SECTION 2

(DECK MECHANISM)

WIRING DIAGRAM

DRUM

MOTOR

SENSOR

CYLINDER ASSEMBLY

VIDEO

(R) HEAD

VIDEO

(L) HEAD

AUDIO ERASE

HEAD

CN287

AUDIO HEAD

CONTROL HEAD

436

FULL ERASE HEAD

AC HEAD ASSEMBLY

FE HEAD

CN801

1 SPEAKER

CLN801

SP801

SP-GND

SPEAKER

CRT CBA

1P-ON+12V

2P-ON+5V(2)

3C-FG

4C-F/R

CL201

CL502B

CL502A

BT4400F01012

5C-CONT

6FG-GND

7LD-CONT

GND

RED3GREEN4BLUE

GND2RED3GREEN4BULE

8D-CONT

9D-PFG

CL501A CL501B

10M-GND

11D/L+12V

12D/L+15V

1 P-ON+160V

2 GND

3 HEATER

1P-ON+160V

2GND

3HEATER

CL401

V(R)2V-COM3V(L)

SENSOR CBA

(END-SENSOR)

BHB300F01014A,B

T571

FBT

SENSOR CBA

(ST-SENSOR)

BHB300F01014A,B

CL402

AE-H2AE-H/FE-H3A-COM4A-PB/REC5CTL(+)6CTL(-)

MAIN CBA

BT4400F01012

CN602

P-ON-H2GND3P-ON+12V4GND5AL+12V6GND7P-ON+9V8DC+13V9GND10DEF+B11GND12GND13+B14+B

132547689

CN1951WH1951BWH1951A

132547689

JUNCTION CBA

BT4400F01022-B

P-ON-H2GND3P-ON+12V4GND5AL+12V6GND7P-ON+9V8DC+13V9GND10DEF+B11GND12GND13+B14+B

CL403

FE-H-GND2FE-H

1013121114

ANODE

FOCUS

CRT

CN505

GND

SCREEN

CN571

D.Y.

1-10-1

DC POWER

SUPPLY CBA

CL601

JK1951

DC JACK

AC CORD

W601

DC IN

BT4400F01022-A

T4501WI

Page 55

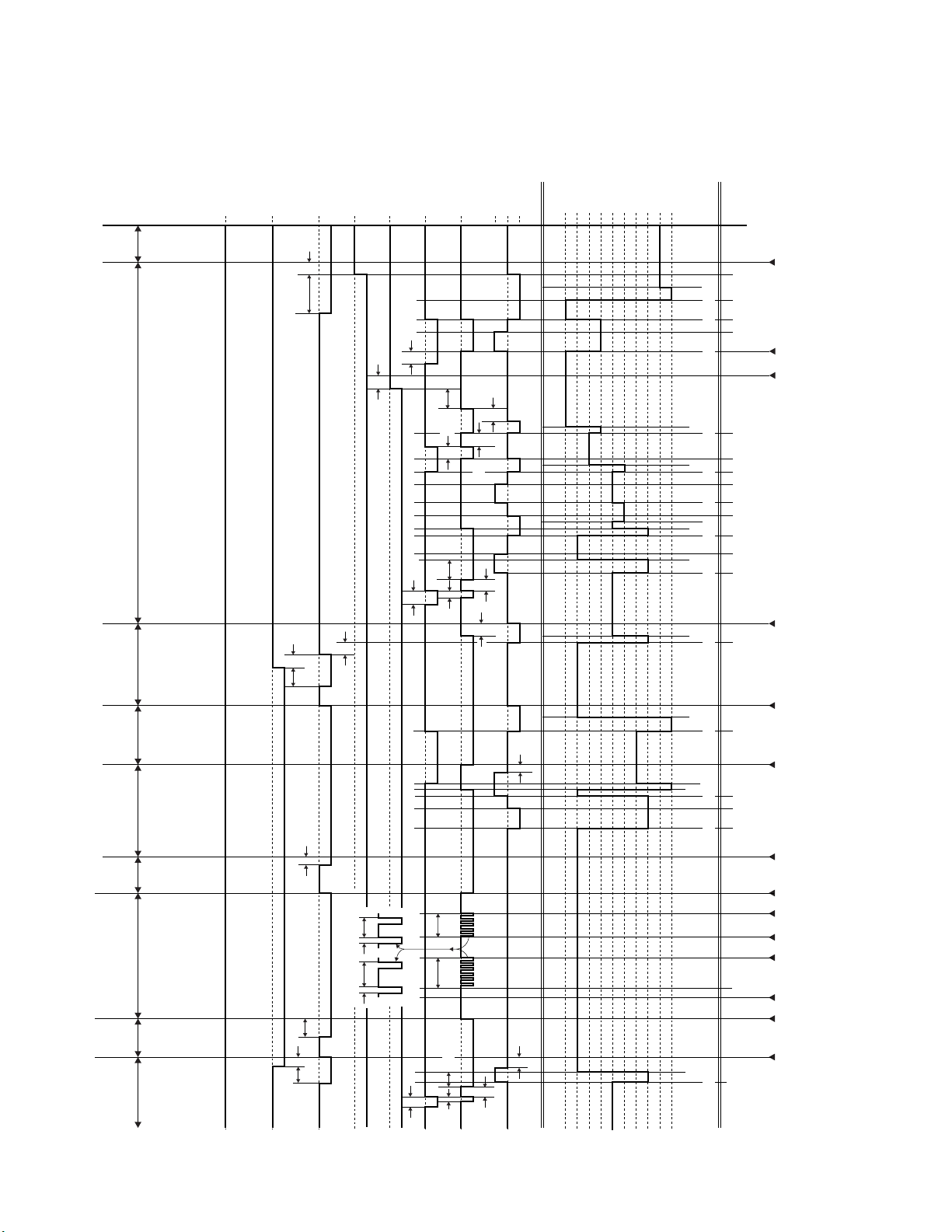

Chart 1

DISPLAY

SYSTEM CONTROL TIMING CHARTS

LD-CONT

D-REC-H

D-PB-H

A-MUTE-H

P-ON

ROTATION

DRUM

C-F/R

C-DRIVE

CL/SS

LD-SW

PIN NO.

1. EJECT (POWER OFF) -> CASSETTE IN (POWER ON) -> STOP(B) -> STOP(A) -> PLAY -> RS -> FS -> PLAY -> STILL(N-CANCEL) -> PLAY -> STOP(A)

-OFF

POWER

STOP

PLAY RS

0.2S

after channel setting

+620mS(PAL)

+100mS(NTSC)

0.2S

0.3S

0.8S

0.2S

40mS

1.2S

0.4S

20mS

0.2S

"Z"

0.2S

CLEJ SB

TL SB

SMSF AL AL RS AU AL SM

EJECT

CASS.LOAD

LD-FWD

0.2S

LD-REV

STOP(B)

LD-FWD

0.4S

LD-FWD

0.2S

LD-REV

0.2S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

PLAY

ST-S "OFF"

REC SFT-SW

POWER

PLAY

LD-FWD

0.3S

1.0S

PLAY STILL STOPPLAY

SP MODE

>5.0S 5.0S

6mS 6mS240mS80mSNTSC

6mS 6mS160mS80mSPA L

1.0S

0.12S

0.8S

LP/SLP MODE

40mS

20mS0.4S

0.3S

0.2S

RS1(RS2)

LD-REV

AL AU

0.2S

LD-FWD

FS1(FS2)

PLAY

STILL

NOISE CANCEL

STILL

NOISE CANCEL

STILL

PLAY

LD-REV

STOP(A)

REW

PLAY

PAUSE

PAUSE ON

PAUSE OFF

PAUSE ON

PAUSE OFF

PLAY

STOP /EJECT

1-11-1 T5553TI

Page 56

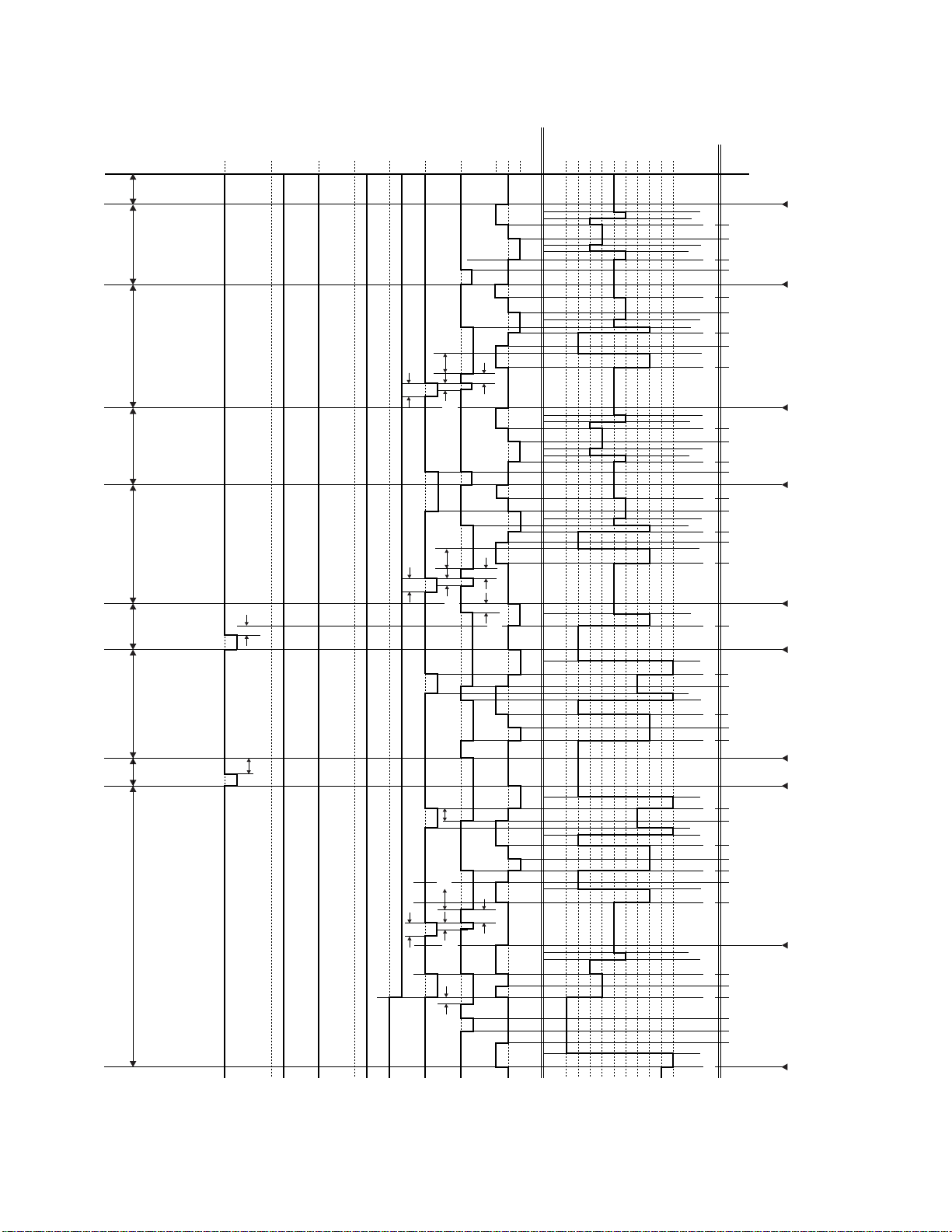

Chart 2

DISPLAY

D-REC-H

D-PB-H

A-MUTE-H

P-ON

ROTATION

DRUM

C-F/R

C-DRIVE

LD-CONT

PIN NO.

LD-SW

CL/SS

2. STOP(A) -> FF -> STOP(A) -> REW -> STOP(A) -> REC -> PAUSE -> PAUSE or REC -> STOP(A) -> EJECT

STOP

STOPFF

REW STOP

REC

RECREC PAUSE STOP

1.0S

1.2S

40mS

0.4S

20mS

0.4S

20mS

1.5S(NTSC)

1.0S(PAL)

0.4S

"Z"

0.2S

SM SF FB SM AU AU SS

FB SF AU AUFB SF

TL TL SMSM SF SFAL AL SM AL AL ALAU AU SM TL SB EJRS RSSM

SF FB SM

SS SS SF

AL AL AUSS FB CL

STOP(A)

LD-REV

0.2S

LD-FWD

0.2S FF

REV

1.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-REV

0.2S

LD-FWD

0.2S REW LD-REV

1.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

REC

LD-FWD

2.5S Short REV

LD-REV

0.2S

LD-FWD

REC PAUSE

REC

LD-FWD

1.5S

LD-REV

0.2S LD-FWD

0.5S

LD-REV

STOP /EJECT

REW

STOP /EJECT

REC

PAUSE

REC or PAUSE

STOP /EJECT

20mS

0.1S

0.2S

STOP(A)

LD-REV

0.2S LD-REV

0.5S

0.2S

0.5S

CASS. UNLD

EJECT

STOP /EJECT

ST-S "ON"

1-11-2 T5553TI

Page 57

IC PIN FUNCTION DESCRIPTIONS

IC 201 (TV/VCR Micro Controller)

“H” ≥ 4.5V, “L” ≤ 1.0V

IN/

No.

OUT 1 IN LD-SW Loading Switch Input 2 - NU Not Used

3 IN P-SAFETY 2

4 IN P-SAFETY 3

5 IN KEY0 Key 0 Input 6 IN KEY1 Key 1 Input 7 IN END-SENS End-Sensor 8 IN AFT-IN AFT Input 9 IN ST-SENS Start-Sensor

10 IN V-ENV Video Envelope Input 11 OUT FM-SW Switching IF IC VCO 12 OUT SP-MUTE Speaker Mute Output 13 OUT D-V SYNC Artificial V-Sync Output 14 IN REMOTE Remote Signal Input

15 OUT ROTA

16 - NU Not Used 17 - NU Not Used

18 OUT RF-SW

19 - NU Not Used

20 OUT EXT-L

21 - NU Not Used

22 OUT REC-LED

23 OUT REC-LED

24 - NU Not Used 25 - NU Not Used 26 - NU Not Used 27 OUT REC/EE/PB YCA IC Mode Output

IN/

OUT

29 OUT

Signal Name

Power Supply Failure Detection 2

Power Supply Failure Detection 3

Color Phase Rotary Changeover SIgnal

Video Head Switching Pulse

External Input or Playback = Output

Recording LED Control Signal

SP/LP/SLP Tape Speed Control Output

EXT-H/ INSEL

External Input or Playback Signal Input Selector Control Signal

Function

IN/

No.

OUT

30 OUT RENTAL

31 OUT P-ON-H Power On Signal at High

32 OUT SPL-PLAY

33 IN

34 IN RESET

35 IN XC-IN Sub Clock 32 kHz 36 OUT XC-OUT Sub Clock 32 kHz 37 - TIMER+5V Vcc 38 IN X-IN Main Clock Input 39 OUT X-OUT Main Clock Output 40 - GND GND 41 OUT SPOT-KILL Counter-measure for Spot 42 - NU Not Used 43 IN CLKSEL Clock Select (GND) 44 OUT D-REC-H Delayed Record Signal

45 IN I2C-OPEN

46 - GND GND 47 - NU Not Used 48 - NU Not Used 49 - GND OSD GND 50 - NU Not Used 51 - NU Not Used 52 - NU Not Used 53 - P-ON+5V OSD Vcc 54 - HLF HLF 55 IN V-HOLD VHOLD 56 IN CV-IN Video Signal Input 57 - GND GND 58 IN H-SYNC H-SYNC Input 59 IN V-SYNC V-SYNC Input 60 OUT OSD-BLK Output for Picture Cut off 61 - NU Not Used 62 OUT OSD-B Blue Output 63 OUT OSD-G Green Output

Signal

Name

RECSAFETY

Function

Rental Position Control Signal

Special Playback Control Signal

Record Protection Tab Detection

System Reset Signal (Reset=”L”)

White Balance Adjust Mode Judgment

1-12-1 T4501PIN

Page 58

No.

IN/

OUT

Signal Name

Function

Pin No.

IN/

OUT

Signal

Name

Function

64 OUT OSD-R Red Output 65 OUT A-MUTE Audio Mute Output

66 OUT C-F/R 67 - NU Not Used

68 - NU Not Used 69 - NU Not Used 70 - NU Not Used

71 OUT SCL

IN/

72 73 - NU Not Used

74 IN C-SYNC C-Sync Input 75 - NU Not Used

76 OUT C-CONT 77 OUT D-CONT Drum Motor Control Signal

78 - NU Not Used

OUT

SDA

Capstan Motor FWD/REV Control Signal

E2PROM/CHROMA IC Tuner Communication Clock

E2PROM/CHROMA IC Tuner Communication Data

Capstan Motor Control Signal

IN/

95 96 - AMPC AMPC 97 OUT 98 - P-ON+5V Power Supply for AMP

99 - AL+5V A/D, D/A Standard Voltage

100 IN P-SAFETY 1

CTL (+) CTL (+)

OUT

CTL AMP OUT

Control Amp Output

Power Supply Failure Detection 1

79 - NU Not Used 80 IN T-REEL 81 - NU Not Used 82 OUT LD-CONT 83 - NU Not Used 84 IN P-DOWN 85 - NU Not Used

86 - NU Not Used 87 IN C-FG 88 - GND GND (AMP)

89 - NU Not Used 90 IN D-PFG 91 - NU Not Used 92 OUT

AMP VREF IN

Take Up Reel Rotation Signal

Loading Motor Control Signal

Po wer Voltage Down Detector Signal

Capstan Motor Rotation Detection Pulse

Drum Motor Pulse Generator

Standard Voltage Input

93 - C C

IN/

CTL (-) CTL (-)

OUT

1-12-2 T4501PIN

Page 59

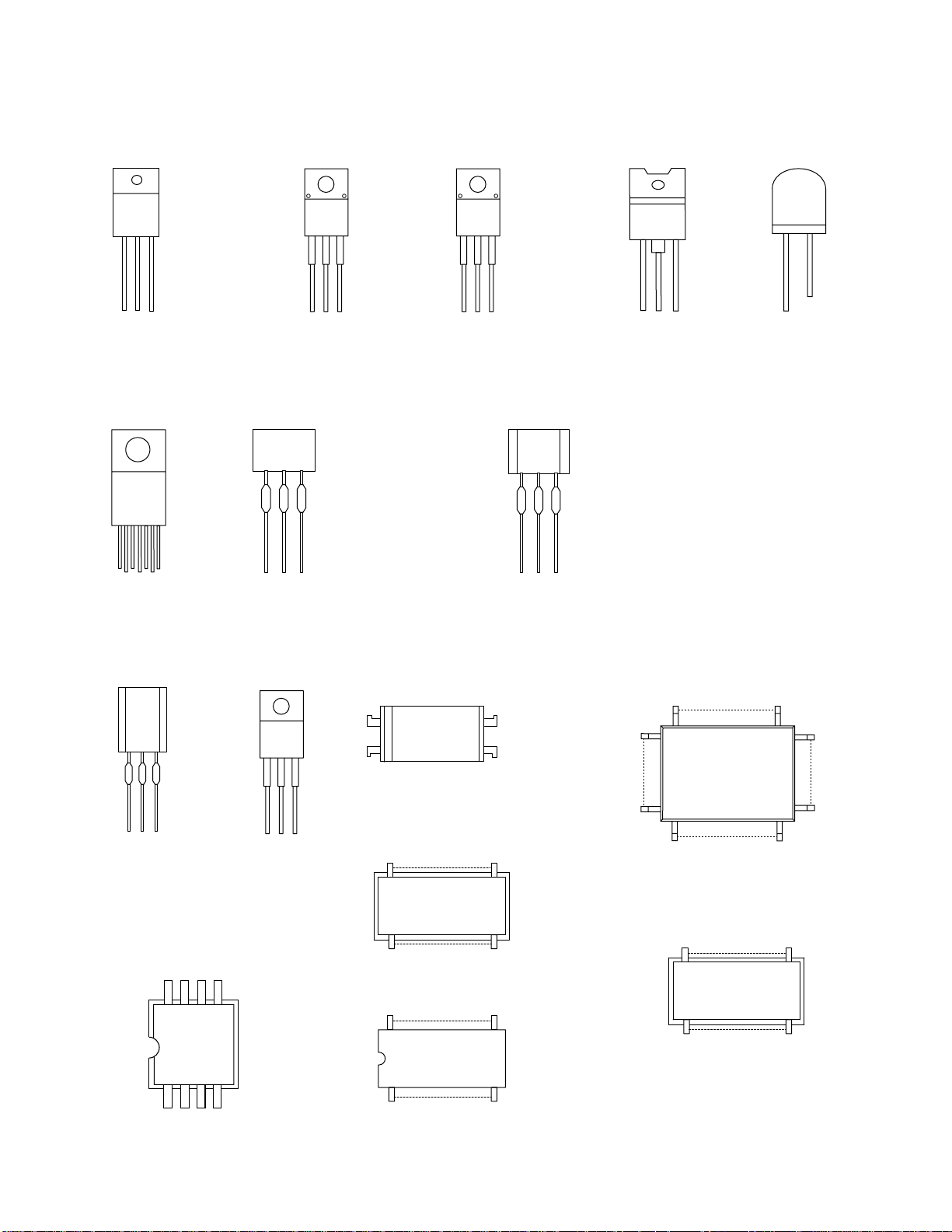

LEAD IDENTIFICATIONS

2SK3563

S D G

LA78040A

S: Souce D: Drain G: Gate

2SK2232 FS30KMJ-06

G D S

KRA103M 2SC1815-GR(TPE2) 2SC3331(T,U) 2SC2120-(O,Y)(TPE2) KTC3203(Y)

2SA1469 2SA1931

B C E

E: Emitter C: Collector B: Base

2SC1627Y-TPE2 2SA950(Y,O) KTA1271(Y) 2SC2482 TPE6 2SC3468(E,D)-AE KTC3207 2SA1175(F) KTA1267(GR) KTC3198(GR)

2SC5884000RF TT2138LS-YB11

B C E

MID-32A22F PT204-6B-12

BN1F4M-T KTC3199(GR) 2SC2785(J,H,F) 2SA1015-GR(TPE2)

IN G OUT

2SD400(E,F)

E C B

BR24C02F-W M24C02-WMN6 BR24L02F-WE2 CAT24WC02JI

E C B

KIA7805(A,API)

IN G OUT

E C B

LTV-817(B,C)-F PC817X6

100

LA4224 M62212FP

M61275FP M61275FP-61

42 22

M37762M8A-8D6GP LA71091M

M61111FP

1-13-1 T4501LE

Page 60

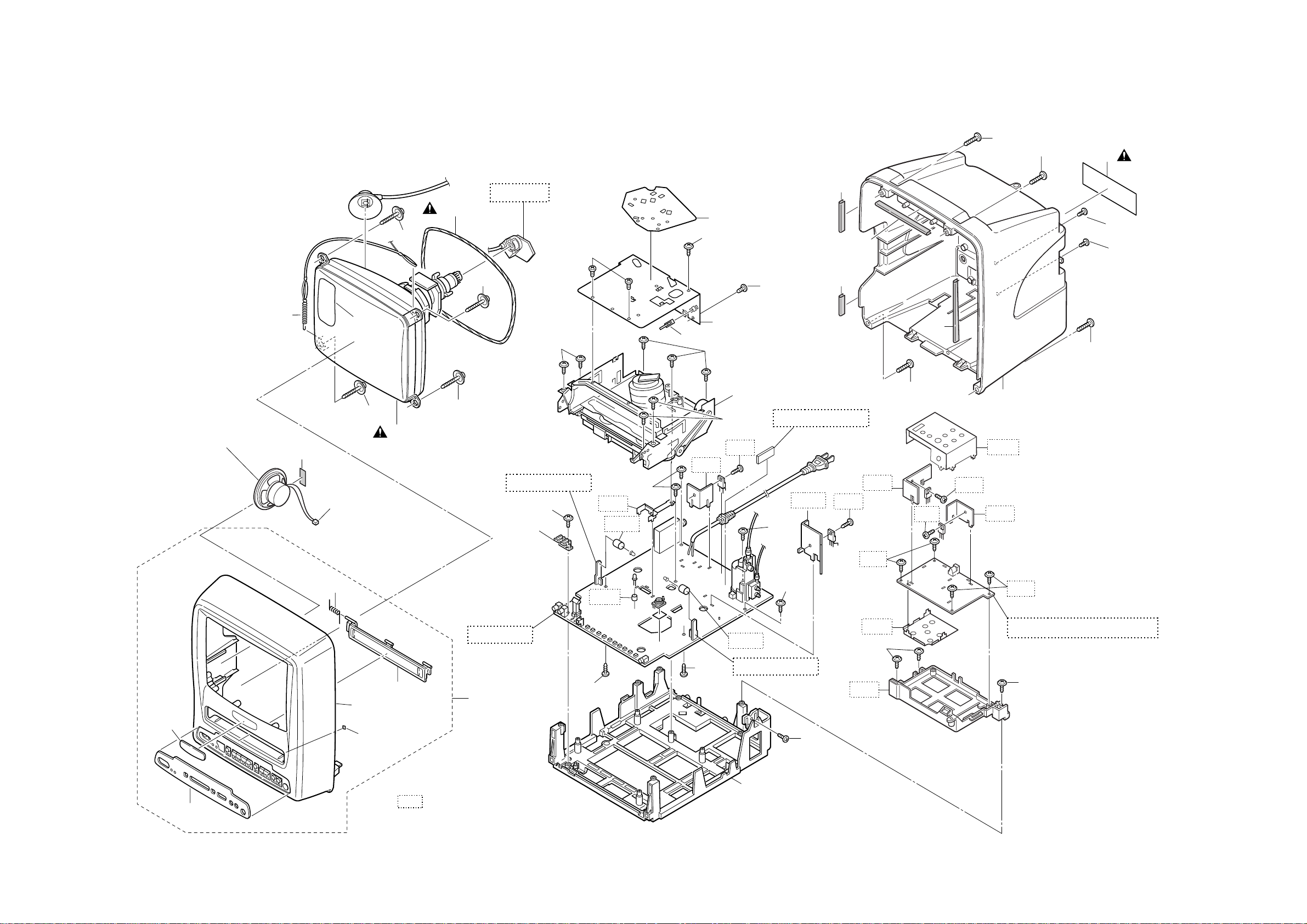

Cabinet

EXPLODED VIEWS

SP801

B10

CLN801

V501

DG1601

CRT CBA

SENSOR CBA

TL1

TB10

TL1

TL3

TB3

TB20

TL1

TL4

TB24

TB9

TL3

TB2

TL1

1B1

TL1

TL2

JUNCTION CBA

TB26

TL1

B11

TL2

PB7

PL2

PB6

PL2

PB5

A1-3

A1-2

PL1

A1-5

MAIN CBA

A1-4

A1-1

B13

See Electrical Parts List for parts with this mark.

1-14-1 1-14-2 T4501CEX

A1X

TL14

TB21

TL18

TB20

SENSOR CBA

TB1

TL1

PB3

TL4

PB1

PL1

DC POWER SUPPLY CBA

TL4

Page 61

Packing

X22

TAPE

X16

S12

FRONT

1-14-3 T4501PEX

Page 62

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a #

have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Comparison Chart of Models and Marks

Model Mark

SC309E A

6309CE B

Ref. No. Mark Description Part No.

A1X A FRONT CABINET ASSEMBLY T4501UB 0EM201841

A1X B FRONT CABINET ASSEMBLY T4502UC 0EM201842

A1-1 FRONT CABINET T4400UA 0EM000698

A1-2 CONTROL PLATE T4501UB 0EM302056

A1-3 A BRAND PLATE T4501UB:SYMPHONIC 0EM409146

A1-3 B BRAND PLATE T4302UC:SYLVANIA 0EM407030

A1-4 A CASSETTE DOOR T4501UB 0EM409147

A1-4 B CASSETTE DOOR T4302UC 0EM407059

A1-5 SPRING DOOR(Z10) T5200UA 0EM406687

A2 REAR CABINET T4400UA 0EM000703

A3# A RATING LABEL T4501UB ----------

A3# B RATING LABEL T4502UC ----------

A4 A POP LABEL T4501UB ----------

A4 B POP LABEL T4502UC ----------

1B1 DECK ASSEMBLY CZD013/VM2226 N2226FT

B1 SPRING TENSION B0080B0:EM40808 26WH006

B2 M5 CRT SCREW(B) B4000UA 0VM403923

B3 SHIELD PLATE(Z9 9V) T4100UA 0EM405692A

B5 CLOTH 190X15XT0.5 TS7623

B8 CLOTH B0071V9:TS7346 24WE420

B10 CLOTH(10X30XT0.5) B5900UA 0EM404486

B11 CLOTH(10X30XT0.5) B5900UA 0EM404486

B13 CLOTH(15X10XT0.5) L9700UA 0EM405038

CLN801 WIRE ASSEMBLY 2P/170 WX1B4800-002

DG1601# DEGAUSSING COIL F-049 LLBH00ZTM049

L1 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180

L2 SCREW TAPPING M4X14 DBU14140

L7 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100

L8 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100

SP801 SPEAKER S08F02B DSD0808XQ010

TB1 TRAY CHASSIS T4400UA 0EM000693

TB2 9V TOP SHIELD T4400UA 0EM101252

TB10 RCA HOLDER(F) T4400UA 0EM407722

TB22# 9V CHASSIS NO. LABEL TJ T4501UB 1EM420008

TB24 WIRE HOLDER T4400UA 0EM407724

TL1 SCREW, P-TIGHT 3X12 WASHER

TL3 SCREW, S-TIGHT 3X4 BIND HEAD+ GBMS3040

TL4 SCREW, P-TIGHT 3X12 WASHER

HEAD+

GCMP3120

Ref. No. Mark Description Part No.

TL14 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080

TL18 SCREW, P-TIGHT M3X8 BIND HEAD+ GBCP3080

V501# CRT A23KQU22X01 TCRT190SM012

PACKING

S1 A CARTON T4501UB 0EM409102

S1 B CARTON T4502UC 0EM409103

S2 STYROFOAM TOP T4400UA 0EM000720

S3 STYROFOAM BOTTOM ASSEMBLY

S4 A SERIAL NO. LABEL T4501UB ----------

S4 B SERIAL NO. LABEL T4502UC ----------

S6 SET SHEET:1000X600XT0.3 L7300UA 0EM401153

S12 AC CORD SHEET T4400UA 0EM407920

T4400UA

0EM407734

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420

X2# A OWNER'S MANUAL T4501UB 0EMN02466

X2# B OWNER'S MANUAL T4502UC 0EMN02467

X3 REMOTE CONTROL 512/ERC001/

X4 DRY BATTERY R6P UM3 or XB0M451GH001

X6 DIPOLE ANTENNA B5307UH or 0EMN00723

X7 A SHEET RETURN STOP L6100UA 0EM407076

X7 B SHEET RETURN STOP L6101UB 0EM407077

X16 MATCHING ADAPTOR ICM-02N or UCPGANTPK004

X22 CAR PLUG CORD WPZ0202GA004

N0150UD or

REMOTE CONTROL 512/ERC001/ N0107UD

DRY BATTERY R6P(AR)2PX or XB0M451HU002

DRY BATTERY R6P(AR)2P X ICI or XB0M451HU003

DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002

DRY BATTERY R6P/2S XB0M451T0001

DIPOLE ANTENNA B5700UA 0EMN01183

MATCHING ADAPTOR or 1813641

MATCHING ADAPTOR 1780258

N0150UD

N0107UD

20040224 1-15-1 T4501CA

Page 63

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA CBA

Ref. No. Description Part No.

MMA CBA 0ESA06147

Consists of the following

MAIN CBA CRT CBA SENSOR CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA

C005 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

C007 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C008 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

C032 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C033 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

C035 CERAMIC CAP.(AX) CH J 15pF/50V CCA1JJTCH150

C036 CHIP CERAMIC CAP. B K 220pF/50V CHD1JKB0B221

C037 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C039 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

C040 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C042 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C043 CHIP CERAMIC CAP. F Z 0.022µF/50V CHD1JZB0F223

C044 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C046 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

C047 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C048 ELECTROLYTIC CAP. 47µF/50V M or CE1JMASDL470

C049 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C052 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473

C053 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473

C054 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103

C203 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C207 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470

Consists of the following

CAPACITORS

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100

ELECTROLYTIC CAP. 47µF/50V M CE1JMASTL470

------------

-----------0ESA06171

------------

Ref. No. Description Part No.

C208 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470

C210 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C211 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

C212 CHIP CERAMIC CAP. SL J 22PF/50V CHD1JJBSL220

C213 CHIP CERAMIC CAP. SL J 22PF/50V CHD1JJBSL220

C214 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028

C216 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103

C217 CHIP CERAMIC CAP. SL D 10PF/50V CHD1JDBSL100

C218 CHIP CERAMIC CAP. SL J 15PF/50V CHD1JJBSL150

C219 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C220 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028

C221 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C222 CHIP CERAMIC CAP. F Z 2200PF/50V CHD1JZB0F222

C223 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C224 CHIP CERAMIC CAP. F Z 1000PF/50V CHD1JZB0F102

C225 CHIP CERAMIC CAP. CH J 560PF/50V CHD1JJBCH561

C231 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101

C232 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101

C233 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C235 CERAMIC CAP.(AX) X K 4700pF/16V CCA1CKT0X472

C236 CERAMIC CAP.(AX) F Z 0.047µF/16V CCA1CZTFZ473

C238 CHIP CERAMIC CAP. F Z 1000PF/50V CHD1JZB0F102

C239 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASTL220

C240 CERAMIC CAP.(AX) B J 560pF/50V CCA1JJT0B561

C241 CHIP CERAMIC CAP. B K 4700pF/50V CHD1JKB0B472

C243 ELECTROLYTIC CAP. 22µF/16V M LL or CE1CMASLL220

ELECTROLYTIC CAP. 22µF/16V M LL CE1CMASLH220

C245 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221

C247 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221

C252 ELECTROLYTIC CAP.(SS.T) 100µF/16V M H7 CA1C101S6028

C253 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTL101

C254 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470

C257 CHIP CERAMIC CAP. F Z 1000PF/50V CHD1JZB0F102

C301 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C302 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330

C303 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330

C304 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330

C309 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C310 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C314 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C315 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C316 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZB0F225

C317 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C319 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C320 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C321 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028

C322 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C323 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZB0F225

C324 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C325 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C326 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C327 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101

20040224 1-16-1 T4501EL

Page 64

Ref. No. Description Part No.

C330 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C331 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028

C336 ELECTROLYTIC CAP. 1µF/50V H7(P=2.5MM) CA1J1R0S6023

C337 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C338 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZB0F225

C339 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C340 CHIP CERAMIC CAP. CH J 47pF/50V CHD1JJBCH470

C342 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028

C351 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028

C352 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028

C410 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

C411 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101

C412 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C413 CHIP CERAMIC CAP. CH J 390PF/50V CHD1JJBCH391

C414 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C416 CHIP CERAMIC CAP. B K 180PF/50V CHD1JKB0B181

C417 CHIP CERAMIC CAP. SL J 22PF/50V CHD1JJBSL220

C418 PCB JUMPER D0.6-P5.0 JW5.0T

C420 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220

C421 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7

C423 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7

C424 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C425 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C426 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220

C427 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

C428 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103

C429 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470

C430 CHIP CERAMIC CAP. F Z 0.022µF/50V CHD1JZB0F223

C431 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C434 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C435 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2

C436 CHIP CERAMIC CAP. B K 3900pF/50V CHD1JKB0B392

C438 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C439 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C440 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C441 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C442 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473

C443 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473

C444 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220

C445 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C446 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

C447 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C448 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

C449 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C450 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101

C552 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J or CA1J224MS029

TF CAP. 0.22µF/50V J CT1J224MS045

C553 ELECTROLYTIC CAP. 2.2µF/50V M LL or CE1JMASLL2R2

ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2

C555 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470

C556 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPTL102

C558 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

C559 ELECTROLYTIC CAP. 330µF/35V M or CE1GMZPDL331

ELECTROLYTIC CAP. 330µF/35V M CE1GMZPTL331

C560 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J CA1J103MS029

C572# P. P. C AP 0. 2 2µF/200V J or CA2D224VC012

# PP CAP. 0.22µF/200V J CT2E224MS041

Ref. No. Description Part No.

C574# ELECTROLYTIC CAP. 4.7µF/250V M or CE2EMASDL4R7

# ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASTL4R7

C577 FILM CAP.(P) 0.022µF/50V J or CMA1JJS00223

FILM CAP.(P) 0.022µF/50V J CA1J223MS029

C578 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470

C580# P.P.CAP 0.0068µF/1.6KV J or CA3C682VC011

# PP CAP. 0.0068µF/1.6KV J or CT3C682MS039

# METALLIZED FILM CAP. 0.0068µF/1.6KV J CT3C682F7004

C581 CERAMIC CAP. BN 560pF/2KV or CCD3DKA0B561

CERAMIC CAP. 560pF/2KV or CA3D561PAN04

CERAMIC CAP. RB 560pF/2KV CA3D561TE006

C584# ELECTROLYTIC CAP. 1µF/160V M or CE2CMASDL1R0

# ELECTROLYTIC CAP. 1µF/160V M CE2CMASTL010

C591 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

C592 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7

C593 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2

C602# SAFETY CAP. 4700pF/250V KX CA2E472MR050

C605# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

# FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011

# METALLIZED FILM CAP. 0.1µF/275V K or CT2E104HJE06

# LINE ACROSS CAP. 0.1U/250V CT2E104DC015

C606 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V or CCD2EZA0F103

CERAMIC CAP. E Z 0.01µF/500V CCD2JZP0E103

C607 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V or CCD2EZA0F103

CERAMIC CAP. E Z 0.01µF/500V CCD2JZP0E103

C608 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V or CCD2EZA0F103

CERAMIC CAP. E Z 0.01µF/500V CCD2JZP0E103

C609 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V or CCD2EZA0F103

CERAMIC CAP. E Z 0.01µF/500V CCD2JZP0E103

C610# ELECTROLYTIC CAPACIT0R 150µF/200V or CA2D151S6012

# ALMINIUM ELECTROLYTIC CAP150µF/200V CA2D151NC088

C611 CERAMIC CAP. BN 820pF/2KV or CCD3DKA0B821

CERAMIC CAP. 820pF/2KV or CA3D821PAN04

CERAMIC CAP RB 820pF/2KV CA3D821TE006

C612 FILM CAP.(P) 0.039µF/50V J or CMA1JJS00393

FILM CAP.(P) 0.039µF/50V J CA1J393MS029

C613 FILM CAP.(P) 0.0012µF/50V J or CMA1JJS00122

FILM CAP.(P) 0.0012µF/50V J CA1J122MS029

C614# FILM CAP.(P) 0.047µF/50V J or CMA1JJS00473

# FILM CAP.(P) 0.047µF/50V J CA1J473MS029

C615 CERAMIC CAP. BN 820pF/2KV or CCD3DKA0B821

CERAMIC CAP. 820pF/2KV or CA3D821PAN04

CERAMIC CAP RB 820pF/2KV CA3D821TE006

C616 ELECTROLYTIC CAP. 47µF/160V M W/F or CE2CMZNDL470

ELECTROLYTIC CAP. 47µF/160V M W/F CE2CMZNTL470

C617# ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471

# ELECTROLYTIC CAP. 470µF/35V M CE1GMZPTL471

C618# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102

# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102

C619 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471

C620# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102

# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102

C622 CERAMIC CAP.(AX) B K 330pF/50V CCA1JKT0B331

C623 FILM CAP.(P) 0.018µF/50V J or CMA1JJS00183

20040224 1-16-2 T4501EL

Page 65

Ref. No. Description Part No.

FILM CAP.(P) 0.018µF/50V J CA1J183MS029

C624 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C625 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2

C626 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7

C628 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100

C629 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470

C630 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101

C631 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTL221

C632 ELECTROLYTIC CAP.(SS.T) 100µF/16V M H7 CA1C101S6028

C633 ELECTROLYTIC CAP.(SS.T) 47µF/25V M H7 CA1E470S6028

C634 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028

C635 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470

C636 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

C639 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222

C641 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101

C648 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220

C801 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221

C802 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471

C803 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMAVSL100

C804 ELECTROLYTIC CAP. 0.22µF/50V M H7 CE1JMAVSLR22

C805 CHIP CERAMIC CAP. B K 4700pF/50V CHD1JKB0B472

C853 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104

C854 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220

C856 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

C857 ELECTROLYTIC CAP. 33µF/6.3V M H7 CE0KMAVSL330

C858 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7

C859 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104

C860 CHIP CERAMIC CAP. F Z 1000PF/50V CHD1JZB0F102

C862 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C863 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7

C865 CHIP CERAMIC CAP. B K 1200pF/50V CHD1JKB0B122

C866 CHIP CERAMIC CAP. B K 2700pF/50V CHD1JKB0B272

C872 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470

C873 ELECTROLYTIC CAP.(SS.T) 100µF/16V M H7 CA1C101S6028

C874 CERAMIC CAP. B K 470pF/100V or CCD2AKS0B471

CERAMIC CAP. B K 470pF/500V CCD2JKS0B471

C875 FILM CAP.(P) 0.018µF/100V J or CMA2AJS00183

FILM CAP.(P) 0.018µF/50V J CA1J183MS029

C969 ELECTROLYTIC CAP. 4.7µF/25V M or CE1EMASDL4R7

ELECTROLYTIC CAP. 4.7µF/25V M CE1EMASTL4R7

CONNECTORS

CN571 CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002

CONNECTOR BASE, 5P RTB-1.5-5P J3RTC05JG001

CN602 CONNECTOR BASE, 14P TUC-P14P-B1 J3TUA14TG001

CN801 STRAIGHT CONNECTOR BASE 00 8283 0212

00 000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG002

DIODES

D031 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D203 LED SIR-563ST3F P or QPQPS1R563ST

LED SIR-563ST3F Q or QPQQS1R563ST

LED MIE-534A2 NPZZM1E534A2

D204 LED LTL-4214M1 or NPQZLTL4214M

Ref. No. Description Part No.

LED LAMP 333HT/F45-50K or NPWK333HTF45

LED LAMP 333HT/F45-50L or NPWL333HTF45

LED LAMP 333HT/F45-50M NPWM333HTF45

D208 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D225 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D226 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D227 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

D231 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D234 PCB JUMPER D0.6-P5.0 JW5.0T

D251 ZENER DIODE MTZJT-7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

D253 ZENER DIODE MTZJT-7718A or QDTA00MTZJ18

ZENER DIODE DZ-18BSAT265 NDTA00DZ18BS

D254 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104

D302 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D303 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D304 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D305 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D306 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D309 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D311 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D312 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D313 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D314 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D315 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D401 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D552 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D553 DIODE 1ZC75 QDQZ0001ZC75

D571# DIODE FR154 or NDLZ000FR154

# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D572# DIODE FR104-B NDLZ000FR104

D584 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D585 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS

D591# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

# ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS

D595# ZENER DIODE MTZJT-7715C or QDTC00MTZJ15

# ZENER DIODE DZ-15BSCT265 NDTC00DZ15BS

D596 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D597 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D598# DIODE FR104-B NDLZ000FR104

20040224 1-16-3 T4501EL

Page 66

Ref. No. Description Part No.

D601 PCB JUMPER D0.6-P10.0 JW10.0T

D603# DIODE 1N5397-B or NDLZ001N5397

# RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D604# DIODE 1N5397-B or NDLZ001N5397

# RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D605# DIODE 1N5397-B or NDLZ001N5397

# RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D606# DIODE 1N5397-B or NDLZ001N5397

# RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D607# ZENER DIODE MTZJT-7720C or QDTC00MTZJ20

# ZENER DIODE DZ-20BSCT265 NDTC00DZ20BS

D609 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D610 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D611 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D613# RECOVERY DIODE ERC18-04 QDZZ0ERC1804

D614# DIODE FR104-B NDLZ000FR104

D615# DIODE 1ZC30 or QDQZ0001ZC30

# ZENER DIODE RD30FB QDQZ000RD30F

D616# SCHOTTKY BARRIER DIODE 21DQ04 or QDQZ0021DQ04

# SCHOTTKY BARRIER DIODE ERB81-004 AERB81004***

D617 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D618# SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

# SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D619 DIODE FR104-B NDLZ000FR104

D620# ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

# ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D621 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D622 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D625 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D626 ZENER DIODE MTZJT-7736A or QDTA00MTZJ36

ZENER DIODE DZ-36BSAT265 NDTA00DZ36BS

D627# ZENER DIODE MTZJT-7710C or QDTC00MTZJ10

# ZENER DIODE DZ-10BSCT265 NDTC00DZ10BS

D628 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D629 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D631 ZENER DIODE MTZJT-776.8A or QDTA0MTZJ6R8

ZENER DIODE DZ-6.8BSAT265 NDTA0DZ6R8BS

D632 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D633 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D634 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D635 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D636 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D638 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D639 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D640 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

Ref. No. Description Part No.

SWITCHING DIODE 1N4148 NDTZ001N4148

D641# ZENER DIODE MTZJT-7736A or QDTA00MTZJ36

# ZENER DIODE DZ-36BSAT265 NDTA00DZ36BS

D646 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D801 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D802 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D803 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D961 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D962 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D963 ZENER DIODE MTZJT-775.1A or QDTA0MTZJ5R1

ZENER DIODE DZ-5.1BSAT265 NDTA0DZ5R1BS

D964 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D965 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

ICS

IC100 IC:VIF/SIF DETECTOR M61111FP QSZBA0SMB010

IC201# MICRO COMPUTER M37762M8A-8D6GP QSZAA0RHT022

IC202 IC:MEMORY BR24C02F-W or QSMBA0SRM003

IC:EEPROM CAT24WC02JI or NSZBA0SBG001

IC(EEP-ROM) M24C02-WMN6 or NSZAA0SSS004

IC BR24L02F-WE2 QSZBA0TRM068

IC301# VCD IC M61275FP or QSZAA0RMB133

# MICRO-COMPUTER/VCD M61275FP-61 QSZAB0RMB133

IC401 IC:Y/C/A LA71091M QSZBA0RSY012

IC551# VERTICAL OUTPUT IC LA78040A QSBBA0SSY003

IC601# PHOTOCOUPLER LTV-817C-F or NPEC0LTV817F

# PHOTO COUPLER PC817X6 QPE600PC817X

IC602# VOLTAGE REGULATOR KIA7805API or NSBBA0SJY011

# VOLTAGE REGULATOR KA7805A NSZBA0SF3052

IC801 AUDIO AMP LA4224 QSZAA0SSY005

COILS

L001 PCB JUMPER D0.6-P5.0 JW5.0T

L031 PCB JUMPER D0.6-P5.0 JW5.0T

L033 INDUCTOR 15µH-J-26T or LLAXJATTU150

INDUCTOR 15µH-K-26T LLAXKDTKA150

L041 PCB JUMPER D0.6-P5.0 JW5.0T

L202 INDUCTOR 0.10µH-K-26T LLAXKATTUR10

L211# CHOKE COIL 47µH-K or LLBD00PKV007

# CHOKE COIL 47µH-K LLBD00PKV005

L302 PCB JUMPER D0.6-P5.0 JW5.0T

L303 PCB JUMPER D0.6-P5.0 JW5.0T

L402 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220

L404 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K LLBD00PKV005

L601# LINE FILTER SA-91213B or LLBG00ZSA002

# LINE FILTER 5.0MH 6Y075 or LLBG00ZKT004

# LINE FILTER UU10.5-A LLBG00ZY2008

L871 PCB JUMPER D0.6-P5.0 JW5.0T

L872 INDUCTOR 47µH-K-5FT or LLARKBSTU470

INDUCTOR 47µH-K-5FT LLARKDSKA470

TRANSISTORS

Q205 TRANSISTOR 2SC2785(F) or QQSF02SC2785

20040224 1-16-4 T4501EL

Page 67

Ref. No. Description Part No.

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q206 PHOTO TRANSISTOR MID-32A22F or NPWZ1D32A22F

PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12

Q301 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q401 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q402 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q571# TRANSISTOR TT2138LS-YB11 or QQZZ00TT2138

# TRANSISTOR 2SC5884000RF QQZZ02SC5884

Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627

Q591# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR KTC3199(GR) or NQS10KTC3199

# TRANSISTOR KTC3198(GR) or NQS40KTC3198

# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q601# MOS FET 2SK3563 QFWZ02SK3563

Q602# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q604# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785

# TRANSISTOR 2SC2785(J) or QQSJ02SC2785

# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q605 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q606# TRANSISTOR 2SA950(O) or Q2SA9500TPE2

# TRANSISTOR 2SA950(Y) or Q2SA950YTPE2

# TRANSISTOR KTA1271(Y) NQSY0KTA1271

Q607 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q608# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

# TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q609 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q610 TRANSISTOR 2SD400(F) or QQUF002SD400

TRANSISTOR 2SD400(E) QQUE002SD400

Q611# TRANSISTOR 2SD400(F) or QQUF002SD400

# TRANSISTOR 2SD400(E) QQUE002SD400

Q612 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Q871 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q872 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q873 TRANSISTOR 2SC3331(T) or QSC3331TNPAA

TRANSISTOR 2SC3331(U) or QSC3331UNPAA

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Ref. No. Description Part No.

Q874 TRANSISTOR 2SC3331(T) or QSC3331TNPAA

TRANSISTOR 2SC3331(U) or QSC3331UNPAA

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q875 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Q958 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R002 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R003 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R032 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R033 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123

R034 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

R037 CHIP RES.(1608) 1/10W J 180 Ω RRXAJB5Z0181

R038 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

R039 CHIP RES.(1608) 1/10W J 180 Ω RRXAJB5Z0181

R041 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123

R042 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392

R046 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224

R047 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224

R053 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R201 CARBON RES. 1/4W G 4.7k Ω RCX4GATZ0472

R202 CHIP RES. 1/10W F 22k Ω or RRXAFB5J2202

CHIP RES.(1608) 1/10W F 22k Ω RRXAFB5H2202

R203 CHIP RES. 1/10W F 470 Ω or RRXAFB5J4700

CHIP RES.(1608) 1/10W F 470 Ω RRXAFB5H4700

R204 CHIP RES. 1/10W F 1.5k Ω or RRXAFB5J1501

CHIP RES.(1608) 1/10W F 1.5k Ω RRXAFB5H1501

R205 CHIP RES. 1/10W F 3.6k Ω or RRXAFB5J3601

CHIP RES.(1608) 1/10W F 3.6k Ω RRXAFB5H3601

R206 CHIP RES. 1/10W F 10k Ω or RRXAFB5J1002

CHIP RES.(1608) 1/10W F 10k Ω RRXAFB5H1002

R208 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R209 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R210 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R211 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R212 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R213 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R214 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R215 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R216 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R217 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R218 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R219 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102

R220 CHIP RES.(1608) 1/10W J 390k Ω RRXAJB5Z0394

R221 PCB JUMPER D0.6-P5.0 JW5.0T

R222 CHIP RES.(1608) 1/10W J 270k Ω RRXAJB5Z0274

R223 CHIP RES.(1608) 1/10W J 560 Ω RRXAJB5Z0561

R225 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R227 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271

R229 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331

R233 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222

R234 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJB5Z0122

R235 CHIP RES.(1608) 1/10W J 47 Ω RRXAJB5Z0470

R236 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104

R237 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R238 CHIP RES.(1608) 1/10W J 470k Ω RRXAJB5Z0474

R239 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272

20040224 1-16-5 T4501EL

Page 68

Ref. No. Description Part No.

R240 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000

R241 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562

R243 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102

R244 CHIP RES.(1608) 1/10W J 1M Ω RRXAJB5Z0105

R245 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471

R247 CHIP RES.(1608) 1/10W J 820 Ω RRXAJB5Z0821

R248 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471

R249 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R250 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152

R251 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332

R252 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152

R253 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R254 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152

R255 PCB JUMPER D0.6-P5.0 JW5.0T

R256 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R257 PCB JUMPER D0.6-P5.0 JW5.0T

R258 PCB JUMPER D0.6-P5.0 JW5.0T

R259 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R260 PCB JUMPER D0.6-P5.0 JW5.0T

R262 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224

R263 CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393

R267 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R270 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104

R271 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R273 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJB5Z0182

R274 CHIP RES.(1608) 1/10W J 680 Ω RRXAJB5Z0681

R278 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R279 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R282 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821

R283 PCB JUMPER D0.6-P5.0 JW5.0T

R291 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R292 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R301 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331

R303 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331

R305 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331

R308 CARBON RES. 1/4W J 120k Ω RCX4JATZ0124

R310 CARBON RES. 1/4W J 180k Ω RCX4JATZ0184

R312 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R314 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R315 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R316 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822

R329 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R331 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R332 CARBON RES. 1/2W J 39 Ω or RCX2JZQZ0390

CARBON RES. 1/2W J 39 Ω RCX2390KA013

R333 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R334 CHIP RES.(1608) 1/10W J 56k Ω RRXAJB5Z0563

R335 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562

R336 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R337 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102

R338 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183

R339 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R340 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R406 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R407 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473

R409 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183

R413 CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393

R414 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472

R415 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152

R416 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104

R417 CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221

Ref. No. Description Part No.

R418 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331

R419 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331

R423 CHIP RES.(1608) 1/10W J 5.6M Ω RRXAJB5Z0565

R424 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104

R425 CHIP RES.(1608) 1/10W J 82k Ω RRXAJB5Z0823

R426 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222

R427 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821

R428 CHIP RES.(1608) 1/10W J 680k Ω RRXAJB5Z0684

R429 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152

R431 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822

R435 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJB5Z0182

R544 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R551 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152

R552# CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122

R556 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

R557 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471

R558 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183

R559 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R560 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R561 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R562 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

R563 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

R565 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

R566 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

R568 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122

R570 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

R571 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

R573 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471

R574# METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001

# METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004

R575# METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001

# METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004

R576 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R577 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

R578 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

R579 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680

R580 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680

R581 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680

R583# METAL OXIDE FILM RES. 2W J 3.9 Ω or RN023R9ZU001

# METAL OXIDE FILM RES. 2W J 3.9 Ω RN023R9DP004

R584 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R586 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R587 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R588 CARBON RES. 1/4W J 150k Ω RCX4JATZ0154

R590 METAL OXIDE FILM RES. 1W J 3.3k Ω or RN01332ZU001

METAL OXIDE FILM RES. 1W J 3.3k Ω RN01332DP003

R592# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184

R593 CHIP RES.(1608) 1/10W J 68k Ω RRXAJB5Z0683

R594 CHIP RES.(1608) 1/10W J 68k Ω RRXAJB5Z0683

R595 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R596 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R597 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJB5Z0122

R598 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R599 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R602# CEMENT RES. 3W K 1.2 Ω or RW031R2PG007

# CEMENT RES. 5W K 1.2 Ω or RW051R2DP005

# CEMENT RESISTOR 5W K 1.2 Ω or RW051R2PG001

# CEMENT RESISTOR 5W J 1.2 Ω H:10MM or RW051R2PAK10

# CEMENT RESISTOR 3W K 1.2 Ω RW031R2PAK10

R603# METAL OXIDE FILM RES. 2W J 0.39 Ω or RN02R39ZU001

# METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39DP004

20040224 1-16-6 T4501EL

Page 69

Ref. No. Description Part No.

R604# CARBON RES. 1/4W J 1.2M Ω RCX4JATZ0125

R605 CARBON RES. 1/4W J 1.2M Ω RCX4JATZ0125

R606 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

R607 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

R608 CARBON RES. 1/4W J 180k Ω RCX4JATZ0184

R610 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R613 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

R614 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152

R616 CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2

R617 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

R618 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821

R619 CARBON RES. 1/2W J 820 Ω or RCX2JZQZ0821

CARBON RES. 1/2W J 820 Ω RCX2821KA013

R620 METAL OXIDE FILM RES. 2W J 10k Ω or RN02103ZU001

METAL OXIDE FILM RES. 2W J 10k Ω RN02103DP004

R621 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R622 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R623 CHIP RES.(1608) 1/10W J 27k Ω RRXAJB5Z0273

R624# CARBON RES. 1/4W J 39k Ω RCX4JATZ0393

R625 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R629 CARBON RES. 1/4W J 13k Ω RCX4JATZ0133

R630 CARBON RES. 1/4W J 13k Ω RCX4JATZ0133

R631 CARBON RES. 1/4W J 13k Ω RCX4JATZ0133

R632 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331

R633 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562

R634 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682

R635 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R636 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821

R637 METAL OXIDE FILM RES. 2W J 10k Ω or RN02103ZU001

METAL OXIDE FILM RES. 2W J 10k Ω RN02103DP004

R639# CARBON RES. 1/2W J 820 Ω or RCX2JZQZ0821

# CARBON RES. 1/2W J 820 Ω RCX2821KA013

R640 CHIP RES.(1608) 1/10W J 56k Ω RRXAJB5Z0563

R641 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R642 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822

R643 CARBON RES. 1/4W J 39 Ω RCX4JATZ0390

R644 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473

R646 CARBON RES. 1/2W J 82 Ω or RCX2JZQZ0820

CARBON RES. 1/2W J 82 Ω RCX2820KA013

R648# CARBON RES. 1/2W J 15 Ω or RCX2JZQZ0150

# CARBON RES. 1/2W J 15 Ω RCX2150KA013

R650# CARBON RES. 1/4W J 22 Ω RCX4JATZ0220

R651# CARBON RES. 1/4W J 390 Ω RCX4JATZ0391

R652# CARBON RES. 1/4W J 390 Ω RCX4JATZ0391

R653 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R654 CARBON RES. 1/2W J 3.3 Ω or RCX2JZQZ03R3

CARBON RES. 1/2W J 3.3 Ω RCX23R3KA013

R655# CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182

R656# METAL OXIDE FILM RES. 1W J 8.2 Ω or RN018R2ZU001

# METAL OXIDE FILM RES. 1W J 8.2 Ω RN018R2DP003

R659 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101

R660 PCB JUMPER D0.6-P5.0 JW5.0T

R662 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220

R671 CARBON RES. 1/4W J 1.8 Ω RCX4JATZ01R8

R701 CHIP RES.(1608) 1/10W J 75 Ω RRXAJB5Z0750

R801# METAL OXIDE FILM RES. 1W J 12 Ω or RN01120ZU001

# METAL OXIDE FILM RES. 1W J 12 Ω RN01120DP003

R802 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R803 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222

R804 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472

R805 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

Ref. No. Description Part No.

R806 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

R807 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

R851 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R852 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJB5Z0392

R853 CHIP RES.(1608) 1/10W J 2.2M Ω RRXAJB5Z0225

R856 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R857 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332

R858 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682

R859 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472

R861 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682

R862 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272

R863 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103

R864 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822

R865 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123

R866 CHIP RES.(1608) 1/10W J 330k Ω RRXAJB5Z0334

R867 CHIP RES.(1608) 1/10W J 270 Ω RRXAJB5Z0271

R868 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183

R869 CHIP RES.(1608) 1/10W J 820 Ω RRXAJB5Z0821

R871 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R872 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223

R873 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183

R874 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R875 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222

R876 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222

R877 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821

R976 METAL OXIDE FILM RES. 1W J 47 Ω or RN01470ZU001

METAL OXIDE FILM RES. 1W J 47 Ω RN01470DP003

R977 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R978 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R979 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R980 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R981 CARBON RES. 1/2W J 1.2 Ω RCX2JZQZ01R2

SWITCHES

SW201 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW202 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW203 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW204 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW205 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW206 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW207 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW208 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW209 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW210 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW211 LEAF SWITCH LSA-1142-2AU or SSC0101KB014

LEAF SWITCH MXS00052MPP0 or SSC0101MCE01

LEAF SWITCH MXS00981MPP0 SSC0101MCE02

SW212 ROTARY MODE SWITCH SSS-50MD or SSR0106KB002

ROTARY MODE SWITCH R8100245 SSR0106U3002

MISCELLANEOUS

BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026

20040224 1-16-7 T4501EL

Page 70

Ref. No. Description Part No.

BC601 PCB JUMPER D0.6-P5.0 JW5.0T

BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC603 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC605 PCB JUMPER D0.6-P5.0 JW5.0T

BC606 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

CF031 CERAMIC TRAP 4.5MHz or FBE455PMR003

4.5M TRAP XT4.5MB2 FBE455PLN001

CF032 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

4.5M FILTER LTH4.5MCB FBB455PLN001

CL201 FMN CONNECTOR, TOP 12P 12FMN-BTRK JCFNG12JG002

CL601 WIRE WX1T4400-010 WX1T4400-010

F601# FUSE 4.00A/125V or PAGU20CAG402

# FUSE 51MS040L or PAFC20CHV402

# FUSE STC4A125V U/CT or PAGE20CW3402

# FUSE 4.00A/125V PAGG20CNG402

FH601 FUSE HOLDER MSF-015 XH01Z00LY001

FH601# FUSE HOLDER FH-V-03078 XH01Z00DK001

FH602 FUSE HOLDER MSF-015 XH01Z00LY001

FH602# FUSE HOLDER FH-V-03078 XH01Z00DK001

J125 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000

J188 INDUCTOR 10µH-J-26T or LLAXJATTU100

INDUCTOR 10µH-K-26T LLAXKDTKA100

JK701 RCA JACK 1P AV-8.4-9Y JXRL010RP010

JK702 RCA JACK 1P AV-8.4-9W JXRL010RP011

JK801 EARPHONE JACK EX341BLB-1 JYSL030EXC01

PS601# THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A

RS201 REMOCON RECEIVE UNIT PIC-37042SR or USESJRSKK034

REMOCON RECEIVE UNIT PIC-26042SR-2 USESJRSKK032

SA601# SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

# SURGE ABSORBER CNR-10D471K NVQZR10D471K

SF001 SAW FILTER SAFGM45M7VHHZC0B03 FBB456PMR008

SG001# GAP. FNR-G3.10D FAZ000LD6005

T571# FLYBACK TRANSFORMER JF0501-3103A LTF00CPXB041

T572 H0RIZONTAL DRIVE TRANS LP2-005 LTH00CPA5005

T601# SWITCHING TRANS AC K1J2K LTT00CPKT092

TB3 HEAD SHIELD(DC) T5400UA 0EM301721

TB7 LED HOLDER T4400UA 0EM407723

TB9 9V POW HEAT SINK PHC T4400UA 0EM407598

TB21 BUSH, LED(F) H3700UD 0VM409508

TB26 13V H/V HEAT SINK PGZ T5400UA 0EM301720

TL2 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080

TP201 PCB JUMPER D0.6-P5.0 JW5.0T

TP301 PCB JUMPER D0.6-P17.5 JW17.5T

TP302 PCB JUMPER D0.6-P5.0 JW5.0T

TP401 PCB JUMPER D0.6-P20.0 JW20.0T

TP402 PCB JUMPER D0.6-P17.5 JW17.5T

TU001# TUNER B8135AP or UTUNNTUSP023

# TUNER ENV56DC9G3 UTUNNTUMS010

VR601# CARBON P.O.T. 10k Ω B VRCB103HH014

W601# AC CORD PB8K9F9110A-057 or WAC0172LW008

# AC CORD WAC0172AS006 or WAC0172AS006

# AC CORD A0A0280-007 WAC0172LTE04

X201 X'TAL 32.768kHz(20PPM) or FXC323LJNY01

X'TAL 32.768kHz(20PPM) or FXC323LCT001

X'TAL 32.768kHz(20PPM) or FXC323LDS002

X'TAL 32.768kHz(20PPM) or FXC323LQUA01

X'TAL 32.768kHz(20PPM) FXC323LCHE01

X202 X'TAL HC-49/U 10.6MHz or FXD106LLN001

X'TAL AT49-10.6 FXD106LDS002

X301 X'TAL 3.579545 MHz or FXD355LLN003

X'TAL 3.579545MHz(30PPM) FXD355LCHE01

Ref. No. Description Part No.

X401 X'TAL 3.579545MHz(20PPM) or FXC355LLN003

X'TAL 3.579545MHz(20PPM) or FXC355LDS001

X'TAL 3.579545MHz(20PPM) FXC355LCHE01

CRT CBA

Ref. No. Description Part No.

CRT CBA

Consists of the following

CAPACITORS

C501 CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. B K 1000pF/2KV or CA3D102MR030

CERAMIC CAP. B K 1000pF/2KV CCD3DKD0B102

C502 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C511 CHIP CERAMIC CAP. B K 330pF/50V CHD1JKB0B331

C521 CHIP CERAMIC CAP. B K 330pF/50V CHD1JKB0B331

C531 CHIP CERAMIC CAP. B K 330pF/50V CHD1JKB0B331

CONNECTORS

CN505 PIN CONNECTOR 005P-5100 or JTEA001TG001

CONNECTOR PIN, 1P LV or 1700576

CONNECTOR PIN, 1P RT-01N-2.3A 1730688

TRANSISTORS

Q511 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468

TRANSISTOR KTC3207 NQSZ0KTC3207

Q521 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468

TRANSISTOR KTC3207 NQSZ0KTC3207

Q531 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468

TRANSISTOR KTC3207 NQSZ0KTC3207

RESISTORS

R510# METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001

# METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003

R511 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150

R512 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R513 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R515 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R516 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R517 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R520# METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001

# METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003

R521 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150

R522 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R523 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R525 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R526 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R527 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R530# METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001

# METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003

R531 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150

R532 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R533 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R535 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R536 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

------------

20040224 1-16-8 T4501EL

Page 71

Ref. No. Description Part No.

R537 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

MISCELLANEOUS

CL501A LEAD WIRE 3P/370MM WX1T4400-001

CL502A LEAD WIRE 4P/390MM WX1T4400-002

JK501# CRT SOCKET ISMS02S JSCC220PK003

SENSOR CBA

Ref. No. Description Part No.

SENSOR CBA

Consists of the following

0ESA06171

TRANSISTORS

Q201 PHOTO TRANSISTOR MID-32A22F or NPWZ1D32A22F

PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12

Q202 PHOTO TRANSISTOR MID-32A22F or NPWZ1D32A22F

PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12

MISCELLANEOUS

TB20 BUSH, LED(D) H1600UD 0VM408655

DC POWER SUPPLY CBA

Ref. No. Description Part No.

DC POWER SUPPLY CBA

Consists of the following

CAPACITORS

C1930 CERAMIC CAP.(AX) B K 330pF/50V CCA1JKT0B331

C1931 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C1932 CERAMIC CAP.(AX) B K 0.0047µF/50V CA1J472TU011

C1933 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100

C1951 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPTL102

C1952 ELECTROLYTIC CAP. 3300µF/25V(PJ) or CA1E332NC052

ELECTROLYTIC CAP. 3300µF/25V M(KC) CA1E332EA041

C1957 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471

C1958 CERAMIC CAP. BN 330pF/2KV or CCD3DKA0B331

CERAMIC CAP. LB 330pF/2KV or CA3D331KG004

CERAMIC CAP. 330pF/2KV or CA3D331PAN04

CERAMIC CAP. RB 330pF/2KV CA3D331TE006

C1959 ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPDL101

ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPTL101

ELECTROLYTIC CAP. 100µF/160V M W/F CE2CMZNTL101

C1960 CERAMIC CAP. B K 1500pF/1KV or CCD3AKD0B152

CERAMIC CAP. B K 1500pF/1KV or CA3A152MR028

CERAMIC CAP. B K 1500pF/1KV CCD3AKP0B152

C1961 ELECTROLYTIC CAP. 220µF/35V M or CE1GMASDL221

ELECTROLYTIC CAP. 220µF/35V M CE1GMASTL221

C1966 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104

C1967 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASTL220

CONNECTOR

CN1951 CONNECTOR, 14P TUC-P14X-B1 JCTUS14TG001

DIODES

D1930 PCB JUMPER D0.6-P5.0 JW5.0T

D1952# DIODE 1ZC18 or QDQZ0001ZC18

# ZENER DIODE RD18F QDQZ000RD18F

D1955# FAST RECOVERY DIODE 20NFA60 or QDAZ020NFA60

# FAST RECOVERY DIODE ERD38-06 QDQZ0ERD3806

Z1309PS1

Ref. No. Description Part No.

D1956 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D1957 ZENER DIODE MTZJT-7712A or QDTA00MTZJ12

ZENER DIODE DZ-12BSAT265 NDTA00DZ12BS

D1958 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D1959 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D1960 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D1961 DIODE FR104-B NDLZ000FR104

IC1951 IC:SWITCHING REGURATOR M62212FP QSZBA0TMB004

COIL

L1961 CHOKE COIL 47µH-K-1 LLBD00PKV017

TRANSISTORS

Q1930 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T) or QSC3331TNPAA

TRANSISTOR 2SC3331(U) or QSC3331UNPAA

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1931 TRANSISTOR KTC3199(GR) NQS10KTC3199

Q1932 TRANSISTOR KTA1267(GR) NQS10KTA1267

Q1933# MOS FET 2SK2232 or QF5Z02SK2232

# MOS FET FS30KMJ-06 QFZZ0FS30KMJ

Q1951 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1952 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1953# TRANSISTOR 2SA1931 or QQZZ02SA1931

# TRANSISTOR 2SA1469(R) QQ9R02SA1469

Q1954 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1955 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1956 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R1931 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123

R1932# CARBON RES. 1/4W J 390 Ω RCX4JATZ0391

R1933 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

R1934 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

R1935 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391

R1936 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R1937 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R1938 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183

R1939 PCB JUMPER D0.6-P5.0 JW5.0T

R1940 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684

R1941 CARBON RES. 1/4W J 330k Ω RCX4JATZ0334

R1953# CARBON RES. 1/4W J 39k Ω RCX4JATZ0393

20040224 1-16-9 T4501EL

Page 72

Ref. No. Description Part No.

R1954 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R1955 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R1956 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R1958 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R1959 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R1960 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123

R1961 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R1962 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R1963 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1964 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R1965 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R1966 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R1967 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122

R1968 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R1969 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

R1970 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

R1971 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

R1972 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

R1973 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R1974# CEMENT RES. 5W K 4.7 Ω or RW054R7DP005

# CEMENT RES. 5W K 4.7 Ω RW054R7PG001

R1974 CEMENT RESISTOR 5W J 4.7 Ω H:10MM RW054R7PAK10

MISCELLANEOUS

BC1951 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC1952 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC1954 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

CL1951 LEAD WIRE 14P(7+7) 125MM WX1T4400-003

F1951# FUSE 8.00A/125V or PAGU20CAG802

# FUSE 51MS080L PAFC20CHV802

FH1951 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 XH01Z00DK001

FH1952 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 XH01Z00DK001

JK1951 DC JACK 1630382

PB1 9V POWER PCB HOLDER T4400UA 0EM101250

PB3 9V BOTTOM SHIELD(DC) T4400UA 0EM407601

PB5 9V DC HEAT SINK PHD T4400UA 0EM407599

PB6 9V TOP COVER(DC) T4400UA 0EM301783

PB7 9V DC HEAT SINK PHE ASSEMBLY T4400UA 0EM407684

PL1 SCREW, P-TIGHT 3X12 WASHER HEAD+ GCMP3120

PL2 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080

T1951# SWITCHING TRANS DC K1J2KDC LTT00ZPKT091

VR1951# CARBON P.O.T. 20k Ω B VRCB203HH014

20040224 1-16-10 T4501EL

Page 73

SC309E/6309CE

T4501UB/T4502UC

2004-02-27

Symphonic 6309CE, SC309E Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

PREPARATION FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

BLOCK DIAGRAMS

MECHANICAL TROUBLE INDICATOR

Power Supply Trouble Shooting Guide

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

SYSTEM CONTROL TIMING CHARTS

IC PIN FUNCTION DESCRIPTIONS

LEAD IDENTIFICATIONS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST
