Dia™
Towel Bar 353DTB-18 and 353DTB-24
Specification Submittal
Model Numbers
353DTB-18
353DTB-24
Towe l B ar
Towe l B ar
Finish Options
Append appropriate -sux to model number.
-STN
Satin nickel nish
Feature Highlights
■ Metal construction
■ Mounting hardware included
■ Standard nish is polished chrome
Warranty
■ Limited Lifetime - to the original end purchaser in
residential/consumer installations.
■ 5 years - for commercial installations

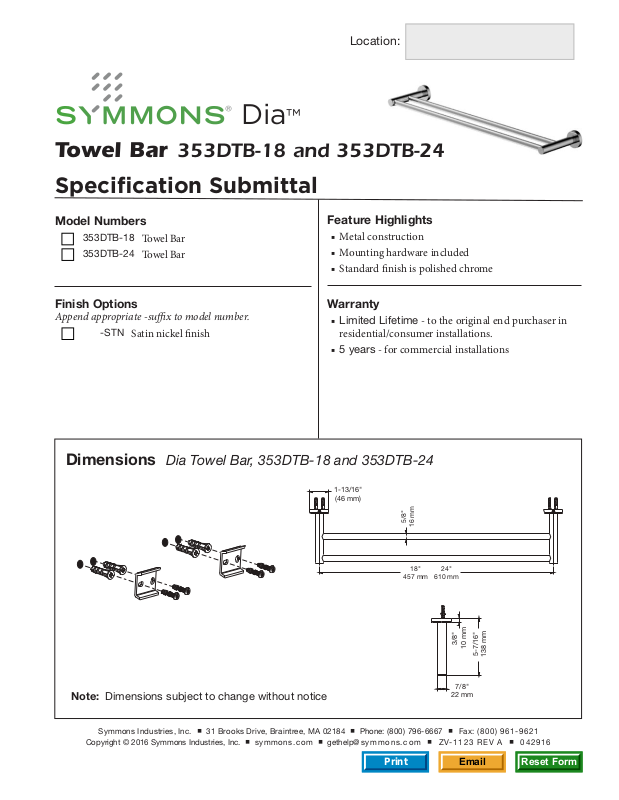

Dimensions Dia Towel Bar, 353DTB-18 and 353DTB-24
1-13/16"
(46 mm)
5/8"
16 mm
18"
457 mm
Note: Dimensions subject to change without notice
Symmons Industries, Inc. ■ 31 Brooks Drive, Braintree, MA 02184 ■ Phone: (800) 796-6667
Copyright © 2016 Symmons Industries, Inc. ■ symmons.com ■ [email protected] ■ ZV-1123 REV A ■ 042916
24"
610 mm
3/8"
10 mm
5-7/16"
7/8"
22 mm
■
Fax: (800) 961-9621
138 mm
