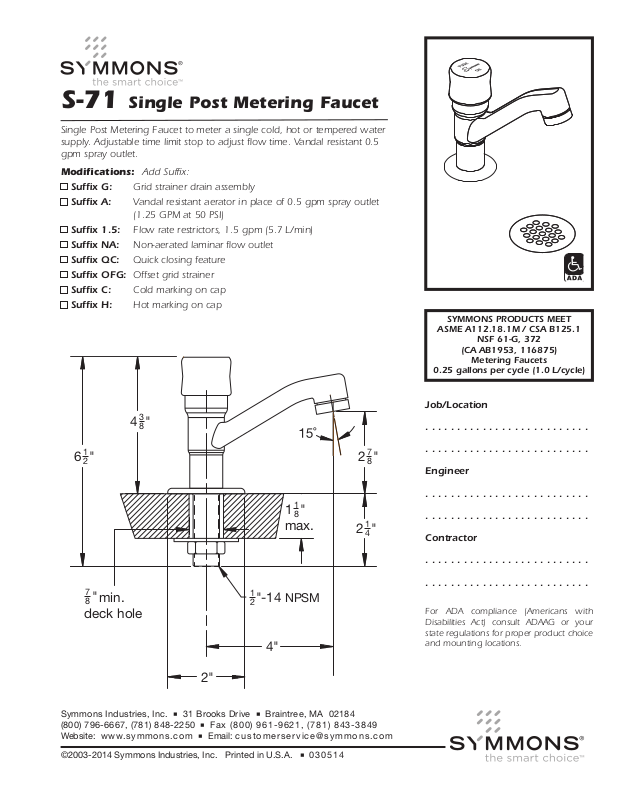

S-71 Single Post Metering Faucet
Single Post Metering Faucet to meter a single cold, hot or tempered water
supply. Adjustable time limit stop to adjust flow time. Vandal resistant 0.5
gpm spray outlet.
Modifications:
Suffix G: Grid strainer drain assembly
Suffix A: Vandal resistant aerator in place of 0.5 gpm spray outlet
Suffix 1.5: Flow rate restrictors, 1.5 gpm (5.7 L/min)
Suffix NA: Non-aerated laminar flow outlet
Suffix QC: Quick closing feature
Suffix OFG: Offset grid strainer
Suffix C: Cold marking on cap
Suffix H: Hot marking on cap
1
6 "
2
Add Suffix:
(1.25 GPM at 50 PSI)
3
4 "
8
2 "
SYMMONS PRODUCTS MEET
ASME A112.18.1M / CSA B125.1
0.25 gallons per cycle (1.0 L/cycle)
Job/Location
. . . . . . . . . . . . . . . . . . . . . . . . . .
7
8
. . . . . . . . . . . . . . . . . . . . . . . . . .
Engineer
NSF 61-G, 372
(CA AB1953, 116875)
Metering Faucets
1
1 "
8
max.
7
"
min.
8
1
"-14
2
NPSM
deck hole
4"
2"
Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184
(800) 796-6667, (781) 848-2250
Website: www.symmons.com
©2003-2014 Symmons Industries, Inc. Printed in U.S.A.
■ Fax (800) 961-9621, (781) 843-3849
■ Email: [email protected]
■ 030514
1
2 "
4
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
Contractor
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
For ADA compliance (Americans with
Disabilities Act) consult ADAAG or your
state regulations for proper product choice
and mounting locations.
