Lucetta
Roman Tub Faucet SRT-4670
Installation and Service Instructions
®
Model Numbers
SRT-4670 ............. Chrome finish
SRT-4670-STN ....Satin Nickel finish
Tools & Materials
5/64"
1/8"
1 2 3 4
Quick Install Guide Lucetta Roman Tub Faucet, SRT-4670
Step 8
Flush water supply lines
Need Help?
Contact Symmons customer service at
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Monday - Friday 8:00 am - 7:30 pm EST
Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
Step 7
Attach water spout
Step 5
Attach handles
Step 3
Mount valve assembly
Step 2
Solder valve assembly together
Step 1
Cut copper tubing to length
nished deck
Step 4
Attach valve assembly
Step 6
Connect water supply lines
and check for leaks
Installation Instructions
Caution: If replacing an older faucet ensure water supply is
OFF before removing and then turn faucet handles ON
turned
to relieve water pressure.
Step 1 Cut copper tubing to length
Length = (d) minus 2-1/4 inches (57 mm) divided by 2.
center to center distance (d)*
1/2" (12.7 mm) copper tubing
Step 3 Mount valve assembly to deck
nished deck
front view
red
(hot)
blue (cold)
Step 4 Attach valve assembly to deck
Example:
If center to center distance (d) is 14 inches.
-
14 inches minus 2-1/4 inches = 11-3/4 inches.
-
11-3/4 inches divided by 2 = 5-7/8 inches.
-
Cut 2 copper tubes into 5-7/8 inch lengths.
-
* Maximum distance (d) with supplied
copper tubing is 18-1/4 inches (463 mm)
Step 2 Solder valve assembly together
nished deck
front view
D1
Thread down until
stop is reached
D1 = D2
D2
Ensure valves are
parallel aligned
when soldering.
Page 2

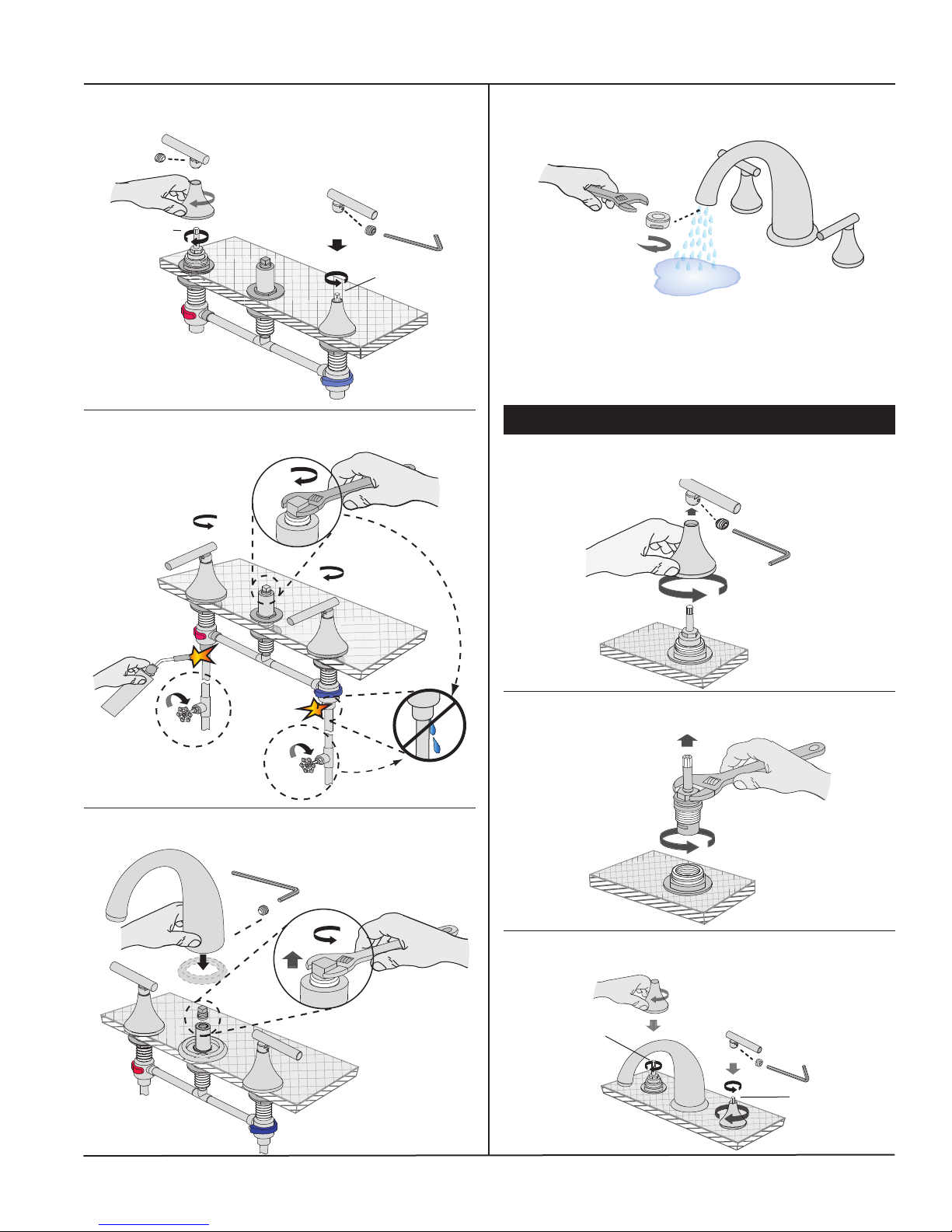

Step 5 Attach faucet handles
Step 8 Flush water supply lines
OFF = CW
5/64"
OFF = CCW
Step 6 Solder supply lines to valve inlets
Care of faucet fi nish
Clean nish area by using mild soap and water or non-abrasive
cleaner and then rinse immediately. A non-abrasive wax may
be used to preserve nish area.
Valve cartridge replacement
Step 1 Remove faucet handle and collar
5/64"
hot
cold
Step 7 Attach faucet spout to deck
1/8"
Step 2 Remove and replace cartridge
Step 3 Attach collar and faucet handle
OFF = CW
5/64"
OFF = CCW
Page 3

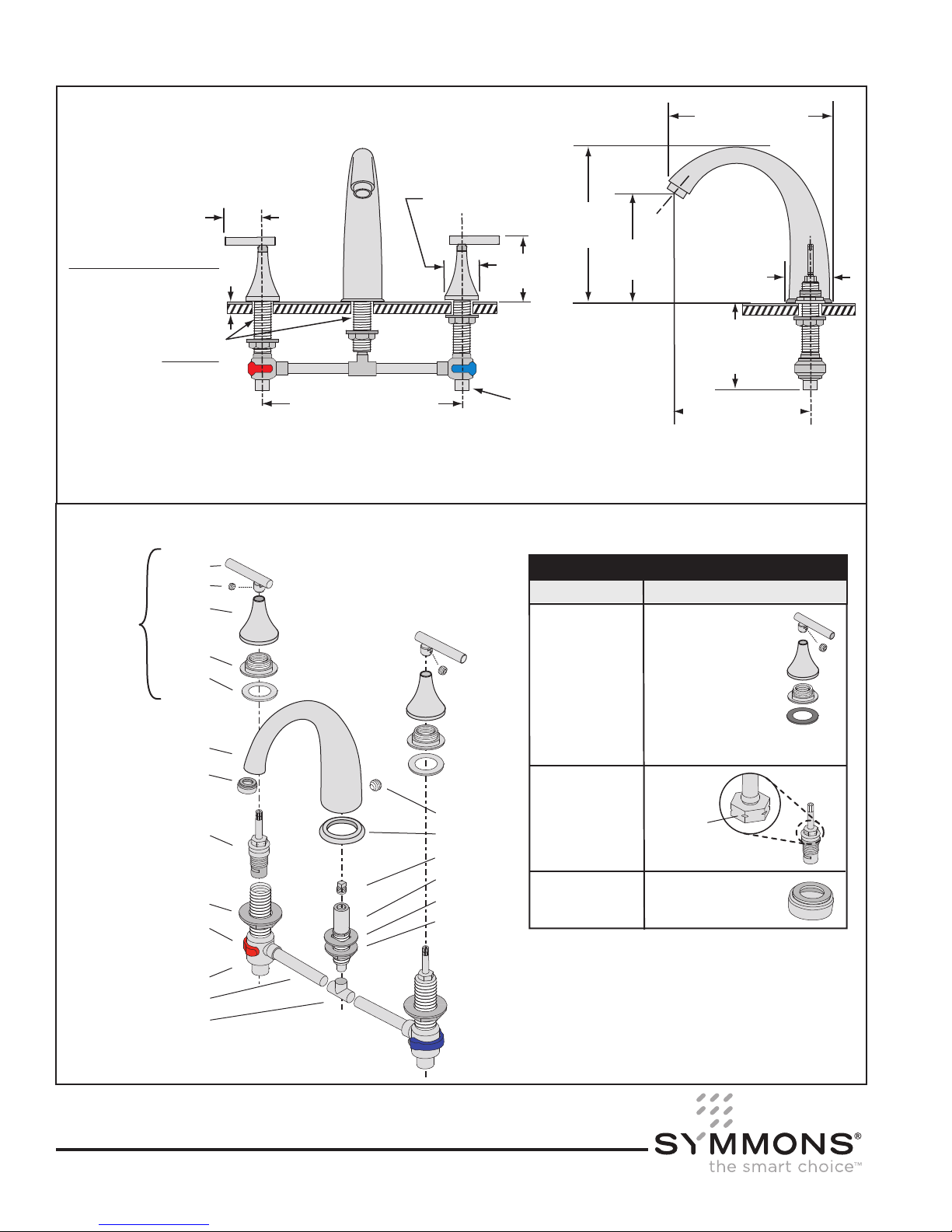

Dimensions Lucetta Roman Tub Faucet, SRT-4670
2-1/16" (52 mm) dia.
2-3/8"
(60 mm)
Finished deck thickness
1-3/8" (35 mm) max.
(1)
3-3/8" (86 mm) max.
for TT style faucet
1" dia. (25 mm)
Hole size
1-1/16" (27 mm) min.
1-1/2" (38 mm) max.
Note
(
1) Use TT style faucet if deck thickness is 1-3/8" to 3-3/8" (35 mm - 86 mm).
Contact Symmons customer service to special order TT style faucet, model number SRT-4670-TT-BDY.
(2) Dimensions subject to change without notice.
with Symmons supplied copper tubing
8" (203 mm) min.
18-1/4" (464 mm) max
4"
101 mm
Connect using
1/2" copper tubing
8-7/8"
225 mm
6-3/16"
158 mm
9-3/8" (238 mm)
67 mm dia.
3-15/16" (101mm)
5-15/16" (151mm)
TT style faucet
*
7-11/16" (196 mm)
Parts Assembly Lucetta Roman Tub Faucet, SRT-4670
2-5/8"
Reference
table
valve cartridge
reference table
ange nut
hot/cold identier
valvebody
copper tubing
handle
screw
collar
fastener
gasket
spout
aerator
tee
screw
base
plug
centerbody
retainer
ange nut
Replacement Parts
Part Number Item (Qty)
handle (2)
RT-CYL-TP-KIT
2 handles
included
KN-114E (hot)
OFF = CW
KN-113E (cold)
OFF = CCW
RT-106*
Note: For decorative nish faucets append three
*
letter sufx code to parts marked with an asterisk (
Ordering replacement parts:
Call Symmons customer service at (800) 796-6667,
(781) 848-2250 M-F 8:00 am - 7:30 pm EST or
check our website at www.symmons.com for a
list of Symmons distributors.
*
fastener (2)
gasket (2)
Screw requires
5/64” Allen wrench
KN-113E
identified
by groove
valve cartridge
aerator
screw (2)
collar (2)
).
*
Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184
(800) 796-6667, (781) 848-2250
Website: www.symmons.com
©2008, 2009 Symmons Industries, Inc. Printed in U.S.A.
■ Fax (800) 961-9621, (781) 664-1300
■ Email: customerservice@symmons.com
■ ZV-576 ■ 121709
