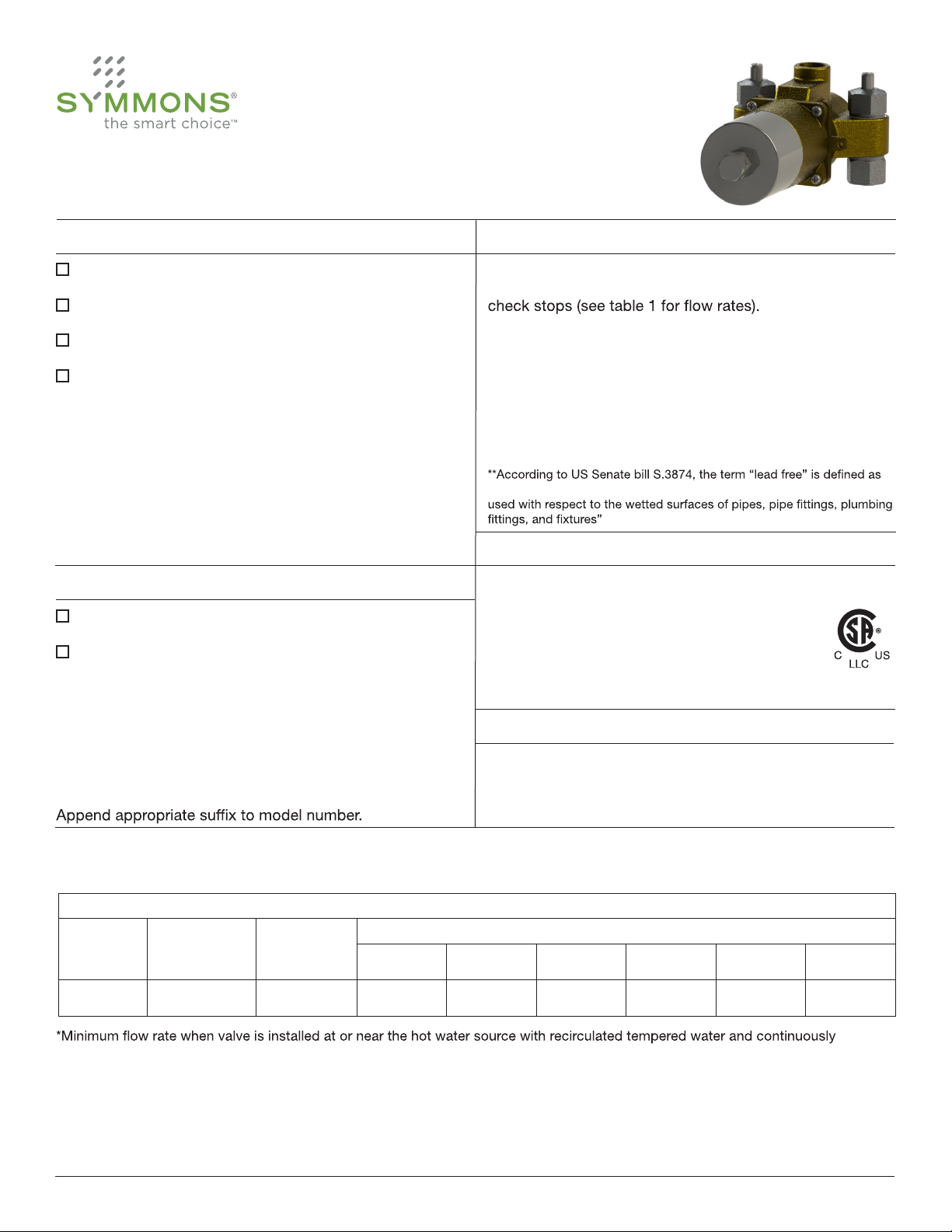

TempControl 7 Series
Specification Submittal
Coordinating Model Numbers Specification
HTA-100
SV-102
TF-102
WHA-1
Configurations
A
B
High temp audio/visual alarm system
Solenoid valve
Tee fitting
Water hammer arrestor
Valve and piping assembly
Valve and piping in cabinet
TempControl thermostatic mixing valve made from lead
free** metal components. Features serviceable integral
Temperature control range:
70°F - 150°F (21.1°C - 65.6°C)
Approach temperature: 5°F (-15°C)
follows: “not more than a weighted average of 0.25 percent lead when
Compliance
-ASME A112.18.1/CSA B125.1
-CSA B125.3
-ASSE 1017
-CA 116875 (AB 1953)
-NSF 372
-US S.3874
Note:
Valve Model Min. Flow Rate* Min. Flow Rate
7-102
operating circulating pump.
0.5 gpm
(1.9 L/min)
0.5 gpm
(1.9 L/min)
Warranty
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Table 1: Flow Rate - gpm (L/min)
5 psi
(34 kPa)
1 gpm
(4 L/min)
10 psi
(69 kPa)
3 gpm
(11 L/min)
Pressure Differential - psi (kPa)
20 psi
(138 kPa)
6 gpm
(23 L/min)
25 psi
(172 kPa)
7 gpm
27 L/min)
30 psi
(207 kPa)
8 gpm
(30 L/min)
45 psi
(310 kPa)
11 gpm
(42 L/min)
1
Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184 ■ (800)796-6667 ■ Fax: (800)961-9621
©2013 Symmons Industries, Inc.■ www.symmons.com ■ gethelp@symmons.com ■ ZV-1145 REV C 11/07/13
A
H C
7-102
TempControl 7 Series
Specification Submittal
Dimensions
TempControl Valve Sizes
Model No. Inlet Outlet
7-102 1/2” 1/2”
Measurements
Dimension 7-102
A 4 13/16”, 122 mm
B 9 1/4”, 235 mm
C 2 1/8”, 53 mm
D 3 3/8”, 86 mm
E 5/16”, 8 mm
B
C
D
Note:
Dimensions are subject to change without notice.
2
E
