Win slet™

Hand Towel Ring 513TR

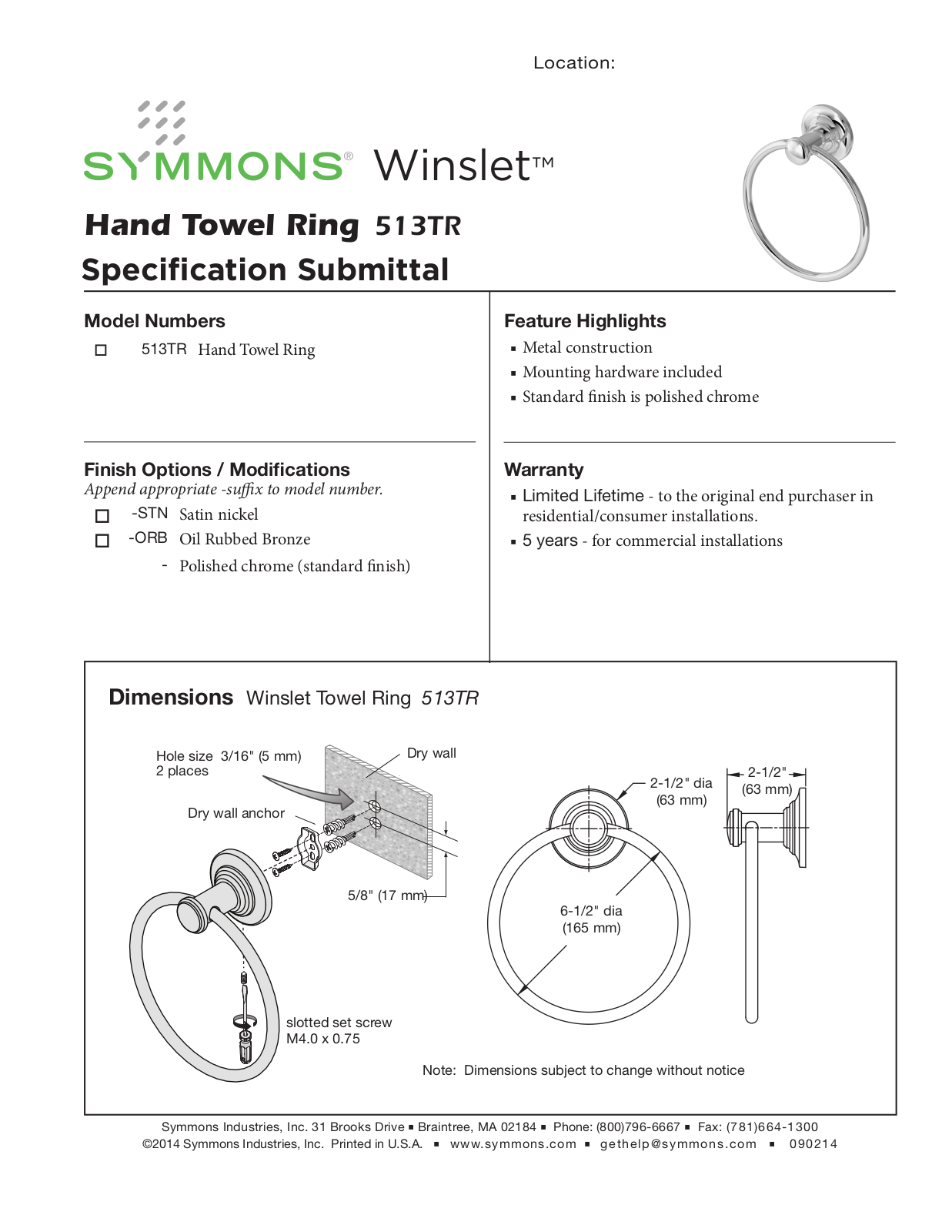

Specification Submittal

Location:

Model Numbers



513TR

Hand Towel Ring

Finish Options / Modifications

Append appropriate -sux to model number.




-STN

-ORB

Satin nickel

Oil Rubbed Bronze

-

Polished chrome (standard nish)

Dimensions Winslet Towel Ring 513TR

Hole size 3/16" (5 mm)
2 places

Dry wall anchor

Dry wall

Feature Highlights

■ Metal construction

■ Mounting hardware included

■ Standard nish is polished chrome

Warranty

■ Limited Lifetime - to the original end purchaser in

residential/consumer installations.

■ 5 years - for commercial installations

2-1/2" dia

(63 mm)

2-1/2"

(63 mm)

5/8" (17 mm)

6-1/2" dia

(165 mm)

slotted set screw
M4.0 x 0.75

Note: Dimensions subject to change without notice
