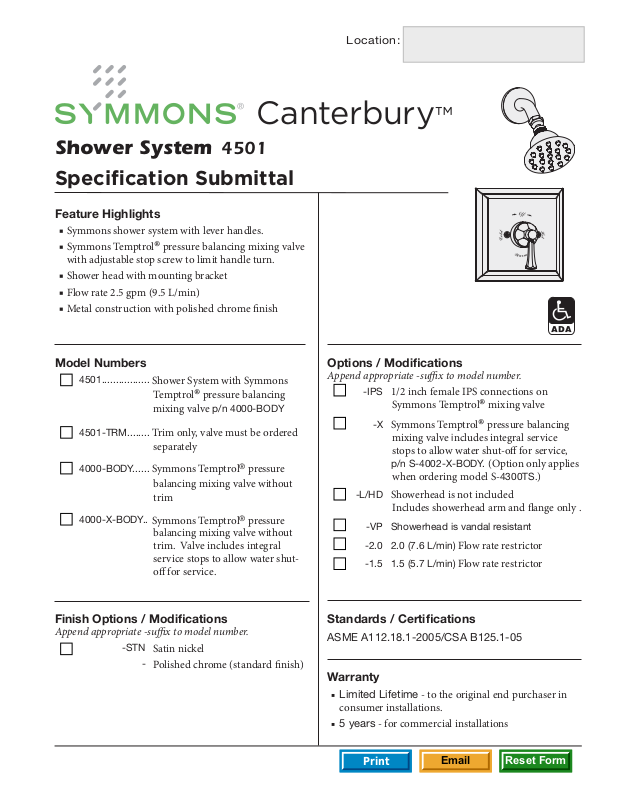

Page 1
Location:
Print
Email
Reset Form
Canterbury
Shower System
Specifi cation Submittal
Feature Highlights
Symmons shower system with lever handles. ■
Symmons Temptrol ■
with adjustable stop screw to limit handle turn.
Shower head with mounting bracket ■
Flow rate 2.5 gpm (9.5 L/min) ■
Metal construction with polished chrome nish ■
Model Numbers
4501.................
4501-TRM........
4000-BODY......
4000-X-BODY..
pressure balancing mixing valve
®
Shower System with Symmons
Te mp t ro l
mixing valve
Trim only, valve must be ordered
separately
Symmons Temptrol® pressure
balancing mixing valve without
trim
Symmons Temptrol® pressure
balancing mixing valve without
trim. Valve includes integral
service stops to allow water shuto for service.
4501
pressure balancing
®
p/n 4000-BODY
™
Options / Modifi cations
Append appropriate -su x to model number.
-IPS
-L/HD
1/2 inch female IPS connections on
Symmons Temptrol
-X
Symmons Temptrol® pressure balancing
mixing valve
stops to allow water shut-o for service,
p/n S-4002-X-BODY. (Option only applies
when ordering model S-
Showerhead is not included
Includes showerhead arm and ange only .
Showerhead is vandal resistant
-VP
-2.0
2.0 (7.6 L/min) Flow rate restrictor
-1.5
1.5 (5.7 L/min) Flow rate restrictor
includes integral service
mixing valve
®
4300TS.)
Finish Options / Modifi cations
Append appropriate -su x to model number.
-STN
Satin nickel
-
Polished chrome (standard nish)
Standards / Certifi cations
ASME A112.18.1-2005/CSA B125.1-05
Warranty
Limited Lifetime ■ - to the original end purchaser in
consumer installations.
5 years
■ - for commercial installations
Page 2
Dimensions Canterbury Shower System, 4501
5 1/8"
130mm
approx.
24"
7 1/2”
191mm
605mm
7 1/2”
191mm
6 5/8"
168mm
Note: Dimensions subject to change without notice.
Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184
(800) 796-6667, (781) 848-2250
Website: www.symmons.com
©2008 Symmons Industries, Inc. Printed in U.S.A.
■ Fax (800) 961-9621, (781) 664-1300
■ Email: customerservice@symmons.com
■ 052809 ■ SV-641
+
